1. Lai Yoong Seng
Senior Consultant | MVP Hyper-V
Yoongseng.lai@infrontconsulting.com | Infront
http://www.ms4u.info

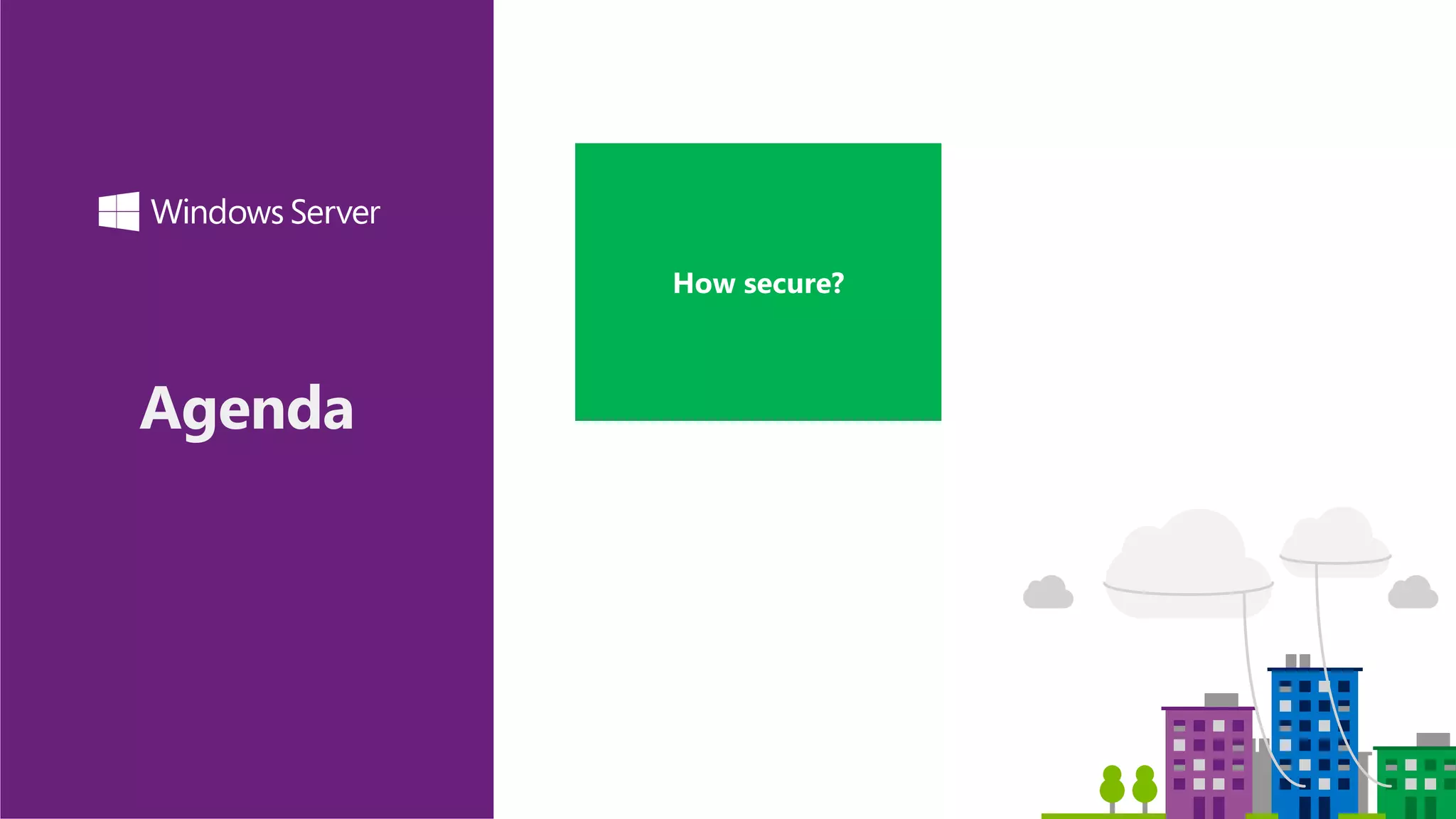

2. How secure?

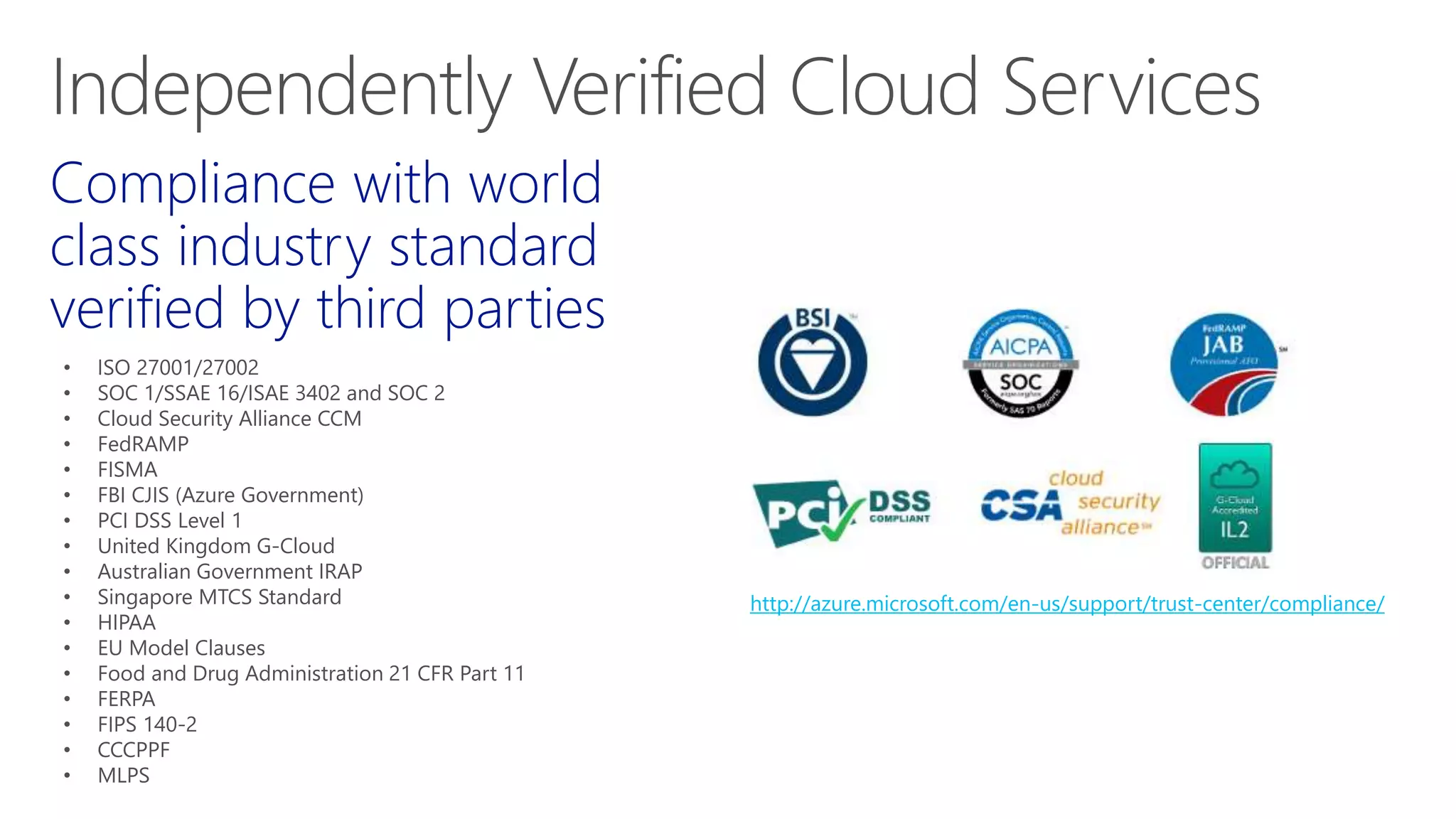

3. Compliance with world
class industry standard
verified by third parties
• ISO 27001/27002
• SOC 1/SSAE 16/ISAE 3402 and SOC 2
• Cloud Security Alliance CCM
• FedRAMP
• FISMA
• FBI CJIS (Azure Government)
• PCI DSS Level 1
• United Kingdom G-Cloud
• Australian Government IRAP
• Singapore MTCS Standard
• HIPAA
• EU Model Clauses
• Food and Drug Administration 21 CFR Part 11
• FERPA
• FIPS 140-2
• CCCPPF
• MLPS
http://azure.microsoft.com/en-us/support/trust-center/compliance/

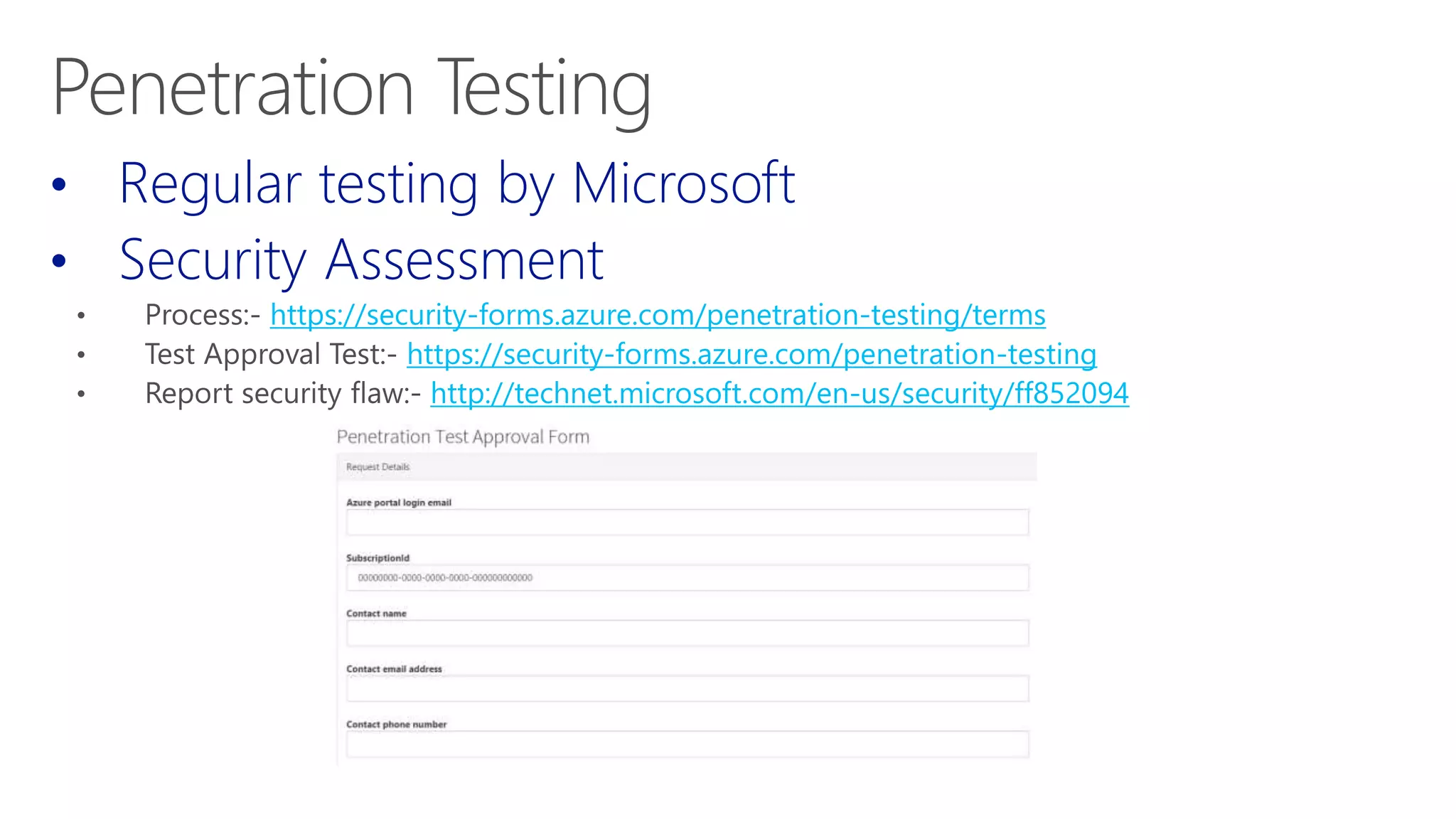

4. • Regular testing by Microsoft
• Security Assessment
https://security-forms.azure.com/penetration-testing/terms
https://security-forms.azure.com/penetration-testing
http://technet.microsoft.com/en-us/security/ff852094

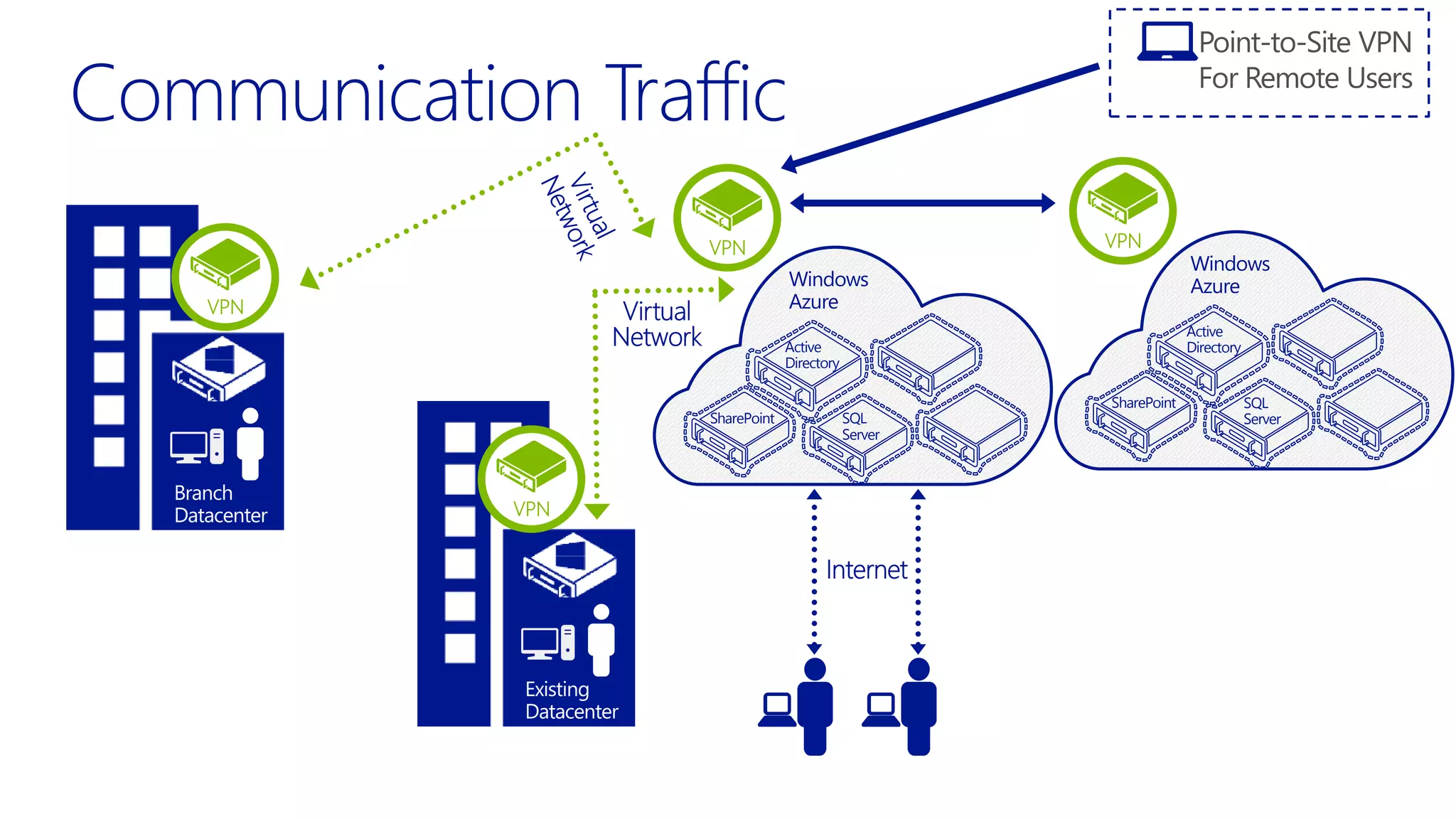

5. Existing
Datacenter
Active
Directory
SharePoint SQL
Server
Windows
Azure
Branch
Datacenter
Active
Directory
SharePoint SQL
Server
Windows
Azure
Point-to-Site VPN
For Remote Users

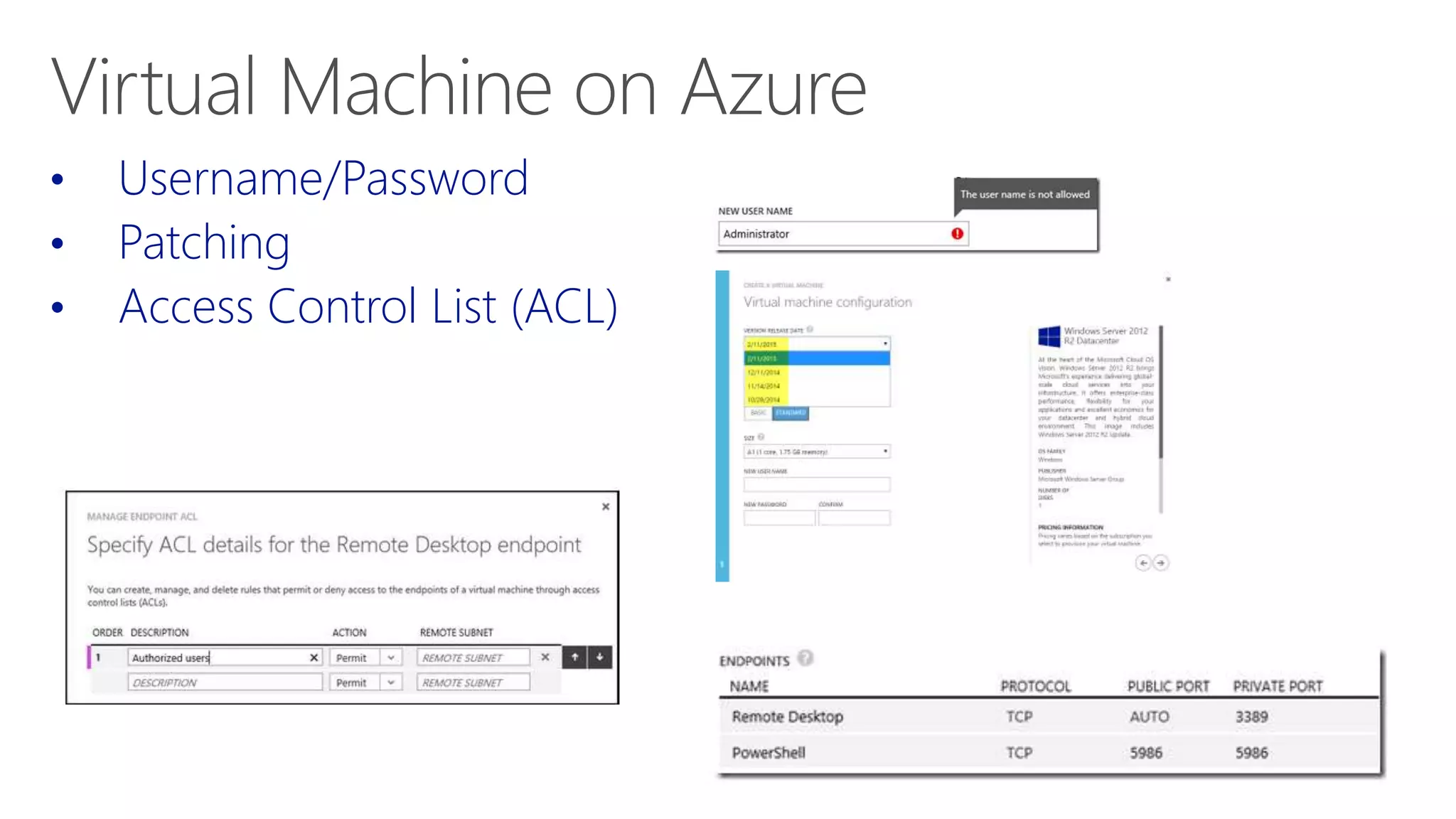

6. • Username/Password
• Patching
• Access Control List (ACL)

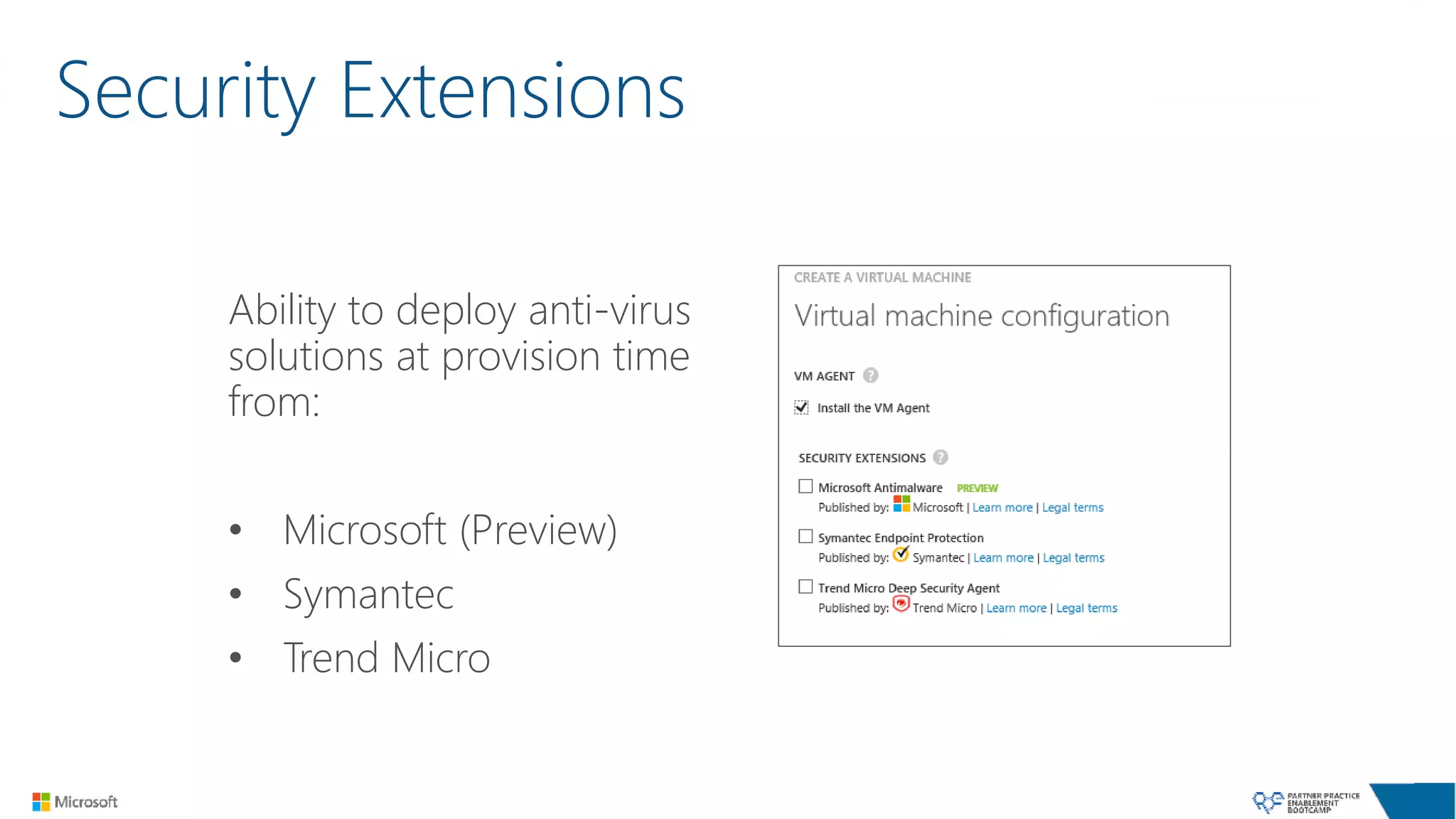

7. Security Extensions
Ability to deploy anti-virus
solutions at provision time
from:
• Microsoft (Preview)
• Symantec
• Trend Micro

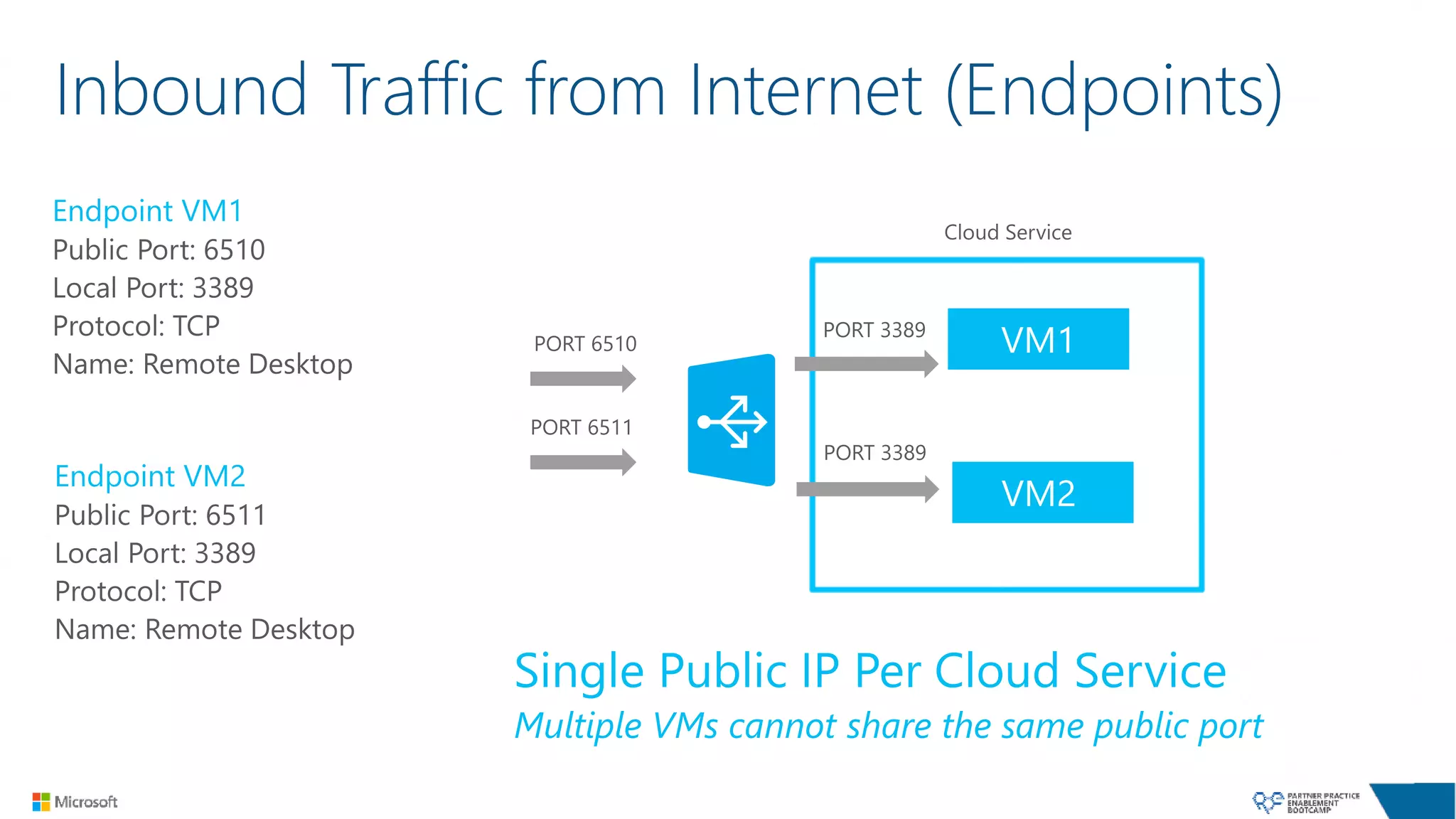

8. Inbound Traffic from Internet (Endpoints)

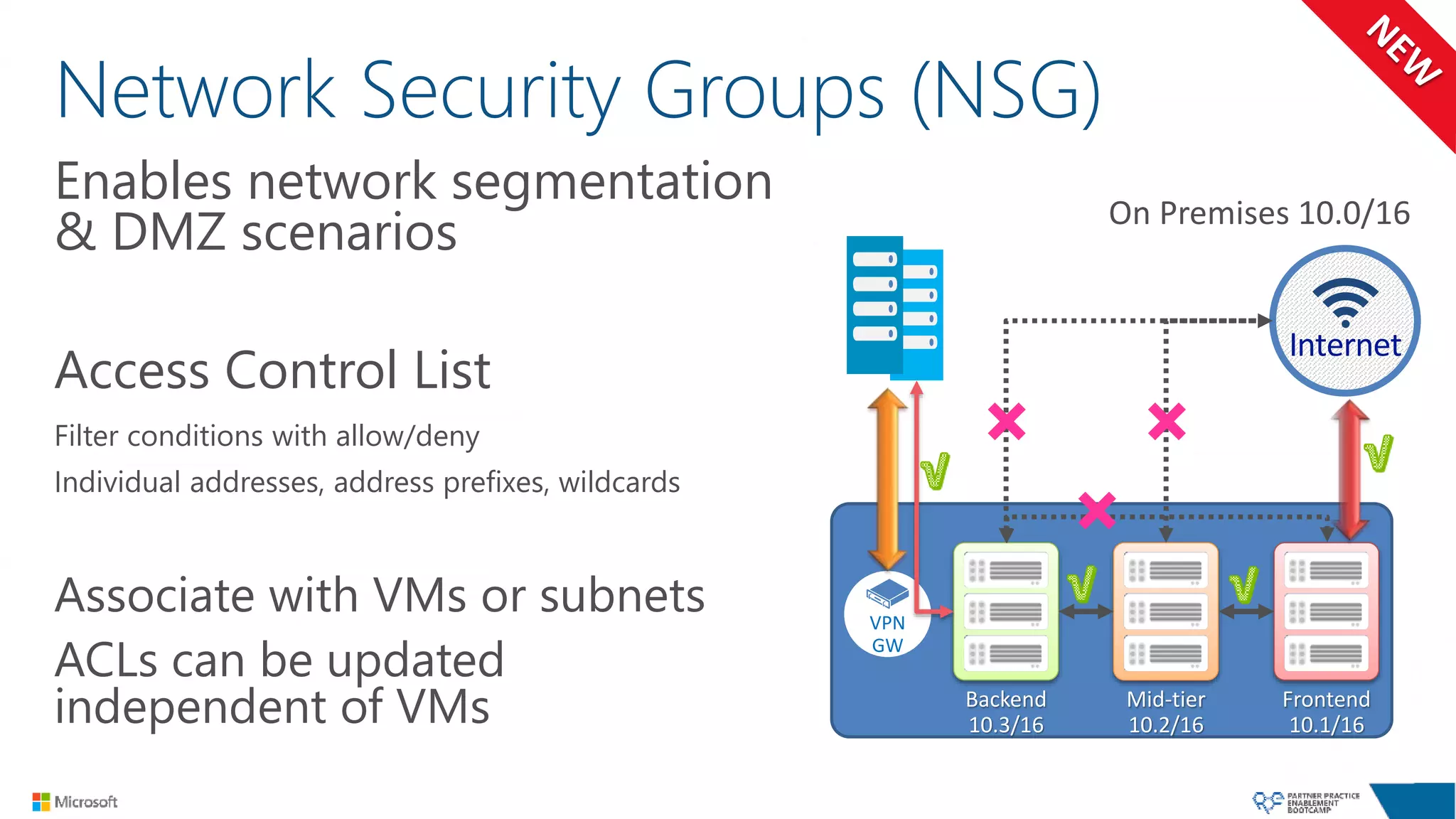

9. Network Security Groups (NSG)
Enables network segmentation
& DMZ scenarios
Access Control List
Filter conditions with allow/deny
Individual addresses, address prefixes, wildcards
Associate with VMs or subnets
ACLs can be updated
independent of VMs
Virtual Network
Backend
10.3/16
Mid-tier
10.2/16
Frontend
10.1/16
VPN
GW
Internet
On Premises 10.0/16
S2S
VPNs
Internet

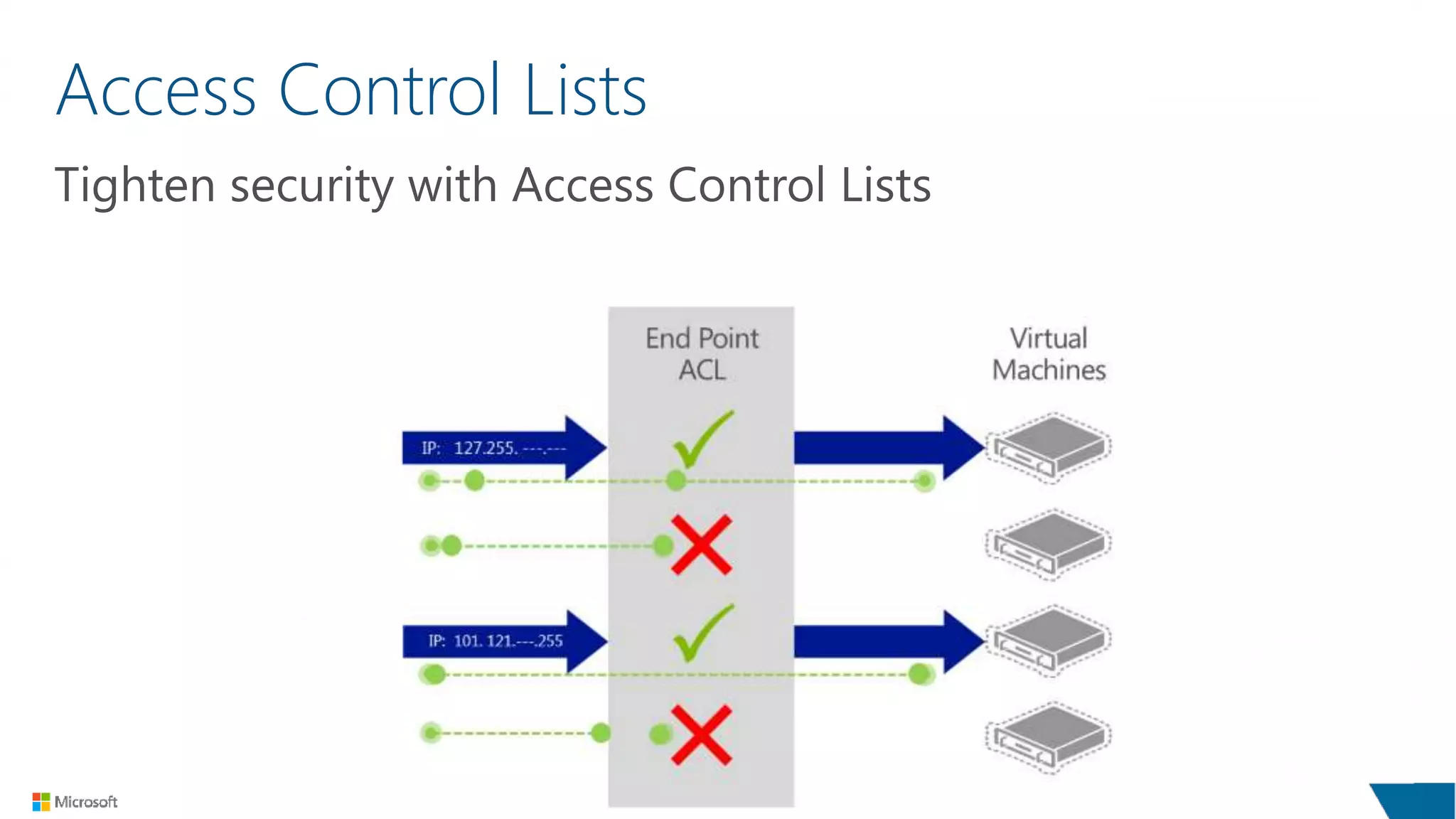

10. Access Control Lists
Tighten security with Access Control Lists

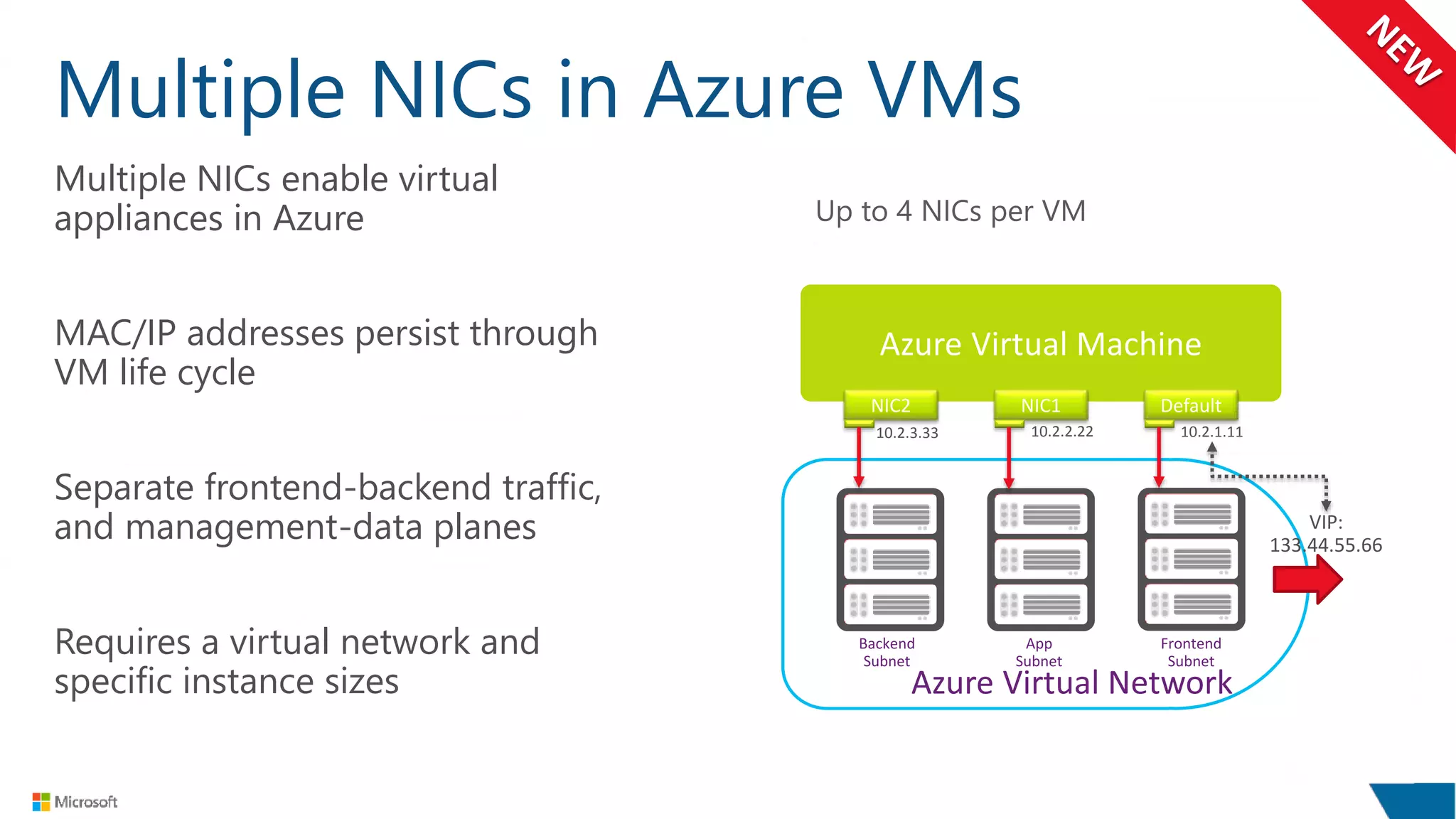

11. Multiple NICs in Azure VMs
Multiple NICs enable virtual
appliances in Azure
MAC/IP addresses persist through
VM life cycle
Separate frontend-backend traffic,
and management-data planes
Requires a virtual network and
specific instance sizes
Up to 4 NICs per VM
Azure Virtual Machine
NIC2 NIC1 Default
Internet
10.2.2.2210.2.3.33 10.2.1.11
VIP:
133.44.55.66

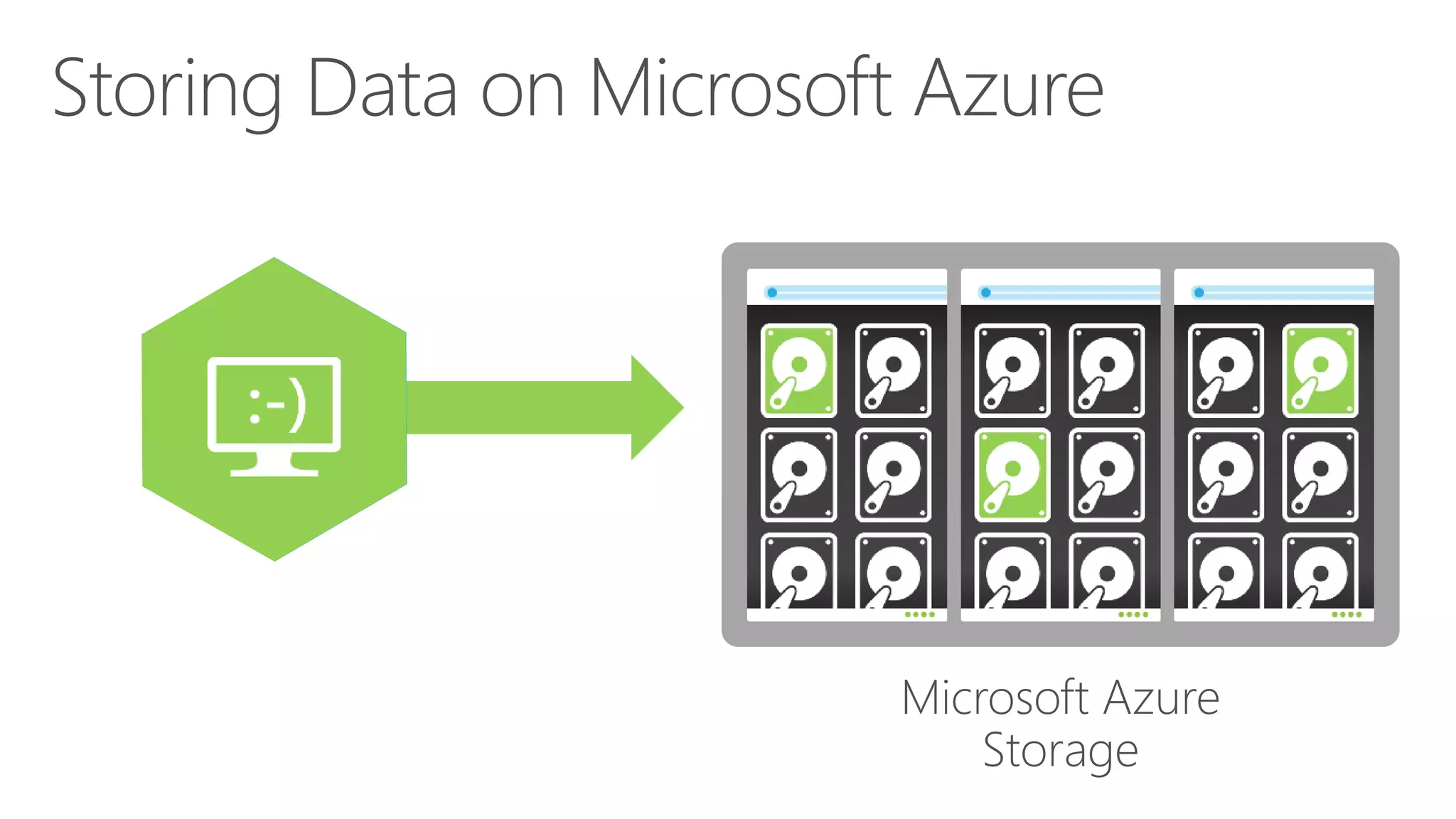

12. Microsoft Azure
Storage

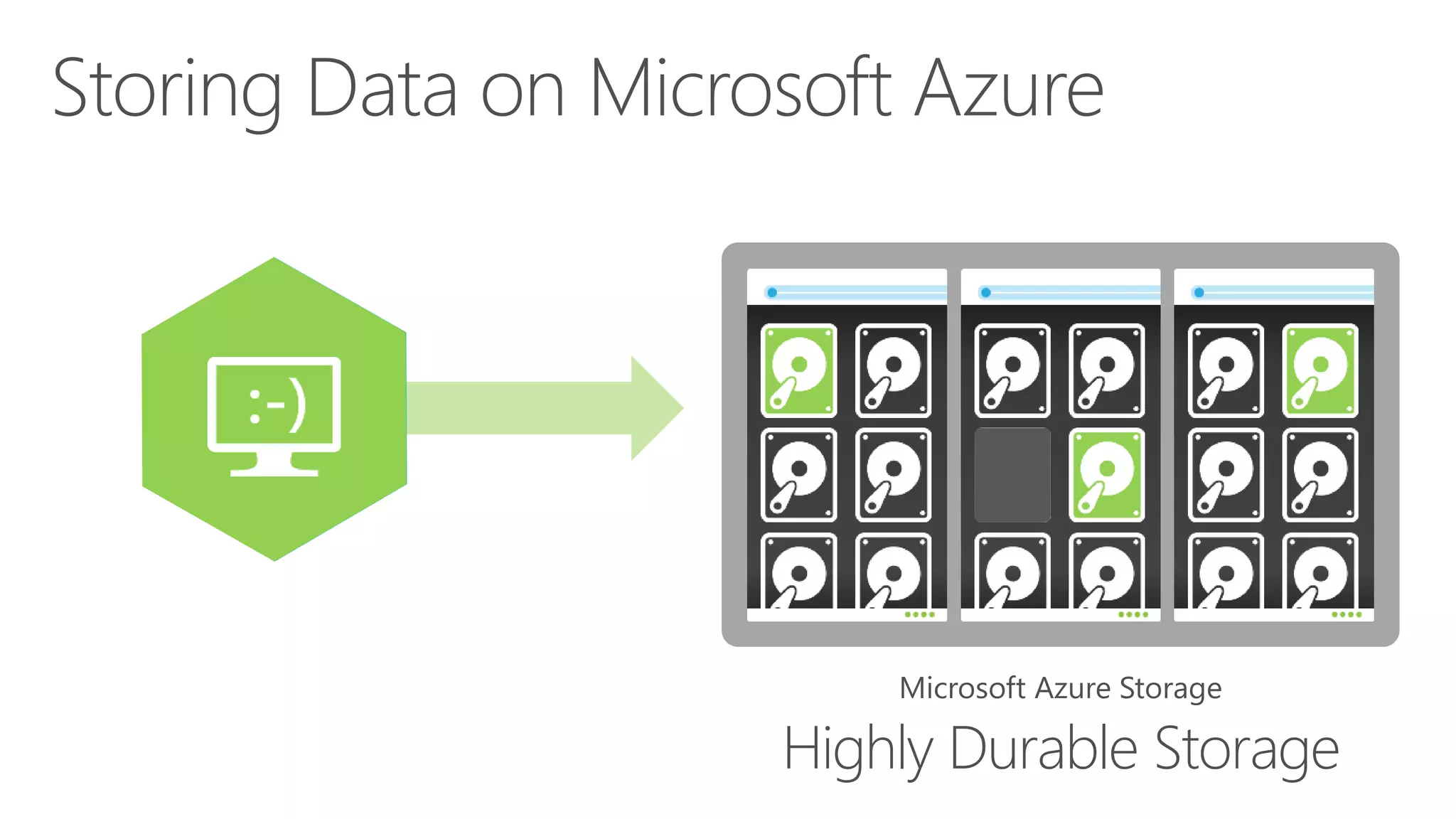

13. Microsoft Azure Storage
Highly Durable Storage

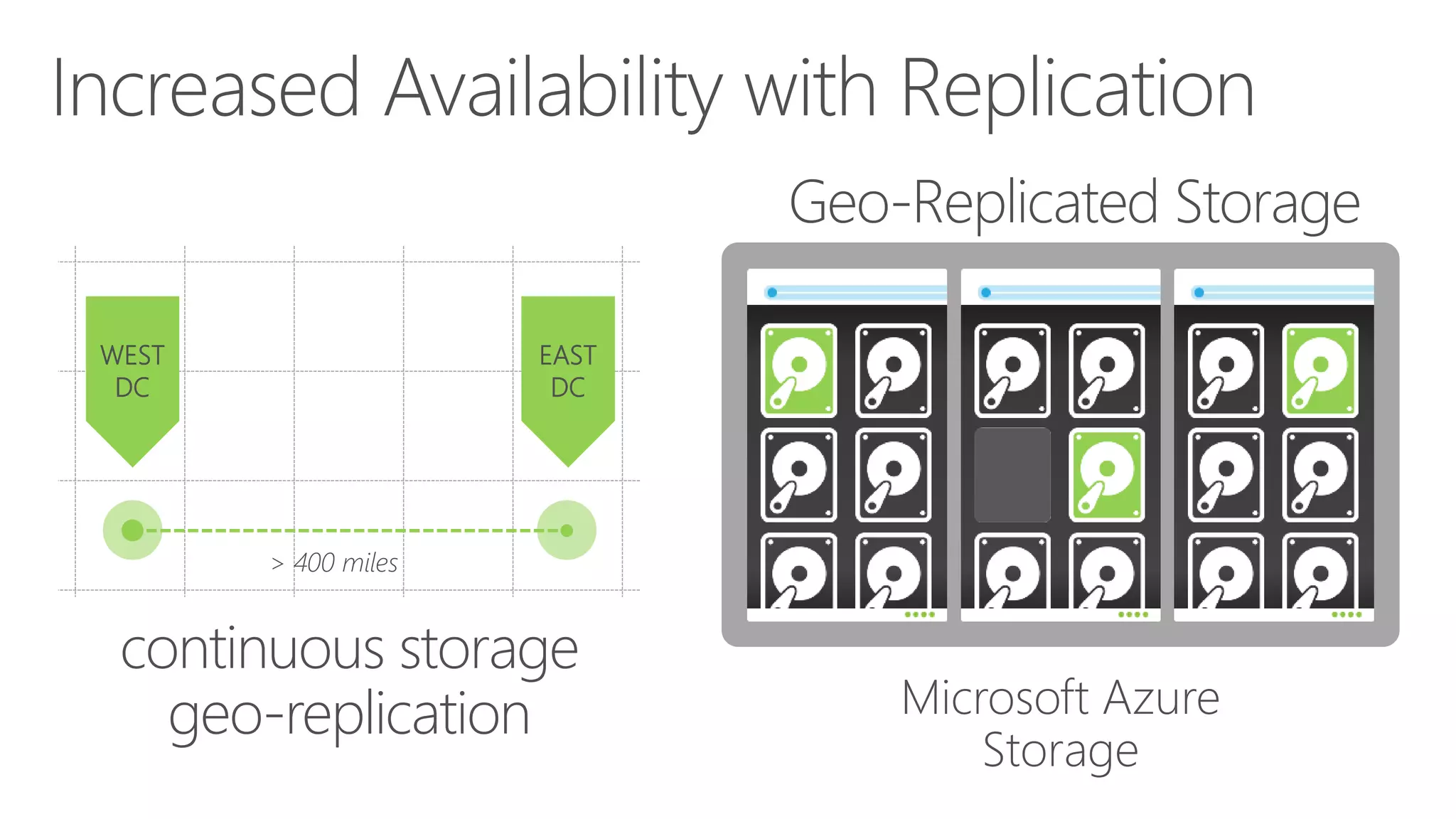

14. continuous storage
geo-replication
WEST
DC
EAST
DC
> 400 miles
Microsoft Azure
Storage
Geo-Replicated Storage

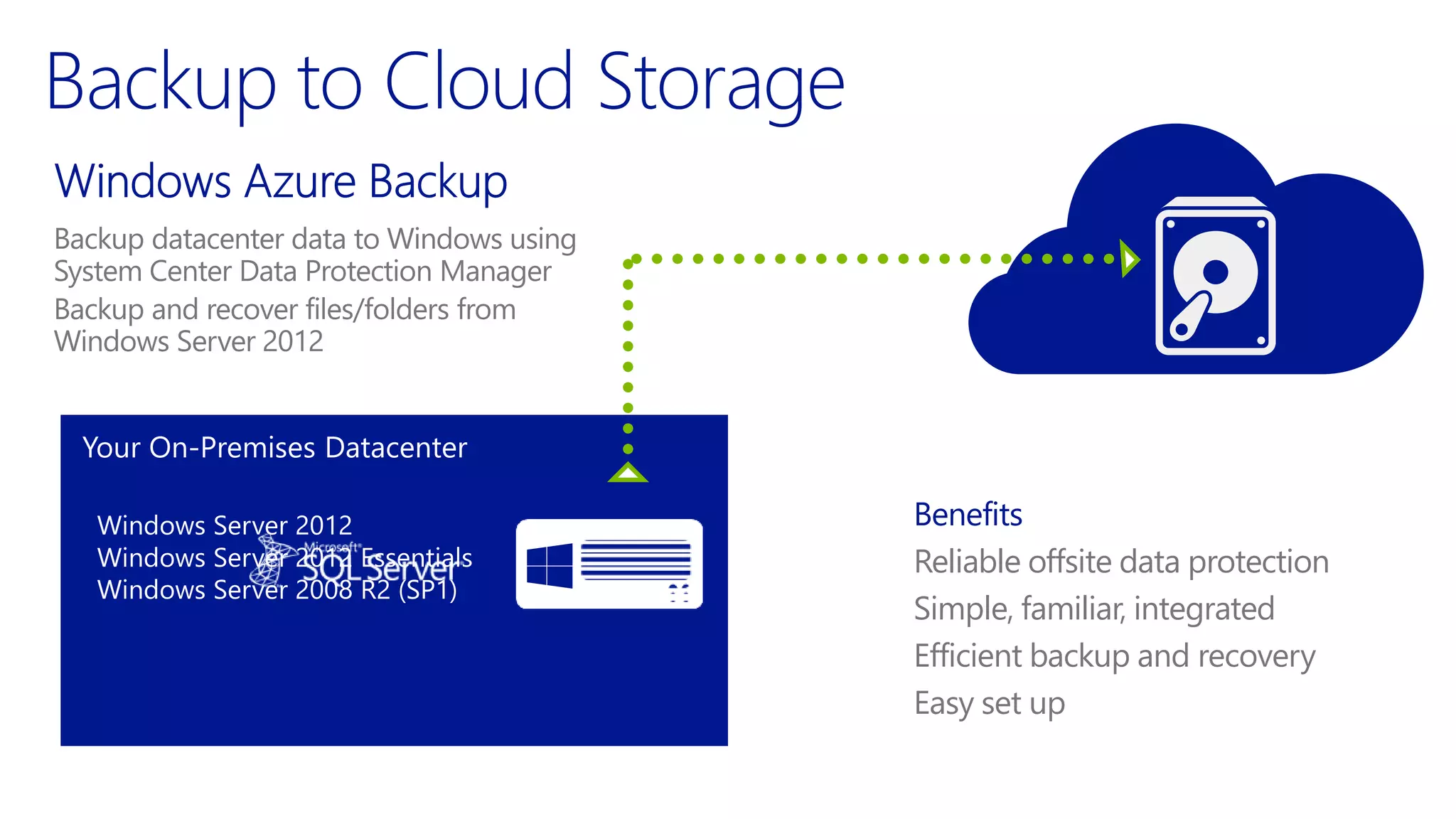

15. Backup datacenter data to Windows using
System Center Data Protection Manager
Backup and recover files/folders from
Windows Server 2012
Benefits
Reliable offsite data protection
Simple, familiar, integrated
Efficient backup and recovery
Easy set up
Your On-Premises Datacenter

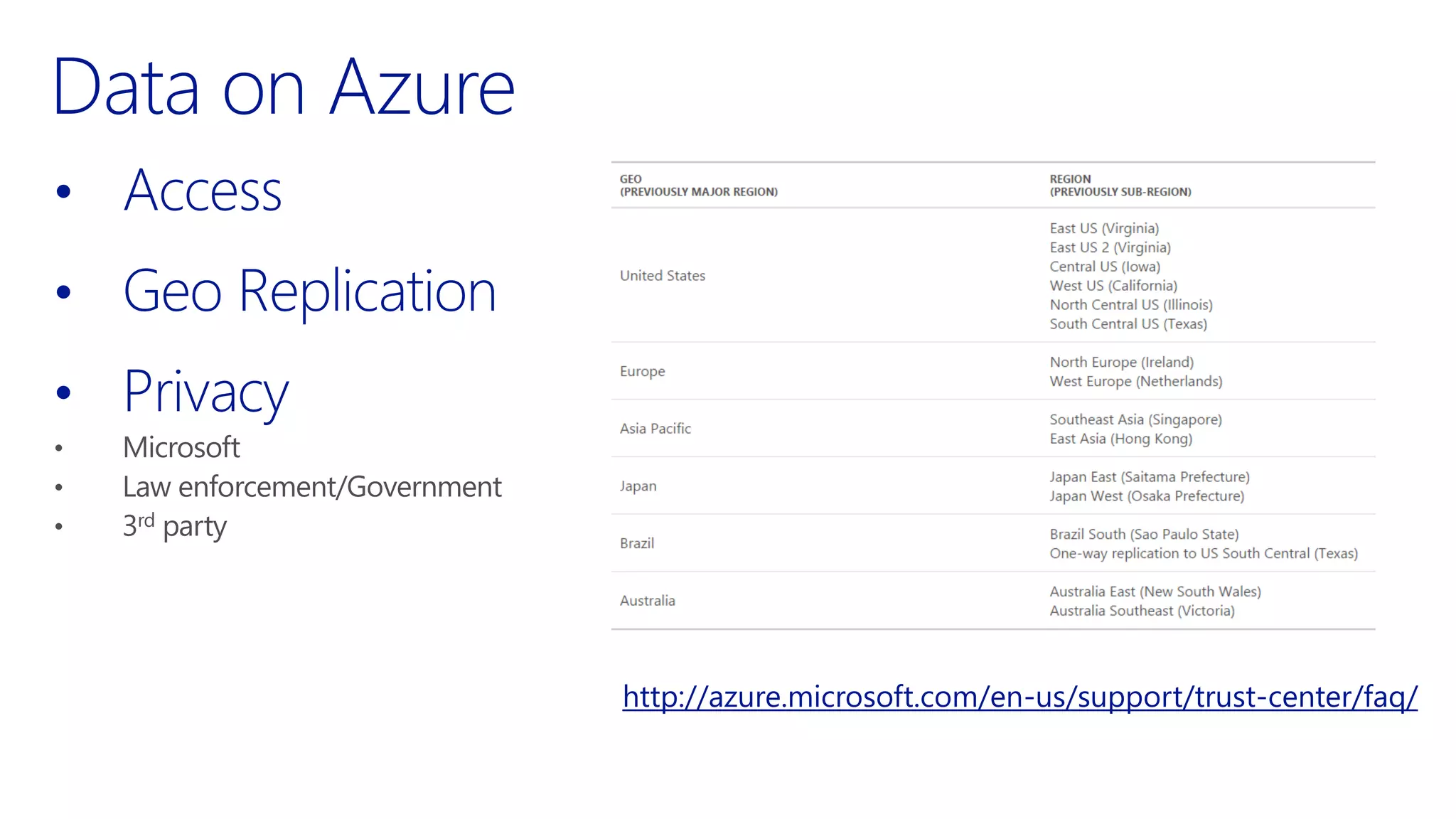

16. http://azure.microsoft.com/en-us/support/trust-center/faq/

18. www.ms4u.info
Virtual
Lai’s Blog
Q&A
Microsoft Azure Trust Center:-
http://azure.microsoft.com/en-
us/support/trust-center/security/
Azure Security, Privacy and
Compliance :-
http://go.microsoft.com/fwlink/?l
inkid=392408&clcid=0x409
Thank you
