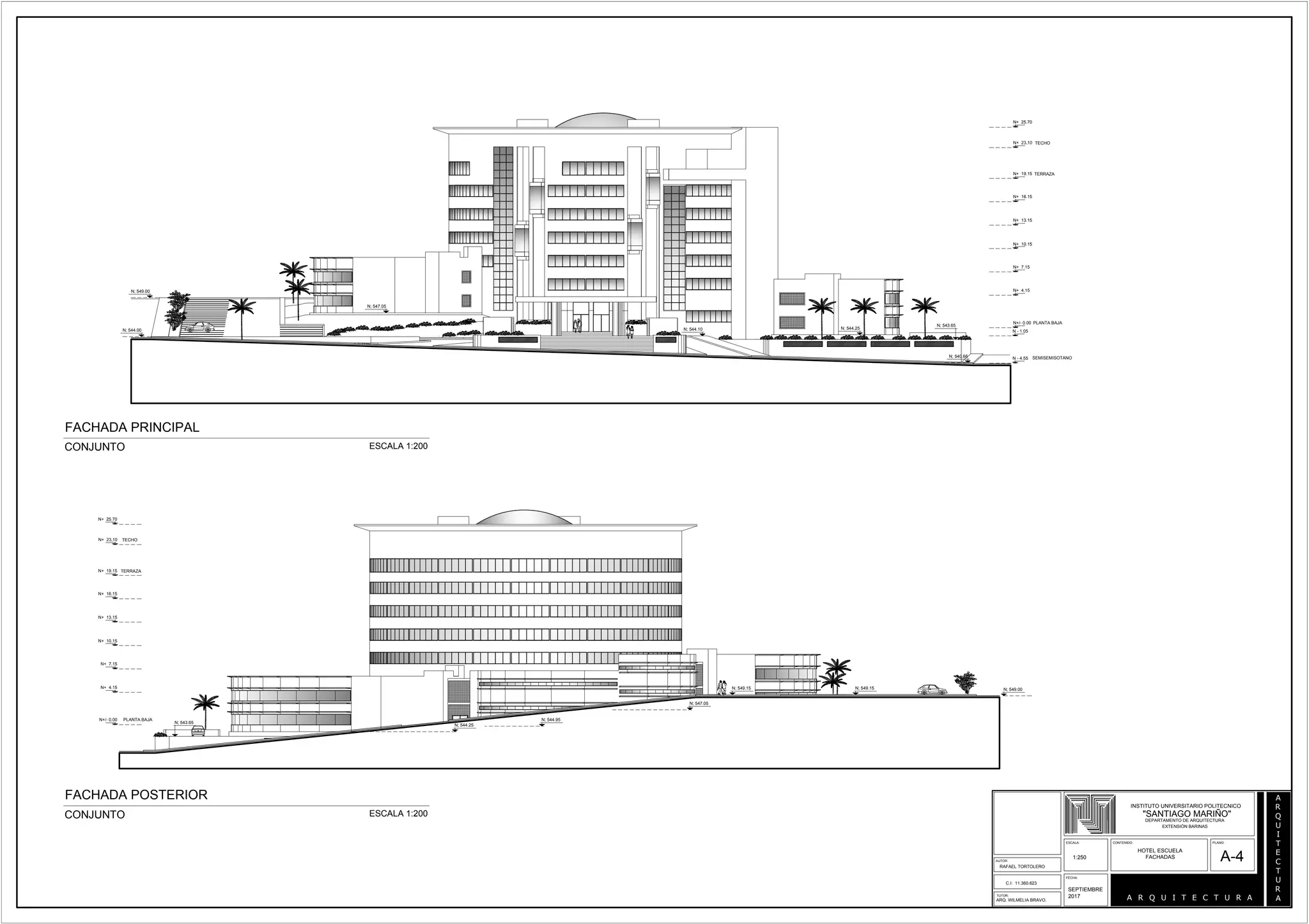

The document contains elevation measurements for different levels of a building including the roof, ground floor, terrace, and semi-basement. It also provides information about the scale, date, contents as a hotel school facade plan drawn by Rafael Tortolero and tutored by Wilmelia Bravo for the Polytechnic University Institute of Architecture department in September 2017.

1. TECHO
N+ 25.70
N+ 19.15
N+ 16.15
N+ 13.15
N+ 7.15
N+ 4.15
PLANTA BAJAN+/- 0.00
N+ 10.15
TERRAZA
N - 1.05
N - 4.55 SEMISEMISOTANO
N; 544.00
N; 549.00
N; 540.66
N; 547.05
N; 544.10 N; 544.25
N; 543.65
TECHO
N+ 25.70
N+ 19.15
N+ 16.15
N+ 13.15
N+ 7.15
N+ 4.15
PLANTA BAJAN+/- 0.00
N+ 10.15
TERRAZA
N; 549.00N; 549.15
N; 544.25
N; 543.65
N; 549.15
N; 544.95
N; 547.05
INSTITUTO UNIVERSITARIO POLITECNICO
DEPARTAMENTO DE ARQUITECTURA
ESCALA:
FECHA:
CONTENIDO: PLANO:
RAFAEL TORTOLERO
TUTOR:
AUTOR:
C.I: 11.360.623
HOTEL ESCUELA
FACHADAS A-4
A
R
Q
U
I
T
E
C
T
U
R
AA R Q U I T E C T U R A
1:250
ARQ. WILMELIA BRAVO.
SEPTIEMBRE
2017
ESCALA 1:200
FACHADA PRINCIPAL
CONJUNTO
ESCALA 1:200
FACHADA POSTERIOR
CONJUNTO
