The horizontal split case pump, also known as a double suction water pump, is widely used in various industries for its reliability, efficiency, and ability to handle large volumes of liquids. It features a unique design that enhances performance, reduces cavitation, and allows for easy maintenance, making it ideal for applications in commercial buildings, irrigation, and water treatment. With long service life and energy efficiency, these pumps provide a cost-effective solution for businesses seeking durable and effective pumping systems.

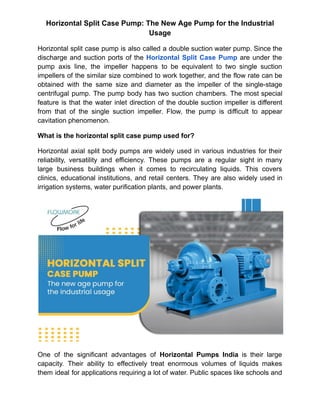

1. Horizontal Split Case Pump: The New Age Pump for the Industrial
Usage
Horizontal split case pump is also called a double suction water pump. Since the
discharge and suction ports of the Horizontal Split Case Pump are under the
pump axis line, the impeller happens to be equivalent to two single suction
impellers of the similar size combined to work together, and the flow rate can be
obtained with the same size and diameter as the impeller of the single-stage
centrifugal pump. The pump body has two suction chambers. The most special
feature is that the water inlet direction of the double suction impeller is different
from that of the single suction impeller. Flow, the pump is difficult to appear
cavitation phenomenon.
What is the horizontal split case pump used for?
Horizontal axial split body pumps are widely used in various industries for their
reliability, versatility and efficiency. These pumps are a regular sight in many
large business buildings when it comes to recirculating liquids. This covers
clinics, educational institutions, and retail centers. They are also widely used in
irrigation systems, water purification plants, and power plants.
One of the significant advantages of Horizontal Pumps India is their large
capacity. Their ability to effectively treat enormous volumes of liquids makes
them ideal for applications requiring a lot of water. Public spaces like schools and

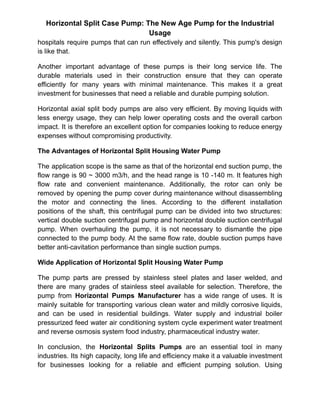

2. Horizontal Split Case Pump: The New Age Pump for the Industrial
Usage
hospitals require pumps that can run effectively and silently. This pump's design
is like that.
Another important advantage of these pumps is their long service life. The
durable materials used in their construction ensure that they can operate
efficiently for many years with minimal maintenance. This makes it a great
investment for businesses that need a reliable and durable pumping solution.
Horizontal axial split body pumps are also very efficient. By moving liquids with
less energy usage, they can help lower operating costs and the overall carbon
impact. It is therefore an excellent option for companies looking to reduce energy
expenses without compromising productivity.
The Advantages of Horizontal Split Housing Water Pump
The application scope is the same as that of the horizontal end suction pump, the
flow range is 90 ~ 3000 m3/h, and the head range is 10 -140 m. It features high
flow rate and convenient maintenance. Additionally, the rotor can only be
removed by opening the pump cover during maintenance without disassembling
the motor and connecting the lines. According to the different installation
positions of the shaft, this centrifugal pump can be divided into two structures:
vertical double suction centrifugal pump and horizontal double suction centrifugal
pump. When overhauling the pump, it is not necessary to dismantle the pipe
connected to the pump body. At the same flow rate, double suction pumps have
better anti-cavitation performance than single suction pumps.
Wide Application of Horizontal Split Housing Water Pump
The pump parts are pressed by stainless steel plates and laser welded, and
there are many grades of stainless steel available for selection. Therefore, the
pump from Horizontal Pumps Manufacturer has a wide range of uses. It is
mainly suitable for transporting various clean water and mildly corrosive liquids,
and can be used in residential buildings. Water supply and industrial boiler
pressurized feed water air conditioning system cycle experiment water treatment
and reverse osmosis system food industry, pharmaceutical industry water.
In conclusion, the Horizontal Splits Pumps are an essential tool in many
industries. Its high capacity, long life and efficiency make it a valuable investment
for businesses looking for a reliable and efficient pumping solution. Using

3. Horizontal Split Case Pump: The New Age Pump for the Industrial
Usage
horizontal split casing pumps can help businesses save money and reduce their
environmental impact while keeping their operations running smoothly.
