Hartmann tresore-hotel-catalogue-2013
HARTMANN TRESORE AG is a leading supplier of safes and minibars for the hotel industry, with products including room safes, minibars, door locking systems, drop safes, and key issuance units. The company was founded over 200 years ago and has established sites across Europe and the Middle East. HARTMANN provides innovative security solutions and aims to be a one-stop-shop for all hotel security and minibar needs.
More Related Content
Similar to Hartmann tresore-hotel-catalogue-2013
Hartmann tresore-hotel-catalogue-2013
- 1. Minibars Door Locking Systems Dropand Deposit Safes Room Safes Locker Units Paderborn • Berlin • Hamburg • Dusseldorf • Cologne • Paris • Milan • Warsaw • Zurich • Winterthur • Dubai • St. Petersburg • Kiev HARTMANN TRESORE AG HARTMANN TRESORE Security Solutions and Minibars for the Hotel Industry Key Issuance Units Back Office Safes
- 2. Safes and Minibarsfor the Hotel Industry 2 HARTMANNTRESORE HARTMANN TRESOREAG HARTMANN TRESORE AG is a company with a rich heritage. The company was foun- ded as a blacksmiths and cartwright company more than two hundred years ago and went on to specialise in safes in 1983. HARTMANN TRESORE AG, in the meanwhile, has gone on to establish itself as one of the leading suppliers of safes of all kinds. It has sites in Europe and the Middle East. As specialists for hotel and room safes, we have provided some of the top hotel chains in the world with more than 500,000 safes. Our product range includes room safes, minibars, door locking systems, drop and deposit safes, locker units, back office safes and key issuance units. Hoteliers are therefore able to obtain safes and minibars at an optimal price-performance ratio all from one single source: HARTMANN. Quality and Service More than 100,000 customers worldwide place confidence in our innovative ideas and expertise: a combination that can be trusted. There is no such thing as “no can do!” This motto has a tradition within the company. Alongside our standard range and by special request, we also offer individual solutions and special constructions as required by our customers. We are your competent partners from the first noncommittal consultation – on site if desired – right up to the complete planning and execution phase. Short delivery times and a Europe-wide service complement our comprehensive service package. Our customer care service will be there to support you long after you have purchased with us. We are there at your side – for sure! European Security Systems Association (ESSA) e.V. Certification body accredited according to EN 45011 for security products
- 3. 3 Contents Contents HARTMANN TRESORE RoomSafes pages 4 ff Digital Safe Model HS 711-01 4 Digital Laptop Safes Series HS 709 5 Digital Laptop Safes Series HS 420 5 Digital Laptop Safes Series HS 710 „Black Edition“ 6 Top Open Safe Model HS 450-01 8 Digital Laptop Safes Series HS 910 10 Digital Laptop Safes Series HS SOLID 12 Digital Laptop Safes Series HS EXTREME 13 Top Open Safe Modell HS TIARA II 14 UltiMax Service Unit for HS SOLID, EXTREME, TIARA II 15 Minibars pages 16 ff Minibar Model HTM T 24-01 FD 17 Minibar Model HTM T 30-01 FD 18 Minibar Model HTM T 30-02 FD 19 Minibar Model HTM T 40-01 FD/GD 20 Minibar Model HTM A 60-01 FD 21 Door Locking Systems pages 22 ff Door Locking Systems Series HDL MF 22 Door Locking Systems Series HDL MF functionality 23 Drop and Deposit Safes pages 24 ff Drawer Safes Series SP 24 Security Compartment Modules for Series SP 25 Drawer Safes Series HTDP 26 Drop Safes Serie HS 510 27 Locker Units pages 28 ff Sample Locker Units with stainless steel finish 28 Sample Locker Units with lacquered finish 30 Locker Unit WTS 060-01 30 Key Issuance Units pages 31 ff Key Issuance-System Model HTS 315-01 31 Key Issuance-System Model HTS 101-01 31 Key Cabinets Series HTS 105 32 Key Cabinets Series HTS 107 32 Key Cabinets Series HTS 114 33 Key Cabinets Series HTS 120 33 Back Office Safes pages 34 ff Security Safes Series F 104 34 Security Safes Series PDE 34 Data Media Safes Series HTFA 080 35 Data Media Safes Series HTFI 190 35

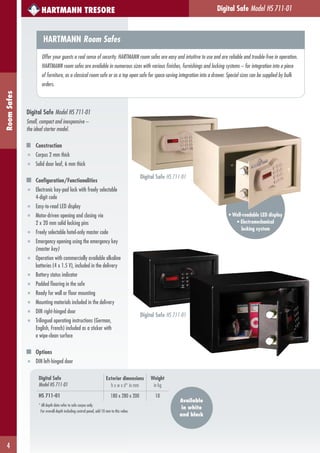

- 4. 4 RoomSafes HARTMANN TRESORE HARTMANNRoom Safes Offer your guests a real sense of security. HARTMANN room safes are easy and intuitive to use and are reliable and trouble-free in operation. HARTMANN room safes are available in numerous sizes with various finishes, furnishings and locking systems – for integration into a piece of furniture, as a classical room safe or as a top open safe for space-saving integration into a drawer. Special sizes can be supplied by bulk orders. Digital Safe Model HS 711-01 • Well-readable LED display • Electromechanical locking system Digital Safe Model HS 711-01 Small, compact and inexpensive – the ideal starter model. Construction ■ Corpus 2 mm thick ■ Solid door leaf, 6 mm thick Configuration/Functionalities ■ Electronic key-pad lock with freely selectable 4-digit code ■ Easy-to-read LED display ■ Motor-driven opening and closing via 2 x 20 mm solid locking pins ■ Freely selectable hotel-only master code ■ Emergency opening using the emergency key (master key) ■ Operation with commercially available alkaline batteries (4 x 1.5 V), included in the delivery ■ Battery status indicator ■ Padded flooring in the safe ■ Ready for wall or floor mounting ■ Mounting materials included in the delivery ■ DIN right-hinged door ■ Trilingual operating instructions (German, English, French) included as a sticker with a wipe-clean surface Options ■ DIN left-hinged door Digital Safe HS 711-01 Digital Safe Model HS 711-01 Exterior dimensions h x w x d* in mm Weight in kg HS 711-01 180 x 280 x 200 10 * All depth data refer to safe corpus only. For overall depth including control panel, add 10 mm to this value. Available in white and black Digital Safe HS 711-01
- 5. 5 RoomSafes Digital Laptop SafesSeries HS 709/ Series HS 710 Digital Laptop Safes Series HS 709/ Series HS 710 Exterior dimensions h x w x d* in mm Weight in kg HS 709-02 Laptop Safe 230 x 420 x 380 16 HS 709-04 Laptop Safe 230 x 370 x 450 16 HS 710-02 Laptop Safe „Black Edition“ 230 x 420 x 380 16 HS 710-04 Laptop Safe „Black Edition“ 230 x 370 x 450 16 * All depth data refer to safe corpus only. For overall depth including control panel, add 10 mm to this value. Optional: DIN left-hinged door Digital Laptop Safe HS 709-02 Laptop Safe 15" HARTMANN TRESORE Digital Laptop Safes Series HS 709 Suitable for 15-inch notebooks Construction ■ Corpus 2 mm thick ■ Solid door leaf, 5 mm thick Configuration/Functionalities ■ Electronic key-pad lock with freely selectable 4-digit code ■ Easy-to-read LED display ■ Motor-driven opening and closing via 2 x 20 mm solid locking pins ■ Freely selectable hotel-only master code ■ Emergency opening using the emergency key (master key) ■ Operation with commercially available alkaline batteries (4 x 1.5 V), included in the delivery ■ Battery status indicator ■ Colour: white ■ Padded flooring in the safe ■ Ready for wall or floor mounting ■ Mounting materials included in the delivery ■ DIN right-hinged door ■ Trilingual operating instructions (German, English, French) included as a sticker with a wipe-clean surface Options ■ DIN left-hinged door Digital Laptop Safes Special edition HS 710-02 / -04 „Black Edition“ Configuration/Functionalities See HS 709 and additionally: ■ Upon activation using a freely selectable key, the keypad is illuminated in green for 5 seconds ■ Storage of the last 100 operation entries of the safe with date and time ■ Reader unit incl. software ■ Colour: black Digital Laptop Safe HS 710-02 „Black Edition“ Special edition HS 710 „Black Edition“ Laptop Safe 15"
- 6. Digital Laptop SafesSeries HS 420 6 RoomSafes Laptop Safes Series HS 420 Exterior dimensions h x w x d* in mm Weight in kg HS 420-01 Digital Safe 200 x 350 x 270 10 HS 420-02 Laptop Safe 200 x 420 x 370 12 HS 420-03 Laptop Safe 200 x 460 x 380 15 HS 420-04 Laptop Safe 190 x 395 x 450 12 HS 420-05 Superlaptop Safe 190 x 508 x 380 15 * All depth data refer to safe corpus only. For overall depth including control panel, add 10 mm to this value. Easy-to-use keypad lock Laptop Safe 15" HARTMANN TRESORE Digital Laptop Safe HS 420-02 Digital Laptop Safe HS 420-01 Suitable for the new generation of iPads Digital Laptop Safes Series HS 420 Also available as a Superlaptop Safe for 17-inch notebooks! Construction ■ Corpus 2 mm thick ■ Solid door leaf, 5 mm thick Configuration/Functionalities ■ Electronic key-pad lock with freely selectable 6-digit code ■ Easy-to-read LED display ■ Storage of the last 100 operation entries of the safe ■ Motor-driven opening and closing via 2 x 20 mm solid locking pins ■ Freely selectable hotel-only master code ■ Emergency opening using the emergency key (master key) ■ Operation with commercially available alkaline batteries (4 x 1.5 V), included in the delivery ■ Battery status indicator ■ Padded flooring in the safe ■ Ready for wall or floor mounting ■ Mounting materials included in the delivery ■ Colour: “dark grey” (powder coated) ■ DIN right-hinged door ■ Trilingual operating instructions (German, English, French) included as a sticker with a wipe-clean surface Options ■ DIN left-hinged door ■ Reader unit incl. software
- 7. 7 RoomSafes Digital Laptop SafesSeries HS 420 HARTMANN TRESORE Suitable for 15,6" widescreen laptops! Digital Laptop Safe HS 420-05 Image: with DIN left-hinged door Superlaptop Safe 17" Digital Laptop Safe HS 420-03 Laptop Safe 15,6" For laptops with 13" to 17" screen size Interior floor is padded modern design well-readable display bolt locking system
- 8. Top Open SafeModel HS 450-01 8 RoomSafes Top Open Safe Model HS 450-01 Exterior dimensions h x w x d in mm Weight in kg HS 450-01 Top Open Safe 180 x 380 x 390 15 Easy-to-use keypad Practical access from the top HARTMANN TRESORE Top Open Safe HS 450-01 Laptop Safe 15" Top Open Safe Model HS 450-01 The top open safe can be fitted into a drawer to save space. Ergonomic with a comfortable overview! Construction ■ Corpus 2 mm thick ■ Solid door leaf, 5 mm thick Configuration/Functionalities ■ Electronic key-pad lock with freely selectable 6-digit code ■ Easy-to-read LED display ■ Storage of the last 100 operation entries of the safe ■ Motor-driven opening and closing via 2 x 20 mm solid locking pins ■ Freely selectable hotel-only master code ■ Emergency opening using the emergency key (master key) ■ Operation with commercially available alkaline batteries (4 x 1.5 V), included in the delivery ■ Battery status indicator ■ Padded flooring in the safe ■ Ready for wall or floor mounting ■ Mounting materials included in the delivery ■ Colour: “dark grey” (powder coated) ■ Trilingual operating instructions (German, English, French) included as a sticker with a wipe-clean surface Options ■ Reader unit incl. software ■ 220 V socket to recharge laptops, mobile phones etc.

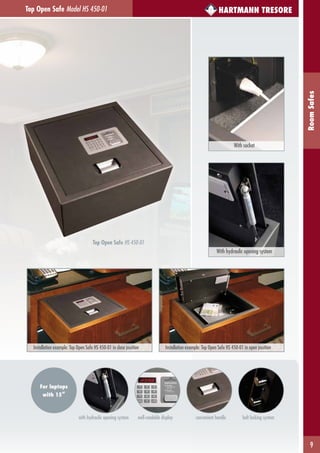

- 9. 9 RoomSafes Top Open SafeModel HS 450-01 With hydraulic opening system HARTMANN TRESORE Top Open Safe HS 450-01 For laptops with 15“ with hydraulic opening system well-readable display convenient handle bolt locking system With socket Installation example: Top Open Safe HS 450-01 in close position Installation example: Top Open Safe HS 450-01 in open position
- 10. Digital Laptop SafesSeries HS 910 10 RoomSafes Laptop Safe 15" HARTMANN TRESORE Digital Laptop Safe HS 910-02 Laptop Safes Series HS 910 Exterior dimensions h x w x d* in mm Weight in kg HS 910-01 Digital Safe 230 x 420 x 380 18 HS 910-02 Laptop Safe 220 x 430 x 350 12 HS 910-05 Superlaptop Safe 220 x 495 x 350 15 * All depth data refer to safe corpus only. For overall depth including control panel, add 30 mm to this value. iB key encoder Digital Laptop Safes Series HS 910 Innovative management system thanks to the iB key code system. The iB keys can be used for program- ming, data reading and as a master key. Construction ■ Corpus 1.5 mm thick ■ Solid door leaf, 5 mm thick Configuration/Functionalities ■ Electronic key-pad lock with freely selectable 4 to 9-digit code ■ Easy-to-read LED display ■ Key pad with blue backlight ■ LED interior lighting (except for model HS 910-01) ■ Standard feature: 220 V socket (except model -01) that is covered upon delivery for optimal use ■ Operation with commercially available alkaline batteries (4 x 1.5 V), included in the delivery ■ Battery status display ■ Patented sliding closure covers the mechanical emergency lock and the external power supply point ■ Padded interior ■ Ready for wall or floor mounting ■ Mounting materials included in the delivery ■ Colour: “dark grey” (powder coated) ■ DIN right-hinged door ■ Trilingual operating instructions (German, English, French) included as a sticker with a wipe-clean surface

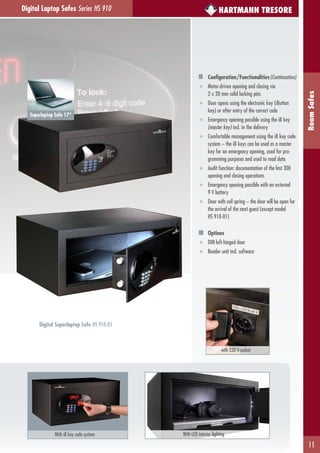

- 11. 11 RoomSafes HARTMANN TRESORE with 230V-socket Superlaptop Safe 17“ Digital Laptop Safes Series HS 910 Configuration/Functionalities(Continuation) ■ Motor-driven opening and closing via 2 x 20 mm solid locking pins ■ Door opens using the electronic key (iButton key) or after entry of the correct code ■ Emergency opening possible using the iB key (master key) incl. in the delivery ■ Comfortable management using the iB key code system – the iB keys can be used as a master key for an emergency opening, used for pro- gramming purposes and used to read data ■ Audit function: documentation of the last 300 opening and closing operations ■ Emergency opening possible with an external 9 V battery ■ Door with coil spring – the door will be open for the arrival of the next guest (except model HS 910-01) Options ■ DIN left-hinged door ■ Reader unit incl. software With iB key code system With LED interior lighting Digital Superlaptop Safe HS 910-05

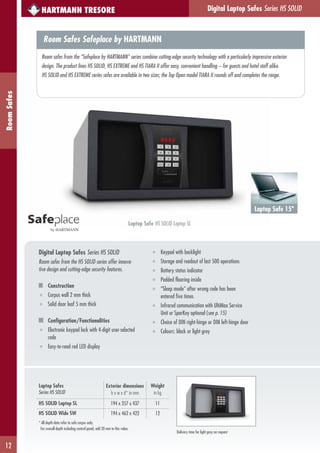

- 12. Digital Laptop SafesSeries HS SOLID 12 RoomSafes Laptop Safes Series HS SOLID Exterior dimensions h x w x d* in mm Weight in kg HS SOLID Laptop SL 194 x 357 x 437 11 HS SOLID Wide SW 194 x 462 x 422 12 * All depth data refer to safe corpus only. For overall depth including control panel, add 20 mm to this value. HARTMANN TRESORE Digital Laptop Safes Series HS SOLID Room safes from the HS SOLID series offer innova- tive design and cutting-edge security features. Construction ■ Corpus wall 2 mm thick ■ Solid door leaf 5 mm thick Configuration/Functionalities ■ Electronic keypad lock with 4-digit user-selected code ■ Easy-to-read red LED display by HARTMANN ■ Keypad with backlight ■ Storage and readout of last 500 operations ■ Battery status indicator ■ Padded flooring inside ■ “Sleep mode” after wrong code has been entered five times ■ Infrared communication with UltiMax Service Unit or SparKey optional (see p. 15) ■ Choice of DIN right-hinge or DIN left-hinge door ■ Colours: black or light grey Laptop Safe 15" Laptop Safe HS SOLID Laptop SL Room Safes Safeplace by HARTMANN Room safes from the “Safeplace by HARTMANN” series combine cutting-edge security technology with a particularly impressive exterior design. The product lines HS SOLID, HS EXTREME and HS TIARA II offer easy, convenient handling – for guests and hotel staff alike. HS SOLID and HS EXTREME series safes are available in two sizes; the Top Open model TIARA II rounds off and completes the range. Delivery time for light grey on request
- 13. 13 RoomSafes HARTMANN TRESOREDigital LaptopSafes Series HS EXTREME Laptop Safe HS EXTREME Deep EDLaptop Safe 17" Digital Laptop Safes Series HS EXTREME The HS EXTREME has all the modern features of the HS SOLID plus additional functions for even more security and user-friendly operation. Construction ■ Corpus wall 2 mm thick ■ Solid door leaf 5 mm thick Configuration/Functionalities ■ Electronic keypad lock with 4-digit user-selected code ■ Large blue LED display Laptop Safes Series HS EXTREME Exterior dimensions h x w x d* in mm Weight in kg HS EXTREME Laptop EL 200 x 433 x 426 15 HS EXTREME Deep ED 200 x 433 x 507 18 * All depth data refer to safe corpus only. For overall depth including control panel, add 20 mm to this value. by HARTMANN ■ Blue keypad lighting ■ LED interior lighting ■ Storage and readout of last 500 operations ■ Battery status indicator ■ Padded flooring inside ■ “Sleep mode” after wrong code has been entered five times ■ Anti-tamper feature ■ Infrared communication with UltiMax Service Unit or optional SparKey (see p. 15) ■ Choice of DIN right-hinge or DIN left-hinge door ■ Colour: black
- 14. Top Open SafeModel HS TIARA II 14 RoomSafes Laptop Safe 15" HARTMANN TRESORE Top Open Safe Model HS TIARA II The elegant, easy-to-operate Top Open Safe HS TIARA II can be integrated in almost any drawer to save space. Construction ■ Corpus walls 2 mm thick ■ Solid door leaf 2 mm thick Configuration/Functionalities ■ Electronic keypad lock with 4-digit user-selected code ■ Large, easy-to-read red LED display ■ Keypad with yellow backlight ■ Visual indicator for every operation ■ Storage and readout of last 500 operations ■ Battery status indicator ■ Padded flooring inside ■ “Sleep mode” after wrong code has been entered five times ■ Infrared communication with UltiMax Service Unit or optional SparKey (see p. 15) ■ Hydraulic arm for easy opening ■ Colour: black Top Open Safe Model HS TIARA II Exterior dimensions h x w x d in mm Weight in kg HS TIARA II 136 x 400 x 350 12 Top Open Safe Model HS TIARA II by HARTMANN
- 15. 15 RoomSafes HARTMANN TRESOREUltiMax ServiceUnit for HS SOLID, HS EXTREME, HS TIARA II SparKey The SparKey is part of the UltiMax set. It is used to open the safe fast in an emergency and as an interface between UltiMax and Safe. Functionalities ■ Emergency opening ■ Programming of safe ■ Readout of stored transactions ■ Infrared interface for UltiMax by HARTMANN UltiMax Emergency opening and programming unit für HS SOLID, HS EXTREME, HS TIARA II UltiMax is a service and programming unit for all HS SOLID, HS EXTREME and HS TIARA II Series safes, enabling secure communication via an infrared interface. Configuration The UltiMax programming unit consists of: ■ UltiMax device with UltiMax pen ■ USB cable for communication between UltiMax and PC ■ UltiMax battery charger ■ SparKey set as an infrared interface ■ Emergency power adapter and 9V battery ■ Windows-based software ■ SD card with UltiMax software ■ CD with UltiMax handbook, reference book and PC software ■ Thermal printer, printing paper roll ■ Charger for printer Functionalities ■ Each unit is individually programmed for a specific location ■ Personal password, hotel iButton and Master Key for maximum security ■ Different user levels enable improved monitoring ■ Storage of last 500 opening and closing transactions, including user name, operation type, exact date, time and room number ■ In the event of loss, theft or staff changes, all passwords and the hotel’s own Master Key can be reprogrammed at any time ■ Reliable communication with safes via an infrared interface ■ Integrated interactive fault detector for reliable and secure safe maintenance ■ Can be connected directly to PC for audit report print-out ■ Protection against power failure and attempts to delete audit information ■ Time-out after 30 minutes or five wrong code entries UltiMax Emergency opening and programming unit SparKey

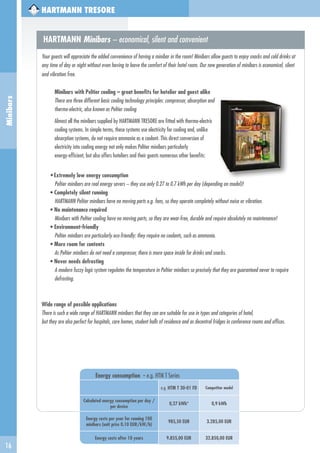

- 16. 16 Minibars Energy consumption -e.g. HTM T Series e.g. HTM T 30-01 FD Competitor model Calculated energy consumption per day / per device 0,27 kWh* 0,9 kWh Energy costs per year for running 100 minibars (unit price 0.10 EUR/kW/h) 985,50 EUR 3.285,00 EUR Energy costs after 10 years 9.855,00 EUR 32.850,00 EUR HARTMANN TRESORE HARTMANN Minibars – economical, silent and convenient Your guests will appreciate the added convenience of having a minibar in the room! Minibars allow guests to enjoy snacks and cold drinks at any time of day or night without even having to leave the comfort of their hotel room. Our new generation of minibars is economical, silent and vibration free. Minibars with Peltier cooling – great benefits for hotelier and guest alike There are three different basic cooling technology principles: compressor, absorption and thermo-electric, also known as Peltier cooling Almost all the minibars supplied by HARTMANN TRESORE are fitted with thermo-electric cooling systems. In simple terms, these systems use electricity for cooling and, unlike absorption systems, do not require ammonia as a coolant. This direct conversion of electricity into cooling energy not only makes Peltier minibars particularly energy-efficient, but also offers hoteliers and their guests numerous other benefits: • Extremely low energy consumption Peltier minibars are real energy savers – they use only 0.27 to 0.7 kWh per day (depending on model)! • Completely silent running HARTMANN Peltier minibars have no moving parts e.g. fans, so they operate completely without noise or vibration. • No maintenance required Minibars with Peltier cooling have no moving parts, so they are wear-free, durable and require absolutely no maintenance! • Environment-friendly Peltier minibars are particularly eco-friendly: they require no coolants, such as ammonia. • More room for contents As Peltier minibars do not need a compressor, there is more space inside for drinks and snacks. • Never needs defrosting A modern fuzzy logic system regulates the temperature in Peltier minibars so precisely that they are guaranteed never to require defrosting. Wide range of possible applications There is such a wide range of HARTMANN minibars that they can are suitable for use in types and categories of hotel, but they are also perfect for hospitals, care homes, student halls of residence and as decentral fridges in conference rooms and offices.
- 17. Peltier Cooling 17 Minibars Minibar ModelHTM T 24-01 FD HARTMANN TRESORE Minibar Modell HTM T 24-01 FD Exterior dimensions h x w x d in mm Weight in kg Volume in litres Performance in watt Voltage in volts Energy consumption kWh/24h* Number of shelves HTM T 24-01 FD 480 x 380 x 380 10 24 65 AC 220-240 0,27 1 * Average energy consumption per 24 hours at an ambient temperature of 25 °C and a cooling temperature of 6 °C according to EN 153: 2006 With Peltier technology LED interior light Height-adjustable shelve With fuzzy logic control system Minibar HTM T 24-01 FD Minibar Model HTM T 24-01 FD Small, lightweight 24-litre volume minibar – also suitable for installation in smaller rooms Configuration/Functionalities ■ Non-wearing Peltier thermoelectrics ■ Fuzzy logic control system for low energy consumption ■ No moving parts – 100% silent and vibration free ■ Ammonia-free and therefore environmentally friendly ■ Temperature can be lowered max. 23 °C below that of the outside temperature ■ Maximum cooling temperature: 6 °C, to save energy ■ One transparent, height-adjustable and removable plastic shelve ■ Soft LED interior light with door contact ■ DIN right-hinged door with changeable door hinge for conversion to a DIN left-hinged door ■ With sliding hinge to mount the minibar door to the door of a built-in cabinet ■ Colour: black 24 litres oce Energy efficiency grade A+ Very low energy consumption

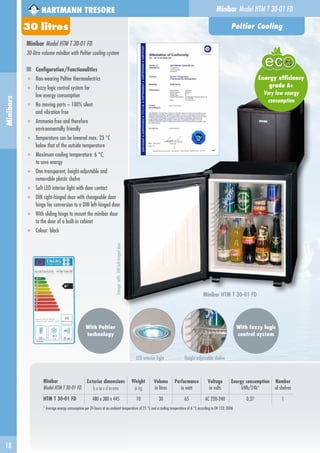

- 18. 30 litres 18 Minibars Minibar Model HTMT 30-01 FD Exterior dimensions h x w x d in mm Weight in kg Volume in litres Performance in watt Voltage in volts Energy consumption kWh/24h* Number of shelves HTM T 30-01 FD 480 x 380 x 445 10 30 65 AC 220-240 0,27 1 * Average energy consumption per 24 hours at an ambient temperature of 25 °C and a cooling temperature of 6 °C according to EN 153: 2006 Minibar Model HTM T 30-01 FD 30-litre volume minibar with Peltier cooling system Configuration/Functionalities ■ Non-wearing Peltier thermoelectrics ■ Fuzzy logic control system for low energy consumption ■ No moving parts – 100% silent and vibration free ■ Ammonia-free and therefore environmentally friendly ■ Temperature can be lowered max. 23 °C below that of the outside temperature ■ Maximum cooling temperature: 6 °C, to save energy ■ One transparent, height-adjustable and removable plastic shelve ■ Soft LED interior light with door contact ■ DIN right-hinged door with changeable door hinge for conversion to a DIN left-hinged door ■ With sliding hinge to mount the minibar door to the door of a built-in cabinet ■ Colour: black Minibar Model HTM T 30-01 FD With Peltier technology LED interior light Height-adjustable shelve Peltier Cooling HARTMANN TRESORE With fuzzy logic control system Minibar HTM T 30-01 FD oce Energy efficiency grade A+ Very low energy consumption Image:withDINleft-hingeddoor

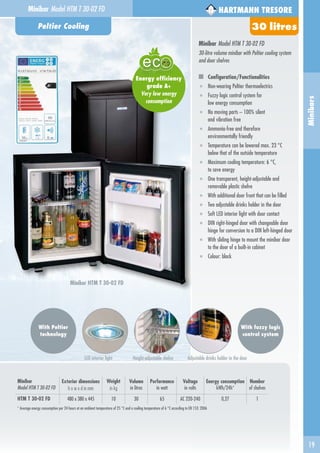

- 19. 30 litresPeltier Cooling 19 Minibars MinibarModel HTM T 30-02 FD Minibar Model HTM T 30-02 FD Exterior dimensions h x w x d in mm Weight in kg Volume in litres Performance in watt Voltage in volts Energy consumption kWh/24h* Number of shelves HTM T 30-02 FD 480 x 380 x 445 10 30 65 AC 220-240 0,27 1 * Average energy consumption per 24 hours at an ambient temperature of 25 °C and a cooling temperature of 6 °C according to EN 153: 2006 LED interior light Height-adjustable shelve Adjustable drinks holder in the door Minibar HTM T 30-02 FD HARTMANN TRESORE With Peltier technology With fuzzy logic control system Minibar Model HTM T 30-02 FD 30-litre volume minibar with Peltier cooling system and door shelves Configuration/Functionalities ■ Non-wearing Peltier thermoelectrics ■ Fuzzy logic control system for low energy consumption ■ No moving parts – 100% silent and vibration free ■ Ammonia-free and therefore environmentally friendly ■ Temperature can be lowered max. 23 °C below that of the outside temperature ■ Maximum cooling temperature: 6 °C, to save energy ■ One transparent, height-adjustable and removable plastic shelve ■ With additional door front that can be filled ■ Two adjustable drinks holder in the door ■ Soft LED interior light with door contact ■ DIN right-hinged door with changeable door hinge for conversion to a DIN left-hinged door ■ With sliding hinge to mount the minibar door to the door of a built-in cabinet ■ Colour: black oce Energy efficiency grade A+ Very low energy consumption

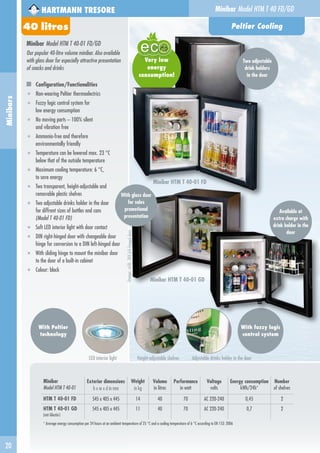

- 20. 20 Minibars Minibar Model HTM T40-01 Exterior dimensions h x w x d in mm Weight in kg Volume in litres Performance in watt Voltage volts Energy consumption kWh/24h* Number of shelves HTM T 40-01 FD 545 x 405 x 445 14 40 70 AC 220-240 0,45 2 HTM T 40-01 GD (mit Glastür) 545 x 405 x 445 11 40 70 AC 220-240 0,7 2 * Average energy consumption per 24 hours at an ambient temperature of 25 °C and a cooling temperature of 6 °C according to EN 153: 2006 Minibar Model HTM T 40-01 FD/GD Our popular 40-litre volume minibar. Also available with glass door for especially attractive presentation of snacks and drinks Configuration/Functionalities ■ Non-wearing Peltier thermoelectrics ■ Fuzzy logic control system for low energy consumption ■ No moving parts – 100% silent and vibration free ■ Ammonia-free and therefore environmentally friendly ■ Temperature can be lowered max. 23 °C below that of the outside temperature ■ Maximum cooling temperature: 6 °C, to save energy ■ Two transparent, height-adjustable and removable plastic shelves ■ Two adjustable drinks holder in the door for diffrent sizes of bottles and cans (Model T 40-01 FD) ■ Soft LED interior light with door contact ■ DIN right-hinged door with changeable door hinge for conversion to a DIN left-hinged door ■ With sliding hinge to mount the minibar door to the door of a built-in cabinet ■ Colour: black Minibar HTM T 40-01 FD With Peltier technology LED interior light Height-adjustable shelves Adjustable drinks holder in the door Peltier Cooling HARTMANN TRESORE With fuzzy logic control system Minibar Model HTM T 40 FD/GD oce Very low energy consumption! Minibar HTM T 40-01 GD Image:withDINleft-hingeddoor With glass door for sales promotional presentation 40 litres Two adjustable drink holders in the door Available at extra charge with drink holder in the door

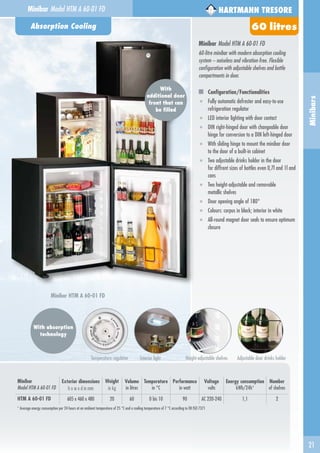

- 21. 60 litres 21 Minibars HARTMANN TRESORE AbsorptionCooling Minibar Model HTM A 60-01 FD 60-litre minibar with modern absorption cooling system – noiseless and vibration-free. Flexible configuration with adjustable shelves and bottle compartments in door. Configuration/Functionalities ■ Fully automatic defroster and easy-to-use refrigeration regulator ■ LED interior lighting with door contact ■ DIN right-hinged door with changeable door hinge for conversion to a DIN left-hinged door ■ With sliding hinge to mount the minibar door to the door of a built-in cabinet ■ Two adjustable drinks holder in the door for diffrent sizes of bottles even 0,7l and 1l and cans ■ Two height-adjustable and removable metallic shelves ■ Door opening angle of 180° ■ Colours: corpus in black; interior in white ■ All-round magnet door seals to ensure optimum closure Minibar HTM A 60-01 FD With absorption technology Temperature regulator Interior light Height-adjustable shelves Adjustable door drinks holder With additional door front that can be filled Minibar Model HTM A 60-01 FD Exterior dimensions h x w x d in mm Weight in kg Volume in litres Temperature in °C Performance in watt Voltage volts Energy consumption kWh/24h* Number of shelves HTM A 60-01 FD 605 x 460 x 480 20 60 0 bis 10 90 AC 220-240 1,1 2 * Average energy consumption per 24 hours at an ambient temperature of 25 °C and a cooling temperature of 7 °C according to EN ISO 7371 HARTMANN TRESOREMinibar Model HTM A 60-01 FD

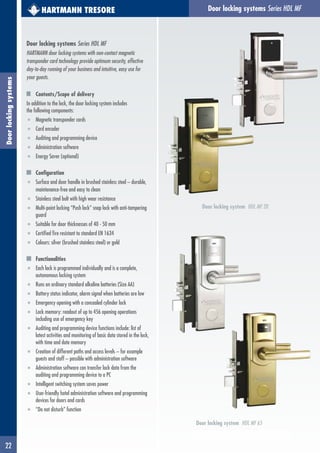

- 22. 22 Door locking systemsSeries HDL MFDoorlockingsystems HARTMANN TRESORE Door locking systems Series HDL MF HARTMANN door locking systems with non-contact magnetic transponder card technology provide optimum security, effective day-to-day running of your business and intuitive, easy use for your guests. Contents/Scope of delivery In addition to the lock, the door locking system includes the following components: ■ Magnetic transponder cards ■ Card encoder ■ Auditing and programming device ■ Administration software ■ Energy Saver (optional) Configuration ■ Surface and door handle in brushed stainless steel – durable, maintenance-free and easy to clean ■ Stainless steel bolt with high wear resistance ■ Multi-point locking “Push lock” snap lock with anti-tampering guard ■ Suitable for door thicknesses of 40 - 50 mm ■ Certified fire resistant to standard EN 1634 ■ Colours: silver (brushed stainless steel) or gold Functionalities ■ Each lock is programmed individually and is a complete, autonomous locking system ■ Runs on ordinary standard alkaline batteries (Size AA) ■ Battery status indicator, alarm signal when batteries are low ■ Emergency opening with a concealed cylinder lock ■ Lock memory: readout of up to 456 opening operations including use of emergency key ■ Auditing and programming device functions include: list of latest activities and monitoring of basic data stored in the lock, with time and date memory ■ Creation of different paths and access levels – for example guests and staff – possible with administration software ■ Administration software can transfer lock data from the auditing and programming device to a PC ■ Intelligent switching system saves power ■ User-friendly hotel administration software and programming devices for doors and cards ■ “Do not disturb” function Door locking system HDL MF 20 Door locking system HDL MF 65
- 23. Door locking systemsSeries HDL MF Offer your guests added comfort and convenience with the HARTMANN door locking system HDL MF. All doors – e.g. hotel entrance, room door and access to spa or sauna areas – can be opened with only one key. The user-friendly administration software allows different access rights to be created for guests and staff, which is also an effective and reliable way of monitoring access to various rooms or areas. The program can also manage reservations, check-in, check-out and lock data. An Energy Saver (optional extra) can be ordered with the door locking system; this enables the activation or interruption of electricity supply to the room. Guests activate the power supply simply by inserting their transponder card into the Energy Saver when they enter the room. Guests remove the card again when leaving the room and the power supply is cut off automatically, which ensures that electricity is not wasted if guests have forgotten to turn off lights or other electrical devices. The HARTMANN door locking system HDL MF consists of the following components: • Lock • Magnetic transponder cards • Auditing and programming device • Card encoder • Administration software • Energy Saver (optional) Card encoder Auditing and programming device Administration software Magnetic transponder cards G uest C ard 23 Doorlockingsystems Door locking systems Series HDL MF HARTMANN TRESORE Energy Saver (optional) Fire resistance certificate from the Building Research Institute Lock

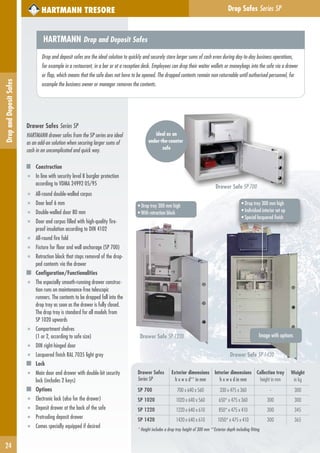

- 24. Drop Safes SeriesSP 24 DropandDepositSafes Drawer Safe SP 700 • Drop tray 300 mm high • Individual interior set up • Special lacquered finish • Drop tray 300 mm high • With retraction block Drawer Safe SP 1220 Drawer Safe SP 1420 ideal as an under-the-counter safe HARTMANN TRESORE Image with options HARTMANN Drop and Deposit Safes Drop and deposit safes are the ideal solution to quickly and securely store larger sums of cash even during day-to-day business operations, for example in a restaurant, in a bar or at a reception desk. Employees can drop their waiter wallets or moneybags into the safe via a drawer or flap, which means that the safe does not have to be opened. The dropped contents remain non-returnable until authorised personnel, for example the business owner or manager removes the contents. Drawer Safes Series SP HARTMANN drawer safes from the SP series are ideal as an add-on solution when securing larger sums of cash in an uncomplicated and quick way. Construction ■ In line with security level B burglar protection according to VDMA 24992 05/95 ■ All-round double-walled corpus ■ Door leaf 6 mm ■ Double-walled door 80 mm ■ Door and corpus filled with high-quality fire- proof insulation according to DIN 4102 ■ All-round fire fold ■ Fixture for floor and wall anchorage (SP 700) ■ Retraction block that stops removal of the drop- ped contents via the drawer Configuration/Functionalities ■ The especially smooth-running drawer construc- tion runs on maintenance-free telescopic runners. The contents to be dropped fall into the drop tray as soon as the drawer is fully closed. The drop tray is standard for all models from SP 1020 upwards ■ Compartment shelves (1 or 2, according to safe size) ■ DIN right-hinged door ■ Lacquered finish RAL 7035 light grey Lock ■ Main door and drawer with double-bit security lock (includes 2 keys) Options ■ Electronic lock (also for the drawer) ■ Deposit drawer at the back of the safe ■ Protruding deposit drawer ■ Comes specially equipped if desired Drawer Safes Series SP Exterior dimensions h x w x d** in mm Interior dimensions h x w x d in mm Collection tray height in mm Weight in kg SP 700 700 x 640 x 560 330 x 475 x 360 - 300 SP 1020 1020 x 640 x 560 650* x 475 x 360 300 300 SP 1220 1220 x 640 x 610 850* x 475 x 410 300 345 SP 1420 1420 x 640 x 610 1050* x 475 x 410 300 365 * Height includes a drop tray height of 300 mm **Exterior depth including fitting

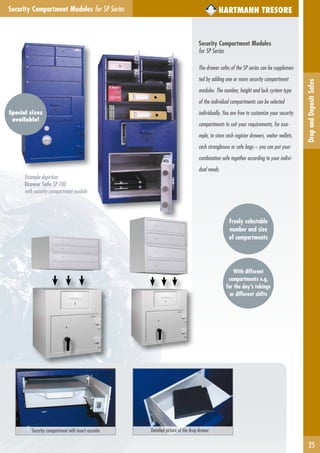

- 25. 25 DropandDepositSafes Security Compartment Modulesfor SP Series HARTMANN TRESORE Special sizes available! Security Compartment Modules for SP Series The drawer safes of the SP series can be supplemen- ted by adding one or more security compartment modules. The number, height and lock system type of the individual compartments can be selected individually. You are free to customize your security compartments to suit your requirements, for exa- mple, to store cash register drawers, waiter wallets, cash strongboxes or safe bags – you can put your combination safe together according to your indivi- dual needs. Freely selectable number and size of compartments With different compartments e.g. for the day’s takings or different shifts Example depiction: Drawer Safe SP 700 with security compartment module Detailed picture of the drop drawerSecurity compartment with insert cassette

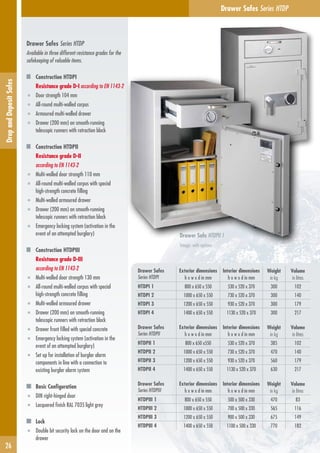

- 26. Einwurftresore Serie HS510 26 DropandDepositSafes HARTMANN TRESORE Drawer Safes Series HTDP Drawer Safe HTDPII 1 Image: with options Drawer Safes Series HTDP Available in three different resistance grades for the safekeeping of valuable items. Construction HTDPI Resistance grade D-I according to EN 1143-2 ■ Door strength 104 mm ■ All-round multi-walled corpus ■ Armoured multi-walled drawer ■ Drawer (200 mm) on smooth-running telescopic runners with retraction block Construction HTDPII Resistance grade D-II according to EN 1143-2 ■ Multi-walled door strength 110 mm ■ All-round multi-walled corpus with special high-strength concrete filling ■ Multi-walled armoured drawer ■ Drawer (200 mm) on smooth-running telescopic runners with retraction block ■ Emergency locking system (activation in the event of an attempted burglary) Construction HTDPIII Resistance grade D-III according to EN 1143-2 ■ Multi-walled door strength 130 mm ■ All-round multi-walled corpus with special high-strength concrete filling ■ Multi-walled armoured drawer ■ Drawer (200 mm) on smooth-running telescopic runners with retraction block ■ Drawer front filled with special concrete ■ Emergency locking system (activation in the event of an attempted burglary) ■ Set up for installation of burglar alarm components in line with a connection to existing burglar alarm system Basic Configuration ■ DIN right-hinged door ■ Lacquered finish RAL 7035 light grey Lock ■ Double bit security lock on the door and on the drawer Drawer Safes Series HTDPI Exterior dimensions h x w x d in mm Interior dimensions h x w x d in mm Weight in kg Volume in litres HTDPI 1 800 x 650 x 550 530 x 520 x 370 300 102 HTDPI 2 1000 x 650 x 550 730 x 520 x 370 300 140 HTDPI 3 1200 x 650 x 550 930 x 520 x 370 300 179 HTDPI 4 1400 x 650 x 550 1130 x 520 x 370 300 217 Drawer Safes Series HTDPII Exterior dimensions h x w x d in mm Interior dimensions h x w x d in mm Weight in kg Volume in litres HTDPII 1 800 x 650 x550 530 x 520 x 370 385 102 HTDPII 2 1000 x 650 x 550 730 x 520 x 370 470 140 HTDPII 3 1200 x 650 x 550 930 x 520 x 370 560 179 HTDPII 4 1400 x 650 x 550 1130 x 520 x 370 630 217 Drawer Safes Series HTDPIII Exterior dimensions h x w x d in mm Interior dimensions h x w x d in mm Weight in kg Volume in litres HTDPIII 1 800 x 650 x 550 500 x 500 x 330 470 83 HTDPIII 2 1000 x 650 x 550 700 x 500 x 330 565 116 HTDPIII 3 1200 x 650 x 550 900 x 500 x 330 675 149 HTDPIII 4 1400 x 650 x 550 1100 x 500 x 330 770 182

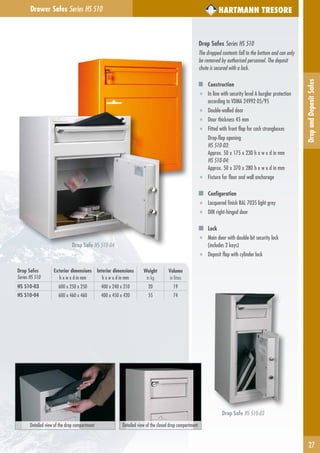

- 27. Drop Safe HS510-03 Drop Safe HS 510-04 DropandDepositSafes Drawer Safes Series HS 510 HARTMANN TRESORE 27 Drop Safes Series HS 510 Exterior dimensions h x w x d in mm Interior dimensions h x w x d in mm Weight in kg Volume in litres HS 510-03 600 x 250 x 250 400 x 240 x 210 20 19 HS 510-04 600 x 460 x 460 400 x 450 x 420 55 74 Drop Safes Series HS 510 The dropped contents fall to the bottom and can only be removed by authorised personnel. The deposit chute is secured with a lock. Construction ■ In line with security level A burglar protection according to VDMA 24992 05/95 ■ Double-walled door ■ Door thickness 45 mm ■ Fitted with front flap for cash strongboxes Drop-flap opening HS 510-03: Approx. 50 x 175 x 230 h x w x d in mm HS 510-04: Approx. 50 x 370 x 280 h x w x d in mm ■ Fixture for floor and wall anchorage Configuration ■ Lacquered finish RAL 7035 light grey ■ DIN right-hinged door Lock ■ Main door with double-bit security lock (includes 2 keys) ■ Deposit flap with cylinder lock Detailed view of the drop compartment Detailed view of the closed drop compartment

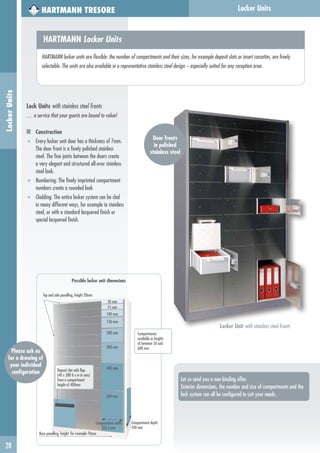

- 28. Locker UnitsLockerUnits Locker Unitwith stainless steel fronts HARTMANN TRESORE Door fronts in polished stainless steel Let us send you a non-binding offer. Exterior dimensions, the number and size of compartments and the lock system can all be configured to suit your needs. HARTMANN Locker Units HARTMANN locker units are flexible: the number of compartments and their sizes, for example deposit slots or insert cassettes, are freely selectable. The units are also available in a representative stainless steel design – especially suited for any reception area. Lock Units with stainless steel fronts … a service that your guests are bound to value! Construction ■ Every locker unit door has a thickness of 7mm. The door front is a finely polished stainless steel. The fine joints between the doors create a very elegant and structured all-over stainless steel look. ■ Numbering: The finely imprinted compartment numbers create a rounded look ■ Cladding: The entire locker system can be clad in many different ways, for example in stainless steel, or with a standard lacquered finish or special lacquered finish. 28 Compartment depth 420 mm Possible locker unit dimensions 50 mm 150 mm 200 mm 300 mm 400 mm 75 mm 100 mm 600 mm Compartment width 316.5 mm Base panelling, height: for example 70mm Deposit slot with flap (40 x 280 h x w in mm) from a compartment height of 400mm Top and side panelling, height 20mm Compartments available in heights of between 50 and 600 mm Please ask us for a drawing of your individual configuration

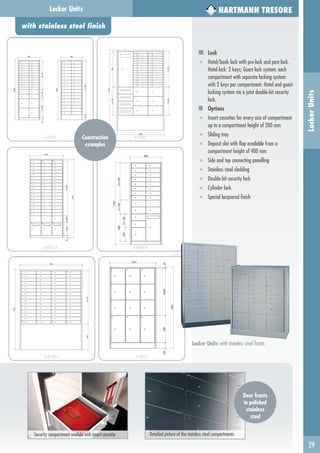

- 29. with stainless steelfinish 29 LockerUnits Locker Units Locker Units with stainless steel fronts HARTMANN TRESORE Security compartment module with insert cassette Detailed picture of the stainless steel compartments Construction examples A-07366 A-07825 A-08355-A A-06849-B A-07400-A A-08533 Door fronts in polished stainless steel Lock ■ Hotel/bank lock with pre-lock and post-lock. Hotel lock: 2 keys; Guest lock system: each compartment with separate locking system with 2 keys per compartment. Hotel and guest locking system via a joint double-bit security lock. Options ■ Insert cassettes for every size of compartment up to a compartment height of 200 mm ■ Sliding tray ■ Deposit slot with flap available from a compartment height of 400 mm ■ Side and top connecting panelling ■ Stainless steel cladding ■ Double-bit security lock ■ Cylinder lock ■ Special lacquered finish

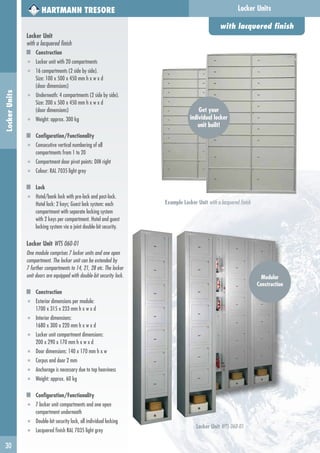

- 30. 30 HARTMANN TRESORE Locker Unit witha lacquered finish Construction ■ Locker unit with 20 compartments ■ 16 compartments (2 side by side). Size: 100 x 500 x 450 mm h x w x d (door dimensions) ■ Underneath: 4 compartments (2 side by side). Size: 200 x 500 x 450 mm h x w x d (door dimensions) ■ Weight: approx. 300 kg Configuration/Functionality ■ Consecutive vertical numbering of all compartments from 1 to 20 ■ Compartment door pivot points: DIN right ■ Colour: RAL 7035 light grey Lock ■ Hotel/bank lock with pre-lock and post-lock. Hotel lock: 2 keys; Guest lock system: each compartment with separate locking system with 2 keys per compartment. Hotel and guest locking system via a joint double-bit security. Locker Unit WTS 060-01 One module comprises 7 locker units and one open compartment. The locker unit can be extended by 7 further compartments to 14, 21, 28 etc. The locker unit doors are equipped with double-bit security lock. Construction ■ Exterior dimensions per module: 1700 x 315 x 233 mm h x w x d ■ Interior dimensions: 1680 x 300 x 220 mm h x w x d ■ Locker unit compartment dimensions: 200 x 290 x 170 mm h x w x d ■ Door dimensions: 140 x 170 mm h x w ■ Corpus and door 2 mm ■ Anchorage is necessary due to top heaviness ■ Weight: approx. 60 kg Configuration/Functionality ■ 7 locker unit compartments and one open compartment underneath ■ Double-bit security lock, all individual locking ■ Lacquered finish RAL 7035 light grey with lacquered finish Locker UnitsLockerUnits Locker Unit WTS 060-01 Example Locker Unit with a lacquered finish Modular Construction Get your individual locker unit built!

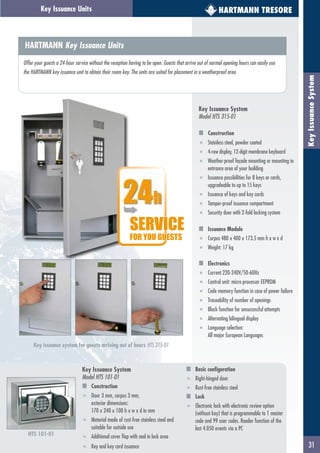

- 31. 31 KeyIssuanceSystem HARTMANN TRESOREKey IssuanceUnits HTS 101-01 HARTMANN Key Issuance Units Offer your guests a 24-hour service without the reception having to be open. Guests that arrive out of normal opening hours can easily use the HARTMANN key issuance unit to obtain their room key. The units are suited for placement in a weatherproof area. Key Issuance System Model HTS 315-01 Construction ■ Stainless steel, powder coated ■ 4-row display, 12-digit membrane keyboard ■ Weather-proof façade mounting or mounting in entrance area of your building ■ Issuance possibilities for 8 keys or cards, upgradeable to up to 15 keys ■ Issuance of keys and key cards ■ Tamper-proof issuance compartment ■ Security door with 2-fold locking system Issuance Module ■ Corpus 480 x 400 x 173.5 mm h x w x d ■ Weight: 17 kg Electronics ■ Current 220-240V/50-60Hz ■ Control unit: micro processor EEPROM ■ Code memory function in case of power failure ■ Traceability of number of openings ■ Block function for unsuccessful attempts ■ Alternating bilingual display ■ Language selection: All major European Languages Key issuance system for guests arriving out of hours HTS 315-01 SERVICE FOR YOU GUESTS Key Issuance System Model HTS 101-01 Construction ■ Door 3 mm, corpus 3 mm, exterior dimensions: 170 x 240 x 100 h x w x d in mm ■ Material made of rust-free stainless steel and suitable for outside use ■ Additional cover flap with seal in lock area ■ Key and key card issuance Basic configuration ■ Right-hinged door ■ Rust-free stainless steel Lock ■ Electronic lock with electronic review option (without key) that is programmable to 1 master code and 99 user codes. Reader function of the last 4.050 events via a PC

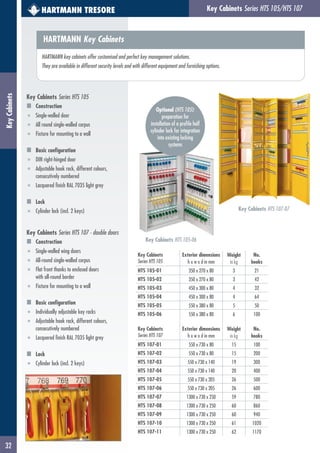

- 32. Key Cabinets SeriesHTS 105/HTS 107 32 KeyCabinets HARTMANN TRESORE HARTMANN Key Cabinets HARTMANN key cabinets offer customised and perfect key management solutions. They are available in different security levels and with different equipment and furnishing options. Optional (HTS 105): preparation for installation of a profile half cylinder lock for integration into existing locking systems Key Cabinets HTS 107-07 Key Cabinets HTS 105-06 Key Cabinets Series HTS 105 Exterior dimensions h x w x d in mm Weight in kg No. hooks HTS 105-01 350 x 270 x 80 3 21 HTS 105-02 350 x 270 x 80 3 42 HTS 105-03 450 x 300 x 80 4 32 HTS 105-04 450 x 300 x 80 4 64 HTS 105-05 550 x 380 x 80 5 50 HTS 105-06 550 x 380 x 80 6 100 Key Cabinets Series HTS 107 Exterior dimensions h x w x d in mm Weight in kg No. hooks HTS 107-01 550 x 730 x 80 15 100 HTS 107-02 550 x 730 x 80 15 200 HTS 107-03 550 x 730 x 140 19 300 HTS 107-04 550 x 730 x 140 20 400 HTS 107-05 550 x 730 x 205 26 500 HTS 107-06 550 x 730 x 205 26 600 HTS 107-07 1300 x 730 x 250 59 780 HTS 107-08 1300 x 730 x 250 60 860 HTS 107-09 1300 x 730 x 250 60 940 HTS 107-10 1300 x 730 x 250 61 1020 HTS 107-11 1300 x 730 x 250 62 1170 Key Cabinets Series HTS 105 Construction ■ Single-walled door ■ All round single-walled corpus ■ Fixture for mounting to a wall Basic configuration ■ DIN right-hinged door ■ Adjustable hook rack, different colours, consecutively numbered ■ Lacquered finish RAL 7035 light grey Lock ■ Cylinder lock (incl. 2 keys) Key Cabinets Series HTS 107 - double doors Construction ■ Single-walled wing doors ■ All-round single-walled corpus ■ Flat front thanks to enclosed doors with all-round border ■ Fixture for mounting to a wall Basic configuration ■ Individually adjustable key racks ■ Adjustable hook rack, different colours, consecutively numbered ■ Lacquered finish RAL 7035 light grey Lock ■ Cylinder lock (incl. 2 keys)

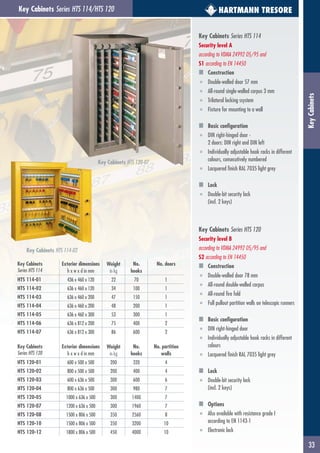

- 33. 33 HARTMANN TRESORE KeyCabinets Key CabinetsSeries HTS 114/HTS 120 Key Cabinets Series HTS 120 Security level B according to VDMA 24992 05/95 and S2 according to EN 14450 Construction ■ Double-walled door 78 mm ■ All-round double-walled corpus ■ All-round fire fold ■ Full pullout partition walls on telescopic runners Basic configuration ■ DIN right-hinged door ■ Individually adjustable hook racks in different colours ■ Lacquered finish RAL 7035 light grey Lock ■ Double-bit security lock (incl. 2 keys) Options ■ Also available with resistance grade I according to EN 1143-1 ■ Electronic lock Key Cabinets Series HTS 114 Security level A according to VDMA 24992 05/95 and S1 according to EN 14450 Construction ■ Double-walled door 57 mm ■ All-round single-walled corpus 3 mm ■ Trilateral locking ssystem ■ Fixture for mounting to a wall Basic configuration ■ DIN right-hinged door - 2 doors: DIN right and DIN left ■ Individually adjustable hook racks in different colours, consecutively numbered ■ Lacquered finish RAL 7035 light grey Lock ■ Double-bit security lock (incl. 2 keys) Key Cabinets Series HTS 114 Exterior dimensions h x w x d in mm Weight in kg No. hooks No. doors HTS 114-01 436 x 460 x 120 22 70 1 HTS 114-02 636 x 460 x 120 34 100 1 HTS 114-03 636 x 460 x 200 47 150 1 HTS 114-04 636 x 460 x 200 48 200 1 HTS 114-05 636 x 460 x 300 53 300 1 HTS 114-06 636 x 812 x 200 75 400 2 HTS 114-07 636 x 812 x 300 86 600 2 Key Cabinets Series HTS 120 Exterior dimensions h x w x d in mm Weight in kg No. hooks No. partition walls HTS 120-01 600 x 500 x 500 200 320 4 HTS 120-02 800 x 500 x 500 200 400 4 HTS 120-03 600 x 636 x 500 300 600 6 HTS 120-04 800 x 636 x 500 300 980 7 HTS 120-05 1000 x 636 x 500 300 1400 7 HTS 120-07 1200 x 636 x 500 300 1960 7 HTS 120-08 1500 x 806 x 500 350 2560 8 HTS 120-10 1500 x 806 x 500 350 3200 10 HTS 120-12 1800 x 806 x 500 450 4000 10 Key Cabinets HTS 120-07 Key Cabinets HTS 114-02

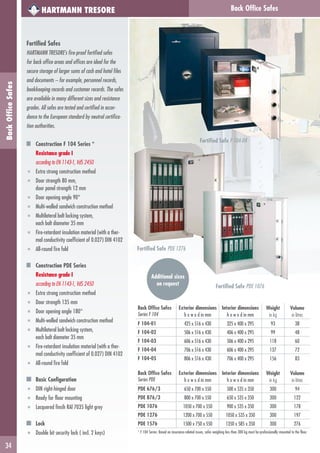

- 34. Back Office Safes 34 BackOfficeSafesHARTMANN TRESORE Fortified Safe F 104-04 Back Office Safes Series F 104 Exterior dimensions h x w x d in mm Interior dimensions h x w x d in mm Weight in kg Volume in litres F 104-01 425 x 516 x 430 325 x 400 x 295 93 38 F 104-02 506 x 516 x 430 406 x 400 x 295 99 48 F 104-03 606 x 516 x 430 506 x 400 x 295 118 60 F 104-04 706 x 516 x 430 606 x 400 x 295 137 72 F 104-05 806 x 516 x 430 706 x 400 x 295 156 83 Back Office Safes Series PDE Exterior dimensions h x w x d in mm Interior dimensions h x w x d in mm Weight in kg Volume in litres PDE 676/3 650 x 700 x 550 500 x 535 x 350 300 94 PDE 876/3 800 x 700 x 550 650 x 535 x 350 300 122 PDE 1076 1050 x 700 x 550 900 x 535 x 350 300 178 PDE 1276 1200 x 700 x 550 1050 x 535 x 350 300 197 PDE 1576 1500 x 750 x 550 1350 x 585 x 350 300 276 * F 104 Series: Based on insurance-related issues, safes weighing less than 300 kg must be professionally mounted to the floor. Fortified Safes HARTMANN TRESORE’s fire-proof fortified safes for back office areas and offices are ideal for the secure storage of larger sums of cash and hotel files and documents – for example, personnel records, bookkeeping records and customer records. The safes are available in many different sizes and resistance grades. All safes are tested and certified in accor- dance to the European standard by neutral certifica- tion authorities. Construction F 104 Series * Resistance grade I according to EN 1143-1, VdS 2450 ■ Extra strong construction method ■ Door strength 80 mm, door panel strength 12 mm ■ Door opening angle 90° ■ Multi-walled sandwich construction method ■ Multilateral bolt locking system, each bolt diameter 35 mm ■ Fire-retardant insulation material (with a ther- mal conductivity coefficient of 0.027) DIN 4102 ■ All-round fire fold Construction PDE Series Resistance grade I according to EN 1143-1, VdS 2450 ■ Extra strong construction method ■ Door strength 135 mm ■ Door opening angle 180° ■ Multi-walled sandwich construction method ■ Multilateral bolt locking system, each bolt diameter 35 mm ■ Fire-retardant insulation material (with a ther- mal conductivity coefficient of 0.027) DIN 4102 ■ All-round fire fold Basic Configuration ■ DIN right-hinged door ■ Ready for floor mounting ■ Lacquered finsih RAl 7035 light grey Lock ■ Double bit security lock ( incl. 2 keys) Fortified Safe PDE 1076 Fortified Safe PDE 1276 Additional sizes on request

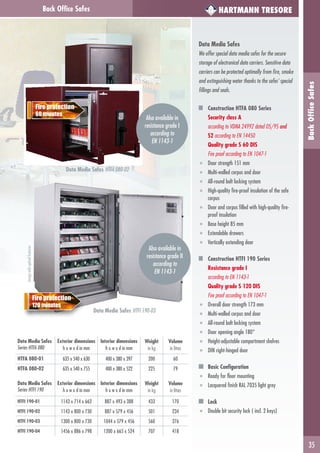

- 35. Data Media Safes Weoffer special data media safes for the secure storage of electronical data carriers. Sensitive data carriers can be protected optimally from fire, smoke and extinguishing water thanks to the safes’ special fillings and seals. Construction HTFA 080 Series Security class A according to VDMA 24992 dated 05/95 and S2 according to EN 14450 Quality grade S 60 DIS Fire proof according to EN 1047-1 ■ Door strength 151 mm ■ Multi-walled corpus and door ■ All-round bolt locking system ■ High-quality fire-proof insulation of the safe corpus ■ Door and corpus filled with high-quality fire- proof insulation ■ Base height 85 mm ■ Extendable drawers ■ Vertically extending door Construction HTFI 190 Series Resistance grade I according to EN 1143-1 Quality grade S 120 DIS Fire proof according to EN 1047-1 ■ Overall door strength 173 mm ■ Multi-walled corpus and door ■ All-round bolt locking system ■ Door opening angle 180° ■ Height-adjustable compartment shelves ■ DIN right-hinged door Basic Configuration ■ Ready for floor mounting ■ Lacquered finish RAL 7035 light grey Lock ■ Double bit security lock ( incl. 2 keys) Data Media Safes Series HTFA 080 Exterior dimensions h x w x d in mm Interior dimensions h x w x d in mm Weight in kg Volume in litres HTFA 080-01 635 x 540 x 630 400 x 380 x 397 200 60 HTFA 080-02 635 x 540 x 755 400 x 380 x 522 225 79 Data Media Safes Series HTFI 190 Exterior dimensions h x w x d in mm Interior dimensions h x w x d in mm Weight in kg Volume in litres HTFI 190-01 1143 x 714 x 662 887 x 493 x 388 433 170 HTFI 190-02 1143 x 800 x 730 887 x 579 x 456 501 234 HTFI 190-03 1300 x 800 x 730 1044 x 579 x 456 560 276 HTFI 190-04 1456 x 886 x 798 1200 x 665 x 524 707 418 35 BackOfficeSafes Back Office Safes HARTMANN TRESORE Fire protection 120 minutes Also available in resistance grade II according to EN 1143-1 Data Media Safes HTFI 190-03 Also available in resistance grade I according to EN 1143-1 Imagewithoptinalfeatures Data Media Safes HTFA 080-02 Fire protection 60 minutes

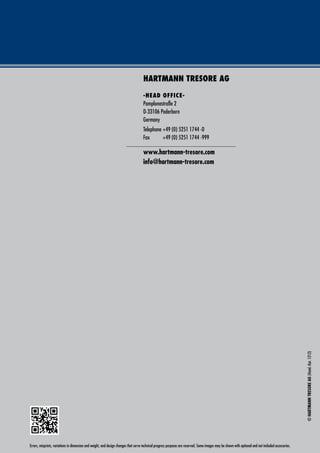

- 36. HARTMANN TRESORE AG -HEADOFFICE- Pamplonastraße 2 D-33106 Paderborn Germany Telephone +49 (0) 5251 1744 -0 Fax +49 (0) 5251 1744 -999 www.hartmann-tresore.com info@hartmann-tresore.com ©HARTMANNTRESOREAG(Hotel.-Kat.1212) Errors, misprints, variations in dimension and weight, and design changes that serve technical progress purposes are reserved. Some images may be shown with optional and not included accessories.
