This document provides an overview of Google Web Toolkit (GWT), an open source JavaScript compiler that allows developers to write client-side applications in Java and deploy them as JavaScript. The document discusses GWT's mission, features, history, status, architecture, performance advantages, and how it enables building AJAX applications with Java-based components, validation, internationalization, and more. Code samples demonstrate using GWT to create user interfaces, handle events, manage page flow, retrieve and display data, and call remote services.

2. GWT It’s Java all the way Ophir Radnitz Consultant, AlphaCSP

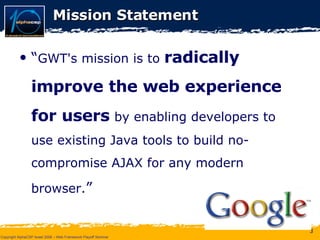

3. Mission Statement “ GWT's mission is to radically improve the web experience for users by enabling developers to use existing Java tools to build no-compromise AJAX for any modern browser. ”

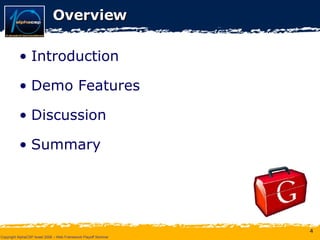

4. Overview Introduction Demo Features Discussion Summary

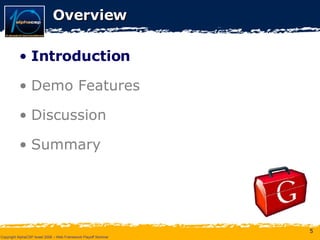

5. Overview Introduction Demo Features Discussion Summary

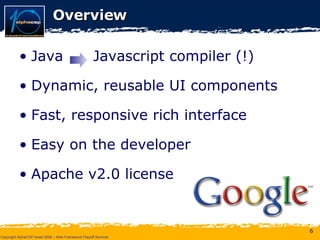

6. Overview Java Javascript compiler (!) Dynamic, reusable UI components Fast, responsive rich interface Easy on the developer Apache v2.0 license

7. Features (1 of 2) Cross browser compatibility Highly optimized output A good handle on The Web Browser history management Safe and powerful DOM access Bookmarkable stuff Secure remoting

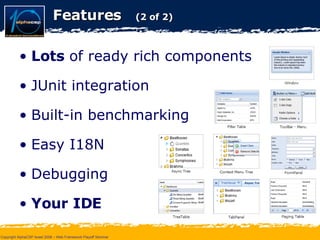

8. Features (2 of 2) Lots of ready rich components JUnit integration Built-in benchmarking Easy I18N Debugging Your IDE

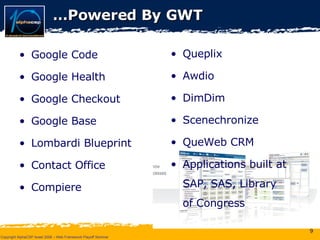

9. … Powered By GWT Google Code Google Health Google Checkout Google Base Lombardi Blueprint Contact Office Compiere Queplix Awdio DimDim Scenechronize QueWeb CRM Applications built at SAP, SAS, Library of Congress

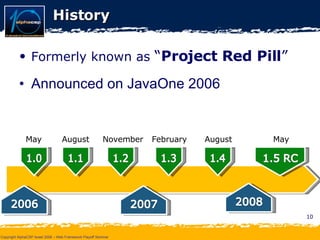

10. History May August November February August May Formerly known as “ Project Red Pill ” Announced on JavaOne 2006

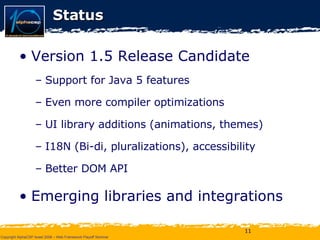

11. Status Version 1.5 Release Candidate Support for Java 5 features Even more compiler optimizations UI library additions (animations, themes) I18N (Bi-di, pluralizations), accessibility Better DOM API Emerging libraries and integrations

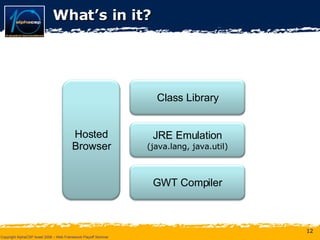

12. What’s in it? JRE Emulation (java.lang, java.util) GWT Compiler Hosted Browser Class Library

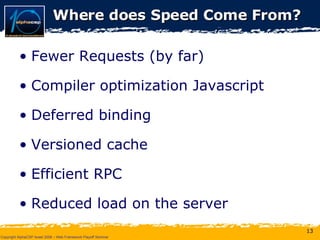

13. Where does Speed Come From? Fewer Requests (by far) Compiler optimization Javascript Deferred binding Versioned cache Efficient RPC Reduced load on the server

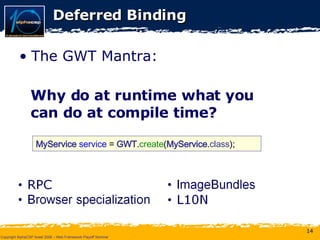

14. Deferred Binding The GWT Mantra: Why do at runtime what you can do at compile time? MyService service = GWT . create ( MyService . class );

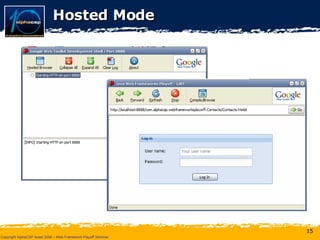

15. Hosted Mode

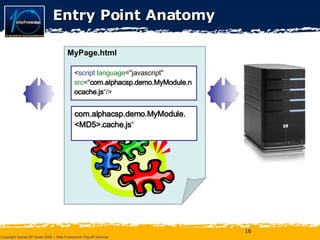

16. Entry Point Anatomy MyPage.html < script language =&quot;javascript&quot; src =&quot; com.alphacsp.demo.MyModule.nocache.js “/> com.alphacsp.demo.MyModule. <MD5>.cache.js “

17. Compiled Javascript function com_alphacsp_contacts_Contacts(){var l='',B='&quot; for &quot;gwt:onLoadErrorFn&quot;',z='&quot; for &quot;gwt:onPropertyErrorFn&quot;',wb='&quot;><\/script>',n='/',kb='226AF0230B73371F6FD432899942EF89.cache.html',ib='6C5371FFFFB5323F9D8058C234E97823.cache.html',jb='86331CB96F6F13236040789304D78367.cache.html',lb='96AB31FA627C259590E8CA143E53C3E0.cache.html',vb='<script id=&quot;',sb=&quot;<script>com_alphacsp_contacts_Contacts.onInjectionDone('com.alphacsp.contacts.Contacts')<\/script>&quot;,v='=',y='Bad handler &quot;',ob='DOMContentLoaded',mb='E6FAB8BEE24B098AC223BA54C66FD81B.cache.html',xb='SCRIPT',ub='__gwt_marker_com.alphacsp.contacts.Contacts',o='base',q='clear.cache.gif',m='com.alphacsp.contacts.Contacts',u='content',db='gecko',eb='gecko1_8',nb='gwt.hybrid',A='gwt:onLoadErrorFn',w='gwt:onPropertyErrorFn',t='gwt:property',hb='hosted.html?com_alphacsp_contacts_Contacts',bb='ie6',pb='iframe',p='img',qb=&quot;javascript:''&quot;,r='meta',gb='moduleRequested',ab='msie',s='name',D='opera',rb='position:absolute;width:0;height:0;border:none',F='safari',tb='selectionDone',cb='selectionStart',x='startup',fb='unknown',C='user.agent',E='webkit';var zb=window,k=document,bc=zb.external,yb=zb.__gwtstatsEvent?function(a,b,c,d){zb.__gwtstatsEvent(a,b,c,d)}:null,oc,ec,Eb,Db=l,hc={},rc=[],nc=[],Cb=[],kc,mc;yb&&yb(m,x,cb,{millis:(new Date()).getTime()});if(!zb.__gwt_stylesLoaded){zb.__gwt_stylesLoaded={}}if(!zb.__gwt_scriptsLoaded){zb.__gwt_scriptsLoaded={}}function dc(){try{return bc&&(bc.gwtOnLoad&&zb.location.search.indexOf(nb)==-1)}catch(a){return false}}function gc(){if(oc&&ec){var c=k.getElementById(m);var b=c.contentWindow;b.__gwt_initHandlers=com_alphacsp_contacts_Contacts.__gwt_initHandlers;if(dc()){b.__gwt_getProperty=function(a){return Fb(a)}}com_alphacsp_contacts_Contacts=null;b.gwtOnLoad(kc,m,Db);yb&&yb(m,x,tb,{millis:(new Date()).getTime()})}}function ac(){var j,h=ub,i;k.write(vb+h+wb);i=k.getElementById(h);j=i&&i.previousSibling;while(j&&j.tagName!=xb){j=j.previousSibling}function d(b){var a=b.lastIndexOf(n);return a>=0?b.substring(0,a+1):l};if(j&&j.src){Db=d(j.src)}if(Db==l){var c=k.getElementsByTagName(o);if(c.length>0){Db=c[c.length-1].href}else{var g=k.location;var e=g.href;Db=d(e.substr(0,e.length-g.hash.length))}}else if(Db.match(/^\w+:\/\//)){}else{var f=k.createElement(p);f.src=Db+q;Db=d(f.src)}if(i){i.parentNode.removeChild(i)}}function lc(){var f=document.getElementsByTagName(r);for(var d=0,g=f.length;d<g;++d){var e=f[d],h=e.getAttribute(s),b;if(h){if(h==t){b=e.getAttribute(u);if(b){var i,c=b.indexOf(v);if(c>=0){h=b.substring(0,c);i=b.substring(c+1)}else{h=b;i=l}hc[h]=i}}else if(h==w){b=e.getAttribute(u);if(b){try{mc=eval(b)}catch(a){alert(y+b+z)}}}else if(h==A){b=e.getAttribute(u);if(b){try{kc=eval(b)}catch(a){alert(y+b+B)}}}}}}function qc(d,e){var a=Cb;for(var b=0,c=d.length-1;b<c;++b){a=a[d[b]]||(a[d[b]]=[])}a[d[c]]=e}function Fb(d){var e=nc[d](),b=rc[d];if(e in b){return e}var a=[];for(var c in b){a[b[c]]=c}if(mc){mc(d,a,e)}throw null}nc[C]=function(){var d=navigator.userAgent.toLowerCase();var b=function(a){return parseInt(a[1])*1000+parseInt(a[2])};if(d.indexOf(D)!=-1){return D}else if(d.indexOf(E)!=-1){return F}else if(d.indexOf(ab)!=-1){var c=/msie ([0-9]+)\.([0-9]+)/.exec(d);if(c&&c.length==3){if(b(c)>=6000){return bb}}}else if(d.indexOf(db)!=-1){var c=/rv:([0-9]+)\.([0-9]+)/.exec(d);if(c&&c.length==3){if(b(c)>=1008)return eb}return db}return fb};rc[C]={gecko:0,gecko1_8:1,ie6:2,opera:3,safari:4};com_alphacsp_contacts_Contacts.onInjectionDone=function(){oc=true;yb&&yb(m,x,gb,{millis:(new Date()).getTime()});gc()};com_alphacsp_contacts_Contacts.onScriptLoad=function(){ec=true;gc()};ac();lc();var pc;if(dc()){pc=hb}else{try{qc([D],ib);qc([F],jb);qc([bb],kb);qc([eb],lb);qc([db],mb);pc=Cb[Fb(C)]}catch(a){return}}var jc;function ic(){if(!Eb){Eb=true;gc();if(k.removeEventListener){k.removeEventListener(ob,ic,false)}if(jc){clearInterval(jc)}}}var cc;function fc(){if(!cc){cc=true;var a=k.createElement(pb);a.src=qb;a.id=m;a.style.cssText=rb;a.tabIndex=-1;k.body.appendChild(a);a.src=Db+pc}}if(k.addEventListener){k.addEventListener(ob,function(){fc();ic()},false)}var jc=setInterval(function(){if(/loaded|complete/.test(k.readyState)){fc();ic()}},50);k.write(sb)}com_alphacsp_contacts_Contacts.__gwt_initHandlers=function(i,e,j){var d=window,g=d.onresize,f=d.onbeforeunload,h=d.onunload;d.onresize=function(a){try{i()}finally{g&&g(a)}};d.onbeforeunload=function(a){var c,b;try{c=e()}finally{b=f&&f(a)}if(c!=null){return c}if(b!=null){return b}};d.onunload=function(a){try{j()}finally{h&&h(a)}}};com_alphacsp_contacts_Contacts();

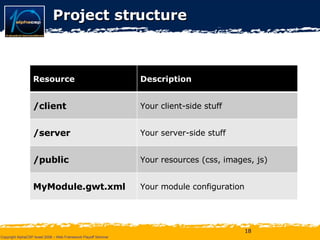

18. Project structure Resource Description /client Your client-side stuff /server Your server-side stuff /public Your resources (css, images, js) MyModule.gwt.xml Your module configuration

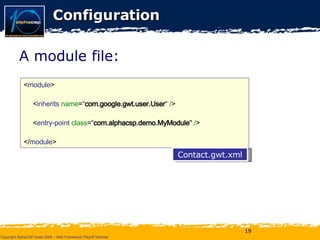

19. Configuration A module file: < module > < inherits name =“ com.google.gwt.user.User “ / > < entry-point class =“ com.alphacsp.demo.MyModule &quot; / > </ module > Contact.gwt.xml

20. Agenda Introduction Demo Features Discussion Summary

21. Base HTML Template < html > < head > <!-- Properties can be specified to influence deferred binding --> < meta name ='gwt:property' content ='locale=en_UK'> < link rel =&quot;stylesheet&quot; href =&quot;Calendar.css&quot;> < title >Demo Contacts Application</ title > </ head > < body > < script language =&quot;javascript&quot; src =&quot; com.alphacsp.demo.MyModule.nocache.js “/> <!-- Include a history iframe to enable full GWT history support --> < iframe src =&quot;javascript:''&quot; id =&quot;__gwt_historyFrame&quot; style =&quot;width:0;height:0;border:0“/> < div id =“ niceWidgetThingHere ”/> </ body > </ html > Contact.html Standard GWT injection Access and manipulate however you like

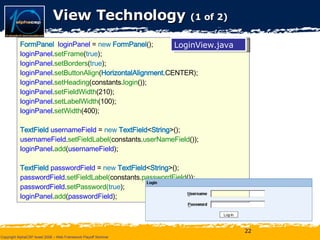

22. View Technology (1 of 2) FormPanel loginPanel = new FormPanel (); loginPanel . setFrame ( true ); loginPanel . setBorders ( true ); loginPanel . setButtonAlign ( HorizontalAlignment. CENTER); loginPanel . setHeading (constants. login ()); loginPanel . setFieldWidth (210); loginPanel . setLabelWidth (100); loginPanel . setWidth (400); TextField usernameField = new TextField < String >(); usernameField . setFieldLabel( constants. userNameField ()); loginPanel . add ( usernameField ); TextField passwordField = new TextField < String >(); passwordField . setFieldLabel( constants. passwordField ()); passwordField . setPassword( true ); loginPanel . add ( passwordField ); LoginView.java

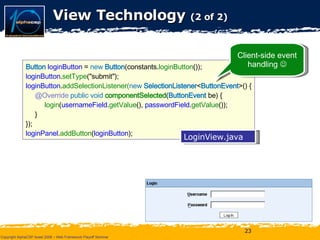

23. View Technology (2 of 2) Button loginButton = new Button (constants. loginButton ()); loginButton . setType (&quot;submit&quot;); loginButton . addSelectionListener( new SelectionListener < ButtonEvent >() { @Override public void componentSelected ( ButtonEvent be) { login ( usernameField . getValue (), passwordField . getValue ()); } }); loginPanel . addButton ( loginButton ); LoginView.java Client-side event handling 

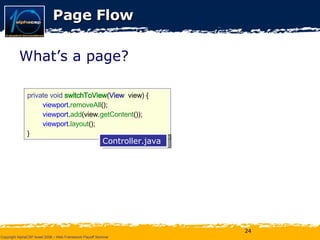

24. Page Flow private void switchToView ( View view) { viewport . removeAll (); viewport . add (view. getContent ()); viewport . layout (); } Controller.java What’s a page?

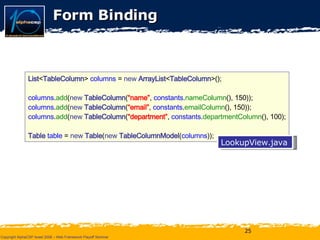

25. Form Binding List < TableColumn > columns = new ArrayList < TableColumn >(); columns . add ( new TableColumn ( “name” , constants . nameColumn (), 150)); columns . add ( new TableColumn ( “email” , constants . emailColumn (), 150)); columns . add ( new TableColumn ( “department” , constants . departmentColumn (), 100); Table table = new Table ( new TableColumnModel ( columns )); LookupView.java

26. Pagination // table TableColumnModel columnModel = new TableColumnModel ( columns ); Table table = new Table ( columnModel ); // pagingLoader PagingLoader < PagingLoadConfig > pagingLoader = new BasePagingLoader (proxy); // store ListStore < Employee > store = new ListStore < Employee >( pagingLoader ); // binder new TableBinder < Employee >( table , store ); PagingToolBar toolBar = new PagingToolBar (50); toolBar . bind ( pagingLoader ); LookupView.java

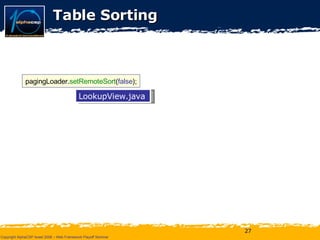

27. Table Sorting pagingLoader. setRemoteSort ( false ); LookupView.java

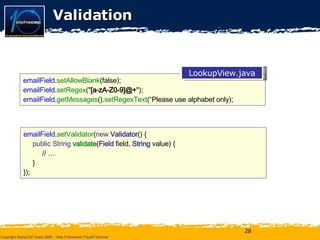

28. Validation emailField . setAllowBlank (false); emailField . setRegex (&quot; [a-zA-Z0-9]@+ &quot;); emailField . getMessages (). setRegexText (“Please use alphabet only); emailField . setValidator ( new Validator () { public String validate ( Field field, String value) { // … } }); LookupView.java

29. AJAX (1 of 2) Registering the service under this name Mandatory stuff… It’s great to be a servlet @RemoteServiceRelativePath (&quot;l ookup &quot;) public interface LoginService extends RemoteService { Employee login ( String userName, String password) throws UnsuccessfulLoginException ; } LoginService.java public interface LoginServiceAsync { void login ( String userName, String password, AsyncCallback<Employee> callback); } LoginServiceAsync.java public class LoginServiceImpl extends RemoteServiceServlet { String login ( String userName, String password) { // …. } } LoginServiceImpl.java

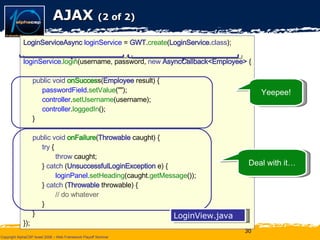

30. AJAX (2 of 2) LoginServiceAsync loginService = GWT . create ( LoginService . class ); loginService . login (username, password, new AsyncCallback<Employee> { public void onSucces s( Employee result) { passwordField . setValue (&quot;&quot;); controller . setUsername (username); controller . loggedIn (); } public void onFailure ( Throwable caught) { try { throw caught; } catch ( UnsuccessfulLoginException e) { loginPanel . setHeading (caught. getMessage ()); } catch ( Throwable throwable) { // do whatever } } }); Yeepee! Deal with it… LoginView.java

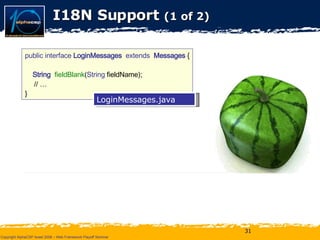

31. I18N Support (1 of 2) public interface LoginMessages extends Messages { String fieldBlank ( String fieldName); // … } LoginMessages.java fieldBlank = {0} cannot be empty. … . LoginMessages.properties LoginConstants messages = GWT . create ( LoginMessages .class ); String message = messages . fieldBlank (“Username”); anywhere

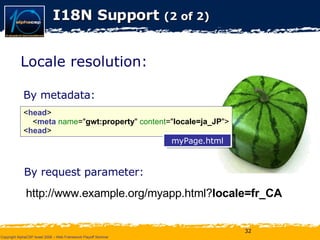

32. I18N Support (2 of 2) < head > < meta name =&quot; gwt:property &quot; content =&quot; locale=ja_JP &quot;> < head > myPage.html http://www.example.org/myapp.html? locale=fr_CA Locale resolution: By metadata: By request parameter:

33. Error Handling GWT . setUncaughtExceptionHandler ( new GWT . UncaughtExceptionHandler () { public void onUncaughtException ( Throwable e) { GWT . log (e. getMessage (), e); // … } }); Contacts.java

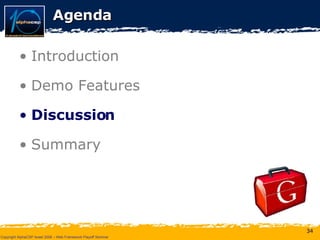

34. Agenda Introduction Demo Features Discussion Summary

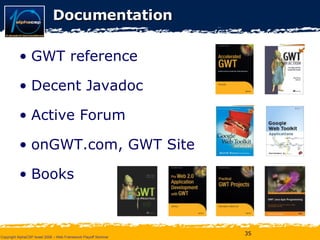

35. Documentation GWT reference Decent Javadoc Active Forum onGWT.com, GWT Site Books

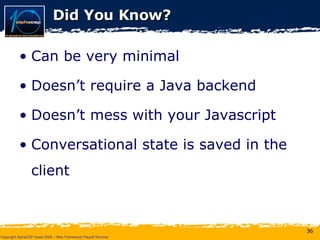

36. Did You Know? Can be very minimal Doesn’t require a Java backend Doesn’t mess with your Javascript Conversational state is saved in the client

37. Design Programmatic layouting Everything is CSS Go ahead, tweak your DOM Out of the box themes

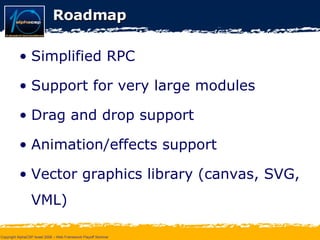

38. Roadmap Simplified RPC Support for very large modules Drag and drop support Animation/effects support Vector graphics library (canvas, SVG, VML)

39. Tools IntelliJ IDEA Cypal Studio (for Eclipse) GWT4NB (for NetBeans) Instantiations Maven

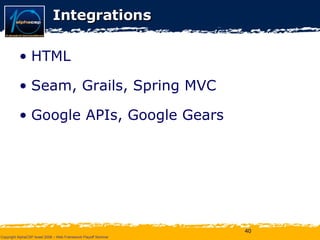

40. Integrations HTML Seam, Grails, Spring MVC Google APIs, Google Gears

41. 3 rd party Ext-GWT Gwittir GWT Rocket GWT Log

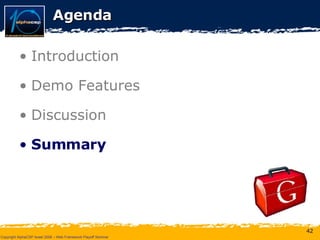

42. Agenda Introduction Demo Features Discussion Summary

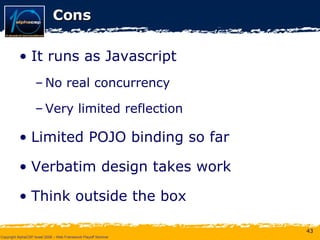

43. Cons It runs as Javascript No real concurrency Very limited reflection Limited POJO binding so far Verbatim design takes work Think outside the box

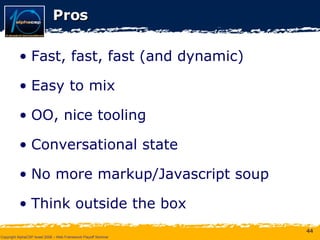

44. Pros Fast, fast, fast (and dynamic) Easy to mix OO, nice tooling Conversational state No more markup/Javascript soup Think outside the box

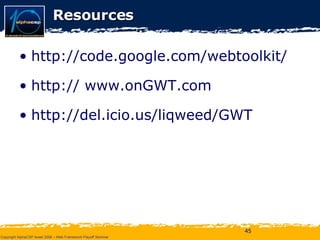

45. Resources http://code.google.com/webtoolkit/ http:// www.onGWT.com http://del.icio.us/liqweed/GWT
