2. Google Drive and the
Google Drive SDK
Building Drive apps
Abdelhalim Lagrid
Google Developer Group, Algiers
1

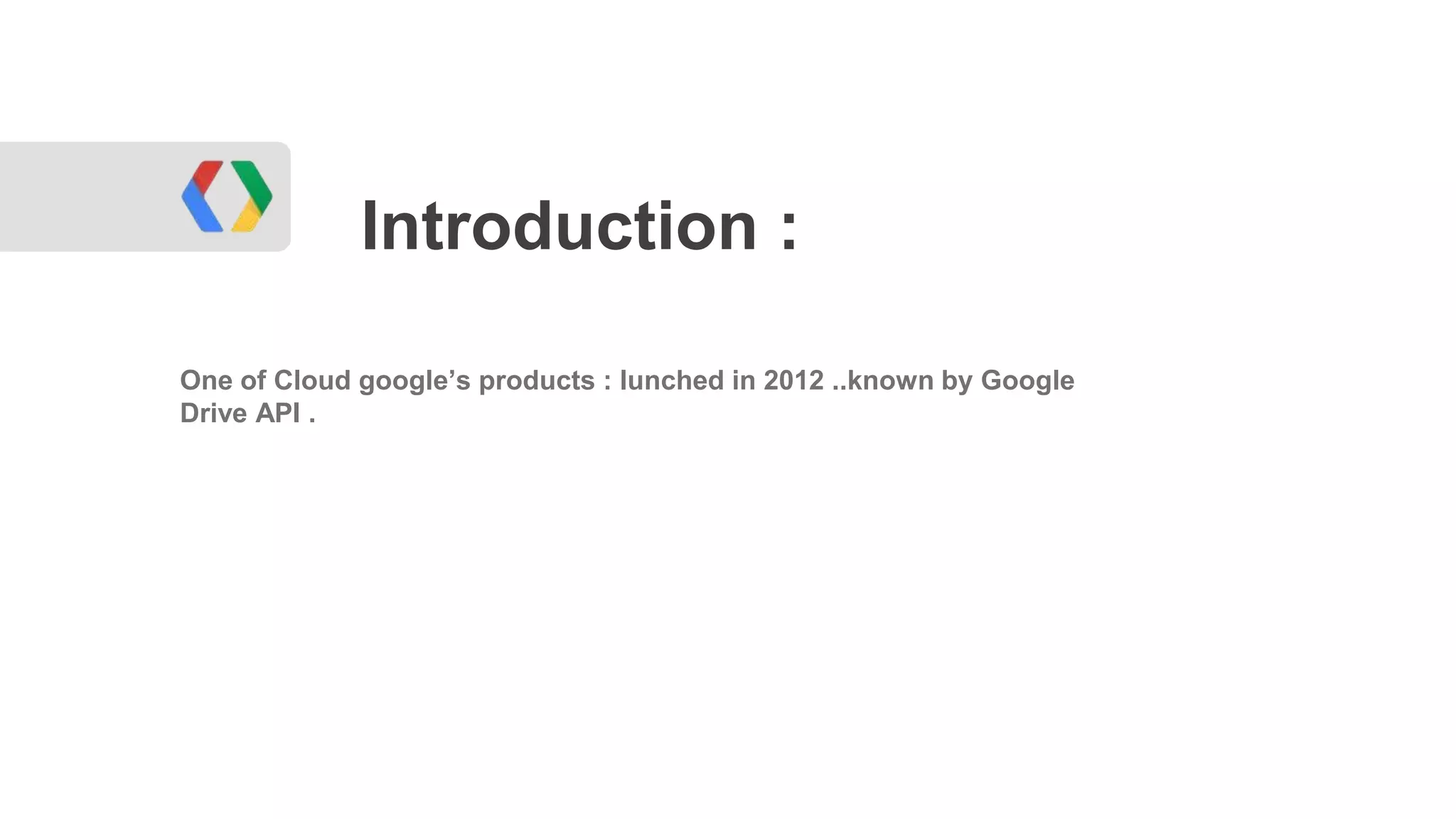

3. Introduction :
One of Cloud google’s products : lunched in 2012 ..known by Google
Drive API .

4. What is Google Drive?
Yea, some marketing :)
2222

5. Access Anywhere
Google Drive is everywhere you are -- on the
web, in your home, at the office, and on the go.
So wherever you are, your stuff is just...there.
Ready to go, ready to share.
Install it on:
PC, Mac, Android, iOS

6. Store your files in a safe place
Things happen. Your phone goes for a swim.
Your laptop takes an infinite snooze.
No matter what happens to your devices, your
files are safely stored in Google Drive.

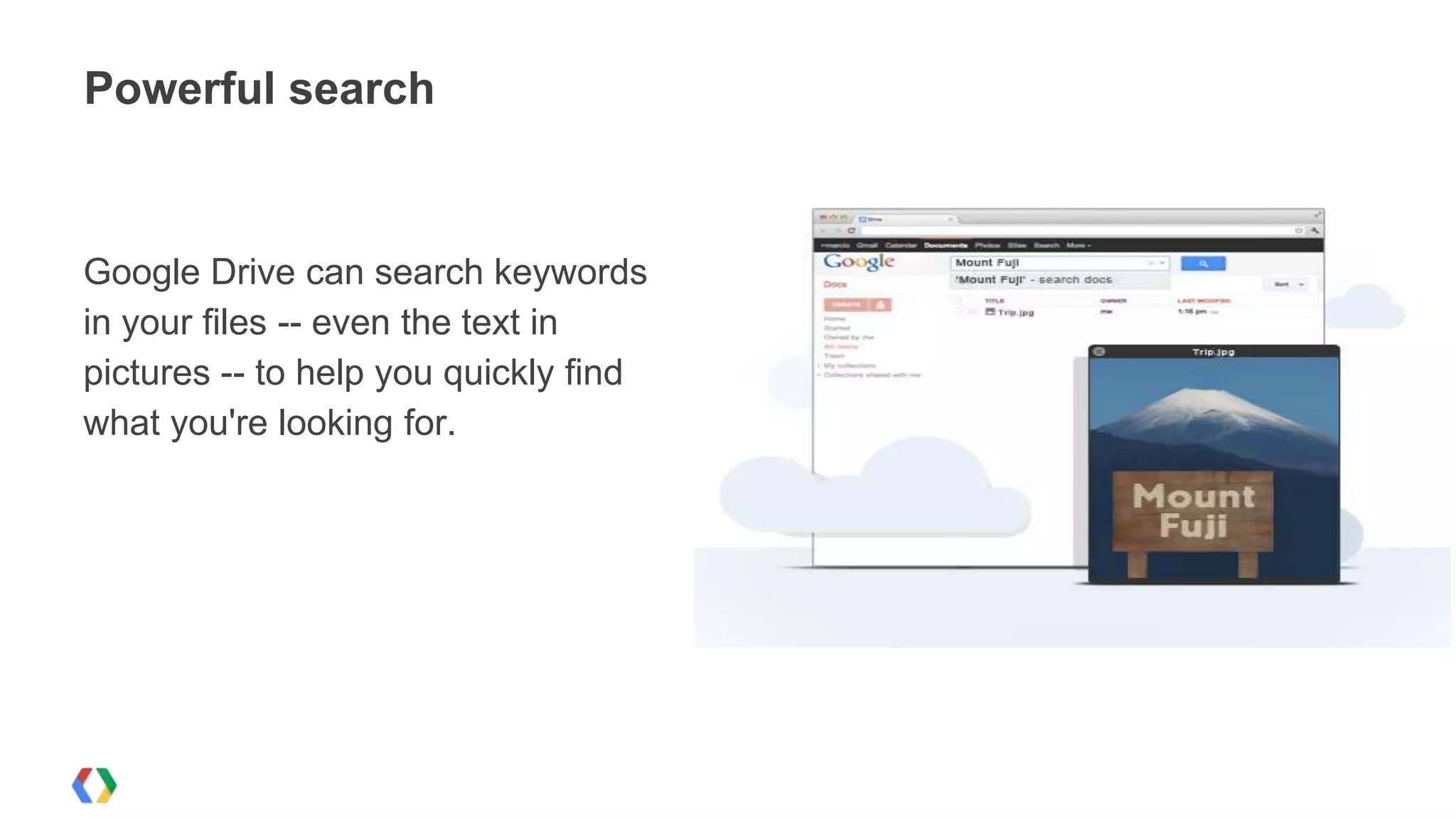

7. Powerful search
Google Drive can search keywords
in your files -- even the text in
pictures -- to help you quickly find
what you're looking for.

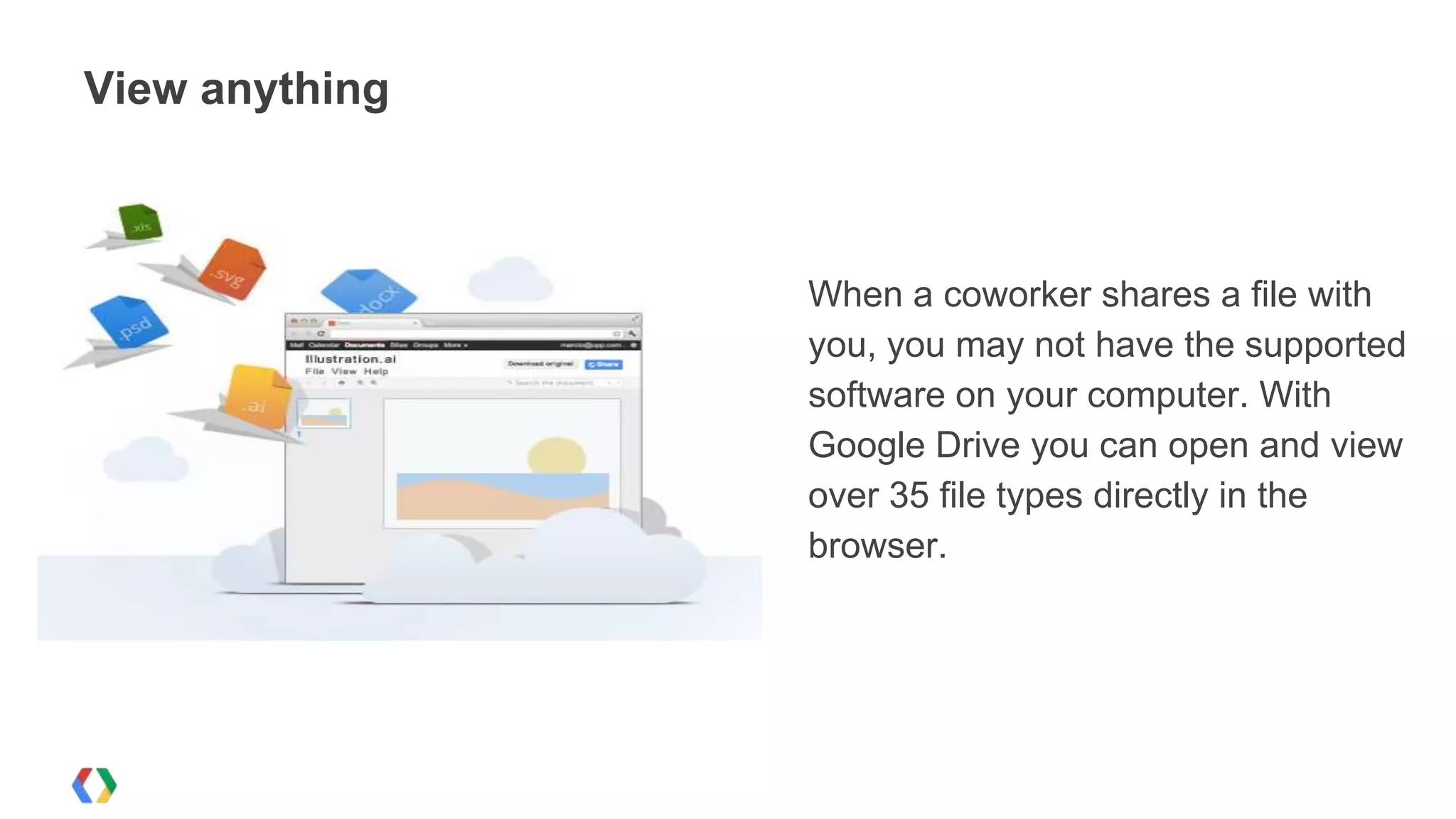

8. View anything
When a coworker shares a file with
you, you may not have the supported
software on your computer. With
Google Drive you can open and view
over 35 file types directly in the
browser.

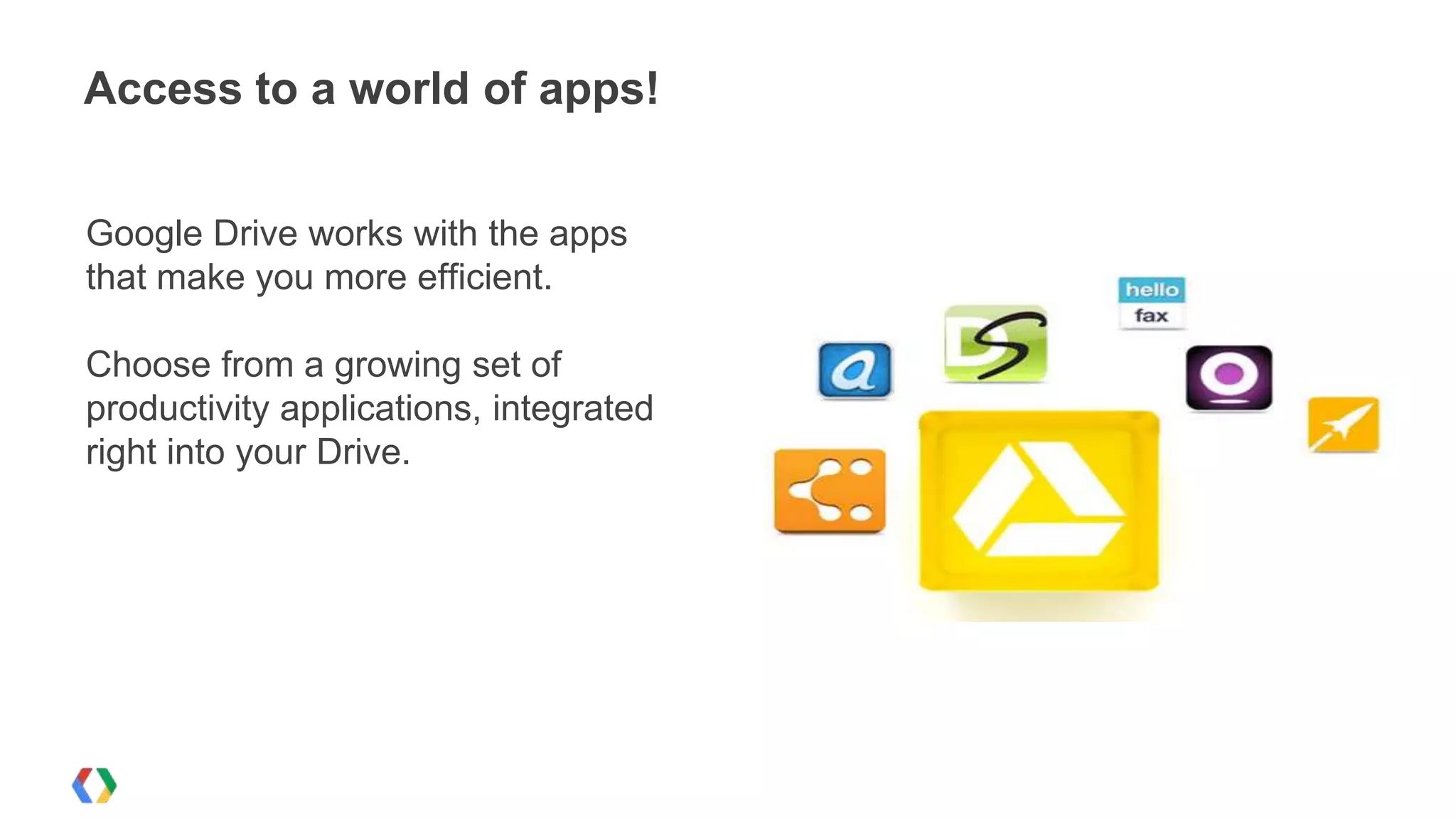

9. Access to a world of apps!
Google Drive works with the apps
that make you more efficient.
Choose from a growing set of
productivity applications, integrated
right into your Drive.

10. Google Drive SDK
Why integrate with Google Drive?

11. Drive SDK opportunity
++
Extensive Reach
Put your app in front of millions of
users with billions of files
Effortless Integration
Get the best of Google Drive's sharing
capabilities, storage capacity and user
identity management so you can focus
on your app

12. Drive SDK features
Drive
•
•
Create, Read, List, Manage files through the API
Search, sharing and revisions
Drive Web UI
•
Open files and docs with your app directly from Drive

13. Integrating with Google Drive
Getting Started

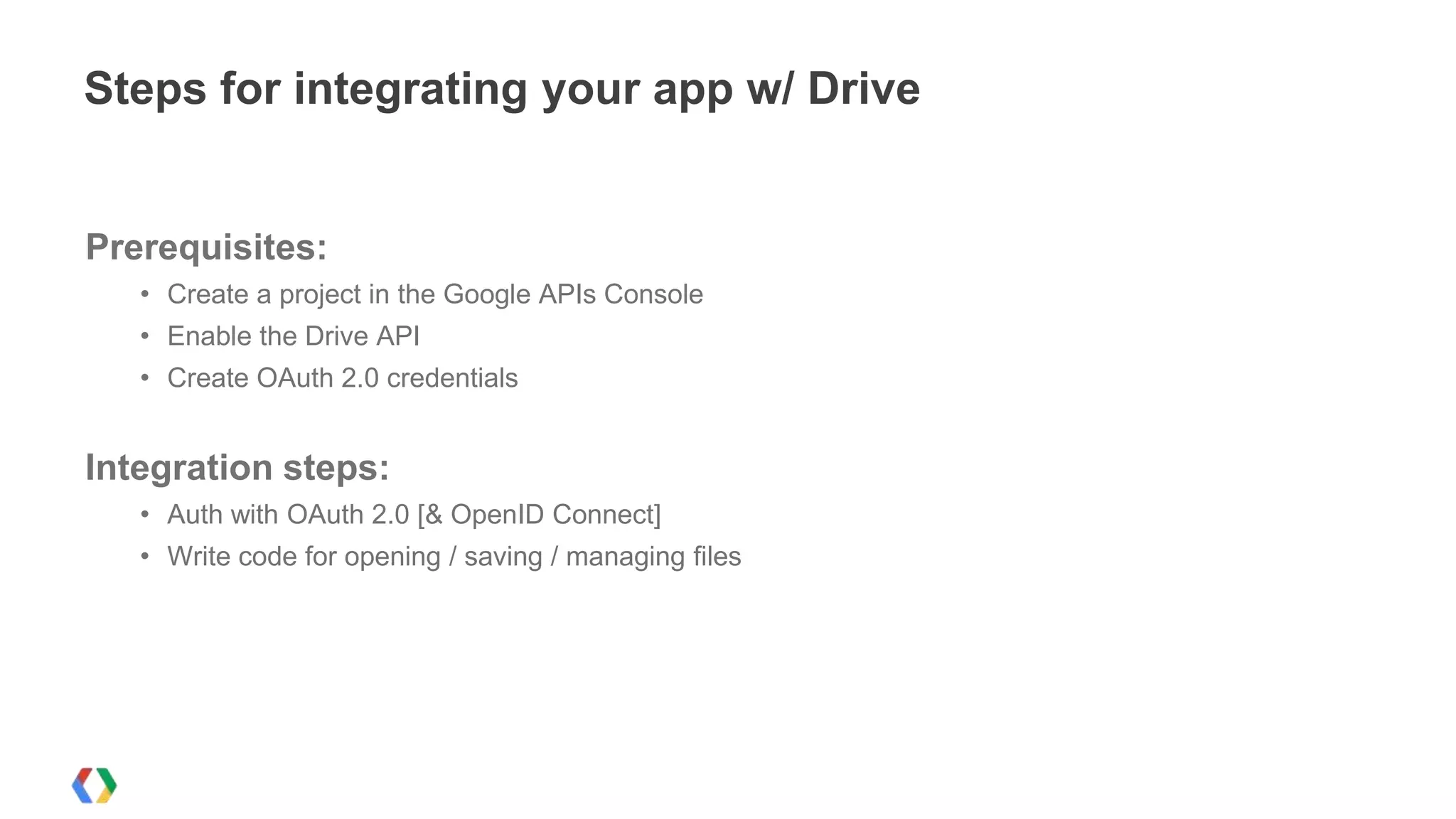

14. Steps for integrating your app w/ Drive
Prerequisites:
• Create a project in the Google APIs Console
• Enable the Drive API
• Create OAuth 2.0 credentials
Integration steps:
• Auth with OAuth 2.0 [& OpenID Connect]
• Write code for opening / saving / managing files

15. OAuth 2.0
Introduction

16. A cool tool...
OAuth 2.0 Playground

17. Integrating with Google Drive
Handling Authorization for Web apps

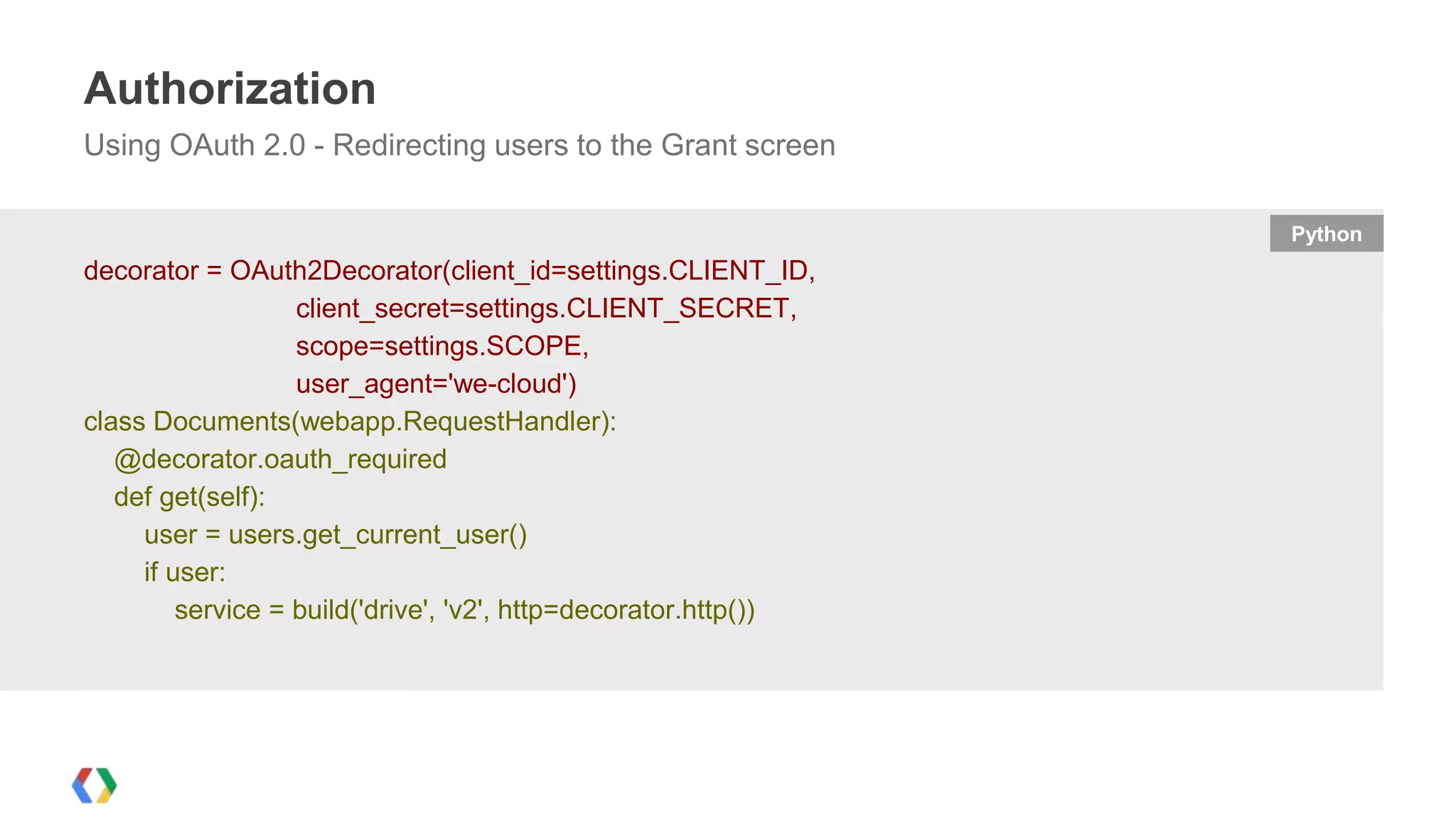

18. Authorization
Using OAuth 2.0 - Redirecting users to the Grant screen
Python
decorator = OAuth2Decorator(client_id=settings.CLIENT_ID,
client_secret=settings.CLIENT_SECRET,
scope=settings.SCOPE,
user_agent='we-cloud')
class Documents(webapp.RequestHandler):
@decorator.oauth_required
def get(self):
user = users.get_current_user()
if user:
service = build('drive', 'v2', http=decorator.http())

19. Integrating with Google Drive
Interacting with Drive files

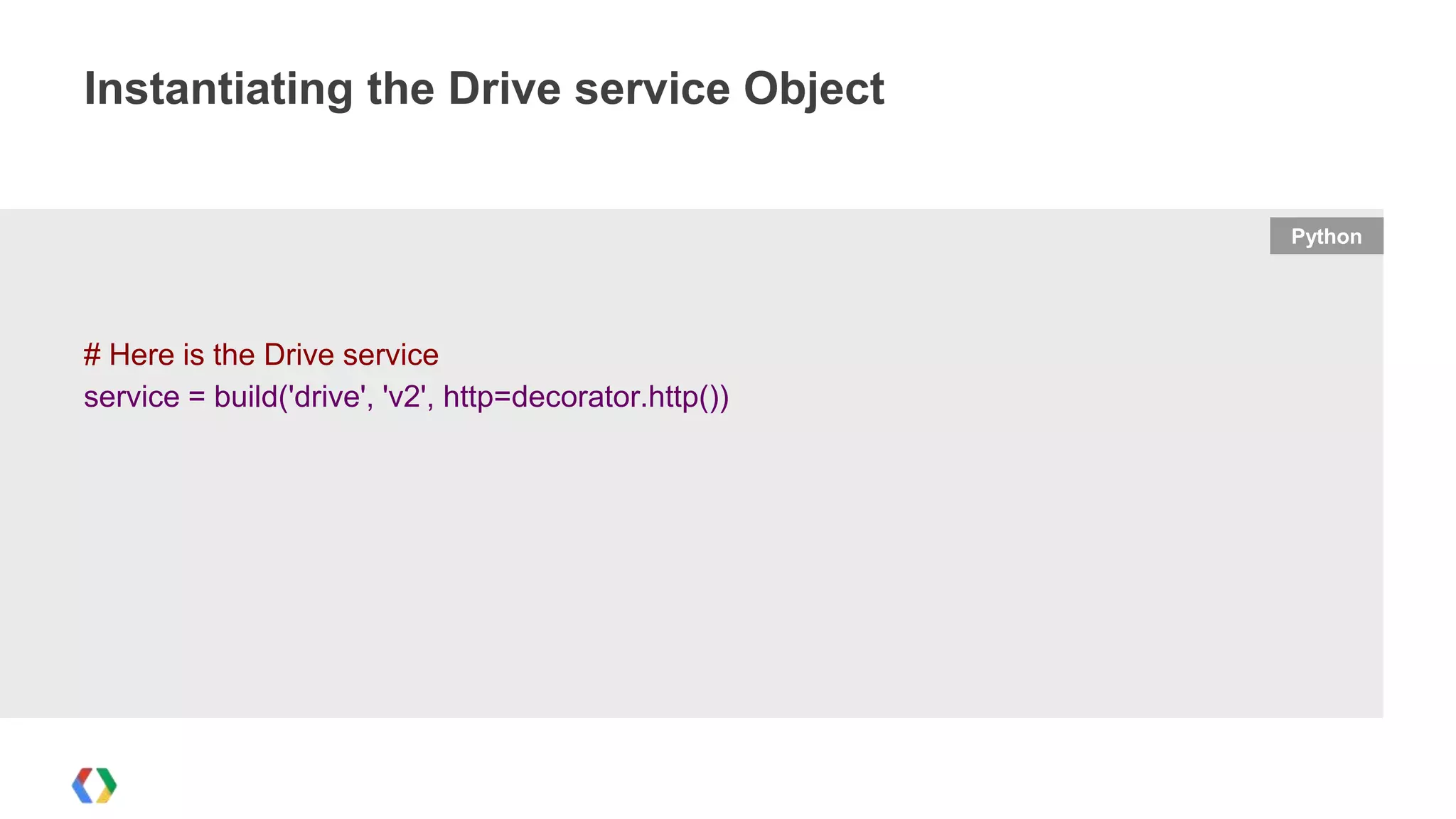

20. Instantiating the Drive service Object
Python
# Here is the Drive service
service = build('drive', 'v2', http=decorator.http())

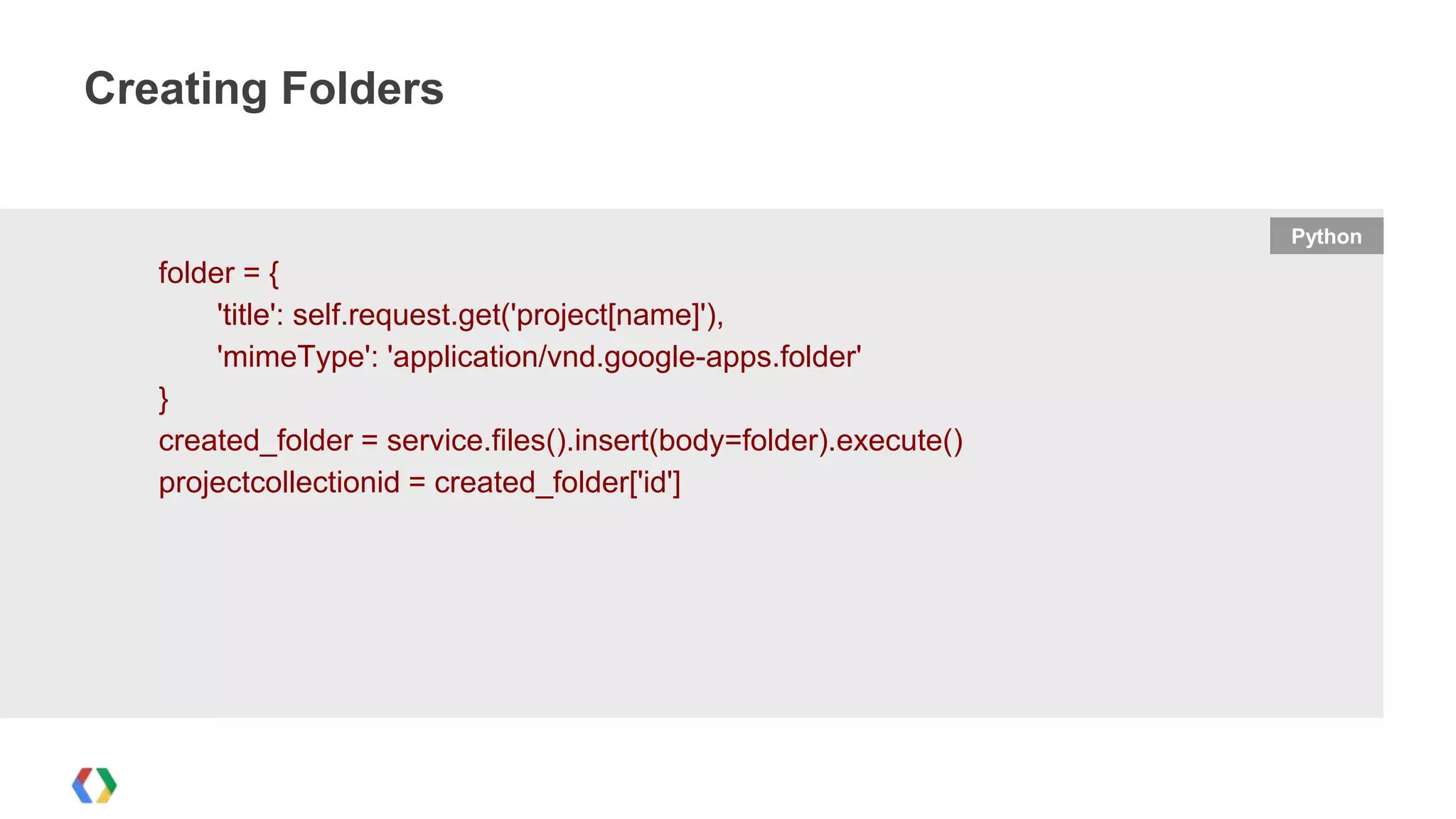

21. Creating Folders
Python
folder = {
'title': self.request.get('project[name]'),
'mimeType': 'application/vnd.google-apps.folder'
}
created_folder = service.files().insert(body=folder).execute()
projectcollectionid = created_folder['id']

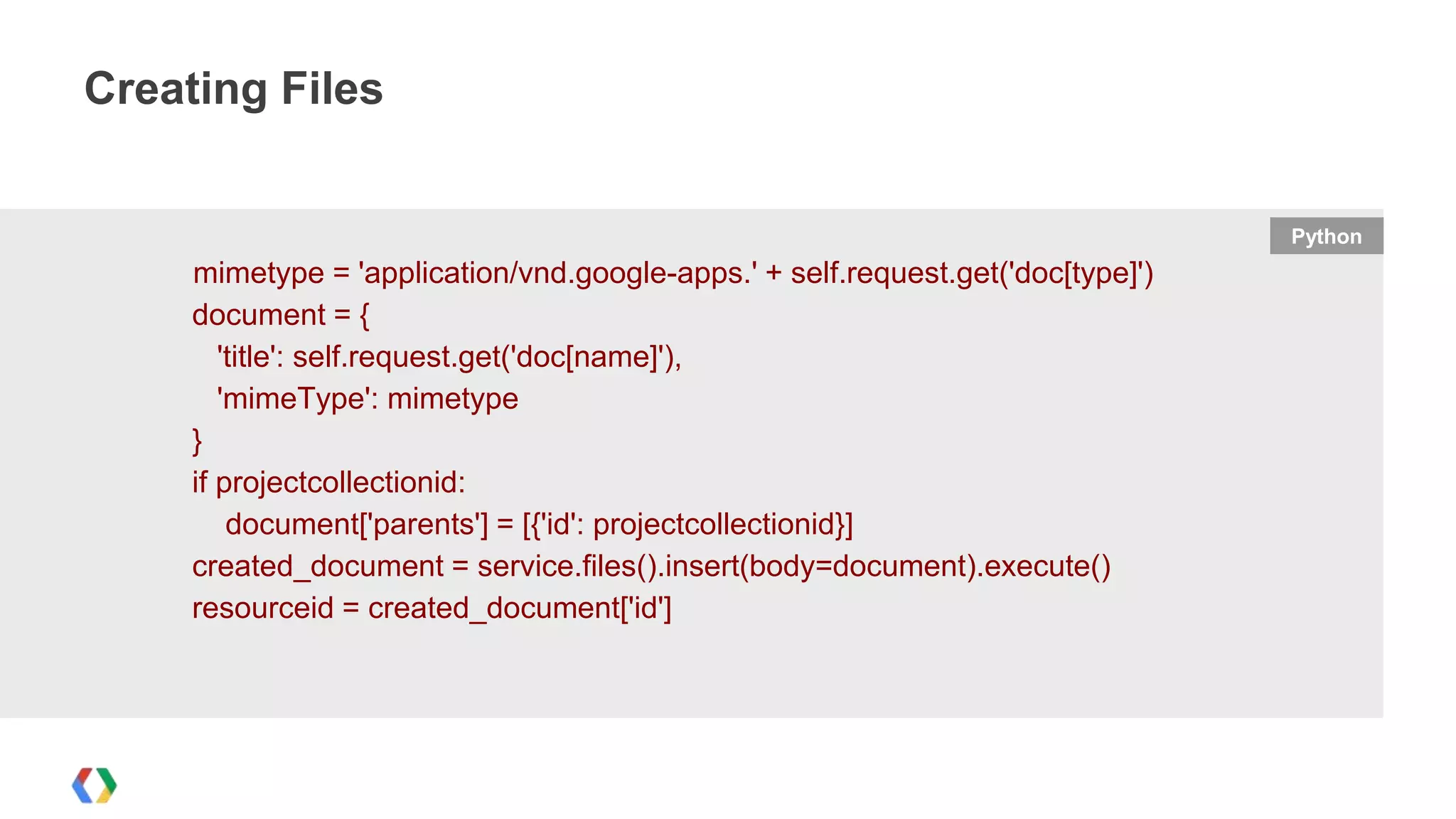

22. Creating Files
Python
mimetype = 'application/vnd.google-apps.' + self.request.get('doc[type]')
document = {
'title': self.request.get('doc[name]'),
'mimeType': mimetype
}
if projectcollectionid:
document['parents'] = [{'id': projectcollectionid}]
created_document = service.files().insert(body=document).execute()
resourceid = created_document['id']

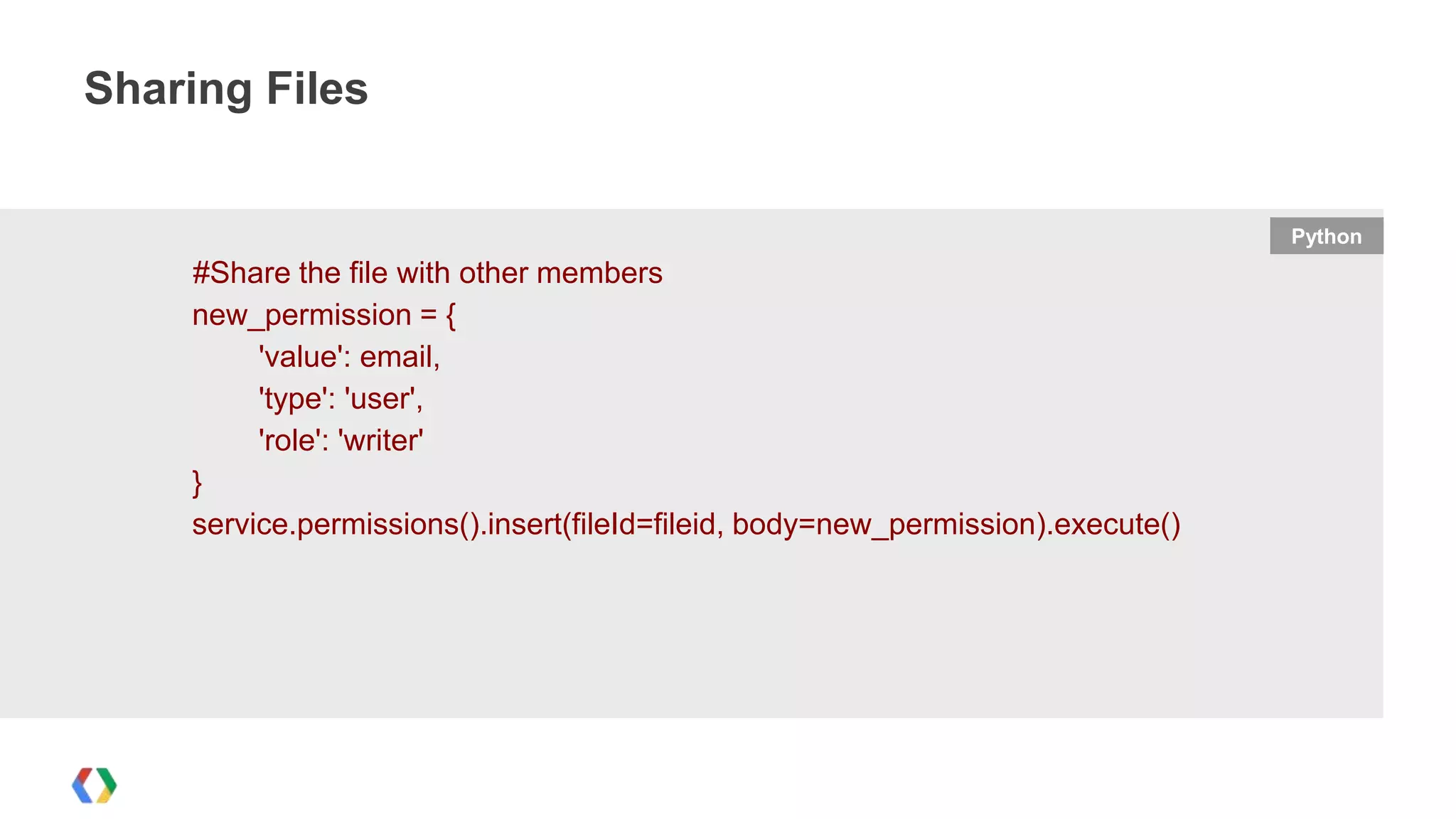

23. Sharing Files
Python
#Share the file with other members
new_permission = {
'value': email,
'type': 'user',
'role': 'writer'
}
service.permissions().insert(fileId=fileid, body=new_permission).execute()

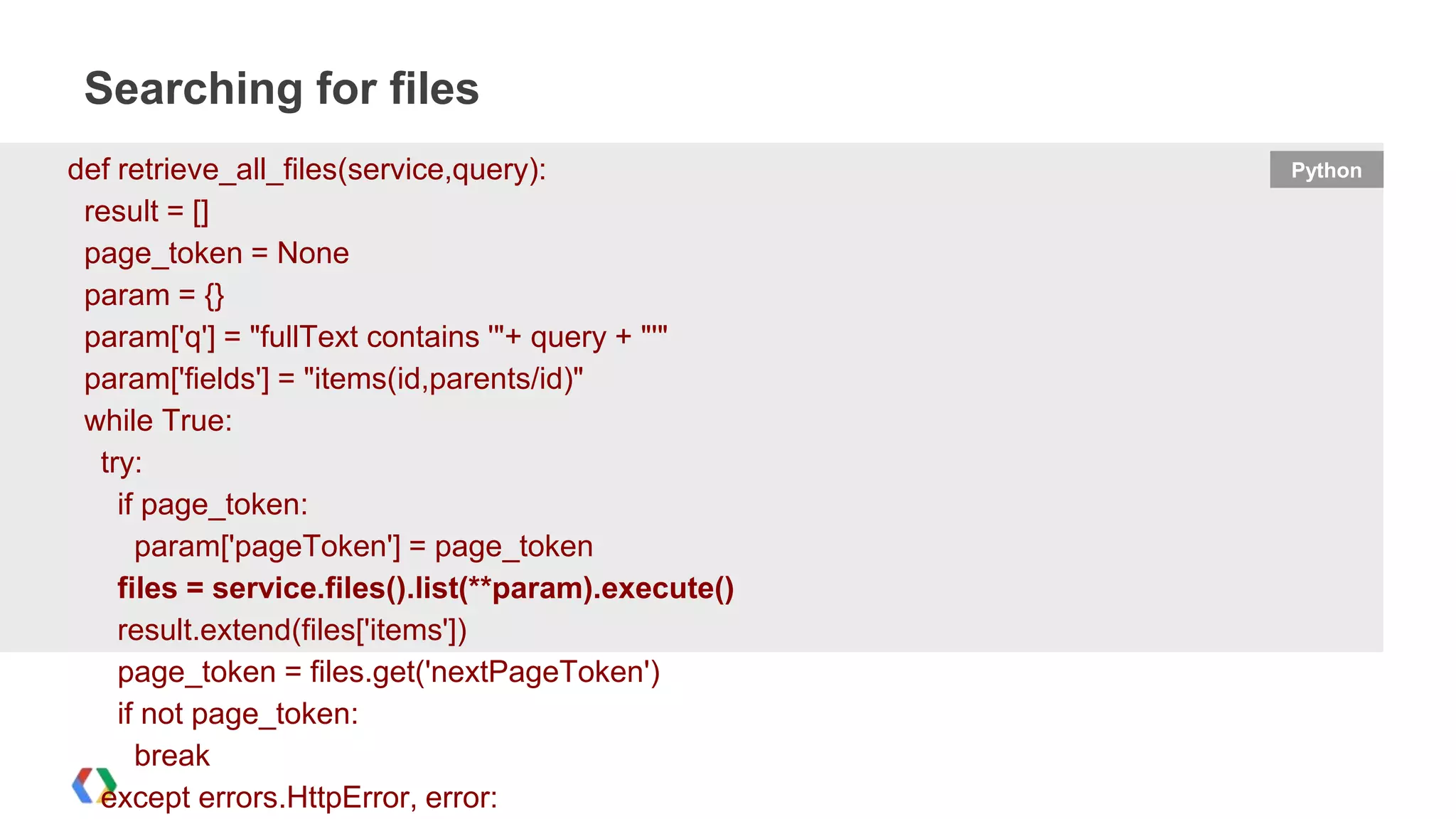

24. Searching for files
def retrieve_all_files(service,query):
result = []
page_token = None
param = {}
param['q'] = "fullText contains '"+ query + "'"
param['fields'] = "items(id,parents/id)"
while True:
try:
if page_token:
param['pageToken'] = page_token
files = service.files().list(**param).execute()
result.extend(files['items'])
page_token = files.get('nextPageToken')
if not page_token:
break
except errors.HttpError, error:
Python

25. Integrating with Google Drive
Adding the Drive Web-UI Integration

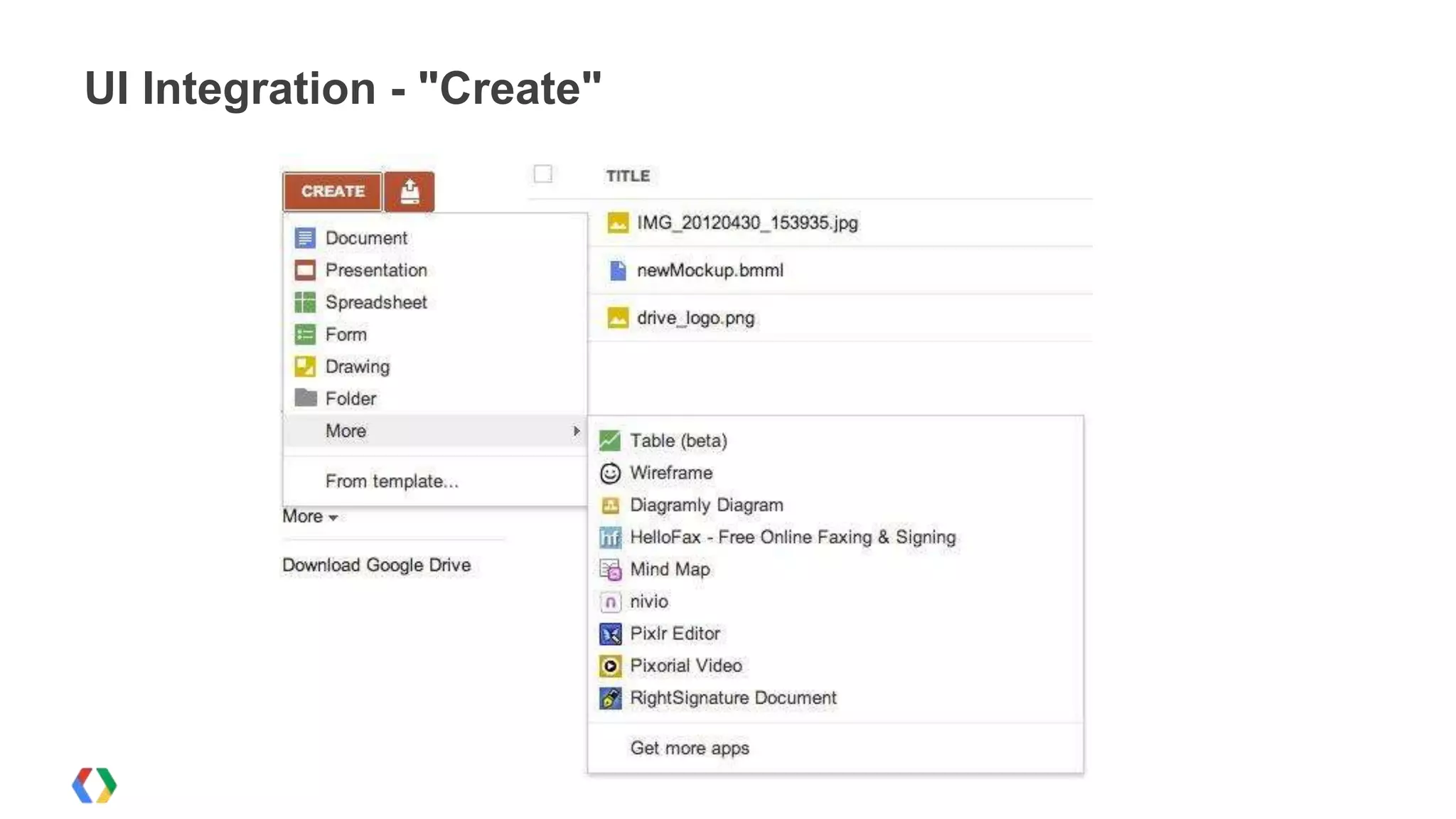

26. UI Integration - "Create"

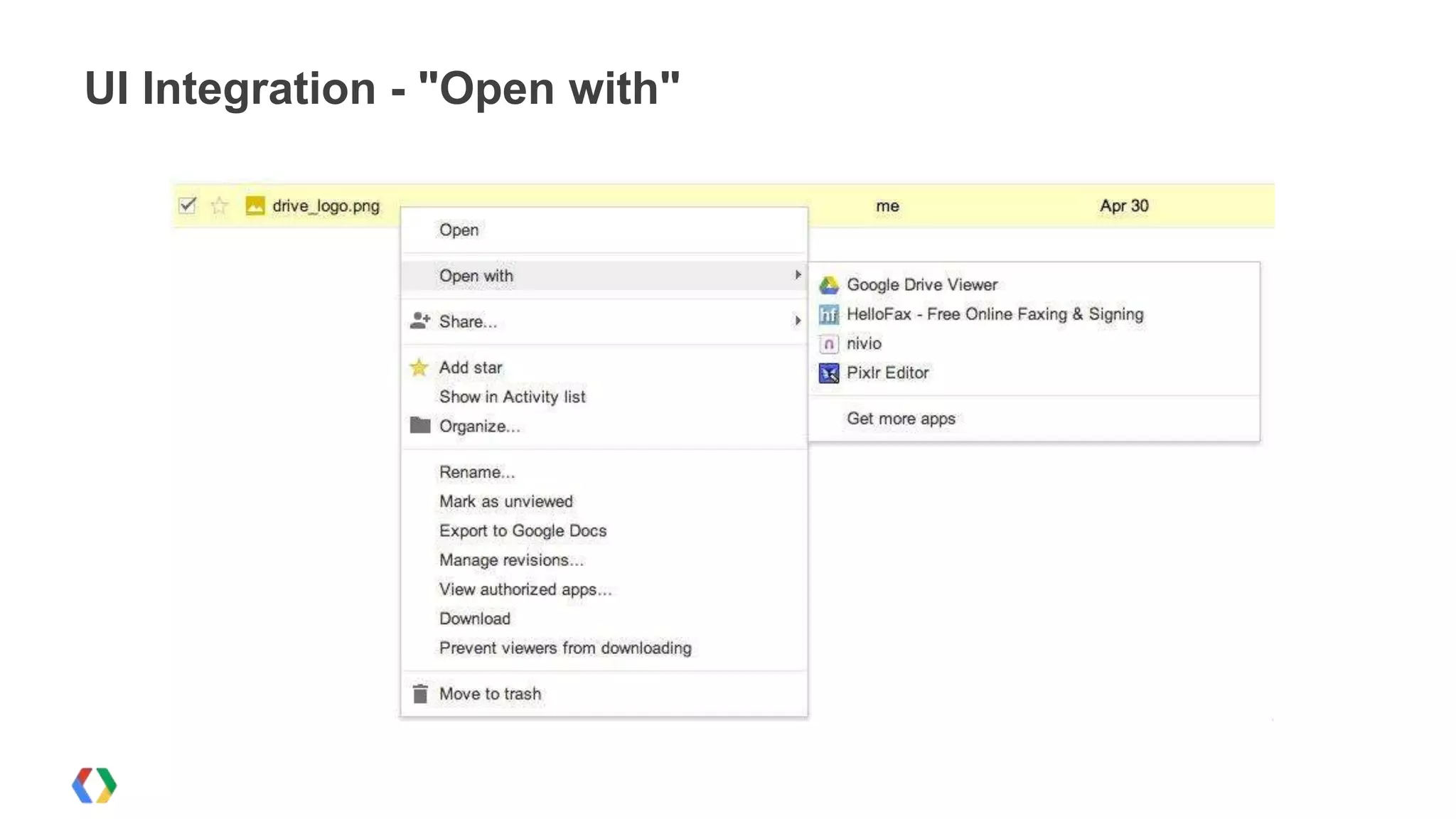

27. UI Integration - "Open with"

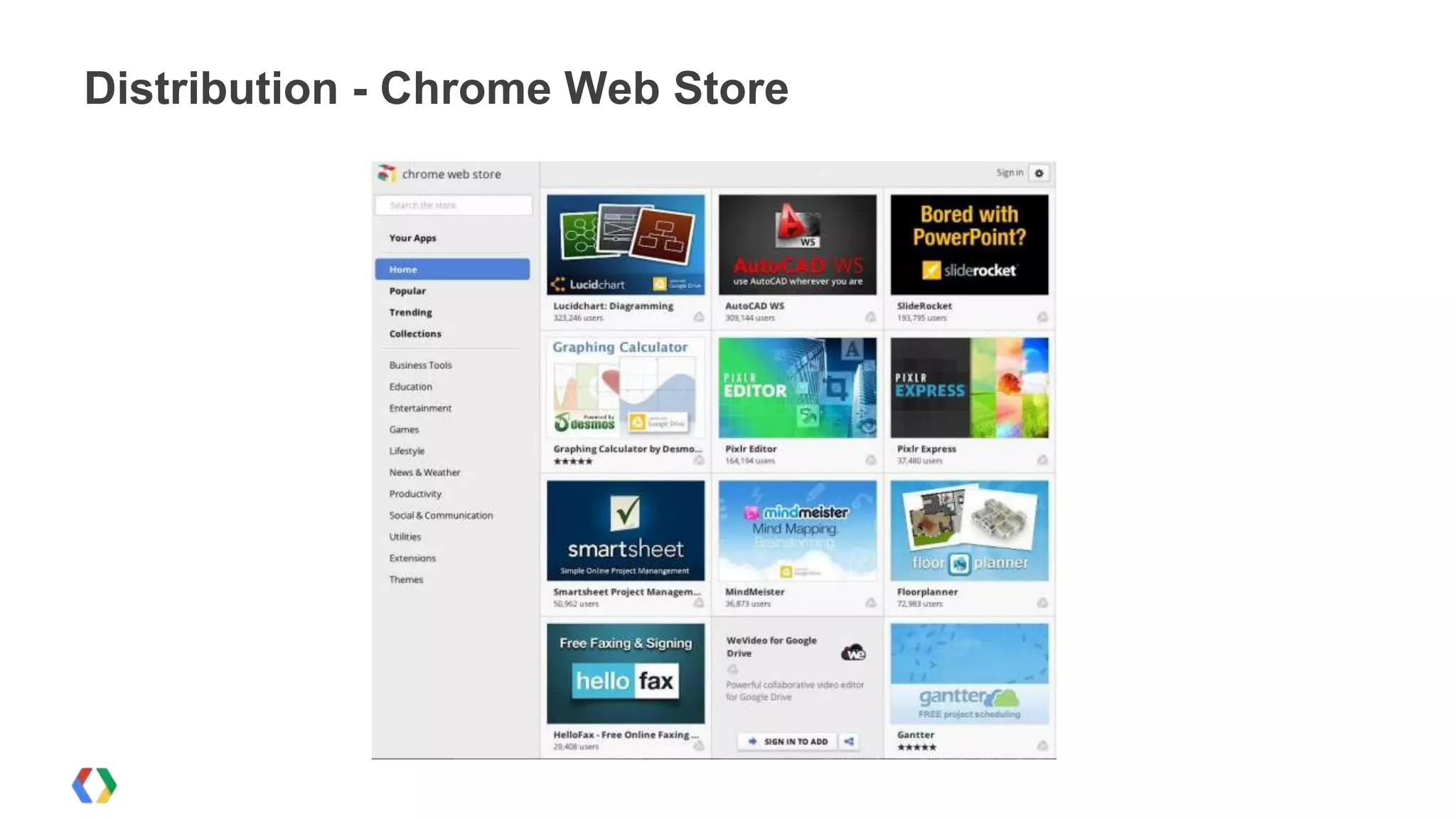

28. Distribution - Chrome Web Store

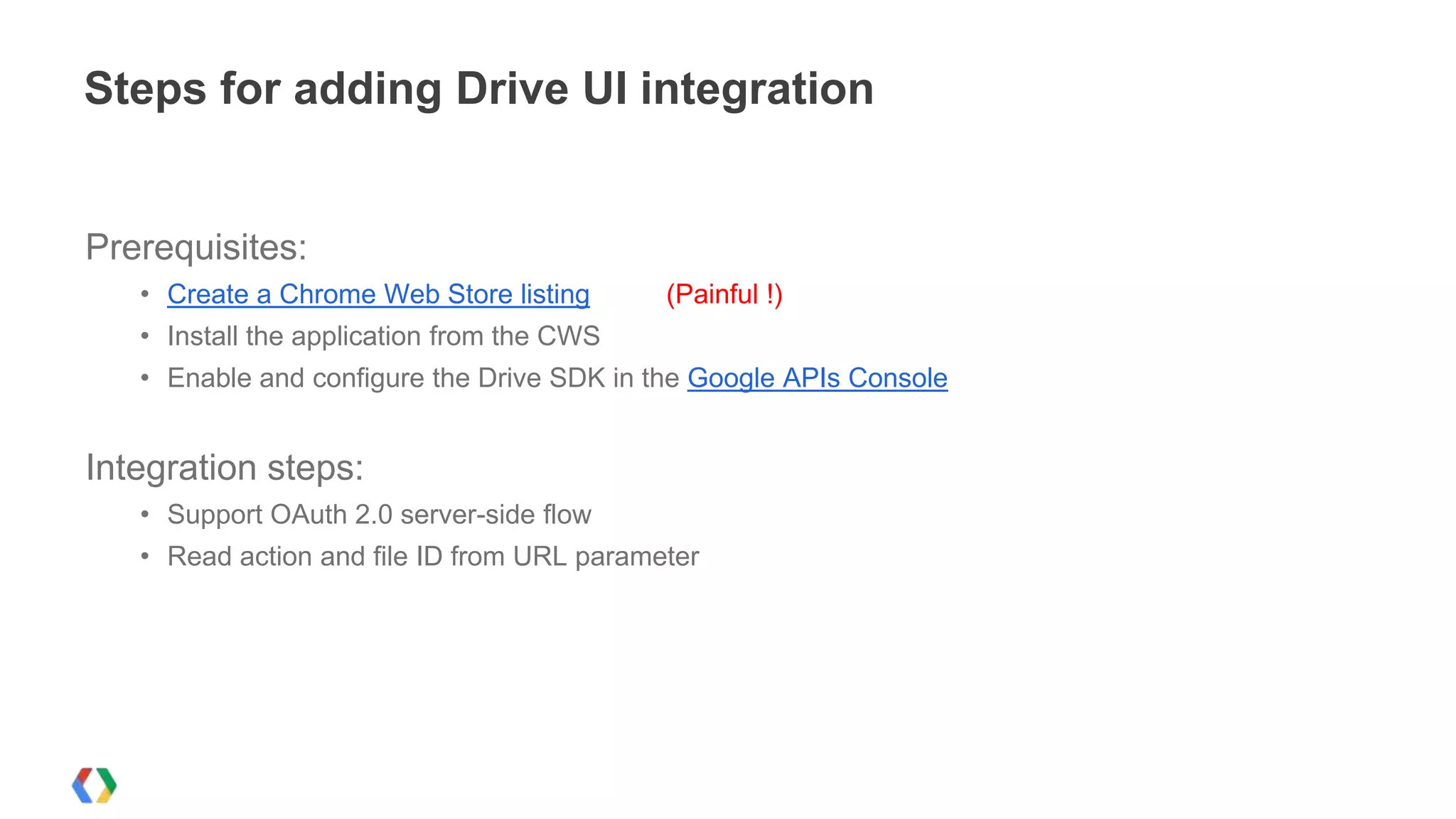

29. Steps for adding Drive UI integration
Prerequisites:
• Create a Chrome Web Store listing
(Painful !)
• Install the application from the CWS
• Enable and configure the Drive SDK in the Google APIs Console
Integration steps:
• Support OAuth 2.0 server-side flow
• Read action and file ID from URL parameter

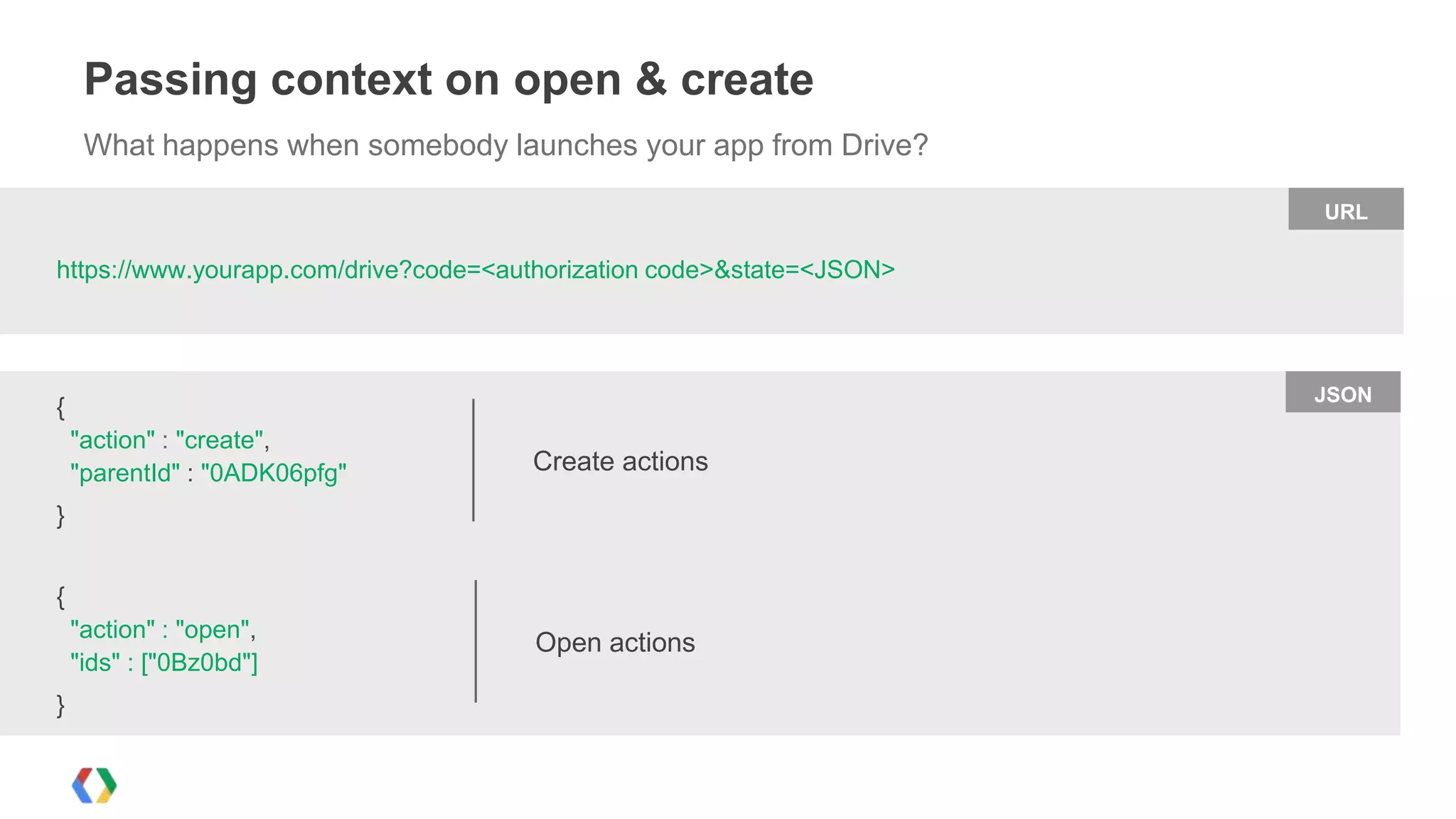

30. Passing context on open & create
What happens when somebody launches your app from Drive?
URL
https://www.yourapp.com/drive?code=<authorization code>&state=<JSON>
JSON
{
"action" : "create",
"parentId" : "0ADK06pfg"
Create actions
"action" : "open",
"ids" : ["0Bz0bd"]
Open actions
}
{
}

31. Integrating with Google Drive
The Google Picker

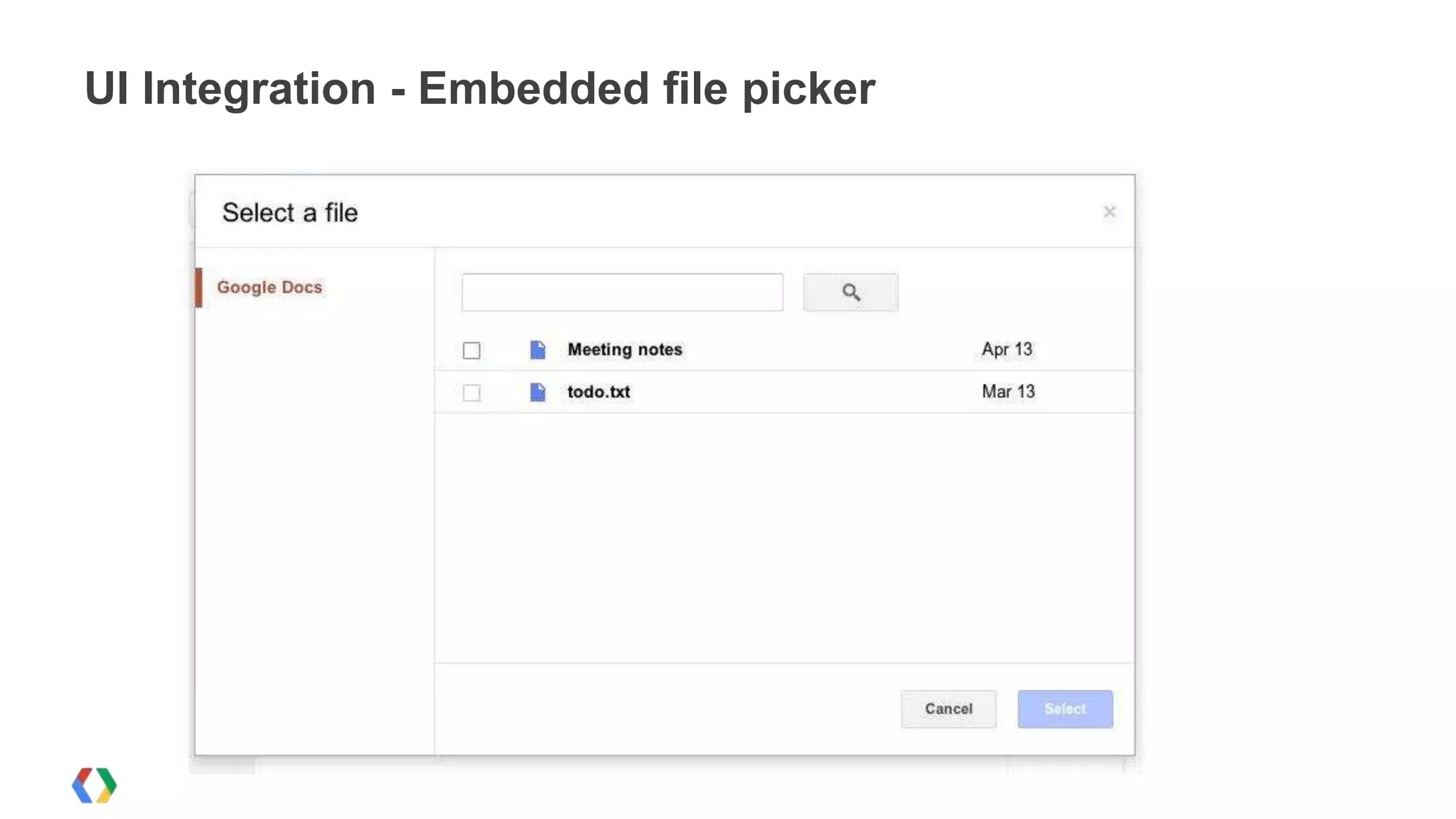

32. UI Integration - Embedded file picker

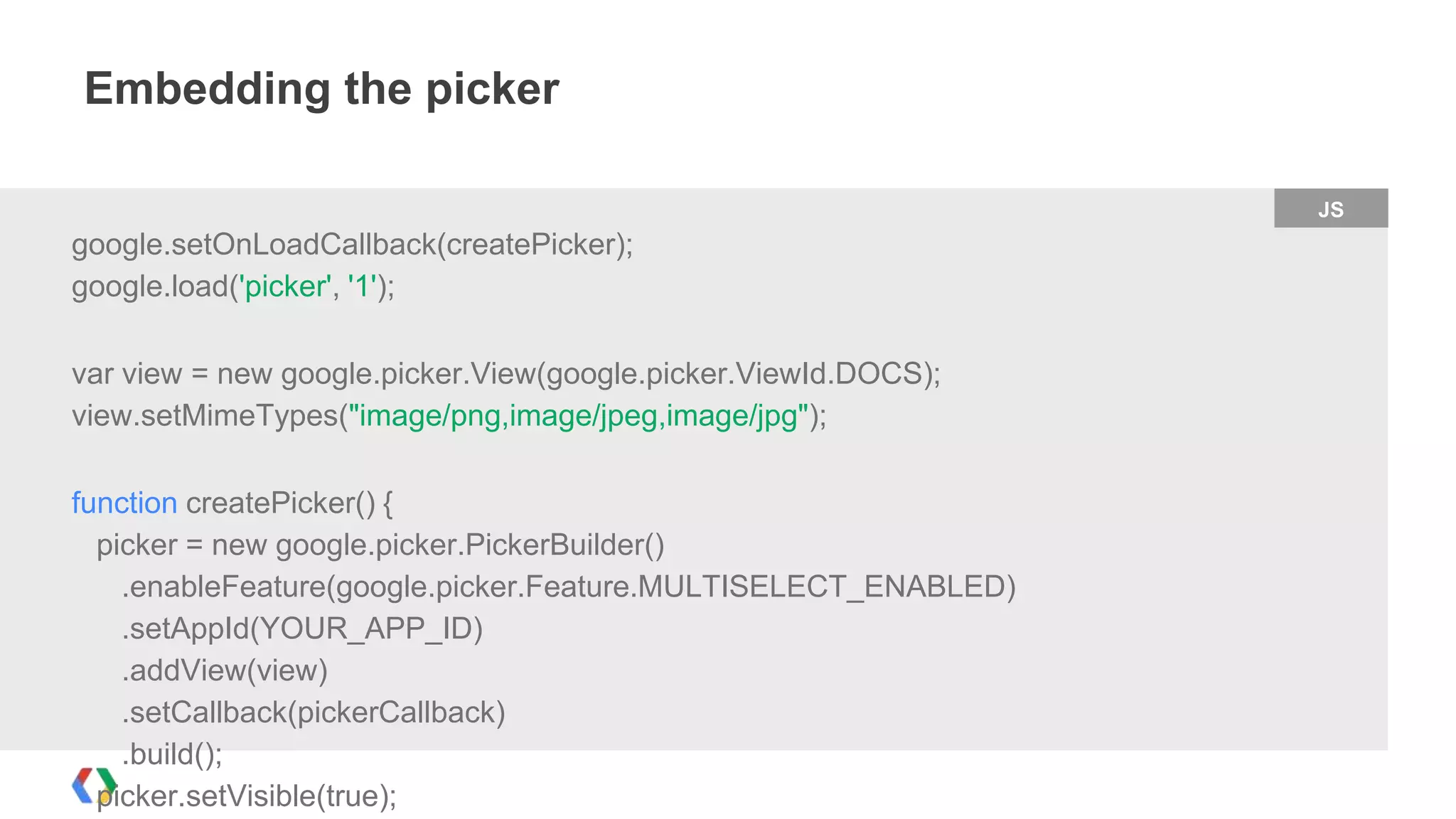

33. Embedding the picker
JS
google.setOnLoadCallback(createPicker);
google.load('picker', '1');
var view = new google.picker.View(google.picker.ViewId.DOCS);
view.setMimeTypes("image/png,image/jpeg,image/jpg");
function createPicker() {
picker = new google.picker.PickerBuilder()
.enableFeature(google.picker.Feature.MULTISELECT_ENABLED)
.setAppId(YOUR_APP_ID)
.addView(view)
.setCallback(pickerCallback)
.build();
picker.setVisible(true);

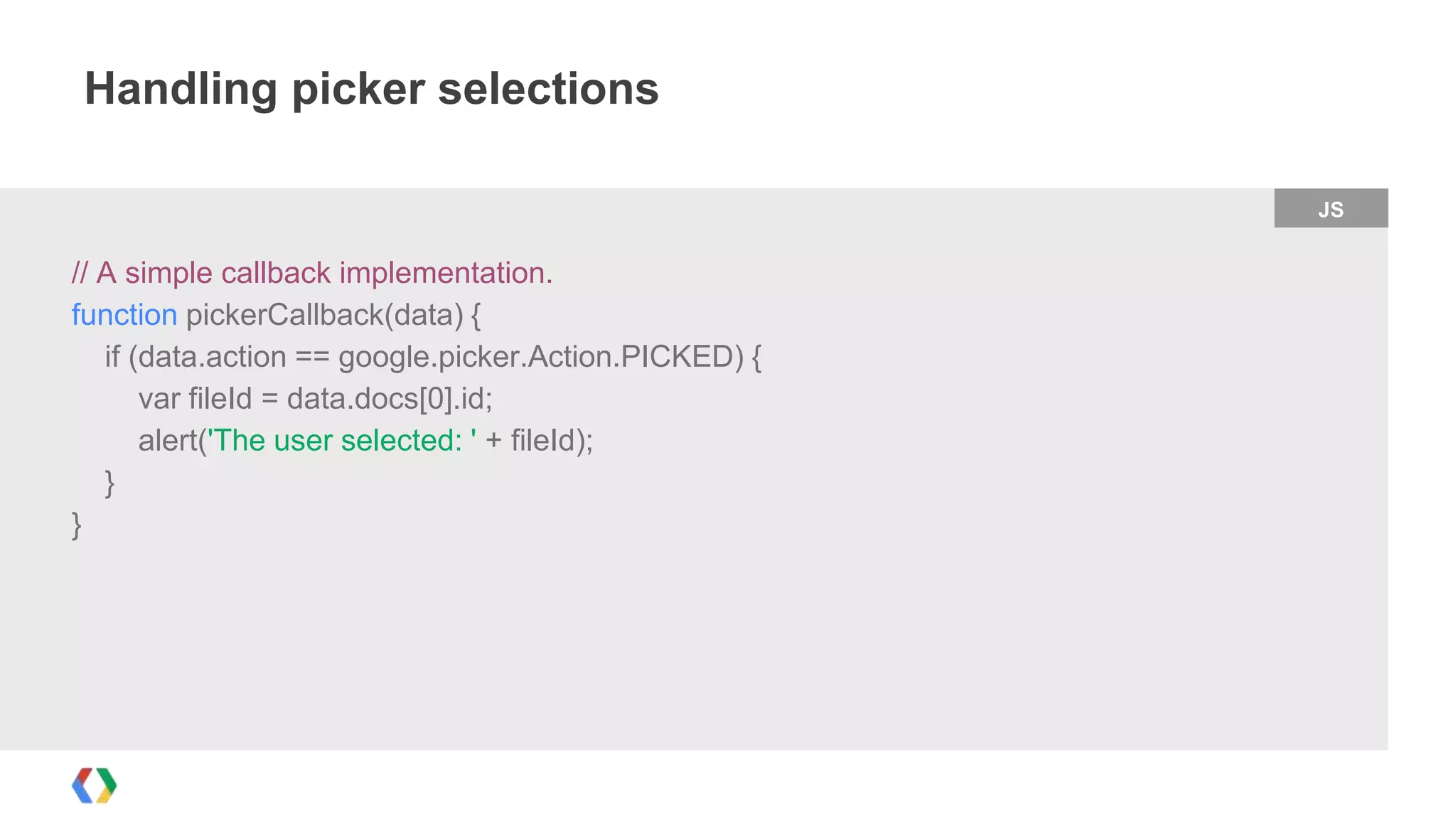

34. Handling picker selections
JS
// A simple callback implementation.
function pickerCallback(data) {
if (data.action == google.picker.Action.PICKED) {
var fileId = data.docs[0].id;
alert('The user selected: ' + fileId);
}
}

35. Other features

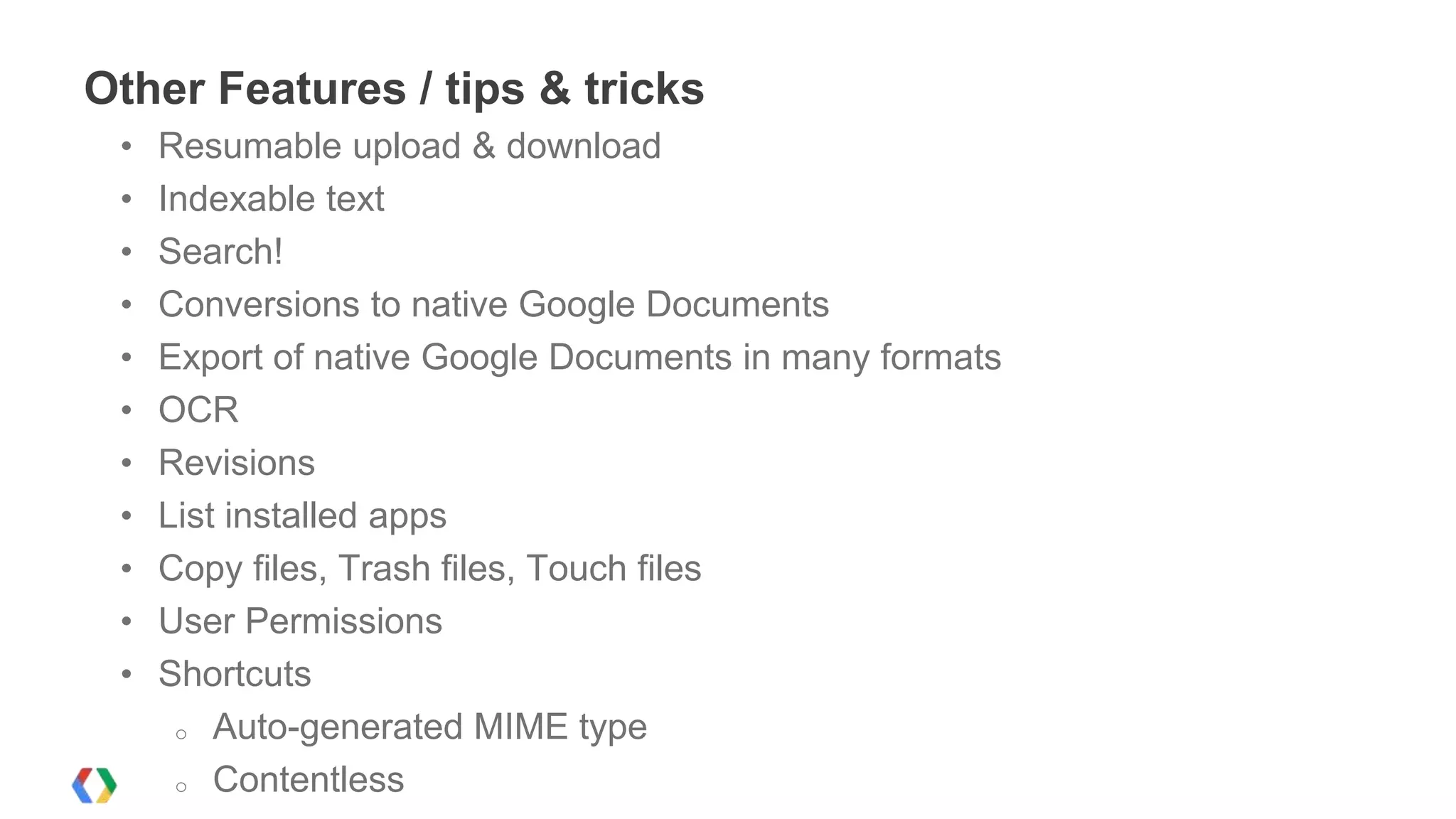

36. Other Features / tips & tricks
•
•
•
•
•
•
•
•
•
•
•
Resumable upload & download
Indexable text
Search!
Conversions to native Google Documents
Export of native Google Documents in many formats
OCR
Revisions
List installed apps
Copy files, Trash files, Touch files
User Permissions
Shortcuts
o Auto-generated MIME type
o Contentless

37. <Thank You!>
http://developers.google.com/drive
