Fuel cell handbook

Fuel Cell Handbook
(Fifth Edition)

By
EG&G Services
Parsons, Inc.
Science Applications International Corporation

Under Contract No. DE-AM26-99FT40575

U.S. Department of Energy
Office of Fossil Energy
National Energy Technology Laboratory
P.O. Box 880
Morgantown, West Virginia 26507-0880

October 2000

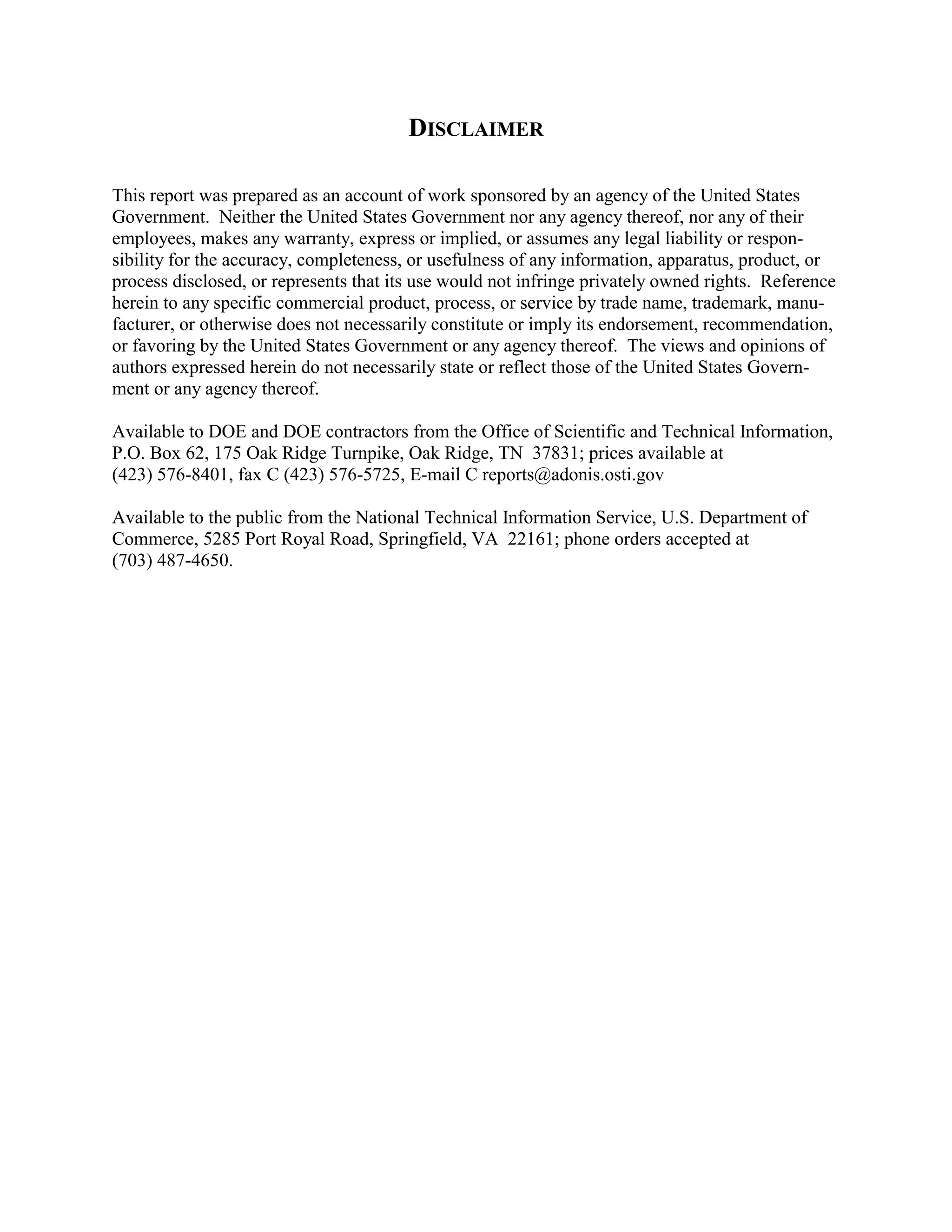

DISCLAIMER

This report was prepared as an account of work sponsored by an agency of the United States
Government. Neither the United States Government nor any agency thereof, nor any of their
employees, makes any warranty, express or implied, or assumes any legal liability or respon-
sibility for the accuracy, completeness, or usefulness of any information, apparatus, product, or
process disclosed, or represents that its use would not infringe privately owned rights. Reference
herein to any specific commercial product, process, or service by trade name, trademark, manu-
facturer, or otherwise does not necessarily constitute or imply its endorsement, recommendation,
or favoring by the United States Government or any agency thereof. The views and opinions of
authors expressed herein do not necessarily state or reflect those of the United States Govern-
ment or any agency thereof.

Available to DOE and DOE contractors from the Office of Scientific and Technical Information,
P.O. Box 62, 175 Oak Ridge Turnpike, Oak Ridge, TN 37831; prices available at
(423) 576-8401, fax C (423) 576-5725, E-mail C reports@adonis.osti.gov

Available to the public from the National Technical Information Service, U.S. Department of
Commerce, 5285 Port Royal Road, Springfield, VA 22161; phone orders accepted at
(703) 487-4650.

TABLE OF CONTENTS

Section Title Page
1. TECHNOLOGY OVERVIEW...................................................................................................... 1-1
1.1 FUEL CELL DESCRIPTION ............................................................................................................ 1-1
1.2 CELL STACKING .......................................................................................................................... 1-7
1.3 FUEL CELL PLANT DESCRIPTION ................................................................................................ 1-8
1.4 CHARACTERISTICS ...................................................................................................................... 1-9
1.5 ADVANTAGES/DISADVANTAGES .............................................................................................. 1-11
1.6 APPLICATIONS, DEMONSTRATIONS, AND STATUS.................................................................... 1-13
1.6.1 Stationary Electric Power.............................................................................................. 1-13
1.6.2 Distributed Generation .................................................................................................. 1-21
1.6.3 Vehicle Motive Power................................................................................................... 1-25
1.6.4 Space and Other Closed Environment Power ............................................................... 1-26
1.6.5 Fuel Cell Auxiliary Power Systems .............................................................................. 1-26
1.6.6 Derivative Applications................................................................................................. 1-35
1.7 REFERENCES ............................................................................................................................. 1-35
2. FUEL CELL PERFORMANCE ................................................................................................... 2-1
2.1 PRACTICAL THERMODYNAMICS ................................................................................................. 2-1
2.1.1 Ideal Performance ........................................................................................................... 2-1
2.1.2 Actual Performance......................................................................................................... 2-4
2.1.3 Fuel Cell Performance Variables .................................................................................... 2-9
2.1.4 Cell Energy Balance...................................................................................................... 2-16
2.2 SUPPLEMENTAL THERMODYNAMICS ........................................................................................ 2-17
2.2.1 Cell Efficiency .............................................................................................................. 2-17
2.2.2 Efficiency Comparison to Heat Engines ....................................................................... 2-19
2.2.3 Gibbs Free Energy and Ideal Performance.................................................................... 2-19
2.2.4 Polarization: Activation (Tafel) and Concentration ..................................................... 2-23
2.3 REFERENCES ............................................................................................................................. 2-26

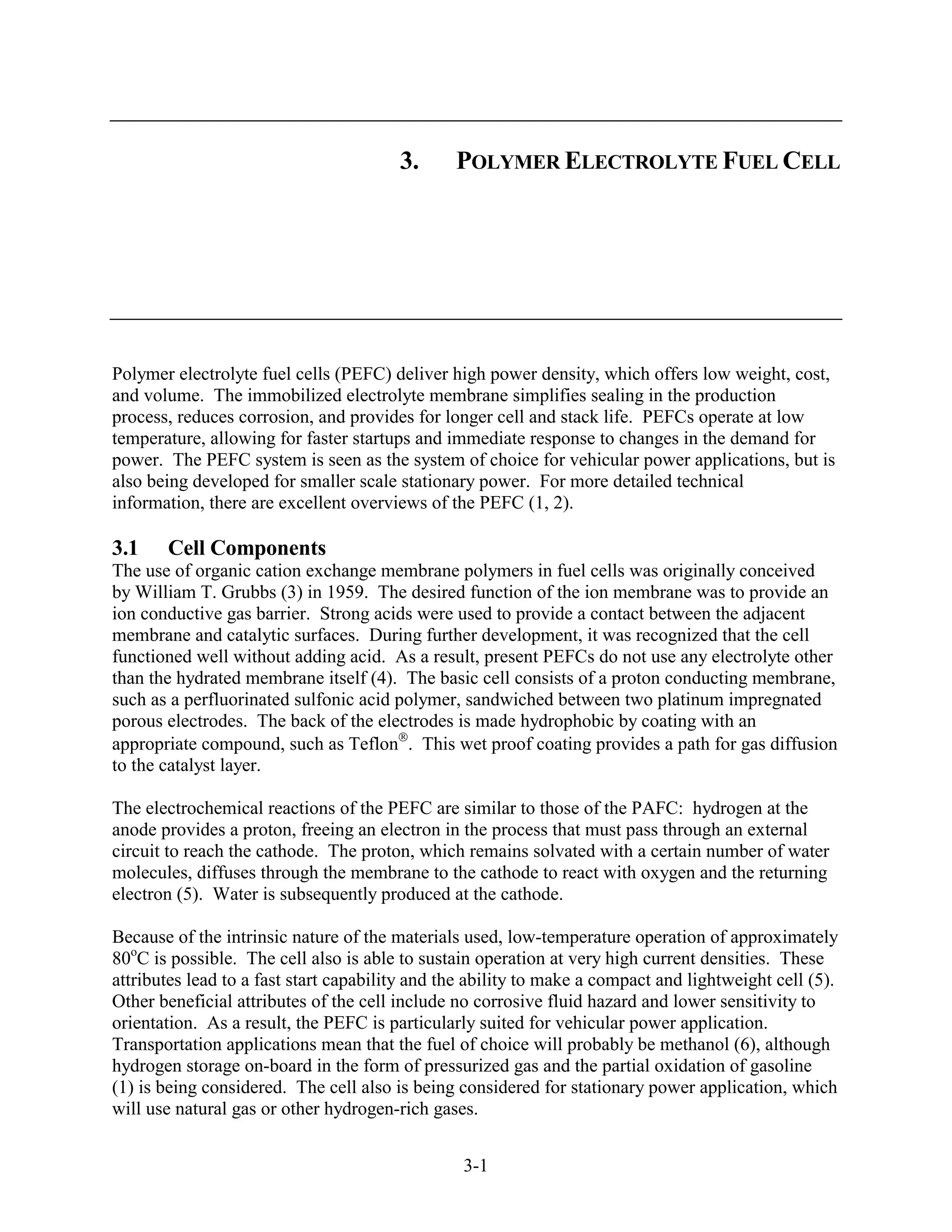

3. POLYMER ELECTROLYTE FUEL CELL............................................................................... 3-1
3.1 CELL COMPONENTS .................................................................................................................... 3-1
3.1.1 Water Management ......................................................................................................... 3-2
3.1.2 State-of-the-Art Components .......................................................................................... 3-3
3.1.3 Development Components .............................................................................................. 3-6
3.2 PERFORMANCE ............................................................................................................................ 3-9
3.3 DIRECT METHANOL PROTON EXCHANGE FUEL CELL .............................................................. 3-12
3.4 REFERENCES ............................................................................................................................. 3-14
4. ALKALINE FUEL CELL ............................................................................................................. 4-1
4.1 CELL COMPONENTS .................................................................................................................... 4-3
4.2 PERFORMANCE ............................................................................................................................ 4-5
4.2.1 Effect of Pressure ............................................................................................................ 4-5
4.2.2 Effect of Temperature ..................................................................................................... 4-7
4.2.3 Effect of Reactant Gas Composition............................................................................... 4-8
4.2.4 Effect of Impurities ......................................................................................................... 4-8
4.2.5 Effects of Current Density............................................................................................. 4-10

i

4.2.6 Effects of Cell Life........................................................................................................ 4-12
4.3 SUMMARY OF EQUATIONS FOR AFC ........................................................................................ 4-12
4.4 REFERENCES ............................................................................................................................. 4-12

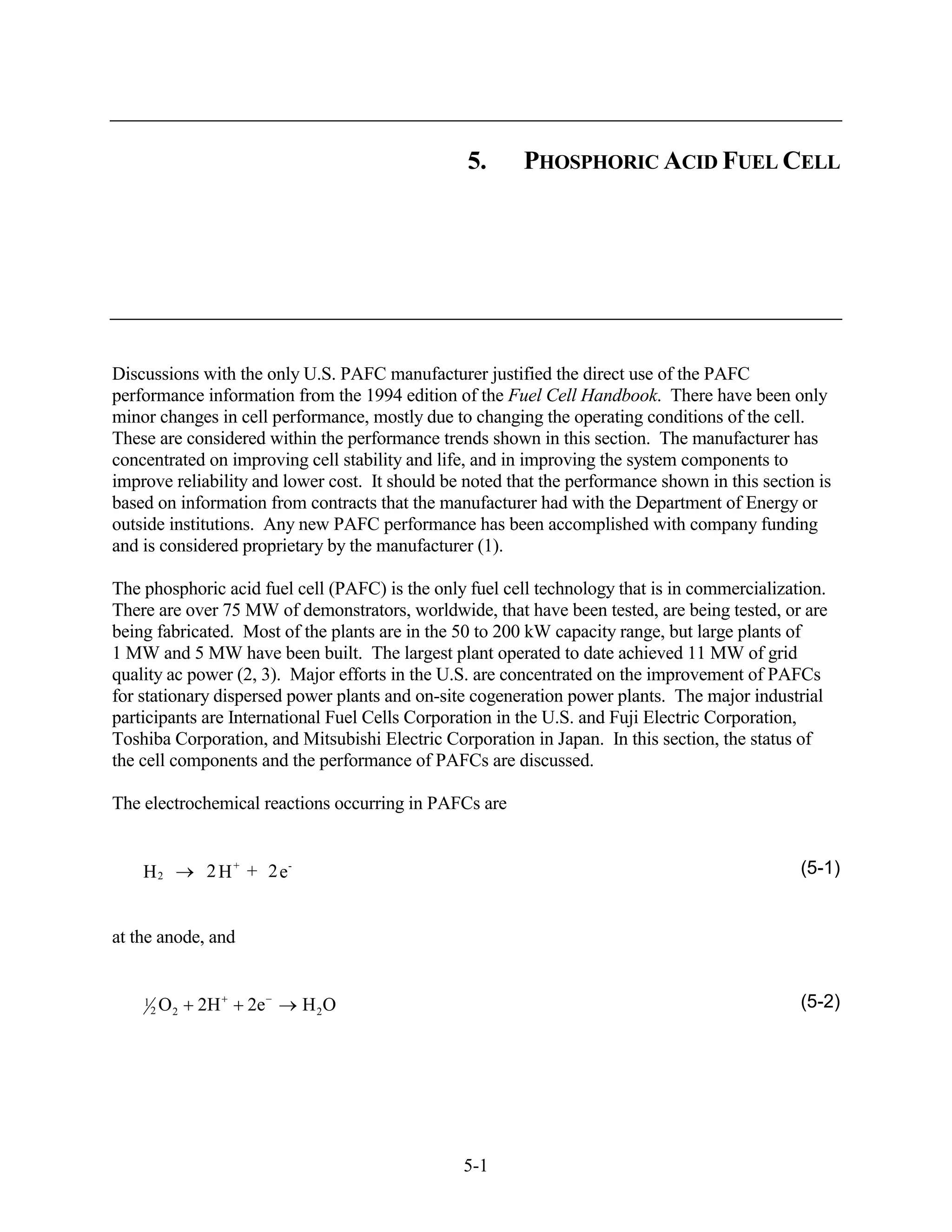

5. PHOSPHORIC ACID FUEL CELL............................................................................................. 5-1
5.1 CELL COMPONENTS .................................................................................................................... 5-2

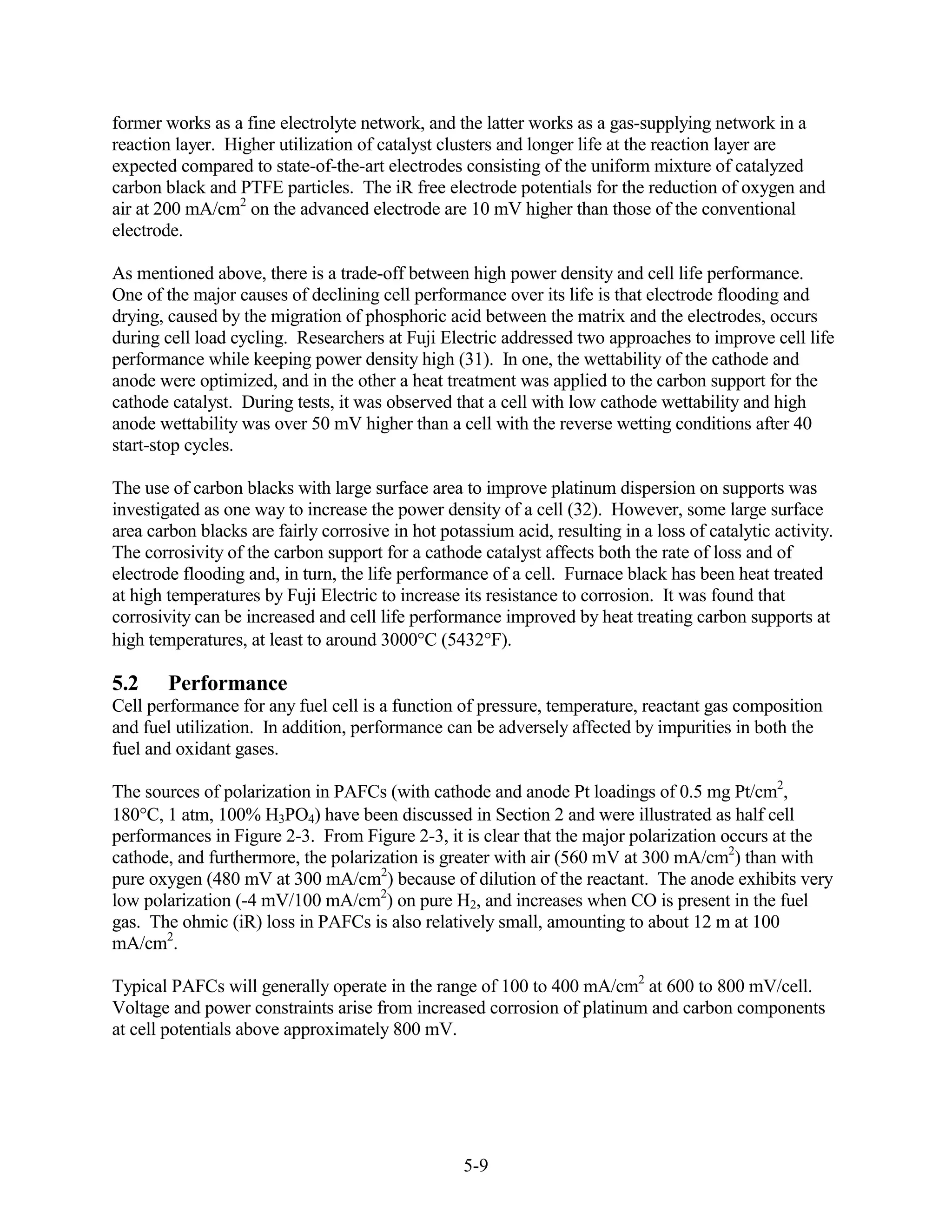

5.2 PERFORMANCE ............................................................................................................................ 5-9
5.2.1 Effect of Pressure .......................................................................................................... 5-10

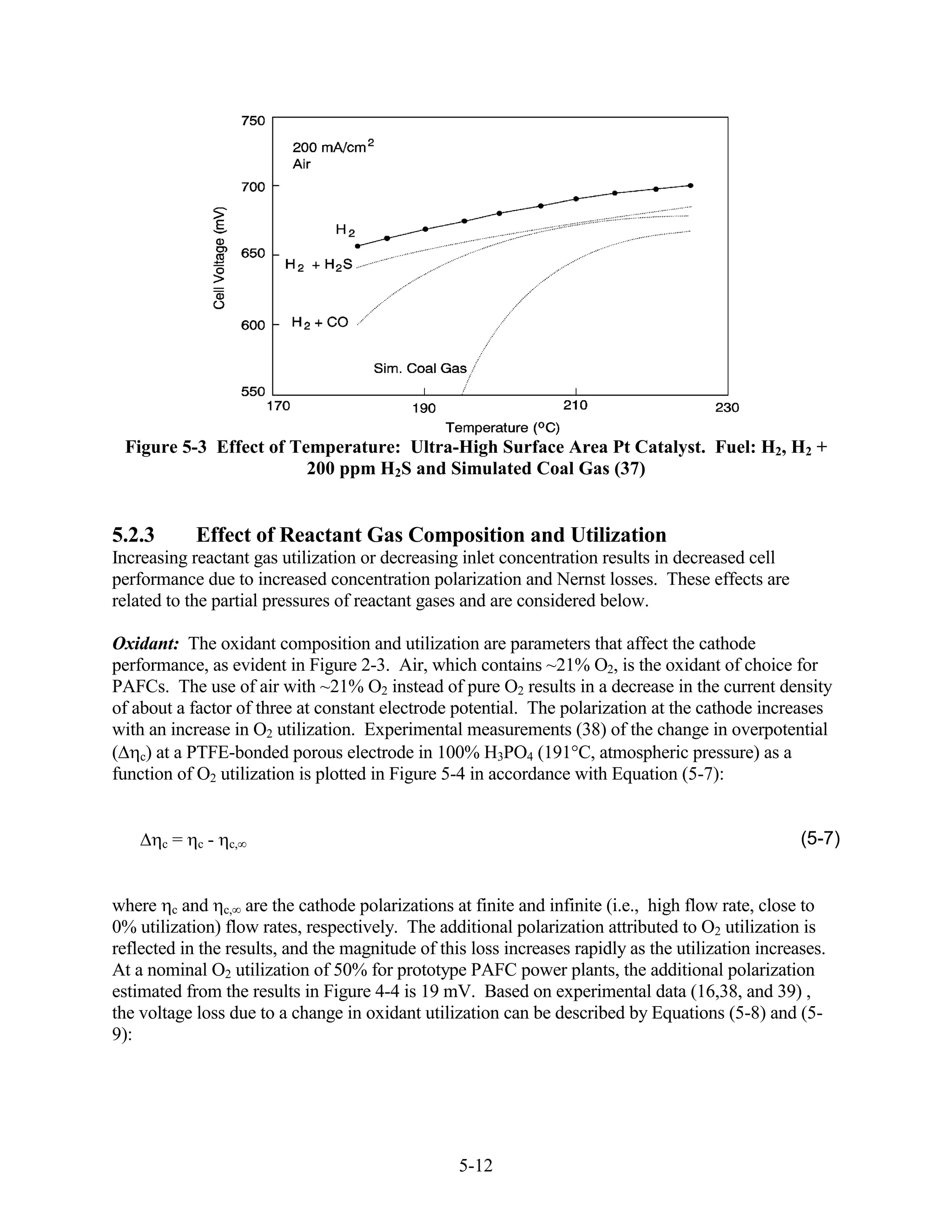

5.2.2 Effect of Temperature ................................................................................................... 5-11
5.2.3 Effect of Reactant Gas Composition and Utilization .................................................... 5-12

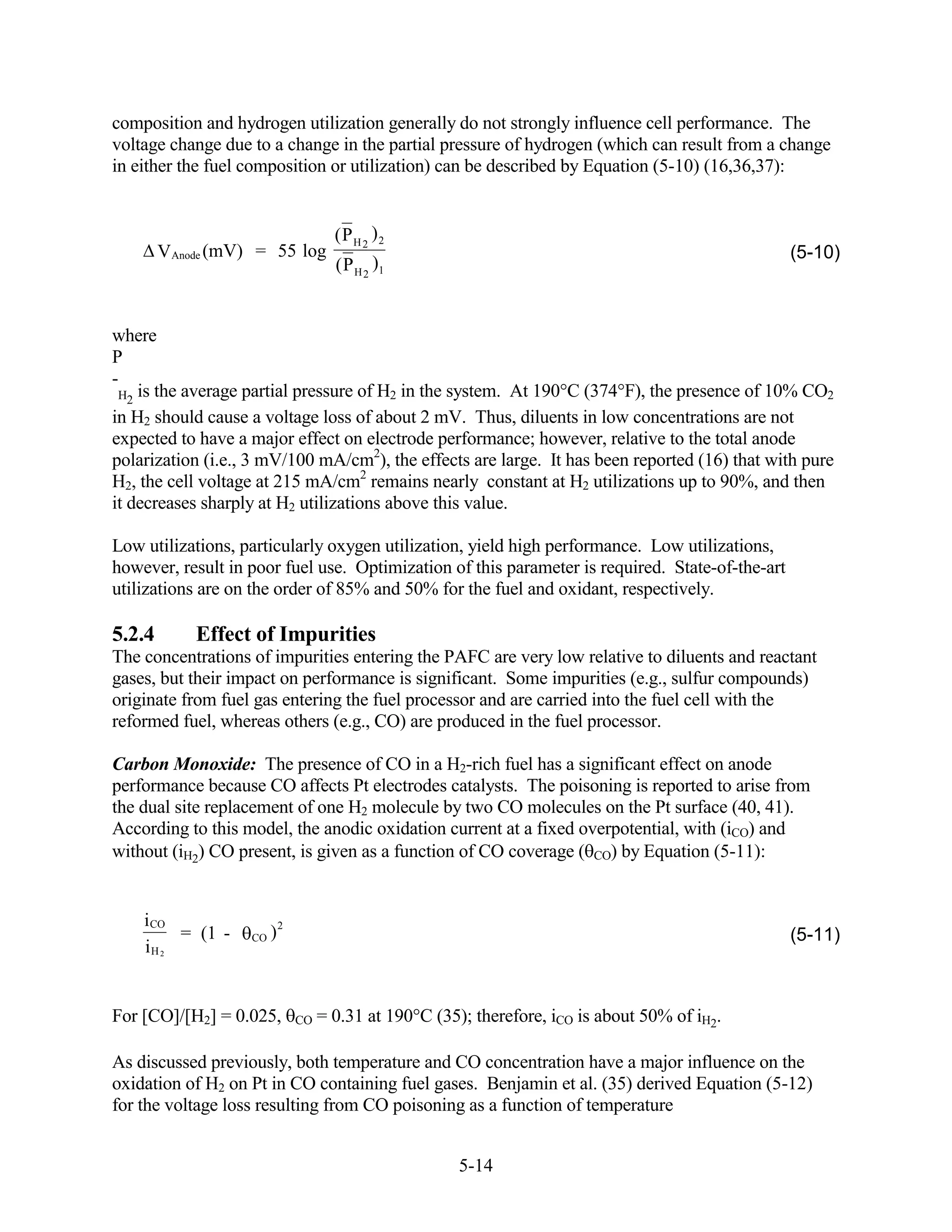

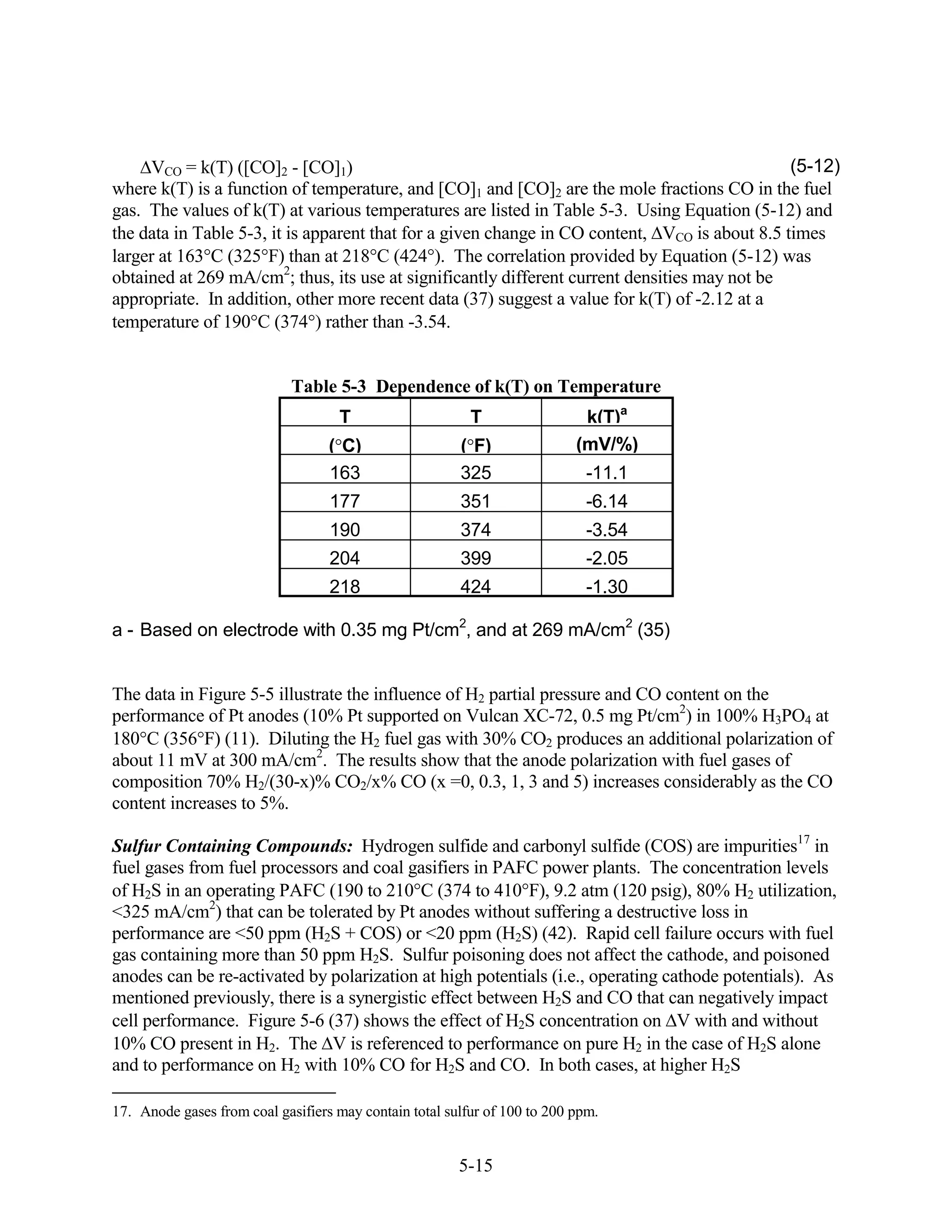

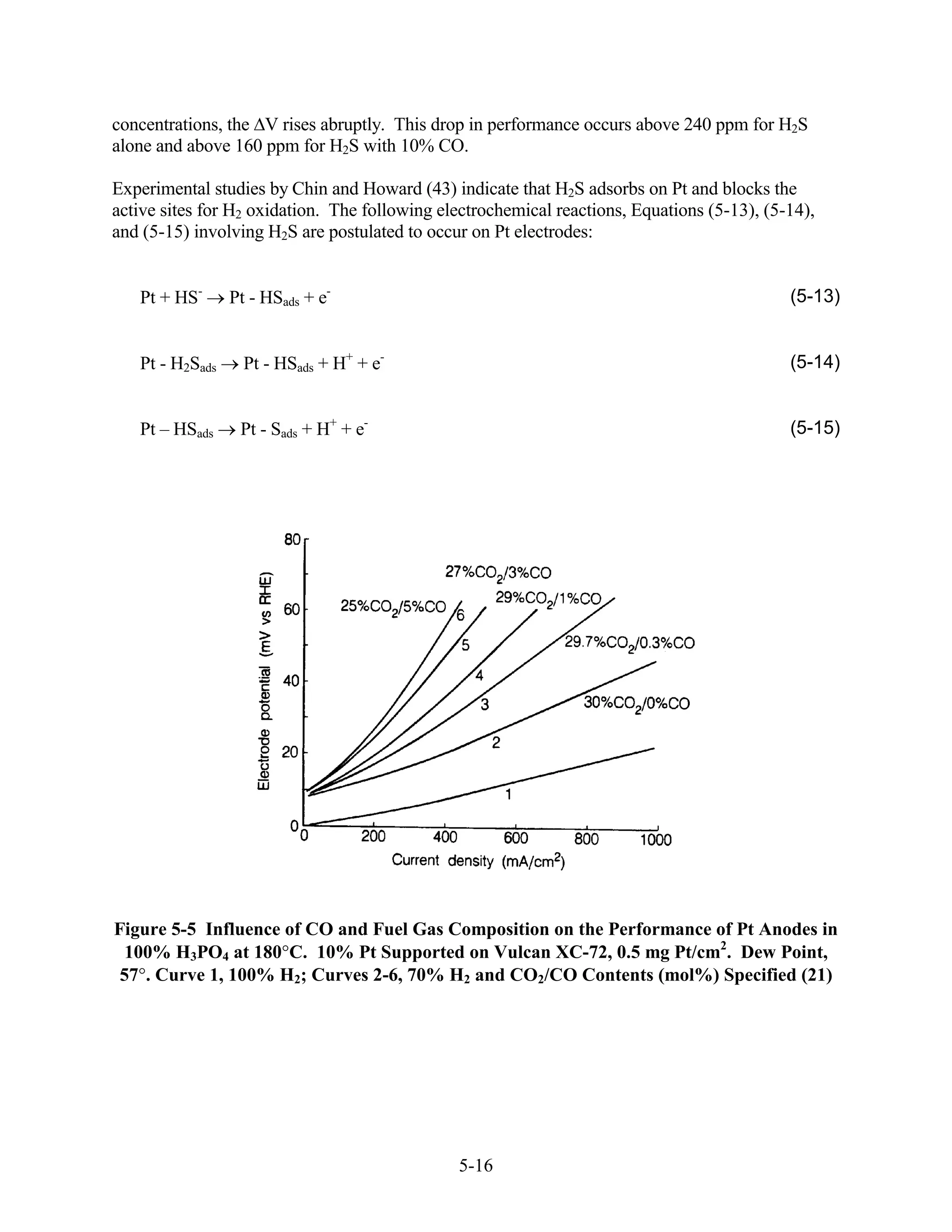

5.2.4 Effect of Impurities ....................................................................................................... 5-14
5.3 SUMMARY OF EQUATIONS FOR PAFC ...................................................................................... 5-18
5.4 REFERENCES ............................................................................................................................. 5-20
6. MOLTEN CARBONATE FUEL CELL ...................................................................................... 6-1
6.1 CELL COMPONENTS .................................................................................................................... 6-4
6.1.1 State-of-the-Art ............................................................................................................... 6-4
6.2 PERFORMANCE .......................................................................................................................... 6-12
6.2.7 Internal Reforming ........................................................................................................ 6-29
6.3 SUMMARY OF EQUATIONS FOR MCFC ..................................................................................... 6-32
6.4 REFERENCES ............................................................................................................................. 6-36
7. INTERMEDIATE TEMPERATURE SOLID OXIDE FUEL CELL ....................................... 7-1

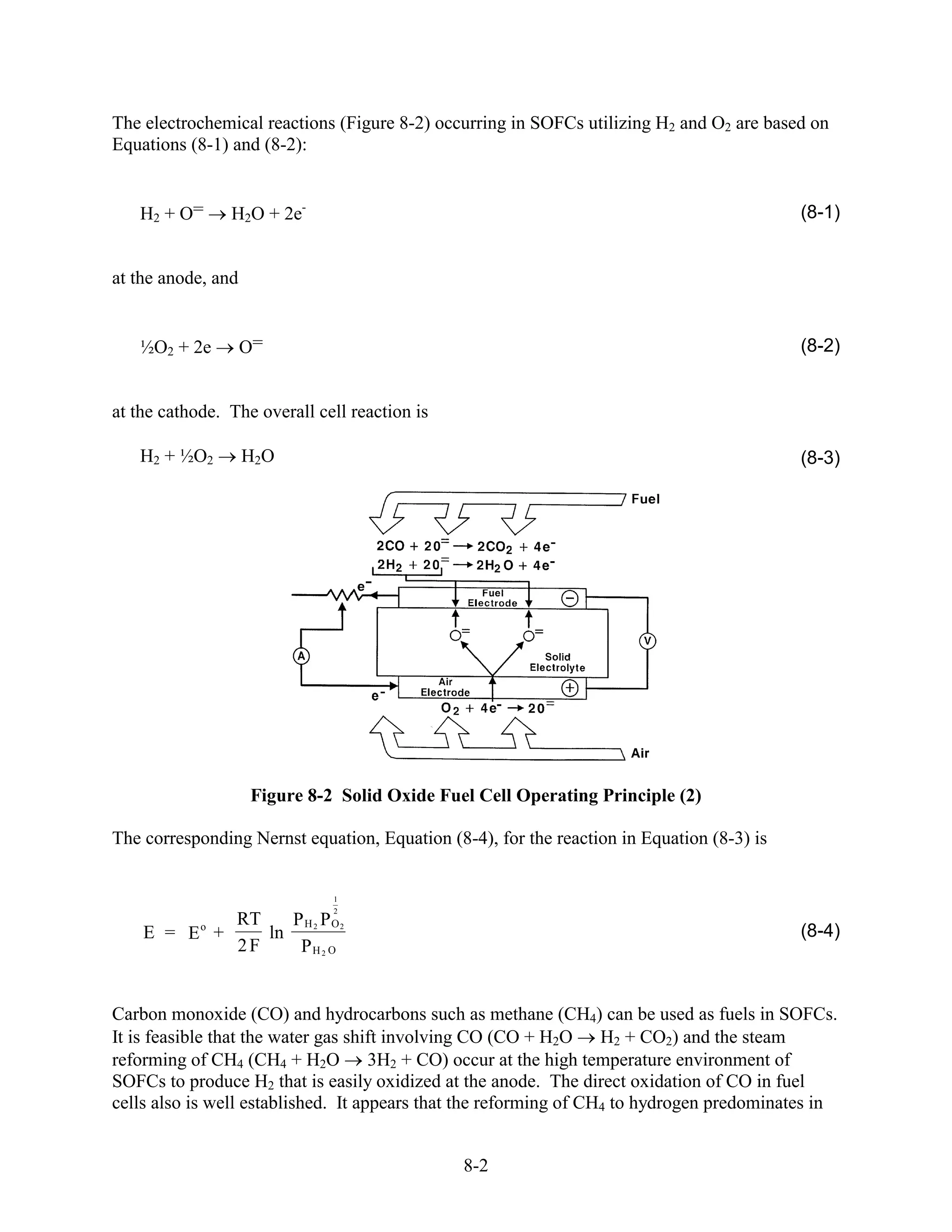

8. SOLID OXIDE FUEL CELL ........................................................................................................ 8-1

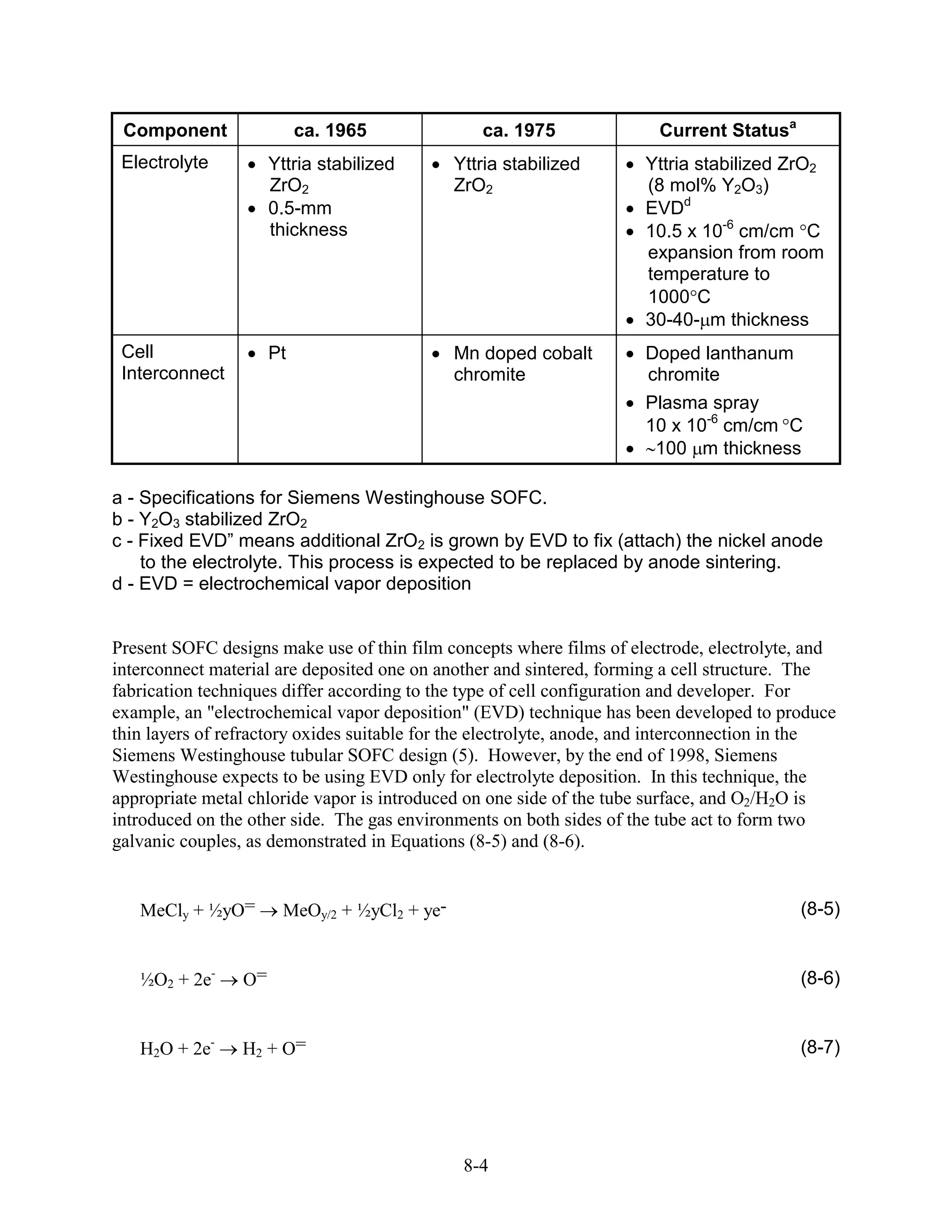

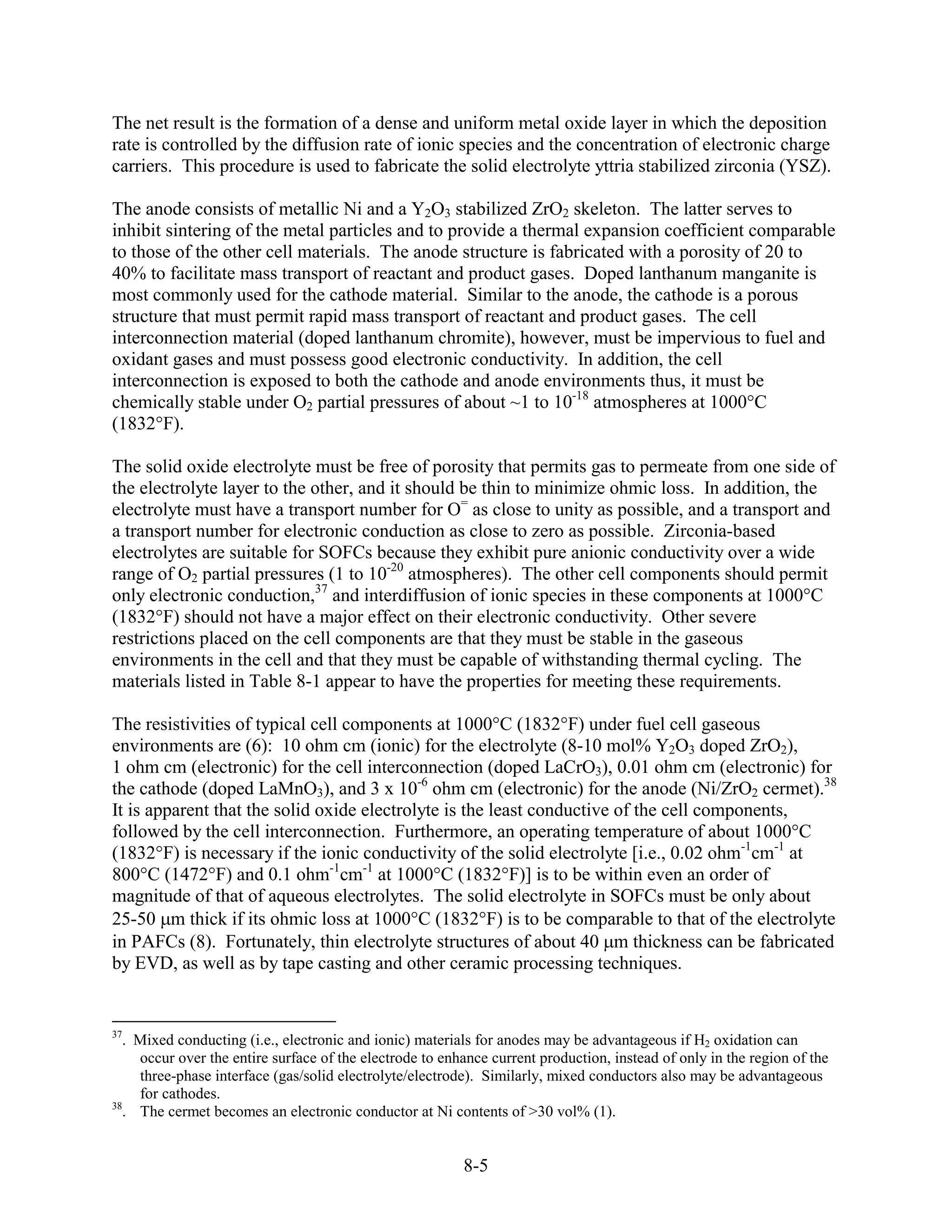

8.1 CELL COMPONENTS .................................................................................................................... 8-3

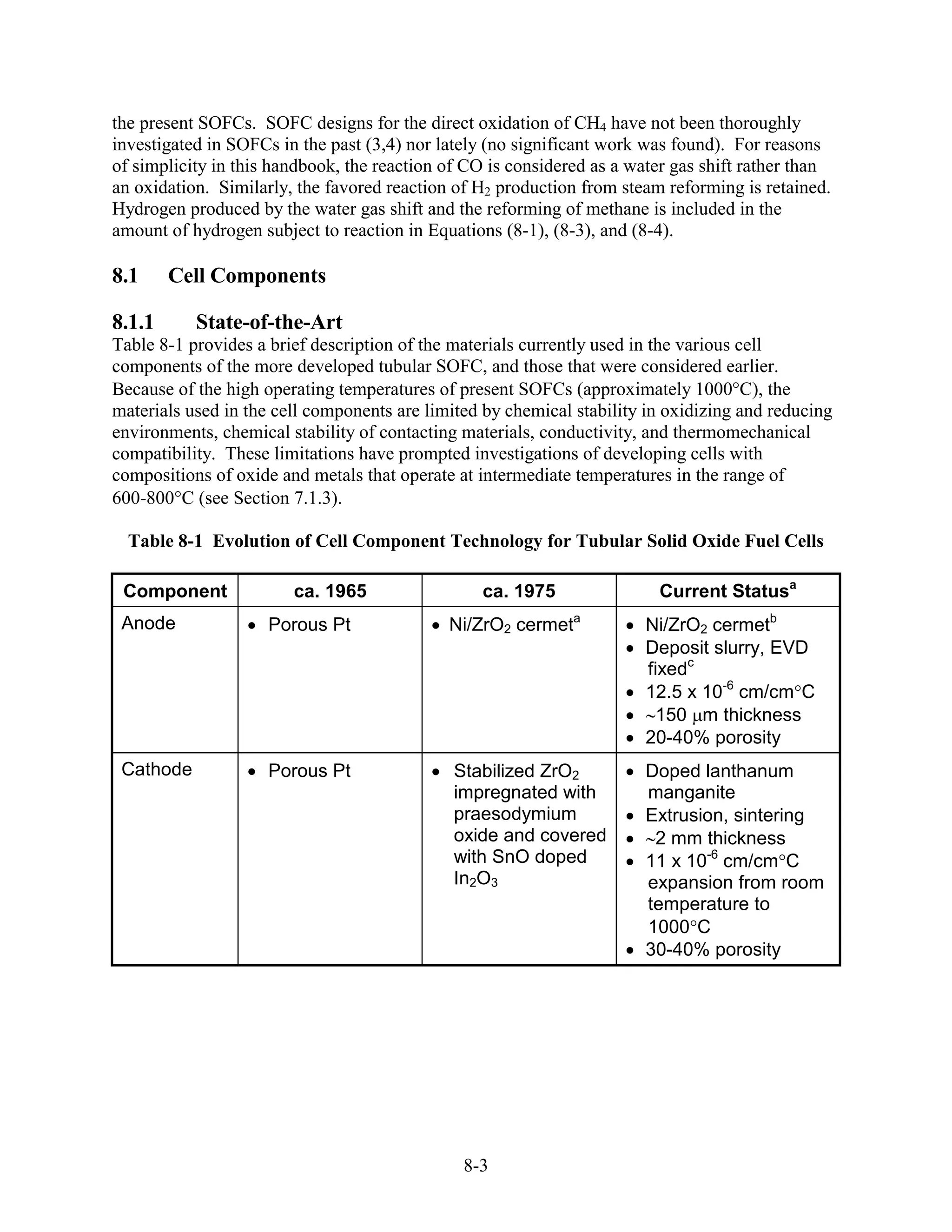

8.1.1 State-of-the-Art ............................................................................................................... 8-3

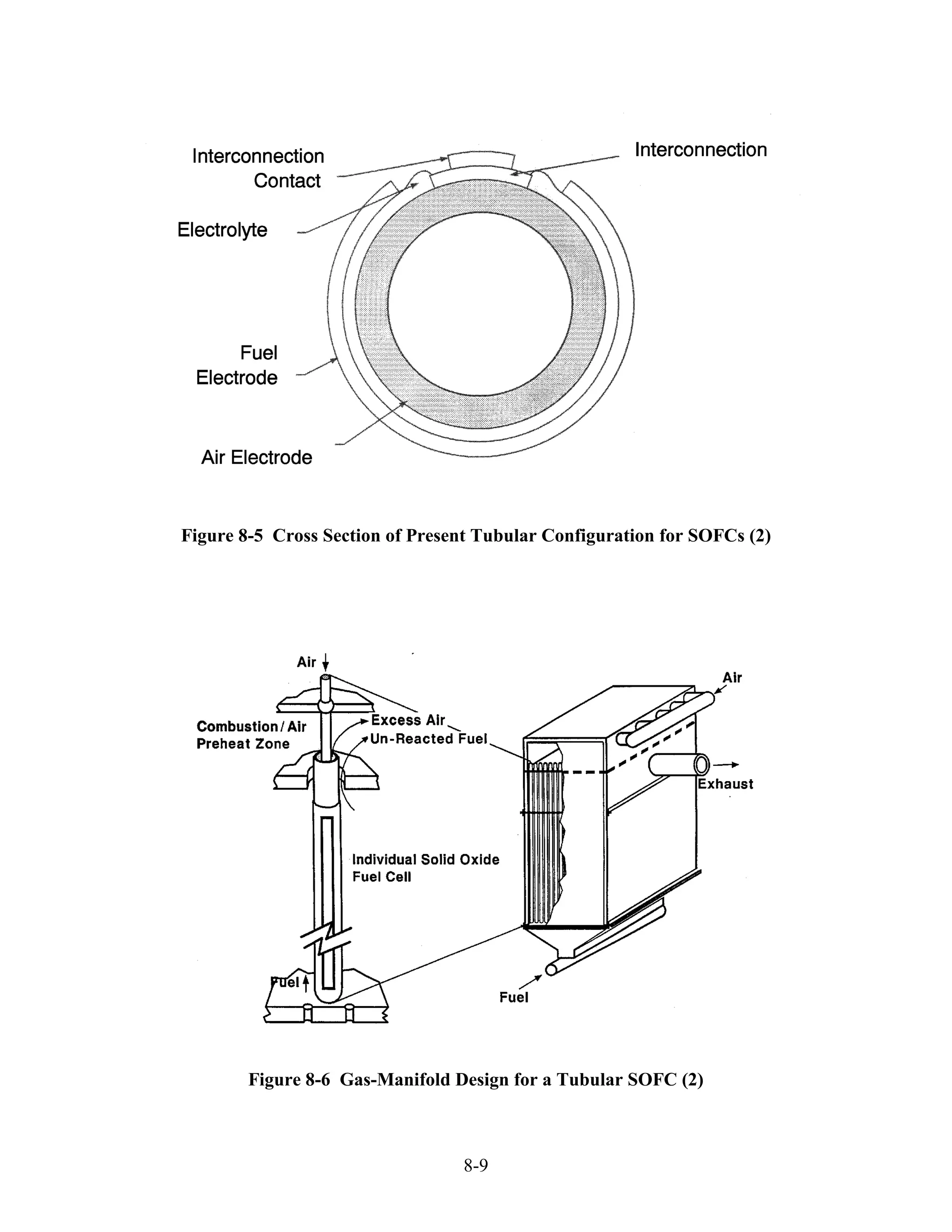

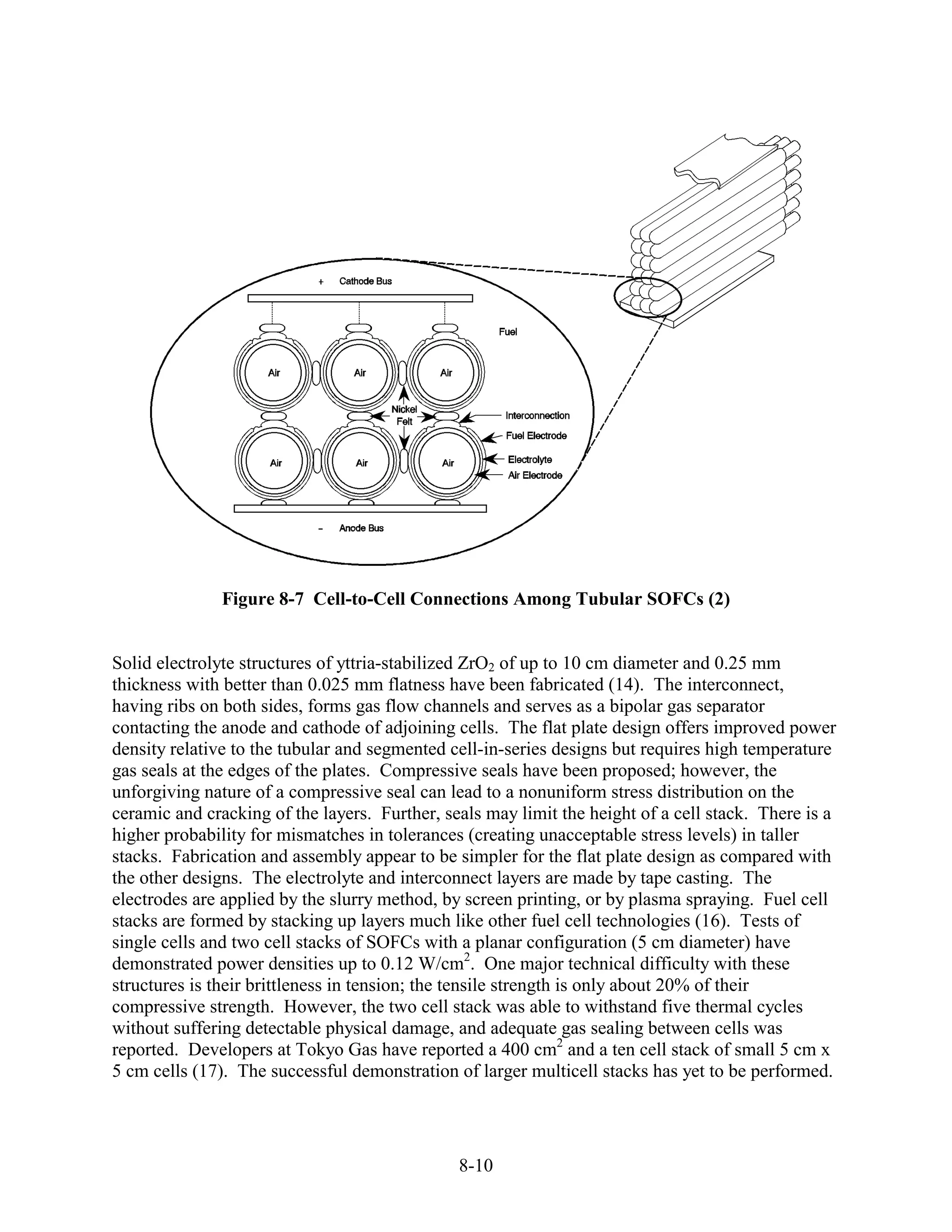

8.1.2 Cell Configuration Options ............................................................................................. 8-6

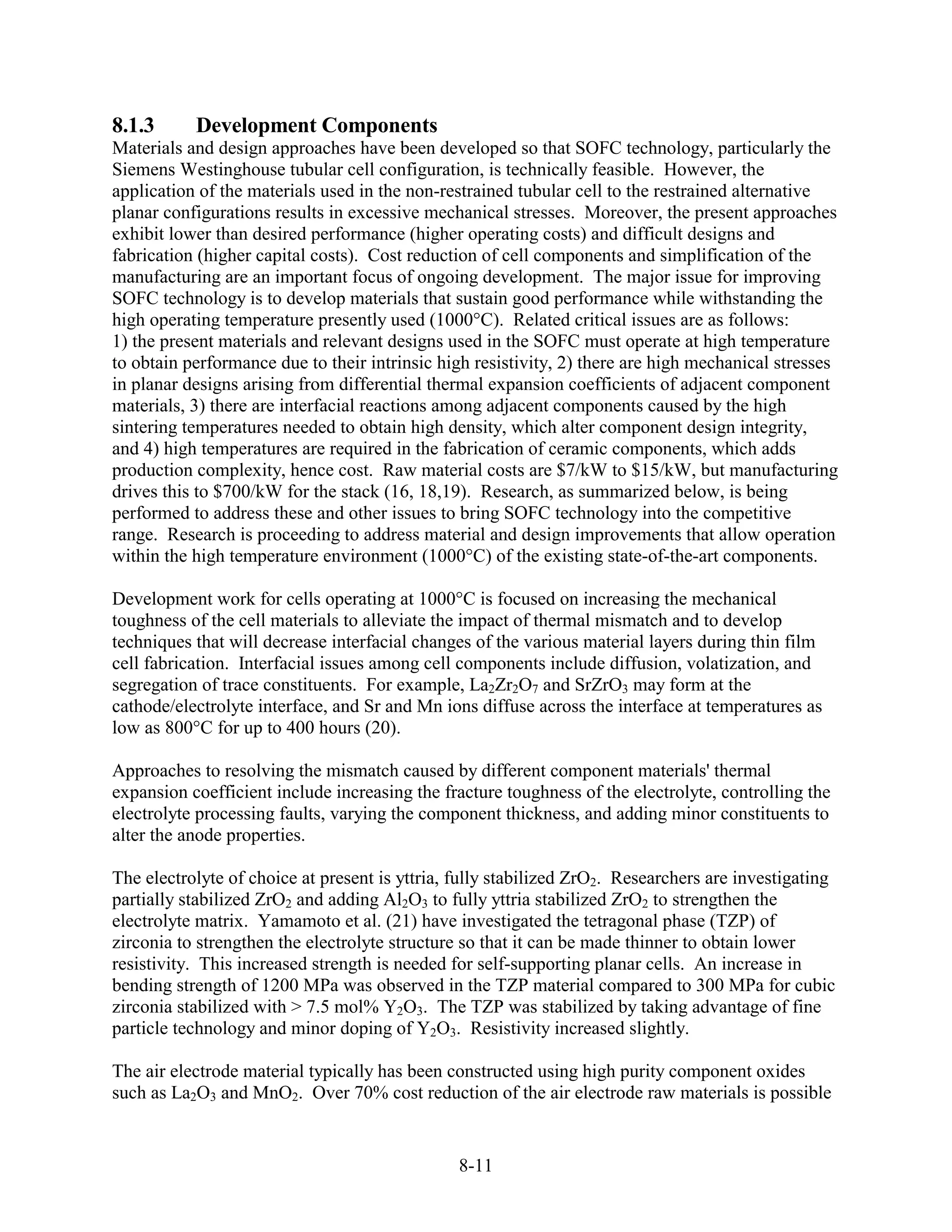

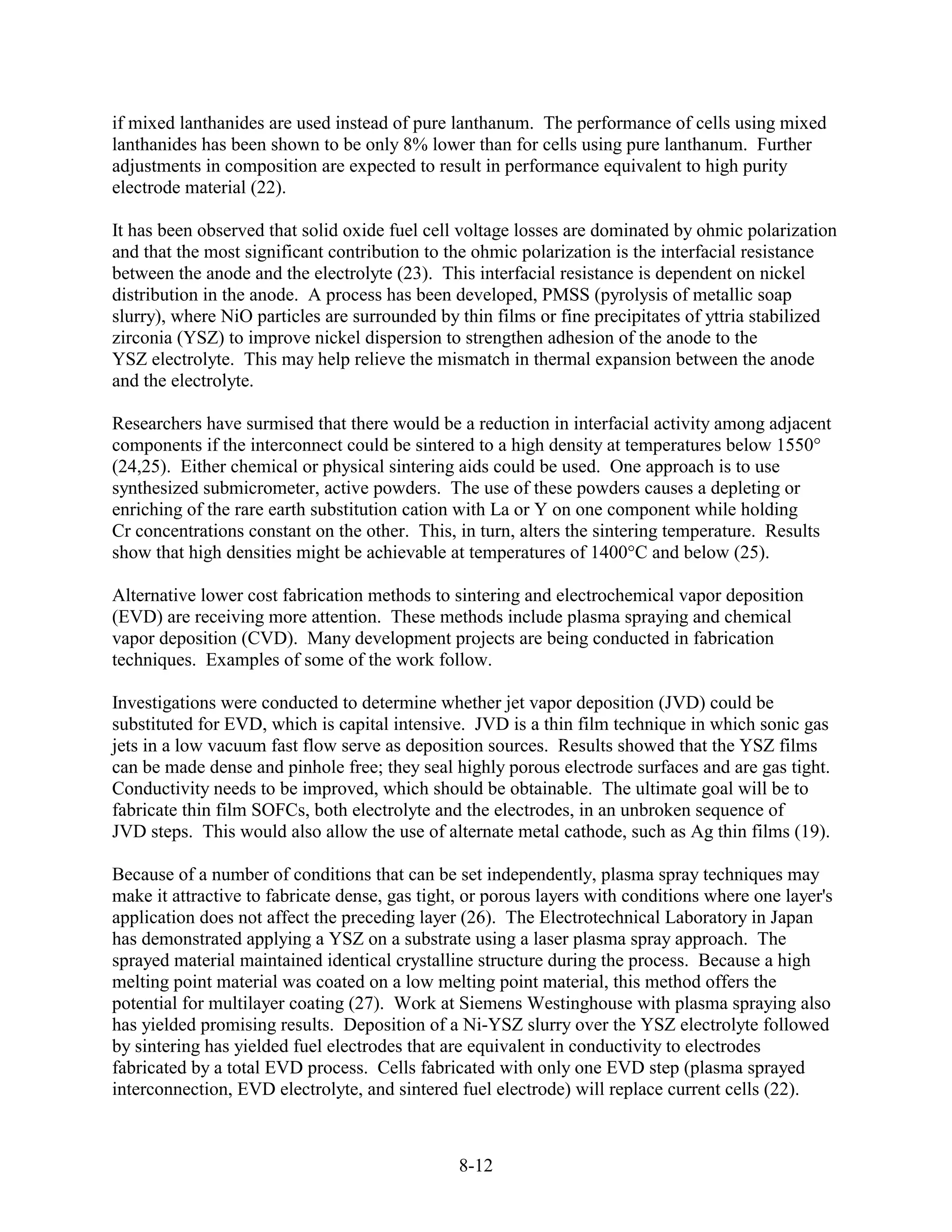

8.1.3 Development Components ............................................................................................ 8-11
8.2 PERFORMANCE .......................................................................................................................... 8-13
8.3 SUMMARY OF EQUATIONS FOR SOFC41 ................................................................................... 8-22
8.4 REFERENCES ............................................................................................................................. 8-22

ii

9. FUEL CELL SYSTEMS ................................................................................................................ 9-1
9.1 SYSTEM PROCESSES .................................................................................................................... 9-2
9.1.1 Fuel Processing ............................................................................................................... 9-2
9.1.2 Rejected Heat Utilization .............................................................................................. 9-30
9.1.3 Power Conditioners and Grid Interconnection.............................................................. 9-30
9.1.4 System and Equipment Performance Guidelines .......................................................... 9-32
9.2 SYSTEM OPTIMIZATIONS........................................................................................................... 9-34
9.2.1 Pressurization ................................................................................................................ 9-34
9.2.2 Temperature .................................................................................................................. 9-36
9.2.3 Utilization...................................................................................................................... 9-37
9.2.4 Heat Recovery............................................................................................................... 9-38
9.2.5 Miscellaneous................................................................................................................ 9-39
9.2.6 Concluding Remarks on System Optimization ............................................................. 9-39
9.3 FUEL CELL SYSTEM DESIGNS ................................................................................................... 9-40
9.3.1 Natural Gas Fueled PEFC System ................................................................................ 9-40
9.3.2 Natural Gas Fueled PAFC System ................................................................................ 9-41
9.3.3 Natural Gas Fueled Internally Reformed MCFC System ............................................. 9-44

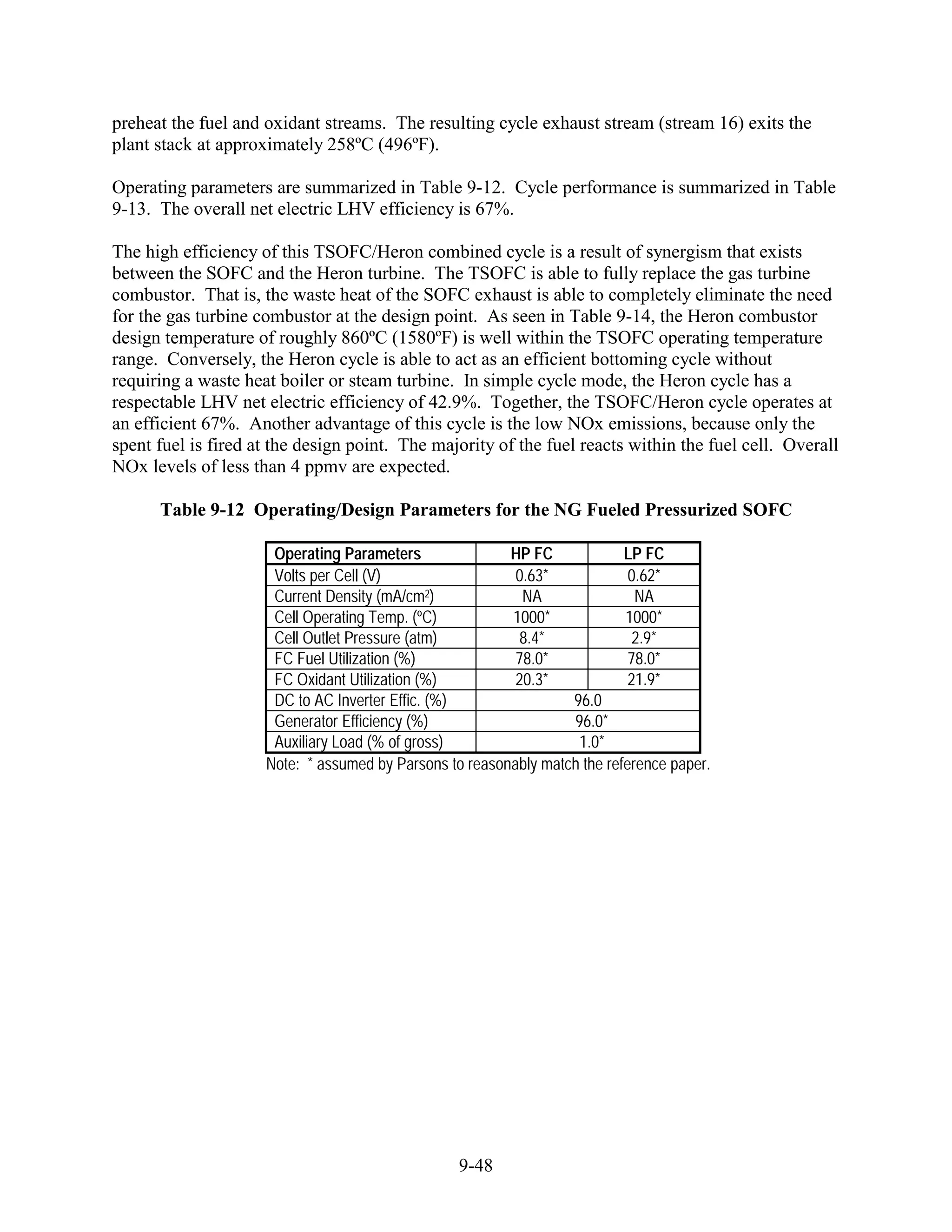

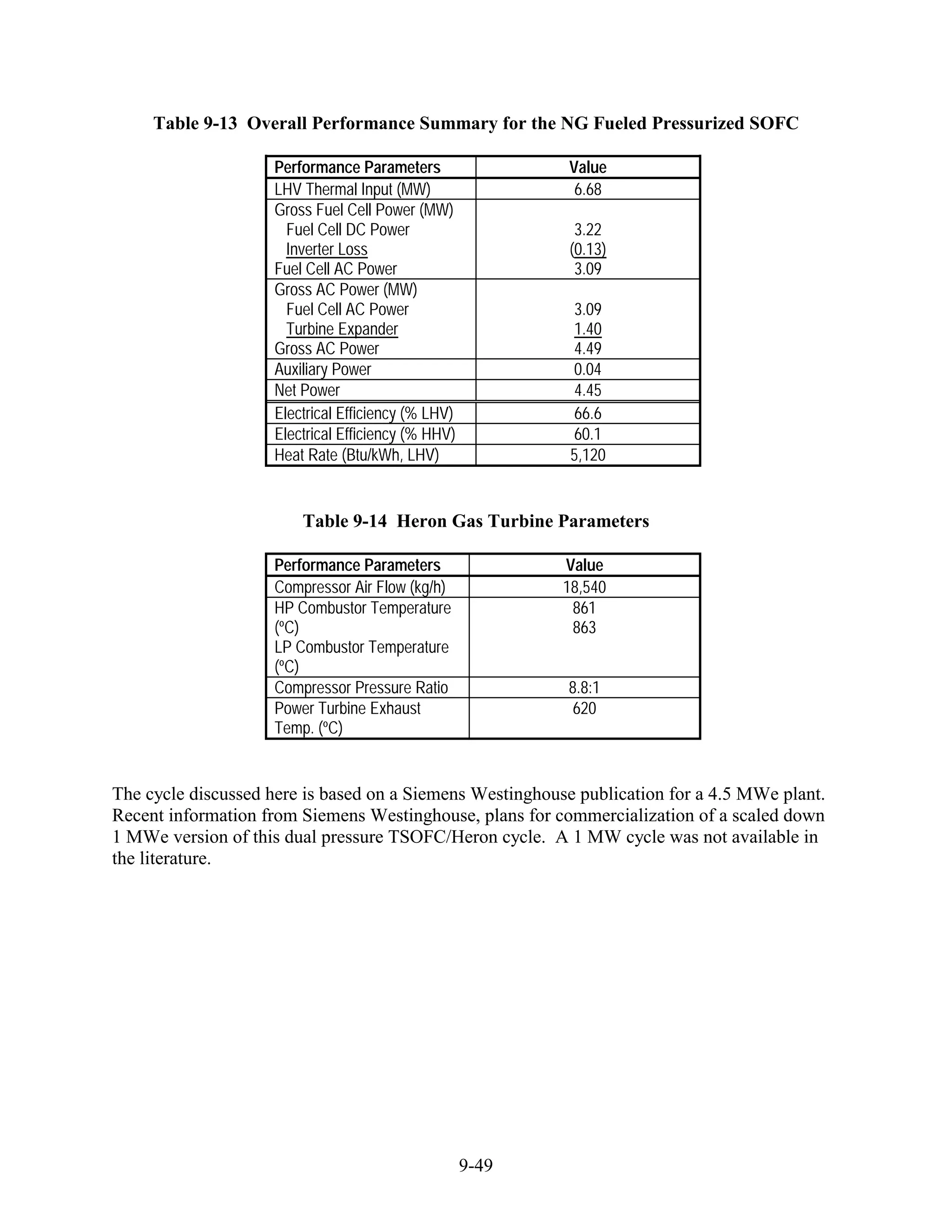

9.3.4 Natural Gas Fueled Pressurized SOFC System............................................................. 9-45

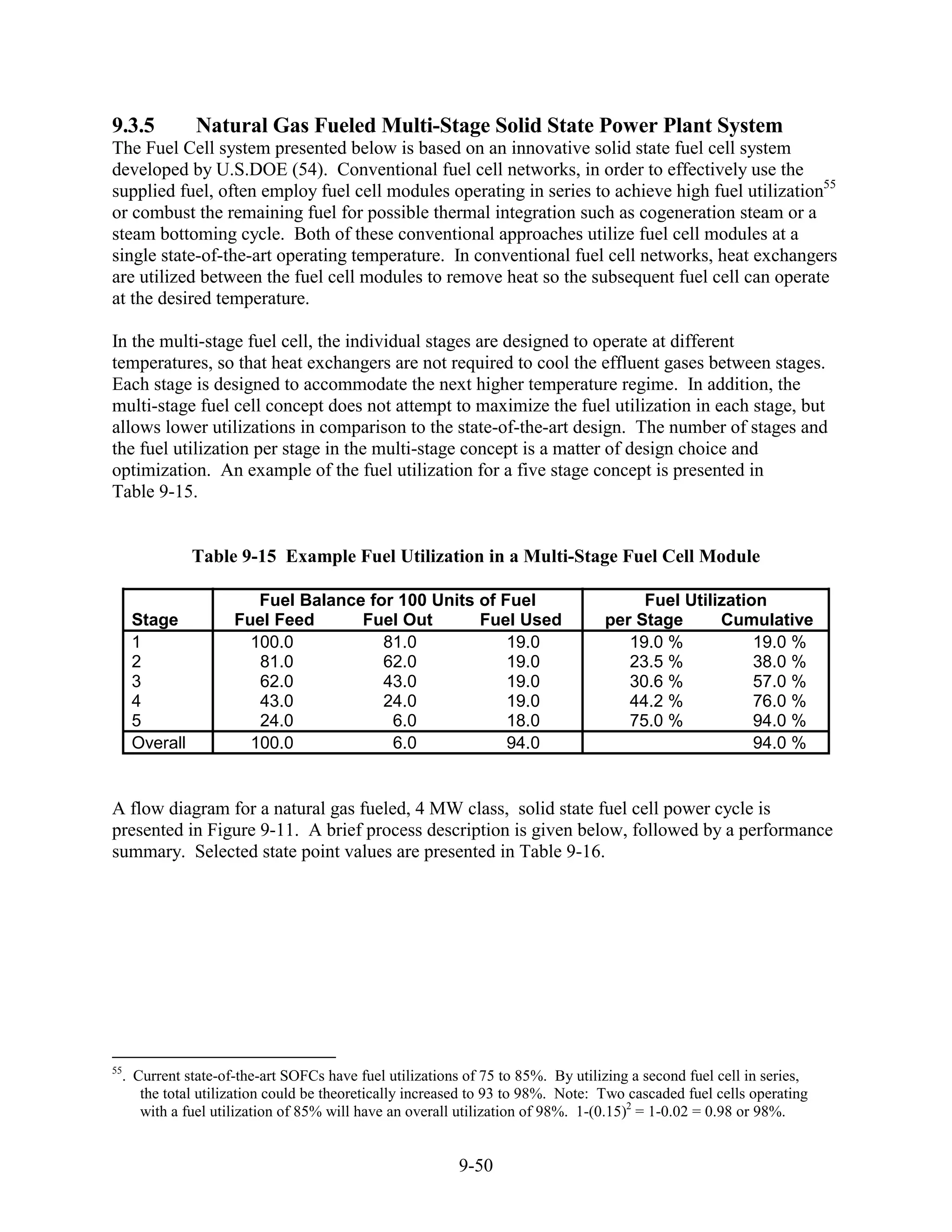

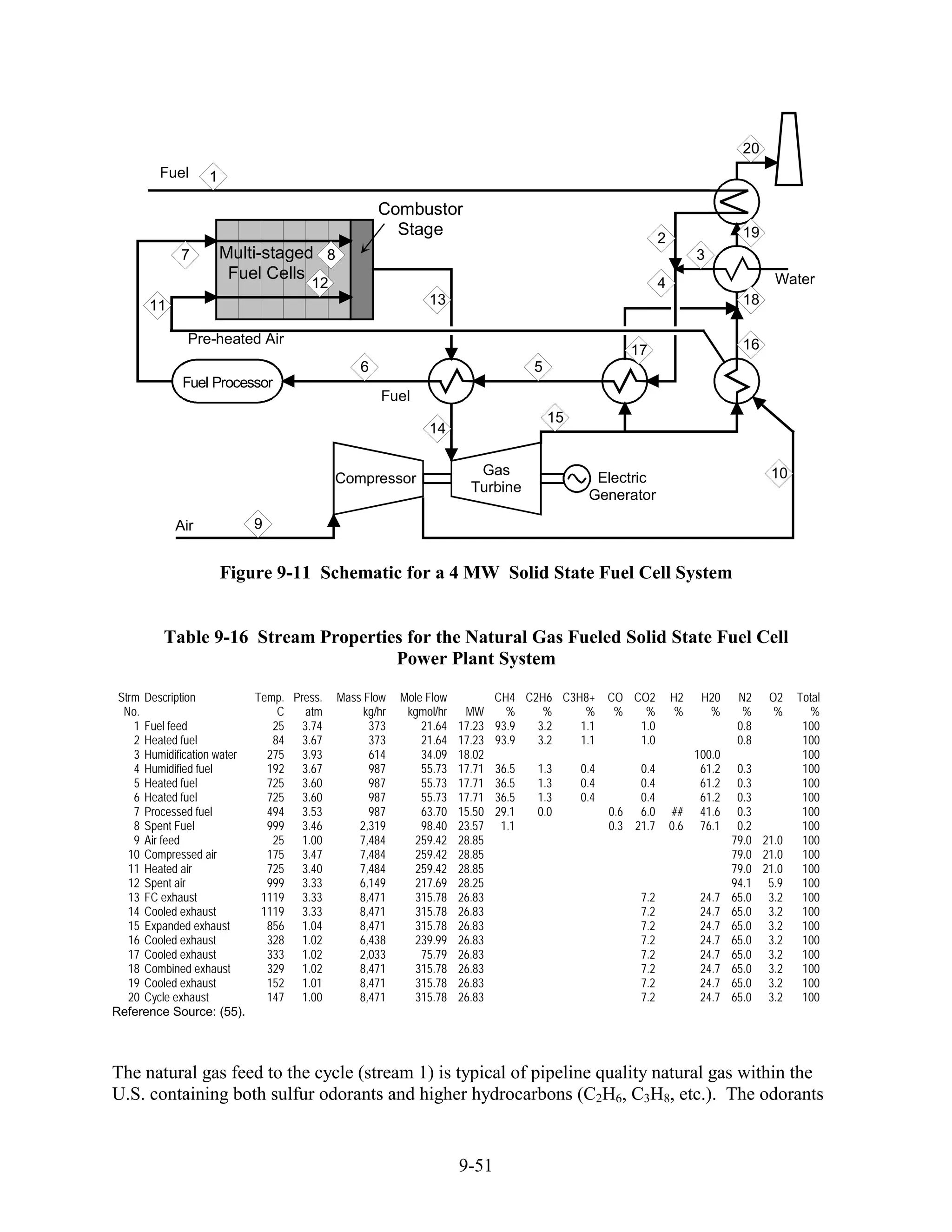

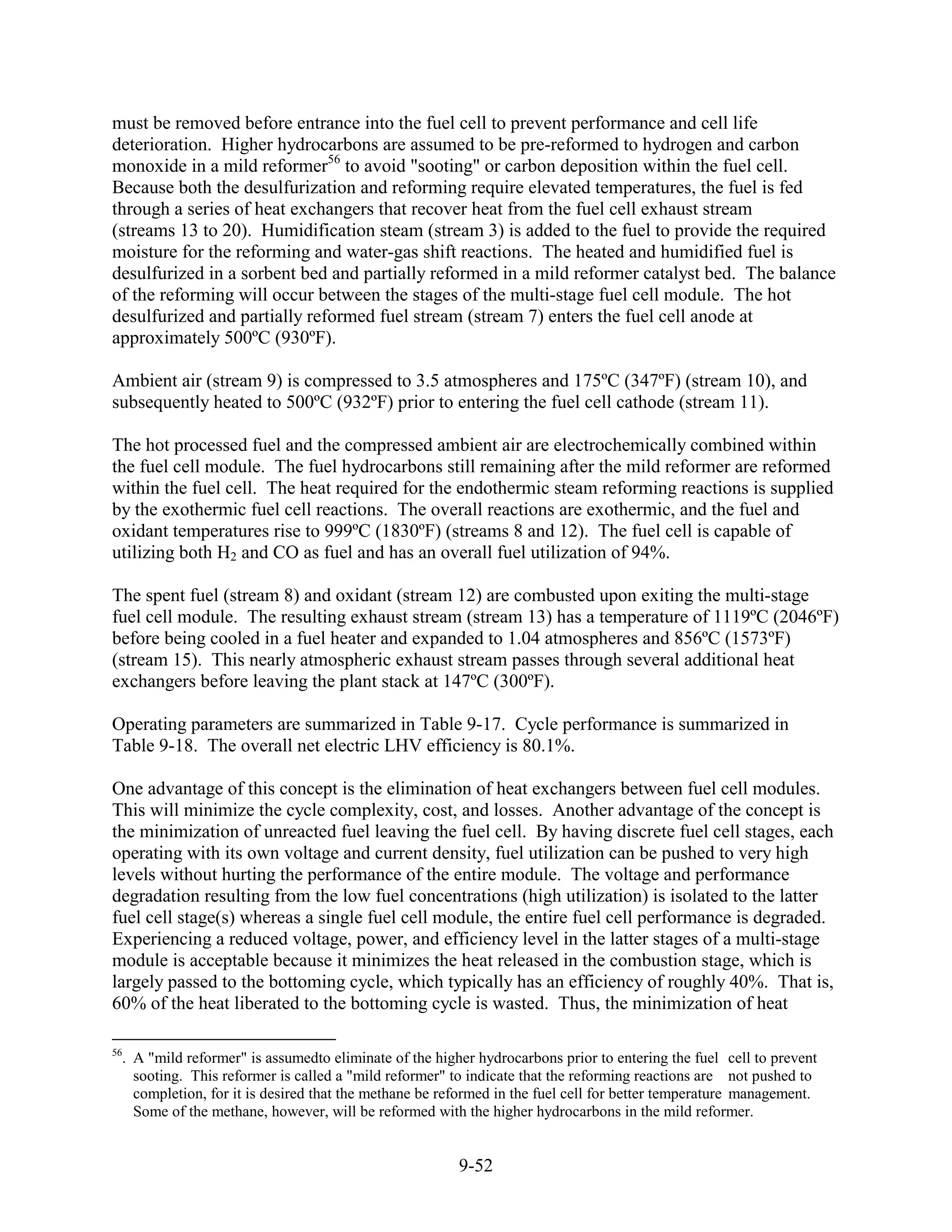

9.3.5 Natural Gas Fueled Multi-Stage Solid State Power Plant System ................................ 9-50

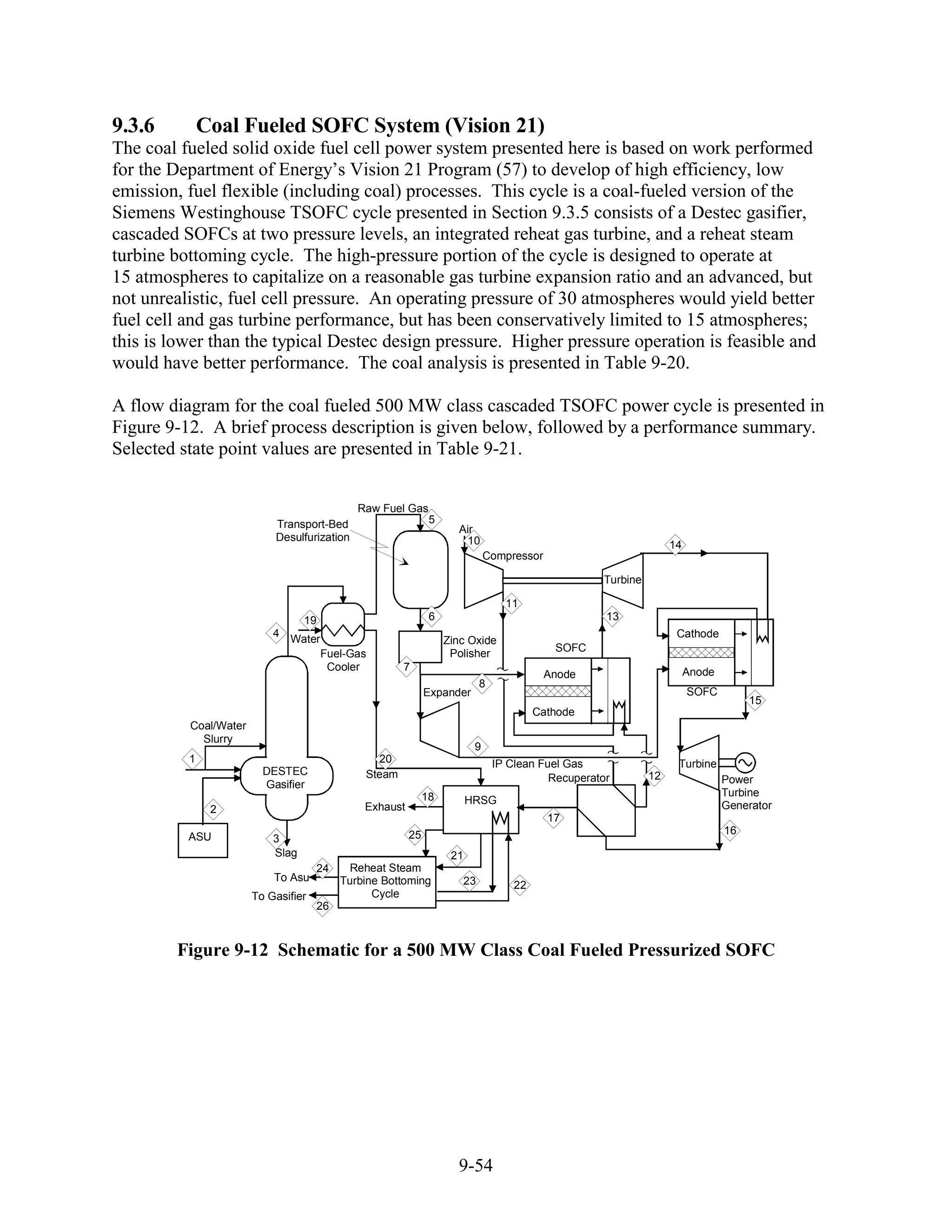

9.3.6 Coal Fueled SOFC System (Vision 21) ........................................................................ 9-54
9.3.7 Power Generation by Combined Fuel Cell and Gas Turbine Systems.......................... 9-57

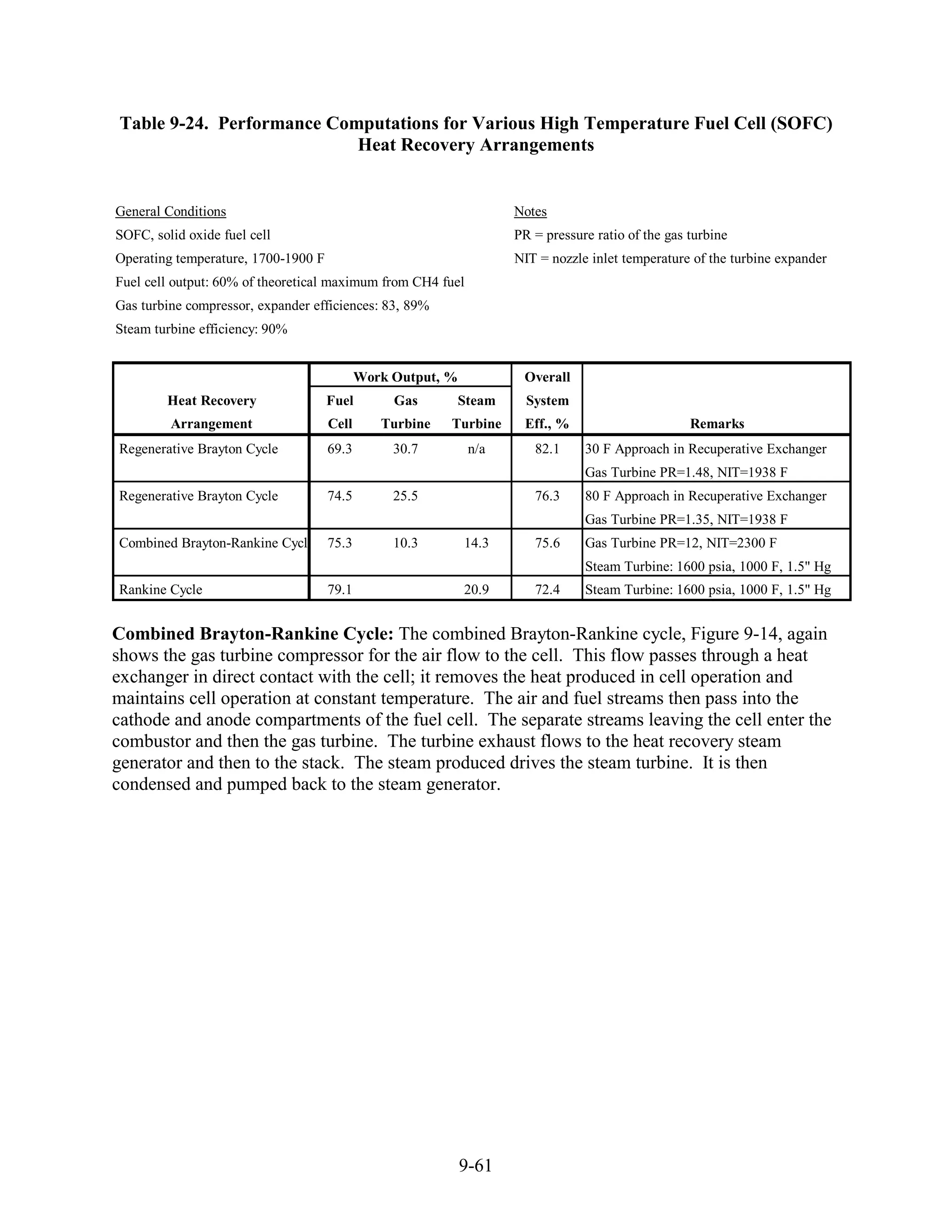

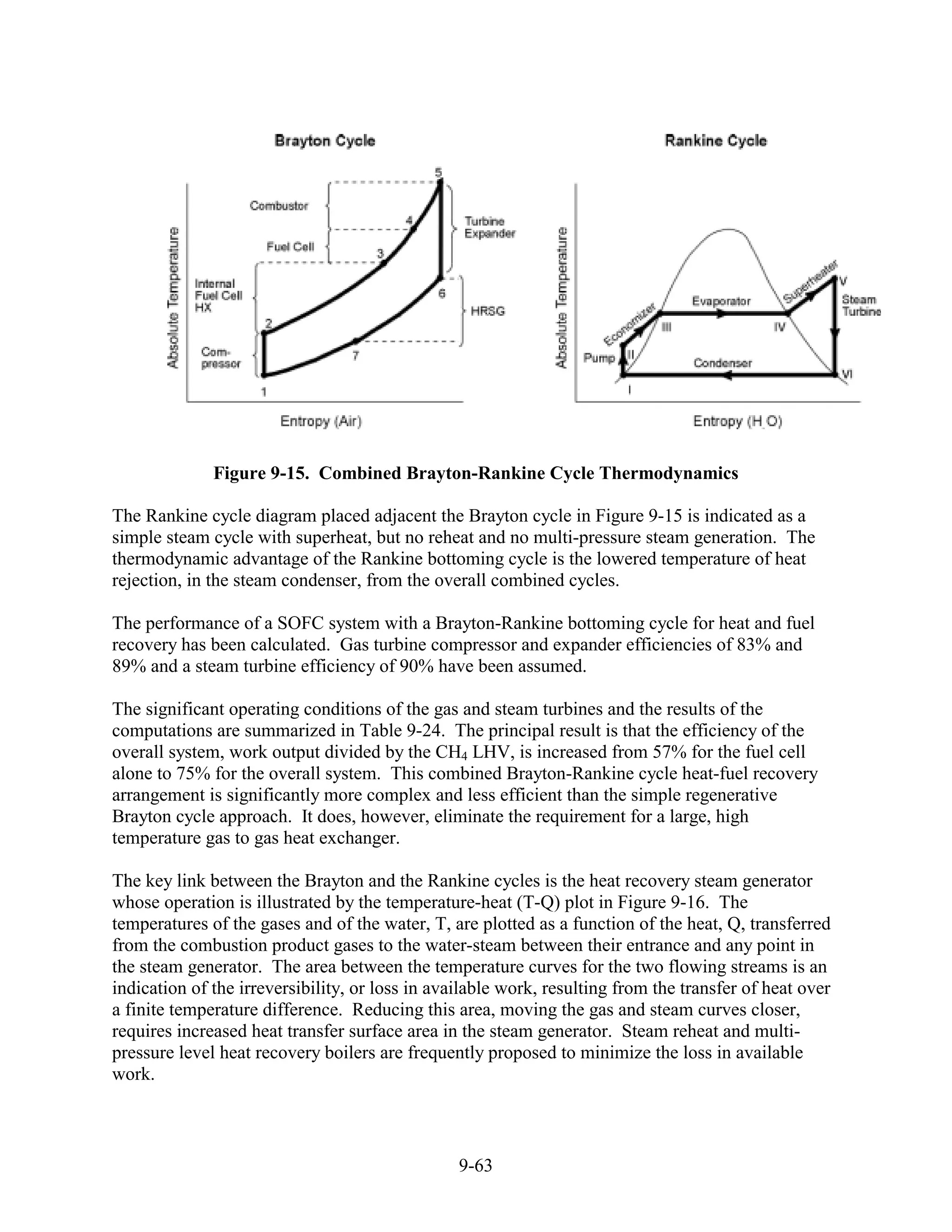

9.3.8 Heat and Fuel Recovery Cycles .................................................................................... 9-58
9.4 FUEL CELL NETWORKS ............................................................................................................. 9-70

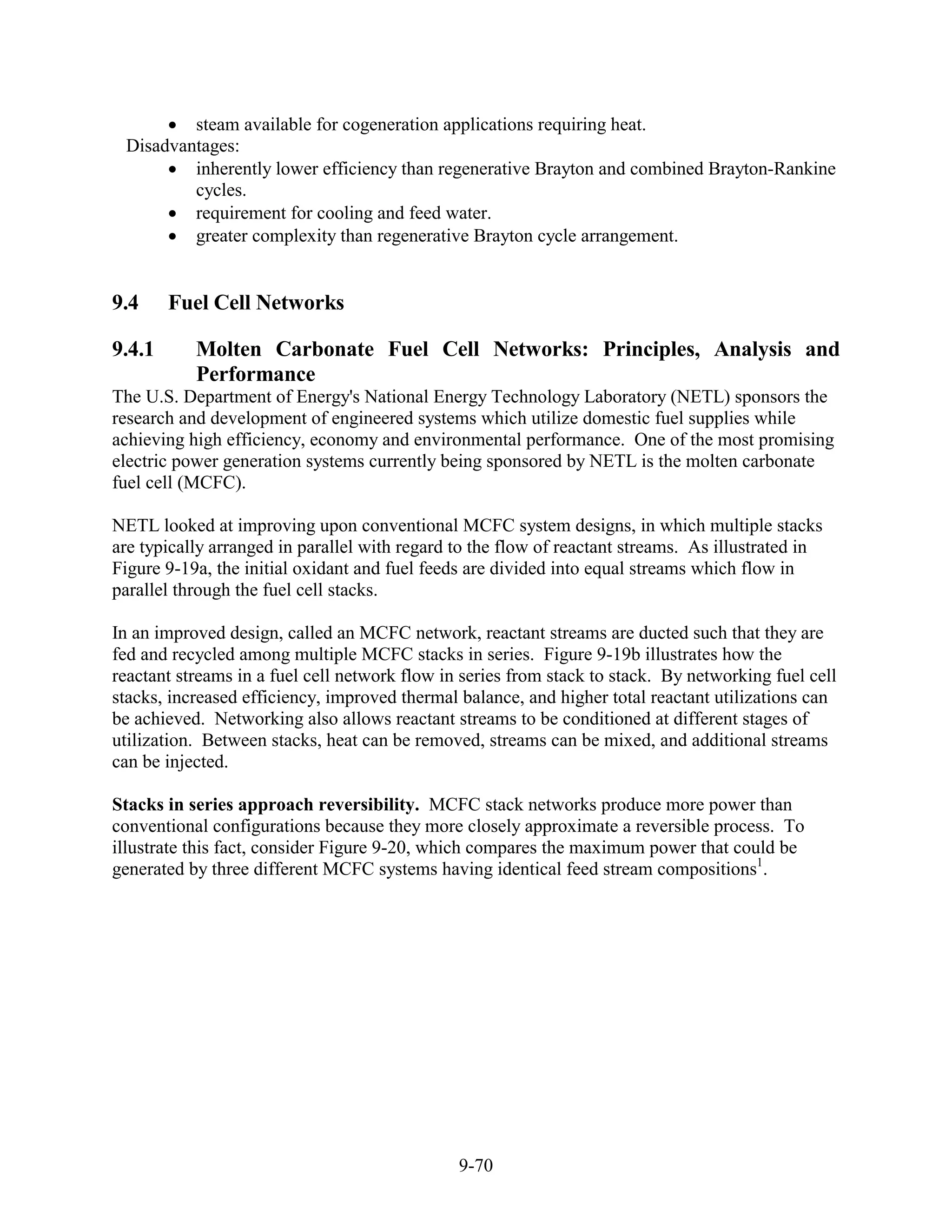

9.4.1 Molten Carbonate Fuel Cell Networks: Principles, Analysis and Performance ........... 9-70

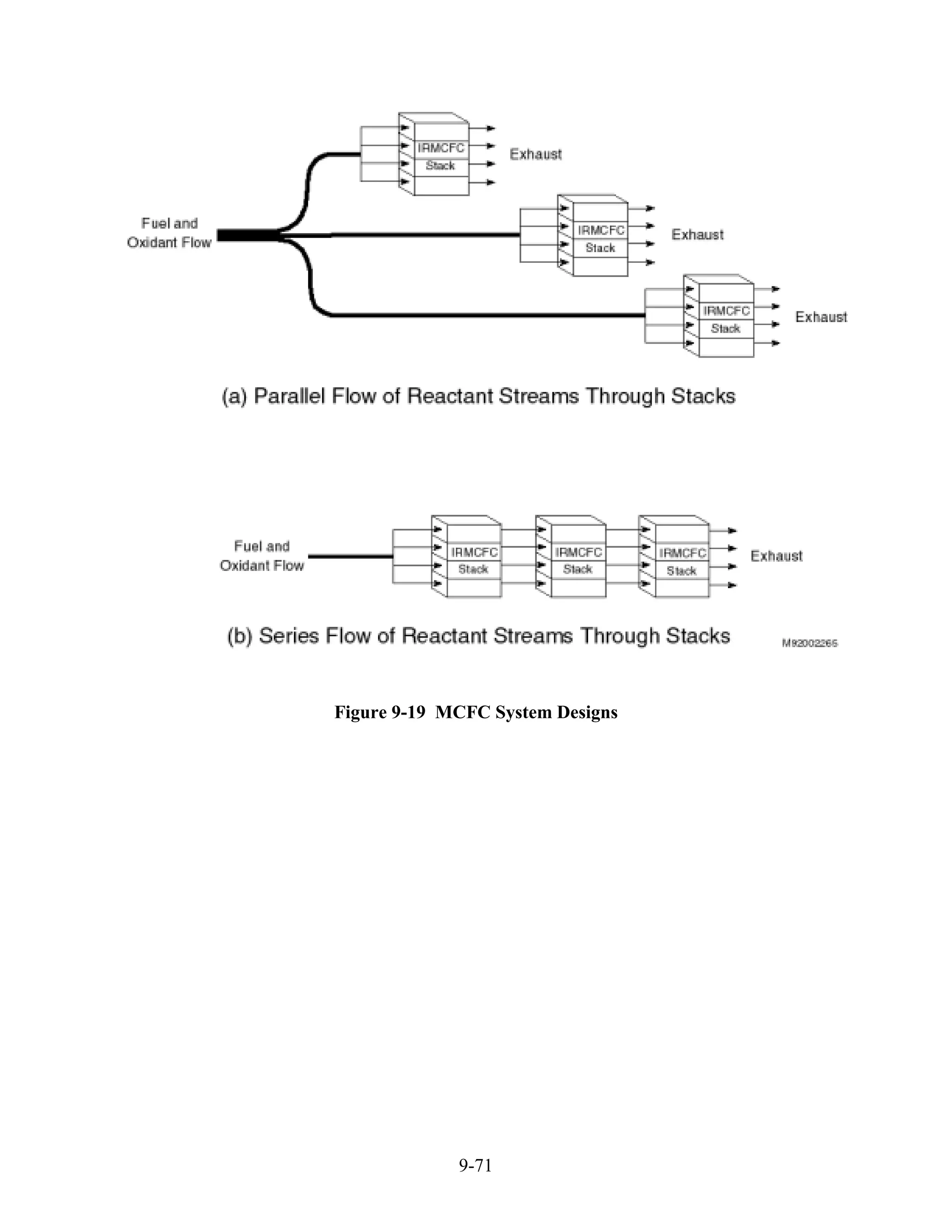

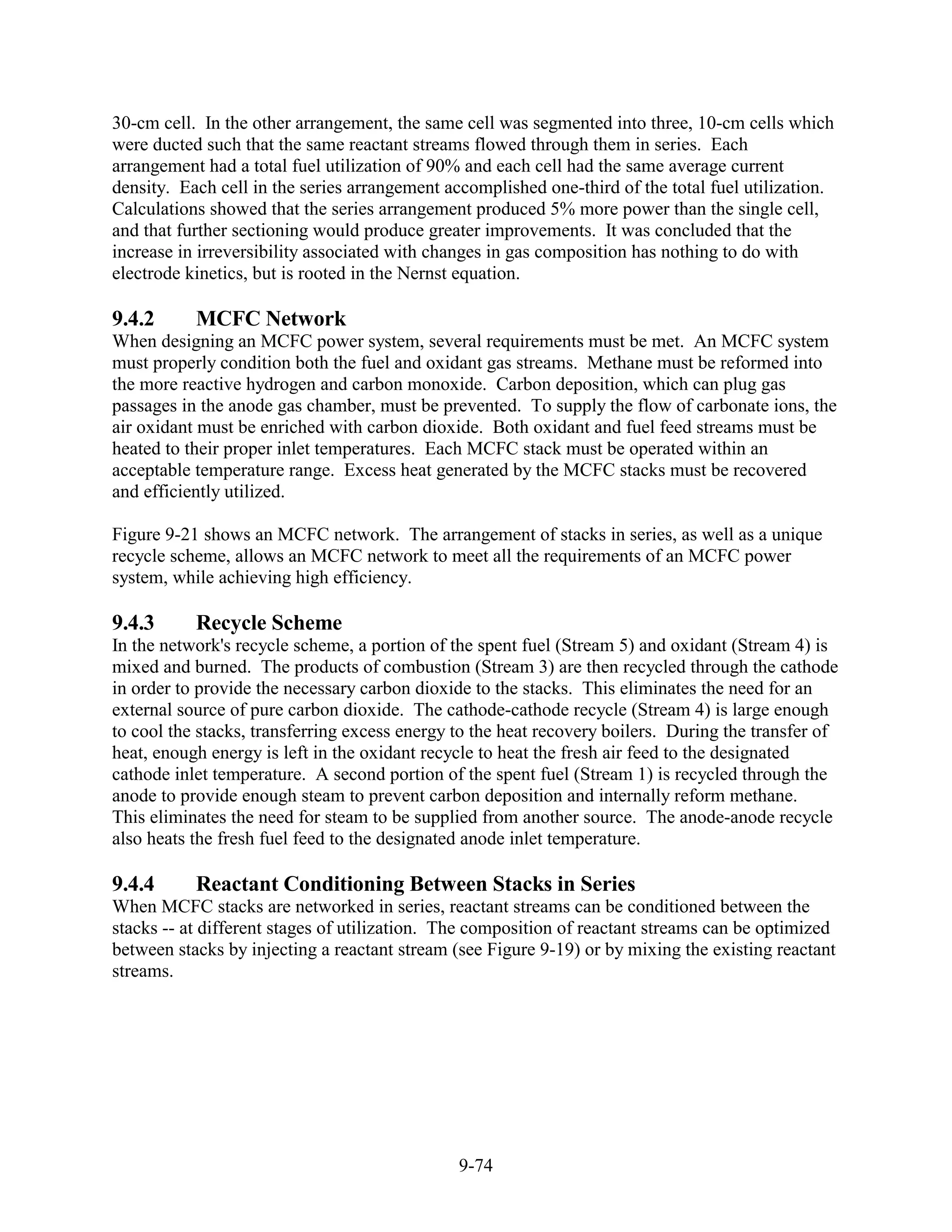

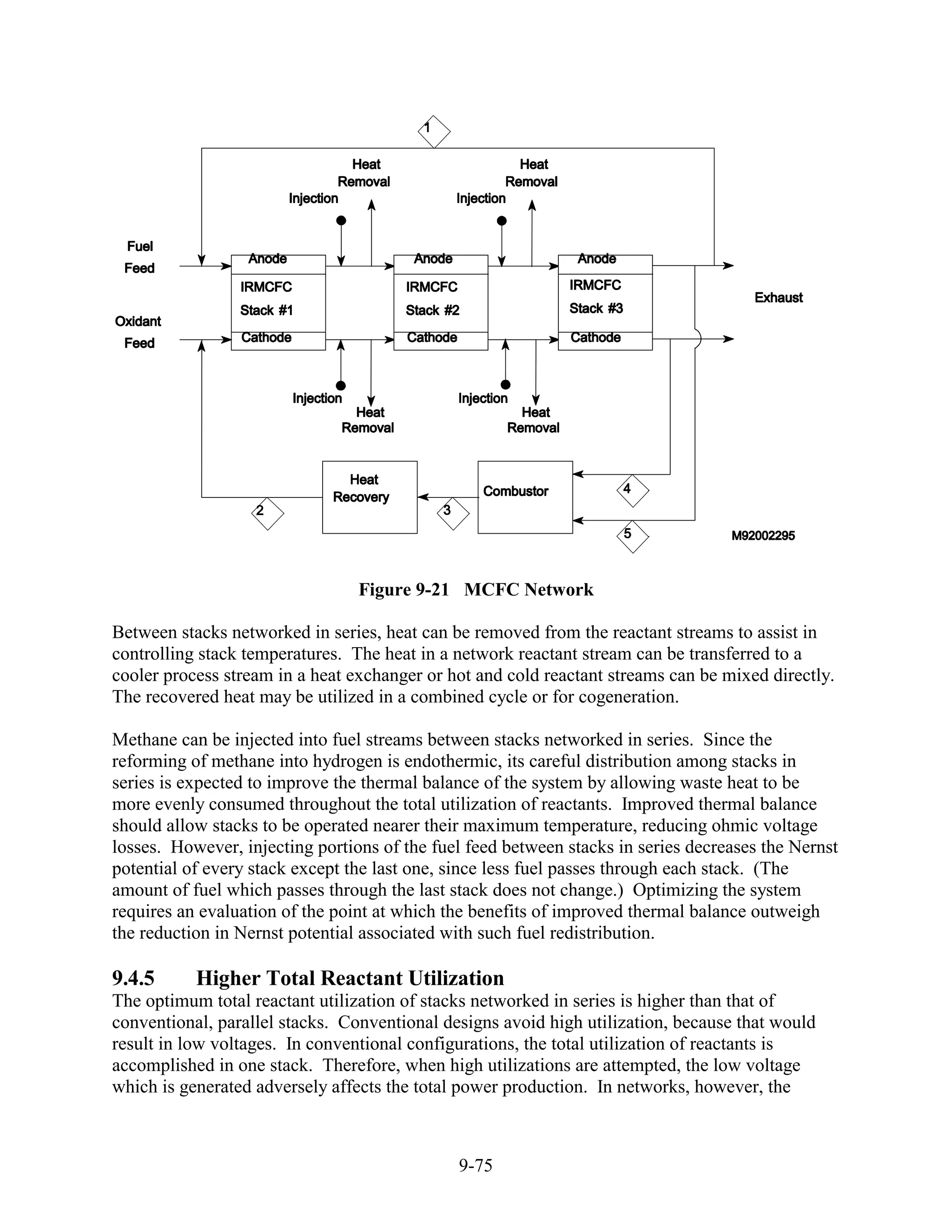

9.4.2 MCFC Network............................................................................................................. 9-74
9.4.3 Recycle Scheme ............................................................................................................ 9-74
9.4.4 Reactant Conditioning Between Stacks in Series.......................................................... 9-74
9.4.5 Higher Total Reactant Utilization ................................................................................. 9-75
9.4.6 Disadvantages of MCFC Networks............................................................................... 9-76

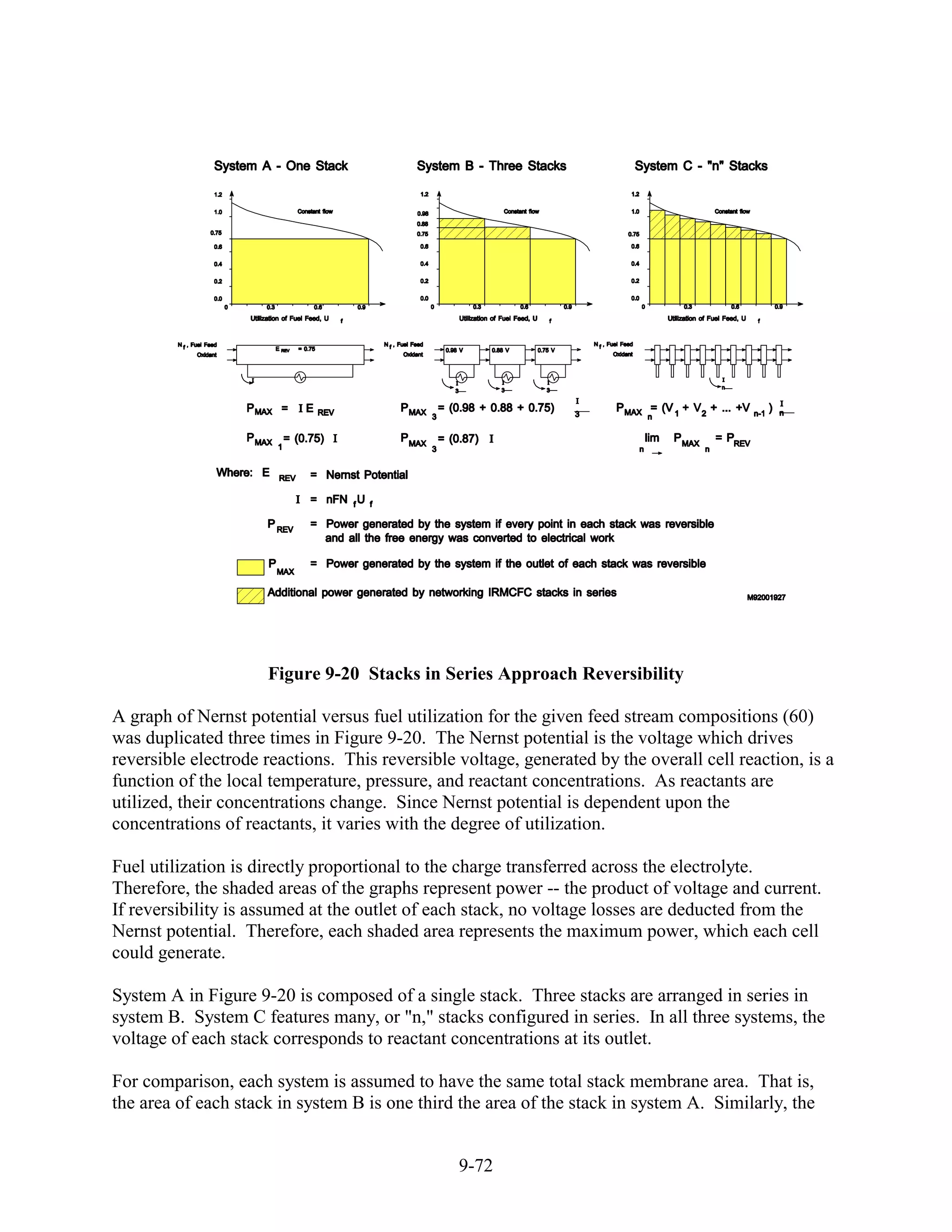

9.4.7 Comparison of Performance.......................................................................................... 9-76
9.4.8 Conclusions ................................................................................................................... 9-77

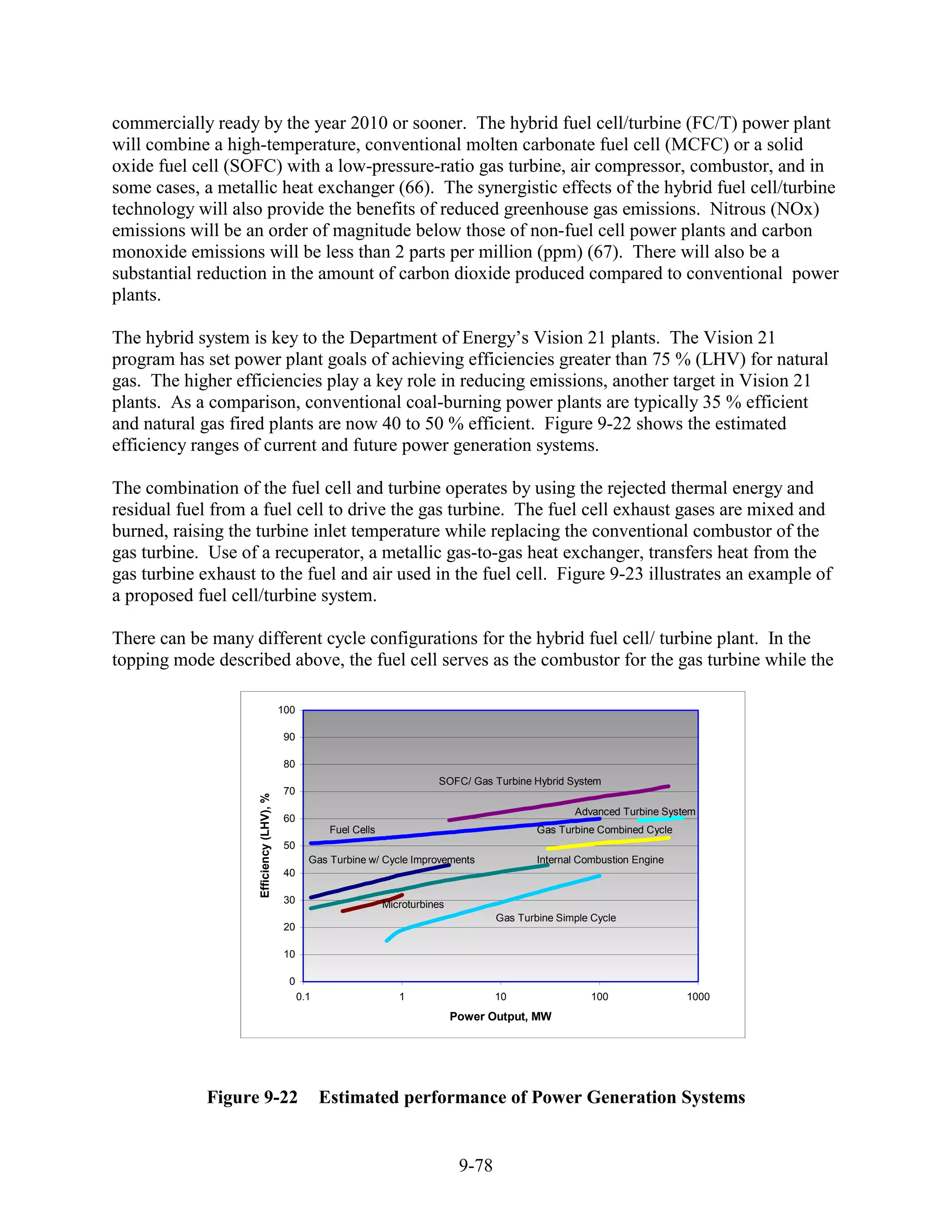

9.5 HYBRIDS ................................................................................................................................... 9-77
9.5.1 Technology.................................................................................................................... 9-77
9.5.2 Projects.......................................................................................................................... 9-79
9.5.3 World’s First Hybrid Project......................................................................................... 9-81
9.5.4 Hybrid Electric Vehicles (HEV) ................................................................................... 9-81
9.6 REFERENCES ............................................................................................................................. 9-83
10. SAMPLE CALCULATIONS ...................................................................................................... 10-1
10.1 UNIT OPERATIONS .................................................................................................................... 10-1
10.1.1 Fuel Cell Calculations ................................................................................................... 10-1
10.1.2 Fuel Processing Calculations ...................................................................................... 10-16
10.1.3 Power Conditioners..................................................................................................... 10-20
10.1.4 Others .......................................................................................................................... 10-20
10.2 SYSTEM ISSUES ....................................................................................................................... 10-21
10.2.1 Efficiency Calculations ............................................................................................... 10-21
10.2.2 Thermodynamic Considerations ................................................................................. 10-23
10.3 SUPPORTING CALCULATIONS ................................................................................................. 10-27

iii

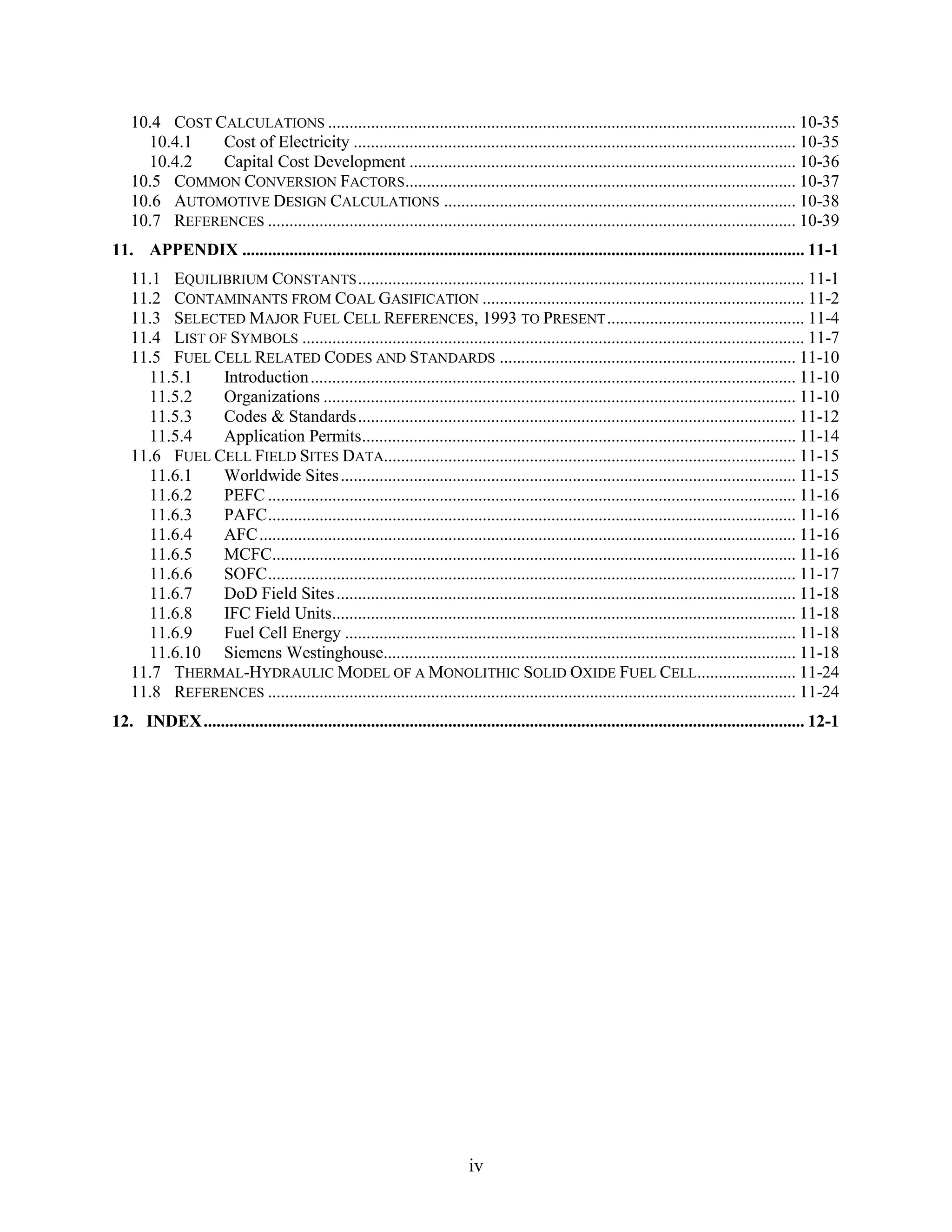

10.4 COST CALCULATIONS ............................................................................................................. 10-35
10.4.1 Cost of Electricity ....................................................................................................... 10-35

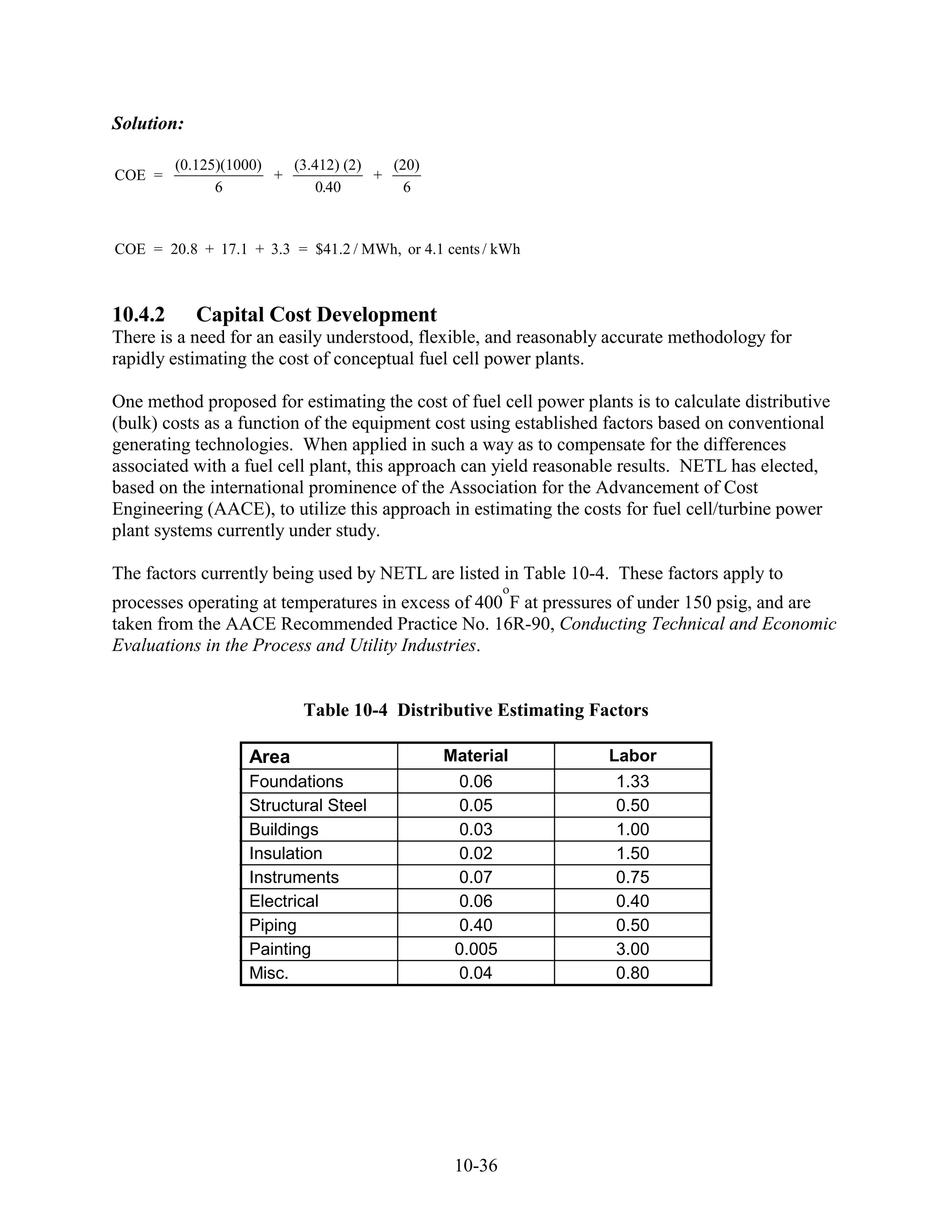

10.4.2 Capital Cost Development .......................................................................................... 10-36
10.5 COMMON CONVERSION FACTORS........................................................................................... 10-37

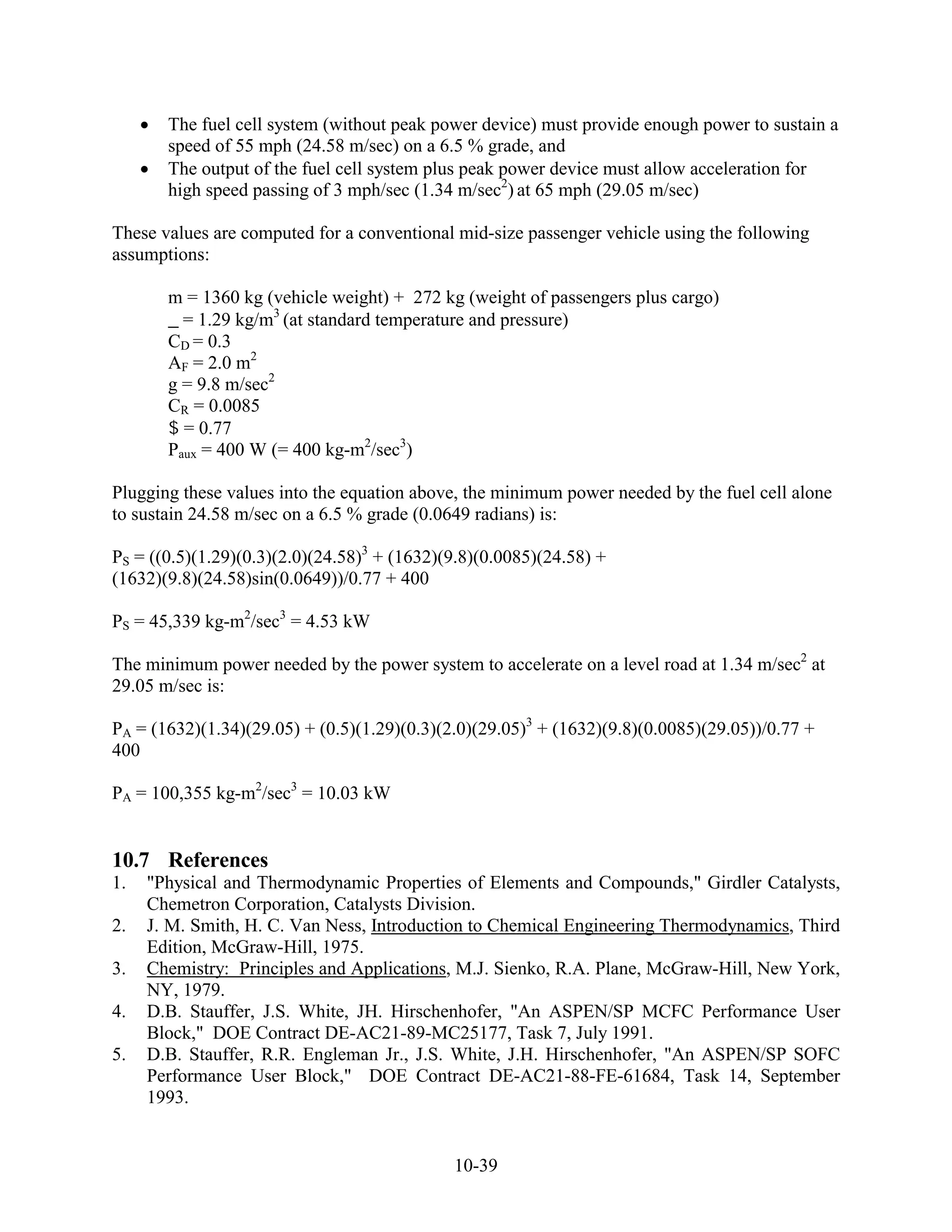

10.6 AUTOMOTIVE DESIGN CALCULATIONS .................................................................................. 10-38
10.7 REFERENCES ........................................................................................................................... 10-39
11. APPENDIX ................................................................................................................................... 11-1

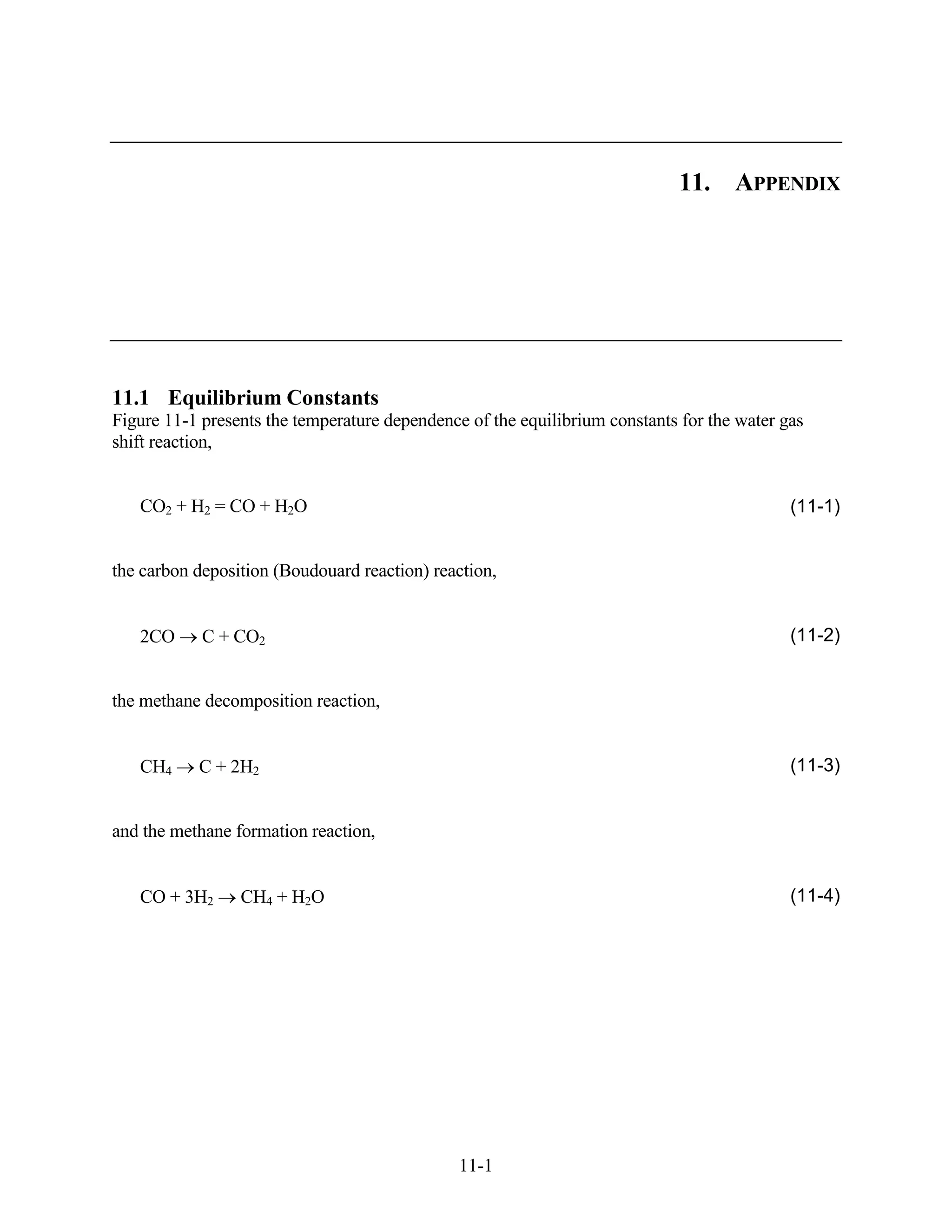

11.1 EQUILIBRIUM CONSTANTS ........................................................................................................ 11-1
11.2 CONTAMINANTS FROM COAL GASIFICATION ........................................................................... 11-2

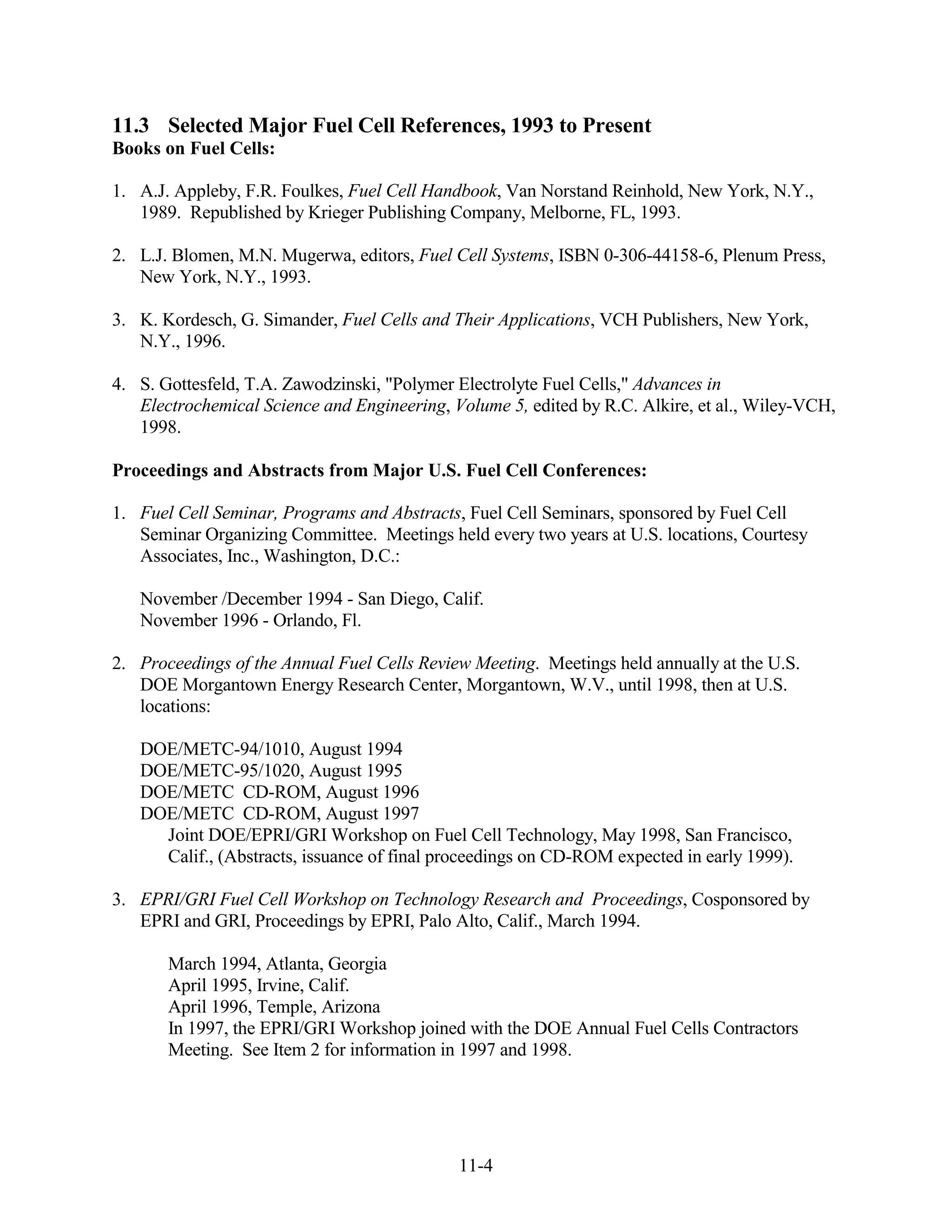

11.3 SELECTED MAJOR FUEL CELL REFERENCES, 1993 TO PRESENT .............................................. 11-4

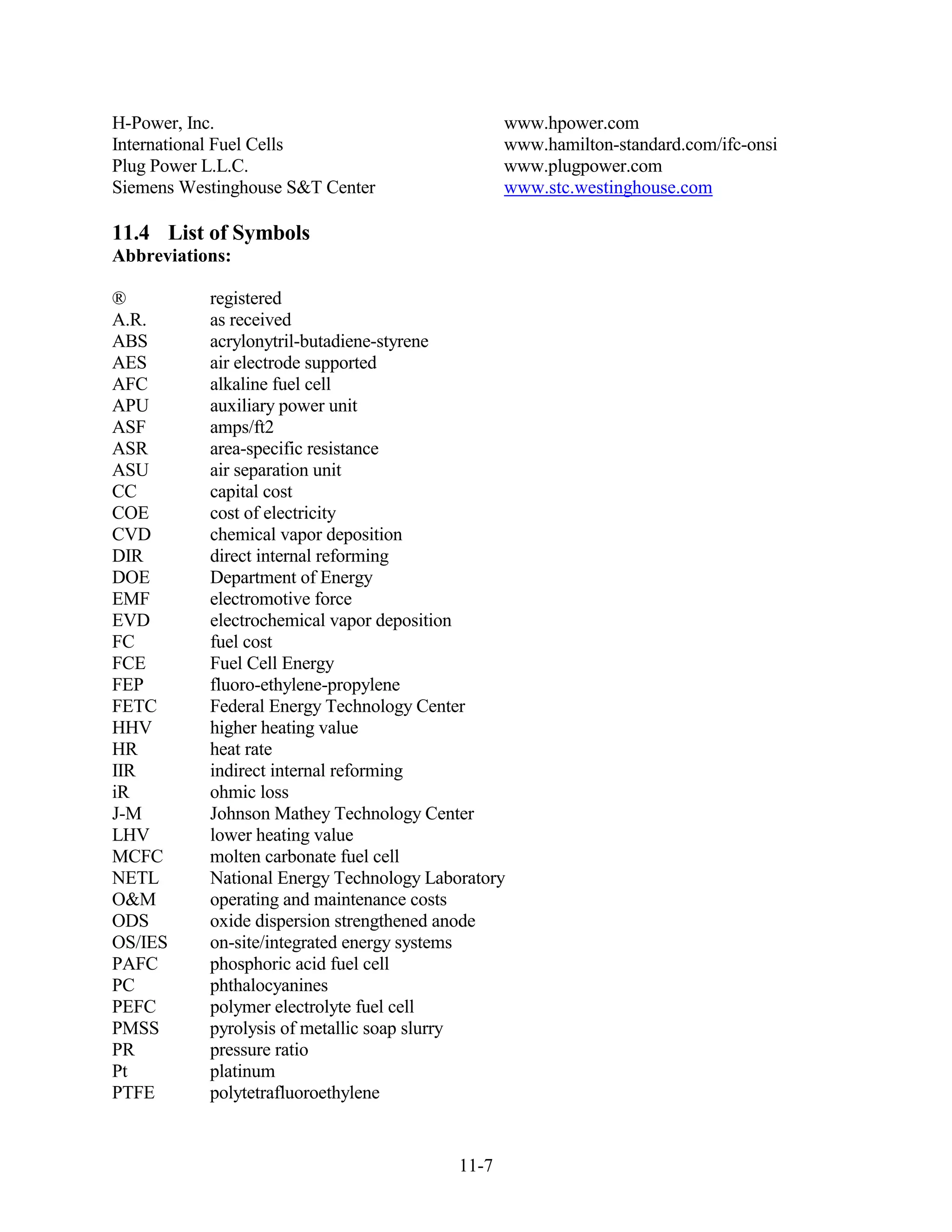

11.4 LIST OF SYMBOLS ..................................................................................................................... 11-7

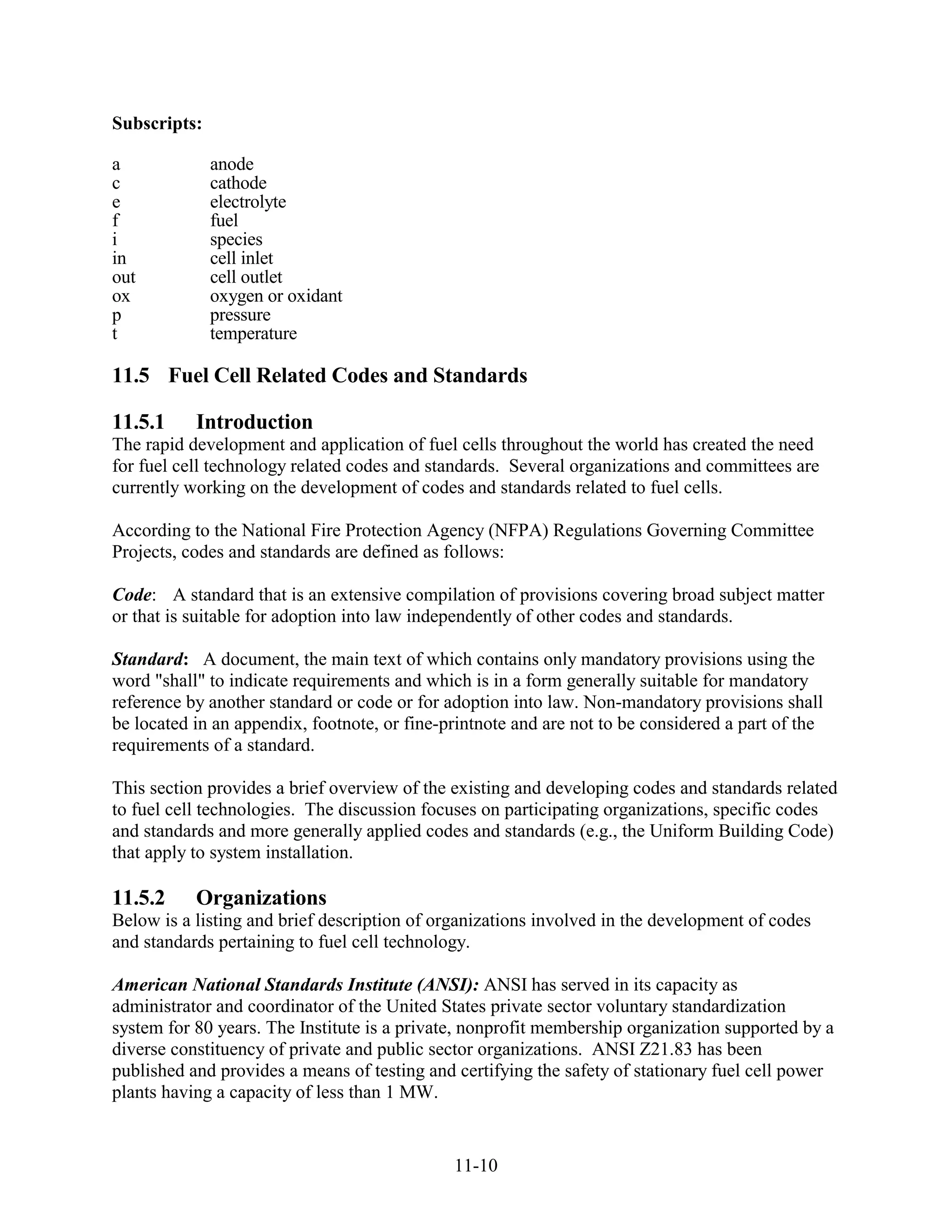

11.5 FUEL CELL RELATED CODES AND STANDARDS ..................................................................... 11-10
11.5.1 Introduction ................................................................................................................. 11-10

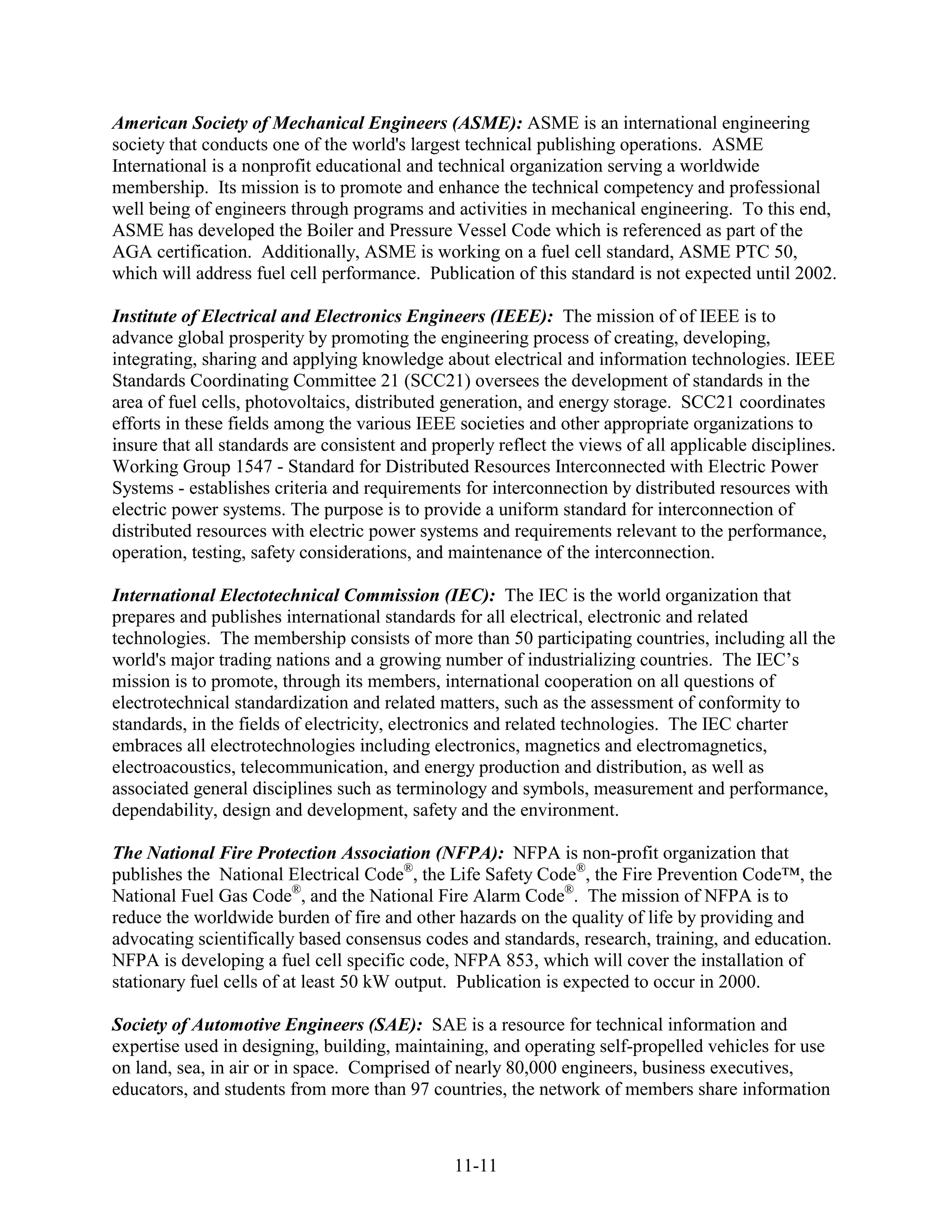

11.5.2 Organizations .............................................................................................................. 11-10
11.5.3 Codes & Standards...................................................................................................... 11-12
11.5.4 Application Permits..................................................................................................... 11-14
11.6 FUEL CELL FIELD SITES DATA................................................................................................ 11-15
11.6.1 Worldwide Sites .......................................................................................................... 11-15
11.6.2 PEFC ........................................................................................................................... 11-16
11.6.3 PAFC........................................................................................................................... 11-16
11.6.4 AFC ............................................................................................................................. 11-16
11.6.5 MCFC.......................................................................................................................... 11-16

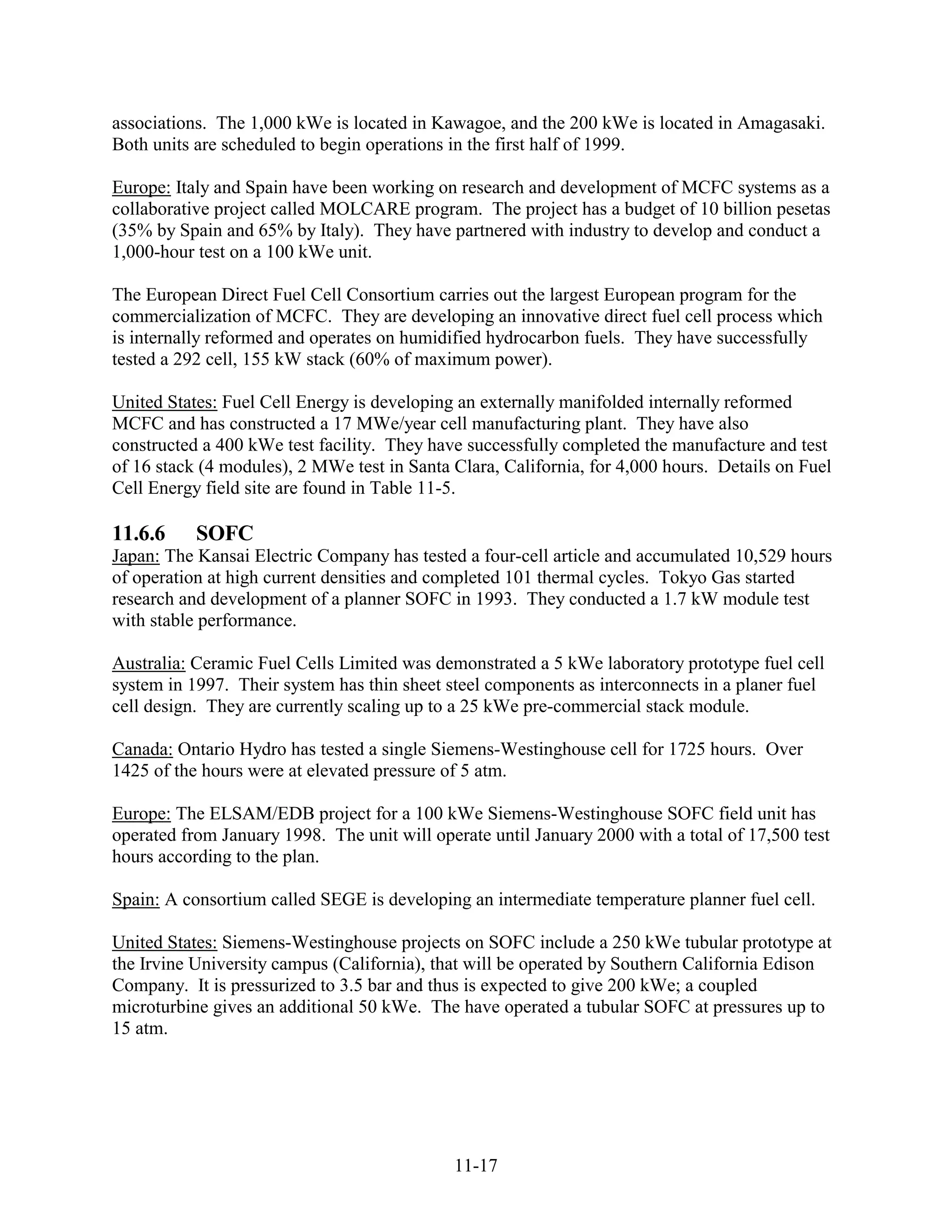

11.6.6 SOFC........................................................................................................................... 11-17

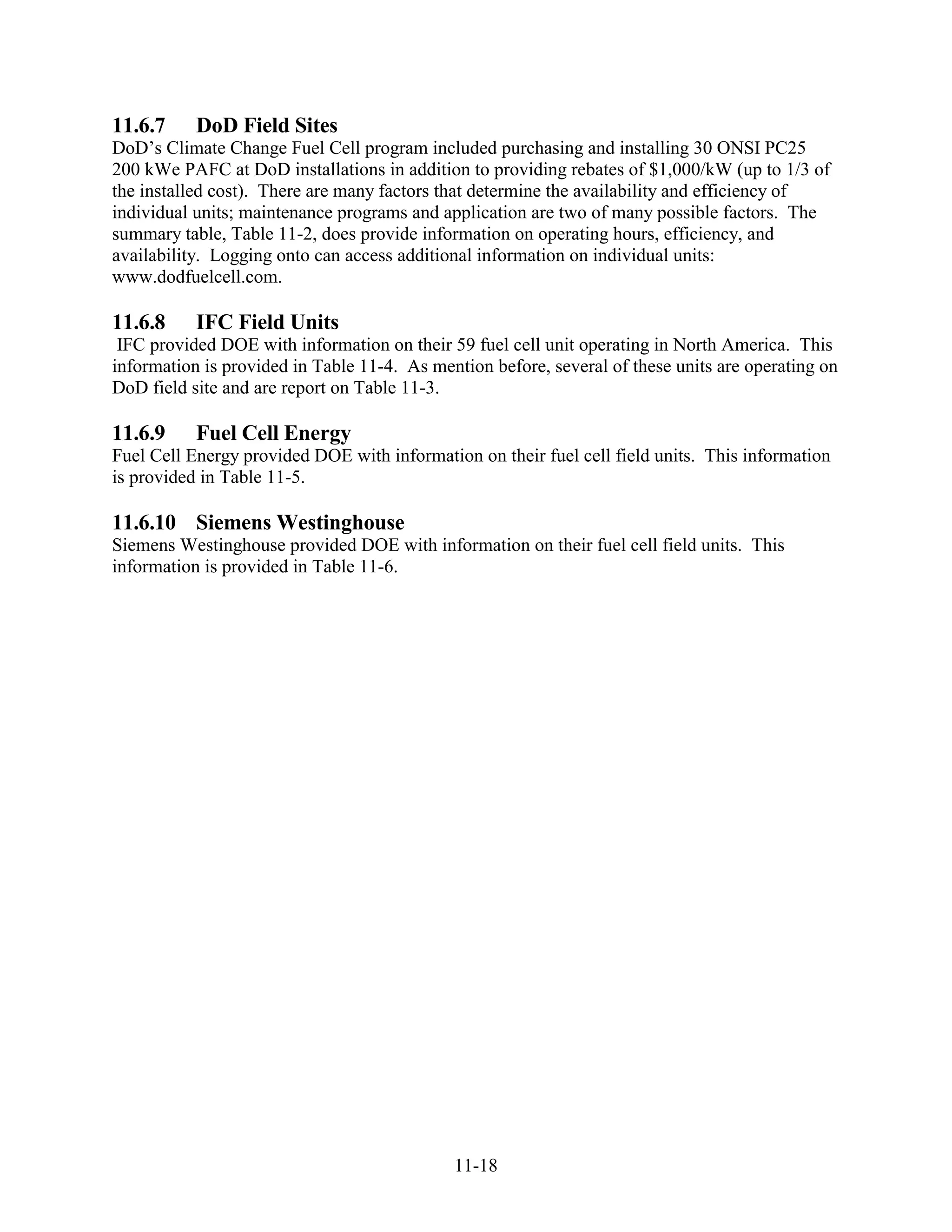

11.6.7 DoD Field Sites ........................................................................................................... 11-18
11.6.8 IFC Field Units............................................................................................................ 11-18
11.6.9 Fuel Cell Energy ......................................................................................................... 11-18
11.6.10 Siemens Westinghouse................................................................................................ 11-18
11.7 THERMAL-HYDRAULIC MODEL OF A MONOLITHIC SOLID OXIDE FUEL CELL....................... 11-24
11.8 REFERENCES ........................................................................................................................... 11-24
12. INDEX ............................................................................................................................................ 12-1

iv

LIST OF FIGURES

Figure Title Page

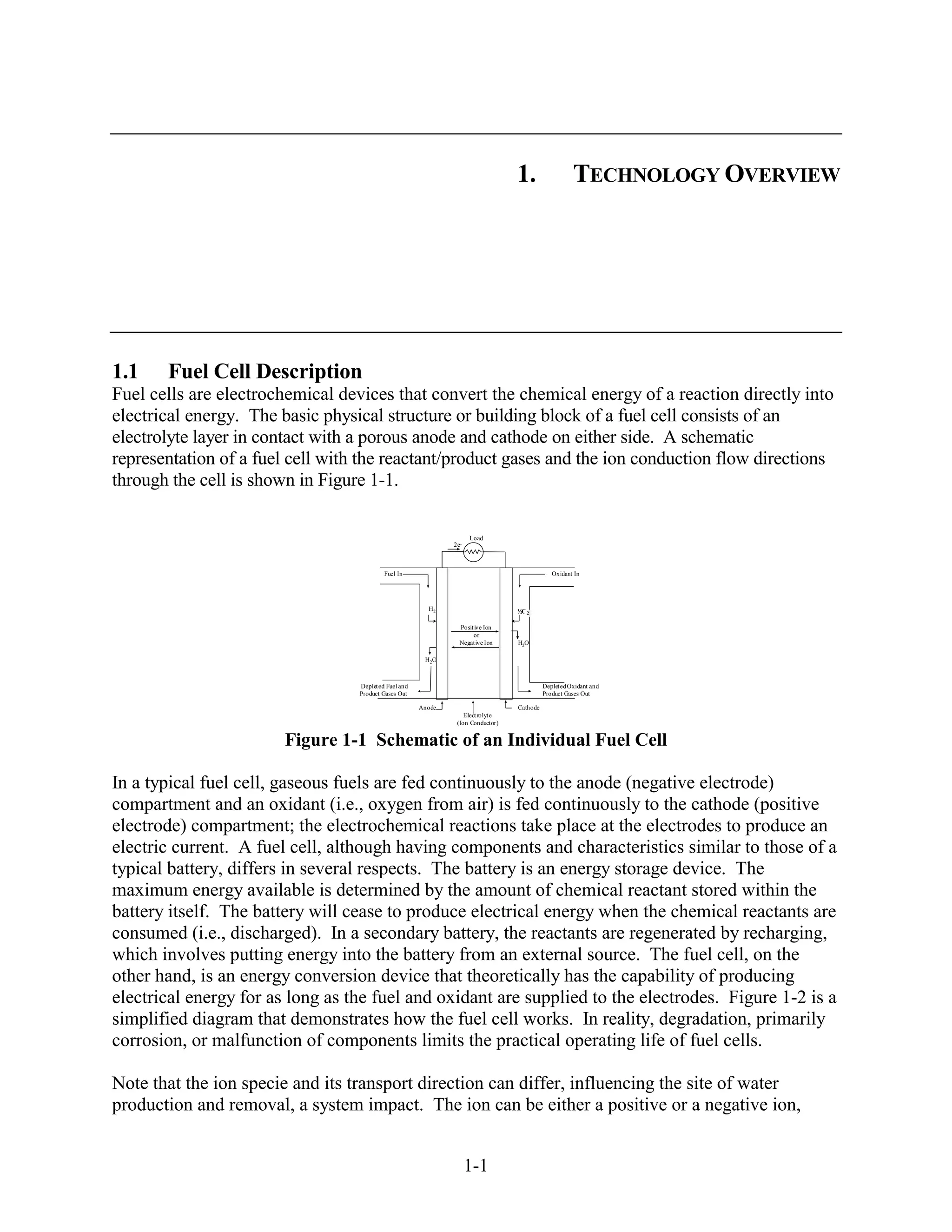

Figure 1-1 Schematic of an Individual Fuel Cell .......................................................................1-1

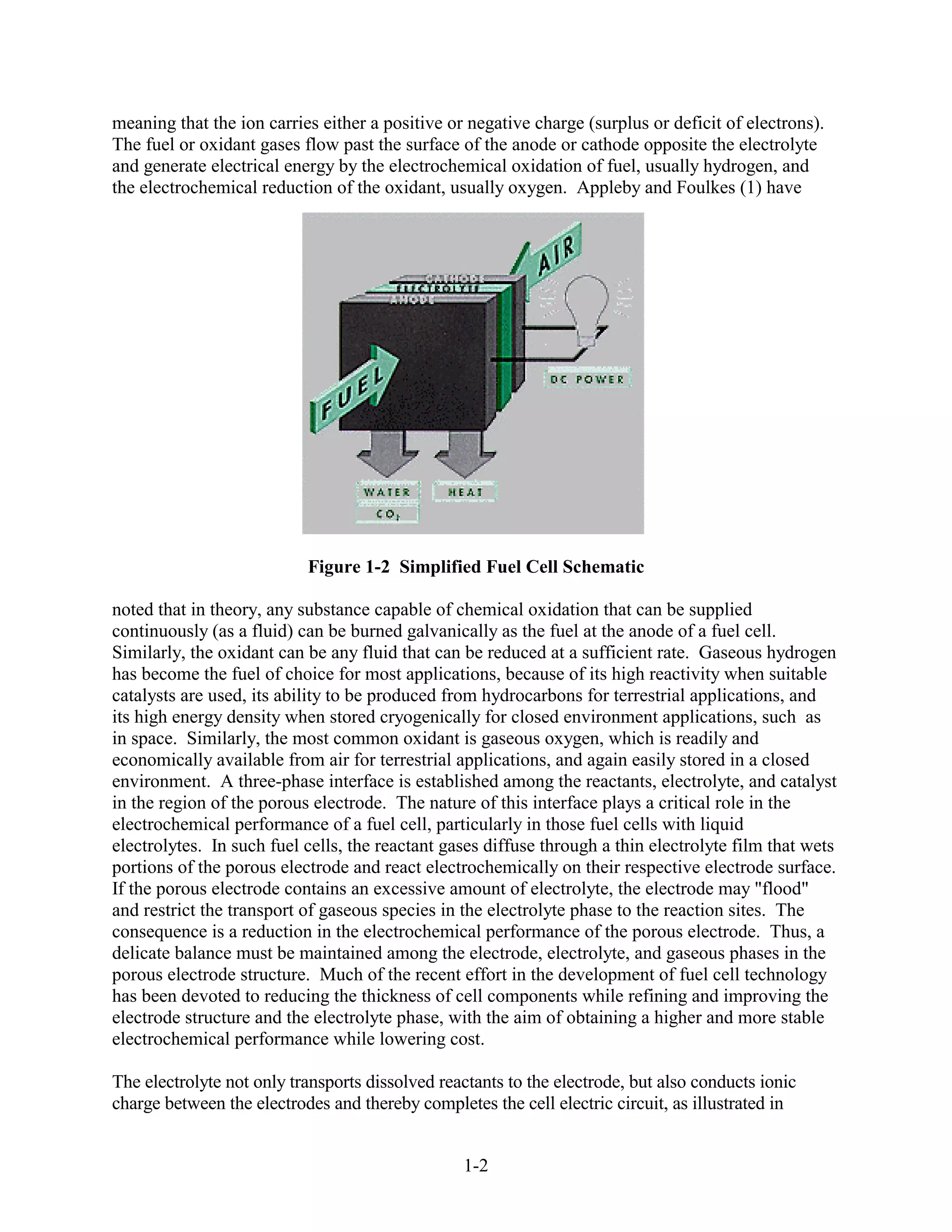

Figure 1-2 Simplified Fuel Cell Schematic................................................................................1-2

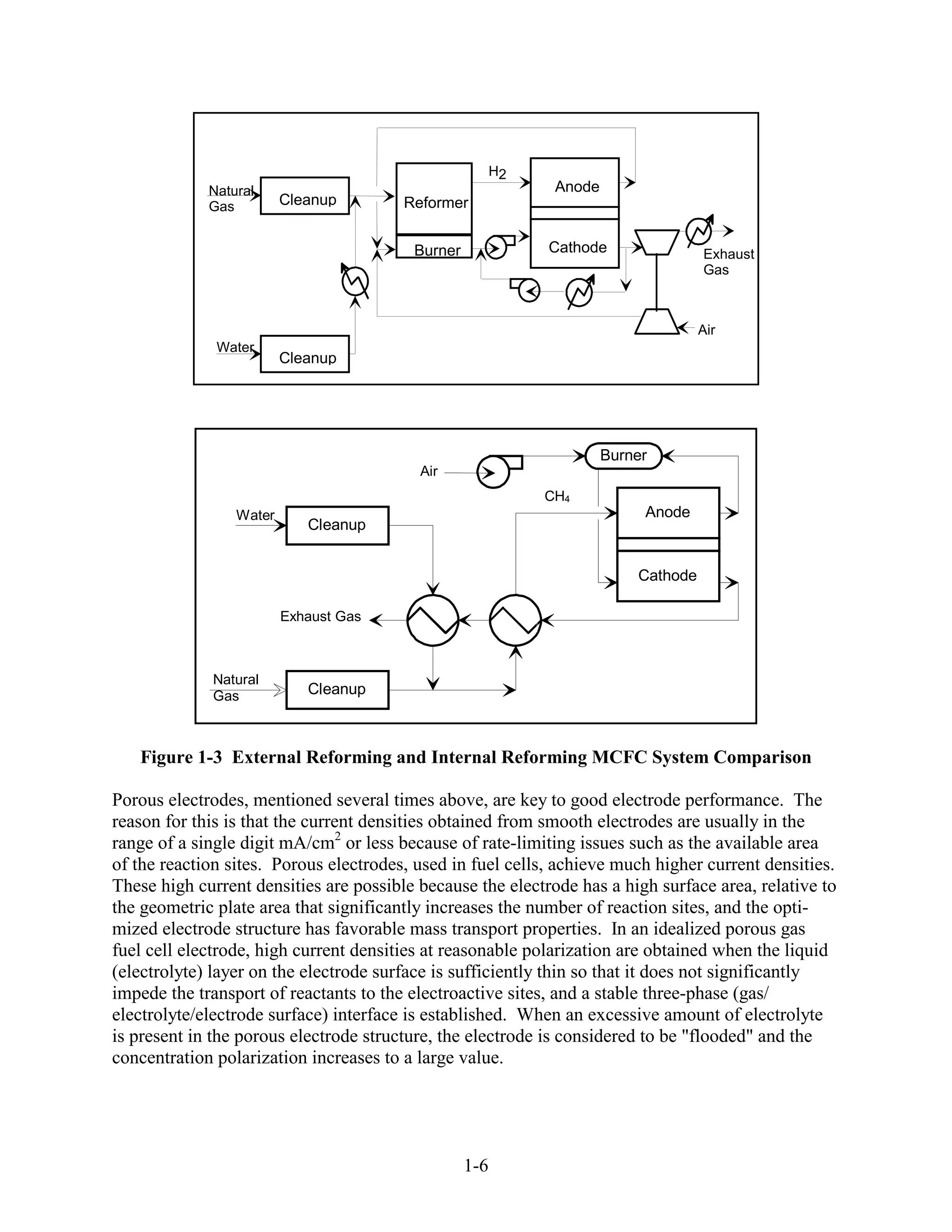

Figure 1-3 External Reforming and Internal Reforming MCFC System Comparison ..............1-6

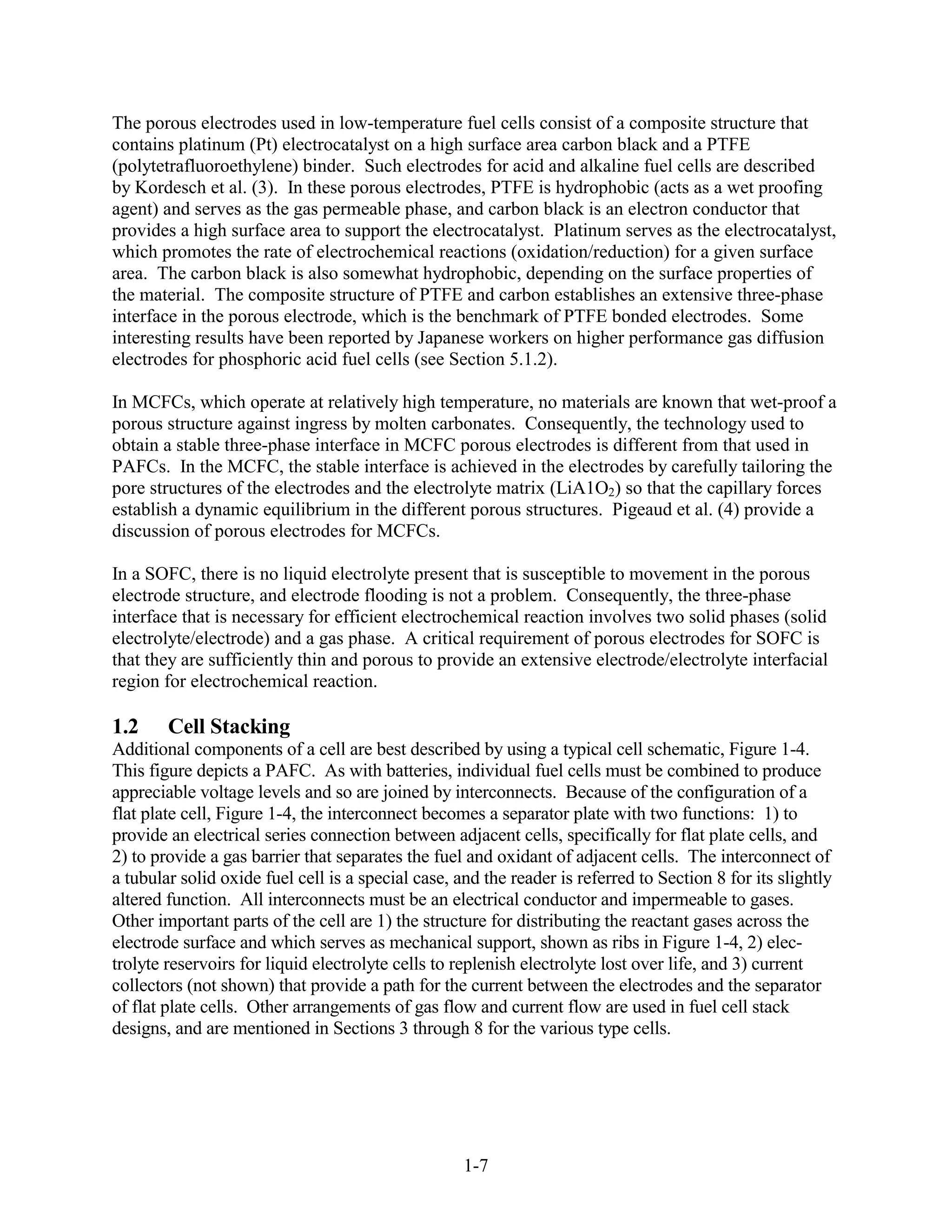

Figure 1-4 Expanded View of a Basic Fuel Cell Repeated Unit in a Fuel Cell Stack ...............1-8
Figure 1-5 Fuel Cell Power Plant Major Processes.....................................................................1-9

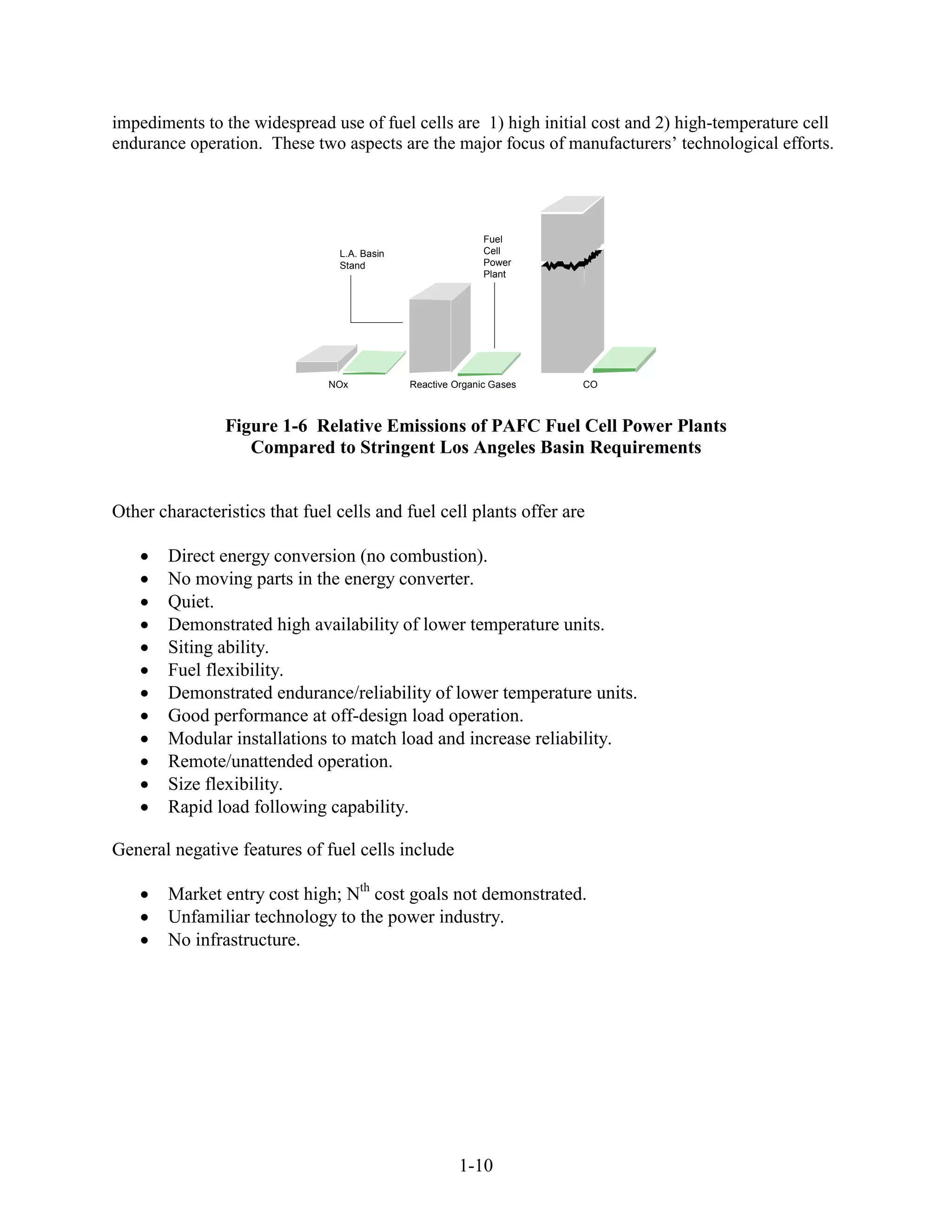

Figure 1-6 Relative Emissions of PAFC Fuel Cell Power Plants
Compared to Stringent Los Angeles Basin Requirements ......................................1-10

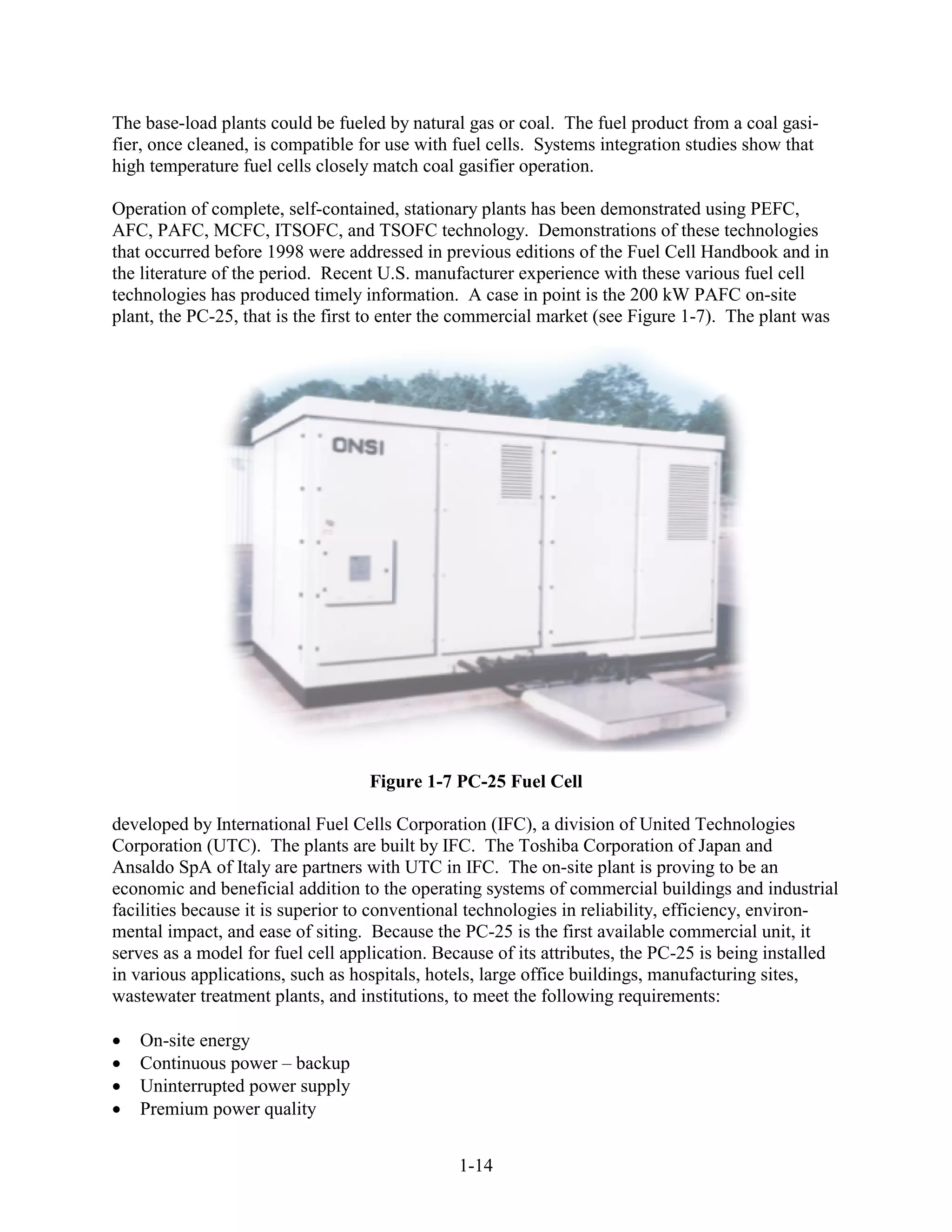

Figure 1-7 PC-25 Fuel Cell ......................................................................................................1-14
Figure 1-8 Combining the TSOFC with a Gas Turbine Engine to Improve Efficiency ..........1-18

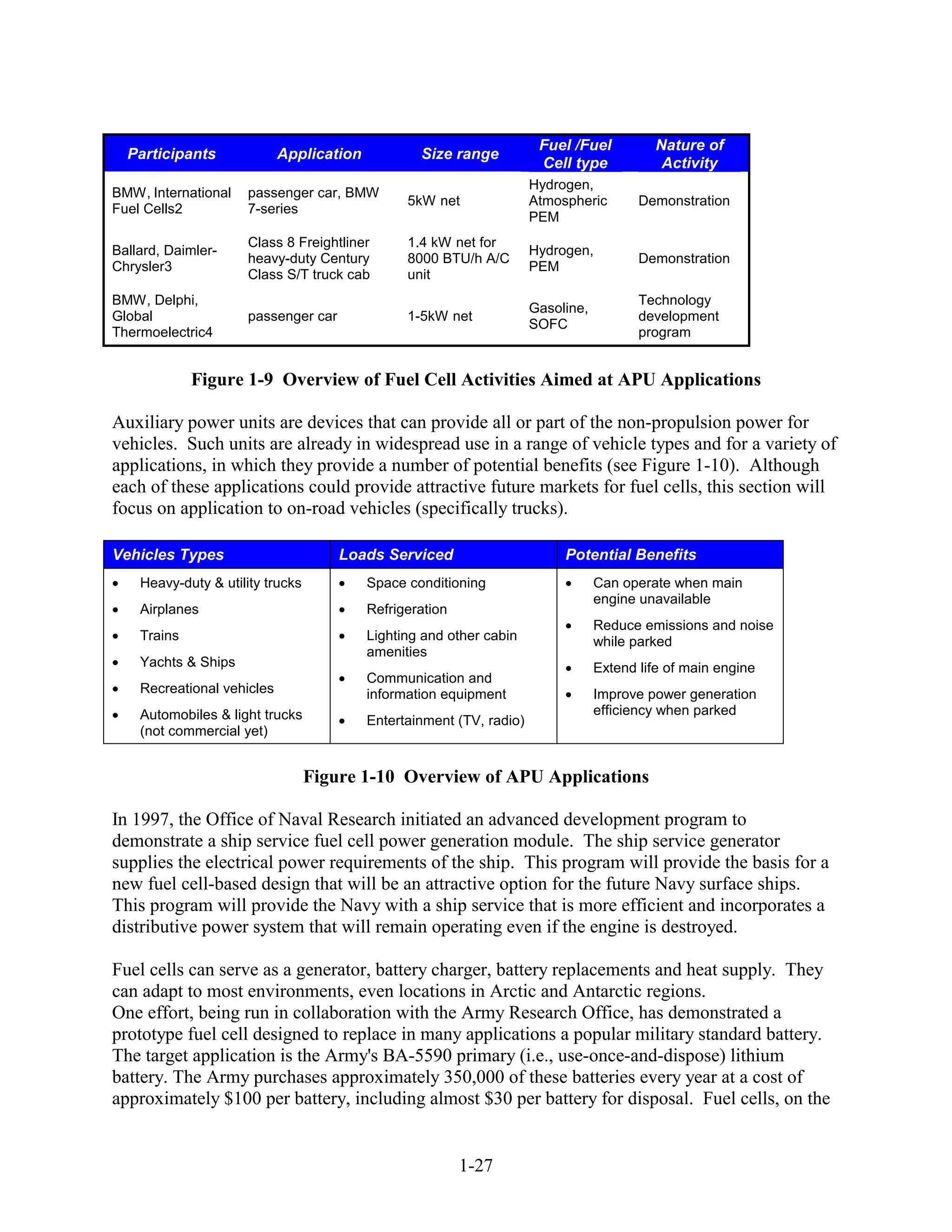

Figure 1-9 Overview of Fuel Cell Activities Aimed at APU Applications .............................1-27
Figure 1-10 Overview of APU Applications..............................................................................1-27
Figure 1-11 Overview of typical system requirements ..............................................................1-28

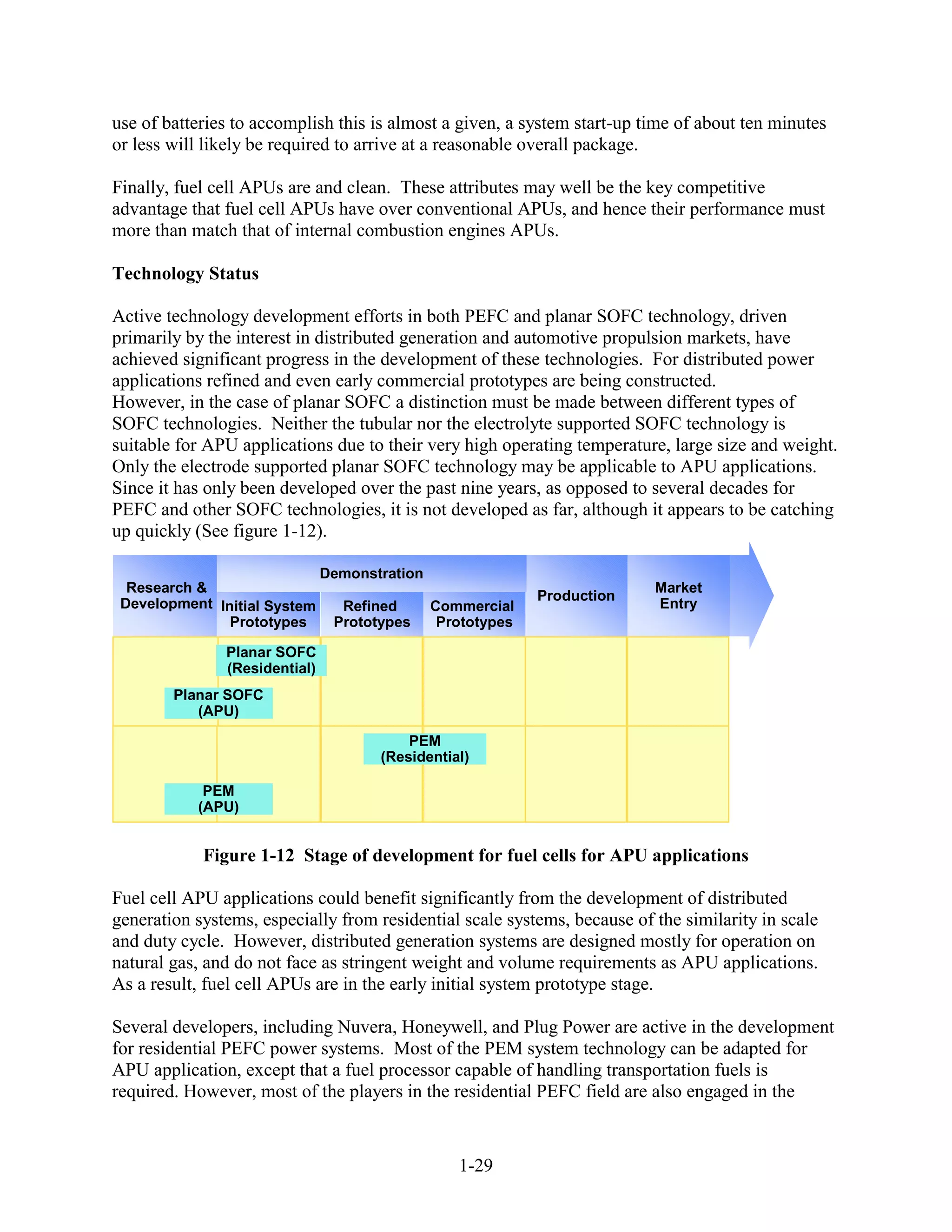

Figure 1-12 Stage of development for fuel cells for APU applications .....................................1-29

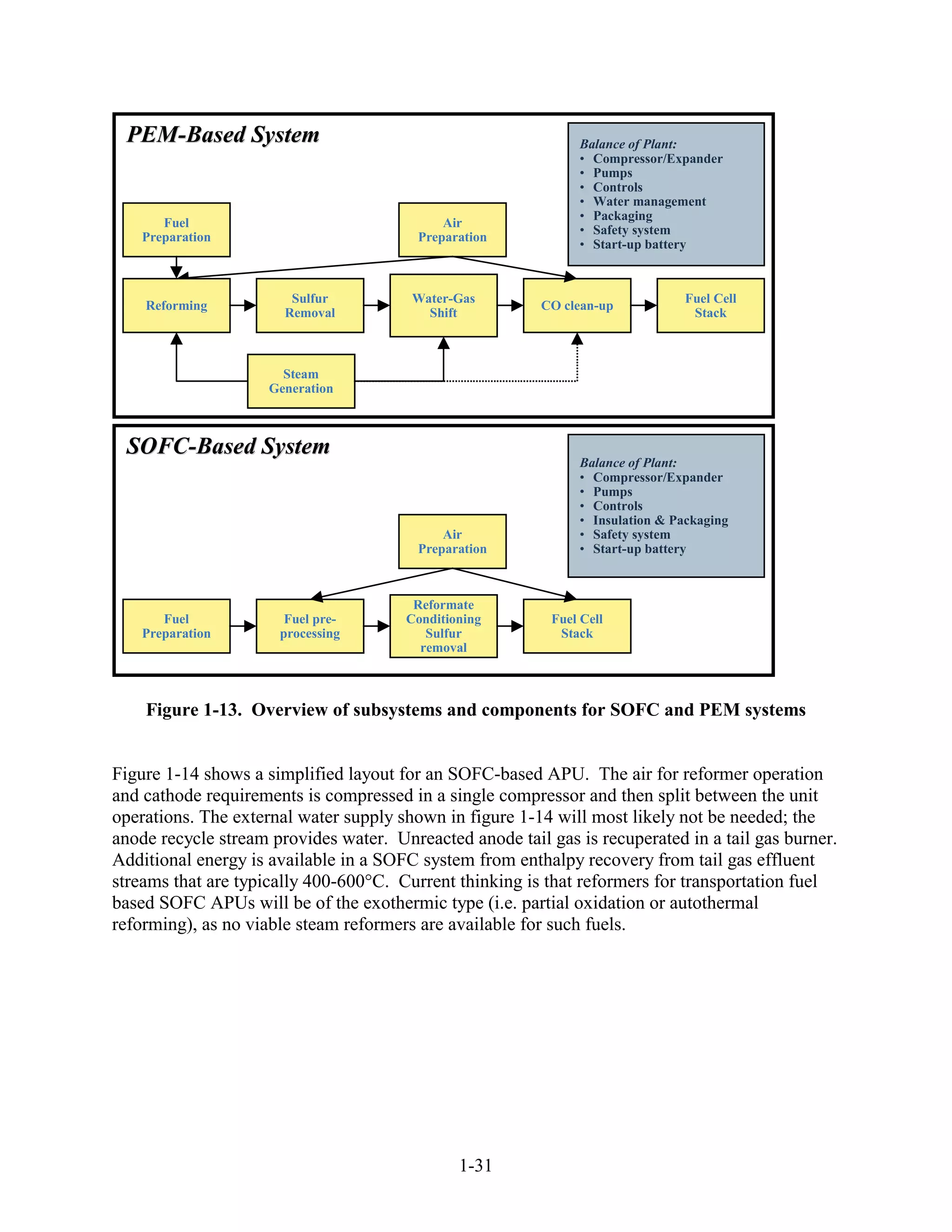

Figure 1-13 Overview of subsystems and components for SOFC and PEM systems ...............1-31

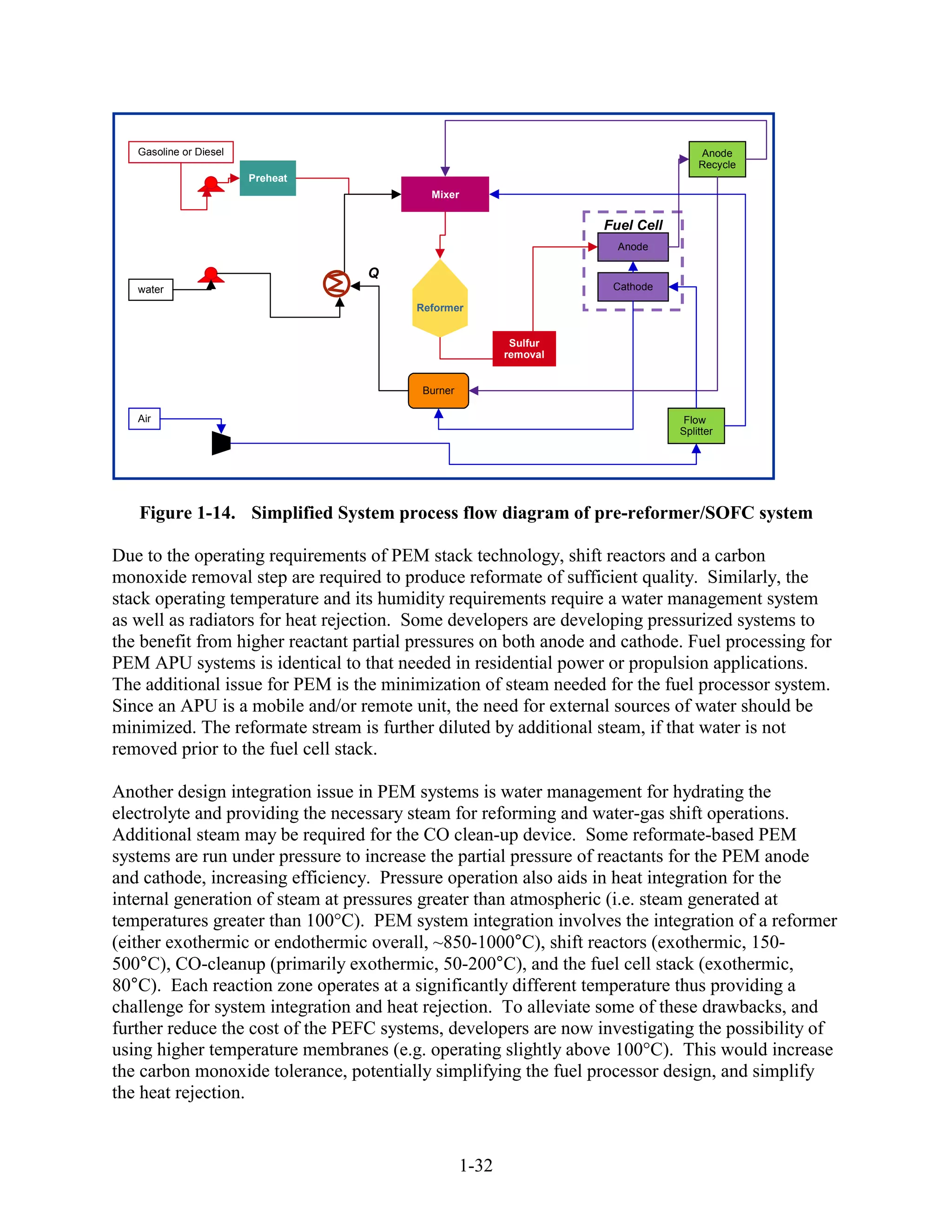

Figure 1-14 Simplified System process flow diagram of pre-reformer/SOFC system ..............1-32

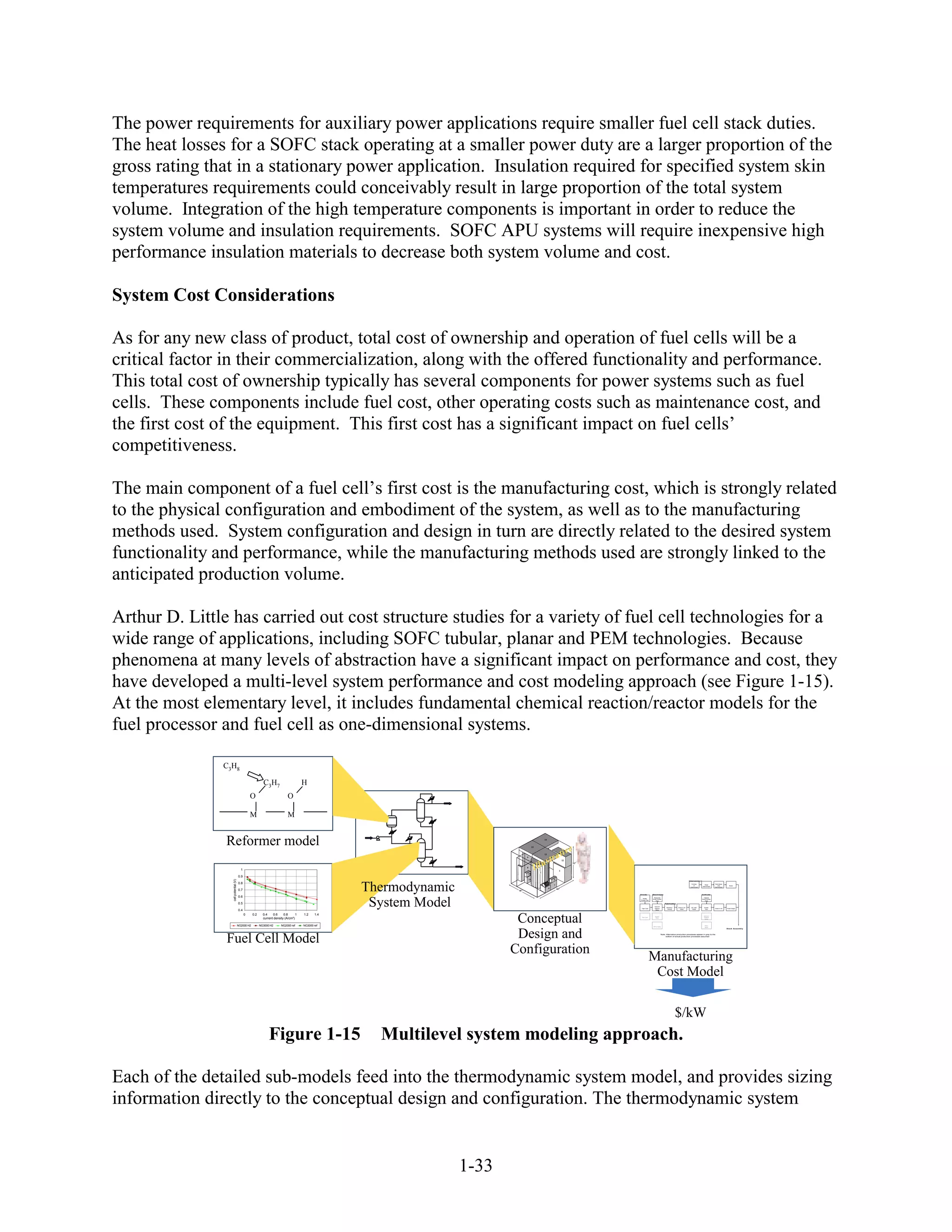

Figure 1-15 Multilevel system modeling approach....................................................................1-33
Figure 1-16 Projected cost structure of a 5kWnet APU SOFC system. Gasoline fueled
POX reformer, Fuel cell operating at 300mW/cm2, 0.7 V, 90 % fuel
utilization, 500,000 units per year production volume. .........................................1-35
Figure 2-1 H2/O2 Fuel Cell Ideal Potential as a Function of Temperature ................................2-4
Figure 2-2 Ideal and Actual Fuel Cell Voltage/Current Characteristic......................................2-5
Figure 2-3 Contribution to Polarization of Anode and Cathode ................................................2-8
Figure 2-4 Flexibility of Operating Points According to Cell Parameters.................................2-9

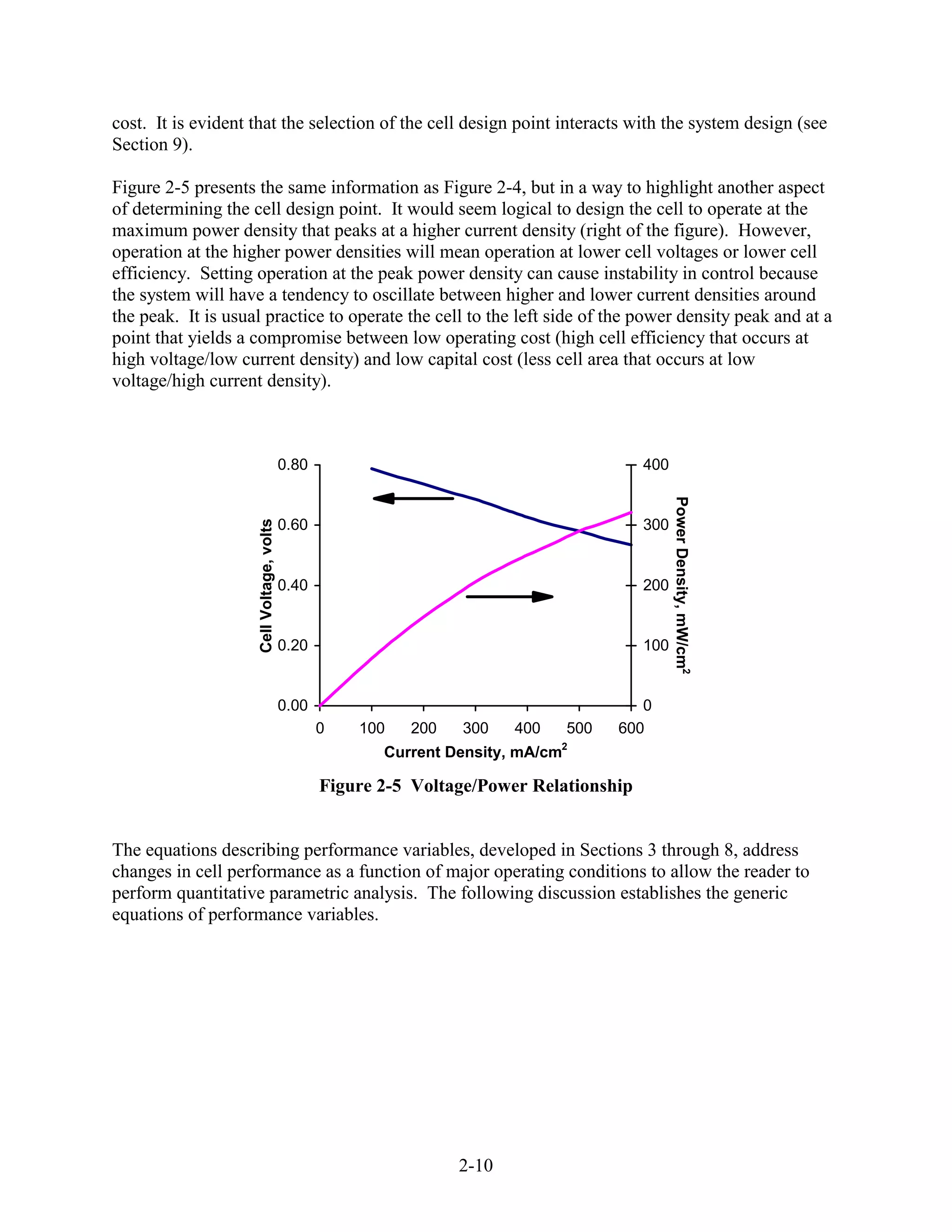

Figure 2-5 Voltage/Power Relationship...................................................................................2-10
Figure 2-6 Dependence of the Initial Operating Cell Voltage
of Typical Fuel Cells on Temperature....................................................................2-12

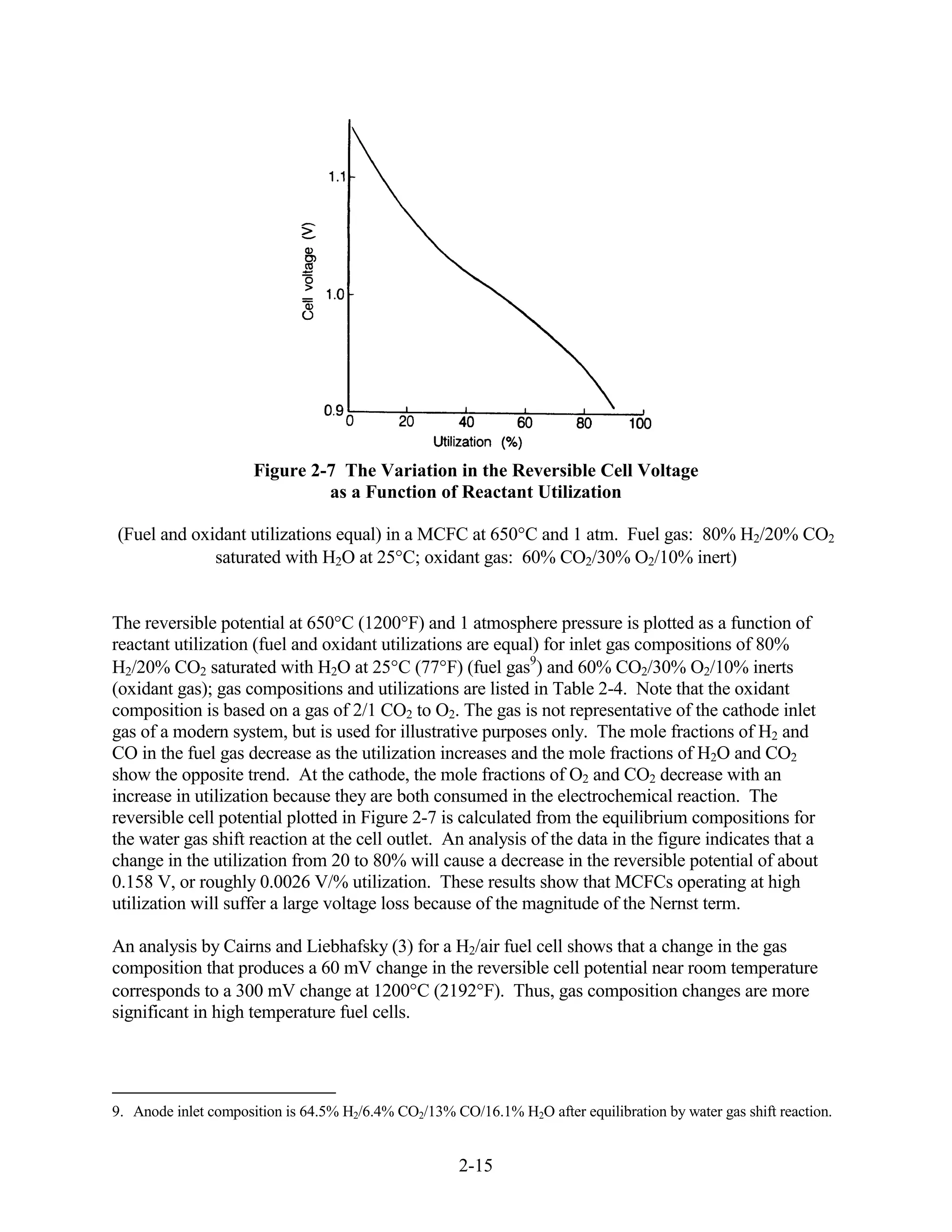

Figure 2-7 The Variation in the Reversible Cell Voltage as a Function of Reactant
Utilization...............................................................................................................2-15
Figure 2-8 Example of a Tafel Plot..........................................................................................2-24
Figure 3-1 PEFC Schematic.......................................................................................................3-4
Figure 3-2 Performance of Low Platinum Loading Electrodes .................................................3-5
Figure 3-3 Multi-Cell Stack Performance on Dow Membrane..................................................3-7
Figure 3-4 Effect on PEFC Performances of Bleeding Oxygen into the Anode
Compartment............................................................................................................3-9
Figure 3-5 Evolutionary Changes in PEFCs Performance [(a) H2/O2, (b) Reformate
Fuel/Air, (c) H2/Air)]..............................................................................................3-10
Figure 3-6 Influence of O2 Pressure on PEFCs Performance (93 C, Electrode
Loadings of 2 mg/cm2 Pt, H2 Fuel at 3 Atmospheres) ...........................................3-11
Figure 3-7 Cell Performance with Carbon Monoxide in Reformed Fuel ................................3-12
Figure 3-8 Single Cell Direct Methanol Fuel Cell Data...........................................................3-13
Figure 4-1 Principles of Operation of Alkaline Fuel Cells (Siemens) .......................................4-2
Figure 4-2 Evolutionary Changes in the Performance of AFC’s ...............................................4-5
Figure 4-3 Reversible Voltage of The Hydrogen-Oxygen Cell .................................................4-6

v

Figure 4-4 Influence of Temperature on O2, (air) Reduction in 12 N KOH. .............................4-7
Figure 4-5 Influence of Temperature on the AFC Cell Voltage ................................................4-8
Figure 4-6 Degradation in AFC Electrode Potential with CO2 Containing and
CO2 Free Air.............................................................................................................4-9
Figure 4-7 iR Free Electrode Performance with O2 and Air in 9 N KOH at 55 to 60oC
Catalyzed (0.5 mg Pt/cm2 Cathode, 0.5 mg Pt-Rh/cm2 Anode) Carbon-based
Porous Electrodes...................................................................................................4-10
Figure 4-8 iR Free Electrode Performance with O2 and Air in 12 N KOH at 65oC. ...............4-11
Figure 5-1 Improvement in the Performance of H2-Rich Fuel/Air PAFCs................................5-4
Figure 5-2 Advanced Water-Cooled PAFC Performance..........................................................5-6
Figure 5-3 Effect of Temperature: Ultra-High Surface Area Pt Catalyst. Fuel:
H2, H2 + 200 ppm H2S and Simulated Coal Gas....................................................5-12
Figure 5-4 Polarization at Cathode (0.52 mg Pt/cm2) as a Function of O2 Utilization,
which is Increased by Decreasing the Flow Rate of the Oxidant at
Atmospheric Pressure 100% H3PO4, 191 C, 300 mA/cm2, 1 atm. ........................5-13
Figure 5-5 Influence of CO and Fuel Gas Composition on the Performance of
Pt Anodes in 100% H3PO4 at 180 C. 10% Pt Supported on Vulcan XC-72,
0.5 mg Pt/cm2. Dew Point, 57 . Curve 1, 100% H2; Curves 2-6,
70% H2 and CO2/CO Contents (mol%) Specified .................................................5-16
Figure 5-6 Effect of H2S Concentration: Ultra-High Surface Area Pt Catalyst......................5-17
Figure 5-7 Reference Performances at 8.2 atm and Ambient Pressure....................................5-20
Figure 6-1 Dynamic Equilibrium in Porous MCFC Cell Elements (Porous
electrodes are depicted with pores covered by a thin film of electrolyte)................6-3
Figure 6-2 Progress in the Generic Performance of MCFCs on Reformate
Gas and Air...............................................................................................................6-5
Figure 6-3 Effect of Oxidant Gas Composition on MCFC Cathode Performance at
650 C, (Curve 1, 12.6% O2/18.4% CO2/69.0% N2; Curve 2, 33% O2/
67% CO2) ...............................................................................................................6-13
Figure 6-4 Voltage and Power Output of a 1.0/m2 19 cell MCFC Stack after 960 Hours
at 965 C and 1 atm, Fuel Utilization, 75% ...........................................................6-13
Figure 6-5 Influence of Cell Pressure on the Performance of a 70.5 cm2 MCFC at
650 C (anode gas, not specified; cathode gases, 23.2% O2/3.2%
CO2/66.3% N2/7.3% H2O and 9.2% O2/18.2% CO2/65.3% N2/7.3%
H2O; 50% CO2, utilization at 215 mA/cm2)...........................................................6-16
Figure 6-6 Influence of Pressure on Voltage Gain...................................................................6-17
Figure 6-7 Effect of CO2/O2 Ratio on Cathode Performance in an MCFC, Oxygen
Pressure is 0.15 atm................................................................................................6-20
Figure 6-8 Influence of Reactant Gas Utilization on the Average Cell Voltage
of an MCFC Stack...................................................................................................6-21
Figure 6-9 Dependence of Cell Voltage on Fuel Utilization ...................................................6-23
Figure 6-10 Influence of 5 ppm H2S on the Performance of a Bench Scale MCFC
(10 cm x 10 cm) at 650 C, Fuel Gas (10% H2/5% CO2/10% H2O/75% He)
at 25% H2 Utilization .............................................................................................6-27
Figure 6-11 IIR/DIR Operating Concept, Molten Carbonate Fuel Cell Design .......................6-29

vi

Figure 6-12 CH4 Conversion as a Function of Fuel Utilization in a DIR Fuel Cell
(MCFC at 650ºC and 1 atm, steam/carbon ratio = 2.0, >99% methane
conversion achieved with fuel utilization > 65%).................................................6-31
Figure 6-13 Voltage Current Characteristics of a 3kW, Five Cell DIR Stack with
5,016 cm2 Cells Operating on 80/20% H2/CO2 and Methane ................................6-31
Figure 6-14 Performance Data of a 0.37m2 2 kW Internally Reformed MCFC
Stack at 650 C and 1 atm .......................................................................................6-32
Figure 6-15 Average Cell Voltage of a 0.37m2 2 kW Internally Reformed MCFC
Stack at 650 C and 1 atm. Fuel, 100% CH4, Oxidant, 12% CO2/9%
O2/77% N2 ..............................................................................................................6-33
Figure 6-16 Model Predicted and Constant Flow Polarization Data Comparison.....................6-35
Figure 8-1 Solid Oxide Fuel Cell Designs at the Cathode .........................................................8-1
Figure 8-2 Solid Oxide Fuel Cell Operating Principle...............................................................8-2
Figure 8-3 Cross Section (in the Axial Direction of the +) of an Early Tubular
Configuration for SOFCs .........................................................................................8-8
Figure 8-4 Cross Section (in the Axial Direction of the Series-Connected Cells)
of an Early "Bell and Spigot" Configuration for SOFCs .........................................8-8
Figure 8-5 Cross Section of Present Tubular Configuration for SOFCs....................................8-9
Figure 8-6 Gas-Manifold Design for a Tubular SOFC ..............................................................8-9
Figure 8-7 Cell-to-Cell Connections Among Tubular SOFCs.................................................8-10
Figure 8-8 Effect of Pressure on AES Cell Performance at 1000 C........................................8-14
Figure 8-9 Two Cell Stack Performance with 67% H2 + 22% CO + 11% H2O/Air................8-15
Figure 8-10 Two Cell Stack Performance with 97% H2 and 3% H2O/Air ................................8-16
Figure 8-17 Cell Performance at 1000 C with Pure Oxygen (o) and Air ( ) Both at
25% Utilization (Fuel (67% H2/22% CO/11%H2O) Utilization is 85%)...............8-17
Figure 8-12 Influence of Gas Composition of the Theoretical Open-Circuit Potential of
SOFC at 1000 C.....................................................................................................8-18
Figure 8-13 Variation in Cell Voltage as a Function of Fuel Utilization and Temperature
(Oxidant (o - Pure O2; - Air) Utilization is 25%. Currently Density is
160 mA/cm2 at 800, 900 and 1000 C and 79 mA/cm2 at 700 C) ..........................8-19
Figure 8-14 SOFC Performance at 1000 C and 350 mA/cm,2 85% Fuel Utilization and
25% Air Utilization (Fuel = Simulated Air-Blown Coal Gas Containing
5000 ppm NH3, 1 ppm HCl and 1 ppm H2S) ........................................................8-20
Figure 8-15 Voltage-Current Characteristics of an AES Cell (1.56 cm Diameter,
50 cm Active Length).............................................................................................8-21
Figure 9-1 A Rudimentary Fuel Cell Power System Schematic .................................................9-1
Figure 9-2 Representative Fuel Processor Major Componentsa & Temperatures .....................9-3
Figure 9-3 “Well-to Wheel” Efficiency for Various Vehicle Scenarios....................................9-8
Figure 9-4 Carbon Deposition Mapping of Methane (CH4) (Carbon-Free
Region to the Right and Above the Curve) ............................................................9-23
Figure 9-5 Carbon Deposition Mapping of Octane (C8H18) (Carbon-Free
Region to the Right and Above the Curve) ............................................................9-24
Figure 9-6 Optimization Flexibility in a Fuel Cell Power System...........................................9-35
Figure 9-7 Natural Gas Fueled PEFC Power Plant ..................................................................9-40
Figure 9-8 Natural Gas fueled PAFC Power System...............................................................9-42
Figure 9-9 Natural Gas Fueled MCFC Power System.............................................................9-44

vii

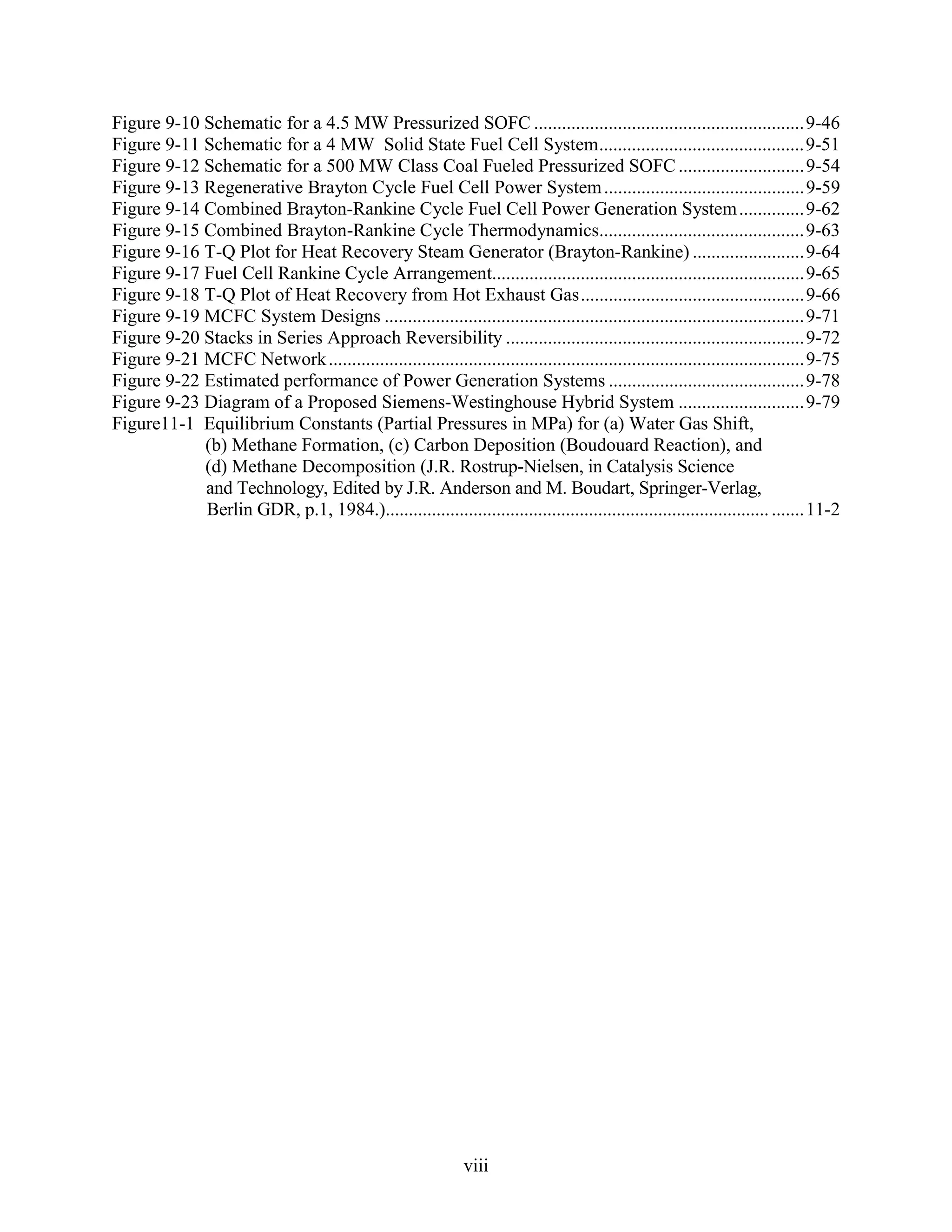

Figure 9-10 Schematic for a 4.5 MW Pressurized SOFC ..........................................................9-46
Figure 9-11 Schematic for a 4 MW Solid State Fuel Cell System............................................9-51
Figure 9-12 Schematic for a 500 MW Class Coal Fueled Pressurized SOFC ...........................9-54
Figure 9-13 Regenerative Brayton Cycle Fuel Cell Power System ...........................................9-59
Figure 9-14 Combined Brayton-Rankine Cycle Fuel Cell Power Generation System ..............9-62
Figure 9-15 Combined Brayton-Rankine Cycle Thermodynamics............................................9-63
Figure 9-16 T-Q Plot for Heat Recovery Steam Generator (Brayton-Rankine) ........................9-64
Figure 9-17 Fuel Cell Rankine Cycle Arrangement...................................................................9-65
Figure 9-18 T-Q Plot of Heat Recovery from Hot Exhaust Gas................................................9-66
Figure 9-19 MCFC System Designs ..........................................................................................9-71
Figure 9-20 Stacks in Series Approach Reversibility ................................................................9-72
Figure 9-21 MCFC Network ......................................................................................................9-75
Figure 9-22 Estimated performance of Power Generation Systems ..........................................9-78
Figure 9-23 Diagram of a Proposed Siemens-Westinghouse Hybrid System ...........................9-79
Figure11-1 Equilibrium Constants (Partial Pressures in MPa) for (a) Water Gas Shift,
(b) Methane Formation, (c) Carbon Deposition (Boudouard Reaction), and
(d) Methane Decomposition (J.R. Rostrup-Nielsen, in Catalysis Science
and Technology, Edited by J.R. Anderson and M. Boudart, Springer-Verlag,
Berlin GDR, p.1, 1984.)................................................................................... .......11-2

viii

LIST OF TABLES AND EXAMPLES

Table Title Page

Table 1-1 Summary of Major Differences of the Fuel Cell Types .............................................1-5

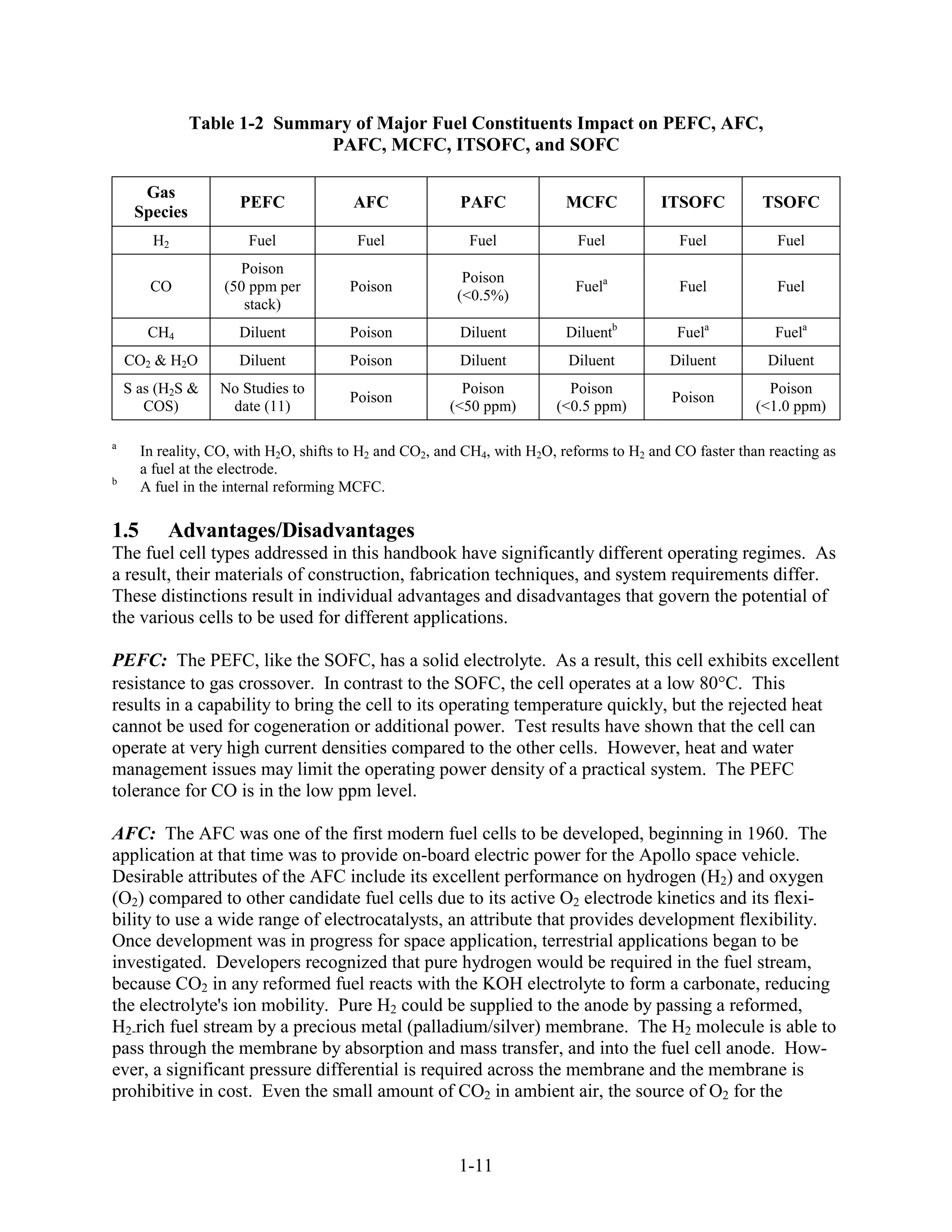

Table 1-2 Summary of Major Fuel Constituents Impact on PEFC, AFC,
PAFC, MCFC, ITSOFC, and SOFC ........................................................................1-11

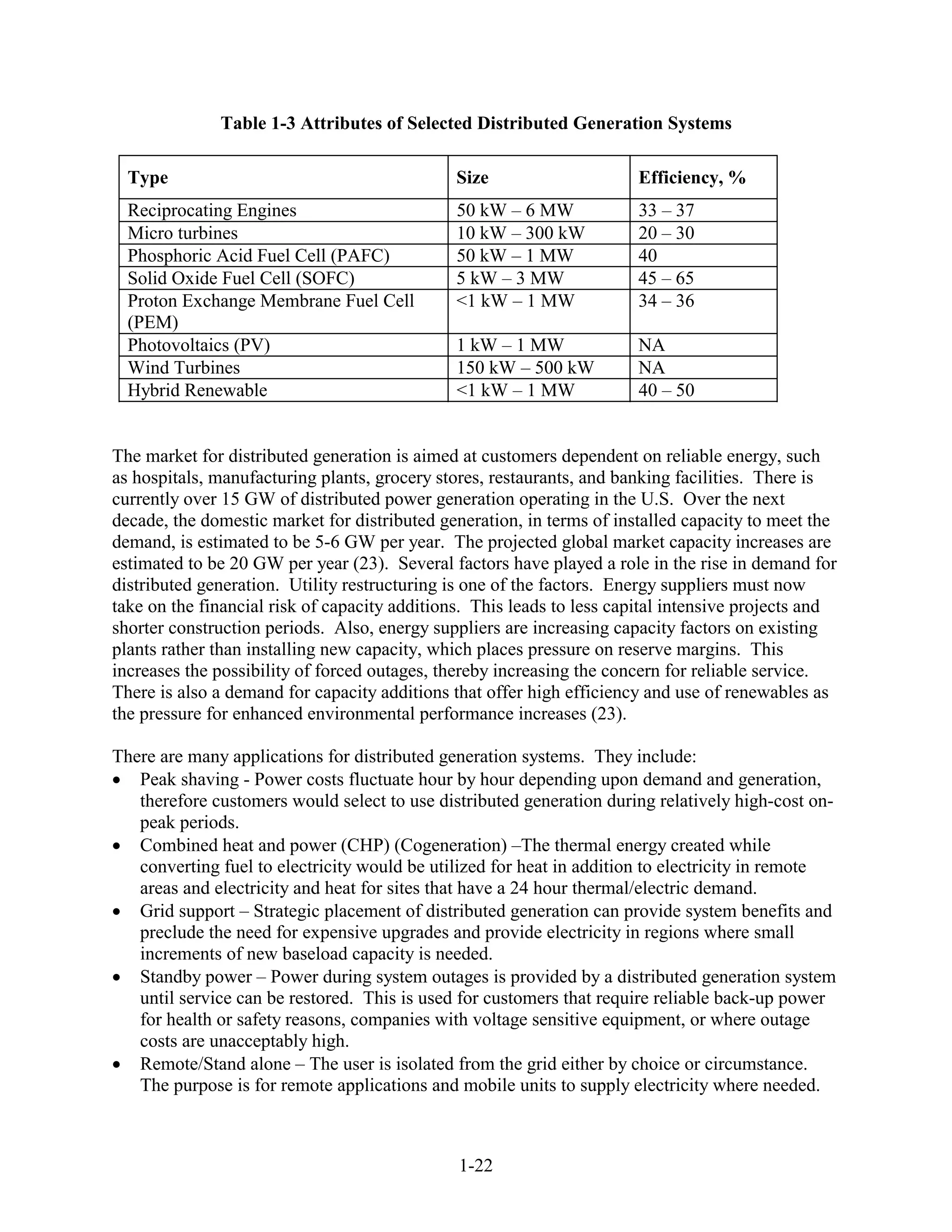

Table 1-3 Attributes of Selected Distributed Generation Systems ..........................................1-22

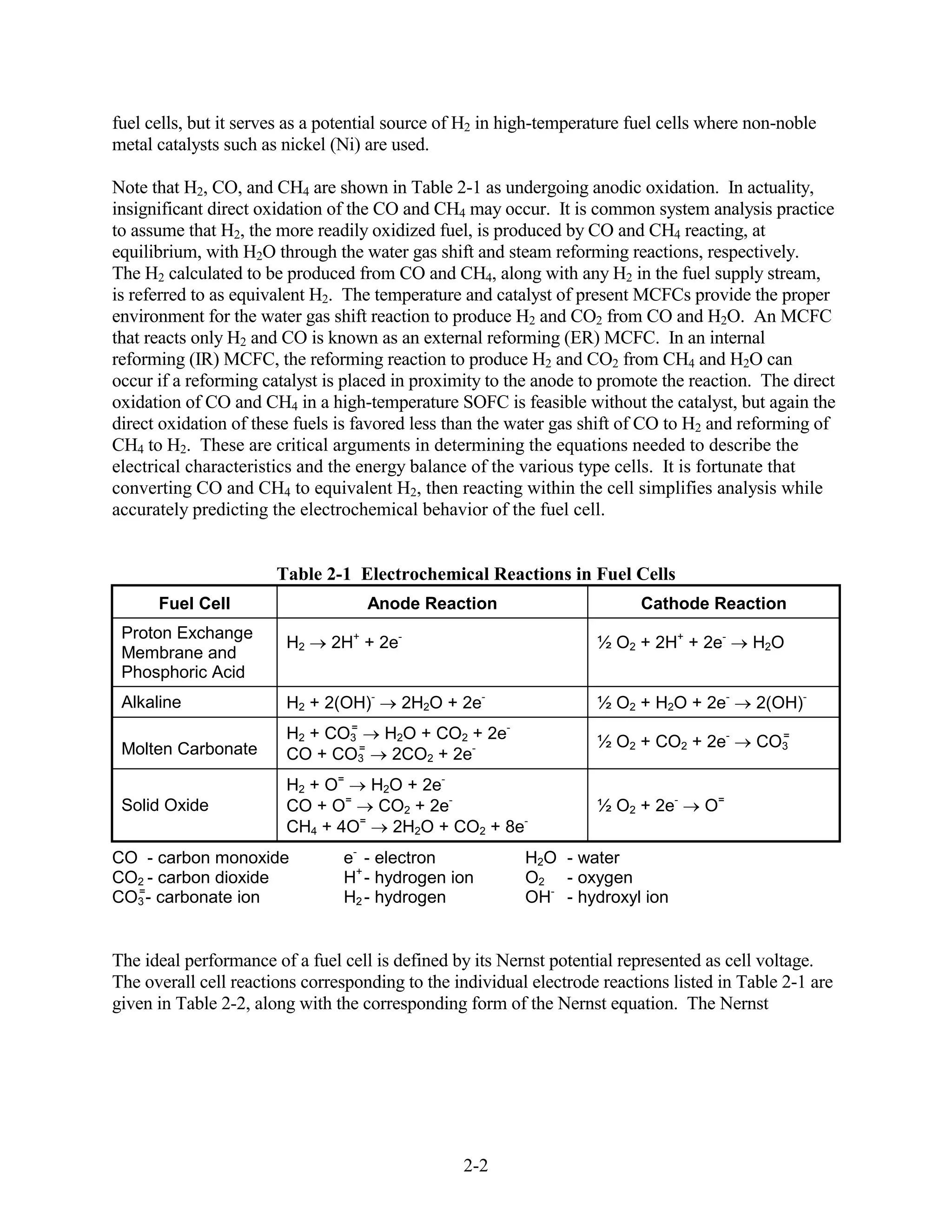

Table 2-1 Electrochemical Reactions in Fuel Cells ...................................................................2-2
Table 2-2 Fuel Cell Reactions and the Corresponding Nernst Equations..................................2-3
Table 2-3 Ideal Voltage as A Function of Cell Temperature.....................................................2-4
Table 2-4 Outlet Gas Composition as a Function of Utilization in MCFC at 650 C ..............2-16
Table 5-1 Evolution of Cell Component Technology for Phosphoric Acid Fuel Cells .............5-3
Table 5-2 Advanced PAFC Performance...................................................................................5-6
Table 5-3 Dependence of k(T) on Temperature........................................................................5-15
Table 6-1 Evolution of Cell Component Technology for Molten Carbonate Fuel Cells...........6-4
Table 6-2 Amount in Mol% of Additives to Provide Optimum Performance .........................6-11
Table 6-3 Qualitative Tolerance Levels for Individual Contaminants in Isothermal
Bench-Scale Carbonate Fuel Cells..........................................................................6-12
Table 6-4 Equilibrium Composition of Fuel Gas and Reversible Cell Potential as
a Function of Temperature ......................................................................................6-18
Table 6-5 Influence of Fuel Gas Composition on Reversible Anode Potential at
650 C.......................................................................................................................6-22
Table 6-6 Contaminants from Coal-Derived Fuel Gas and Their Potential Effect on
MCFCs ....................................................................................................................6-24
Table 6-7 Gas Composition and Contaminants from Air-Blown Coal Gasifier After
Hot Gas Cleanup, and Tolerance Limit of MCFCs to Contaminants .....................6-25
Table 8-1 Evolution of Cell Component Technology for Tubular Solid Oxide Fuel Cells ......8-3
Table 8-2 K Values for VT ....................................................................................................8-15
Table 9-1 Calculated Thermoneutral Oxygen-to-Fuel Molar Ratios (xo) and Maximum
Theoretical Efficiencies (at xo) for Common Fuels.................................................9-16
Table 9-2 Typical Steam Reformed Natural Gas Reformate ..................................................9-17
Table 9-3 Typical Partial Oxidation Reformed Fuel Oil Reformate.......................................9-19
Table 9-4 Typical Coal Gas Compositions for Selected Oxygen-Blown Gasifiers ................9-21
Table 9-5 Equipment Performance Assumptions....................................................................9-33
Table 9-6 Stream Properties for the Natural Gas Fueled Pressurized PAFC..........................9-42
Table 9-7 Operating/Design Parameters for the NG fueled PAFC.........................................9-43
Table 9-8 Performance Summary for the NG fueled PAFC ...................................................9-43
Table 9-9 Operating/Design Parameters for the NG Fueled IR-MCFC..................................9-45
Table 9-10 Overall Performance Summary for the NG Fueled IR-MCFC...............................9-45
Table 9-11 Stream Properties for the Natural Gas Fueled Pressurized SOFC..........................9-47
Table 9-12 Operating/Design Parameters for the NG Fueled Pressurized SOFC.....................9-48
Table 9-13 Overall Performance Summary for the NG Fueled Pressurized SOFC..................9-49
Table 9-14 Heron Gas Turbine Parameters...............................................................................9-49
Table 9-15 Example Fuel Utilization in a Multi-Stage Fuel Cell Module................................9-50

ix

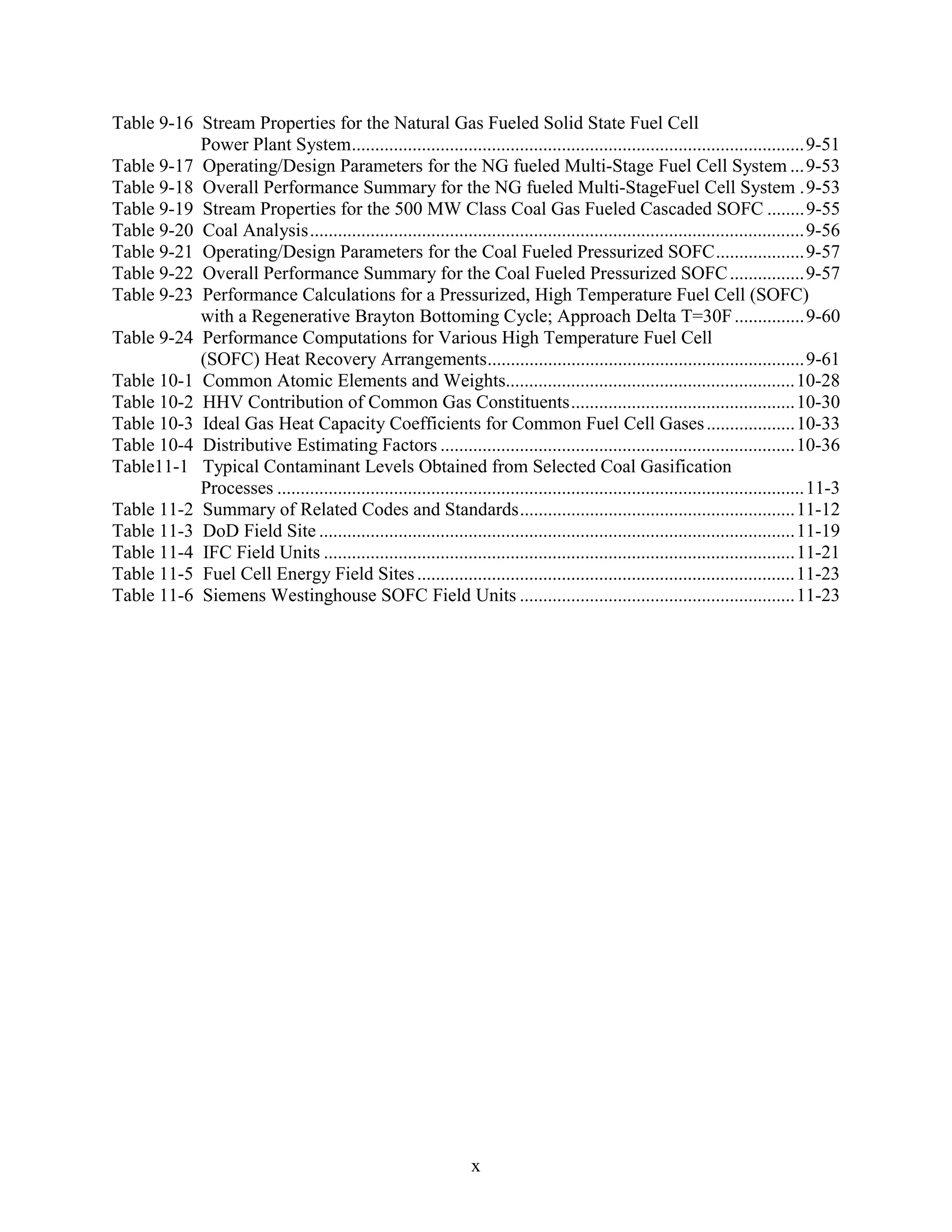

Table 9-16 Stream Properties for the Natural Gas Fueled Solid State Fuel Cell
Power Plant System.................................................................................................9-51
Table 9-17 Operating/Design Parameters for the NG fueled Multi-Stage Fuel Cell System ...9-53
Table 9-18 Overall Performance Summary for the NG fueled Multi-StageFuel Cell System .9-53
Table 9-19 Stream Properties for the 500 MW Class Coal Gas Fueled Cascaded SOFC ........9-55
Table 9-20 Coal Analysis..........................................................................................................9-56
Table 9-21 Operating/Design Parameters for the Coal Fueled Pressurized SOFC...................9-57
Table 9-22 Overall Performance Summary for the Coal Fueled Pressurized SOFC ................9-57
Table 9-23 Performance Calculations for a Pressurized, High Temperature Fuel Cell (SOFC)
with a Regenerative Brayton Bottoming Cycle; Approach Delta T=30F ...............9-60
Table 9-24 Performance Computations for Various High Temperature Fuel Cell
(SOFC) Heat Recovery Arrangements....................................................................9-61
Table 10-1 Common Atomic Elements and Weights..............................................................10-28
Table 10-2 HHV Contribution of Common Gas Constituents................................................10-30
Table 10-3 Ideal Gas Heat Capacity Coefficients for Common Fuel Cell Gases ...................10-33
Table 10-4 Distributive Estimating Factors ............................................................................10-36
Table11-1 Typical Contaminant Levels Obtained from Selected Coal Gasification
Processes .................................................................................................................11-3
Table 11-2 Summary of Related Codes and Standards...........................................................11-12
Table 11-3 DoD Field Site ......................................................................................................11-19
Table 11-4 IFC Field Units .....................................................................................................11-21
Table 11-5 Fuel Cell Energy Field Sites .................................................................................11-23
Table 11-6 Siemens Westinghouse SOFC Field Units ...........................................................11-23

x

FORWARD

Fuel cells are an important technology for a potentially wide variety of applications including
micropower, auxiliary power, transportation power, stationary power for buildings and other
distributed generation applications, and central power. These applications will be in a large
number of industries worldwide.

This edition of the Fuel Cell Handbook is more comprehensive than previous versions in that it
includes several changes. First, calculation examples for fuel cells are included for the wide
variety of possible applications. This includes transportation and auxiliary power applications
for the first time. In addition, the handbook includes a separate section on alkaline fuel cells.
The intermediate temperature solid-state fuel cell section is being developed. In this edition,
hybrids are also included as a separate section for the first time. Hybrids are some of the most
efficient power plants ever conceived and are actually being demonstrated. Finally, an updated
list of fuel cell URLs is included in the Appendix and an updated index assists the reader in
locating specific information quickly.

It is an important task that NETL undertakes to provide you with this handbook. We realize it is
an important educational and informational tool for a wide audience. We welcome suggestions
to improve the handbook.

Mark C. Williams

Strategic Center for Natural Gas
National Energy Technology Laboratory

xi

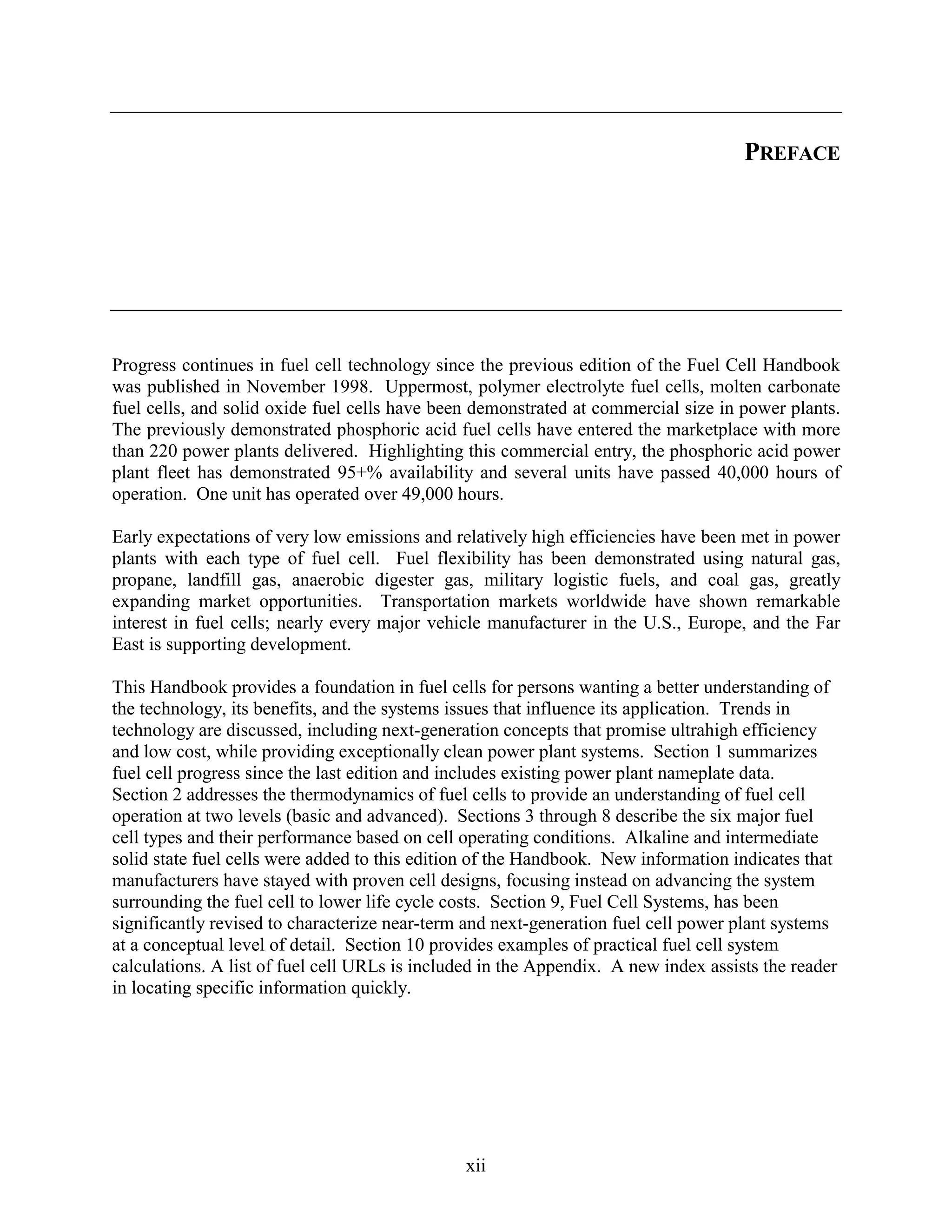

PREFACE

Progress continues in fuel cell technology since the previous edition of the Fuel Cell Handbook
was published in November 1998. Uppermost, polymer electrolyte fuel cells, molten carbonate
fuel cells, and solid oxide fuel cells have been demonstrated at commercial size in power plants.
The previously demonstrated phosphoric acid fuel cells have entered the marketplace with more
than 220 power plants delivered. Highlighting this commercial entry, the phosphoric acid power
plant fleet has demonstrated 95+% availability and several units have passed 40,000 hours of
operation. One unit has operated over 49,000 hours.

Early expectations of very low emissions and relatively high efficiencies have been met in power
plants with each type of fuel cell. Fuel flexibility has been demonstrated using natural gas,
propane, landfill gas, anaerobic digester gas, military logistic fuels, and coal gas, greatly
expanding market opportunities. Transportation markets worldwide have shown remarkable
interest in fuel cells; nearly every major vehicle manufacturer in the U.S., Europe, and the Far
East is supporting development.

This Handbook provides a foundation in fuel cells for persons wanting a better understanding of
the technology, its benefits, and the systems issues that influence its application. Trends in
technology are discussed, including next-generation concepts that promise ultrahigh efficiency
and low cost, while providing exceptionally clean power plant systems. Section 1 summarizes
fuel cell progress since the last edition and includes existing power plant nameplate data.
Section 2 addresses the thermodynamics of fuel cells to provide an understanding of fuel cell
operation at two levels (basic and advanced). Sections 3 through 8 describe the six major fuel
cell types and their performance based on cell operating conditions. Alkaline and intermediate
solid state fuel cells were added to this edition of the Handbook. New information indicates that
manufacturers have stayed with proven cell designs, focusing instead on advancing the system
surrounding the fuel cell to lower life cycle costs. Section 9, Fuel Cell Systems, has been
significantly revised to characterize near-term and next-generation fuel cell power plant systems
at a conceptual level of detail. Section 10 provides examples of practical fuel cell system
calculations. A list of fuel cell URLs is included in the Appendix. A new index assists the reader
in locating specific information quickly.

xii

ACKNOWLEDGEMENTS

The authors of this edition of the Fuel Cell Handbook acknowledge the cooperation of the fuel cell
community for their contributions to this Handbook. Many colleagues provided data, information,
references, valuable suggestions, and constructive comments that were incorporated into the
Handbook. In particular, we would like to acknowledge the contributions of the following
individuals: C. Read and J. Thijssen of Arthur D. Little, Inc., M. Krumpelt, J. Ralph, S. Ahmed
and R. Kumar of ANL, D. Harris of Ballard Power Systems, H. Maru of Fuel Cell Energy, H.
Heady and J. Staniunas of International Fuel Cells Corporation, J. Pierre of Siemens Westinghouse
and J. O’Sullivan.

C. Hitchings, SAIC, provided technical editing and final layout of the Handbook.

The authors wish to thank Dr. Mark C. Williams of the U.S. Department of Energy, National
Energy Technology Laboratory, for his support and encouragement, and for providing the
opportunity to write this Handbook.

This work was supported by the U.S. Department of Energy, National Energy Technology
Laboratory, under Contract DE-AM26-99FT40575.

xiii

1. TECHNOLOGY OVERVIEW

1.1 Fuel Cell Description
Fuel cells are electrochemical devices that convert the chemical energy of a reaction directly into
electrical energy. The basic physical structure or building block of a fuel cell consists of an
electrolyte layer in contact with a porous anode and cathode on either side. A schematic
representation of a fuel cell with the reactant/product gases and the ion conduction flow directions
through the cell is shown in Figure 1-1.

Load
2e-

Fuel In Oxidant In

H2 ½O 2

Posit ive Ion
or
Negative Ion H2O

H2O

Deplet ed Fuel and Deplet ed Oxidant and
Product Gases Out Product Gases Out

Anode Cathode
Elect rolyt e
(Ion Conductor)

Figure 1-1 Schematic of an Individual Fuel Cell

In a typical fuel cell, gaseous fuels are fed continuously to the anode (negative electrode)
compartment and an oxidant (i.e., oxygen from air) is fed continuously to the cathode (positive
electrode) compartment; the electrochemical reactions take place at the electrodes to produce an
electric current. A fuel cell, although having components and characteristics similar to those of a
typical battery, differs in several respects. The battery is an energy storage device. The
maximum energy available is determined by the amount of chemical reactant stored within the
battery itself. The battery will cease to produce electrical energy when the chemical reactants are
consumed (i.e., discharged). In a secondary battery, the reactants are regenerated by recharging,
which involves putting energy into the battery from an external source. The fuel cell, on the
other hand, is an energy conversion device that theoretically has the capability of producing
electrical energy for as long as the fuel and oxidant are supplied to the electrodes. Figure 1-2 is a
simplified diagram that demonstrates how the fuel cell works. In reality, degradation, primarily
corrosion, or malfunction of components limits the practical operating life of fuel cells.

Note that the ion specie and its transport direction can differ, influencing the site of water
production and removal, a system impact. The ion can be either a positive or a negative ion,

1-1

meaning that the ion carries either a positive or negative charge (surplus or deficit of electrons).
The fuel or oxidant gases flow past the surface of the anode or cathode opposite the electrolyte
and generate electrical energy by the electrochemical oxidation of fuel, usually hydrogen, and
the electrochemical reduction of the oxidant, usually oxygen. Appleby and Foulkes (1) have

Figure 1-2 Simplified Fuel Cell Schematic

noted that in theory, any substance capable of chemical oxidation that can be supplied
continuously (as a fluid) can be burned galvanically as the fuel at the anode of a fuel cell.
Similarly, the oxidant can be any fluid that can be reduced at a sufficient rate. Gaseous hydrogen
has become the fuel of choice for most applications, because of its high reactivity when suitable
catalysts are used, its ability to be produced from hydrocarbons for terrestrial applications, and
its high energy density when stored cryogenically for closed environment applications, such as
in space. Similarly, the most common oxidant is gaseous oxygen, which is readily and
economically available from air for terrestrial applications, and again easily stored in a closed
environment. A three-phase interface is established among the reactants, electrolyte, and catalyst
in the region of the porous electrode. The nature of this interface plays a critical role in the
electrochemical performance of a fuel cell, particularly in those fuel cells with liquid
electrolytes. In such fuel cells, the reactant gases diffuse through a thin electrolyte film that wets
portions of the porous electrode and react electrochemically on their respective electrode surface.
If the porous electrode contains an excessive amount of electrolyte, the electrode may "flood"
and restrict the transport of gaseous species in the electrolyte phase to the reaction sites. The
consequence is a reduction in the electrochemical performance of the porous electrode. Thus, a
delicate balance must be maintained among the electrode, electrolyte, and gaseous phases in the
porous electrode structure. Much of the recent effort in the development of fuel cell technology
has been devoted to reducing the thickness of cell components while refining and improving the
electrode structure and the electrolyte phase, with the aim of obtaining a higher and more stable
electrochemical performance while lowering cost.

The electrolyte not only transports dissolved reactants to the electrode, but also conducts ionic
charge between the electrodes and thereby completes the cell electric circuit, as illustrated in

1-2

Figure 1-1. It also provides a physical barrier to prevent the fuel and oxidant gas streams from
directly mixing.

The functions of porous electrodes in fuel cells are: 1) to provide a surface site where gas/liquid
ionization or de-ionization reactions can take place, 2) to conduct ions away from or into the three-
phase interface once they are formed (so an electrode must be made of materials that have good
electrical conductance), and 3) to provide a physical barrier that separates the bulk gas phase and
the electrolyte. A corollary of Item 1 is that, in order to increase the rates of reactions, the
electrode material should be catalytic as well as conductive, porous rather than solid. The catalytic
function of electrodes is more important in lower temperature fuel cells and less so in high-
temperature fuel cells because ionization reaction rates increase with temperature. It is also a
corollary that the porous electrodes must be permeable to both electrolyte and gases, but not such
that the media can be easily "flooded" by the electrolyte or "dried" by the gases in a one-sided
manner (see latter part of next section).

A variety of fuel cells are in different stages of development. They can be classified by use of
diverse categories, depending on the combination of type of fuel and oxidant, whether the fuel is
processed outside (external reforming) or inside (internal reforming) the fuel cell, the type of
electrolyte, the temperature of operation, whether the reactants are fed to the cell by internal or
external manifolds, etc. The most common classification of fuel cells is by the type of electrolyte
used in the cells and includes 1) polymer electrolyte fuel cell (PEFC), 2) alkaline fuel cell (AFC),
3) phosphoric acid fuel cell (PAFC), 4) molten carbonate fuel cell (MCFC), 5) intermediate
temperature solid oxide fuel cell (ITSOFC), and 6) tubular solid oxide fuel cell (TSOFC). These
fuel cells are listed in the order of approximate operating temperature, ranging from ~80 C for
PEFC, ~100 C for AFC, ~200 C for PAFC, ~650 C for MCFC, ~800 C for ITSOFC, and 1000 C
for TSOFC. The operating temperature and useful life of a fuel cell dictate the physicochemical
and thermomechanical properties of materials used in the cell components (i.e., electrodes,
electrolyte, interconnect, current collector, etc.). Aqueous electrolytes are limited to temperatures
of about 200 C or lower because of their high water vapor pressure and/or rapid degradation at
higher temperatures. The operating temperature also plays an important role in dictating the type
of fuel that can be used in a fuel cell. The low-temperature fuel cells with aqueous electrolytes are,
in most practical applications, restricted to hydrogen as a fuel. In high-temperature fuel cells, CO
and even CH4 can be used because of the inherently rapid electrode kinetics and the lesser need for
high catalytic activity at high temperature. However, descriptions later in this section note that the
higher temperature cells can favor the conversion of CO and CH4 to hydrogen, then use the
equivalent hydrogen as the actual fuel.

A brief description of various electrolyte cells of interest follows. A detailed description of these
fuel cells may be found in References (1) and (2).

Polymer Electrolyte Fuel Cell (PEFC): The electrolyte in this fuel cell is an ion exchange
membrane (fluorinated sulfonic acid polymer or other similar polymer) that is an excellent
proton conductor. The only liquid in this fuel cell is water; thus, corrosion problems are
minimal. Water management in the membrane is critical for efficient performance; the fuel cell
must operate under conditions where the byproduct water does not evaporate faster than it is
produced because the membrane must be hydrated. Because of the limitation on the operating

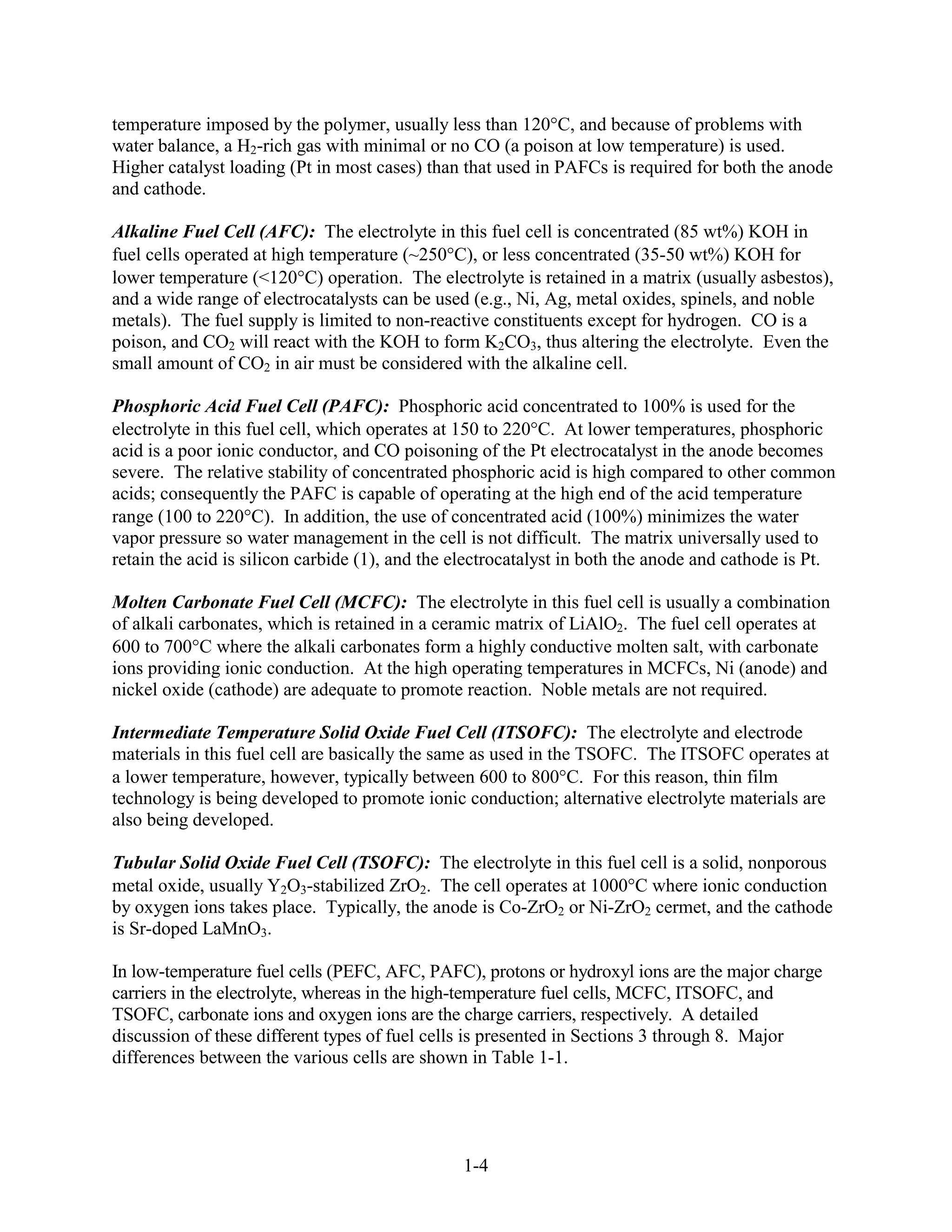

1-3

temperature imposed by the polymer, usually less than 120 C, and because of problems with
water balance, a H2-rich gas with minimal or no CO (a poison at low temperature) is used.
Higher catalyst loading (Pt in most cases) than that used in PAFCs is required for both the anode
and cathode.

Alkaline Fuel Cell (AFC): The electrolyte in this fuel cell is concentrated (85 wt%) KOH in
fuel cells operated at high temperature (~250 C), or less concentrated (35-50 wt%) KOH for
lower temperature (<120 C) operation. The electrolyte is retained in a matrix (usually asbestos),
and a wide range of electrocatalysts can be used (e.g., Ni, Ag, metal oxides, spinels, and noble
metals). The fuel supply is limited to non-reactive constituents except for hydrogen. CO is a
poison, and CO2 will react with the KOH to form K2CO3, thus altering the electrolyte. Even the
small amount of CO2 in air must be considered with the alkaline cell.

Phosphoric Acid Fuel Cell (PAFC): Phosphoric acid concentrated to 100% is used for the
electrolyte in this fuel cell, which operates at 150 to 220 C. At lower temperatures, phosphoric
acid is a poor ionic conductor, and CO poisoning of the Pt electrocatalyst in the anode becomes
severe. The relative stability of concentrated phosphoric acid is high compared to other common
acids; consequently the PAFC is capable of operating at the high end of the acid temperature
range (100 to 220 C). In addition, the use of concentrated acid (100%) minimizes the water
vapor pressure so water management in the cell is not difficult. The matrix universally used to
retain the acid is silicon carbide (1), and the electrocatalyst in both the anode and cathode is Pt.

Molten Carbonate Fuel Cell (MCFC): The electrolyte in this fuel cell is usually a combination
of alkali carbonates, which is retained in a ceramic matrix of LiAlO2. The fuel cell operates at
600 to 700 C where the alkali carbonates form a highly conductive molten salt, with carbonate
ions providing ionic conduction. At the high operating temperatures in MCFCs, Ni (anode) and
nickel oxide (cathode) are adequate to promote reaction. Noble metals are not required.

Intermediate Temperature Solid Oxide Fuel Cell (ITSOFC): The electrolyte and electrode
materials in this fuel cell are basically the same as used in the TSOFC. The ITSOFC operates at
a lower temperature, however, typically between 600 to 800 C. For this reason, thin film
technology is being developed to promote ionic conduction; alternative electrolyte materials are
also being developed.

Tubular Solid Oxide Fuel Cell (TSOFC): The electrolyte in this fuel cell is a solid, nonporous
metal oxide, usually Y2O3-stabilized ZrO2. The cell operates at 1000 C where ionic conduction
by oxygen ions takes place. Typically, the anode is Co-ZrO2 or Ni-ZrO2 cermet, and the cathode
is Sr-doped LaMnO3.

In low-temperature fuel cells (PEFC, AFC, PAFC), protons or hydroxyl ions are the major charge
carriers in the electrolyte, whereas in the high-temperature fuel cells, MCFC, ITSOFC, and
TSOFC, carbonate ions and oxygen ions are the charge carriers, respectively. A detailed
discussion of these different types of fuel cells is presented in Sections 3 through 8. Major
differences between the various cells are shown in Table 1-1.

1-4

Table 1-1 Summary of Major Differences of the Fuel Cell Types

PEFC AFC PAFC MCFC ITSOFC TSOFC
Electrolyte Mobilized or Immobilized Immobilized
Ion Exchange Immobilized Liquid Liquid
Ceramic Ceramic
Membranes Potassium Phosphoric Molten
Hydroxide Acid Carbonate
Operating
80°C 65°C - 220°C 205°C 650° 600-800°C 800-1000°C
Temperature
Charge
H+ OH- H+ CO3= O= O=
Carrier
External
Reformer for Yes Yes Yes No No No
CH4 (below)
Prime Cell Stainless-
Carbon-based Carbon-based Graphite-based Ceramic Ceramic
Components based
Catalyst Platinum Platinum Platinum Nickel Perovskites Perovskites
Product
Gaseous Gaseous Gaseous
Water Evaporative Evaporative Evaporative
Product Product Product
Management
Product Heat Process Gas + Process Gas +
Process Gas + Internal Internal Internal
Management Independent Independent
Electrolyte Reforming + Reforming + Reforming +
Cooling Cooling
Calculation Process Gas Process Gas Process Gas
Medium Medium

Even though the electrolyte has become the predominant means of characterizing a cell, another
important distinction is the method used to produce hydrogen for the cell reaction. Hydrogen
can be reformed from natural gas and steam in the presence of a catalyst starting at a temperature
of ~760 C. The reaction is endothermic. MCFC, ITSOFC, and TSOFC operating temperatures
are high enough that reforming reactions can occur within the cell, a process referred to as
internal reforming. Figure 1-3 shows a comparison of internal reforming and external reforming
MCFCs. The reforming reaction is driven by the decrease in hydrogen as the cell produces
power. This internal reforming can be beneficial to system efficiency because there is an
effective transfer of heat from the exothermic cell reaction to satisfy the endothermic reforming
reaction. A reforming catalyst is needed adjacent to the anode gas chamber for the reaction to
occur. The cost of an external reformer is eliminated and system efficiency is improved, but at
the expense of a more complex cell configuration and increased maintenance issues. This
provides developers of high-temperature cells a choice of an external reforming or internal
reforming approach. Section 6 will show that the present internal reforming MCFC is limited to
ambient pressure operation, whereas external reforming MCFC can operate at pressures up to
3 atmospheres. The slow rate of the reforming reaction makes internal reforming impractical in
the lower temperature cells. Instead, a separate external reformer is used.

1-5

H2
Natural Anode
Gas Cleanup Reformer

Burner Cathode Exhaust
Gas

Air
Water
Cleanup

Burner
Air
CH4
Water Anode
Cleanup

Cathode

Exhaust Gas

Natural
Gas Cleanup

Figure 1-3 External Reforming and Internal Reforming MCFC System Comparison

Porous electrodes, mentioned several times above, are key to good electrode performance. The
reason for this is that the current densities obtained from smooth electrodes are usually in the
range of a single digit mA/cm2 or less because of rate-limiting issues such as the available area
of the reaction sites. Porous electrodes, used in fuel cells, achieve much higher current densities.
These high current densities are possible because the electrode has a high surface area, relative to
the geometric plate area that significantly increases the number of reaction sites, and the opti-
mized electrode structure has favorable mass transport properties. In an idealized porous gas
fuel cell electrode, high current densities at reasonable polarization are obtained when the liquid
(electrolyte) layer on the electrode surface is sufficiently thin so that it does not significantly
impede the transport of reactants to the electroactive sites, and a stable three-phase (gas/
electrolyte/electrode surface) interface is established. When an excessive amount of electrolyte
is present in the porous electrode structure, the electrode is considered to be "flooded" and the
concentration polarization increases to a large value.

1-6

The porous electrodes used in low-temperature fuel cells consist of a composite structure that
contains platinum (Pt) electrocatalyst on a high surface area carbon black and a PTFE
(polytetrafluoroethylene) binder. Such electrodes for acid and alkaline fuel cells are described
by Kordesch et al. (3). In these porous electrodes, PTFE is hydrophobic (acts as a wet proofing
agent) and serves as the gas permeable phase, and carbon black is an electron conductor that
provides a high surface area to support the electrocatalyst. Platinum serves as the electrocatalyst,
which promotes the rate of electrochemical reactions (oxidation/reduction) for a given surface
area. The carbon black is also somewhat hydrophobic, depending on the surface properties of
the material. The composite structure of PTFE and carbon establishes an extensive three-phase
interface in the porous electrode, which is the benchmark of PTFE bonded electrodes. Some
interesting results have been reported by Japanese workers on higher performance gas diffusion
electrodes for phosphoric acid fuel cells (see Section 5.1.2).

In MCFCs, which operate at relatively high temperature, no materials are known that wet-proof a
porous structure against ingress by molten carbonates. Consequently, the technology used to
obtain a stable three-phase interface in MCFC porous electrodes is different from that used in
PAFCs. In the MCFC, the stable interface is achieved in the electrodes by carefully tailoring the
pore structures of the electrodes and the electrolyte matrix (LiA1O2) so that the capillary forces

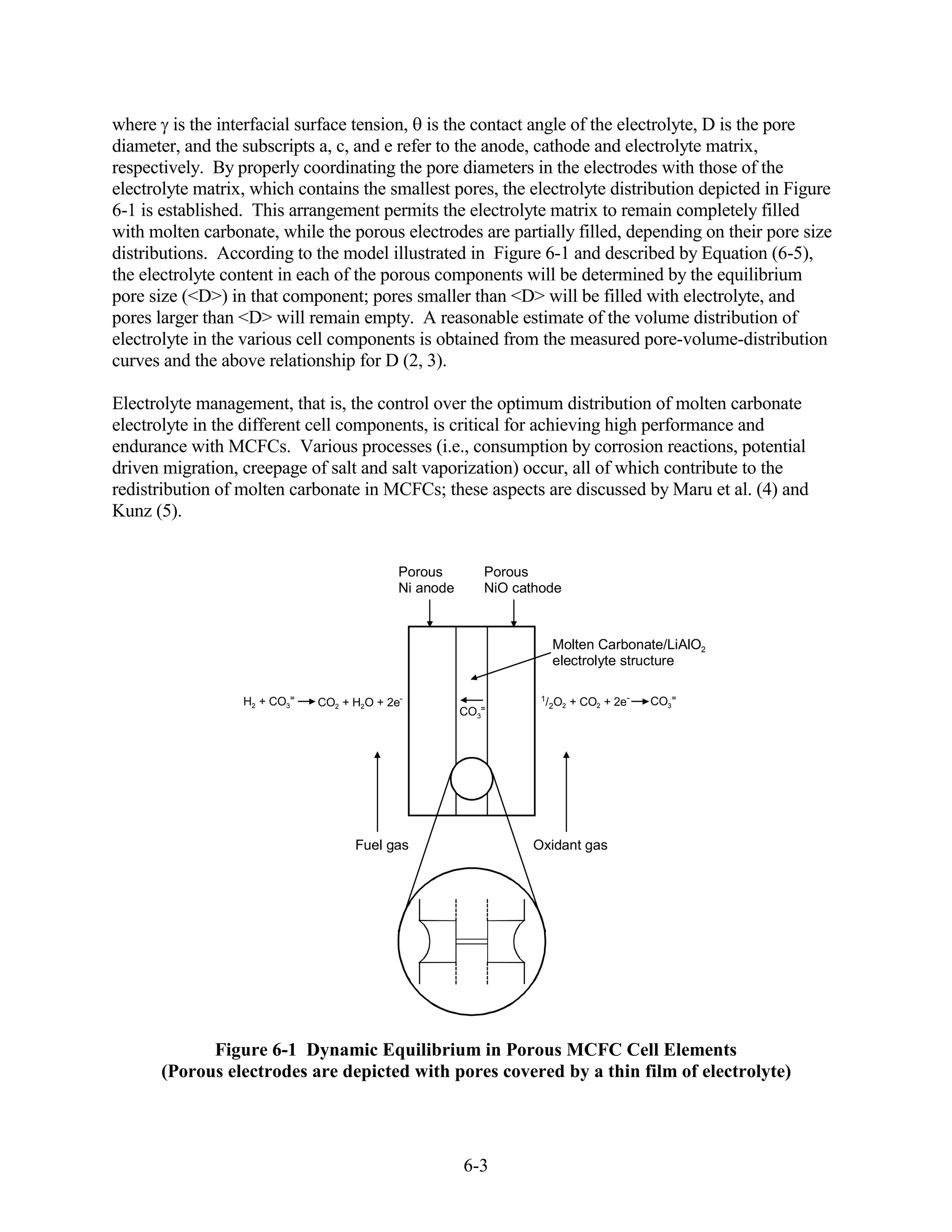

establish a dynamic equilibrium in the different porous structures. Pigeaud et al. (4) provide a
discussion of porous electrodes for MCFCs.

In a SOFC, there is no liquid electrolyte present that is susceptible to movement in the porous
electrode structure, and electrode flooding is not a problem. Consequently, the three-phase
interface that is necessary for efficient electrochemical reaction involves two solid phases (solid
electrolyte/electrode) and a gas phase. A critical requirement of porous electrodes for SOFC is
that they are sufficiently thin and porous to provide an extensive electrode/electrolyte interfacial
region for electrochemical reaction.

1.2 Cell Stacking
Additional components of a cell are best described by using a typical cell schematic, Figure 1-4.
This figure depicts a PAFC. As with batteries, individual fuel cells must be combined to produce
appreciable voltage levels and so are joined by interconnects. Because of the configuration of a
flat plate cell, Figure 1-4, the interconnect becomes a separator plate with two functions: 1) to
provide an electrical series connection between adjacent cells, specifically for flat plate cells, and
2) to provide a gas barrier that separates the fuel and oxidant of adjacent cells. The interconnect of
a tubular solid oxide fuel cell is a special case, and the reader is referred to Section 8 for its slightly
altered function. All interconnects must be an electrical conductor and impermeable to gases.
Other important parts of the cell are 1) the structure for distributing the reactant gases across the
electrode surface and which serves as mechanical support, shown as ribs in Figure 1-4, 2) elec-
trolyte reservoirs for liquid electrolyte cells to replenish electrolyte lost over life, and 3) current
collectors (not shown) that provide a path for the current between the electrodes and the separator
of flat plate cells. Other arrangements of gas flow and current flow are used in fuel cell stack
designs, and are mentioned in Sections 3 through 8 for the various type cells.

1-7

Figure 1-4 Expanded View of a Basic Fuel Cell Repeated Unit in a Fuel Cell Stack (1)

1.3 Fuel Cell Plant Description
As shown in Figure 1-1, the fuel cell combines hydrogen produced from the fuel and oxygen
from the air to produce dc power, water, and heat. In cases where CO and CH4 are reacted in the
cell to produce hydrogen, CO2 is also a product. These reactions must be carried out at a suitable
temperature and pressure for fuel cell operation. A system must be built around the fuel cells to
supply air and clean fuel, convert the power to a more usable form such as grid quality ac power,
and remove the depleted reactants and heat that are produced by the reactions in the cells.
Figure 1-5 shows a simple rendition of a fuel cell power plant. Beginning with fuel processing, a
conventional fuel (natural gas, other gaseous hydrocarbons, methanol, naphtha, or coal) is
cleaned, then converted into a gas containing hydrogen. Energy conversion occurs when dc
electricity is generated by means of individual fuel cells combined in stacks or bundles. A
varying number of cells or stacks can be matched to a particular power application. Finally,
power conditioning converts the electric power from dc into regulated dc or ac for consumer use.
Section 9.1 describes the processes of a fuel cell power plant system.

1-8

Clean
Clean
Exhaust
Exhaust

Steam

Fuel Pow er Pow er
Natural Proces or H -Rich Secton
s i DC C ondii
toner AC
2
Gas Power Power
Gas

Air

Usable
Heat

Figure 1-5 Fuel Cell Power Plant Major Processes

1.4 Characteristics
Fuel cells have many characteristics that make them favorable as energy conversion devices. Two
that have been instrumental in driving the interest for terrestrial application of the technology are the
combination of relatively high efficiency and very low environmental intrusion (virtually no acid gas
or solid emissions). Efficiencies of present fuel cell plants are in the range of 40 to 55% based on the
lower heating value (LHV) of the fuel. Hybrid fuel cell/reheat gas turbine cycles that offer effi-
ciencies greater than 70% LHV, using demonstrated cell performance, have been proposed.
Figure 1-6 illustrates demonstrated low emissions of installed PAFC units compared to the Los
Angeles Basin (South Coast Air Quality Management District) requirements, the strictest require-
ments in the US. Measured emissions from the PAFC unit are < 1 ppm of NOx, 4 ppm of CO, and
<1 ppm of reactive organic gases (non-methane) (5). In addition, fuel cells operate at a constant
temperature, and the heat from the electrochemical reaction is available for cogeneration applica-
tions. Because fuel cells operate at nearly constant efficiency, independent of size, small fuel cell
plants operate nearly as efficiently as large ones.1 Thus, fuel cell power plants can be configured in a
wide range of electrical output, ranging from watts to megawatts. Fuel cells are quiet and even
though fuel flexible, they are sensitive to certain fuel contaminants that must be minimized in the fuel
gas. Table 1-2 summarizes the impact of the major constituents within fuel gases on the various fuel
cells. The reader is referred to Sections 3 through 8 for detail on trace contaminants. The two major

1. The fuel processor efficiency is size dependent; therefore, small fuel cell power plants using externally
reformed hydrocarbon fuels would have a lower overall system efficiency.

1-9

impediments to the widespread use of fuel cells are 1) high initial cost and 2) high-temperature cell
endurance operation. These two aspects are the major focus of manufacturers’ technological efforts.

Fuel
L.A. Basin Cell
Stand Power
Plant

NOx Reactive Organic Gases CO

Figure 1-6 Relative Emissions of PAFC Fuel Cell Power Plants
Compared to Stringent Los Angeles Basin Requirements

Other characteristics that fuel cells and fuel cell plants offer are

Direct energy conversion (no combustion).
No moving parts in the energy converter.
Quiet.
Demonstrated high availability of lower temperature units.
Siting ability.
Fuel flexibility.
Demonstrated endurance/reliability of lower temperature units.
Good performance at off-design load operation.
Modular installations to match load and increase reliability.
Remote/unattended operation.
Size flexibility.
Rapid load following capability.

General negative features of fuel cells include

Market entry cost high; Nth cost goals not demonstrated.
Unfamiliar technology to the power industry.
No infrastructure.

1-10

Table 1-2 Summary of Major Fuel Constituents Impact on PEFC, AFC,
PAFC, MCFC, ITSOFC, and SOFC

Gas
PEFC AFC PAFC MCFC ITSOFC TSOFC
Species
H2 Fuel Fuel Fuel Fuel Fuel Fuel
Poison
Poison
CO (50 ppm per Poison Fuela Fuel Fuel
(<0.5%)
stack)
CH4 Diluent Poison Diluent Diluentb Fuela Fuela
CO2 & H2O Diluent Poison Diluent Diluent Diluent Diluent
S as (H2S & No Studies to Poison Poison Poison
Poison Poison
COS) date (11) (<50 ppm) (<0.5 ppm) (<1.0 ppm)

a
In reality, CO, with H2O, shifts to H2 and CO2, and CH4, with H2O, reforms to H2 and CO faster than reacting as
a fuel at the electrode.
b
A fuel in the internal reforming MCFC.

1.5 Advantages/Disadvantages
The fuel cell types addressed in this handbook have significantly different operating regimes. As
a result, their materials of construction, fabrication techniques, and system requirements differ.
These distinctions result in individual advantages and disadvantages that govern the potential of
the various cells to be used for different applications.

PEFC: The PEFC, like the SOFC, has a solid electrolyte. As a result, this cell exhibits excellent
resistance to gas crossover. In contrast to the SOFC, the cell operates at a low 80 C. This
results in a capability to bring the cell to its operating temperature quickly, but the rejected heat
cannot be used for cogeneration or additional power. Test results have shown that the cell can
operate at very high current densities compared to the other cells. However, heat and water
management issues may limit the operating power density of a practical system. The PEFC
tolerance for CO is in the low ppm level.

AFC: The AFC was one of the first modern fuel cells to be developed, beginning in 1960. The
application at that time was to provide on-board electric power for the Apollo space vehicle.
Desirable attributes of the AFC include its excellent performance on hydrogen (H2) and oxygen
(O2) compared to other candidate fuel cells due to its active O2 electrode kinetics and its flexi-
bility to use a wide range of electrocatalysts, an attribute that provides development flexibility.
Once development was in progress for space application, terrestrial applications began to be
investigated. Developers recognized that pure hydrogen would be required in the fuel stream,
because CO2 in any reformed fuel reacts with the KOH electrolyte to form a carbonate, reducing
the electrolyte's ion mobility. Pure H2 could be supplied to the anode by passing a reformed,
H2-rich fuel stream by a precious metal (palladium/silver) membrane. The H2 molecule is able to
pass through the membrane by absorption and mass transfer, and into the fuel cell anode. How-
ever, a significant pressure differential is required across the membrane and the membrane is
prohibitive in cost. Even the small amount of CO2 in ambient air, the source of O2 for the

1-11

reaction, would have to be scrubbed. At the time, U.S. investigations determined that scrubbing
of the small amount of CO2 within the air, coupled with purification of the hydrogen, was not
cost effective and that terrestrial application of the AFC could be limited to special applications,
such as closed environments, at best. Major R&D on AFC is no longer done in the U.S. but
recent development in Europe has created renewed interest in this fuel cell type.

PAFC: The CO2 in the reformed fuel gas stream and the air does not react with the electrolyte in
a phosphoric acid electrolyte cell, but is a diluent. This attribute and the relatively low tempera-
ture of the PAFC made it a prime, early candidate for terrestrial application. Although its cell
performance is somewhat lower than the alkaline cell because of the cathode's slow oxygen reac-
tion rate, and although the cell still requires hydrocarbon fuels to be reformed into an H2-rich
gas, the PAFC system efficiency improved because of its higher temperature environment and
less complex fuel conversion (no membrane and attendant pressure drop). The need for scrub-
bing CO2 from the process air is also eliminated. The rejected heat from the cell is high enough
in temperature to heat water or air in a system operating at atmospheric pressure. Some steam is
available in PAFCs, a key point in expanding cogeneration applications.

PAFC systems achieve about 37 to 42% electrical efficiency (based on the LHV of natural gas).
This is at the low end of the efficiency goal for fuel cell power plants. PAFCs use high cost
precious metal catalysts such as platinum. The fuel has to be reformed external to the cell, and
CO has to be shifted by a water gas reaction to below 3 to 5 vol% at the inlet to the fuel cell
anode or it will affect the catalyst. These limitations have prompted development of the alter-
nate, higher temperature cells, MCFC, and SOFC.

MCFC: Many of the disadvantages of the lower temperature as well as higher temperature cells
can be alleviated with the higher operating temperature MCFC (approximately 650 C). This
temperature level results in several benefits: the cell can be made of commonly available sheet
metals that can be stamped for less costly fabrication, the cell reactions occur with nickel
catalysts rather than with expensive precious metal catalysts, reforming can take place within the
cell provided a reforming catalyst is added (results in a large efficiency gain), CO is a directly
usable fuel, and the rejected heat is of sufficiently high temperature to drive a gas turbine and/or
produce a high pressure steam for use in a steam turbine or for cogeneration. Another advantage
of the MCFC is that it operates efficiently with CO2-containing fuels such as bio-fuel derived
gases. This benefit is derived from the cathode performance enhancement resulting from CO2
enrichment.

The MCFC has some disadvantages, however: the electrolyte is very corrosive and mobile, and
a source of CO2 is required at the cathode (usually recycled from anode exhaust) to form the
carbonate ion. Sulfur tolerance is controlled by the reforming catalyst and is low, which is the
same for the reforming catalyst in all cells. Operation requires use of stainless steel as the cell
hardware material. The higher temperatures promote material problems, particularly mechanical
stability that impacts life.

ITSOFC: The intermediate temperature solid oxide fuel cell combines the best available
attributes of fuel cell technology development with intermediate temperature (600-800 C)
operation. Ceramic components are used for electrodes and electrolytes: carbon does not

1-12

deposit on these ceramic materials; therefore, this fuel cell may accept hydrocarbons and carbon
monoxide in the fuel. Internal reforming is practical at temperatures above 650 C. Moreover,
use of solid state components avoids design issues, such as corrosion and handling, inherent in
liquid electrolyte fuel cells. The reduced temperature from the TSOFC allows stainless steel
construction, which represents reduced manufacturing costs over more exotic metals. The
disadvantages of ITSOFCs are that electrolyte conductivity and electrode kinetics drop
significantly with lowered temperature. Present technology development is addressing these
issues through thin-film electrolyte development and also a search for alternate materials.

TSOFC: The TSOFC is the fuel cell with the longest continuous development period, starting in
the late 1950s, several years before the AFC. The solid ceramic construction of the cell
alleviates cell hardware corrosion problems characterized by the liquid electrolyte cells and has
the advantage of being impervious to gas cross-over from one electrode to the other. The
absence of liquid also eliminates the problem of electrolyte movement or flooding in the elec-
trodes. The kinetics of the cell are fast, and CO is a directly useable fuel as it is in the MCFC
and ITSOFC. There is no requirement for CO2 at the cathode as with the MCFC. At the tem-
perature of presently operating TSOFCs (~1000 C), fuel can be reformed within the cell. The
temperature of a TSOFC is significantly higher than that of the MCFC and ITSOFC. However,
some of the rejected heat from a TSOFC is needed to preheat the incoming process air.

The high temperature of the TSOFC has its drawbacks. There are thermal expansion mismatches
among materials, and sealing between cells is difficult in the flat plate configurations. The high
operating temperature places severe constraints on materials selection and results in difficult
fabrication processes. The TSOFC also exhibits a high electrical resistivity in the electrolyte,
which results in a lower cell performance than the MCFC by approximately 100 mV.

Developers are assessing the advantages of each type of fuel cell to identify early applications
and address research and development issues (see Sections 3 through 8).

1.6 Applications, Demonstrations, and Status
The characteristics, advantages, and disadvantages summarized in the previous section form the
basis for selection of the candidate fuel cell types to respond to a variety of application needs.
The major applications for fuel cells are as stationary electric power plants, including cogen-
eration units; as motive power for vehicles; and as on-board electric power for space vehicles or
other closed environments. Derivative applications will be summarized.

1.6.1 Stationary Electric Power
One of the characteristics of fuel cell systems is that their efficiency is nearly unaffected by size.
This means that small, relatively high efficient power plants can be developed, thus avoiding the
higher cost exposure associated with large plant development. As a result, initial stationary plant
development has been focused on several hundred kW to low MW capacity plants. Smaller
plants (several hundred kW to 1 to 2 MW) can be sited at the user’s facility and are suited for
cogeneration operation, that is, the plants produce electricity and thermal energy. Larger, dis-
persed plants (1 to 10 MW) are likely to be used for distributed generation. The plants are fueled
primarily with natural gas. Once these plants are commercialized and price improvements mate-
rialize, fuel cells will be considered for large base-load plants because of their high efficiency.

1-13

The base-load plants could be fueled by natural gas or coal. The fuel product from a coal gasi-
fier, once cleaned, is compatible for use with fuel cells. Systems integration studies show that
high temperature fuel cells closely match coal gasifier operation.

Operation of complete, self-contained, stationary plants has been demonstrated using PEFC,
AFC, PAFC, MCFC, ITSOFC, and TSOFC technology. Demonstrations of these technologies
that occurred before 1998 were addressed in previous editions of the Fuel Cell Handbook and in
the literature of the period. Recent U.S. manufacturer experience with these various fuel cell
technologies has produced timely information. A case in point is the 200 kW PAFC on-site
plant, the PC-25, that is the first to enter the commercial market (see Figure 1-7). The plant was

Figure 1-7 PC-25 Fuel Cell

developed by International Fuel Cells Corporation (IFC), a division of United Technologies
Corporation (UTC). The plants are built by IFC. The Toshiba Corporation of Japan and
Ansaldo SpA of Italy are partners with UTC in IFC. The on-site plant is proving to be an
economic and beneficial addition to the operating systems of commercial buildings and industrial
facilities because it is superior to conventional technologies in reliability, efficiency, environ-
mental impact, and ease of siting. Because the PC-25 is the first available commercial unit, it
serves as a model for fuel cell application. Because of its attributes, the PC-25 is being installed
in various applications, such as hospitals, hotels, large office buildings, manufacturing sites,
wastewater treatment plants, and institutions, to meet the following requirements:

On-site energy
Continuous power – backup
Uninterrupted power supply
Premium power quality

1-14

Independent power source

Characteristics of the plant are as follows:

Power Capacity 0 to 200 kW with natural gas fuel (-30 to 45 C, up to 1500 m)
Voltage and Phasing 480/277 volts at 60 Hz ; 400/230 volts at 50 Hz
Thermal Energy 740,000 kJ/hour at 60 C (700,000 Btu/hour heat at 140 F);
(Cogeneration) module provides 369,000 kJ/hour at 120 C (350,000 Btu/hour at
250 F) and 369,000 kJ/hour at 60 C
Electric Connection Grid-connected for on-line service and grid-independent for
on-site premium service
Power Factor Adjustable between 0.85 to 1.0
Transient Overload None
Grid Voltage Unbalance 1%
Grid Frequency Range +/-3%
Voltage Harmonic Limits <3%
Plant Dimensions 3 m (10 ft) wide by 3 m (10 ft) high by 5.5 m (18 ft) long, not
including a small fan cooling module (5)
Plant Weight 17,230 kg (38,000 lb)

Results from the operating units as of August, 2000 are as follows: total fleet operation stands at
more than 3.5 million hours. The plants achieve 40% LHV electric efficiency, and overall use of
the fuel energy approaches 80% for cogeneration applications (8). Operations confirm that
rejected heat from the initial PAFC plants can be used for heating water, space heating, and low
pressure steam. One plant has completed over 50,000 hours of operation, and a number of plants
have operated over 40,000 hours (6). Fourteen additional plants have operated over 35,000
hours. The longest continuous run stands at 9,500 hours for a unit purchased by Tokyo Gas for
use in a Japanese office building (9). This plant ended its duration record because it had to be
shut down because of mandated maintenance. It is estimated at this time that cell stacks can
achieve a life of 5 to 7 years. The fleet has attained an average of over 95% availability. The
latest model, the PC-25C, is expected to achieve over 96%. The plants have operated on natural
gas, propane, butane, landfill gas (10,11), hydrogen (12), and gas from anaerobic digestors (13).
Emissions are so low (see Figure 1-6) that the plant is exempt from air permitting in the South
Coast and Bay Area (California) Air Quality Management Districts, which have the most
stringent limits in the U.S. The sound pressure level is 62 dBA at 9 meters (30 feet) from the
unit. The PC-25 has been subjected to ambient conditions varying from -32 C to +49 C and
altitudes from sea level to 1600 meters (~1 mile). Impressive ramp rates result from the solid
state electronics. The PC-25 can be ramped at 10 kW/sec up or down in the grid connected
mode. The ramp rate for the grid independent mode is idle to full power in ~one cycle or
essentially one-step instantaneous from idle to 200 kW. Following the initial ramp to full power,
the unit can adjust at an 80 kW/sec ramp up or down in one cycle.

IFC recently (spring, 2000) delivered a 1 megawatt PAFC power plant to a utility in Anchorage,
Alaska. The unit consists of 5-200 kilowatt PC-25 units integrated with a supervisory
dispatching controller. The system was installed and is being operated by Chugach Electric.
Operation began in June, 2000.

1-15

Recent customers have obtained a Federal Grant rebate of $1,000/kW as the result of the Climate
Change Fuel Cell Program. The PC-25 program also has received the support of the U.S. mili-
tary, which installed 30 units at government facilities.

The fuel cell stacks are made and assembled into units at an 80,000 ft2 facility located in South
Windsor, Connecticut, U.S. Low cost/high volume production depends on directly insertable
sub-assemblies as complete units and highly automatic processes such as robotic component
handling and assembly. The stack assembly is grouped in a modified spoke arrangement to
allow for individual manufacturing requirements of each of the cell components while bringing
them in a continuous flow to a central stacking elevator (14).

Ballard Generation Systems, a subsidiary of Ballard Power Systems, has produced a PEFC
stationary on-site plant. It has these characteristics:

Power Capacity 250 kW with natural gas fuel
Electric Efficiency 40% LHV
Thermal Energy 854,600 kJ/hour at 74 C (810,000 Btu/hour at 165 F)
Plant Dimensions 2.4 m (8 ft) wide by 2.4 m (8 ft) high by 5.7 m (18.5 ft) long
Plant Weight 12,100 kg (26,700 lb)

One plant demonstration, which began operation in August 1997, has been completed. The plant
achieved an electric efficiency of 40% LHV. Ballard is in the process of securing plant orders to
field test additional plants. Ballard expects field trials from 1998 to 2001 and commercial pro-
duction of the plant with the characteristics listed above in 2002. Partners are GPU International,
GEC Alsthom, and EBARA Corporation (15).

Fuel Cell Energy (FCE), formerly Energy Research Corporation (ERC) completed successful
testing in June 2000 of a near-commercial molten carbonate fuel cell system at their corporate
site in Danbury, Connecticut. The power plant was rated at 250 kilowatts and achieved a
maximum of 263 kilowatts. Power was produced by a single stack having 340 cells. The fuel
delivered to the stack was internally reformed. Over the 16 month run, the system operated for
more than 11,800 hours, providing 1.8 million kilowatt-hours to FCE’s facility and the grid.
Electric efficiency was 45% (LHV). For most of this time, it operated unattended. Acid gas
emissions during the test were negligible. Post-operation analysis will be performed on the fuel
cell module after disassembly.

FCE’s German partner, MTU Friedrichshafen, is operating a 250 kilowatt molten carbonate fuel
cell system in Bielefeld, Germany. The power plant is located on the campus of the University
of Bielefeld and provides electric power and byproduct heat. The fuel cells were manufactured
by FCE. MTU developed a new power plant configuration for this unit termed a “Hot Module”
that simplifies the balance of plant. The system began operation in November 1999 and logged
over 4,200 hours by August, 2000. Electric efficiency is 45% (LHV).

The focus of the utility demonstrations and FCE’s fuel cell development program is the com-
mercialization of 300 kilowatt, 1.5 megawatt, and 3 megawatt MCFC plants. Characteristics of
the FCE 3 megawatt internal reforming commercial MCFC plant are as follows (17):

1-16

Power Capacity 3.0 MW net AC
Electric efficiency 57% (LHV) on natural gas
Voltage and Phasing Voltage is site dependent, 3 phase 60 Hz
Thermal energy ~4.2 million kJ/hour (~4 million Btu/hour)
Availability 95%

Field trials employing FCE’s commercial MCFC design are being planned at a number of sites.
Some are discussed below.

FCE plans to demonstrate a molten carbonate fuel cell/turbine hybrid system in late 2000. The
balance of plant equipment employed in the 250 kilowatt test at ERC’s facility will be modified
to accommodate a fuel cell and a gas turbine. The turbine is to be powered by waste heat from
the fuel cell. The goal of the test is to demonstrate that the hybrid system will realize high
efficiencies. This activity is a part of the U.S. DOE Office of Fossil Energy Vision 21 Program.

A demonstration of a MCFC power plant at an automobile manufacturing plant site in
Tuscaloosa, Alabama is planned for the first quarter of 2001. The 250 kilowatt system will feed
the production facility power distribution grid. Four companies are teaming up to support the
program: Southern Company, Alabama Municipal Electric Authority (AMEA), Fuel Cell
Energy, and Mercedes Benz U.S. International, Inc. (MBUSI). The system will employ FCE s
stack and MTU’s power plant design, called the “Hot Module.”

FCE plans to build a 1 megawatt power plant for a King County site near Renton, Washington.
The molten carbonate fuel cell system will be installed as part of a municipal waste water treat-
ment system. The power plant will use fuel produced by a digester in the form of a methane rich
gas. The fuel cell system will provide power to the water treatment facility and provide a means
to control methane and carbon dioxide emissions. Delivery is expected in 2001. The U.S.
Environmental Protection Agency and the King County Washington Department of Natural
Resources are supporting this program.

FCE and the Los Angeles Department of Water and Power (LADWP) plan to install a MCFC
power plant at their downtown Los Angeles headquarters building. The 250 kilowatt system is
expected to be operational in 2001 (16, 17).

Siemens Westinghouse Power Corporation (SWPC) has three TSOFC systems employing
tubular cell technology operating on user sites. All were produced in their Pittsburgh,
Pennsylvania facility. The capacities of the systems are 220 kilowatts, 100 kilowatts, and 25
kilowatts.

The most recent system is a 220 kilowatt fuel cell/gas turbine power plant operating at the
University of California’s National Fuel Cell Research Center located in Irvine, California. The
first-of-a-kind hybrid power plant consists of a 200 kilowatt fuel cell generator pressurized at
about 3.5 atmospheres in combination with a 20 kilowatt two-shaft gas turbine. The system was
first run at the Pittsburgh facility and started operating at Irvine in June, 2000. Total run time
until July, 2000 was 264 hours. Electric energy delivered was 42 megawatt-hours. Electric effi-
ciency was 51% (LHV). An electric power feed-through mounted on the pressure vessel devel-

1-17

oped a problem. Although the fuel cells were intact, it was necessary that the fuel cell generator
be shipped back to Pittsburgh for repair. Operation is expected to resume by October, 2000.

The 25 kilowatt system is back on test at the National Fuel Cell Research Center. The unit
typically operates at 21.7 kW DC and 173 amperes. The unit has operated at two facilities on
various fuels for a combined time of more than 9,500 hours. Support for this test is provided by
Wright Patterson Air Force Base.

The nominal 100 kW 50 Hz unit is presently operating at the NUON District Heating site in
Westvoort, The Netherlands. The unit is sponsored by EDB/ELSAM, a consortium of Dutch and
Danish Energy distribution companies. Site acceptance was completed by February 6, 1998.
Since then, this system has operated unattended, delivering 105 kW ac to the grid for over
14,000 hours. The electric only efficiency is 45%, plus the plant supplies 85 kW of hot water at
110 C to the local district heating system. The plant, which consists of three major systems,
measures 8.42 m long by 2.75 m wide by 3.58 m high. The unit is scheduled to operate until
autumn 2000

The Siemens Westinghouse TSOFC commercialization plan is focused on an initial offering of a
hybrid fuel cell/gas turbine plant. The fuel cell module replaces the combustion chamber of the
gas turbine engine. Figure 1-8 shows the benefit behind this combined plant approach. Addi-
tional details are provided in Section 8. As a result of the hybrid approach, the 1 MW early
commercial unit is expected to attain ~60% efficiency LHV when operating on natural gas.

100
90
80
EFFICIENCY (%)

70
60
50
40
30
20
Advanced High Gas Turbine/
10 Gas Turbine Temperature Fuel Cell
System Fuel Cell Combined Cycle
0

Figure 1-8 Combining the TSOFC with a Gas Turbine Engine to Improve Efficiency

Siemens Westinghouse is planning a number of tests on power plants that are prototypes of
future products. All systems employ the tubular SOFC concept and most are combined with gas
turbines in a hybrid configuration. Capacities of these systems are 250 kilowatts atmospheric,
300 kilowatt class hybrid, and 1 megawatt class hybrid. They are to operate at various sites in
the U.S., Canada, and Europe. Some of them are discussed below.

1-18

A 250 kilowatt atmospheric system is planned for a Toronto, Ontario, Canada site. The system
will be operated by Ontario Power Technologies (formerly Ontario Hydro). The unit will supply
145 kilowatts of heat to the site heating system. Electric efficiency is expected to be about 47%
(LHV). Operation of the combined heat and power system is expected in late 2001.

Operation of a 300 kilowatt class hybrid system is planned for Essen, Germany. The utility
RWE will operate the system. Efficiency of the system will be about 57% (LHV). Operation is
expected in late 2001 to early 2002.

A 300 kilowatt class hybrid system is planned to operate near Milan, Italy. The power plant will
be operated by Edison SpA. Efficiency will be about 57% (LHV). Operation is expected to
begin in mid 2002.

Plans are underway for a field test of a megawatt class fuel cell/gas turbine hybrid system on an
Environmental Protection Agency site at Ft. Mead, Maryland. This system is expected to exhibit
an efficiency of about 60 % (LHV) depending on the turbine and the inverter selected. Opera-
tion is expected in the second half of 2002.

A 250 kilowatt system is planned for a site in Norway. The system will be operated by Norske
Shell to demonstrate that CO2 can be economically recovered. The CO2 recovery technology is
being developed by Shell Hydrogen. The CO2 could be sequestered in underground reservoirs or
could be used for special applications such as fish farms or agricultural greenhouses. The test
system will be sited at a fish hatchery. The system is expected to begin operation in early 2003.

A megawatt class hybrid system is planned for a site in Stuttgart, Germany. The system will be
operated by ENBW. Efficiency of the system will be about 60 %. Partial support for the opera-
tion will be provided by the European Union. Operation is expected in the second half of 2003.

The military finds certain characteristics of fuel cell power plants desirable for field duty. Fore-
most, a fuel cell unit is quiet so can be close to the front line. It has a low heat trace, and can be
scaled to various sizes, from a few kW backpack to larger mobile power plant. The main
drawback for the military is that the existing infrastructure is limited to logistic fuels. Logistic
fuels (defined as easily transportable and stored, and compatible with military uses) are difficult
to convert to hydrogen for fuel cell use. The burden of changing the fuel infrastructure to
accommodate lighter fuels, normally used in fuel cells, is far greater than the benefits fuel cells
offer the military. The Advanced Research Projects Agency of DOD funded several projects to
investigate adapting logistics fuels to fuel cell use.

IFC conducted testing of a 100 kW mobile electric power plant (MEP) with the logistic fuels of
JP-8 and DF-2. An auto-thermal reformer that achieved 98% conversion was used to convert the
logistic fuel to a methane rich fuel.

FCE tested a lab-scale carbonate fuel cell stack on a model diesel-like fuel (Exxsol) using an
adiabatic pre-reformer to convert the liquid fuel to methane in 1991 to 1993. In 1995 and 1996,
FCE verified a 32 kW MCFC stack operation on jet fuel (JP-8) and diesel (DF-2) in system inte-

1-19

grated tests using the diesel-to-methane adiabatic pre-reformer approach. Test results showed
that there was a 5% power derating compared to natural gas operation.

The 25 kW TSOFC power unit (see Siemens Westinghouse, above) was fitted with a pre-
reformer similar to the FCE and operated with JP-8 (766 hours) and DF-2 (1555 hours) while the
unit was installed at FCE’s Highgrove Station.

SOFCo, a limited partnership of Babcock and Wilcox (a McDermott International Company) and
Ceramatec (an Elkem company), has tested a planar SOFC unit for the MEP program that will
operate on logistic fuels. Honeywell tested their MEP unit on logistic fuel.

All demonstrations showed that fuel cell units can be operated with military logistic fuels (18).

An eventual market for fuel cells is the large (100 to 300 MW), base-loaded, stationary plants
operating on coal or natural gas. Another related, early opportunity may be in repowering older,
existing plants with high-temperature fuel cells (19). MCFCs and SOFCs coupled with coal
gasifiers have the best attributes to compete for the large, base load market. The rejected heat
from the fuel cell system can be used to produce steam for the existing plant's turbines. Studies
showing the potential of high-temperature fuel cells for plants of this size have been performed
(see Section 9). These plants are expected to attain from 50 to 60% efficiency based on the HHV
of the fuel. Coal gasifiers produce a fuel gas product requiring cleaning to the stringent require-
ments of the fuel cells’ electrochemical environment, a costly process. The trend of environmen-
tal regulations has also been towards more stringent cleanup. If this trend continues, coal-fired
technologies will be subject to increased cleanup costs that may worsen process economics. This
will improve the competitive position of plants based on the fuel cell approach. Fuel cell sys-
tems will emit less than target emissions limits. U.S. developers have begun investigating the
viability of coal gas fuel to MCFCs and SOFCs (20,21,22). An FCE 20 kW MCFC stack was
tested for a total of 4,000 hours, of which 3,900 hours was conducted at the Plaquemine, LA, site
on coal gas as well as pipeline gas. The test included 1,500 hours of operation using 9,142 kJ/m3
syngas from a slip stream of a 2,180 tonne/day Destec entrained gasifier. The fuel processing
system incorporated cold gas cleanup for bulk removal of H2S and other contaminants, allowing
the 21 kW MCFC stack to demonstrate that the FCE technology can operate on either natural gas
or coal gas.

1-20

User groups have organized together with the manufacturers in stationary plant development
programs. The groups are listed below:

PAFC, IFC The North American Fuel Cell Owners Group
MCFC, FCE The Fuel Cell Commercialization Group
SOFC, Siemens Westinghouse SOFC Commercialization Association (SOCA)

These groups provide invaluable information from a user viewpoint about fuel cell technology
for stationary power plant application. They can be contacted though the manufacturers.

A series of standards is being developed to facilitate the application of stationary fuel cell
technology power plants. Standard development activities presently underway are

Design and Manufacturing Standard ANSI Z21.83/CGA 12.10
Interconnect Standards for Interfacing Revive/Revise ANSI/IEEE Std 1001-1988
Performance Test ASME PTC50, Fuel Cell Performance Code
Committee
Emergency Generator Standards NFPA 70,110
Installation Standard Review NFPA TC 850

MILITARY APPLICATIONS

The utility applications for DOD refers to power plants that serve the load of a particular
population and range in size from a few megawatts for distributed power generation to 100+
MW. Electricity purchased from local utilities is expensive. Master metering and large air-
conditioning loads can cause the demand portion of the electric bill to be more than 50 % of the
total bill. There is significant potential for improving the security of electrical power supplied by
using onsite power generation. The increased concern of environmental issues has made
producing clean power desirable and mandatory. In addition, most central heat plants on U.S.
military installations are nearing the end of their useful life, there are opportunities to replace
outdated existing equipment with modern technologies.

1.6.2 Distributed Generation
Distributed generation is small, modular power systems that are sited at or near their point of use.
The typical system is less than 30 MW, used for generation or storage, and extremely clean.
Examples of technologies used in distributed generation include proven gas turbines and
reciprocating engines, biomass-based generators, concentrating solar power and photovoltaic
systems, fuel cells, wind turbines, micro-turbines, and flywheel storage devices. See Table 1-3
for size and efficiencies of selected systems.

1-21

Table 1-3 Attributes of Selected Distributed Generation Systems

Type Size Efficiency, %
Reciprocating Engines 50 kW – 6 MW 33 – 37
Micro turbines 10 kW – 300 kW 20 – 30
Phosphoric Acid Fuel Cell (PAFC) 50 kW – 1 MW 40
Solid Oxide Fuel Cell (SOFC) 5 kW – 3 MW 45 – 65
Proton Exchange Membrane Fuel Cell <1 kW – 1 MW 34 – 36
(PEM)
Photovoltaics (PV) 1 kW – 1 MW NA
Wind Turbines 150 kW – 500 kW NA
Hybrid Renewable <1 kW – 1 MW 40 – 50

The market for distributed generation is aimed at customers dependent on reliable energy, such
as hospitals, manufacturing plants, grocery stores, restaurants, and banking facilities. There is
currently over 15 GW of distributed power generation operating in the U.S. Over the next
decade, the domestic market for distributed generation, in terms of installed capacity to meet the
demand, is estimated to be 5-6 GW per year. The projected global market capacity increases are
estimated to be 20 GW per year (23). Several factors have played a role in the rise in demand for
distributed generation. Utility restructuring is one of the factors. Energy suppliers must now
take on the financial risk of capacity additions. This leads to less capital intensive projects and
shorter construction periods. Also, energy suppliers are increasing capacity factors on existing
plants rather than installing new capacity, which places pressure on reserve margins. This
increases the possibility of forced outages, thereby increasing the concern for reliable service.
There is also a demand for capacity additions that offer high efficiency and use of renewables as
the pressure for enhanced environmental performance increases (23).

There are many applications for distributed generation systems. They include:
Peak shaving - Power costs fluctuate hour by hour depending upon demand and generation,
therefore customers would select to use distributed generation during relatively high-cost on-
peak periods.
Combined heat and power (CHP) (Cogeneration) –The thermal energy created while
converting fuel to electricity would be utilized for heat in addition to electricity in remote
areas and electricity and heat for sites that have a 24 hour thermal/electric demand.
Grid support – Strategic placement of distributed generation can provide system benefits and
preclude the need for expensive upgrades and provide electricity in regions where small
increments of new baseload capacity is needed.
Standby power – Power during system outages is provided by a distributed generation system
until service can be restored. This is used for customers that require reliable back-up power
for health or safety reasons, companies with voltage sensitive equipment, or where outage
costs are unacceptably high.
Remote/Stand alone – The user is isolated from the grid either by choice or circumstance.
The purpose is for remote applications and mobile units to supply electricity where needed.

1-22

Benefits and Obstacles:
Distributed generation systems have small footprints, are modular and mobile making them very
flexible in use. The systems provide benefits at the customer level, the supplier level as well as
the national level. Benefits to the customer include high power quality, improved reliability, and
flexibility to react to electricity price spikes. Supplier benefits include avoiding investments in
transmission and distribution (T&D) capacity upgrades by locating power where it is most
needed and opening new markets in remote areas. At the national level, the market for distrib-
uted generation establishes a new industry, boosting the economy. The improved efficiencies
also reduce greenhouse gas emissions.

However, there are also a number of barriers and obstacles to overcome before distributed
generation can become a mainstream service. These barriers include technical, economic,
institutional and regulatory issues. Many of the proposed technologies have not yet entered the
market and will need to meet performance and pricing targets before entry. Questions have also
risen on requirements for connection to the grid. Lack of standardized procedures creates delays
and discourages customer-owned projects. Siting, permitting and environmental regulations can
also delay and increase the costs of distributed generation projects.

In 1998, the Department of Energy created a Distributed Power Program to focus on market
barriers and other issues, which are prohibiting the growth of distributed generation systems.
Under the leadership of the National Renewable Energy Laboratory (NREL), a collaboration of
national laboratories and industry partners have been creating new standards and identifying and
removing regulatory barriers. The goals of the program include 1) Strategic research, 2) System
Integration, and 3) Mitigation of regulatory and institutional barriers (24).

Fuel Cells:
Fuel cells, one of the emerging technologies in distributed generation, have been hindered by
high initial costs. However, costs are expected to decline as manufacturing capacity and
capability increase and designs and integration improve. The fuel cell systems offer many
potential benefits as a distributed generation system. They are small and modular and capital
costs are relatively insensitive to scale. This makes them ideal candidates for a diverse amount
of applications where they can be matched to meet specific load requirements. The systems are
unobtrusive with very low noise levels and have negligible air emissions. These qualities enable
them to be placed close to the source of power demand. Fuel cells also offer higher efficiencies
than conventional plants. The efficiencies can be enhanced by utilizing the quality waste heat
derived from the fuel cell reactions for combined heat and power and combined-cycle
applications.

Phosphoric acid fuel cells have successfully been commercialized. Second generation fuel cells,
including solid oxide fuel cells and molten carbonate fuel cells, are expected to make market
entry by 2002. Research is ongoing in areas such as fuel options and new ceramic materials.
Different manufacturing techniques are also being sought to help reduce capital costs. Proton
exchange membrane fuel cells are currently still in the development and testing phase.

1-23

Projects:
There are currently several projects in the distributed generation market underway with various
fuel cell developers and utility companies. These projects are helping to drive costs down and
bring the fuel cells closer to commercialization. Below is a summary of some of the projects,
taken from reference (25).

IdaTech LLC (formerly Northwest Power Systems), of Bend, Oregon, an Idacorp subsidiary,
delivered the first of 110 planned fuel cell systems to the Bonneville Power Administration
(BPA), Portland, Oregon in June 2000. The BPA program is part of a fuel cell test and devel-
opment phase intended to commercialize fuel cell systems for home and small commercial
applications by 2003.

Avista Labs, an affiliate of Avista Corp., of Spokane, Washington, received a US patent in
March 2000 that covers 162 claims for its modular, cartridge-based proton exchange membrane
(PEM) fuel cell. The fuel cell cartridges can be removed and replaced while the power system
continues to operate. Additional elements of the patented system include proprietary designs that
simplify the humidifying and cooling systems, resulting in lower manufacturing costs and higher
efficiency. Currently, Avista has 30 fuel cells installed around the U.S. The second-generation
fuel cell is planned to begin field demonstration in 2001.

Bewag AG’s Treptow heating plant, located in Berlin, Germany received a 250 kW PEM fuel
cell unit in April 2000 from Ballard Generation Systems, a subsidiary of Ballard Power System,
of Burnaby, BC, Canada.

Plug Power, Inc, of Latham, NY manufactured six alpha fuel cells to be field tested as part of the
Clean Energy Initiative, the Long Island Power Authority (LIPA), Uniondale, NY. Hofstra
University was the site of the first tests, which began in February 2000. By the 60-day mark, the
fuel cells had generated approximately 1900 kWh and operated in parallel with LIPA’s T&D
system.

Energy USA, a subsidiary of NiSource Inc, of Merrillville, Ind formed a joint venture with
Institute of Gas Technology called Mosiac Energy LLC. They designed fuel cells for the core of
the home’s energy-generating system to be used in a Chesterton, Indiana housing development.
Space heating and other household needs will be provided by the byproduct heat production.

IFC Corp, of South Windsor, Connecticut, has the most commercially advanced fuel cell for
electricity generation, the PC25, a 200-kW phosphoric acid fuel cell (PAFC). IFC has over 200
fuel cells delivered around the world.

Siemens Westinghouse, of Pittsburgh, PA has manufactured the largest tubular solid oxide fuel
cell (TSOFC) system. The Dutch/Danish consortium EDB/Elsam operates the system, which
supplies 110 kW of electricity to the grid and 64 kW to the city of Westervoort, Netherlands
district heating system. The efficiency is about 46% with exhaust gas values for NOx, SOx, CO
and VHC under 1 ppm each. Commercial units ranging in size from 250 to 1000 kW are
expected in 2004. Siemens Westingtonhouse installed a 250 kW unit at the National Fuel Cell
Center.

1-24

The Los Angeles Department of Water and Power (LADWP) is investing $1.5 million to develop
and install a 250 kW molten carbonate fuel cell (MCFC) powerplant. FCE, of Danbury,
Connecticut will supply the fuel cell. The goals of the project include testing and demonstrating
the feasibility of the technology to generate electricity for the LADWP system.

In early 2000, FCE’s Direct Fuel Cell (DFC) went into a joint public/private development with
NETL. This system uses internal conversion of the natural-gas fuel to hydrogen, as opposed to
an external unit. This reduces costs and creates efficient use of excess heat. The DFC system
has already passed 8600 hours and a one-year milestone at FCE’s headquarters.

The Navy is studying the concept of all electric ships. These new ships will not have a central
engine room and long drive shafts. The ships will depend on redundancy of generator capacity
for combat survival, rather than protection of a centralized engine room.

1.6.3 Vehicle Motive Power
Since the late 1980s, there has been a strong push to develop fuel cells for use in light-duty and
heavy-duty vehicle propulsion. A major drive for this development is the need for clean, effi-
cient cars, trucks, and buses that can operate on conventional fuels (gasoline, diesel), as well as
renewable and alternative fuels (hydrogen, methanol, ethanol, natural gas, and other hydro-
carbons). With hydrogen as the on-board fuel, such vehicles would be zero emission vehicles.
With on-board fuels other than hydrogen, the fuel cell systems would use an appropriate fuel
processor to convert the fuel to hydrogen, yielding vehicle power trains with very low acid gas
emissions and high efficiencies. Further, such vehicles offer the advantages of electric drive and
low maintenance because of the few critical moving parts. This development is being sponsored
by various governments in North America, Europe, and Japan, as well as by major automobile
manufacturers worldwide. As of May 1998, several fuel cell-powered cars, vans, and buses
operating on hydrogen and methanol have been demonstrated.

In the early 1970s, K. Kordesch modified a 1961 Austin A-40 two-door, four-passenger sedan to
an air-hydrogen fuel cell/battery hybrid car (23). This vehicle used a 6-kW alkaline fuel cell in
conjunction with lead acid batteries, and operated on hydrogen carried in compressed gas
cylinders mounted on the roof. The car was operated on public roads for three years and about
21,000 km.

In 1994 and 1995, H-Power (Belleville, New Jersey) headed a team that built three PAFC/battery
hybrid transit buses (24,25). These 9 meter (30 foot), 25 seat (with space for two wheel chairs)
buses used a 50 kW fuel cell and a 100 kW, 180 amp-hour nickel cadmium battery.

Recently, the major activity in transportation fuel cell development has focused on the polymer
electrolyte fuel cell (PEFC). In 1993, Ballard Power Systems (Burnaby, British Columbia,
Canada) demonstrated a 10 m (32 foot) light-duty transit bus with a 120 kW fuel cell system,
followed by a 200 kW, 12 meter (40 foot) heavy-duty transit bus in 1995 (26). These buses use
no traction batteries. They operate on compressed hydrogen as the on-board fuel. In 1997,
Ballard provided 205 kW (275 HP) PEFC units for a small fleet of hydrogen-fueled, full-size
transit buses for demonstrations in Chicago, Illinois, and Vancouver, British Columbia. Working

1-25

in collaboration with Ballard, Daimler-Benz built a series of PEFC-powered vehicles, ranging
from passenger cars to buses (27). The first such vehicles were hydrogen-fueled. A methanol-
fueled PEFC A-class car unveiled by Daimler-Benz in 1997 has a 640 km (400 mile) range.
Plans are to offer a commercial vehicle by 2004. A hydrogen-fueled (metal hydride for hydro-
gen storage), fuel cell/battery hybrid passenger car was built by Toyota in 1996, followed in
1997 by a methanol-fueled car built on the same (RAV4) platform (28).

Other major automobile manufacturers, including General Motors, Volkswagen, Volvo, Honda,
Chrysler, Nissan, Toyota, and Ford, have also announced plans to build prototype polymer
electrolyte fuel cell vehicles operating on hydrogen, methanol, or gasoline (29). IFC and Plug
Power in the U.S., and Ballard Power Systems of Canada (15), are involved in separate programs
to build 50 to 100 kW fuel cell systems for vehicle motive power. Other fuel cell manufacturers
are involved in similar vehicle programs. Some are developing fuel cell-powered utility
vehicles, golf carts, etc. (30,31).

The U.S. Army plans to reduce battlefield fuel consumption 75% by the year 2020. This will
make supplying combat units easier, while also making it easier to protect supply lines. The
future Army must reduce its vehicle exhaust emissions during peacetime. The Army owns a
large number of vehicles equipped with non-emission controlled diesel engines, and will still
own a significant number of these engines in 2020. One example of military-sponsored research
is the all-electric tank with an electromagnetic rail gun. The gun would use a powerful magnetic
field to propel a small armor-piercing projectile to hypersonic speeds. Such a vehicle would be
fast, quiet, and capable of firing flurries of rounds at multiple targets.

1.6.4 Space and Other Closed Environment Power
The application of fuel cells in the space program (1 kW PEFC in the Gemini program and
1.5 kW AFC in the Apollo program) was demonstrated in the 1960s. More recently, three
12 kW AFC units have been used for at least 87 missions with 65,000 hours flight time in the
Space Shuttle Orbiter. In these space applications, the fuel cells use pure reactant gases. IFC has
produced a H2/O2 30 kW unit for the Navy’s Lockheed Deep Quest vehicle. It operates at depths
of 1500 meters (5000 feet). Ballard Power Systems has produced an 80 kW PEFC fuel cell unit
for submarine use (methanol fueled) and for portable power systems.

1.6.5 Fuel Cell Auxiliary Power Systems
In addition to high-profile fuel cell applications such as automotive propulsion and distributed
power generation, the use of fuel cells as auxiliary power units (APUs) for vehicles has received
considerable attention (see Figure 1-9). APU applications may be an attractive market because it
offers a true mass-market opportunity that does not require the challenging performance and low
cost required for propulsion systems for vehicles. In this section, a discussion of the technical
performance requirements for such fuel cell APUs, as well as the current status of the technology
and the implications for fuel cell system configuration and cost is given.

1-26

Fuel /Fuel Nature of
Participants Application Size range
Cell type Activity
Hydrogen,
BMW, International passenger car, BMW
5kW net Atmospheric Demonstration
Fuel Cells2 7-series
PEM
Class 8 Freightliner 1.4 kW net for
Ballard, Daimler- Hydrogen,
heavy-duty Century 8000 BTU/h A/C Demonstration
Chrysler3 PEM
Class S/T truck cab unit
BMW, Delphi, Technology
Gasoline,
Global passenger car 1-5kW net development
SOFC
Thermoelectric4 program

Figure 1-9 Overview of Fuel Cell Activities Aimed at APU Applications

Auxiliary power units are devices that can provide all or part of the non-propulsion power for
vehicles. Such units are already in widespread use in a range of vehicle types and for a variety of
applications, in which they provide a number of potential benefits (see Figure 1-10). Although
each of these applications could provide attractive future markets for fuel cells, this section will
focus on application to on-road vehicles (specifically trucks).

Vehicles Types Loads Serviced Potential Benefits
Heavy-duty & utility trucks Space conditioning Can operate when main
engine unavailable
Airplanes Refrigeration
Reduce emissions and noise
Trains Lighting and other cabin while parked
amenities
Yachts & Ships Extend life of main engine
Communication and
Recreational vehicles information equipment Improve power generation
Automobiles & light trucks efficiency when parked
Entertainment (TV, radio)
(not commercial yet)

Figure 1-10 Overview of APU Applications

In 1997, the Office of Naval Research initiated an advanced development program to
demonstrate a ship service fuel cell power generation module. The ship service generator
supplies the electrical power requirements of the ship. This program will provide the basis for a
new fuel cell-based design that will be an attractive option for the future Navy surface ships.
This program will provide the Navy with a ship service that is more efficient and incorporates a
distributive power system that will remain operating even if the engine is destroyed.

Fuel cells can serve as a generator, battery charger, battery replacements and heat supply. They
can adapt to most environments, even locations in Arctic and Antarctic regions.
One effort, being run in collaboration with the Army Research Office, has demonstrated a
prototype fuel cell designed to replace in many applications a popular military standard battery.
The target application is the Army's BA-5590 primary (i.e., use-once-and-dispose) lithium
battery. The Army purchases approximately 350,000 of these batteries every year at a cost of
approximately $100 per battery, including almost $30 per battery for disposal. Fuel cells, on the

1-27

other hand, are not thrown away after each use but can be reused hundreds of times. Mission
weight savings of factors of 10 or more are projected. The prototype fuel cell, which has the
same size and delivers the same power as a battery, has been tested in all orientations and under
simulated adverse weather conditions, and was enthusiastically received by Army senior
management.

System Performance Requirements

A key reason for interest in fuel cell APU applications is that there may be a good fit between
APU requirements and fuel cell system characteristics. Fuel cells could be efficient and quiet,
and APUs do have the load following requirements and physical size and weight constraints
associated with propulsion applications. However, in order to understand the system
requirements for fuel cell APUs, it is critical to understand the required functionality (refer to
Figure 1-10) as well as competing technologies. To provide the functionality of interest, and to
be competitive with internal combustion engine (ICE) driven APUs, fuel cell APUs must meet
various requirements; an overview is provided in Figure 1-11.

Key Parameter Typical Requirements Expected fuel cell
performance
Power output 12 – 42 V DC is acceptable for DC power output simplifies the
most applications, 110 / 220 V power conditioning and control
AC may be desirable for for fuel cells
powering power tools etc.

System Capacity 1 – 5 kW for light duty vehicles Fits expected range for PEFCs
and truck cabins and probably also advanced
SOFCs
up to 15 kW for truck refrigeration

System Efficiency More than 15-25% based on Efficiency target should be
LHV achievable, even in smallest
capacity range

Operating life and reliability Greater than about 5,000 hours Insufficient data available to
stack life, with regular service assess whether this is a
intervals less than once every challenge or not
1,000 hours

Figure 1-11 Overview of typical system requirements

Fuel cell APUs will likely have to operate on gasoline, and for trucks preferably on diesel fuel, in
order to match the infrastructure available, and preferably to be able to share on-board storage
tanks with the main engine. The small amount of fuel involved in fueling APUs would likely not
justify the establishment of a specialized infrastructure (e.g. a hydrogen infrastructure) for APUs
alone. Similarly, fuel cell APUs should be water self-sufficient, as the need to carry water for
the APU would be a major inconvenience to the operator, and would require additional space and
associated equipment.

In addition to the requirement for stationary operation mentioned in Figure 3, fuel cell APUs
must be able to provide power rapidly after start-up, and must be able to follow loads. While the

1-28

use of batteries to accomplish this is almost a given, a system start-up time of about ten minutes
or less will likely be required to arrive at a reasonable overall package.

Finally, fuel cell APUs are and clean. These attributes may well be the key competitive
advantage that fuel cell APUs have over conventional APUs, and hence their performance must
more than match that of internal combustion engines APUs.

Technology Status

Active technology development efforts in both PEFC and planar SOFC technology, driven
primarily by the interest in distributed generation and automotive propulsion markets, have
achieved significant progress in the development of these technologies. For distributed power
applications refined and even early commercial prototypes are being constructed.
However, in the case of planar SOFC a distinction must be made between different types of
SOFC technologies. Neither the tubular nor the electrolyte supported SOFC technology is
suitable for APU applications due to their very high operating temperature, large size and weight.
Only the electrode supported planar SOFC technology may be applicable to APU applications.
Since it has only been developed over the past nine years, as opposed to several decades for
PEFC and other SOFC technologies, it is not developed as far, although it appears to be catching
up quickly (See figure 1-12).

Demonstration
Research & Market
Production
Development Initial System Refined Commercial Entry
Prototypes Prototypes Prototypes

Planar SOFC
(Residential)
Planar SOFC
(APU)

PEM
(Residential)

PEM
(APU)

Figure 1-12 Stage of development for fuel cells for APU applications

Fuel cell APU applications could benefit significantly from the development of distributed
generation systems, especially from residential scale systems, because of the similarity in scale
and duty cycle. However, distributed generation systems are designed mostly for operation on
natural gas, and do not face as stringent weight and volume requirements as APU applications.
As a result, fuel cell APUs are in the early initial system prototype stage.

Several developers, including Nuvera, Honeywell, and Plug Power are active in the development
for residential PEFC power systems. Most of the PEM system technology can be adapted for
APU application, except that a fuel processor capable of handling transportation fuels is
required. However, most of the players in the residential PEFC field are also engaged in the

1-29

development of PEFC systems for automotive propulsion applications, which are targeting the
ability to utilize transportation fuels for PEFC systems.

Relatively few developers of SOFC technology have paid attention to non-stationary markets.
All are focused on small to medium sized distributed generation and on-site generation markets.
Only Global Thermoelectric (Calgary, Canada) has been active in the application of its
technology to APUs. A recently conducted a detailed conceptual design and cost estimate of a 5-
kWnet SOFC-based truck APU conclude that, provided continued improvement in several
technology areas, planar SOFCs could ultimately become a realistic option for this mass-market
application.

System Configuration and Technology Issues

Based on the system requirements discussed above, fuel cell APUs will consist of a fuel
processor, a stack system and the balance of plant. Figure 1-13 lists the components required in
SOFC and PEM based systems. The components needed in a PEM system for APU applications
are similar to that needed in residential power. The main issue for components for PEM-based
systems is the minimization or elimination of the use of external supplied water. For both PEM
and SOFC systems, start-up batteries (either existing or dedicated units) will be needed since
external electric power is not available.

Detailed cost and design studies for both PEFC and SOFC systems at sizes ranging from 5kW to
1 MW were made that point to the fundamental differences between PEFC and SOFC
technology that impact the system design and by implication the cost structure. These
differences will be discussed in the following paragraphs.

The main components in a SOFC APU are the fuel cell stack, the fuel processor, and the thermal
management system. In addition there are several balance of plant components, which are listed
in Figure 5. The relatively simple reformer design is possible because the SOFC stack operates
at high temperatures (around 800°C) and is capable of utilizing both carbon monoxide and
certain hydrocarbons as fuel. Since both the anode and cathode exhaust at temperatures of 600-
850°C, high temperature recuperators are required to maintain system efficiency. These
recuperators are of expensive materials (high temperature reducing and oxidizing atmosphere),
making it an expensive component in the system. However, if hydrocarbons are converted inside
the stack, this leads to a less exothermic overall reaction so that the stack cooling requirements
are reduced.

Further system simplification would occur if a sulfur-free fuel was used or if the fuel cell were
sulfur tolerant, in that case, the fuel can be provided directly from the reformer to the fuel cell.
In order to minimize system volume, (and minimize the associated system weight and start-up
time) integration of the system components is a key design issue. By recycling the entire anode
tailgas to provide steam, a water management system can be avoided, though a hot gas
recirculation system is required.

1-30

PEM-Based System Balance of Plant:
• Compressor/Expander
• Pumps
• Controls
• Water management
• Packaging
Fuel Air
• Safety system
Preparation Preparation
• Start-up battery

Sulfur Water-Gas Fuel Cell
Reforming CO clean-up
Removal Shift Stack

Steam
Generation

SOFC-Based System
Balance of Plant:
• Compressor/Expander
• Pumps
• Controls
• Insulation & Packaging
Air • Safety system
Preparation • Start-up battery

Reformate
Fuel Fuel pre- Conditioning Fuel Cell
Preparation processing Sulfur Stack
removal

Figure 1-13. Overview of subsystems and components for SOFC and PEM systems

Figure 1-14 shows a simplified layout for an SOFC-based APU. The air for reformer operation
and cathode requirements is compressed in a single compressor and then split between the unit
operations. The external water supply shown in figure 1-14 will most likely not be needed; the
anode recycle stream provides water. Unreacted anode tail gas is recuperated in a tail gas burner.
Additional energy is available in a SOFC system from enthalpy recovery from tail gas effluent
streams that are typically 400-600°C. Current thinking is that reformers for transportation fuel
based SOFC APUs will be of the exothermic type (i.e. partial oxidation or autothermal
reforming), as no viable steam reformers are available for such fuels.

1-31

Gasoline or Diesel Anode
Recycle
Preheat
Mixer

Fuel Cell
Anode

Q
water Cathode

Reformer

Sulfur
removal

Burner

Air Flow
Splitter

Figure 1-14. Simplified System process flow diagram of pre-reformer/SOFC system

Due to the operating requirements of PEM stack technology, shift reactors and a carbon
monoxide removal step are required to produce reformate of sufficient quality. Similarly, the
stack operating temperature and its humidity requirements require a water management system
as well as radiators for heat rejection. Some developers are developing pressurized systems to
the benefit from higher reactant partial pressures on both anode and cathode. Fuel processing for
PEM APU systems is identical to that needed in residential power or propulsion applications.
The additional issue for PEM is the minimization of steam needed for the fuel processor system.
Since an APU is a mobile and/or remote unit, the need for external sources of water should be
minimized. The reformate stream is further diluted by additional steam, if that water is not
removed prior to the fuel cell stack.

Another design integration issue in PEM systems is water management for hydrating the
electrolyte and providing the necessary steam for reforming and water-gas shift operations.
Additional steam may be required for the CO clean-up device. Some reformate-based PEM
systems are run under pressure to increase the partial pressure of reactants for the PEM anode
and cathode, increasing efficiency. Pressure operation also aids in heat integration for the
internal generation of steam at pressures greater than atmospheric (i.e. steam generated at
temperatures greater than 100°C). PEM system integration involves the integration of a reformer
(either exothermic or endothermic overall, ~850-1000°C), shift reactors (exothermic, 150-
500°C), CO-cleanup (primarily exothermic, 50-200°C), and the fuel cell stack (exothermic,
80°C). Each reaction zone operates at a significantly different temperature thus providing a
challenge for system integration and heat rejection. To alleviate some of these drawbacks, and
further reduce the cost of the PEFC systems, developers are now investigating the possibility of
using higher temperature membranes (e.g. operating slightly above 100°C). This would increase
the carbon monoxide tolerance, potentially simplifying the fuel processor design, and simplify
the heat rejection.

1-32

The power requirements for auxiliary power applications require smaller fuel cell stack duties.
The heat losses for a SOFC stack operating at a smaller power duty are a larger proportion of the
gross rating that in a stationary power application. Insulation required for specified system skin
temperatures requirements could conceivably result in large proportion of the total system
volume. Integration of the high temperature components is important in order to reduce the
system volume and insulation requirements. SOFC APU systems will require inexpensive high
performance insulation materials to decrease both system volume and cost.

System Cost Considerations

As for any new class of product, total cost of ownership and operation of fuel cells will be a
critical factor in their commercialization, along with the offered functionality and performance.
This total cost of ownership typically has several components for power systems such as fuel
cells. These components include fuel cost, other operating costs such as maintenance cost, and
the first cost of the equipment. This first cost has a significant impact on fuel cells’
competitiveness.

The main component of a fuel cell’s first cost is the manufacturing cost, which is strongly related
to the physical configuration and embodiment of the system, as well as to the manufacturing
methods used. System configuration and design in turn are directly related to the desired system
functionality and performance, while the manufacturing methods used are strongly linked to the
anticipated production volume.

Arthur D. Little has carried out cost structure studies for a variety of fuel cell technologies for a
wide range of applications, including SOFC tubular, planar and PEM technologies. Because
phenomena at many levels of abstraction have a significant impact on performance and cost, they
have developed a multi-level system performance and cost modeling approach (see Figure 1-15).
At the most elementary level, it includes fundamental chemical reaction/reactor models for the
fuel processor and fuel cell as one-dimensional systems.

C3H8

C3H7 H
O O

M M

Reformer model 14

ve
15

13
a ti
s tr
9
12

I llu
53"

8
1 1
2
10
0.9
11 5
cell potential (V)

Interconnect

Thermodynamic
0.8 6 Forming Paint Braze
7 of
Shear
Interconnect
onto Braze
Interconnect Interconnect
4 60"
0.7 46"
Anode Electrolyte Cathode
0.6

System Model
Electrolyte Cathode
Anode
Small Powder Small Powder
Powder Prep
Prep Prep

0.5 Fabrication
Vacuum
Blanking / Sinter in Air QC Leak Screen
Tape Cast Plasma Sinter in Air Finish Edges
Slicing 1400C Check Print
0.4 Spray

Conceptual
0 0.2 0.4 0.6 0.8 1 1.2 1.4 Vacuum
Screen
current density (A/cm²) Slip Cast
Print
Plasma
Spray

NG2000 H2 NG3000 H2 NG2000 ref NG3000 ref Slurry Spray
Slurry
Spray
Stack Assembly

Fuel Cell Model Design and Note: Alternative production processes appear in gray to the
bottom of actual production processes assumed

Configuration
Manufacturing
Cost Model

$/kW
Figure 1-15 Multilevel system modeling approach.

Each of the detailed sub-models feed into the thermodynamic system model, and provides sizing
information directly to the conceptual design and configuration. The thermodynamic system

1-33

model provides a technical hub for the multi-level approach. It provides inputs on the required
flow rates and heat duties in the system. Sizing information, together with information from the
thermodynamic model then flows to the conceptual design.

SOFC System Cost Structure

The main difference in SOFC stack cost structure as compared to PEFC cost relates to the
simpler system configuration of the SOFC-based system. This is mainly due to the fact that
SOFC stacks do not contain the type of high-cost precious metals that PEFCs contain. This is
off-set in part by the relatively complex manufacturing process required for the manufacture of
the SOFC electrode electrolyte plates and by the somewhat lower power density in SOFC
systems. Low temperature operation (enabled with electrode supported planar configuration)
enables the use of low cost metallic interconnects which can be manufactured with conventional
metal forming operations.

The balance of plant contains all the direct stack support systems, reformer, compressors, pumps,
and the recuperating heat exchangers. Its cost is low by comparison to the PEFC because of the
simplicity of the reformer. However, the cost of the recuperating heat exchangers partially
offsets that.

To provide some perspective on the viability of SOFCs in APU applications from a cost
perspective, NETL sponsored an estimate of the cost structure of small-scale (5 kW), simple-
cycle SOFC anode-supported system, operated on gasoline. The estimated manufacturing cost
for such systems (see Figure 1-16) could well be close to that estimated for comparable PEM
systems, while providing somewhat higher system efficiency.

While the stack, insulation and stack balance in this simple-cycle system is a key component; the
balance of plant is also an important factor. The stack cost again mainly depends on the
achievable power density. Small systems like these will likely not be operated under high
pressure. While this simplifies the design and reduces cost for compressors and expanders
(which are not readily available at low cost for this size range in any case) it might also
negatively affect the power density achievable.

One of the key challenges with small-scale SOFC systems is to overcome heat losses. The
higher the heat losses are, the more recuperation is required to maintain the fuel cell within an
acceptable operating temperature range and hence to ensure good performance.

The large fraction of cost related to balance of plant issues is mainly due to the very small scale
of this system, which results in a significant reverse economy of scale. While design work is still
ongoing, it is anticipated that the cost structure of this system will change rapidly to reduce the
cost of balance of plant further, and further improve the competitiveness of these systems.

1-34

SOFC System
Cost Structure:
Ba la n ce o f
P la n t Co n tro ls/
Manufacturing Costs: P ip in g /
$350-550/kW Ba tte ry

In d ire ct,
S ta ck, L a b o r,
in su la tio n De p r.
a n d sta ck
b a la n ce

Figure 1-16. Projected cost structure of a 5kWnet APU SOFC system. Gasoline fueled
POX reformer, Fuel cell operating at 300mW/cm2, 0.7 V, 90 % fuel utilization, 500,000
units per year production volume.

Outlook and Conclusions

In conclusion, both PEM and SOFC have the potential to meet the allowable cost targets,
provided successful demonstrations prove the technology. It is critical however, that for the
current technologies to be commercially successful, especially in small-capacity markets, high
production volumes will have to be reached. APU applications might provide such markets. It is
similarly critical that the technologies be demonstrated to perform and achieve the projected
performance targets, and demonstrate long life. These are the challenges ahead for the fuel cell
industry in the APU market segment.

1.6.6 Derivative Applications
Because of the modular nature of fuel cells, they are attractive for use in small portable units,
ranging in size from 5 W or smaller to 100 W power levels. Examples of uses include the
Ballard fuel cell, demonstrating 20 hour operation of a portable power unit (32), and an IFC
military backpack. There has also been technology transfer from fuel cell system components.
The best example is a joint IFC and Praxair, Inc., venture to develop a unit that converts natural
gas to 99.999% pure hydrogen based on using fuel cell reformer technology and pressure swing
adsorption process.

1.7 References
1. A.J. Appleby, F.R. Foulkes, Fuel Cell Handbook, Van Nostrand Reinhold, New York, NY,
1989.
2. Report of the DOE Advanced Fuel-Cell Commercialization Working Group, Edited by S.S.

1-35

Penner, DOE/ER/0643, prepared by the DOE Advanced Fuel Cell Working Group
(AFC2WG) or the United States Department of Energy under Contract
No. DEFG03-93ER30213, March 1995.
3. K. Kordesch, J. Gsellmann, S. Jahangir, M. Schautz, in Proceedings of the Symposium on
Porous Electrodes: Theory and Practice, Edited by H.C. Maru, T. Katan, M.G. Klein, The
Electrochemical Society, Inc., Pennington, NJ, p. 163, 1984.
4. A. Pigeaud, H.C. Maru, L. Paetsch, J. Doyon, R. Bernard, in Proceedings of the Symposium
on Porous Electrodes: Theory and Practice, Edited by H.C. Maru, T. Katan, M.G. Klein,
The Electrochemical Society, Inc., Pennington, NJ, p. 234, 1984.
5. J.M. King, N. Ishikawa, "Phosphoric Acid Fuel Cell Power Plant Improvements and
Commercial Fleet Experience," Nov. 96 Fuel Cell Seminar.
6. www.internationalfuelcells.com.
7. Communications with IFC, August 24, 2000.
8. K. Yokota, et al., "GOI 11 MW FC Plant Operation Interim Report," in Fuel Cell Program
and Abstracts, 1992 Fuel Cell Seminar, Tucson, AZ, November 29-December 2, 1992.
9. ONSI Press Release, "Fuel Cell Sets World Record; Runs 9,500 Hours Nonstop," May 20,
1997.
10. Northeast Utilities System Press Release, "Converting Landfill Gas into Electricity is an
Environmental Plus," June 24, 1996.
11. "Groton’s Tidy Machine," Public Power, March-April 1997.
12. ONSI Press Release, "World’s First Hydrogen Fueled Fuel Cell Begins Operation in
Hamburg, Germany," November 7, 1997.
13. "Anaerobic Gas Fuel Cell Shows Promise," Modern Power Systems, June 1997.
14. E.W. Hall, W.C. Riley, G.J. Sandelli, "PC25 Product and Manufacturing Experience,"
IFC, Fuel Cell Seminar, November 1996.
15. www.ballard.com, 1998.
16. www.fuelcellenergy.com.
17. Information supplied by ERC for the Fuel Cell Handbook.
18. M.M. Piwetz, J.S. Larsen, T.S. Christensen, "Hydrodesulfurization and Pre-reforming of
Logistic Fuels for Use in Fuel Cell Applications," Fuel Cell Seminar Program and
Abstracts, Courtesy Associates, Inc., November 1996.
19. Westinghouse Electric Corporation, Bechtel Group, Inc., "Solid Oxide Fuel Cell
Repowering of Highgrove Station Unit 1, Final Report," prepared for Southern California
Edison Research Center, March 1992.
20. ERC, "Effects of Coal-Derived Trace Species on the Performance of Molten Carbonate Fuel
Cells," topical report prepared for U.S. DOE/METC, DOE/MC/25009-T26, October 1991.
21. N. Maskalick, "Contaminant Effects in Solid Oxide Fuel Cells," in Agenda and Abstracts,
Joint Contractors Meeting, Fuel Cells and Coal-Fired Heat Engines Conference,
U.S. DOE/METC, August 3-5, 1993.
22. D.M. Rastler, C. Keeler, C.V. Chang, "Demonstration of a Carbonate on Coal Derived Gas,"
Report 15, in An EPRI/GRI Fuel Cell Workshop on Technology Research and Development.
Stonehart Associates, Madison, CT, 1993.
23. Distributed Generation, Securing America’s Future with Reliable, Flexible Power,” U.S.
Department of Energy, Office of Fossil Energy, National Energy Technology Center,
October 1999.
24. U. S. Department of Energy’s Office of Energy Efficiency and Renewable Energy webpage,

1-36

http://www.eren.doe.gov/distributedpower Giovando, CarolAnn, “Distributed resources
carve out a niche in competitive markets,” Power, July/August 2000, pp. 46 – 57.
25. K.V. Kordesch, "City Car with H2-Air Fuel Cell and Lead Battery," 6th Intersociety Energy
Conversion Engineering Conference, SAE Paper No. 719015, 1971.
26. A. Kaufman, "Phosphoric Acid Fuel Cell Bus Development," Proceedings of the Annual
Automotive Technology Development Contractors' Coordination Meeting, Dearborn, MI,
October 24-27, 1994, SAE Proceedings Volume P-289, pp. 289-293, 1995.
27. R.R. Wimmer, "Fuel Cell Transit Bus Testing & Development at Georgetown University,"
Proceedings of the Thirty Second Intersociety Energy Conversion Engineering Conference,
July 27-August 1, 1997, Honolulu, HI, pp. 825-830, 1997.
28. N.C. Otto, P.F. Howard, "Transportation Engine Commercialization at Ballard Power
Systems," Program and Abstracts 1996 Fuel Cell Seminar, November 17-20, 1996,
Orlando, FL, pp. 559-562.
29. F. Panik, "Fuel Cells for Vehicle Application in Cars - Bringing the Future Closer," J. Power
Sources, 71, 36-38, 1998.
30. S. Kawatsu, "Advanced PEFC Development for Fuel Cell Powered Vehicles," J. Power
Sources, 71, 150-155, 1998.
31. Fuel-Cell Technology: Powering the Future, Electric Line, November/December 1996.
32. M. Graham, F. Barbir, F. Marken, M. Nadal, "Fuel Cell Power System for Utility Vehicle,"
Program and Abstracts 1996 Fuel Cell Seminar, November 17-20, 1996, Orlando, FL, pp.
571-574.
33. P.A. Lehman, C.E. Chamberlin, "Design and Performance of a Prototype Fuel Cell Powered
Vehicle," Program and Abstracts 1996 Fuel Cell Seminar, November 17-20, 1996, Orlando,
FL, pp. 567-570.
34. J. Leslie, "Dawn of the Hydrogen Age," Wired (magazine), October 1997.

1-37

2. FUEL CELL PERFORMANCE

The purpose of this section is to provide the framework to understand the chemical and
thermodynamic operation of fuel cells, i.e., how operating conditions affect the performance of
fuel cells. The impact of variables, such as temperature, pressure, and gas constituents, on fuel
cell performance needs to be assessed to predict how the cells interact with the power plant
system supporting it. Understanding the impact of these variables allows system analysis studies
to "engineer" a specific fuel cell application. The first part of this section is intended for those
who need to understand the practical thermodynamics that lead to a description of cell operation
and performance. Practical cell thermodynamics is the link between fuel cell design, Section 1,
and cell performance variables, Section 3 through Section 8. The second part of the section,
Supplemental Thermodynamics, is a limited expansion of the Practical Thermodynamics to
apprise interested readers and students of additional fundamentals. Neither of these topics is
intended to provide a rigorous or detailed explanation of fuel cell thermodynamics. Numerous
fuel cell books and scientific papers are available to provide additional details, (see General Fuel
Cell References, Section 11.3).

Readers interested only in understanding systems incorporating fuel cells should proceed directly
to the systems section, Section 9.

2.1 Practical Thermodynamics
A logical first step in understanding the operation of a fuel cell is to define its ideal performance.
Once the ideal performance is determined, losses can be calculated and then deducted from the
ideal performance to describe the actual operation. Section 2.1.1 is a description of the
thermodynamics that characterize ideal performance. Actual performance is addressed in
Section 2.1.2. Section 2.1.3 provides a lead-in to the development of equations in Section 3
through Section 8 that quantify the actual cell performance as a function of operating conditions
for PEM, PAFC, AFC, ITSOFC, MCFC, and SOFC, respectively.

2.1.1 Ideal Performance
The ideal performance of a fuel cell depends on the electrochemical reactions that occur with
different fuels and oxygen as summarized in Table 2-1. Low-temperature fuel cells (PEFC, AFC,
and PAFC) require noble metal electrocatalysts to achieve practical reaction rates at the anode and
cathode, and H2 is the only acceptable fuel. With high-temperature fuel cells (MCFC, ITSOFC,
and SOFC), the requirements for catalysis are relaxed, and the number of potential fuels expands.
Carbon monoxide "poisons" a noble metal anode catalyst such as platinum (Pt) in low-temperature

2-1

fuel cells, but it serves as a potential source of H2 in high-temperature fuel cells where non-noble
metal catalysts such as nickel (Ni) are used.

Note that H2, CO, and CH4 are shown in Table 2-1 as undergoing anodic oxidation. In actuality,
insignificant direct oxidation of the CO and CH4 may occur. It is common system analysis practice
to assume that H2, the more readily oxidized fuel, is produced by CO and CH4 reacting, at
equilibrium, with H2O through the water gas shift and steam reforming reactions, respectively.
The H2 calculated to be produced from CO and CH4, along with any H2 in the fuel supply stream,
is referred to as equivalent H2. The temperature and catalyst of present MCFCs provide the proper
environment for the water gas shift reaction to produce H2 and CO2 from CO and H2O. An MCFC
that reacts only H2 and CO is known as an external reforming (ER) MCFC. In an internal
reforming (IR) MCFC, the reforming reaction to produce H2 and CO2 from CH4 and H2O can
occur if a reforming catalyst is placed in proximity to the anode to promote the reaction. The direct
oxidation of CO and CH4 in a high-temperature SOFC is feasible without the catalyst, but again the
direct oxidation of these fuels is favored less than the water gas shift of CO to H2 and reforming of
CH4 to H2. These are critical arguments in determining the equations needed to describe the
electrical characteristics and the energy balance of the various type cells. It is fortunate that
converting CO and CH4 to equivalent H2, then reacting within the cell simplifies analysis while
accurately predicting the electrochemical behavior of the fuel cell.

Table 2-1 Electrochemical Reactions in Fuel Cells
Fuel Cell Anode Reaction Cathode Reaction
Proton Exchange
H2 2H+ + 2e- ½ O2 + 2H+ + 2e- H2O
Membrane and
Phosphoric Acid
Alkaline H2 + 2(OH)- 2H2O + 2e- ½ O2 + H2O + 2e- 2(OH)-
=
H2 + CO3 H2O + CO2 + 2e- ½ O2 + CO2 + 2e- =
CO3
Molten Carbonate CO + CO3 =
2CO2 + 2e-
H2 + O= H2O + 2e-
Solid Oxide CO + O= CO2 + 2e- ½ O2 + 2e- O=
=
CH4 + 4O 2H2O + CO2 + 8e-
CO - carbon monoxide e- - electron H2O - water
CO2 - carbon dioxide H+ - hydrogen ion O2 - oxygen
=
CO3 - carbonate ion H2 - hydrogen OH- - hydroxyl ion

The ideal performance of a fuel cell is defined by its Nernst potential represented as cell voltage.
The overall cell reactions corresponding to the individual electrode reactions listed in Table 2-1 are
given in Table 2-2, along with the corresponding form of the Nernst equation. The Nernst

2-2

equation provides a relationship between the ideal standard2 potential3 (E ) for the cell reaction and
the ideal equilibrium potential (E) at other temperatures and partial pressures of reactants and
products. Once the ideal potential at standard conditions is known, the ideal voltage can be
determined at other temperatures and pressures through the use of these equations. According to
the Nernst equation for hydrogen reaction, the ideal cell potential at a given temperature can be
increased by operating at higher reactant pressures, and improvements in fuel cell performance
have, in fact, been observed at higher pressures (see Sections 3 through 8).

The reaction of H2 and O2 produces H2O. When a carbon-containing fuel is involved in the anode
reaction, CO2 is also produced. For MCFCs, CO2 is required in the cathode reaction to maintain an
invariant carbonate concentration in the electrolyte. Because CO2 is produced at the anode and
consumed at the cathode in MCFCs, and because the concentrations in the anode and cathode feed
streams are not necessarily equal, the Nernst equation in Table 2-2 includes the CO2 partial
pressure for both electrode reactions.

Table 2-2 Fuel Cell Reactions and the Corresponding Nernst Equations

Cell Reactionsa Nernst Equation

H 2 + ½ O2 H2 O E = E + (RT/ 2F) ln [P H 2 / P H 2 O ] + (RT/ 2F) ln [P½ 2 ]
O

H 2 + ½ O2 + CO2 (c) E = E + (RT/ 2F) ln [P H2 / P H2 O (PCO2 )(a) ] +
H 2 O + CO2 (a) (RT/ 2F) ln [P½2 (PCO2 )( c ) ]
O

CO + ½ O2 CO2 E = E + (RT/ 2F) ln [PCO / PCO 2 ] + (RT/ 2F) ln [P½ 2 ]
O

CH 4 + 2 O2 2 H2 O + E = E + (RT/ 8F) ln [PCH 4 / P2 2 O PCO 2 ] + (RT/ 8F) ln [PO 2 ]
H
2

CO2
(a) - anode P - gas pressure
(c) - cathode R - universal gas constant
E - equilibrium potential T - temperature (absolute)

a - The cell reactions are obtained from the anode and cathode reactions listed in Table2-1.

The ideal standard potential of an H2/O2 fuel cell (Eo) is 1.229 volts with liquid water product
and 1.18 water with gaseous product. This value is shown in numerous chemistry texts (1) as the
oxidation potential of H2. The potential force also can be expressed as a change in Gibbs free
energy (Section 2.2.2) for the reaction of hydrogen and oxygen. It will be shown later in this
section that the change in Gibbs free energy increases as cell temperature decreases and that the
ideal potential of a cell, is proportional to the change in the standard Gibbs free energy.

2. Standard conditions are one atmosphere and 25°C (77°F).
3. The standard Nernst potential (E ) is the ideal cell voltage at standard conditions. It does not include losses that
are found in an operating fuel cell. Thus, it can be thought of as the open circuit voltage.

2-3

Figure 2-1 shows the relation of E to cell temperature. Because the figure shows the potential
of higher temperature cells, the ideal potential corresponds to a reaction where the water product
is in a gaseous state. Hence, E is less than 1.229 at standard conditions when considering
gaseous water product.

Reversible potential (V)
1.2
H
2 + 1
2 O
1.1 2
HO
2
(g)

1.0

300 400 500 600 700 800 900 1000 1100
Temperature (K)
Figure 2-1 H2/O2 Fuel Cell Ideal Potential as a Function of Temperature

The impact of temperature on the ideal voltage, E, for the oxidation of hydrogen is shown in
Table 2-3.

Table 2-3 Ideal Voltage as A Function of Cell Temperature

Temperature 25 C 80 C 100 C 205 C 650 C 800 C 1100 C
(298K) (353K) (273K) (478K) (923K) (1073K) (1373K)
Cell Type PEFC AFC PAFC MCFC ITSOFC SOFC
Ideal Voltage 1.18 1.17 1.14 1.03 0.91

2.1.2 Actual Performance
Large, complex computer models are used to characterize the actual operation of fuel cells based
on minute details of cell component design (physical dimensions, materials, etc.) along with
physical considerations (transport phenomena, electrochemistry, etc.). These codes, often
proprietary, are needed in the design and development of fuel cells, but would be cumbersome
and time consuming for use in system analysis models. Simpler approaches are normally used
for system studies. One approach, for example, would be to conduct tests at every condition
expected to be analyzed in the system; this would, however, be very costly. Instead, it is prudent
to develop correlations based on thermodynamic modeling that depict cell performance as
various cell operating conditions are changed, such as temperature, pressure, and gas
constituents. Thermodynamic modeling is used to depict the equations so that only a limited
number of tests are needed to define design constants within the equation. Adjustments can be

2-4

applied to a reference performance at known operating conditions to achieve the performance at
the desired operating conditions.

Useful work (electrical energy) is obtained from a fuel cell only when a reasonable current is
drawn, but the actual cell potential is decreased from its equilibrium potential because of
irreversible losses as shown in Figure 2-24. Several sources contribute to irreversible losses in a
practical fuel cell. The losses, which are often called polarization, overpotential, or overvoltage
( ), originate primarily from three sources: (1) activation polarization ( act), (2) ohmic
polarization ( ohm), and (3) concentration polarization ( conc). These losses result in a cell
voltage (V) for a fuel cell that is less than its ideal potential, E (V = E - Losses).

Theoretical EMF or Ideal Voltage
Region of Activation Polarization
(Reaction Rate Loss)
1.0 Total Loss
Cell Voltage

Region of
Concentration Polarization
(Gas Transport Loss)
Region of Ohmic Polarization
0.5 (Resistance Loss)

Operation Voltage, V, Curve
0
Current Density (mA/cm2)

Figure 2-2 Ideal and Actual Fuel Cell Voltage/Current Characteristic

The activation polarization loss is dominant at low current density. At this point, electronic
barriers have to be overcome prior to current and ion flow. Activation losses show some increase
as current increases. Ohmic polarization (loss) varies directly with current, increasing over the
whole range of current because cell resistance remains essentially constant. Gas transport losses
occur over the entire range of current density, but these losses become prominent at high limiting
currents where it becomes difficult to provide enough reactant flow to the cell reaction sites.

Activation Polarization: Activation polarization is present when the rate of an electrochemical
reaction at an electrode surface is controlled by sluggish electrode kinetics. In other words,
activation polarization is directly related to the rates of electrochemical reactions. There is a
close similarity between electrochemical and chemical reactions in that both involve an
activation barrier that must be overcome by the reacting species. In the case of an
electrochemical reaction with act > 50-100 mV, act is described by the general form of the
Tafel equation (see Section 2.2.4):

4
Activation region and concentration region more representative of low-temperature fuel cells.

2-5

RT i
act = ln (2-1)
nF io

where is the electron transfer coefficient of the reaction at the electrode being addressed, and io
is the exchange current density (see Section 2.2.4).

Ohmic Polarization: Ohmic losses occur because of resistance to the flow of ions in the
electrolyte and resistance to flow of electrons through the electrode materials. The dominant
ohmic losses, through the electrolyte, are reduced by decreasing the electrode separation and
enhancing the ionic conductivity of the electrolyte. Because both the electrolyte and fuel cell
electrodes obey Ohm's law, the ohmic losses can be expressed by the equation

ohm = iR (2-2)

where i is the current flowing through the cell, and R is the total cell resistance, which includes
electronic, ionic, and contact resistance.

Concentration Polarization: As a reactant is consumed at the electrode by electrochemical
reaction, there is a loss of potential due to the inability of the surrounding material to maintain
the initial concentration of the bulk fluid. That is, a concentration gradient is formed. Several
processes may contribute to concentration polarization: slow diffusion in the gas phase in the
electrode pores, solution/dissolution of reactants/products into/out of the electrolyte, or diffusion
of reactants/products through the electrolyte to/from the electrochemical reaction site. At
practical current densities, slow transport of reactants/products to/from the electrochemical
reaction site is a major contributor to concentration polarization:

RT i
conc = ln 1 (2-3)
nF iL

where iL is the limiting current (see Section 2.2.4).

2-6

Summing of Electrode Polarization: Activation and concentration polarization can exist at both
the positive (cathode) and negative (anode) electrodes in fuel cells. The total polarization at
these electrodes is the sum of act and conc, or

anode = act,a + conc,a (2-4)

and

cathode = act,c + conc,c (2-5)

The effect of polarization is to shift the potential of the electrode (Eelectrode) to a new value
(Velectrode):

Velectrode = Eelectrode + electrode (2-6)

For the anode,

Vanode = Eanode + anode (2-7)

and for the cathode,

Vcathode = Ecathode – cathode (2-8)

The net result of current flow in a fuel cell is to increase the anode potential and to decrease the
cathode potential, thereby reducing the cell voltage. Figure 2-3 illustrates the contribution to
polarization of the two half cells for a PAFC. The reference point (zero polarization) is
hydrogen. These shapes of the polarization curves are typical of other types of fuel cells.

2-7

700

ir)
600 ss (A
de Lo
Catho
500

Polarization (mV)
(O 2)
e Loss
Cathod
400

300

200

Loss
100 Electolyte IR
Anode Loss (H2)
0
0 200 400 600 800
Current density (mA/cm2)

Figure 2-3 Contribution to Polarization of Anode and Cathode

Summing of Cell Voltage: The cell voltage includes the contribution of the anode and cathode
potentials and ohmic polarization:

Vcell = Vcathode – Vanode – iR (2-9)

When Equations (2-7) and (2-8) are substituted in Equation (2-9)

Vcell = Ecathode – cathode – (Eanode + anode ) – iR (2-10)

or

Vcell = Ee – cathode – anode – iR (2-11)

where Ee = Ecathode – Eanode. Equation (2-11) shows that current flow in a fuel cell results in a
decrease in the cell voltage because of losses by electrode and ohmic polarizations. The goal of
fuel cell developers is to minimize the polarization so that Vcell approaches Ee. This goal is
approached by modifications to fuel cell design (improvement in electrode structures, better
electrocatalysts, more conductive electrolyte, thinner cell components, etc.). For a given cell
design, it is possible to improve the cell performance by modifying the operating conditions
(e.g., higher gas pressure, higher temperature, change in gas composition to lower the gas
impurity concentration). However, for any fuel cell, compromises exist between achieving
higher performance by operating at higher temperature or pressure and the problems associated
with the stability/durability of cell components encountered at the more severe conditions.

2-8

2.1.3 Fuel Cell Performance Variables
The performance of fuel cells is affected by operating variables (e.g., temperature, pressure, gas
composition, reactant utilizations, current density) and other factors (impurities, cell life) that
influence the ideal cell potential and the magnitude of the voltage losses described above. Any
number of operating points can be selected for application of a fuel cell in a practical system, as
illustrated by Figure 2-4.

Figure 2-4 Flexibility of Operating Points According to Cell Parameters

Figure 2-4 represents the characteristics of a fuel cell once its physical design is set. Changing
the cell operating parameters (temperature and pressure) can have either a beneficial or a
detrimental impact on fuel cell performance and on the performance of other system
components. These effects may be offsetting. Changes in operating conditions may lower the
cost of the cell, but increase the cost of the surrounding system. Usually, compromises in the
operating parameters are necessary to meet the application requirements, obtain lowest system
cost, and achieve acceptable cell life. Operating conditions are based on defining specific system
requirements, such as power level, voltage, or system weight. From this and through interrelated
cycle studies, the power, voltage, and current requirements of the fuel cell stack and individual
cells are determined. It is a matter of selecting a cell operating point (cell voltage and related
current density) as shown by Figure 2-4 until the system requirements are satisfied (such as
lowest cost, lightest unit, highest power density). For example, a design point at high current
density will allow a smaller cell size at lower capital cost to be used for the stack, but a lower
system efficiency results (because of the lower cell voltage) and attendant higher operating cost.
This type of operating point would be typified by a vehicle application where light weight and
small volume, as well as efficiency, are important drivers for cost effectiveness. Cells capable of
higher current density operation would be of prime interest. Operating at a lower current
density, but higher voltage (higher efficiency, lower operating cost) would be more suitable for
stationary power plant operation. Operating at a higher pressure will increase cell performance
and lower cost. However, there will be a higher parasitic power to compress the reactants, and
the cell stack pressure vessel and piping will have to withstand the greater pressure. This adds

2-9

cost. It is evident that the selection of the cell design point interacts with the system design (see
Section 9).

Figure 2-5 presents the same information as Figure 2-4, but in a way to highlight another aspect
of determining the cell design point. It would seem logical to design the cell to operate at the
maximum power density that peaks at a higher current density (right of the figure). However,
operation at the higher power densities will mean operation at lower cell voltages or lower cell
efficiency. Setting operation at the peak power density can cause instability in control because
the system will have a tendency to oscillate between higher and lower current densities around
the peak. It is usual practice to operate the cell to the left side of the power density peak and at a
point that yields a compromise between low operating cost (high cell efficiency that occurs at
high voltage/low current density) and low capital cost (less cell area that occurs at low
voltage/high current density).

0.80 400

Power Density, mW/cm2
Cell Voltage, volts

0.60 300

0.40 200

0.20 100

0.00 0
0 100 200 300 400 500 600
Current Density, mA/cm2

Figure 2-5 Voltage/Power Relationship

The equations describing performance variables, developed in Sections 3 through 8, address
changes in cell performance as a function of major operating conditions to allow the reader to
perform quantitative parametric analysis. The following discussion establishes the generic
equations of performance variables.

2-10

Temperature and Pressure: The effect of temperature and pressure on the ideal potential (E) of a
fuel cell can be analyzed on the basis of changes in the Gibbs free energy with temperature and
pressure.

E S
= (2-12)
T P nF

or

E V
= (2-13)
P T nF

Because the entropy change for the H2/O2 reaction is negative, the reversible potential of the H2/O2
fuel cell decreases with an increase in temperature by 0.84 mV/ C (assuming reaction product is
liquid water). For the same reaction, the volume change is negative; therefore, the reversible
potential increases with an increase in pressure.

The practical effect of temperature on the voltage of fuel cells is represented schematically in
Figure 2-6, which presents initial (i.e., early in life) performance data from typical operating cells
and the dependence of the reversible potential of H2/O2 fuel cells on temperature (3). The cell
voltages of PEFCs, PAFCs, and MCFCs show a strong dependence on temperature.5 The
reversible potential decreases with increasing temperature, but the operating voltages of these fuel
cells actually increase with an increase in operating temperature. PEFCs, however, exhibit a
maximum in operating voltage,6 as in Figure 2-6. The lower operating temperature of
state-of-the-art TSOFCs is limited to about 1000 C (1832 F) because the ohmic resistance of the
solid electrolyte increases rapidly as the temperature decreases. The cell is limited by material
concerns and fabrication processes at temperatures above 1000 C. Section 7 describes efforts to
develop ITSOFC, which operate at lower temperatures than TSOFCs – between approximately
650-800 C. The other types of fuel cells typically operate at voltages considerably below the
reversible cell voltage. The increase in performance is due to changes in the types of primary
polarizations affecting the cell as temperature varies. An increase in the operating temperature is
beneficial to fuel cell performance because of the increase in reaction rate, higher mass transfer
rate, and usually lower cell resistance arising from the higher ionic conductivity of the electrolyte.
In addition, the CO tolerance of electrocatalysts in low-temperature fuel cells improves as the
operating temperature increases. These factors combine to reduce the polarization at higher
temperatures.

5. The cell voltages are not taken at equal current densities. Absolute cell voltage should not be compared.
6. The cell voltage of PEFCs goes through a maximum as a function of temperature because of the difficulties
with water management at higher temperature. It may be possible to adjust operating conditions so that the
PEFC voltage will increase up to a temperature of ~140°C, the point at which the membrane degrades rapidly.

2-11

On the negative side, materials problems related to corrosion, electrode degradation, electrocatalyst
sintering and recrystallization, and electrolyte loss by evaporation are all accelerated at higher
temperatures.

Figure 2-6 Dependence of the Initial Operating Cell Voltage
of Typical Fuel Cells on Temperature (1)

An increase in operating pressure has several beneficial effects on fuel cell performance because
the reactant partial pressure, gas solubility, and mass transfer rates are higher. In addition,
electrolyte loss by evaporation is reduced at higher operating pressures. Increased pressure also
tends to increase system efficiencies. However, there are compromises such as thicker piping and
additional expense for the compression process. Section 9.2.1 addresses system aspects of
pressurization. The benefits of increased pressure must be balanced against hardware and
materials problems, as well as parasitic power costs. In particular, higher pressures increase
material problems in MCFCs (see Section 6.1), pressure differentials must be minimized to prevent
reactant gas leakage through the electrolyte and seals, and high pressure favors carbon deposition
and methane formation in the fuel gas.

Reactant Utilization and Gas Composition: Reactant utilization and gas composition have
major impacts on fuel cell efficiency. It is apparent from the Nernst equations in Table 2-2 that
fuel and oxidant gases containing higher partial pressures of electrochemical reactants produce a
higher cell voltage.

2-12

Utilization (U) refers to the fraction of the total fuel or oxidant introduced into a fuel cell that reacts
electrochemically. In low-temperature fuel cells, determining the fuel utilization is relatively
straightforward when H2 is the fuel, because it is the only reactant involved in the electrochemical
reaction,7 i.e.

H 2,in H 2,out H 2, consumed
Uf = = (2-14)
H 2,in H 2,in

where H2,in and H2,out are the mass flow rates of H2 at the inlet and outlet of the fuel cell,
respectively. However, hydrogen can be consumed by various other pathways, such as by
chemical reaction (i.e., with O2 and cell components) and loss via leakage out of the cell. These
pathways increase the apparent utilization of hydrogen without contributing to the electrical energy
produced by the fuel cell. A similar type of calculation is used to determine the oxidant utilization.
For the cathode in MCFCs, two reactant gases, O2 and CO2, are utilized in the electrochemical
reaction. The oxidant utilization should be based on the limiting reactant. Frequently O2, which is
readily available from make-up air, is present in excess, and CO2 is the limiting reactant.

A significant advantage of high-temperature fuel cells such as MCFCs is their ability to use CO as
a fuel. The anodic oxidation of CO in an operating MCFC is slow compared to the anodic
oxidation of H2; thus, the direct oxidation of CO is not favored. However, the water gas shift
reaction

CO + H2O = H2 + CO2 (2-15)

reaches equilibrium rapidly in MCFCs at temperatures as low as 650 C (1200 F) to produce H2.8
As H2 is consumed, the reaction is driven to the right because both H2O and CO2 are produced in
equal quantities in the anodic reaction. Because of the shift reaction, fuel utilization in MCFCs can
exceed the value for H2 utilization, based on the inlet H2 concentration. For example, for an anode
gas composition of 34% H2/22% H2O/13% CO/18% CO2/12% N2, a fuel utilization of 80% (i.e.,
equivalent to 110% H2 utilization) can be achieved even though this would require 10% more H2
(total of 37.6%) than is available in the original fuel. The high fuel utilization is possible because
the shift reaction provides the necessary additional H2 that is oxidized at the anode. In this case,
the fuel utilization is defined by

H 2, consumed
Uf = (2-16)
H 2,in + COin

7. Assumes no gas cross-over or leakage out of the cell.
8. Example 10-5 in Section 10 illustrates how to determine the amount of H2 produced by the shift reaction.

2-13

where the H2 consumed originates from the H2 present at the fuel cell inlet (H2,in) and any H2
produced in the cell by the water gas shift reaction (COin).

Gas composition changes between the inlet and outlet of a fuel cell, caused by the electrochemical
reaction, lead to reduced cell voltages. This voltage reduction arises because the cell voltage
adjusts to the lowest electrode potential given by the Nernst equation for the various gas
compositions at the exit of the anode and cathode chambers. Because electrodes are usually good
electronic conductors and isopotential surfaces, the cell voltage can not exceed the minimum
(local) value of the Nernst potential. In the case of a fuel cell with the flow of fuel and oxidant in
the same direction (i.e., coflow), the minimum Nernst potential occurs at the cell outlet. When the
gas flows are counterflow or crossflow, determining the location of the minimum potential is not
straightforward.

The MCFC provides a good example to illustrate the influence of the extent of reactant utilization
on the electrode potential. An analysis of the gas composition at the fuel cell outlet as a function of
utilization at the anode and cathode is presented in Example 10-5. The Nernst equation can be
expressed in terms of the mole fraction of the gases (Xi) at the fuel cell outlet:

½ ½
RT X H 2 X O 2 X CO 2 , cathode P
E Eo + ln
2F X H 2 O, anode X CO 2 , anode (2-17)

where P is the cell gas pressure. The second term on the right side of Equation (2-17), the
so-called Nernst term, reflects the change in the reversible potential as a function of reactant
utilization, gas composition, and pressure. Figure 2-7 illustrates the change in reversible cell
potential calculated as a function of utilization using Equation (2-17).

2-14

Figure 2-7 The Variation in the Reversible Cell Voltage
as a Function of Reactant Utilization

(Fuel and oxidant utilizations equal) in a MCFC at 650 C and 1 atm. Fuel gas: 80% H2/20% CO2
saturated with H2O at 25 C; oxidant gas: 60% CO2/30% O2/10% inert)

The reversible potential at 650 C (1200 F) and 1 atmosphere pressure is plotted as a function of
reactant utilization (fuel and oxidant utilizations are equal) for inlet gas compositions of 80%
H2/20% CO2 saturated with H2O at 25 C (77 F) (fuel gas9) and 60% CO2/30% O2/10% inerts
(oxidant gas); gas compositions and utilizations are listed in Table 2-4. Note that the oxidant
composition is based on a gas of 2/1 CO2 to O2. The gas is not representative of the cathode inlet
gas of a modern system, but is used for illustrative purposes only. The mole fractions of H2 and
CO in the fuel gas decrease as the utilization increases and the mole fractions of H2O and CO2
show the opposite trend. At the cathode, the mole fractions of O2 and CO2 decrease with an
increase in utilization because they are both consumed in the electrochemical reaction. The
reversible cell potential plotted in Figure 2-7 is calculated from the equilibrium compositions for
the water gas shift reaction at the cell outlet. An analysis of the data in the figure indicates that a
change in the utilization from 20 to 80% will cause a decrease in the reversible potential of about
0.158 V, or roughly 0.0026 V/% utilization. These results show that MCFCs operating at high
utilization will suffer a large voltage loss because of the magnitude of the Nernst term.

An analysis by Cairns and Liebhafsky (3) for a H2/air fuel cell shows that a change in the gas
composition that produces a 60 mV change in the reversible cell potential near room temperature
corresponds to a 300 mV change at 1200 C (2192 F). Thus, gas composition changes are more
significant in high temperature fuel cells.

9. Anode inlet composition is 64.5% H2/6.4% CO2/13% CO/16.1% H2O after equilibration by water gas shift reaction.

2-15

Current Density: Figure 2-4 depicts the impact of current density on the voltage (performance) of
a fuel cell. The effects on performance of increasing current density were addressed in
Section 2.1.2. That section described how activation, ohmic, and concentration losses occur as the
current is changed. Figure 2-2 is a simplified depiction of how these losses affect the shape of the
cell voltage-current characteristic. As current is initially drawn, sluggish kinetics (activation
losses) causes a decrease in cell voltage. At high current densities, there is an inability to diffuse
enough reactants to the reaction sites (concentration losses) so the cell experiences a sharp
performance decrease through reactant starvation. There also may be an associated problem of
diffusing the reaction products from the cell.

Table 2-4 Outlet Gas Composition as a Function of Utilization in MCFC at 650 C

Gas Utilizationa (%)
0 25 50 75 90
b
Anode
X H2 0.645 0.410 0.216 0.089 0.033
XCO2 0.064 0.139 0.262 0.375 0.436
XCO 0.130 0.078 0.063 0.033 0.013
XH2O 0.161 0.378 0.458 0.502 0.519
Cathodec
X CO2 0.600 0.581 0.545 0.461 0.316
XO2 0.300 0.290 0.273 0.231 0.158

a - Same utilization for fuel and oxidant. Gas compositions are given in mole fractions.
b - 80% H2/20% CO2 saturated with H2O at 25 C. Fuel gas compositions are based on
compositions for water-gas shift equilibrium.
c - 30% O2/60% CO2/10% inert gas. Gas is not representative of a modern system cathode inlet
gas, but used for illustrative purposes only.

Ohmic losses predominate in the range of normal fuel cell operation. These losses can be
expressed as iR losses where i is the current and R is the summation of internal resistances within
the cell, Equation (2-2). As is readily evident from the equation, the ohmic loss and hence voltage
change is a direct function of current (current density multiplied by cell area).

2.1.4 Cell Energy Balance
The information in the previous sections can be used to determine a mass balance around a fuel
cell and describe its electrical performance. System analysis requires an energy or heat balance
to fully understand the system. The energy balance around the fuel cell is based on the energy
absorbing/releasing processes (e.g., power produced, reactions, heat loss) that occur in the cell.
As a result, the energy balance varies for the different types of cells because of the differences in
reactions that occur according to cell type.

2-16

In general, the cell energy balance states that the enthalpy flow of the reactants entering the cell
will equal the enthalpy flow of the products leaving the cell plus the sum of three terms: (1) the
net heat generated by physical and chemical processes within the cell, (2) the dc power output
from the cell, and the rate of heat loss from the cell to its surroundings.

Component enthalpies are readily available on a per mass basis from data such as JANAF (4).
Product enthalpy usually includes the heat of formation in published tables. A typical energy
balance calculation is the determination of the cell exit temperature knowing the reactant
composition, the temperatures, H2 and O2 utilization, the expected power produced, and a
percent heat loss. The exit constituents are calculated from the fuel cell reactions as illustrated in
Example 10-3, Section 10.

2.2 Supplemental Thermodynamics
These supplemental thermodynamics are provided to support the performance trends developed
in Sections 2.1.2 and 2.1.3. The descriptions are not intended to be a detailed explanation.

2.2.1 Cell Efficiency
The thermal efficiency of an energy conversion device is defined as the amount of useful energy
produced relative to the change in stored chemical energy (commonly referred to as thermal
energy) that is released when a fuel is reacted with an oxidant.

Useful Energy
= (2-18)
H

Hydrogen (a fuel) and oxygen (an oxidant) can exist in each other’s presence at room
temperature, but if heated to 580 C, they explode violently. The combustion reaction can be
forced for gases lower than 580 C by providing a flame, such as in a heat engine. A catalyst and
an electrolyte, such as in a fuel cell, can increase the rate of reaction of H2 and O2 at
temperatures lower than 580°C. Note that a non-combustible reaction can occur in fuel cells at
temperatures over 580 C because of controlled separation of the fuel and oxidant. The heat
engine process is thermal; the fuel cell process is electrochemical. Differences in these two
methods of producing useful energy are the root of efficiency comparison issues.

In the ideal case of an electrochemical converter, such as a fuel cell, the change in Gibbs free
energy, G, (Section 2.2.3) of the reaction is available as useful electric energy at the
temperature of the conversion. The ideal efficiency of a fuel cell, operating irreversibly, is then

G
= (2-19)
H

The most widely used efficiency of a fuel cell is based on the change in the standard free energy
for the cell reaction,

2-17

H2 + 1/2 O2 H2O(l) (2-20)

given by

Gro o
GH 2 O ( o
GH 2 1 Go
) 2 o2

where the product water is in liquid form. At standard conditions of 25 C (298K) and
1 atmosphere, the chemical energy ( H Ho ) in the hydrogen/oxygen reaction is 285.8
kJ/mole, and the free energy available for useful work is 237.1 kJ/mole. Thus, the thermal
efficiency of an ideal fuel cell operating reversibly on pure hydrogen and oxygen at standard
conditions would be:

237.1
ideal 0.83
285.8

The efficiency of an actual fuel cell can be expressed in terms of the ratio of the operating cell
voltage to the ideal cell voltage. The actual cell voltage is less than the ideal cell voltage because
of the losses associated with cell polarization and the iR loss, as discussed in Section 2.1.2. The
thermal efficiency of the fuel cell can then be written in terms of the actual cell voltage,

Useful Energy Useful Power Voltsactual x Current (0.83)(Vactual )
(2-21)
H ( G/ 0.83) Voltsideal x Current / 0.83 Videal

As mentioned in Section 2.1.1, the ideal voltage of a cell operating reversibly on pure hydrogen
and oxygen at 1 atm pressure and 25ºC is 1.229 V. Thus, the thermal efficiency of an actual fuel
cell operating at a voltage of Vcell, based on the higher heating value of hydrogen, is given by

0.83 x Vcell / Videal 0.83 x Vcell / 1.229 0.675 x Vcell (2-22)
ideal

A fuel cell can be operated at different current densities, expressed as mA/cm2 or A/ft2. The
corresponding cell voltage then determines the fuel cell efficiency. Decreasing the current
density increases the cell voltage, thereby increasing the fuel cell efficiency. The trade-off is that
as the current density is decreased, the active cell area must be increased to obtain the requisite
amount of power. Thus, designing the fuel cell for higher efficiency increases the capital cost,
but decreases the operating cost.

Two additional aspects of efficiency are of interest: 1) the effects of integrating a fuel cell into a
complete system that accepts readily available fuels like natural gas and produces grid quality ac
power (see Section 9), and 2) issues arising when comparing fuel cell efficiency with heat engine
efficiency (see below).

2-18

It is interesting to observe that the resulting characteristic provides the fuel cell with a benefit
compared to other energy conversion technologies. The fuel cell increases its efficiency at part
load conditions.10 Other components within the fuel cell system operate at lower component
efficiencies as the system's load is reduced. The combination of increased fuel cell efficiency and
lower supporting component efficiencies can result in a rather flat trace of total system efficiency
as the load is reduced. Most competing energy conversion techniques experience a loss of
efficiency as the design point load is reduced. This loss, coupled with the same supporting
component losses of efficiency that the fuel cell system experiences, causes lower total efficiencies
as the load is reduced. This gives the fuel cell system an operating cost advantage for applications
where part load operation is important.

2.2.2 Efficiency Comparison to Heat Engines
It is commonly expressed that a fuel cell is more efficient than a heat engine because it is not
subject to Carnot Cycle limitations, or a fuel cell is more efficient because it is not subject to the
second law of thermodynamics. These statements are misleading. A more suitable statement for
understanding differences between the theoretical efficiencies of fuel cells and heat engines11 is
that if a fuel cell is compared to an equivalent efficiency heat engine, the fuel cell is not limited
by temperature as is the heat engine (5). The freedom from temperature limits of the fuel cell
provides a great benefit because it relaxes material temperature problems when trying to achieve
high efficiency.

2.2.3 Gibbs Free Energy and Ideal Performance
The maximum electrical work (Wel) obtainable in a fuel cell operating at constant temperature
and pressure is given by the change in Gibbs free energy ( G)12 of the electrochemical reaction,

Wel = G = n FE (2-23)

where n is the number of electrons participating in the reaction, F is Faraday's constant
(96,487 coulombs/g-mole electron), and E is the ideal potential of the cell. If we consider the
case of reactants and products being in the standard state, then

G = n FE (2-24)

10. Constraints can limit the degree of part load operation of a fuel cell. For example, a PAFC is limited to
operation below approximately 0.85 volts because of entering into a corrosion region.
11. It should be remembered that the actual efficiencies of heat engines and fuel cells are substantially below their
theoretical values.
12. Total energy is composed of two types of energy: 1) free energy, G, and unavailable energy, TS. Free energy
earns its name because it is the energy that is available or free for conversion into usable work. The unavailable
energy is unavailable for work because of the disorder or entropy of the system. Thus, G = H - TS. For changes
in free energy at constant T and P, the equation can be written as G = H - T S. This is an important equation
for chemical and physical reactions, for these reactions only occur spontaneously with a decrease in free energy,
G, of the total system of reactants and products.

2-19

where the superscript stands for standard state conditions (25 C or 298K and 1 atm).

The overall reactions given in Table 2-2 can be used to produce both electrical energy and heat.
The maximum work available from a fuel source is related to the free energy of reaction in the
case of a fuel cell, whereas the enthalpy (heat) of reaction is the pertinent quantity for a heat
engine, i.e.,

Gr Hr T Sr (2-25)

where the difference between Gr and Hr is proportional to the change in entropy ( Sr). This
entropy change is manifested in changes in the degrees of freedom for the chemical system being
considered. The maximum amount of electrical energy available is Gr, as mentioned above,
and the total thermal energy available is Hr. The amount of heat that is produced by a fuel cell
operating reversibly is T Sr. Reactions in fuel cells that have negative entropy change generate
heat, while those with positive entropy change may extract heat from their surroundings, if the
irreversible generation of heat is smaller than the reversible absorption of heat.

Differentiating Equation (2-25) with respect to temperature or pressure, and substituting into
Equation (2-23), yields

E S
= (2-26)
T P nF

or

E Volume
= (2-27)
P T nF

which are shown earlier in this section.

The reversible potential of a fuel cell at temperature T is calculated from G for the cell reaction
at that temperature. This potential can be computed from the heat capacities (Cp) of the species
involved as a function of T and from values of both S and H at one particular temperature,
usually 298K. Empirically, the heat capacity of a species, as a function of T, can be expressed as

Cp = a + bT + cT2 (2-28)

2-20

where a, b, and c are empirical constants. The difference in the heat capacities for the products
and reactants involved in the stoichiometric reaction is given by

2
Cp = a + bT + cT (2-29)

Because

T
HT = H + 298 Cp dT (2-30)

and, at constant pressure

T
Cp
ST = S + 298 dT (2-31)
T

then it follows that

HT = H + a(T 298) + 1 / 2 b(T 2 2982 ) + 1 / 3 c(T 3 2983 ) (2-32)

and

T
ST = S + a ln + b(T 298) + 1 / 2 c(T 2 2982 ) (2-33)
298

The coefficients a, b, and c (see Table 10-3), as well as S and H , are available from standard
reference tables, and may be used to calculate HT and ST. From these values it is then
possible to calculate GT and E.

Instead of using the coefficients a, b, and c, it is modern practice to rely on tables, such as
JANAF Thermochemical Tables (4) to provide Cp, HT, ST, and GT for a range of
temperatures of various reactants and products.

For the general cell reaction,

2-21

A B cC D (2-34)

the free energy change can be expressed by the equation:

c
[C ] [D ]
G = G + RT ln (2-35)
[A ] [B ]

When Equations (2-23) and (2-24) are substituted in Equation (2-35),

RT [A ] [B ]
E = E + ln c
(2-36)
nF [C ] [D ]

or

RT [reactant activity]
E = E + ln (2-37)
nF [product activity]

which is the general form of the Nernst equation. For the overall cell reaction, the cell potential
increases with an increase in the activity (concentration) of reactants and a decrease in the
activity of products. Changes in temperature also influence the reversible cell potential, and the
dependence of potential on temperature varies with the cell reaction. Figure 2-1 illustrates the
change in the reversible standard potential for the reaction:

H2 + ½O2 H2O (2-38)

The Nernst equations for this reaction, as well as for CO and CH4 reacting with O2, that can
occur in various fuel cells, are listed in Table 2-2.

2-22

2.2.4 Polarization: Activation (Tafel) and Concentration
To determine actual cell performance, three losses must be deducted from the Nernst potential:
activation polarization, ohmic polarization, and concentration polarization. Definition of the
ohmic polarization is simply the product of cell current and cell resistance. Both activation
polarization and concentration polarization required additional description for basic
understanding.

Activation Polarization: It is customary to express the voltage drop due to activation
polarization by a semi-empirical equation, called the Tafel equation (2). The equation for
activation polarization is shown by Equation (2-38):

RT i
act = ln (2-1)
nF io

where is the electron transfer coefficient of the reaction at the electrode being addressed, and io
is the exchange current density. Tafel plots provide a visual understanding of the activation
polarization of a fuel cell. They are used to measure the exchange current density [given by the
extrapolated intercept at act = 0 which is a measure of the maximum current that can be
extracted at negligible polarization (5)] and the transfer coefficient (from the slope).

The usual form of the Tafel equation that can be easily expressed by a Tafel Plot is

act = a + b log i (2-39)

where a = (-2.3RT/ nF) log io and b = 2.3RT/ nF. The term b is called the Tafel slope, and is
obtained from the slope of a plot of act as a function of log i. The Tafel slope for an
electrochemical reaction is about 100 mV/decade (log current density) at room temperature.
Thus, a tenfold increase in current density causes a 100 mV increase in the activation
polarization. Conversely, if the Tafel slope is only 50 mV/decade, then the same increase in
current density produces a 50 mV increase in activation polarization. Clearly, there exists a
strong incentive to develop electrocatalysts that yield a lower Tafel slope for electrochemical
reactions.

2-23

5.0

4.0
Exchange
Current

Log i (mA/cm2)
3.0

2.0

1.0

0.0
0 100 200 300
(mV)
Figure 2-8 Example of a Tafel Plot

The simplified description presented here did not consider the processes that give rise to
activation polarization, except for attributing it to sluggish electrode kinetics. A detailed
discussion of the subject is outside the scope of this presentation, but processes involving
absorption of reactant species, transfer of electrons across the double layer, desorption of product
species, and the nature of the electrode surface can all contribute to activation polarization.

Concentration Polarization: The rate of mass transport to an electrode surface in many cases
can be described by Fick's first law of diffusion:

n F D (C B CS )
i = (2-40)

where D is the diffusion coefficient of the reacting species, CB is its bulk concentration, CS is its
surface concentration, and is the thickness of the diffusion layer. The limiting current (iL) is a
measure of the maximum rate at which a reactant can be supplied to an electrode, and occurs
when CS = 0, i.e.,

n F DCB
iL = (2-41)

2-24

By appropriate manipulation of Equations (2-40) and (2-41),

CS i
= 1 (2-42)
CB iL

The Nernst equation for the reactant species at equilibrium conditions, or when no current is
flowing, is

RT
Ei 0 = E + ln CB (2-43)
nF

When current is flowing, the surface concentration becomes less than the bulk concentration, and
the Nernst equation becomes

RT
E = E + ln CS (2-44)
nF

The potential difference ( E) produced by a concentration change at the electrode is called the
concentration polarization:

RT CS
E = conc = ln (2-45)
nF CB

Upon substituting Equations (2-42) in (2-45), the concentration polarization is given by the
equation

RT i
conc = ln 1 (2-46)
nF iL

In this analysis of concentration polarization, the activation polarization is assumed to be
negligible. The charge transfer reaction has such a high exchange current density that the
activation polarization is negligible in comparison with the concentration polarization (most
appropriate for the high temperature cells).

2-25

2.3 References
1. P.W. Atkins, “Physical Chemistry,” 3rd Edition, W.H. Freeman and Company, New York,
NY, 1986.
2. S.N. Simons, R.B. King and P.R. Prokopius, in Symposium Proceedings Fuel Cells
Technology Status and Applications, Figure 1, p. 46, Edited by E.H. Camara, Institute of Gas
Technology, Chicago, IL, 45, 1982.
3. E.J. Cairns and H.A. Liebhafsky, Energy Conversion, p. 9, 63, 1969.
4. M.W. Chase, et al., “JANAF Thermochemical Tables,” Third Edition, American Chemical
Society and the American Institute of Physics for the National Bureau of Standards (now
National Institute of Standards and Technology), 1985.
5. “Fuel Cell Handbook,” J. Appleby and F. Foulkes, Texas A&M University, Van Nostrand
Reinhold, New York (out of print),republished by Krieger Publishing Co., Melbourne, FL,
1989.
6. W. Stanley Angrist, “Direct Energy Conversion,” Third Edition, Allyn and Bacon, Inc.
Boston, MA, date of publication unknown.

2-26

3. POLYMER ELECTROLYTE FUEL CELL

Polymer electrolyte fuel cells (PEFC) deliver high power density, which offers low weight, cost,
and volume. The immobilized electrolyte membrane simplifies sealing in the production
process, reduces corrosion, and provides for longer cell and stack life. PEFCs operate at low
temperature, allowing for faster startups and immediate response to changes in the demand for
power. The PEFC system is seen as the system of choice for vehicular power applications, but is
also being developed for smaller scale stationary power. For more detailed technical
information, there are excellent overviews of the PEFC (1, 2).

3.1 Cell Components
The use of organic cation exchange membrane polymers in fuel cells was originally conceived
by William T. Grubbs (3) in 1959. The desired function of the ion membrane was to provide an
ion conductive gas barrier. Strong acids were used to provide a contact between the adjacent
membrane and catalytic surfaces. During further development, it was recognized that the cell
functioned well without adding acid. As a result, present PEFCs do not use any electrolyte other
than the hydrated membrane itself (4). The basic cell consists of a proton conducting membrane,
such as a perfluorinated sulfonic acid polymer, sandwiched between two platinum impregnated
porous electrodes. The back of the electrodes is made hydrophobic by coating with an
appropriate compound, such as Teflon . This wet proof coating provides a path for gas diffusion
to the catalyst layer.

The electrochemical reactions of the PEFC are similar to those of the PAFC: hydrogen at the
anode provides a proton, freeing an electron in the process that must pass through an external
circuit to reach the cathode. The proton, which remains solvated with a certain number of water
molecules, diffuses through the membrane to the cathode to react with oxygen and the returning
electron (5). Water is subsequently produced at the cathode.

Because of the intrinsic nature of the materials used, low-temperature operation of approximately
80oC is possible. The cell also is able to sustain operation at very high current densities. These
attributes lead to a fast start capability and the ability to make a compact and lightweight cell (5).
Other beneficial attributes of the cell include no corrosive fluid hazard and lower sensitivity to
orientation. As a result, the PEFC is particularly suited for vehicular power application.
Transportation applications mean that the fuel of choice will probably be methanol (6), although
hydrogen storage on-board in the form of pressurized gas and the partial oxidation of gasoline
(1) is being considered. The cell also is being considered for stationary power application, which
will use natural gas or other hydrogen-rich gases.

3-1

The lower operating temperature of a PEFC results in both advantages and disadvantages. Low
temperature operation is advantageous because the cell can start from ambient conditions
quickly, especially when pure hydrogen fuel is available. It is a disadvantage in that platinum
catalysts are required to promote the electrochemical reaction. Carbon monoxide (CO) binds
strongly to platinum sites at temperatures below 150oC, which reduces the sites available for
hydrogen chemisorption and electro-oxidation. Due to CO affecting the anode, only a few ppm
of CO can be tolerated with the platinum catalysis at 80oC. Because reformed and shifted
hydrocarbons contain about one percent of CO, a mechanism to reduce the level of CO in the
fuel gas is needed. The low temperature of operation also means that little if any heat is
available from the fuel cell for any endothermic reforming process (2, 3).

Both temperature and pressure have a significant influence on cell performance; the impact of
these parameters will be described later. Present cells operate at 80oC, nominally, 0.285 MPa
(30 psig) (5), and a range of 0.10 to 1.0 MPa (10 to 100 psig). Using appropriate current
collectors and supporting structure, polymer electrolyte fuel cells and electrolysis cells should be
capable of operating at pressures up to 3000 psi and differential pressures up to 500 psi (4).

3.1.1 Water Management
Water is produced not as steam, but as liquid in a PEFC. A critical requirement of these cells is
maintaining a high water content in the electrolyte to ensure high ionic conductivity. The ionic
conductivity of the electrolyte is higher when the membrane is fully saturated, and this offers a
low resistance to current flow and increases overall efficiency. Water content in the cell is
determined by the balance of water or its transport during the reactive mode of operation.
Contributing factors to water transport are the water drag through the cell, back diffusion from
the cathode, and the diffusion of any water in the fuel stream through the anode. Water transport
is a function of cell current and the characteristics of the membrane and the electrodes. Water
drag refers to the amount of water that is pulled by osmotic action along with the proton (5).
Between 1 and 2.5 molecules are dragged with each proton (6). As a result, the ion exchanged
+
can be envisioned as a hydrated proton, H(H2O)n . The water drag increases at high current
density, and this makes the water balance a potential concern. During actual operation, however,
back diffusion of water from the cathode to the anode through the thin membrane results in a net
water transport of nearly zero (12, 7). Detailed modeling of the reactions and water balance is
beyond the scope of this handbook; References (8) and (9) should be reviewed for specific
modeling information.

Water management has a significant impact on cell performance, because at high current
densities mass transport issues associated with water formation and distribution limit cell output.
Without adequate water management, an imbalance will occur between water production and
evaporation within the cell. Adverse effects include dilution of reactant gases by water vapor,
flooding of the electrodes, and dehydration of the solid polymer membrane. The adherence of
the membrane to the electrode also will be adversely affected if dehydration occurs. Intimate
contact between the electrodes and the electrolyte membrane is important because there is no
free liquid electrolyte to form a conducting bridge. If more water is exhausted than produced,
then it is important to humidify the incoming anode gas. If there is too much humidification,
however, the electrode floods, which causes problems with diffusing the gas to the electrode. A
smaller current, larger reactant flow, lower humidity, higher temperature, or lower pressure will

3-2

result in a water deficit. A higher current, smaller reactant flow, higher humidity, lower
temperature, or higher pressure will lead to a water surplus. There have been attempts to control
the water in the cell by using external wicking connected to the membrane to either drain or
supply water by capillary action. Another alternative is to control the cell water content by
humidifying the incoming reactant gases (14). More reliable forms of water management also
are being developed based on continuous flow field design and appropriate operating
adjustments. A temperature rise can be used between the inlet and outlet of the flow field to
increase the water vapor carrying capacity of the gas streams. At least one manufacturer, Ballard
Power Systems of Canada, has demonstrated stack designs and automated systems that manage
water balances successfully.

3.1.2 State-of-the-Art Components
There has been an accelerated interest in polymer electrolyte fuel cells within the last few years,
which has led to improvements in both cost and performance. Development has reached the
point where motive power applications appear achievable at an acceptable cost for commercial
markets. Noticeable accomplishments in the technology, which have been published, have been
made at Ballard Power Systems. PEFC operation at ambient pressure has been validated for over
25,000 hours with a six-cell stack without forced air flow, humidification, or active cooling (17).
Complete fuel cell systems have been demonstrated for a number of transportation applications
including public transit buses and passenger automobiles. Recent development has focused on
cost reduction and high volume manufacture for the catalyst, membranes, and bipolar plates.
This coincides with ongoing research to increase power density, improve water management,
operate at ambient conditions, tolerate reformed fuel, and extend stack life. In the descriptions
that follow, Ballard Power Systems fuel cells are considered representative of the state-of-the-art.

Manufacturing details of the Ballard Power Systems cell and stack design are proprietary (18),
but the literature provides some information on the cell and stack design. An example schematic
of a manufacturer's cell is shown in Figure 3-1.

3-3

Figure 3-1 PEFC Schematic (19)

The standard electrolyte material presently used in PEFCs is a fully fluorinated Teflon-based
material produced by E.I. DuPont de Nemours for space application in the mid-1960s. The
DuPont electrolytes have the generic brand name Nafion , and the specific type used most often
in present PEFCs is membrane No. 117 (20). The Nafion membranes, which are fully
fluorinated polymers, exhibit exceptionally high chemical and thermal stability and are stable
against chemical attack in strong bases, strong oxidizing and reducing acids, H2O2, Cl2, H2, and
O2 at temperatures up to 125oC (21). Nafion consists of a fluoropolymer backbone, similar to
Teflon, upon which sulfonic acid groups are chemically bonded (22). DuPont fluorinated
electrolytes exhibited a substantial improvement in life over previous electrolytes and have
achieved over 50,000 hours of operation. The Dow Chemical Company has produced an
electrolyte membrane, the XUS 13204.10, which exhibits lower electrical resistance and permits
higher current densities than the Nafion membrane, particularly when used in thinner form (18).
These membranes exhibit good performance and stability, but their current price is deemed too
high for transportation markets. This has led to ongoing research into alternative materials.

The present electrodes are cast as thin films and bonded to the membrane. Low platinum loading
electrodes ( 0.60 mg Pt/cm2 cathode and 0.25 mg Pt/cm2, 0.12 mg Ru/cm2 anode) tested in the
Ballard Mark V stack have performed as well as current high platinum loading electrodes (4.0 to
8.0 mg Pt/cm2). These electrodes, which have been produced using a high-volume
manufacturing process, have achieved 600 mA/cm2 at 0.7 V. The equivalent platinum loading of
these electrodes is 1.5 g Pt/kW (23). To improve utilization of the platinum, a soluble form of
the polymer is incorporated into the porosity of the carbon support structure. This increases the
interface between the electrocatalyst and the solid polymer electrolyte. Two methods are used to
incorporate the polymer solution within the catalyst. In Type A, the polymer is introduced after
fabrication of the electrode; in Type B, it is introduced before fabrication. Performance of low
platinum loading electrodes (Type B) is shown in Figure 3-2.

3-4

0 500 1000 1500 2000
1.00 1

Type B cathode, 0.11 mgPt/cm^2
Cell Potential (V) 0.80 Type B cathode, 0.20 mgPt/cm^2 0.8

0.60 0.6

0.40 0.4

0.20 0.2

0.00 0
0 500 1000 1500 2000

Figure 3-2 Performance of Low Platinum Loading Electrodes (23)

Most PEFCs currently use machined graphite plates for current collection and distribution, gas
distribution, and thermal management. Cooling is accomplished by using a heat transfer fluid,
usually water, which is pumped through integrated coolers within the stack. The temperature
rise across the cell is kept to less than 10oC. Water-cooling and humidification are in series,
which results in a need for high quality water. The cooling unit of a cell can be integrated to
supply reactants to the membrane electrode assembly (MEA), remove reaction products from the
cell, and seal off the various media against each other and the outside (Figure 3-1). The
conducting parts of the frames are titanium; non-conducting parts are polysulfone (24).

The primary contaminants of a PEFC are carbon monoxide (CO), carbon dioxide (CO2), and the
hydrocarbon fuel. Reformed hydrocarbon fuels typically contain at least 1% CO. Even small
amounts of CO in the gas stream, however, will preferentially adsorb on the platinum catalyst
surface and block access of the hydrogen to the catalyst sites. Tests indicate that approximately
10 ppm of CO in the gas stream begins to impact cell performance (6, 25). Fuel processing can
reduce CO content to several ppm, but there are system costs associated with increased fuel
purification. Platinum/ruthenium catalysts that have intrinsic tolerance to CO are being
developed. These electrodes have been shown in controlled laboratory experiments to be CO
tolerant up to 200 ppm (26). Although much less significant than CO poisoning, CO2 affects
anode performance through the reaction of CO2 with adsorbed hydrides on platinum. This
reaction is the electrochemical equivalent of the water gas shift reaction.

A number of system approaches can be used to clean up the fuel feed. These include pressure
swing adsorption, membrane separation, methanation, and selective oxidation. Although
selective oxidation does not remove CO2, it is usually the preferred method for CO removal
because of the parasitic system loads and energy required by the other methods. In selective

3-5

oxidation, the reformed fuel is mixed with air or oxygen either before the fuel is fed into the cell
or within the stack itself. Current selective oxidation technology can reduce CO levels to <10
ppm, but this is difficult to maintain under actual operating conditions (26). Another approach
involves the use of a selective oxidation catalyst that is placed between the fuel stream inlet and
the anode catalyst. Introducing an air bleed to the fuel stream, however, appears to be the most
effective way to reduce CO to an acceptable level. Work is continuing to find approaches and
materials that are more tolerant of impurities in the fuel feed.

A number of technical and cost issues facing polymer electrolyte fuel cells at the present stage of
development have been recognized by managers and researchers (6, 27, 28, 29). These issues
concern the cell membrane, cathode performance, and cell heating limits.

The membranes used in the present cells are expensive and available only in limited ranges of
thickness and specific ionic conductivity. There is a need to lower the cost of the present
membranes and to investigate lower cost membranes that exhibit low resistivity. This is
particularly important for transportation applications where high current density operation is
needed. Cheaper membranes promote lower cost PEFCs and thinner membranes with lower
resistivities could contribute to power density improvement (29). It is estimated that the cost of
current membranes could fall (by one order of magnitude) if the market increased significantly
(by two orders of magnitude) (22).

There is some question of whether higher utilization of the catalyst is needed even though new
research has resulted in the loading being reduced to less than 1 mg/cm2. Some researchers cite a
need for higher utilization of catalysts, while others state that because only 10% of the cell
materials cost is tied up in catalyst, it is better to concentrate on the design of an effective
membrane and electrode assembly at this time (27).

Improved performance of the cathode when operating on air at high current densities is needed.
At higher current densities, there is a limiting gas permeability and/or ionic conductivity within
the catalyst layer. A nitrogen blanket forming on the gas supply side of the cathode is suspected
of creating additional limitations (6). There is a need to develop a cathode that lessens the
impact of the nitrogen blanket, increases the pressurization of the cell, or increases the ionic
conductivity of the cathode catalyst.

Local heating problems limit stack operation with air to a current density of approximately
2 A/cm2. Single cells have shown the capability to operate at higher current densities on pure
oxygen. It may be possible to increase current density and power density with better cooling.

3.1.3 Development Components
The primary focus of ongoing research is to improve the performance of the cell and lower its
cost. The principal areas of development are improving cell membranes, handling the CO in the
fuel stream, and refining electrode design. There has been an effort to incorporate system
requirements into the fuel cell stack in order to simplify the overall system. This work has
included a move toward operation with zero humidification at ambient pressure and direct fuel
use.

3-6

The Dow Chemical Company has developed the XUS 13204.10 membrane, which has been
reported to achieve higher performance than that obtained with Nafion membranes (Figure 3-3).
The Dow membrane, also a perfluorinated sulfonic acid, has a lower equivalent weight than
Nafion and is prepared with shorter anion-anion distances. Because of these characteristics, the
membrane has a slight increase in conductivity and water retention capability. Most of the
improvement in performance can be attributed to the Dow membrane being supplied at a
thickness of 2 mils, while the Nafion membrane is supplied at 7 mils thickness. DuPont is now
producing a membrane of 2 mils thickness that achieves the same performance as the top curve
in Figure 3-3 (30). Both the Nafion 117 and the Dow XUS 13204.10 membranes are, at present,
expensive and available only in limited ranges of thickness and specific ionic conductivity.
There is ongoing work to investigate alternative membranes that not only exhibit durability and
high performance, but also can be manufactured inexpensively at high volume. Work at Ballard
Advanced Materials Corporation has concentrated on developing low-cost membranes using
trifluorostyrene and substituted trifluorostyrene copolymeric compositions (17).

Cells were originally made with an unimpregnated electrode/Nafion electrolyte interface. This
was later replaced by a method where the proton conductor was impregnated into the active layer
of the electrode. This allowed reduced loading to 0.4 mg/cm2 while obtaining high power
density (16). The standard "Prototech" electrodes contained 10% Pt on carbon supports. Using
higher surface area carbon supported catalysts, researchers have tested electrodes with even
lower platinum loading, but having performance comparable to conventional electrodes. Los
Alamos National Laboratory has tested a cathode with a 0.12 mg Pt/cm2 loading, and Texas
A&M University has tested a cathode with a 0.05 mg Pt/cm2 loading. PSI Technology has
developed its own fabrication method that has achieved platinum loading also as low as 0.05
mg/cm2 (22). These laboratory scale tests have used electrodes produced manually. Work
continues to develop high-volume manufacturing techniques.

Figure 3-3 Multi-Cell Stack Performance on Dow Membrane (31)

3-7

Another approach has been developed to fabricate electrodes with loading as low as
0.1 mg Pt/cm2 (32). The electrode structure was improved by increasing the contact area
between the electrolyte and the platinum clusters. The advantages of this approach are that a
thinner catalyst layer of 2 to 3 microns and a uniform mix of catalyst and ionomer are produced.
For example, a cell with a Pt loading of 0.17 to 0.13 mg/cm2 has been fabricated. The cell
generated 3 A/cm2 at > 0.4V on pressurized O2 and 0.65 V at 1 A/cm2 on pressurized air (32,
33).

Stable performance was demonstrated to 4,000 hours with Nafion membrane cells having
0.13 mg Pt/cm2 and cell conditions of 2.4/5.1 atmospheres, H2/air, and 80oC (4000 hour
performance was 0.5 V at 600 mA/cm2). These results mean that the previous problem of water
management is not severe, particularly after thinner membranes of somewhat lower equivalent
weight have become available. Some losses may be caused by slow anode catalyst deactivation,
but it has been concluded that the platinum catalyst "ripening" phenomenon does not contribute
significantly to the long-term performance losses observed in PEFCs (5).

Research also has focused on developing low-cost, lightweight graphite materials that can be
used in place of expensive high purity graphite bipolar plates. Conductive plastics and plated
metals, such as aluminum and stainless steel, also are under consideration for this application,
but these materials are typically inferior to graphite plates because of contact resistance and
durability concerns (17). Stack operation has demonstrated the capability to decrease CO in a
methanol reformed gas (anode fuel supply stream) from 1% to approximately 10 ppm by a
selective oxidation process based on a platinum/alumina catalyst. But the performance of the
anode catalyst, though satisfactory, is impacted even by this low amount of CO. Research at
Los Alamos National Laboratory has demonstrated an approach to remedy this problem by
bleeding a small amount of air or oxygen into the anode compartment. Figure 3-4 shows that
performance equivalent to that obtained on pure hydrogen can be achieved with this approach. It
is assumed that this approach also would apply to a reformed natural gas fuel that incorporates
water gas shift to obtain CO levels of 1% into the fuel cell. This approach results in a loss of
fuel, which should not exceed 4%, provided that the reformed fuel gas can be limited to 1%
CO (6). Another approach is to develop a CO tolerant anode catalyst such as the
platinum/ruthenium electrodes currently under consideration. Platinum/ruthenium anodes have
allowed the cells to operate, with a low level air bleed, for over 3,000 continuous hours on
reformate fuel containing 10 ppm CO (23).

There is considerable interest in extending PEFC technology to the direct methanol and
formaldehyde electro-oxidation (34, 35). This requires Pt-based bi-metallic catalysts. Tests
have been conducted with gas diffusion type Vulcan XC-72/Toray support electrodes with Pt/Sn
(0.5 mg/cm2, 8% Sn) and Pt/Ru (0.5 mg/cm2, 50% Ru). The electrodes have Teflon content of
20% in the catalyst layer.

3-8

Figure 3-4 Effect on PEFC Performances of Bleeding Oxygen into the Anode
Compartment (5)

3.2 Performance
A summary of the performance levels achieved with PEFCs since the mid-1960s is presented in
Figure 3-5. Because of the changes in operating conditions involving pressure, temperature,
reactant gases, and other parameters, a wide range of performance levels can be obtained. The
performance of the PEFC in the U.S. Gemini Space Program was 37 mA/cm2 at 0.78 V in a 32-
cell stack that typically operated at 50oC and 2 atmospheres (1). Current technology yields
performance levels that are vastly superior. Results from Los Alamos National Laboratory show
that a performance of 0.78 V at about 200 mA/cm2 (3 atmospheres H2 and 5 atmospheres air) can
be obtained at 80oC in PEFCs containing a Nafion membrane and electrodes with a platinum
loading of 0.4 mg/cm2. Further details on PEFC performance developments with Nafion
membranes are presented by Watkins et al. (36).

3-9

Figure 3-5 Evolutionary Changes in PEFCs Performance [(a) H2/O2, (b) Reformate
Fuel/Air, (c) H2/Air)] [14, 37, 38]

Operating temperature has a significant influence on PEFC performance. An increase in
temperature lowers the internal resistance of the cell, mainly by decreasing the ohmic resistance
of the electrolyte. In addition, mass transport limitations are reduced at higher temperatures.
The overall result is an improvement in cell performance. Experimental data (39, 40) suggest a
voltage gain in the range of 1.1 mV to 2.5 mV for each degree (oC) of temperature increase.
Operating at higher temperatures also reduces the chemisorption of CO because this reaction is
exothermic. Improving the cell performance through an increase in temperature, however, is
limited by the high vapor pressure of water in the ion exchange membrane. This is due to the
membrane’s susceptibility to dehydration and the subsequent loss of ionic conductivity.

Operating pressure also impacts cell performance. The influence of oxygen pressure on the
performance of a PEFC at 93oC is illustrated in Figure 3-6 (42). An increase in the oxygen
pressure from 30 to 135 psig (3 to 10.2 atmospheres) produces an increase of 42 mV in the cell
voltage at 215 mA/cm2. According to the Nernst equation, the increase in the reversible cathode
potential that is expected for this increase in oxygen pressure is about 12 mV, which is
considerably less than the measured value. When the temperature of the cell is increased to
104oC, the cell voltage increases by 0.054 V for the same increase in oxygen pressure.
Additional data suggest an even greater pressure effect. A PEFC at 50oC and 500 mA/cm2 (41)
exhibited a voltage gain of 83 mV for an increase in pressure from 1 to 5 atmospheres. Another
PEFC at 80oC and 431 mA/cm2 (38) showed a voltage gain of 22 mV for a small pressure
increase from 2.4 to 3.4 atmospheres. These results demonstrate that an increase in the pressure
of oxygen results in a significant reduction in polarization at the cathode. Performance
improvements due to increased pressure must be balanced against the energy required to
pressurize the reactant gases. The overall system must be optimized according to output,
efficiency, cost, and size. Operating at pressure above ambient conditions would most likely be
reserved for stationary power applications.

3-10

Figure 3-6 Influence of O2 Pressure on PEFCs Performance (93 C, Electrode Loadings of
2 mg/cm2 Pt, H2 Fuel at 3 Atmospheres) [(42) Figure 29, p. 49]

Lifetime performance degradation is a key performance parameter in a fuel cell system, but the
causes of this degradation are not fully understood. The sources of voltage decay are kinetic or
activation loss, ohmic or resistive loss, loss of mass transport, or loss of reformate tolerance (17).

Currently, the major focus of R&D on PEFC technology is to develop a fuel cell system for
terrestrial transportation applications, which requires the development of low-cost cell
components. Reformed methanol is expected to be a major fuel source for PEFCs in
transportation applications. Because the operating temperature of PEFCs is much lower than that
of PAFCs, poisoning of the anode electrocatalyst by CO from steam reformed methanol is a
concern. The performance achieved with a proprietary anode in a PEFC with four different
concentrations of CO in the fuel gas are shown in Figure 3-7. The graph also shows that at
higher current densities, the poisoning effect of CO is increased. At these higher current
densities, the presence of CO in the fuel causes the cell voltage to become unstable and cycle
over a wide range. Additional data (43) have suggested that the CO tolerance of a platinum
electrocatalyst can be enhanced by increasing either the temperature or the pressure. As
mentioned in Section 3.1.3, developers have designed systems to operate with reformed fuels
containing CO, but these system "fixes" reduce efficiency.

3-11

Figure 3-7 Cell Performance with Carbon Monoxide in Reformed Fuel (44)

3.3 Direct Methanol Proton Exchange Fuel Cell
The large potential market for fuel cell vehicle applications has generated a strong interest in a
fuel cell that can run directly on methanol. Operation on liquid fuel would assist in rapid
introduction of fuel cell technology into commercial markets, because it would greatly simplify
the on-board system as well as reduce the infrastructure needed to supply fuel to passenger cars
and commercial fleets. Performance levels achieved with a direct methanol PEFC using air are
now in the range of 180 mA/cm2 to 250 mA/cm2 (17). Problems with methanol crossover and
high overpotentials still inhibit performance. Research has focused on finding more advanced
electrolyte materials to combat fuel crossover and more active anode catalysts to promote
methanol oxidation. Significant progress has been made over the past few years in both of these
key areas.

Improvements in solid polymer electrolyte materials have extended the operating temperatures of
direct methanol PEFCs from 60oC to almost 100oC. Electrocatalyst developments have focused
on materials that have higher intrinsic activity. Researchers at the University of Newcastle upon
Tyne have reported over 200 mA/cm2 at 0.3 V at 80oC with platinum/ruthenium electrodes
having platinum loading of 3.0 mg/cm2. The Jet Propulsion Laboratory in the U.S. has reported
over 100 mA/cm2 at 0.4 V at 60oC with platinum loading of 0.5 mg/cm2. Recent work at
Johnson Matthey has clearly shown that platinum/ruthenium materials possess substantially
higher intrinsic activity than platinum alone (45).

3-12

All fuel cells exhibit kinetic losses that cause the electrode reactions to deviate from their
theoretical ideal. This is particularly true for a direct methanol PEFC. Eliminating the need for a
fuel reformer, however, makes methanol and air PEFCs an attractive alternative to PEFCs that
require pure hydrogen as a fuel. The minimum performance goal for direct methanol PEFC
commercialization is approximately 200 mW/cm2 at 0.5 to 0.6 V.

Figure 3-8 summarizes the performance recently achieved by developers.

Figure 3-8 Single Cell Direct Methanol Fuel Cell Data (45)

3-13

3.4 References
1. A.J. Appleby, E.B. Yeager, Energy, pg. 11, 137, 1986.
2. S. Gottesfeld, T. Zawodzinski, PEFC Chapter in Advances in Electrochemical Science and
Engineering, Volume 5, edited by R. Alkire, H. Gerischer, D. Kolb, C. Tobias, pp. 197-301,
1998.
3. W.T. Grubb, Proceedings of the 11th Annual Battery Research and Development Conference,
PSC Publications Committee, Red Bank, NJ, p. 5, 1957; U.S. Patent No. 2,913,511, 1959.
4. H. Grune, 1992 Fuel Cell Seminar Program and Abstracts, The Fuel Cell Seminar Organizing
Committee, November 29 - December 2, 1992, Tucson, Arizona, p. 161, 1992.
5. J. C. Amphlett, M. Farahani, R. F. Mann, B. A. Peppley, P. R. Roberge, in Proceedings of the
26th Intersociety Energy Conversion Engineering Conference, August 4-9, 1991, Volume 3,
Conversion Technologies/Electrochemical Conversion, American Nuclear Society, La
Grange, Illinois, p. 624, 1991.
6. S. Gottesfeld, "Polymer Electrolyte Fuel Cells: Potential Transportation and Stationary
Applications," No. 10, An EPRI/GRI Fuel Cell Workshop on Technology Research and
Development, Stonehart Associates, Madison, Connecticut, 1993.
7. W. Teagan, J. Bentley, "Status: ADL/EPYX Fuel Processing Technology," joint
DOE/EPRI/GRI Workshop on Fuel Cell Technology, San Francisco, CA, May 18-20, 1998.
8. M. Krumpelt, K. M. Myles, No. 8, An EPRI/GRI Fuel Cell Workshop on Technology
Research and Development, April 13-14, 1993, Stonehart Associates, Madison, Connecticut,
1993.
9. M. Krumpelt, R. Kumar, J. Miller, C. Christianson, in 1992 Fuel Cell Seminar Program and
Abstracts, The Fuel Cell Seminar Organizing Committee, November 29 - December 2, 1992,
Tucson, Arizona, p. 35, 1992.
10. T.G. Coker, A.B. LaConti, L.J. Nuttall, in Proceedings of the Symposium on Membranes and
Ionic and Electronic Conducting Polymers, edited by E.G. Yeager, B. Schumm, K. Mauritz,
K. Abbey, D. Blankenship, J. Akridge, The Electrochemical Society, Inc., Pennington, NJ,
p. 191, 1983.
11. N. Giordano et al., in Proceedings 26th Intersociety Energy Conversion Engineering
Conference, August 4-9, 1991, Volume 3, Conversion Technologies/Electrochemical
Conversion, American Nuclear Society, La Grange, Illinois, p. 624, 1991.
12. T.A. Zawodzinski et al., Journal of Electrochemical Society, p. 140, 1042, 1993.
13. T.E. Springer et al., Journal of Electrochemical Society, p. 138, 2335, 1991.
14. D.M. Bernardi, Journal of Electrochemical Society, p. 137, 3344, 1990.
15. T.E. Springer, M. S. Wilson, S. Gottesfeld, "Modeling and Experimental Diagnostics in
Polymer Electrolyte Fuel Cells," submitted to J. ElectroChem. Soc., LA-UR-93-1469 Los
Alamos National Laboratory, New Mexico, 1993.
16. T.G. Coker, A.B. LaConti, L.J. Nuttall, in Proceedings of the Symposium on Membranes and
Ionic and Electronic Conducting Polymers, edited by E.G. Yeager, B. Schumm, K. Mauritz,
K. Abbey, D. Blankenship, J. Akridge, The Electrochemical Society, Inc., Pennington, NJ, p.
191, 1983.
17. D. Wilkinson, A. Steck, "General Progress in the Research of Solid Polymer Fuel Cell
Technology at Ballard," Proceedings of the Second International Symposium on New
Materials for Fuel Cell and Modern Battery Systems, Montreal, Quebec, Canada, July 6-10,
1997.
18. N.E. Vanderborgh, M.C. Kimble, J.R. Huff, J.C. Hedstrom, in 27th Intersociety Energy

3-14

Conversion Engineering Conference Proceedings, Volume 3, Conversion
Technologies/Electrochemical Conversions, San Diego, CA August 3-7, 1992, published by
Society of Automotive Engineers, Inc., Warrendale, PA, 407, 1992.
19. K. Strasser, in 26th Intersociety Energy Conversion Engineering Conference Proceedings,
Volume 3, Conversion Technologies/Electrochemical Conversion, Boston, Massachusetts,
August 4-9, 1991, published by Society of Automotive Engineers, Inc., Warrendale, PA,
1991.
20. Ballard, J. of Power Sources, pp. 29 239-250, 1990.
21. W.G.F. Grot, G.E. Munn, P.N. Walmsley, paper presented at the 141st National Meeting of
the Electrochemical Society, Inc., Houston, TX, May 7-11, 1972; Abstract No. 154.
22. T. Ralph, "Proton Exchange Membrane Fuel Cells: Progress in Cost Reduction of the Key
Components," Platinum Metals Review, 41, pp. 102-113, 1997.
23. T. Ralph, G. Hards, J. Keating, S. Campbell, D. Wilkinson, M. Davis, J. St. Pierre, M.
Johnson, "Low Cost Electrodes for Proton Exchange Membrane Fuel Cells: Performance in
Single Cells and Ballard Stacks," J. Electrochemical Society, Volume 144, No. 11, November
1997.
24. V. Peinecke, K. Ledjeff, A. Heinzel, in 1992 Fuel Cell Seminar Program and Abstracts,
Tucson, Arizona, November 29 - December 2, 1992, sponsored by Fuel Cell Seminar
Organizing Committee, p. 171, 1992.
25. "Investigation of Design and Manufacturing Methods for Low-Cost Fabrication of High
Efficiency, High Power Density PEM Fuel Cell Power Plant," prepared by International Fuel
Cells, Final Report FCR-11320A, June 10, 1991.
26. D. Wilkinson, D. Thompsett, "Materials and Approaches for CO and CO2 Tolerance for
Polymer Electrolyte Membrane Fuel Cells," Proceedings of the Second International
Symposium on New Materials for Fuel Cell and Modern Battery Systems, pp. 266-285,
(Montreal, Quebec, Canada, July 6-10, 1997).
27. K. Sikairi, K. Tsurumi, S. Kawaguchi, M. Watanabe, P. Stonehart, in 1992 Fuel Cell Seminar
Program and Abstracts, Tucson, AZ, November 29 - December 2, 1992, sponsored by Fuel
Cell Organizing Committee, p. 153, 1992.
28. S. Srinivasan, O.A. Velev, A. Parthasarathy, A.C. Ferriera, S. Mukerjee, M. Wakizoe,
Y.W. Rho, Y.T. Kho, A.J. Appleby, in 1992 Fuel Cell Seminar Program and Abstracts,
Tucson, Arizona November 29 - December 2, 1992, sponsored by Fuel Cell Organizing
Committee, p. 619, 1992.
29. F.N. Buchi, B. Gupta, M. Rouilly, P.C. Hauser, A. Chapiro, G.G. Scherer, in 27th Intersociety
Energy Conversion Engineering Conference Proceedings, Volume 3, Conversion
Technologies/Electrochemical Conversions, San Diego, CA, August 3-7, 1992, published by
Society of Automotive Engineers, Inc., Warrendale, PA, 419, 1992.
30. T.A. Zawodzinski, T.A. Springer, F. Uribe, S. Gottesfeld, "Characterization of Polymer
Electrolytes for Fuel Cell Applications," Solid State Tonics 60, pp. 199-211, North-Holland,
1993.
31. K. Prater, "The Renaissance of the Solid Polymer Fuel Cell," Ballard Power Systems, Inc.,
Journal of Power Sources, p. 29, 1990.
32. M.S. Wilson, T.E. Springer, T.A. Zawodzinski, S. Gottesfeld, in 26th Intersociety Energy
Conversion Engineering Conference Proceedings, Volume 3, Conversion
Technologies/Electrochemical Conversion, Boston, Massachusetts, August 4-9, 1991,
published by Society of Automotive Engineers, Inc., Warrendale, PA, 1991.

3-15

33. C. Derouin, T. Springer, F. Uribe, J. Valerio, M. Wilson, T. Zawodzinski, S. Gottesfeld, in
1992 Fuel Cell Seminar Program and Abstracts, Tucson AZ, November 29 - December 2,
1992, sponsored by Fuel Cell Organizing Committee, p. 615, 1992.
34. P.D. Naylor, P.J. Mitchell, P.L. Adcock, in 1992 Fuel Cell Seminar Program and Abstracts,
Tucson, AZ, November 29 - December 2, 1992, sponsored by Fuel Cell Organizing
Committee, 575, 1992.
35. S.R. Narayanan, E. Vamos, H. Frank, S. Surampudi, G. Halpert, in 1992 Fuel Cell Seminar
Program and Abstracts, Tucson, AZ, November 29 - December 2, 1992, sponsored by Fuel
Cell Organizing Committee, p. 233, 1992.
36. D. Watkins, K. Dircks, E. Epp, A. Harkness, Proceedings of the 32nd International Power
Sources Symposium, The Electrochemical Society, Inc., Pennington, NJ, p. 590, 1986.
37. J. R. Huff, "Status of Fuel Cell Technologies," Fuel Cell Seminar Abstracts, Fuel Cell
Seminar, October 26-29, 1986, Tucson, AZ.
38. D. Watkins, K. Dircks, E. Epp, A. Harkness, Proceedings of the 32nd International Power
Sources Symposium, The Electrochemical Society, Inc., Pennington, NJ, p. 590, 1986.
39. J.C. Amphlett, et al., "The Operation of a Solid Polymer Fuel Cell: A Parametric Model,"
Royal Military College of Canada.
40. K. Ledjeff, et al., "Low Cost Membrane Fuel Cell for Low Power Applications,"
Fraunhofer-Institute for Solar Energy Systems, Program and Abstracts, 1992 Fuel Cell
Seminar.
41. J. Srmivason, et al., "High Energy Efficiency and High Power Density Proton Exchange
Membrane Fuel Cells - Electrode Kinetics and Mass Transport," Journal of Power Sources, p.
36, 1991.
42. A. LaConti, G. Smarz, F. Sribnik, "New Membrane-Catalyst for Solid Polymer Electrolyte
Systems," Final Report prepared by Electro-Chem Products, Hamilton Standard for Los
Alamos National Laboratory under Contract No. 9-X53-D6272-1, 1986.
43. "Investigation of Design and Manufacturing Methods for Low-Cost Fabrication of High
Efficiency, High Power Density PEM Fuel Cell Power Plant," IFC/LANL, Final Report
FCR-11320A, 1991.
44. A. LaConti, G. Smarz, F. Sribnik, "New Membrane-Catalyst for Solid Polymer Electrolyte
Systems," Final Report prepared by Electro-Chem Products, Hamilton Standard for Los
Alamos National Laboratory under Contract No. 9-X53-D6272-1, 1986.
45 M. Hogarth, G. Hards, "Direct Methanol Fuel Cells: Technological Advances and Further
Requirements," Platinum Metals Review, 40, pp. 150-159, 1996.

3-16

4. ALKALINE FUEL CELL

The Alkaline Fuel Cell (AFC) was one of the first modern fuel cells to be developed, beginning
in 1960. The application at that time was to provide on-board electric power for the Apollo
space vehicle. Desirable attributes of the AFC include its excellent performance on hydrogen
(H2) and oxygen (O2) compared to other candidate fuel cells due to its active O2 electrode
kinetics and its flexibility to use a wide range of electrocatalysts, an attribute which provides
development flexibility.

The AFC fuel cell developed for space application was based, in large part, on work initiated by
F.T. Bacon (1) in the 1930s. By 1952 construction and performance testing of a 5-kW alkaline
fuel cell , operations on H2 and O2, was completed. The fuel cell developed by Bacon operated
at 200 to 240oC with 45% KOH, and the pressure was maintained at 40 to 55 atm to prevent the
electrolyte from boiling. At these relatively high temperature and pressure operating conditions,
performance of the Bacon cell was quite good (0.78 volts at 800 mA/cm2). The anode consisted
of a dual-porosity Ni electrode (two layer structure with porous Ni of 16 m maximum pore
diameter on the electrolyte side and 30 m pore diameter on the gas side), and the cathode
consisted of a porous structure of lithiated NiO. The three phase boundary in the porous
electrodes was maintained by a differential gas pressure across the electrode since a wetproofing
agent was not available at that time, i.e., PTFE as a wetproofing material did not exist, and it
would not be stable in the high temperature alkaline solution (2).

The kinetics of O2 reduction in alkaline electrolytes are more favorable than in H3PO4. Consider
a Pt cathode (0.25 mg/cm2) in 30% KOH at 70oC and in 96% H3PO4 at 165oC. The cathode
potentials (vs RHE) at 100 mA/cm2 in these two electrolytes are 0.868 and 0.730 mV,
respectively, according to data reported by Appleby (Figure 2.15-1 in Reference 3). Various
explanations have been advanced for the higher O2 reduction rates in alkaline electrolytes (4),
these explanations are outside the scope of the present discussions. The practical consequence of
the higher performance of Pt cathodes in alkaline electrolytes is that AFC’s are capable of higher
efficiencies than PAFC’s at a given current density, or higher power densities at the same
efficiency. It is estimated (2) that the efficiency of AFC’s on pure H2 is about 60% and that of
PAFC’s is about 50%, based on the HHV of H2.

4-1

Fig 4-1 is a schematic depicting the operating configuration of the alkaline fuel cell (Siemens).
The half-cell reactions are:

O2 + 2H2O + 4e 4OH (Cathode) (4-1)

H2 + 2OH 2H2O + 2e (Anode) (4-2)

Hydroxyl ions are the conducting species in the electrolyte and the net cell reaction is:

2H2 + O2 2H2O + electric energy + heat (4-3)

Figure 4-1 Principles of Operation of Alkaline Fuel Cells (Siemens)

In many cell designs, the electrolyte is circulated (mobile electrolyte) so that heat can be
removed and water eliminated by evaporation (6). Since KOH has the highest conductance
among the alkaline hydroxides, it is the preferred electrolyte. Approximately of the water
formed at the anode migrates across the electrolyte and exits in the cathode.

4-2

4.1 Cell Components

The electrolyte in the AFC is concentrated (85 wt%) KOH in cells designed for operation at high
temperature (~260oC), or less concentrated (35-50 wt%) KOH for lower temperature (<120oC)
operation. The electrolyte is retained in a matrix (usually asbestos), and a wide range of
electrocatalysts can be used (e.g., Ni, Ag, metal oxides, spinels and noble metals).

The AFC modules used in the U.S. Apollo Space Program were cylindrical and had a 57 cm
diameter, a 112 cm height, weighed about 110 kg, produced a peak power of 1.42 kW at 27-31
V, and were operated at an average power of 0.6 kW. These cells utilized pure H2 and O2 and
concentrated electrolyte (85% KOH) to permit cell operation at a lower pressure ( 60 psia
reactant gas pressure) without electrolyte boiling. With this concentrated electrolyte, the cell
performance was not as high as in the less concentrated electrolyte, consequently the operating
temperature was increased to 260oC. The typical performance of this AFC cell was 0.85 V at
150 mA/cm2, comparing favorably to the performance of the Bacon cell operating at about
10 times higher pressure.

The alkaline fuel cells in the Space Shuttle Orbiter are rectangular in cross-section with a width
of 38 cm, a length of 101 cm, and a height of 35 cm. They weigh 91 kg produce a peak power of
12 kW at 27.5 V, and operate at an average power of 7 kW. They operate in the same pressure
range as the Apollo program cells, but at a lower temperature (80 to 90oC) and a higher current
density (470 mA/cm2 at 0.86 V). The electrodes contained high loadings of noble metals. 80%
Pt - 20% Pd anodes were loaded at 10 mg/cm2 on Ag-plated Ni screen. 90% Au - 10% Pt
cathodes were loaded at 20 mg/cm2 on Ag-plated Ni screen. Both were bonded with PTFE to
achieve high performance at the lower temperature of 80 to 90oC. A wide variety of materials
(e.g., potassium titanate, ceria, asbestos, zirconium phosphate gel) have been used in the
microporous separators for AFC’s. The electrolyte is 35% KOH and is replenished via a
reservoir on the anode side. Gold-plated magnesium is used for the bipolar plates. A brief
survey of the advanced technology components in AFC’s for space applications is given by
Sheibley and Martin (7).

One manufacturer reported cell power densities of 4.3 w/cm2 at a cell voltage of 0.8 V with an
advanced space application cell configuration incorporating a 50 m thick electrolyte matrix.

AFC’s for remote applications (i.e., space, undersea, military) are not strongly constrained by
cost. On the other hand, the consumer and industrial markets require the development of low
cost components if the AFC is to successfully compete with alternative technologies. Much of
the recent interest in AFC’s for mobile and stationary terrestrial applications has addressed the
development of low cost cell components. In this regard, carbon based porous electrodes play a
prominent role.

An advanced cell configuration for underwater application has been developed using high-
surface-area Raney nickel anodes loaded at 120 mg/cm2 (1-2% Ti) and Raney silver cathodes
loaded at 60 mg/cm2 containing small amounts of Ni, Bi, and Ti (6).

4-3

Once development of alkaline cells was underway for space application, terrestrial applications
began to be investigated. Developers recognized that pure hydrogen would be required in the
fuel stream. This is because the CO2 in any reformed fuel reacts with the potassium hydroxide
(KOH) electrolyte to form a solid carbonate, destroying the electrolyte's ion mobility. Pure H2
could be supplied to the anode by passing a reformed, H2-rich fuel stream through a precious
metal (palladium/silver) membrane. The H2 molecule is able to pass through the membrane by
absorption and mass transfer, and into the fuel cell anode. However, a significant pressure
differential is required across the membrane and the membrane is prohibitive in cost. Even the
small amount of CO2 in ambient air, the source of O2 for the reaction, would have to be scrubbed
with an immobile electrolyte cell. Investigations soon showed that scrubbing the small amount
of CO2 in the air, coupled with purification of the hydrogen, is not cost effective, thus limiting
practical use of AFC’s to special terrestrial applications.

A significant cost advantage of alkaline fuel cells is that both anode and cathode reactions can be
effectively catalyzed with nonprecious, relatively inexpensive metals. To date, most low cost
catalyst development work has been directed towards Raney nickel powders for anodes and
silver-based powders for cathodes. The essential characteristics of the catalyst structure are high
electronic conductivity and stability (mechanical, chemical, and electrochemical).

Electrode development is concentrated on multi-layered structures with porosity characteristics
optimized for flow of liquid electrolytes and gases (H2 and O2). Both metallic (typically
hydrophobic) and carbon-based (typically hydrophilic) electrode structures are being
investigated. Development of low cost manufacturing processes including powder mixing and
pressing of carbon-based electrodes, sedimentation and spraying and high-temperature sintering
operations continues. Detailed information on these processes can be found in references 8, 9,
10 and 11.

AFC electrolyte development has been restricted to KOH water solutions with normalities
ranging from 6 to 8. The two variants are pumped electrolytes (primarily for cooling) and
immobile electrolytes contained in a matrix layer similar to the PAFC. Use of less expensive
NaOH has been considered, but minimal cost advantages appear to be far outweighed by
performance and lifetime characteristics of KOH.

The focus on AFC stack development is directed toward reducing space, weight and cost. Epoxy
resins, polysulfone and ABS (acrylonytril-butadiene-styrene) have been under investigation.
Framing techniques under continuing development include injection molding, filter pressing or
welding. More detailed information on fuel cell stack development can be found in references
10 and 12.

4-4

4.2 Performance
Performance of AFC’s since 1960 has undergone many changes, as evident in the performance
data in Figure 4-2 (13). The early AFC’s were operated at relatively high temperatures and
pressures to meet the requirements for space applications, as discussed above. More recently, a
major focus of the technology is for terrestrial applications where low cost components operating
at near-ambient temperature and pressure with air as the oxidant are desirable. This shift in the
fuel cell operating parameters has resulted in the lower performance shown in Figure 4-2.

Figure 4-2 Evolutionary Changes in the Performance of AFC’s (13)

4.2.1 Effect of Pressure
As in the case of PAFC discussed in the previous section, an increase in cell operating pressure
enhances performance of AFC’s. Figure 4-3 presents a plot of the increase in the reversible
e.m.f. of alkaline cells with pressure over a wide range of temperatures (14). The increase in cell
open circuit voltage will be somewhat less because of the greater gas solubility at increasing
pressure which produces higher lost currents.

4-5

Figure 4-3 Reversible Voltage of The Hydrogen-Oxygen Cell (14)

At an operating temperature (T), the change in voltage ( VP) as a function of pressure (P) can be
expressed fairly accurately using the expression:

VP (mV) = .15 T (oK) log (P2/P1) (4-4)

over the entire range of pressures and temperatures shown in Fig. 4-3. In this expression P2 and
P1 are different pressures.

In order to achieve faster kinetics, operating temperatures higher than 100oC accompanied by
higher pressures are used. Spacecraft fuel cells have been operated for over 5,000 hours at
200oC at 50 atm achieving HHV efficiencies exceeding 60% (15, 16). It should be noted that a
pressure increase beyond about 5 atm produces improvements which are usually outweighed by
a significant weight increase required to sustain the higher operating pressure. For space
applications, weight is critical.

4-6

4.2.2 Effect of Temperature
Figure 2-1 shows that the reversible cell potential for a fuel cell consuming H2 and O2 decreases
by 0.27 mV/oC under standard conditions where the reaction product is water vapor. However,
as is the case in PAFC’s, an increase in temperature improves cell performance because
activation polarization, mass transfer polarization, and ohmic losses are reduced.

The improvement in air performance of catalyzed carbon based (0.5 mg Pt/cm2) porous cathodes
with cell temperature is illustrated in Figure 4-4 (17). As expected, the electrode potential at a
given current density decreases at lower temperatures, and the decrease is more significant at
higher current densities. In the temperature range of 60 to 90oC, the cathode performance
increases by about 0.5 mV/oC at 50 to 150 mA/cm2.

Figure 4-4 Influence of Temperature on O2, (air) Reduction in 12 N KOH.
Source: Fig. 10, p. 324, reference (17).

Early data by Clark et al. (18) indicated a temperature coefficient for AFC’s at 50-70oC of about
3 mV/oC at 50 mA/cm2, and cells with higher polarization had higher temperature coefficients
under load. Later measurements by McBreen et al. (19) on H2/air single cells (289 cm2 active
area, carbon based Pd anode and Pt cathode) with 50% KOH showed that the temperature
coefficient above 60oC was considerably lower than that obtained at lower temperatures as
shown in Figure 4-5. The McBreen data suggest the following expression for evaluating the
change in voltage ( VT) as a function of temperature (T) at 100 mA/cm2:

Vt (mV) = 4.0 (T2-T1) for T 63oC (4-5)
or

4-7

Vt (mV) = 0.7 (T2-T1) for T > 63oC (4-6)

Figure 4-5 Influence of Temperature on the AFC Cell Voltage
Source: Figure 6, p. 889, reference (19).

Reasonable performance is exhibited by alkaline cells operated at low temperatures (room
temperature up to about 70oC). This is because the conductivity of KOH solutions is relatively
high at low temperatures. For instance an alkaline fuel cell designed to operate at 70oC will
reduce to only half power level when its operating temperature is reduced to room temperature
(20).

4.2.3 Effect of Reactant Gas Composition
Pure hydrogen and oxygen are required to operate an AFC. Reformed H2 or air containing even
trace amounts of CO2 will dramatically affect performance and lifetime as described in the
following section.

4.2.4 Effect of Impurities
AFCs suffer a drastic performance loss with fuels containing CO2 from reformed fuels, and from
the presence of CO2 in air (approximately 350 ppm CO2 in ambient air). The negative impact of
CO2 arises from its reaction with OH¯ ;

4-8

=
CO2 + 2OH¯ CO3 + H2O (4-7)

producing the following effects: 1) reduced OH¯ concentration interfering with kinetics,
2) electrolyte viscosity increase resulting in lower diffusion rate and lower limiting currents, 3)
precipitation of carbonate salts in the pores of the porous electrode, 4) reduced oxygen solubility,
and 5) reduced electrolyte conductivity. The influence of CO2 on air cathodes (0.2 mg Pt/cm2
supported on carbon black) in 6 N KOH at 50oC can be ascertained by analysis of the
performance data presented in Figure 4-6 (21). To obtain these data, the air electrodes were
operated continuously at 32 mA/cm2, and current-voltage performance curves were periodically
measured. Performance in both CO2 free air and CO2 containing air show evidence of
degradation with time. However, with CO2 free air the performance remains much more nearly
constant with 2000 to 3000 hour operation.

Figure 4-6 Degradation in AFC Electrode Potential with CO2 Containing and CO2 Free Air
Source: Figure 2, p. 381, reference (21)

Higher concentrations of KOH are also detrimental to the life of O2 electrodes operating with
CO2 containing air, but operating the electrode at higher temperature is beneficial because it
increases the solubility of CO2 in the electrolyte. Modifying the operating conditions can
prolong electrode life, but it is clear from the results in Figure 4-6 that the life expectancy of air
cathodes is lowered by the presence of CO2. Extensive studies by Kordesch et al. (21) indicate
that the operational life of air electrodes (PTFE-bonded carbon electrodes on porous nickel
substrates) with CO2 containing air in 9 N KOH at 65oC ranges from 1600 to 3400 hours at a

4-9

current density of 65 mA/cm2. The life of these electrodes with CO2 free air tested under similar
conditions ranged from 4000 to 5500 hours. It has been reported (2) that a lifetime of 15,000
hours has been achieved with AFC’s, and failure at this time is by attack of the cell frames.

4.2.5 Effects of Current Density
As in the case with PAFC’s, voltage obtained from an AFC is affected by ohmic, activation, and
concentration losses. Figure 4-7 presents data obtained in the 1960's (18) which summarizes
these effects, excluding ohmic losses, for a catalyzed reaction (0.5-2.0 mg noble metal/cm2) with
carbon-based porous electrodes for H2 oxidation and O2 reduction in 9 N KOH at 55-60oC. The
electrode technology was similar to that employed in the fabrication of PAFC electrodes.
Performance of AFC’s with carbon-based electrodes has not changed dramatically since these
early results were obtained.

Figure 4-7 iR Free Electrode Performance with O2 and Air in 9 N KOH at 55 to 60oC.
Catalyzed (0.5 mg Pt/cm2 Cathode, 0.5 mg Pt-Rh/cm2 Anode) Carbon-based Porous
Electrodes (18)

4-10

The results in Figure 4-7 yield the following current density equations for cells operating in 9 N
KOH at 55-60oC:

VJ (mV) = .18 J for J = 40 - 100 mA/cm2 operating in O2 (4-8)
or
VJ (mV) = .31 J for J = 40 - 100 mA/cm2 operating in air. (4-9)

The performance of a single cell with supported noble metal electrocatalysts (0.5 mg Pt-Rh/cm2
anode, 0.5 mg Pt/cm2 cathode) in 12 N KOH at 65oC is shown in Figure 4-8 (17). These results
reported in 1986 are comparable to those obtained in 1965. The iR free electrode potentials (vs
RHE) at 100 mA/cm2 in Figure 4-8 are 0.9 V with O2 and 0.85 V with air. One major difference
between the early cathodes and the cathodes in current use is the limiting current for O2
reduction from air has been improved (i.e., 100-200 mA/cm2 improved to >250 mA/cm2).

These results yield the following equations for cells operating in 12 N KOH at 65oC:

VJ (mV) = .025 J for J = 50 - 200 mA/cm2 operating in O2 (4-10)
or
VJ (mV) = .047 Jfor J = 50 - 200 mA/cm2 operating in air. (4-11)

Figure 4-8 iR Free Electrode Performance with O2 and Air in 12 N KOH at 65oC.
Catalyzed (0.5 mg Pt/cm2 Cathode, 0.5 mg Pt-Rh/cm2 Anode), Carbon-based Porous Electrodes 17),

4-11

4.2.6 Effects of Cell Life
AFC cell stacks have demonstrated sufficiently stable operation for at least 5000 hours, with
degradation rates of 20 V per hour or less (20). Siemens has reported a total of >8000
operating hours with approximately 20 units (22). For large scale utility applications, economics
demand operating times exceeding 40,000 hours which presents perhaps the most significant
obstacle to commercialization of AFC devices in the realm of interest to the DOE Stationary
Electric Power Program.

4.3 Summary of Equations for AFC
The preceding sections described parametric performance based on various referenced data at
differing cell conditions. It is suggested that the following set of equations be used unless the
reader prefers other data or rationale.

Parameter Equation Comments

Pressure VP (mV) = .15 T (oK) log (P2/P1) 1 atm P 100 atm (4-4)
100 oC T 300 oC

Temperature VT (mV) = 4.0 (T2-T1) for T 63oC, at 100 mA/cm2 (4-5)

Temperature VT (mV) = 0.7 (T2-T1) for T > 63oC, at 100 mA/cm2 (4-6)

Current Density VJ (mV) = .18 J for J = 40-100 mA/cm2 operating in O2 (4-8)
with 9 N KOH at 55-60oC.

VJ (mV) = .31 J for J = 40-100 mA/cm2 operating in air (4-9)
with 9 N KOH at 55-60oC.

VJ (mV) = .025 J for J = 40-100 mA/cm2 operating in O2 (4-10)
with 12 N KOH at 65oC.

VJ (mV) = .047 J for J = 40-100 mA/cm2 operating in air (4-11)
with 12 N KOH at 65oC.

Life Effects VLifetime (mV) = 20 V per hour or less (4-12)

4.4 References
1. F.T. Bacon, Electrochim. Acta, 14, 569, 1969.
2. J. O'M Bockris and A.J. Appleby, Energy, 11, 95, 1986.
3. A.J. Appleby, Energy, 11, 13, 1986.
4. K.F. Blurton and E. McMullin, Energy Conversion, 9, 141, 1969.
5. Courtesy of Siemens Corp.
6. K. Strasser, J. Power Sources 29, 152-153, 1990.
7. D.W. Sheibley and R.A. Martin, Prog. Batteries Solar Cells, 6, 155, 1987.
8. K. V. Kordesch, J. Electrochem. Soc. 125, 77C-91C, 1978.
9. G. Sanstede, ed., From Electrocatalysis to Fuel Cells, The University of Washington Press,
Seattle and London, 1972.
10. K. Strasser, J. Electrochem. Soc. 127, 2173-2177, 1980.

4-12

11. K.V. Kordesch, Brennstoffbatterien, Springer-Verlag, New York, 1984.
12. H. van den Broeck, G. van Bogaert, G. Vennekens, L. Vermeeren, F. Vlasselaer, J.
Lichtenberg, W. Schlösser, A. Blanchart, Proc. 22nd IECEC Meeting, 1005, Philadelphia,
1987.
13. J. Huff, paper presented at the 1986 "Status of Fuel Cell Technologies", Fuel Cell Seminar
Abstracts, Fuel Cell Seminar, Tucson, AZ, October 26-29, 1986.
14. 14. A.M. Adams, F.T. Bacon and R.G.H. Watson, Fuel Cells (W. Mitchell, ed.), Academic
Press, New York, 138,1963.
15. S.S. Penner, ed., Assessment of Research Needs for Advanced Fuel Cells, DOE/ER/300.60-
T1, US DOE, 1985.
16. Fuel Cell Seminar Abstracts, Long Beach, CA; sponsored by the National Fuel Cell
Coordinating Group, October 23-26, 1988.
17. K. Tomantschger, F. McClusky, L. Oporto, A. Reid and K. Kordesch, J. Power Sources, 18,
317, 1986.
18. M.B. Clark, W.G. Darland and K.V. Kordesch, Electrochem. Tech., 3, 166, 1965.
19. J. McBreen, G. Kissel, K.V. Kordesch, F. Kulesa, E.J. Taylor, E. Gannon and S. Srinivasan,
in Proceedings of the 15th Intersociety Energy Conversion Engineering Conference, Volume
2, American Institute of Aeronautics and Astronautics, New York, NY, 886, 1980.
20. J.M.J. Blomen and M.N. Mugerwa ed., Fuel Cell Systems, Plenum Press, New York and
London, 251, 1993.
21. K. Kordesch, J. Gsellmann and B. Kraetschmer, in Power Sources, 9, Edited by J.
Thompson, Academic Press, New York, NY, 379, 1983.
22. K. Strasser, L. Blume and W. Stuhler, Fuel Cell Seminar Program and Abstracts, Long
Beach, CA; sponsored by the National Fuel Cell Coordinating Group, October 23-26, 1988.

4-13

5. PHOSPHORIC ACID FUEL CELL

Discussions with the only U.S. PAFC manufacturer justified the direct use of the PAFC
performance information from the 1994 edition of the Fuel Cell Handbook. There have been only
minor changes in cell performance, mostly due to changing the operating conditions of the cell.
These are considered within the performance trends shown in this section. The manufacturer has
concentrated on improving cell stability and life, and in improving the system components to
improve reliability and lower cost. It should be noted that the performance shown in this section is
based on information from contracts that the manufacturer had with the Department of Energy or
outside institutions. Any new PAFC performance has been accomplished with company funding
and is considered proprietary by the manufacturer (1).

The phosphoric acid fuel cell (PAFC) is the only fuel cell technology that is in commercialization.
There are over 75 MW of demonstrators, worldwide, that have been tested, are being tested, or are
being fabricated. Most of the plants are in the 50 to 200 kW capacity range, but large plants of
1 MW and 5 MW have been built. The largest plant operated to date achieved 11 MW of grid
quality ac power (2, 3). Major efforts in the U.S. are concentrated on the improvement of PAFCs
for stationary dispersed power plants and on-site cogeneration power plants. The major industrial
participants are International Fuel Cells Corporation in the U.S. and Fuji Electric Corporation,
Toshiba Corporation, and Mitsubishi Electric Corporation in Japan. In this section, the status of
the cell components and the performance of PAFCs are discussed.

The electrochemical reactions occurring in PAFCs are

H2 2 H + + 2e- (5-1)

at the anode, and

1
2 O2 2H 2e H 2O (5-2)

5-1

at the cathode. The overall cell reaction is

1
2 O2 H2 H 2O (5-3)

The electrochemical reactions occur on highly dispersed electrocatalyst particles supported on
carbon black. Platinum (Pt) or Pt alloys are used as the catalyst at both electrodes.

5.1 Cell Components

The evolution from 1965 to the present day in the development of cell components for PAFCs is
summarized in Table 5-1. In the mid-1960s, the conventional porous electrodes were
polytetrafluoroethylene (PTFE)-bonded Pt black, and the loadings were about 9 mg Pt/cm2.
During the past two decades, Pt supported on carbon black has replaced Pt black in porous
PTFE-bonded electrode structures as the electrocatalyst. A dramatic reduction in Pt loading has
also occurred; the loadings13 are currently about 0.10 mg Pt/cm2 in the anode and about 0.50 mg
Pt/cm2 in the cathode. The operating temperatures and acid concentrations of PAFCs have
increased to achieve higher cell performance; temperatures of about 200 C (392 F) and acid
concentrations of 100% H3PO4 are commonly used today. In addition, the operating pressure of
PAFCs surpassed 8 atm in the 11 MW electric utility demonstration plant.

One of the major breakthroughs in PAFC technology that occurred in the late 1960s was the
development of carbon black and graphite for cell construction materials; these developments are
reviewed by Appleby (4) and Kordesch (5). It was shown at that time that carbon black and
graphite were sufficiently stable to replace the more expensive gold-plated tantalum cell hardware.
The use of high-surface-area carbon black to support Pt permitted a dramatic reduction in Pt
loading, without sacrificing electrode performance. It has been reported (4) that "without carbon, a
reasonably inexpensive acid fuel cell would be impossible, since no other material combines the
necessary properties of electronic conductivity, good corrosion resistance, low density, surface
properties (especially in high area form) and, above all, low cost." However, carbon corrosion and
Pt dissolution become problematic at cell voltages above ~0.8 V; consequently, low current
densities with cell voltage above 0.8 and hot idle at open circuit potential are to be avoided.

The porous electrodes used in PAFCs are described extensively in the patent literature (6); see also
the review by Kordesch (5). These electrodes contain a mixture of the electrocatalyst supported on
carbon black and a polymeric binder, usually PTFE (about 30 to 50 wt%). The PTFE binds the
carbon black particles together to form an integral (but porous) structure, which is supported on a
porous carbon paper substrate. The carbon paper serves as a structural support for the
electrocatalyst layer, as well as the current collector. A typical carbon paper used in PAFCs has an

13. Assuming a cell voltage of 750 mV at 205 mA/cm2 (approximate 11 MW design) and the current Pt loadings
at the anode and cathode, ~54 g Pt is required per kilowatt of power generated.

5-2

Table 5-1 Evolution of Cell Component Technology for Phosphoric Acid Fuel Cells

Component ca. 1965 ca. 1975 Current Status
Anode PTFE-bonded Pt black PTFE-bonded Pt/C PTFE-bonded Pt/C
Vulcan XC-72a Vulcan XC-72a
9 mg/cm2 0.25 mg Pt/cm2 0.1 mg Pt/cm2
Cathode PTFE-bonded Pt black PTFE-bonded Pt/C PTFE-bonded Pt/C
Vulcan XC-72a Vulcan XC-72a
9 mg/cm2 0.5 mg Pt/cm2 0.5 mg Pt/cm2
Electrode Ta mesh screen Carbon paper Carbon paper
Support
Electrolyte glass fiber paper PTFE-bonded SiC PTFE-bonded SiC
Support
Electrolyte 85% H3PO4 95% H3PO4 100% H3PO4

a - Conductive oil furnace black, product of Cabot Corp. Typical properties:
002 d-spacing of 3.6 Å by X-ray diffusion, surface area of 220 m2/g by nitrogen
adsorption, and average particle size of 30 m by electron microscopy.

initial porosity of about 90%, which is reduced to about 60% by impregnation with 40 wt% PTFE.
This wet proof carbon paper contains macropores of 3 to 50 m diameter (median pore diameter of
about 12.5 m) and micropores with a median pore diameter of about 34 Å for gas permeability.
The composite structure consisting of a carbon black/PTFE layer on carbon paper substrate forms a
stable, three-phase interface in the fuel cell, with H3PO4 electrolyte on one side (electrocatalyst
side) and the reactant gas environment on the other side of the carbon paper.

A bipolar plate serves to separate the individual cells and electrically connect them in series in a
fuel cell stack (Figure 1-4). In some designs, the bipolar plate also contains the gas channels for
introducing the reactant gases to the porous electrodes and removing the products and inerts.
Bipolar plates made from graphite resin mixtures that are carbonized at low temperature
(~900 C/1652 F) are not suitable because of their rapid degradation in PAFC operating
environments (7 and 8). However, corrosion stability is improved by heat treatment to 2700 C
(4892 F) (8), i.e., the corrosion current is reduced by two orders of magnitude at 0.8 V in 97%
H3PO4 at 190 C (374 F) and 4.8 atm (70.5 psi). The all-graphite bipolar plates are sufficiently
corrosion resistant for a projected life of 40,000 hours in PAFCs, but they are still relatively costly
to produce.

Several designs for the bipolar plate and ancillary stack components are used by fuel cell
developers, and these are described in detail (9, 10, 11, and 12). A typical PAFC stack contains

5-3

cells connected in (electrical) series to obtain the practical voltage level desired for delivery to the
load. In such an arrangement, individual cells are stacked with bipolar plates between the cells.
The bipolar plates used in early PAFCs consisted of a single piece of graphite with gas channels
machined on either side to direct the flow of fuel and oxidant gases in adjacent cells. Currently,
both bipolar plates of the previous design and new designs consisting of several components are
being considered. In the multi-component bipolar plates, a thin impervious plate separates the
reactant gases in adjacent cells in the stack, and separate porous plates with ribbed channels are
used to direct gas flow. In a cell stack, the impervious plate is subdivided into two parts, and each
joins one of the porous plates. The porous structure, which allows rapid gas permeability, is also
used to store additional acid to replenish the supply lost by evaporation during the cell operating
life.

In PAFC stacks, provisions must be included to remove heat generated during cell operation. Heat
has been removed by either liquid (two-phase water or a dielectric fluid) or gas (air) coolants that
are routed through cooling channels located (usually about every fifth cell) in the cell stack. Liquid
cooling requires complex manifolds and connections, but better heat removal is achieved than with
air cooling. The advantage of gas cooling is its simplicity, reliability, and relatively low cost.
However, the size of the cell is limited, and the air-cooling passages are much larger than the
liquid- cooling passages.

Improvements in the state-of-the-art of phosphoric acid cells are illustrated by Figure 5-1. The
performance by the ~1 m2 (10 ft2) short stack, (f), results in a power density of nearly
0.31 W/cm2.

Figure 5-1 Improvement in the Performance of H2-Rich Fuel/Air PAFCs

5-4

a - 1977: 190 C, 3 atm, Pt loading of 0.75 mg/cm2 on each electrode (13)
b - 1981: 190 C, 3.4 atm, cathode Pt loading of 0.5 mg/cm2 (14)
c - 1981: 205 C, 6.3 atm, cathode Pt loading of 0.5 mg/cm2 (14)
d - 1984: 205 C, 8 atm, electrocatalyst loading was not specified (15)
e - 1992: 205 C, 8 atm, 10 ft2 short stack, 200 hrs, electrocatalyst loading not
specified (16)
f - 1992: 205 C, 8 atm, subscale cells, electrocatalyst loading not specified (16)

Phosphoric acid electrode/electrolyte technology has reached a level of maturity where developers
and users commit resources to commercial capacity, multi-unit demonstrations and pre-prototype
installations. Cell components are being manufactured at scale and in large quantities with
confidence of meeting predicted performance. However, for the technology to achieve economic
competitiveness with other energy technologies, there is a need to further increase the power
density of the cells and reduce costs (17 and 18), which are interrelated. Fuel cell developers
continue to address these issues. A thorough description of development components is beyond
the scope of this handbook. The interested reader is referred to full texts such as the Fuel Cell
Handbook (12), which describes many research activities and is well referenced.

In 1992, the International Fuel Cells Corporation completed a government-sponsored, advanced
water-cooled PAFC development project to improve the performance and lower the cost of its
atmospheric and pressurized technology for on-site and utility applications (16). The project
focused on five major activities: 1) produce a conceptual design of a large stack with a goal of
175 WSF (0.188 W/cm2), 40,000 hour useful life, and a stack cost of less than $400/kW; 2) test
pressurized Configuration "B" single cells developed in a previous program, but improved with
proprietary design advances in substrates, electrolyte reservoir plates, catalysts, seals, and
electrolyte matrix to demonstrate the 175 WSF (0.188 W/cm2) power density goal; 3) test a
pressurized short stack with subscale size, improved component cells and additional improvements
in the integral separators and coolers to confirm the stack design; 4) test a pressurized short stack
of improved full-size cell components, nominal 10 ft2 size (approximately 1 m2), to demonstrate
the 175 WSF (0.188 W/cm2) power density goal; and 5) test an advanced atmospheric "on-site"
power unit stack with the improved components.

A conceptual design of an improved technology stack operating at 120 psi (8.2 atm) and 405 F
(207 C) was produced based on cell and stack development and tests. The stack was designed for
355 10 ft2 (approximately 1 m2) cells to produce over 1 MW dc power in the same physical
envelope as the 670 kW stack used in the 11 MW PAFC plant built for Tokyo Electric Power. The
improvements made to the design were tested in single cells, and in subscale and full size short
stacks.

Table 5-2 summarizes the results. Single cells achieved an initial performance of 0.75 volts/cell at
a current density of 400 ASF (431 mA/cm2), 8.2 atm and 207 C condition which was 300 WSF
(0.323 W/cm2), well above the project goal. Several cells were operated to 600 ASF
(645 mA/cm2), achieving up to 0.66 volts/cell. The flat plate component designs were verified in a
subscale stack prior to fabricating the full size short stack. The pressurized short stack of 10 ft2

5-5

cells achieved a performance of 285 WSF (0.307 W/cm2). Although the average cell performance,
0.71 volts/cell at 400 ASF (431 mA/cm2), was not as high as the single cell tests, the performance
was 65% over the project goal. Figure 5-2 presents single cell and stack performance data for
pressurized operation. The stack was tested for over 3,000 hours. For reference purposes, Tokyo
Electric Power Company's 11 MW power plant, operational in 1991, had an average cell
performance of approximately 0.75 volts/cell at 190 mA/cm2 or 0.142 W/cm2 (19).

Table 5-2 Advanced PAFC Performance

Average Cell Current Density Power Density
Voltage, V mA/cm2 W/cm2
IFC Pressurized:
Project Goal 0.188
Single Cells 0.75 to 0.66 431 to 645 0.323
0.71 431
Full Size Short Stack 0.75 190 0.307
11 MW Reference 0.142
IFC Atmospheric:
Single Cells 0.75 242 0.182
Full Size Short Stack 0.65 215 0.139
Mitsubishi Electric Atmospheric
Single Cells 0.65 300 0.195

Figure 5-2 Advanced Water-Cooled PAFC Performance (16)

The atmospheric pressure on-site short stack consisting of 32 cells obtained an initial performance
of 0.65 volts/cell at 200 ASF (215 mA/cm2) or 0.139 W/cm2. The performance degradation rate
was less than 4 mV/1000 hours during the 4500 hour test. Single cells tested at atmospheric
conditions achieved a 500 hour performance of approximately 0.75 volts/cell at 225 ASF

5-6

(242 mA/cm2) or 0.182 W/cm2. The results from this program represent the highest performance
of full-size phosphoric acid cells and short stacks published to date.

Mitsubishi Electric Corporation investigated alloyed catalysts, processes to produce thinner
electrolytes, and increases in utilization of the catalyst layer (20). These improvements resulted in
an initial atmospheric performance of 0.65 mV at 300 mA/cm2 or 0.195 W/cm2, which is higher
than the IFC performance mentioned above (presented in Table 5-2 for comparison). Note that this
performance was obtained on small 100 cm2 cells and may not yet have been demonstrated with
full-scale cells in stacks. Approaches to increase life are to use series fuel gas flow in the stack to
alleviate corrosion, provide well-balanced micro-pore size reservoirs to avoid electrolyte flooding,
and use a high corrosion resistant carbon support for the cathode catalyst. These improvements
have resulted in the lowest PAFC degradation rate publicly acknowledged, 2 mV/1000 hours for
10,000 hours at 200 to 250 mA/cm2 in a short stack with 3600 cm2 area cells.

Several important technology development efforts for which details have been published are
catalyst improvements, advanced gas diffusion electrode development, and tests on materials that
offer better carbon corrosion protection. Transition metal (e.g., iron, cobalt) organic macrocycles14
from the families of tetramethoxypheylporphyrins (TMPP), phthalocyanines (PC),
tetraazaannulenes (TAA) and tetraphenylporphyrins (TPP) have been evaluated as O2-reduction
electrocatalysts in PAFCs. One major problem with these organic macrocycles is their limited
chemical stability in hot concentrated phosphoric acid. However, after heat treatment of the
organic macrocycle (i.e., CoTAA, CoPC, CoTMPP, FePC, FeTMPP) on carbon at about 500 to
800 C (932 to 1472 F), the pyrolyzed residue exhibits electrocatalytic activity that, in some
instances, is comparable to that of Pt and has promising stability, at least up to about 100 C/212 F
(21). Another approach that has been successful for enhancing the electrocatalysis of O2 reduction
is to alloy Pt with transition metals such as Ti (22), Cr (23), V(24), Zr, and Ta (24). The
enhancement in electrocatalytic activity has been explained by a correlation between the optimum
nearest-neighbor distance of the elements in the alloy and the bond length in O2 (25).

Conventional cathode catalysts comprise either platinum or platinum alloys supported on
conducting carbon black at 10 wt% platinum. Present platinum loadings on the anode and cathode
are 0.1 mg/cm2 and 0.5 mg/cm2, respectively (12,16). It has been suggested by Ito et.al. that the
amount of platinum may have been reduced to the extent that it might be cost effective to increase
the amount of platinum loading on the cathode (26). However, a problem exists in that fuel cell
stack developers have not experienced satisfactory performance improvements when increasing the
platinum loading. Johnson Matthey Technology Centre (J-M) presented data that resulted in a
performance improvement nearly in direct proportion to that expected based on the increase in
platinum (27). Initial tests by J-M confirmed previous results that using platinum alloy catalysts
with a 10 wt% net platinum loading improves performance. Platinum/nickel alloy catalysts
yielded a 49 wt% increase in specific activity over pure platinum. This translates into a 39 mV
improvement in the air electrode performance at 200 mA/cm2.

Johnson Matthey then determined that the platinum loading in the alloyed catalyst could be
increased up to 30 wt% while retaining the same amount of platinum without any decrease in

14. See Reference 21 for literature survey.

5-7

specific activity or performance. Note that the amount of nickel, hence the total amount of alloyed
catalyst, decreased. Next, J-M researchers increased the amount of platinum from 10 to 30 wt%
while keeping the same amount of nickel catalyst loading. The total amount of alloyed catalyst
increased in this case. Results showed an additional 36 wt% increase in specific activity, which
provided another 41 mV increase at 200 mA/cm2. The ideal voltage increase would be 46 mV for
this increase in platinum. Thus, the performance increase obtained experimentally was nearly in
direct proportion to the theoretical amount expected. The type of carbon support did not seem to
be a major factor based on using several typical supports during the tests.

The anode of a phosphoric acid fuel cell is sensitive to catalytic poisoning by even low amounts of
contaminants. Yet, hydrogen-rich fuel gases, other than pure hydrogen, are produced with
contaminant levels well in excess of the anode's tolerance limit. Of particular concern are CO,
COS, and H2S. The fuel stream in a current practice PAFC anode, operating at approximately
200 C (392 F), must contain 1 vol % or less of CO (12), less than 50 ppmv of COS plus H2S, or
less than 20 ppmv of H2S (28). Current practice is to place COS and H2S cleanup systems and CO
shift converters prior to the cell to reduce the fuel stream contaminant levels to the required
amounts. Giner, Inc. performed experimental work to develop a contaminant tolerant anode
catalyst with the purpose of reducing or eliminating the cleanup equipment (29). An anode
catalyst, G87A-17-2, was identified which resulted in only a 24 mV loss from reference when
exposed to a 75% H2, 1% CO, 24% CO2, 80 ppm H2S gas mixture at 190 C (374 F), 85% fuel
utilization, and 200 mA/cm2. A baseline anode experienced a 36 mV loss from the reference at the
same conditions. At 9.2 atm (120 psi) pressurization, the anode loss was only 19 mV at 190 C
(374 ) and 17 mV at 210 C (410 F) (compared with pure H2) with a gas of 71% H2, 5% CO, 24%
CO2, and 200 ppm H2S. Economic studies comparing the loss of the cell performance with the
savings in cost of selected plant components showed no increase when the new anode catalyst was
used with gas containing 1% CO/200 ppm H2S. A $7/kW increase resulted with the 5% CO gas
(compared to a 1% CO gas) at a 50 MW size. Some savings would result with the elimination of
the low temperature shift converter. The real value for the catalyst may be its ability to tolerate
excessive CO and H2S concentrations during upsets and to simplify the system by the elimination
of equipment.

As previously mentioned, state-of-the-art gas diffusion electrodes are configured to provide an
electrolyte network and a gas network formed with the mixture of carbon black and PTFE. In the
electrodes, carbon black agglomerates consisting of small primary particles, 0.02-0.04 m, are
mixed with much larger PTFE particles, ca. 0.3 m. The carbon black surface may not be covered
completely by the PTFE, because of the large size of conventional PTFE particles. The space in
the agglomerates or that between the agglomerates and PTFE may act as gas networks at the initial
stage of operation, but fill with electrolyte eventually because of the small contact angle of carbon
black, uncovered with PTFE, to electrolyte (<90 ), resulting in the degradation of cell
performance. Attempts to solve this flooding problem by increasing the PTFE content have not
been successful because of the offset of the performance resulting from the reduction of catalyst
utilization. Higher performance and longer lifetime of electrodes are intrinsically at odds, and
there is a limit to the improvement in performance over life by optimizing PTFE content in the
current practice electrode structures. Watanabe et al. (30) proposed preparation of an electrode
working at 100% utilization of catalyst clusters, where the functions of gas diffusion electrodes are
allotted completely to a hydrophilic, catalyzed carbon black and a wet-proofed carbon black. The

5-8

former works as a fine electrolyte network, and the latter works as a gas-supplying network in a
reaction layer. Higher utilization of catalyst clusters and longer life at the reaction layer are
expected compared to state-of-the-art electrodes consisting of the uniform mixture of catalyzed
carbon black and PTFE particles. The iR free electrode potentials for the reduction of oxygen and
air at 200 mA/cm2 on the advanced electrode are 10 mV higher than those of the conventional
electrode.

As mentioned above, there is a trade-off between high power density and cell life performance.
One of the major causes of declining cell performance over its life is that electrode flooding and
drying, caused by the migration of phosphoric acid between the matrix and the electrodes, occurs
during cell load cycling. Researchers at Fuji Electric addressed two approaches to improve cell life
performance while keeping power density high (31). In one, the wettability of the cathode and
anode were optimized, and in the other a heat treatment was applied to the carbon support for the
cathode catalyst. During tests, it was observed that a cell with low cathode wettability and high
anode wettability was over 50 mV higher than a cell with the reverse wetting conditions after 40
start-stop cycles.

The use of carbon blacks with large surface area to improve platinum dispersion on supports was
investigated as one way to increase the power density of a cell (32). However, some large surface
area carbon blacks are fairly corrosive in hot potassium acid, resulting in a loss of catalytic activity.
The corrosivity of the carbon support for a cathode catalyst affects both the rate of loss and of
electrode flooding and, in turn, the life performance of a cell. Furnace black has been heat treated
at high temperatures by Fuji Electric to increase its resistance to corrosion. It was found that
corrosivity can be increased and cell life performance improved by heat treating carbon supports at
high temperatures, at least to around 3000 C (5432 F).

5.2 Performance
Cell performance for any fuel cell is a function of pressure, temperature, reactant gas composition
and fuel utilization. In addition, performance can be adversely affected by impurities in both the
fuel and oxidant gases.

The sources of polarization in PAFCs (with cathode and anode Pt loadings of 0.5 mg Pt/cm2,
180 C, 1 atm, 100% H3PO4) have been discussed in Section 2 and were illustrated as half cell
performances in Figure 2-3. From Figure 2-3, it is clear that the major polarization occurs at the
cathode, and furthermore, the polarization is greater with air (560 mV at 300 mA/cm2) than with
pure oxygen (480 mV at 300 mA/cm2) because of dilution of the reactant. The anode exhibits very
low polarization (-4 mV/100 mA/cm2) on pure H2, and increases when CO is present in the fuel
gas. The ohmic (iR) loss in PAFCs is also relatively small, amounting to about 12 m at 100
mA/cm2.

Typical PAFCs will generally operate in the range of 100 to 400 mA/cm2 at 600 to 800 mV/cell.
Voltage and power constraints arise from increased corrosion of platinum and carbon components
at cell potentials above approximately 800 mV.

5-9

It is well known that an increase in the cell operating pressure enhances the performance of PAFCs
(11, 33, 34). The theoretical change in voltage ( VP) as a function of pressure (P) is expressed as

(3)(2.3RT) P2
V P (mV) = log (5-4)
2F P1

3(2.3RT )
where 138 mV at 190 C (374 F). Experimental data (35) reported that the effect of pressure
2F
on cell performance at 190 C (374 F) and 323 mA/cm2 is correlated by the equation:

P2
V P (mV) = 146 log (5-5)
P1

where P1 and P2 are different cell pressures. The experimental data (35) also suggest that
Equation (5-5) is a reasonable approximation for a temperature range of 177 C < T < 218 C
(351 F < T < 424 F) and a pressure range of 1 atm < P < 10 atm (14.7 psi < P < 147.0 psi). Data
from Appleby (14) in Figure 5-1 indicate that the voltage gain observed by increasing the pressure
from 3.4 atm (190 C) to 6.3 atm (205 C) is about 44 mV. According to Equation (5-5), the
voltage gain calculated for this increase in pressure at 190 C (374 F) is 39 mV15, which is in
reasonable agreement with experimental data in Figure 5-1. Measurements (33) of VP for an
increase in pressure from 4.7 to 9.2 atm (69.1 to 135.2 psia) in a cell at 190 C (374 F) show that
VP is a function of current density, increasing from 35 mV at 100 mA/cm2 to 42 mV at
400 mA/cm2 (50% O2 utilization with air oxidant, 85% H2 utilization with pure H2 fuel). From
Equation (5-4), Vp is 43 mV for an increase in pressure from 4.7 to 9.2 atm (69.1 to 135.2 psia) at
190 C (374 F), which is very close to the experimental value obtained at 400 mA/cm2. Other
measurements (36) for the same increase in pressure from 4.7 to 9.2 atm (69.1 to 135.2 psia), but at
a temperature of 210 C (410 F) show less agreement between the experimental data and
Equation (5-4).

The improvement in cell performance at higher pressure and high current density can be attributed
to a lower diffusion polarization at the cathode and an increase in the reversible cell potential. In
addition, pressurization decreases activation polarization at the cathode because of the increased
oxygen and water partial pressures. If the partial pressure of water is allowed to increase, a lower
acid concentration will result. This will increase ionic conductivity and bring about a higher
exchange current density. The net outcome is a reduction in ohmic losses. It was reported (33)
that an increase in cell pressure (100% H3PO4, 169 C (336 F)) from 1 to 4.4 atm (14.7 to
64.7 psia) produces a reduction in acid concentration to 97%, and a decrease of about 0.001 ohm in
the resistance of a small six cell stack (350 cm2 electrode area).

15. The difference in temperature between 190 and 205 C is disregarded so Equation (5-5) is assumed to be valid
at both temperatures.

5-10

Figure 2-1 shows that the reversible cell potential for PAFCs consuming H2 and O2 decreases as
the temperature increases by 0.27 mV/ C under standard conditions (product is water vapor).
However, as discussed in Section 2, an increase in temperature has a beneficial effect on cell
performance because activation polarization, mass transfer polarization, and ohmic losses are
reduced.

The kinetics for the reduction of oxygen on Pt improves16 as the cell temperature increases. At a
mid-range operating load (~250 mA/cm2), the voltage gain ( VT) with increasing temperature of
pure H2 and air is correlated by

VT (mV) = 1.15 (T2 - T1) ( C) (5-6)

Data suggest that Equation (5-6) is reasonably valid for a temperature range of 180 C < T < 250 C
(356 F < T < 482 F). It is apparent from this equation that each degree increase in cell
temperature should increase performance by 1.15 mV. Other data indicate that the coefficient for
Equation (5-6) may be in the range of 0.55 to 0.75, rather than 1.15. Although temperature has
only a minimal effect on the H2 oxidation reaction at the anode, it is important in terms of anode
poisoning. Figure 5-3 shows that increasing the cell temperature results in increased anode
tolerance to CO poisoning. This increased tolerance is a result of reduced CO adsorption. A
strong temperature effect is also seen for simulated coal gas. Below 200 C (392 F), the cell
voltage drop is significant. Experimental data suggest that the effect of contaminants is not
additive, indicating that there is an interaction between CO and H2S (37). Increasing temperature
increases performance, but elevated temperature also increases catalyst sintering, component
corrosion, and electrolyte degradation, evaporation, and concentration.

16. The anode shows no significant performance improvement from 140 to 180 on pure H2, but in the presence of
CO, increasing the temperature results in a marked improvement in performance (see discussion in
Section 5.2.4).

5-11

Figure 5-3 Effect of Temperature: Ultra-High Surface Area Pt Catalyst. Fuel: H2, H2 +
200 ppm H2S and Simulated Coal Gas (37)

5.2.3 Effect of Reactant Gas Composition and Utilization
Increasing reactant gas utilization or decreasing inlet concentration results in decreased cell
performance due to increased concentration polarization and Nernst losses. These effects are
related to the partial pressures of reactant gases and are considered below.

Oxidant: The oxidant composition and utilization are parameters that affect the cathode
performance, as evident in Figure 2-3. Air, which contains ~21% O2, is the oxidant of choice for
PAFCs. The use of air with ~21% O2 instead of pure O2 results in a decrease in the current density
of about a factor of three at constant electrode potential. The polarization at the cathode increases
with an increase in O2 utilization. Experimental measurements (38) of the change in overpotential
( c) at a PTFE-bonded porous electrode in 100% H3PO4 (191 C, atmospheric pressure) as a
function of O2 utilization is plotted in Figure 5-4 in accordance with Equation (5-7):

c = c - c, (5-7)

where c and c, are the cathode polarizations at finite and infinite (i.e., high flow rate, close to
0% utilization) flow rates, respectively. The additional polarization attributed to O2 utilization is
reflected in the results, and the magnitude of this loss increases rapidly as the utilization increases.
At a nominal O2 utilization of 50% for prototype PAFC power plants, the additional polarization
estimated from the results in Figure 4-4 is 19 mV. Based on experimental data (16,38, and 39) ,
the voltage loss due to a change in oxidant utilization can be described by Equations (5-8) and (5-
9):

5-12

Figure 5-4 Polarization at Cathode (0.52 mg Pt/cm2) as a Function of O2 Utilization, which
is Increased by Decreasing the Flow Rate of the Oxidant at Atmospheric Pressure 100%
H3PO4, 191 C, 300 mA/cm2, 1 atm. (38)

(P 0 2 ) 2 P0 2
V Cathode (mV) = 148 log 0.04 0.20 (5-8)
( P 0 2 )1 P Total

(P 0 2 ) 2 P02
V Cathode (mV) = 96 log 0.20 < < 1.00 (5-9)
(P 0 2 )1 P Total

where
P
-
O2 is the average partial pressure of O2. Using two equations more accurately correlates actual fuel
cell operation. Equation (5-8) will generally apply to fuel cells using air as the oxidant and
Equation (5-9) for fuel cells using an O2-enriched oxidant.

Fuel: Hydrogen for PAFC power plants will typically be produced from conversion of a wide
variety of primary fuels such as CH4 (e.g., natural gas), petroleum products (e.g., naphtha), coal
liquids (e.g., CH3OH) or coal gases. Besides H2, CO and CO2 are also produced during conversion
of these fuels (unreacted hydrocarbons are also present). These reformed fuels contain low levels
of CO (after steam reforming and shift conversion reactions in the fuel processor) which cause
anode poisoning in PAFCs. The CO2 and unreacted hydrocarbons (e.g., CH4) are
electrochemically inert and act as diluents. Because the anode reaction is nearly reversible, the fuel

5-13

composition and hydrogen utilization generally do not strongly influence cell performance. The
voltage change due to a change in the partial pressure of hydrogen (which can result from a change
in either the fuel composition or utilization) can be described by Equation (5-10) (16,36,37):

(P H 2 ) 2
VAnode (mV) = 55 log (5-10)
(P H 2 )1

where
P
-
H2 is the average partial pressure of H2 in the system. At 190 C (374 F), the presence of 10% CO2
in H2 should cause a voltage loss of about 2 mV. Thus, diluents in low concentrations are not
expected to have a major effect on electrode performance; however, relative to the total anode
polarization (i.e., 3 mV/100 mA/cm2), the effects are large. It has been reported (16) that with pure
H2, the cell voltage at 215 mA/cm2 remains nearly constant at H2 utilizations up to 90%, and then
it decreases sharply at H2 utilizations above this value.

Low utilizations, particularly oxygen utilization, yield high performance. Low utilizations,
however, result in poor fuel use. Optimization of this parameter is required. State-of-the-art
utilizations are on the order of 85% and 50% for the fuel and oxidant, respectively.

The concentrations of impurities entering the PAFC are very low relative to diluents and reactant
gases, but their impact on performance is significant. Some impurities (e.g., sulfur compounds)
originate from fuel gas entering the fuel processor and are carried into the fuel cell with the
reformed fuel, whereas others (e.g., CO) are produced in the fuel processor.

Carbon Monoxide: The presence of CO in a H2-rich fuel has a significant effect on anode
performance because CO affects Pt electrodes catalysts. The poisoning is reported to arise from
the dual site replacement of one H2 molecule by two CO molecules on the Pt surface (40, 41).
According to this model, the anodic oxidation current at a fixed overpotential, with (iCO) and
without (iH2) CO present, is given as a function of CO coverage ( CO) by Equation (5-11):

i CO
= (1 - CO )2 (5-11)
iH 2

For [CO]/[H2] = 0.025, CO = 0.31 at 190 C (35); therefore, iCO is about 50% of iH2.

As discussed previously, both temperature and CO concentration have a major influence on the
oxidation of H2 on Pt in CO containing fuel gases. Benjamin et al. (35) derived Equation (5-12)
for the voltage loss resulting from CO poisoning as a function of temperature

5-14

VCO = k(T) ([CO]2 - [CO]1) (5-12)
where k(T) is a function of temperature, and [CO]1 and [CO]2 are the mole fractions CO in the fuel
gas. The values of k(T) at various temperatures are listed in Table 5-3. Using Equation (5-12) and
the data in Table 5-3, it is apparent that for a given change in CO content, VCO is about 8.5 times
larger at 163 C (325 F) than at 218 C (424 ). The correlation provided by Equation (5-12) was
obtained at 269 mA/cm2; thus, its use at significantly different current densities may not be
appropriate. In addition, other more recent data (37) suggest a value for k(T) of -2.12 at a
temperature of 190 C (374 ) rather than -3.54.

Table 5-3 Dependence of k(T) on Temperature
T T k(T)a
( C) ( F) (mV/%)
163 325 -11.1
177 351 -6.14
190 374 -3.54
204 399 -2.05
218 424 -1.30

a - Based on electrode with 0.35 mg Pt/cm2, and at 269 mA/cm2 (35)

The data in Figure 5-5 illustrate the influence of H2 partial pressure and CO content on the
performance of Pt anodes (10% Pt supported on Vulcan XC-72, 0.5 mg Pt/cm2) in 100% H3PO4 at
180 C (356 F) (11). Diluting the H2 fuel gas with 30% CO2 produces an additional polarization of
about 11 mV at 300 mA/cm2. The results show that the anode polarization with fuel gases of
composition 70% H2/(30-x)% CO2/x% CO (x =0, 0.3, 1, 3 and 5) increases considerably as the CO
content increases to 5%.

Sulfur Containing Compounds: Hydrogen sulfide and carbonyl sulfide (COS) are impurities17 in
fuel gases from fuel processors and coal gasifiers in PAFC power plants. The concentration levels
of H2S in an operating PAFC (190 to 210 C (374 to 410 F), 9.2 atm (120 psig), 80% H2 utilization,
<325 mA/cm2) that can be tolerated by Pt anodes without suffering a destructive loss in
performance are <50 ppm (H2S + COS) or <20 ppm (H2S) (42). Rapid cell failure occurs with fuel
gas containing more than 50 ppm H2S. Sulfur poisoning does not affect the cathode, and poisoned
anodes can be re-activated by polarization at high potentials (i.e., operating cathode potentials). As
mentioned previously, there is a synergistic effect between H2S and CO that can negatively impact
cell performance. Figure 5-6 (37) shows the effect of H2S concentration on V with and without
10% CO present in H2. The V is referenced to performance on pure H2 in the case of H2S alone
and to performance on H2 with 10% CO for H2S and CO. In both cases, at higher H2S

17. Anode gases from coal gasifiers may contain total sulfur of 100 to 200 ppm.

5-15

concentrations, the V rises abruptly. This drop in performance occurs above 240 ppm for H2S
alone and above 160 ppm for H2S with 10% CO.

Experimental studies by Chin and Howard (43) indicate that H2S adsorbs on Pt and blocks the
active sites for H2 oxidation. The following electrochemical reactions, Equations (5-13), (5-14),
and (5-15) involving H2S are postulated to occur on Pt electrodes:

Pt + HS- Pt - HSads + e- (5-13)

Pt - H2Sads Pt - HSads + H+ + e- (5-14)

Pt – HSads Pt - Sads + H+ + e- (5-15)

Figure 5-5 Influence of CO and Fuel Gas Composition on the Performance of Pt Anodes in
100% H3PO4 at 180 C. 10% Pt Supported on Vulcan XC-72, 0.5 mg Pt/cm2. Dew Point,
57 . Curve 1, 100% H2; Curves 2-6, 70% H2 and CO2/CO Contents (mol%) Specified (21)

5-16

Figure 5-6 Effect of H2S Concentration: Ultra-High Surface Area Pt Catalyst (37)

Elemental sulfur (in Equation (5-15) is expected on Pt electrodes only at high anodic potentials,
and at sufficiently high potentials, sulfur is oxidized to SO2. The extent of poisoning by H2S
increases with increasing H2S concentration, electrode potential, and exposure time. H2S
poisoning, however, decreases with increasing cell temperature.

Other Compounds: The effect of other compounds (such as those containing nitrogen) on PAFC
performance has been adequately reviewed by Benjamin et al. (35). Molecular nitrogen acts as a
diluent but other nitrogen compounds (e.g., NH3, HCN, NOX) may not be as innocuous. NH3 in
the fuel or oxidant gases reacts with H3PO4 to form a phosphate salt, (NH4)H2PO4,

H3PO4 + NH3 (NH4)H2PO4 (5-16)

which decreases the rate of O2 reduction. A concentration of less than 0.2 mol% (NH4)H2PO4
must be maintained to avoid unacceptable performance losses (44). The effects of HCN and NOX
on fuel cell performance have not been clearly established.

The voltage that can be obtained from a PAFC is reduced by ohmic, activation, and concentration
losses that increase with increasing current density. The magnitude of this loss can be
approximated by the following equations:

VJ (mV) = -0.53 J for J= 100 - 200 mA/cm2 (5-17)

VJ (mV) = -0.39 J for J= 200 - 650 mA/cm2 (5-18)

5-17

The coefficients in these equations were correlated from performance data for cells (45) operating
at 120 psia (8.2 atm), 405 F (207 C) (16) with fuel and oxidant utilizations of 85% and 70%,
respectively18, an air fed cathode, and an anode inlet composition of 75% H2, and 0.5% CO.
Similarly, at atmospheric conditions, the magnitude of this loss can be approximated by

VJ (mV) = -0.74 J for J= 50 - 120 mA/cm2 (5-19)

VJ (mV) = -0.45 J for J= 120 - 215 mA/cm2 (5-20)

The coefficients in the atmospheric condition equations have been derived from performance data
for cells (45) operating at 14.7 psia (1 atm) and 400 F (204 C), fuel and oxidant utilizations of
80% and 60%, respectively18, an air fed cathode, and an anode inlet composition of 75% H2 and
0.5% CO.

One of the primary areas of research is in extending cell life. The goal is to maintain the
performance of the cell stack during a standard utility application (~40,000 hours). Current
state-of-the-art PAFCs (46, 47, and 48) show the following degradation over time:

Vlifetime (mV) = -3 mV/1,000 hours (5-21)

5.3 Summary of Equations for PAFC
The preceding sections provide parametric performance based on various referenced data at
differing cell conditions. It is suggested that the following set of equations be used unless the
reader prefers other data or rationale. Figure 5-7 is provided as reference PAFC performances at
8.2 atm and ambient pressure.

18. Assumes graph operating conditions (not provided) are the same as associated text of Ref. 15.

5-18

VP (mV) = 146 2
P log 1 atm P 10 atm (5-5)
Pressure V P (mV) = 146 log
P1 177 C T 218 C
Temperature VT (mV) = 1.15 (T2 - T1) 180 C T 250 C (5-6)
(P 0 2 ) 2 P 02
Oxidant V Cathode (mV) = 148 log 0.04 0.20 (5-8)
(P 0 2 ) 1 P Total

( P 02 ) 2 P 02
Vcathode (mV) = 96 log 0.20 < 1.0 (5-9)
( P 02 )1 P Total

(PH 2 )2
Fuel Vanode (mV) = 55 log (5-10)
( P H 2 )1

CO VCO (mV) = -11.1 ([CO]2 - [CO]1) 163 C (5-12)
Poisoning VCO (mV) = --6.14 ([CO]2 - [CO]1) 177 C
VCO (mV) = -3.54 ([CO]2 - [CO]1) 190 C
VCO (mV) = -2.05 ([CO]2 - [CO]1) 204 C
VCO (mV) = -1.30 ([CO]2 - [CO]1) 218 C
Current VJ (mV) = -0.53 ) J for J = 100 - 200 mA/cm2, P = 8.2 atm (5-17)
Density VJ (mV) = -0.39 ) J for J = 200 - 650 mA/cm2, P = 8.2 atm (5-18)
VJ (mV) = -0.74 ) J for J = 50 - 120 mA/cm2, P = 1 atm (5-19)
VJ (mV) = -0.45 ) J for J = 120 - 215 mA/cm2, P = 1 atm (5-20)
Life Effects Vlifetime (mV) = -3mV/1,000 hrs. (5-21)

5-19

0.90
Assumed Gas Composition:
Fuel: 75% H2 , 0.5% CO, bal. H2O & CO2
Oxidant: Dry Air

0.80
Cell Voltage

0.70
8.2 atm
(120 psia)
0 0
207 C (405 F)
U f = 85% U O= 70%
0.60 1.4 atm
(14.7 psia)
0 0
204 C (400 F)
U = 80% U O= 60%
f
0.50

0 100 200 300 400 500 600 700 800
2
Current Density (mAmps/cm )
Figure 5-7 Reference Performances at 8.2 atm and Ambient Pressure (16)

5.4 References
1. Communications with IFC, September 21, 1998.
2. J. Hirschenhofer, "Latest Progress in Fuel Cell Technology," IEEE-Aerospace and Electronic
Systems Magazine, 7, November 1992.
3. J. Hirschenhofer, "Status of Fuel Cell Commercialization Efforts," American Power
Conference, Chicago, IL, April 1993.
4. J. Appleby, in Proceedings of the Workshop on the Electrochemistry of Carbon, Edited by
S. Sarangapani, J.R. Akridge and B. Schumm, The Electrochemical Society, Inc.,
Pennington, NJ, p. 251, 1984.
5. K.V. Kordesch, "Survey of Carbon and Its Role in Phosphoric Acid Fuel Cells," BNL 51418,
prepared for Brookhaven National Laboratory, December 1979.
6. K. Kinoshita, Carbon: Electrochemical and Physicochemical Properties, Wiley Interscience,
New York, NY, 1988.
7. L. Christner, J. Ahmad, M. Farooque, in Proceedings of the Symposium on Corrosion in
Batteries and Fuel Cells and Corrosion in Solar Energy Systems, Edited by C. J. Johnson and
S.L. Pohlman, The Electrochemical Society, Inc., Pennington, NJ, p. 140, 1983.
8. P.W.T. Lu, L.L. France, in Extended Abstracts, Fall Meeting of The Electrochemical Society,
Inc., Volume 84-2, Abstract No. 573, The Electrochemical Society, Inc., Pennington, NJ,
p. 837, 1984.
9. M. Warshay, in The Science and Technology of Coal and Coal Utilization, Edited by
B.R. Cooper, W.A. Ellingson, Plenum Press, New York, NY, p. 339, 1984.

5-20

10. P.R. Prokopius, M. Warshay, S.N. Simons, R.B. King, in Proceedings of the 14th Intersociety
Energy Conversion Engineering Conference, Volume 2, American Chemical Society,
Washington, D. C., p. 538, 1979.
11. S.N. Simons, R.B. King, P.R. Prokopius, in Symposium Proceedings Fuel Cells Technology
Status and Applications, Edited by E. H. Camara, Institute of Gas Technology, Chicago, IL,
p. 45, 1982.
12. Communications with IFC, September 2000.
13. A.P. Fickett, in Proceedings of the Symposium on Electrode Materials and Processes for
Energy Conversion and Storage, Edited by J.D.E. McIntyre, S. Srinivasan and F.G. Will, The
Electrochemical Society, Inc. Pennington, NJ, p. 546, 1977.
14. A.J. Appleby, J. Electroanal, Chem., 118, 31, 1981.
15. J. Huff, "Status of Fuel Cell Technologies," in Fuel Cell Seminar Abstracts, 1986 National
Fuel Cell Seminar, Tucson, AZ, October 1986.
16. "Advanced Water-Cooled Phosphoric Acid Fuel Cell Development, Final Report," Report
No. DE/MC/24221-3130, International Fuel Cells Corporation for U.S. DOE under
Contract DE-AC21-88MC24221, South Windsor, CT, September 1992.
17. N. Giordano, E. Passalacqua, L. Pino, V. Alderucci, P.L. Antonucci, "Catalyst and
Electrochemistry in PAFC: A Unifying Approach," in The International Fuel Cell
Conference Proceedings, NEDO/MITI, Tokyo, Japan, 1992.
18. B. Roland, J. Scholta, H. Wendt, "Phosphoric Acid Fuel Cells - Materials Problems, Process
Techniques and Limits of the Technology," in The International Fuel Cell Conference
Proceedings, NEDO/MITI, Tokyo, Japan, 1992.
19. "Overview of 11 MW Fuel Cell Power Plant," Non-published information from Tokyo
Electric Power Company, September 1989.
20. M. Matsumoto, K. Usami, "PAFC Commercialization and Recent Progress of Technology in
Mitsubishi Electric," in The International Fuel Cell Conference Proceedings, NEDO/MITI,
Tokyo, Japan, 1992.
21. J.A.S. Bett, H.R. Kunz, S.W. Smith and L.L. Van Dine, "Investigation of Alloy Catalysts and
Redox Catalysts for Phosphoric Acid Electrochemical Systems," FCR-7157F, prepared by
International Fuel Cells for Los Alamos National Laboratory under Contract
No. 9-X13-D6271-1, 1985.
22. B.C. Beard, P.N. Ross, J. Electrochem. Soc., 133, 1839, 1986.
23. J.T. Glass, G.L. Cahen, G.E. Stoner, E.J. Taylor, J. Electrochem. Soc., 134, 58, 1987.
24. P.N. Ross, "Oxygen Reduction on Supported Pt Alloys and Intermetallic Compounds in
Phosphoric Acid," Final Report, EM-1553, prepared under Contract 1200-5 for the Electric
Power Research Institute, Palo Alto, CA, September 1980.
25. V. Jalan, J. Giner, in DECHEMA Monographs, Volume 102, Edited by J.W. Schultze, VCH
Verlagsgesellschaft, Weinheim, West Germany, p. 315, 1986.
26. T. Ito, K. Kato, S. Kamitomai, M. Kamiya, "Organization of Platinum Loading Amount of
Carbon-Supported Alloy Cathode for Advanced Phosphoric Acid Fuel Cell," in
Fuel Cell Seminar Abstracts, 1990 Fuel Cell Seminar, Phoenix, AZ, November 25-28, 1990.
27. J.S. Buchanan, G.A. Hards, L. Keck, R.J. Potter, "Investigation into the Superior Oxygen
Reduction Activity of Platinum Alloy Phosphoric Acid Fuel Cell Catalysts," in Fuel Cell
Seminar Abstracts, Tucson, AZ, November 29-December 2, 1992.

5-21

28. K. Kinoshita, F.R. McLarnon, E.J. Cairns, Fuel Cells, A Handbook, prepared by Lawrence
Berkeley Laboratory for the U.S. Department of Energy under Contract DE-AC03-76F00098,
May 1988.
29. N.D. Kackley, S.A. McCatty, J.A. Kosek, "Improved Anode Catalysts for Coal Gas-Fueled
Phosphoric Acid Fuel Cells," Final Report DOE/MC/25170-2861, prepared for
U.S. Department of Energy under Contract DE-AC21-88MC25170, July 1990.
30. M. Watanabe, C. Shirmura, N. Hara, K. Tsurumi, "An Advanced Gas-Diffusion Electrode for
Long-Life and High Performance PAFC," in The International Fuel Cell Conference
Proceedings, NEDO/MITI, Tokyo, Japan, 1992.
31. M. Aoki, Y. Ueki, H. Enomoto, K. Harashima, "Some Approaches to Improve the Life
Performance of Phosphoric Acid Fuel Cell," paper provided to the authors by Fuji Electric
Corporate Research and Development, 1992, date of preparation unknown.
32. M. Watanabe, H. Sei, P. Stonehart, Journal of Electroanalytical Chemistry. 261, 375, 1989.
33. M. Farooque, "Evaluation of Gas-Cooled Pressurized Phosphoric Acid Fuel Cells for Electric
Utility Power Generation," Final Technical Report, NASA CR-168298 prepared by Energy
Research Corp. under Contract No. DEN 3-201 for NASA Lewis Research Center,
September 1983.
34. J. McBreen, W.E. O'Grady, R. Richter, J. Electrochem. Soc., 131, 1215, 1984.
35. T.G. Benjamin, E.H. Camara, L.G. Marianowski, Handbook of Fuel Cell Performance,
prepared by the Institute of Gas Technology for the United States Department of Energy under
Contract No. EC-77-C-03-1545, May 1980.
36. J.M. Feret, "Gas Cooled Fuel Cell Systems Technology Development," Final Report, NASA
CR-175047, prepared by Westinghouse Electric Corp. under Contract No. DEN 3-290 for
NASA Lewis Research Center, August 1985.
37. V. Jalan, J. Poirier, M. Desai, B. Morrisean, "Development of CO and H2S Tolerant PAFC
Anode Catalysts," in Proceedings of the Second Annual Fuel Cell Contractors Review
Meeting, 1990.
38. P.W.T. Lu and L. L. France, in Proceedings of the Symposium on Transport Processes in
Electrochemical Systems, R. S. Yeo, K. Katan and D. T. Chin, The Electrochemical
Society, Inc., Pennington, NJ, p. 77, 1982.
39. P.N. Ross, "Anomalous Current Ratios in Phosphoric Acid Fuel Cell Cathodes," LBL-13955;
submitted to J. Electrochem. Soc., March 1986.
40. P.Ross, P. Stonehart, Electrochim. Acta, 21, 441, 1976.
41. W. Vogel, J. Lundquist, P. Ross, P. Stonehart, Electrochim. Acta, 20, 79, 1975.
42. H.R. Kunz, in Proceedings of the Symposium on Electrode Materials and Processes for
Energy Conversion and Storage, Edited by J. D. E. McIntyre, S. Srinivasan and F. G. Will,
The Electrochemical Society, Inc., Pennington, NJ, p. 607, 1977.
43. D.T. Chin, P.D. Howard, J. Electrochem. Soc., 133, 2447, 1986.
44. S.T. Szymanski, G.A. Gruver, M. Katz, H.R. Kunz, J. Electrochem. Soc., 127, 1440, 1980.
45. F.S. Kemp, IFC, "Status of Development of Water - Cooled Phosphoric Acid Fuel Cells," in
Proceedings of the Second Annual Fuel Cell Contractors Review Meeting, U.S. DOE/METC, 1990.
46. N. Giordano, "Fuel Cells Activity at CNR, TAE Institute," CNR/TAE, Italy, 1992.
47. "Gas Cooled Fuel Cell Systems Technology Development," Westinghouse/DOE,
WAES-TR-92-001, March 1992.
48. K. Harasawa, I. Kanno, I. Masuda, "Fuel Cell R&D and Demonstration Programs at Electric
Utilities in Japan," in Fuel Cell Seminar Abstracts, Tucson, AZ, November 29-December 2,
1992.

5-22

6. MOLTEN CARBONATE FUEL CELL

The molten carbonate fuel cell operates at approximately 650°C (1200°F). The high operating
temperature is needed to achieve sufficient conductivity of its carbonate electrolyte yet allow the
use low cost metal cell components. Aneffect associated with this high temperature is that noble
metal catalysts are not required for the cell electrochemical oxidation and reduction processes.
Molten carbonate fuel cells are being developed for natural gas and coal-based power plants for
industrial, electrical utility, and military applications. Currently, one industrial corporation is
actively pursuing the commercialization of MCFCs in the U.S.: Fuel Cell Energy (FCE). Europe
and Japan each have at least three developers pursuing the technology: Brandstofel Nederland
B.V. (BCN), MTU Friedrichshafen, Ansaldo (Italy), Hitachi, Ishikawajima-Harima Heavy
Industries, Mitsubishi Electric Corporation, and Toshiba Corporation.

The electrochemical reactions occurring in MCFCs are

=
H2 + CO3 H2O + CO2 + 2e- (6-1)

at the anode, and

½O2 + CO2 + 2e- =
CO3 (6-2)

at the cathode. The overall cell reaction19 is

H2 + ½O2 + CO2 (cathode) H2O + CO2 (anode) (6-3)

19
. CO is not directly used by electrochemical oxidation, but produces additional H2 when combined with water in the
water gas shift reaction.

6-1

Besides the reaction involving H2 and O2 to produce H2O, the equation shows a transfer of CO2
from the cathode gas stream to the anode gas stream, with 1 mole CO2 transferred along with
two Faradays of charge or 2 gram moles of electrons. The reversible potential for an MCFC,
taking into account the transfer of CO2, is given by the equation

1
RT PH 2 PO22 RT PCO2,c
E=E + ln + ln (6-4)
2F PH 2 O 2 F PCO2,a

where the subscripts a and c refer to the anode and cathode gas compartments, respectively. When
the partial pressures of CO2 are identical at the anode and cathode, and the electrolyte is invariant,
the cell potential depends only on the partial pressures of H2, O2, and H2O. Typically, the CO2
partial pressures are different in the two electrode compartments and the cell potential is affected
accordingly, as shown in Equation (6-4).

It is usual practice in an MCFC system that the CO2 generated at the anode be routed to the
cathode where it is consumed. This will require some scheme that will either 1) transfer the CO2
from the anode exit gas to the cathode inlet gas ("CO2 transfer device"), 2) produce CO2 by
combustion of the anode exhaust gas, which is mixed directly with the cathode inlet gas, or
3) supply CO2 from an alternate source.

MCFCs differ in many respects from PAFCs because of their higher operating temperature (650 vs
200°C) and the nature of the electrolyte. The higher operating temperature of MCFCs provides the
opportunity for achieving higher overall system efficiencies (potential for heat rates below
7500 Btu/kWh) and greater flexibility in the use of available fuels.20 On the other hand, the higher
operating temperature places severe demands on the corrosion stability and life of cell components,
particularly in the aggressive environment of the molten carbonate electrolyte. Another difference
between PAFCs and MCFCs lies in the method used for electrolyte management in the respective
cells. In a PAFC, PTFE serves as a binder and wet-proofing agent to maintain the integrity of the
electrode structure and to establish a stable electrolyte/gas interface in the porous electrode. The
phosphoric acid is retained in a matrix of PTFE and SiC between the anode and cathode. There are
no materials available for use in MCFCs that are comparable to PTFE. Thus, a different approach
is required to establish a stable electrolyte/gas interface in MCFC porous electrodes, and this is
illustrated schematically inFigure 6-1. The MCFC relies on a balance in capillary pressures to
establish the electrolyte interfacial boundaries in the porous electrodes (1,2,3). At thermodynamic
equilibrium, the diameters of the largest flooded pores in the porous components are related by the
equation

c cos c e cos e a cos a
= = (6-5)
Dc De Da

20
. In situ reforming of fuels in MCFCs is possible as discussed later in the section.

6-2

where is the interfacial surface tension, is the contact angle of the electrolyte, D is the pore
diameter, and the subscripts a, c, and e refer to the anode, cathode and electrolyte matrix,
respectively. By properly coordinating the pore diameters in the electrodes with those of the
electrolyte matrix, which contains the smallest pores, the electrolyte distribution depicted in Figure
6-1 is established. This arrangement permits the electrolyte matrix to remain completely filled
with molten carbonate, while the porous electrodes are partially filled, depending on their pore size
distributions. According to the model illustrated in Figure 6-1 and described by Equation (6-5),
the electrolyte content in each of the porous components will be determined by the equilibrium
pore size (<D>) in that component; pores smaller than <D> will be filled with electrolyte, and
pores larger than <D> will remain empty. A reasonable estimate of the volume distribution of
electrolyte in the various cell components is obtained from the measured pore-volume-distribution
curves and the above relationship for D (2, 3).

Electrolyte management, that is, the control over the optimum distribution of molten carbonate
electrolyte in the different cell components, is critical for achieving high performance and
endurance with MCFCs. Various processes (i.e., consumption by corrosion reactions, potential
driven migration, creepage of salt and salt vaporization) occur, all of which contribute to the
redistribution of molten carbonate in MCFCs; these aspects are discussed by Maru et al. (4) and
Kunz (5).

Porous Porous
Ni anode NiO cathode

Molten Carbonate/LiAlO2
electrolyte structure

H2 + CO3= CO2 + H2O + 2e- 1
/2O2 + CO2 + 2e- CO3=
CO3=

Fuel gas Oxidant gas

Figure 6-1 Dynamic Equilibrium in Porous MCFC Cell Elements
(Porous electrodes are depicted with pores covered by a thin film of electrolyte)

6-3

6.1 Cell Components

6.1.1 State-of-the-Art
The data in Table 6-1 provide a chronology of the evolution in cell component technology for
MCFCs. In the mid-1960s, electrode materials were, in many cases, precious metals, but the
technology soon evolved to the use of Ni-based alloys at the anode and oxides at the cathode.
Since the mid-1970s, the materials for the electrodes and electrolyte structure (molten
carbonate/LiAlO2) have remained essentially unchanged. A major development in the 1980s was
the evolution in the technology for fabrication of electrolyte structures. Developments in cell
components for MCFCs have been reviewed by Maru et al. (6, 7), Petri and Benjamin (8), and
Selman (9). Over the past 20 years, the performance of single cells has improved from about
10 mW/cm2 to >150 mW/cm2. During the 1980s, both the performance and endurance of MCFC
stacks showed dramatic improvements. The data in Figure 6-2 illustrate the progress that has been
made in the performance of single cells, and in the cell voltage at 172 mA/cm2 (160 A/ft2) of small
stacks at 650 C, with low-Btu fuel [17% (H2 + CO)] at 65 psia. Several MCFC stack developers
have produced cell stacks with cell areas up to 1 m2 cells. Tall, full-scale U.S. stacks fabricated to
date include an FCE stack with 246 5600 cm2 cells producing 125 kW, and an FCE stack with 253
7800 cm2 cells producing 253 kW.

Table 6-1 Evolution of Cell Component Technology for Molten Carbonate Fuel Cells

Anode Pt, Pd, or Ni Ni-10 wt% Cr Ni-Cr/Ni-Al
3-6 m pore size
45-70% initial porosity
0.20-1.5 mm thickness
0.1-1 m2/g
Cathode Ag2O or lithiated NiO lithiated NiO lithiated NiO
7-15 m pore size
70-80% initial porosity
60-65% after lithiation and
oxidation
0.5-1 mm thickness
0.5 m2/g
Electrolyte MgO mixture of -, -, -LiAlO2, -LiAlO2
Support and -LiAlO2

10-20 m2/g 0.1-12 m2/g
0.5-1 mm thickness

6-4

a
Electrolyte 52 Li-48 Na 62 Li-38 K 62 Li-38 K
43.5 Li-31.5 Na-25 K ~60-65 wt% 50 Li-50 Na

~50 wt%
"paste" hot press "tile" tape cast
1.8 mm thickness 0.5-1 mm thickness

a - Mole percent of alkali carbonate salt

Specifications for the anode and cathode were obtained from (6), (10), and FCE
correspondence, March 1998.

Figure 6-2 Progress in the Generic Performance of MCFCs on Reformate
Gas and Air (11, 12)

The conventional process used to fabricate electrolyte structures until about 1980 involved hot
pressing (about 5000 psi) mixtures of LiAlO2 and alkali carbonates (typically >50 vol% in liquid
state) at temperatures slightly below the melting point of the carbonate salts (e.g., 490 C for
electrolyte containing 62 mol% Li2CO3-38 mol% K2CO3). These electrolyte structures (also called
"electrolyte tiles") were relatively thick (1-2 mm) and difficult to produce in large sizes21 because
large tooling and presses were required. The electrolyte structures produced by hot pressing are
often characterized by 1) void spaces (<5% porosity), 2) poor uniformity of microstructure,

21
. The largest electrolyte tile produced by hot pressing was about 1.5 m2 in area (7).

6-5

3) generally poor mechanical strength, and 4) high iR drop. To overcome these shortcomings of
hot pressed electrolyte structures, alternative processes such as tape casting (7) and electrophoretic
deposition (13) for fabricating thin electrolyte structures were developed. The greatest success to
date with an alternative process has been reported with tape casting, which is a common processing
technique used by the ceramics industry. This process involves dispersing the ceramic powder in a
solvent,22 which contains dissolved binders (usually an organic compound), plasticizers, and
additives to yield the proper slip rheology. The slip is cast over a moving smooth substrate, and
the desired thickness is established with a doctor blade device. After drying the slip, the "green"
structure is assembled into the fuel cell where the organic binder is removed by thermal
decomposition, and the absorption of alkali carbonate into the ceramic structure occurs during cell
startup. Deposition (13) for fabricating thin electrolyte structures was developed.

The tape casting and electrophoretic deposition processes are amenable to scaleup, and thin
electrolyte structures (0.25-0.5 mm) can be produced. The ohmic resistance of an electrolyte
structure23 and the resulting ohmic polarization have a large influence on the operating voltage of
MCFCs (14). FCE has stated that the electrolyte matrix encompasses 70% of the ohmic loss (15).
At a current density of 160 mA/cm2, the voltage drop ( Vohm) of an 0.18 cm thick electrolyte
structure, with a specific conductivity of -0.3 ohm-1cm-1 at 650 C, was found to obey the
relationship (13).

Vohm (V) = 0.533t (6-6)

where t is the thickness in cm. Later data confirm this result (15). With this equation, it is
apparent that a fuel cell with an electrolyte structure of 0.025 cm thickness would operate at a cell
voltage that is 82 mV higher than that of an identical cell with an electrolyte structure of 0.18 cm
thickness because of the lower ohmic loss. Thus, there is a strong incentive for making thinner
electrolyte structures to improve cell performance.

The electrolyte composition affects the performance and endurance of MCFCs in several ways.
Higher ionic conductivities, and hence lower ohmic polarization, are achieved with Li-rich
electrolytes because of the relative high ionic conductivity of Li2CO3 compared to that of Na2CO3
and K2CO3. However, gas solubility and diffusivity are lower, and corrosion is more rapid in
Li2CO3.

The major problems with Ni-based anodes and NiO cathodes are structural stability and NiO
dissolution, respectively (9). Sintering and mechanical deformation of the porous Ni-based anode
under compressive load lead to severe performance decay by redistribution of electrolyte in a
MCFC stack. The dissolution of NiO in molten carbonate electrolyte became evident when thin
electrolyte structures were used. Despite the low solubility of NiO in carbonate electrolytes
(~10 ppm), Ni ions diffuse in the electrolyte towards the anode, and metallic Ni can precipitate in
regions where a H2 reducing environment is encountered. The precipitation of Ni provides a sink
for Ni ions, and thus promotes the diffusion of dissolved Ni from the cathode. This phenomenon

22
. An organic solvent is used because LiAlO2 in the slip reacts with H2O.
23
. Electrolyte structures containing 45 wt% LiAlO2 and 55 wt% molten carbonate (62 mol% Li2CO3-38 mol%
K2CO3) have a specific conductivity at 650 C of about 1/3 that of the pure carbonate phase (14).

6-6

becomes worse at high CO2 partial pressures (16,17) because dissolution may involve the
following mechanism:

NiO + CO2 Ni2+ + CO=3 (6-7)

The dissolution of NiO has been correlated to the acid/base properties of the molten carbonate.
The basicity of the molten carbonate is defined as equal to -log (activity of O=) or -log aM2O, where
a is the activity of the alkali metal oxide M2O. Based on this definition, acidic oxides are
associated with carbonates (e.g., K2CO3) that do not dissociate to M2O, and basic oxides are
formed with highly dissociated carbonate salts (e.g., Li2CO3). The solubility of NiO in binary
carbonate melts shows a clear dependence on the acidity/basicity of the melt (18,19). In relatively
acidic melts, NiO dissolution can be expressed by

NiO Ni2+ + O= (6-8)

In basic melts, NiO reacts with O= to produce one of two forms of nickelate ions:

NiO + O= NiO=
2 (6-9)

2NiO + O= + ½O2 -
2NiO2 (6-10)

A distinct minimum in NiO solubility is observed in plots of log (NiO solubility) versus basicity
(-log aM2O), which can be demarcated into two branches corresponding to acidic and basic
dissolution. Acidic dissolution is represented by a straight line with a slope of +1, and a NiO
solubility that decreases with an increase in aM2O. Basic dissolution is represented by a straight line
with a slope of to either -1 or -½, corresponding to Equations (6-9) and (6-10), respectively. The
CO2 partial pressure is an important parameter in the dissolution of NiO in carbonate melts because
the basicity is directly proportional to log PCO2. An MCFC usually operates with a molten
carbonate electrolyte that is acidic.

The goal of 40,000 hours for the lifetime of MCFCs appears achievable with cell operation at
atmospheric pressure, but at 10 atm cell pressure, only about 5,000 to 10,000 hours may be
possible with currently available NiO cathodes (20). The solubility of NiO in molten carbonates is
complicated by its dependence on several parameters: carbonate composition, H2O partial
pressure, CO2 partial pressure, and temperature. For example, measurements of NiO dissolution
by Kaun (21) indicate that the solubility is affected by changing the electrolyte composition; a
lower solubility is obtained in a Li2CO3-K2CO3 electrolyte that contains less Li2CO3 (i.e., lower
solubility in 38 mol% Li2CO3-62 mol% K2CO3 than in 62 mol% Li2CO3-38 mol% K2CO3 at

6-7

650°C). However, the solubility of Ni increases in the electrolyte with 38 mol% Li2CO3 when the
temperature decreases, whereas the opposite trend is observed in the electrolyte with 62 mol%
Li2CO3. Another study reported by Appleby (22) indicates that the solubility of Ni decreases from
9 to 2 ppm by increasing the Li concentration in Li2CO3-K3CO3 from 62 to 75 wt%, and a lower
solubility is obtained in 60 mol% Li2CO3-40 mol% Na2CO3 at 650°C. The total loss of Ni from
the cathode by dissolution in 40,000 hours is expected to correspond to only about 10% of the total
cathode thickness. However, FCE estimated a 30 to 40 % loss of the baseline NiO cathode over
40,000 hours of operation (23). The loss of NiO from the cathode can be a critical problem if the
possibility of a short circuit exists in the cell. The loss of NiO also facilitates compaction of the
cathode. However, FCE endurance testing (7,000 to 10,000 hours) shows that the NiO loss is
tolerable from the cathode performance point of view. The compaction of cathodes became
evident in MCFC stacks once the anode creep was eliminated when strengthened by oxide
dispersion [i.e., oxide dispersion strengthened (ODS) anode].

The bipolar plates used in MCFC stacks are usually fabricated from thin (~15 mil) sheets of an
alloy (e.g., Incoloy 825, 310S or 316L stainless steel) that are coated on one side (i.e., the side
exposed to fuel gases in the anode compartment) with a Ni layer. The Ni layer is stable in the
reducing gas environment of the anode compartment, and it provides a conductive surface coating
with low contact resistance. Approaches to circumvent the problems associated with gas leaks and
corrosion of bipolar plates are described by Pigeaud et al. (24). Corrosion is largely overcome by
application of a coating (about 50 m thickness) at the vulnerable locations on the bipolar plate.
For example, the wet-seal24 area on the anode side is subject to a high chemical potential gradient
because of the fuel gas inside the cell and the ambient environment (usually air) on the outside of
the cell, which promotes corrosion (about two orders of magnitude greater than in the cathode
wet-seal area (25)). A general discussion on corrosion in the wet-seal area of MCFCs is presented
by Donado et al. (26). A thin Al coating in the wet-seal area of a bipolar plate provides corrosion
protection by forming a protective layer of LiAlO2 after reaction of Al with Li2CO3 (27). Such a
protective layer would not be useful in areas of the bipolar plate that must permit electronic
conduction because LiAlO2 is an insulating material.

A dense and electronically insulating layer of LiAlO2 is not suitable for providing corrosion
resistance to the cell current collectors because these components must remain electrically
conductive. The typical materials used for this application are 316 stainless steel and chromium
plated stainless steels. However, materials with better corrosion resistance are required for long-
term operation of MCFCs. Research is continuing to understand the corrosion processes of
chromium in molten carbonate salts under both fuel gas and oxidizing gas environments (23,25)
and to identify improved alloys (29) for MCFCs. Stainless steels such as Type 310 and 446 have
demonstrated better corrosion resistance than Type 316 in corrosion tests (29).

24
. The area of contact between the outer edge of the bipolar plate and the electrolyte structure prevents gas from
leaking out of the anode and cathode compartments. The gas seal is formed by compressing the contact area
between the electrolyte structure and the bipolar plate so that the liquid film of molten carbonate at operating
temperature does not allow gas to permeate through.

6-8

MCFC components are limited by several technical problems (30), particularly those described in
Section 6.1.1. A review of the literature from 1994 to the present shows that research efforts
described in a previous issue of this handbook (31) essentially continue. It should be noted that
MCFC component designs and operational approaches exist on an individual basis that would
result in operation for a 40,000-hour lifetime at atmospheric pressure and with natural gas fuel.
The coupling of these improvements needs to be proven to meet endurance goals; operation at
pressure will definitely require design changes. The studies described in the recent literature
provide updated information on promising development of the electrodes, the electrolyte matrix,
and the capability of the cell to tolerate trace constituents in the fuel supply. The objectives of
these works are to increase the life of the cells, improve cell performance, and lower cell
component costs. Descriptions of some of this work follow.

Anode: As stated in Section 6.1.1 and Reference 32, present state-of-the-art anodes are made of a
Ni-Cr/Ni-Al alloy. The Cr was added to eliminate the problem of anode sintering. However, Ni-
Cr anodes are susceptible to creep when placed under the torquing load required in the stack to
minimize contact resistance between components. The Cr in the anode is also lithiated by the
electrolyte; then it consumes carbonate. Developers are trying lesser amounts of Cr (8%) to reduce
the loss of electrolyte, but some have found that reducing the Cr by 2 percentage points increased
creep (33). Several developers have begun testing with Ni-Al alloy anodes that provide creep
resistance with minimum electrolyte loss (33,34,35). The low creep rate with this alloy is
attributed to the formation of LiAlO2 dispersed in Ni (34).

Even though the above work is providing a stable, non-sintering, creep-resistant anode,
electrodes made with Ni are relatively high in cost. Work is in progress to determine whether a
cheaper material, particularly Cu, can be substituted for Ni to lower the cost while retaining
stability. A complete substitution of Cu for Ni is not feasible because Cu would exhibit more
creep than Ni. It has been found that anodes made of a Cu - 50% Ni - 5% Al alloy will provide
long-term creep resistance (36). Another approach tested at IGT showed that an "IGT" stabilized
Cu anode had a lower percent creep than a 10% Cr - Ni anode. Its performance was about 40 to
50 mV lower than the standard cell at 160 mA/cm2. An analysis hypothesized that the
polarization difference could be reduced to 32 mV at most by pore structure optimization (37).

There is a need to provide better tolerance to sulfur poisoning gases in systems using MCFCs,
especially when considering coal operation. The strong incentive for sulfur tolerant cells is to
eliminate cleanup equipment that impacts system efficiency. This is especially true if low
temperature cleanup is required, because the system efficiency and capital cost suffer when the fuel
gas temperature is first reduced, then increased to the cell temperature level. Tests are being
conducted on ceramic anodes to alleviate the problems, including sulfur poisoning, being
experienced with anodes (30). Anodes are being tested with undoped LiFeO2 and LiFeO2 doped
with Mn and Nb. Preliminary testing where several parameters were not strictly controlled showed
that the alternative electrodes exhibited poor performance and would not operate over 80 mA/cm2.
At the present time, no alternative anodes have been identified. Instead, future work will focus on
performing tests to better understand material behavior and to develop other alternative materials
with emphasis on sulfur tolerance.

6-9

Cathode: An acceptable candidate material for cathodes must have adequate electrical
conductivity, structural strength, and a low dissolution rate in molten alkali carbonates to avoid
precipitation of metal in the electrolyte structure. State-of-the art cathodes are made of lithiated
NiO (31,32), which has acceptable conductivity and structural strength. However, in early testing,
the predecessor of International Fuel Cells Corporation found that the nickel dissolved, then
precipitated and reformed as dendrites across the electrolyte matrix. This caused a loss of
performance and eventual shorting of the cell (see Section 6.1.1). The dissolution of the cathode
has turned out to be the primary life-limiting constraint of MCFCs, particularly in pressurized
operation (34). Developers are investigating approaches to resolving the NiO dissolution problem:
developing alternative materials for the cathodes, increasing the matrix thickness, using additives
in the electrolyte to increase its basicity, and increasing the fraction of Li in the baseline
electrolyte.

Initial work on LiFeO2 cathodes showed that electrodes made with this material were very stable
chemically; cathode environment; there was essentially no dissolution (30). However, these
electrodes have poor performance compound relative to the state-of-the-art NiO cathode at
atmospheric pressure because of slow kinetics. The electrode shows promise at pressurized
operation, so it is still being investigated. Higher performance improvements are expected with
Co-doped LiFeO2; these cathodes will be tested in future work. It also has been shown that
5 mol% lithium doped NiO with a thickness of 0.02 cm provided a 43 mV overpotential (higher
performance) at 160 mA/cm2 compared to the state-of-the-art NiO cathode. It is assumed that
further performance improvements could be made by reconfiguring the structure, such as
decreasing the agglomerate size.

Life is shortened by a decrease in the electrolyte matrix thickness (38). Concurrently, an increase
in matrix thickness brings about an increase in life. This is due to an increase in the Ni++ diffusion
path, which lowers the transport rate and shifts the Ni desposition zone. Developers found that an
increase in electrolyte thickness from 0.5 mm to 1.0 mm increased the time to shorting from
1000 hours to 10,000 hours. Along with this, data showed that if the PCO2 was reduced one-third,
then the Ni dissolution decreased by a third. U.S. developers concluded that a two-fold
improvement in the time-to-short can be achieved using a 60% increase in matrix thickness and an
additive of CaCO3. However, this combined approach caused an approximately 20 mV reduction
in performance at 160 mA/cm2 (23).

Another idea for resolving the cathode dissolution problem is to formulate a milder cell
environment. This leads to the approach of using additives in the electrolyte to increase its
basicity. Small amounts of additives provide similar voltages to those without additives, but larger
amounts adversely affect performance (39). Table 6-2 quantifies the limiting amounts of additives.

Another approach to having a milder cell environment is to increase the fraction of Li in the
baseline electrolyte or change the electrolyte to Li/Na rather than the baseline 62/38 Li/K melt
(23,39,40). Within the past 10 years, a lower cost stabilized cathode was developed with a base
material cost comparable to the unstabilized cathode (41). A 100 cm2 cell test of the lower cost
stabilized cathode with a Li/Na electrolyte system completed 10,000 hours of operation.

6-10

Table 6-2 Amount in Mol% of Additives to Provide Optimum Performance (39)

62 MOL% 52 MOL% Li2CO3/NA2CO3
Li2CO3/K2CO2
CaCO3 0 – 15 0-5
SrCO3 0–5 0-5
BaCO3 0 - 10 0-5

Electrolyte Structure: Ohmic losses contribute about 65 mV loss at the beginning of life and may
increase to as much as 145 mV by 40,000 hours (15). The majority of the voltage loss is in the
electrolyte and the cathode components. The electrolyte offers the highest potential for reduction
because 70% of the total cell ohmic loss occurs there. FCE investigated increasing the porosity of
the electrolyte 5% to reduce the matrix resistance by 15%, and change the melt to Li/Na from Li/K
to reduce the matrix resistivity by 40%. Work is continuing on the interaction of the electrolyte
with the cathode components. At the present time, an electrolyte loss of 25% of the initial
inventory can be projected with a low surface area cathode current collector and with the proper
selection of material.

Another area for electrolyte structure improvement is the ability of the matrix to prevent gas
crossover from one electrode to the other. FCE produced an improved matrix fabrication process
providing low temperature binder burnout. This process resulted in frequently achieving a 1% gas
leakage, well below the goal of 2% (42). FCE reported in 1997 that it had developed a high
performance rugged matrix that increases the gas sealing efficiency by approximately a factor of
ten better than the design goal (43).

Electrolyte Migration: Cell performance suffers because of leakage of the electrolyte from the
cell. There is a tendency for the electrolyte to migrate from the positive end of the stack to the
negative end of the stack. The leakage is through the gasket used to couple the external manifolds
to the cell stack. The baseline gasket material presently used is highly porous and provides a ready
circuit for electrolyte transfer. A new gasket design having lower porosity plus end cell inventory
capability offers the potential for reaching 40,000 hours, if only this mode of failure is considered
(6). Stacks with internal manifolding do not require a gasket and do not experience this problem
(44).

Coal Gas Trace Species: MCFCs to date have been operated on reformed or simulated natural gas
and simulated coal gas. Testing is being conducted with simulated coal gas has involved the
expected individual and multi-trace constituents to better understand coal operation (45).

Table 6-3 shows the contaminants and their impact on MCFC operation. The table denotes the
species of concern and what cleanup of the fuel gas is required to operate on coal gas. Confidence
in operation with coal will require the use of an actual gasifier product. An FCE MCFC stack was
installed (fall of 1993) using a slipstream of an actual coal gasifier to further clarify the issues of
operation with trace gases (46).

6-11

Table 6-3 Qualitative Tolerance Levels for Individual Contaminants in Isothermal
Bench-Scale Carbonate Fuel Cells (46, 47, and 48)
(Only 4 out of the 10 contaminants studied appear to have a significant effect)

CONTAMINANTS REACTION MECHANISM QUALITATIVE CONCLUSIONS
(typical ppm in TOLERANCES
raw coal gas)
NO NOTICEABLE EFFECTS
NH3 (10,000) 2NH3 N2+3H2 ~1 vol% NH3 No Effects
Cd (5) Cd+H2O CdO(s)+H2 ~30 ppm Cd No Cell Deposits
Hg (1) (Hg Vapor Not Reactive) 35 ppm Hg No TGA Effects
Sn (3) (Sn(l) Not Volatile) No Vapor @ 650 C No Cell Deposits

MINOR EFFECTS
Zn (100) Zn+H2O ZnO(s)+H2 <15 ppm Zn No Cell Deposits at 75%
Utilization
Pb (15) Pb+H2O PbS(s)+H2 1.0 ppm Pb Cell Deposits Possible in
sat'd vapor Presence of High H2Se
SIGNIFICANT EFFECTS
H2S (15,000) xH2S+Ni NiSx+xH2 <0.5 ppm H2S Recoverable Effect
HCl (500) 2HCl+K2CO3 2KCl(v)+H2O/CO2 <0.1 ppm HCl Long Term Effects Possible
H2Se (5) xH2Se+Ni NiSex+xH2 <0.2 ppm H2Se Recoverable Effect
As (10) AsH3+Ni NiAs(s)+3/2H2 <0.1 ppm As Cumulative Long Term Effect

6.2 Performance
Factors affecting the selection of operating conditions are stack size, heat transfer rate, voltage
level, load requirement, and cost. The performance curve is defined by cell pressure, temperature,
gas composition, and utilization. Typical MCFCs will generally operate in the range of 100 to
200 mA/cm2 at 750 to 900 mV/cell.

Typical cathode performance curves obtained at 650 C with an oxidant composition (12.6%
O2/18.4% CO2/69% N2) that is anticipated for use in MCFCs, and a common baseline composition
(33% O2/67% CO2) are presented in Figure 6-3 (20,49). The baseline composition contains O2 and
CO2 in the stoichiometric ratio that is needed in the electrochemical reaction at the cathode
(Equation (6-2)). With this gas composition, little or no diffusion limitations occur in the cathode
because the reactants are provided primarily by bulk flow. The other gas composition, which
contains a substantial fraction of N2, yields a cathode performance that is limited by gas phase
diffusion from dilution by an inert gas.

6-12

Figure 6-3 Effect of Oxidant Gas Composition on MCFC Cathode Performance at 650 C,
(Curve 1, 12.6% O2/18.4% CO2/69.0% N2; Curve 2, 33% O2/67% CO2)
(49, Figure 3, Pg. 2712)

In the 1980s, the performance of MCFC stacks increased dramatically. During the 1990s, cells as
large as 1.0 m2 are being tested in stacks. Most recently, the focus has been on achieving
performance in a stack equivalent to single cell performance. Cells with an electrode area of
0.3 m2 were routinely tested at ambient and above ambient pressures with improved electrolyte
structures made by tape-casting processes (20). Several stacks underwent endurance testing in the
range of 7,000 to 10,000 hours. The voltage and power as a function of current density after
960 hours for a 1.0 m2 stack consisting of 19 cells are shown in Figure 6-4. The data were
obtained with the cell stack at 650 C and 1 atmosphere.

Figure 6-4 Voltage and Power Output of a 1.0/m2 19 cell MCFC Stack after 960 Hours at
965 C and 1 atm, Fuel Utilization, 75% (50)

The remainder of this section will review operating parameters that affect MCFC performance.
Supporting data will be presented as well as equations derived from empirical analysis.

6-13

The dependence of reversible cell potential on pressure is evident from the Nernst equation. For a
change in pressure from P1 to P2, the change in reversible potential ( Vp) is given by

3/2
RT P RT P 2,
Vp = ln 1, a + ln 3 /c2 (6-11)
2F P 2, a 2F P 1, c

where the subscripts a and c refer to the anode and cathode, respectively. In an MCFC with the
anode and cathode compartments at the same pressure (i.e., P1=P1,a=P1,c and P2=P2,a=P2,c):

RT P1 RT P 3/ 2
2 RT P2
Vp = ln + ln 3/ 2 = ln (6-12)
2F P2 2F P1 4F P1

At 650°C

P2 P2
Vp (mV) = 20 ln = 46 log (6-13)
P1 P1

Thus, a tenfold increase in cell pressure corresponds to an increase of 46 mV in the reversible cell
potential at 650°C.

Increasing the operating pressure of MCFCs results in enhanced cell voltages because of the
increase in the partial pressure of the reactants, increase in gas solubilities, and increase in mass
transport rates. Opposing the benefits of increased pressure are the effects of pressure on
undesirable side reactions such as carbon deposition (Boudouard reaction):

2CO C + CO2 (6-14)

and methane formation (methanation)

CO + 3H2 CH4 + H2O (6-15)

In addition, decomposition of CH4 to carbon and H2 is possible
CH4 C + 2H2 (6-16)

6-14

but this reaction is suppressed at higher pressure. According to the Le Chatelier principle, an
increase in pressure will favor carbon deposition by Equation (6-14) ()25 and methane formation by
Equations (6-15) and (6-16) (51). The water-gas shift reaction (52)26

CO2 + H2 CO + H2O (6-17)

is not expected to be affected significantly by an increase in pressure because the number of
moles of gaseous reactants and products in the reaction is identical. Carbon deposition in an
MCFC is to be avoided because it can lead to plugging of the gas passages in the anode.
Methane formation is detrimental to cell performance because the formation of each mole
consumes three moles of H2, which represents a considerable loss of reactant and would reduce
power plant efficiency.

The addition of H2O and CO2 to the fuel gas modifies the equilibrium gas composition so that the
formation of CH4 is not favored. Carbon deposition can be reduced by increasing the partial
pressure of H2O in the gas stream. The measurements (20) on 10 cm x 10 cm cells at 650 C using
simulated gasified coal GF-1 (38% H2/56% CO/6% CO2) at 10 atm showed that only a small
amount of CH4 is formed. At open circuit, 1.4 vol% CH4 (dry gas basis) was detected, and at fuel
utilizations of 50 to 85%, 1.2 to 0.5% CH4 was measured. The experiments with a high CO fuel
gas (GF-1) at 10 atmospheres and humidified at 163 C showed no indication of carbon deposition
in a subscale MCFC. These studies indicated that CH4 formation and carbon deposition at the
anodes in an MCFC operating on coal-derived fuels can be controlled, and under these conditions,
the side reactions would have little influence on power plant efficiency.

Figure 6-5 shows the effect of pressure (3, 5, and 10 atmospheres) and oxidant composition
(3.2% CO2/23.2% O2/66.3% N2/7.3% H2O and 18.2% CO2/9.2% O2/65.3% N2/7.3% H2O) on the
performance of 70.5 cm2 MCFCs at 650 C (53). The major difference occurs as the CO2 pressure
changes is the change in open circuit potential, which increases with in cell pressure and
CO2 content (see Equation (6-11)). At 160 mA/cm2, Vp is -44 mV for a pressure change from 3
to 10 atmospheres for both oxidant compositions.

Because Vp is a function of the total gas pressure, the gas compositions in Figure 6-5 have little
influence on Vp. Based on these results, the effect of cell voltage from a change in pressure can
be expressed by the equation

Vp (mV) = 84 log P 2 (6-18)
P1

25
. Data from translation of Russian literature (51) indicate the equilibrium constant is almost independent of pressure.
26
. Data from translation of Russian literature (52) indicate the equilibrium constant K is a function of pressure.
In relative terms, if K (627 C) = 1 at 1 atm, it decreases to 0.74K at 500 atm and 0.60K at 1000 atmospheres.
At the operating pressures of the MCFC, the equilibrium constant can be considered invariant with pressure.

6-15

where P1 and P2 are different cell pressures. Another analysis by Benjamin et al. (54) suggests that
a coefficient less than 84 may be more applicable. The change in voltage as a function of pressure
change was expressed as

P2
Vp (mV) = 76.5 log (6-19)
P1

Figure 6-5 Influence of Cell Pressure on the Performance of a 70.5 cm2 MCFC at 650 C
(anode gas, not specified; cathode gases, 23.2% O2/3.2% CO2/66.3% N2/7.3% H2O and
9.2% O2/18.2% CO2/65.3% N2/7.3% H2O; 50% CO2, utilization at 215 mA/cm2)
(53, Figure 4, Pg. 395)

Equation (6-19) was based on a load of 160 mA/cm2 at a temperature of 650 C. It was also found
to be valid for a wide range of fuels and for a pressure range of 1 atmosphere P
10 atmospheres. Other results (55) support this coefficient. Figure 6-6 shows the influence of
pressure change on voltage gain for three different stack sizes. These values are for a temperature
of 650 C and a constant current density of 150 mA/cm2 at a fuel utilization of 70%. The line that
corresponds to a coefficient of 76.5 falls approximately in the middle of these values. Further
improvements in cell performance will lead to changes in the logarithmic coefficient. Additional
data (56,57,58) indicate that the coefficient may indeed be less than 76.5, but Equation (6-19)
appears to represent the effect of pressure change on performance.

6-16

Figure 6-6 Influence of Pressure on Voltage Gain (55)

The influence of temperature on the reversible potential of MCFCs depends on several factors,
one of which involves the equilibrium composition of the fuel gas (20,59,60,61).27 The water gas
shift reaction achieves rapid equilibrium28 at the anode in MCFCs, and consequently CO serves
as an indirect source of H2. The equilibrium constant (K)

P CO P H 2 O
K= (6-20)
P H 2 P CO 2

increases with temperature (see Table 6-4 and Appendix 11.1), and the equilibrium composition
changes with temperature and utilization to affect the cell voltage.

The influence of temperature on the voltage of MCFCs is illustrated by the following example.
Consider a cell with an oxidant gas mixture of 30% O2/60% CO2/10% N2, and a fuel gas mixture
of 80% H2/20% CO2. When the fuel gas is saturated with H2O vapor at 25 C, its composition
becomes 77.5% H2/19.4% CO2/3.1% H2O. After considering the equilibrium established by the

27
. For a fixed gas composition of H2, H2O, CO, CO2, and CH4 there is a temperature, Tb, below which the exothermic
Boudouard reaction is thermodynamically favored, and a temperature, Tm, above which carbon formation by the
endothermic decomposition of CH4 is thermodynamically favored; more extensive details on carbon deposition are
found elsewhere (20,59,60,61).
28
. The dependence of equilibrium constant on temperature for carbon deposition, methanation, and water gas shift
reactions is presented in Appendix 11.1.

6-17

water gas shift reaction (Equation (6-17), the equilibrium concentrations can be calculated (see
Example 10-5 in Section 10) using Equation (6-20) and the equilibrium constant; see for
instance, Broers and Treijtel (62). The equilibrium concentrations are substituted into
Equation (6-4)) to determine E as a function of T.

Table 6-4 Equilibrium Composition of Fuel Gas and Reversible Cell Potential as a
Function of Temperature

Parametera Temperature ( K)
800 900 1000
PH2 0.669 0.649 0.643
PCO2 0.088 0.068 0.053
PCO 0.106 0.126 0.141
PH2O 0.137 0.157 0.172
Eb (V) 1.155 1.143 1.133
Kc 0.2474 0.4538 0.7273

a - P is the partial pressure computed from the water gas shift equilibrium of inlet gas with
composition77.5% H2/19.4% CO2/3.1% H2O at 1 atmosphere.
b - Cell potential calculated using Nernst equation and cathode gas composition of 30% O2/60%
Co2/10% N2.
c - Equilibrium constant for water gas shift reaction from Reference (59).

The results of these calculations are presented in Table 6-4. Inspection of the results shows a
change in the equilibrium gas composition with temperature. The partial pressures of CO and H2O
increase at higher T because of the dependence of K on T. The result of the change in gas
composition, and the decrease in E with increasing T, is that E decreases with an increase in T. In
an operating cell, the polarization is lower at higher temperatures, and the net result is that a higher
cell voltage is obtained at elevated temperatures. The electrode potential measurements (9) in a
3 cm2 cell29 show that the polarization at the cathode is greater than at the anode, and that the
polarization is reduced more significantly at the cathode with an increase in temperature. At a
current density of 160 mA/cm2, cathode polarization is reduced by about 160 mV when the
temperature increases from 550 to 650 C, whereas the corresponding reduction in anode
polarization is only about 9 mV (between 600 and 650 C, no significant difference in polarization
is observed at the anode).

Baker et al. (63) investigated the effect of temperature (575 to 650 C) on the initial performance
of small cells (8.5 cm2). With steam-reformed natural gas as the fuel and 30% CO2/70% air as

29
. Electrolyte is 55 wt% carbonate eutectic (57 wt% Li2CO3, 31 wt% Na2CO3, 12 wt% K2CO3) and 45 wt% LiA1O2,
anode is Co + 10% Cr, cathode is NiO, fuel is 80% H2/20% CO2 and oxidant is 30% CO2/70% air.

6-18

the oxidant, the cell voltage30 at 200 mA/cm2 decreased by 1.4 mV/ for a reduction in
temperature from 650 to 600 C, and 2.16 mV/ C for a decrease from 600 to 575 C. In the
temperature range 650 to 700 C, data analysis (58) indicates a relationship of 0.25 mV/ C. The
following equations summarize these results.

VT (mV) = 2.16 (T2 – T1) 575 C < T < 600 C (6-21)

VT (mV) = 1.40 (T2 – T1) 600 C < T < 650 C (6-22)

VT (mV) = 0.25 (T2 – T1) 650 C < T < 700 C (6-23)

The two major contributors responsible for the change in cell voltage with temperature are the
ohmic polarization and electrode polarization. It appears that in the temperature range of 575 to
650 C, about 1/3 of the total change in cell voltage with decreasing temperature is due to an
increase in ohmic polarization, and the remainder from electrode polarization at the anode and
cathode. Most MCFC stacks currently operate at an average temperature of 650 C. Most
carbonates do not remain molten below 520 C, and as seen by the previous equations, cell
performance is enhanced by increasing temperature. Beyond 650 C, however, there are
diminishing gains with increased temperature. In addition, there is increased electrolyte loss from
evaporation and increased material corrosion. An operating temperature of 650 C thus offers a
compromise between high performance and stack life.

The voltage of MCFCs varies with the composition of the reactant gases. The effect of reactant
gas partial pressure, however, is somewhat difficult to analyze. One reason involves the water gas
shift reaction at the anode due to the presence of CO. The other reason is related to the
consumption of both CO2 and O2 at the cathode. Data (55,64,65,66) show that increasing the
reactant gas utilization generally decreases cell performance.

As reactant gases are consumed in an operating cell, the cell voltage decreases in response to the
polarization (i.e., activation, concentration) and to the changing gas composition (see discussion in
Section 2). These effects are related to the partial pressures of the reactant gases.

Oxidant: The electrochemical reaction at the cathode involves the consumption of two moles
CO2 per mole O2 (see Equation (6-2)), and this ratio provides the optimum cathode performance.
The influence of the [CO2]/[O2] ratio on cathode performance is illustrated in Figure 6-7 (46). As
this ratio decreases, the cathode performance decreases, and a limiting current is discernible. In the
limit where no CO2 is present in the oxidant feed, the equilibrium involving the dissociation of
carbonate ions becomes important.

30
. Cell was operated at constant flow rate; thus, the utilization changes with current density.

6-19

CO=
3 CO2 + O= (6-24)

2
Current density (mA/cm )

Figure 6-7 Effect of CO2/O2 Ratio on Cathode Performance in an MCFC,
Oxygen Pressure is 0.15 atm (20, Figure 5-10, Pgs. 5-20)

Under these conditions the cathode performance shows the greatest polarization because of the
composition changes that occur in the electrolyte. The change in the average cell voltage of a
ten-cell stack as a function of oxidant utilization is illustrated Figure 6-8. In this stack, the
average cell voltage at 172 mA/cm2 decreases by about 30 mV for a 30 percentage
points increase in oxidant (20 to 50%) utilization. Based on this additional data (55,64,65), the
voltage loss due to a change in oxidant utilization can be described by the following equations:

1
2
P CO 2 P O 2 1

2 2 (6-25)
Vcathode (mV) = 250 log 1 for 0.04 < P CO 2 P O 2 < 0.11
2
P CO 2 P O 2
1

1
2
P CO 2 P O 2 1

2 2 (6-26)
Vcathode (mV) = 99 log 1 for 0.11 < P CO 2 P O 2 < 0.38
2
P CO 2 P O 2
1

6-20

where the P CO 2 and P O 2 are the average partial pressures of CO2 and O2 in the system.

Figure 6-8 Influence of Reactant Gas Utilization on the Average Cell Voltage of an
MCFC Stack (67, Figure 4-21, Pgs. 4-24)

Fuel: The data in Table 6-5 from Lu and Selman (68) illustrate the dependence of the anode
potential on the composition of five typical fuel gases and two chemical equilibria occurring in the
anode compartment.31 The calculations show the gas compositions and open circuit anode
potentials obtained after equilibria by the water gas shift and CH4 steam reforming reactions are
considered. The open circuit anode potential calculated for the gas compositions after
equilibration, and experimentally measured, is presented in Table 6-5. The equilibrium gas
compositions obtained by the shift and steam reforming reactions clearly show that, in general, the
H2 and CO2 contents in the dry gas decrease, and CH4 and CO are present in the equilibrated gases.
The anode potential varies as a function of the [H2]/[H2O][CO2] ratio; a higher potential is obtained
when this ratio is higher. The results show that the measured potentials agree with the values
calculated, assuming that simultaneous equilibria of the shift and the steam reforming reactions
reach equilibrium rapidly in the anode compartments of MCFCs.

31
. No gas phase equilibrium exists between O2 and CO2 in the oxidant gas that could alter the composition or cathode
potential.

6-21

Table 6-5 Influence of Fuel Gas Composition on Reversible Anode Potential at 650 C
(68, Table 1, Pg. 385)

Typical Gas Composition (mole fraction) -Eb
Fuel Gasa H2 H2O CO CO2 CH4 N2 (mV)
Dry gas
High Btu (53 C) 0.80 - - 0.20 - - 1116 3c
Intermed. Btu (71 C) 0.74 - - 0.26 - - 1071 2c
Low Btu 1 (71 C) 0.213 - 0.193 0.104 0.011 0.479 1062 3c
Low Btu 2 (60 C) 0.402 - - 0.399 - 0.199 1030 c
Very low Btu (60 C) 0.202 - - 0.196 - 0.602 1040 c

Shift equilibrium
High Btu (53 ) 0.591 0.237 0.096 0.076 - - 1122d
Intermed. Btu (71 C) 0.439 0.385 0.065 0.112 - - 1075d
Low Btu 1 (71 C) 0.215 0.250 0.062 0.141 0.008 0.326 1054d
Low Btu 2 (60 C) 0.231 0.288 0.093 0.228 - 0.160 1032d
Very low Btu (60 C) 0.128 0.230 0.035 0.123 - 0.484 1042d

Shift and Steam-reforming
High Btu (53 C) 0.555 0.267 0.082 0.077 0.020 - 1113d
Intermed. Btu (71 C) 0.428 0.394 0.062 0.112 0.005 - 1073d
Low Btu 1 (71 C) 0.230 0.241 0.067 0.138 0.001 0.322 1059d
Low Btu 2 (60 C) 0.227 0.290 0.092 0.229 0.001 0.161 1031d
Very low Btu (60 C) 0.127 0.230 0.035 0.123 0.0001 0.485 1042d

a- Temperature in parenthesis is the humidification temperature
b- Anode potential with respect to 33% O2/67% CO2 reference electrode
c- Measured anode potential
d- Calculated anode potential, taking into account the equilibrated gas composition

Further considering the Nernst equation, an analysis shows that the maximum cell potential for a
given fuel gas composition is obtained when [CO2]/[O2] = 2. Furthermore, the addition of inert
gases to the cathode, for a given [CO2]/[O2] ratio, causes a decrease in the reversible potential. On
the other hand, the addition of inert gases to the anode increases the reversible potential for a given
[H2]/[H2O][CO2] ratio and oxidant composition. This latter result occurs because two moles of
products are diluted for every mole of H2 reactant. However, the addition of inert gases to either
gas stream in an operating cell can lead to an increase in concentration polarization.

6-22

Figure 6-9 depicts an average voltage loss for the stack of about 30 mV for a 30% increase in
fuel utilization (30 to 60%). This and other data (66) suggest that the voltage loss due to a
change in fuel utilization can be described by the following equation:

P H 2 / P CO 2 P H 2 O 2
Vanode (mV) = 173 log (6-27)
P H 2 / P CO 2 P H 2 O 1

where P H 2 , P CO 2 , and P H 2 O are the average partial pressures of H2, CO2, and O2 in the system.

The above discussion implies that MCFCs should be operated at low reactant gas utilizations to
maintain voltage levels, but doing this means inefficient fuel use. As with other fuel cell types, a
compromise must be made to optimize overall performance. Typical utilizations are 75 to 85% of
the fuel.

Figure 6-9 Dependence of Cell Voltage on Fuel Utilization (69)

Gasified coal is expected to be the major source of fuel gas for MCFCs, but because coal contains
many contaminants in a wide range of concentrations, fuel derived from this source also contains a
considerable number of contaminants.32 A critical concern with these contaminants is the
concentration levels that can be tolerated by MCFCs without suffering significant degradation in

32
. See Table 11.1 for contaminant levels found in fuel gases from various coal gasification processes.

6-23

performance or reduction in cell life. A list of possible effects of contaminants from coal-derived
fuel gases on MCFCs is summarized in Table 6-6 (70).

Table 6-6 Contaminants from Coal-Derived Fuel Gas and Their Potential Effect on
MCFCs (70, Table 1, Pg. 299)

Class Contaminant Potential Effect
Particulates Coal fines, ash Plugging of gas passages
Sulfur compounds H2S, COS, CS2, C4H4S Voltage losses
Reaction with electrolyte
via SO2
Halides HCl, HF, HBr, SnCl2 Corrosion
Reaction with electrolyte
Nitrogen compounds NH3, HCN, N2 Reaction with electrolyte
via NOx
Trace metals As, Pb, Hg, Cd, Sn Deposits on electrode
Zn, H2Se, H2Te, AsH3 Reaction with electrolyte
Hydrocarbons C6H6, C10H8, C14H10 Carbon deposition

The typical fuel gas composition and contaminants from an air-blown gasifier that enter the MCFC
at 650 C after hot gas cleanup, and the tolerance level of MCFCs to these contaminants are listed
in Table 6-7 (58,71,72). It is apparent from this example that a wide spectrum of contaminants is
present in coal-derived fuel gas. The removal of these contaminants can add considerably to the
efficiency. A review of various options for gas cleanup is presented by Anderson and Garrigan
(70) and Jalan et al. (73).

Sulfur: It is now well established that sulfur compounds in low ppm (parts per million)
concentrations in fuel gas are detrimental to MCFCs (74,75,76,77,78). The tolerance of MCFCs to
sulfur compounds (74) is strongly dependent on temperature, pressure, gas composition, cell
components, and system operation (i.e., recycle, venting, gas cleanup). The principal sulfur
compound that has an adverse effect on cell performance is H2S. At atmospheric pressure and high
gas utilization (~75%), <10 ppm H2S in the fuel can be tolerated at the anode (tolerance level
depends on anode gas composition and partial pressure of H2), and <1 ppm SO2 is acceptable in the
oxidant (74). These concentration limits increase when the temperature increases, but they
decrease at increasing pressures.

6-24

Table 6-7 Gas Composition and Contaminants from Air-Blown Coal Gasifier After
Hot Gas Cleanup, and Tolerance Limit of MCFCs to Contaminants

Fuel Gasa Contaminantsb,c Contentb,c Remarksb Tolerancec,d
(mol%) Limit
19.2 CO Particulates <0.5 mg/l Also includes ZnO from <0.1 g/l for
H2S cleanup stage large
particulates
>0.3 :m
13.3 H2 NH3 2600 ppm <10,000
ppm
2.6 CH4 AsH3 <5 ppm < 1 ppm
6.1 CO2 H2S <10 ppm After first-stage cleanup <0.5 ppm
12.9 H2O HCl 500 ppm Also includes other <10 ppm
halides
45.8 N2 Trace Metals <2 ppm Pb <1 ppm
<2 ppm Cd 30+ ppm
<2 ppm Hg 35+ ppm
<2 ppm Sn NA
Zn <50 ppm From H2S hot cleanup <20 ppm
Tar 4000 ppm Formed during <2000 ppme
desulfurization cleanup
stage

a- Humidified fuel gas enters MCFC at 650 C
b- (71, Table 1, Pg. 177)
c- (79)
d- (72)
e- Benzene

The mechanisms by which H2S affects cell performance have been investigated extensively
(75,76,77,78). The adverse effects of H2S occur because of

Chemisorption on Ni surfaces to block active electrochemical sites,

Poisoning of catalytic reaction sites for the water gas shift reaction, and

Oxidation to SO2 in a combustion reaction, and subsequent reaction with carbonate ions in the
electrolyte.

6-25

The adverse effect of H2S on the performance of MCFCs is illustrated in Figure 6-10. The cell
voltage of a 10 cm x 10 cm cell at 650 C decreases when 5 ppm H2S is added to the fuel gas (10%
H2/5% CO2/10% H2O/75% He), and current is drawn from the cell. The measurements indicate
that low concentrations of H2S do not affect the open circuit potential, but they have a major
impact on the cell voltage as the current density is progressively increased. The decrease in cell
voltage is not permanent;33 when fuel gas without H2S is introduced into the cell, the cell voltage
returns to the level for a cell with clean fuel. These results can be explained by the chemical and
electrochemical reactions that occur involving H2S and S=. A nickel anode at anodic potentials
reacts with H2S to form nickel sulfide:

=
H2S + CO2 H2O + CO2 + S= (6-28)

followed by

Ni + xS= NiSx + 2xe- (6-29)

When the sulfided anode returns to open circuit, the NiSx is reduced by H2:

NiSx + xH2 Ni + xH2S (6-30)

Similarly, when a fuel gas without H2S is introduced to a sulfided anode, reduction of NiSx to Ni
can also occur. Detailed discussions on the effect of H2S on cell performance are presented by
Vogel and co-workers (75,76) and Remick (77,78).

The rapid equilibration of the water gas shift reaction in the anode compartment provides an
indirect source of H2 by the reaction of CO and H2O. If H2S poisons the active sites for the shift
reaction, this equilibrium might not be established in the cell, and a lower H2 content than
predicted would be expected. Fortunately, the evidence (77,78) indicates that the shift reaction is
not significantly poisoned by H2S. In fact, Cr used in stabilized-Ni anodes appears to act as a
sulfur tolerant catalyst for the water gas shift reaction (78).

The CO2 required for the cathode reaction is expected to be supplied by recycling the anode gas
exhaust (after combustion of the residual H2) to the cathode. Therefore, any sulfur in the anode
effluent will be present at the cathode inlet unless provisions are made for sulfur removal. In the
absence of sulfur removal, sulfur enters the cathode inlet as SO2, which reacts quantitatively
(equilibrium constant is 1015 to 1017) with carbonate ions to produce alkali sulfates. These sulfate

33
. The effects of H2S on cell voltage are reversible if H2S concentrations are present at levels below that required to
form nickel sulfide.

6-26

ions are transported through the electrolyte structure to the anode during cell operation. At the
anode, SO4= is reduced to S=, thus increasing the concentration of S= there.

Figure 6-10 Influence of 5 ppm H2S on the Performance of a Bench Scale MCFC
(10 cm x 10 cm) at 650 C, Fuel Gas (10% H2/5% CO2/10% H2O/75% He) at 25% H2
Utilization (78, Figure 4, Pg. 443)

Based on the present understanding of the effect of sulfur on MCFCs, and with the available cell
components, it is projected that long-term operation (40,000 hr) of MCFCs may require fuel gases
with sulfur34 levels of the order 0.01 ppm or less, unless the system is purged of sulfur at periodic
intervals or sulfur is scrubbed from the cell burner loop (76). Sulfur tolerance would be
approximately 0.5 ppm (see Table 6-3) in the latter case. Considerable effort has been devoted to
develop low-cost techniques for sulfur removal, and research and development are continuing
(80,81). The effects of H2S on cell voltage are reversible if H2S concentrations are present at levels
below which nickel sulfide forms.

Halides: Halogen-containing compounds are destructive to MCFCs because they can lead to
severe corrosion of cathode hardware. Thermodynamic calculations (82) show that HCl and HF
react with molten carbonates (Li2CO3 and K2CO3) to form CO2, H2O, and the respective alkali
halides. Furthermore, the rate of electrolyte loss in the cell is expected to increase because of the
high vapor pressure of LiCl and KCl. The concentration of Cl- species in coal-derived fuels is
typically in the range 1 to 500 ppm. It has been suggested (83) that the level of HCl should be kept
below 1 ppm in the fuel gas, perhaps below the level of 0.5 ppm (47), but the tolerable level for
long-term operation has not been established.

Nitrogen Compounds: Compounds such as NH3 and HCN do not appear to harm to MCFCs
(70,79) in small amounts. However, if NOx is produced by combustion of the anode effluent in the
cell burner loop, it could react irreversibly with the electrolyte in the cathode compartment to form
nitrate salts. The projection by Gillis (84) for the NH3 tolerance level of MCFCs was 0.1 ppm, but
Table 6-3 indicates that the level could be increased to 1 vol% (47).

34
. Both COS and CS2 appear to be equivalent to H2S in their effect on MCFCs (76).

6-27

Solid Particulates: These contaminants can originate from a variety of sources, and their presence
is a major concern because they can block gas passages and/or the anode surface. Carbon
deposition and conditions that can be used to control its formation have been discussed earlier in
this section. Solid particles such as ZnO, which is used for sulfur removal, can be entrained in the
fuel gas leaving the desulfurizer. The results by Pigeaud (72) indicate that the tolerance limit of
MCFCs to particulates larger than 3 m diameter is <0.1 g/l.

Other Compounds: Experimental studies indicate that 1 ppm As from gaseous AsH3 in fuel gas
does not affect cell performance, but when the level is increased to 9 ppm As, the cell voltage
drops rapidly by about 120 mV at 160 mA/cm2 (71). Trace metals, such as Pb, Cd, Hg, and Sn in
the fuel gas, are of concern because they can deposit on the electrode surface or react with the
electrolyte (15). Table 6-3 addresses limits of these trace metals.

The voltage output from an MCFC is reduced by ohmic, activation, and concentration losses that
increase with increasing current density. The major loss over the range of current densities of
interest is the linear iR loss. The magnitude of this loss (iR) can be described by the following
equations (64,85,86):

VJ(mV) = -1.21 J for 50 < J < 150 (6-31)

VJ(mV) = -1.76 J for 150 < J < 200 (6-32)

where J is the current density (mA/cm2) at which the cell is operating.

Endurance of the cell stack is a critical issue in the commercialization of MCFCs. Adequate cell
performance must be maintained over the desired length of service, quoted by one MCFC
developer as being an average potential degradation no greater than 2mV/1000 hours over a cell
stack lifetime of 40,000 hours (42). Current state-of-the-art MCFCs (55,64,66,87,88) depict an
average degradation over time of

Vlifetime(mV) = -5mV/1000 hours (6-33)

6-28

6.2.7 Internal Reforming
In a conventional fuel cell system, a carbonaceous fuel is fed to a fuel processor where it is steam
reformed to produce H2 (as well as other products, CO and CO2, for example), which is then
introduced into the fuel cell and electrochemically oxidized. The internal reforming molten
carbonate fuel cell, however, eliminates the need for a separate fuel processor for reforming
carbonaceous fuels. This concept is practical in high-temperature fuel cells where the steam
reforming reaction35 can be sustained with catalysts. By closely coupling the reforming reaction
and the electrochemical oxidation reaction within the fuel cell, the concept of the internal
reforming MCFC is realized. The internal reforming MCFC eliminates the need for the external
fuel reactor. It was recognized early that the internal reforming MCFC approach provides a highly
efficient, simple, reliable, and cost effective alternative to the conventional MCFC system (89).
Development to date in the U.S. and Japan continues to support this expectation (85,90 ).

There are two alternate approaches to internal reforming molten carbonate cells: indirect internal
reforming (IIR) and direct internal reforming (DIR). In the first approach, the reformer section is
separate, but adjacent to the fuel cell anode. This cell takes advantage of the close-coupled thermal
benefit where the exothermic heat of the cell reaction can be used for the endothermic reforming
reaction. Another advantage is that the reformer and the cell environments do not have a direct
physical effect on each other. A disadvantage is that the conversion of methane to hydrogen is not
promoted as well as in the direct approach. In the DIR cell, hydrogen consumption reduces its

Figure 6-11 IIR/DIR Operating Concept, Molten Carbonate Fuel Cell Design (42)

35
. Steam reforming of CH4 is typically performed at 750 to 900 C; thus, at the lower operating temperature of
MCFCs, a high activity catalyst is required. Methanol is also a suitable fuel for internal reforming. It does not
require an additional catalyst because the Ni-based anode is sufficiently active.

6-29

partial pressure, thus driving the methane reforming reaction, Equation (6-34), to the right.
Figure 6-11 depicts one developer's approach where IIR and DIR have been combined.

Methane is a common fuel utilized in internal reforming MCFCs, where the steam reforming
reaction

CH4 + H2O CO + 3H2 (6-34)

occurs simultaneously with the electrochemical oxidation of hydrogen (see reaction,
Equation (6-1)) in the anode compartment. The steam reforming reaction is endothermic, with
H650 C = 53.87 kcal/mol (89), whereas the overall fuel cell reaction is exothermic. In an internal
reforming MCFC, the heat required for the reaction in Equation (6-34) is supplied by heat from the
fuel cell reaction, thus eliminating the need for external heat exchange that is required by a
conventional fuel processor. In addition, the product steam from the reaction in Equation (6-1) can
be used to enhance the reforming reaction and the water gas shift reaction (Equation (6-17)) to
produce additional H2. The forward direction of the reforming reaction (Equation (6-34)) is
favored by high temperature and low pressure;, thus, an internal reforming MCFC is best suited to
operate near atmospheric pressure.

A supported Ni catalyst (e.g., Ni supported on MgO or LiAlO2) sustains the steam reforming
reaction at 650 C to produce sufficient H2 to meet the needs of the fuel cell. The interrelationship
between the conversion of CH4 to H2 and its utilization in an internal reforming MCFC at 650 C is
illustrated in Figure 6-12. At open circuit, about 83% of the CH4 was converted to H2, which
corresponds closely to the equilibrium concentration at 650 C. When current is drawn from the
cell, H2 is consumed and H2O is produced, and the conversion of CH4 increases and approaches
100% at fuel utilizations greater than about 50%. Thus, by appropriate thermal management and
adjustment of H2 utilization with the rate of CH4 reforming, a similar performance can be obtained
in internal reforming MCFC stacks with natural gas and with synthesized reformate gas containing
H2 and CO2, Figure 6-13. The concept of internal reforming has been successfully demonstrated
for 10,000 hours in 2 to 3 kW stacks and for 250 hours in a 100 kW stack (91). The performance
of the 2 kW stack over time can be seen in Figure 6-14 (64).

6-30

105

100

95
Methane Conversion (%)

90

85

80

75

70
0 10 20 30 40 50 60 70 80 90 100
Fuel Utilization (%)

Figure 6-12 CH4 Conversion as a Function of Fuel Utilization in a DIR Fuel Cell
(MCFC at 650ºC and 1 atm, steam/carbon ratio = 2.0, >99% methane conversion achieved
with fuel utilization > 65% (92))


Figure 6-13 Voltage Current Characteristics of a 3kW, Five Cell DIR Stack
with 5,016 cm2 Cells Operating on 80/20% H2/CO2 and Methane (85)

6-31

Figure 6-14 Performance Data of a 0.37m2 2 kW Internally Reformed MCFC Stack at
650 C and 1 atm (12)

6.3 Summary of Equations for MCFC
different operating conditions. It is suggested that the following set of equations could be used for
performance adjustments unless the reader prefers other data or correlations. Figure 6-15 is
provided as reference MCFC performance.

6-32

P2
Pressure Vp(mV) = 76.5 log 1 atm < P < 10 atm (6-19)
P1
Temperature VT(mV) = 2.16(T2 - T1) 575 C < T < 600 C (6-21)
VT(mV) = 1.40(T2 - T1) 600 C < T < 650 C (6-22)
VT(mV) = 0.25(T2 - T1) 650 C < T < 700 C (6-23)
1/ 2
( P CO 2 P O 2 ) 2 1/2
Oxidant Vcathode(mV) = 250 log 0.04 (PCO2 PO2 ) 0.11 (6-25)
(P CO 2 P1/ 22 )1
O

1/ 2
( P CO 2 P O 2 ) 2 1/2
Vcathode(mV) = 99 log 1/ 2
0.11 (PCO2 PO2 ) 0.38 (6-26)
( P CO 2 P O 2 )1
1/ 2
( P H 2 / P CO 2 P H 2 O ) 2 (6-27)
Fuel Vanode(mV) = 173 log 1/ 2
( P H 2 / P CO 2 P O 2 )1
Current VJ(mV) = -1.21 J 50 < J < 150mA/cm2 (6-31)
Density VJ(mV) = -1.76 J 150 < J < 200mA/cm2 (6-32)
Life Effects Vlifetime(mV) = -5mV/1000 hours (6-33)

Figure 6-15 Average Cell Voltage of a 0.37m2 2 kW Internally Reformed MCFC Stack at
650 C and 1 atm. Fuel, 100% CH4, Oxidant, 12% CO2/9% O2/77% N2 (12)

Fuel Cell Energy presented a computer model for predicting carbonate fuel cell performance at
different operating conditions. The model was described in detail at the Fourth International
Symposium on Carbonate Fuel Cell Technology, Montreal, Canada, 1997 (93). The model
equations are listed as follows:

The general voltage versus current density relation is:

6-33

V E Nernst ( a c ) conc izr (6-41)

where

RT PH2,a 1/ 2
V0 E0 ln ( PCO2, c P02,c ) (6-42)
2F P CO2, a PH2O , a

At low current density (i<0.04 A/cm2)

iRT 1 Ea/ T
e p H 20.5 p CO 2 pH2O (6-43)
a
2F K0
a

iRT 1 Ec/ T b1' '

c 0 e pCO2 p Ob 2
2 (6-44)
2F K a

At high current density (i < 0.04A/cm2)

RT
a a0 a1lnp H2 a 2lnpCO2, a a 3lnp H2O a 4 /T a 5ln (i) (6-45)
2F

RT
c b b1lnp CO2,c b2 lnp o2 b3 / T b4 lni (6-46)
2F 0

and

c6ln(1 i/i L ) (6-47)

cell resistance

1 1
Zr Z0exp[c( )] (6-48)
T0 T

6-34

A description of the parameters in the model follows:

V = Cell voltage, V
E° = Standard E.M.F., V
R = Universal gas constant (8.314 joule/deg-mole)
T = Temperature, K
P = Partial pressure of gas compositions at anode (a) or cathode (c), atm.
= Polarization, V
i = Current density, A/cm2
z = Cell impedance, -cm2
F = Faraday’s Constant (96,487 joule/volt - gram equivalent)
a,b,c = Parameters determined for experiments

The parameters in the above equations were calibrated from 400 sets of FCE’s laboratory-scale
test data and were further verified by several large-scale stack experiments. These parameter
values may be dependent on the FCE cell design and characteristics and may not be directly
applicable to other carbonate technologies. Figure 6-16 is a comparison of the measured data
match with the model prediction.

1100 75% Fuel/75% CO Util at 160 mA/cm2 with
2
Dilute Oxidant (18%CO and 12% O2
2
1050 83% Pre-reformed CH (IIR-DIR)
4
Simulated Pre-reformed CH4
1000 (External Reforming)

950
Cell Voltage (mV)

900

850
EXP. MODEL

800

750

700

650

600
0 20 40 60 80 100 120 140 160 180 200

Figure 6-16 Model Predicted and Constant Flow Polarization Data Comparison (94)

6-35

6.4 References
1. R.H. Arendt, J. Electrochem. Soc., 129, 942, 1982.
2. H.C. Maru, L.G. Marianowski, Extended Abstracts, Abstract #31, Fall Meeting of the
Electrochemical Society, October 17-22, 1976, Las Vegas, NV, Pg. 82, 1976.
3. J. Mitteldorf, G. Wilemski, J. Electrochem. Soc., 131, 1784, 1984.
4. H.C. Maru, A. Pigeaud, R. Chamberlin, G. Wilemski, in Proceedings of the Symposium on
Electrochemical Modeling of Battery, Fuel Cell, and Photoenergy Conversion Systems, edited
by J.R. Selman and H.C. Maru, The Electrochemical Society, Inc., Pennington, NJ, Pg. 398,
1986.
5. H.R. Kunz, J. Electrochem. Soc., 134, 105, 1987.
6. A. Pigeaud, H.C. Maru, L. Paetsch, J. Doyon, R. Bernard, in Proceedings of the Symposium
on Porous Electrodes: Theory and Practices, edited by H.C. Maru, T. Katan and M.G. Klein,
The Electrochemical Society, Inc., Pennington, NJ, Pg. 234, 1984.
7. H.C. Maru, L. Paetsch, A. Pigeaud, in Proceedings of the Symposium on Molten Carbonate
Fuel Cell Technology, edited by R.J. Selman and T.D. Claar, The Electrochemical Society,
Inc., Pennington, NJ, Pg. 20, 1984.
8. R.J. Petri, T.G. Benjamin, in Proceedings of the 21st Intersociety Energy Conversion
Engineering Conference, Volume 2, American Chemical Society, Washington, DC, Pg. 1156,
1986.
9. R.J. Selman, Energy, 11, 153, 1986.
10. M. Farooque, ERC, "Development on Internal Reforming Carbonate Fuel Cell Technology,
Final Report," prepared for U.S. DOE/METC, DOE/MC/23274-2941, October, 1990,
Pgs. 4-19 - 4-29.
11. R. Huff, "Status of Fuel Cell Technologies," 1986 Fuel Cell Seminar, October 26-29, 1986,
Tucson, AZ, 1986.
12. M. Farooque, data from ERC testing, 1992.
13. C.E. Baumgartner, V.J. DeCarlo, P.G. Glugla, J.J. Grimaldi, J. Electrochem. Soc., 132, 57,
1985.
14. P.G. Glugla, V.J. DeCarlo, J. Electrochem. Soc., 129, 1745, 1982.
15. C. Yuh, M. Farooque, R. Johnsen, ERC, "Understanding of Carbonate Fuel Cell Resistances
in MCFCs," in Proceedings of the Fourth Annual Fuel Cells Contractors Review Meeting,
U.S. DOE/METC, Pgs. 53 - 57, July, 1992.
16. C. Baumgartner, J. Electrochem. Soc., 131, 1850, 1984.
17. W.M. Vogel, L.J. Bregoli, H.R. Kunz, S.W. Smith, in Proceedings of the Symposium on
Molten Carbonate Fuel Cell Technology, edited by R.J. Selman and T.D. Claar, The
Electrochemical Society, Inc., Pennington, NJ, Pg. 443, 1984.
18. M.L. Orfield, D.A. Shores, in Corrosion 86, Paper No. 88, National Association of Corrosion
Engineers, Houston, TX, 1986.
19. D.A. Shores, in Proceedings of the 22nd Intersociety Energy Conversion Engineering
Conference, Volume 2, American Institute of Aeronautics & Astronautics, New York, NY,
Pg. 1023, 1987.
20. "Development of Improved Molten Carbonate Fuel Cell Technology," Final Report prepared
by United Technologies Corp. for the Electric Power Research Institute, Palo Alto, CA, under
Contract #RP1085-4, July 1983.
21. T.D. Kaun, in Proceedings of the Fourth International Symposium on Molten Salts, edited by
M. Blander, D.S. Newman, M.L. Saboungi, G. Mamantov, K. Johnson, The Electrochemical

6-36

Society, Inc., Pennington, NJ, Pg. 489, 1984.
22. A.J. Appleby, "Advanced Fuel Cells and Their Future Market," to be published in Energy
Conservation Strategies, Progress Series, edited by W.E. Murphy, L.H. Fletcher, American
Society of Aeronautics and Astronautics, New York, NY.
Final Report," prepared for U.S. DOE/METC, DOE/MC/23274-2941, Pgs.. 3 - 18,
October, 1990.
24. A. Pigeaud, A.J. Skok, P.S. Patel, H.C. Maru, Thin Solid Films, 83, 1449, 1981.
25. R.A. Donado, L.G. Marianowski, H.C. Maru, J.R. Selman, J. Electrochem. Soc., 131, 2541,
1984.
26. R.A. Donado, L.G. Marianowski, H.C. Maru, J.R. Selman, J. Electrochem. Soc., 131, 2535,
1984.
27. R.B. Swaroop, J.W. Sim, K. Kinoshita, J. Electrochem. Soc., 125, 1799, 1978.
28. H.S. Hsu, J.H. DeVan, J. Electrochem. Soc., 133, 2077, 1986.
29. D.A. Shores, P. Singh, in Proceedings of the Symposium on Molten Carbonate Fuel Cell
Technology, edited by R.J. Selman and T. D. Claar, The Electrochemical Society, Inc.,
Pennington, NJ, Pg. 271, 1984.
30. G. Kucera, K. Myles, A. Brown, M. Roche, D. Chu, E. Indacochea, "ANL's Research and
Development of Alternate Components for MCFCs," in Proceedings of the Fourth Annual
Fuel Cells Contractors Review Meeting, U.S. DOE/METC, July 1992, Pgs. 31 - 41.
31. J. Hirschenhofer, D. Stauffer, R. Engleman, Fuel Cells A Handbook (Revision 3) prepared
by Gilbert/Commonwealth, Inc. for the U.S. Department of Energy under Contract No. DE-
ACO1-88FE61684, January 1994.
32. N. Minh, "High Temperature Fuel Cells," in CHEMTECH, journal published by the American
Chemical Society, Vol. 21, No. 1, January, Pgs. 32-37, 1991.
33. Y. Yamamasu, T. Kakihara, E. Kasai, T. Morita, IHI, "Component Development and
Durability Test of MCFC," in The International Fuel Cell Conference Proceedings,
NEDO/MITI, Tokyo, Japan, Pgs. 161-164, 1992.
34. H. Urushibata, T. Murahashi, MELCO, "Life Issues of Molten Carbonate Fuel Cell," in The
International Fuel Cell Conference Proceedings, NEDO/MITI, Tokyo, Japan, Pgs. 223-226,
1992.
35. S. Takashima, K. Ohtsuka, T. Kara, M. Takeuchi, Y. Fukui, H. Fujimura, Hitachi, "MCFC
Stack Technology at Hitachi," in The International Fuel Cell Conference Proceedings,
NEDO/MITI, Tokyo, Japan, Pgs. 265-268, 1992.
36. K. Hoshino, T. Kohno, Central Research Institute, Mitsubishi Material Co., "Development of
Copper Base Anodes for Molten Carbonate Fuel Cells," in The International Fuel Cell
Conference Proceedings, NEDO/MITI, Tokyo, Japan, Pgs. 169-172, 1992.
37. E.T. Ong, R.A. Donado, K.E. Hrdina, IGT, "Copper-Based Anode," in Fuel Cell Program
and Abstracts, 1990 Fuel Cell Seminar, November 25-28, 1990, Phoenix, AR, Pgs. 314-317.
38. Y. Mugikura, Y. Izaki, T. Watanabe, H. Kinoshita, E. Kouda, T. Abe, Central Research
Institute of Electric Power Industry, and H. Urushibata, S. Yoshioka, H. Maeda, T. Murahashi,
MELCO, "Evaluation of MCFC Performance at Elevated Pressure, " in The International
Fuel Cell Conference Proceedings, NEDO/MITI, Tokyo, Japan, Pgs. 215-218, 1992.
39. K. Tanimoto, Y. Miyazaki, M. Yanagida, S. Tanase, T. Kojima, N. Ohtori, H. Okuyama,
T. Kodama, Government Industrial Research Institute, Osaka, "Cell Performance of Molten
Carbonate Fuel Cell with Alkali and Alkaline Earth Carbonate Mixtures," in The International

6-37

Fuel Cell Conference Proceedings, NEDO/MITI, Tokyo, Japan, Pgs. 185-188, 1992.
40. K. Ota, S. Mitsushima, K Kato, N. Kamiya, Yokahama National University, "Solubilities of
Metal Oxides in Molten Carbonate, " in Proceedings of the Second Symposium on Molten
Carbonate Fuel Cell Technology, Volume 90 - 16, The Electrochemical Society, Inc.
Pennington, NJ, Pgs. 318-327, 1990.
41. T. Benjamin et al., "Status of the M-C Power MCFC Commercialization Program," IECEC-
97, Honolulu, Hawaii, July 27 - August 1, 1997.
Final Report," Pgs. 3-6 to 3-11, prepared for U.S. DOE/METC, DOE/MC/23274-2941,
October 1991.
43. H. Maru et al., "ERC Direct Carbonate Fuel Cell Program Overview," DOE Contractor’s
Review Meeting, Morgantown, WV, August 26-28, 1997.
44. R.O.Petkus, "Successful Test of a 250 kW Molten Carbonate Fuel Cell Power Generator at
Miramar," POWER-GEN International '97, Dallas, TX, December 1997.
45. A. Pigeaud, ERC, and G. Wilemski, Physical Sciences, "Effects of Coal-Derived Trace
Species on the Performance of Carbonate Fuel Cells," in Proceedings of the Fourth Annual
Fuel Cells Contractors Review Meeting, U.S. DOE/METC, Pgs. 42-45, July 1992.
46. D. Rastler, EPRI, G. Devore, Destec Engineering, R. Castle, Haldor Topsoe, C. Chi, ERC,
"Demonstration of a Carbonate Fuel Cell Stack on Coal-Derived Gas," in Fuel Cell Seminar.
47. "Effects of Coal-Derived Trace Species on the Performance of Molten Carbonate Fuel Cells,"
Topical Report prepared by Energy Research Corporation for US DOE/METC,
DOE/MC/25009-T26, October, 1991.
48. A. Pigeaud et al., "Trace Contaminant Effects and Emissions with Integrated Coal
Gasification and Cleanup," 1994 Fuel Cell Seminar, Pgs. 539-542 (1994).
49. L.J. Bregoli and H.R. Kunz, J. Electrochem. Soc., 129, 2711, 1982.
50. Benjamin et al., "Status of MCFC Technology at M-C Power-1992," 1992 Fuel Cell Seminar
Program and Abstracts, 1992.
51. M.G. Gonikberg, Chemical Equilibria and Reaction Rates at High Pressures, Translated from
Russian by M. Artment, edited by S. Monson, published for the National Science Foundation,
Washington, D.C., by the Israel Program for Scientific Translations Jerusalem, Israel, Pg. 58,
1963.
52. M.G. Gonikberg, Chemical Equilibria and Reaction Rates at High Pressures, Translated from
Russian by M. Artment, edited by S. Monson, published for the National Science Foundation,
Washington, DC, by the Israel Program for Scientific Translations, Jerusalem, Israel, Pg. 133,
1963.
53. H.R. Kunz, L.A. Murphy, in Proceedings of the Symposium on Electrochemical Modeling of
Battery, Fuel Cell, and Photoenergy Conversion Systems, edited by J.R. Selman and
H.C. Maru, The Electrochemical Society, Inc., Pennington, NJ, Pg. 379, 1986.
54. T.G. Benjamin, E.H. Camara, L.G. Marianowski, Handbook of Fuel Cell Performance,
prepared by the Institute of Gas Technology for the United States Department of Energy under
Contract No. EC-77-C-03-1545, May 1980.
55. Research and Development on Fuel Cell Power Generation Technology FY1990 Annual
Report, NEDO, April 1991.
56. M. Hosalaetal, "IHI Large Site Molten Carbonate Fuel Cell Advancements," Fuel Cell
Program and Abstracts 1990 Fuel Cell Seminar, Phoenix, AR, November 25-28, 1990.

6-38

57. W.H. Johnson, "Molten Carbonate Fuel Cell Technology Improvement," Quarterly Technical
Progress Report No. 23 for the Period Ending May, 1990, prepared for US DOE/METC,
DOE/MC/23270-2923, September 1990.
58. D.B. Stauffer et al., "An Aspen/SP MCFC Performance User Block," G/C Report No. 2906,
July 1991.
59. J.R. Rostrup-Nielsen, in Catalysis Science and Technology, edited by J.R. Anderson and
M. Boudart, Springer-Verlag, Berlin, German Democratic Republic, Pg. 1, 1984.
60. H.A. Leibhafsky, E.J. Cairns, Fuel Cells and Fuel Batteries, John Wiley and Sons, Inc., New
York, NY, Pg. 654, 1968.
61. T.D. Tawari, E. Pigeaud, H.C. Maru, in Proceedings of the Fifth Annual Contractors Meeting
on Contaminant Control in Coal-Derived Gas Streams, DOE/METC-85/6025, edited by
D.C. Cicero and K.E. Markel, U.S. Department of Energy, Morgantown, WV, Pg. 425,
January 1986.
62. G.H.J. Broers, B.W. Triejtel, Advanced Energy Conversion, 5, 365, 1965.
63. B. Baker, S. Gionfriddo, A. Leonida, H. Maru, P. Patel, "Internal Reforming Natural Gas
Fueled Carbonate Fuel Cell Stack," Final Report prepared by Energy Research Corporation
for the Gas Research Institute, Chicago, IL, under Contract No. 5081-244-0545, March, 1984.
64. M. Farooque, Data from ERC testing, 1992.
65. S. Kaneko et al., "Research on On-Site Internal Reforming Molten Carbonate Fuel Cell,"
1989 International Gas Research Conference, 1989.
66. M. Farooque, "Development of Internal Reforming Carbonate Fuel Cell Stack Technology,"
Final Report, DOE/MC/23274-2941, October 1991.
67. J.M. King, A.P. Meyer, C.A. Reiser, C.R. Schroll, "Molten Carbonate Fuel Cell System
Verification and Scale-up," EM-4129, final report prepared by United Technologies Corp. for
the Electric Power Research Institute, Research Project 1273-1, July 1985.
68. S.H. Lu, J.R. Selman, in Proceedings of the Symposium on Molten Carbonate Fuel Cell
Technology, edited by R.J. Selman, T.D. Claar, The Electrochemical Society, Inc.,
69. T. Tanaka et al., "Research on On-Site Internal-Reforming Molten Carbonate Fuel Cell," 1989
International Gas Research Conference, Pg. 252, 1989.
70. G.L. Anderson, P.C. Garrigan, in Proceedings of the Symposium on Molten Carbonate Fuel
Cell Technology, edited by R.J. Selman, T.D. Claar, The Electrochemical Society, Inc.,
71. A. Pigeaud, in Proceedings of the Sixth Annual Contractors Meeting on Containment Control
in Coal-Derived Gas Streams, DOE/METC-86/6042, edited by K.E. Markel and D.C. Cicero,
U.S. Department of Energy, Morgantown, WV, Pg. 176, July 1986.
72. A. Pigeaud, "Study of the Effects of Soot, Particulate and Other Contaminants on Molten
Carbonate Fuel Cells Fueled by Coal Gas," Progress Report prepared by Energy Research
Corporation for U.S. Department of Energy, Morgantown, WV, under Contract
No. DE-AC21-84MC21154, June 1987.
73. V. Jalan, M. Desai, C. Brooks, in Proceedings of the Symposium on Molten Carbonate Fuel
Cell Technology, edited by R. J. Selman, T. D. Claar, The Electrochemical Society, Inc.,
74. L.J. Marianowski, Prog. Batteries & Solar Cells, 5, 283, 1984.
75. W.V. Vogel and S.W. Smith, J. Electrochem. Soc., 129, 1441, 1982.
76. S.W. Smith, H.R. Kunz, W.M. Vogel and S.J. Szymanski, in Proceedings of the Symposium

6-39

on Molten Carbonate Fuel Cell Technology, edited by R.J. Selman and T.D. Claar, The
Electrochemical Society, Inc., Pennington, NJ, Pg. 246, 1984.
77. R.J. Remick, E.H. Camara, paper presented at the Fall Meeting for The Electrochemical
Society, Inc., New Orleans, LA, October 7-12, 1984.
78. R.J. Remick, in Proceedings of the Fourth Annual Contractors Meeting on Contaminant
Control in Hot Coal-Derived Gas Streams, DOE/METC-85/3, edited by K. E. Markel, U.S.
Department of Energy, Morgantown, WV, Pg. 440, May 1984.
79. M.C. Williams, D.A. Berry, "Overview of the DOE-Funded Fuel Cell Contaminants R&D
Program," Fuel Cell Seminar Program and Abstracts, 1990 Fuel Cell Seminar, Phoenix, AR,
November 25-28, 1990.
80. P.S. Patel, S.M. Rich, H.C. Maru, in Proceedings of the Fourth Annual Contractors Meeting
on Contaminant Control in Hot Coal-Derived Gas Streams, DOE/METC-85/3, edited by K.
E. Markel, U.S. Department of Energy, Morgantown, WV, Pg. 425, May 1984.
81. G.L. Anderson, F.O. Berry, G.D. Harmon, R.M. Laurens, R. Biljetina, in Proceedings of the
Fifth Annual Contractors Meeting on Contaminant Control in Coal-Derived Gas Streams,
DOE/METC-85/6025, edited by D.C. Cicero, K.E. Markel, U.S. Department of Energy,
Morgantown, WV, Pg. 87, January 1986.
82. T.P. Magee, H.R. Kunz, M. Krasij, H.A. Cole, "The Effects of Halides on the Performance of
Coal Gas-Fueled Molten Carbonate Fuel Cell," Semi-Annual Report, October 1986 -
March 1987, prepared by International Fuel Cells for the U.S. Department of Energy,
Morgantown, WV, under Contract No. DE-AC21-86MC23136, May 1987.
83. G.N. Krishnan, B.J. Wood, G.T. Tong, M.A. Quinlan, in Proceedings of the Fifth Annual
Contractors Meeting on Contaminant Control in Coal-Derived Gas Streams,
DOE/METC-85/6025, edited by D.C. Cicero and K.E. Markel, U.S. Department of Energy,
Morgantown, WV, Pg. 448, January 1986.
84. E.A. Gillis, Chem. Eng. Prog., 88, October 1980.
85. T. Tanaka, et al., "Development of Internal Reforming Molten Carbonate Fuel Cell
Technology," in Proceedings of the 25th IECEC, American Institute of Chemical Engineers,
New York, NY, August 1990.
86. M. Miyazaki, T. Okada, H. Ide, S. Matsumoto, T. Shinoki, J. Ohtsuki, "Development of an
Indirect Internal Reforming Molten Carbonate Fuel Cell Stack," in the 27th Intersociety
Energy Conversion Engineering Conference Proceedings, San Diego, CA, August 3-7, 1992,
Pg. 290, 1992.
87. W.H. Johnson, "International Fuel Cells MCFC Technical Accomplishment," in Proceedings
of the Second Annual Fuel Cells Contractor's Review Meeting, US DOE/METC, May 1990.
88. T. Benjamin, G. Rezniko, R. Donelson, D. Burmeister," IMHEXR MCFC Stack Scale-Up," in
the Proceedings of the 27th Intersociety Energy Conversion Engineering Conference, Vol. 3,
San Diego, CA, Aug. 3-7, 1992, Pg. 290, 1992.
89. H.C. Maru, B.S. Baker, Prog. Batteries & Solar Cells, 5, 264, 1984.
90. M. Faroogue, G. Steinfield, H. Maru, "Comparative Assessment of Coal-Fueled Carbonate
Fuel Cell and Competing Technologies," in Proceedings of the 25th IECEC, Vol. 3, American
Institute of Chemical Engineers, New York, NY, 1990.
91. M. Faroogue, "MCFC Power Plant System Verification," presentation at FE Fuel Cells and
Coal-Fired Heat Engines Conference, US DOE/METC, August 3-5, 1993.
92. ERC correspondence, laboratory data, March 1998.

6-40

93. J. Ding et al., “A Computer Model for Direct Carbonate Fuel Cells,” Proceedings of the
Fourth International Symposium on Carbonate Fuel Cells, 191st Electrochemical Society
Meeting, Montreal, May 1997.
94. J. Ding, P. S. Patel, M. Farooque, H. C. Maru, in Carbonate Fuel Cell Technology IV,
(eds. J. R. Selman et al.), The Electrochemical Society, Inc., New Jersey, Pg. 127-138, 1997.

6-41

7. INTERMEDIATE TEMPERATURE SOLID OXIDE FUEL CELL

The intermediate temperature range for a Solid Oxide Fuel Cell (SOFC) can be arbitrarily
defined as 550 C to 800 C. Reducing the operating temperature of the SOFC stack is one of the
significant directions being pursued to reduce the cost of SOFC stacks and balance of plant.
There are both beneficial effects of reducing stack temperature and detrimental effects. In-the-
balance, in most situations, the net effect is beneficial particularly in regard to cost. The most
significant obstacle is that a set of fully compatible materials have not been developed for
operation in this temperature range.

Beneficial effects:

Reforming and Sulfur Removal - A better thermal match exists with existing reforming
and sulfur removal processes. However, it should be noted the optimal nominal reformer
temperature depends on the composition of the fuel.

Sintering and Creep - Less sintering and creep of the stack materials. This helps maintain
geometrical tolerances and high surface area of reaction.

Thermal Stress - Lower operating temperature can in general improve material properties
allowing greater geometrical flexibility and use of less material which in turn can
improve overall area-specific-resistance and allow a wider range of sealing options.

Material Flexibility - The type and range of materials is greater at lower temperatures. In
particular metallics may be incorporated into SOFC stack designs.

Balance of Plant - The balance of plant in general should cost less if the stack fuel and
oxidant exit temperature is less than 800 C for the same reasons the stack should cost
less.

Heat Loss - Less heat loss from the stack for similar levels of insulation. In particular
radiation losses can be significantly less since these are a function of T4. This can have a
significant effect on the self-sustainability of the stack.

7-1

Time to Reach Operating Temperature - Lower nominal operating temperature is
obviously a benefit. Potential use of metallics can also impact this in a beneficial way.

Thermally Activated Processes - Any detrimental thermally activated processes can be
affected beneficially such as chromium vaporization, elemental interdiffusion and
migration, metallic corrosion affects and some ceramic aging affects.

There are some negative affects from lowering the nominal operating temperature of the SOFC.

Cell Voltage - For an identical stack the overall cell voltage will be lower as temperature
decreases due to the decreased kinetics, diffusion , and ionic conductivity versus the
improved electrical conductivity which typically does not dominate the cell polarizations.
This is partially but not fully offset by the increased theoretical open circuit voltage of the
electrochemical reaction at the lower temperature.

Stack Materials - The only proven stack material set is functional between approximately
800 C and 1100 C. A proven material set in the intermediate temperature range does
not yet exist.

Given the large number of potential beneficial effects of lowering the nominal operating
temperature of the SOFC stack and their corollary affect on system cost, intermediate
temperature SOFC concepts are being pursued by many organizations throughout the U.S. and
the World.

In closure it is well recognized that significant research has occurred in this important technology
area. To accurately present this research efforts will continue to compile and summarize all
relevant information. This information will be presented as an addendum to this handbook or in
the next addition.

7-2

8. SOLID OXIDE FUEL CELL

Solid oxide fuel cells36 (SOFCs) have grown in recognition as a viable high temperature fuel cell
technology. There is no liquid electrolyte with its attendant material corrosion and electrolyte
management problems. The operating temperature of >800 C allows internal reforming,
promotes rapid kinetics with nonprecious materials, and produces high quality byproduct heat for
cogeneration or for use in a bottoming cycle, similar to the MCFC. The high temperature of the
SOFC, however, places stringent requirements on its materials. The development of suitable low
cost materials and the low cost fabrication of ceramic structures are presently the key technical
challenges facing SOFCs (1).

The solid state character of all SOFC components means that, in principle, there is no restriction
on the cell configuration. Instead, it is possible to shape the cell according to criteria such as
overcoming design or application issues. Cells are being developed in two different
configurations, as shown in Figure 8-1. One of these approaches, the tubular cell, has undergone
development at Siemens Westinghouse Corporation and its predecessor since the late 1950s.
During recent years, Siemens Westinghouse developed the tubular concept to the status where it
is now being demonstrated at user sites in a complete, operating fuel cell power unit of nominal
100 kW (net AC) capacity.

Figure 8-1 Solid Oxide Fuel Cell Designs at the Cathode

36
. A broader, more generic name for fuel cells operating at the temperatures described in this section would be
"ceramic" fuel cells. The electrolyte of these cells is made primarily from solid ceramic material to survive the
high temperature environment. The electrolyte of present SOFCs is oxygen ion conducting. Ceramic cells
could also be proton conducting.

8-1

The electrochemical reactions (Figure 8-2) occurring in SOFCs utilizing H2 and O2 are based on
Equations (8-1) and (8-2):

H2 + O= H2O + 2e- (8-1)

at the anode, and

½O2 + 2e O= (8-2)

at the cathode. The overall cell reaction is

H2 + ½O2 H2O (8-3)

Figure 8-2 Solid Oxide Fuel Cell Operating Principle (2)

The corresponding Nernst equation, Equation (8-4), for the reaction in Equation (8-3) is

1
2
RT
o P H 2 PO2
E = E + ln (8-4)
2F PH 2 O

Carbon monoxide (CO) and hydrocarbons such as methane (CH4) can be used as fuels in SOFCs.
It is feasible that the water gas shift involving CO (CO + H2O H2 + CO2) and the steam
reforming of CH4 (CH4 + H2O 3H2 + CO) occur at the high temperature environment of
SOFCs to produce H2 that is easily oxidized at the anode. The direct oxidation of CO in fuel
cells also is well established. It appears that the reforming of CH4 to hydrogen predominates in

8-2

the present SOFCs. SOFC designs for the direct oxidation of CH4 have not been thoroughly
investigated in SOFCs in the past (3,4) nor lately (no significant work was found). For reasons
of simplicity in this handbook, the reaction of CO is considered as a water gas shift rather than
an oxidation. Similarly, the favored reaction of H2 production from steam reforming is retained.
Hydrogen produced by the water gas shift and the reforming of methane is included in the
amount of hydrogen subject to reaction in Equations (8-1), (8-3), and (8-4).

8.1 Cell Components

8.1.1 State-of-the-Art
Table 8-1 provides a brief description of the materials currently used in the various cell
components of the more developed tubular SOFC, and those that were considered earlier.
Because of the high operating temperatures of present SOFCs (approximately 1000 C), the
materials used in the cell components are limited by chemical stability in oxidizing and reducing
environments, chemical stability of contacting materials, conductivity, and thermomechanical
compatibility. These limitations have prompted investigations of developing cells with
compositions of oxide and metals that operate at intermediate temperatures in the range of
600-800 C (see Section 7.1.3).

Table 8-1 Evolution of Cell Component Technology for Tubular Solid Oxide Fuel Cells

Component ca. 1965 ca. 1975 Current Statusa
Anode Porous Pt Ni/ZrO2 cermeta Ni/ZrO2 cermetb
Deposit slurry, EVD
fixedc
12.5 x 10-6 cm/cm C
150 m thickness
20-40% porosity
Cathode Porous Pt Stabilized ZrO2 Doped lanthanum
impregnated with manganite
praesodymium Extrusion, sintering
oxide and covered 2 mm thickness
with SnO doped 11 x 10-6 cm/cm C
In2O3 expansion from room
temperature to
1000 C
30-40% porosity

8-3

Component ca. 1965 ca. 1975 Current Statusa
Electrolyte Yttria stabilized Yttria stabilized Yttria stabilized ZrO2
ZrO2 ZrO2 (8 mol% Y2O3)
0.5-mm EVDd
thickness 10.5 x 10-6 cm/cm C
expansion from room
temperature to
1000 C
30-40- m thickness
Cell Pt Mn doped cobalt Doped lanthanum
Interconnect chromite chromite
Plasma spray
10 x 10-6 cm/cm C
100 m thickness

a - Specifications for Siemens Westinghouse SOFC.
b - Y2O3 stabilized ZrO2
c - Fixed EVD” means additional ZrO2 is grown by EVD to fix (attach) the nickel anode
to the electrolyte. This process is expected to be replaced by anode sintering.
d - EVD = electrochemical vapor deposition

Present SOFC designs make use of thin film concepts where films of electrode, electrolyte, and
interconnect material are deposited one on another and sintered, forming a cell structure. The
fabrication techniques differ according to the type of cell configuration and developer. For
example, an "electrochemical vapor deposition" (EVD) technique has been developed to produce
thin layers of refractory oxides suitable for the electrolyte, anode, and interconnection in the
Siemens Westinghouse tubular SOFC design (5). However, by the end of 1998, Siemens
Westinghouse expects to be using EVD only for electrolyte deposition. In this technique, the
appropriate metal chloride vapor is introduced on one side of the tube surface, and O2/H2O is
introduced on the other side. The gas environments on both sides of the tube act to form two
galvanic couples, as demonstrated in Equations (8-5) and (8-6).

MeCly + ½yO= MeOy/2 + ½yCl2 + ye- (8-5)

½O2 + 2e- O= (8-6)

H2O + 2e- H2 + O= (8-7)

8-4

The net result is the formation of a dense and uniform metal oxide layer in which the deposition
rate is controlled by the diffusion rate of ionic species and the concentration of electronic charge
carriers. This procedure is used to fabricate the solid electrolyte yttria stabilized zirconia (YSZ).

The anode consists of metallic Ni and a Y2O3 stabilized ZrO2 skeleton. The latter serves to
inhibit sintering of the metal particles and to provide a thermal expansion coefficient comparable
to those of the other cell materials. The anode structure is fabricated with a porosity of 20 to
40% to facilitate mass transport of reactant and product gases. Doped lanthanum manganite is
most commonly used for the cathode material. Similar to the anode, the cathode is a porous
structure that must permit rapid mass transport of reactant and product gases. The cell
interconnection material (doped lanthanum chromite), however, must be impervious to fuel and
oxidant gases and must possess good electronic conductivity. In addition, the cell
interconnection is exposed to both the cathode and anode environments thus, it must be
chemically stable under O2 partial pressures of about ~1 to 10-18 atmospheres at 1000°C
(1832°F).

The solid oxide electrolyte must be free of porosity that permits gas to permeate from one side of
the electrolyte layer to the other, and it should be thin to minimize ohmic loss. In addition, the
electrolyte must have a transport number for O= as close to unity as possible, and a transport and
a transport number for electronic conduction as close to zero as possible. Zirconia-based
electrolytes are suitable for SOFCs because they exhibit pure anionic conductivity over a wide
range of O2 partial pressures (1 to 10-20 atmospheres). The other cell components should permit
only electronic conduction,37 and interdiffusion of ionic species in these components at 1000°C
(1832°F) should not have a major effect on their electronic conductivity. Other severe
restrictions placed on the cell components are that they must be stable in the gaseous
environments in the cell and that they must be capable of withstanding thermal cycling. The
materials listed in Table 8-1 appear to have the properties for meeting these requirements.

The resistivities of typical cell components at 1000°C (1832°F) under fuel cell gaseous
environments are (6): 10 ohm cm (ionic) for the electrolyte (8-10 mol% Y2O3 doped ZrO2),
1 ohm cm (electronic) for the cell interconnection (doped LaCrO3), 0.01 ohm cm (electronic) for
the cathode (doped LaMnO3), and 3 x 10-6 ohm cm (electronic) for the anode (Ni/ZrO2 cermet).38
It is apparent that the solid oxide electrolyte is the least conductive of the cell components,
followed by the cell interconnection. Furthermore, an operating temperature of about 1000°C
(1832°F) is necessary if the ionic conductivity of the solid electrolyte [i.e., 0.02 ohm-1cm-1 at
800°C (1472°F) and 0.1 ohm-1cm-1 at 1000°C (1832°F)] is to be within even an order of
magnitude of that of aqueous electrolytes. The solid electrolyte in SOFCs must be only about
25-50 m thick if its ohmic loss at 1000°C (1832°F) is to be comparable to that of the electrolyte
in PAFCs (8). Fortunately, thin electrolyte structures of about 40 m thickness can be fabricated
by EVD, as well as by tape casting and other ceramic processing techniques.

37
. Mixed conducting (i.e., electronic and ionic) materials for anodes may be advantageous if H2 oxidation can
occur over the entire surface of the electrode to enhance current production, instead of only in the region of the
three-phase interface (gas/solid electrolyte/electrode). Similarly, mixed conductors also may be advantageous
for cathodes.
38
. The cermet becomes an electronic conductor at Ni contents of >30 vol% (1).

8-5

The successful operation of SOFCs requires individual cell components that are thermally
compatible so that stable interfaces are established at 1000°C (1832°F), i.e., thermal expansion
coefficients for cell components must be closely matched to reduce stresses arising from
differential thermal expansion between components. Fortunately, the electrolyte,
interconnection, and cathode listed in Table 8-1 have reasonably close thermal expansion
coefficients [i.e.,~10-5cm/cm°C from room temperature to 1000°C (1832°F)]. An anode made of
100 mol% nickel would have excellent electrical conductivity. However, the thermal expansion
coefficient of 100 mol% nickel would be 50% greater than the ceramic electrolyte, or the cathode
tube, which causes a thermal mismatch. This thermal mismatch has been resolved by mixing
ceramic powders with Ni or NiO. The trade-off of the amount of Ni (to achieve high
conductivity) and amount of ceramic (to better match the other component thermal coefficients
of expansion) is Ni/YSZ: 30/70, by volume (1).

A configuration for electrically connecting tubular cells to form a stack is described in
Section 8.1.2 under sealless tubular configuration (Figure 8-6). The cells are connected in a
series-parallel array by nickel felt strips that are exposed to the reducing fuel gas. In this
arrangement, the nickel felt strips and cell interconnections extend the length of the cell.
Because the current flows in the circumferential direction of the electrodes, a relatively large
ohmic loss exists, which places an upper limit on the tube diameter.

8.1.2 Cell Configuration Options
As with the other cell types, it is necessary to stack SOFCs to increase the voltage and power
being produced. Because there are no liquid components, the SOFC can be cast into flexible
shapes (Figure 8-1).

In the early 1960s, experimental SOFCs with a planar geometry were evaluated, but this
geometry presented a problem for building cell stacks because of difficulties with fabricating
large flat, thin cells and obtaining adequate gas seals.39 A tubular configuration (i.e., cylindrical
design) adopted for SOFCs, appeared to alleviate the problems with gas seals and thin layer
structure fabrication. An early tubular design is illustrated in the schematic representation of the
cross section of a SOFC stack (Figure 8-3). Overlapping components (i.e., electrodes,
electrolyte, cell interconnection) in thin layers (10-50 m) are deposited on a porous support tube
of calcia-stabilized zirconia; fabrication of the fuel cell stack is described by Isenberg (4) and
Sverdrup et al. (8). In this tubular design, individual fuel cells are arranged in bands along the
support tube and are connected in series by a ceramic interconnect material. Another variation of
an early tubular design is referred to as a "bell and spigot" configuration (see Figure 8-4), which
consists of short, cylindrical electrolyte segments shaped so that they can be fitted one into the
other and connected to form a long tube by bell-and-spigot joints (9,10). A less complex
variation of this design used a series of interconnected cones. The sealless tubular design,
however, is the most advanced among the several SOFC configuration concepts.

Sealless Tubular Configuration: The most developed solid oxide fuel cell is the Siemens
Westinghouse tubular cell. This approach results in eliminating seal problems between adjacent
cells. A schematic representation of the cross section of the present Siemens Westinghouse
39
. Recently, the planar structures using bipolar current collection have received more consideration for SOFCs
because of new gas sealing and fabrication techniques.

8-6

tubular design40 for a SOFC and its gas manifold is presented in Figure 8-5 and Figure 8-6,
respectively. In this design, the cathode is formed by extrusion. Then, the electrolyte and the
cell interconnection are deposited by EVD and plasma spraying, respectively, on the cathode,
which provides a mechanically strong structure for the thin cell components. The anode is
sequentially formed on the electrolyte layer by slurry deposition. A major advantage of this
design over earlier designs is that relatively large single tubular cells can be constructed in which
the successive active layers can be deposited without chemical or material interference with
previously deposited layers. The support tube is closed at one end. The tubular approach with
one closed end eliminates gas seals between cells. The manifolding of the oxidant and fuel gases
for this tubular cell is illustrated in Figure 8-6. The oxidant gas is introduced via a central
Al2O3 injector tube, and the fuel gas is supplied to the exterior of the closed-end tube. In this
arrangement, the Al2O3 tube extends to the proximity of the closed end of the tube, and the
oxidant flows back past the cathode surface to the open end. The fuel gas flows past the anode
on the exterior of the cell and in a parallel direction (coflow) to the oxidant gas. The spent gases
are exhausted into a common plenum where the remaining active gases react and the generated
heat serves to preheat the incoming oxidant stream and/or drive an expander. One attractive
feature of this arrangement is that it eliminates the need for leak-free gas manifolding of the fuel
and oxidant streams. However, the sealless tubular design results in a relatively long current
path around the circumference of the cell to the interconnect, limiting performance (Figure 8-7).
Siemens Westinghouse has increased the length of the cell from 30 to 150 cm.

Bipolar (Flat Plate) Configuration: A bipolar or flat plate structure (Figure 8-1), which is the
common configuration for cell stacks in PAFCs and MCFCs, permits a simple series electrical
connection between cells without the need for external cell interconnections such as those used
with the tubular configuration shown in Figure 8-1 and Figure 8-6. Perpendicular current
collection in a cell stack with a bipolar design should have a lower ohmic polarization than the
tubular configuration, and overall stack performance should be improved. However, gas leaks in
a SOFC of bipolar configuration with compressive seals are difficult to prevent, and thermal
stresses at the interfaces between dissimilar materials must be accommodated to prevent
mechanical degradation of cell components. Planar electrodes and solid electrolyte structures
were proposed for use in high temperature fuel cells and electrolysis cells by Hsu and co-workers
(11,12) in the mid-1970s. Later, Hsu (13,14) developed bipolar structures for SOFCs, which are
reported to have the following attractive features: 1) high power density, 2) structural
ruggedness, 3) concealed electrodes, 4) ease of heat removal, and 5) low-stress assembly.

40
. The present tubular design is about 150 cm length and 1.27 cm diameter. These cells produce about 35 W
each; thus, about 28 cells are required to generate 1 kW.

8-7

Figure 8-3 Cross Section (in the Axial Direction of the +) of an Early Tubular
Configuration for SOFCs [(8), Figure 2, p. 256]

Figure 8-4 Cross Section (in the Axial Direction of the Series-Connected Cells) of an Early
"Bell and Spigot" Configuration for SOFCs [(15), Figure 24, p. 332]

8-8

Figure 8-5 Cross Section of Present Tubular Configuration for SOFCs (2)

Figure 8-6 Gas-Manifold Design for a Tubular SOFC (2)

8-9

Figure 8-7 Cell-to-Cell Connections Among Tubular SOFCs (2)

Solid electrolyte structures of yttria-stabilized ZrO2 of up to 10 cm diameter and 0.25 mm
thickness with better than 0.025 mm flatness have been fabricated (14). The interconnect,
having ribs on both sides, forms gas flow channels and serves as a bipolar gas separator
contacting the anode and cathode of adjoining cells. The flat plate design offers improved power
density relative to the tubular and segmented cell-in-series designs but requires high temperature
gas seals at the edges of the plates. Compressive seals have been proposed; however, the
unforgiving nature of a compressive seal can lead to a nonuniform stress distribution on the
ceramic and cracking of the layers. Further, seals may limit the height of a cell stack. There is a
higher probability for mismatches in tolerances (creating unacceptable stress levels) in taller
stacks. Fabrication and assembly appear to be simpler for the flat plate design as compared with
the other designs. The electrolyte and interconnect layers are made by tape casting. The
electrodes are applied by the slurry method, by screen printing, or by plasma spraying. Fuel cell
stacks are formed by stacking up layers much like other fuel cell technologies (16). Tests of
single cells and two cell stacks of SOFCs with a planar configuration (5 cm diameter) have
demonstrated power densities up to 0.12 W/cm2. One major technical difficulty with these
structures is their brittleness in tension; the tensile strength is only about 20% of their
compressive strength. However, the two cell stack was able to withstand five thermal cycles
without suffering detectable physical damage, and adequate gas sealing between cells was
reported. Developers at Tokyo Gas have reported a 400 cm2 and a ten cell stack of small 5 cm x
5 cm cells (17). The successful demonstration of larger multicell stacks has yet to be performed.

8-10

Materials and design approaches have been developed so that SOFC technology, particularly the
Siemens Westinghouse tubular cell configuration, is technically feasible. However, the
application of the materials used in the non-restrained tubular cell to the restrained alternative
planar configurations results in excessive mechanical stresses. Moreover, the present approaches
exhibit lower than desired performance (higher operating costs) and difficult designs and
fabrication (higher capital costs). Cost reduction of cell components and simplification of the
manufacturing are an important focus of ongoing development. The major issue for improving
SOFC technology is to develop materials that sustain good performance while withstanding the
high operating temperature presently used (1000°C). Related critical issues are as follows:
1) the present materials and relevant designs used in the SOFC must operate at high temperature
to obtain performance due to their intrinsic high resistivity, 2) there are high mechanical stresses
in planar designs arising from differential thermal expansion coefficients of adjacent component
materials, 3) there are interfacial reactions among adjacent components caused by the high
sintering temperatures needed to obtain high density, which alter component design integrity,
and 4) high temperatures are required in the fabrication of ceramic components, which adds
production complexity, hence cost. Raw material costs are $7/kW to $15/kW, but manufacturing
drives this to $700/kW for the stack (16, 18,19). Research, as summarized below, is being
performed to address these and other issues to bring SOFC technology into the competitive
range. Research is proceeding to address material and design improvements that allow operation
within the high temperature environment (1000°C) of the existing state-of-the-art components.

Development work for cells operating at 1000°C is focused on increasing the mechanical
toughness of the cell materials to alleviate the impact of thermal mismatch and to develop
techniques that will decrease interfacial changes of the various material layers during thin film
cell fabrication. Interfacial issues among cell components include diffusion, volatization, and
segregation of trace constituents. For example, La2Zr2O7 and SrZrO3 may form at the
cathode/electrolyte interface, and Sr and Mn ions diffuse across the interface at temperatures as
low as 800°C for up to 400 hours (20).

Approaches to resolving the mismatch caused by different component materials' thermal
expansion coefficient include increasing the fracture toughness of the electrolyte, controlling the
electrolyte processing faults, varying the component thickness, and adding minor constituents to
alter the anode properties.

The electrolyte of choice at present is yttria, fully stabilized ZrO2. Researchers are investigating
partially stabilized ZrO2 and adding Al2O3 to fully yttria stabilized ZrO2 to strengthen the
electrolyte matrix. Yamamoto et al. (21) have investigated the tetragonal phase (TZP) of
zirconia to strengthen the electrolyte structure so that it can be made thinner to obtain lower
resistivity. This increased strength is needed for self-supporting planar cells. An increase in
bending strength of 1200 MPa was observed in the TZP material compared to 300 MPa for cubic
zirconia stabilized with > 7.5 mol% Y2O3. The TZP was stabilized by taking advantage of fine
particle technology and minor doping of Y2O3. Resistivity increased slightly.

The air electrode material typically has been constructed using high purity component oxides
such as La2O3 and MnO2. Over 70% cost reduction of the air electrode raw materials is possible

8-11

if mixed lanthanides are used instead of pure lanthanum. The performance of cells using mixed
lanthanides has been shown to be only 8% lower than for cells using pure lanthanum. Further
adjustments in composition are expected to result in performance equivalent to high purity
electrode material (22).

It has been observed that solid oxide fuel cell voltage losses are dominated by ohmic polarization
and that the most significant contribution to the ohmic polarization is the interfacial resistance
between the anode and the electrolyte (23). This interfacial resistance is dependent on nickel
distribution in the anode. A process has been developed, PMSS (pyrolysis of metallic soap
slurry), where NiO particles are surrounded by thin films or fine precipitates of yttria stabilized
zirconia (YSZ) to improve nickel dispersion to strengthen adhesion of the anode to the
YSZ electrolyte. This may help relieve the mismatch in thermal expansion between the anode
and the electrolyte.

Researchers have surmised that there would be a reduction in interfacial activity among adjacent
components if the interconnect could be sintered to a high density at temperatures below 1550°
(24,25). Either chemical or physical sintering aids could be used. One approach is to use
synthesized submicrometer, active powders. The use of these powders causes a depleting or
enriching of the rare earth substitution cation with La or Y on one component while holding
Cr concentrations constant on the other. This, in turn, alters the sintering temperature. Results
show that high densities might be achievable at temperatures of 1400°C and below (25).

Alternative lower cost fabrication methods to sintering and electrochemical vapor deposition
(EVD) are receiving more attention. These methods include plasma spraying and chemical
vapor deposition (CVD). Many development projects are being conducted in fabrication
techniques. Examples of some of the work follow.

Investigations were conducted to determine whether jet vapor deposition (JVD) could be
substituted for EVD, which is capital intensive. JVD is a thin film technique in which sonic gas
jets in a low vacuum fast flow serve as deposition sources. Results showed that the YSZ films
can be made dense and pinhole free; they seal highly porous electrode surfaces and are gas tight.
Conductivity needs to be improved, which should be obtainable. The ultimate goal will be to
fabricate thin film SOFCs, both electrolyte and the electrodes, in an unbroken sequence of
JVD steps. This would also allow the use of alternate metal cathode, such as Ag thin films (19).

Because of a number of conditions that can be set independently, plasma spray techniques may
make it attractive to fabricate dense, gas tight, or porous layers with conditions where one layer's
application does not affect the preceding layer (26). The Electrotechnical Laboratory in Japan
has demonstrated applying a YSZ on a substrate using a laser plasma spray approach. The
sprayed material maintained identical crystalline structure during the process. Because a high
melting point material was coated on a low melting point material, this method offers the
potential for multilayer coating (27). Work at Siemens Westinghouse with plasma spraying also
has yielded promising results. Deposition of a Ni-YSZ slurry over the YSZ electrolyte followed
by sintering has yielded fuel electrodes that are equivalent in conductivity to electrodes
fabricated by a total EVD process. Cells fabricated with only one EVD step (plasma sprayed
interconnection, EVD electrolyte, and sintered fuel electrode) will replace current cells (22).

8-12

8.2 Performance41
The thermodynamic efficiency of SOFCs at open circuit voltage is lower than that of MCFCs
and PAFCs, which utilize H2 and O2, because of the lower G42 at higher temperatures (see
discussion in Section 2). However, as mentioned in Section 2, the higher operating temperature
of SOFCs is beneficial in reducing polarization.

The voltage losses in SOFCs are governed by ohmic losses in the cell components. The
contribution to ohmic polarization (iR) in a tubular cell43 is 45% from cathode, 18% from the
anode, 12% from the electrolyte, and 25% from the interconnect, when these components have
thickness (mm) of 2.2, 0.1, 0.04 and 0.085, respectively, and specific resistivities (ohm cm) at
1000°C of 0.013, 3 x 10-6, 10, and 1, respectively. The cathode iR dominates the total ohmic
loss despite the higher specific resistivities of the electrolyte and cell interconnection because of
the short conduction path through these components and the long current path in the plane of the
cathode.

SOFCs, like PAFCs and MCFCs, show an enhanced performance by increasing cell pressure.
The following equation approximates the effect of pressure on cell performance at 1000°C
(1832 F):

P2
Vp (mV) = 59 log (8-8)
P1

where P1 and P2 are different cell pressures. The above correlation was based on the assumption
that overpotentials are predominately affected by gas pressures and that these overpotentials
decrease with increased pressure.

Siemens Westinghouse, in conjunction with Ontario Hydro Technologies, tested AES cells at
pressures up to 15 atmospheres on both hydrogen and natural gas (22). Figure 8-8 illustrates the
performance at various pressures:

41
. This section provides practical information that may be used for estimating the relative performance of SOFCs
based on various operating parameters at this time. The SOFCs being developed have unique designs, are
constructed of varying materials, and are fabricated by differing techniques. SOFCs, particularly the flat plate
types, will undergo considerable development in materials, design, and fabrication techniques. As SOFC
technology progresses, it will mature towards more standardized cells as has happened with PAFCs and MCFCs
that are closer to conformity. The process is expected to result in an evolution of the performance trends
depicted here.
42
. G decreases from 54.617 kcal/mole at 27oC to 43.3 kcal/mole at 927oC, whereas H is nearly constant over
this temperature range (39).
43
. A uniform current distribution through the electrolyte is assumed.

8-13

Figure 8-8 Effect of Pressure on AES Cell Performance at 1000 C
[(22) 2.2 cm diameter, 150 cm active length]

The dependence of SOFC performance on temperature is illustrated in Figure 8-9 for a two cell
stack using air (low utilization) and a fuel of 67% H2/22% CO/11% H2O (low utilization). The
sharp decrease in cell voltage as a function of current density at 800 C (1472 F) is a
manifestation of the high ohmic polarization (i.e., low ionic conductivity) of the solid electrolyte
at this temperature. The ohmic polarization decreases as the operating temperature increases to
1050 C (1922 F), and correspondingly, the current density at a given cell voltage increases. The
data in Figure 5-10 show a larger decrease in cell voltage with decreasing temperature between
800 and 900 C (1472 to 1652 F) than that between 900 and 1000 C (1652 to 1832 F), at
constant current density. This and other data suggest that the voltage gain with respect to
temperature is a strong function of temperature and current density. One reference (28)
postulates the voltage gain as

V T (mV) = 1.3(T 2 - T1)( C) (8-9)

for a cell operating at 1000°C, 160 mA/cm,2 and a fuel composition of 67% H2/22% CO/11%
H2O. In light of the strong functionality with respect to current density, it might be more
appropriate to describe the voltage gain with the following relationship:

VT (mV) = K(T2 - T1)( C) * J (8-10)

where J is the current density in mA/cm2.

8-14

Figure 8-9 Two Cell Stack Performance with 67% H2 + 22% CO + 11% H2O/Air (29)

the following values of K have been deduced from several references that utilized a fuel
composition of 67% H2/22% CO/11% H2O, and an air oxidant.

Table 8-2 K Values for VT

K Temperature (°C) Ref.
0.008 ~1000 28
0.006 1000 - 1050 29
0.014 900 - 1000
0.068 800 - 900
0.003 900 - 1000 30
0.009 800 - 900

As can be seen, there is a reasonably large range in the value of K between these references. As
the SOFC technology matures, these differences may reconcile to a more cohesive set of values.
In the interim, the following single average combination of the above K values may help the
reader if no specific information is available.

VT (mV) = 0.008(T2 - T1)( C) * J(mA/ cm2) 900 C < T < 1050 C (8-11)

8-15

Equation (8-11) is for a fuel composed of 67% H2/22% CO/11% H2O. Experiments using
different fuel combinations, such as 80% H2/20% CO2 (30) and 97% H2/3% H2O (31,29),
suggest that these correlations may not be valid for other fuels. Figure 8-10 presents a set of
performance curves for a fuel of 97% H2/3% H2O at various temperatures. Voltage actually
increases with decreasing temperature for current densities below approximately 65 mA/cm2.
Other data (32) show that this inverse relationship can extend to current densities as high as
200 mA/cm2.

Figure 8-10 Two Cell Stack Performance with 97% H2 and 3% H2O/Air (28)

Because SOFCs operate at high temperature, they are capable of internally reforming fuel gases
(i.e., CH4 and other light hydrocarbons) without the use of a specific reforming catalyst (i.e.,
anode itself is sufficient), and this attractive feature of high temperature operation of SOFCs has
recently been experimentally verified. Another important aspect of SOFCs is that recycle of CO2
from the spent fuel stream to the inlet oxidant, as required by MCFCs, is not necessary because
SOFCs utilize only O2 at the cathode.

Oxidant: The performance of SOFCs, like that of other fuel cells, improves with pure O2 rather
than air as the oxidant. With a fuel of 67% H2/22% CO/11% H2O at 85% utilization, the cell
voltage at 1000°C shows an improvement with pure O2 over that obtained with air (see Figure
5-12). In the figure, the experimental data are extrapolated by a dashed line to the theoretical
Nernst potential for the inlet gas compositions. At a target current density of 160 mA/cm2 for the
tubular SOFC operating on the above mentioned fuel gas, a difference in cell voltage of about
55 mV is obtained. The difference in cell voltage with pure O2 and air increases as the current
density increases, which suggests that concentration polarization plays a role during O2 reduction
in air.

8-16

Based on the Nernst equation, the theoretical voltage gain due to a change in oxidant utilization
at T = 1000°C is

( P O 2 )2 (8-12)
VCathode = 63 log
( PO 2 )1

where P O 2 is the average partial pressure of O2 in the system. Data (28) suggest that a more
accurate depiction of voltage gain is described by

( P O2 ) 2 (8-13)
VCathode = 92 log
( PO2 )1

Figure 8-17 Cell Performance at 1000 C with Pure Oxygen (o) and Air ( ) Both at 25%
Utilization (Fuel (67% H2/22% CO/11%H2O) Utilization is 85%) (30)

Fuel: The influence of fuel gas composition on the theoretical open circuit potential of SOFCs
is illustrated in Figure 8-12, following the discussion by Sverdrup, et al. (8). The oxygen/carbon
(O/C) atom ratio and hydrogen/carbon (H/C) atom ratio, which define the fuel composition, are
plotted as a function of the theoretical open circuit potential at 1000 C. If hydrogen is absent
from the fuel gas, H/C = 0. For pure CO, O/C = 1; for pure CO2, O/C = 2. The data in the figure

8-17

show that the theoretical potential decreases from about 1 V to about 0.6 V as the amount of O2
increases, and the fuel gas composition changes from CO to CO2. The presence of hydrogen in
the fuel produces two results: (a) the potential is higher, and (b) the O/C ratio corresponding to
complete oxidation extends to higher values. These effects occur because the equilibrium
composition obtained by the water gas shift reaction in gases containing hydrogen (H2O) and
carbon (CO) produces H2, but this reaction is not favored at higher temperatures (see
Appendix 11.1). In addition, the theoretical potential for the H2/O2 reaction exceeds that for the
CO/O2 reaction at temperatures about 800 C; consequently, the addition of hydrogen to the fuel
gas will yield a higher open circuit potential in SOFCs. Based on the Nernst equation, the
theoretical voltage gain due to a change in fuel utilization at T = 1000 C is

( P H2 / P H2 O )2 (8-14)
VAnode = 126 log
( P H2 / P H2 O )1

where P H 2 and P H 2 O are the average partial pressures of H2 and H2O in the system.

Figure 8-12 Influence of Gas Composition of the Theoretical Open-Circuit Potential of
SOFC at 1000 C [(8) Figure 3, p. 258]

The fuel gas composition also has a major effect on the cell voltage of SOFCs. The performance
data (33) obtained from a 15 cell stack (1.7 cm2 active electrode area per cell) of the tubular
configuration (see Figure 8-1) at 1000 C illustrate the effect of fuel gas composition. With air as
the oxidant and fuels of composition 97% H2/3% H2O, 97% CO/3% H2O, and 1.5% H2/3%
CO/75.5% CO2/20% H2O, the current densities achieved at 80% voltage efficiency were ~220,
~170, and ~100 mA/cm2, respectively. The reasonably close agreement in the current densities
obtained with fuels of composition 97% H2/3% H2O and 97% CO/3% H2O indicates that CO is a
useful fuel for SOFCs. However, with fuel gases that have only a low concentration of H2 and

8-18

CO (i.e., 1.5% H2/3% CO/75.5% CO2/20% H2O), concentration polarization becomes significant
and the performance is lower.

A reference fuel gas utilized in experimental SOFCs has had a composition 67% H2/22%
CO/11% H2O. With this fuel (85% utilization) and air as the oxidant (25% utilization),
individual cells (~1.5 cm diameter, 30 cm length and ~110 cm2 active surface area) have
delivered a peak power of 22 W (34). Figure8-13 (30) shows the change in the cell voltage with
fuel utilization for a SOFC that operates on this reference fuel and pure O2 or air as oxidant (25%
utilization). The cell voltage decreases with an increase in the fuel utilization at constant current
density. Insufficient data are available in the figure to determine whether the temperature has a
significant effect on the change in cell voltage with utilization. However, the data do suggest
that a larger voltage decrease occurs at 1000 C than at 800 or 900 C. Based on this and other
data (27,34), the voltage gain at T = 1000 C and with air is defined by Equation (8-15):

( P H2 / P H2 O )2 (8-15)
VAnode = 172 log
( P H2 / P H2 O )1

Figure 8-13 Variation in Cell Voltage as a Function of Fuel Utilization and Temperature
(Oxidant (o - Pure O2; - Air) Utilization is 25%. Currently Density is 160 mA/cm2 at 800,
900 and 1000 C and 79 mA/cm2 at 700 C) (30)

Hydrogen sulfide (H2S), hydrogen chloride (HCl) and ammonia (NH3) are impurities typically
found in coal gas. Some of these substances may be harmful to the performance of SOFCs.
Recent experiments (35) have used a simulated oxygen-blown coal gas containing 37.2%
CO/34.1% H2/0.3% CH4 /14.4% CO2/13.2% H2O/0.8% N2. These experiments have shown no

8-19

degradation due to the presence of 5000 ppm NH3. An impurity level of 1 ppm HCl also has
shown no detectable degradation. H2S levels of 1 ppm result in an immediate performance drop,
but this loss soon stabilizes into a normal linear degradation. Figure 8-14 shows the performance
of the experimental cell over time. Additional experiments have shown that removing H2S from
the fuel stream returns the cell to nearly its original level. It has also been found that maintaining
an impurity level of 5000 ppm NH3 and 1 ppm HCl, but decreasing the H2S level to 0.1 ppm,
eliminates any detrimental effect due to the presence of sulfur, even though, as mentioned above,
1 ppm H2S causes virtually no degradation in the tubular 1,000°C cell.

Figure 8-14 SOFC Performance at 1000 C and 350 mA/cm,2 85% Fuel Utilization and
25% Air Utilization (Fuel = Simulated Air-Blown Coal Gas Containing 5000 ppm NH3,
1 ppm HCl and 1 ppm H2S) (35)

In addition, silicon (Si), which also can be found in coal gas, has been studied (35) as a
contaminant. It is believed to accumulate on the fuel electrode in the form of silica (SiO2). The
deposition of the Si throughout the cell has been found to be enhanced by high (~50%)
H2O content in the fuel. Si is transported by the following reaction:

SiO2 (S) + 2H2O (g) Si(OH)4 (g) (8-16)

8-20

As the CH4 component of the fuel reforms to CO and H2, H2O is consumed. This favors the
reversal of Equation (8-16), which allows SiO2 to be deposited downstream, possibly on exposed
nickel surfaces. Oxygen-blown coal gas, however, has an H2O content of only ~13%, and this is
not expected to allow for significant Si transport.

The voltage level of a SOFC is reduced by ohmic, activation, and concentration losses, which
increase with increasing current density. The magnitude of this loss is described by the
following equation that was developed from information in the literature (36,29,37,38,39,40):

Vj(mV) = -0.73 J (T = 1000 C) (8-17)

where J is the current density (mA/cm2) at which the cell is operating. The latest AES cells by
Siemens Westinghouse exhibit the following performance:

Figure 8-15 Voltage-Current Characteristics of an AES Cell (1.56 cm Diameter, 50 cm
Active Length)
The endurance of the cell stack is of primary concern for SOFCs. As SOFC technology has
continued to approach commercialization, research in this area has increased and improvements
made. The Siemens Westinghouse state-of-the-art tubular design has been validated by
continuous electrical testing of over 69,000 hours with less than 0.5% voltage degradation per
1,000 hours of operation. This tubular design is based on the early calcia-stabilized zirconia
porous support tube (PST). In the current technology, the PST has been eliminated and replaced
by a doped lanthanum manganite air electrode tube. These air electrode supported (AES) cells
have shown a power density increase of approximately 33% over the previous design. Siemens

8-21

Westinghouse AES cells have shown less than 0.2 % voltage degradation per 1000 hours in a
25 kW stack operated for over 13,000 hours (22).

8.3 Summary Of Equations For SOFC41
different operating conditions. It is suggested that the following set of equations could be used
for performance adjustments unless the reader prefers other data or correlations.

P2
Pressure Vp(mV) = 59 log 1 atm < P < 10 atm (8-8)
P1
Temperature44 VT(mV) = 0.008(T2 - T1)( C) * J 900 C < T < 1050 C (8-11)

( PO 2 ) 2 PO2
Oxidant VCathode(mV) = 92 log 0.16 0.20 18 (8-13)
( P O 2 )1 P Total
( P H 2 / P H 2 O )2 0.9 < P H2 / P H2O < 6.9 T = 1000 C,
Fuel VAnode = 172 log
( P H 2 / P H 2 O )1 with air (8-15)

Current VJ(mV) = - 0.73 J 50 < J < 400 mA/cm2 (8-17)
Density P = 1 atm., T = 1000 C

8.4 References
1. N.Q. Minh, "Ceramic Fuel Cells," J. Am. Ceram. Soc., p. 76 [3]563-88, 1993.
2. Courtesy of Siemens Westinghouse.
3. T.H. Etsell, S.N. Flengas, J. Electrochem. Soc., p. 118, 1890 (1971).
4. A.O. Isenberg, in Proceedings of the Symposium on Electrode Materials and Processes for
Energy Conversion and Storage, edited by J.D.E. McIntyre, S. Srinivasan and F.G. Will,
The Electrochemical Society, Inc., Pennington, NJ, 1977, p. 682.
5. A.O. Isenberg, in Proceedings of the Symposium on Electrode Materials and Processes for
Energy Conversion and Storage, edited by J.D.E. McIntyre, S. Srinivasan and F.G. Will,
The Electrochemical Society, Inc., Pennington, NJ, 1977, p. 572.
6. D.C. Fee, S.A. Zwick, J.P. Ackerman, in Proceedings of the Conference on High
Temperature Solid Oxide Electrolytes, held at Brookhaven National Laboratory,
August 16-17, 1983, BNL 51728, compiled by F.J. Salzano, October 1983, p. 29.
7. D.W. Dees, T.D. Claar, T.E. Easler, D.C. Fee, F.C. Mrazek, J. Electrochem. Soc., p. 134,
2141, 1987.
8. E.F. Sverdrup, C.J. Warde, A.D. Glasser, in From Electrocatalysis to Fuel Cells, Edited by
G. Sandstede, University of Washington Press, Seattle, WA, 1972, p. 255.

44
. Where J = mA/cm2, for fuel composition of 67% H2/22% CO/11% H2O

8-22

9. D.H. Archer, L. Elikan, R.L. Zahradnik, in Hydrocarbon Fuel Cell Technology, Edited by
B.S. Baker, Academic Press, New York, NY, 1965, p. 51.
10. D.H. Archer, J.J. Alles, W.A. English, L. Elikan, E.F. Sverdrup, R.L. Zahradnik, in Fuel
Cell Systems, Advances in Chemistry Series 47, edited by R.F. Gould, American Chemical
Society, Washington, DC, 1965, p. 332.
11. M.S.S. Hsu, W.E. Morrow, J.B. Goodenough, in Proceedings of the 10th Intersociety
Energy Conversion Engineering Conference, The Institute of Electrical and Electronics
Engineering, Inc., New York, NY, 1975, p. 555.
12. M.S.S. Hsu, T.B. Reed, in Proceedings of the 11th Intersociety Energy Conversion
Engineering Conference, American Institute of Chemical Engineers, New York, NY, 1976,
p. 1.
13. M. Hsu, "Zirconia Fuel Cell Power System," 1985 Fuel Cell Seminar Abstracts, 1985 Fuel
Cell Seminar, Tucson, AZ, May 19-22, 1985.
14. M. Hsu, "Zirconia Fuel Cell Power System Planar Stack Development," Fuel Cell Abstracts,
1986 Fuel Cell Seminar, Tucson, AZ, October 26-29, 1986.
15. Fuel Cells, DOE/METC-86/0241, Technology Status report, Morgentown Energy
Technology Center, Morgantown, WV, 1986.
16. N.Q. Minh, "High-Temperature Fuel Cells, Part 2: The Solid Oxide Cell," ChemTech,
Vol. 21, February, 1991.
17. Y. Jatsuzaki, et al., "High Power Density SOFC Development at Tokyo Gas," Fuel Cell
Program and Abstracts, 1992 Fuel Cell Seminar, Tucson, Arizona, November 29 -
December 2, 1992.
18. K. Krist, "Gas Research Institute's Fundamental Research on Intermediate-Temperature
Planar Solid Oxide Fuel Cells," in Fuel Cell Program and Abstracts, 1992 Fuel Cell
Seminar, Tucson, AZ, November 29 - December 2, 1992.
19. B.L. Halpern, J.W. Golz, Y. Di, "Jet Vapor Deposition of Thin Films for Solid Oxide and
Other Fuel Cell Applications," in Proceedings of the Fourth Annual Fuel Cells Contractors
Review Meeting, U.S. DOE/METC, July, 1992.
20. H.U. Anderson, M.M. Nasrallah, "Characterization of Oxides for Electrical Delivery
Systems," An EPRI/GRI Fuel Cell Workshop on Fuel Cell Technology Research and
Development, New Orleans, LA, April 13-14, 1993.
21. O. Yamamoto, et al., "Zirconia Based Solid Ion Conductors," The International Fuel Cell
Conference Proceedings, NEDO/MITI, Tokyo, Japan, 1992.
22. S.C. Singhal, "Recent Progress in Tubular Solid Oxide Fuel Cell Technology," Proceedings
of the Fifth International Symposium on Solid Oxide Fuel Cells (SOFC-V), The
Electrochemical Society, Inc., Pennington, NJ, 1997.
23. Y. Matsuzaki, et al., "High Power Density SOFC Development at Tokyo Gas," Fuel Cell
Program and Abstracts, 1992 Fuel Cell Seminar, Tucson, AZ, November 29 -
December 2, 1992.
24. C. Bagger, "Improved Production Methods for YSZ Electrolyte and Ni-YSZ Anode for
SOFC," Fuel Cell Program and Abstracts, 1992 Fuel Cell Seminar, Tucson, AZ,
November 29 - December 2, 1992.
25. J.L. Bates, "Alternative Materials for Solid Oxide Fuel Cells: Factors Affecting
Air-Sintering of Chromite Interconnections," Proceedings of the Fourth Annual Fuel Cells
Contractors Review Meeting, U.S. DOE/METC, July, 1992.

8-23

26. A.R. Nicoll, G. Barbezat, A. Salito, "The Potential of Plasma Spraying for the Deposition of
Coatings on SOFC Components," The International Fuel Cell Conference Proceedings,
NEDO/MITI, Tokyo, Japan, 1992.
27. F. Uchiyama, et al., "ETL Multi-Layer Spray Coating for SOFC Component," The
International Fuel Cell Conference Proceedings, NEDO/MITI, Tokyo, Japan, 1992.
28. H. Ide et al., "Natural Gas Reformed Fuel Cell Power Generation Systems - A Comparison
of Three System Efficiencies," Proceedings of the 24th Intersociety Energy Conversion
Engineering Conference, The Institute of Electrical and Electronics Engineers,
Washington, D.C., 1989.
29. Data from Allied-Signal Aerospace Company, 1992.
30. C. Zeh, private communication, 2nd edition of Handbook, April 29, 1987.
31. A. Sammells, "Perovskite Electrolytes for SOFC," Proceedings of the Third Annual Fuel
Cells Contractors Review Meeting, U.S. DOE/METC, p. 152, June, 1991.
32. A. Khandkar, S. Elangovan, "Planar SOFC Development Status," Proceedings of the Second
Annual Fuel Cells Contractors Review Meeting, U.S. DOE/METC, p. 152, May, 1990.
33. C. J. Warde, A. O. Isenberg, J. T. Brown "High-Temperature Solid-Electrolyte Fuel-Cells
Status and Programs at Westinghouse," in Program and Abstracts, ERDA/EPRI Fuel Cell
Seminar, Palo Alto, CA, June 29-30 to July 1, 1976.
34. W.J. Dollard, J.T. Brown, "Overview of the Westinghouse Solid Oxide Fuel Cell Program,"
Fuel Cell Abstracts, 1986 Fuel Cell Seminar, Tucson, AZ, Oct. 26-29, 1986.
35. N. Maskalick, "Contaminant Effects in Solid Oxide Fuel Cells," Proceedings of the Fourth
Annual Fuel Cells Contractors Review Meeting, U.S. DOE/METC, July, 1992.
36. N. Minh et al., "Monolithic Solid Oxide Fuel Cell Development: Recent Technical
Progress," AlliedSignal, Fuel Cell Seminar Program and Abstracts, 1992 Fuel Cell seminar,
1992.
37. Y. Yoshida et al., "Development of Solid Oxide Fuel Cell," paper provided by Mitsubishi
Heavy Industries Ltd.
38. A. Khandkar et al., "Planar SOFC Technology Status and Overview," Ceramatec, Inc., Fuel
Cell Seminar Program and Abstracts, 1992 Fuel Cell Seminar, Tucson, AZ,
November 29-December 2, 1992.
39. "Research and Development on Fuel Cell Power Generation Technology," FY 1990 Annual
Report, NEDO, April, 1991.
40. T. Nakanishi, "Substrate Type, Planar Solid Oxide Fuel Cell," Fuji Electric, Fuel Cell
Seminar Program and Abstracts, 1992 Fuel Cell Seminar, Tucson, AZ, November 29 -
December 2, 1992.

8-24

9. FUEL CELL SYSTEMS

Although a fuel cell produces electricity, a fuel cell power system requires the integration of many
components beyond the fuel cell stack itself, for the fuel cell will produce only dc power and
utilize only processed fuel. Various system components are incorporated into a power system to
allow operation with conventional fuels, to tie into the ac power grid, and often, to utilize rejected
heat to achieve high efficiency. In a rudimentary form, fuel cell power systems consist of a fuel
processor, fuel cell power section, power conditioner, and potentially a cogeneration or bottoming
cycle to utilize the rejected heat. A simple schematic of these basic systems and their
interconnections is presented in Figure 9-1.

Figure 9-1 A Rudimentary Fuel Cell Power System Schematic

The cell and stacks that compose the power section have been discussed extensively in the
previous sections of this handbook. Section 9.1 addresses system processes such as fuel
processors, rejected heat utilization, the power conditioner, and equipment performance guidelines.
System optimization issues are addressed in Section 9.2. System design examples for present day
and future applications are presented in Sections 9.3 and 9.4 respectively. Section 9.5 discusses
research and development areas that are required for the future system designs to be developed.
Section 9.5 presents some advanced fuel cell network designs, and Section 9.6 introduces hybrid
systems that combine fuel cells with other generating technologies in integrated systems.

9-1

9.1 System Processes
The design of a fuel cell system involves more than the optimizing of the fuel cell section with
respect to efficiency or economics. It involves power minimizing of the cost of electricity (or
product as in a cogeneration system) within the constraints of the desired application. For most
applications, this requires that the fundamental processes be integrated into an efficient plant with
low capital costs. Often these objectives are conflicting, so compromises, or design decisions,
must be made. In addition, project-specific objectives, such as desired fuel, emission levels,
potential uses of rejected heat (electricity, steam, or heat), desired output levels, volume or weight
criteria (volume/kW or weight/kW), and tolerance for risk all influence the design of the fuel cell
power system.

A detailed discussion of all the trade-offs and considerations of system design is outside the scope
of this handbook. Nevertheless, a brief discussion of various system considerations is presented.

9.1.1 Fuel Processing
Fuel processing is defined in this Handbook as the conversion of a commercially available gas,
liquid, or solid fuel (raw fuel) to a fuel gas reformate suitable for the fuel cell anode reaction.
Fuel processing encompasses the cleaning and removal of harmful species in the raw fuel, the
conversion of the raw fuel to the fuel gas reformate, and downstream processing to alter the fuel
gas reformate according to specific fuel cell requirements. Examples of these processes are:

Raw Fuel Cleaning – Removal of sulfur, halides, and ammonia to prevent fuel processor and
fuel cell catalysts poisoning.
Raw Fuel Conversion – Converting a hydrocarbon fuel to a hydrogen-rich gas reformate.
Reformate Gas Alteration – Converting carbon monoxide (CO) and water (H2O) in the fuel
gas reformate to hydrogen (H2) and carbon dioxide (CO2) via the water-gas shift reaction;
selective oxidation to reduce CO to a few ppm; or removal of water by condensing to
increase the H2 concentration.

A fuel processor is defined in this Handbook as an integrated unit consisting of one or more of
the above processes, as needed according to the fuel cell requirements and the raw fuel, that
function together to be cost effective for the application. Figure 9-2 is a depiction of the
component path needed. Cost effectiveness may include high thermal efficiency, high hydrogen
yield (for some fuel cells hydrogen plus carbon monoxide yield), multi-cycling, compact,
lightweight, and quick starting, depending on application. Most fuel processors make use of the
chemical and heat energy left in the fuel cell effluents to provide heat energy for fuel processing
that enhances system efficiency. The system section addresses using fuel cell anode effluent
(residual fuel), and rejected heat from the fuel cell and other components.

9-2

Figure 9-2
Representative Fuel Processor Major Componentsa & Temperatures

Airb

Raw
Gaseous Reformate to
Fuelc Reactord Sulfur High Temp Low Temp CO Fuel Cell
Removalf Shift Shift Removal
High Ce 350 C 260-370 C 200-260 C 150-200 C

Waterb

a) - For MCFC & SOFC, no high temperature shift, low temperature shift, nor CO removal
required.
- For PAFC, no CO removal required.
- For PEFC, all components required.
b) Possible to use residual air, water, and heat of fuel effluent from fuel cell and other
downstream components.
c) Vaporizer required for liquid fuels.
d) Non-catalytic POX does not require water.
e) Temperature dependent on fuel and type of reactor.

Fuel conversion and alteration catalysts are normally susceptible to poisoning; thus the raw fuel
cleaning process takes place upstream or within the fuel conversion process. The fuel
conversion and reformate gas alteration processes can take place either external to the fuel cell or
within the fuel cell anode compartment. The former is referred to as an external reforming fuel
cell system and the latter is referred to as an internal reforming fuel cell system. Cells are being
developed to directly react commercially available gas and liquid fuels but the chemically
preferred reaction of present fuel cells is via a hydrogen-rich gas. This section will address
external reforming fuel processors only. Capabilities of internal reforming are contained within
the specific fuel cell sections. The system calculation section provides examples of heat and
material balances for both externally and internally reforming approaches.

Fuel processors are being developed to allow a wide range of commercial fuels suitable for
stationary, vehicle, and military applications to be used in a fuel cell system. Technology from
large chemical installations has been successfully transferred to small compact fuel cell units to
convert pipeline natural gas, the fuel of choice for small stationary power generators. Cost is an
issue as it is with the entire fuel cell unit for widespread application. Several hundred multi-kWe
commercial fuel cell units are operating, see Section 1.6. Scaling of the fuel processing
technology to larger power plants using pipeline gas will lower the specific cost of the fuel
processor.

Recent fuel processor research and development has become focused on consumer vehicles and
military applications. The issue with consumer vehicles is how to match a plausible commercial
fuel infrastructure with the requirements of the fuel cell unit to be competitive. What fuel to use

9-3

is open to question at this time. Infrastructure economics drive the fuel of choice toward a
gasoline type fuel. Environmental concerns drive the fuel of choice toward pure hydrogen.
Methanol fuel processors (regarded by some as a step towards the eventual fuel) are easier to
develop, hence further along in development than processors capable of converting gasoline that
has high sulfur content and requires high conversion temperatures. Processors for both methanol
and gasoline have been tested up to the 50 kWe level for vehicle application.

The US military has a significant fuel supply infrastructure in place. The two predominant fuel
types in this infrastructure are diesel and jet fuel, a kerosene. It is highly improbable that the US
military would change these fuels to accommodate fuel cells. Use of a fuel more suitable to the
fuel cell would limit the technology’s military use (there is R&D activity for fuel cell power
packs to provide man-portable soldier power using hydrogen cartridges or other forms as well as
methanol). Diesel and jet fuel are two of the most difficult conventional fuels to convert to a
hydrogen-rich gas. They contain a large amount of sulfur, a catalyst poison, that requires high
conversion temperature. Fuel processors that convert diesel and jet fuel to a hydrogen-rich gas
are in the early stages of development. The technology has been demonstrated at a 500 W size;
50 kWe units are being developed.

This fuel processing section addresses the above issues in more detail and provides a technical
description of fuel processing technology.

Fuel Processing Issues

Major issues that influence the development of a fuel processor are a) choice of commercially
available fuels suitable for specific applications, b) fuel flexibility, c) fuel cell gas reformate
requirements, and d) fuel cell unit size. Vaporization of heavier hydrocarbons is another issue.
Heavy hydrocarbons, such as diesel, require vaporization temperatures much in excess of
350-400 C where components of these heavier fuels begin to pyrolyze and decompose.

Fuel Choice and Flexibility Issues

The fuel cell is a power generation technology that is in the early stages of its commercial use.
As a result, it is paramount to target applications that have the potential for widespread use (to
attract adequate development money) with the simplest technology development (to minimize
development cost). There is a strong relation between applications and the infrastructure of
available fuels.

Several high-value niche markets drove early fuel cell technology development. These were the
use of fuel cells for on-board electric power in space vehicles and to demonstrate that fuel cells
are an efficient, environmentally-friendly technology for stationary on-site commercial power.

The selected technology for on-board electric power on mid-length space vehicle missions
(several days to a year), including the important man-moon mission, was the fuel cell. This is
because the use of batteries for more than a couple of days proved too heavy, combustion
engines and gas turbines required too heavy a fuel supply because of relatively low efficiency,
and the use of a nuclear reactor was only suitable for missions of a year or more. There was a

9-4

simple choice of fuel with space fuel cells. It was hydrogen because it doesn’t require a fuel
processor other than storage and pressurization, is relatively lightweight when stored under
pressure, and was the best fuel for the early-developed alkaline fuel cell. Fuel flexibility was not
an issue.

It was logical to exploit fuel cell space development by trying to adapt it to terrestrial use. The
initial terrestrial application was to increase power generation efficiency (in reaction to the oil
shocks of the early 1970s) and to improve the environment by lowering fossil-fueled power
generator exhaust emission. Coal was the fuel of choice at the time, but fuel cell development
reasoning was that fuel cells had to be developed through a path of easier pipeline gas use prior
to operating on coal-derived gas. One of the major fuel cell funders at the time was the gas
industry.

Pipeline gas consists primarily of methane that is relatively easy to clean. The technology to
convert methane to a H2-rich gas existed for large chemical plants. Developers had only to adapt
this existing technology to small fuel cell units, not easy due to several magnitudes of scale-
down. Owners of stationary power plants usually desire fuel flexibility. Fortunately, the fuel
processor on these early plants could convert a light distillate, such as naphtha, with minor
changes (e.g., add a vaporizer, change-out the fuel nozzles).

Once these niche markets were exploited to start fuel cells on their development path, it became
apparent that, as stated above, it was necessary to target widespread potential applications while
keeping technology development as simple as possible. General application areas of present
interest to the fuel cell community are multi-kWe residential, commercial, and light industrial
stationary power, transportation prime and auxiliary power, and military uses.

In summary, these are the applications and coupled fuel choices of interest to fuel cell
technology to date:

H2 is preferable for a closed environment such as space vehicle application. There are
sources of H2-rich gases, such as an off-gas at a chemical plant, that require only fuel
cleaning. Fuel flexibility is not applicable in either case.
The fuel choice for small stationary power plants is pipeline gas due to its availability for
multiple commercial, light-industrial, and residential applications. Some users request that
the fuel processor convert at least one additional fuel, i.e., a light distillate.
For light vehicles, a key commercial target due to number of potential units, the fuel choice is
open to question. There is a strong argument for liquid fuels due to vehicle on-board volume
restrictions and infrastructure. Candidate liquid fuels for light vehicles could be available
gasoline or a new gasoline, if driven by the infrastructure. Methanol may have an edge if it
proves too difficult to process gasoline provided using it compares favorably on a cost and
environmental basis with the present internal combustion engine (ICE) and gasoline system.
Fuel flexibility in processors being developed should be considered because of the indecision
on fuel type and because the public is accustomed to a selection of different octane liquid
fuels and diesel.
The present infrastructure fuel for heavy vehicles is high sulfur diesel (~300 ppm sulfur by
weight) but this may change to a nearly sulfur-free diesel as proposed by the EPA (15 ppm

9-5

sulfur by weight). The fuel for this sector could also be a gasoline if such a fuel cell system
can compete.
On-board vehicle auxiliary power is increasing dramatically to satisfy consumer
convenience. Fuel selection for these applications parallel light and heavy vehicle fuels,
above.
The military will continue with its fuel infrastructure of high sulfur diesel (up to 1,000 ppm
sulfur by weight) and jet fuel (JP-8). Sulfur specification will remain high because the
military has to consider worldwide fuel sources. High sulfur diesel and JP-8 are close in
characteristics so no fuel flexibility is required. However, there is a possibility that some
parts of the military or the Coast Guard (a military service within the DOT) could use fuels
more compatible to the fuel cell in limited applications.
As environmental regulation becomes more stringent for megawatt size power stations and
fuel cells are scaled larger in size, there is the possibility to use the US’s most plentiful,
indigenous fuel, coal. The term, coal, covers a broad spectrum of solid fuels that complicate
fuel processing, particularly cleanup. Fuel cells will find it difficult to compete economically
with the high power density and relatively low cost gas turbine power generators in this
application area. Large power station operators require an alternate fuel, usually heavy oil.
There is the possibility of using other available fuels such as light distillates, ethanol,
anaerobic digester gas, biomass, and refuse-derived fuel. However, these fuels apply to
niche market applications. Fuel cell application here, if practical, will evolve from and after
widespread uses. Users may require an alternate fuel, probably natural gas.

As stated earlier, fuel processing technology from large chemical installations has been
successfully transferred to small compact fuel cell units to convert pipeline natural gas, the fuel
of choice for small stationary power generators. The technology for converting natural gas is
described later in this section.

The fuel decision that has the greatest impact on fuel processor development at this time is in the
light vehicle application sector, due to the potential large number of units. Many fuel processor
developers are presently focusing on the development of methanol fuel processing either as the
fuel of choice or as a development step toward processing gasoline. Others consider that it is
best to develop a vehicle system that uses the most environmentally attractive fuel, hydrogen.
There are numerous opinions such as storage and distribution of H2 on vehicles is difficult and
costly, and the space required for onboard storage (while available on buses) is prohibitive for
small cars. It is best to convert liquid fuels. There is no payoff by going to other methods such
as liquid H2, compressed H2, or metal hydride (1).

Methanol is unquestionably the easiest of the potential fuels to convert to hydrogen for vehicle
use. Methanol disassociates to carbon monoxide and hydrogen at temperatures below 400 C and
can be catalytically steam reformed at 250 C or less. This provides a quick start advantage.
Methanol can be converted to hydrogen with efficiencies of >90 %. But methanol is produced
primarily from natural gas requiring energy and it is less attractive than gasoline on a well-to-
wheels efficiency (2).

Gasoline has many advantages over methanol, but conversion to H2 requires temperatures in
excess of 650 C and produces greater amounts of CO, methane (CH4), and possibly coke.

9-6

Without catalyst, the conversion temperature is 1,000 C or higher. High temperatures require
special materials of construction and significant preheating. Petroleum-derived fuels contain
more sulfur and trace amounts of metal that could be harmful to the fuel cell. Natural gas is not
good for transportation because of its low relative energy density and 700 C or higher processing
temperature (3).

ExxonMobil has presented a position paper (4) for liquid fuels that addresses the pros and cons
of methanol versus gasoline. Paraphrased excerpts from this are:

Fuels that are most directly suited to the fuel cell are the most difficult and costly to produce
and distribute. Gasoline and methanol are the leading candidates to power fuel cell engines.
Both the gasoline and methanol fuel cell vehicles should be more fully developed prior to
making a commercial decision on fuel choice.
Due to methanol's corrosivity and its affinity for water, it cannot be readily distributed in
today's fuel infrastructure. Methanol burns with a nearly invisible flame. Available
luminosity additives won’t reform in the low-temperature methanol steam reformers.
Methanol is more acutely toxic than gasoline. Additives that are likely to be needed for
safety and health reasons will impact the fuel processor’s performance and cost.
Gasoline fuel processing has the ability to utilize the existing infrastructure, a major
advantage. It is inherently more flexible than the low temperature methanol processor,
allowing multiple fuel use in the same system. The gasoline processor is also more tolerant
of contaminants or additives contained in the fuel. Due to the higher energy density of
gasoline, the gasoline system offers the potential for up to twice the vehicle range of the
methanol system (editor’s note - if similar conversion efficiencies are attained).
Today’s mid-sized passenger cars are about 15 to 18 % "well-to-wheels" energy efficient as
indicated in Figure 9-3. Despite the increased vehicle efficiency of a methanol

9-7

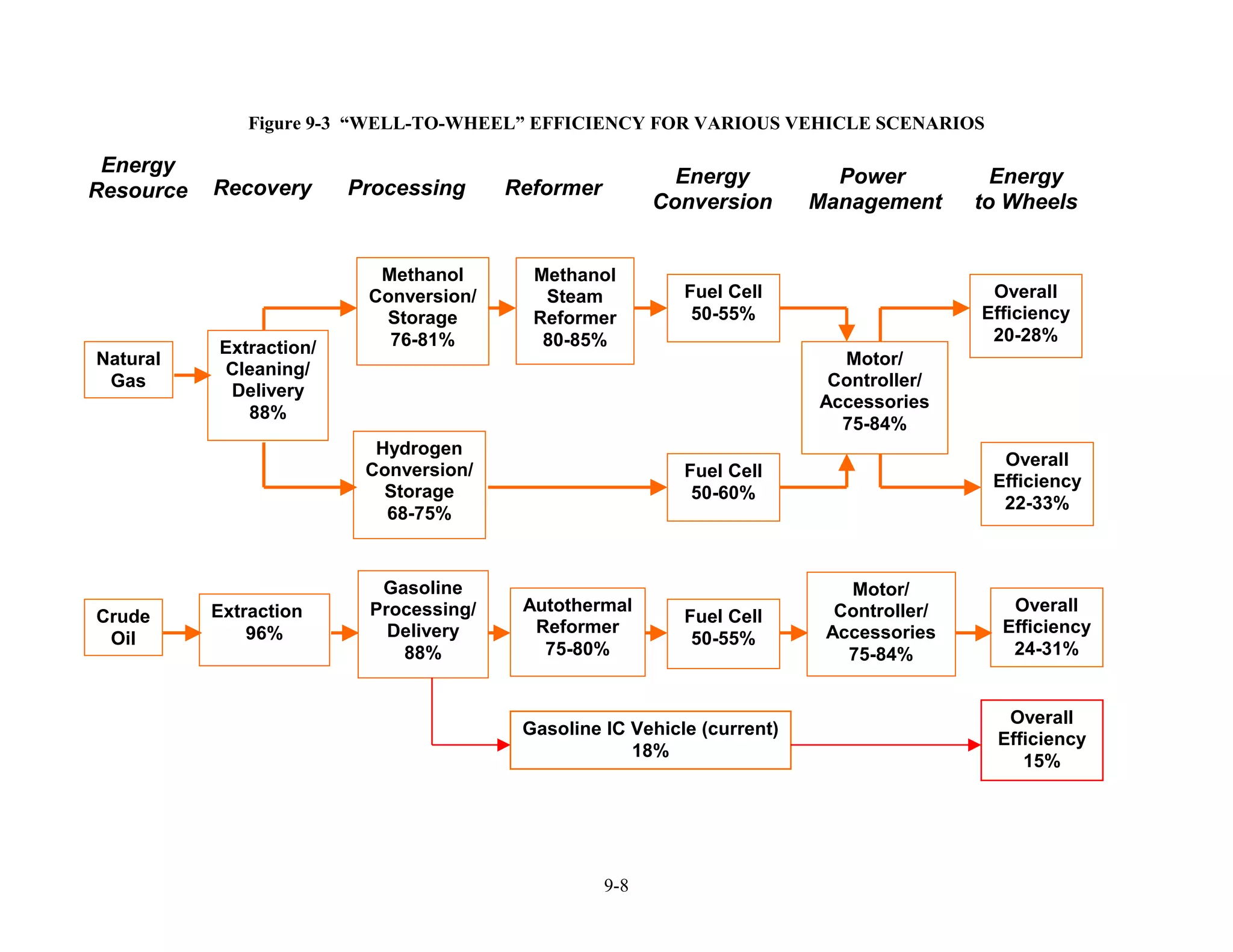

Figure 9-3 “WELL-TO-WHEEL” EFFICIENCY FOR VARIOUS VEHICLE SCENARIOS

Energy
Energy Power Energy
Resource Recovery Processing Reformer
Conversion Management to Wheels

Methanol Methanol
Conversion/ Steam Fuel Cell Overall
Storage Reformer 50-55% Efficiency
76-81% 80-85% 20-28%
Extraction/
Natural Motor/
Cleaning/
Gas Controller/
Delivery
Accessories
88%
75-84%
Hydrogen
Overall
Conversion/ Fuel Cell
Efficiency
Storage 50-60%
22-33%
68-75%

Gasoline Motor/
Extraction Processing/ Autothermal Controller/ Overall
Crude Fuel Cell
96% Delivery Reformer Accessories Efficiency
Oil 50-55%
88% 75-80% 75-84% 24-31%

Overall
Gasoline IC Vehicle (current)
Efficiency
18%
15%

9-8

fuel cell system, the resultant "well-to-wheel" efficiency would be only 23 %, substantially
lower than either gasoline hybrids or gasoline fuel cell vehicles.45
A customized gasoline for fuel cells could offer better performance and be produced at lower
cost because many of today's conventional gasoline’s more expensive ingredients would not
be required. Naphtha is a common refinery stream that is an inexpensive alternative to
conventional gasoline. Although its octane is too low for today’s ICE, naphtha is ideal for
fuel cells and could be supplied to retail stations within the existing gasoline infrastructure.

Fuel Cell Issues

There are three major gas reformate requirements imposed by the various fuel cells that need
addressing. These are sulfur tolerance, carbon monoxide tolerance, and carbon deposition. The
activity of catalysts for steam reforming and autothermal reforming can also be affected by sulfur
poisoning and coke formation. These requirements are applicable to most fuels used in fuel cell
power units of present interest. There are other fuel constituents that can prove detrimental to
various fuel cells. However, these appear in specific fuels and are considered beyond the scope
of this general review. Examples of these are halides, hydrogen chloride, and ammonia. Finally,
fuel cell power unit size is a characteristic that impacts fuel processor selection.

There are discrepancies in the amounts of harmful species tolerance that fuel cell developers
establish, even for similar type fuel cells. These discrepancies are probably due to electrode
design, microstructure differences, or in the way developers establish tolerance. There are some
cases where the presence of certain harmful species causes immediate performance deterioration.
More often, the degradation occurs over a long period of time, dependant on the developer’s
allowable voltage degradation rate on exposure to the specific harmful species. Here, the
developer establishes an estimated cell life based on economics. The permissible amount of the
harmful constituent is then determined based on its life effects.

Sulfur Requirements

Present formula gasolines contain approximately 300 ppm. No. 2 fuel oil contains 2,200 to
2,600 ppm by weight of sulfur. Even pipeline gas contains sulfur-containing odorants
(mercaptans, disulfides, or commercial odorants) for leak detection. Metal catalysts in the fuel
reformer can be susceptible to sulfur poisoning and it is very important that sulfur in the fuel
reformate be removed. Some researchers have advised limiting the sulfur content of the fuel in a
stream reformer to less than 0.1 ppm, but noted the limit may be higher in an autothermal

45
. Editor’s note - The gasoline-fueled ICE well-to-wheel efficiency values apply to today’s technology and are
averaged over the entire driving cycle. Advanced IC engine/vehicles are more efficient over the entire
operating cycle than 18 % (up to 20 some odd %). This implies that future IC engine/vehicle efficiency for light
vehicles can be in excess of the 15 to 18 % quoted in the ExxonMobil paper. Vehicle miles per gallon increase
when the ICE is combined with a battery in developmental vehicles with very low drag coefficients, for
example the 60+ mpg for the Honda Insight, 40 to 50+ mpg for the Toyota Prius, 70+ mpg for the Ford Prodigy,
and ~80 mpg for the GM Precept. The overall well-to-wheel efficiency over a standard city/highway driving
cycle for a four passenger, production hybrid vehicle has been estimated to be about 25-30 %, close to a fuel
cell vehicle. The fuel cells engines for lightweight vehicles are likely to be hybrids, and therefore the projected
efficiencies have to be carefully considered.

9-9

reformer (5), see Argonne National Laboratory, under State-of-the-Art Components later in this
section.

Sulfur poisons catalytic sites in the fuel cell also. The effect is aggravated when there are nickel
or iron-containing components including catalysts that are sensitive to sulfur and noble metal
catalysts, such as found in low temperature cell electrodes. Sulfur tolerances are described in the
specific fuel cell sections of this handbook.46 In summary, the sulfur tolerances of the cells of
interest, by percent volume in the cleaned and altered fuel reformate gas to the fuel cells from
published data, are:

PEFC - <1 ppm sulfur as H2S, poisoning is cumulative and not reversible
PAFC - <50 ppm sulfur as H2S + COS or <20 ppm sulfur as H2S at the anode. Poisoned anodes
can be re-activated by polarization at high potentials.
MCFC - <0.5 ppm sulfur as H2S (at the cathode) equates to <10 ppm at the anode because of fuel
exhaust being sent to the cathode in an MCFC system (same amount of sulfur, more gas at
the cathode), poisoning is reversible.
SOFC - <1 ppm sulfur as H2S, poisoning is reversible for the tubular SOFC. H2S levels of 1 ppm
result in an immediate performance drop, but this loss soon stabilizes into a normal linear
degradation. Tests show that high temperature planar SOFCs with all-ceramic components
can tolerate up to 3,000 ppm of sulfur. Sulfur, in H2S form, has been used as a fuel for an
external reforming, all-ceramic SOFC operating at 1,000 C (6). However, developers want
to bring the cell temperature down to allow less expensive metal components, primarily
interconnects, and improve cycle efficiency. There is a requirement to lower sulfur
significantly if metal parts are used in an SOFC. For planar SOFCs, claims for sulfur
tolerance varies among the developers. The range of sulfur has been published as 10 to 35
ppm. Planar SOFC sulfur tolerance probably will be secondary to the fuel processor
catalyst that, as mentioned, may be as low as 0.1 ppm.

Carbon Monoxide Requirements

Carbon monoxide, a fuel in high temperature cells (MCFC and SOFC), is preferentially absorbed
on noble metal catalysts that are used in low temperature cells (PAFC and PEFC) in proportion
to the hydrogen to CO partial pressure ratio. A particular level of carbon monoxide yields a
stable performance loss. The coverage percentage is a function of temperature and that is the
sole difference between PEFC and PAFC (7). Cell limits are:

PEFC – Consensus tolerant limit is <50 ppm into the anode.
PAFC – Major US manufacturer set tolerant limit as <1.0 % into the anode.
MCFC - CO and H2O shift to H2 and CO2 in the cell as the H2 is consumed by the cell reaction
due to a favorable temperature level and catalyst.

46
. There is an ambiguity in the way sulfur is reported in the literature that has caused confusion in the amount that
can be tolerated. Reports often fail to distinguish whether the sulfur is measured by weight, as it would be
before vaporization of a liquid fuel, or by volume, as it would be in a gas fuel or fuel gas reformate. An
approximate rule of thumb is that the amount (by volume) of sulfur in a vaporized fuel is one-tenth the amount
of sulfur measured by weight in the liquid fuel. 300 ppm sulfur (by weight) in the liquid fuel equates to 30 ppm
sulfur (by volume) when the fuel is converted to a gaseous reformate.

9-10

SOFC - CO can be a fuel. However, if the fuel gas contains H2O, the shift reaction (CO + H2O
H2 + CO2) is chemically favored with present designs and operating conditions.

Carbon Deposition Requirements

The processing of hydrocarbons always has the potential to form coke (soot). If the fuel
processor is not properly designed or operated, coking is likely to occur (3). Carbon deposition
not only represents a loss of carbon for the reaction but more importantly also results in
deactivation of catalysts in the processor and the fuel cell, due to deposition at the active sites.
Thermodynamic equilibrium calculations provide a first approximation of the potential for coke
formation. The governing equations are:

C + CO2 2CO (Boudouard) (9-1)
C + 2H2 CH4 (carbon-hydrogen) (9-2)
C + H2O CO + H2 (carbon-steam or gasification) (9-3)

Indications at what conditions carbon may be formed for various fuels are determined by the
simultaneous solution of the above equations using their equilibrium coefficients.47 No solid
graphitic carbon exists at low temperatures (~600 C) in binary mixtures containing at least 2
atoms of oxygen or 4 atoms of hydrogen per atom of carbon (9).

Fuel Cell Unit Size Requirements

There is a lower level of power output where it is no longer advantageous to incorporate a fuel
processor in a fuel cell unit. The decision is also application specific. It is likely that releasing
H2 by chemical reaction from a solid compound when mixed with water is economical for small
portable units (below 100 W). An H2 storage cartridge can be replaced in seconds (10). Actual
power levels where the tradeoff is likely to occur change as processing and storage technology
advances. One fuel processor developer has produced a 100 W size POX methane reactor that
takes up the space of a coffee can. The unit includes a reforming zone, shift reactors, and all heat
exchangers. H2 is 36% (assume dry) and the CO level can be reduced to 1%. The unit ran on
methane, propane, and ethanol (11). Another research project is investigating methanol
reformers for sub-watt fuel cell power sources for the Army.

47
. Carbon is slightly less likely to be deposited than equilibrium coefficient calculations indicate, due to kinetics.

9-11

Fuel Processing Technology Descriptions

Fuel Conversion Description

The generic term generally applied to the process of converting liquid or gaseous light
hydrocarbon fuels to hydrogen and carbon monoxide is “reforming”. There are a number of
methods to reform fuel. The three most commercially developed and popular methods are
1) steam reforming, 2) partial-oxidation reforming, and, 3) autothermal reforming. Each of these
methods can be used to produce a fuel suitable for the fuel cell.

Steam reforming (SR) provides the highest concentration of hydrogen and can obtain a high fuel
processing conversion efficiency. Partial oxidation (POX) is a fast process, good for starting,
fast response, and a small reactor size. Non-catalytic POX operates at temperatures of
approximately 1,400 C, but adding a catalyst (catalytic POX or CPOX) can reduce this
temperature as low as 870 C. Combining steam reforming closely with CPOX is termed
autothermal reforming (ATR).

Steam Reforming Description

Historically, steam reforming has been the most popular method of converting light
hydrocarbons to hydrogen. In the steam reforming process, the fuel is heated and vaporized,
then injected with superheated steam into the reaction vessel. The steam-to-carbon molar ratio
used is usually in the neighborhood of 2.5:1 but developers strive for lower ratios to improve
cycle efficiency. Excess steam is used to help force the reaction to completion as well as to
inhibit soot formation. Like most light hydrocarbons, heavier fuels can be reformed through
high temperature reaction with steam. Steam reforming is usually carried out using nickel-based
catalysts. Cobalt and noble metals are also active but more expensive. The catalytic activity
depends on metal surface area. For nickel, the crystals will sinter quickly above the so-called
Tamman temperature (590 C) approaching a maximum size related to the pore diameter of the
support. The crystal growth results in loss of surface area and activity (12). The steam reformer
can operate with (always in conjunction with fuel cells) or without a catalyst. Most commercial
applications of steam reforming use a catalyst to enhance reaction rates at decreased
temperatures. Lower temperatures favor high CO and hydrogen equilibrium. The reforming
catalyst also promotes the competitive water-gas shift reaction. Steam reforming is endothermic
thus favored by high temperatures. But it is a slow process and requires a large reactor (1). As a
result, rapid start and transients cannot be achieved by steam reforming due to it inherently
slower indirect heating (13). The steam reforming process suits pipeline gas and light distillate
stationary fuel cell power generation well.

An intrinsic, exothermic water-gas shift reaction occurs in the steam reformer reactor. The
combined reaction, steam reforming and water gas shift, is endothermic. As such, an indirect
high temperature heat source is needed to operate the reactor. This heat source usually takes the
shape of an immediately adjacent high temperature furnace that combusts a small portion of the
raw fuel or the fuel effluent from the fuel cell. Efficiency improves by using rejected heat from
other parts of the system. Note that the intrinsic water-gas shift in the reactor may not lower the

9-12

CO content to the fuel cell requirement and additional shifting and alteration will be needed for
lower temperature fuel cells.

Steam reforming of higher hydrocarbons can also be used to produce methane suitable for use in
high temperature internal reforming fuel cells. Steam pre-reforming of hydrocarbons, as a
process step in the manufacture of hydrogen, ammonia, methanol, carbon monoxide and syngas,
is an established technology. All higher hydrocarbons are converted over a nickel-based catalyst
into a gas mixture containing hydrogen, methane and carbon oxides. Establishment of equilibria
of the methanation and shift reactions at the process conditions determines the composition of
the pre-reformed gas. By proper design of appropriate fuel processing systems, a wide variety of
fuels may be converted to a reformate with higher methane. This reformate can then be used to
promote internal reforming for high temperature fuel cell systems. For each type of fuel,
optimum operating parameters viz. temperature, steam/carbon ratio, and the most suitable
catalyst needs to be established (14).

Partial Oxidation Description

As the name implies, partial oxidation, or POX, is the partial, or incomplete, combustion of a
fuel. A substoichiometric amount of air, or oxygen, is used. This partial oxidation process is
highly exothermic and raises the reactants to a high temperature.

The resulting high temperature reaction products, still in a reduced state, are then quenched
through the introduction of superheated steam. The addition of the steam promotes the
combined water-gas shift and steam reforming reactions, which further cools the gas. In most
cases, and if sufficient pre-heating of the reactants is used, the overall reaction is exothermic and
self-sustaining. For some applications however, particularly small-scale configurations, a catalyst
can be used to increase reaction rates at lowered reaction temperatures. Again, additional,
separate water-gas shift and alteration may be necessary to satisfy the fuel cell requirements.

POX reactor exit temperatures vary widely. Noncatalytic processes for gasoline reforming
require temperatures in excess of 1,000 C. These temperatures require the use of special
materials and significant preheating and integration of process streams. The use of a catalyst can
substantially reduce the operating temperature allowing the use of more common materials such
as steel. Lower temperature conversion leads to less carbon monoxide (an important
consideration for low temperature fuel cells), so that the shift reactor can be smaller. Lower
temperature conversion will also increase system efficiency.

For some heavy hydrocarbon fuels, typical values range from as low as 870 C for catalytic POX
upwards to 1,400 C for non-catalytic POX. For sulfur-bearing diesel fuel, a catalytic POX
reactor will usually operate at approximately 925 C. This relatively elevated temperature is
needed to overcome catalyst degradation due to the presence of sulfur. Non-catalytic POX
reactors operating at around 1,175 C on diesel fuel.

Advantages of POX that make this type fuel conversion suitable for transportation power are:

9-13

POX does not need indirect heat transfer (across a wall) so the processor is more compact
and lightweight (3).
Contrary to widely-held opinion, POX and ATR are capable of higher reforming efficiencies
than are steam reformers (15).

Partial oxidation should be reacted so that the overall reaction is exothermic, but at a low value
of oxygen-to-fuel where the higher hydrogen yields and concentrations are favored.

It is a widely held opinion that POX leads to lower efficiency than steam reforming due to the
POX reaction being exothermic. However, a thorough examination of the thermodynamics
shows that POX and ATR have higher reforming efficiencies than steam reformers. This begs
the question on why is there a need to use steam reforming or an ATR if the POX's efficiency is
higher. The minimum oxygen to carbon (O/C) ratio allowable is 1 for the POX process. This
generates high heat that leads to undesirable high temperatures (low H2, CO2 selectivity,
materials of construction constraints, etc). The steam reformer and ATR allow lower O/C ratios,
keep the temperature down, and result in higher CO2 and H2 selectivity (more H2 yield per mole
of fuel). Developers chose among the processes depending on application.

Autothermal Reforming Description

The coupling of SR with POX is termed autothermal reforming (ATR). The exact definition
varies. Some define ATR as an SR reaction and a POX reaction that take place over microscopic
distances at the same catalytic site thus avoiding complex heat exchanging (16). Others have the
less restrictive definition that ATR occurs when there is no wall between a combined SR reaction
and catalytic POX reaction. ATR is carried out in the presence of a catalyst that controls the
reaction pathways and thereby determines the relative extents of the POX and SR reactions. The
SR reaction absorbs part of the heat generated by the POX process reaction, limiting the
maximum temperature in the reactor. The net result is a slightly exothermic process.

Autothermal reforming provides a fuel processor compromise that operates at a lower O/C and
lower temperature than the POX; is smaller, quicker starting, and quicker responding than the
SR; and results in good H2 concentration and high efficiency. A catalytic POX must be used to
reduce the reaction temperature to a value compatible with the SR temperature. Once started,
surplus heat from other parts of the unit can be sent to the ATR to increase its efficiency.

Other Reforming Combinations

There have been fuel processor configurations where a non-catalytic POX is placed in series with
a steam reformer. Without catalyst, the POX reaction has to be at a higher temperature than the
steam reformer reaction. These reactions have to take place in separate compartments with heat
exchange and a wall between them (13). This configuration is not considered within the
definition of autothermal reforming.

9-14

Generic Fuel Conversion

Considering a spectrum of fuel conversion from steam reforming to partial oxidation should
convey a basic understanding of the reforming processes. An elegant general equation published
by the Argonne National Laboratory (ANL) describes fuel conversion throughout the spectrum.
Autothermal reforming falls within this spectrum so that the equation encompasses processes of
interest to fuel cells. The equation does not apply to complete combustion, but that conversion
process is not relevant to fuel cells (15,17). The general equation is:

CnHmOp + x(O2 + 3.76 N2) + (2n – 2x – p)H2O = nCO2 + (2n – 2x – p +m/2)H2 + 3.76xN2 (9-4)

where x is the molar ratio of oxygen-to-fuel. This ratio is very important because it determines:

(a) the minimum amount of water that is required to completely convert the carbon in the fuel to
carbon dioxide (2n – 2x – p). Excess water is used in practice to insure the conversion,
resulting in water in the reformate (right side of the equation). Typically, one or two moles
of water for every mole of oxygen are used.
(b) the hydrogen yield (2n – 2x – p +m/2)
(c) the concentration of hydrogen in the reformate {[2n – 2x – p +m/2]/[n + (2n – 2x – p +m/2) +
3.76x] all times 100}
(d) the heat of reaction { Hr = n( Hf,CO2 )– (2n – 2x – p) Hf,H2O - Hf,fuel}.

Decreasing the oxygen-to-fuel ratio, x, results in increasing demand for water (water-to-fuel
ratio), with commensurate increases in the yield and concentration of hydrogen in the reformate
gas. When x = 0, the equation reduces to the strongly endothermic steam reforming reaction.
The reaction becomes less endothermic with increasing oxygen. It becomes thermoneutral48 at
x = x0 (0.44 for natural gas). Above this point, the reaction becomes increasingly exothermic. At
x = 1, the pure POX reaction, the feed contains sufficient oxygen to convert all of the carbon in
the fuel to CO2. No water needs to be added. The equation is a mix of the steam reforming
reaction and the POX reaction at values of x between 0 and 1.

The general equation, above, is no longer accurate above an x of 1. Beyond x = [n – (p/2)] = 1
(when p = 0), where water is a product, the heat of reaction is determined by the phase of the
product water. At still higher values, the excess oxygen oxidizes the hydrogen to produce water.
Finally, at stoichiometric combustion, all carbon and hydrogen are converted to carbon dioxide
and water.

Equation 9-4 depicts a total reaction where the fuel input is converted to carbon dioxide.
Actually, the initial reforming step is carried out at elevated temperatures, where a mixture of
carbon monoxide and carbon dioxide is formed. In the subsequent reformate conversion step, the
carbon monoxide is converted via the water-gas shift to carbon dioxide: This step may not be
needed for the high-temperature fuel cells.

CO + H2O H2 + CO2 (9-5)

48
. The thermoneutral point (of oxygen-to-carbon ratio) is where the enthalpy of the reaction is zero, ( Hf,298 = 0).

9-15

There may be additional, downstream inputs of water/steam and oxygen/air, for water-gas shift
and selective oxidation to further reduce CO, if needed.

When the function of a fuel processor is to convert a fuel to hydrogen, the fuel conversion
efficiency is

Lower Heating Value of Anode Fuel(s) Produced
Efficiency (9-6)
Lower Heating Value of Fuel Used

The fuel conversion efficiency for methane conversion to hydrogen is 93.9% at the
thermoneutral point, x = 0.44 (an ATR reaction) and 91.7% at x = 0 (the SR reaction). The
difference is probably due to the heat of condensation of the H2O in the SR burner exhaust. The
concentration of hydrogen is 53.9% at x = 0.44 and 80% at x = 0.

Equation 9-4 and related heats of reaction can be manipulated to show that the maximum
efficiency is a state point function, regardless of path (steam reforming, partial oxidation, or
autothermal reforming), and is achieved at the thermoneutral point. In practice, x is set slightly
higher than the thermoneutral point so that additional heat is generated to offset heat losses from
the reformer. Table 9-1 presents efficiencies at the thermoneutral point for various hydrocarbon
fuels.

Specific Fuel Processing

Because the components and design of a fuel processing subsystems depend on the raw fuel type,
the discussion after Table 9-1 is organized by the fuel being processed.

Table 9-1 Calculated Thermoneutral Oxygen-to-Fuel Molar Ratios (xo) and
Maximum Theoretical Efficiencies (at xo) for Common Fuels

Hf,fuel Xo, Efficiency
CnHmOp n m p (kcal/gmol) m/2n Hr = 0 (%)
Methanol 1 4 1 -57.1 2 0.230 96.3
CH3OH(l)
Methane 1 4 0 -17.9 2 0.443 93.9
CH4
Iso-Octane 8 18 0 -62.0 1.125 2.947 91.2
C8H18(l)
Gasoline 7.3 14.8 0.1 -53.0 1.014 2.613 90.8
C7.3H14.8 O0.1(l)

Hydrogen Processing

When hydrogen is supplied directly to the fuel cell, as may be the case in transportation systems,
the fuel processing section is no more than a storage and delivery system. However, in most

9-16

practical applications, hydrogen needs to be generated from other fuels and processed to meet the
various system requirements.

Natural Gas Processing

The major constituents of pipeline gas are methane, ethane, propane, CO2, and, in some cases,
N2. Sulfur containing odorants (mercaptans, disulfides, or commercial odorants) are added for
leak detection. Because neither fuel cells nor commercial reformer catalysts are sulfur tolerant,
the sulfur must be removed. This is usually accomplished with a zinc oxide sulfur polisher and
the possible use of a hydrodesulfurizer, if required. The zinc oxide polisher is able to remove the
mercaptans and disulfides. However, some commercial odorants, such as Pennwalt's
Pennodorant 1013 or 1063, contain THT (tetrahydrothiophene), more commonly known as
thiophane, and require the addition of a hydrodesulfurizer before the zinc oxide catalyst bed.
The hydrodesulfurizer will, in the presence of hydrogen, convert the thiophane into H2S that is
easily removed by the zinc oxide polisher. The required hydrogen is supplied by recycling a
small amount of the reformed natural gas product. Although a zinc oxide reactor can operate
over a wide range of temperatures, a minimum bed volume is achieved at temperatures of 350 to
400°C (660 to 750°F).

The CH4 in the natural gas is usually converted to H2 and CO in a SR reactor. Steam reforming
reactors yield the highest percentage of hydrogen of any reformer type. The basic SR reactions
for methane and a generic hydrocarbon are:

CH4 + H2O CO + 3H2 (9-7)
CnHm + nH2O nCO + (m/2 + n) H2 (9-8)
CO + H2O CO2 + H2 (9-9)

In addition to natural gas, steam reformers can be used on light hydrocarbons such as butane and
propane and on naphtha with a special catalyst. Steam reforming reactions are highly
endothermic and need a significant heat source. Often the residual fuel exiting the fuel cell is
burned to supply this requirement. Fuels are typically reformed at temperatures of 760 to 98 °C
(1,400 to 1,80 °F).

A typical steam reformed natural gas reformate is presented in Table 9-2.

Table 9-2 Typical Steam Reformed Natural Gas Reformate

Mole Reformer Shifted
Percent Effluent Reformate
H2 46.3 52.9
CO 7.1 0.5
CO2 6.4 13.1
CH4 2.4 2.4
N2 0.8 0.8
H2O 37.0 30.4
Total 100.0 100.0

9-17

A POX reformer also can be used for converting gaseous fuels, but does not produce as much
hydrogen as the steam reformers. For example, a methane-fed POX reformer would produce
only about 75% of the hydrogen (after shifting) that was produced by an SR. Therefore, partial
oxidation reformers are typically used only on liquid fuels that are not well suited for steam
reformers. Partial oxidation reformers rank second after steam reformers with respect to their
hydrogen yield. For illustration, the overall POX reaction (exothermic) for methane is

CH4 + ½O2 CO + 2 H2 (9-10)

When natural gas fuels a PAFC or a PEFC system, the reformate must be water-gas shifted
because of the high CO levels in the reformate gas. A PAFC stack can tolerate about 1% CO into
the cell before having an adverse effect on the cell performance due to catalyst absorption. The
allowable CO level in the fuel gas for a PEFC is considerably lower. The shift conversion is
often performed in two or more stages when CO levels are high. A first high-temperature stage
allows high reaction rates, while a low-temperature converter allows for a higher conversion.
Excess steam also is utilized to enhance the CO conversion. A single-stage shift reactor is
capable of converting 80 to 95% of the CO (18). The water gas shift reaction is mildly
exothermic, so multiple stage systems must have interstage heat exchangers. Feed temperatures
of high- and low-temperature shift converters range from approximately 260 to 37 °C (500 to
70 °F) and 200 to 26 °C (400 to 50 °F), respectively. Hydrogen formation is enhanced by low
temperatures, but is unaffected by pressure.

When used in a PEFC system, the reformate must pass through a preferential CO catalytic
oxidizer, even after being shifted in a shift reactor. Typically, the PEFC can tolerate a CO level
of only 50 ppm. Work is being performed to increase the CO tolerance level in PEFC. At least
two competing reactions can occur in the preferential catalytic oxidizer:

CO + ½O2 CO2 (9-11)
H2 + ½O2 H2O (9-12)

The selectivity of these competing reactions depends upon the catalyst and determines the
quantity of required oxygen (19).

Liquid Fuel Processing

Liquid fuels such as distillate, naphtha, diesel oils, and heavy fuel oil can be reformed in partial
oxidation reformers. All commercial POX reactors employ noncatalytic POX of the feed stream
by oxygen in the presence of steam with reaction temperatures of approximately 1,300 to
1,50 °C (2,370 to 2,73 °F) (18). For illustration, the overall POX reaction for pentane is

C5H12 + 5/2O2 5CO + 6H2 (9-13)

The overall reaction is exothermic, and largely independent of pressure. The process is usually
performed at 20 to 40 atmospheres to yield smaller equipment (18). A typical fuel composition
for a fuel oil fed POX reformer is presented in Table 9-3. The CO contained in this reformate

9-18

may need to be converted with a shift converter or selective catalytic converter, as for the
gaseous fuel case, depending upon the specific fuel cell being fed.

Table 9-3 Typical Partial Oxidation Reformed Fuel Oil Reformate (18)

Mole Percent Reformer
(dry, basis) Effluent
H2 48.0
CO 46.1
CO2 4.3
CH4 0.4
N2 0.3
H2S 0.9
Total 100.0

Alcohols are steam-reformed at lower temperatures (<600 C) while alkanes49 and unsaturated
hydrocarbons require slightly higher temperatures. Cyclic hydrocarbons and aromatics have also
been reformed at relatively low temperatures, however a different mechanism appears to be
responsible for their reforming. Blended fuels like gasoline and diesel, that are mixtures of a
broad range of hydrocarbons, require temperatures of >700 C for complete H2 production (leads
to maximum hydrogen production). Methanol, one of the prime fuels being considered for
transportation application, can be converted into hydrogen by steam reforming:

CH3OH = CO + 2H2 (9-14)
CO + H2O = CO2 + H2 (9-15)

The equivalent overall result of these two specific reactions is:

CH3OH + H2O = CO2 + 3H2 (9-16)

The optimum choice of operating conditions are around a steam to methanol ratio of 1.5 and a
temperature range of 250 C to 399 C. Pressure does not influence the reaction rate, but very high
pressures limit the equilibrium conversion, which otherwise is better than 99% at the preferred
range of 5 to 15 bars. The CU/Zn/Al and Cu/Zn/Cr based catalysts have been used in large units
in industry for many years (12).

Coal Processing

The numerous coal gasification systems available today can be reasonably classified as one of
three basic types: a) moving-bed, b) fluidized-bed, and c) entrained-bed. All three of these types
utilize steam, and either air or oxygen to partially oxidize coal into a gas product. The moving-
bed gasifiers produce a low temperature (425 to 65 °C; 800 to 1,20 °F) gas containing

49
. Alkanes are saturated hydrocarbons, i.e., no double carbon bonds. Examples are CH4, C2H6, C3H8, and
C(n)H(2n+2). Alkenes have carbon-carbon double bonds such as ethene C2H4 and C(n)H(2n).

9-19

devolatilization products such as methane and ethane, and a hydrocarbon liquid stream
containing naphtha, tars, oils, and phenolics. Entrained-bed gasifiers produce a gas product at
high temperature (>1,26 °C; >2,30 °F), which essentially eliminates the devolatilization
products from the gas stream and the generation of liquid hydrocarbons. In fact, the entrained-
bed gas product is composed almost entirely of hydrogen, carbon monoxide and carbon dioxide.
The fluidized-bed gasifier product gas falls between these two other reactor types in composition
and temperature (925 to 1,04 °C; 1,700 to 1,90 °F).

The heat required for gasification is essentially supplied by the partial oxidation of the coal.
Overall, the gasification reactions are exothermic, so waste heat boilers often are used at the
gasifier effluent. The temperature, and therefore composition, of the product gas is dependent
upon the amount of oxidant and steam, as well as the design of the reactor that each gasification
process utilizes.

Gasifiers typically produce contaminants that need to be removed before entering the fuel cell
anode. These contaminants include H2S, COS, NH3, HCN, particulate, and tars, oils and
phenols. (See Table 6-3 for the MCFC contaminant list). The contaminant levels are dependent
upon both the fuel composition and the gasifier employed. There are two families of cleanup
that can be utilized to remove the sulfur impurities: hot and cold gas cleanup systems. The cold
gas cleanup technology is commercial, has been proven over many years, and provides the
system designer with several choices. The hot gas cleanup technology is still developmental and
would likely need to be joined with low temperature cleanup systems to remove the non-sulfur
impurities in a fuel cell system. For example, tars, oils, phenols, and ammonia could all be
removed in a low temperature water quench followed by gas reheat.

A typical cold gas cleanup process on an entrained bed gasifier would include the following
subprocesses: heat exchange (steam generation and regenerative heat exchange), particulate
removal (cyclones and particulate scrubbers), COS hydrolysis reactor, ammonia scrubber, acid
gas (H2S) scrubbers (Sulfinol, SELEXOL), sulfur recovery (Claus and SCOT processes), and
sulfur polishers (zinc oxide beds). All of these cleanup systems increase system complexity and
cost, while decreasing efficiency and reliability. In addition, many of these systems have
specific temperature requirements that necessitate the addition of several heat exchangers or
direct contact coolers.

For example, a COS hydrolysis reactor needs to operate at about 18 °C (35 °F), the ammonia
and acid scrubbers need to be in the vicinity of 4 °C (10 °F), while the zinc oxide polishers need
to be about 37 °C (70 °F). Thus, gasification systems with cold gas cleanup often become a
maze of heat exchange and cleanup systems.

Typical compositions for several oxygen-blown coal gasification products are shown in
Table 9-4.

Other Solid Fuel Processing: Solid fuel other than coal also can be utilized in fuel cell systems.
For example, biomass and RDF (refuse-derived-fuels) can be integrated into a fuel cell system as
long as the gas product is processed to meet the requirements of the fuel cell. The resulting
systems would be very similar to the coal gas system with appropriate gasifying and cleanup

9-20

systems. However, because biomass gas products can be very low in sulfur, the acid cleanup
systems may simply consist of large sulfur polishers.

Table 9-4 Typical Coal Gas Compositions for Selected Oxygen-Blown Gasifiers

Gasifier Type Moving-Bed Fluidized-Bed Entrained-Bed
Manufacturer Lurgi (20) Winkler Destec Koppers- Texaco Shell
Totzek
Coal Illinois No. 6 Texas Lignite Appalachian Illinois No. 6 Illinois No. 6 Illinois No. 6
Bit.
Mole Percent
Ar trace 0.7 0.8 0.9 0.9 1.1
CH4 3.3 4.6 0.6 - 0.1 -
C2H4 0.1 - - - - -
C2H6 0.2 - - - - -
CO 5.8 33.1 45.2 43.8 39.6 63.1
CO2 11.8 15.5 8.0 4.6 10.8 1.5
COS trace - - 0.1 - 0.1
H2 16.1 28.3 33.9 21.1 30.3 26.7
H2O 61.8 16.8 9.8 27.5 16.5 2.0
H2S 0.5 0.2 0.9 1.1 1.0 1.3
N2 0.1 0.6 0.6 0.9 0.7 4.1
NH3+ HCN 0.3 0.1 0.2 - - -
Total 100.0 100.0 100.0 100.0 100.0 100.0

Reference Sources: (20,21)
Note: All gasifier effluents are based on Illinois No. 6, except the Winkler, which is based on a Texas Lignite, and
the Destec, which is based on an Appalachian Bituminous.

Cleaning and Removal Of Contaminants (Reformate Alteration)

Fuel processors require the removal of impurities that degrade the fuel processor or fuel cell
performance. Sulfur is the major contaminant encountered. Carbon monoxide reduction for low
temperature fuel cells and avoidance of carbon deposition are also addressed in this section. A
typical processing chain for a low temperature fuel cell will have a hydrodesulfurizer, a halogen
guard, a zinc oxide sulfur absorber, a catalytic reformer, a high temperature shift converter, a
second halogen guard, and low temperature shift converter. Figure 9-2 provides insight into
these may be arranged. The function of all these components, except the reformer, is to remove
impurities. For the PEFC cell, there needs to be an additional device to remove essentially all
CO, such as a preferential oxidizer (22).

Sulfur Reduction

There are high temperature and low temperature methods to remove sulfur from a fuel reformate
stream. Low temperature cleanup, such as hydrodesulfurizing (limited to fuels with boiling end
points below 205 C), is less difficult and lower in cost so should be used where possible,
certainly with low temperature cells. Sulfur species in the fuel are converted to H2S, if
necessary, then the H2S is trapped on zinc oxide. As previously mentioned, a minimum bed
volume of the zinc oxide reactor is achieved at temperatures of 350 to 400°C. Simple

9-21

thermodynamic and economic analyses show that it is appropriate to use high temperature
cleanup with high temperature cells.

There is a vast difference between removing sulfur from a gaseous fuel and a liquid fuel. The
sulfur in a liquid fuel is usually removed after it is converted to a gas. This occurs in the
reformer reactor so that it has to handle the sulfur either by operating at significantly high
temperature, by removing the sulfur in the reforming reactor vessel, or by incorporating sulfur
resistant catalysts. Sulfur resistant catalysts are being developed but none are mature enough for
use. ANL for example has demonstrated that their catalyst can tolerate sulfur, but it has not been
demonstrated on an engineering scale.

At least one developer is developing a liquid-phase fuel desulfurizer cartridge that will be used to
remove sulfur prior to fuel vaporization. Other developers remove the sulfur immediately after
vaporization and prior to the reforming. Hydrogen needs to be recirculated to the removal device
to convert the sulfur species to H2S so that it can be entrapped on zinc oxide, a complication.
Zinc oxide beds are limited to operation at temperatures below 430 C probably because of pore
plugging during sulfur removal and sintering. Thermodynamics also favors lower temperatures.
At the higher temperatures, the H2S cannot be reduced to levels low enough for shift catalyst or
to reach fuel cell limits.

Sulfur content in fuel and sulfur removal processor development are in a constant stage of
change and the reader is referred to the literature to assess the latest status and techniques.

Carbon Monoxide Reduction

The use of CO as a fuel in high temperature cells and water-gas shift reactions to lower carbon
monoxide to conditions suitable for a PAFC have been previously described. Fuel gas reformate
contains 0.5 to 1% by volume of CO even after the shift reactions. Present PEFCs operate below
100 C. At these temperatures, even small amounts of CO are preferentially adsorbed on the
anode platinum (Pt) catalysts. This blocks access of H2 to the surface of the catalyst, degrading
cell performance (23). Reformate for PEFC stacks must contain very low, (<50 ppm) CO to
minimize Pt absorption to a reasonable value (allow sufficient active sites for the oxidation of
H2). This can be achieved in two ways, by air injection into the anode at up to about 4% of the
reformate feed rate or by reducing CO to the needed value prior to the cell (Even at 50 ppm, the
CO effect must be mitigated by the injection of air at the anode). For the latter approach, a
preferential oxidizer (PROX) is used to reduce CO prior to the cell. It has highly dispersed
supported Pt or Pt-Ru (ruthenium) catalyst. S uch catalysts act on the principle of selective
adsorption of CO onto the active Pt or Pt-Ru (relative to H2), leading to CO being selectively
oxidized by stoichiometric amounts of air co-fed to the catalyst bed. As the CO is oxidized, the
gas temperature rises, which decreases the selectivity of CO adsorption on the catalyst and also
increases the kinetics of the reverse water-gas shift reaction. In practice, the PROX process is
carried out in stages to permit cooling the gas in-between the stages. The PROX is a relatively
large component that operates at 100 to 180 C (17). Preferential gas cleanup by selective
oxidation results in 0.1 to 2% H2 lost (24).

9-22

Carbon Deposition Avoidance

The processing of hydrocarbons always has the potential to form coke. Coke formation is
influenced by the composition of the fuel, the catalyst, and the process conditions (e.g., partial
pressure of steam). Coke causes the greatest problems in gas flow paths and on catalyst. Carbon
deposition not only represents a loss of carbon for the reaction but more importantly also results
in deactivation of the catalyst due to deposition at the active sites. Thermal cracking50 in over-
heated preheaters and manifolds can easily form carbon. If the fuel conversion reactor is not
properly designed or operated, coking is likely to occur. Thermo equilibrium calculations
provide a first approximation of the potential for coke formation. Free carbon in hydrocarbon
fuels forms according to the three equations, (9-1), (9-2), and 9-3). Figures 9-4 and 9-5 show the
effect of increasing steam on carbon deposition for methane and octane respectively. Increasing
steam, hydrogen, and carbon dioxide concentrations alleviates carbon deposition. Low contents
of aromatics and alkenes5 will help to maintain the activity of the catalyst (5). No carbon exists
at low temperatures (~600 C) in mixtures containing at least two atoms of oxygen and four
atoms of hydrogen per atom of carbon. In these systems, all carbon is present as CO2 or CH4 (3).

Figure 9-4 Carbon Deposition Mapping of Methane (CH4)
(Carbon-Free Region to the Right of Curve)

Steam Reforming Autothermal Reforming
1000 1000

800 800
T ( C)

600
T (oC)

600
o

400 400

200 200

0 0
0.0 0.5 1.0 1.5 2.0 2.5 0.0 0.5 1.0 1.5 2.0 2.5
Steam-to-Carbon Mole Ratio Steam-to-Carbon Mole Ratio

50
. Thermal cracking is the breaking of a hydrocarbon carbon-carbon bond through the free-radical mechanism.
Cracking may result in the formation of lower chained hydrocarbons, the original "cracked" hydrocarbon, or
further cracking of the hydrocarbon to "soot.

9-23

Figure 9-5 Carbon Deposition Mapping of Octane (C8H18)
(Carbon-Free Region to the Right and Above the Curve)

Steam Reforming
1200

1000

800

T carbon formation ( C)
o
600

400

200

0

0 1 2 3 4 5 6

Steam to carbon ratio

Higher hydrocarbon fuels show a higher tendency for carbon formation than does methane. One
method to alleviate carbon deposition problems in the fuel processor is to use special catalysts
either containing alkali or based on an active magnesia support. With a highly active catalyst,
the limit permitted on the final boiling point of the hydrocarbon feedstock is related mainly to the
possibility of desulfurizing the feed to below 0.1 ppm, rather than to the reactivity of the
hydrocarbons. With proper desulfurization, it has been possible to convert light gas oil into
syngas with no trace of higher hydrocarbons in the reformate gas (12).

Coke formation resulting from the use of higher hydrocarbon fuels can also be eliminated with
an adiabatic pre-reformer. The adiabatic reformer is a simple fixed bed reactor. By adiabatic
pre-reforming, all higher hydrocarbons are converted at low temperature (below ~500 C) with
steam into methane, hydrogen, and carbon oxides at conditions where carbon formation does not
occur. If so, it is possible to use a high pre-heating temperature (650 C or above) for internal
reforming in MCFC and SOFC without the risk of carbon formation. For natural gas containing
only minor amounts of higher hydrocarbons, adiabatic pre-reforming at a steam to carbon ratio
as low as 0.25 mole/atom has been demonstrated. For heavier feedstocks such as naphtha,
operation at a steam to carbon of 1.5 is proven in industry. Pilot tests have been carried out at a
steam to carbon ratio of 1.0 with reformate recycle.

Coking can be also be avoided by operating at high temperatures and at high oxygen-to-carbon
ratios. For a given O/C ratio, it is preferable that the oxygen feed be in the form of water. In
other words, the coking tendency is reduced at high O/C and H/C ratios. Thus, less coke is
formed in the order, POX > ATR > SR (15,25).

Other Impurities Reduction

Halides in fuels such as naphtha have deleterious effects on steam reforming and low
temperature shift, thus halogen guards need to be included in the fuel processing.

9-24

There are many types of coal with different compositions, including harmful species. The
handling of these species is addressed earlier under “Coal Processing.” One common
constituent, HCl, will cause formation of stable chlorides and corrosion in a MCFC, see the
section on MCFC. There has not been much work in SOFC yet on this topic. It is doubtful
whether low temperature cells will be fueled by coal.

State-of-the-Art Components

Developers have brought fuel processing technology to the point where conversion of all fuels of
present interest to fuel cells has been demonstrated to a degree. Natural gas steam reforming is
being used on commercial fuel cell units. There has been equal success with steam reforming
light distillates although these fuels are not in common use. Tests have been performed on
reactors and complete small fuel processors on methanol, gasoline, and diesel, all suitable for
vehicle use. These tests have not advanced to operation over prolonged periods; however, there
have been tests that indicate these fuels can be processed in POX and ATR reactors with high
levels of sulfur. Water-gas shift and methods to lower CO even to a few ppm have been
developed, but the final CO cleanup processes are in an early stage of development. All fuel
processors need additional engineering development to reduce volume, weight, and cost to allow
widespread fuel cell power unit use. The state-of-the-art information below is based primarily
on U.S. or closely related fuel cell programs.

Argonne National Laboratory, (ANL) is pursuing fuel processor technology development that
ranges from catalyst development, to component (CO, S cleanup, etc.) evaluations, to fuel
processor hardware design, modeling, and demonstration.

ANL's reforming process is based on the autothermal reforming reaction, a choice that has been
driven by the need for compact, lightweight fuel processors that can meet the rapid start and load
following capabilities needed by most small fuel cell systems. ANL has developed a number of
novel catalysts for the processes involved in the production of hydrogen from hydrocarbon fuels
such that the reformate stream is suitable for PEFC units. For the reforming reaction, ANL has
developed a family of catalysts that have proven effective for the conversion of a wide range of
conventional and alternative fuels. These catalysts consist of a substrate and a promoter, where
it is surmised the substrate participates in the oxidation of the carbon while the promoter
dehydrogenates the hydrocarbon. Tests in micro-reactors have shown that at temperatures of less
than 700°C, complete conversion with high hydrogen yields were achievable from hydrocarbon
species such as methane, methanol, ethanol, 2-pentene, cyclohexane, iso-octane, hexadecane,
and available fuels such as gasoline, and diesel. Long term tests (1,700 hours) with sulfur-
containing (30 ppm) gasoline-type fuels have shown that the reforming catalyst is sulfur tolerant.

Recognizing that the reforming reaction is mass transport limited, the reforming catalyst has
been fabricated in microchannel forms which results in significant (factor of 3-5) reduction in the
size of the reformer.

Alternative water gas shift catalysts developed at ANL have shown activity comparable to
commercially available shift catalysts but with the advantage that ANL's catalyst can be exposed
to oxidizing/reducing environments without any loss in activity. This is very important as

9-25

commercial catalysts are active only after being reduced to the metallic state, but are pyrophoric
(due to rapid reoxidation) when exposed to air.

These various catalysts have been demonstrated in engineering scale (5-10 kWe) fuel processing
hardware to convert methanol, natural gas, and gasoline. These engineering scale fuel processors
are designed to integrate into a single compact unit with unit operations (steam generation, air
preheating, etc.) and processes (reforming, sulfur entrapment, shift reaction, etc.) that are
necessary for the conversion of hydrocarbon fuels to a reformate gas stream suitable for the
PEFC. For higher temperature fuel cells (e.g. SOFC) that accept carbon monoxide, these fuel
processor designs can be simplified considerably leading to much more compact units.

Argonne National Laboratory, where the work is funded by the Department of Energy, will not
be involved in the commercial manufacture of fuel processors, but will license its technology to
fuel processor manufacturers.

Ceramic Fuel Cells, Limited (CFCL), Australia, is developing a pre-reformer fuel processor
that will convert hydrocarbon fuels to a methane and hydrogen-rich reformate. This reformate
will be internally reformed in CFCL’s planar SOFCs to produce a high efficiency system. CFCL
uses a two-stage approach: hydrodesulfurization to break organic compounds down to H2S and
hydrocarbons coupled with a ZnO absorber bed for H2S removal, then steam reforming to
produce a mixture of methane, carbon oxides and hydrogen from higher hydrocarbons (the aim is
to maximize the methane content). This approach has been demonstrated with LPG in the
temperature range 300-450 C to get desired fuel mixtures. Commercial pre-reforming catalysts
are used and screening experiments identified two effective catalysts from two manufacturers.
Another aim of the project is to use the lowest S/C ratios possible (26).

Honeywell, formerly AlliedSignal, is developing CPOX based fuel processors. Honeywell
selected the CPOX method to develop a lightweight, compact fuel processor for its planar SOFC
systems operating on the military logistic fuels, JP-8 and diesel. The processor reaction occurs at
high temperatures and is fast. Residence times are a few milliseconds. Honeywell has operated
a stand-alone POX fuel processor for more than 650 hours with a surrogate fuel JP-8 containing
500 ppm by weight sulfur as dibenzothiophene. The process has been optimized to produce high
H2 and CO yields while avoiding carbon deposition. No water was injected for control. The
processor yielded 90% CO and 80% H2 yield (H2 produced - in mols)/(H2 in the hydrocarbon
fuel). The syngas consists of 19% H2, 24% CO, 1% CO2, and 56% N2, dry basis, and its product
lower heating value is 70 to 80% of the fuel in. There is less than 1% hydrocarbons in the
product gas. Sulfur is produced as H2S (50 ppm) and minimal SO2. The reactor was run with
surrogate fuels containing 1,000 ppm by weight dibenzothiophene for over 280 hours. The
Honeywell planar SOFC cells have a tolerance of 35 ppm sulfur as H2S. This corresponds to
350 ppm by weight in logistic fuels. Honeywell has operated an integrated fuel processor and
planar SOFC unit for 20+ hours as of early 2000 (27).

Hydrogen Burner Technology (HBT) (28) was founded to bring to market reformer systems
based on the principles of under-oxidized combustion (UOB™). These systems use either non-
catalyzed partial oxidation reformers or catalyzed autothermal reformers. The systems for fuel
cell applications include all of the components required to deliver anode-ready gas and to

9-26

combust anode-off gas. Targeted fuel cells for these processes are primarily PEFC, but also for
at least one SOFC developer. All present fuel processing with diesel is now pointed toward
PEFC. SOFC presents different issues that will affect the fuel processor design. HBT has
produced six fuel-processing systems for fuel cell type applications. To date, four of these units
have been delivered to customers for laboratory evaluation. Two of these units have an
equivalent 50 kWe maximum rated capacity and two have under a 10 kWe rating. The initial
two units used non-catalyzed partial oxidation and the other four used autothermal reformers.
One of these will be operated on diesel in the year 2000 for a fuel cell client. The catalyst in this
ATR unit is capable of operation with the sulfur in diesel (under 200 ppmw sulfur in the liquid
phase). Based on this ATR technology, HBT developed a 10 kWe fuel processing system
directed at the stationary market. The first group of twenty pre-production units is being built for
evaluation by fuel cell developers during late 2000 and early 2001.

A fuel processor for PEFC application contains sulfur removal, an ATR-enhanced UOBTM
reformer, advanced shift reactors, a steam generation system, a product gas cooler, a PROX
system, a gas compressor, an air compressor, an anode-off gas oxidizer, and a control system.
Goal efficiency (LHV H2 consumed by fuel cell/LHV fuel consumed by fuel processor) is 69 to
72%. H2 concentration is presently >50% (dry).

Johnson Matthey Technology Centre (J-M) is primarily a supplier of catalysts. However, the
company has developed a modular “Hot Spot ” fuel processor for fuel cell power units that
addresses the integrated issues of catalytic reactions and thermal issues. The processor contains
a POX reaction that results in net thermal energy being produced and a steam reforming process
that requires input of thermal energy. The 5 kWe equivalent, prototype unit is designed so that
these two opposing thermal events occur at the same discrete active catalytic site. A typical fuel
processor reactor consists of four to eight canisters, that contain the catalyst, mounted on each
side of a thermal block. The catalyst is mounted on a support material rather than being in a
packed bed. The thermal block, where the fuel and water are vaporized, is kept at 130 C to
150 C with the heat contained within the hydrogen exiting the fuel cell. The POX and steam
reforming reactions of methanol take place at 400 C to 450 C, but an imbalance has the potential
to drive the temperature to 600 C. This effect is counteracted by adding more water or reducing
the air feed-rate to the catalytic chamber. Development to date has been primarily with the
conversion of methanol and natural gas to a hydrogen-rich reformate where essentially 97 to
98% of the CO has been converted to H2 and CO2. This means that selective oxidation is needed
to reduce the CO if the cell cannot tolerate it, a complication of design since it is necessary to
cool the product gas for oxidation. The present reformer tolerates sulfur but converts it to H2S.
This H2S has to be removed prior to selective oxidation because of the non-sulfur tolerant
catalyst in that process. This produces temperature issues that must be resolved through the use
of in-line components. One to three percent methane is unconverted. The processor yields a
hydrogen-rich gas that has 55% H2 and 2% CO (dry basis) from methanol. The CH3OH
conversion is >99%. A similar processor is capable of converting >90% natural gas to 40% H2
(dry basis) in the POX mode and 58% H2 in the ATR mode (16,29).

It is surmised that the conversion of gasoline and diesel will result in a more complicated unit
than the natural gas unit because of the more complex conversion of higher hydrocarbon fuels,
greater sulfur cleaning requirements, and higher conversion temperature. J-M is beginning to

9-27

test an experimental breadboard fuel processor operating on gasoline. The unit is in a non-
integrated stage (i.e., heat input for vaporization is supplied electrically, rather than by exchange
from another part of the unit). It has been tested with AVCAT fuel (NATO military diesel). The
specification for this fuel lists a maximum of 0.3% sulfur (by weight) in the liquid state. A 5 kW
fuel processor that converts gasoline plus CO cleanup is scheduled to be delivered in September
2000. It will be incorporated with a PEFC power section that will supply auxiliary power for
automobiles. J-M indicated that it intends to replace the eight canisters (used in the 5 kW
methanol reformer) with two larger canisters for reduced cost.

McDermott Technology, Inc. (MTI), the research and development branch of McDermott
International, Inc. has been developing fuel processors for the past six years. Reformers for
liquid fuels such as gasoline and diesel fuel, and for natural gas have been developed.
McDermott has operated non-catalytic POX reformers as large as 35 kWe and catalytic
autothermal reformers as large as 30 kWe, the latter on high-sulfur marine diesel. McDermott
has over 1,000 hours experience utilizing a POX reactor and about 400 hours on the autothermal
unit. The longest continuous run of the autothermal reformer has been 175 hours (30,31).

McDermott is designing a 500 kWe autothermal fuel processor for diesel fuel for marine
applications (PEFC) and a 50 kWe gasoline processor for automotive applications (PEFC). The
gasoline processor includes a liquid-phase desulfurizer cartridge to reduce sulfur in low-sulfur
gasoline to 3 ppm prior to the reforming catalyst. The reformer operates at an average
temperature of 800 C. McDermott is also developing a 10 kWe natural gas fuel processor for use
with a residential size PEFC system.

Nuvera Fuel Cells, a company formed in April 2000 through the merger of DeNora Fuel Cells
S.p.A and Epyx Corporation, originally pursued partial oxidation technology but is now
developing catalytic POX, autothermal reforming (ATR), and steam reforming. ATR is being
used to convert natural gas, gasoline, and diesel to a hydrogen-rich reformate. Reforming
gasoline in an ATR reactor yields 40 to 42 percent H2 on a dry basis. If determined after
the selective oxidation process, fuel conversion efficiency51 of the fuel processor is about 85
percent. The ATR-based fuel processor consists of a reforming zone, high-temperature shift
converter, desulfurization reactor, low-temperature shift converter, and a selective oxidation
reactor. The ATR is also used to convert natural gas,methanol, and propane. The reactor
produces a hydrogen-rich reformate with nearly no sulfur (<0.2 ppm) or carbon monoxide
(<10 ppm).

The largest gasoline-fueled ATR reactor operated by Nuvera is 200 kWt. Nuvera had over 2,000
hours run time with no catalyst change while experiencing multiple start/stop conditions. The
longest continuous run has been 500 hours.

51
. Nuvera defines fuel conversion efficiency as thermal value of H2 produced/thermal value of fuel fed to
processor.

9-28

Wellman CJB Ltd. manages a European Community JOULE project named MERCATOX that
has as its objective to develop a compact methanol reformer and gas clean-up unit for a PEFC
passenger car. The concept is the use of compact aluminum heat exchangers comprising
corrugated plates coated on one side with methanol reforming catalyst and having the
combustion gas (preferably anode off-gas) on the other side (32).

Research & Development Components

There are two major areas where fuel processor developers are focusing their research and
development efforts, catalyst development and process/engineering development. A smaller,
long term effort on novel processing schemes is in the early stages of being investigated.

Catalyst Development (3,33,34): There is a need to develop better shift catalysts. Commercial
shift catalyst are available but are based on large bed design rather than with small fuel
processors needed in fuel cell units. These commercial catalysts have fixed size, high density,
and are susceptible to contaminant poisoning by ingredients found in infrastructure fuels.
Present catalysts are developed for process plant service where transient conditions are not a
concern. Typical shift catalysts, such as copper-zinc oxide, are reduced in place and must be
isolated from air. There is a need for smaller, high surface area catalyst beads on low-density
monolith substrate to be developed without reducing activity. This need applies to all fuel
processor catalyst, not just the shift catalysts. There is also a need to demonstrate that the low-
temperature, PROX catalysts have high selectivity toward CO and long term stability under
operating conditions.

Process/Engineering Development (15,25,34) There are numerous engineering and process
issues that are being addressed by fuel processor developers. Several major issues are:

As the size of the catalyst bed increases, the segregation within an ATR reactor bed toward
over-oxidation and catalyst overheating in the front of the bed, and air starvation and carbon
formation in the back end of the bed are important to consider. Maintaining a good
temperature distribution in the bed, especially with a larger reactor is identified as one of the
challenges facing this approach.
Fuel processor tests have been on the order of 40 hours. There is a need is to show similar
results at realistic operating conditions and further engineering development to enhance the
catalyst activity and make the fuel processor lighter and smaller.
There is a need to investigate improved and simplified fuel processor designs. Examples are
combining the reformer and the desulfurizer in a single stage to reduce weight and volume,
producing an integrated vaporizer design, and designing for a wide variation of fuel
vaporization temperatures to allow fuel flexible operation.
Transient issues are important in transport applications and should be addressed early by
testing. The challenge is to demonstrate the operation at high sulfur content over the full
operating envelope of the vehicle power unit – start-up, transients, shutdown, sulfur spikes in
the fuel, etc. using the same processor.

9-29

Novel Processing Schemes: Various separators have been proposed to separate the hydrogen-
rich fuel in the reformate for cell use or to remove harmful species. At present, the separators are
expensive, brittle, require large pressure differential, and are attacked by some hydrocarbons.
There is a need to develop thinner, lower pressure drop, low cost membranes that can withstand
separation from their support structure under changing thermal loads. Plasma reactors offer
independence of reaction chemistry and optimum operating conditions that can be maintained
over a wide range of feed rates and H2 composition. These processors have no catalyst and are
compact. However, they are preliminary and have only been tested at a laboratory scale.

Other: Although not R&D, it should prove beneficial for fuel cell developers to provide species
tolerance specifications to fuel processor developers established by standard definition,
determination methods, and measurement procedures. This would aid the fuel processor
developer to develop products compatible with various fuel cell units. Of particular importance
are sulfur and CO limits.

9.1.2 Rejected Heat Utilization
Rejected heat (i.e., heat not utilized in the fuel processing and fuel cell subsystems) can be used to
generate hot water, steam, or additional electricity. The utilization of the rejected heat depends
upon the needs of the end user as well as the specifics of the process. The higher temperature fuel
cells (i.e., MCFC and SOFC) are capable of generating significant quantities of high-pressure
superheated steam because of the high temperature of the rejected heat. In a large fuel cell power
system, on the order of 100 to 200 MW or more, production of electricity via a steam turbine
bottoming cycle may be advantageous. In pressurized fuel cell systems, it may also be
advantageous to utilize a gas expander before the steam generation. Possible locations for heat
recovery include the gasifier effluent, before cold gas cleanup, around the fuel cell, and the fuel
cell or burner exhaust.

9.1.3 Power Conditioners and Grid Interconnection
Power conditioning for a fuel cell power plant used to supply DC rated equipment includes
current and voltage controls. Power conditioning for a fuel cell power plant used to supply AC
rated equipment includes DC to AC inversion and current, voltage and frequency control,
stepping the voltage up or down through a transformer depending on final equipment utilization
voltage, and maintaining harmonics output to an acceptable level. In addition, transient response
of the power conditioning equipment should be considered. For utility grid interconnection,
synchronization, real power (watts) ramp rate, and VAR control must also be addressed.

In the initial phase of systems analysis, the important aspect of power conditioning is the efficiency
of the power conversion and incorporation of the small power loss into the cycle efficiency. Power
conditioning efficiencies typically are on the order of 94 (32) to 98%.

Electric Power System Design: For specific applications, fuel cells can be used to supply DC
power distribution systems designed to feed DC drives such as motors or solenoids, controls, and
other auxiliary system equipment. The goal of the commercial fuel cell power plant is to deliver
usable AC power to an electrical distribution system. This goal is accomplished through a
subsystem that has the capability to deliver the real power (watts) and reactive power (VARS) to
a facility’s internal power distribution system or to a utility’s grid. The power conditioning

9-30

equipment a fuel cell installation has two main purposes. The first is to adapt the fuel cell output
to suit the electrical requirements at the point of power delivery. The second is provide power to
the fuel cell system auxiliaries and controls. The conversion of the direct current produced by
the fuel cells into three-phase alternating current is accomplished by solid state inverters and if
required, voltage transformers. Inverters minimize both system harmonics and radiated noise.
Controls are provided to regulate the real power output by controlling both, the fuel rate and the
electrical output. Electrical protection is provided so that a utility grid disturbance will not
damage the fuel cell installation, while the connected power distribution system is protected by
conventional equipment isolation in case of an over-current malfunction.

Interaction with the Electrical Power Distribution System: The fuel cell system power plant
can be used in a wide variety of applications:

Dedicated to an isolated/remote load

Backup power to a load normally connected to the local utility

Operated in parallel with the local utility while supplying power to a facility’s power
distribution system

Electrical power supply connected directly to the local utility

Cogeneration (supply both electrical power and heat)

Connection to the utility grid provides many advantages to on-site power producers such as
reliability improvement and increase of load factor, as well as giving the electric utilities a
chance to improve the supply capability. When a fuel cell power plant is used for electric utility
applications, the inverter is the interface equipment between the fuel cell and the electrical
network. The inverter acts as the voltage and frequency adjuster to the final load. The interface
conditions require the following characteristics for the inverter:
Ability to synchronize to the network

Inverter output voltage regulation typically 480 volts plus or minus 2%, three-phase.
Network voltage imbalance will not be a concern while the fuel cell is connected to the grid.

Inverter output frequency regulation typically plus or minus 0.5%

Supply of necessary reactive power to the network within the capabilities of the inverter,
adjustable between 0.8 lagging and 1.0 power factor depending on the type of inverter used
and without impacting maximum kW output

Protection against system faults

Suppression of the ripple voltage fed back to the fuel cells

9-31

Suppression of harmonics so that the power quality is within the IEEE 519 harmonic limits
requirements

High efficiency, high reliability, and stable operation.

Some limitations of the inverters used are:

Transient current capability for such conditions as motor or other inrush currents

Transient current capability to operate over current devices to clear equipment or cable faults

The response of the fuel cell to system disturbances or load swings also must be considered
whether it is connected to a dedicated load or to the utility’s grid. Demonstrated fuel cell power
conditioning responses are (33):

No transient overload capability beyond the kW rating of the fuel cell

A load ramp rate of 10 kW/second when connected to the utility grid

A load ramp rate of 0 to 100% in one cycle when operated independently of the utility grid

A load ramp rate of 80 kW/second when operated independently of the utility grid and
following the initial ramp up to full power

9.1.4 System and Equipment Performance Guidelines
In designing a system, an engineer accounts for the physical performance and limitations of
equipment to be utilized in the system. For example, practical heat exchangers are limited in
how close the temperature of the cold fluid can come to the temperature of the hot fluid at any
point in the heat exchanger. This minimum temperature difference is known as the "approach."
For a gas to gas heat exchanger, a reasonable approach design value is 100ºF. An engineer who
employs a gas to gas heat exchanger with only a 50ºF approach will have implied the use of a
very large and expensive heat exchanger, and is likely to find the process economics are not
practical.

This section documents reasonable equipment performance assumptions that can be used in a
first pass conceptual design effort. The reader should be aware that the list includes many
assumptions and simplifications that may not be suitable for detailed design. The documentation
of equipment guidelines at a significant level of detail is the subject for entire books [e.g., several
excellent books have already been written concerning conceptual design and equipment
performance (34,35,36)]. The list presented here simply illustrates the more important
equipment performance considerations and their common performance ranges, which may be
useful to the novice system designer for incorporating a level of realism. Detailed conceptual
design efforts need to address many factors not addressed by the list below, such as the effects of
flow rates, temperatures, pressures, corrosive elements, the impact of the equipment on the cycle
itself, and, of course, the specific performance of the actual equipment.

9-32

The list of equipment performance assumptions is presented in Table 9-5.

Table 9-5 Equipment Performance Assumptions

Parameter Common Range Notes
Pump Efficiency 10 to 90% Flow rate dependent.
100 gpm 35 to 60% Pump efficiencies do not include the
1000 gpm 60 to 80% motor or driver efficiency.
10,000 gpm 78 to 90%
Compressor Efficiency Flow rate and PR dependent.
Reciprocating 65 to 90% Compressor efficiency only. Motor or
Industrial quality- Centrifugal 76 to 85% driver efficiency not included.
High quality- Centrifugal 82 to 90%
Compressor Intercooling
1/n stages
Optimal per stage pressure ratio PRi=(PRtotal) For a two-stage system, PR1=PR2.
Intercooled temperature 130ºF Assumes 100ºF cooling water.
Intercooling recommended Prtotal > 5.0
Turbine Efficiency (isentropic) Flow rate and condition dependent.
Steam Turbine 75 to 90% Best to refer to a heat balance or
Gas Turbine 80 to 90% specific model information.
Gas Expander 80 to 85%
Pressure Drops
Heat exchanger - gas side 1-2% Gas phase pressure drop.
Heat exchanger - water side 5-10 psi Water side pressure drop.
Fuel cell 2%
Fuel processor 2%
Steam superheater/reheater 5-10%
Temperature Approaches
Gas to Gas 100ºF
Air to water coolers 30ºF
Gas to steam (superheater) 30ºF
Water to water 20ºF
Economizer 20ºF
Evaporator 20ºF
Heat Recovery Boiler
Radiant heat loss 0.5 to 1.0%
Fuel Cell
Fuel utilization - See Technology specific sections.
Oxidant utilization - See Technology specific sections.
Heat loss
Inverter Efficiency 94 to 98% 96.5% is common for sizes ~ 1 MW.
Turbine Generator Efficiency 96 to 98.5%
1 to 10 MW 98.0%
Transformer Loss 0.5 to 0.8% Stepping up or down.
Motor Efficiency
1 to 10 kW <90%
10 to 100 kW 90 to 92%
100 to 1000 kW 92 to 95%
1 to 10 MW 95 to 97%
Auxiliary Power Dependent upon auxiliary systems
Steam turbine auxiliaries 0.5%
Gas turbine auxiliaries 0.5%

9-33

9.2 System Optimizations
The design and optimization of a fuel cell power system is very complex because of the number of
required systems, components, and functions. Many possible design options and trade-offs affect
unit capital cost, operating cost, efficiency, parasitic power consumption, complexity, reliability,
availability, fuel cell life, and operational flexibility. Although a detailed discussion of fuel cell
optimization and integration is not within the scope of this section, a few of the most common
system optimization areas are examined.

From Figure 9-6, it can be seen that the fuel cell itself has many trade-off options. A fundamental
trade-off is determining where along the current density voltage curve the cell should operate. As
the operating point moves up in voltage by moving (left) to a lower current density, the system
becomes more efficient but requires a greater fuel cell area to produce the same amount of power.
That is, by moving up the voltage current density line, the system will experience lower operating
costs at the expense of higher capital costs. Many other parameters can be varied simultaneously
to achieve the desired operating point. Some of the significant fuel cell parameters that can be
varied are pressure, temperature, fuel composition and utilization, and oxidant composition and
utilization. The system design team has a fair amount of freedom to manipulate design parameters
until the best combination of variables is found.

9.2.1 Pressurization
Fuel cell pressurization is typical of many optimization issues, in that there are many interrelated
factors that can complicate the question of whether to pressurize the fuel cell. Pressurization
improves process performance at the cost of providing the pressurization. Fundamentally, the
question of pressurization is a trade-off between the improved performance (and/or reduced cell
area) and the reduced piping volume, insulation, and heat loss compared to the increased parasitic
load and capital cost of the compressor and pressure-rated equipment. However, other factors can
further complicate the issue. To address this issue in more detail, pressurization for an MCFC
system will be examined.

9-34

9-
Figure 9-6 Optimization Flexibility in a Fuel Cell Power System

In an MCFC power system, increased pressure can result in increased cathode corrosion. Cathode
corrosion is related to the acidity of the cell, which increases with the partial pressure of CO2, and
therefore with the cell pressure. Such corrosion is typified by cathode dissolution and nickel
precipitation, which can ultimately result in a shorted cell, causing cell failure (37). Thus, the
chosen pressure of the MCFC has a direct link to the cell life, economics, and commercial
viability.

Increasing the pressure in a MCFC system can also increase the likelihood of soot formation and
decrease the extent of methane reforming. Both are undesirable. Furthermore, the effect of
contaminants on the cell and their removal from a pressurized MCFC system have not been
quantified. The increased pressure also will challenge the fuel cell seals (37).

The selection of a specific fuel cell pressure will affect numerous design parameters and
considerations such as the current collector width, gas flow pattern, pressure vessel size, pipe and
insulation size, blower size and design, compressor auxiliary load, and the selection of a bottoming
cycle and its operating conditions.

These issues do not eliminate the possibility of a pressurized MCFC system, but they do favor the
selection of more moderate pressures. For external reforming systems sized near 1 MW, the
current practice is a pressurization of 3 atmospheres.

The performance of an internal reforming MCFC also would benefit from pressurization, but
unfortunately, the increase is accompanied by other problems. One problem that would need to be
overcome is the increased potential for poisoning the internal reforming catalyst resulting from the

9-35

increase in sulfur partial pressure. The current practice for internal reforming systems up to 3 MW
is atmospheric operation.

Pressurization of an SOFC yields a smaller gain in fuel cell performance than either the MCFC or
PAFC. For example, based on the pressure relationships presented earlier, changing the pressure
from one to ten atmospheres would change the cell voltage by ~150, ~80, and ~60 mV for the
PAFC, MCFC, and SOFC, respectively. In addition to the cell performance improvement,
pressurization of SOFC systems allows the thermal energy leaving the SOFC to be recovered in a
gas turbine, or gas turbine combined cycle, instead of just a steam bottoming cycle. Siemens
Westinghouse is investigating the possibilities associated with pressurizing the SOFC for cycles as
small as 1 to 5 MW.

Large plants benefit the most from pressurization, because of the economy of scale on equipment
such as compressors, turbines, and pressure vessels. Pressurizing small systems is not practical, as
the cost of the associated equipment outweighs the performance gains.

Pressurization in operating PAFC systems demonstrates the economy of scale at work. The
IFC 200 kWe and the Fuji Electric 500 kWe PAFC offerings have been designed for atmospheric
operation, while larger units operate at pressure. The 11 MWe plant at the Goi Thermal Power
Station operated at a pressure of 8.2 atmospheres (38), while a 5 MWe PAFC unit (NEDO /
PAFCTRA) operates at slightly less than 6 atmospheres (39). NEDO has three 1 MWe plants, two
of which are pressurized while one is atmospheric (39).

Although it is impossible to generalize at what size a plant would benefit by pressurization, when
plants increase in size to approximately 1 MW and larger, the question of pressurization should be
evaluated.

9.2.2 Temperature
Although the open circuit voltage decreases with increasing temperature, the performance at
operating current densities increases with increasing temperature due to reduced mass transfer
polarizations and ohmic losses. The increased temperature also yields higher quality rejected heat
stream. An additional benefit to an increased temperature in the PAFC is an increased tolerance to
CO levels, a catalyst poison. The temperatures at which the various fuel cells can operate are,
however, limited by material constraints. The PAFC and MCFC are both limited by life shortening
corrosion at higher temperatures. The TSOFC is limited by material property limitations. Again,
the fuel cell and system designers should evaluate what compromise will work best to meet their
particular requirements.

The PAFC is limited to temperatures in the neighborhood of 200ºC (390ºF) before corrosion and
lifetime loss become significant. The MCFC is limited to a cell average temperature of
approximately 650ºC (1200ºF) for similar reasons. Corrosion becomes significant in an MCFC
when local temperatures exceed 700ºC (1290ºF). With a cell temperature rise on the order of
100ºC (180ºF), an average MCFC temperature of 650ºC (1200ºF) will provide the longest life,
highest performance compromise. In fact, one reference (40) cites "the future target of the
operating temperature must be 650 C +30 C (1290 F +55 F)."

9-36

The high operating temperature of the SOFC puts numerous requirements (phase and conductivity
stability, chemical compatibility, and thermal expansion) on material selection and
development (41). Many of these problems could be alleviated with lower operating temperatures.
However, a high temperature of approximately 1000 C (1830ºF), i.e., the present operating
temperature, is required in order to have sufficiently high ionic conductivities with the existing
materials and configurations (41).

9.2.3 Utilization
Both fuel and oxidant utilizations52 involve trade-offs with respect to the optimum utilization for a
given system. High utilizations are considered desirable (particularly in smaller systems) because
they minimize the required fuel and oxidant flow, for a minimum fuel cost and compressor/blower
load and size. However, utilizations that are pushed too high result in significant voltage drops.
One study (42) cites that low utilizations can be advantageous in large fuel cell power cycles with
efficient bottoming cycles because the low utilization improves the performance of the fuel cell
and makes more heat available to the bottoming cycle. Like almost all design parameters, the
selection of optimum utilizations requires an engineering trade-off that considers the specifics of
each case.

Fuel Utilization: High fuel utilization is desirable in small power systems, because in such
systems the fuel cell is usually the sole power source. However, because the complete utilization
of the fuel is not practical, except for pure H2 fuel, and other requirements for fuel exist, the
selection of utilization represents a balance between other fuel/heat requirements and the impact of
utilization on overall performance.

Natural gas systems with endothermic steam reformers often make use of the residual fuel from the
anode in a reformer burner. Alternatively, the residual fuel could be combusted prior to a gas
expander to boost performance. In an MCFC system, the residual fuel often is combusted to
maximize the supply of CO2 to the cathode while at the same time providing air preheating. In an
SOFC system, the residual fuel often is combusted to provide high-temperature air preheating.

The designer has the ability to increase the overall utilization of fuel (or the oxidant) by recycling a
portion of the spent stream back to the inlet. This increases the overall utilization while
maintaining a lower per pass utilization of reactants within the fuel cell to ensure good cell
performance. The disadvantage of recycling is the increased auxiliary power and capital cost of
the high temperature recycle fan or blower.

One study by Minkov et al. (42) suggests that low fuel and oxidant utilizations yield the lowest
COE in large fuel cell power systems. By varying the fuel cell utilization, the electric power
generation split between the fuel cell, steam turbine, and gas turbine are changed. The low fuel
utilization decreases the percentage of power from the fuel cell while increasing the fuel cell
performance. The increased power output from the gas turbine and steam turbine also results in
their improved performance and economy of scale. The specific analysis results depend upon the
assumed stack costs. The optimal power production split between the fuel cell and the gas and
steam turbines is approximately 35%, 47%, and 17% for a 575 MW MCFC power plant. The

52
. Utilization - the amount of gases that are reacted within the fuel cell compared to that supplied.

9-37

associated fuel utilization is a relatively low 55%. It remains to be seen whether this trend will
continue to hold for the improved cells that have been developed since this 1988 report was issued.

Oxidant Utilization: In addition to the obvious trade-off between cell performance and
compressor or blower auxiliary power, oxidant flow and utilization in the cell often are determined
by other design objectives. For example, in the MCFC and SOFC cells, the oxidant flow is
determined by the required cooling. This tends to yield oxidant utilizations that are fairly low
(~25%). In a water-cooled PAFC, the oxidant utilization based on cell performance and a
minimized auxiliary load and capital cost is in the range of 50 to 70%.

9.2.4 Heat Recovery
Although fuel cells are not heat engines, heat is still produced and must be removed in a fuel cell
power system. Depending upon the size of the system, the temperature of the available heat, and
the requirements of the particular site, this thermal energy can be either rejected, used to produce
steam or hot water, or converted to electricity via a gas turbine or steam bottoming cycle or some
combination thereof.

Cogeneration: When small quantities of heat and/or low temperatures typify the waste heat, the
heat is either rejected or used to produce hot water or low-pressure steam. For example, in a PAFC
cycle where the fuel cell operates at approximately 205 C (400 F), the highest pressure steam that
could be produced would be something less than 14 atmospheres (205 psia). This is obviously not
practical for a steam turbine bottoming cycle, regardless of the quantity of heat available. At the
other end of the spectrum is the TSOFC, which operates at ~1000 C (~1800 F) and often has a cell
exhaust temperature of approximately 815 C (1500 F) after air preheating. Gas temperatures of
this level are capable of producing steam temperatures in excess of 540 C (1000 F), which makes
it more than suitable for a steam bottoming cycle. However, even in an SOFC power system, if the
quantity of waste heat is relatively small, the most that would be done with the heat would be to
make steam or hot water. In a study performed by Siemens Westinghouse of 50 to 2000 kW
TSOFC systems, the waste heat was simply used to generate 8 atmospheres (100 psig) steam (32).

Bottoming Cycle Options: Whenever significant quantities of high-temperature rejected heat are
available, a bottoming cycle can add significantly to the overall electric generation efficiency.
Should the heat be contained within a high-pressure gas stream, then a gas turbine potentially
followed by a heat recovery steam generator and steam turbine should be considered. If the hotgas
stream is at low pressure, then a steam bottoming cycle is logical.

If a steam bottoming cycle is appropriate, many design decisions need to be made, including the
selection of the turbine cycle (reheat or non-reheat) and the operating conditions. Usually, steam
turbines below 100 MW are non-reheat, while turbines above 150 MW are reheat turbines. This
generalization is subject to a few exceptions. In fact, a small (83 MW) modern reheat steam
turbine went into operation (June 1990) as a part of a gas turbine combined cycle repowering (43).

9-38

9.2.5 Miscellaneous
Compressor Intercooling: Whether a compressor should be intercooled or not depends on the
trade-off between the increased efficiency of the intercooled compressor and its increased capital
cost. In general, intercooling is required for large compressors with pressure ratios that exceed
approximately 5:1 (44). The designer also should consider whether the heat is advantageous to the
process. For example, when near the 5:1 pressure ratio, it may not be appropriate to intercool if the
compressed stream will subsequently require preheating as it would with the process air stream of
an MCFC or SOFC system.

Humidification/Dehumidification: Water often is added or removed in fuel cell systems to
promote or prevent certain chemical reactions. For some reactions, excess water can help to drive
the reaction, while too much requires larger equipment and can even reduce the yield of a reaction
or decrease the performance of a fuel cell. Excess water often is utilized to increase the yield of
reforming reactions and the water gas shift.

In a natural gas fueled PAFC, water is condensed out of the fuel stream going to the fuel cell to
increase the partial pressure of hydrogen. In a coal gasification MCFC, water often is added to the
fuel stream prior to the fuel cell to prevent soot formation. The addition of excess steam not only
prevents the soot formation, but also causes a voltage drop of approximately 2 mV per each
percentage point increase in steam content (45). The use of zinc ferrite hot gas cleanup can
aggravate the soot formation problem because of the catalytic effect of the sorbent on carbon
formation, and requires even higher moisture levels (46).

Maintaining the proper quantity of water within a PEFC is very important for proper operation.
Too much, and the cell will flood; too little, and the cell membrane will dehydrate. Both will
severely degrade cell performance. The proper balance is achieved only by considering water
production, evaporation, and humidification levels of the reactant gases. Achieving the proper
level of humidification is also important. With too much humidification, the reactant gases will be
diluted with a corresponding drop in performance. The required humidification level is a complex
function of the cell temperature, pressure, reactant feed rates, and current density. Optimum PEFC
performance is achieved with a fully saturated, yet unflooded membrane (47).

9.2.6 Concluding Remarks on System Optimization
System design and optimization encompass many questions, issues, and trade-offs. In the process
of optimizing a power plant design, the engineer will address the selection of fundamental
processes, component arrangements, operating conditions, fuel cell and bottoming cycle
technologies and associated power production split, system integration, and capital and life cycle
costs. The design will be governed by criteria such as output, weight, fuel basis, emissions, and
cost objectives. Site and application specific criteria and conditions may strongly influence the
cycle design criteria and resulting design.

The objective of this system optimization discussion was not to present a detailed review of the
subject of optimization, but simply to present select issues of system optimization as they apply to
fuel cell power systems.

9-39

9.3 Fuel Cell System Designs
The following five cycles are examples of current fuel cell offerings that reflect manufacturers'
anticipated commercialization plans. These cycles are based on information available in relevant
literature and may differ from the ultimate size of the commercial offering.

9.3.1 Natural Gas Fueled PEFC System
A natural gas PEFC power plant configuration is shown in Figure 9-7 and is a slight
simplification of a cycle published in 1997 by a Ballard Researcher (48). In light of the PEFC
sensitivity to CO, CO2 and methane, the fuel processing represents a significant portion of the
cycle. Natural gas fuel enters a fuel compressor and a fuel cleanup device. (The reference
document does not describe the cleanup device, but it is assumed to be a sulfur polisher to
prevent poisoning of the fuel cell catalyst.) The cleaned gas is mixed with water in a vaporizer,
which evaporates the liquid water into water vapor with waste heat from the reformer. This
humidified fuel is reformed in the steam reformer. Because natural gas reformate is high in CO,
the reformate is sent to a shift converter and selective oxidizer to reduce the CO to 10 to 50 ppm.
This hydrogen rich/carbon monoxide lean fuel is fed to the PEFC stack where it reacts
electrochemically with compressed air.
Air

Fuel Gas

R C
e o
C Fuel Gas f o
Cleanup o o
r A C
l
m e
e r
r Shift Selective
Convertor Oxidizer
Fuel
Gas
Water Spent
Fuel

C T Water
Separator

Intercooler Water
Tank

C T Vaporizer

Air
Exhaust

Figure 9-7 Natural Gas Fueled PEFC Power Plant

Ambient air is compressed in a turbocharger, powered by the expansion of the hot pressurized
exhaust gases. Following this first compression stage, the air is intercooled by a fin fan air
cooler and fed into a second turbocharger. The high-pressure air is fed directly to the PEFC

9-40

stack. The fuel cell water product is liberated to the oxidant gas stream. The spent oxidant
stream exits the fuel cell where a water separator removes much of this water, which is
subsequently used to humidify the fuel gas prior to the entering the reformer. The spent oxidant
and fuel streams are combusted in the reformer burner to provide heat for the endothermic
reforming reactions. The reformer exhaust also provides heat to the vaporizer. Finally, the
residual heat and pressure of this exhaust stream are used in the turbochargers to drive the air
compressor.

The fuel cell itself liberates heat that can be utilized for space heating or hot water. The
reference article did not list any operating conditions of the fuel cell or of the cycle. The PEFC
is assumed to operate at roughly 80ºC. Another recent article (49) published by Ballard shows
numerous test results that were performed at 3 to 4 atmospheres where fuel utilizations of 75 to
85% have been achieved. Performance levels for an air fed PEFC are now in the range of 180 to
250 mW/cm2. Ballard Power Systems has performed field trials of 250 kW systems with select
utility partners. Commercial production of stationary power systems is anticipated for the year
2002. Similarly sized transportation cycles also are anticipated for commercial production in the
same year.

9.3.2 Natural Gas Fueled PAFC System
IFC has been marketing the PC25, a 200 kW atmospheric PAFC unit, since 1992. Details of this
commercial cycle are proprietary and not available for publication. In order to discuss an
example PAFC cycle, a pressurized (8 atm) 12 MW system will be presented (50). This cycle is
very similar to the 11 MW IFC PAFC cycle that went into operation in 1991 in the Tokyo
Electric Power Company system at the Goi Thermal Station, except that two performance
enhancements have been incorporated. Limited data are available regarding the Goi power plant.
However, it is understood that the average cell voltage is 750 mV and the fuel utilization is 80%
(51). The enhanced 12 MW cycle presented here utilizes values of 760 mV and 86%. This
enhanced cycle (Figure 9-8) is discussed below with selected gas compositions presented in
Table 9-6.

Natural gas (stream 100) is supplied at pressure and contains sulfur odorants for leak detection.
A small hydrogen-rich recycle stream (stream 117) is mixed with the natural gas to hydrolyze the
sulfur compounds to facilitate sulfur removal. The fuel stream (stream 102) is heated to 299ºC
(570ºF) before entering the sulfur removal device. Superheated steam (stream 1) is mixed with
the heated fuel to provide the required moisture for the reforming and the water gas shift
reactions. The humidified stream (stream 105) is heated to approximately (705ºC) 1300ºF before
entering the reformer. The effluent fuel stream (stream 107) leaves the reformer at
approximately 760ºC (1400ºF) and is cooled in the heat exchanger used to preheat the humidified
natural gas stream. This stream (stream 108) enters the high temperature shift converter (HTSC)
at approximately 360ºC (680ºF), while leaving (stream 109) at about 415ºC (780ºF). The HTSC
effluent is cooled in two heat exchangers before proceeding to the low temperature shift
converter. A two-stage approach is utilized, allowing the HTSC to proceed at a faster rate, while
the LTSC yields higher hydrogen concentrations.

9-41

Figure 9-8 Natural Gas fueled PAFC Power System

Table 9-6 Stream Properties for the Natural Gas Fueled Pressurized PAFC
Strm Description Temp. Press. Mole Flow Mass Flow Ar CH4 C2H6 CO CO2 H2 H2O N2 O2 Total
No. C atm Kgmol/hr kg/hr MW % % % % % % % % % %
1 Reformer Steam 243.3 10.00 418.8 7,545 18.02 100.0 100.0
100 NG Feed 15.6 13.61 115.1 1,997 17.34 90.0 5.0 5.0 100.0
106 Reformer Feed 712.8 9.93 562.6 9,846 17.50 18.3 1.0 trace 1.0 4.0 74.5 1.1 100.0
107 Reformer Effluent 768.3 9.59 755.9 9,846 13.03 2.4 trace 7.1 6.5 46.3 37.0 0.8 100.0
112 LTSC Effluent 260.0 8.72 755.9 9,846 13.03 2.4 0.5 13.1 52.9 30.4 0.8 100.0
114 Anode Feed 60.6 8.55 506.6 5,557 10.97 3.3 0.7 18.3 74.5 2.0 1.1 100.0
115 Anode Exhaust 207.2 7.95 181.4 4,901 27.02 9.3 1.9 51.2 28.8 5.7 3.1 100.0
118 NG to Aux Burner 15.6 13.61 1.59 27.5 17.34 90.0 5.0 5.0 100.0
200 Air Feed 15.6 1.00 1,156.5 33,362 28.85 0.9 trace 1.1 77.2 20.7 100.0
204 Cathode Feed 192.8 8.27 1,120.8 32,332 28.85 0.9 trace 1.1 77.2 20.7 100.0
205 Cathode Exhaust 207.2 8.09 1,283.4 32,987 25.70 0.8 trace 26.3 67.5 5.4 100.0
208 Cath. Gas to Heat Exch. 151.7 7.85 1,045.3 28,697 27.45 1.0 trace 9.5 82.8 6.7 100.0
209 Cath. Gas to Ref. Burner 243.9 7.81 1,045.3 28,697 27.45 1.0 trace 9.5 82.8 6.7 100.0
211 Cath. Gas to Heat Exch. 242.2 7.81 1,081.0 29,727 27.50 1.0 trace 9.2 82.6 7.1 100.0
301 Reformer Exhaust 380.6 7.71 1,234.6 34,629 28.05 0.9 9.2 15.9 72.8 1.2 100.0
302 Aux. Burner Exhaust 410.6 7.68 1,236.2 34,656 28.03 0.9 9.3 16.1 72.7 1.0 100.0
304 Exhaust 180.0 1.03 1,236.2 34,656 28.03 0.9 9.3 16.1 72.7 1.0 100.0

The LTSC effluent (stream 112) is utilized to superheat the steam required for the reformer and
water gas shift reactions. The saturated steam sent to the superheater is supplied by the fuel cell
water cooling circuit. The cooled stream (stream 113) is further cooled in a fuel gas contact

9-42

cooler (FGCC) to remove the excess moisture levels. This raises the partial pressure of hydrogen
in the fuel before entering the fuel cell. Some of the hydrogen-rich fuel is recycled back, as
mentioned previously, to the incoming natural gas, while the majority of the fuel (stream 114)
proceeds to the fuel cell anode. Approximately 86% of the hydrogen in the fuel stream reacts in
the fuel cell, where the hydrogen donates an electron and the resulting proton migrates to the
cathode, where it reacts with oxygen in the air to form water. Key cell operating parameters are
summarized in Table 9-7. The overall performance is summarized in Table 9-8. The spent fuel
is combusted in the reformer burner and supplies heat for the endothermic reforming reactions.

Table 9-7 Operating/Design Parameters for the NG fueled PAFC

Operating Parameters Value
Volts per Cell (V) 0.76
Current Density (mA/cm2) 320
No of stacks 12
Cell Operating Temp. (ºC) 207
Cell Outlet Pressure (atm) 8.0
Overall Fuel Utilization (%) 86.2
Overall Oxidant Utilization (%) 70.0
DC to AC Inverter efficiency 97.0%
Auxiliary Load 4.2%

Table 9-8 Performance Summary for the NG fueled PAFC

Performance Parameters Value
LHV Thermal Input (MW) 25.42
Gross Fuel Cell Power (MW)
Fuel Cell DC Power 13.25
Inverter Loss (0.40)
Fuel Cell AC Power 12.85
Auxiliary Power 0.54
Net Power 12.31
Electrical Efficiency (% LHV) 48.4
Electrical Efficiency (% HHV) 43.7
Heat Rate (Btu/kWh, LHV) 7,050
Note: The net HHV efficiency for the Goi Thermal Power Station is 41.8%
(HHV) (1).

Ambient air (stream 200) is compressed in a two-stage compressor with intercooling to
conditions of approximately 193ºC (380ºF) and 8.33 atmospheres (122.4 psia). The majority of
the compressed air (stream 203) is utilized in the fuel cell cathode; however, a small amount of

9-43

air is split off (stream 210) for use in the reformer burner. The spent oxidant (stream 205) enters
a recuperative heat exchange before entering a cathode exhaust contact cooler, which removes
moisture to be reused in the cycle. The dehumidified stream (stream 207) is again heated, mixed
with the small reformer air stream, and sent to the reformer burner (stream 211). The reformer
burner exhaust (stream 300) preheats the incoming oxidant and is sent to the auxiliary burner,
where a small amount of natural gas (stream 118) is introduced. The amount of natural gas
required in the auxiliary burner is set so the turbine shaft work balances the work required at the
compressor shaft. The cycle exhaust (stream 304) is at approximately 177ºC (350ºF).

Some of the saturated steam generated by the fuel cell cooling water is utilized to meet the
reformer water requirements. Approximately 3,800 kg/hr (8,400 lb/hr) of 12.2 atmospheres
(180 psi) saturated steam is available for other uses.

Cycle performance is summarized in Table 9-8. The overall net electric conversion efficiency is
43.7% based on HHV input, or 48.4% on LHV.

9.3.3 Natural Gas Fueled Internally Reformed MCFC System
Fuel Cell Energy expects to have its initial market entry MCFC power systems available in the
year 2001, with mature megawatt class units projected to be available in 2004. These units will
be produced in various sizes. Preliminary cycle information was received from FCE for a
nominal 3 MW power plant. This cycle is presented in Figure 9-9 and is described below.

Exhaust Gases

Cleaned
Natural Gas Fuel Fuel NG/Steam
59oF Cleanup
47 lbmol/hr

A C

Water Steam Steam Spent Cathode
59oF Generator Fuel Feed
74 lbmol/hr CO2, H2O, H2 CO2, Air

Exhaust or Anode
Waste Heat Boiler Exhaust
700oF Converter
831 lbmol/hr Air
59oF
708 lbmol/hr
C

Figure 9-9 Natural Gas Fueled MCFC Power System

9-44

Natural gas is cleaned of its sulfur contaminants in a fuel cleanup device. Steam is added to the
fuel stream prior to being fed to the internally reforming fuel cell. The fuel reacts
electrochemically with the oxidant within the fuel cell to produce 3 MW of dc power.

The spent fuel is completely combusted in the anode exhaust converter. This flue gas mixture is
fed directly to the fuel cell cathode. The cathode exhaust has significant usable heat, which is
utilized in the fuel cleanup and in steam generation. The residual heat can be utilized to heat air,
water, or steam for cogeneration applications. Design parameters for the IR-MCFC are
presented in Table 9-9. Overall performance values are presented in Table 9-10.

Table 9-9 Operating/Design Parameters for the NG Fueled IR-MCFC

Volts per Cell (V) unknown
Current Density (mA/cm2) unknown
Operating Temperature (ºC) unknown
Fuel Utilization (%) 78.%
Oxidant Utilization (%) 75.%
Inverter Efficiency 95.%

Table 9-10 Overall Performance Summary for the NG Fueled IR-MCFC

Auxiliary Power (MW) 0.05
Net Power (MW) 2.80
Electrical Efficiency (% LHV) 58%

9.3.4 Natural Gas Fueled Pressurized SOFC System
This natural gas fuel cell power system is based on a pressurized TSOFC combined with a
combustion turbine developed by Siemens Westinghouse53 (52). Most TSOFC power plant
concepts developed to date have been based on atmospheric operation. However, as shown in
53
. The referenced Siemens Westinghouse publication presented the cycle concept and overall performance values.
Neither specific stream information nor assumptions were presented. The stream data and assumptions presented
here were developed by Parsons. The stream data were developed using an ASPEN simulation which yielded
performance numbers in general agreement with the publication.

9-45

Section 8, the cell voltage increases with cell pressure. Thus, operating with an elevated pressure
will yield increased power and efficiency for a given cycle. In addition, the use of a pressurized
SOFC will also allow integration with a combustion turbine. The combustion turbine selected
for integration by Siemens Westinghouse is the unique 1.4 MW Heron reheat combustion
turbine, a proposed product of Heron (53).

A flow diagram for the natural gas fueled 4.5 MW class cascaded54 TSOFC power cycle is
presented in Figure 9-10. A brief process description is given below, followed by a performance
summary. Selected state point values are presented in Table 9-11.

Air
7
Filter 13
Compressor / Turbine
Exhaust
Compressor Compressor Turbine

SOFC
System

8 Fuel
Precooler 9 12 14
10
6
Turbine
SOFC Fuel
2 System Power
1 4 Turbine
Fuel
Generator
Fuel
11 Air Desulfurizers
3 15
Exhaust 5
16
Recuperator / Fuel Heater
Exhaust

Figure 9-10 Schematic for a 4.5 MW Pressurized SOFC

54
. The term "cascaded" fuel cells is used here to describe a fuel cell system where the exhaust of a high-pressure
fuel cell is utilized as an oxidant feed stream in a low-pressure fuel cell after passing through an expander.

9-46

Table 9-11 Stream Properties for the Natural Gas Fueled Pressurized SOFC
Strm Description Temp Press. Mass Flow Mole Flow Ar CH4 CO2 H20 N2 O2 Total
No. C atm kg/hr kgmol/hr MW % % % % % % %
1 Fuel feed 15 8.85 508 30.9 16.44 97.4 0.4 0.9 100.0
2 Pressurized Fuel 21 9.53 508 30.9 16.44 97.4 0.4 0.9 100.0
3 Heated HP Fuel 399 9.42 508 30.9 16.44 97.4 0.4 0.9 100.0
4 Cleaned HP Fuel 399 9.32 281 17.1 16.44 97.4 0.4 0.9 100.0
5 Heated LP Fuel 399 9.42 227 13.8 16.44 97.4 0.4 0.9 100.0
6 Cleaned LP Fuel 399 3.13 227 13.8 16.44 97.4 0.4 0.9 100.0
7 Air Feed 15 0.99 18,536 642.3 28.86 0.9 trace 1.0 77.2 20.8 100.0
8 Compressed Air 135 2.97 18,536 642.3 28.86 0.9 trace 1.0 77.2 20.8 100.0
9 Intercooled Air 27 2.69 18,351 635.9 28.86 0.9 trace 1.0 77.2 20.8 100.0
10 HP Air 160 8.80 18,351 635.9 28.86 0.9 trace 1.0 77.2 20.8 100.0
11 Heated Air 555 8.66 18,167 629.5 28.86 0.9 trace 1.0 77.2 20.8 100.0
12 HP FC Exhaust 860 8.39 18,448 646.5 28.53 0.9 2.7 6.2 75.2 15.0 100.0
13 HPT Exhaust 642 3.11 18,631 653.1 28.53 0.9 2.7 6.2 75.2 15.0 100.0
14 LP FC Exhaust 874 2.83 18,859 667.0 28.28 0.9 4.7 10.2 73.7 10.6 100.0
15 LPT Exhaust 649 1.01 18,859 667.0 28.28 0.9 4.7 10.2 73.7 10.6 100.0
16 Cycle Exhaust 258 1.00 19,044 673.4 28.28 0.9 4.6 10.1 73.7 10.7 100.0
Reference Source: (30).

The natural gas feed to the cycle (stream 1) is assumed to consist of 95% CH4, 2.5% C2H6,
1% CO2, and 1.5% N2 by volume along with trace levels of sulfur odorants. The odorants must
be reduced to 1 ppmv before entrance into the fuel cell to prevent performance and cell life
deterioration. Because the desulfurization requires elevated temperatures, the fuel (streams 3
and 5) is fed through a heat exchanger that recovers heat from the fuel cell exhaust stream
(stream 15). The hot desulfurized fuel stream (stream 4) enters the anodes of the high-pressure
fuel cell at approximately 399ºC (750ºF) and 9.3 atmospheres. The fuel entering the
low-pressure fuel cell (stream 6) is approximately 399ºC (750ºF) and 3.1 atmospheres.
Ambient air (stream 7) is compressed to 3.0 atmospheres and 135ºC (275ºF) (stream 8),
subsequently intercooled to 27ºC (81ºF) (stream 9), compressed again to 8.8 atmospheres and
160ºC (320ºF) (stream 10), and heated to 555ºC (1031ºF) prior to entering the high-pressure fuel
cell cathode (stream 11).

The hot desulfurized fuel and the compressed ambient air are electrochemically combined within
the high-pressure fuel cell module with fuel and oxidant utilizations of 78% and 20.3%,
respectively. The SOFC high-pressure module was assumed to operated at 0.63 volts per cell.
The spent fuel and air effluents of the Siemens Westinghouse tubular geometry SOFC are
combusted within the module to supply heat required for the endothermic reforming reaction
within the pre-reformer. The majority of the reforming takes place within the tubular fuel cell
itself. The heat for internal reforming is supplied by the exothermic fuel cell reaction. A gas
recirculation loop provides water for the internal reforming and to prevent soot formation.

The combusted air and fuel stream (stream 12) from the high-pressure fuel cell are expanded
(stream 13) in a turbine expander. The work of this turbine is used to drive the low- and
high-pressure air compressors. The reduced pressure exhaust stream (stream 13) is utilized as
the low-pressure fuel cell oxidant stream. Although vitiated, it still has 15% oxygen. The
low-pressure TSOFC operates at 0.62 volts per cell, and fuel and air utilizations of 78 and
21.9%, respectively. The spent air and fuel effluents are combusted and sent (stream 14) to the
low-pressure power turbine. The turbine generator produces approximately 1.4 MW AC. The
low-pressure exhaust (stream 15) still has a temperature of 649ºC (1200ºF) and is utilized to

9-47

preheat the fuel and oxidant streams. The resulting cycle exhaust stream (stream 16) exits the
plant stack at approximately 258ºC (496ºF).

Operating parameters are summarized in Table 9-12. Cycle performance is summarized in Table
9-13. The overall net electric LHV efficiency is 67%.

The high efficiency of this TSOFC/Heron combined cycle is a result of synergism that exists
between the SOFC and the Heron turbine. The TSOFC is able to fully replace the gas turbine
combustor. That is, the waste heat of the SOFC exhaust is able to completely eliminate the need
for the gas turbine combustor at the design point. As seen in Table 9-14, the Heron combustor
design temperature of roughly 860ºC (1580ºF) is well within the TSOFC operating temperature
range. Conversely, the Heron cycle is able to act as an efficient bottoming cycle without
requiring a waste heat boiler or steam turbine. In simple cycle mode, the Heron cycle has a
respectable LHV net electric efficiency of 42.9%. Together, the TSOFC/Heron cycle operates at
an efficient 67%. Another advantage of this cycle is the low NOx emissions, because only the
spent fuel is fired at the design point. The majority of the fuel reacts within the fuel cell. Overall
NOx levels of less than 4 ppmv are expected.

Table 9-12 Operating/Design Parameters for the NG Fueled Pressurized SOFC

Operating Parameters HP FC LP FC
Volts per Cell (V) 0.63* 0.62*
Current Density (mA/cm2) NA NA
Cell Operating Temp. (ºC) 1000* 1000*
Cell Outlet Pressure (atm) 8.4* 2.9*
FC Fuel Utilization (%) 78.0* 78.0*
FC Oxidant Utilization (%) 20.3* 21.9*
DC to AC Inverter Effic. (%) 96.0
Generator Efficiency (%) 96.0*
Auxiliary Load (% of gross) 1.0*
Note: * assumed by Parsons to reasonably match the reference paper.

9-48

Table 9-13 Overall Performance Summary for the NG Fueled Pressurized SOFC

Gross AC Power (MW)
Turbine Expander 1.40
Gross AC Power 4.49
Net Power 4.45
Electrical Efficiency (% LHV) 66.6
Electrical Efficiency (% HHV) 60.1

Table 9-14 Heron Gas Turbine Parameters

Compressor Air Flow (kg/h) 18,540
HP Combustor Temperature 861
(ºC) 863
LP Combustor Temperature
(ºC)
Compressor Pressure Ratio 8.8:1
Power Turbine Exhaust 620
Temp. (ºC)

The cycle discussed here is based on a Siemens Westinghouse publication for a 4.5 MWe plant.
Recent information from Siemens Westinghouse, plans for commercialization of a scaled down
1 MWe version of this dual pressure TSOFC/Heron cycle. A 1 MW cycle was not available in
the literature.

9-49

9.3.5 Natural Gas Fueled Multi-Stage Solid State Power Plant System
The Fuel Cell system presented below is based on an innovative solid state fuel cell system
developed by U.S.DOE (54). Conventional fuel cell networks, in order to effectively use the
supplied fuel, often employ fuel cell modules operating in series to achieve high fuel utilization55
or combust the remaining fuel for possible thermal integration such as cogeneration steam or a
steam bottoming cycle. Both of these conventional approaches utilize fuel cell modules at a
single state-of-the-art operating temperature. In conventional fuel cell networks, heat exchangers
are utilized between the fuel cell modules to remove heat so the subsequent fuel cell can operate
at the desired temperature.

In the multi-stage fuel cell, the individual stages are designed to operate at different
temperatures, so that heat exchangers are not required to cool the effluent gases between stages.
Each stage is designed to accommodate the next higher temperature regime. In addition, the
multi-stage fuel cell concept does not attempt to maximize the fuel utilization in each stage, but
allows lower utilizations in comparison to the state-of-the-art design. The number of stages and
the fuel utilization per stage in the multi-stage concept is a matter of design choice and
optimization. An example of the fuel utilization for a five stage concept is presented in
Table 9-15.

Table 9-15 Example Fuel Utilization in a Multi-Stage Fuel Cell Module

Fuel Balance for 100 Units of Fuel Fuel Utilization
Stage Fuel Feed Fuel Out Fuel Used per Stage Cumulative
1 100.0 81.0 19.0 19.0 % 19.0 %
2 81.0 62.0 19.0 23.5 % 38.0 %
3 62.0 43.0 19.0 30.6 % 57.0 %
4 43.0 24.0 19.0 44.2 % 76.0 %
5 24.0 6.0 18.0 75.0 % 94.0 %
Overall 100.0 6.0 94.0 94.0 %

A flow diagram for a natural gas fueled, 4 MW class, solid state fuel cell power cycle is
presented in Figure 9-11. A brief process description is given below, followed by a performance
summary. Selected state point values are presented in Table 9-16.

55
. Current state-of-the-art SOFCs have fuel utilizations of 75 to 85%. By utilizing a second fuel cell in series,
the total utilization could be theoretically increased to 93 to 98%. Note: Two cascaded fuel cells operating
with a fuel utilization of 85% will have an overall utilization of 98%. 1-(0.15)2 = 1-0.02 = 0.98 or 98%.

9-50

20
Fuel 1

Combustor
Stage 2 19
7 Multi-staged 8 3
Fuel Cells Water
12 4
11 13 18

Pre-heated Air 16
17
6 5
Fuel Processor
Fuel
15
14

Gas 10
Compressor Electric
Turbine
Generator

Air 9

Figure 9-11 Schematic for a 4 MW Solid State Fuel Cell System

Table 9-16 Stream Properties for the Natural Gas Fueled Solid State Fuel Cell
Power Plant System
Strm Description Temp. Press. Mass Flow Mole Flow CH4 C2H6 C3H8+ CO CO2 H2 H20 N2 O2 Total
No. C atm kg/hr kgmol/hr MW % % % % % % % % % %
1 Fuel feed 25 3.74 373 21.64 17.23 93.9 3.2 1.1 1.0 0.8 100
2 Heated fuel 84 3.67 373 21.64 17.23 93.9 3.2 1.1 1.0 0.8 100
3 Humidification water 275 3.93 614 34.09 18.02 100.0 100
4 Humidified fuel 192 3.67 987 55.73 17.71 36.5 1.3 0.4 0.4 61.2 0.3 100
5 Heated fuel 725 3.60 987 55.73 17.71 36.5 1.3 0.4 0.4 61.2 0.3 100
6 Heated fuel 725 3.60 987 55.73 17.71 36.5 1.3 0.4 0.4 61.2 0.3 100
7 Processed fuel 494 3.53 987 63.70 15.50 29.1 0.0 0.6 6.0 ## 41.6 0.3 100
8 Spent Fuel 999 3.46 2,319 98.40 23.57 1.1 0.3 21.7 0.6 76.1 0.2 100
9 Air feed 25 1.00 7,484 259.42 28.85 79.0 21.0 100
10 Compressed air 175 3.47 7,484 259.42 28.85 79.0 21.0 100
11 Heated air 725 3.40 7,484 259.42 28.85 79.0 21.0 100
12 Spent air 999 3.33 6,149 217.69 28.25 94.1 5.9 100
13 FC exhaust 1119 3.33 8,471 315.78 26.83 7.2 24.7 65.0 3.2 100
14 Cooled exhaust 1119 3.33 8,471 315.78 26.83 7.2 24.7 65.0 3.2 100
15 Expanded exhaust 856 1.04 8,471 315.78 26.83 7.2 24.7 65.0 3.2 100
16 Cooled exhaust 328 1.02 6,438 239.99 26.83 7.2 24.7 65.0 3.2 100
17 Cooled exhaust 333 1.02 2,033 75.79 26.83 7.2 24.7 65.0 3.2 100
18 Combined exhaust 329 1.02 8,471 315.78 26.83 7.2 24.7 65.0 3.2 100
19 Cooled exhaust 152 1.01 8,471 315.78 26.83 7.2 24.7 65.0 3.2 100
20 Cycle exhaust 147 1.00 8,471 315.78 26.83 7.2 24.7 65.0 3.2 100
Reference Source: (55).

The natural gas feed to the cycle (stream 1) is typical of pipeline quality natural gas within the
U.S. containing both sulfur odorants and higher hydrocarbons (C2H6, C3H8, etc.). The odorants

9-51

must be removed before entrance into the fuel cell to prevent performance and cell life
deterioration. Higher hydrocarbons are assumed to be pre-reformed to hydrogen and carbon
monoxide in a mild reformer56 to avoid "sooting" or carbon deposition within the fuel cell.
Because both the desulfurization and reforming require elevated temperatures, the fuel is fed
through a series of heat exchangers that recover heat from the fuel cell exhaust stream
(streams 13 to 20). Humidification steam (stream 3) is added to the fuel to provide the required
moisture for the reforming and water-gas shift reactions. The heated and humidified fuel is
desulfurized in a sorbent bed and partially reformed in a mild reformer catalyst bed. The balance
of the reforming will occur between the stages of the multi-stage fuel cell module. The hot
desulfurized and partially reformed fuel stream (stream 7) enters the fuel cell anode at
approximately 500ºC (930ºF).

Ambient air (stream 9) is compressed to 3.5 atmospheres and 175ºC (347ºF) (stream 10), and
subsequently heated to 500ºC (932ºF) prior to entering the fuel cell cathode (stream 11).

The hot processed fuel and the compressed ambient air are electrochemically combined within
the fuel cell module. The fuel hydrocarbons still remaining after the mild reformer are reformed
within the fuel cell. The heat required for the endothermic steam reforming reactions is supplied
by the exothermic fuel cell reactions. The overall reactions are exothermic, and the fuel and
oxidant temperatures rise to 999ºC (1830ºF) (streams 8 and 12). The fuel cell is capable of
utilizing both H2 and CO as fuel and has an overall fuel utilization of 94%.

The spent fuel (stream 8) and oxidant (stream 12) are combusted upon exiting the multi-stage
fuel cell module. The resulting exhaust stream (stream 13) has a temperature of 1119ºC (2046ºF)
before being cooled in a fuel heater and expanded to 1.04 atmospheres and 856ºC (1573ºF)
(stream 15). This nearly atmospheric exhaust stream passes through several additional heat
exchangers before leaving the plant stack at 147ºC (300ºF).

Operating parameters are summarized in Table 9-17. Cycle performance is summarized in
Table 9-18. The overall net electric LHV efficiency is 80.1%.

One advantage of this concept is the elimination of heat exchangers between fuel cell modules.
This will minimize the cycle complexity, cost, and losses. Another advantage of the concept is
the minimization of unreacted fuel leaving the fuel cell. By having discrete fuel cell stages, each
operating with its own voltage and current density, fuel utilization can be pushed to very high
levels without hurting the performance of the entire module. The voltage and performance
degradation resulting from the low fuel concentrations (high utilization) is isolated to the latter
fuel cell stage(s) whereas a single fuel cell module, the entire fuel cell performance is degraded.
Experiencing a reduced voltage, power, and efficiency level in the latter stages of a multi-stage
module is acceptable because it minimizes the heat released in the combustion stage, which is
largely passed to the bottoming cycle, which typically has an efficiency of roughly 40%. That is,
60% of the heat liberated to the bottoming cycle is wasted. Thus, the minimization of heat

56
. A "mild reformer" is assumedto eliminate of the higher hydrocarbons prior to entering the fuel cell to prevent
sooting. This reformer is called a "mild reformer" to indicate that the reforming reactions are not pushed to
completion, for it is desired that the methane be reformed in the fuel cell for better temperature management.
Some of the methane, however, will be reformed with the higher hydrocarbons in the mild reformer.

9-52

passed to the bottom cycle is desirable, even at the "cost" of reduced efficiency in a fraction of
the fuel cell module.

One obstacle for this concept is the uncertainty of fuel cell performance in a high utilization
multi-stage concept. No testing has been performed to date utilizing a fuel cell in this manner.
The exact loss of performance in the latter stages is not known. The reference document (56) for
this multi-stage fuel cell concept did not attempt to specify the number of stages nor the fuel cell
performance within each stage. Instead, an average fuel cell performance was assumed. This
assumption may or may not represent of how a multi-stage fuel cell will perform. Additional
development work of this novel and efficient concept is required.

Table 9-17 Operating/Design Parameters for the NG fueled Multi-Stage Fuel Cell System

Volts per Cell (V) 0.800
Current Density (mA/cm2) unspecified
Number of Stages to be determined
Cell Operating Temperature (ºC) multiple temps
(~650 to 850ºC)
Overall Fuel Utilization (%) 94.0%
Overall Oxidant Utilization (%) 81.5%
Steam to Carbon Ratio 1.5:1
DC to AC Inverter efficiency 97.0%
Generator efficiency 98.0%
Fuel Cell Heat Loss (% of MWdc) 1.7%
Auxiliary Load 1.0%

Table 9-18 Overall Performance Summary for the NG fueled Multi-StageFuel Cell System

Gross AC Power (MW)
Net Compressor/Expander 0.534
Gross AC Power 4.005
Net Power 3.965
Electrical Efficiency (% LHV) 80.10%
Electrical Efficiency (% HHV) 72.29%

9-53

9.3.6 Coal Fueled SOFC System (Vision 21)
The coal fueled solid oxide fuel cell power system presented here is based on work performed
for the Department of Energy’s Vision 21 Program (57) to develop of high efficiency, low
emission, fuel flexible (including coal) processes. This cycle is a coal-fueled version of the
Siemens Westinghouse TSOFC cycle presented in Section 9.3.5 consists of a Destec gasifier,
cascaded SOFCs at two pressure levels, an integrated reheat gas turbine, and a reheat steam
turbine bottoming cycle. The high-pressure portion of the cycle is designed to operate at
15 atmospheres to capitalize on a reasonable gas turbine expansion ratio and an advanced, but
not unrealistic, fuel cell pressure. An operating pressure of 30 atmospheres would yield better
fuel cell and gas turbine performance, but has been conservatively limited to 15 atmospheres;
this is lower than the typical Destec design pressure. Higher pressure operation is feasible and
would have better performance. The coal analysis is presented in Table 9-20.

A flow diagram for the coal fueled 500 MW class cascaded TSOFC power cycle is presented in
Figure 9-12. A brief process description is given below, followed by a performance summary.
Selected state point values are presented in Table 9-21.

Raw Fuel Gas
Transport-Bed 5
Air
Desulfurization 10 14
Compressor

Turbine

11
19 6 13
4 Cathode
Water Zinc Oxide
SOFC
Fuel-Gas Polisher
Cooler 7 Anode
Anode
8
Expander SOFC
15
Cathode
Coal/Water
Slurry
9
1 20 IP Clean Fuel Gas Turbine
DESTEC Steam 12
Recuperator Power
Gasifier
18 Turbine
HRSG Generator
2 Exhaust
17
25 16
ASU 3
Slag 21
24 Reheat Steam
To Asu Turbine Bottoming 23 22
To Gasifier Cycle
26

Figure 9-12 Schematic for a 500 MW Class Coal Fueled Pressurized SOFC

9-54

Table 9-19 Stream Properties for the 500 MW Class Coal Gas Fueled Cascaded SOFC
Strm Description Temp Press Mass Flow Mole Flow CH4 CO CO2 H2 H20 H2S N2+Ar NH3 O2 Total
No. C atm t/h kgmol/hr MW % % % % % % % % % %
1 Coal Slurry Feed 18 23.8 151.2 - NA
2 ASU Oxygen 179 23.8 83.3 2,583 32.23 5.0 95.0 100.0
3 Slag Waste 93 19.1 11.6 - NA
4 Gasifier Effluent 1043 18.6 237.6 12,280 19.35 0.3 42.3 9.5 35.8 9.6 0.7 1.5 0.2 100.0
5 Raw Fuel Gas 593 17.6 237.6 12,280 19.35 0.3 42.3 9.5 35.8 9.6 0.7 1.5 0.2 100.0
6 Desulfurized Gas 593 16.6 236.2 12,280 19.23 0.3 42.3 9.6 35.8 10.3 trace 1.5 0.2 100.0
Recycle to Gasifier 399 15.0 9.4 491 19.23 0.3 42.3 9.6 35.8 10.3 trace 1.5 0.2 100.0
7 Polished Gas 399 15.0 226.7 11,789 19.23 0.3 42.3 9.6 35.8 10.3 trace 1.5 0.2 100.0
8 HP Fuel Gas 399 15.0 108.8 5,659 19.23 0.3 42.3 9.6 35.8 10.3 trace 1.5 0.2 100.0
9 IP Fuel Gas 221 3.7 117.9 6,130 19.23 0.3 42.3 9.6 35.8 10.3 trace 1.5 0.2 100.0
10 Ambient Air 17 0.98 1,270.1 44,024 28.85 trace 1.1 78.1 20.8 100.0
11 Compressed Air 409 15.1 1,146.2 39,732 28.85 trace 1.1 78.1 20.8 100.0
12 Heated Air 579 15.0 1,146.2 39,732 28.85 trace 1.1 78.1 20.8 100.0
13 HP SOFC Exhaust 979 14.7 1,255.1 43,181 29.07 6.9 7.1 trace 72.1 trace 13.9 100.0
14 HPT Exhaust 645 3.6 1,296.3 44,609 29.06 6.6 6.9 trace 72.3 trace 14.1 100.0
15 IP SOFC Exhaust 982 3.3 1,414.2 48,346 29.25 12.7 12.3 trace 66.9 0.1 8.0 100.0
16 IPT Exhaust 691 1.01 1,477.7 50,547 29.23 12.2 11.8 trace 67.4 0.1 8.6 100.0
17 Cooled Exhaust 573 0.99 1,477.7 50,547 29.23 12.2 11.8 trace 67.4 0.1 8.6 100.0
18 Cycle Exhaust 126 0.98 1,477.7 50,540 29.24 12.2 11.8 67.5 8.6 100.0
19 Gas Cooler Water 306 107.4 244.6 13,580 18.02 100.0 100.0
20 Gas Cooler Steam 317 107.4 244.6 13,580 18.02 100.0 100.0
21 HP Steam 538 99.6 301.4 16,730 18.02 100.0 100.0
22 Cold Reheat 359 29.3 298.4 16,563 18.02 100.0 100.0
23 Hot Reheat 538 26.4 298.4 16,563 18.02 100.0 100.0
24 ASU Steam 538 26.4 3.9 218 18.02 100.0 100.0
25 LP Steam 310 6.1 15.6 865 18.02 100.0 100.0
26 Gasifier Steam 307 5.4 32.0 1,774 18.02 100.0 100.0
Reference Source: (30)

The Destec entrained bed gasifier is fed both a coal water slurry (stream 1) and a 95% pure
oxygen stream (stream 2) and operates with a cold gas conversion efficiency57 of 84%. The
gasifier fuel gas product (stream 4) is cooled in a radiant heater, which supplies heat to the
bottoming cycle. The cooled fuel gas is cleaned (stream 6) in a hot gas desulfurizer at 593ºC
(1100ºF) and a polisher (stream 7) at 399ºC (750ºF) to less than 1 ppmv of sulfur prior to
entering the high-pressure fuel cell (stream 8). Part of the polished fuel is expanded to 3.7
atmospheres and 220ºC (429ºF) before being sent to the low-pressure fuel cell (stream 9).

Ambient air (stream 10) is compressed to 15.1 atmospheres and 409ºC (275ºF) (stream 11), and
subsequently heated to 579ºC (1075ºF) prior to entering the high-pressure fuel cell cathode
(stream 12).

The hot clean fuel gas and the compressed ambient air are electrochemically combined within
the high-pressure fuel cell with fuel and oxidant utilizations of 90% and 24.5%, respectively.
The SOFC module is set (sized) to operate at 0.69 volts per cell.58 The spent fuel and air
effluents of the SOFC are combusted within the module to supply heat for oxidant preheating.
Unlike the natural gas case, the fuel does not require a pre-reformer with only 0.3% methane
along with 36% hydrogen and 43% carbon monoxide. The carbon monoxide will be either water
gas shifted to hydrogen or utilized directly within the fuel cell. A gas recirculation loop for the

57
. Cold gas conversion efficiency is the ratio of the gasifier fuel gas total heating value [i.e., (heating value)(mass
flow)] to that of the coal feed, [(heating value)(mass flow)].
58
. Siemens Westinghouse provided TSOFC performance values for the HP and LP conditions, which Parsons
incorporated into the systems analysis.

9-55

fuel cell has not been assumed, for water is not required for pre-reforming nor internal
reforming.

The combusted air and fuel stream (stream 13) from the high-pressure fuel cell is expanded
(stream 14) in a turbine expander. The work of this turbine is used to drive the low- and high-
pressure air compressors. The reduced pressure exhaust stream (stream 14) is utilized as the
low-pressure fuel cell oxidant stream. Although vitiated, it still has 14% oxygen. The low-
pressure SOFC operates at 0.69 volts per cell and fuel and air utilizations of 90 and 34.7%,
respectively (58). The spent air and fuel effluents are combusted and sent (stream 15) to the low-
pressure power turbine. The turbine generator produces approximately 134 MWe. The low-
pressure exhaust (stream 16) has a temperature of 691ºC (1276ºF) and is utilized to preheat the
high-pressure oxidant. The resulting cooled exhaust stream (stream 17) still has a temperature of
573ºC (1063ºF) and is utilized to supply heat to a steam bottoming cycle.

Steam generated in the bottoming cycle is utilized in a reheat turbine to produce 118 MWe, as
well as to supply the steam required by the air separation unit (ASU) and the gasifier coal slurry
heater. The cycle exhaust exits the heat recovery steam generator at 126ºC (259ºF) and 0.98
atmospheres.

Operating parameters are summarized in Table 9-21. Cycle performance is summarized in
Table 9-22. The overall cycle net HHV efficiency is 59%, and is very near the 60% Vision 21
goal.

Table 9-20 Coal Analysis

Coal Parameters Value
Source Illinois No. 6
Ultimate Analysis, (wt %, a.r.)
Moisture 11.12
Carbon 63.75
Hydrogen 4.50
Nitrogen 1.25
Chlorine 0.29
Sulfur 2.51
Ash 9.70
Oxygen (by difference) 6.88
Total 100.00
HHV (Btu/lb) 11,666
LHV (Btu/lb) 11,129

9-56

Table 9-21 Operating/Design Parameters for the Coal Fueled Pressurized SOFC

Operating Parameters HP FC LP FC
Volts per Cell (V) 0.69 0.69
Current Density (mA/cm2) 312 200
Cell Operating Temp. (ºF) 1794 1800
Cell Outlet Pressure (atm) 14.7 3.3
Overall Fuel Utilization (%) 90% 90%
Overall Oxidant Utilization (%) 18.7% 20.4%
DC to AC Inverter Efficiency 97.0%
Generator Effic. - ST, GT 98.5%
Generator Effic. - Expander 98.0%
Auxiliary Load 7.2%

Table 9-22 Overall Performance Summary for the Coal Fueled Pressurized SOFC

Inverter Loss (9.3)
Gross AC Power (MW)
Combustion Turbine 133.7
Steam Turbine 118.1
Fuel Expander 9.6
Gross AC Power 562.9
Net Power 522.6
Electrical Efficiency (% HHV) 59.7%
Electrical Efficiency (% LHV) 62.6%
Heat Rate (Btu/kWh, HHV) 5,720

This configuration has the potential to yield a very competitive cost of electricity. For example,
for a fuel cell stack cost of $300 to $400/kW, it is estimated that the COE would range from 3.5
to 3.9 cents/kWh (Assuming 20% equity at 16.5%, 80% debt at 6.3%, and a levelized carrying
charge of 0.12.)

9.3.7 Power Generation by Combined Fuel Cell and Gas Turbine Systems
In general, the oxidation of H2, CO, CH4, and higher hydrocarbons in fuel cells to produce power
also produces reject heat. This heat arises from two sources:
the entropy decrease, S, resulting from the overall oxidation reaction -- accompanying the
usual decrease in the number of mols of gas, from reactants to products; and

9-57

the loss in work, or a conversion of "reversible" work from the oxidation process to heat, due
to irreversible processes occurring in the operation of the cell.

Heat from these two sources must be rejected from the fuel cell in order to maintain its
temperature at a desired level. The heat can be removed and recovered by transferring it across a
bounding surface to a heat transfer fluid, but care must be taken to maintain the cell at its desired
temperature in this and adjacent regions. Alternatively, heat can be removed in one of the
reactant streams passing through the cell -- most practically the air, oxidant stream.

Also in the operation of a practical fuel cell, some unburned fuel must remain in the combustion
products leaving the cell in order to maintain a significant generated voltage throughout the cell.

In order to obtain the highest possible efficiency in electrical generation, both the thermal energy
in the heat and the unburned fuel rejected from the cell must be recovered and converted into
additional electrical energy. This can be accomplished by means of a heat engine cycle making
use of a gas turbine operating in a regenerative Brayton or combined Brayton-Rankine cycle or a
steam turbine operating in a Rankine cycle. The relative merits of these three heat engine cycles
depend on their overall efficiencies and on the practical aspects of integration, operation, and
cost of the power generation plant as a whole.

9.3.8 Heat and Fuel Recovery Cycles
Simple representations of three fuel cell based heat and fuel recovery cycles are shown in
Figures 9-12, 9-13, and 9-16.

Regenerative Brayton Cycle: The regenerative Brayton cycle, Figure 9-13, shows a gas turbine
compressor for the air flow to the cell. The flow then passes through a countercurrent,
recuperative heat exchanger to recover heat from the combustion product gases leaving the gas
turbine. The air and the fuel streams then pass into the cathode and anode compartments of the
fuel cell(s). The air and fuel streams leaving the cell(s) enter the combustor where they mix and
the residual fuel burns. The combustion products enter the turbine, expand, and generate
additional power. The turbine exhaust gases pass through the recuperative exchanger to the
stack.

The most significant variables characterizing the cycle are the fuel cell operating temperature
range and the temperature and pressure at the gas turbine expander inlet. These variables are
directly related to certain operating variables: the air/fuel ratio entering the fuel cell, the fraction
of the fuel leaving the cell unburned, and the temperature difference between the combustion
products and air at the high temperature end of the recuperative heat exchanger. The operating
variables must be selected and controlled to allow effective operation of the fuel cell, combustor,
and gas turbine. There may well be an optimal quantity of unburned fuel leaving the fuel cell,
depending on the acceptable fuel cell operating temperature range and turbine inlet temperature.

Further insight can be gained from the idealized T - S diagram for the cycle, Figure 9-14. The
compression of the air and fuel streams is represented here as a single adiabatic reversible
(constant S) process in which the temperature of the gases rises above ambient. The heating of

9-58

Figure 9-13. Regenerative Brayton Cycle Fuel Cell Power System

the air and also the fuel streams first in the recuperative exchanger, then in the fuel cell and
finally in the combustor is assumed to occur along a single line of constant pressure. The
subsequent expansion of the combustion gases in the turbine is also represented as an adiabatic
reversible (constant S) process in which the temperature of the gases drops to a value close to
that of the gases entering the fuel cell. The pressure ratio (PR) of the turbine (and of the
compressor) is therefore established by the turbine nozzle inlet temperature (NIT) and the fuel
cell operating temperature. In general, the pressure ratio of a regenerative Brayton cycle is low
compared with that of a combined Brayton-Rankine cycle. A low pressure ratio allows a low
outlet temperature of the exhaust gases from the recuperative exchanger as heat is transferred to
the air leaving the compressor (and possibly also the fuel) and consequently results in low heat
rejection and a high cycle efficiency.

The practical aspects of the cycle involve the efficiencies of the gas compressors, the turbine
expander, and the fuel cell; the pressure losses as the gases flow through the system; and the
temperature differences and the difference in heat capacities of the streams flowing through the
recuperative heat exchanger. Other aspects of the fuel cell operation must be considered in
greater detail for the design and evaluation of the power system. These include the possible need
for fuel reforming external to the cell and the recycle of combustion product streams to provide
the steam required to carry out the reforming process, to avoid carbon deposition, and to provide
H2 for effective cell operation.

9-59

Table 9-23. Performance Calculations for a Pressurized, High Temperature Fuel Cell
(SOFC) with a Regenerative Brayton Bottoming Cycle; Approach Delta T=30F

CO M PRESSOR EFF = 0 .8 3 n = n u m b e r of m oles
TURB EX PAND ER EFF = 0 .8 9 C p = s p e c i fic h e a t
FU EL C ELL EFF= 5 6 .9 H f = h e a t o f fo r m a ti o n a t s t a n d a r d c o n d i ti o n s
C Y C LE EFF= 8 2 .1 S o = e n t r o p y a t s t a n d a r d c o n d it i o n s
STREAM # 1 2 3 4 5 6 7 C yc le
p , P R E S S U R E , atm 1 1 .4 8 1 .4 8 1 .4 8 1 .4 8 1 1
T, TEM PERATUR E, K 298 337 1200 1311 1332 1216 352
CH4, n 1 1 1 0 .0 7 0 0 0
CO, n
H2, n
CO2, n 0 0 0 0 .9 3 1 1 1
H2O , n 0 0 0 1 .8 6 2 2 2
O2, n 1 6 .2 3 1 6 .2 3 1 6 .2 3 1 4 .3 7 1 4 .2 3 1 4 .2 3 1 4 .2 3
N2, n 6 4 .9 2 6 4 .9 2 6 4 .9 2 6 4 .9 2 6 4 .9 2 6 4 .9 2 6 4 .9 2
S U M (n ) 8 2 .1 5 8 2 .1 5 8 2 .1 5 8 2 .1 5 8 2 .1 5 8 2 .1 5 8 2 .1 5
S U M (n C p ) 6 2 9 .7 2 6 2 9 .7 2 6 2 9 .7 2 6 2 8 .9 7 6 2 8 .9 2 6 2 8 .9 2 6 2 8 .9 2
S U M ( n H f) -1 7 .9 -1 7 .9 -1 7 .9 -1 9 6 .1 8 1 -2 0 9 .6 -2 0 9 .6 -2 0 9 .6
S U M (n S o) 3 8 1 3 .1 1 3 8 1 3 .1 1 3 8 1 3 .1 1 3 8 1 1 .9 9 3 8 1 1 .9 1 3 8 1 1 .9 1 3 8 1 1 .9 1
GAM M A 1 .3 5 0 1 .3 5 1
Q , H E A T , k c a l /m o l C H 4 0 .0 5 4 3 .5 0 .0 -0 .2 0 .0 5 4 3 .5 1 0 8 6 .8
W , W O R K , k c a l/ m o l C H 4 -2 4 .4 0 .0 1 0 9 .1 0 .0 7 2 .7 0 .0 1 5 7 .4

The performance of a solid electrolyte fuel cell (SOFC) system (Hirschenhofer et al., 1994)
operating with a regenerative Brayton bottoming cycle for heat and fuel recovery has been
calculated. Table 9-23 illustrates the results. The work from the fuel cell burning CH4 is
assumed to be 60% the theoretical maximum; the corresponding fuel cell voltage is 0.63 volts.
The efficiencies of the fuel and air compressors are 83%; and the expander of the turbine, 89%.
It is assumed that the cell makes direct use of CH4 fuel, or that oxidation and reforming are
coincident; operation of the cell thus provides both the heat and the H2O required for CH4
reforming. Pressure losses in the fuel cell, combustor, recuperative exchanger, and the ducts of
the system are ignored.

The results of the performance calculations are summarized in Table 9-24. The efficiency of the
overall power system, work output divided by the lower heating value (LHV) of the CH4 fuel, is
increased from 57% for the fuel cell alone to 82% for the overall system with a 30 F difference
in the recuperative exchanger and to 76% for an 80 F difference. This regenerative Brayton
cycle heat rejection and heat-fuel recovery arrangement is perhaps the simplest approach to heat
recovery. It makes minimal demands on fuel cell heat removal and gas turbine arrangements,
has minimal number of system components, and makes the most of the inherent high efficiency
of the fuel cell.

9-60

Table 9-24. Performance Computations for Various High Temperature Fuel Cell (SOFC)
Heat Recovery Arrangements

General Conditions Notes
SOFC, solid oxide fuel cell PR = pressure ratio of the gas turbine
Operating temperature, 1700-1900 F NIT = nozzle inlet temperature of the turbine expander
Fuel cell output: 60% of theoretical maximum from CH4 fuel
Gas turbine compressor, expander efficiences: 83, 89%
Steam turbine efficiency: 90%

Work Output, % Overall
Heat Recovery Fuel Gas Steam System
Arrangement Cell Turbine Turbine Eff., % Remarks
Regenerative Brayton Cycle 69.3 30.7 n/a 82.1 30 F Approach in Recuperative Exchanger
Gas Turbine PR=1.48, NIT=1938 F
Regenerative Brayton Cycle 74.5 25.5 76.3 80 F Approach in Recuperative Exchanger
Gas Turbine PR=1.35, NIT=1938 F
Combined Brayton-Rankine Cycle 75.3 10.3 14.3 75.6 Gas Turbine PR=12, NIT=2300 F
Steam Turbine: 1600 psia, 1000 F, 1.5" Hg
Rankine Cycle 79.1 20.9 72.4 Steam Turbine: 1600 psia, 1000 F, 1.5" Hg

Combined Brayton-Rankine Cycle: The combined Brayton-Rankine cycle, Figure 9-14, again
shows the gas turbine compressor for the air flow to the cell. This flow passes through a heat
exchanger in direct contact with the cell; it removes the heat produced in cell operation and
maintains cell operation at constant temperature. The air and fuel streams then pass into the
cathode and anode compartments of the fuel cell. The separate streams leaving the cell enter the
combustor and then the gas turbine. The turbine exhaust flows to the heat recovery steam
generator and then to the stack. The steam produced drives the steam turbine. It is then
condensed and pumped back to the steam generator.

9-61

Figure 9-14. Combined Brayton-Rankine Cycle Fuel Cell Power Generation System

The air/fuel ratio entering the fuel cell and the fraction of the CH4 fuel consumed in the cell are
selected to achieve the desired fuel cell operating temperature range and gas turbine NIT and PR.
These are selected to correspond with those of a conventional, large-scale, utility gas turbine.

Further insight can be gained from an idealized T- S diagram for the cycle, Figure 9-15, in which
both the Brayton and the Rankine cycles are illustrated. Both the pressure and the temperature
increase during fuel and air compression in this combined cycle will be significantly greater than
in the regenerative Brayton cycle described above. The heating of the air and fuel, the operation
of the fuel cell, and the burning of the residual fuel are assumed to occur at constant pressure.
The expansion of the combustion product gases in the gas turbine again is represented as an
adiabatic, reversible (constant S) process. Next, heat is removed from these gases at nearly
constant pressure in the heat recovery steam generator; and they pass out through the stack.

9-62

Figure 9-15. Combined Brayton-Rankine Cycle Thermodynamics

The Rankine cycle diagram placed adjacent the Brayton cycle in Figure 9-15 is indicated as a
simple steam cycle with superheat, but no reheat and no multi-pressure steam generation. The
thermodynamic advantage of the Rankine bottoming cycle is the lowered temperature of heat
rejection, in the steam condenser, from the overall combined cycles.

The performance of a SOFC system with a Brayton-Rankine bottoming cycle for heat and fuel
recovery has been calculated. Gas turbine compressor and expander efficiencies of 83% and
89% and a steam turbine efficiency of 90% have been assumed.

The significant operating conditions of the gas and steam turbines and the results of the
computations are summarized in Table 9-24. The principal result is that the efficiency of the
overall system, work output divided by the CH4 LHV, is increased from 57% for the fuel cell
alone to 75% for the overall system. This combined Brayton-Rankine cycle heat-fuel recovery
arrangement is significantly more complex and less efficient than the simple regenerative
Brayton cycle approach. It does, however, eliminate the requirement for a large, high
temperature gas to gas heat exchanger.

The key link between the Brayton and the Rankine cycles is the heat recovery steam generator
whose operation is illustrated by the temperature-heat (T-Q) plot in Figure 9-16. The
temperatures of the gases and of the water, T, are plotted as a function of the heat, Q, transferred
from the combustion product gases to the water-steam between their entrance and any point in
the steam generator. The area between the temperature curves for the two flowing streams is an
indication of the irreversibility, or loss in available work, resulting from the transfer of heat over
a finite temperature difference. Reducing this area, moving the gas and steam curves closer,
requires increased heat transfer surface area in the steam generator. Steam reheat and multi-
pressure level heat recovery boilers are frequently proposed to minimize the loss in available
work.

9-63

1300.0
water/steam in HRSG

T, Temperature of Streams, F
1100.0

900.0

700.0

500.0

300.0

100.0

-100.0
0 1 2 3 4 5 6

Q, Heat Transferred to Steam from Hot Gas, kcal

Figure 9-16 T-Q Plot for Heat Recovery Steam Generator
(Brayton-Rankine)

Rankine Cycle: The fuel cell Rankine cycle arrangement in Figure 9-17 employs a heat
recovery steam generator operating on the exhaust combustion product stream from the fuel cell
and combustor at atmospheric pressure. This exhaust stream first provides the heat required to
preheat and reform the CH4 fuel, providing CO and H2 at temperature to the fuel cell. Partially
combusted fuel from the cell is recycled to provide the H2O required for reforming the fuel.
Depleted air from the cell exhaust is recycled to the air feed stream to raise its temperature to the
desired value at the cell inlet. The operating conditions and the T - S diagram for the Rankine
cycle are identical to those illustrated for the combined Brayton-Rankine cycle in Figure 9-15
and Table 9-24.

The results of the performance calculations for the fuel cell, Rankine cycle heat recovery system,
summarized in Table 9-24, indicate that the efficiency of the overall system is increased from
57% for the fuel cell alone to 72% for the overall system. This Rankine cycle heat-fuel recovery
arrangement is less complex but less efficient than the combined Brayton-Rankine cycle
approach, and more complex and less efficient than the regenerative Brayton approach. It does,
however, eliminate the requirement for a large, high temperature gas to gas heat exchanger. And
in applications where cogeneration and the supply of heat is desired, it provides a source of
steam.

The T - Q plot for the heat transfer processes involved in this fuel cell Rankine cycle
arrangement is shown in Figure 9-18. Because heat is removed from the exhaust gases to heat
and reform the CH4 fuel feed, the temperature of the hot gas entering the heat recovery steam
generator in this

9-64

Figure 9-17 Fuel Cell Rankine Cycle Arrangement

9-65

1800

1600
gas leaving combustor
T, Temperature of Streams, K

1400 CH4 fuel gas feed
1200 boiler water-steam
1000

800

600

400

200

0

Figure 9-18 T-Q Plot of Heat Recovery from Hot Exhaust Gas

particular Rankine cycle fuel cell arrangement is significantly lower than in the previous
combined Brayton-Rankine cycle arrangement. Increased surface area is, therefore, required in
the heat recovery steam generator for this fuel cell Rankine cycle arrangement.

These three approaches to reject heat and exhaust fuel recovery with power generation apply
primarily to the higher temperature, solid oxide (1800 F) and molten carbonate (1200 F), fuel
cell systems operating on CH4 fuel. The lower operating temperatures of the phosphoric acid
(400 F) and polymer electrolyte (175 F) fuel cells severely limit the effectiveness of thermal
cycle based power generation as a practical means of heat recovery.

All three of the heat recovery arrangements have calculated overall efficiencies greater that 70%
as indicated in Table 9-24. None have been optimized in any sense -- in terms of efficiency,
capital and operating costs, maintainability or availability. Each of the arrangements has its
advantages and disadvantages. It appears, however, that the regenerative Brayton cycle has the
advantage of greatest simplicity and highest potential overall efficiency over the combined
Brayton-Rankine and Rankine cycle approaches.

The consideration of heat recovery and use in such fuel cell systems requires some consideration
of heat generation and transfer within the cells of the system. Direct oxidation of CH4 at the
anode of the cell, if possible, would implement the overall process:

CH4 + 2O2 = CO2 + 2H2O (v)

This reaction, having equal number of mols of gas reactants and products, has a negligible
change in entropy and thus a negligible heat effect if carried out reversibly at constant
temperature. The maximum work available from a fuel cell under these circumstances would
then be approximately the enthalpy change of the reaction, i.e., the heat of combustion of the

9-66

CH4; the efficiency of the fuel cell power generation process could, therefore, approach 100%.
However, work is lost and a corresponding quantity of heat is produced by irreversibilities both
in fuel cell operation --
the electrical resistance of the electrolyte to ion flow and of the electrodes, current collectors,
and leads to electron flow;
the kinetics of the processes involving reactants, ions, and electrons at the anode and cathode
of the cell;
the transport, or diffusion, of reactants within the anode and cathode chambers to the
electrode;
and also in overall system operation –
the preheating of the air and fuel streams;
the pretreating, or reforming, of the CH4 fuel to provide more reactive H2 and to prevent the
deposition of carbon (C).

The heat resulting from these irreversibilities must then be removed in order to maintain the fuel
cells at a desired operating temperature. Irreversibilities and the resulting quantity of heat
produced can be reduced, in general, by increasing the active area of the fuel cells, heat
exchangers, and fuel reformer; but increased equipment costs result.

In general, reforming of the CH4 fuel with excess H2O outside the cell has been practiced both in
molten carbonate and solid oxide fuel cell systems in order to produce H2, more reactive on a
fuel cell anode, and to avoid the possible deposition of C. This reforming reaction

CH4 + H2O = CO + 3H2

is associated with an increase in entropy and absorbs heat. Excess H2O produces additional H2
and reduces the CO content of the reformed gases, which may adversely affect anode reactions,
by the shift reaction

H2O + CO = H2 + CO2.

This reaction is thermally neutral. The heat absorbed in the CH4 reforming reaction is released
by the subsequent reaction of the H2 product at the anode of the fuel cell. If, therefore, the
reforming process can be carried out in close proximity to and in thermal contact with the anode
process, the thermal neutrality of the overall CH4 oxidation process can be approximated. And
the heat removal and recovery process for the fuel cell system can deal merely with the heat
produced by its operational irreversibilities.

Heat removal from fuel cells, and cell batteries, can be accomplished:
directly through the flow of reactants to and products from them.
indirectly through heat transfer surfaces in contact with the cell or included within a battery.

A specific fuel cell system is viewed here as having a fixed range of operating temperature
between a maximum and minimum; heat must therefore be removed in such a manner to
maintain the temperature within these limiting values. If heat is removed directly by reactant
flows, then the quantity of flow must be adjusted so that inlet and outlet temperatures (as well as

9-67

the intermediate temperatures) of the cell and of the flow streams are within the permissible
range. Practically, the air stream is adjusted to achieve this result, since the purpose of the fuel
cell is to consume the fuel in the production of electrical energy. Increasing the fuel flow to
remove heat from the cell increases the quantity of unburned fuel in the exhaust from the cell. If
heat is removed from the fuel cell indirectly through adjacent or embedded surface, then the flow
and temperature of the coolant stream can be selected somewhat independent of the cell
operating temperature. But the distribution of heat transfer surface in the cell (or battery) and the
rate of heat transfer across that surface must be carefully adjusted and controlled to maintain the
temperature throughout the cell (or battery) within the prescribed temperature range.

The regenerative Brayton cycle, as presented, depends primarily on its fuel cell component for
conversion of the fuel and thus for its overall efficiency. The gas turbine merely provides the
means for recovery of the waste heat and residual fuel in the combustion product stream. The
gas turbine operates, therefore, at a temperature only slightly elevated above that of the cell by
the combustion of the residual fuel. The pressure ratio selected for the turbine in this
regenerative cycle is determined by the ratio of the temperature of the gases leaving the auxiliary
combustor to the temperature of the reactant gases entering the fuel cell. In general, for either
molten carbonate or solid oxide cells, this selected pressure ratio will be less than two. The
proposed method of cell cooling is air flow, which will be increased significantly, by a factor of
4-8 above that required for oxidation of the fuel. The feasibility of this cycle will depend on the
availability of air compressor and turbine expander units with:
the pressure ratio and temperature capability compatible with the fuel cell operation.
a capacity appropriate to market applications.

The effectiveness of the regenerative Brayton cycle performance will depend on the efficiency of
the fuel cell, compressor, and turbine units; the pressure loss of gases flowing through the
system; the approach temperatures reached in the recuperative exchanger; and, most importantly,
the cost of the overall system.

The combined Brayton-Rankine cycle depends on both the fuel cell and the gas turbine
components for conversion of the fuel and thus for its overall efficiency. The extent of
conversion of the fuel occurring in the fuel cell increases as the cell operating temperature and
the range of coolant temperature rise increase. For this reason, the cycle as presented is based on
indirect heat removal from the cell, heating the air stream temperature from the compressor
outlet to the cell operating temperature. This provision maximizes the cell contribution to the
energy output of the combined cycle. The PR and NIT of the turbine are those selected to match
those of the current utility scale equipment -- a PR of 12 and an NIT of 2300 F -- resulting in a
combined cycle efficiency of perhaps 45-50%, not considering the electrical energy output of
and the fuel input to the fuel cell. The fuel combustion occurring in the combustor and overall
air/fuel ratio is then determined by the combination of the cell and the turbine inlet temperatures.

The fuel cell Rankine cycle arrangement has been selected so that all fuel preheating and
reforming are carried out external to the cell and air preheating is accomplished by mixing with
recycled depleted air. The air feed flow is adjusted so that no heat transfer is required in the cell
or from the recycled air. Consequently, the internal fuel cell structure is greatly simplified, and
the requirement for a heat exchanger in the recycle air stream is eliminated.

9-68

Summary

Advantages, Disadvantages of Various Fuel Cell, Power Cycles
Regenerative Brayton
Advantages:
simple cycle arrangement, minimum number of components.
relatively low compressor and turbine pressure ratio, simple machines.
relatively low fuel cell operating pressure, avoiding the problems caused by
anode/cathode pressure differential and high pressure housing and piping.
relatively low turbine inlet temperatures, perhaps 1950 F for solid oxide and 1450 F
for molten carbonate fuel cell systems. Turbine rotor blade cooling may not be
required.
relatively simple heat removal arrangements in fuel cells, accomplished by excess air
flow. No internal heat transfer surface required for heat removal.
fuel conversion in cells maximized, taking full advantage of fuel cell efficiency.
adaptability to small scale power generation systems.
Disadvantages:
tailoring of compressor and turbine equipment to fuel cell temperature and cycle
operating pressure required. (It is not clear to what extent available engine
supercharging and industrial compressor and turbine equipment can be adapted to this
application.)
large gas to gas heat exchanger for high temperature heat recuperation required.
efficiency and work output of the cycle sensitive to cell, compressor, and turbine
efficiencies; pressure losses; and temperature differentials.

Combined Brayton-Rankine
Advantages:
integrated plant and equipment available for adaptation to fuel cell heat recovery.
high efficiency system for heat recovery.
Disadvantages:
complex, multi component, large scale system for heat recovery.
adaptation of existing gas turbine required to provide for air take off and return of hot
depleted air and partially burned fuel.
high pressure operation of the bulky fuel cell system required.
precise balancing of anode and cathode pressures required to prevent rupture of fuel
cell electrolyte.
indirect heat removal required from fuel cells with compressed air, initially at low
temperature, to enable significant conversion of the fuel flow in the cells.

Rankine
Advantages:
ambient pressure operation within the fuel cell.
heat recovery in a boiler, avoiding the high temperature gas to gas exchanger of a
regenerative Brayton cycle.
no gas turbine required, only fans for air and exhaust product gas flow.

9-69

steam available for cogeneration applications requiring heat.
Disadvantages:
inherently lower efficiency than regenerative Brayton and combined Brayton-Rankine
cycles.
requirement for cooling and feed water.
greater complexity than regenerative Brayton cycle arrangement.

9.4 Fuel Cell Networks

9.4.1 Molten Carbonate Fuel Cell Networks: Principles, Analysis and
Performance
The U.S. Department of Energy's National Energy Technology Laboratory (NETL) sponsors the
research and development of engineered systems which utilize domestic fuel supplies while
achieving high efficiency, economy and environmental performance. One of the most promising
electric power generation systems currently being sponsored by NETL is the molten carbonate
fuel cell (MCFC).

NETL looked at improving upon conventional MCFC system designs, in which multiple stacks
are typically arranged in parallel with regard to the flow of reactant streams. As illustrated in
Figure 9-19a, the initial oxidant and fuel feeds are divided into equal streams which flow in
parallel through the fuel cell stacks.

In an improved design, called an MCFC network, reactant streams are ducted such that they are
fed and recycled among multiple MCFC stacks in series. Figure 9-19b illustrates how the
reactant streams in a fuel cell network flow in series from stack to stack. By networking fuel cell
stacks, increased efficiency, improved thermal balance, and higher total reactant utilizations can
be achieved. Networking also allows reactant streams to be conditioned at different stages of
utilization. Between stacks, heat can be removed, streams can be mixed, and additional streams
can be injected.

Stacks in series approach reversibility. MCFC stack networks produce more power than
conventional configurations because they more closely approximate a reversible process. To
illustrate this fact, consider Figure 9-20, which compares the maximum power that could be
generated by three different MCFC systems having identical feed stream compositions1.

9-70

Figure 9-19 MCFC System Designs

9-71

Figure 9-20 Stacks in Series Approach Reversibility

A graph of Nernst potential versus fuel utilization for the given feed stream compositions (60)
was duplicated three times in Figure 9-20. The Nernst potential is the voltage which drives
reversible electrode reactions. This reversible voltage, generated by the overall cell reaction, is a
function of the local temperature, pressure, and reactant concentrations. As reactants are
utilized, their concentrations change. Since Nernst potential is dependent upon the
concentrations of reactants, it varies with the degree of utilization.

Fuel utilization is directly proportional to the charge transferred across the electrolyte.
Therefore, the shaded areas of the graphs represent power -- the product of voltage and current.
If reversibility is assumed at the outlet of each stack, no voltage losses are deducted from the
Nernst potential. Therefore, each shaded area represents the maximum power, which each cell
could generate.

System A in Figure 9-20 is composed of a single stack. Three stacks are arranged in series in
system B. System C features many, or "n," stacks configured in series. In all three systems, the
voltage of each stack corresponds to reactant concentrations at its outlet.

For comparison, each system is assumed to have the same total stack membrane area. That is,
the area of each stack in system B is one third the area of the stack in system A. Similarly, the

9-72

area of each stack in system C is one "nth" the area of the single stack in system A. For
simplicity, each stack is considered to contain only one cell.

Since each system achieves the same total fuel utilization (90%) across the same total area, each
stack has the same average current density. Irreversible voltage loss is mainly a function of
current density and stack temperature. Since these parameters are equivalent in each stack, it is
assumed that the Nernst potential of each stack would be reduced by the same amount.

In system A, 90% of the fuel is utilized in a single stack, and all the current is generated at a
single voltage. The power that this system can achieve is represented by the graph's shaded
region.

In system B, three stacks in series each utilize 30% of the fuel. The current generated by each
stack in system B is one third of the current generated in system A. Each stack in system B
produces a different voltage. At the exit of the first stack, a high Nernst potential is generated
because 70% of the fuel is still unburned. Likewise, at the exit of the second stack, 40% of the
fuel remains unburned, generating another improved Nernst potential. Only ten percent of the
fuel remains at the exit of the third stack, yielding the same Nernst potential that the single stack
in system A produced. The three stack network can produce more power because two-thirds of
the total charge is transferred at increased voltages. Comparing the shaded areas of the graphs
illustrates the additional power that can be produced by arranging stacks in series.

In system C, many stacks are connected in series. Very small currents are generated at still
higher voltages. As the number of stacks in series is increased, the maximum achievable power
quickly approaches the power which a reversible system would generate, i.e. complete
conversion of the available free energy. (A reversible system is reversible at every point in each
stack, not just at the stack outlets.) The shaded area in the graph nearly fills the entire area under
the curve - the reversible power.

Each system in Figure 9-19 converts an equivalent amount of free energy (90% fuel utilization)
into heat and electrical work. The key difference, however, is that the systems with MCFC
stacks networked in series transfer charge at higher voltages, thus converting more of the free
energy directly into electrical work, and less into heat. As the number of stacks in series is
increased, a reversible process is approached which would convert all the free energy into work
and none into heat. Although heat that is produced from free energy can be reconverted into
electrical work (e.g. via a steam turbine), an MCFC stack's direct conversion of free energy is
intrinsically more efficient. Therefore, networking MCFC stacks in series results in more
efficient power production even when waste heat is recovered.

Although each stack added to a series network would improve the system's efficiency, the
incremental benefit obtained with each additional stack diminishes. A finite number of stacks
could adequately, but not exactly, approach a reversible process. In a practical network, the
number of stacks would be limited by economic, space, and design constraints.

In a similar study, Liebhafsky and Cairns (31) compared two arrangements of tubular, calcia-
stabilized solid oxide fuel cells. In one arrangement, hydrogen and air were supplied to a single,

9-73

30-cm cell. In the other arrangement, the same cell was segmented into three, 10-cm cells which
were ducted such that the same reactant streams flowed through them in series. Each
arrangement had a total fuel utilization of 90% and each cell had the same average current
density. Each cell in the series arrangement accomplished one-third of the total fuel utilization.
Calculations showed that the series arrangement produced 5% more power than the single cell,
and that further sectioning would produce greater improvements. It was concluded that the
increase in irreversibility associated with changes in gas composition has nothing to do with
electrode kinetics, but is rooted in the Nernst equation.

9.4.2 MCFC Network
When designing an MCFC power system, several requirements must be met. An MCFC system
must properly condition both the fuel and oxidant gas streams. Methane must be reformed into
the more reactive hydrogen and carbon monoxide. Carbon deposition, which can plug gas
passages in the anode gas chamber, must be prevented. To supply the flow of carbonate ions, the
air oxidant must be enriched with carbon dioxide. Both oxidant and fuel feed streams must be
heated to their proper inlet temperatures. Each MCFC stack must be operated within an
acceptable temperature range. Excess heat generated by the MCFC stacks must be recovered
and efficiently utilized.

Figure 9-21 shows an MCFC network. The arrangement of stacks in series, as well as a unique
recycle scheme, allows an MCFC network to meet all the requirements of an MCFC power
system, while achieving high efficiency.

9.4.3 Recycle Scheme
In the network's recycle scheme, a portion of the spent fuel (Stream 5) and oxidant (Stream 4) is
mixed and burned. The products of combustion (Stream 3) are then recycled through the cathode
in order to provide the necessary carbon dioxide to the stacks. This eliminates the need for an
external source of pure carbon dioxide. The cathode-cathode recycle (Stream 4) is large enough
to cool the stacks, transferring excess energy to the heat recovery boilers. During the transfer of
heat, enough energy is left in the oxidant recycle to heat the fresh air feed to the designated
cathode inlet temperature. A second portion of the spent fuel (Stream 1) is recycled through the
anode to provide enough steam to prevent carbon deposition and internally reform methane.
This eliminates the need for steam to be supplied from another source. The anode-anode recycle
also heats the fresh fuel feed to the designated anode inlet temperature.

9.4.4 Reactant Conditioning Between Stacks in Series
When MCFC stacks are networked in series, reactant streams can be conditioned between the
stacks -- at different stages of utilization. The composition of reactant streams can be optimized
between stacks by injecting a reactant stream (see Figure 9-19) or by mixing the existing reactant
streams.

9-74

Figure 9-21 MCFC Network

Between stacks networked in series, heat can be removed from the reactant streams to assist in
controlling stack temperatures. The heat in a network reactant stream can be transferred to a
cooler process stream in a heat exchanger or hot and cold reactant streams can be mixed directly.
The recovered heat may be utilized in a combined cycle or for cogeneration.

Methane can be injected into fuel streams between stacks networked in series. Since the
reforming of methane into hydrogen is endothermic, its careful distribution among stacks in
series is expected to improve the thermal balance of the system by allowing waste heat to be
more evenly consumed throughout the total utilization of reactants. Improved thermal balance
should allow stacks to be operated nearer their maximum temperature, reducing ohmic voltage
losses. However, injecting portions of the fuel feed between stacks in series decreases the Nernst
potential of every stack except the last one, since less fuel passes through each stack. (The
amount of fuel which passes through the last stack does not change.) Optimizing the system
requires an evaluation of the point at which the benefits of improved thermal balance outweigh
the reduction in Nernst potential associated with such fuel redistribution.

9.4.5 Higher Total Reactant Utilization
The optimum total reactant utilization of stacks networked in series is higher than that of
conventional, parallel stacks. Conventional designs avoid high utilization, because that would
result in low voltages. In conventional configurations, the total utilization of reactants is
accomplished in one stack. Therefore, when high utilizations are attempted, the low voltage
which is generated adversely affects the total power production. In networks, however, the

9-75

utilization of reactants is accomplished incrementally, and the low voltage associated with high
utilization is restricted to stacks which produce only a portion of the total power.

Manifolding problems can further limit the practical reactant utilization of conventional MCFC
systems. Ideally, fuel and oxidant streams are distributed equally among individual cells in a
stack. Today's manifolds, however, have not been able to achieve this, and cells are typically
supplied with unequal reactant flows. This causes the composition of outlet reactant streams to
be variable among the cells. At high utilizations, this variability leads to a significant reduction
in stack voltage. Therefore, conventional systems avoid such high utilizations. However, when
stacks are networked in series, reactant streams can be thoroughly mixed between cells. This
reduces the variability in reactant composition and helps to minimize the stack voltage loss.

Another study (32) maximized the efficiency of conventional and series-connected fuel cell
systems by optimizing cell voltage and current density. The study found that the optimum fuel
utilization in the series-connected system was higher than that in the conventional system. Most
importantly, the higher fuel utilization and lower current density of the series-connected system
combined to give more efficient performance than the conventional system.

9.4.6 Disadvantages of MCFC Networks
For recycling to improve the performance of an MCFC network, it must provide benefits that
outweigh its inherent disadvantages. If carbon dioxide is not separated from the anode-anode
recycle, the concentration of carbon dioxide in the anode is increased. This reduces the Nernst
potential. The Nernst potential is similarly reduced by the anode-cathode recycle if steam is not
condensed out, since recycled steam dilutes reactant concentrations in the oxidant. In addition,
part of the power generated by the network is consumed by the equipment necessary to circulate
the recycle streams. Such circulation equipment, along with the additional ducting required by
recycling, also increases the capital cost of the MCFC network.

Given the same initial feed streams, the flowrate of reactants through stacks networked in series
is much larger than the flowrate of reactants through stacks in a conventional system.
Conventional fuel cell systems divide the initial feed streams among many stacks arranged in
parallel. However, the initial feed streams in an MCFC network are not divided, but fed directly
into the first of a series of many stacks. Perhaps the greatest disadvantage of MCFC networks is
that this increased flowrate creates larger pressure drops.

Another potential disadvantage of an MCFC network is the interdependence of the stacks in
series. A problem with one stack could alter the performance of succeeding stacks.
Furthermore, bypassing or isolating a problematic stack in a network could be a difficult control
process. In the conventional parallel configuration, stack performance is not so interrelated.

9.4.7 Comparison of Performance
Two ASPEN (Advanced System for Process Engineering, public version) simulations compare
the performance of conventional and networked fuel cell systems having identical recycle
schemes and steam bottoming cycles. Each simulated system was composed of three MCFC
stacks operating at the same temperature and pressure. The Nernst potential of each MCFC in
both systems was reduced by 0.3 volts due to activation, concentration and ohmic voltage

9-76

polarizations. (This is a conservative estimate, representing a much higher outlet voltage
polarization than would be expected.) Simple, single-pressure steam cycles produce secondary
power.

When the total fuel utilization of each system was optimized for maximum efficiency, the
efficiency of the fuel cell stacks networked in series was nearly 10% greater than that of the
stacks arranged in parallel (44.9% vs. 35.4%, LHV). When the power generated by each
system's steam bottoming cycle was considered in addition to its fuel cell power, the gap in
efficiency narrowed to 5.5%. The efficiency of the total networked system is 56.8%, while that
of the total conventional system was 51.3%.

The fuel cell network which was simulated was not fully optimized. Optimization of flow
geometry, operating pressure, stack fuel utilization and current, reactant conditioning, and other
parameters would be expected to yield further significant increases in total system efficiency.

9.4.8 Conclusions
Key to the concept of networking is the arrangement of multiple fuel cell stacks relative to the
flow of reactant streams. Conventional fuel cells systems have been designed such that reactant
streams flow in parallel through fuel cell stacks. In a fuel cell network, however, reactant
streams are ducted such that they are fed and recycled through stacks in series.

Arranging fuel cell stacks in series offers several advantages over conventional fuel cell systems.
Stacks networked in series more closely approach a reversible process, which increases the
system efficiency. Higher total reactant utilizations can be achieved by stacks networked in
series. Placing stacks in series also allows reactant streams to be conditioned at different stages
of utilization. Between stacks, heat can be consumed or removed, (methane injection, heat
exchange) which improves the thermal balance of the system. The composition of streams can
be adjusted between stacks by mixing exhaust streams or by injecting reactant streams.

Computer simulations have demonstrated that a combined cycle system with MCFC stacks
networked in series is significantly more efficient than an identical system with MCFC stacks
configured in parallel.

9.5 Hybrids
This section present hybrids for generating electricity or for providing power in automotive
vehicles. Hybrid systems that incorporate gas turbines build upon the outstanding performance of
the fuel cell by utilizing the exhausted fuel cell heat. Hybrid electric vehicles utilize fuel cells to
provide electric power to augment or replace exiting power sources. These systems are highly
efficient and deliver superior environmental performance. Presented below is a general
discussion of hybrid technology as well as specific initiatives in the gas turbine / fuel cell and
electric power hybrid vehicle areas.

9.5.1 Technology
Advanced power generation cycles that combine high-temperature fuel cells and gas turbines,
reciprocating engines, or another fuel cell are the hybrid power plants of the future. These
conceptual systems have the potential to achieve efficiencies greater than 70 % and be

9-77

commercially ready by the year 2010 or sooner. The hybrid fuel cell/turbine (FC/T) power plant
will combine a high-temperature, conventional molten carbonate fuel cell (MCFC) or a solid
oxide fuel cell (SOFC) with a low-pressure-ratio gas turbine, air compressor, combustor, and in
some cases, a metallic heat exchanger (66). The synergistic effects of the hybrid fuel cell/turbine
technology will also provide the benefits of reduced greenhouse gas emissions. Nitrous (NOx)
emissions will be an order of magnitude below those of non-fuel cell power plants and carbon
monoxide emissions will be less than 2 parts per million (ppm) (67). There will also be a
substantial reduction in the amount of carbon dioxide produced compared to conventional power
plants.

The hybrid system is key to the Department of Energy’s Vision 21 plants. The Vision 21
program has set power plant goals of achieving efficiencies greater than 75 % (LHV) for natural
gas. The higher efficiencies play a key role in reducing emissions, another target in Vision 21
plants. As a comparison, conventional coal-burning power plants are typically 35 % efficient
and natural gas fired plants are now 40 to 50 % efficient. Figure 9-22 shows the estimated
efficiency ranges of current and future power generation systems.

The combination of the fuel cell and turbine operates by using the rejected thermal energy and
residual fuel from a fuel cell to drive the gas turbine. The fuel cell exhaust gases are mixed and
burned, raising the turbine inlet temperature while replacing the conventional combustor of the
gas turbine. Use of a recuperator, a metallic gas-to-gas heat exchanger, transfers heat from the
gas turbine exhaust to the fuel and air used in the fuel cell. Figure 9-23 illustrates an example of
a proposed fuel cell/turbine system.

There can be many different cycle configurations for the hybrid fuel cell/ turbine plant. In the
topping mode described above, the fuel cell serves as the combustor for the gas turbine while the

100

90

80
SOFC/ Gas Turbine Hybrid System
70
Efficiency (LHV), %

Advanced Turbine System
60
Fuel Cells Gas Turbine Combined Cycle
50
Gas Turbine w/ Cycle Improvements Internal Combustion Engine
40

30 Microturbines
Gas Turbine Simple Cycle
20

10

0
0.1 1 10 100 1000
Power Output, MW

Figure 9-22 Estimated performance of Power Generation Systems

9-78

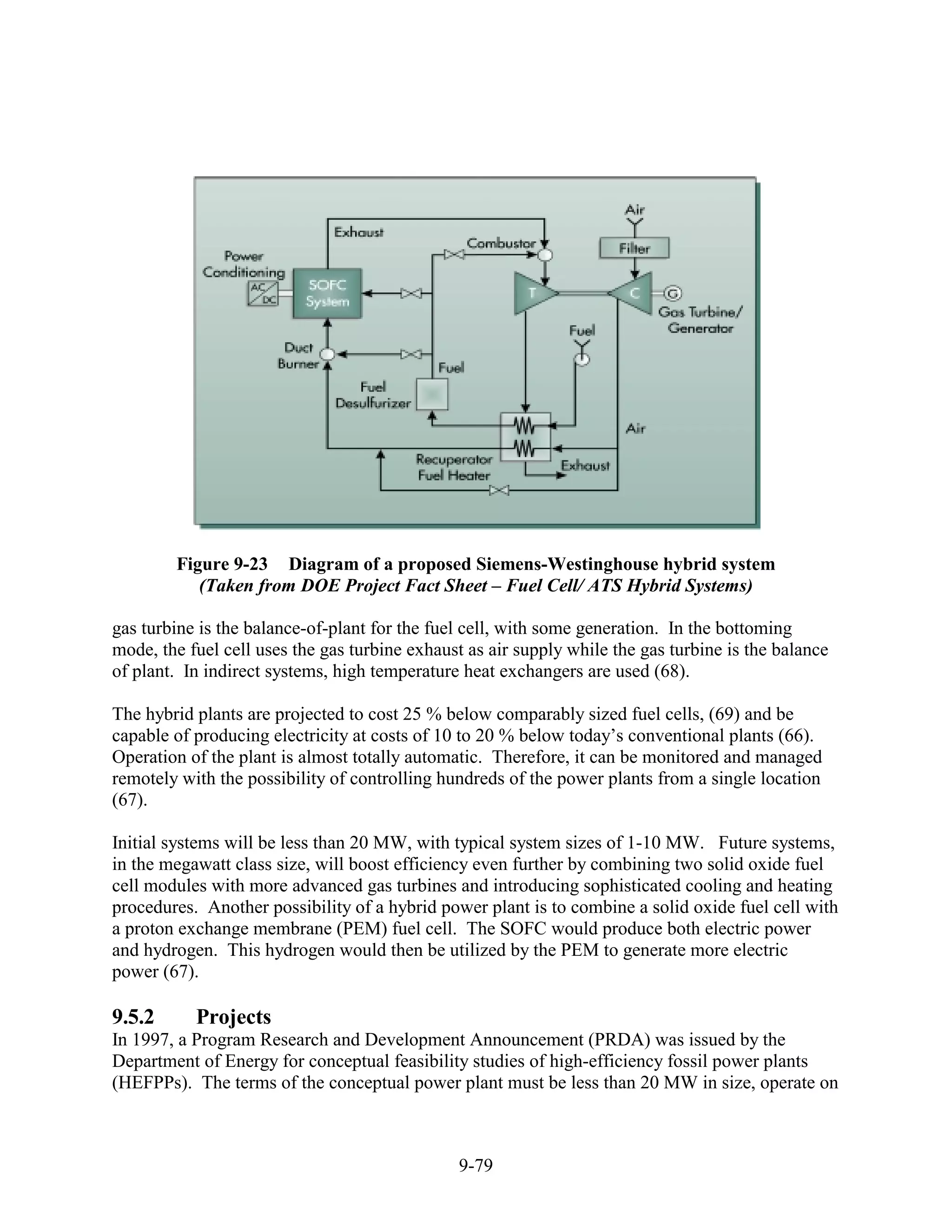

Figure 9-23 Diagram of a proposed Siemens-Westinghouse hybrid system
(Taken from DOE Project Fact Sheet – Fuel Cell/ ATS Hybrid Systems)

gas turbine is the balance-of-plant for the fuel cell, with some generation. In the bottoming
mode, the fuel cell uses the gas turbine exhaust as air supply while the gas turbine is the balance
of plant. In indirect systems, high temperature heat exchangers are used (68).

The hybrid plants are projected to cost 25 % below comparably sized fuel cells, (69) and be
capable of producing electricity at costs of 10 to 20 % below today’s conventional plants (66).
Operation of the plant is almost totally automatic. Therefore, it can be monitored and managed
remotely with the possibility of controlling hundreds of the power plants from a single location
(67).

Initial systems will be less than 20 MW, with typical system sizes of 1-10 MW. Future systems,
in the megawatt class size, will boost efficiency even further by combining two solid oxide fuel
cell modules with more advanced gas turbines and introducing sophisticated cooling and heating
procedures. Another possibility of a hybrid power plant is to combine a solid oxide fuel cell with
a proton exchange membrane (PEM) fuel cell. The SOFC would produce both electric power
and hydrogen. This hydrogen would then be utilized by the PEM to generate more electric
power (67).

9.5.2 Projects
In 1997, a Program Research and Development Announcement (PRDA) was issued by the
Department of Energy for conceptual feasibility studies of high-efficiency fossil power plants
(HEFPPs). The terms of the conceptual power plant must be less than 20 MW in size, operate on

9-79

natural gas and contain a high-temperature fuel cell. By late 1998, DOE awarded contracts to
determine the feasibility of the highly efficient hybrid power plants.

FCE, of Danbury, CT, teamed with Allison Engine Company to evaluate a carbonate fuel cell
combined with a gas turbine and a steam turbine generator. The system was operated at ambient
pressure. The net power of the hybrid system was 20.6 MW and the NOx levels were less than
1 ppm. The process showed a 65 % efficiency with off-the-shelf turbomachinery and 72 %
efficiency with cycle specific machinery. The COE is predicted to be comparable to present day
alternatives.

Siemens-Westinghouse Power Corporation, of Pittsburgh, PA, with a subcontract to Allison
Engine Company, evaluated a pressurized solid oxide fuel cell coupled with conventional gas
turbine technology without a steam plant. The system was operated at a pressure of 7 atm. The
fuel cell generated 16 MW of power and the gas turbine generated 4 MW of power. The process
showed 67 % efficiency as developed. An efficiency of 70 % is deemed achievable with
improvement in component design. The COE is predicted to be comparable to present day
alternatives. NOx levels were less than 1 ppm.

McDermott Technology, Inc., of Alliance, OH, developed a conceptual design of a high
efficiency power plant system that joins planar solid oxide fuel cell technology with micro-
turbine technology in a combined cycle. The system was operated at atmospheric conditions.
The power plant had a combined cycle output of 700 kW with the turbine supplying 70 kW. The
results indicate 70 % efficiency is possible and the COE is comparable to present day
alternatives.

Siemens-Westinghouse Power Corporation, Pittsburgh, PA, and Solar Turbines developed a
conceptual design of an economically and technically feasible 20-MW, 70-% efficient natural
gas-fueled power system that employs solid oxide fuel cells operating at elevated pressure in
conjunction with an Advanced Turbine System gas turbine. The fuel cell, operated at 9 atm
pressure, generated 11 MW of power. Two Solar Mercury 50 gas turbines were used to generate
9 MW of power. The results of the study indicated a system efficiency near 60 %. A low COE
relative to conventional power generation is predicted.

In March of 1999, FCE, of Danbury, CT, with Allison Engine Company, Indianapolis, IN, and
Capstone Turbine Corp., Woodland Hills, CA. was awarded a project under the Vision 21
program to create a fuel cell/turbine system that provides efficiencies and emissions targets that
meet or exceed stringent Vision 21 goals. The 3-year program will include four steps:
1. Development of a high-utilization fuel cell,
2. Development of key system components,
3. Tests of the fuel cell/hybrid system would be performed to assess integration and system
operation of an existing 250-kilowatt fuel cell stack with a commercially available micro-
turbine, and
4. Preparation of a conceptual design of a 40 MW ultra-high efficiency power plant.
A unique feature of the proposed system will allow the fuel cell and turbine modules to operate
at independent pressures. The fuel cell will be operated at ambient pressure. This can increase

9-80

the fuel cell stack life and save on piping and vessel costs. The turbine can then be operated at
its optimum pressure ratio.

Countries around the world are developing interest in the high-efficiency hybrid cycles. A 320
kW hybrid (SOFC and gas turbine) plant will enter service in Germany in 2001, operated by a
consortium under the leadership of RWE Energie AG. This will be followed in 2002 by the first
1 MW plant, which will be operated by Energie Baden-Wurttemberg AG (EnBW), Electricite de
France (EDF), Gaz de France, and Austria’s TIWAG (68).

Another project under development at the NETL is an advanced power plant system that
combines a multistaged fuel cell with an extremely efficient turbine. Preliminary estimates show
efficiencies greater than 80% (LHV). Studies showed that natural gas to electricity LHV
efficiencies could break through an 80% barrier, while remaining cost competitive for a 4-MW
solid oxide plant (tubular or plarnar). The Advanced Fuel Cell concept directly coincides with
the long-term goals of the 21st Century Fuel Cell Program. These include system costs of
$400/kW and efficiencies of 70-80 percent or more (LHV to AC electricity), with fuel flexibility
and a stack-life of 40,000 hours. They are intended for commercial application in 2015,
maintaining ultra-low emissions.

9.5.3 World’s First Hybrid Project
Siemens-Westinghouse Power Corporation of Pittsburgh, PA developed and fabricated the first
advanced power plant to combine a solid oxide fuel cell and a gas turbine. The microturbine
generator was manufactured by Northern Research and Engineering Corporation of Woburn,
Mass. The factory acceptance test was completed in April 2000. Southern California Edison
will operate the new hybrid plant at The National Fuel Cell Research Center at the University of
California-Irvine. A year of testing in a commercial setting will be performed at this site. The
system cycle is expected to generate electric power at 55 % efficiency.

The pressurized system will generate 220 kilowatts of power and be operated at 3 atm of
pressure. The fuel cell is made up of 1152 individual tubular ceramic cells and generates about
200 kilowatts of electricity. The microturbine generator will produce an additional 20 kilowatts
of electricity at full power. No sulfur dioxide pollutants will be released into the air. Nitrogen
oxide emissions are likely to be less than 1 ppm.

A 320-kilowatt hybrid system is also in the planning stages. An initial commercial offering of a
one MW fuel cell-microturbine power plant in late 2002 will be the end results of this
Department of Energy/Siemens Westinghouse partnership program (70).

9.5.4 Hybrid Electric Vehicles (HEV)
Hybrid Electric Vehicles (HEVs) typically combine the conventional internal combustion engine
of the automobile with an energy storage device, such as a battery. However, there are many
different arrangements for the HEV. The key components to an HEV are the energy storage
system (batteries, ultracapacitors, and flywheels), the power unit (spark ignition engines,
compression ignition direct injection engines, gas turbines and fuel cells) and the vehicle
propulsion system (electric motor). The benefits of HEVs, much like the hybrid power plants,
are increased efficiency and lower emissions.

9-81

Fuel cell hybrid cars are not a new concept. In the early 1970s, K. Kordesch modified a 1961
Austin A-40 two-door, four-passenger sedan to an air-hydrogen fuel cell/battery hybrid car (71).
This vehicle used a 6-kW alkaline fuel cell in conjunction with lead acid batteries, and operated
on hydrogen carried in compressed gas cylinders mounted on the roof. The car was operated on
public roads for three years and about 21,000 km.

In 1994 and 1995, H-Power (Belleville, New Jersey) headed a team that built three PAFC/battery
hybrid transit buses(72,73). These 9 meter (30 foot), 25 seat (with space for two wheel chairs)
buses used a 50 kW fuel cell and a 100 kW, 180 amp-hour nickel cadmium battery.

Recently, the major activity in transportation fuel cell development has focused on the PEFC. In
1993, Ballard Power Systems (Burnaby, British Columbia, Canada) demonstrated a 10 m (32
foot) light-duty transit bus with a 120 kW fuel cell system, followed by a 200 kW, 12 meter (40
foot) heavy-duty transit bus in 1995 (74). These buses use no traction batteries. They operate on
compressed hydrogen as the on-board fuel. In 1997, Ballard provided 205 kW (275 HP) PEFC
units for a small fleet of hydrogen-fueled, full-size transit buses for demonstrations in Chicago,
Illinois, and Vancouver, British Columbia. Working in collaboration with Ballard, Daimler-
Benz built a series of PEFC-powered vehicles, ranging from passenger cars to buses (75). The
first such vehicles were hydrogen-fueled. A methanol-fueled PEFC A-class car unveiled by
Daimler-Benz in 1997 has a 640 km (400 mile) range. Plans are to offer a commercial vehicle
by 2004. A hydrogen-fueled (metal hydride for hydrogen storage), fuel cell/battery hybrid
passenger car was built by Toyota in 1996, followed in 1997 by a methanol-fueled car built on
the same RAV4 platform (76).

Other major automobile manufacturers, including General Motors, Volkswagen, Volvo, Honda,
DaimlerChrysler, Nissan, and Ford, also have announced plans to build prototype polymer
electrolyte fuel cell vehicles operating on hydrogen, methanol, or gasoline (77). Honda’s FCX, a
fuel cell prototype sedan, includes both hydrogen- and methanol-based systems. Honda hopes to
have this car on the road by 2003. The GM Precept will use a hydrogen hydride storage system
to help it to attain a 108 miles per gallon gasoline equivalent (78).

The Department of Energy’s Transportation Fuel Cell program is a collaboration between
government and industry that supports the Partnership for a New Generation of Vehicles.
Domestic automakers, fuel cell developers, national labs, universities, component suppliers and
the fuel industry have created a Fuel Cell Alliance. This alliance helps in collaborating
government sponsored research and development within the auto industry. Some of the goals of
the program include developing fuel cell stack systems that are greater than 57 % efficient at 25
% peak power, more than 100 times cleaner than EPA Tier 2 emissions, and capable of operating
on hydrogen or hydrogen-rich fuel from gasoline, methanol, ethanol and natural gas. By 2004,
the program hopes to have fuel cell power systems that are reliable, safe and cost competitive
with internal combustion engines (79).

California has started a Fuel Cell Partnership with oil companies, automakers and fuel cell
companies. They hope to have 50 fuel cell vehicles, both passenger cars and transit buses, on the

9-82

road by 2003. The goals of the program include demonstrating vehicle performance, identifying
fuel infrastructure issues and addressing commercialization challenges (80).

DOD is interested in new or novel advanced power and propulsion systems that will reduce fuel
consumption, improve performance, extend vehicle range, reduce emissions, and reduce support
costs. The Navy and Army are considering hybrids for ships, land vehicles, helicopters, and
battlefield power requirements.

In 1997, the Office of Naval Research (ONR) initiated an advanced development program to
demonstrate a ship service fuel cell (SSFC) power generation module. During Phase 1,
competitive conceptual designs of 2.5 MW SSFC were prepared, along with critical component
demonstrations. Phase 2 of the development program, scheduled for completion in 2002, will
result in a nominal 500 kW fuel cell ship service generator demonstration module to be
constructed and tested in a laboratory setting. The baseline concept is fueled by logistic fuel
which is reformed in an adiabatic reformer designed and built by International Fuel Cells.
Downstream of the reformer is a series of components that remove CO and H2S before the gas is
sent to the fuel cell. The spent fuel and air are mixed and burned to drive a turbocompressor and
recover compression work.59

The Army has two programs that are looking at hybrids using fuel cells. In 1999, the Land
Warrior Operational Combat System was approved. The goal is to develop a portable hybrid
fuel cell system that weighs less than one kilogram and meets the power demand of the Land
Warrior Power requirements. The second program is the Future Combat System. This program
plans to develop technologies and systems for a lightweight, overwhelming lethal, strategically
deployable, self-sustaining combat systems.60

9.6 References
1. Impact of Catalysis on Clean Energy in Road Transportation," P.G. Gray and J.C. Frost
Johnson Matthey, Energy&Fuels, Vol. 12, No. 6, pp. 1121 - 1129, 1998.
2. Private communication with Argonne National Laboratory, Argonne IL, August 2000.
3. "Fuel Processing for Fuel Cell Power Systems," S. Ahmed, R. Kumar, and M. Krumpelt,
ANL, Fuel Cells Bulletin, Elsevier Scientific, Ltd., ISSN 1464-2859, No. 12, September
1999.
4. "Fuel Choices for Fuel Cell Powered Vehicles," J. Holmes, statement before Subcommittee
on Energy and Environment of the Committee on Science, U.S. House of Representatives, on
behalf of The American Petroleum Institute, Exxon Corporation, October 5, 1999.
5. Private communication with Forschungszentrum Jillich, Rilich, Germany, July 2000.
6. Private communication with Ceramatec, Salt Lake City, UT, April 2000.
7. Private communications with IFC, South Windsor, CT, September 2000.
8. "Program Overview," P. Devlin, DOE-OTT and R. Sutton, ANL, DOE Fuels for Fuel Cell
Program, 2000.
9. "Synthetic Fuels," Probstein and Hicks, McGraw-Hill Book Company, 1982.

59
R.M. Privette, et al., “2.5 MW PEM Fuel Cell System for Navy Ship Service Power,” paper presented at the 1999
Review Conference on Fuel Cell Technology, Chicago, Illinois, August 3-5, 1999.
60
J.C. Stephens, K. Gardner, and R. Jacobs, “US Army CECOM Fuel Cell Program,” presented at the World
Association for Case Method Research and Application, Lucerne, Switzerland, January 5-7, 2000.

9-83

10. "Portable Self-Sufficient 12 Volt PEFC Power Source with Integrated Chemical Hydrogen
Generator," U. Bossel, Pg. 742, Fuel Cell Seminar Abstracts, Courtesy Associates, Inc.,
November 1998.
11. "Fuel Processing Technology for Premium Power Fuel Cell Systems," J.C. Cross et al.,
Epyx/ADL, Pg. 749, Fuel Cell Seminar Abstracts, Courtesy Associates, Inc., November
1998.
12. "Fuel Processing for High Efficiency Fuel Cell Systems," J.R. Rostrup-Nielsen, L.J.
Christiansen, and K. Aasberg-Petersen, Haldor Topsoe A/S, Grove III Fuel Cell Symposium,
September 1993.
13. "Compact Fuel Processor for Fuel Cell-Powered Vehicles," T.J. Flynn, R. Privette et al.,
McDermott Technology, Inc. and Catalytical Advanced Technologies, Paper 1999-01-0536,
Society of Automotive Engineers, Inc., 1999.
14. "Steam pre-reforming of propane to a methane-rich fuel for internal reforming in solid oxide
fuel cells," K. Ahmed and K. 176ger, Ceramic Fuel Cells Ltd., 4th EUROSOFC,
Luceme/Switzerland July 2000
15. "Gasoline to Hydrogen - A New Route for Fuel Cells," ANL, Electric & Hybrid Vehicle
Technology of'97,1997.
16. Private communication with Johnson Matthey Technology Centre, Reading, England,
February 2000. 17. "Catalytic Partial Oxidation Reforming of Hydrocarbon Fuels," S.
Ahmed, et al., ANL, Pg. 242, Fuel Cell Seminar Abstracts, Courtesy Associates, Inc.,
November 1998.
18. Chemical Process Industries, fourth edition, R. Shreve and J. Brink, McGraw-Hill, 1977.
19. "General Progress in the Research of Solid Polymer, Fuel Cell Technology at Ballard," D.
Wilkinson, and A. Steck, 1997 Proceedings of the Second International Symposium on New
Materials for Fuel Cells and Modem Battery Systems, Montreal, Quebec Canada, July 1997.
20. Coal Gasification Systems: A Guide to Status, Applications and Economics, prepared by
Synthetic Fuels Associates, Inc., EPRI AP-3109, Project 2207, Final Report; June 1983.
21. Coal Gasification Guidebook: Status, Applications and Technologies, EPRI TR- 102034,
December 1993.
22. "Fuel Cell Handbook," J. Appleby and F. Foulkes, Texas A&M University, Van Nostrand
Reinhold, New York (out of print), republished by Krieger Publishing Co., Melbome, FL,
1989.
23. "Removal of CO from Reformate for PEFC Application," S. Lee, R. Kumar, M. Krumpelt,
ANL, Pg. 578, Fuel Cell Seminar Abstracts, Courtesy Associates, Inc., November 1998.
24. "Development of an Integrated Reformer/Fuel Cell Power System for Petroleum and
Alcohol-Fueled Vehicles, Part I - Brassboard Demonstration," W. Mitchell, Epyx, Pg. 230,
Fuel Cell Seminar Abstracts, Courtesy Associates, Inc., November 1998.
25. "Preliminary Assessment of Planar Solid Oxide Fuel Cells for Transportation Power
Applications," J. Hirschenhofer and J. White, Parsons Corporation, for ANUDOE, to be
published, October 2000.
26. Personal communication with Ceramic Fuel Cells Ltd., August 2000.
27. "High-performance, reduced-temperature SOFC technology," N. Q. Minh, et al., Honeywell,
Fuel Cell Bulletin, March 1999.
28. "Fuel Processing and Electrodes for Low-Temperature Fuel Cell Systems," J.C. Frost,
Johnson- Matthey Technology Centre, Reading, England, European Fuel Cell News, April
1999.

9-84

29. "Advances in Fuel Processing for PEFC Systems for Transport," R. Dams, P. Hayter, and S.
Moore, Wellman CJB Ltd., Pg. 238, Fuel Cell Seminar Abstracts, Courtesy Associates, Inc.,
November 1998.
30. "Catalytic Reforming of Gasoline and Diesel Fuel," C. Pereira, R. Wilkenhoener, S. Ahmed,
and M. Krumpelt, ANL, AlChE Spring 2000 Meeting, March 2000.
31. " Fuel-Flexible Fuel Processor," J. Cuzens, J. Mauzey, and R. Woods, Hydrogen Burner
Technology, Pg. 234 Fuel Cell Seminar Abstracts, Courtesy Associates, Inc., November
1998.
32. R. Shreve and J. Brink, Chemical Process Industries, fourth edition, McGraw-Hill, 1977.
33. Coal Gasification Systems: A Guide to Status, Applications and Economics, prepared by
Synthetic Fuels Associates, Inc., EPRI AP-3109, Project 2207, Final Report, June 1983.
34. Coal Gasification Guidebook: Status, Applications and Technologies, EPRI TR-102034,
December 1993.
35. W.L. Lundberg, "Solid Oxide Fuel Cell Cogeneration System Conceptual Design," prepared
by Westinghouse for Gas Research Institute, Report No. GRI-89-0162, July 1989.
36. PC-25 Capability, Communication with ONSI Corporation, September 1998.
37. James M. Douglas, Conceptual Design of Chemical Processes, McGraw-Hill, Inc., New
York, NY, 1988.
38. Max S. Peters, and Klaus D. Timmerhaus, Plant Design and Economics for Chemical
Engineers, 3rd Edition, McGraw-Hill, Inc., New York, NY, 1980.
39. Warren L. McCabe, Julian C. Smith, Peter Harriot, Unit Operations of Chemical
Engineering, 4th Edition, 1985.
40. M.C. Williams, and T.J. George, "Research Issues in Molten Carbonate Fuel Cells:
Pressurization," presented at the 1992 IECEC, Vol. 3, pp. 263-267.
41. "Overview of 11 MW Fuel Cell Power Plant," non-published information from Tokyo Electric
Power Company, September 1989.
42. T. Koshimizu, et al., "Development of 5000 kW and 1000 kW PAFC Plants," presented at the
JASME-ASME Joint Conference (ICOPE-93), Tokyo, September 1993.
43. T. Okado, et al., "Study of Temperature Control in Indirect Internal Reforming MCFC Stack,"
presented at 25th IECEC, pp. 207-212, 1990.
44. N.Q. Minh, "High-Temperature Fuel Cells, Part 2: The Solid Oxide Cell," Chemtech, Vol. 21,
February 1991.
45. V. Minkov, et al., "Topping Cycle Fuel Cells Effective Combined with Turbines," Power
Engineering, July 1988, pp. 35-39. "Design and Economics of Large Fuel Cell Power Plants,"
presented at 1986 Fuel Cell Seminar, Tucson, AZ, p 255.
46. F.G. Baily, "Steam Turbines for Advanced Combined Cycles," presented at the 35th GE
Turbine State-of-the-Art Technology Seminar, 1991.
47. M.S. Peters, and K.D. Timmerhaus, Plant Design and Economics for Chemical Engineers,
Third Edition, McGraw-Hill, 1980.
48. M. Farooque, "Development of Internal Reforming Carbonate Fuel Cell Stack Technology,"
Performed under Contract No. DE-AC21-87MC23274, DOE/MC/23374-2941, October 1990.
49. M. Farooque, et al., "Comparative Assessment of Coal-Fueled Carbonate Fuel Cell and
Competing Technologies," presented at the 25th IECEC, Vol. 3, pp.193-200, 1990.
50. Dawn M. Bernardi, "Water-Balance Calculations for Solid-Polymer-Electrolyte Fuel Cells,"
Journal of Electrochemical Society, Vol. 137, No. 11, November 1990.

9-85

51. David P. Wilkinson, (Ballard Power Systems) and David Thompsett (Johnson Matthey
Technology Centre), "Materials and Approaches for CO and CO2 Tolerance for Polymer
Electrolyte Membrane Fuel Cells," presented at the 1997 Proceedings of the Second
International Symposium on New Materials for Fuel Cells and Modern Battery Systems,
Montreal, Quebec, Canada, July 6-10, 1997.
52. David P. Wilkinson, and Alfred E. Steck, "General Progress in the Research of Solic
Polymer Fuel Cell Technology at Ballard," presented at the 1997 Proceedings of the Second
International Symposium on New Materials for Fuel Cells and Modern Battery Systems,
Montreal, Quebec Canada, July 6-10, 1997.
53. Thomas L. Buchanan, John H. Hirschenhofer, David B. Stauffer, and Jay S. White, "Carbon
Dioxide Capture in Fuel Cell Power Systems," September 1994, G/C Report 2981.
54. "Overview of 11 MW Fuel Cell Power Plant," Non-published information from Tokyo
Electric Power Company, September 1989.
55. F. P. Bevc, W. L. Lundberg and D. M. Bachovchin, "Solid Oxide Fuel Cell Combined
Cycles," ASME Paper 96-GT-447, presented at International Gas Turbine and Aeroengine
Congress & Exhibition, Birmingham, UK, June 1996.
56. R. Hendricks, "Heron Turbine Prototype Test Results," 20th International Congress on
Combustion Engines, International Council on Combustion Engines (CIMAC), London,
1993.
57. T.J. George, K.D Lyons, and R. James III, "Multistaged Oxide Fuel Cell Power Plant
Concept," May 1998.
58. Fax Transmittal from J. Hirschenhofer of Parsons Energy & Chemicals Group to Tom
George of USDOE/FETC, dated August 26, 1998, Re: Aspen Analysis Results of the
Multistaged SOFC Concept.
59. Parsons Energy & Chemical, work for the U.S. DOE, Spring 1998.
60. Appleby, A.J.; Foulkes F.R. Fuel Cell Handbook; Van Nostrand Reinhold: New York,
1989.
61. Liebhafsky, H.A.; Cairns, E.J. Fuel Cells and Fuel Batteries; John Wiley & Sons: New
York, 1968.
62. Shah V.B. ASPEN Models for Solid Oxide Fuel Cell, Molten Carbonate Fuel Cell and
Phosphoric Acid Fuel Cell; Prepared by EG&G Washington Analytical Services Center
for the Morgantown Energy Technology Center under Contract No. DE-AC21-
85MC21353, 1988.
64. Walhood, D.G.; Ferguson J.R. The Optimum Voltage-Current Operation of Single and
Series Connected FuelCells; In Proceedings of the International Symposium of the
European Communities: Luxembourg, 1992, 2d. ed., pp 289-296.
65. Wimer, J.G.; Williams, M.C.; Archer, D.H.; Osterle, J.F. Networking Electrochemical
Membrane Separation Devices:
66. Theory and Application; Paper presented at the 1992 AIChE Annual Meeting: Miami
Beach, FL, 1-6 November, 1992.
67. “Developing Power Systems for the 21st Century – Fuel Cell/ATS Hybrid Systems,” U.S.
Dept. of Energy, National Energy Technology Center & Office of Industrial
Technologies, Project facts for Advanced Clean/ Efficient Power Systems, PS031.1099.
68. U. Eberl, “Fuel Cells and Gas Turbines: A Marriage of Efficiency,” Research and
Innovation, January 2000.

9-86

69. R. Gemmen, et al, “Technical Development Issues and Dynamic Modeling of Gas Turbine
and Fuel Cell Hybrid Systems,” Proceedings of the 1999 Review Conference on Fuel Cell
Technology, August 1999.
70. “Fuel Cells- Opening New Frontiers in Power Generation,” U.S. Department of Energy,
Office of Fossil Energy, National Energy Technology Center, November 1999.
71. DOE Techline Press Release, “Department of Energy Announces World’s First “Hybrid”
Fuel Cell-Turbine,” April 2000.
72. “Auto Show Attendees get a Glimpse of Future Concept Cars,” Alternative Fuel News,
Vol.4 No.1, US Department of Energy, Office of Energy Efficiency and Renewable
Energy.
73. K.V. Kordesh, “City Car with H2-Air Fuel Cell and Lead Battery,” 6th Intersociety Energy
Conversion Engineering Conference, SAE Paper No. 719015, 1971.
74. A. Kaufman, “Phosphoric Acid Fuel Cell Bus Development,” Proceedings of the Annual
Automotive Technology Development Contractors’ Coordination Meeting, Dearborn, MI,
October 1994, SAE Proceedings Volume P-289, pp. 289-293, 1995.
75. R.R. Wimmer, “Fuel Cell Transit Bus Testing & Development at Georgetown University,”
Proceedings of the Thirty Second Intersociety Energy Conversion Engineering
Conference, July 1997, Honolulu, HI, pp. 825-830.
76. N.C. Otto, P.F. Howard, “Transportation Engine Commercialization at Ballard Power
Systems,” Program and Abstracts 1996 Fuel Cell Seminar, November 1996, Orlando, FL,
pp.559-562.
77. F. Panik, “Fuel Cells for Vehicle Applications in Cars – Bringing the Future Closer,” J.
Power Sources, 71, pp.36-38, 1998.
78. S. Kawatsu, “Advanced PEFC Development for Fuel Cell Powered Vehicles,” J. Power
Sources, 71, pp. 150-155, 1998.
79. Fuel Cell Technology: Powering the Future, Electric Line, November/December 1996.
80. J. Milliken, “The DOE Transportation Fuel Cell Program: Recent Accomplishments and
Future Plans,” U.S. Dept. of Energy, Office of Transportation Technologies. “Questions and
Answers – California Fuel Cell Partnership,” www.drivingthefuture.org.

9-87

10. SAMPLE CALCULATIONS

This section presents sample calculations to aid the reader in understanding the calculations behind
the development of a fuel cell power system. The sample calculations are arranged topically with
unit operations in Section 10.1, system issues in Section 10.2, supporting calculations in Section
10.3, and cost calculations in Section 10.4. A list of conversion factors common to fuel cell
systems analysis is presented in Section 10.5 ans a sample automotive design calculation is
presented in Section 10.6.

10.1 Unit Operations
The following examples are presented for individual unit operations found within a fuel cell
system. Unit operations are the individual building blocks found within a complex chemical
system. By analyzing example problems for the unit operation, one can learn about the underlying
scientific principles and engineering calculation methods that can be applied to various systems.
This approach will provide the reader with a better understanding of these fuel cell power system
building blocks as well as the interactions between the unit operations. For example, the desired
power output from the fuel cell unit operation will determine the fuel flow requirement of the fuel
processor.

This section starts by examining the fuel cell unit operation, and continues on to the fuel processors
and power conditioners. Other more common unit operations, such as pumps and heat exchangers,
will be left to the reader to investigate with the help of standard engineering handbooks.

10.1.1 Fuel Cell Calculations
Example 10-1 Fuel Flow Rate for 1 Ampere of Current (Conversion Factor Derivation)
What hydrogen flow rate is required to generate 1.0 ampere of current in a fuel cell? (This
exercise will generate a very useful conversion factor for subsequent calculations.)

Solution:
For every molecule of hydrogen (H2) that reacts within a fuel cell, two electrons are liberated at
the fuel cell anode. This is most easily seen in the PAFC and PEFC because of the simplicity of
the anode (fuel) reaction, although the rule of two electrons per diatomic hydrogen molecule (H2)
holds true for all fuel cell types. The solution also requires knowledge of the definition of an
ampere (A) and an equivalence of electrons.61

61
One equivalence of electrons is 1 g mol of electrons or 6.022 x1023 electrons (Avagadro’s number). This
quantity of electrons has the charge of 96,487 coulombs (C) (Faraday’s constant). Thus, the charge of a single

10-1

H2 2H+ + 2e- (PAFC & PEFC anode reaction)

1 coulomb / sec 1 equivalence of e - 1 g mol H 2 3600 sec g mol
n H2 1.0 A 0.018655 H 2 per 1.0 A
1A 96,487 coulombs 2 equiv. of e - 1 hr hr

g mol 2.0158 g 1 kg kg H 2 kg H 2
m H2 0.018655 H 2 per A 37.605x10 -6 or 0.037605
hr 1 g mol H 2 1000 g A kA

The result of this calculation, 0.037605 kg H2 per kA (0.08291 lb H2 per kA), is a convenient
factor that is often utilized in determining how much fuel must be consumed to supply a desired
fuel cell power output as illustrated below.

Example 10-2 Required Fuel Flow Rate for 1 MW Fuel Cell

A 1.0 MWDC fuel cell stack is operated with a cell voltage of 700 mV on pure hydrogen with a
fuel utilization, Uf of 80%. (a) How much hydrogen will be consumed in lb/hr? (b) What is the
required fuel flow rate? (c) What is the required air flow rate for a 25% oxidant utilization, Uox?

Solution:
(a) We shall simplify the solution of this problem by artificially assuming that the individual fuel
cells are arranged in parallel. That is, the fuel cell module voltage is the same as the cell
voltage, and the fuel cell module current is equal to the current of an individual fuel cell
times the number of fuel cells.

Recalling that power is the product of the voltage and current,

Power (P) = I x V

Therefore, the current through the fuel cells can be calculated as

P 1.0 MW 10 6 W 1 VA 1 kA
I= = 1429 kA
V 0.7 V 1 MW 1W 1000 A

The quantity of hydrogen consumed within the fuel cell is

electron is 1.602 x10-19 C. One (1) ampere of current is defined as 1 C/sec.

10-2

0.08291 lb H 2 lb H 2
m H 2 ,consumed = 1429 kA = 118.4
kA hr

Note that had we skipped the simplifying assumption that the fuel cells were arranged in parallel,
we would have calculated the same hydrogen mass flow answer with a few extra steps. For
example, if the fuel cell stacks were composed of 500 cells, then the stack voltage would have
been 350 volts [(500 cells)(0.7 v/cell)], and the stack current would have been 2.858 kA [1429
kA / 500 cells]. Because this stack current passes through the 500 cells arranged in series, the
hydrogen consumption is calculated as:

0.08291 lb H 2 lb H 2
m H 2 ,consumed = 2.858 kA 500 cells = 118.4
kA hr

Thus, the reader may find it more expedient and less error prone to make the parallel
arrangement assumption when determining the mass flow requirement of hydrogen, in spite of
the actual arrangement.

(b) Per equation 8-14, the utilization of fuel in a PAFC is defined as

H 2, consumed
Uf =
H 2,in

Therefore the required fuel flow rate can be calculated as

lb H 2
H 2, consumed 118.4 h lb H 2
H 2, in = = 148.0 h
Uf 80 %

10-3

62
(c) To determine the air supply requirement, we first observe that the stoichiometric ratio of
hydrogen to oxygen is 2 to 1 for H2O. Thus, the moles of oxygen required for the fuel cell
reaction are determined by

lb H 2 1 lb mol H 2 1 lb mol O 2 lb mol O 2
n O 2 , consumed 118.4 29.38
h 2.0158 lb H 2 2 lb mol H 2 h

If a 25% utilization is required, then the air feed must contain four times the oxygen that is
consumed,

lb mol O 2 consumed 1 lb mol O 2 supplied lb mol O 2
n O 2 , supplied 29.38 118.5
h 0.25 lb mol O 2 consumed h

Because dry air contains 21% O2 by volume, or by mole percent, the required mass flow rate of
dry air is,

lb mol O 2 supplied 1 lb mol air 29.0 lb dry air lb dry air
m air, supplied 118.5 16,400
h 0.21 lb mol O 2 1 lb mol of air h

Example 10-3 PAFC Effluent Composition

A PAFC, operating on reformed natural gas (900 lb/hr) and air, has a fuel and oxidant utilization
of 86% and 70% respectively. With the fuel and oxidant composition and molecular weights
listed below, (a) How much hydrogen will be consumed in lb mol/hr? (b) How much oxygen is
consumed in lb mol/hr? (c) What is the required air flow rate in lb mol/hr and lb/hr? (d) How
much water is generated? (e) What is the composition of the effluent (spent) fuel and air streams
in mol %?

62
The stoichiometric ratio is the ratio of atoms in a given molecule.

10-4

Fuel Data mol % Air Data mol %, dry mol %, wet
CH4 4.0
CO 0.4 H2O 0.00 1.00
CO2 17.6 N2 79.00 78.21
H2 75.0 O2 21.00 20.79
H2O 3.0 Total 100.00 100.00
Total 100.0
MW 10.55 MW 28.85 28.74

Solution:
(a) Before determining the lb mol/hr of hydrogen, we will first determine the molar fuel flow.

lb fuel 1 lb mol fuel lb mol fuel
n fuel, supplied 900 85.29 ; thus
h 10.55 lb fuel h

lb mol fuel 75 lb mol H 2 86 lb mol H 2 consumed lb mol H 2
n H 2 consumed 85.29 55.01
h 100 lb mol fuel 100 lb mol H 2 supplied h

(b) To determine how much oxygen is consumed, it is useful to note the overall fuel cell reaction

H2 (g) + ½ O2 (g) H2O (g), therefore,

lb mol H 2 ½ lb mol O 2 lb mol O 2
n O 2 , consumed 55.01 27.51
h 1 lb mol H 2 h

(c) The required air flow will be determined on a wet air basis, thus

lb mol O 2 100 lb mol O 2 supplied 100 lb mol wet air lb mol wet air
n air, required 27.51 189.01
h 70 lb mol O 2 consumed 20.79 lb mol O 2 h

lb mol wet air 28.74 lb wet air lb wet air
m air, required 189.01 5,433
h 1 lb mol wet air h

10-5

(d) Per the overall fuel cell reaction above, the water generated is equal to the moles of hydrogen
consumed,

lb mol H 2
n H 2O generated n H 2 consumed 55.01
h

(e) The composition of the fuel is developed in the table below, by working from the left to
right. The composition is determined by converting the composition to moles, accounting for
the fuel cell reaction, and converting back to the desired units, mol %. (Note: mol % is
essentially equivalent to volume % for low pressure gases.)

Spent Fuel Effluent Calculation
mol % lb mol/hr mol %
Gas FC inlet FC inlet FC reaction FC outlet FC outlet
CH4 4.0 3.41 3.41 11.27
CO 0.4 0.34 0.34 1.13
CO2 17.6 15.01 15.01 49.58
H2 75.0 63.97 -55.01 8.96 29.58
H2O 3.0 2.56 2.56 8.45
Total 100.0 85.29 -55.01 30.28 100.00

In the PAFC, only the moles of hydrogen change on the anode (fuel) side of the fuel cell. The
other fuel gas constituents simply pass through to the anode exit. These inert gases act to dilute
the hydrogen, and as such will lower the cell voltage. Thus, it is always desirable to minimize
these diluents as much as possible. For example, to reform natural gas, significant quantities of
steam are typically added to maximize the reforming reactions. The wet reformer effluent would
commonly have a water composition of 30 to 50%. The reformate gas utilized in this example
has been “dried” to only 3% moisture via condensation in a contact cooler.

The spent oxidant composition is calculated in a similar manner. We note that in both the PAFC
and PEFC the water is generated on the cathode (air) side. This can be seen from the cathode
reaction listed below and the following table listing the fuel cell reaction quantities.

½O2 + 2H+ + 2e- H2O (PAFC & PEFC cathode reaction)

10-6

Spent Air Effluent Calculation
H2O 1.00 1.89 55.01 56.90 26.28
N2 78.21 147.82 147.82 58.27
O2 20.79 39.30 -27.51 11.79 5.44
Total 100.00 189.01 27.51 216.51 100.00

Example 10-4 MCFC Effluent Composition - Ignoring the Water Gas Shift Reaction

An MCFC operating on 1000 lb/hr of fuel gas and a 70% air/30% CO2 oxidant has a fuel and
oxidant utilization of 75% and 50% respectively. With the fuel and oxidant composition and
molecular weights listed below, (a) How much hydrogen will be consumed in lb mol/hr? (b)
How much oxygen is consumed in lb mol/hr? (c) What are the required air and oxidant flow
rates in lb mol/hr? (d) How much CO2 is transferred from the cathode to the anode? (e) What is
the composition of the effluent (spent) fuel and oxidant streams in mol % (ignoring the water gas
shift equilibrium)?

Fuel Data mol % Air Air + CO2
CH4 0.0 Oxidant Data mol %, wet mol %, wet
CO 0.0 CO2 0.00 30.00
CO2 20.0 H2O 1.00 0.70
H2 80.0 N2 78.21 54.75
H2O 0.0 O2 20.79 14.55
Total 100.0 Total 100.00 100.00
MW 10.42 MW 28.74 33.32

Solution:
(a) Before determining the lb mol/hr of hydrogen, we will first determine the molar fuel flow.

lb fuel 1 lb mol fuel lb mol fuel
n fuel, supplied 1000 96.02 ; thus
h 10.42 lb fuel h

lb mol fuel 80 lb mol H 2 75 lb mol H 2 consumed lb mol H 2
n H 2 consumed 96.02 57.61
h 100 lb mol fuel 100 lb mol H 2 supplied h

10-7

(b) To determine how much oxygen is consumed, it is useful to note the overall fuel cell
reaction,

H2 (g) + ½ O2 (g) H2O (g); therefore,

lb mol H 2 ½ lb mol O 2 lb mol O 2
n O 2 , consumed 57.61 28.81
h 1 lb mol H 2 h

(c) The required air flow will be determined on a wet air basis; thus

lb mol O 2 100 lb mol O 2 supplied 100 lb mol wet air lb mol wet air
n air, required 28.81 277.11
h 50 lb mol O 2 consumed 20.79 lb mol O 2 h

The oxidant flow rate will be calculated knowing that air is 70% of the total oxidant flow.

lb mol wet air 100 lb mol oxidant lb mol oxidant
n oxidant, required 277.11 395.86
h 70 lb mol wet air h

(d) Per the overall fuel cell reaction presented below, the quantity of CO2 transferred from the
cathode to the anode side of the fuel cell equals the moles of hydrogen consumed,

1
H 2, anode 2 O 2, cathode CO 2, cathode H 2 O , anode CO 2, anode ; therefore

lb mol H 2
n CO2 transferred n H 2 consumed 57.61
h

(e) The composition of the fuel effluent is developed in the table below, by working from the left
to right. The composition is determined by converting the composition to moles, accounting
for the fuel cell reaction, and converting back to the desired units, mol %.

10-8

CH4 0.0 0.00 0.00 0.00
CO 0.0 0.00 0.00 0.00
CO2 20.0 19.20 57.61 76.82 50.00
H2 80.0 76.82 -57.61 19.20 12.50
H2O 0.0 0.00 57.61 57.61 37.50
Total 100.0 96.02 -57.61 153.63 100.00

The spent oxidant composition is calculated in a similar manner. We note that in the MCFC,
both oxygen and carbon dioxide are consumed on the cathode (air) side. This can be seen from
the cathode reaction listed below and the following table listing the fuel cell reaction quantities.

½O2 + CO2 + 2e- CO3= (MCFC cathode reaction)

Spent Oxidant Effluent Calculation

CO2 30.00 83.13 -57.61 25.52 13.38
H2O 0.70 1.94 1.94 1.02
N2 54.70 151.71 151.71 79.56
O2 14.6 40.33 -28.81 11.52 6.04
Total 100.00 277.11 -86.42 190.69 100.00

Example 10-5 MCFC Effluent Composition - Accounting for the Water Gas Shift Reaction

For the above example, determine the composition of the effluent (spent) fuel stream in mol %
including the effect of the water gas shift equilibrium. Assume an effluent temperature of
1200ºF.

Solution:
The solution to this problem picks up where we left off in Example 10-4 above. For
convenience, the water gas shift reaction is presented below:

CO + H2O CO2 + H2

The double headed arrow is used in the field of chemistry to indicate that a reaction is an
equilibrium reaction. That is, the reaction does not proceed completely to the left or to the right.

10-9

Instead, the reaction proceeds to an equilibrium point, where both “products” and “reactants”
remain. The equilibrium composition is dependent upon both the initial composition and final
temperature. Fortunately, the equilibrium concentrations can be determined by a temperature
dependent equilibrium constant, K, and the following equation.

CO 2 H 2
K=
CO H 2 O

At 1200ºF, the equilibrium constant is 1.96763. A check of the compositions from the preceding
example shows that those concentration levels are not in equilibrium.

CO 2 H 2 0.50 0.125
1.967
CO H 2 O 0.0 0.375

Because the numerator contains the products of the reaction and the denominator contains the
reactants, it is clear that the reaction needs to proceed more towards the reactants. We shall
equilibrate this equation, by introducing a variable x, to represent the extent of the reaction to
proceed to the right and rewriting the equilibrium equation as:

CO 2 H 2 0.50 + x 0.125 + x
K= 1.967
CO H 2 O 0.0 - x 0.375 - x

This can be solved by trial and error or algebraically. First, we’ll demonstrate the trial and error
solution, by guessing that x is -0.1. That is, the reaction should “move” to the left as written
(more CO and H2O). This yields the following:

CO 2 H 2 0.50 + -0.1 0.125 + -0.1 0.40 0.025
K= 0.210
CO H 2 O 0.0 - -0.1 0.375 - -0.1 01 0.475
.

63
Equilibrium constants can be calculated from fundamental chemical data such as Gibbs free energy, or can be
determined from temperature dependent tables or charts for common reactions. One such table has been
published by Girdler Catalysts (1). The following algorithm fits this temperature dependent data to within 5%
for 800 to 1800ºF, or within 1% for 1000 to 1450ºF: Kp= e(4,276/T -3.961). Kp(1200ºF or 922K) equals 1.967.

10-10

The value of x of -0.1 was in the right direction, but apparently too large. We shall now guess x
is -0.05.

CO 2 H 2 0.50 + -0.05 0.125 + -0.05 0.45 0.075
K= 1588
.
CO H 2 O 0.0 - -0.05 0.375 - -0.05 0.05 0.425

We could continue this simple trial and error procedure until we guessed that x is -0.0445, which
yields:

CO 2 H 2 0.50 + -0.0445 0.125 + -0.0445 0.4555 0.0805
K= 1.964
CO H 2 O 0.0 - -0.0445 0.375 - -0.0445 0.0445 0.4195

These concentrations are now in equilibrium. The following table summarizes the effect of
accounting for the water gas shift equilibrium.

mol % lb mol/hr, assuming 100 lb mol/hr basis mol %
FC outlet FC outlet effect of FC outlet in FC outlet in
Gas w/o shift. w/o shift shift rxn shift equil. shift equil.
CO 0.00 0.00 4.45 4.45 4.45
CO2 50.00 50.00 -4.45 45.55 45.55
H2 12.50 12.50 -4.45 8.05 8.05
H2O 37.50 37.50 4.45 41.95 41.95
Total 100.0 100.00 0.00 100.00 100.00

Alternately, one could have solved this problem algebraically as follows:

CO 2 x H2 x
K= , can be written as
CO - x H 2 O - x

K CO - x H 2 O - x = CO 2 x H2 x , which can be expanded as

10-11

K x 2 - CO H 2O x CO H 2 O = x 2 CO 2 H2 x CO 2 H2 , which can be combined to

(1 - K) x 2 + CO 2 H2 K CO H2O x + CO 2 H2 CO H 2 O K = 0
a b c

This is in the standard quadratic form of:

ax2 + bx + c= 0

which can be solved by the quadratic formula:

b b2 4ac
x
2a

Substituting the appropriate values for K and the concentrations yields two roots of -0.0445 and
1.454. We throw out the larger root because it is a nonsensical root. This larger root “wants to”
react more CO and H2O than are initially present. When using the quadratic formula, the user
will throw out all roots greater than 1 or less than -1. The remaining root of -0.0445 is precisely
what was developed by our previous trial and error exercise.

Example 10-6 SOFC Effluent Composition - Accounting for Shift and Reforming
Reactions

An SOFC is operating on 100 % methane (CH4) and a fuel utilization of 85%. (a) What is the
composition of the effluent (spent) fuel in mol %? Assume that the methane is completely
reformed within the fuel cell, and the moisture required for reforming is supplied by internal
recirculation.

Solution:
(a) There are many different ways to approach this problem, some of which may seem rather
complex because of the simultaneous reactions (fuel cell, reforming and water gas shift
reactions) and the recycle stream supplying moisture required for the reforming reaction. We
shall simplify the solution to this problem by focusing on the fuel cell exit condition.
Because we have drawn the box of interest at a point after the recycle, this will allow us to
ignore the recycle stream and to deal with the reactions in steps and not simultaneously.

10-12

First, we shall write the relevant reactions:

Recycle

Fuel Feed Point of Interest
SOFC

CH4 + 2H2O 4H2 + CO2 (Steam Reforming Reaction)

H2, anode + ½O2, cathode H2O, anode (Fuel Cell Reaction)

CO + H2O CO2 + H2 (Water Gas Shift Reaction)

Next we shall combine the reforming reaction and the fuel cell reaction into an overall reaction
for that portion of the fuel that is utilized within the fuel cell (i.e., 85% ). The combined reaction
is developed by adding the steam reforming reaction to 4 times the fuel cell reaction. The factor
of four allows the hydrogen molecules to drop out of the resulting equation because it is fully
utilized.

CH4, anode + 2H2O, anode 4H2, anode + CO2, anode (Steam Reforming Reaction)
4H2, anode + 2O2, cathode 4H2O, anode (Fuel Cell Reaction)
CH4, anode + 2O2, cathode 2H2O, anode + CO2, (Combined Reforming and FC
anode Reactions)

For the 15% of the fuel that is not utilized in the cell reaction we shall simply employ the
reforming reaction. To the resulting gas composition, we will then impose the water gas shift
equilibrium.

For ease of calculation, we shall assume a 100 lb/hr basis for the methane.

lb CH 4 1 lb mol CH 4 lb mol CH 4
n fuel, supplied 100 6.23 ,
h 16.043 lb CH 4 h

Thus, 85%, or 5.30 lb mol CH4 /h, will be reformed and consumed by the fuel cell. The
remainder will be reformed but not consumed by the fuel cell reaction. We will summarize these
changes in the following table.

10-13


Gas FC inlet FC inlet Ref / FC rxn Reforming FC outlet FC outlet
CH4 100.0 6.23 -5.30 -0.93 0.00 0.00
CO 0.0 0.00 0.00 0.00 0.00 0.00
CO2 0.0 0.00 5.30 0.93 6.23 33.33
H2 0.0 0.00 0.00 3.74 3.74 20.00
H2O 0.0 0.00 10.60 -1.87 8.73 46.67
Total 100.0 6.23 10.60 1.87 18.70 100.00

Now, we have created an artificial solution that reflects only two out of three reactions. We shall
now apply the water gas shift reaction to determine the true exit composition. We shall apply the
quadratic equation listed in Example 10-5 to determine how far the reaction will proceed, where
x is the extent of the reaction in the forward direction as written.

x
CO + H 2 O CO 2 + H 2

b b2 4ac
x
2a

a = (1- K) = (1- 0.574) = 0.426

b CO 2 H2 K CO H 2O 0.3333 + 0.2000 + 0.574 * (0.00 + 0.4667) = .8012

c CO2 H2 CO H 2 O K = (0.3333)(0.20) - (0.00)(0.4667)(0.574) = 0.0666

b b2 4ac 0.8012 (0.8012) 2 4(0.426)(0.0666)
x = = - 0.0873 and - 1.794
2a 2(0.426)

Again we throw out the value greater than 1, or less than -1, leaving -0.0873. The following
table summarizes the effect of accounting for the water gas shift equilibrium.

10-14


mol % lb mol/hr, assuming 100 lb mol/hr basis mol %
FC outlet FC outlet Effect of FC outlet in FC outlet in
Gas w/o shift. w/o shift shift rxn shift equil. shift equil.
CO 0.00 0.00 -(-8.73) 8.73 8.73
CO2 33.33 33.33 -(-8.73) 24.61 24.61
H2 20.00 20.00 -8.73 11.27 11.27
H2O 46.67 46.67 -8.73 55.39 55.39
Total 100.00 100.00 0.00 100.00 100.00

Example 10-7 Generic Fuel Cell - Determine the Required Cell Area, and Number of
Stacks

Given a desired output of 2.0 MWDC, and the desired operating point of 600 mV and
400 mA/cm2, (a) How much fuel cell area is needed? (b) Assuming a cell area of 1.00 m2 per
cell and 280 cells per stack, how many stacks are needed for this 2.0 MW unit?

Solution:
(a) Recalling again that power is the product of the voltage and current, we first determine the
total current for fuel cell as

P 2.0 MW 106 W 1 VA 1 kA
I= = 3,333 kA
V 0.600 V 1 MW 1W 1000 A

Because each individual fuel cell will operate at 400 mA/cm2, we determine the total area
required as,

I 3,333 kA 1000 mA 1000 A
Area = = 2
8,333,333 cm 2
Current Density 400 mA / cm 1A 1 kA

10-15

b) The number of required stacks and cells are calculated simply as

8,333,333 cm 2 1 m2
No. of Cells = = 833 cells
1 m 2 per cell 10,000 cm 2

833 cells
No. of Stacks = = 2.98 stacks 3 stacks
280 cells per stack

10.1.2 Fuel Processing Calculations
Example 10-8 Methane Reforming - Determine the Reformate Composition

Given a steam reformer operating at 1400ºF, 3 atmospheres, pure methane feed stock, and a
steam to carbon ratio of 2 (2 lb mol H2O to 1 lb mol CH4), (a). List the relevant reactions, (b)
Determine the equilibrium concentration assuming the effluent exits the reactor in equilibrium at
1400ºF (c) Determine the heats of reaction for the reformer's reactions. (d) Determine the
reformer's heat requirement assuming the feed stocks are preheated to 1400ºF. (e) Considering
LeChâtelier's principle, indicate whether the reforming reaction will be enhanced or hindered by
an elevated operating temperature (f) Considering LeChâtelier's principle, indicate whether
excess steam will tend to promote or prevent the reforming reaction.

Solution:
(a) The relevant reactions for the steam reformer are presented below:

CH4 + H2O 3H2 + CO (Steam Reforming Reaction)

CO + H2O CO2 + H2 (Water Gas Shift Reaction)

A third relevant reaction is also presented below. However, this reaction is simply a
combination of the other two. Of the three reactions, any two can be utilized as an independent
set of reactions for analysis, and should be chosen for the user's convenience. Here we have
chosen the steam reforming and the shift reactions.

CH4 + 2H2O 4H2 + CO2 (Composite Steam Reforming Reaction)

10-16

(b) The determination of the equilibrium concentrations is a rather involved problem, requiring
significant background in chemical thermodynamics, and therefore will not be solved here.
One aspect that makes this problem more difficult than Example 10-6, which accounted for
the steam reforming reaction within the fuel cell, is that we cannot assume the reforming
reactions will proceed to completion as we did in the former example. In Example 10-6,
hydrogen is consumed within the fuel cell thus driving the reforming reaction to completion.
Without being able to assume the reforming reaction goes to completion, we must
simultaneously solve two independent equilibrium reactions. The solution to this problem is
most easily accomplished with chemical process simulation programs using a technique
known as the minimization of Gibbs free energy. To solve this problem by hand, however,
is a arduous, time-consuming task.

For interest, an ASPEN™ computer solution of this problem is given below:

Inlet Composition Effluent Composition Effluent Composition
(lb mols/hr) (lb mols/hr) (mol fraction)
CH4 100 11.7441 2.47
CO 0 64.7756 13.59
CO2 0 23.4801 4.93
H2 0 288.2478 60.49
H2O 200 88.2639 18.52
Total 300 476.5115 100.00

(c) This problem is rather time-consuming to solve without a computer program and will
therefore be left to the ambitious reader to solve64 from thermodynamic fundamentals. As an
alternative, the reader may have access to tables that list heat of reaction information for
important reactions. The following temperature dependent heats of reaction values were
found for the water gas shift and reforming reactions in the Girdler tables (1).

CH4 + H2O 3H2 + CO Hr(1800ºF)= 97,741 Btu/lb mol

CO + H2O CO2 + H2 Hr(1800ºF)= -13,892 Btu/lb mol

Note: a positive heat of reaction is endothermic (heat must be added to maintain a constant
temperature), while a negative heat of reaction is exothermic (heat is given off).

64
The reader can refer to Reference 2, Example 4-8 for the solution of a related problem.

10-17

(d) With knowledge of the equilibrium concentration and the heat of reactions, we can easily
calculate the heat requirement for the reformer. Knowing that for each lb mol of CH4 feed,
88.3% [(100-11.7)/100= 88.3%] of the CH4 was reformed, and 26.6% [23.5/88.3= 26.6%] of
the formed carbon monoxide shifts to carbon dioxide, then the overall heat generation for
each lb mol of methane feed can be developed from

88.3% CH 4 reacted Btu Btu
1 lbmol CH 4 97,741 = 86,300
100% CH 4 feed lbmol reformed CH 4 lbmol CH 4 feed

88.3% CH 4 rxtd. 1 lbmol CO 26.6% CO shifts -13,982 Btu Btu
1 lbmol CH 4 = - 3,300
100% CH 4 feed lbmol CH 4 rxtd lbmol CO Feed lbmol CO rxn lbmol CH 4 feed

Therefore the heat requirement for the reformer is 83,000 Btu/lb mol of CH4 fed to the reformer.
Because this value is positive, the overall reaction is endothermic and heat must be supplied.

(e) LeChâtelier's principle simply states that "if a stress is applied to a system at equilibrium,
then the system readjusts, if possible, to reduce the stress" (3). The power of this simple
principle is illustrated by the insight that it provides in many situations where little is known.
In our reforming example, we can learn from LeChâtelier's principle whether higher or lower
temperatures will promote the reforming reaction just by knowing that the reaction is
endothermic. To facilitate the application of principle, we shall write the endothermic
reforming reaction with a heat term on the left side of the equation.

CH4 + H2O + Heat 3H2 + CO

Now if we consider that raising the temperature of the system is the applied stress, then the stress
will be relieved by the reaction when the reaction proceeds forward. Therefore, we can conclude
that the reforming reaction is thermodynamically favored by high temperatures.

(f) To solve this application of LeChâtelier's principle, we shall write the reforming reaction in
terms of the number of gaseous molecules on the left and right sides.

CH4(g) + H2O(g) 3H2(g) + CO(g)

2Molecules(g) 4Molecules(g)

10-18

Now if we imagine a reforming system at equilibrium, and increase the pressure (the applied
stress), then the reaction will try to proceed in a direction that will reduce the pressure (stress).
Because a reduction in the number of molecules in a system will reduce the stress, an elevated
pressure will tend to inhibit the reforming reaction. (Note: reforming systems often operate at
moderate pressures, for operation at pressure will reduce the equipment size and cost. To
compensate for this elevated pressure, the designer may be required to raise the temperature.)

Example 10-9 Methane Reforming - Carbon Deposition

Given the problem above, (a) list three potential coking (carbon deposition, or sooting) reactions,
(b) considering LeChâtelier's principle, indicate whether excess steam will tend to promote or
inhibit the coking reactions, (c) determine the minimum steam to methane ratio required in order
to prevent coking based on a thermodynamic analysis, and (d) determine the minimum steam to
methane ratio to prevent coking considering the chemical kinetics of the relevant reactions.

Solution:
(a) Three of the most common/important carbon deposition equations are presented below.

CH4 C + H2O (Methane Cracking)

2CO C + CO2 (Boudouard Coking)

CO + H2 C + H2O (CO Reduction)

(b) Considering LeChâtelier's principle, the addition of steam will clearly inhibit the formation
of soot for the methane cracking and CO reduction reactions. (The introduction of excess
steam will encourage the reaction to proceed towards the reactants, i.e., away from the
products of which water is one.) Excess steam does not have a direct effect on the
Boudouard coking reaction except that the presence of steam will dilute the reactant and
product concentrations. When the Boudouard coking reaction proceeds towards the left, the
concentration of CO will increase faster than the concentration of CO2. Thus, dilution steam
will cause the Boudouard coking reaction to proceed toward the left. Clearly, the addition of
steam is quite useful at preventing sooting from ruining the expensive catalysts that are
utilized in reformers and fuel cell systems. Too much steam, however, will simply add an
unnecessary operating cost.

(c) The determination of the minimum steam to carbon ratio that will inhibit carbon deposition
is of interest to the fuel cell system designer, but it is, however, beyond the scope of this
handbook. The interested reader is referred to references (4), (5), and (6).

10-19

(d) A steam quantity that will preclude the formation of soot based upon a thermodynamic
analysis will indeed prevent soot from forming. However, it may not be necessary to add as
much steam as is implied by thermodynamics. Although soot formation may be
thermodynamically favored under certain conditions, the kinetics of the reaction can be so
slow that sooting will not be a problem. Thus, the determination of sooting on a kinetic basis
is of significant interest. The solution to this problem is, however, beyond the scope of this
handbook, so the interested reader is referred to reference (6). When temperatures drop to
about 750ºC, kinetic limitations preclude sooting (7). However, above this point, the
composition and temperature together determine whether sooting is kinetically precluded.
Typically, steam reformers have operated with steam to carbon ratios of 2 to 3 depending on
the operating conditions in order to provide an adequate safety margin. An example
calculation presented in Reference 6, however, reveals that conditions requiring a steam to
carbon ratio of 1.6 on a thermodynamic basis can actually support a steam to carbon ratio of
1.2 on a kinetic basis.

10.1.3 Power Conditioners
Example 10-10 Conversion between DC and AC Power

Given a desired output of 1.0 MWAC, and an inverter efficiency of 96.5%, what DC output level
is required from the fuel cell stack?

Solution:
(a) The required DC power output level is found simply as the quotient of AC power and the
inverter efficiency as demonstrated below.

1 MWDC
MWDC = 1.0 MWAC 1.036 MWDC
96.5% MWAC

10.1.4 Others
Numerous other unit operations and subsystems can be found in fuel cell systems. It is not
however the intent of this handbook to review all of these operations and subsystems that are
well documented in many other references [e.g., (2,8,9,10)]. For convenience, the unit
operations that are commonly found within fuel cell power system are listed below:

heat exchangers intercoolers
pumps direct contact coolers
compressors gasification
expanders gas clean up

10-20

10.2 System Issues
This section covers system issues such as HHV, LHV, and cogeneration efficiency calculations,
heat rate calculations, and cogeneration steam duty calculations.

10.2.1 Efficiency Calculations
Example 10-11 LHV, HHV Efficiency and Heat Rate Calculations

Given a 2.0 MWAC fuel cell cycle operating on 700 lb/hr of methane, what is (a) the HHV65
thermal input of the methane gas, (b) the LHV thermal input, (c) the HHV electric efficiency, (d)
the LHV electric efficiency, and (e) the HHV Heat Rate? Assume the higher and lower heating
value of methane as 23,881 and 21,526 Btu/lb respectively.

Solution:
(a) The HHV thermal input of the methane gas is

23,881 Btu, HHV 1 MMBtu
HHV Thermal Input = 700 lb / h CH 4 16.716 MMBtu / h , or
1 lb CH 4 10 6 Btu

1 MW
HHV Thermal Input = 16.716 MMBtu / h 4.899 MWt
3.412 MMBtu

(b) The LHV thermal input of the methane gas is

21,526 Btu, HHV 1 MMBtu
HHV Thermal Input = 700 lb / h CH 4 15.068 MMBtu / h , or
1 lb CH 4 10 6 Btu

1 MW
HHV Thermal Input = 15.068 MMBtu / h 4.416 MWt
3.412 MMBtu

65
Heating values are expressed as higher or lower heating values (HHV or LHV). Both higher and lower heating
values represent the amount of heat released during combustion. The difference between the HHV and LHV is
simply whether the product water is in the liquid phase (HHV), or the gaseous phase (LHV). Because the
evaporation of water consumes energy, the LHV is always less than the HHV.

10-21

(c) The HHV electrical efficiency is

Output 2.0 MWac
Electrical Efficiency (HHV) = = = 40.8% HHV
Input, HHV 4.899 MWt, HHV

(d) The LHV electrical efficiency is

Output 2.0 MWac
Electrical Efficiency (LHV) = = = 45.3% LHV
Input, LHV 4.416 MWt, LHV

Note: Because a fuel's LHV is less than its HHV value, the LHV efficiency will always be higher
than the HHV efficiency.

(e) Heat rate is the amount of heat (Btu/h) required to produce a kW of electricity. Alternatively
it can be thought of as an inverse efficiency. Because 1 kW is equivalent to 3,412 Btu/h, a
heat rate of 3,412 Btu/kWh represents an efficiency of 100%. Note that as the efficiency
goes up, the heat rate goes down. The HHV heat rate for this example can be calculated
easily from either the HHV efficiency or the thermal input. Both methods are demonstrated
below:

3412 Btu / kWh 3412 Btu / kWh Btu
Heat Rate (HHV) = = = 8,360 ( HHV ) , or alternatively,
Efficiency, HHV 40.8% kWh

Input, HHV 16,717,000 Btu / h Btu
Heat Rate (HHV) = = = 8,360 ( HHV ) .
Output 2,000 kW kWh

Note: The LHV to HHV ratio of 90% for methane (21,526/23,881 = 90.%) is typical of that for
natural gas, while this ratio is roughly 94% for fuel oils. Common coals typically have a LHV to
HHV ratio of 92 to 96% depending upon the hydrogen and moisture content66. Typically, gas
turbine based cycles are presented on an LHV basis. Conventional power plants, such as coal-,
oil-, and gas-fired steam generator/steam turbine cycles are presented on an HHV basis within
the U.S, and on an LHV basis in the rest of the world.

66
The difference between the LHV and HHV heating values can be estimated by (1055 Btu/lb)*w, where w is the
lbs moisture after combustion per lb of fuel. Thus, w can be determined from the fuel's hydrogen and moisture
content by w= moisture + 18/2 * hydrogen. [e.g., for a fuel with 10% moisture and 4% hydrogen, the LHV to
HHV difference is 485 Btu/lb, [i.e., 1055*(.10+.04*9)=485.]

10-22

Example 10-12 Efficiency of a Cogeneration Fuel Cell System

Given the system described in Example 10-11, what is (a) the combined heat and power
efficiency assuming that cycle produces 2 tons/hr of 150 psia/400ºF steam? Assume a feedwater
temperature of 60ºF.

Solution:
(a) Before calculating the cogeneration efficiency, we first need to determine the heat duty
associated with the steam production. This requires knowledge of the steam and feed water
enthalpies, which we can find in the ASME Steam Tables (11) as indicated below:

Temperature (ºF) Pressure (psia) Enthalpy (Btu/lb)
Steam 400 150 1219.1
Feedwater 60 180 28.6

The steam heat duty is calculated as

1 MMBtu
Heat Duty = mass flow Change in enthalpy 4000 lb / h 1219.1 28.6 Btu / lb 4.762 MMBtu / h
10 6 Btu

Alternatively, this heat duty can be expressed as 1.396 MWt, [4.762 / 3.412 = 1.396 MW]. Thus,
the combined heat and power efficiency is calculated as

Output 2.00 MWAC + 1.40 MWt
Combined Heat & Electrical Efficiency (HHV) = = = 69.4% HHV
Input, HHV 4.899 MWt, HHV

10.2.2 Thermodynamic Considerations
Example 10-13 Production of Cogeneration Steam in a Heat Recovery Boiler (HRB)

Given 10,000 lb/hr of 700ºF cycle exhaust gas passing through a heat recovery boiler (HRB) (a)
How much 150 psia, 400ºF steam can be produced? (b) How much heat is transferred from the
gas to the steam? (c) What is the exhaust temperature of the gas leaving the HRB? and (d)
Sketch the T-Q (temperature-heat) diagram for the HRB. Assume a gas side mean heat capacity
of 0.25 Btu/lb, ºF, an evaporator pinch temperature of 30ºF, a feedwater temperature of 60ºF, and
an evaporator drum pressure of 180 psia to allow for pressure losses.

10-23

Solution:
(a) We shall develop our solution strategy by examining a typical HRB T-Q diagram presented
below. From this diagram we observe that the pinch point, the minimum temperature
differential between the gas and saturated steam, limits the steam production. If we were to
try to produce more steam, the lower steam line would be stretched to the right until it
"bumped" into the hot gas line. At the point of contact, both the hot gas and saturated steam
would be at the same temperature. This is thermodynamically impossible, because heat will
only "flow" from a higher temperature to a lower one. In practice, the temperature approach
at the pinch point is keep large enough (15 to 40ºF) to prevent an unusually large and
expensive evaporator. Because the pinch limits the steam production, we can use the heat
available in the gas down to the pinch point to determine how much steam can be produced.

Tg,0
700 Tg,1
Pinch
600 Exhaust Gas
TSH
500 Superheated
Temperature

steam Tg,2
400 Saturated steam
Tsat
300 Tg,3

200
Feedwater
100
QSH QEvap QEcon TFW
0
Q Q1 Q2 Q3
00 20 40 Q 60 80 100

The governing equations for the heat available in the gas down to the pinch point (Tg,0 to Tg,2),
and the corresponding heat absorbed by the superheated and saturated steam are presented
below.

gas
Q SH + Evap (m gas )(C p )(Tg,0 - Tg,2 )

steam
Q SH + Evap (m steam )(h superheated - h f ) , and

gas steam
Q SH + Evap Q SH + Evap

10-24

gas
We can calculate Q SH + Evap if we determine the steam saturation temperature from the steam
tables. By using the ASME steam tables (11), we can determine the saturation temperature and
enthalpies of interest as

hsteam (150 psia, 400 ºF) = 1219.1 Btu/lb

hg (180 psia, saturated steam) = 1196.9 Btu/lb

hf (180 psia, saturated water) = 346.2 Btu/lb

Tsat (180 psia, saturated steam/water) = 373.1ºF

hfeedwater (60 ºF) = 28.6 Btu/lb

gas
Thus, we can solve for Q SH + Evap , by allowing the gas side pinch temperature to be equal to the
saturation temperature of 373.1ºF plus the desired approach temperature of 30ºF for a value of
403.1ºF. Thus,

gas lb Btu Btu
Q SH + Evap 10,000 0.25 o
700 - 403.1 o F 842,000
hr lb, F hr

By substituting this heat value into the steam side equation, we can solve directly for the steam
mass flow rate by

steam Btu
Q SH + Evap 742,000 hr lb
m steam = = = 850
(h superheated - h f ) Btu hr
1219.1 - 346.2 lb

(b) Now that we know the water/steam mass flow, we can easily determine the HRB heat duty
by the following equation.

Btu
Q steam
Total (m steam )(h superheated - h feedwater ) = 850 lb
hr
1219.1 - 28.6 Btu
lb
= 1,012,000
hr

10-25

(c) The gas temperature leaving the HRB (Tgas,3) is now easily calculated, because the total heat
transferred to the steam is equivalent to that lost by the gas stream.

gas
Q Total (m gas )(C p )(Tgas,0 - Tgas,3 ) Thus,

Btu lb gas Btu
1,012,000 10,000 0.25 700 F - Tg,3
hr hr lb, o F

Solving for Tgas,3, we find that Tgas,3 is 295ºF.

(d) Because we assumed a constant mean Cp for the exhaust gas over the temperature range of
interest, we can simply draw a straight line from 700ºF to 295ºF, with the 295ºF
corresponding to a transferred quantity of heat of 1.01 MMBtu/hr. To draw the water line,
we will need to determine the heat absorbed by the superheater, the evaporator, and the
economizer. These heats are determined by the following equations.

steam
Q SH (m steam )(h superheated - h g )

Q steam
Evap (m steam )(h g - h f )

Q water
Econ (m water )(h f - h feedwater )

Substituting the known flow and enthalpy data allows us to solve for these three quantities as

steam lb Btu Btu
Q SH (850 h
)(1219.1 -1196.9 lb
) = (850 lb )(22.2
h
Btu
lb
) 18,900
h

Btu
Q steam
Evap (850 lb
h
)(1196.9 - 346.2 Btu
lb
) = (850 lb
h
)(850.7 Btu )
lb
= 723,100
h

Btu
Q water
Econ (850 lb
h
)(346.2 - 28.6 Btu
lb
) = (850 lb
h
)(317.6 Btu )
lb
= 270,000
h

Using these values to develop cumulative heat transfer quantities, we calculate the following;

10-26

steam Btu MMBtu
Q 1 = Q SH 18,900 = 0.019 at 373.1o F
h h

Btu Btu MMBtu
Q 2 = Q 1 + Q steam
Evap 18,900 + 723,100 = 742,000 = 0.742 at 373.1o F
h h h

water Btu Btu MMBtu
Q 3 = Q 2 + Q economizer 742,000 + 270,000 = 1,012,000 = 1.012 at 60 o F
h h h

Plotting these points on the chart below, we yield the following T-Q diagram.

700

600

500
Temperature, F

403.1F
400 373.1F

300 295F
30F Pinch
200

100
60F
0
0 0.2 0.4 0.6 0.8 1
Q, MMBtu/hr

10.3 Supporting Calculations
Example 10-14 Molecular Weight Calculation for Air

Assuming that dry air is composed of 79% N2 and 21% O2, what is the molecular weight of air?

Solution:
(a) Atomic weights for elements that are common to fuel cell systems are presented in
Table 10-1.

10-27

Table 10-1 Common Atomic Elements and Weights

Atomic Atomic
Species Weights
Argon, Ar 39.948
Carbon, C 12.011
Hydrogen, H 1.0079
Nitrogen, N 14.0067
Oxygen, O 15.9994
Sulfur, S 32.06

The molecular weight for diatomic (2 atoms per molecule) nitrogen and oxygen is simply twice
their atomic weight. Thus, the molecular weights for N2 and O2 are 28.01 and 32.00.

Now because atmospheric air is a low pressure gas (< 10 atm), we can assume that it will behave
as an ideal gas and that its mole % is equivalent to its volume %. We also shall simplify our
solution by assuming a calculation basis of 100 lb mols of air. With these assumption, the
molecular weight of air is developed in the following table by working from left to right.

Molecular Weight Calculation for Dry Air
100 lb mol/hr basis MW
Gas mol % lb mol MW lbs lb/lb mol
N2 79.00 79.00 28.01 2212.8
O2 21.00 21.00 32.00 672.0
Total 100.00 100.00 2884.8 28.85

Thus, the molecular weight of dry air is 28.85 lb/lb mol (28.85 g/g mol) as presented previously
in Example 10-3.

Example 10-15 Molecular Weight, Density and Heating Value Calculations

Given the natural gas composition presented below, what is (a) the molecular weight, (b) the
higher heating value in Btu/ft3? (c) the density of the gas in lb/ft3 at 1 atm and 60ºF? (d) the
higher heating value in Btu/lb, and (e) the lower heating value in Btu/ft3?

10-28

Fuel mol %
Constituent
CH4 4.0
CO 0.4
CO2 17.6
H2 75.0
H2O 3.0
Total 100.0

Solution:
(a) Before determining the molecular weight of the natural gas mixture, we shall develop the
molecular weights of each of the gas constituents in the following table.

Fuel MW Derivation MW
Constituent
CH4 (12.01) + 4*(1.008) = 16.04 16.04
CO (12.01) + 1*(16.00) = 28.01 28.01
CO2 (12.01) + 2*(16.00) = 44.01 44.01
H2 2*(1.008) = 2.016 2.016
H2O 2*(1.008) +1*(16.00) = 18.02 18.02

Thus, the molecular weight for the gas mixture is calculated below by utilizing a 100 lb mol
basis:

100 lb mol basis 1 lb mol
Fuel MW Weight MW
Constituents mol % lb mols (lb/lb mol) (lb) (lb/lb mol)
CH4 4.0 4.0 16.04 64.16
CO 0.4 0.4 28.01 11.20
CO2 17.6 17.6 44.01 774.58
H2 75.0 75.0 2.016 151.20
H2O 3.0 3.0 18.02 55.06
Total 100.0 100.0 1056.2 10.56

b) The higher heating value of the natural gas can be reasonably predicted from the
composition. The following table presents the higher heating value for many common fuel
gas constituents.

10-29

Table 10-2 HHV Contribution of Common Gas Constituents

Higher Heating Value
3
Gas Btu/lb Btu/ft
H2 60,991 325
CO 4,323 321
CH4 23,896 1014
C2H6 22,282 1789
C3H8 22,282 2573
C4H10 21,441 3392
H2O, CO2, N2, O2 0 0
Reference (12)
3
HHV (Btu/ft ) are for 1 atm, and 60ºF.

Using these HHV contributions, the gas composition, and the ideal gas law assumption where we
equate % moles with % volume, we calculate the overall HHV by utilizing a basis of 100 ft3 in
the following table by working from left to right.

100 ft3 Basis 1 ft3
Basis
Fuel Volume HHV Heat HHV
Constituents mol % (ft3) (Btu/ft3) Input (Btu/ft3)
(Btu)
CH4 4.0 4.0 1014 4056.
CO 0.4 0.4 321 128.
CO2 17.6 17.6 0 0
H2 75.0 75.0 325 24,375.
H2O 3.0 3.0 0 0.
Total 100.0 100.0 28,559. 285.6

Thus, the higher heating value for the specified natural gas composition is 285.6 Btu/ft3.

(c) The density of any ideal gas can be calculated by modifying the ideal gas law, presented
below:

PV nRT

10-30

Because density is simply the mass of a substance divided by its volume, we shall multiply both
sides of the ideal gas equation by the molecular weight, MW, of the gas mixture. We recall that
the moles of a substance, n, times its molecular weight equal its mass.

PV(MW) n(MW)RT

PV(MW) ( mass)RT

Rearranging this equation so that we have mass divided by volume, we can derive an ideal gas
law equation that will allow us to calculate density of any ideal gas, given the temperature,
pressure and MW, per

mass P(MW)
density = =
volume RT

The selection of the ideal gas constant, R, in convenient units, such as (atm, ft3)/(lb mol, R) will
simplify the density calculation in units of lbs per ft3

lb
P(MW) (1 atm)(10.56 lbmol ) lb
density = = = 0.02781 3 , (at 1 atm, 60 o F)
RT atm, ft 3 ft
(0.7302 lbmol, R )(60 + 460 R)

(d) The HHV in Btu/lb can be calculated from the HHV in Btu/ft3 and the density per

Btu ft 3 Btu
HHV 285.6 10,270.
ft 3 0.02781 lb lb

(e) The LHV can be calculated by recalling that the fundamental difference between HHV and
LHV values is the state of the product water. That is, HHV values are based on a liquid
water product, while LHV values are based on a gaseous water product. Because energy is
consumed to evaporate liquid water into gaseous water, LHV values are always lower than
HHV values. [To convert liquid water to water vapor at 1 atm, and 60ºF, requires
approximately 1050 Btu/lb, or 50 Btu/ft3.] For a given gas mixture, the quantitative
difference between the HHV and LHV is, obviously, a function of how much water is
produced by the given fuel. So the first step in converting the HHV to LHV is the
determination of the amount of water produced by the fuel. This is done in the table below.

10-31

Basis: 1.0 ft3 of Natural Gas
Fuel Gas Stoichiometric Water LHV to HHV
67
Fuel Volume Factor for Volume Adjustment
Constituents mol % (ft3) Gas to H2O (ft3) (Btu/ft3)
CH4 4.0 0.04 2.0 0.08 2.0
CO 0.4 0.004 0.0 0.00 0.0
CO2 17.6 0.176 0.0 0.00 0.0
H2 75.0 0.75 1.0 0.75 37.5
H2O 3.0 0.03 0.0 0.00 0.0
Total 100.0 1.00 .83 39.5.

Thus, the LHV can be estimated from the HHV of 285.6 Btu/ft3 as 246.1 Btu/ft3
(285.6 - 39.5= 246.1 Btu/ft3).

Example 10-16 Heat Capacity

Given a 100 lb mol/hr flow of pure methane at near atmospheric conditions, what is (a) the heat
capacity for methane at 77ºF (25ºC) and 752ºF (400ºC) in Btu/lb mol, ºF, (b) the mean heat
capacity for methane between 77 and 752ºF, (c) the heat required to raise the 100 lb mol/hr flow
from 77 to 752ºF in Btu's and (d) the heat capacity for a gas mixture of 98% methane and 2%
water?

Solution:
(a) Heat capacities of real gases (Cp) at low pressure are accurately approximated by the ideal
gas heat capacities (Cpº). Published ideal gas heat capacity correlations are smoothed
algorithm of experimental data based on sophisticated theoretical and numerical techniques.
Many different coefficients and forms of heat capacity correlations can be found in the
literature. Scientists and engineers who require correlations relating heat capacity, enthalpy
and entropy together with a high level of precision often utilize data found in the JANAF68
tables (8) or NASA publications (e.g., 9, 10). For this example, we will utilize correlations
that are well respected, yet simple enough for hand calculations. A short list of ideal gas law
heat capacity coefficients is presented below for the following form of Cpº:

67
The stoichiometric factor is the number of water molecules produced per fuel molecule in complete combustion.
For example, for CH4, which combusts to 2 H2O, the stoichiometric factor is two.
68
Thermochemical data were originally developed by the US Joint Army, Navy, Air Force (JANAF). Today this
information is simply known as the JANAF tables.

10-32

2
Cpº = a + bT + cT

where Cpº [=] (cal/ g mol, ºC) or (Btu/ lb mol, ºF)

and T [=] K, for 298 K to 1500 K (25ºC to 1227ºC, or 77ºF to 2240ºF)

Table 10-3 Ideal Gas Heat Capacity Coefficients for Common Fuel Cell Gases

Fuel Constituent a bx103 cx106
Organic Gases (16)
Methane CH4 3.381 18.044 -4.300
Ethane C2H6 2.247 38.201 -11.049
n-Propane C3H8 2.410 57.195 -17.533
n-Butane C4H10 3.844 73.350 -22.655
Inorganic Gases (17)
Carbon monoxide CO 6.420 1.665 -0.196
Carbon dioxide CO2 6.214 10.396 -3.545
Hydrogen H2 6.9469 -0.1999 0.4808
Nitrogen N2 6.524 1.250 -0.001
Oxygen O2 6.148 3.102 -0.923
Water H2O 7.256 2.298 0.283

Thus the heat capacity of methane at 77ºF (25ºC, or 298 K) is calculated as

C o (T) = 3.381 + 18.044 x 10 -3 T - 4.300 x 10 -6 T 2
p

C o (298K) = 3.381 + 18.044 x 10 -3 (298 K) - 4.300 x 10 -6 (298 K) 2
p

C o (298K) = 3.381 + 5.3771 - 0.3819 = 8.376 Btu / lb mol,
p
o
F

The heat capacity for methane at 752ºF (400 ºC or 673 K) is calculated as

C o (673K) = 3.381 + 18.044 x 10 -3 (673 K) - 4.300 x 10 -6 (673 K) 2
p

C o (673K) = 3.381 + 12.1436 - 1.9476 = 13.577 Btu / lb mol,
p
o
F

10-33

(b) As can be seen from part (a) above, there is considerable change in the heat capacities with
temperatures. For this reason, a single heat capacity value is used to calculate heats over
only small temperature ranges. To calculate the sensible heat over a larger temperature
range, mean heat capacities often are used. A mean heat capacity can be found from charts
or can be integrated from the Cpº correlations. We shall demonstrate the integration method.

T2
C o (T )dT
p
C o mean (T1, T2)
p, = T1
T2 - T1

T2
(3.381 + 18.044 x 10 -3 T - 4.300 x 10 -6 T 2 )dT
C o mean (T1,
p, T2) = T1
T2 - T1

T2=673 K
3.381T + (1 / 2)(18.044 x 10 -3 )T 2 - (1 / 3)(4.300 x 10 -6 )T 3
C o mean (T1, T2) =
p,
T1=298 K
T2 - T1

3.381(673 - 298) + (1 / 2)(18.044 x 10 -3 )(673 2 - 298 2 ) - (1 / 3)(4.300 x 10 -6 )(673 3 298 3 )
C o mean (T1,
p, T2) =
(673- 298)

1267.9 + 3285.1 - 399.0 4154.0
C o mean (T1 = 673K, T2 = 298) =
p, 11.077 Btu / lb mol, o
F
375 375

(c) The heat required to raise the gas from one temperature, T1, to another, T2, knowing the
mean Cpº is simply

Q = (C o mean )(T2 - T1) ,
p, thus

o
Q = (11.077 Btu / lbmol, F)(752 - 77 o F) = 7,480 Btu / lbmol

Thus, 100 lb mol/hr of pure methane would require 748,000 Btu/hr to heat it from 77ºF to 752ºF
(25ºC to 400ºC).

10-34

(d) The gas mixture problem is identical in nature to the pure methane problem just completed,
because both a gas mixture and a pure gas, at low pressure, can be approximated as ideal
gases. Heat capacities for the individual gases are simply averaged on a molar, or volume
basis. Going through a similar calculation for water, we find a mean Cpº of 8.44 Btu/lb mol,
ºF. Thus, we can easily develop the composite mean Cpº by determining the molar average
as illustrated below:

C o mean, mixture = y A C o mean, A + y B C o mean, B
p, p, p,

Where y i is the molar, or volume fraction, of species i.

C o mean, mixture = (0.98)(11.077) + (0.02)(8.44) = 11.02 Btu / lb mol,
p,
o
F

10.4 Cost Calculations
This section presents information on developing the Cost of Electricity (COE), as well as
information for the development of capital costs.

10.4.1 Cost of Electricity
Three major contributors are considered in the computation of the COE for a fuel cell power
plant: 1) capital cost, 2) fuel cost and 3) operation and maintenance costs. The cost of electricity
($/MWh) can be calculated using these parameters as follows:

0.125CC 3.412 FC O& M
COE = + +
H s H

where 0.125 is a capital recovery rate (excluding taxes and insurance), CC is the capital cost
6
($/kW), FC is the fuel cost ($/10 Btu), 3.412 is the theoretical heat rate for 100% efficiency
(3412 Btu/kWh) divided by 1000 for units consistency, s is the fractional efficiency, H is the
annual operating hours divided by 1000, and O&M is the operating and maintenance cost ($/kW-
yr total, including fixed and variable costs).

Example 10-17 Cost of Electricity

Given a capital cost of $1000/kW, a fuel cost of $2 per MMBtu, a net plant efficiency of 40%,
6000 operating hours, and a total O&M cost of $20/kW-yr, what is the estimated cost of
electricity?

10-35

Solution:

(0.125)(1000) (3.412) (2) (20)
COE = + +
6 0.40 6

COE = 20.8 + 17.1 + 3.3 = $41.2 / MWh, or 4.1 cents / kWh

10.4.2 Capital Cost Development
There is a need for an easily understood, flexible, and reasonably accurate methodology for
rapidly estimating the cost of conceptual fuel cell power plants.

One method proposed for estimating the cost of fuel cell power plants is to calculate distributive
(bulk) costs as a function of the equipment cost using established factors based on conventional
generating technologies. When applied in such a way as to compensate for the differences
associated with a fuel cell plant, this approach can yield reasonable results. NETL has elected,
based on the international prominence of the Association for the Advancement of Cost
Engineering (AACE), to utilize this approach in estimating the costs for fuel cell/turbine power
plant systems currently under study.

The factors currently being used by NETL are listed in Table 10-4. These factors apply to
processes operating at temperatures in excess of 400 F at pressures of under 150 psig, and are
taken from the AACE Recommended Practice No. 16R-90, Conducting Technical and Economic
Evaluations in the Process and Utility Industries.

Table 10-4 Distributive Estimating Factors

Area Material Labor
Foundations 0.06 1.33
Structural Steel 0.05 0.50
Buildings 0.03 1.00
Insulation 0.02 1.50
Instruments 0.07 0.75
Electrical 0.06 0.40
Piping 0.40 0.50
Painting 0.005 3.00
Misc. 0.04 0.80

10-36

The suggested bulk material factors are applied to direct equipment costs, whereas the bulk labor
factors apply to the corresponding bulk material item. Because the distributive factors are based
on larger scale field built plants, FETC applies an additional factory fabrication adjustment to
reflect a more modular construction approach requiring less field fabrication as would likely be
the case with smaller plant configurations. This approach is illustrated in reference (18).

NETL’s choice to use the approach discussed above does not preclude the use of alternate
methodologies. One such alternate methodology, currently in the early stages of development, is
based on the premise that fuel cell plant costs could ultimately be more accurately estimated
using factors developed specifically for fuel cell applications, rather than factors based on
conventional generating technologies. An overview of this approach along with a “first cut” at
developing new fuel cell specific factors is presented in reference (19). Fuel cell specific factors
developed to date are based on limited data and should be considered highly preliminary.
Continued refinement will be required as additional fuel cell plant costing information becomes
available.

10.5 Common Conversion Factors
The following is a tabulation of conversion factors common to fuel cell analysis.

To Convert To Multiply by To Convert To Multiply by
From From
A (amperes) Faradays/sec 1.0363E-05 Joule (J) V coulomb 1
A/ft² mA/cm² 1.0764 KA kg H2/h 0.037605
atm kg/cm² 1.0332 KA lb H2/h 0.082906
atm lb/in² 14.696 KA lb mol H2/h 0.041128
atm bar 1.01325 kg lb 2.2046
atm Pa 101,325 kg/cm² lb/in² 14.223
Avagadro's particles/g mol 6.0220E+23 kg H2/hr KA 24.314
number
bar atm 0.98692 Kcal Btu 3.9686
bar lb/in² 14.504 kPa lb/in² 0.14504
bar kg/cm² 1.0197 kW Btu/h 3412.1
bar N-m² 100,000 kW kcal/s 0.23885
bar Pa 100,000 kW hp 1.3410
Btu cal 251.98 lb grams 453.59
Btu ft-lb 778.17 lb kg 0.45359
Btu J (Joules) 1055.1 lb H2/hr KA 12.062
Btu kWh 2.9307E-04 lb mol H2/hr KA 24.314
Btu/hr W 0.29307 lb/in² kg/cm² 0.070307
Btu/lb,°F cal/g, °C 1.0000 lb/in² Pa 6894.7
°C °F °C*(9/5)+32 l (liter) m³ 1.0000E-03
°C K °C+273.16 m (meter) ft 3.2808
cal J 4.1868 m (meter) in 39.370
cm ft 0.032808 m² ft² 10.764
cm in 0.39370 m³ ft³ 35.315
°F °C °F-32*(5/9) m³ gal 264.17

10-37

To Convert To Multiply by To Convert To Multiply by
From From
Faradays C (coulombs) 96,487 mA/cm² A/ft² 0.92903
Faradays/sec A 96,487 MMBtu/h MW 0.29307
ft m 0.30480 MW MMBtu/h 3.4121
ft cm 30.480 Pa lb/in² 1.4504E-04
ft² cm² 929.03 R (gas atm, ft³/lbmol, R 0.73024
constant)
ft² m² 0.092903 R (gas Btu/lb mol, R 1.9859
constant)
ft³ liters 28.317 R (gas cal/g mol, K 1.9857
constant)
ft³ m³ 0.028317 R (gas ft, lbf/lb mol, R 1545.3
constant)
ft³ gal 7.4805 R (gas J/g mol, K 8.3144126
constant)
gal liters 3.7854 R (gas l, atm/g mol, K 0.082057
constant)
grams (g) lb 2.2046E-03 tonne kg 1000.0
hp ft-lb/s 550.00 tonne lb 2204.6
horsepower (hp) kW 0.74570 Watts Btu/h 3.4121
hp W 745.70 Watts hp 1.3410E-03

10.6 Automotive Design Calculations
The total power, P, needed from a vehicle’s power system must be sufficient for vehicle
acceleration, aerodynamic drag losses, rolling resistance, changes in elevation, and auxiliary
power for vehicle accessories (20,21). These power terms are, respectively:

P = (mav + 0.5 CDAFv3 + mgCRv + mgv . sin( )) / + Paux

Where P = total power (W)
m = vehicle mass (kg)
a = vehicle acceleration (m/sec2)
v = vehicle velocity (m/sec)
= air density (kg/m3)
CD = aerodynamic drag coefficient
AF = vehicle area normal to direction of travel (m2)
g = gravitation constant (9.8 m/sec2)
CR = coefficient of rolling resistance
= inclined angle of road (radians)
= efficiency of motor, controller, and gearing
Paux = auxiliary power for lights, radio, wipers, air conditioner, cigarette lighter, etc. (W)

The power system may consist of the fuel cell plus peak power storage device(s). Criteria
established by the Partnership for a New Generation of Vehicles (PNGV) specify that:

10-38

The fuel cell system (without peak power device) must provide enough power to sustain a
speed of 55 mph (24.58 m/sec) on a 6.5 % grade, and
The output of the fuel cell system plus peak power device must allow acceleration for
high speed passing of 3 mph/sec (1.34 m/sec2) at 65 mph (29.05 m/sec)

These values are computed for a conventional mid-size passenger vehicle using the following
assumptions:

m = 1360 kg (vehicle weight) + 272 kg (weight of passengers plus cargo)
= 1.29 kg/m3 (at standard temperature and pressure)
CD = 0.3
AF = 2.0 m2
g = 9.8 m/sec2
CR = 0.0085
= 0.77
Paux = 400 W (= 400 kg-m2/sec3)

Plugging these values into the equation above, the minimum power needed by the fuel cell alone
to sustain 24.58 m/sec on a 6.5 % grade (0.0649 radians) is:

PS = ((0.5)(1.29)(0.3)(2.0)(24.58)3 + (1632)(9.8)(0.0085)(24.58) +
(1632)(9.8)(24.58)sin(0.0649))/0.77 + 400

PS = 45,339 kg-m2/sec3 = 4.53 kW

The minimum power needed by the power system to accelerate on a level road at 1.34 m/sec2 at
29.05 m/sec is:

PA = (1632)(1.34)(29.05) + (0.5)(1.29)(0.3)(2.0)(29.05)3 + (1632)(9.8)(0.0085)(29.05))/0.77 +
400

PA = 100,355 kg-m2/sec3 = 10.03 kW

10.7 References
1. "Physical and Thermodynamic Properties of Elements and Compounds," Girdler Catalysts,
Chemetron Corporation, Catalysts Division.
2. J. M. Smith, H. C. Van Ness, Introduction to Chemical Engineering Thermodynamics, Third
Edition, McGraw-Hill, 1975.
3. Chemistry: Principles and Applications, M.J. Sienko, R.A. Plane, McGraw-Hill, New York,
NY, 1979.
4. D.B. Stauffer, J.S. White, JH. Hirschenhofer, "An ASPEN/SP MCFC Performance User
Block," DOE Contract DE-AC21-89-MC25177, Task 7, July 1991.
5. D.B. Stauffer, R.R. Engleman Jr., J.S. White, J.H. Hirschenhofer, "An ASPEN/SP SOFC
Performance User Block," DOE Contract DE-AC21-88-FE-61684, Task 14, September
1993.

10-39

6. E.S. Wagner, G.F. Froment, "Steam Reforming Analyzed," Hydrocarbon Processing, July
1992, pp. 69 -77.
7. Fuel Cell Systems, Edited by L.J. M. Blomen, M.N. Mugerwa, Plenum Press, New York,
NY, 1993.
8. W.L. McCabe, J.C. Smith, P. Harriot, Unit Operations of Chemical Engineering, 4th Edition,
1985.
9. Chemical Engineers' Handbook, Edited by R.H. Perry, D. Green, 6th Edition, McGraw-Hill,
1984
10. M.S. Peters, K.D. Timmerhaus, Plant Design and Economics for Chemical Engineers, 3rd
Edition, McGraw-Hill, Inc., New York, NY, 1980.
11. C.A. Meyers, R.B. McClintok, G.J. Silverstri, R.C. Spencer, Jr., 1967 ASME Steam Tables,
New York, 1967.
12. Combustion, Fossil Power: A Reference Book on Fuel Burning and Steam Generation, 4th
Edition, edited by J.G. Singer, P.E., Combustion Engineering, 1991.
13. M.W. Chase, Jr. et al., JANAF Thermochemical Tables, Third Edition, American Chemical
Society and the American Institute for Physics, Journal of Physical and Chemical Reference
Data Volume 14, 1985, Supplement 1.
14. B.J. McBride, "Coefficients for Calculating Thermodynamic and Transport Properties of
Individual Species," NASA Technical Memorandum 4513, October 1993.
15. B.J. McBride, "Thermodynamic Data for Fifty Reference Elements," NASA Technical
Paper 3287, January 1993.
16. H.M. Spencer, Ind. Eng. Chem., 40:2152 (1948), as presented in Introduction to Chemical
Engineering Thermodynamics, Third Edition, J.M. Smith and H.C. Van Ness, McGraw-Hill,
1975.
17. H.M. Spencer, J. Amer. Chem. Soc., 67: 1858, (1945), as presented in Fuel Cells A
Handbook, Revision 3, J. Hirschenhofer, D. Stauffer, R. Engleman, DOE/METC-94/1006,
January 1994.
18. T.J. George, R. “RJ” James III, K. D. Lyons, "Multi-Staged Fuel Cell Power Plant
(Targeting 80% Lower Heating Value Efficiency)," Power Generation International 1998
Conference, December 9-11, 1998, Orange County Convention Center, Orlando, Florida.
19. L.L. Pinkerton, "Express Method for Estimating the Cost of Fuel Cell Plants," 1998 Fuel
Cell Seminar, November 16-19, 1998, Palm Springs Convention Center, Palm Springs,
California.
20. Ogden, J.M., Steinbugler, M.M., and Kreutz, T.G. 1999. “A Comparison of Hydrogen,
Methanol, and Gasoline as Fuels for Fuel Cell Vehicles: Implications for Vehicle Design
and Infrastructure Development.” Journal of Power Sources, 79 (1999) 143-168.
21. Hauer, K.H., Friedmann, D.J., Moore, R.M., Ramaswamy, S., Eggert, A., and
Badranarayanan, P. March 6-9, 2000. “Dynamic Response of an Indirect-Methanol Fuel
Cell Vehicle.” Fuel Cell Power for Transportation 2000. Society of Automotive Engineers
World Congress, Detroit, Michigan.

10-40

11. APPENDIX

11.1 Equilibrium Constants
Figure 11-1 presents the temperature dependence of the equilibrium constants for the water gas
shift reaction,

CO2 + H2 = CO + H2O (11-1)

the carbon deposition (Boudouard reaction) reaction,

2CO C + CO2 (11-2)

the methane decomposition reaction,

CH4 C + 2H2 (11-3)

and the methane formation reaction,

CO + 3H2 CH4 + H2O (11-4)

11-1

Figure 11-1 Equilibrium Constants (Partial Pressures in MPa) for (a) Water Gas Shift,
(b) Methane Formation, (c) Carbon Deposition (Boudouard Reaction), and (d) Methane
Decomposition (J.R. Rostrup-Nielsen, in Catalysis Science and Technology, Edited by
J.R. Anderson and M. Boudart, Springer-Verlag, Berlin GDR, p.1, 1984.)

11.2 Contaminants from Coal Gasification
A list of contaminant levels that result from various coal gasification processes is presented in
Table 11-1. The contaminant levels obtained after a first stage of hot gas cleanup with zinc ferrite
also are listed.

11-2

Table11-1 Typical Contaminant Levels Obtained from Selected Coal Gasification
Processes
Parameters Coal Gasification Process
LURGI METC (raw gas) Cleaned
Fixed Bed Fixed Bed Gas

Max. Product 750 1300 <800
Temp. (EC)
Gasification O2 blown Air blown Regenerative
Pressure (psi) 435 220 150
Product Gas (EC) 600 650 <700
Methane (vol%) 11 3.5 3.5
Coal type Sub-bitum. Sub-bitum. (Humidified
Navajo New Mexico Output)

Particulates (g/l) 0.016 0.058 0.01 est.
Sulfur (ppm) 2,000 5,300 <10
(Total H2S, COS,
CS2, mercaptans)
NH3 (vol%) 0.4 0.44 0.25
Trace metals (ppm)
As 2 NSa NS
Pb 0.8 2 1.7
Hg 0.4 NS NS
Zn 0.4 NS 140
Halogens (ppm) 200 700 500
Hydrocarbons (vol%)
C2H6 1 NS NS
C2H4 1 0.3 NS
C2H2 1 NS NS
Oil tar 0.09 NS NS
a - Not specified
Source: A. Pigeaud, Progress Report prepared by Energy Research Corporation for U.S.
Department of Energy, Morgantown, WV, Contract No. DC-AC21-84MC21154,
June 1987.

11-3

11.3 Selected Major Fuel Cell References, 1993 to Present
Books on Fuel Cells:

1. A.J. Appleby, F.R. Foulkes, Fuel Cell Handbook, Van Norstand Reinhold, New York, N.Y.,
1989. Republished by Krieger Publishing Company, Melborne, FL, 1993.

2. L.J. Blomen, M.N. Mugerwa, editors, Fuel Cell Systems, ISBN 0-306-44158-6, Plenum Press,
New York, N.Y., 1993.

3. K. Kordesch, G. Simander, Fuel Cells and Their Applications, VCH Publishers, New York,
N.Y., 1996.

4. S. Gottesfeld, T.A. Zawodzinski, "Polymer Electrolyte Fuel Cells," Advances in
Electrochemical Science and Engineering, Volume 5, edited by R.C. Alkire, et al., Wiley-VCH,
1998.

Proceedings and Abstracts from Major U.S. Fuel Cell Conferences:

1. Fuel Cell Seminar, Programs and Abstracts, Fuel Cell Seminars, sponsored by Fuel Cell
Seminar Organizing Committee. Meetings held every two years at U.S. locations, Courtesy
Associates, Inc., Washington, D.C.:

November /December 1994 - San Diego, Calif.
November 1996 - Orlando, Fl.

2. Proceedings of the Annual Fuel Cells Review Meeting. Meetings held annually at the U.S.
DOE Morgantown Energy Research Center, Morgantown, W.V., until 1998, then at U.S.
locations:

DOE/METC-94/1010, August 1994
DOE/METC-95/1020, August 1995
DOE/METC CD-ROM, August 1996
DOE/METC CD-ROM, August 1997
Joint DOE/EPRI/GRI Workshop on Fuel Cell Technology, May 1998, San Francisco,
Calif., (Abstracts, issuance of final proceedings on CD-ROM expected in early 1999).

3. EPRI/GRI Fuel Cell Workshop on Technology Research and Proceedings, Cosponsored by
EPRI and GRI, Proceedings by EPRI, Palo Alto, Calif., March 1994.

March 1994, Atlanta, Georgia
April 1995, Irvine, Calif.
April 1996, Temple, Arizona
In 1997, the EPRI/GRI Workshop joined with the DOE Annual Fuel Cells Contractors
Meeting. See Item 2 for information in 1997 and 1998.

11-4

4. J.R. Selman, et al., ed. Carbonate Fuel Cell Technology IV, Proceedings Vol. 97-4, Montreal,
Canada, The Electrochemical Society, Inc., Pennington, N.J., 1997.

5. S.C. Singhal, et al., Proceedings at the Fourth International Symposium on Solid Oxide Fuel
Cells, Proceedings Vol. 95-1, Yokohama, Japan, The Electrochemical Society, Inc.,
Pennington, N.J., 1995.

6. S.C. Singhal, et al., Proceedings of the Fifth International Symposium on Solid Oxide Fuel
Cells, Proceedings Vol. 97-40, Aachen, Germany, The Electrochemical Society, Inc.,

7. A.R. Landgrebe, S. Gottesfeld, First International Symposium on Proton Conducting
Membrane Fuel Cells, Chicago, Il, Proceedings Vol. 95-23, The Electrochemical Society, Inc.,

8. Proceedings of the Workshop on Very High Efficiency Fuel Cell/Gas Turbine Power Cycles,
edited by M.C. Williams, C.M. Zeh, U.S. DOE Federal Energy Technology Center,
Morgantown, W.V., October 1995.

9. Proceedings of the National Hydrogen Association Meetings, National Hydrogen Association,
usually in Alexandria, VA., annually in Spring.

10. Proceedings of the Intersociety Energy Conversion Engineering Conference. Sponsorship of
meeting rotates among seven technical societies. Meetings are held annually (usually in
August) in different cities of the United States:

29th - Part 2, Sponsor - American Institute of Aeronautics and Astronautics, Monterey,
Calif, August 1994.
30th - Volume 3, Sponsor - American Society of Mechanical Engineers, Orlando, Fl,
August 1995.
31st - Volume 2, Sponsor - Institute of Electrical and Electronics Engineers, Washington,
D.C., August 1996.
32nd - Sponsor - American Institute of Chemical Engineers, Honolulu, Hawaii, July/August
1997.
33rd - CD-ROM, Sponsor - American Nuclear Society, Colorado Springs, Colo., August
1998.

11. Proceedings of the 58th American Power Conference, Volume 58-1, Sponsored by Illinois
Institute of Technology, Chicago, Il., 1996.

12. Proceedings of U.S. Russian Workshop on Fuel Cell Technologies, Sandia National
Laboratories, Albuquerque, N.M., September 1995.

11-5

Other Important Annual Information on Fuel Cells:

1. U.S. DOE, Fuel Cell Program Plans, published each Fiscal Year by U.S. Department of
Energy, Assistant Secretary of Fossil Energy:

1994 - DOE/FE-0311P
1995 - DOE/FE-0335
1996 - DOE/FE-0350

2. NEDO, Research and Development on Fuel Cell Power Generation Technology, published
yearly by the New Energy and Industrial Technology Development Organization, Tokyo,
Japan.

3. Fuel Cell RD&D in Japan, Published annually by the Fuel Cell Development Information
Center c/o The Institute of Applied Energy, Tokyo, Japan, usually in August.

4. Proceedings of the Grove Anniversary Fuel Cell Symposium, London, UK, September 1995,
Journal of Power Sources, Elsevier Sequoia Science, The Netherlands, January 1995.

5. Proceedings of the Grove Anniversary Fuel Cell Symposium, London, UK, September 1997,
Journal of Power Sources, Elsevier Sequoia Science, The Netherlands, January 1997.

6. U. Bossel, editor, Proceedings of the European Solid Oxide Fuel Cell Forums, European Fuel
Cell Group and IEA Advanced Fuel Cell Programme, 1994, 1996, 1998.

Selected Fuel Cell Related URLs:
DOE National Energy Technology Laboratory www.netl.doe.gov
DOE Fossil Energy www.fe.gov
DOE R&D Project Summaries www.doe.gov/rnd/dbhome
Department of Defense www.dodfuelcell.com
Argonne National Labs www.anl.gov
Sandia National Labs www.sandia.gov
Oak Ridge National Labs www.ornl.gov
Los Alamos National Labs www.lanl.gov
National Fuel Cell Research Center www. Nfcrc.uci.edu
Fuel Cell 2000 www.fuelcells.org
US Car www.uscar.org
Partnership for a New Generation of Vehicles www.ta.doc.gov/pngv
Electric Power Research Institute www.epri.com
Gas Research Institute www.gri.org
NEDO (Japan) www.nedo.go.jp/nedo-info
Honeywell www.honeywell.com
Ballard Power Systems www.ballard.com
ElectroChem, Inc. www.fuelcell.com
Energy Partners www.gate.net/~hz-ep
Fuel Cell Energy www.fce.com

11-6

H-Power, Inc. www.hpower.com
International Fuel Cells www.hamilton-standard.com/ifc-onsi
Plug Power L.L.C. www.plugpower.com
Siemens Westinghouse S&T Center www.stc.westinghouse.com

11.4 List of Symbols
Abbreviations:

® registered
A.R. as received
ABS acrylonytril-butadiene-styrene
AES air electrode supported
AFC alkaline fuel cell
APU auxiliary power unit
ASF amps/ft2
ASR area-specific resistance
ASU air separation unit
CC capital cost
COE cost of electricity
CVD chemical vapor deposition
DIR direct internal reforming
DOE Department of Energy
EMF electromotive force
EVD electrochemical vapor deposition
FC fuel cost
FCE Fuel Cell Energy
FEP fluoro-ethylene-propylene
FETC Federal Energy Technology Center
HHV higher heating value
HR heat rate
IIR indirect internal reforming
iR ohmic loss
J-M Johnson Mathey Technology Center
LHV lower heating value
MCFC molten carbonate fuel cell
NETL National Energy Technology Laboratory
O&M operating and maintenance costs
ODS oxide dispersion strengthened anode
OS/IES on-site/integrated energy systems
PAFC phosphoric acid fuel cell
PC phthalocyanines
PEFC polymer electrolyte fuel cell
PMSS pyrolysis of metallic soap slurry
PR pressure ratio
Pt platinum
PTFE polytetrafluoroethylene

11-7

RDF refuse derived fuel
SOFC solid oxide fuel cell
TAA tetraazaannulenes
TBA tetrabutyl ammonium
TFMSA trifluoromethane sulfonic acid
THT tetrahydrothiophene (thiophane)
TMPP tetramethoxyphenylporphyrins
TPP tetraphenylporphyrins
TZP tetragonal phase
™ trade mark
U.S. United States of America
WSF watts/ft2
YSZ yittria stabilized zirconia

Letter Symbols:

E potential difference
G Gibbs free energy
Hc heat available from combustion of fuel gas
Hr enthalpy of reaction
Sr entropy of reaction
V voltage difference
<D> equilibrium pore size
a (-2.3RT/ nF) log io
a coefficient
AC alternating current
b 2.3RT/ nF
b coefficient
b Tafel slope
Btu British Thermal Unit
c coefficient
CB bulk concentration
Cp heat capacity
CS surface concentration
D diffusion coefficient
D pore diameter
dBA average decibles
DC direct current
e- electron
E equilibrium (reversible) potential
E standard potential
Ea activation energy
F Faraday's constant
f gas flow rate
hrs hours
I current

11-8

i current density
iL limiting current density
io exchange current density
J current density
K equilibrium constant
k(T) constant, function of temperature
kW kilowatt
lb pound
MM million
mol mole
MW megawatt (1000 kW)
MWhr megawatt-hour
n number of electrons participating in a reaction
nmax maximum stoichiometric value
P pressure
Pi partial pressure
ppm parts per million
PT total pressure
R cell resistance
R universal gas constant
t electrolyte thickness
T temperature
U utilization
V cell voltage
v rate at which reactant species are consumed
V volume
Vc voltage of single cell
vol volume
Wel maximum electrical work
wt weight
X mole fraction
yr year

Greek Letter Symbols:

transfer coefficient
hydrogen utilization
mole fraction
interfacial surface tension
oxidant utilization
diffusion layer thickness
act activation polarization
conc concentration polarization
ohm ohmic polarization
electrolyte contact angle
CO CO coverage

11-9

Subscripts:

a anode
c cathode
e electrolyte
f fuel
i species
in cell inlet
out cell outlet
ox oxygen or oxidant
p pressure
t temperature

11.5 Fuel Cell Related Codes and Standards

11.5.1 Introduction
The rapid development and application of fuel cells throughout the world has created the need
for fuel cell technology related codes and standards. Several organizations and committees are
currently working on the development of codes and standards related to fuel cells.

According to the National Fire Protection Agency (NFPA) Regulations Governing Committee
Projects, codes and standards are defined as follows:

Code: A standard that is an extensive compilation of provisions covering broad subject matter
or that is suitable for adoption into law independently of other codes and standards.

Standard: A document, the main text of which contains only mandatory provisions using the
word "shall" to indicate requirements and which is in a form generally suitable for mandatory
reference by another standard or code or for adoption into law. Non-mandatory provisions shall
be located in an appendix, footnote, or fine-printnote and are not to be considered a part of the
requirements of a standard.

This section provides a brief overview of the existing and developing codes and standards related
to fuel cell technologies. The discussion focuses on participating organizations, specific codes
and standards and more generally applied codes and standards (e.g., the Uniform Building Code)
that apply to system installation.

11.5.2 Organizations
Below is a listing and brief description of organizations involved in the development of codes
and standards pertaining to fuel cell technology.

American National Standards Institute (ANSI): ANSI has served in its capacity as
administrator and coordinator of the United States private sector voluntary standardization
system for 80 years. The Institute is a private, nonprofit membership organization supported by a
diverse constituency of private and public sector organizations. ANSI Z21.83 has been
published and provides a means of testing and certifying the safety of stationary fuel cell power
plants having a capacity of less than 1 MW.

11-10

American Society of Mechanical Engineers (ASME): ASME is an international engineering
society that conducts one of the world's largest technical publishing operations. ASME
International is a nonprofit educational and technical organization serving a worldwide
membership. Its mission is to promote and enhance the technical competency and professional
well being of engineers through programs and activities in mechanical engineering. To this end,
ASME has developed the Boiler and Pressure Vessel Code which is referenced as part of the
AGA certification. Additionally, ASME is working on a fuel cell standard, ASME PTC 50,
which will address fuel cell performance. Publication of this standard is not expected until 2002.

Institute of Electrical and Electronics Engineers (IEEE): The mission of of IEEE is to
advance global prosperity by promoting the engineering process of creating, developing,
integrating, sharing and applying knowledge about electrical and information technologies. IEEE
Standards Coordinating Committee 21 (SCC21) oversees the development of standards in the
area of fuel cells, photovoltaics, distributed generation, and energy storage. SCC21 coordinates
efforts in these fields among the various IEEE societies and other appropriate organizations to
insure that all standards are consistent and properly reflect the views of all applicable disciplines.
Working Group 1547 - Standard for Distributed Resources Interconnected with Electric Power
Systems - establishes criteria and requirements for interconnection by distributed resources with
electric power systems. The purpose is to provide a uniform standard for interconnection of
distributed resources with electric power systems and requirements relevant to the performance,
operation, testing, safety considerations, and maintenance of the interconnection.

International Electotechnical Commission (IEC): The IEC is the world organization that
prepares and publishes international standards for all electrical, electronic and related
technologies. The membership consists of more than 50 participating countries, including all the
world's major trading nations and a growing number of industrializing countries. The IEC’s
mission is to promote, through its members, international cooperation on all questions of
electrotechnical standardization and related matters, such as the assessment of conformity to
standards, in the fields of electricity, electronics and related technologies. The IEC charter
embraces all electrotechnologies including electronics, magnetics and electromagnetics,
electroacoustics, telecommunication, and energy production and distribution, as well as
associated general disciplines such as terminology and symbols, measurement and performance,
dependability, design and development, safety and the environment.

The National Fire Protection Association (NFPA): NFPA is non-profit organization that
publishes the National Electrical Code®, the Life Safety Code®, the Fire Prevention Code™, the
National Fuel Gas Code®, and the National Fire Alarm Code®. The mission of NFPA is to
reduce the worldwide burden of fire and other hazards on the quality of life by providing and
advocating scientifically based consensus codes and standards, research, training, and education.
NFPA is developing a fuel cell specific code, NFPA 853, which will cover the installation of
stationary fuel cells of at least 50 kW output. Publication is expected to occur in 2000.

Society of Automotive Engineers (SAE): SAE is a resource for technical information and
expertise used in designing, building, maintaining, and operating self-propelled vehicles for use
on land, sea, in air or in space. Comprised of nearly 80,000 engineers, business executives,
educators, and students from more than 97 countries, the network of members share information

11-11

and exchange ideas for advancing the engineering of mobility systems. Technical committees
write more new aerospace and automotive engineering standards than any other standards-
writing organization in the world. In late 1999, a Fuel Cell Standards Forum was created to
establish standards and test procedures for fuel cell powered vehicles. It will address the safety,
performance, reliability and recyclability of fuel cell systems in vehicles with an emphasis on
efficiency and environmental impact.

Underwriters Laboratories Inc. (UL): UL is an independent, not-for-profit product safety
testing and certification organization. UL has tested products for public safety for more than a
century with more than 14 billion UL Marks applied to products worldwide. UL has developed a
standard for inverters that can be applied to fuel cells.

11.5.3 Codes & Standards
A summary of existing and pending fuel cell related codes and standards is presented in
Table 11-2. More detailed descriptions are provided subsequently based on their specific area of
application.

Table 11-2 Summary of Related Codes and Standards

CODE/STANDARD ORGANIZATION SUMMARY
1. PTC 50 ASME Performance Test Code - Will provide test procedures,
methods and definitions for the performance
characterization of fuel cell power systems.
2. IEEE SCC 21 IEEE Standards coordinating committee - fuel cells, photo-
voltaics, dispersed generation and energy storage
3. IEEE P1547 IEEE DG Interconnection Standard - Establishes criteria
and requirements for interconnection of distributed
resources with electric power systems
4. ANSI Z21.83-1998 ANSI Product Standard – Provides detailed test and
examination criteria for fuel cell power plants that
make use of natural and liquefied petroleum gases.
5. NFPA 853 NFPA Installation Standard - applies to installation of
stationary fuel cell power plants.
6. NEC/NFPA 70 NFPA 690 – Solar Photovoltaic Systems
Article 690,691 & 691 – Fuel Cells
705 705 – Interconnected Power Production Sources
7. IEEE SCC 36 IEEE Standards Coordinating Committee - pertains to utility
communications
8. UL 1741 UL Electric Inverters – Standard for testing, listing and
safety certification for Inverters
9. SAE Standards SAE Vehicle Standards – in the early stages of developing
Forum standards for safety, performance, reliability and
recyclability. Also establish testing procedures.
10. IEC TC 105 IEC Technical Committee 105 - to expand the scope of
ANSI Z21.83 for international basis and additional fuel
cell technologies.

11-12

Codes and Standards for Fuel Cell Manufacturers

ANSI Z21.83: American National Standard - Fuel Cell Power Plants provides a means of testing
and certifying the safety of stationary fuel cell power plants with a nominal electric capacity not
exceeding 1.0 MW. This standard is intended for applications other than residential when
installed outdoors and operated on a gaseous hydrocarbon as the reactant. The current version of
the standard is based on two specific fuel cell technologies and is being revised to take into
consideration the characteristics of additional fuel cell power plant technologies. This standard
has been adopted by many state and local regulatory authorities. The revised version of the
standard is expected to be approved in 2001.

ASME PTC 50: ASME Performance Test Code 50 - Fuel Cell Power Systems provides test
procedures, methods and definitions for the performance characterization of fuel cell power
systems. The code specifies the methods and procedures for conducting and reporting fuel cell
system ratings. Specific methods of testing, instrumentation, techniques, calculations and
reporting are presented. This standard is currently being drafted and is expected to be approved
and published in 2002.

IEC TC 105: The International Electrotechnical Committee has established a Technical
Committee charged with the preparation of an international standards regarding fuel cell
technologies for all fuel cell applications including stationary power plants, transportation
propulsion systems, transportation auxiliary power units and portable power generation systems.
The committee was established in 2000 and plans to have the standards approved and published
in 2004.

IEEE SCC21/P1547: The Institute of Electrical and Electronic Engineers has established a
Standards Coordinating Committee (SCC 21) chartered with the development of a standard for
the interconnection of distributed resources. This standard focuses on electrical interface
standards for the application of distributed generation technologies described as fuel cells,
photovoltaics, dispersed generation and energy storage. The resulting standard will be IEEE
P1547 which will establish criteria and requirements for the interconnection of distributed
resources with electric power systems. This standard is currently under development and is
expected to be approved by IEEE and published in 2001.

IEEE SCC 36: Reviews, recommends and solicits the development of standards relevant to the
gas, water, and electric utility industries on a worldwide basis with respect to utility
communication architecture. This SCC coordinates standards-development activities with other
relevant IEEE groups and sponsors standards-development activities that are appropriate to the
needs of the utility industry.

UL 1741: Underwriters Laboratory 1741 is a standard for the testing, listing and safety
certification for electric inverters. This standard is for static inverters and charge controllers for
use in photovoltaic power systems, but may be used for fuel cells.

11-13

Codes and Standards for the Installation of Fuel Cells

NFPA 853: National Fire Protection Association 853 - Standard for Fuel Cell Power Plants
provides a standard for the design, construction and installation of stationary packaged, self
contained and field constructed fuel cell power plants with a capacity greater than 50 kW. This
standard has been approved and will be published during the summer of 2000.

NFPA 70: National Fire Protection Association 70 is also known as the National Electric Code
(NEC). Revisions and addendum’s to the code are currently being developed that specifically
address fuel cells. Article 690 - Solar Photovoltaic Systems has been targeted for revision to
include fuel cells and alternate energy sources systems. This proposal is not expected to be
approved since the technological and operational differences between fuel cells and photovoltaic
systems is considerable. A new article, currently identified and Article 691, has been proposed
and applies to fuel cells for buildings or residential dwellings. This standard addresses the
electrical interface between the fuel cell system and a building’s electrical distribution panel.
The fuel cell specific standard is not likely to be identified as Article 691 and is expected to be
approved and published in 2001. NFPA Article 705 - Interconnected Electrical Power
Production Sources is also being revised to address fuel cell power sources.

Codes and Standards for Fuel Cell Vehicles

SAE has established a Fuel Cells Standard Forum that is chartered with the establishment of
standards and test procedures for fuel cell powered vehicles. The committee was established in
1999. The standards will cover the safety, performance, reliability and recyclability of fuel cell
systems in vehicles with emphasis on efficiency and environmental impact. The standards will
also establish test procedures for uniformity in test results for the vehicle/systems/components
performance, and define interface requirements of the systems to the vehicle. Task Groups have
been formed in the areas of safety, performance, reliability, emissions, recyclability, interface
and miscellaneous.

11.5.4 Application Permits
The installation of fuel stationary fuel cells requires adherence to a variety of building codes. A
few of the major codes are summarized below.

Uniform Building Code: The Uniform Building Code (UBC) is the most widely adopted model
building code in the world and is a proven document meeting the needs of government units
charged with enforcement of building regulation. Published triennially, the UBC provides
complete regulations covering all major aspects of building design and construction relating to
fire and life safety and structural safety. The requirements reflect the latest technological
advances in the building and fire and life-safety industry.

Uniform Mechanical Code: Provides a complete set of requirements for the design,
construction, installation and maintenance of heating, ventilating, cooling and refrigeration
systems, incinerators, and other heat-producing appliances.

11-14

Uniform Plumbing Code: Published by the International Association of Plumbing and
Mechanical Officials (IAPMO), the Uniform Plumbing Code covers all aspects of plumbing,
including requirements for plumbing materials and IAPMO installation standards.

National Electric Code: The National Electrical Code (NFPA 70) provides "practical
safeguarding of persons and property from hazards arising from the use of electricity." More
specifically, the National Electric Code covers the installation of electric conductors and
equipment in public and private buildings or other structures (including mobile homes,
recreational vehicles, and floating buildings), industrial substations, and other premises (such as
yards, carnivals, and parking lots). The National Electric Code also covers installations of
optical fiber cable. Wiring, general electrical equipment, the use of electricity in specific
occupancies (from aircraft hangars to health care facilities), and equipment (ranging from
elevators to hot tubs) are covered, as well as special conditions (emergency and stand-by power,
or conditions requiring more than 600 volts, for example) and communication systems.

National Fire Code: The National Fire Code consists of approximately 300 codes and
standards as published by the National Fire Protection Association (NFPA). These codes address
the practices to reduce the burden of fire on the quality of life by advocating scientifically based
consensus codes and standards, research and education for fire and related safety issues. The
most widely applied codes are:

(1.) NFPA 70 – National Electric Code
(2.) NFPA 101 – Life Safety Code
(3.) NFPA 30 – Flammable and Combustible Liquids Code
(4.) NFPA 13 – Standard for the Installation and Maintenance of Automatic Fire Sprinkler
Systems

11.6 Fuel Cell Field Sites Data
This section of the handbook contains field site information. Most of the worldwide summaries
were extracted from an IEA paper. Information on the U.S. Department of Defense (DoD) Fuel
Cell Demonstration was taken from the following web site: www.dodfuelcell.com. Finally, Fuel
Cell Energy, IFC, and Siemens Westinghouse provided information on their field sites. The IFC
PAFC summary includes a number of projects reported by DoD. In the DoD demonstration
program, a total of 30 PAFC units were installed at DoD sites across the United States. These
were model B and C PC-25 units.

11.6.1 Worldwide Sites
Worldwide information reported in this handbook is for stationary application of fuel cells in
different countries. Data on PEFC, PAFC, AFC, MCFC, and SOFC has been collected. Most of
the data reported is as of April 1999. The main worldwide projects are summarized below:

11-15

11.6.2 PEFC
Canada: Ballard 250 kWe stationary prototypes are developed by Ballard Generation Systems.
The first prototype operating is in Vancouver, Canada. Ballard delivered a second 250-kilowatt
PEM fuel cell power system to Cinergy Technology. This is the first field trial unit built by
Ballard. The unit runs on natural gas, and was commissioned in 1999 at the Naval Surface
Warfare Center in Crane, Indiana. A third unit in Berlin, Germany at Bewag Treptow Heating
Plant started operating the second half of 1999. Two other prototypes are scheduled to be tested,
one at EBM headquarters, Basel, Switzerland and the other at NNT Research Laboratory, Tokyo,
Japan. The unit at EBM Headquarters is currently being commissioned and the unit at NNT
Research Laboratory is currently being shipped to site, installation planned for September 2,000.

Japan: 2 and 30 kWe PEFC pilot plants have been promoted in Japan as a part of New Sunshine
Program. The 2 kWe plant is for residential use and will be developed by Sanyo Electric. The
plant is scheduled for testing in 2000.

United States: Plug Power is developing a 7 kWe fuel cell system for residential applications.
They have tested their system on hydrogen and are planning market introduction of several
models which could use hydrogen, propane, or natural gas.

11.6.3 PAFC
Europe: The Energetic Utility of Milan, the National Agency for Energy, New Technology and
Environment (ENEA), and Ansaido Ricerche designed, built, and tested 1.3 MWe PAFC system
in Milan. The powerplant had an actual capacity of 930 kW and an energy efficiency of 38%
(LHV). It has operated for over 5,000 hours.

Japan: Fuji Electric has developed a 100 kWe on-site system. To date, they have tested a 50 kW
power plant using innovative cell design that improves electrolyte management. They tested this
stack (154 cells) for about 2,000. They have tested 65, 50 kWe units for a total cumulative
operating tome of over 1 million hours. They have tested 3, 500 kWe units for a total of 43,437
hours. Their latest design, FP100E, has been shown to have a net AC efficiency of 40.2%
(LHV).

Mitsubishi Electric has developed a 200 kWe class on-site powerplant. To date, 11 units are
being operated in the field with applications ranging from an electric utility to a brewery factory.
Four of the units have operated more than 2,000 hours.

11.6.4 AFC
United Kingdom: ZeTek Power, an UK based company with plants in the US and Europe, is
developing Alkaline fuel cells. They are putting AFCs in fleet vehicles and boats in Europe.
AFCs are getting greater than 50% efficiency over most of the power curve (5-95%). Capital
cost for the AFC stack is $300/kWe, and approximately $700 for the system.

11.6.5 MCFC
Japan: As part of the New Sunshine Program, 200 and 1,000 kWe test facilities are planned in
Japan. This plan is promoted collectively by 10 electric power companies, 3 gas companies,
Central Research Institute of Electric Power Industry, 7 manufacturers, and 2 research

11-16

associations. The 1,000 kWe is located in Kawagoe, and the 200 kWe is located in Amagasaki.
Both units are scheduled to begin operations in the first half of 1999.

Europe: Italy and Spain have been working on research and development of MCFC systems as a
collaborative project called MOLCARE program. The project has a budget of 10 billion pesetas
(35% by Spain and 65% by Italy). They have partnered with industry to develop and conduct a
1,000-hour test on a 100 kWe unit.

The European Direct Fuel Cell Consortium carries out the largest European program for the
commercialization of MCFC. They are developing an innovative direct fuel cell process which
is internally reformed and operates on humidified hydrocarbon fuels. They have successfully
tested a 292 cell, 155 kW stack (60% of maximum power).

United States: Fuel Cell Energy is developing an externally manifolded internally reformed
MCFC and has constructed a 17 MWe/year cell manufacturing plant. They have also
constructed a 400 kWe test facility. They have successfully completed the manufacture and test
of 16 stack (4 modules), 2 MWe test in Santa Clara, California, for 4,000 hours. Details on Fuel
Cell Energy field site are found in Table 11-5.

11.6.6 SOFC
Japan: The Kansai Electric Company has tested a four-cell article and accumulated 10,529 hours
of operation at high current densities and completed 101 thermal cycles. Tokyo Gas started
research and development of a planner SOFC in 1993. They conducted a 1.7 kW module test
with stable performance.

Australia: Ceramic Fuel Cells Limited was demonstrated a 5 kWe laboratory prototype fuel cell
system in 1997. Their system has thin sheet steel components as interconnects in a planer fuel
cell design. They are currently scaling up to a 25 kWe pre-commercial stack module.

Canada: Ontario Hydro has tested a single Siemens-Westinghouse cell for 1725 hours. Over
1425 of the hours were at elevated pressure of 5 atm.

Europe: The ELSAM/EDB project for a 100 kWe Siemens-Westinghouse SOFC field unit has
operated from January 1998. The unit will operate until January 2000 with a total of 17,500 test
hours according to the plan.

Spain: A consortium called SEGE is developing an intermediate temperature planner fuel cell.

United States: Siemens-Westinghouse projects on SOFC include a 250 kWe tubular prototype at
the Irvine University campus (California), that will be operated by Southern California Edison
Company. It is pressurized to 3.5 bar and thus is expected to give 200 kWe; a coupled
microturbine gives an additional 50 kWe. The have operated a tubular SOFC at pressures up to
15 atm.

11-17

11.6.7 DoD Field Sites
DoD’s Climate Change Fuel Cell program included purchasing and installing 30 ONSI PC25
200 kWe PAFC at DoD installations in addition to providing rebates of $1,000/kW (up to 1/3 of
the installed cost). There are many factors that determine the availability and efficiency of
individual units; maintenance programs and application are two of many possible factors. The
summary table, Table 11-2, does provide information on operating hours, efficiency, and
availability. Logging onto can access additional information on individual units:
www.dodfuelcell.com.

11.6.8 IFC Field Units
IFC provided DOE with information on their 59 fuel cell unit operating in North America. This
information is provided in Table 11-4. As mention before, several of these units are operating on
DoD field site and are report on Table 11-3.

11.6.9 Fuel Cell Energy
Fuel Cell Energy provided DOE with information on their fuel cell field units. This information
is provided in Table 11-5.

11.6.10 Siemens Westinghouse
Siemens Westinghouse provided DOE with information on their fuel cell field units. This
information is provided in Table 11-6.

11-18

Table 11-3 DoD Field Site

Through December 31, 1999
SITE NAME SERVICE START OPER. MWHRS AVG ELEC. AVAIL.
DATE HOURS OUTPUT kWe EFF.
MODEL B UNITS
Naval Station Newport Navy 1/23/95 35,884 5,484.999 152.9 30.2% 82.0%
U.S. Army Soldier Systems Center Army 1/27/95 32,475 5,411.324 166.6 30.9% 74.3%
US Military Academy Army 11/17/95 28,534 4,777.548 167.4 31.6% 78.3%
934th Airlift Wing Air Force 2/1/95 26,174 4,210.264 160.9 29.0% 60.9%
Picatinny Arsenal Army 10/11/95 25,194 4,368.716 173.4 31.4% 67.5%
Naval Hospital Marines 10/6/95 25,161 4,131.284 164.2 32.6% 67.6%
MCB Camp Pendleton
Naval Hospital Marines 6/20/95 20,905 3,392.946 162.3 31.5% 52.2%
MCAGCC Twentynine Palms
Nellis AFB Air Force 9/23/95 16,687 2,845.942 170.5 29.6% 44.0%
Watervliet Arsenal Army 10/29/97 16,236 2,527.312 155.7 32.5% 85.1%
Fort Eustis Army 9/12/95 14,292 2,626.718 183.8 32.3% 37.4%
Kirtland AFB Air Force 7/20/95 14,136 2,084.220 147.4 31.2% 35.8%
Naval Oceanographic Office Navy 10/7/97 12,427 2,154.166 173.3 35.9% 62.9%
Pine Bluff Arsenal Army 10/21/97 9,099 1,689.116 185.6 34.0% 47.2%
CBC Port Hueneme Navy 9/18/97 6,828 1,340.970 196.4 36.4% 33.9%
B's TOTAL/AVG: 284,039 47,045.525 165.6 31.5% 59.2%

MODEL C UNITS*
911th Airlift Wing Air Force 12/18/96 22,410 3,979.615 177.6 85.3%
Naval Hospital Navy 3/18/97 19,726 3,662.949 185.7 80.9%
NAS Jacksonville
NAS Fallon Navy 3/30/97 19,485 3,348.443 171.8 78.2%
Subase New London Navy 9/30/97 18,164 3,355.269 184.7 92.1%
Fort Richardson Army 12/17/96 17,680 3,176.828 179.7 65.5%
Little Rock AFB Air Force 8/17/97 17,515 3,264.199 186.4 88.8%
Westover AFB Air Force 9/19/97 17,396 3,438.906 197.7 87.1%
Barksdale AFB Air Force 7/24/97 17,138 3,311.453 193.2 80.1%
Fort Huachuca Army 7/28/97 16,288 3,112.414 191.1 77.3%
Laughlin AFB Air Force 9/16/97 14,910 2,901.040 194.6 74.7%
US Naval Academy Navy 9/22/97 14,886 2,183.549 146.7 75.4%
Edwards AFB Air Force 7/5/97 14,483 2,796.847 193.1 63.7%
Fort Bliss Army 10/10/97 13,839 2,397.983 173.3 71.0%
Davis-Monthan AFB Air Force 10/14/97 13,780 2,599.937 188.7 69.7%
NDCEE Other 8/14/97 9,337 1,145.801 122.7 43.8%
C's TOTAL/AVG: 247,044 44,675.235 180.8 75.6%

B+C TOTAL/AVG: 531,084 91,720.759 172.7 N/A 67.7%

11-19

* Model C units do not have natural gas or electrical efficiency data.
Disclaimer
Electrical efficiency calculations include fuel cell idle time (such as when the fuel cell is awaiting the
return to operation of the utility grid, etc.). If values were adjusted for idle time, fuel cell electrical
efficiencies would be higher. ONSI fuel cells passed DoD Fuel Cell Program electrical efficiency
criteria during unit acceptance tests (range = 33.5% to 37.2%, Higher Heating Value).
Availability values are not adjusted for times when the fuel cell was down for extended periods
unrelated to typical fuel cell operation (delays in maintenance personnel response, site operating
conditions, etc.). Adjusting for these times would result in higher availability values.

11-20

Table 11-4 IFC Field Units

PC25 C Fuel
Cell Power
Plant (Run
hours, etc. as
of 8/4/00)

North America
Status Country/State Site Start Date Load hrs MW-hrs
1 Active SOUTH WINDSOR, CT PROTOTYPE FOR R&D N/A N/A N/A
2 Active DEL RIO, TX HOSPITAL 9/6/97 20,143 3,743.4
3 Active LITTLE ROCK, AR HOSPITAL 10/6/97 21,408 3,872.6
4 Active SHREVEPORT, LA HOSPITAL 7/18/97 19,577 3,786.3
5 Active GROTON, CT CENTRAL BOILER 9/27/97 23,175 4,044.2
PLANT
6 Active ANNAPOLIS, MD DORMITORY 9/20/97 20,274 2,945.9
7 Active STATEN ISLAND, NY CHEMICAL PLANT 8/22/96 27,412 4,940.3
8 Active ANCHORAGE, AK YMCA 11/18/96 21,589 3,572.0
9 Active JACKSONVILLE, FL HOSPITAL 3/17/97 24,396 4,580.2
10 Active EL PASO, TX LAUNDRY 10/7/97 16,775 2,870.1
11 Active STATEN ISLAND, NY CHEMICAL PLANT 8/27/96 29,333 5,342.8
12 Active PITTSBURGH, PA CENTRAL BOILER 12/16/96 28,105 4,988.9
PLANT
13 Active SYRACUSE, NY SCHOOL 1/22/97 27,222 2,802.1
14 Active CAPE COD, MA COLLEGE 3/31/99 10,995 2,016.5
15 Active OMAHA, NE BANK 3/25/99 11,084 1,569.1
16 Active YONKERS, NY ANAEROBIC DIGESTER 4/8/97 18,321 2,349.2
GAS
18 Active ANCHORAGE, AK ARMORY BUILDING 12/24/96 9,046 1,739.4
19 Active ANCHORAGE, AK ARMORY BUILDING 12/11/96 22,321 4,061.2
20 Active DEER ISLAND, MA ANAEROBIC DIGESTER 9/4/97 2,760 395.7
GAS
21 Being ANN ARBOR, MI RESEARCH LAB 0 0.0
Installed
22 Active FALLON, NV GALLEY BUILDING 2/28/97 25,781 4,211.7
24 Active SPOKANE, WA HOTEL 6/11/97 22,680 4,370.4
25 Active CHICOPEE, MA CENTRAL BOILER 9/15/97 22,230 4,393.4
PLANT
26 Active TUCSON, AZ CENTRAL BOILER 10/18/97 20,577 3,644.0
PLANT
27 Active ROSAMOND, CA CENTRAL BOILER 6/19/97 19,325 3,367.7
PLANT
28 Active SIERRA VISTA, AZ BARRACKS 7/28/97 20,812 3,893.1
29 Will be JOHNSTOWN, PA OFFICE/RESEARCH 7/28/97 9,637 1,180.7
restarted Fall LAB
‘00
30 Active HARTFORD, CT OFFICE BUILDING 6/18/97 26,023 4,800.7
31 Active WINDSOR LOCKS, CT DATA CENTER 12/19/97 19,634 2,135.2

11-21

32 Active MERIDAN, CT OFFICE BUILDING 9/21/97 20,987 3,991.5
33 Being ALCORN STATE, MS UNIVERSITY 0 0.0
Installed
34 Active BRAINTREE, MA LANDFILL 9/10/99 5,211 906.2
35 Being BRONX, NY HOSPITAL 0 0.0
Installed
36 Active SOUTH WINDSOR, CT INDUSTRIAL SPACE 3/9/98 19,689 3,771.9
HEATING
37 Active PORTLAND, OR WASTE WATER 5/21/99 7,259 1,051.5
TREATMENT PLANT
39 Owner sold HARVEY, LA COMMERCIAL 3/13/99 6,823 1,185.1
property; FACILITY
being
relocated
40 Active HOUSTON, TX MANUFACTURING 5/12/98 17,871 1,847.8
41 Not Yet NY, USA TBD 0 0.0
Installed
42 Active GULFPORT, MI DINING FACILITY 5/13/99 7,775 1,504.3
43 Not Yet NJ, USA COLLEGE 0 0.0
Installed
44 Active NEW YORK, NY SKYSCRAPER OFFICE 12/15/99 5,220 920.5
BUILDING
45 Active NEW YORK, NY SKYSCRAPER OFFICE 12/16/99 5,553 1,039.2
BUILDING
46 Active RAMAPO, NJ COLLEGE 3/29/00 2,448 429.1
47 Active NEW YORK, NY POLICE STATION 4/17/99 11,108 231.1
48 Active MESA, AZ MUNICIPAL BUILDING 4/29/00 2,192 410.2
49 Active ANCHORAGE, AK POST OFFICE 6/28/00 3,396 475.2
DISTRIBUTION CENTER
DISTRIBUTION CENTER
DISTRIBUTION CENTER
DISTRIBUTION CENTER
DISTRIBUTION CENTER
54 Active CALABASAS, CA ANAEROBIC DIGESTER 12/15/99 6,613 953.9
GAS
55 Active CALABASAS, CA ANAEROBIC DIGESTER 12/15/99 8,322 1,216.0
GAS
56 Active JOHNSTOWN, PA RESEARCH LAB 1/6/00 3,655 497.9
57 Active SOUTH KINGSTOWN, RI HOSPITAL 10/18/99 6,532 1,032.4
58 Active SYRACUSE, NY HIGH SCHOOL 2/4/00 4,427 803.0
59 Active BELLAIR, TX INDUSTRIAL BUILDING 5/24/00 1,867 364.7

11-22

Table 11-5 Fuel Cell Energy Field Sites

MWhrs Size, kw Eff. Avail.
Fuel Cell Location Status Start Operating Output Design Actual* % %
Type Date Hours

Direct Fuel Santa Completed 3/1996 5,800 2,570 1,800 1,930 44 99**
Cell Clara, CA

Direct Fuel Danbury, Completed 2/1999 11,800 1,906 250 263 45 93
Cell CT

Direct Fuel Bielefeld, Continuing 11/199 4,300+ 500+ 250 225 45 90
Cell Germany 9
*Maximum attained
** BOP Availability

Table 11-6 Siemens Westinghouse SOFC Field Units

Year Customer Size, Fuel Cell Cell Operating Cell MWH Operating
kWe Type Length Hours Number (DC) Hours
(cm)
1986 TVA 0.4 H2+CO TK-PST 30.0 1,760 24 0.5 1,760
1987 Osaka Gas 3.0 H2+CO TK-PST 36.0 3,012 144 6 3,012
1987 Osaka Gas 3.0 H2+CO TK-PST 36.0 3,683 144 7 3,683
1987 Tokyo Gas 3.0 H2+CO TK-PST 36.0 4,882 144 10 4,882
1992 JGU-1 20.0 PNG TK-PST 50.0 817 576 11 817
1992 Utilities–A 20.0 PNG TK-PST 50.0 2,601 576 36 2,601
1992 Utilities-B1 20.0 PNG TK-PST 50.0 1,579 576 26 1,579
1993 Utilities-B2 20.0 PNG TK-PST 50.0 7,064 576 108 7,064
1994 SCE-1 20.0 PNG TK-PST 50.0 6,015 576 99 6,015
1995 SCE-2 27.0 PNG/DF-JP-8 AES 50.0 5,582 576 118 5,582
1995 JGU-2 25.0 PNG AES 50.0 13,194 576 282 13,194
1998 SCE- 27.0 PNG AES 50.0 3,394+ 576 73+ 3,800+
2/NFCRC
1997 EDB/ELS 100.0 PNG AES 150.0 4,035 1152 471 4,035
AM-1
1999 EDB/ELS 100.0 PNG AES 150.0 10,085+ 1152 1,153+ 10,400+
AM-2
2000 SCE 200.0 PNG AES 150.0 263+ 1152 25+ 254

PND = Pipeline Natural Gas
TK-PST = Thick Wall Porous Support Tube
TN-PST = Thin Wall Porous Support Tube
AES = Air Electrode Support
+ = Testing Continues

11-23

11.7 Thermal-Hydraulic Model of a Monolithic Solid Oxide Fuel Cell
A mathematical model has been developed to simulate the electrochemistry and thermal
hydraulics in a cross-flow monolithic or planar solid oxide fuel cell (SOFC).69 The fuel cell
stack consists of repeat cell units with alternating layers of anode, electrolyte, cathode, and
interconnect. In the cross-flow designs, the fuel gas flow channels in the anode are orthogonal to
the air flow channels in the cathode. Dividing a single cell layer into a number of nodes, the
model sets up the heat and mass transfer equations for each node in the cell layer. Using a
specified cell voltage and averaged thermal and compositional conditions at each node, the
model calculates the Nernst potential and the resultant current, heat generation, and heat removal
rates at each node. These calculations yield the temperature, the fuel and oxidant compositions,
and species partial pressure matrices for the entire cell. The simulation also provides related
performance data for the fuel cell stack, such as the energy conversion efficiency, fuel
utilization, and power density. The model can be used to analyze the performance of
hydrogen/air SOFCs as well as reformate/air SOFCs fueled with fuel gases other than hydrogen,
such as coal gas or synthesis gas.

The model can be used to examine to examine the effects of changing one or more of the various
design and operating variables, and to evaluate the potential benefits that can be obtained with
fabrication improvements and/or technology development. In the design phase, the model can be
used to determine the size of the stack that would be required to obtain a desired rated power,
and to make design decisions regarding structure-specific parameters, such as the thicknesses of
the anode, electrolyte, cathode, and interconnect layers and dimensions of the flow channels for
the air and fuel gas flow fields. The model may also be used to determine a priori the effects of
altering process variables, such as flow rates and feed conditions, for a particular SOFC stack.

The model, TFLOW, is available for licensing from Argonne National Laboratory. Please
contact: Dr. Romesh Kumar, Argonne National Laboratory, Argonne, Il. 60439. Tel. 630-252-
4342.

11.8 References
1. M. Glass, Fuel Cell Codes and Standards Summit III Summary, April 5-7, 1999, Pacific
Northwest Labs.
2. ASME, Object & Scope for the Proposed Code on Fuel Cell Power Systems, August, 2000,
http://www.asme.org.
3. IEEE, Distributed Resources and Electrical Power Systems Interconnection Working
Group - Meeting Minutes, June 7-8, 2000, http://grouper.ieee.org.
4. SAE, SAE Initiates Activities in Area of Fuel Cells, August, 1999, http://www.sae.org.
5. UL, Standard for Safety for Static Inverters and Charge Controllers for Use in
Photovoltaic Power Systems, 2000, http//:ulstandardsinfonet.ul.com.
6. National Evaluation Service, National Evaluation Protocol for Stationary Fuel Cell Power
Plant, June 5, 2000, http://www.nateval.org.

69
S. Ahmed, C. McPheeters, and R. Kumar, “Thermal-Hydraulic Model of a Monolithic Solid Oxide Fuel Cell,”
J. Electrochem. Soc., 138(9), 2712–2718 (1991).

11-24

7. International Electrotechnical Commission, IEC TC 105 Strategic Policy Statement,
March, 2000, CA/1719A/R, http://www.iec.ch.
8. R. Bielen, Telephone Contact, August 9, 2000, NFPA.
9. S. Kazubski, Telephone Contact, August 14, 2000, CSA International.
10. D. Conover, Telephone Contact, August 9, 2000, National Evaluation Service.

11-25

12. INDEX

acid, xii, 1-3, 1-4, 1-7, 1-12, 1-25, 3-1, 3-4, 3-7, 5-2, 5-4, 5- 9-55, 10-6, 10-7, 10-8, 10-9, 10-13, 11-10
5, 5-9, 5-10, 6-7, 9-82, 11-8 cathode dissolution, 6-10, 9-35
activation losses, 2-16 cation, 3-1, 8-12
alkali, 1-4, 6-5, 6-7, 6-10, 6-26, 6-27 Ceramatec, 1-20, 8-24
alkaline, 1-3, 1-4, 1-7, 1-12, 1-25, 9-82, 11-7 ceramic, 1-4, 1-13, 6-6, 6-9, 8-1, 8-5, 8-6, 8-10, 8-11
AlliedSignal, 8-24, 11-6 cermet, 1-4, 8-5
anode, 1-1, 1-2, 1-4, 1-5, 1-11, 1-12, 2-1, 2-2, 2-3, 2-7, 2-8, characteristics, 1-1, 1-9, 1-10, 1-13, 1-16, 1-19, 2-2, 2-9,
2-13, 2-14, 3-1, 3-2, 3-4, 3-5, 3-6, 3-8, 3-11, 3-12, 5-1, 3-2, 3-7, 6-35, 9-31
5-2, 5-7, 5-8, 5-9, 5-11, 5-13, 5-14, 5-15, 5-18, 6-1, 6-2, chemisorption, 3-2, 3-10
6-3, 6-4, 6-5, 6-6, 6-8, 6-9, 6-14, 6-15, 6-16, 6-17, 6-18, cleanup, 1-20, 5-8, 6-9, 6-11, 6-24, 6-25, 9-30, 9-39, 9-40,
6-19, 6-21, 6-22, 6-24, 6-26, 6-27, 6-28, 6-29, 6-30, 6- 9-45, 11-2
35, 8-2, 8-4, 8-5, 8-6, 8-7, 8-10, 8-11, 8-12, 8-13, 8-16, coal gasification, 6-23, 9-39, 11-2
9-37, 9-43, 9-45, 9-52, 10-1, 10-2, 10-6, 10-7, 10-8, 10- coflow, 2-14, 8-7
13, 11-10
cogeneration, 1-9, 1-11, 1-12, 1-13, 1-15, 5-1, 8-1, 9-1, 9-
anodic, 2-2, 2-13, 5-14, 5-17, 6-26
2, 9-45, 9-50, 10-21, 10-23
Ansaldo, 1-14, 6-1
coking, 10-19
applications, 1-2, 1-3, 1-9, 1-11, 1-12, 1-13, 1-14, 1-15, 1- commercialization, 1-18, 3-13, 5-1, 6-28, 8-21, 9-40, 9-49
26, 2-19, 3-1, 3-3, 3-6, 3-10, 3-11, 3-12, 5-5, 9-1, 9-2, 9- concentration losses, 2-16, 5-17, 6-28, 8-21
30, 9-31, 9-45, 10-37
contaminants, 1-9, 1-20, 3-5, 5-8, 5-11, 6-11, 6-12, 6-23,
availability, xii, 1-10, 1-15, 9-34 6-24, 6-28, 9-35, 9-45
balance, 1-2, 1-4, 2-2, 2-16, 2-17, 3-2, 6-2, 9-33, 9-37, 9- cooling, 1-15, 3-3, 3-5, 3-6, 5-4, 9-33, 9-38, 9-42, 9-44
39, 9-52 corrosion, 1-1, 1-3, 1-13, 2-12, 2-19, 3-1, 5-2, 5-3, 5-7, 5-9,
Ballard Power Systems, 1-16, 1-25, 1-26, 1-37, 3-3, 3-15, 5-11, 6-2, 6-3, 6-6, 6-8, 6-19, 6-27, 8-1, 9-35, 9-36
9-41, 9-82, 9-86, 11-6 cost of electricity, 9-2, 9-57, 10-35, 11-7
bio-fuel, 1-12 counterflow, 2-14
bipolar, 3-3, 3-8, 5-3, 6-8, 8-6, 8-7, 8-10 creepage, 6-3
bottoming cycle, 8-1, 9-1, 9-30, 9-35, 9-36, 9-37, 9-38, 9- crossflow, 2-14
39, 9-48, 9-50, 9-52, 9-54, 9-55, 9-56 crossover, 3-12, 6-11
Brandstofel Nederland, 6-1 current density, 2-5, 2-9, 2-10, 2-16, 2-18, 2-23, 3-2, 3-6, 5-
Cairns, 2-15, 2-26, 5-22, 6-39 5, 5-10, 5-12, 5-17, 6-6, 6-13, 6-16, 6-18, 6-19, 6-26, 6-
carbon, 1-7, 2-2, 2-12, 3-4, 3-5, 3-7, 5-2, 5-7, 5-8, 5-9, 6- 28, 6-33, 6-34, 8-14, 8-16, 8-19, 8-21, 9-34, 9-39, 9-52,
14, 6-15, 6-17, 6-31, 8-17, 9-39, 9-40, 9-52, 9-55, 10-9, 11-9
10-16, 10-18, 10-19, 10-20, 11-1 Daimler-Benz, 1-26, 9-82
carbon black, 1-7, 5-2, 5-7, 5-8, 5-9 degradation, 1-1, 1-3, 3-11, 5-3, 5-6, 5-7, 5-8, 5-11, 5-18,
carbon monoxide, 2-2, 3-5, 9-40, 9-52, 9-55, 10-18 6-23, 6-28, 8-7, 8-20, 8-21, 9-52
Carnot, 2-19 demonstration, 1-16, 5-2, 8-10
catalyst, 1-2, 1-5, 1-12, 2-1, 2-2, 2-17, 3-1, 3-3, 3-4, 3-5, 3- desulfurization, 6-25, 9-47, 9-52
6, 3-8, 5-2, 5-7, 5-8, 5-9, 5-11, 6-26, 6-29, 6-30, 8-16, 9- dielectric, 5-4
35, 9-36, 9-52 digester, xii
catalysts loading, 1-4 diluent, 1-12, 5-17
cathode, 1-1, 1-2, 1-4, 1-12, 1-13, 2-1, 2-3, 2-7, 2-8, 2-13, direct internal reforming, 6-29, 11-7
2-14, 2-15, 2-16, 3-1, 3-2, 3-4, 3-6, 3-7, 3-10, 5-2, 5-5, doping, 8-11
5-7, 5-9, 5-10, 5-12, 5-15, 5-18, 6-1, 6-2, 6-3, 6-4, 6-5, Dow Chemical, 3-4, 3-7
6-6, 6-8, 6-10, 6-11, 6-12, 6-14, 6-16, 6-18, 6-19, 6-20, drag, 3-2
6-21, 6-22, 6-26, 6-27, 6-35, 8-2, 8-5, 8-6, 8-7, 8-10, 8- DuPont, 3-4, 3-7
11, 8-12, 8-13, 8-16, 9-35, 9-37, 9-43, 9-45, 9-47, 9-52,

12-1

efficiency, xii, 1-5, 1-9, 1-12, 1-13, 1-14, 1-15, 1-16, 1-18, Grubbs, 3-1
1-20, 2-9, 2-10, 2-12, 2-17, 2-18, 2-19, 3-2, 3-10, 3-11, Halides, 6-24, 6-27, 6-40
6-9, 6-11, 6-15, 6-24, 8-13, 9-1, 9-2, 9-30, 9-32, 9-33, harmonics, 9-30, 9-31, 9-32
9-34, 9-38, 9-39, 9-43, 9-44, 9-46, 9-48, 9-52, 9-53, 9- heat exchanger, 9-32, 9-41, 9-47, 9-50, 9-52, 10-1, 10-20
54, 9-55, 9-56, 10-20, 10-21, 10-22, 10-23, 10-35 heat rate, 6-2, 10-21, 10-22, 10-35, 11-7
electrocatalyst, 1-4, 1-7, 2-12, 3-4, 3-11, 5-2, 5-5 heat removal, 5-4, 8-7
electrochemical performance, 1-2 heat transfer, 3-5, 6-12, 10-26
electrochemical vapor deposition (EVD), 8-12 higher heating value, 2-18, 10-28, 10-29, 10-30, 11-7
electrode degradation, 2-12 Hitachi, 6-1, 6-37
electrodes, 1-1, 1-2, 1-3, 1-6, 1-7, 1-13, 2-6, 2-7, 2-14, 3-1, hybrid, 1-18, 1-25, 1-26, 9-82
3-2, 3-4, 3-5, 3-7, 3-8, 3-9, 3-12, 5-2, 5-8, 5-9, 5-14, 5- hydrogen, 1-2, 1-3, 1-4, 1-5, 1-8, 1-11, 1-15, 1-19, 1-25, 1-
16, 5-17, 6-2, 6-3, 6-4, 6-9, 6-10, 8-6, 8-7, 8-10, 8-12 26, 1-35, 2-2, 2-3, 2-4, 2-7, 2-13, 2-18, 3-1, 3-2, 3-5, 3-
emissions, xii, 1-9, 1-20, 1-25, 9-39, 9-48 8, 3-13, 5-8, 5-13, 6-29, 6-30, 8-2, 8-13, 8-17, 8-19, 9-
endothermic, 1-5, 3-2, 6-17, 6-29, 6-30, 9-37, 9-41, 9-43, 9- 39, 9-40, 9-41, 9-43, 9-52, 9-55, 9-82, 10-1, 10-2, 10-3,
47, 9-52, 10-17, 10-18 10-4, 10-5, 10-6, 10-7, 10-8, 10-13, 10-17, 10-22, 11-9
equilibria, 6-21 impurities, 2-9, 3-6, 5-9, 5-14, 5-15, 8-19
equilibrium, 1-7, 2-2, 2-3, 2-5, 2-13, 2-15, 2-16, 2-25, 6-2, indirect internal reforming, 6-29, 11-7
6-3, 6-15, 6-17, 6-18, 6-19, 6-21, 6-22, 6-26, 6-30, 8-18, interconnect, 1-3, 1-7, 8-4, 8-6, 8-7, 8-10, 8-12, 8-13
10-7, 10-9, 10-10, 10-11, 10-13, 10-14, 10-16, 10-17, interconnections, 8-6, 8-7, 9-1
10-18, 10-19, 11-1, 11-8, 11-9 intercooled, 9-39, 9-40, 9-47
Europe, xii, 1-25, 6-1 interfacial reactions, 8-11
exchange current, 2-6, 2-23, 2-25, 5-10, 11-9
internal, 1-3, 1-5, 1-11, 2-2, 2-16, 3-10, 6-11, 6-29, 6-30,
exothermic, 1-5, 3-10, 6-17, 6-29, 6-30, 9-47, 9-52, 10-17
8-1, 9-31, 9-35, 9-47, 9-56, 10-12
external, 1-1, 1-3, 1-5, 1-12, 2-2, 3-1, 3-3, 6-11, 6-29, 6-30,
internal manifolding, 6-11
8-7, 9-35
Faraday, 2-19, 6-35, 10-1, 11-8 internal reforming, 1-3, 1-5, 1-11, 2-2, 6-29, 6-30, 8-1, 9-
flat plate, 1-7, 1-13, 5-5, 8-7, 8-10, 8-13 35, 9-47, 9-56
flooded, 1-3, 1-6, 6-2 International Fuel Cells Corporation (IFC), 1-14
Foulkes, 1-2, 1-35, 2-26, 11-4 inverter, 9-31, 10-20
ionic species, 8-5
fuel, xii, xiii, 1-1, 1-2, 1-3, 1-4, 1-6, 1-7, 1-8, 1-9, 1-10,
ionomer, 3-8
1-11, 1-12, 1-13, 1-14, 1-15, 1-16, 1-18, 1-19, 1-20, 1- JANAF, 2-17, 2-21, 2-26, 10-32, 10-40
21, 1-25, 1-26, 1-35, 2-1, 2-2, 2-3, 2-4, 2-5, 2-6, 2-7, 2- Japan, 1-14, 1-15, 1-25, 5-1, 5-21, 5-22, 6-1, 6-29, 6-37, 6-
8, 2-9, 2-11, 2-12, 2-13, 2-14, 2-15, 2-16, 2-17, 2-18, 2- 38, 8-12, 8-23, 8-24, 11-5, 11-6
19, 2-20, 2-22, 2-23, 3-1, 3-2, 3-3, 3-5, 3-6, 3-8, 3-11, Johnson Matthey, 3-12, 5-7, 9-86
3-12, 3-13, 5-1, 5-2, 5-3, 5-7, 5-8, 5-9, 5-10, 5-13, 5-14, kinetics, 1-3, 1-11, 1-13, 2-5, 2-16, 2-24, 5-11, 6-10, 8-1,
5-15, 5-17, 5-18, 6-4, 6-6, 6-8, 6-9, 6-11, 6-15, 6-16, 6- 10-19, 10-20
17, 6-18, 6-21, 6-22, 6-23, 6-24, 6-25, 6-26, 6-27, 6-28, life, xii, 1-1, 1-3, 1-7, 1-12, 1-15, 2-9, 2-11, 3-1, 3-3, 3-4,
6-29, 6-30, 6-31, 6-33, 8-1, 8-2, 8-5, 8-6, 8-7, 8-10, 8- 5-1, 5-3, 5-4, 5-5, 5-7, 5-8, 5-9, 5-18, 6-2, 6-9, 6-10, 6-
12, 8-14, 8-15, 8-16, 8-17, 8-18, 8-19, 8-20, 8-21, 8-22, 11, 6-19, 6-24, 9-34, 9-35, 9-36, 9-39, 9-47, 9-52
9-1, 9-2, 9-30, 9-31, 9-32, 9-34, 9-35, 9-36, 9-37, 9-38, logistic fuel, xii, 1-19, 1-20
9-39, 9-40, 9-41, 9-42, 9-43, 9-44, 9-45, 9-46, 9-47, 9- loss, 2-5, 2-6, 2-12, 2-13, 2-15, 2-16, 2-17, 2-18, 2-19, 3-8,
48, 9-50, 9-51, 9-52, 9-53, 9-54, 9-55, 9-56, 9-57, 9-82, 3-10, 3-11, 5-8, 5-9, 5-12, 5-14, 5-15, 5-17, 5-18, 6-8, 6-
10-1, 10-2, 10-3, 10-4, 10-5, 10-6, 10-7, 10-8, 10-9, 10- 9, 6-10, 6-11, 6-15, 6-19, 6-20, 6-23, 6-27, 6-28, 8-13,
12, 10-13, 10-15, 10-17, 10-19, 10-20, 10-21, 10-22, 8-20, 8-21, 9-30, 9-33, 9-34, 9-36, 9-53
10-27, 10-29, 10-31, 10-32, 10-35, 10-36, 10-37, 11-7,
lower heating value, 1-9, 10-21, 10-28, 11-7
11-8, 11-10
management, 1-3, 1-4, 1-11, 2-11, 3-2, 3-3, 3-5, 3-8, 6-2, 6-
fuel cell stacks, 1-16, 10-3
3, 6-30, 8-1, 9-52
fuel electrode, 8-12, 8-20
manifold, 1-3, 5-4, 6-11, 8-7
fuels, 1-1, 1-9, 1-12, 1-19, 1-25, 2-1, 2-2, 2-18, 3-5, 3-11, manufacturing, 1-14, 1-16, 3-4, 3-7, 8-11
5-13, 6-2, 6-15, 6-16, 6-27, 6-29, 8-2, 8-16, 8-18, 9-1 M-C Power, 1-21, 6-1, 6-38
Fuji Electric Corporation, 5-1 mechanical stress, 8-11
gas turbine, 1-9, 1-12, 1-18, 9-36, 9-37, 9-38, 9-48, 9-54, membrane, 1-3, 1-11, 1-12, 2-11, 3-1, 3-2, 3-4, 3-5, 3-6, 3-
10-22 7, 3-8, 3-9, 3-10, 9-39
gasification, 10-20 membranes, 3-3, 3-4, 3-6, 3-7, 3-8
gasified coal, 6-15 methanation, 3-5, 6-14, 6-17
gasifiers, 1-20, 5-15 methane (CH4), 8-2, 10-12
Germany, 1-36, 5-21, 11-5 methanol, 1-8, 1-25, 1-26, 3-1, 3-8, 3-11, 3-12, 3-13
Gibbs Free Energy, 2-3, 2-19 migration, 5-9, 6-3
Girdler, 10-10, 10-17, 10-39 Mitsubishi Electric Corporation, 5-1, 5-7, 6-1
graphite, 3-5, 3-8, 5-2, 5-3, 5-4 Mitsubishi Heavy Industries, 8-24
Grove, 11-6

12-2

molten carbonate, xii, 1-3, 1-7, 6-2, 6-3, 6-4, 6-6, 6-7, 6-8, production, 1-1, 1-16, 3-1, 3-2, 8-3, 8-5, 8-11, 9-30, 9-37,
6-27, 6-29, 11-7 9-39, 9-41, 10-23, 10-24
multi-stage, 9-50, 9-52, 9-53 ramp, 1-15, 9-30, 9-32
Nafion, 3-4, 3-7, 3-8, 3-9 reactants, 1-1, 1-2, 1-3, 1-6, 1-8, 2-3, 2-5, 2-6, 2-9, 2-12, 2-
Nafion membranes, 3-4, 3-7, 3-9 16, 2-19, 2-21, 2-22, 3-5, 6-12, 6-14, 6-15, 9-37, 10-10,
natural gas, xii, 1-5, 1-8, 1-12, 1-13, 1-15, 1-16, 1-18, 1-20, 10-19
1-25, 1-35, 2-18, 3-1, 3-8, 5-13, 6-9, 6-11, 6-18, 6-30, recrystallization, 2-12
8-13, 9-39, 9-40, 9-41, 9-43, 9-44, 9-45, 9-46, 9-47, 9- reformate, 3-8, 3-11, 6-30, 9-40, 10-6
50, 9-51, 9-55, 10-4, 10-6, 10-22, 10-28, 10-29, 10-30 reformer, 1-5, 1-19, 1-35, 3-13, 6-29, 9-37, 9-40, 9-41, 9-
Nernst, 2-2, 2-3, 2-12, 2-14, 2-15, 2-22, 2-23, 2-25, 3-10, 5- 42, 9-44, 9-52, 10-6, 10-16, 10-18
12, 6-14, 6-18, 6-22, 8-2, 8-16, 8-17, 8-18 reservoir, 5-5
nitrogen compounds, 5-17 resistivity, 1-13, 3-6, 6-11, 8-11
odorants, 9-41, 9-47, 9-51 sealless tubular, 8-6, 8-7
ohmic, 2-5, 2-6, 2-8, 2-11, 2-16, 2-23, 3-10, 3-11, 5-9, 5- seals, 2-12, 5-5, 8-6, 8-7, 8-10, 9-35
10, 5-11, 5-17, 6-6, 6-11, 6-19, 6-28, 8-5, 8-6, 8-7, 8-12, separator plate, 1-7
8-13, 8-14, 8-21, 9-36, 11-7, 11-9 shift, 2-2, 2-7, 2-13, 2-14, 2-15, 2-16, 3-5, 3-8, 5-8, 5-13, 6-
ohmic loss, 2-6, 2-16, 5-10, 5-11, 6-6, 6-11, 8-5, 8-6, 8-13, 1, 6-15, 6-17, 6-18, 6-19, 6-21, 6-25, 6-26, 6-30, 8-2, 8-
9-36, 11-7 18, 9-39, 9-40, 9-41, 9-42, 9-52, 10-7, 10-9, 10-11, 10-
ohmic polarization, 2-5, 2-8, 2-23, 6-6, 6-19, 8-7, 8-12, 8- 12, 10-13, 10-14, 10-15, 10-16, 10-17, 11-1
13, 8-14, 11-9 Siemens Westinghouse, xiii, 1-18, 1-20, 1-21, 8-1, 8-4, 8-6,
ohmic resistance, 2-11, 3-10, 6-6 8-11, 8-12, 8-13, 8-21, 8-22, 9-36, 9-38, 9-45, 9-47, 9-
ONSI, 1-21, 1-36, 9-85, 11-7 49, 9-54, 9-55, 11-7
overpotential, 2-5, 5-12, 5-14, 6-10 sintering, 2-12, 5-11, 6-9, 8-3, 8-4, 8-5, 8-11, 8-12
overvoltage, 2-5 siting, 1-14
oxidant, 1-1, 1-2, 1-3, 1-7, 2-12, 2-13, 2-14, 2-15, 2-16, 2- solid oxide, xii, 1-3, 1-7, 8-5, 8-6, 8-12, 9-54, 11-8
17, 5-4, 5-9, 5-10, 5-12, 5-13, 5-14, 5-17, 5-18, 6-12, 6- sorbent, 9-39, 9-52
15, 6-17, 6-18, 6-19, 6-20, 6-21, 6-22, 6-23, 6-24, 8-5, space, 1-2, 1-11, 1-13, 1-15, 1-25, 1-26, 3-4, 5-8, 9-41, 9-
8-7, 8-15, 8-16, 8-17, 8-18, 8-19, 9-34, 9-37, 9-38, 9-41, 82
9-44, 9-45, 9-46, 9-47, 9-52, 9-55, 9-56, 10-2, 10-4, 10- stability, 1-4, 1-12, 2-8, 3-4, 5-1, 5-3, 5-7, 6-2, 6-6, 6-9, 8-
6, 10-7, 10-8, 10-9, 11-9, 11-10 3, 9-37
oxidation, 1-2, 1-7, 2-2, 2-3, 2-4, 2-13, 3-1, 3-5, 3-8, 3-12, stack, 1-7, 1-16, 1-19, 1-20, 2-9, 3-1, 3-3, 3-4, 3-5, 3-6, 3-9,
5-11, 5-14, 5-16, 6-1, 6-4, 6-29, 6-30, 8-2, 8-5, 8-18 5-3, 5-4, 5-5, 5-6, 5-7, 5-10, 5-18, 6-4, 6-6, 6-9, 6-11, 6-
oxygen, 1-1, 1-2, 1-4, 1-8, 1-11, 1-12, 2-1, 2-2, 2-3, 2-17, 12, 6-13, 6-16, 6-19, 6-20, 6-23, 6-28, 6-30, 6-35, 8-6,
2-18, 3-1, 3-6, 3-8, 3-10, 5-9, 5-10, 5-11, 5-14, 8-1, 8- 8-7, 8-10, 8-11, 8-14, 8-18, 8-21, 9-1, 9-37, 9-40, 9-41,
17, 9-43, 9-47, 9-55, 9-56, 10-4, 10-5, 10-7, 10-8, 10-9, 9-48, 9-52, 9-57, 10-2, 10-3, 10-15, 10-20
10-28, 11-10 stacking, 1-16, 8-10
phosphoric acid, xii, 1-3, 1-4, 5-1, 5-4, 5-7, 5-8, 5-9, 6-2, stationary, 1-13, 1-14, 1-16, 1-20, 1-21, 2-9, 3-1, 3-10, 5-1,
11-7 9-41
planar, 1-20, 8-6, 8-10, 8-11 steam reforming, 2-2, 5-13, 6-21, 6-29, 6-30, 8-2, 9-52, 10-
poison, 1-4, 1-12 13, 10-16, 10-17
polarization, 1-6, 2-5, 2-6, 2-7, 2-8, 2-11, 2-23, 2-24, 2-25, steam turbine, 1-12, 9-30, 9-37, 9-38, 9-48, 9-54, 10-22
3-10, 5-9, 5-10, 5-11, 5-12, 5-14, 5-15, 6-9, 6-18, 6-19, structure, 1-1, 1-2, 1-6, 1-7, 3-2, 3-4, 3-8, 5-2, 5-4, 6-2, 6-4,
6-20, 6-22, 8-12, 8-13, 8-14, 8-16, 8-19, 11-9 6-6, 6-8, 6-9, 6-10, 6-11, 6-27, 8-4, 8-5, 8-6, 8-7, 8-11,
polymer, xii, 1-3, 1-25, 1-26, 3-1, 3-2, 3-3, 3-4, 3-6, 3-12, 8-12
9-82, 11-7 sulfonic, 1-3, 3-1, 3-4, 3-7, 11-8
porous electrodes, 1-3, 1-7, 3-1, 5-2, 5-3, 6-2, 6-3 sulfur, 5-14, 5-15, 5-17, 6-9, 6-24, 6-26, 6-27, 6-28, 8-20,
potential, 1-11, 1-20, 2-1, 2-2, 2-3, 2-5, 2-6, 2-7, 2-9, 2-11, 9-36, 9-40, 9-41, 9-45, 9-47, 9-51, 9-55
2-14, 2-15, 2-19, 2-20, 2-22, 2-23, 2-25, 3-2, 3-10, 3-12, system efficiency, 1-5, 1-9, 1-12, 2-9, 2-19, 6-9
5-2, 5-10, 5-11, 5-12, 5-17, 6-2, 6-3, 6-8, 6-11, 6-14, 6- Tafel, 2-5, 2-23, 2-24, 11-8
15, 6-17, 6-18, 6-21, 6-22, 6-26, 6-28, 8-12, 8-16, 8-17, tape casting, 6-6, 8-5, 8-10
9-2, 9-35, 9-57, 10-19, 11-8 temperature, 1-3, 1-4, 1-5, 1-7, 1-8, 1-9, 1-10, 1-11, 1-12,
power conditioning, 1-8, 9-30, 9-31, 9-32 1-13, 1-14, 2-1, 2-2, 2-3, 2-4, 2-8, 2-9, 2-11, 2-15, 2-17,
pressure, 1-3, 1-4, 1-5, 1-8, 1-11, 1-12, 1-15, 1-35, 2-1, 2-3, 2-19, 2-20, 2-22, 2-23, 2-25, 3-1, 3-2, 3-5, 3-9, 3-10, 3-
2-4, 2-8, 2-9, 2-11, 2-12, 2-14, 2-15, 2-18, 2-19, 2-20, 11, 5-2, 5-3, 5-8, 5-9, 5-10, 5-11, 5-14, 5-15, 5-17, 6-2,
2-21, 3-2, 3-3, 3-5, 3-6, 3-9, 3-10, 3-11, 5-2, 5-6, 5-9, 5- 6-7, 6-8, 6-9, 6-11, 6-12, 6-16, 6-17, 6-18, 6-19, 6-22, 6-
10, 5-12, 5-13, 5-14, 5-15, 5-18, 6-7, 6-9, 6-10, 6-12, 6- 24, 6-29, 6-30, 8-1, 8-2, 8-3, 8-4, 8-5, 8-6, 8-7, 8-10, 8-
14, 6-15, 6-16, 6-18, 6-19, 6-24, 6-27, 6-30, 6-35, 8-13, 11, 8-12, 8-13, 8-14, 8-16, 8-19, 9-30, 9-32, 9-33, 9-34,
8-17, 9-33, 9-34, 9-35, 9-36, 9-38, 9-39, 9-41, 9-43, 9- 9-36, 9-37, 9-38, 9-39, 9-41, 9-47, 9-48, 9-50, 9-52, 9-
46, 9-47, 9-49, 9-54, 9-56, 10-6, 10-19, 10-23, 10-28, 56, 10-9, 10-10, 10-16, 10-17, 10-18, 10-19, 10-20, 10-
10-31, 10-32, 10-35, 11-9, 11-10 23, 10-24, 10-25, 10-26, 10-31, 10-34, 11-1, 11-9, 11-10
pressurization, 2-12, 3-6, 5-8, 5-10, 9-34, 9-35, 9-36 thermal stress, 8-7
processing, 1-8, 1-20, 3-5, 6-6, 8-5, 8-11, 9-30, 9-40 thermodynamic, 2-1, 2-4, 6-2, 8-13, 10-17, 10-19, 10-20

12-3

three phase interface, 1-2, 5-3 6-28, 6-33, 6-35, 8-6, 8-12, 8-13, 8-14, 8-16, 8-17, 8-18,
Tokyo Electric Power, 5-5, 5-6, 5-21, 9-41, 9-85, 9-86 8-19, 8-21, 9-30, 9-31, 9-34, 9-36, 9-37, 9-39, 9-41, 9-
Toshiba Corporation, 1-14, 5-1, 6-1 46, 9-52, 10-2, 10-3, 10-6, 10-15, 11-8, 11-9
UltraFuelCell, 9-50, 9-51, 9-53 voltage efficiency, 8-18
vehicle, xii, 1-11, 1-25, 1-26, 2-9, 3-12, 9-82 Westinghouse, 1-36, 5-22, 8-1, 8-4, 8-6, 8-22, 8-24, 9-46,
voltage, 1-7, 2-2, 2-3, 2-4, 2-5, 2-7, 2-8, 2-9, 2-10, 2-11, 2- 9-49, 9-85
12, 2-14, 2-15, 2-16, 2-18, 2-23, 3-10, 3-11, 5-2, 5-4, 5- yttria, 8-5, 8-11, 8-12
8, 5-10, 5-11, 5-12, 5-14, 5-17, 6-4, 6-6, 6-11, 6-12, 6- zirconia, 8-5, 8-6, 8-11, 8-12, 8-21, 11-8
13, 6-15, 6-16, 6-17, 6-18, 6-19, 6-20, 6-23, 6-26, 6-27,

12-4
