1. Floods
Disaster profile & Disaster management procedure in India
Submitted by:
K.Amruta
Karunakar
Lavanya
Mani shankar
Supraja
Shameer
VI th sem ,JNA&FAU
PLANNING & MANAGEMENT FOR DISASTERS

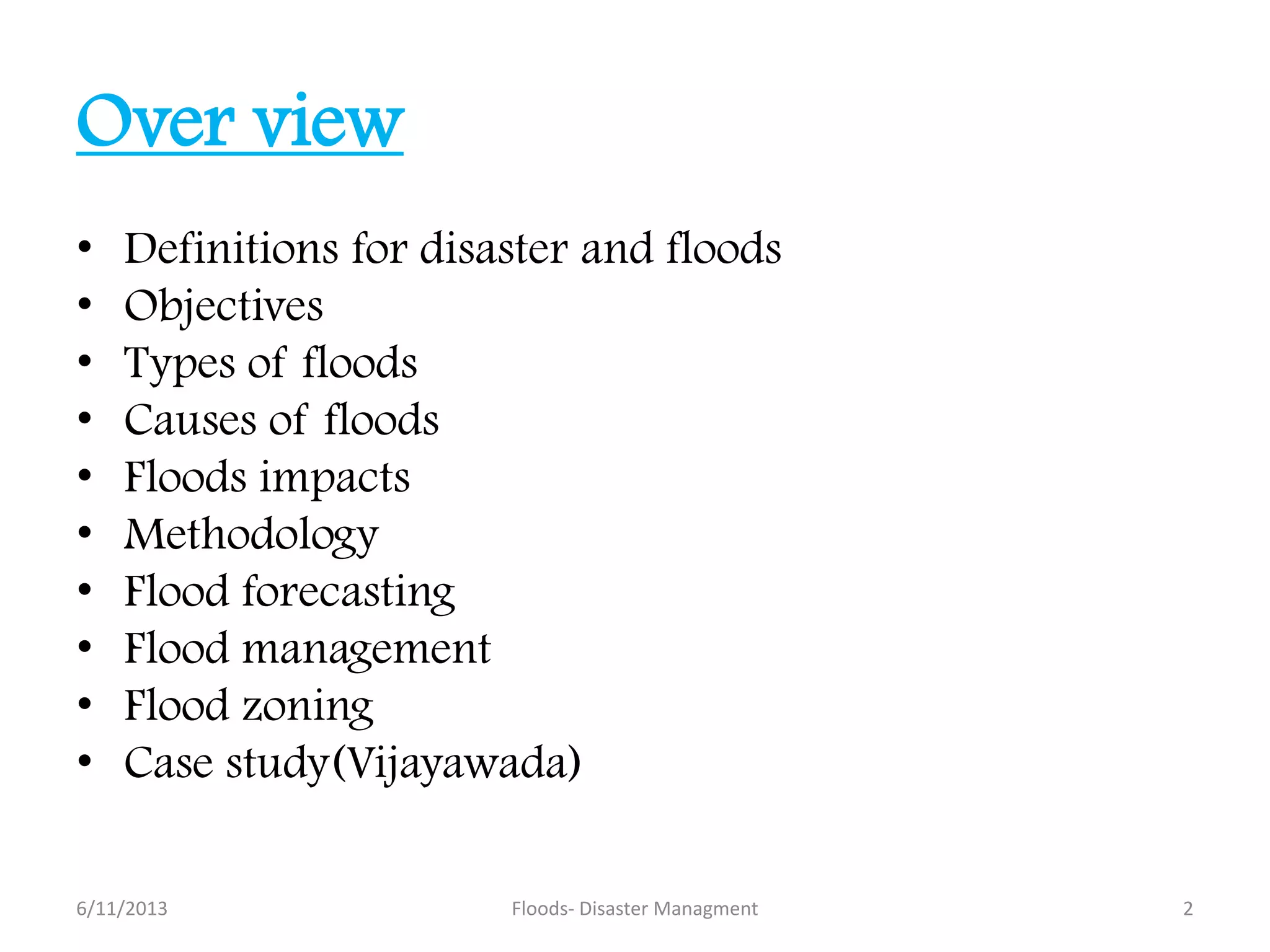

2. Over view
• Definitions for disaster and floods
• Objectives
• Types of floods
• Causes of floods
• Floods impacts
• Methodology
• Flood forecasting
• Flood management
• Flood zoning
• Case study(Vijayawada)
6/11/2013 Floods- Disaster Managment 2

3. Disaster
• Disaster is a natural or human , caused
phenomenon, which causes serious
disruption of the functioning of a
community or a society causing
widespread human, material, economic
and environmental losses which elicited
the ability of the affected community,
society to cope using its resources.
• Floods are a common feature in the
country that occur every year in many
parts including South India.
6/11/2013 3Floods- Disaster Managment

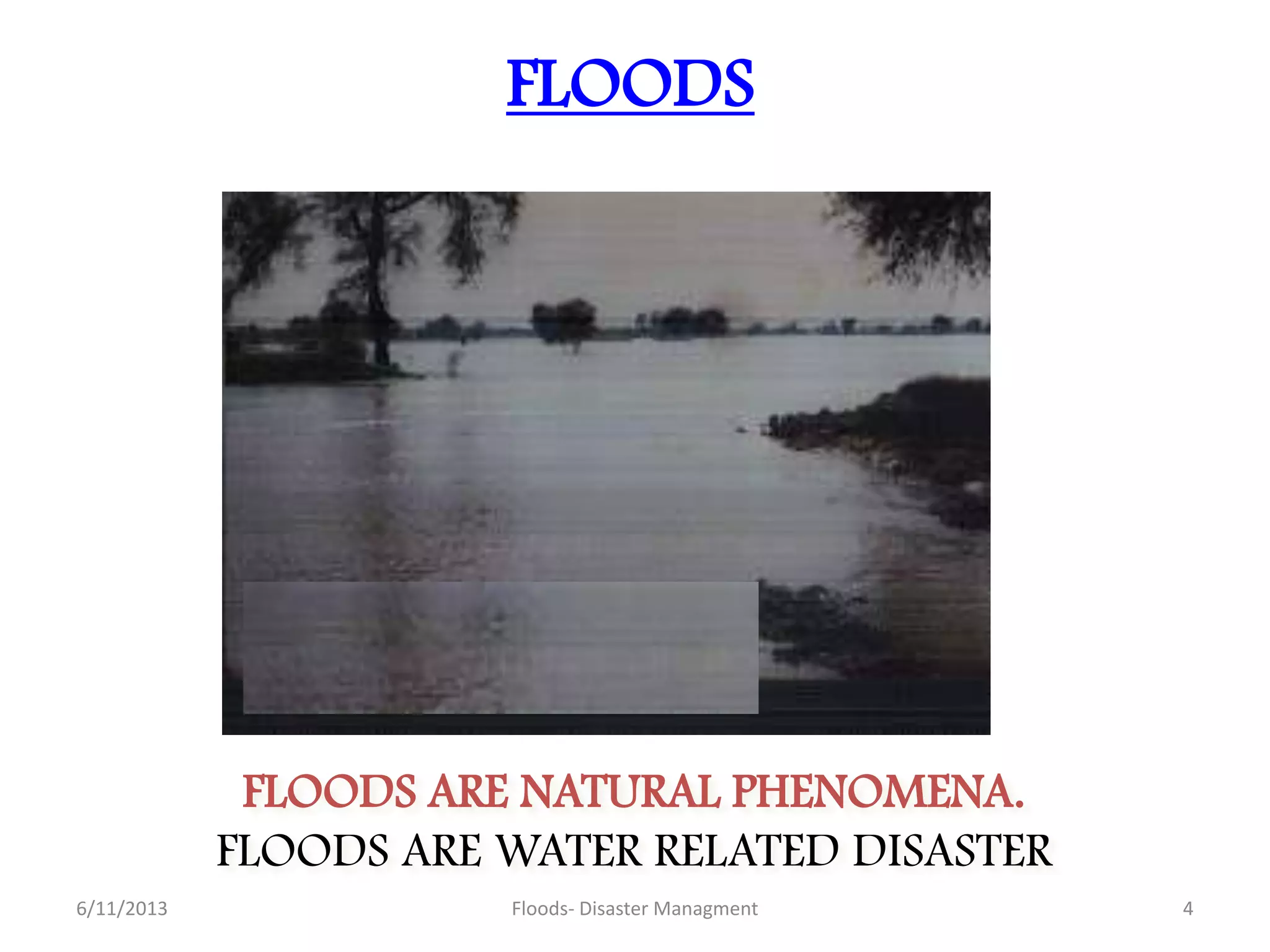

4. FLOODS ARE NATURAL PHENOMENA.
FLOODS ARE WATER RELATED DISASTER
FLOODS
6/11/2013 4Floods- Disaster Managment

5. OBJECTIVE OF STUDY
• To identify the causes of floods
• To describe the overall impact of flooding
• To formulate a strategy for the flood affected
areas in Vijayawada, with reference to
– MITIGATION,
– PREPAREDNESS,
– RESPONSE,
– RECOVERY.
6/11/2013 Floods- Disaster Managment 5

6. INTRODUCTION
A flood occurs when the Geomorphic
Equilibrium in the river system is disturbed
because of intrinsic or extrinsic factors or
when a system crosses the geomorphic
threshold.
(a) Flooding in a river due to aggradation of
river bed (intrinsic threshold);
(b) Flooding in a river due to heavy rainfall
(extrinsic threshold)
Floods in major cities especially
during rainy season are proving to
disastrous not only to the
environment but also have serious
implications for human life and
property.
6/11/2013 6Floods- Disaster Managment
Source: FLOOD DISASTERS AND
MANAGEMENT

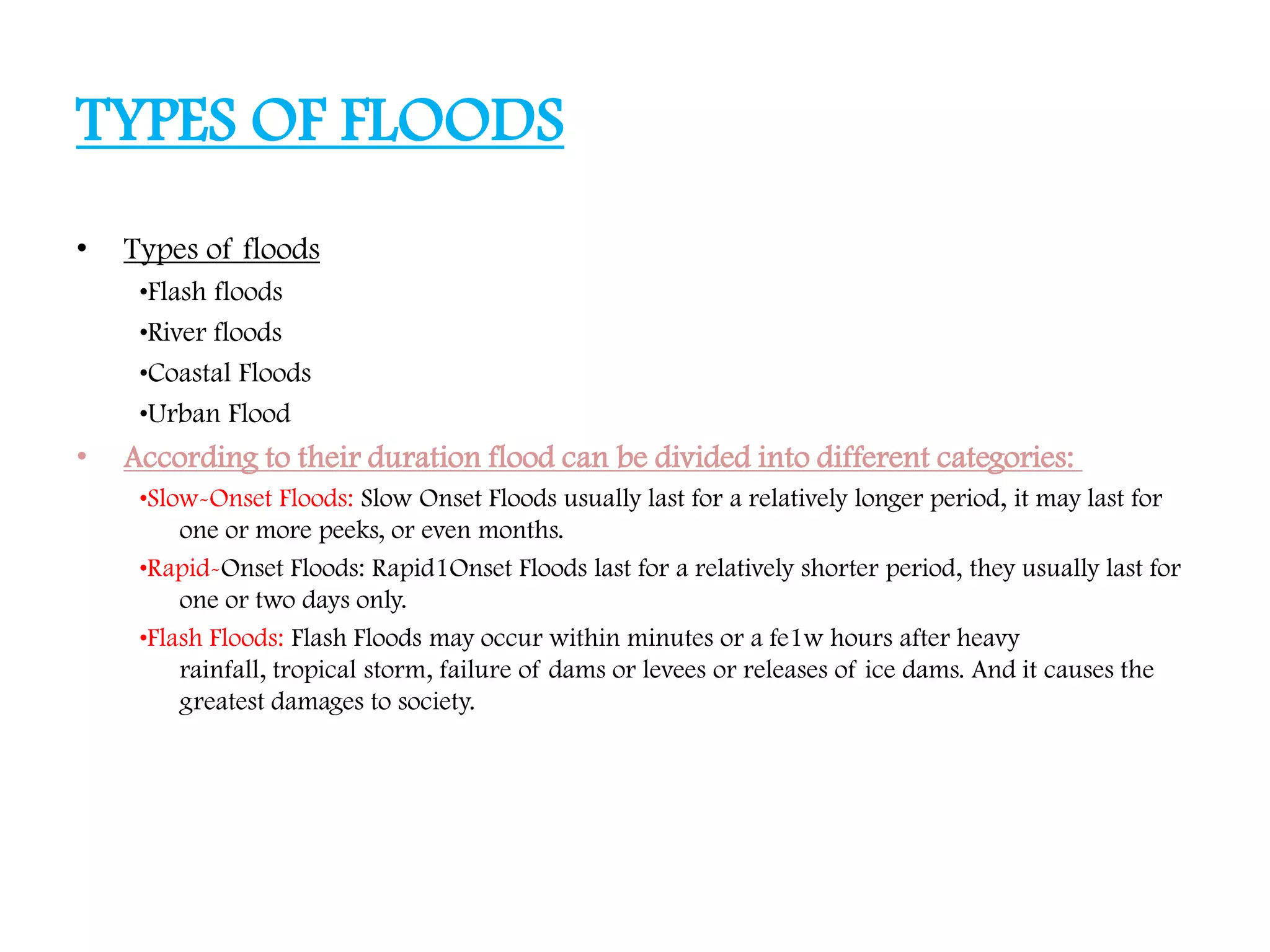

7. TYPES OF FLOODS
• Types of floods
•Flash floods
•River floods
•Coastal Floods
•Urban Flood
• According to their duration flood can be divided into different categories:
•Slow-Onset Floods: Slow Onset Floods usually last for a relatively longer period, it may last for
one or more peeks, or even months.
•Rapid-Onset Floods: Rapid1Onset Floods last for a relatively shorter period, they usually last for
one or two days only.
•Flash Floods: Flash Floods may occur within minutes or a fe1w hours after heavy
rainfall, tropical storm, failure of dams or levees or releases of ice dams. And it causes the
greatest damages to society.

8. The soil becomes
saturated and
overland flow and
through flow reach
the river and
discharge increases.
Overland flow arrives
first.
The time from peak rainfall to peak
discharge is the LAG TIME.
The discharge starts to
fall slowly as water is
added from through
flow and groundwater
flows which are much
slower.
The base flow supplies
the river with water
between storms and
keeps it flowing in
summer.Rainfall is intercepted
or infiltrated into the
soil moisture store
Start of the storm there is a
slow rise in discharge, as only a
small amount of water falls
into the channel

9. Contd….
Floods
Natural
Storm Surge,
Tsunami, Glacial Melt,
Landslide, Riverine,
Estuarine & Marine Flood
Eg: bursting of landslide
blockades in the catchment
areaof the Bhagirathi River in
August 1978 (Gupta and Dave,
1982).
Man made
Breach of
Dam/ Barrage/
Embankment
Release from Reservoir,
Urban Flood
Eg: In the year 2009,Almatti
and Naryanpur dams on the
Krishna River in Karnataka.
This water along with rain
water reached Andhra Pradesh
near the Srisailam dam. It
causes a hevy floods in
andhrapradesh
6/11/2013 9Floods- Disaster Managment

10. Causes of floods

11. FACTORS
VEGETATION COVER
This varies seasonally. The type and
amount will affect interception and
stemflow/throughfall. Overland flow is
reduced. Lag time will be increased.
ROCK TYPE
Impermeable rocks prevent groundwater
flow and encourage through flow and
overland flow. These rocks will decrease
lag time. Permeable rock will have the
opposite effect.
LAKES & RESERVOIRS
These will store floodwater and
thus reduce lag time and control
river response to heavy rainfall.
SOIL TYPE & DEPTH
Deep soils store more
water, pipes in the soil
encourage through flow.
Soils with small pore
spaces will reduce
infiltration and increase
overland flow.
LAND USE
Impermeable surfaces
created by urbanisation will
reduce infiltration and
encourage overland flow.
Different types of crops
affect interception rates e.g.
cereals 7-15%.
RAINFALL INTENSITY & DURATION
Intense rain will increase overland
flow and reduce lag times. Gentle
rain over a longer time will allow
more infiltration.
SLOPES
Steep slopes will encourage
overland flow and gentle
slope will slow run off down.
CLIMATE
The distribution of rainfall over the
year and the temperatures will
affect the lag times.

12. FLOODS IMPACTS
• Human Loss
• Property Loss
• Affects the Major Roads
• Disruption of Air / Train / Bus services
• Spread of Water-borne Communicable Diseases
• Communication Breakdown
• Electricity Supply Cut off
• Economic and Social Disruption
• Increase in Air / Water Pollution
6/11/2013 Floods- Disaster Managment 12

13. Flood forecasting
• Anticipating floods before they occur allows for precautions to be taken and
people to be warned so that they can be prepared in advance for flooding
conditions.
• For example,
– Farmers can remove animals from low-lying areas and utility services can put in place
emergency provisions to re-route services if needed. Emergency services can also make
provisions to have enough resources available ahead of time to respond to emergencies as
they occur.
• In order to make the most accurate flood forecasts for waterways, it is best to
have a long time-series of historical data that relates stream flows to
measured past rainfall events
• Radar estimates of rainfall and general weather forecasting techniques are
also important components of good flood forecasting.

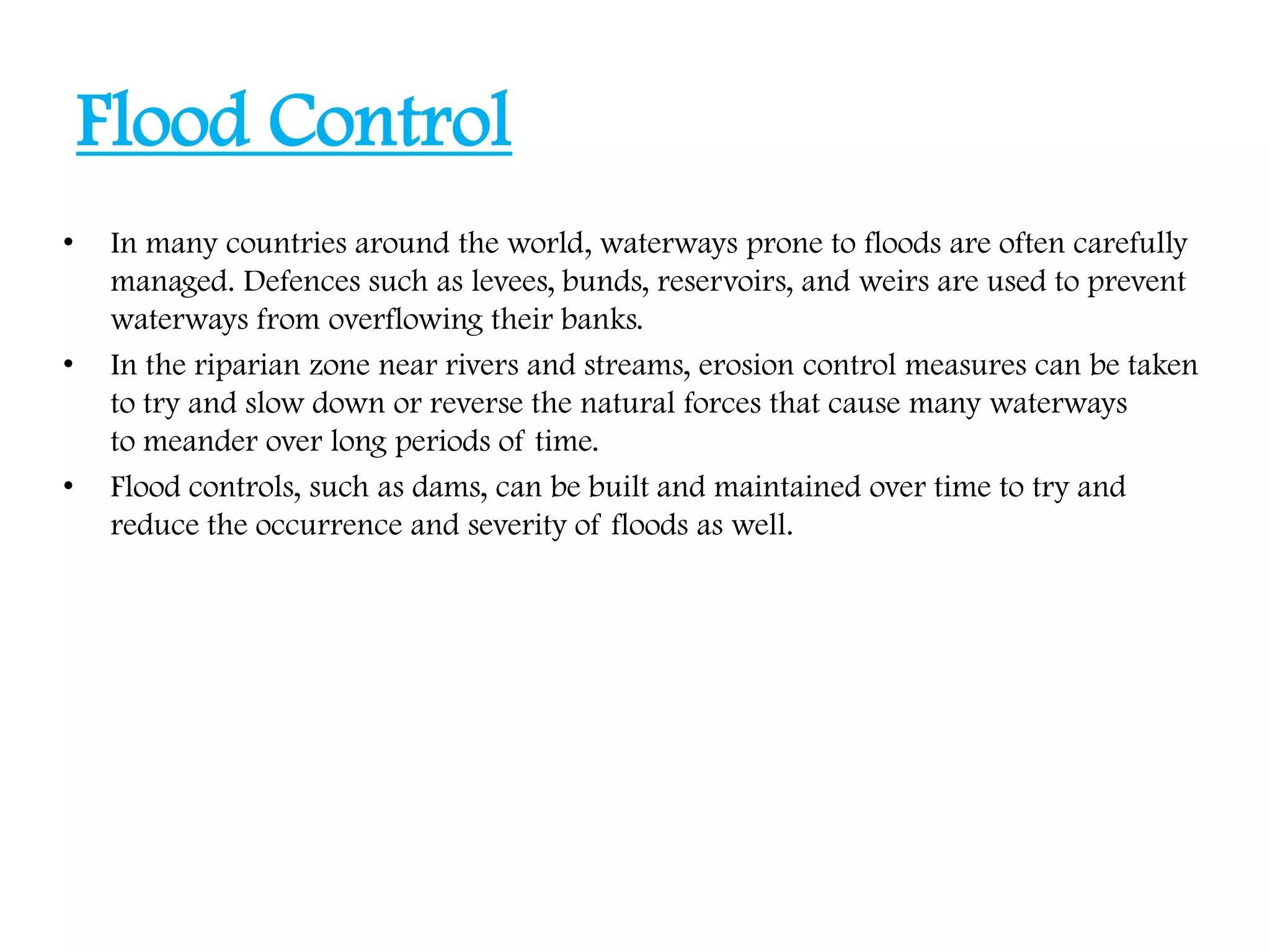

14. Flood Control
• In many countries around the world, waterways prone to floods are often carefully
managed. Defences such as levees, bunds, reservoirs, and weirs are used to prevent
waterways from overflowing their banks.
• In the riparian zone near rivers and streams, erosion control measures can be taken
to try and slow down or reverse the natural forces that cause many waterways
to meander over long periods of time.
• Flood controls, such as dams, can be built and maintained over time to try and
reduce the occurrence and severity of floods as well.

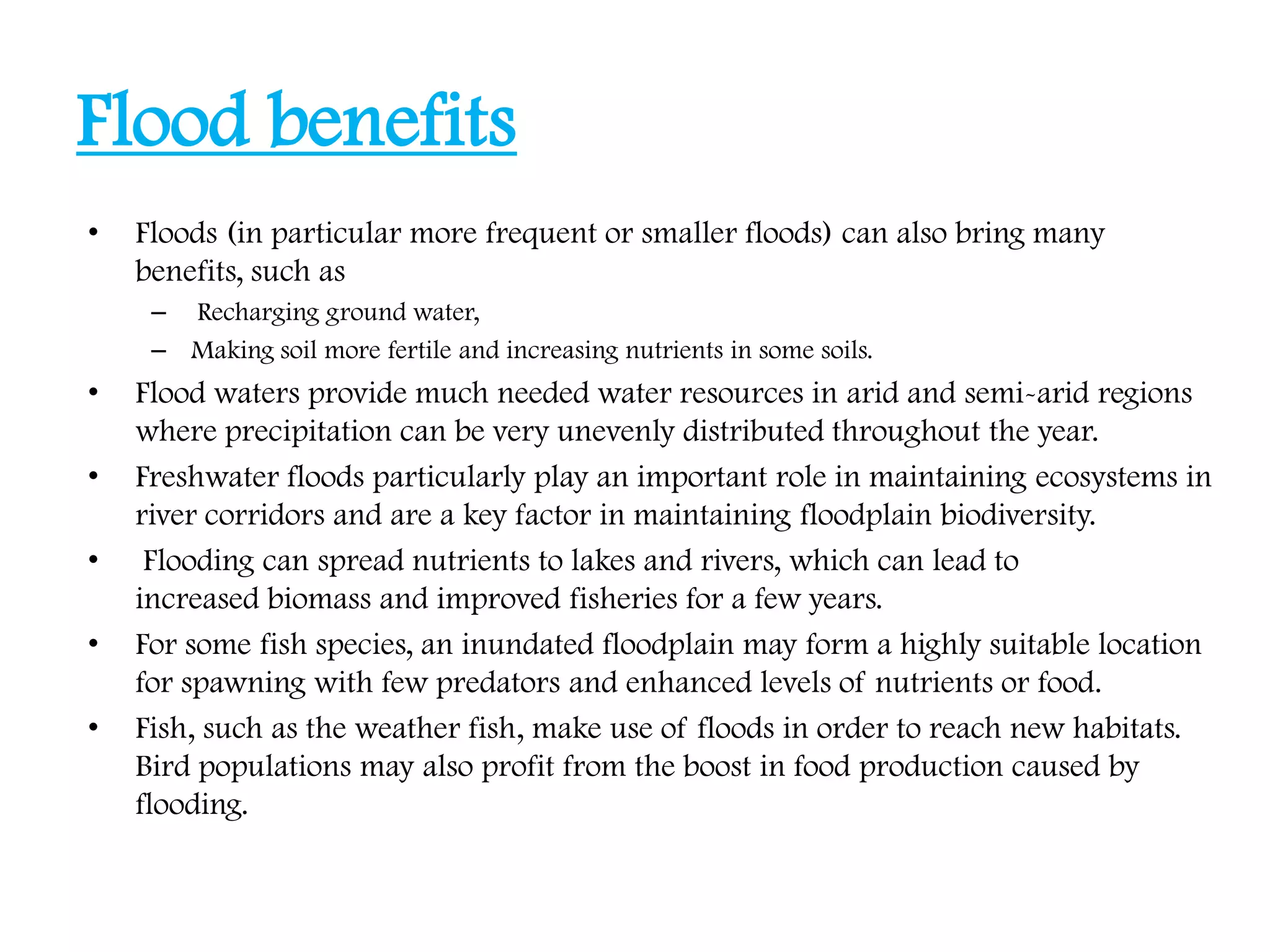

15. Flood benefits
• Floods (in particular more frequent or smaller floods) can also bring many
benefits, such as
– Recharging ground water,
– Making soil more fertile and increasing nutrients in some soils.
• Flood waters provide much needed water resources in arid and semi-arid regions
where precipitation can be very unevenly distributed throughout the year.
• Freshwater floods particularly play an important role in maintaining ecosystems in
river corridors and are a key factor in maintaining floodplain biodiversity.
• Flooding can spread nutrients to lakes and rivers, which can lead to
increased biomass and improved fisheries for a few years.
• For some fish species, an inundated floodplain may form a highly suitable location
for spawning with few predators and enhanced levels of nutrients or food.
• Fish, such as the weather fish, make use of floods in order to reach new habitats.
Bird populations may also profit from the boost in food production caused by
flooding.

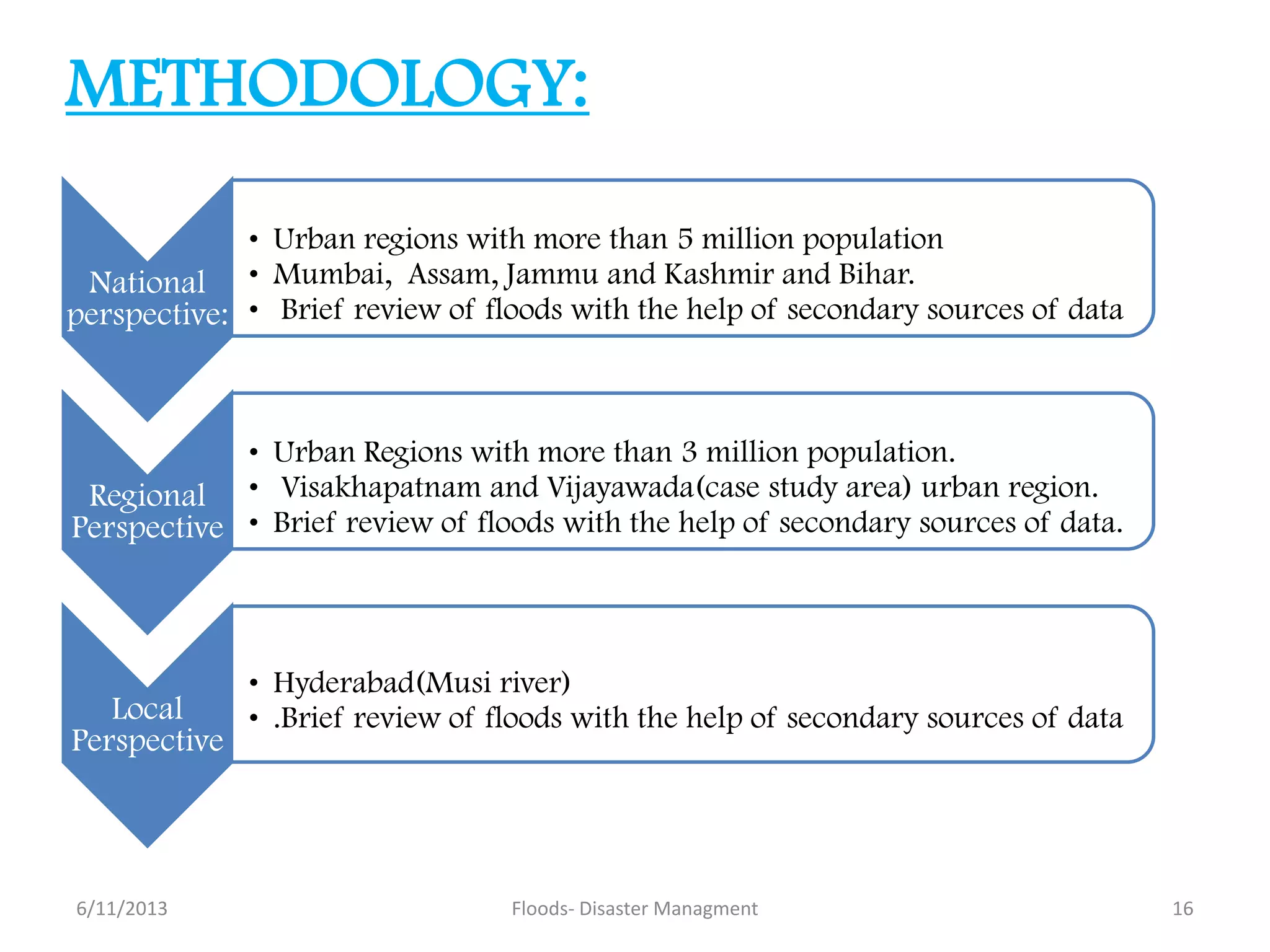

16. 6/11/2013 16Floods- Disaster Managment
National
perspective:
• Urban regions with more than 5 million population
• Mumbai, Assam, Jammu and Kashmir and Bihar.
• Brief review of floods with the help of secondary sources of data
Regional
Perspective
• Urban Regions with more than 3 million population.
• Visakhapatnam and Vijayawada(case study area) urban region.
• Brief review of floods with the help of secondary sources of data.
Local
Perspective
• Hyderabad(Musi river)
• .Brief review of floods with the help of secondary sources of data
METHODOLOGY:

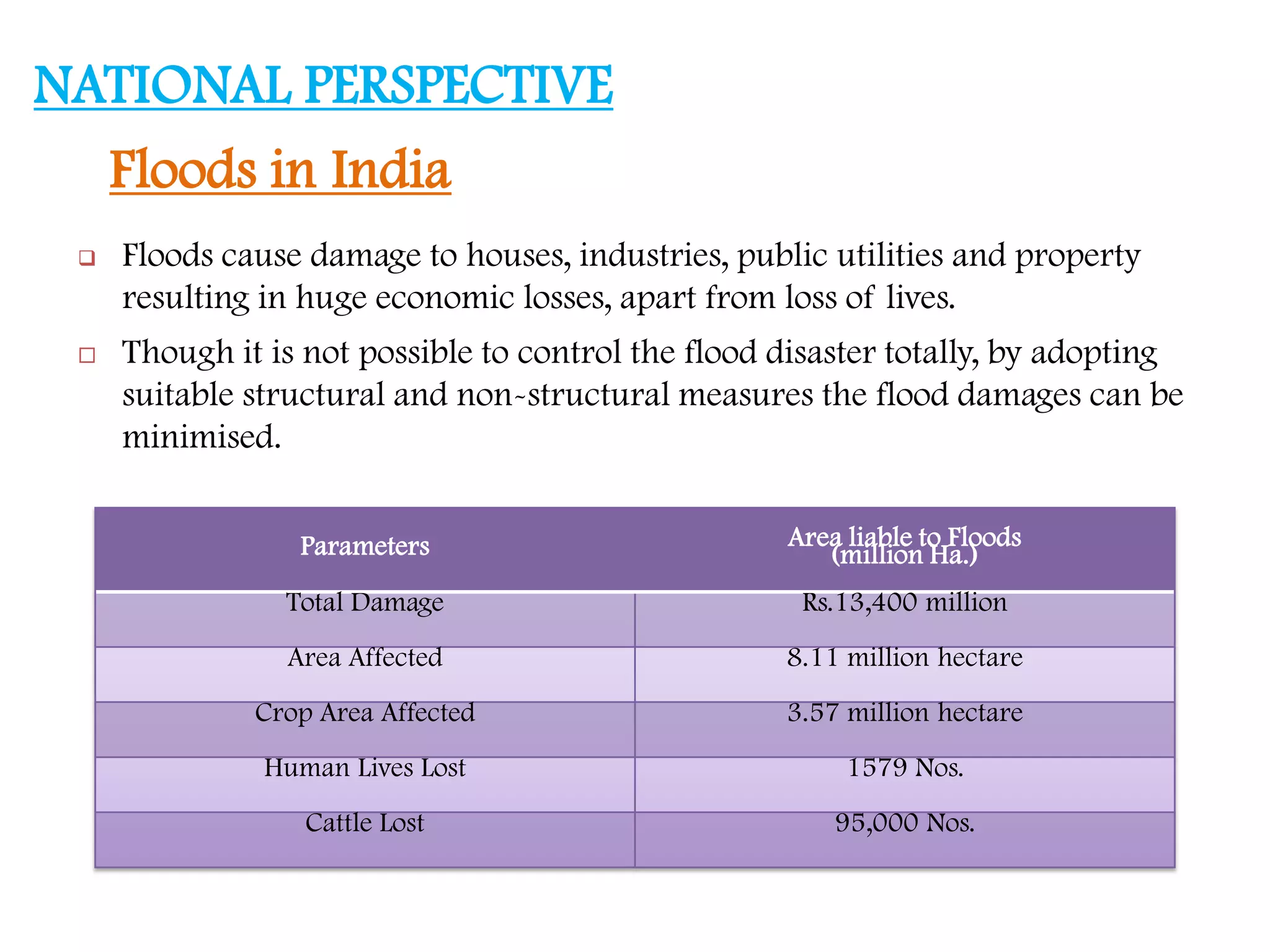

17. Floods in India
 Floods cause damage to houses, industries, public utilities and property
resulting in huge economic losses, apart from loss of lives.
 Though it is not possible to control the flood disaster totally, by adopting
suitable structural and non-structural measures the flood damages can be
minimised.
Parameters Area liable to Floods
(million Ha.)
Total Damage Rs.13,400 million
Area Affected 8.11 million hectare
Crop Area Affected 3.57 million hectare
Human Lives Lost 1579 Nos.
Cattle Lost 95,000 Nos.
NATIONAL PERSPECTIVE

18. Flood prone zones , areas in INDIA

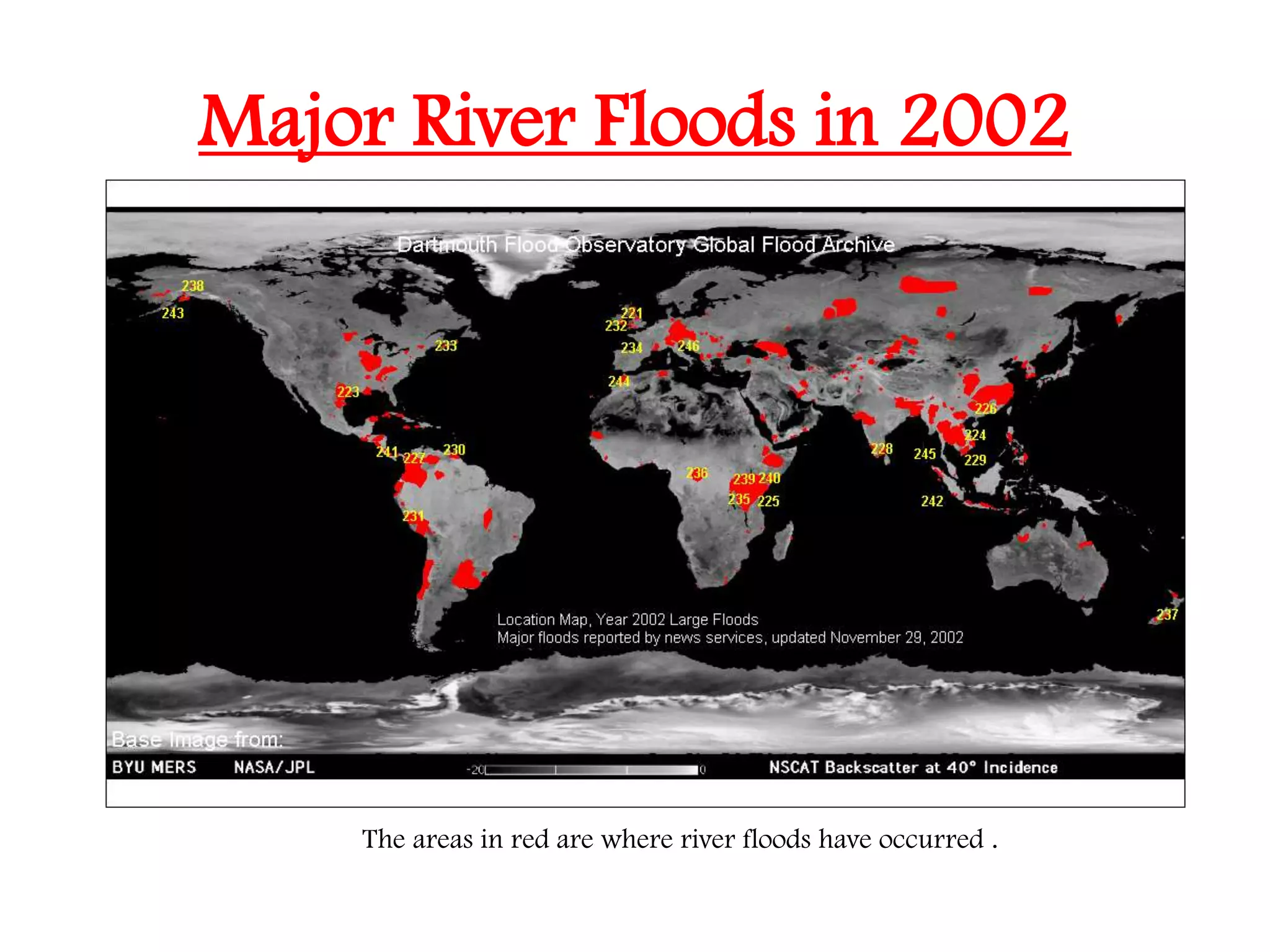

19. Major River Floods in 2002
The areas in red are where river floods have occurred .

20. Analysis over years

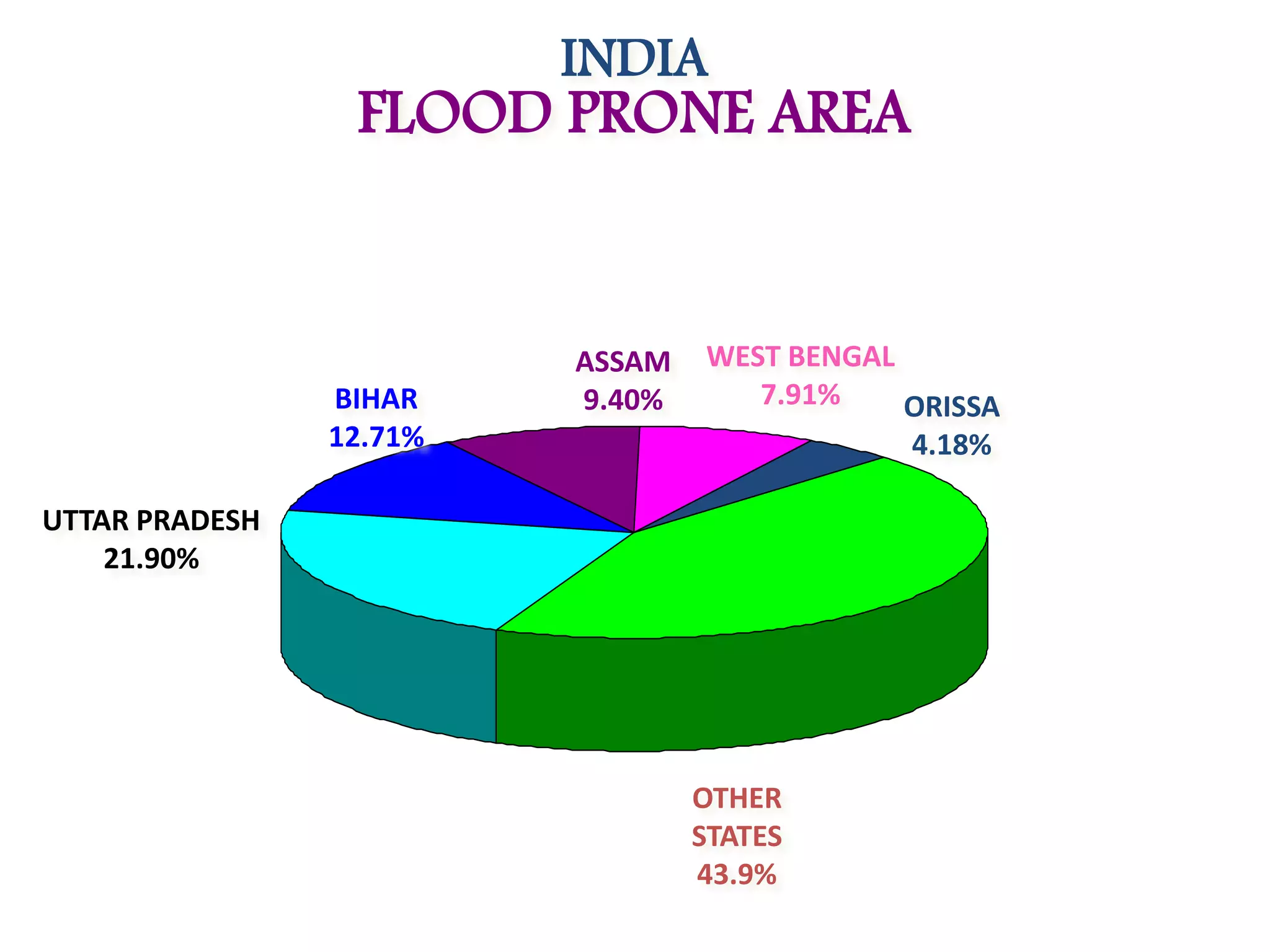

21. INDIA
FLOOD PRONE AREA
OTHER
STATES
43.9%
UTTAR PRADESH
21.90%
BIHAR
12.71%
ASSAM
9.40%
WEST BENGAL
7.91% ORISSA
4.18%

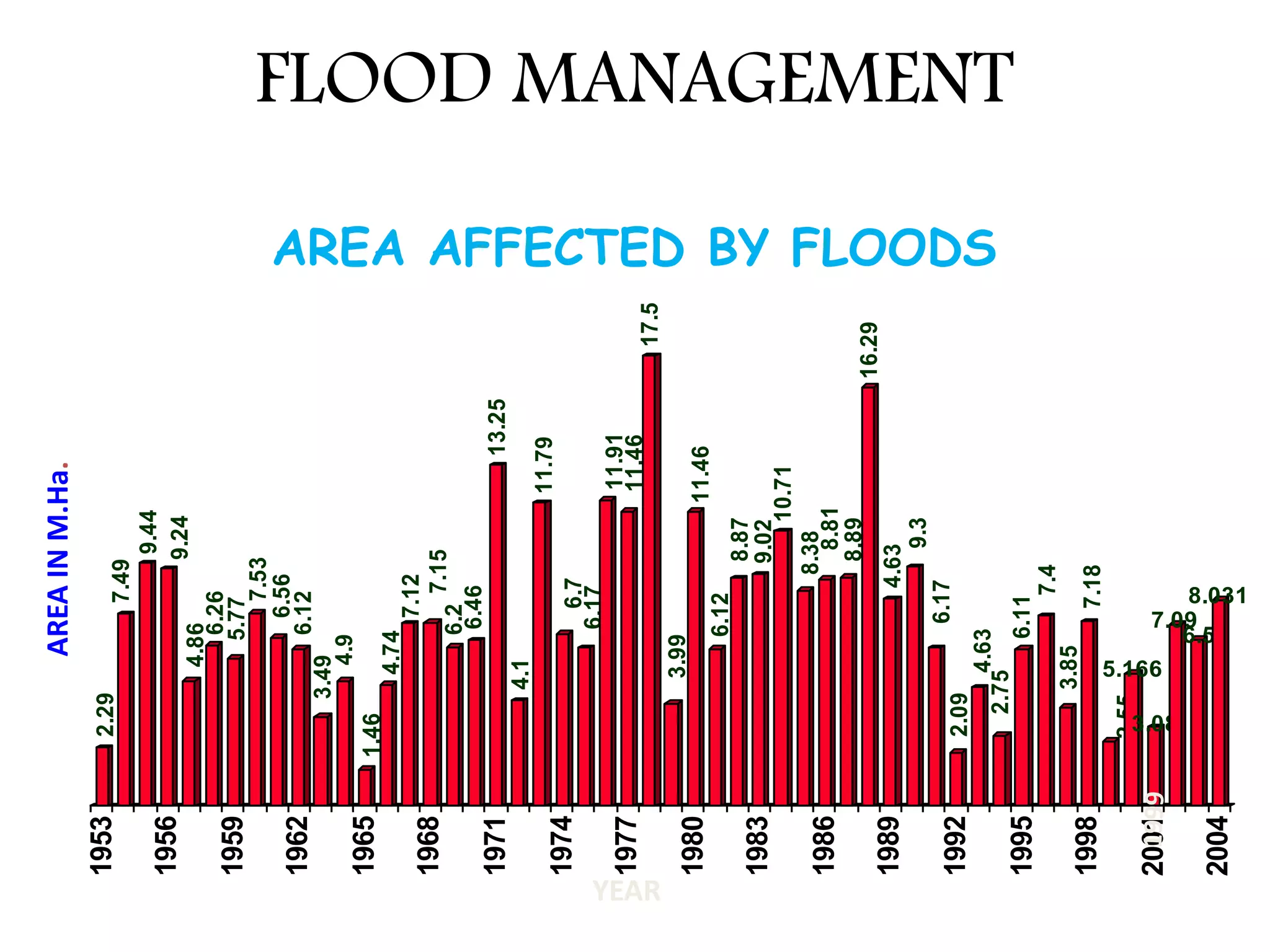

22. FLOOD MANAGEMENT
AREA AFFECTED BY FLOODS
2.29
7.49
9.44
9.24
4.86
6.26
5.77
7.53
6.56
6.12
3.49
4.9
1.46
4.74
7.12
7.15
6.2
6.46
13.25
4.1
11.79
6.7
6.17
11.91
11.46
17.5
3.99
11.46
6.12
8.87
9.02
10.71
8.38
8.81
8.89
16.29
4.63
9.3
6.17
2.09
4.63
2.75
6.11
7.4
3.85
7.18
2.55
5.166
3.08
7.09
6.5
8.031
1953
1956
1959
1962
1965
1968
1971
1974
1977
1980
1983
1986
1989
1992
1995
1998
2001
2004
YEAR
AREAINM.Ha.

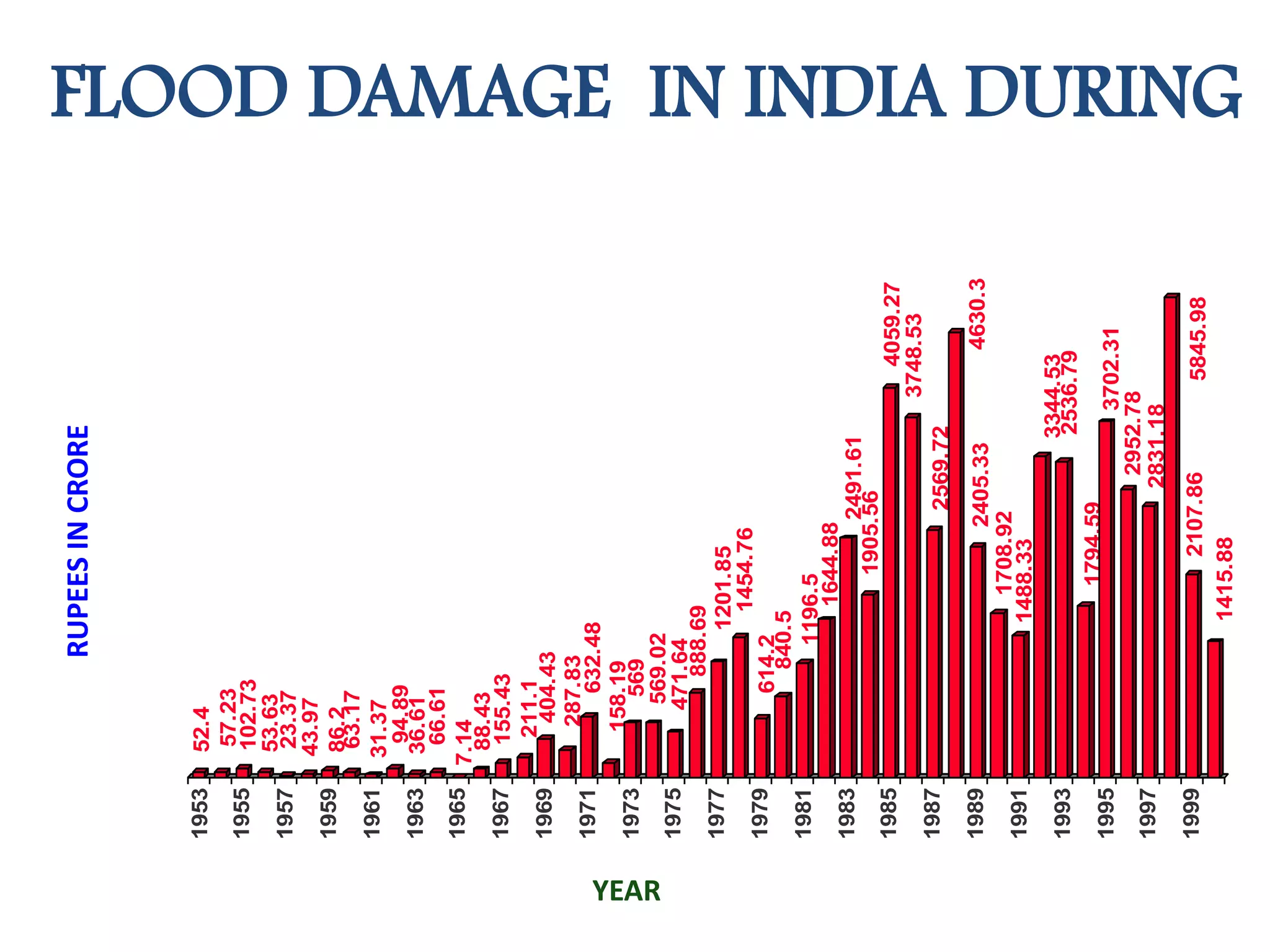

23. FLOOD DAMAGE IN INDIA DURING
52.4
57.23
102.73
53.63
23.37
43.97
86.2
63.17
31.37
94.89
36.61
66.61
7.14
88.43
155.43
211.1
404.43
287.83
632.48
158.19
569
569.02
471.64
888.69
1201.85
1454.76
614.2
840.5
1196.5
1644.88
2491.61
1905.56
4059.27
3748.53
2569.72
4630.32405.33
1708.92
1488.33
3344.53
2536.79
1794.59
3702.31
2952.78
2831.18
5845.982107.86
1415.88
1953
1955
1957
1959
1961
1963
1965
1967
1969
1971
1973
1975
1977
1979
1981
1983
1985
1987
1989
1991
1993
1995
1997
1999
RUPEESINCRORE
YEAR

24. Total flood damage state wise and for
the union territory of Delhi
 The macro-flood zones of
India may be broadly grouped
into the following zones:
 (a) Brahmaputra River Basin,
 (b) Ganga River Basin,
 (c) North-West Rivers Basin,
and
 (d) Central India and Deccan
Rivers Basin.

25. 2012 Brahmaputra floods
This was another sorrow caused to Assam in recent years.
In July 2012, Brahmaputra and its tributaries showed its
wrath and since it was natural but it grabs a spot at number
2 and eye-catching event because the main area which was
affected included Kaziranga National Park, a park which is
the natural habitat of Rhinos. It cause a death of 540
animals including 13 Rhinos. The main reasons behind this
calamity is the deforestation in the area of passing by of
Brahmaputra.
6/11/2013
Floods- Disaster Managment
25

26. 2010 Ladakh Floods.
It was 6th August 2010, when the series of
natural disasters started to take place in
Ladakh, a regional part of J&K (Jammu and
Kashmir). It was accompanied with
cloudburst, debris flows and Flash floods from
Himalayan. Causality was less than 300 but
a great loss of property was reported. Areas
of Leh were also affected and it caused a loss
of total Rs. 133 crores INR.
6/11/2013 Floods- Disaster Managment 26

27. 2005 : Maharashtra flood
This was the major and the most devastating
disaster occurred in Maharashtra, mainly
engulfing areas of
Mumbai, Chiplun, Khed, Kalyan, Ratnagiri
and Raigad. The main problem arose with the
people on the road and which caused a traffic
jam and with it came the loss of people. A
total of 5000 people were reported for the
death toll. The date 26 July 2005 has been
marked as one the BLACK DAY in the history
of Mumbai.
6/11/2013 Floods- Disaster Managment 27

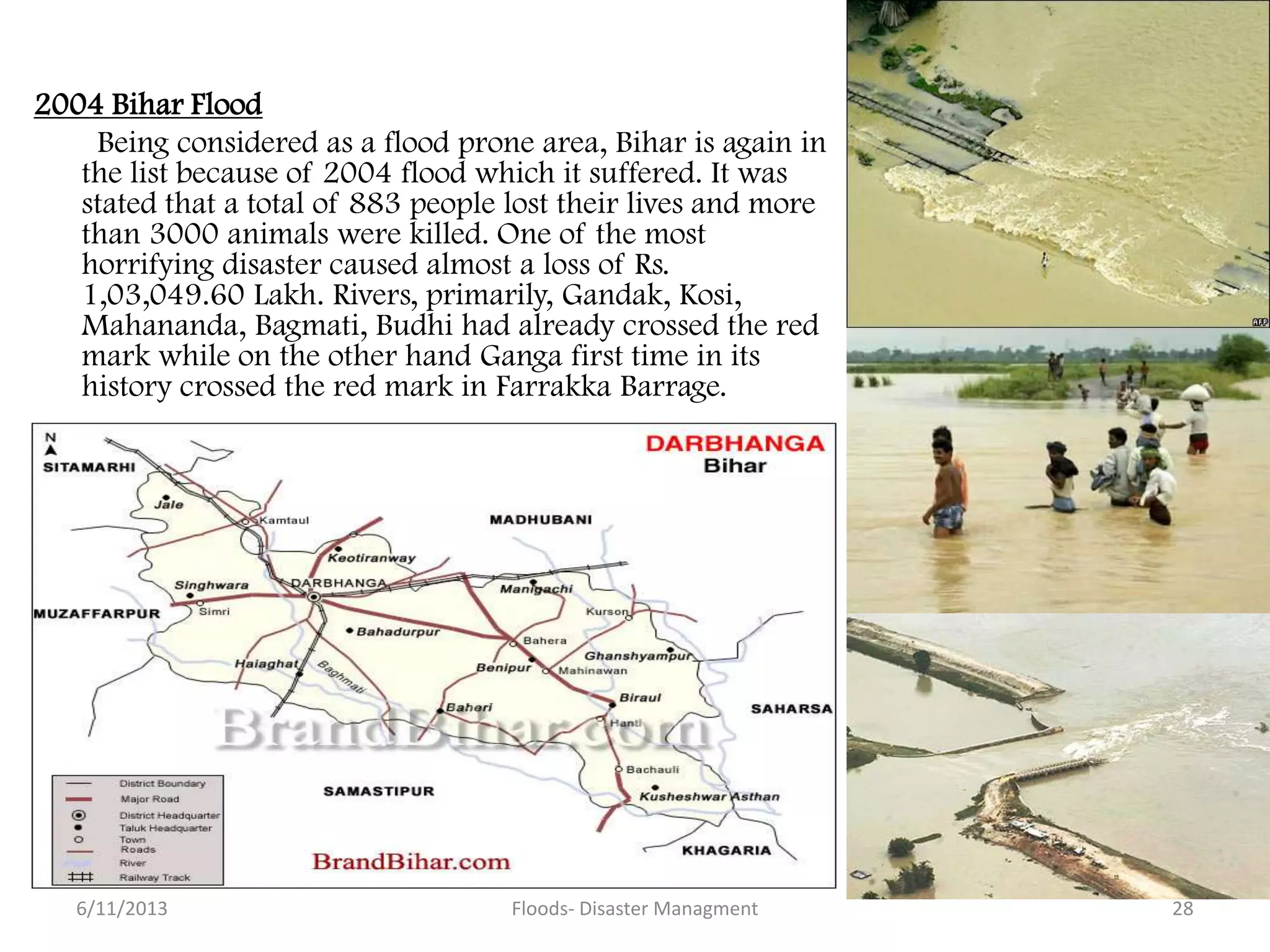

28. 2004 Bihar Flood
Being considered as a flood prone area, Bihar is again in
the list because of 2004 flood which it suffered. It was
stated that a total of 883 people lost their lives and more
than 3000 animals were killed. One of the most
horrifying disaster caused almost a loss of Rs.
1,03,049.60 Lakh. Rivers, primarily, Gandak, Kosi,
Mahananda, Bagmati, Budhi had already crossed the red
mark while on the other hand Ganga first time in its
history crossed the red mark in Farrakka Barrage.
6/11/2013 Floods- Disaster Managment 28

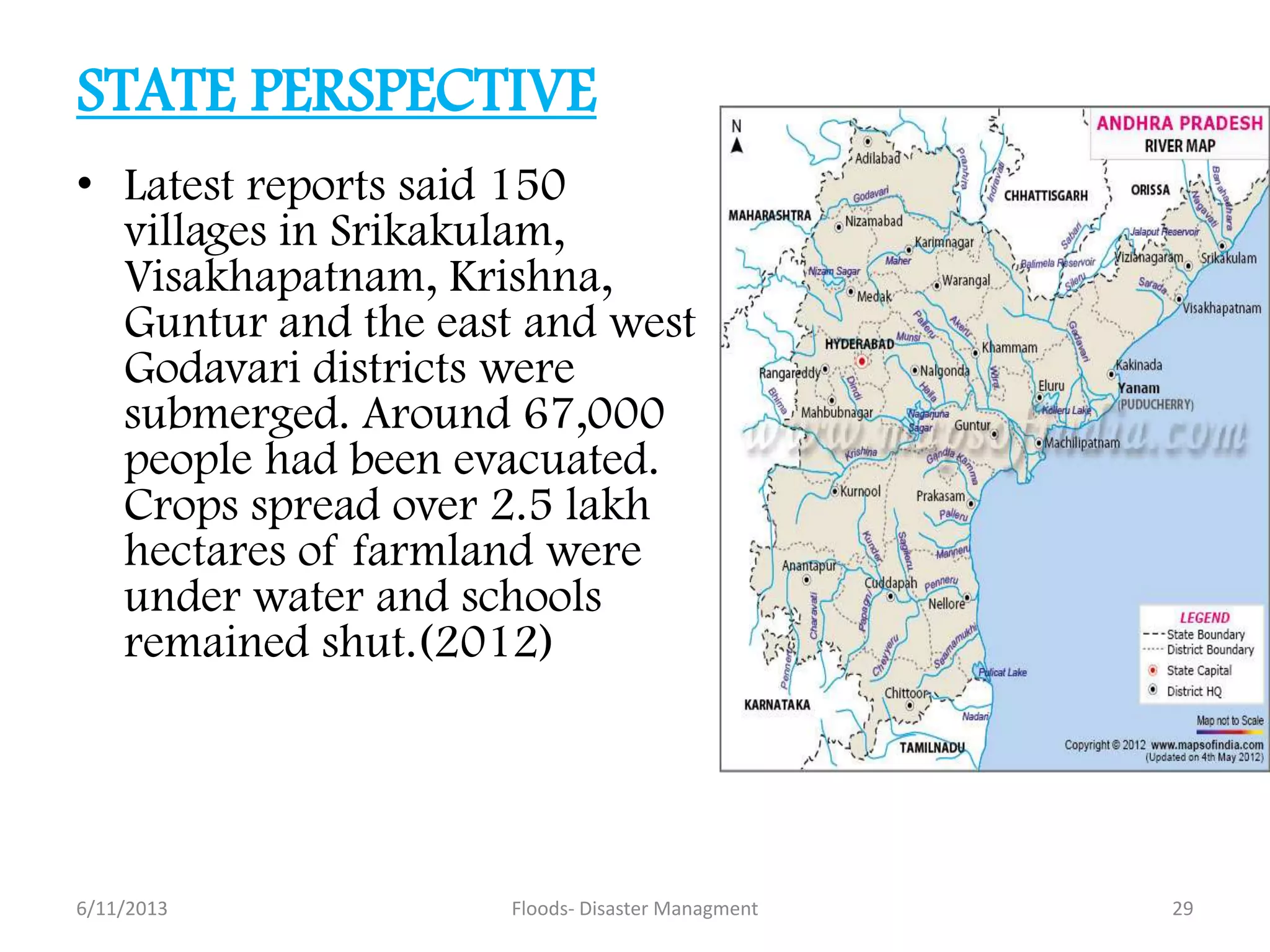

29. STATE PERSPECTIVE
• Latest reports said 150
villages in Srikakulam,
Visakhapatnam, Krishna,
Guntur and the east and west
Godavari districts were
submerged. Around 67,000
people had been evacuated.
Crops spread over 2.5 lakh
hectares of farmland were
under water and schools
remained shut.(2012)
6/11/2013 29Floods- Disaster Managment

30. 6/11/2013 30Floods- Disaster Managment

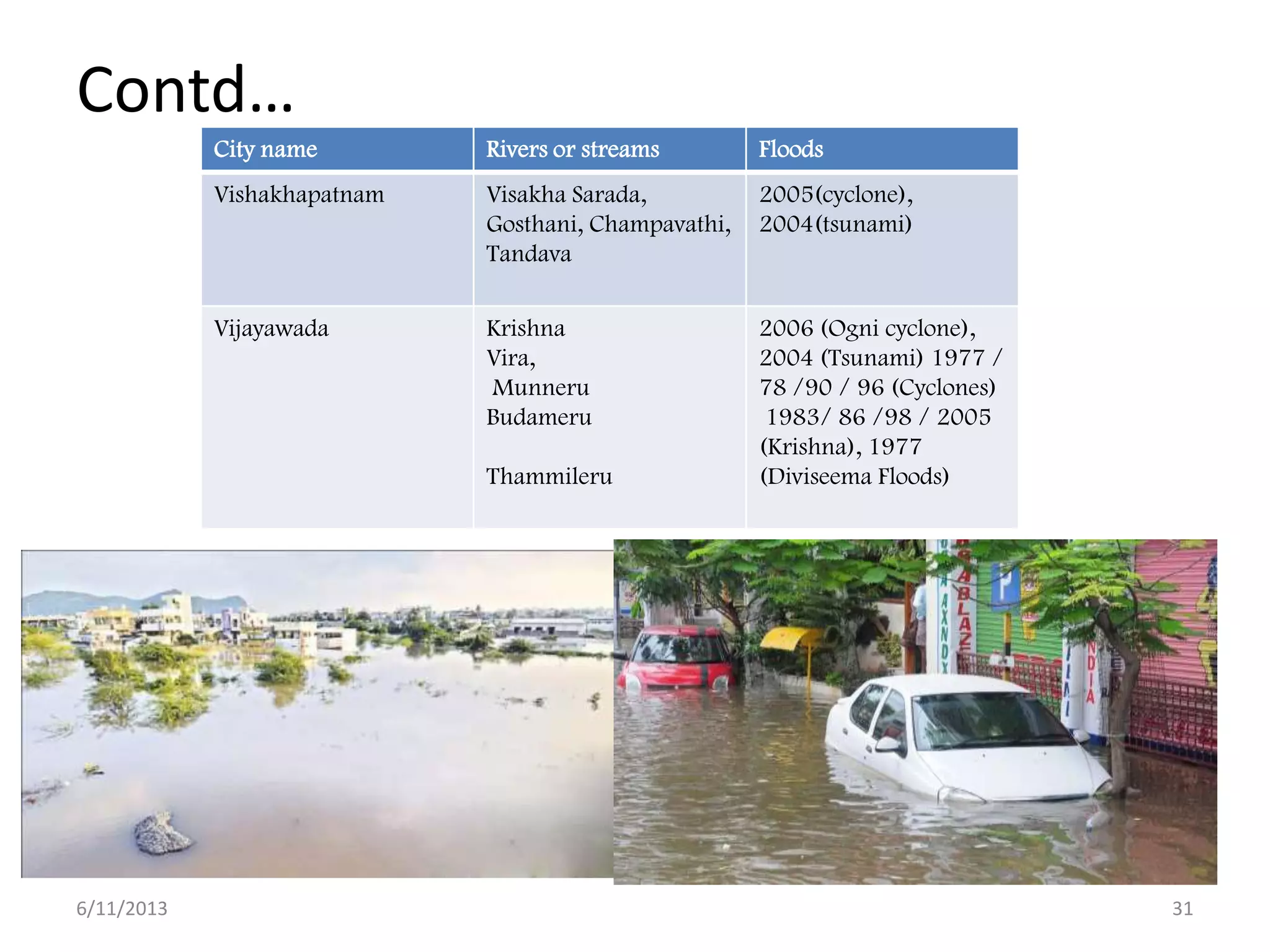

31. Contd…
City name Rivers or streams Floods
Vishakhapatnam Visakha Sarada,
Gosthani, Champavathi,
Tandava
2005(cyclone),
2004(tsunami)
Vijayawada Krishna
Vira,
Munneru
Budameru
Thammileru
2006 (Ogni cyclone),
2004 (Tsunami) 1977 /
78 /90 / 96 (Cyclones)
1983/ 86 /98 / 2005
(Krishna), 1977
(Diviseema Floods)
6/11/2013 31

32. Local Perspective of Floods
23RD AND 24TH AUGUST, 2000
• 24cm rainfall for 24 hours
• 77 slums washed away
• 35,000 affected
• 142 people killed
• 90 residential areas under water (10 – 15 feet)
• More than 100 colonies submerged in water
28th September, 1908
• 15,000 people killed
• 19,000 houses demolished
• 80,000 dwellings demolished
• Average flood water level 15 – 20 feet
• Construction of Osman Sagar (1914), Himayat Sagar (1927).
6/11/2013 32Floods- Disaster Managment

33. Approaches & measure for long , short
term protection from floods in India
• Attempts to modify the floods: involves flood protection by physical
measures such as
• Construction of embankments
• Construction of detention reservoirs
• Channel improvements etc.
• Attempts to modify the susceptibility to flood damage: involves action
designed to reduce the vulnerability of property and other developmental
activities in the flood plains to the flood hazard
• Attempts to modify the loss burden: Consists of actions to modify the
incidence of losses, by spreading them over a large segment of
community.
• Bearing the loss: Bearing the loss means living with floods

34. MEASURES

35. • FLOODS CAN NOT BE ABSOLUTELY
CONTROLLED
• FLOODS CAN ONLY BE MANAGED TO
REDUCE FLOOD LOSSES
FLOOD MANAGEMENT
APPROACH

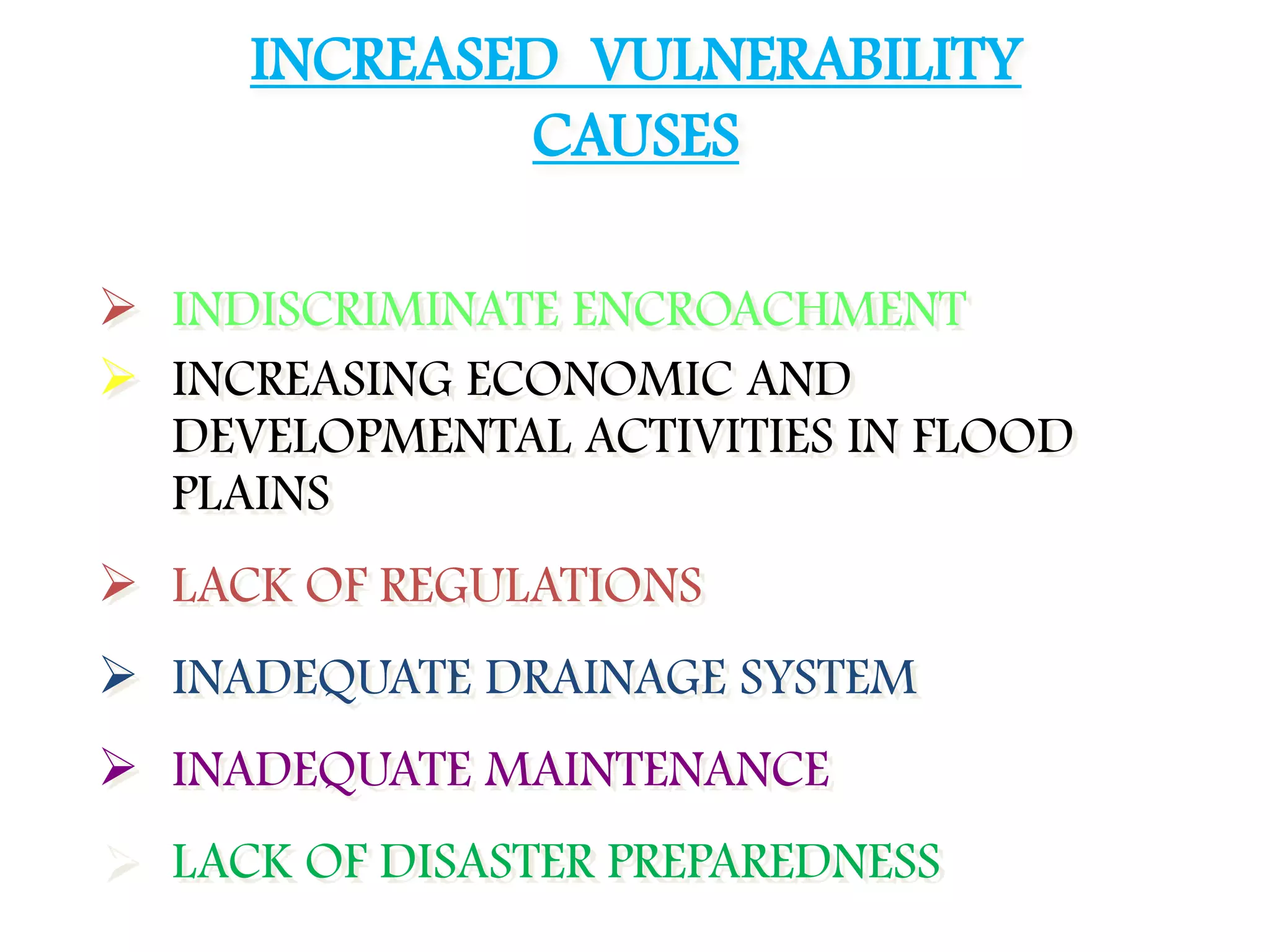

36.  INDISCRIMINATE ENCROACHMENT
 INCREASING ECONOMIC AND
DEVELOPMENTAL ACTIVITIES IN FLOOD
PLAINS
 LACK OF REGULATIONS
 INADEQUATE DRAINAGE SYSTEM
 INADEQUATE MAINTENANCE
 LACK OF DISASTER PREPAREDNESS
INCREASED VULNERABILITY
CAUSES

37. • MODIFY THE FLOODS
• MODIFY THE SUSCEPTIBILITY TO
FLOOD DAMAGE
• MODIFY THE LOSS BURDEN
• BEAR THE LOSS
FLOOD MANAGEMENT
STRATEGIES

38. FLOOD PLAIN ZONING
WATER SUPPLY
FACTORY
POWER HOUSE
UNIVERSITYRESIDENTIAL AREA
GOVT. OFFICE
HOSPITAL
NORMAL CHANNEL
PARK
FREQUENT FLOOD
FLOOD ONCE IN 25 YEARS
FLOOD ONCE IN 100 YEARS
III IIII III I
I

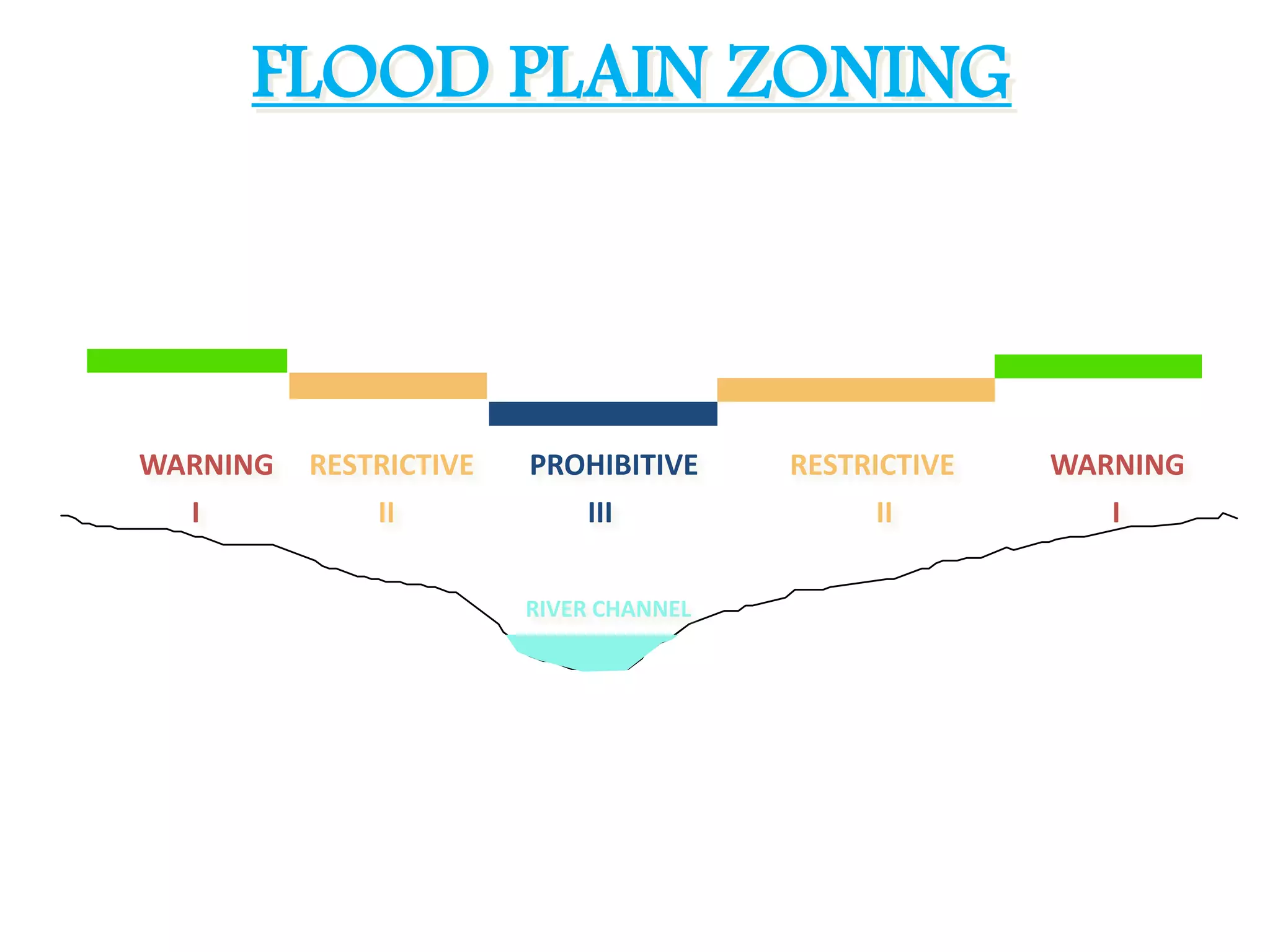

39. FLOOD PLAIN ZONING
PROHIBITIVERESTRICTIVEWARNING WARNINGRESTRICTIVE
I II III II I
RIVER CHANNEL

40. FLOOD FORECASTING AND WARNING
 DATA COLLECTION
 DATA TRANSMISSION
 DATA ANALYSIS & FORECAST FORMULATION
 DISSEMINATION OF FORECAST
STEPS

41. FLOOD FORECASTING
• HYDROLOGICAL
RIVER WATER LEVEL
RIVER DISCHARGE
• HYDROMETEOROLGICAL
RAINFALL
OTHER RECIPITATION
eg. SNOW, HAIL ETC.
DATA COLLECTION

42. FLOOD FORECASTING
• WIRELESS
• TELEPHONE
• FAX
DATA TRANSMISSION
• SATELLITE
• TELEGRAPH

43. FLOOD FORECASTING
• CORRELATION
• MATHEMATICAL
MODELS
DATA ANALYSIS & FORECAST FORMULATION

44. FLOOD FORECASTING
DISSEMINATION
FORECAST
CIVIL AUTHORITY
OTHER AGENCIES
PRESS, A I R
DOORDARSHAN
OTHER USERS
LOCAL REPRESENTATIVES

45. FLOOD FORECASTING AND WARNING
PRESENT SYSTEM - SCHEMATIC DIAGRAM
WEATHER FORECASTS
RIVER STAGE &
DISCHARGE AT
BASE STATION
RIVER STAGE &
DISCHARGE AT
FORECASTING STATIONS RAINFALL
F.M. O. OF I.M.DFLOOD FORECASTING
CENTRES & CONTROL ROOMS
FORMULATION OF
FORECAST
C.E., S.E.
STATE GOVT.
CONTROL ROOM
PRESS RADIO
P & T
POLICE FLOOD COMMITTEE
CIVIL AUTHORITIES
ENGG. AUTHORITIES
DEFENCE
RAILWAYS
INDUSTRIES
F.M.O OF I.M.D
REGIONAL OFFICES
OF I.M.D.
REGIONAL OFFICES
OF I.M.D.
DOORDARSHAN
CWC HQ MINISTRY OF WR

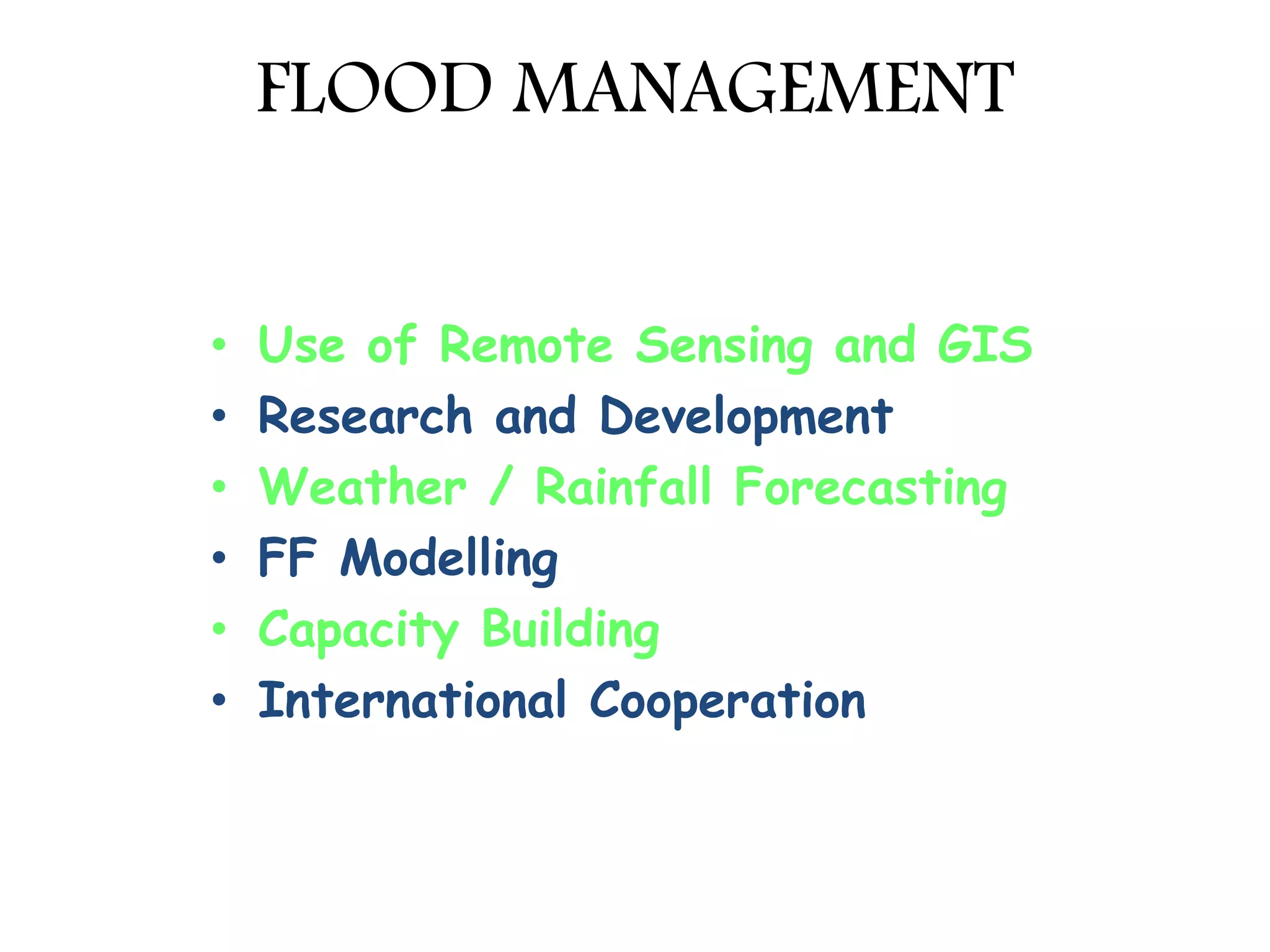

46. FLOOD MANAGEMENT
• Use of Remote Sensing and GIS
• Research and Development
• Weather / Rainfall Forecasting
• FF Modelling
• Capacity Building
• International Cooperation

47. FLOOD FORECASTING STATIONS
INDIA
GANGA B’PUTRA WEST
FLOWING
GODAVARI EASTERN
RIVERS
KRISHNA MAHANADI BARAK
85
27
17 15
9 8
3 2

48. FLOOD FORECASTING STATIONS
INDIA
35
32
23
1415
11 11
6
4 3 2 12
4
2

49. FLOOD MANAGEMENT
ACTIVITIES
Pre flood
During flood
Post flood

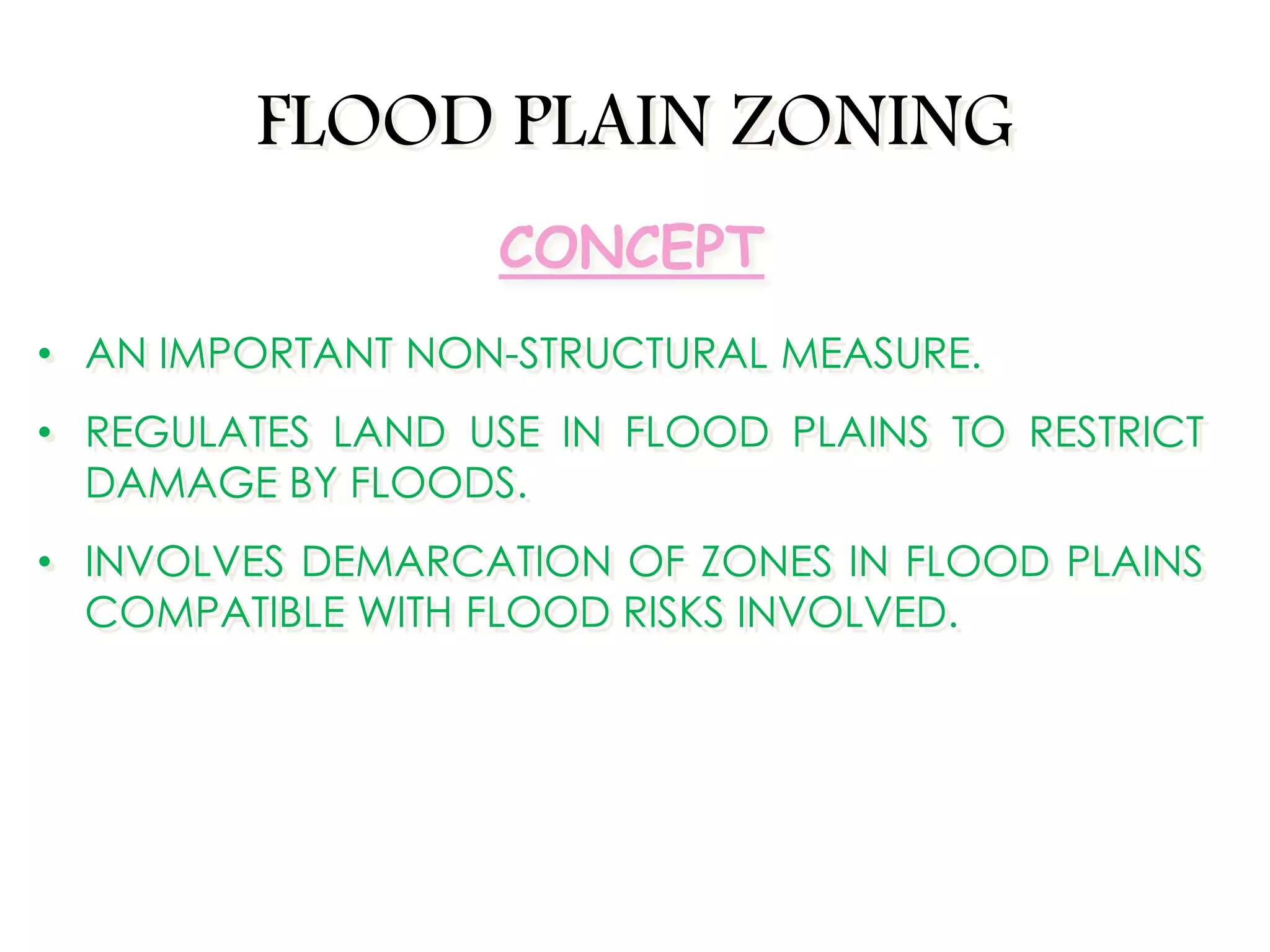

50. FLOOD PLAIN ZONING
• AN IMPORTANT NON-STRUCTURAL MEASURE.
• REGULATES LAND USE IN FLOOD PLAINS TO RESTRICT
DAMAGE BY FLOODS.
• INVOLVES DEMARCATION OF ZONES IN FLOOD PLAINS
COMPATIBLE WITH FLOOD RISKS INVOLVED.
CONCEPT

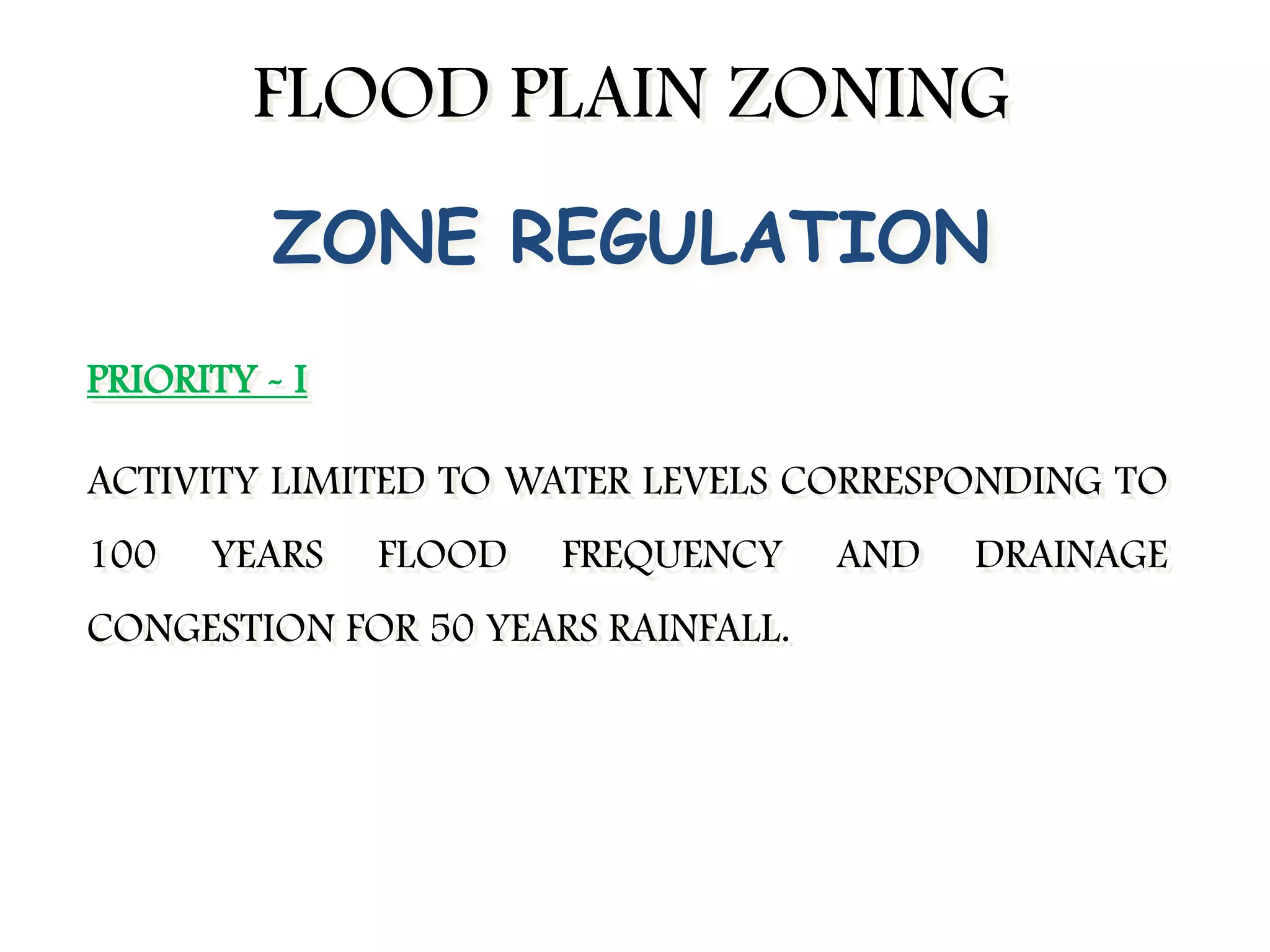

51. FLOOD PLAIN ZONING
PRIORITY - I
ACTIVITY LIMITED TO WATER LEVELS CORRESPONDING TO
100 YEARS FLOOD FREQUENCY AND DRAINAGE
CONGESTION FOR 50 YEARS RAINFALL.
ZONE REGULATION

52. FLOOD PLAIN ZONING
PRIORITY - II
ACTIVITY LIMITED TO LEVELS CORRESPONDING TO
25 YEARS FLOOD FREQUENCY AND DRAINAGE CONGESTION
FOR 10 YEARS RAINFALL FREQUENCY.
ZONE REGULATION

53. FLOOD PLAIN ZONING
PRIORITY - III
LESS ECONOMIC AND COMMUNITY ACTIVITY IN AREAS
VULNERABLE TO FREQUENT FLOODS.
ZONE REGULATION

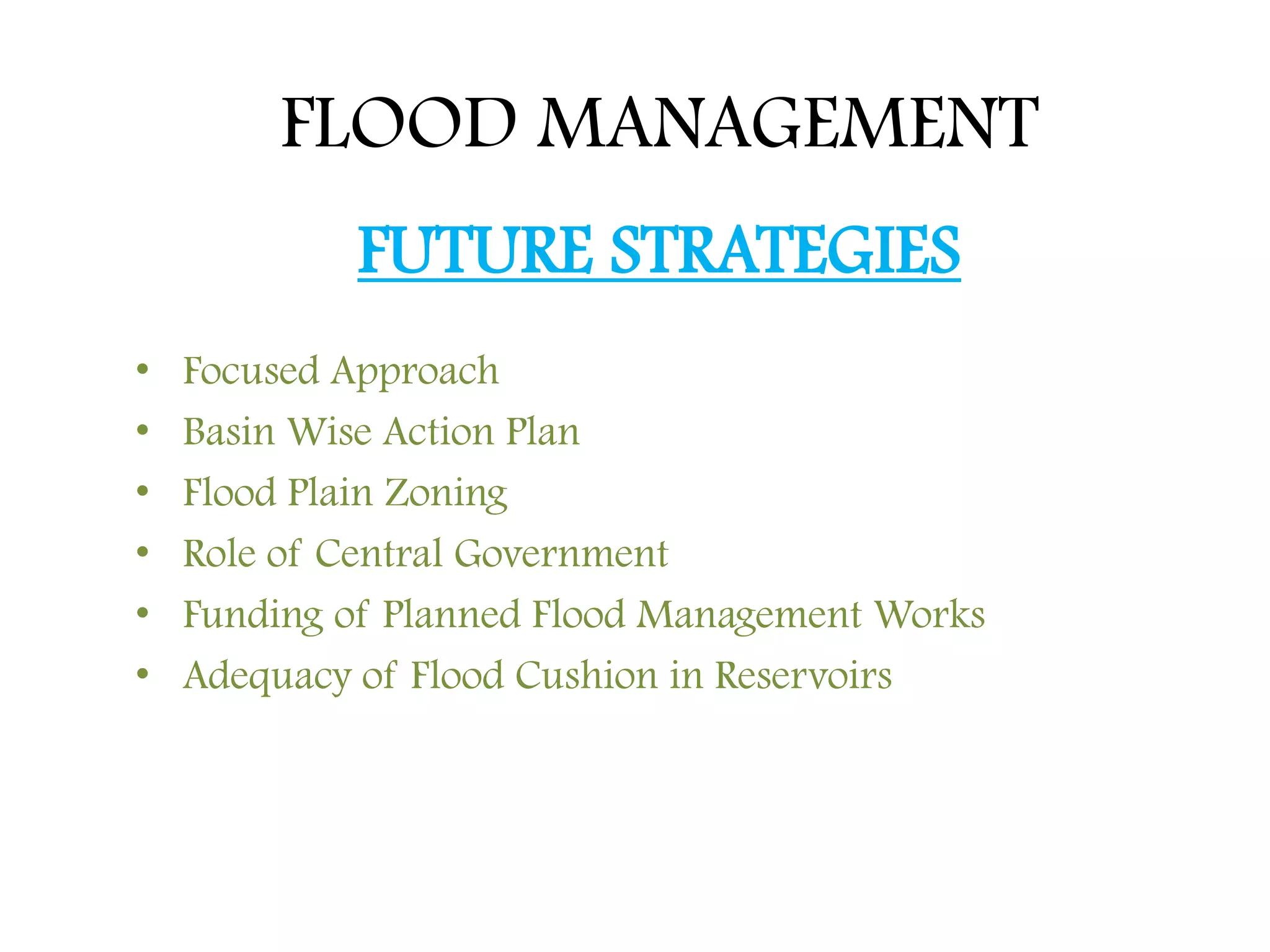

54. FLOOD MANAGEMENT
FUTURE STRATEGIES
• Focused Approach
• Basin Wise Action Plan
• Flood Plain Zoning
• Role of Central Government
• Funding of Planned Flood Management Works
• Adequacy of Flood Cushion in Reservoirs

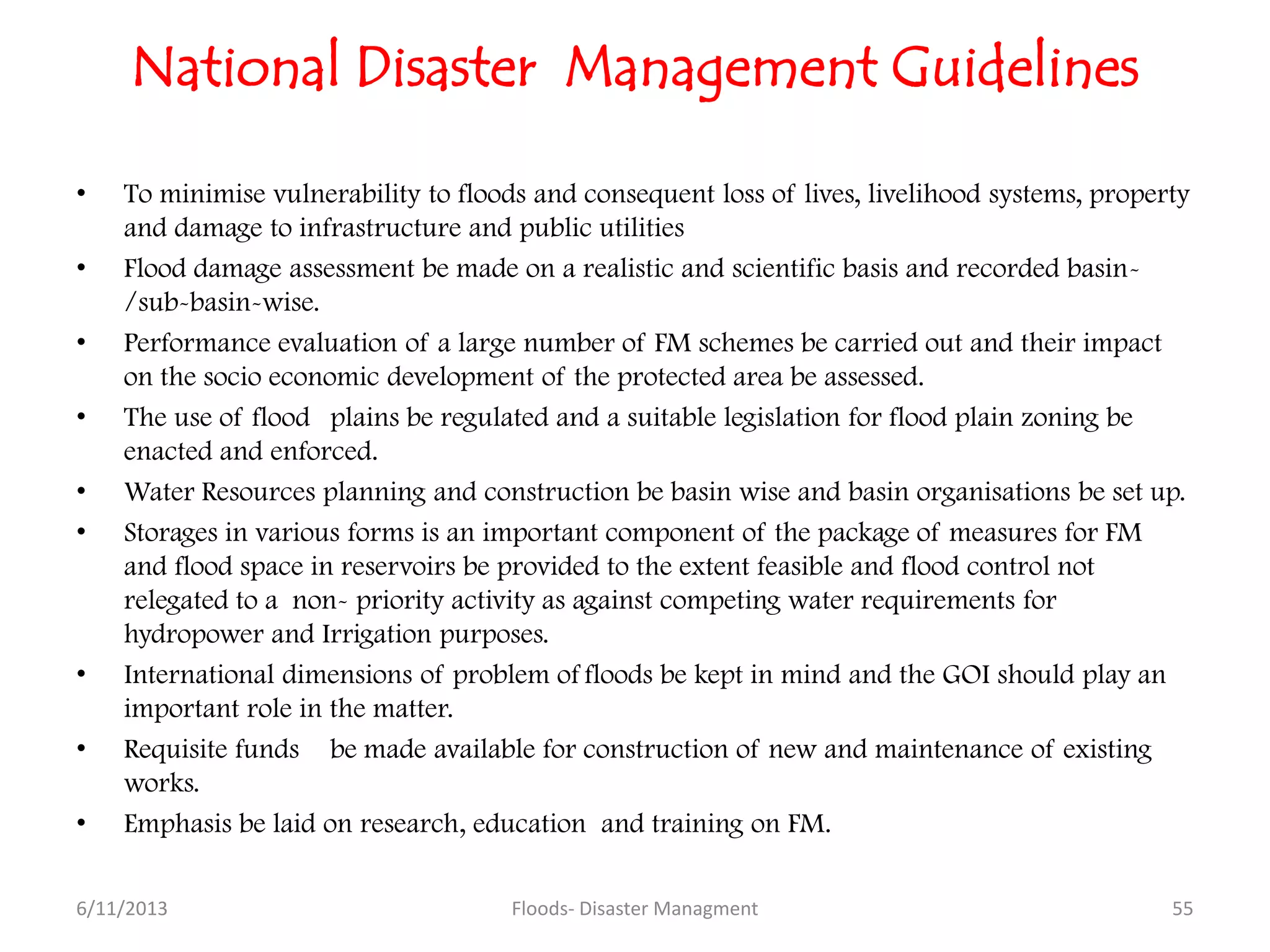

55. National Disaster Management Guidelines
• To minimise vulnerability to floods and consequent loss of lives, livelihood systems, property
and damage to infrastructure and public utilities
• Flood damage assessment be made on a realistic and scientific basis and recorded basin-
/sub-basin-wise.
• Performance evaluation of a large number of FM schemes be carried out and their impact
on the socio economic development of the protected area be assessed.
• The use of flood plains be regulated and a suitable legislation for flood plain zoning be
enacted and enforced.
• Water Resources planning and construction be basin wise and basin organisations be set up.
• Storages in various forms is an important component of the package of measures for FM
and flood space in reservoirs be provided to the extent feasible and flood control not
relegated to a non- priority activity as against competing water requirements for
hydropower and Irrigation purposes.
• International dimensions of problem of floods be kept in mind and the GOI should play an
important role in the matter.
• Requisite funds be made available for construction of new and maintenance of existing
works.
• Emphasis be laid on research, education and training on FM.
6/11/2013 Floods- Disaster Managment 55

56. 6/11/2013 56Floods- Disaster Managment
CASE STUDY ON VIJAYAWADA
FLOODS

57. Satellite map showing river Krishna in Vijayawada
6/11/2013 57Floods- Disaster Managment

58. LOCATION MAP
6/11/2013 58
Map of India showing AP

59. Location
• The city is situated at the foot of a low range
hills on the northern bank of the river
Krishna with its cardinal points as 16° 31’
North latitude and 80° 37’ East
longitude, around 70 km away from the coast.
6/11/2013 59Floods- Disaster Managment

60. Topographic Details
• The land lay of Vijayawada is characterized by four canals,
four hills and the holy river Krishna. Vijayawada when
approached from Guntur is welcomed by the historic gates
across the holy river Krishna. The way to Machilipatnam
runs parallel to Budamerru canal and crosses two other
Canals
There are four major hills:
a) Indrakiladri hill
b) Machavaram
c) Gunadaa Hill
d) Moghalrajapuram hill
e) Gollapalem Gattu Hill
6/11/2013 60Floods- Disaster Managment

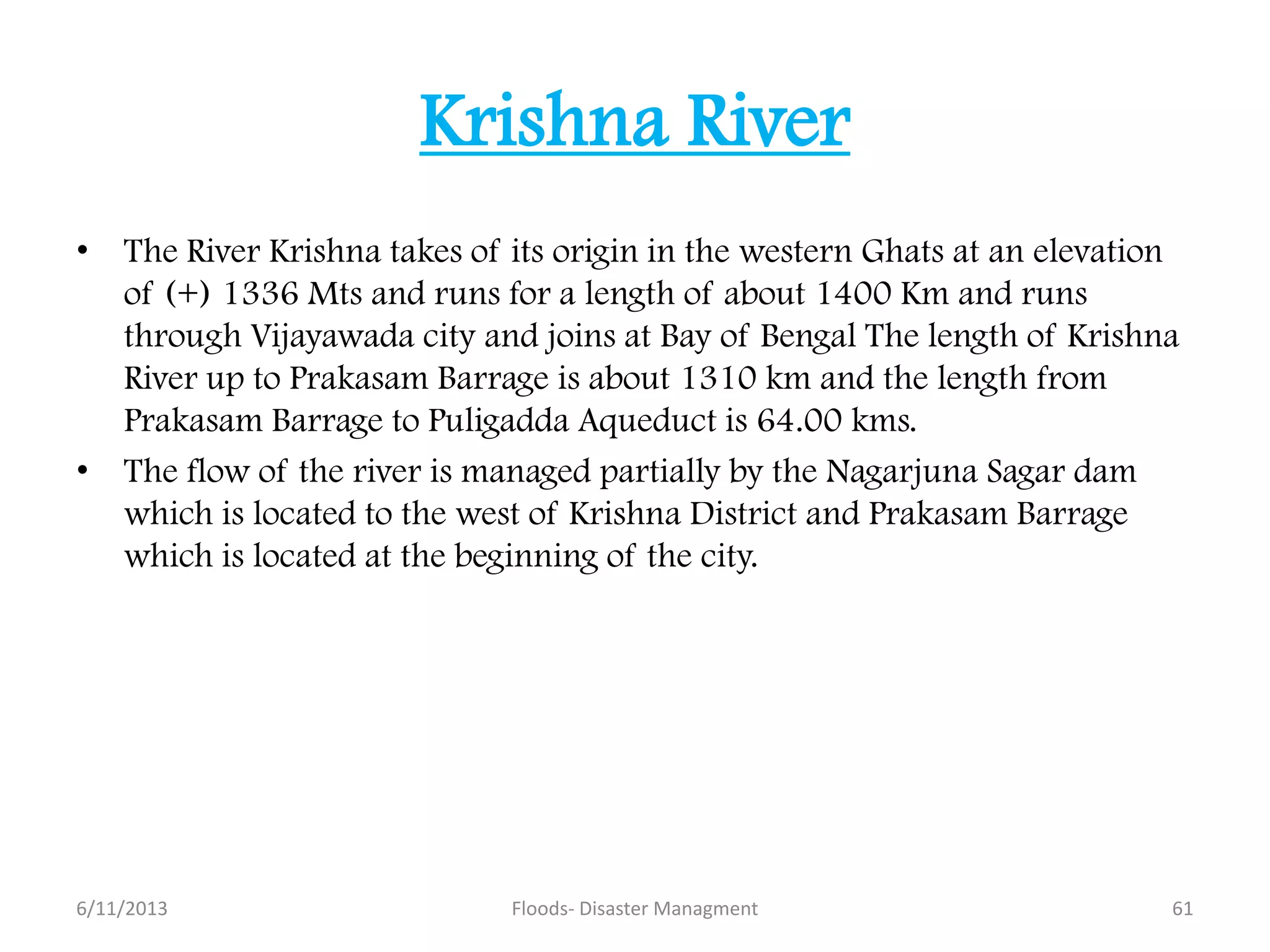

61. Krishna River
• The River Krishna takes of its origin in the western Ghats at an elevation
of (+) 1336 Mts and runs for a length of about 1400 Km and runs
through Vijayawada city and joins at Bay of Bengal The length of Krishna
River up to Prakasam Barrage is about 1310 km and the length from
Prakasam Barrage to Puligadda Aqueduct is 64.00 kms.
• The flow of the river is managed partially by the Nagarjuna Sagar dam
which is located to the west of Krishna District and Prakasam Barrage
which is located at the beginning of the city.
6/11/2013 61Floods- Disaster Managment

62. Krishna river flow details and distance of dam to dam
6/11/2013 62Floods- Disaster Managment
The Krishna Flood bank Above Prakasam Barrage is about 13KM and
bellow flood bank is 6.40 Km which creates havoc in flood season which starts
from June to December. Water release from barrage with 4,12,734
to 10,94422 Cusecs is been observed over the years.

63. Details of Flood Banks In Krishna District
6/11/2013 63Floods- Disaster Managment

64. Index plan of Krishna River Flood Banks
6/11/2013 64Floods- Disaster Managment

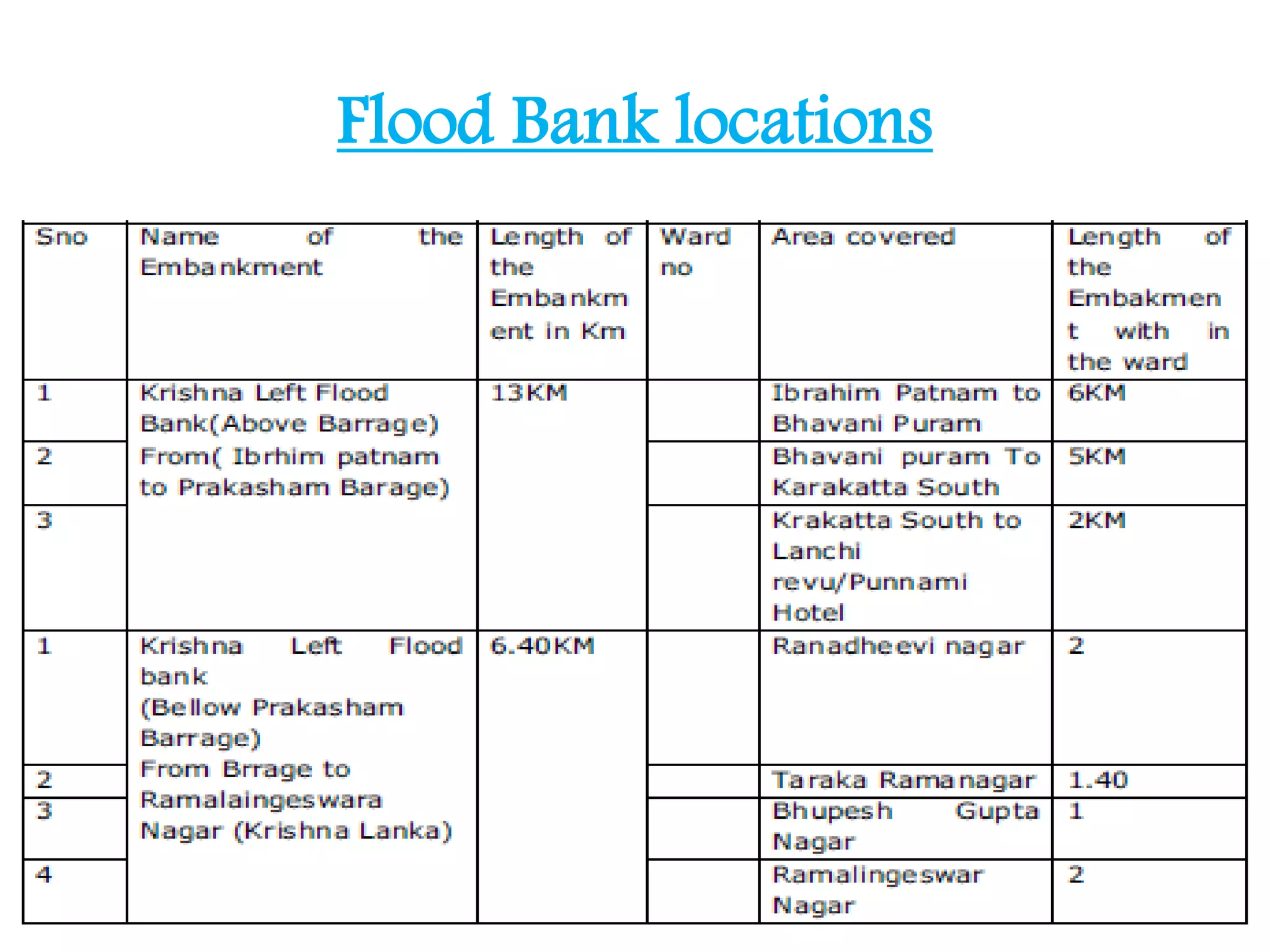

65. Flood Bank locations

67. Year Wise observed Maximum Floods In
Krishna River

68. Reasons for Krishna Flood
 This region receives maximum rainfall both by southwest and retreating
monsoons.
 The primary reason for the flooding is the unauthorized settlements along
the river which had taken place due to lack of planning and enforcement.
 Vijayawada is located on the line which separates the delta-irrigated lands
 Flood bank below barrage is about 6.40 Km which creates havoc in flood
season from June to December.
 High Water release at time from barrage with 4,12,734 to 10,94422
Cusecs of water released in various years.
 Developmental activities like sluice connectivity to into the river is causing
back water(3 sluices connected into river)
 Bund cutting for public private developmental activities (ex: sluice, storm
water drains) approach roads for bigger vehicles.
 Allotting the residential areas officially in flood zone. Ex: Police colony.

69. Contd…
• trespassing the river bunds by people
• damage to the river bunds by rodents
• Breach occurrence and damages occurred to the
flood bank with slips and erosion.
• Negligence and helpless condition making people
to stay at the houses even after passing the
warnings
• With little authoritative power over the
settlements along the flood banks, the irrigation
department is unable to attend swiftly in
vulnerable areas.

70. Vulnerable groups to Krishna floods

71. Satellite imagery of vulnerable points at Krishna flood area
6/11/2013 71Floods- Disaster Managment

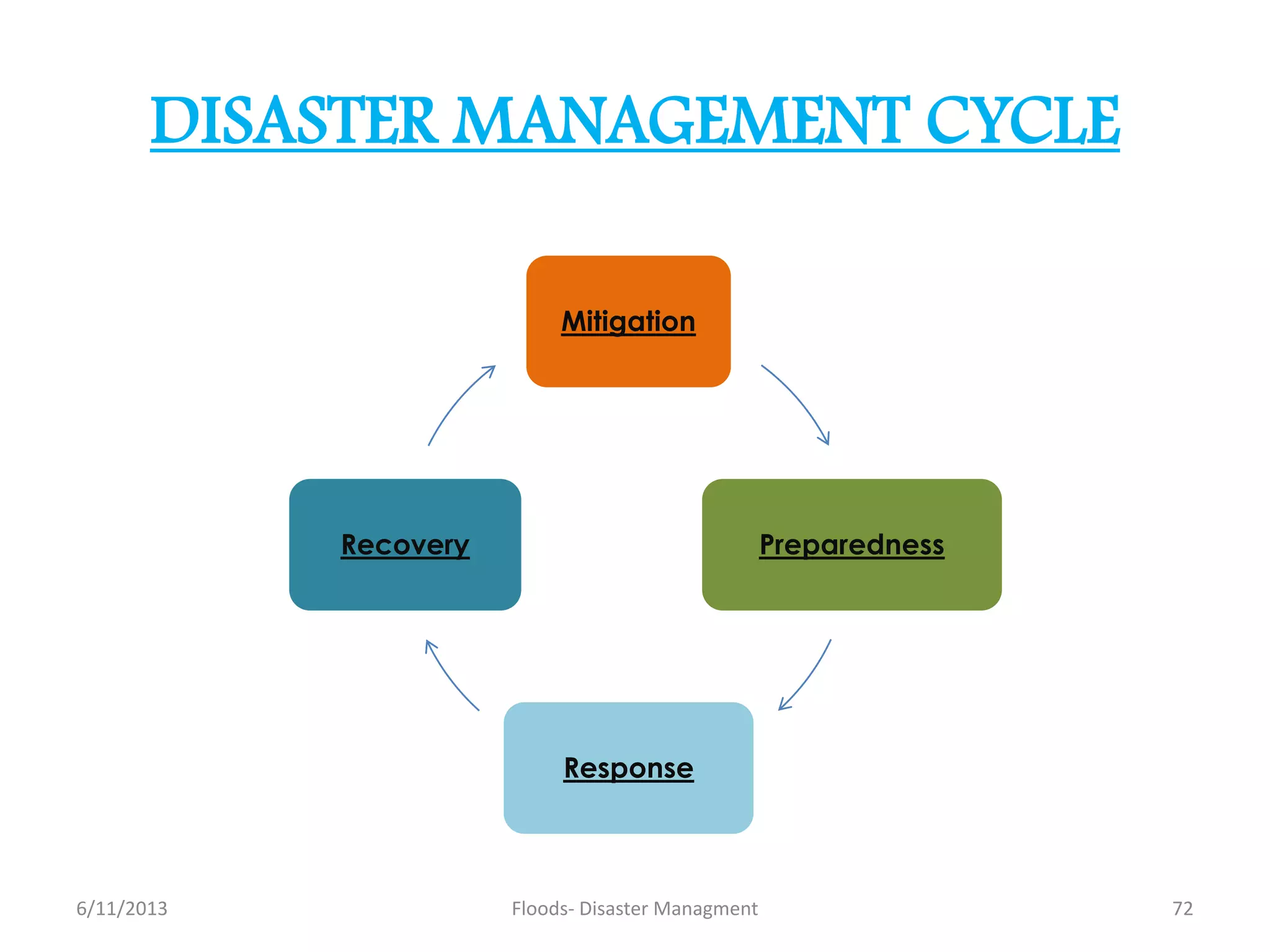

72. DISASTER MANAGEMENT CYCLE
6/11/2013 72Floods- Disaster Managment
Mitigation
Preparedness
Response
Recovery

73. Occurrence of disaster in Vijayawada (year
wise)
6/11/2013 73Floods- Disaster Managment

74. MITIGATION
 Mitigation measures are very important phase of disaster management. They will
help to reduce the loss and increase the capacity of people in managing the
disasters.
The potential forecast outlook can be translated into early warning messages and
initiate preventive/preparedness actions.
• As per the building byelaws 1981, no permission to construct a building on site
shell be granted , if the site is with in 9 meters of the highest water mark of a
tank
• Further the authority may require the floor of the lowest styorey of such building
to be raised above the normal minimum flood level of the adjoining to ground or
to such other level as the authority may prescribe Shift or restrict the people living
in flood banks to safe place by providing all aminities
• Krishna Bund strengthening at Krishna lanka, ranadheevinagar, Bhupesh Gupta
nagar
• Krishna bund construction from police colony to yanamala kuduru
• Raising the free board of Krishna flood bunds from 1.5 metre to 2 meters.
• Shift the habitants of the flood zone of Budameru temporary or permanent to safe
shelters after announcing the warning
• Stop plowing / occupying the budameru bund from singh nagar to NSC Bose
nagar
6/11/2013 74Floods- Disaster Managment

75. Contd…
• Providing Road side rain water drains at banadar road
• Providing Road side rain water drains Ayyappanagar Road
• Providing Under ground drainage and sewer lines and
construction of sump cum [Pump house
• Construction of Flood banks for Krishna River and Budameru
Floods
• Renovation or construction of safe schools and providing safety
equipment at schools
• Provision of Food to lactating mothers and Infants and children
under 6 years reconstruction of rubbish or spoiled roads in many
points of the city to protect form water stagnation
• Identify the high milkproduction and other animal or bird
production areas, based on that preference should be given to
provide all measures to those cattle and birds safety and
multiplication
6/11/2013 75Floods- Disaster Managment

76. Before the Disaster During the Disaster After the Disaster
• Learn warning signs and community alert
system
During a flood watch • Don't return home until authorities
express itis safe to do so
• Stockpile emergency building materials
• Install check valves in sewer traps to
prevent flood waters from backing up in
sewer
drains
• Plan and practice an evacuation route
• Have disaster supplies on hand
• Develop an emergency communication
plan
in case of separation
• Ask an out-of-state relative to serve as the
"family contact"
• Teach family members how and when to
turn off the gas, electricity, and water and
teach children how and when to call 9-1-1
• Ask your insurance agent about flood
insurance
If indoors:
• Turn on battery operated radio to get
latest emergency information
• Get pre-assembled emergency
supplies
• If told to leave, do so immediately.
If outdoors:
• Climb to high ground and stay there
• Avoid walking through any
floodwaters.
• If in a car, turn around and go another
way; if your car stalls, abandon it
immediately and climb to higher
ground.
During an evacuation:
• If advised to evacuate, do so
immediately to avoid flooded roads,
being sure to follow recommended
evacuation routes and listen to radio for
evacuation instructions
• Help neighbors whom may need assistance
• Use extreme caution when entering
buildings
• Inspect foundations for cracks or other
damage and examine walls, floors, doors,
and
windows to make sure that the building is
not
in danger of collapsing
• Watch out for animals, especially
poisonous
snakes, that may have come into your home
with flood waters
• Watch for loose plaster and ceilings that
could fall
• Take pictures of damage for insurance
claims
• Look for fire hazards
• Throw away all food (including canned)
that
has come in contact with flood waters
• Pump out flooded basements gradually (~
1/3 amount of water per day) to avoid
structural damage
• Service damaged septic tanks, cesspools,
pits, and leaching systems ASAP – damaged
sewage systems are health hazards.
6/11/2013 76Floods- Disaster Managment

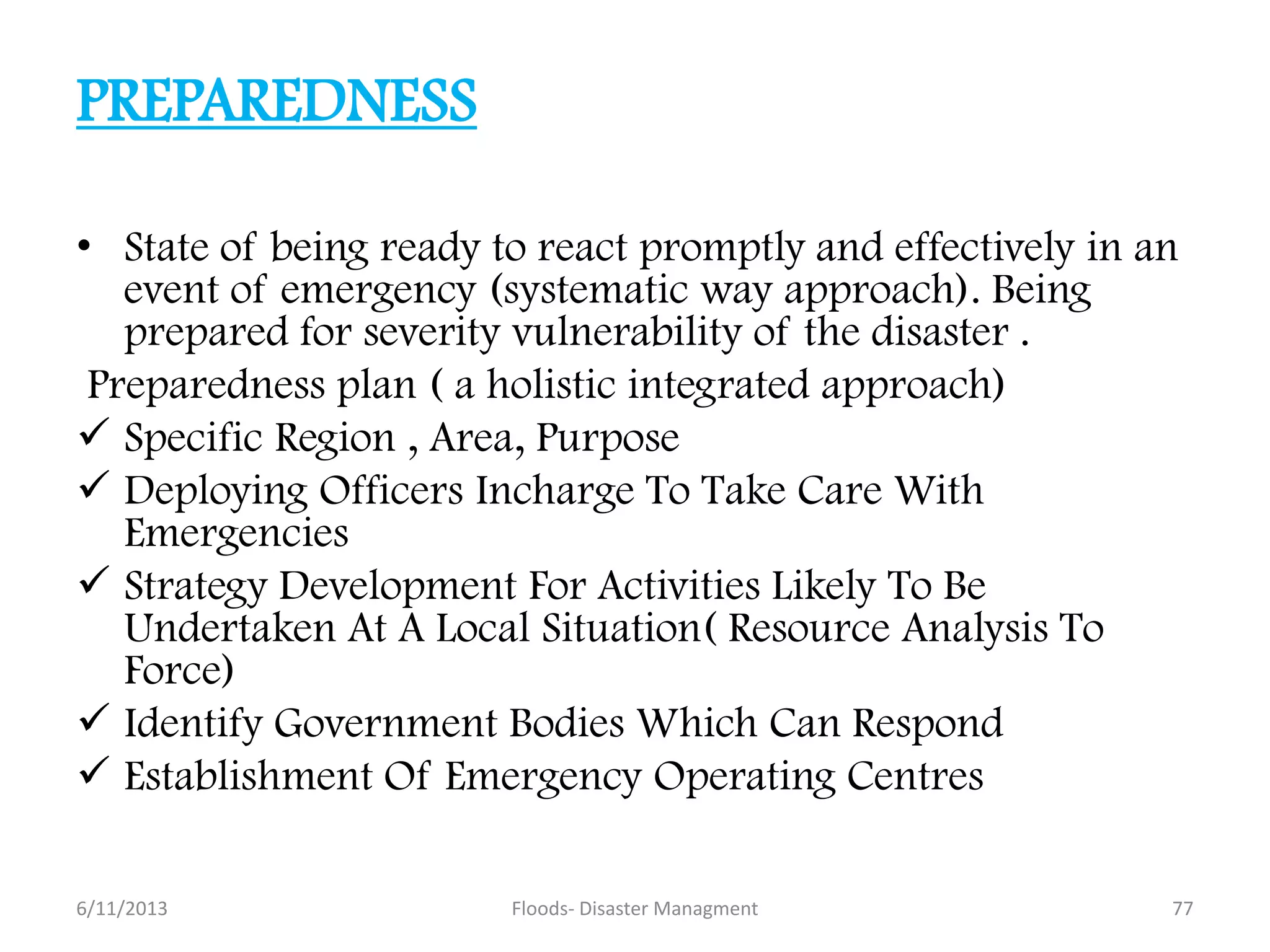

77. PREPAREDNESS
• State of being ready to react promptly and effectively in an
event of emergency (systematic way approach). Being
prepared for severity vulnerability of the disaster .
Preparedness plan ( a holistic integrated approach)
 Specific Region , Area, Purpose
 Deploying Officers Incharge To Take Care With
Emergencies
 Strategy Development For Activities Likely To Be
Undertaken At A Local Situation( Resource Analysis To
Force)
 Identify Government Bodies Which Can Respond
 Establishment Of Emergency Operating Centres
6/11/2013 77Floods- Disaster Managment

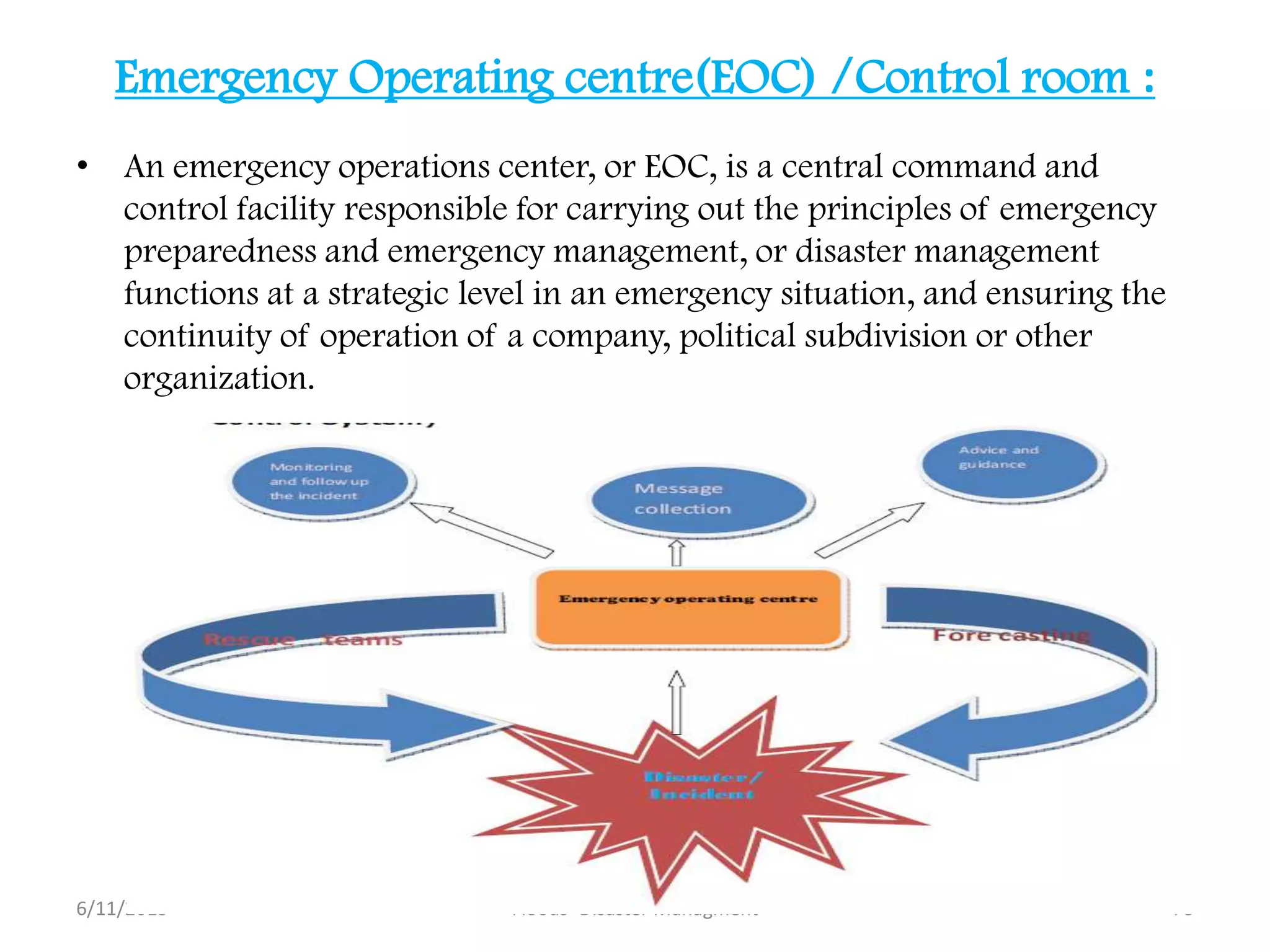

78. Emergency Operating centre(EOC) /Control room :
• An emergency operations center, or EOC, is a central command and
control facility responsible for carrying out the principles of emergency
preparedness and emergency management, or disaster management
functions at a strategic level in an emergency situation, and ensuring the
continuity of operation of a company, political subdivision or other
organization.
6/11/2013 78Floods- Disaster Managment

79. Functions
• Dealing with incoming emergency calls and
prioritizing them taking the necessary
information from the caller
• Recording details of incidents on computer
systems
• Providing necessary advice and guidance
• Dispatching an emergency services team to deal
with the incident.
• Maintaining contact with the team at the scene
of the incident to keep up to date with the
situation and ensure staff safety.
6/11/2013 79Floods- Disaster Managment

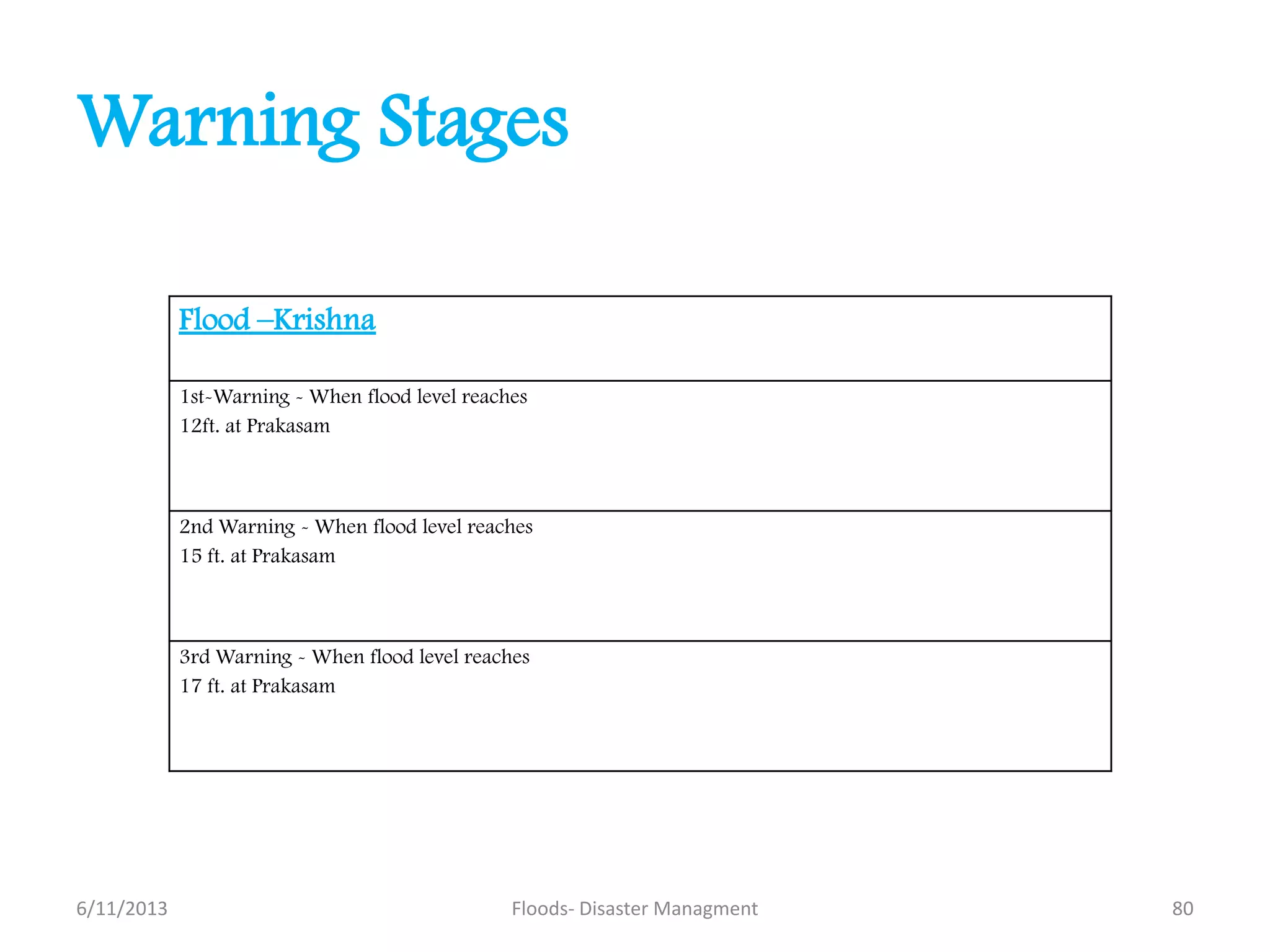

80. Warning Stages
6/11/2013 Floods- Disaster Managment 80
Flood –Krishna
1st-Warning - When flood level reaches
12ft. at Prakasam
2nd Warning - When flood level reaches
15 ft. at Prakasam
3rd Warning - When flood level reaches
17 ft. at Prakasam

81. RESPONSE
Occurs immediately / during following disaster
Designed to provide emergency assistance to the
victims of the event and reduce the likelihood of
occurrence of secondary damage
5 STAGE PROCESS
1. Notification
2. Immediate public safety
3. Property security
4. Public welfare
5. Restoration
6/11/2013 Floods- Disaster Managment 81

82. 6/11/2013 Floods- Disaster Managment 82

83. RECOVERY
 Final phase of disaster management cycle
 It is the longest phase out of all until system return to
normalcy / nearly to normalcy
 2 TYPES
long term
Complete redevelopment of damage
short term
Restoration of vital services like watersupply, social
infrastructure to minimum standards of operation and
safety
Mike announcement of flood discharge and awareness
of people to evacuate the people to be submerged houses.
6/11/2013 Floods- Disaster Managment 83

84. Water Supply
• Identify the effected areas substitute with good and quality of water.
• Keep the stock of Chlorine.
• Identify and keep ready the list of sources of water in unaffected areas.
• Check and Identification of low lying areas in the ward.
• Check the water samples for residual chlorine, microbial substitutes and treat
accordingly.
Duties of Medical Teams in Rehabilitation Centers
• List out the below 5 years age children’s and supply the milk and food (medicated).
• List out the pregnancy ladies and take sufficient medical treatment.
• List out the old / unhealthy people and take sufficient medical treatment.
• Arrangements for fogging to control the mosquitoes and fly’s.
6/11/2013 Floods- Disaster Managment 84

85. Shelter Management
• Departments women and Child welfare, Revenue, Civil supplies and Municipal Corporation
must play a major role in Shelter management.
• Adequate numbers of buildings or open space shall be identified where relief camps can be
set up during emergency and updated in the plan.
• The relief camps should provide with adequate provision of drinking water and bathing,
sanitation and essential health-care facilities.
• Adequate securing arrangements shall be made by local police.
• Adequate lighting arrangements shall be made in the camp area including at water points,
toilets and other common areas by the Municipal Engineering Department.
• Explore the possibility of provision of food through community kitchens, provision of
education through the restoration of schools and anganwadis in effected areas.
6/11/2013 Floods- Disaster Managment 85

86. Duties of Civil Supplies
• Necessary free distribution of food shall be made to those who ever need in
the shelter and effected areas.
• Wherever possible dry rations shall be provided for home cooking.
• Community Kitchen for mass feeding shall be organized only for an affected
people do not have the means to cooks.
• While providing food assistance, local food practices shall be kept in mind
and commodities being provided must be carefully chosen, in consultation
with the affected population.
• Food must be of good quality, safe to consume, and appropriate and
acceptable to recipients.
• Food distributed should be of appropriate quality and fit for human
consumption.
6/11/2013 Floods- Disaster Managment 86

87. Duties of Police Department
• City Police officer will make arrangements for providing adequate number of mobile
VHF sets up to sub-division/ward Police stations for meeting the exigencies.
• List out trained persons responsible at sub division and ward level Police stations for
disaster management activities with details of address and phone numbers. Provide
this list to Dist Collector and Municipal Commissioner and concerned line
departments.
• Adequate security arrangements shall be made by local police at the shelters and
vulnerable areas.
Duties of Irrigation Department
• Flood preparedness plan for the city is to be prepared.
• Update and inform about the floods at higher reaches.
• Check your stores keep ready Inventory and instruments.
• Keep ready the emergency material which ever required at the out falls at Krishna
lanka river bank.
• A report on activities and work status of Budameru drain should be submitted
immediately and an office of concerned work must be attended to the next meeting.
6/11/2013 Floods- Disaster Managment 87

88. In Conclusion
While we can never contract with the future or
accurately predict all of the consequences of
our actions and policies, policymakers must
extend their thinking about their impacts and
the impacts of private entities beyond the
local, the near term, the likely, and the recently
newsworthy.

89. 6/11/2013 Floods- Disaster Managment 89
