Flat Fittings Tech. Sheet
The document lists specifications for 14 different strut channel flat fitting products. Each product has a product code and shares the same hole diameter of 14mm, hole spacing of 21mm from the end, width of 41mm, and thickness of 6mm. All products are available with HDG, ZP, or PC finishes.
![MOUTH GAGS & RETRACTORS [SURGICOSE PAKISTAN]](https://cdn.slidesharecdn.com/ss_thumbnails/dg-mouthgagsretractors-150706173826-lva1-app6891-thumbnail.jpg?width=640&height=640&fit=bounds)
![TRACHEOTOMY INSTRUMENTS [SURGICOSE]](https://cdn.slidesharecdn.com/ss_thumbnails/tm-tracheotomyinstrumentssurgicose-151002155545-lva1-app6892-thumbnail.jpg?width=640&height=640&fit=bounds)
![RHINO LOGY INSTRUMENTS [SURGICOSE]](https://cdn.slidesharecdn.com/ss_thumbnails/rh-rhinologyinstruments-151002141859-lva1-app6892-thumbnail.jpg?width=640&height=640&fit=bounds)
Flat Fittings Tech. Sheet
- 1. STRUT CHANNEL FLATFITTING
- 2. Product Code -SAF1062 HOLE DIAMETER 14mm (9/16”) HOLE SPACING (FROM END) 21mm (13/16”) WIDTH 41mm (1-5/8”) THICKNESS 6mm (1/4”) Available in HDG, ZP & PC Finish.

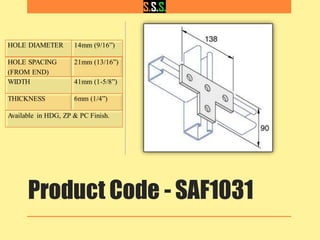

- 3. Product Code -SAF1031 HOLE DIAMETER 14mm (9/16”) HOLE SPACING (FROM END) 21mm (13/16”) WIDTH 41mm (1-5/8”) THICKNESS 6mm (1/4”) Available in HDG, ZP & PC Finish.
- 4. Product Code -SAF1036 HOLE DIAMETER 14mm (9/16”) HOLE SPACING (FROM END) 21mm (13/16”) WIDTH 41mm (1-5/8”) THICKNESS 6mm (1/4”) Available in HDG, ZP & PC Finish.
- 5. Product Code -SAF1063 HOLE DIAMETER 14mm (9/16”) HOLE SPACING (FROM END) 21mm (13/16”) Available in HDG, ZP & PC Finish.
- 6. Product Code -SAF1065 HOLE DIAMETER 14mm (9/16”) HOLE SPACING (FROM END) 21mm (13/16”) WIDTH 41mm (1-5/8”) THICKNESS 6mm (1/4”) Available in HDG, ZP & PC Finish.
- 7. Product Code -SAF1066 HOLE DIAMETER 14mm (9/16”) HOLE SPACING (FROM END) 21mm (13/16”) WIDTH 41mm (1-5/8”) THICKNESS 6mm (1/4”) Available in HDG, ZP & PC Finish.
- 8. Product Code -SAF1067 HOLE DIAMETER 14mm (9/16”) HOLE SPACING (FROM END) 21mm (13/16”) WIDTH 41mm (1-5/8”) THICKNESS 6mm (1/4”) Available in HDG, ZP & PC Finish.

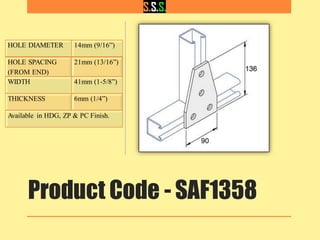

- 9. Product Code -SAF1358 HOLE DIAMETER 14mm (9/16”) HOLE SPACING (FROM END) 21mm (13/16”) WIDTH 41mm (1-5/8”) THICKNESS 6mm (1/4”) Available in HDG, ZP & PC Finish.
- 10. Product Code -SAF1580 HOLE DIAMETER 14mm (9/16”) HOLE SPACING (FROM END) 21mm (13/16”) WIDTH 41mm (1-5/8”) THICKNESS 6mm (1/4”) Available in HDG, ZP & PC Finish.
- 11. Product Code -SAF1941 HOLE DIAMETER 14mm (9/16”) HOLE SPACING (FROM END) 21mm (13/16”) WIDTH 41mm (1-5/8”) THICKNESS 6mm (1/4”) Available in HDG, ZP & PC Finish.
