Shree Ji Steel Corporation specializes in a variety of cost-effective mild steel flat bars used in construction and fabrication. The flat bars exhibit low carbon content while providing a strong and versatile solution, with various sizes and weights listed for specific applications. The document also details the chemical and mechanical compositions, rolling tolerances, and the website for further information.

1. SHREE JI STEEL CORPORATION
MS FLATBAR
We deal in a wide variety of Flat Bar, which are known to be the
most cost-effective steel and also is one of the most remarkable
forms in itself. Hence, it finds usage in fabrication and
construction purposes. Another great feature of Flat Bar is that
though it has much reduced carbon content, but it exhibits
exceptional combination of strength, versatility.
website: https://shreejisteelcorp.com/

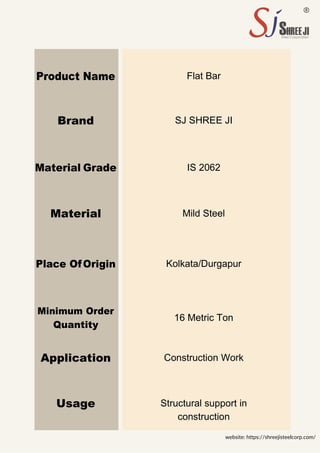

2. Product Name
Brand
Material Grade
Material
Place OfOrigin
Minimum Order
Quantity
Application
Usage
Flat Bar
SJ SHREE JI
IS 2062
Mild Steel
Kolkata/Durgapur
16 Metric Ton
Construction Work
Structural support in
construction
website: https://shreejisteelcorp.com/

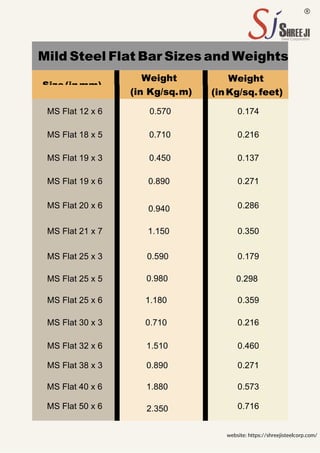

3. Mild Steel Flat Bar Sizes and Weights
Size(inmm)
Weight Weight
website: https://shreejisteelcorp.com/
(in Kg/sq.m) (inKg/sq.feet)
MS Flat 12 x 6 0.570 0.174
MS Flat 18 x 5 0.710 0.216
MS Flat 19 x 3 0.450 0.137
MS Flat 19 x 6 0.890 0.271
MS Flat 20 x 6 0.940 0.286
MS Flat 21 x 7 1.150 0.350
MS Flat 25 x 3 0.590 0.179
MS Flat 25 x 5 0.980 0.298
MS Flat 25 x 6 1.180 0.359
MS Flat 30 x 3 0.710 0.216
MS Flat 32 x 6 1.510 0.460
MS Flat 38 x 3 0.890 0.271
MS Flat 40 x 6
MS Flat 50 x 6
1.880
2.350
0.573
0.716

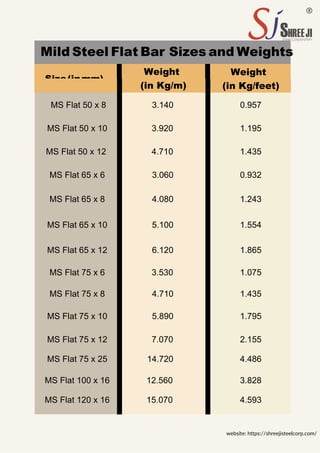

4. Mild Steel Flat Bar Sizes and Weights
Size(inmm)
Weight Weight
website: https://shreejisteelcorp.com/
(in Kg/m) (in Kg/feet)
MS Flat 50 x 8 3.140 0.957
MS Flat 50 x 10 3.920 1.195
MS Flat 50 x 12 4.710 1.435
MS Flat 65 x 6 3.060 0.932
MS Flat 65 x 8 4.080 1.243
MS Flat 65 x 10 5.100 1.554
MS Flat 65 x 12 6.120 1.865
MS Flat 75 x 6 3.530 1.075
MS Flat 75 x 8 4.710 1.435
MS Flat 75 x 10 5.890 1.795
MS Flat 75 x 12 7.070 2.155
MS Flat 75 x 25 14.720 4.486
MS Flat 100 x 16 12.560 3.828
MS Flat 120 x 16 15.070 4.593

5. MS Flat Sizes and Weights
Size (inmm)
Weight Weight
(in Kg/m) (in Kg/feet)
MS Flat 145 x 30 34.150 10.408
MS Flat 150 x 8 9.420 2.871
MS Flat 150 x 10 11.780 3.590
MS Flat 150 x 12 14.130 4.306
MS Flat 150 x 16 18.840 5.742
MS Flat 150 x 20 23.550 7.178
MS Flat 150 x 25 29.440 8.973
MS Flat 160 x 20 25.120 7.656
MS Flat 180 x 14 19.780 6.028
MS Flat 180 x 20 28.260 8.613
MS Flat 200 x 8 12.560 3.828
MS Flat 200 x 10 15.700 4.785
MS Flat 200 x 12 18.840 5.742
MS Flat 200 x 16 25.120 7.656
website: https://shreejisteelcorp.com/

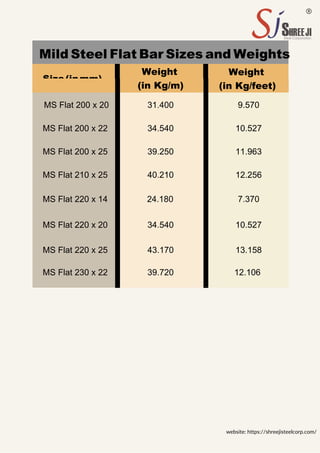

6. Mild Steel Flat Bar Sizes and Weights
Size(inmm)
Weight Weight
website: https://shreejisteelcorp.com/
(in Kg/m) (in Kg/feet)
MS Flat 200 x 20 31.400 9.570
MS Flat 200 x 22 34.540 10.527
MS Flat 200 x 25 39.250 11.963
MS Flat 210 x 25 40.210 12.256
MS Flat 220 x 14 24.180 7.370
MS Flat 220 x 20 34.540 10.527
MS Flat 220 x 25 43.170 13.158
MS Flat 230 x 22 39.720 12.106

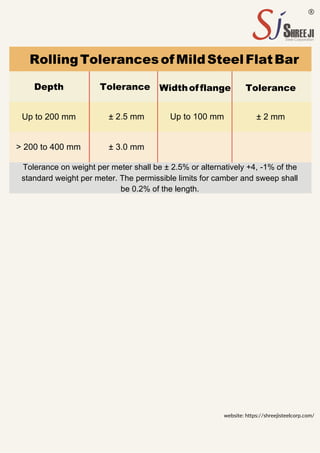

7. RollingTolerancesofMildSteelFlatBar
Depth Tolerance Widthofflange Tolerance
Up to 200 mm ± 2.5 mm Up to 100 mm ± 2 mm
> 200 to 400 mm ± 3.0 mm
Tolerance on weight per meter shall be ± 2.5% or alternatively +4, -1% of the
standard weight per meter. The permissible limits for camber and sweep shall
be 0.2% of the length.
website: https://shreejisteelcorp.com/

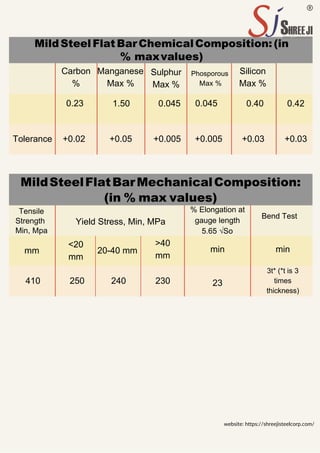

8. MildSteelFlatBarChemicalComposition:(in
% maxvalues)
Carbon
%
Manganese
Max %
Sulphur
Max %
Phosporous
Max %
Silicon
Max %
0.23 1.50 0.045 0.045 0.40 0.42
Tolerance +0.02 +0.05 +0.005 +0.005 +0.03 +0.03
MildSteelFlatBarMechanicalComposition:
(in % max values)
Tensile
Strength
Min, Mpa
Yield Stress, Min, MPa
% Elongation at
gauge length
5.65 √Ѕo
Bend Test
mm
<20
mm
20-40 mm
>40
mm
min min
410 250 240 230 23
3t* (*t is 3
times
thickness)
website: https://shreejisteelcorp.com/
