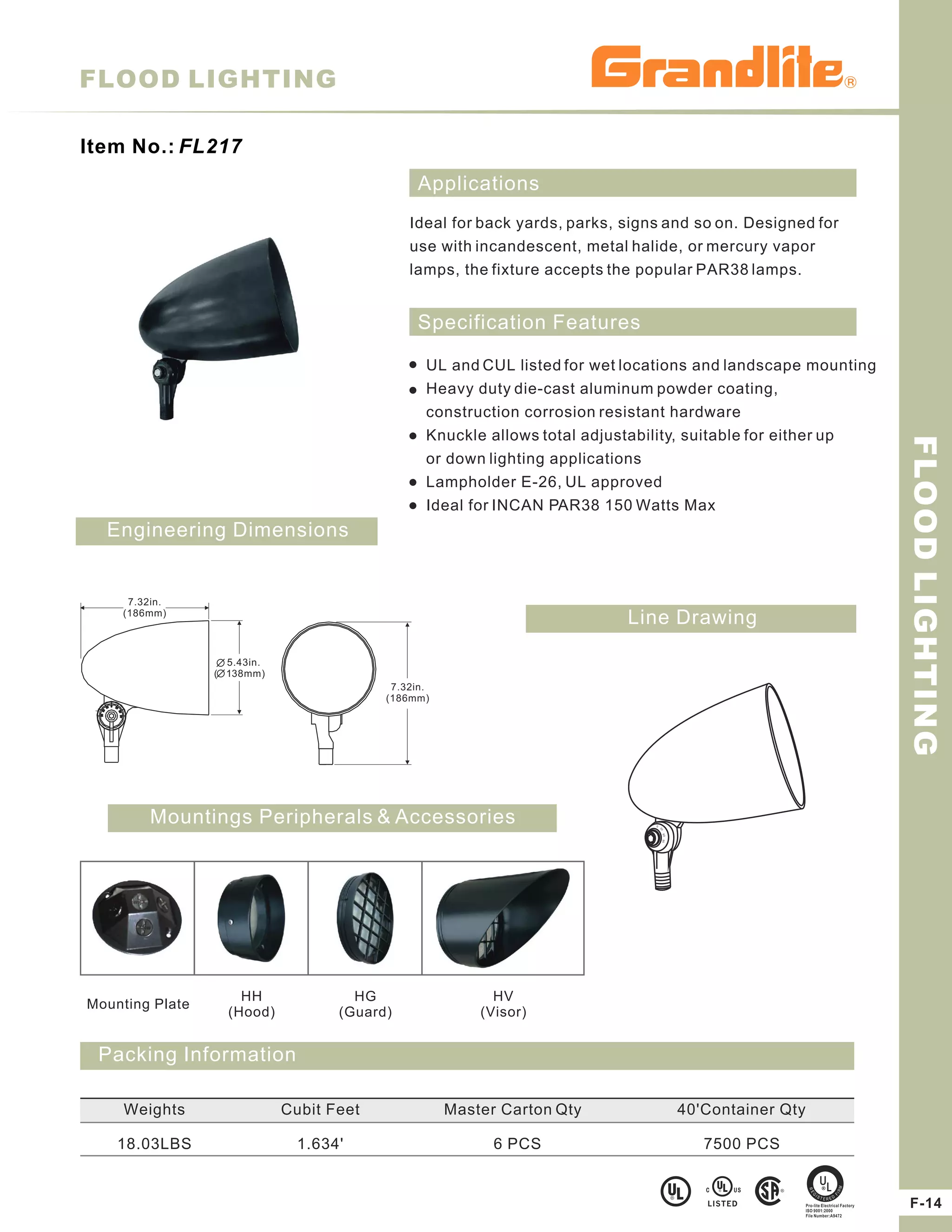

1. FLOOD LIGHTING
Item No.: FL217
Applications
Ideal for back yards, parks, signs and so on. Designed for
use with incandescent, metal halide, or mercury vapor
lamps, the fixture accepts the popular PAR38 lamps.
Specification Features
UL and CUL listed for wet locations and landscape mounting
Heavy duty die-cast aluminum powder coating,
construction corrosion resistant hardware
Knuckle allows total adjustability, suitable for either up
FLOOD LIGHTING
or down lighting applications
Lampholder E-26, UL approved
Ideal for INCAN PAR38 150 Watts Max
Engineering Dimensions
7.32in.
(186mm)
Line Drawing
5.43in.
( 138mm)
7.32in.
(186mm)
Mountings Peripherals & Accessories 0
30
60 90
HH HG HV
Mounting Plate
(Hood) (Guard) (Visor)
Packing Information
Weights Cubit Feet Master Carton Qty 40'Container Qty
18.03LBS 1.634' 6 PCS 7500 PCS
F-14
