The document discusses Intel Advisor XE, a tool that enables parallelism and threading design. It allows users to quickly prototype threading options, project scaling on larger systems, and find synchronization errors before implementation. The tool's approach involves analyzing applications, designing parallelism, tuning, and checking implementations. It aims to help users make best use of multicore and manycore systems with hundreds of cores.

1. 1
Explore, design and implement
threading parallelism with Intel® Advisor XE
ISC’ 2013
June, 19 2013

2. 2
Demo features
• Intel® Advisor XE, part of Intel Cluster Stuio and Intel Parallel
Studio, enables “Parallel Advisor” technology and methodology
in HPC segment.
• We use it to model and implement effective parallelism for
1)typical physicists’ and 2) typical FSI (financial) applications
• Intel® Advisor Suitability helps to understand SMP scalability
potential and limitations for systems with hundreds of cores.
Extended Suitability functionality provides user with unique
insight if given workload can make a best use of highly-parallel
Intel Xeon Phi ™ coprocessor

3. 3

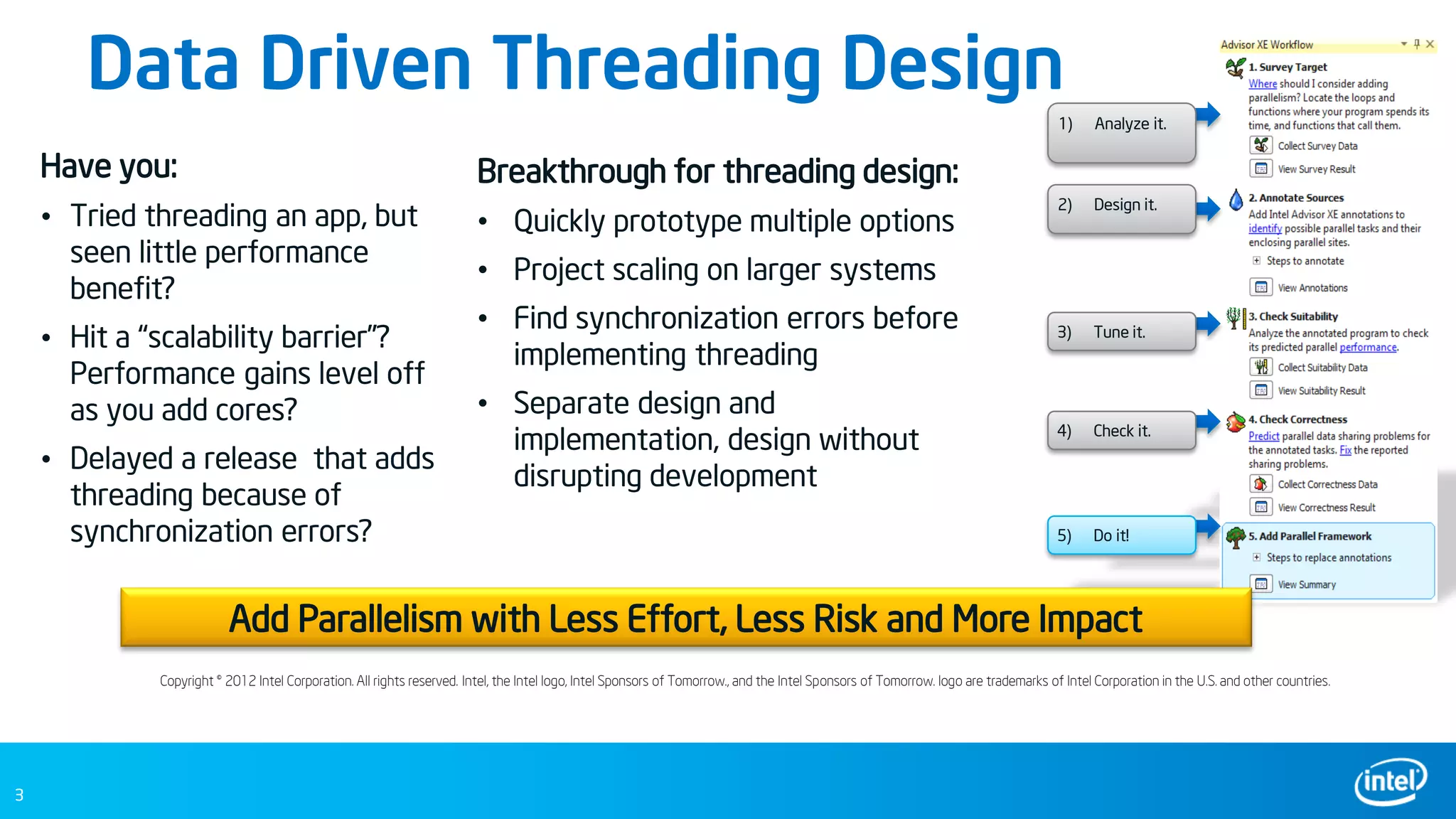

Data Driven Threading Design
Copyright © 2012 Intel Corporation. All rights reserved. Intel, the Intel logo, Intel Sponsors of Tomorrow., and the Intel Sponsors of Tomorrow. logo are trademarks of Intel Corporation in the U.S. and other countries.
Have you:
• Tried threading an app, but
seen little performance
benefit?
• Hit a “scalability barrier”?
Performance gains level off
as you add cores?
• Delayed a release that adds
threading because of
synchronization errors?
Breakthrough for threading design:
• Quickly prototype multiple options
• Project scaling on larger systems
• Find synchronization errors before
implementing threading
• Separate design and
implementation, design without
disrupting development
1) Analyze it.
3) Tune it.
4) Check it.
5) Do it!
2) Design it.
Add Parallelism with Less Effort, Less Risk and More Impact

4. 4

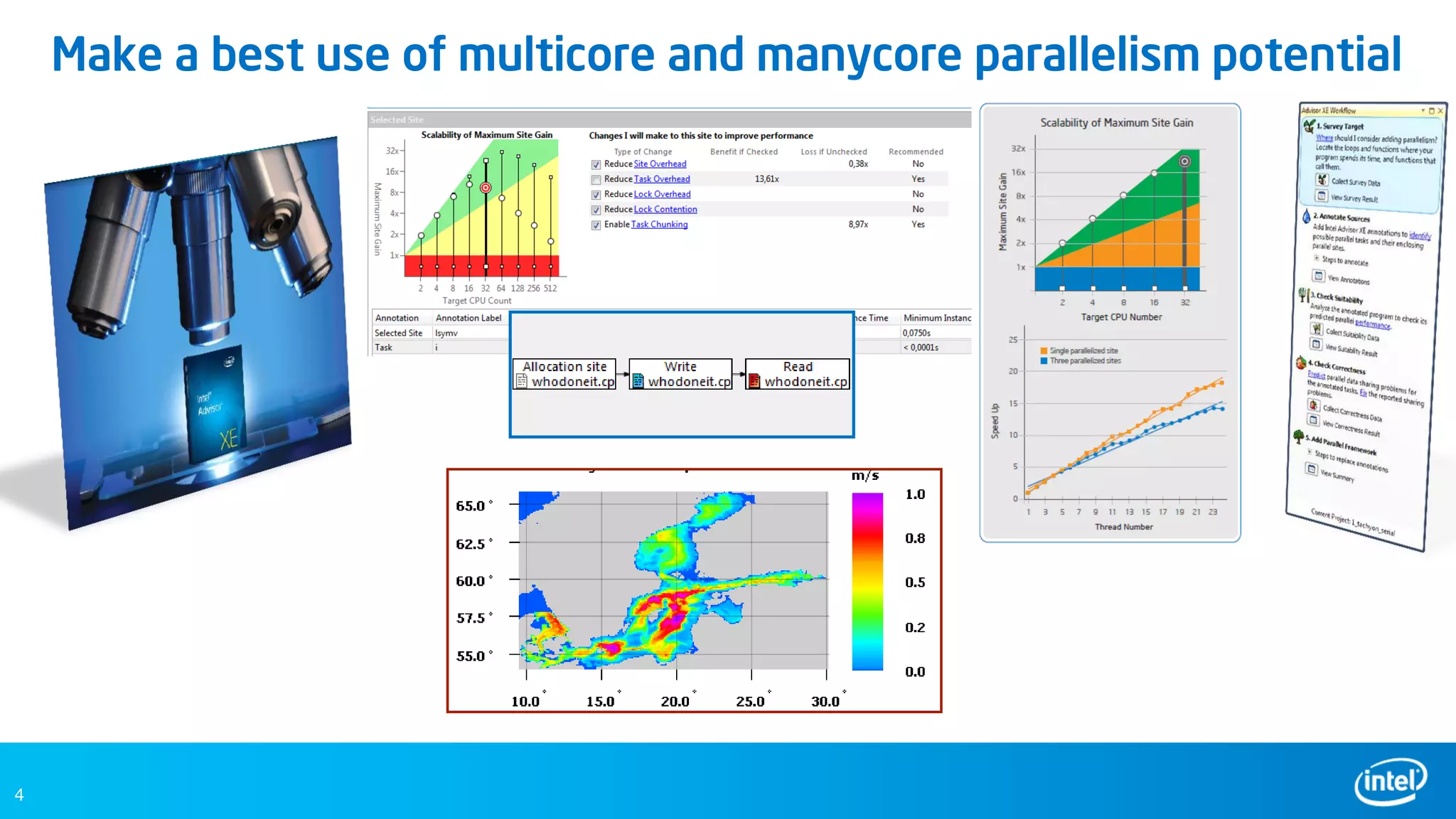

Make a best use of multicore and manycore parallelism potential

5. 5
Learn More
Copyright © 2012 Intel Corporation. All rights reserved. Intel, the Intel logo, Intel Sponsors of Tomorrow., and the Intel Sponsors of Tomorrow. logo are trademarks of Intel Corporation in the U.S. and other countries.
Intel® Software
Development Tools
software.intel.com
Free 30 Day Trials!
Intel® Xeon® Processors &
Intel® Xeon Phi™ Coprocessors
www.intel.com/hpc
Intel® Cluster Ready
software.intel.com/cluster-
ready
http://software.intel.com/mic-developer
Programming Resources – Forums, papers, trainings & labs

6. 6

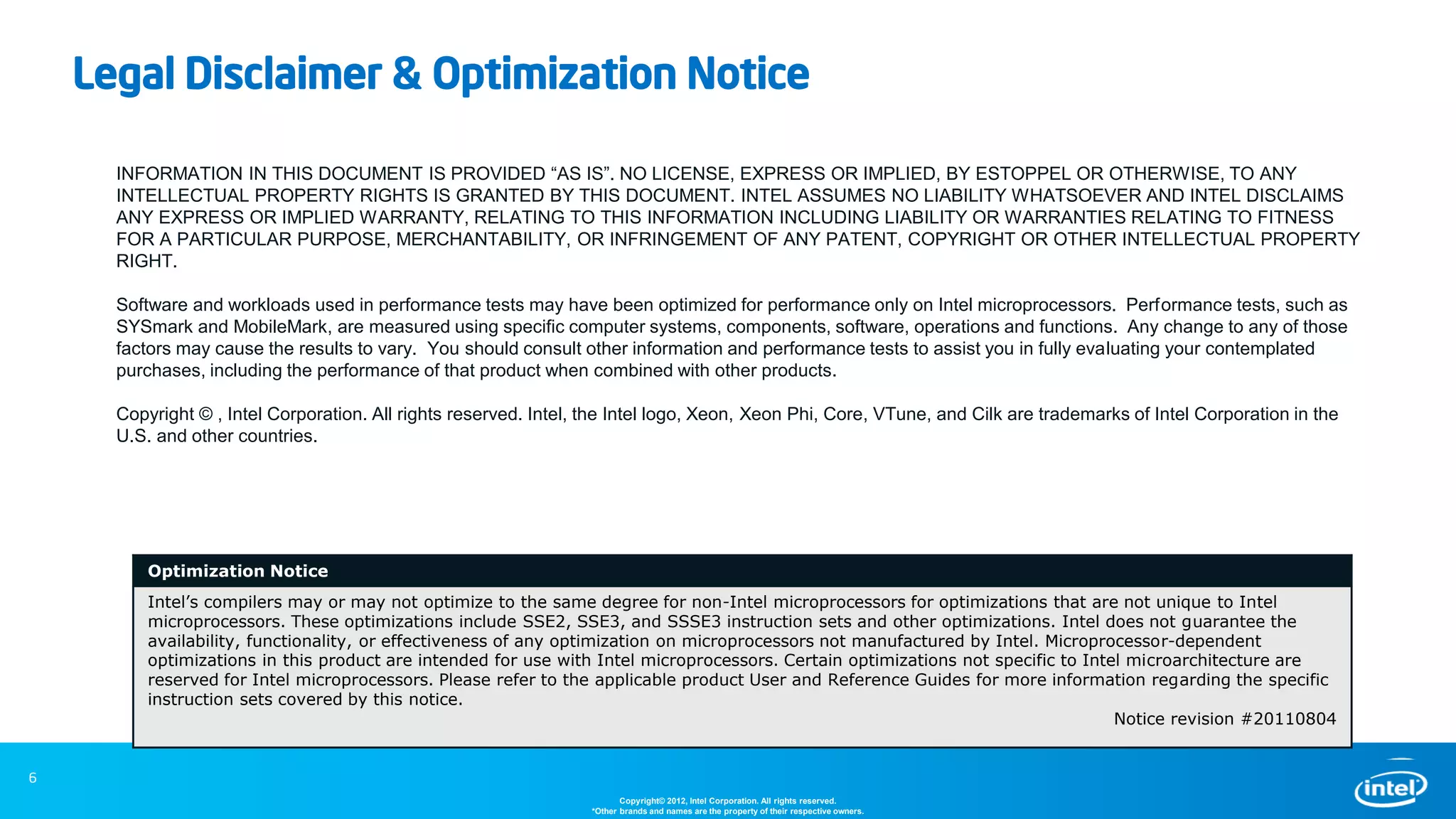

INFORMATION IN THIS DOCUMENT IS PROVIDED “AS IS”. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY
