Evoc 2012

2
Holger Feist, Jan Sallawitz and Mario Lenzen high above Sexten in the Dolomite Alps. P: Markus Greber Cover: Daniel Kappeler on a sundowner trail somewhere in Kleinwalsertal/Austria. P: Bastian Morell

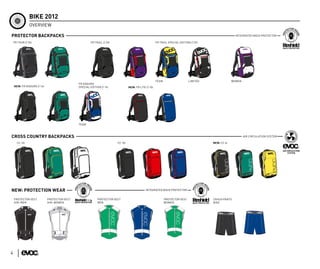

BIKE 2012
OVERVIEW

PROTECTOR BACKPACKS INTEGRATED BACK PROTECTOR

FR TOUR // 30l FR TRAIL // 20l FR TRAIL SPECIAL EDITION // 20l

TEAM LIMITED WOMEN
FR ENDURO

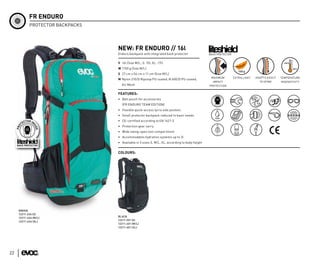

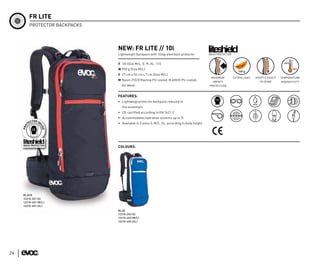

NEW: FR ENDURO // 16l SPECIAL EDITION // 16l NEW: FR LITE // 10l

TEAM

CROSS COUNTRY BACKPACKS AIR CIRCULATION SYSTEM

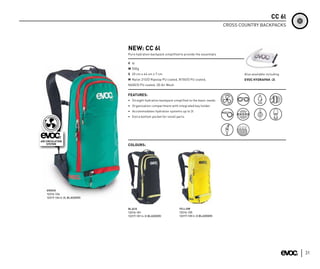

CC 16l CC 10l NEW: CC 6l

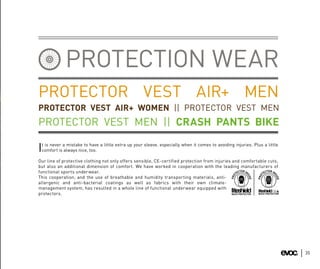

NEW: PROTECTION WEAR INTEGRATED BACK PROTECTOR

PROTECTOR VEST PROTECTOR VEST PROTECTOR VEST PROTECTOR VEST CRASH PANTS
AIR+ MEN AIR+ WOMEN MEN WOMEN BIKE

IIIIIIIIII
IIIIIIIIII
IIIIIIIIII

IIIIIIII II IIIIIIII II

4

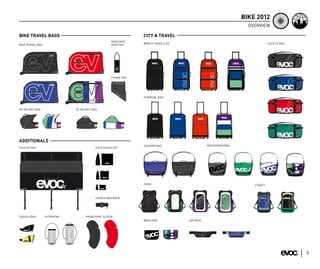

BIKE 2012
OVERVIEW

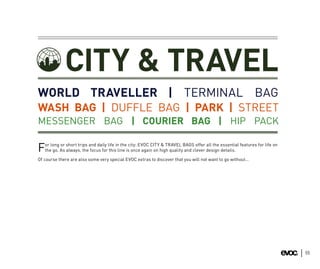

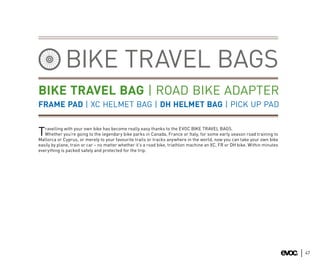

BIKE TRAVEL BAGS CITY & TRAVEL
ROAD BIKE

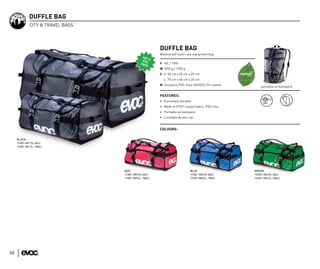

ADAPTER WORLD TRAVELLER DUFFLE BAG

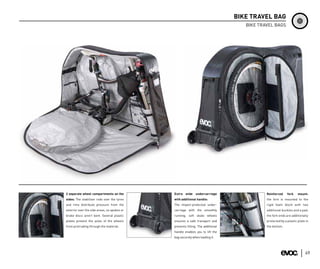

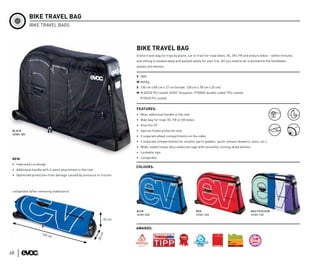

BIKE TRAVEL BAG

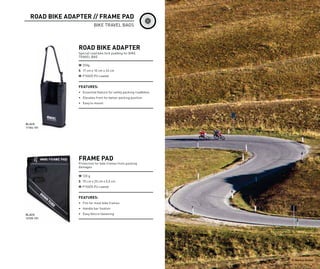

ROAD - BIKE - ADAPTER

FRAME PAD

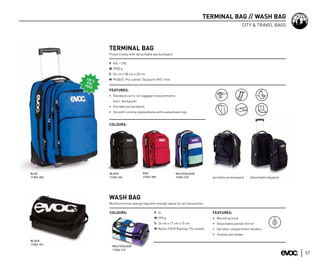

TERMINAL BAG

DH HELMET BAG XC HELMET BAG

ADDITIONALS

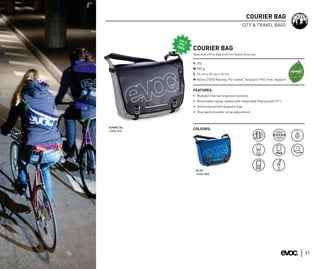

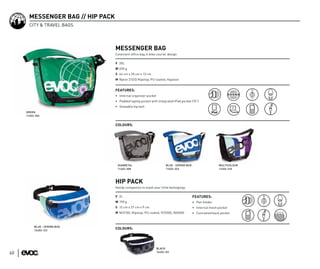

COURIER BAG MESSENGER BAG

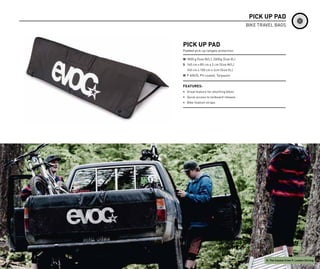

PICK UP PAD SAFE POUCH SET

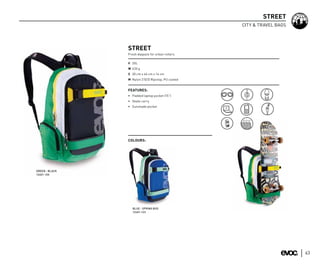

PARK STREET

SADDLE BAG RACE

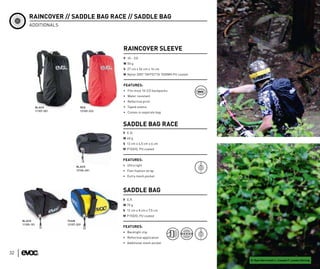

SADDLE BAG HYDRAPAK RAINCOVER SLEEVE
WASH BAG HIP PACK

22L

5

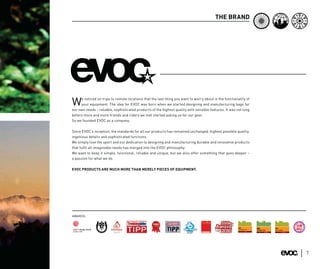

THE BRAND

e noticed on trips to remote locations that the last thing you want to worry about is the functionality of
W your equipment. The idea for EVOC was born when we started designing and manufacturing bags for
our own needs – reliable, sophisticated products of the highest quality with sensible features. It was not long
before more and more friends and riders we met started asking us for our gear.
So we founded EVOC as a company.

Since EVOC’s inception, the standards for all our products has remained unchanged: highest possible quality,
ingenious details and sophisticated functions.
We simply love the sport and our dedication to designing and manufacturing durable and innovative products
that fulﬁl all imaginable needs has merged into the EVOC philosophy:
We want to keep it simple, functional, reliable and unique, but we also offer something that goes deeper –
a passion for what we do.

EVOC PRODUCTS ARE MUCH MORE THAN MERELY PIECES OF EQUIPMENT.

AWARDS:
DE L
X

A
CH OI

R É DA
EURO

ARDS
AR
BR

AW
PE

YE

C
EA

K
TH

LE
E

TH
AN

RO
OF
Y

UG
SN H BRAND
R

OW ST
BOARD INDU

7

EVOC LITESHIELD PROTECTOR TECHNOLOGY

EVOC LITESHIELD BACK PROTECTORS combine maximum impact protection
with featherweight construction and great flexibility – and they are susceptible to
temperature changes.

EVOC LITESHIELD BACK PROTECTORS have been tested and certified according to
CE standard EN 1621-2, level 1.
18 kn
CE-LEVEL 1

MAXIMUM
IMPACT 9 kn
PROTECTION CE-LEVEL 2

EVOC
LITESHIELD t
BACK PROTECTOR

During the test, the impact force of 25kN (a 5 kg test weight falling from a height of 1 m)
has to be dampened to an average residual force of 18 kN. With a residual force value of
9,75 kN, EVOC LITESHIELD BACK PROTECTORS reach a damping effect that is almost
twice as high as required!
A typical impact-absorption curve of a crash is relatively peaked. This means that
the residual force is transferred to the body very directly. The segmented layer
design of the LITESHIELD BACK PROTECTOR provides ideal damping properties:
The impact force is distributed over a larger area and so the shock is transmitted to the
body less directly.

The damping materials employed for EVOC LITESHIELD BACK PROTECTORS
are also not susceptible to extreme temperatures – they offer perfect protection

PROTECT YOUR BACK at +30°C or at -20°C!

Materials and protective function have been CE tested and certified
according to EU standard 89/686/EWG for personal protective gear
(PSA), category 2.

8

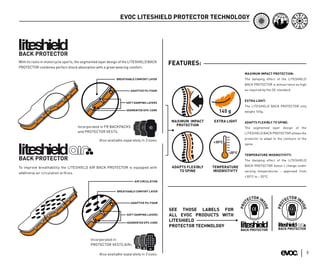

With its roots in motorcycle sports, the segmented layer design of the LITESHIELD BACK
FEATURES:
PROTECTOR combines perfect shock absorption with a great wearing comfort.
MAXIMUM IMPACT PROTECTION:
BREATHABLE COMFORT LAYER The damping effect of the LITESHIELD
BACK PROTECTOR is almost twice as high
ADAPTIVE PU-FOAM as required by the CE-standard.

EXTRA LIGHT:
SOFT DAMPING LAYERS
The LITESHIELD BACK PROTECTOR only
SEGMENTED EPS-CORE
weighs 145g.

MAXIMUM IMPACT EXTRA LIGHT ADAPTS FLEXIBLY TO SPINE:
Incorporated in FR BACKPACKS PROTECTION
The segmented layer design of the
and PROTECTOR VESTS. LITESHIELD BACK PROTECTOR allows the
protector to adapt to the contours of the
Also available separately in 3 sizes.
spine.

TEMPERATURE INSENSITIVITY:
The damping effect of the LITESHIELD

ADAPTS FLEXIBLY TEMPERATURE BACK PROTECTOR doesn´t change under
To improve breathability the LITESHIELD AIR BACK PROTECTOR is equipped with
TO SPINE INSENSITIVTY varying temperatures - approved from
additional air circulation oriﬁces.
+30°C to – 20°C.
AIR CIRCULATION

BREATHABLE COMFORT LAYER

ADAPTIVE PU-FOAM

SEE THOSE LABELS FOR
SOFT DAMPING LAYERS ALL EVOC PRODUCTS WITH
SEGMENTED EPS-CORE
LITESHIELD
PROTECTOR TECHNOLOGY

Incorporated in
PROTECTOR VESTS AIR+.

Also available separately in 3 sizes. 9

MATERIALS

YKK ZIPPERS

We employ YKK-zippers in our products to provide the highest level of quality. YKK
QUALITY MADE – ENGINEERED IN GERMANY
products conform to the Öko Tex Standard 100 for product class 1. The functional
advantages of YKK zippers besides the easy slider movements are their
All EVOC products are engineered in Germany to ensure the highest standards of
outstanding slider lock strength (= perpendicular force to the slider body) and
performance, durability and quality.
the overall strength of the slider tab pull off (90 degree force on pull tab).

Materials:
The materials used to manufacture our products are also exclusively selected by us: YKK BUCKLES
We concentrate on polyamide (“Nylon”) for all of our bags and backpacks because it is
the lightest, most durable and abrasion-resistant type of material available. We adapt
the thread size and the coating of every fabric according to each product’s specific
requirements. To gain a maximum waterproofing we use PU-coatings – also a very
wear-resistant and robust material that is not susceptible to temperature changes.

Experience and feedback:
For the highest level of quality assurance YKK buckles are the perfect match. YKK
Our staff of former professional athletes and ambitious riders with strong roots in
products conform to the Öko Tex Standard 100 for product class 1. The “Vertical En-
biking and snow sports, has long-standing experience in manufacturing sports
gagement System” enables a soft release of the buckles and the newly patented “V”
equipment and constantly use our equipment on bike tracks, roads and slopes around
shape allows the plug to be inserted smoothly. The ﬂexible structure of the buckles
the world. Every season our products are also tested by world-class athletes who
also offers high breakage prevention against twisting.
take our stuff to the limit each and every day.
The constant testing and resulting feedback ensures that every feature of any EVOC
product has been refined to perfection until you hold it in your hands.
NYLON 210/D RIPSTOP, PU COATED
Durable, water repellent and very light outer fabric of bags and backpacks
It is Quality Made – Engineered in Germany

The demands for the perfect outer material of a backpack can be summed up in
four characteristics: durable, abrasion resistant, water repellent and very light.
This is exactly what our Nylon 210/D Ripstop offers. A double PU-coating of the
lightweight nylon base provides moisture protection and wear resistance. A
micro texture of ﬁlaments segments the basic fabric into tiny squares to prevent
rips – hence the name Ripstop.

10

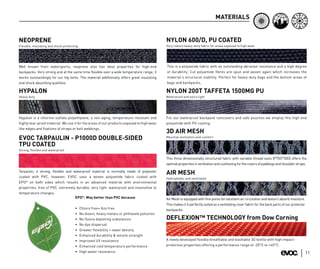

MATERIALS

NEOPRENE NYLON 600/D, PU COATED
Flexible, insulating and shock protecting Very robust heavy-duty fabric for areas exposed to high wear

Well known from watersports, neoprene also has ideal properties for high-end This is a polyamide fabric with an outstanding abrasion resistance and a high degree
backpacks. Very strong and at the same time flexible over a wide temperature range, it of durability. Cut polyamide fibres are spun and woven again which increases the
works outstandingly for our hip belts. The material additionally offers great insulating material’s structural stability. Perfect for heavy-duty bags and the bottom areas of
and shock absorbing qualities. bags and backpacks.

HYPALON NYLON 200T TAFFETA 1500MG PU
Heavy duty Waterproof and extra light

Hypalon is a chlorine-sulfate polyethylene, a non-aging, temperature-resistant and For our waterproof backpack raincovers and safe pouches we employ this high end
highly tear-proof material. We use it for the areas of our products exposed to high wear polyamide with PU coating.
like edges and fixations of straps or belt webbings.
3D AIR MESH
EVOC TARPAULIN - P1000D DOUBLE-SIDED Maximal ventilation and comfort

TPU COATED
Strong, flexible and waterproof

This three dimensionally structured fabric with variable thread sizes (P75D*30D) offers the
optimal properties in ventilation and cushioning for the covers of paddings and shoulder straps.

Tarpaulin, a strong, flexible and waterproof material is normally made of polyester
AIR MESH
coated with PVC, however, EVOC uses a woven polyamide fabric coated with Hydrophobic and ventilated
EPO® on both sides which results in an advanced material with environmental
properties: free of PVC, extremely durable, very light, waterproof and insensitive to
temperature changes.
EPO®: Way better than PVC because Air Mesh is equipped with fine pores for excellent air circulation and doesn’t absorb moisture.
This makes it it perfectly suited as a ventilating cover fabric for the back parts of our protector
• Chloro free+ Azo free backpacks.
• No dioxin, heavy metals or phthalate pollution
• No Ozone depleting substances DEFLEXION™ TECHNOLOGY from Dow Corning
• No dye dispersal
• Greater flexibility + lower density
• Enhanced durability & tensile strength
• Improved UV resistance A newly developed flexible breathable and washable 3D textile with high impact-
• Enhanced cold temperature performance protection properties offering a performance range of -20°C to +40°C.
• High water resistance 11

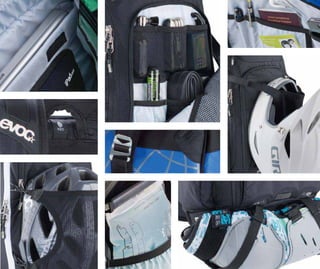

EVOC FEATURES

FOR EACH OF OUR PRODUCTS, FUNCTIONALITY IS THE MOST ESSENTIAL FACTOR.

Sometimes, you only notice the many sophisticated and perfectly interacting details
LITESHIELD LITESHIELD AIR AIR CIRCULATION
BACK PROTECTOR BACK PROTECTOR SYSTEM when they really count: in every-day use, in sports or when travelling.

2-STEP ZIPPER TOOL HELMET CARRY PROTECTION RAIN COVER SUNGLASS
SYSTEM COMPARTMENT GEAR CARRY POCKET

HYDRATION SYSTEM MAP POCKET BACKLIGHT CLIP SIGNAL WHISTLE REFLECTIVE REFLECTIVE
COMPARTMENT WEBBING ZIPPER PULLER

REFLECTIVE ZIPPER GARAGE ZIPPER LOCK HYDRAPAK INSIDE TAPED SEAMS TELESCOPIC
PRINT HANDLE

SKATE WHEELS PORTABLE AS iPAD POCKET 15’’ NOTEBOOK 17’’ NOTEBOOK CELLPHONE
BACKPACK POCKET POCKET POCKET

BUSINESS CARD KEY HOLDER SKATEBOARD MESH VENTILATION 29’’ WHEEL CE CERTIFIED
POCKET CARRIER COMPARTMENT

12

The Coastal Crew at a secret location ﬁlming for their upcoming movie “From the Inside Out”. P: Landon Stirling

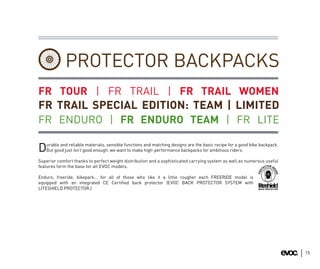

PROTECTOR BACKPACKS
FR TOUR | FR TRAIL | FR TRAIL WOMEN

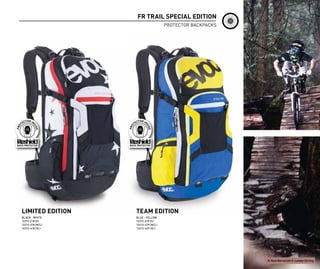

FR TRAIL SPECIAL EDITION: TEAM | LIMITED

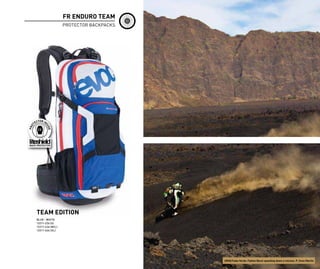

FR ENDURO | FR ENDURO TEAM | FR LITE

urable and reliable materials, sensible functions and matching designs are the basic recipe for a good bike backpack.
D But good just isn’t good enough: we want to make high-performance backpacks for ambitious riders.

Superior comfort thanks to perfect weight distribution and a sophisticated carrying system as well as numerous useful
features form the base for all EVOC models.

Enduro, freeride, bikepark… for all of those who like it a little rougher each FREERIDE model is
equipped with an integrated CE Certiﬁed back protector (EVOC BACK PROTECTOR SYSTEM with
LITESHIELD PROTECTOR.)

15

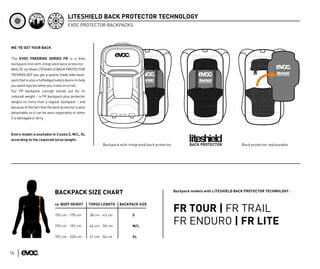

LITESHIELD BACK PROTECTOR TECHNOLOGY
EVOC PROTECTOR BACKPACKS

WE´VE GOT YOUR BACK

The EVOC FREERIDE SERIES FR is a bike
backpack line with integrated back protector.
With CE certiﬁed LITESHIELD BACK PROTECTOR
TECHNOLOGY you get a quality made bike back-
pack that is also a fulﬂedged safety device to help
you avoid injuries when you crash on a trail.
Our FR backpack concept stands out for its
reduced weight – a FR backpack plus protector
weighs no more than a regular backpack – and
because of the fact that the back protector is also
detachable so it can be worn separately or when
it is damaged or dirty.

Every model is available in 3 sizes S, M/L, XL
according to the required torso length:
Backpack with integrated back protector Back protector replaceable

Backpack models with LITESHIELD BACK PROTECTOR TECHNOLOGY :
BACKPACK SIZE CHART
ca. BODY HEIGHT TORSO LENGTH BACKPACK SIZE

155 cm - 170 cm 38 cm - 43 cm S
FR TOUR | FR TRAIL
170 cm - 192 cm 44 cm - 50 cm M/L
FR ENDURO | FR LITE
192 cm - 200 cm 51 cm - 56 cm XL

16

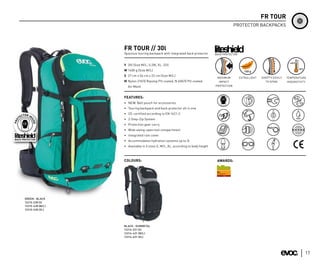

FR TOUR
PROTECTOR BACKPACKS

FR TOUR // 30l
Spacious touring backpack with integrated back protector BACK PROTECTOR

V 30l (Size M/L; S:28l, XL: 32l)
W 1400 g (Size M/L)
S 27 cm x 56 cm x 22 cm (Size M/L)
MAXIMUM EXTRA LIGHT ADAPTS EASILY TEMPERATURE
M Nylon 210/D Ripstop PU coated, N 600/D PU coated, IMPACT TO SPINE INSENSITIVTY
Air Mesh PROTECTION

FEATURES:
• NEW: Belt pouch for accessories
• Touring backpack and back protector all in one
• CE-certified according to EN 1621-2
• 2-Step-Zip System
• Protection gear carry
• Wide swing-open tool compartment
• Integrated rain cover
• Accommodates hydration systems up to 3l
• Available in 3 sizes S, M/L, XL, according to body height

COLOURS: AWARDS:

GREEN - BLACK
12215-238 (S)
12215-438 (M/L)
12215-638 (XL)

BLACK - GUNMETAL
12214-231 (S)
12214-431 (M/L)
12214-631 (XL)

17

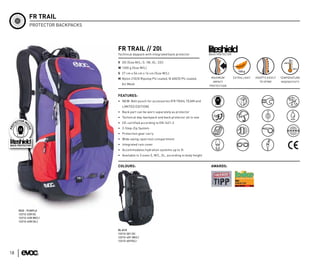

FR TRAIL
PROTECTOR BACKPACKS

FR TRAIL // 20l
Technical daypack with integrated back protector BACK PROTECTOR

V 20l (Size M/L; S: 18l, XL: 22l)
W 1300 g (Size M/L)
M Nylon 210/D Ripstop PU coated, N 600/D PU coated, MAXIMUM EXTRA LIGHT ADAPTS EASILY TEMPERATURE
IMPACT TO SPINE INSENSITIVTY
Air Mesh
PROTECTION

FEATURES:
• NEW: Belt pouch for accessories (FR TRAIL TEAM and
LIMITED EDITION)
• Back part can be worn separately as protector
• Technical day-backpack and back protector all in one

COLOURS: AWARDS:

RED - PURPLE
12212-228 (S)
12212-428 (M/L)
12212-628 (XL)

BLACK
12212-201 (S)
12212-401 (M/L)
12212-601(XL)

18

FR TRAIL SPECIAL EDITION
PROTECTOR BACKPACKS

LIMITED EDITION TEAM EDITION
BLACK - WHITE BLUE - YELLOW
12212-218 (S) 12212-229 (S)
12212-418 (M/L) 12212-429 (M/L)
12212-618 (XL) 12212-629 (XL)

R: Ryan Berrecloth P: Landon Stirling

FR TRAIL WOMEN
PROTECTOR BACKPACKS

FR TRAIL WOMEN // 20l
Technical daypack with integrated back protector anatomically
designed for women

V 20l (Size M/L; S: 18l)
W 1200 g (Size S)
S 25 cm x 50 cm x 16 cm (Size S)
M Nylon 210/D Ripstop PU coated, N 600/D PU coated, Air Mesh

FEATURES:
• Back part can be worn separately as protector
• Technical ladies’ day-backpack and back protector all in one
• Available in 2 sizes S, M/L according to body height

BACK PROTECTOR

PROTECTION

WHITE - PURPLE
12213-215 (S)
NEW:
12213-415 (M/L)

20

The famous Sentiero 153 with its countless switchbacks at Monte Grappa/Italy. P: Markus Greber

FR ENDURO
PROTECTOR BACKPACKS

NEW: FR ENDURO // 16l
Enduro backpack with integrated back protector BACK PROTECTOR

V 16l (Size M/L; S: 15l; XL: 17l)
W 1150 g (Size M/L)
M Nylon 210/D Ripstop PU coated, N 600/D PU coated,
Air Mesh PROTECTION

FEATURES:
• Belt pouch for accessories
(FR ENDURO TEAM EDITION)
• Flexible quick-access lycra side pockets
• Small protector backpack reduced to basic needs

COLOURS:

GREEN
12211-234 (S)
12211-434 (M/L) BLACK
12211-634 (XL) 12211-201 (S)
12211-401 (M/L)
12211-601 (XL)

22

FR ENDURO TEAM
PROTECTOR BACKPACKS

TEAM EDITION
BLUE - WHITE
12211-226 (S)
12211-426 (M/L)
12211-626 (XL)

URGE/Cabo Verde: Fabien Barel speeding down a volcano. P: Sven Martin

FR LITE
PROTECTOR BACKPACKS

NEW: FR LITE // 10l
Lightweight backpack with integrated back protector BACK PROTECTOR

V 10l (Size M/L; S: 9l; XL: 11l)
W 950 g (Size M/L)
M Nylon 210/D Ripstop PU coated, N 600/D PU coated, TO SPINE
IMPACT INSENSITIVTY
Air Mesh PROTECTION

FEATURES:
• Lightweigt protector backpack reduced to
the essentials

COLOURS:

BLACK
12210-201 (S)
12210-401 (M/L)
12210-601 (XL)
BLUE
12210-203 (S)
12210-403 (M/L)
12210-603 (XL)

24

Sascha Kleeberger clears the legendary road gap at the Pro-Line in Saalbach/ Hinterglemm. P: Daniel Roos

Holger Feist enjoys a very scenic and exposed trail at the Paso Finestre in the Southern Alps. P: Markus Greber

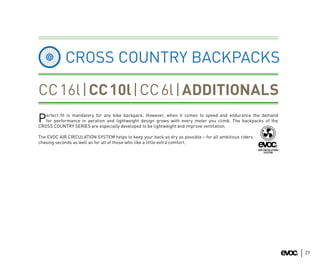

CROSS COUNTRY BACKPACKS

CC 16l | CC 10l | CC 6l | ADDITIONALS
erfect ﬁt is mandatory for any bike backpack. However, when it comes to speed and endurance the demand
P for performance in aeration and lightweight design grows with every meter you climb. The backpacks of the
CROSS COUNTRY SERIES are especially developed to be lightweight and improve ventilation.

The EVOC AIR CIRCULATION SYSTEM helps to keep your back as dry as possible – for all ambitious riders
chasing seconds as well as for all of those who like a little extra comfort.

27

EVOC AIR CIRCULATION SYSTEM

For riding cross country, marathon or SEE THIS LABEL FOR ALL
roadbike, the demand for performance EVOC PRODUCTS WITH
and comfort of the backpack is growing. AIR CIRCULATION SYSTEM
In particular the aeration of the backpart
is an important factor.
To improve the ventilation of the back and
carry system we developed the EVOC AIR
CIRCULATION SYSTEM for our CROSS
COUNTRY BACKPACK series (CC): VENTILATED
SHOULDER
STRAPS
VENTILATED SHOULDER STRAPS
Smart ventilation oriﬁces in the shoulder
straps ensure additional airﬂow in the
collar area.

VENTILATION
VENTILATION CHANNELS CHANNELS
The back section is provided with large
air-ventilation ducts. Thereby the contact Backpack models with
surface is reduced and accumulated heat AIR CIRCULATION SYSTEM:
can escape to the top and bottom as well
as to the sides. CC 16l | CC 10l
MICRO VENTILATED BACK PADS MICRO CC 6l
VENTILATED
The micro-ventilated shock pads of the BACK PADS
back section offer perfect air circula-
tion and heat dissipation directly on the
contact areas.

28

CC 16l

CC 16l
Very light and compact daypack equipped with AIR CIRCULATION SYSTEM

V 16l
W 700g
S 25 cm x 50 cm x 13 cm
M Nylon 210/D Ripstop PU coated , N150/D PU coated,
N600/D PU coated, 3D Air Mesh

FEATURES:
• NEW: Flexible quick-access lycra side pockets
• Compact daypack simplified to provide the essentials
• Organization compartment with integrated key holder
• Tool compartment
• Roll-out helmet flap

COLOURS:

GREEN
12220-134

BLACK WHITE
12220-101 12220-102

29

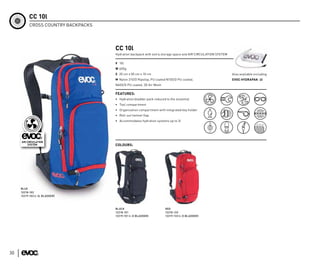

CC 10l

CC 10l
Hydration backpack with extra storage space and AIR CIRCULATION SYSTEM

V 10l
W 600g
S 20 cm x 50 cm x 10 cm Also available including
M Nylon 210/D Ripstop, PU coated N150/D PU coated, EVOC HYDRAPAK -2l

FEATURES:
• Hydration bladder pack reduced to the essential
• Tool compartment
• Roll-out helmet flap

COLOURS:

BLUE
12218-103
12219-103 (+ 2L BLADDER)

BLACK RED
12218-101 12218-133
12219-101 (+ 2l BLADDER) 12219-133 (+ 2l BLADDER)

30

CC 6l

NEW: CC 6l
Pure hydration backpack simplified to provide the essentials

V 6l
W 500g
S 20 cm x 46 cm x 7 cm Also available including
M Nylon 210/D Ripstop PU coated, N150/D PU coated, EVOC HYDRAPAK -2l

FEATURES:
• Straight hydration backpack simplified to the basic needs
• Extra bottom pocket for small parts

COLOURS:

GREEN
12216-134
12217-134 (+ 2L BLADDER)

BLACK YELLOW
12216-101 12216-135
12217-101 (+ 2l BLADDER) 12217-135 (+ 2l BLADDER)

31

RAINCOVER // SADDLE BAG RACE // SADDLE BAG
ADDITIONALS

RAINCOVER SLEEVE
V 10 – 22l
W 50 g
S 27 cm x 56 cm x 16 cm
M Nylon 200T TAFFETTA 1500MG PU coated

FEATURES:
• Fits most 10-22l backpacks
• Water resistant
• Reflective print
BLACK RED • Taped seams
11107-301 12109-333
• Comes in seperate bag

SADDLE BAG RACE
V 0.3l
W 40 g
S 12 cm x 4,5 cm x 6 cm
M P150/D, PU coated

FEATURES:
BLACK • Ultra light
12106-201 • Fast fixation strap
• Extra mesh pocket

SADDLE BAG
V 0,7l
W 70 g
S 12 cm x 8 cm x 7,5 cm
M P150/D, PU coated
BLACK TEAM
11105-101 12107-329
FEATURES:
• Backlight clip
• Reflective application
• Additional mesh pocket

32
R: Ryan Berrecloth L: Canada P: Landon Stirling

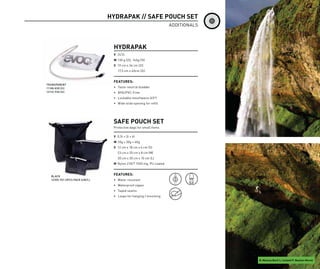

HYDRAPAK // SAFE POUCH SET
ADDITIONALS

HYDRAPAK
V 2l/3l
W 130 g (2l), 140g (3l)
S 19 cm x 34 cm (2l)
17,5 cm x 40cm (3l)

FEATURES:
TRANSPARENT
11108-830 (2l) • Taste-neutral bladder
12110-930 (3l) • BPA/PVC-Free
• Lockable mouthpiece (45°)
• Wide slide opening for refill

SAFE POUCH SET
Protective bags for small items

V 0,5l + 3l + 6l
W 20g + 30g + 40g
S 12 cm x 18 cm x 4 cm (S)
23 cm x 20 cm x 8 cm (M)
30 cm x 30 cm x 10 cm (L)
M Nylon 210/T 1500 mg, PU coated

BLACK
FEATURES:
12305-701 (3PCS PACK S/M/L) • Water resistant
• Waterproof zipper
• Taped seams
• Loops for hanging / mounting

R: Markus Bartl L: Iceland P: Bastian Morell

Mario Lenzen rides a very technical trail deep in the woods of Zillertal/Austria. P: Domenico Galizia

PROTECTION WEAR
PROTECTOR VEST AIR+ MEN
PROTECTOR VEST AIR+ WOMEN || PROTECTOR VEST MEN
PROTECTOR VEST MEN || CRASH PANTS BIKE
t is never a mistake to have a little extra up your sleeve, especially when it comes to avoiding injuries. Plus a little
Icomfort is always nice, too.

Our line of protective clothing not only offers sensible, CE-certified protection from injuries and comfortable cuts,
but also an additional dimension of comfort. We have worked in cooperation with the leading manufacturers of
functional sports underwear.
This cooperation, and the use of breathable and humidity transporting materials, anti-
allergenic and anti-bacterial coatings as well as fabrics with their own climate-
management system, has resulted in a whole line of functional underwear equipped with
protectors.

35

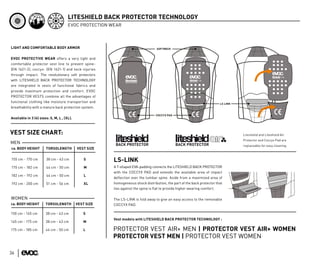

LITESHIELD BACK PROTECTOR TECHNOLOGY
EVOC PROTECTION WEAR

LIGHT AND COMFORTABLE BODY ARMOR

EVOC PROTECTIVE WEAR offers a very light and
comfortable protector vest line to prevent spine-
(EN 1621-2), coccyx- (EN 1621-1) and neck injuries
through impact. The revolutionary soft protectors
with LITESHIELD BACK PROTECTOR TECHNOLOGY
are integrated in vests of functional fabrics and
provide maximum protection and comfort. EVOC
PROTECTOR VESTS combine all the advantages of
functional clothing like moisture transportion and
breathability with a mature back protection system.

Available in 3 (4) sizes: S, M, L , (XL).

VEST SIZE CHART: Liteshield and Liteshield Air
Protector and Coccyx Pad are
MEN
replaceable for easy cleaning.
ca. BODY HEIGHT TORSOLENGTH VEST SIZE

155 cm - 170 cm 38 cm - 43 cm S LS-LINK
170 cm - 182 cm 44 cm - 50 cm M A T-shaped EVA-padding connects the LITESHIELD BACK PROTECTOR
with the COCCYX PAD and extends the available area of impact
182 cm - 192 cm 44 cm - 50 cm L
deflection over the lumbar spine. Aside from a maximized area of
192 cm - 200 cm 51 cm - 56 cm XL homogeneous shock distribution, the part of the back protector that
lies against the spine is flat to provide higher wearing comfort.

WOMEN The LS-LINK is fold away to give an easy access to the removable
ca. BODY HEIGHT TORSOLENGTH VEST SIZE COCCYX PAD.

150 cm - 165 cm 38 cm - 43 cm S
Vest models with LITESHIELD BACK PROTECTOR TECHNOLOGY :
165 cm - 175 cm 38 cm - 43 cm M

175 cm - 185 cm 44 cm - 50 cm L PROTECTOR VEST AIR+ MEN | PROTECTOR VEST AIR+ WOMEN
PROTECTOR VEST MEN | PROTECTOR VEST WOMEN

36

PROTECTION WEAR

Ventilated body protection and highly functional bike
jersey in one piece

V S / M / L / XL
W S: 590g; M: 600g; L: 610g; XL: 620g
M Jersey Lycra with AQUA ZERO finish by SITIP,
Honeycomb Mesh, 3D Airbreath Mesh PROTECTION

FEATURES:
• Super-light CE-tested LITESHIELD AIR protector (EN 1621-2)
• Coccyx protector element conforms to CE standard EN 1621-1
• DEFLEXION™ impact-protection material for shoulders, collarbones
and hipbones
• KEVLAR 4-way-stretch abrasion guards
• SITIP upper with dirt repellent NANO coating
• Quick drying, anti-bacterial and anti-allergenic
• UV-protection
• Ergonomically shaped waist belt with 2-point fine adjustment
• High degree of comfort through optimized fit
• Seamless side and shoulder sections to prevent friction
• Arm section provided with micro jersey material to prevent rubbing
• Reversed YKK zipper with protective hem and zipper garage to
prevent skin contact
• Machine-washable (protector pad detachable)
• LS-Link connects LITESHIELD PROTECTOR with coccyx pad
• Available in 4 Sizes: S / M / L / XL
BACKSIDE
BLACK
12814-201 (S)
12814-301 (M) DEFLEXION™ technology:
12814-501 (L)
• High-impact flexible protection
12814-601 (XL)
• Performance range from -20°C to + 40°C
• Breathable
• Washable

37

PROTECTOR VEST AIR+ WOMEN
PROTECTION WEAR

PROTECTOR VEST AIR+ WOMEN
Body protection and highly functional bike jersey in one piece

S S/M/L
W S: 590g; M: 600g; L: 610g;
M Jersey Lycra with AQUA ZERO finish by SITIP, MAXIMUM EXTRA LIGHT ADAPTS EASILY TEMPERATURE
Honeycomb Mesh, 3D Airbreath Mesh IMPACT TO SPINE INSENSITIVTY
PROTECTION

FEATURES:
• Super-light CE-tested LITESHIELD AIR protector (EN 1621-2)
• Coccyx protector element conform with CE standard EN 1621-1
• DEFLEXION™ impact-protection material for shoulders, collarbones
and hipbones
• KEVLAR 4-way-stretch abrasion guards
• SITIP upper with dirt repellent NANO coating
• Quick drying, anti-bacterial and anti-allergenic
• UV-protection
• Ergonomically shaped waist belt with 2 point fine adjustment
• Seamless side and shoulder section to prevent friction
• Reversed YKK zipper with protective hem and zipper garage to
prevent skin contact
• Available in 3 Sizes: S / M / L
BACKSIDE
WHITE
12811-202 (S) DEFLEXION™ technology:
12811-302 (M)
12811-502 (L) • High-impact flexible protection
• Performance range from -20°C to + 40°C
• Breathable
• Washable

38

PROTECTOR VEST MEN/WOMEN
PROTECTION WEAR

PROTECTOR VEST MEN/WOMEN
Light and comfortable back protector waistcoat BACK PROTECTOR

S S / M / L / (XL)
M Jersey Lycra, Honeycomb Mesh, 3D Airbreath Mesh,
Powerstretch-LYCRA SPORT MAXIMUM EXTRA LIGHT ADAPTS EASILY TEMPERATURE
W S: 480g; M: 490g; L: 500g; XL: 510g IMPACT TO SPINE INSENSITIVTY
PROTECTION

FEATURES:
• Super-light CE-tested LITESHIELD protector (EN 1621-2)
• Coccyx protector element conforms to CE standard EN 1621-1
• Ergonomically shaped waistbelt with 2-point fixation
• Seamless side and shoulder section to prevent friction
• Reversed YKK zipper with protective hem and zipper garage
to prevent skin contact
• Available in 3 (4) Sizes: S / M / L / (XL)

BACKSIDE

COLOURS: WOMENS‘ FIT:

BLUE
12813-203 (S)
12813-303 (M)
12813-503 (L)
12813-603 (XL)

GREEN GREEN
12812-234 (S) 12810-234 (S)
12812-334 (M) 12810-334 (M)
12812-534 (L) 12810-534 (L)
12812-634 (XL)
39

CRASH PANTS BIKE
PROTECTION WEAR

CRASH PANTS BIKE
Comfortable shorts that offer impact protection for the coccyx, hips and thighs

S XS / S / M / L / XL
M Lycra, Nylon, Airbreath Mesh, DEFLEXION,
Elastic Interface® chamois pads
W XS: 205g; S: 210g; M: 215g; L: 220g; XL: 225g

FEATURES:
• Intelligently positioned DEFLEXION™ protective material padding
• Inconspicuous due to tight fit
• Flatlock seams
• Fast drying Airbreath mesh
• Anti-bacterial and anti-allergenic
• Equipped with Elastic Interface® chamois pads
• Machine-washable
• Available in 5 Sizes: XS / S / M / L / XL

BACKSIDE

DEFLEXION™ technology:

BLUE • High-impact flexible protection
12815-103 (XS) • Performance range from -20°C to + 40°C
12815-203 (S)
12815-303 (M) • Breathable
12815-403 (L) • Washable
12815-603 (XL)

BLACK
12815-101 (XS)
12815-201 (S)
12815-301 (M)
12815-401 (L)
12815-601 (XL)

40

Kyle Norbraten, Dylan Dunkerton and Curtis Robinson drop in sequence on the epic Northshore/Canada. P: Landon Stirling

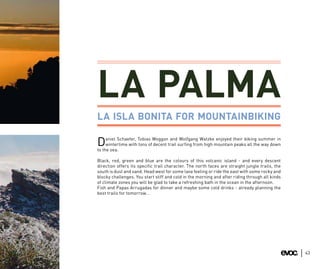

LA PALMA
LA ISLA BONITA FOR MOUNTAINBIKING

aniel Schaefer, Tobias Woggon and Wolfgang Watzke enjoyed their biking summer in
D wintertime with tons of decent trail surfing from high mountain peaks all the way down
to the sea.

Black, red, green and blue are the colours of this volcanic island - and every descent
direction offers its specific trail character. The north faces are straight jungle trails, the
south is dust and sand. Head west for some lava feeling or ride the east with some rocky and
blocky challenges. You start stiff and cold in the morning and after riding through all kinds
of climate zones you will be glad to take a refreshing bath in the ocean in the afternoon.
Fish and Papas Arrugadas for dinner and maybe some cold drinks - already planning the
best trails for tomorrow…

43

BIKE TRAVEL BAGS
BIKE TRAVEL BAG | ROAD BIKE ADAPTER
FRAME PAD | XC HELMET BAG | DH HELMET BAG | PICK UP PAD

ravelling with your own bike has become really easy thanks to the EVOC BIKE TRAVEL BAGS.
T Whether you’re going to the legendary bike parks in Canada, France or Italy, for some early season road training to
Mallorca or Cyprus, or merely to your favourite trails or tracks anywhere in the world, now you can take your own bike
easily by plane, train or car – no matter whether it’s a road bike, triathlon machine an XC, FR or DH bike. Within minutes
everything is packed safely and protected for the trip.

47

BIKE TRAVEL BAG
BIKE TRAVEL BAGS

BIKE TRAVEL BAG
A bike travel bag for trips by plane, car or train for road bikes, XC, DH, FR and enduro bikes – within minutes
everything is stowed away and packed safely for your trip. All you need to do is dismantle the handlebar,
pedals and wheels.

V 280l
W 8600g
S 130 cm x 80 cm x 27 cm (Inside: 128 cm x 78 cm x 25 cm)
M N 600/D PU coated, EVOC Tarpaulin- P1000D double-sided TPU coated,
P150/D PU coated

FEATURES:
• New: additional handle in the rear
• Bike bag for road, XC, FR or DH bikes
• Also fits 29”
BLACK • Special frame protector mat
12101-101
• 2 separate wheel compartments on the sides
• 3 separate compartments for smaller parts (pedals, quick release skewers, tools, etc.)
• Wide, stable heavy-duty undercarriage with smoothly running skate wheels
• Lockable zips

NEW: • collapsible

• Improved cut design
COLOURS:
• Additional handle with 4-point attachment in the rear
• Optimised protection from damage caused by pressure or friction

collapsible (after removing stabilisers)

BLUE RED MULTICOLOUR
12101-103 12101-133 12101-110
30 cm

AWARDS:
cm

13 0 c DE L
m X

A
38

CH OI

R É DA
LE C

48

BIKE TRAVEL BAG
BIKE TRAVEL BAGS

2 separate wheel compartments on the Extra wide undercarriage Reinforced fork mount:
sides: The stabiliser rods over the tyres with additional handle: the fork is mounted to the
and rims distribute pressure from the The impact-protected under- rigid foam block with two
exterior over the side areas, so spokes or carriage with the smoothly additional buckles and a pad;
brake discs aren’t bent. Several plastic running, soft skate wheels the fork ends are additionally
plates prevent the axles of the wheels ensures a safe transport and protected by a plastic plate in
from protruding through the material. prevents tilting. The additional the bottom.
handle enables you to lift the
bag securely when loading it.

49

BIKE TRAVEL BAG
BIKE TRAVEL BAGS

2 separate wheel compartments on Extra wide undercarriage Reinforced fork mount:
the sides: pressure applied from the with additional handle: the fragile fork ends are mounted
exterior is distributed evenly over The impact-protected under- to an additional padded frame
the entire side of the bag by means of carriage with the smoothly and are protected from impact by
the vertical stabiliser rods in the lid running, soft skate wheels two plastic plates in the bottom.
flaps. Multiple plastic reinforcements ensures a safe transport and There is a special road bike
prevent the wheel axles from pushing prevents tilting. The additional adapter (available separately),
through the material. handle enables you to lift the which offers specific padding and
bag securely when loading it. optimises the packing geometry
by elevating the front of the frame.

50

ROAD BIKE ADAPTER // FRAME PAD
BIKE TRAVEL BAGS

ROAD BIKE ADAPTER
Special road bike fork padding for BIKE
TRAVEL BAG

W 250g
S 17 cm x 10 cm x 33 cm
M P150/D PU coated

FEATURES:
• Essential feature for safely packing roadbikes
• Elevates front for better packing position
• Easy to mount

BLACK
11104-101

FRAME PAD
Protection for bike frames from packing
damages

W 120 g
S 75 cm x 25 cm x 0,5 cm
M P150/D PU coated

FEATURES:
• Fits for most bike frames
• Handle bar fixation
BLACK • Easy Velcro fastening
12105-101

P: Markus Greber

XC HELMET BAG // DH HELMET BAG
BIKE TRAVEL BAGS

XC HELMET BAG
Cross country helmet bag that offers protection from
dirt and damage

V 12l
W 300 g
S 38 cm x 22 cm x 17 cm
M Nylon 210/D Ripstop PU coated, Tarpaulin

FEATURES:
• Accommodates most XC helmets
• Pocket for sunglasses

BLACK • Mesh ventilation
11103-101 • Water tight base

COLOURS:

MULTICOLOUR
11103-110

DH HELMET BAG
Fullface helmet bag that offers protection from
dirt and damage

V 18l
W 300 g
S 38 cm x 22 cm x 25 cm
M Nylon 210/D Ripstop PU coated, Tarpaulin

FEATURES:
• Accommodates most full-face helmets
• Mesh ventilation
• Water tight base

BLACK COLOURS:
11102-101

52 MULTICOLOUR
11102-110
R: Tobias Woggon P: K.Yoshida

PICK UP PAD
BIKE TRAVEL BAGS

PICK UP PAD
Padded pick-up tailgate protection

W 1800 g (Size M/L), 2000g (Size XL)
160 cm x 100 cm x 2cm (Size XL)
M P 600/D, PU coated, Tarpaulin

FEATURES:
• Great feature for shuttling bikes
• Quick access to tailboard release
• Bike fixation straps

53
R: The Coastal Crew P: Landon Stirling

R: Katrin Moder P: Baschi Bender

CITY & TRAVEL
WORLD TRAVELLER | TERMINAL BAG
WASH BAG | DUFFLE BAG | PARK | STREET
MESSENGER BAG | COURIER BAG | HIP PACK

or long or short trips and daily life in the city: EVOC CITY & TRAVEL BAGS offer all the essential features for life on
F the go. As always, the focus for this line is once again on high quality and clever design details.

Of course there are also some very special EVOC extras to discover that you will not want to go without…

55

WORLD TRAVELLER
CITY & TRAVEL BAGS

WORLD TRAVELLER
Robust and spacious travel trolley for long trips

V 125L
W 4900 g
S 85cm x 42 cm x 35 cm
M P600/D, PU coated, Tarpaulin PVC-free

FEATURES:
• Applied 2/3 - 1/3 organization pocket management
• Variable compartment dividers
• Smooth running skatewheels with sealed bearings

COLOURS:

BLUE BLACK RED MULTICOLOUR
11303-603 11303-601 11303-609 11303-610

56

TERMINAL BAG // WASH BAG
CITY & TRAVEL BAGS

TERMINAL BAG
Travel trolley with detachable day backpack

V 40L + 20L
W 3900 g
S 56 cm x 38 cm x 20 cm
M P600/D, PU coated, Tarpaulin PVC-free

FEATURES:
• Standard carry-on luggage measurements
(excl. backpack)
• Portable as backpack
• Smooth running skatewheels with sealed bearings

COLOURS:

BLUE BLACK RED MULTICOLOUR
11302-303 11302-301 11302-309 11302-310 portable as backpack detachable daypack

WASH BAG
Multifunctional sponge bag with enough space for all necessities

COLOURS: V 4L FEATURES:
W 290 g • Mounting hook
S 26 cm x 17 cm x 10 cm • Detachable pocket mirror
M Nylon 210/D Ripstop, PU coated • Variable compartment dividers
• Toothbrush holder
BLACK
11304-101
MULTICOLOUR
11304-110
57

DUFFLE BAG
CITY & TRAVEL BAGS

DUFFLE BAG
Waterproof multi-use equipment bag

V 40L / 100L
W 1050 g / 1750 g
S S: 50 cm x 30 cm x 25 cm
L: 70 cm x 40 cm x 35 cm
M Tarpaulin PVC-free, N600/D, PU coated
portable as backpack

FEATURES:
• Extremely durable
• Made of EPO® coated fabric: PVC free
• Portable as backpack
• Lockable double zip

COLOURS:

BLACK
11301-301 (S: 40L)
11301-501 (L: 100L)

RED BLUE GREEN
11301-309 (S: 40L) 11301-303 (S: 40L) 12301-304 (S: 40L)
11301-509 (L: 100L) 11301-503 (L: 100L) 12301-504 (L: 100L)

58

BREAKING L.A.
Presented by Urban Nomad Pictures
A documentary about a bicycle journey into the capital of cars to reconquer the
concrete desert of Los Angeles.
An urban mélange of athletes, artists, actors and musicians - and beautiful bicycles.
Coming fall 2011.

www.breakin-LA.com

MESSENGER BAG // HIP PACK
CITY & TRAVEL BAGS

MESSENGER BAG
Covenient office bag in bike courier design

V 20L
W 650 g
S 44 cm x 35 cm x 13 cm
M Nylon 210/D Ripstop, PU coated, Hypalon

FEATURES:
• Internal organizer pocket
• Padded laptop pocket with integrated IPad pocket (15”)
• Stowable hip belt
GREEN
11402-304

COLOURS:

GUNMETAL BLUE - SPRING BUD MULTICOLOUR
11402-308 11402-323 11402-310

HIP PACK
Handy companion to stash your little belongings

V 2L FEATURES:
W 190 g • Pen holder
S 12 cm x 27 cm x 9 cm • Internal mesh pocket
M N/210D, Ripstop, PU coated, P/200D, N/600D • Concealed back pocket

BLUE - SPRING BUD
12402-123
COLOURS:

BLACK
12402-101
60

COURIER BAG
CITY & TRAVEL BAGS

COURIER BAG
Spacious office bag built for heavy duty use

V 25L
W 900 g
S 53 cm x 35 cm x 14 cm
M Nylon 210/D Ripstop, PU coated, Tarpaulin PVC-free, Hypalon

FEATURES:
• Multiple internal organizer pockets
• Removable laptop sleeve with integrated IPad pocket (17”)
• Solid waterproof tarpaulin flap
• One hand shoulder strap adjustment

GUNMETAL
COLOURS:
11403-519

BLUE
11403-503

61

PARK
CITY & TRAVEL BAGS

PARK
Urban daypack for everyday city life

V 25L
W 680 g
S 30 cm x 48 cm x 18 cm
M Nylon 210/D Ripstop, PU coated

FEATURES:
• Padded laptop pocket (15”)
• 2 big separate compartments: office & leisure
• Multiple organizer pocket s

COLOURS:

BLACK
11401-101

ROYAL PURPLE - WHITE SPRING BUD - BLACK MULTICOLOUR
11401-122 11401-121 11401-110

62

STREET
CITY & TRAVEL BAGS

STREET
Fresh daypack for urban rollers

V 20L
W 630 g
S 30 cm x 46 cm x 14 cm
M Nylon 210/D Ripstop, PU coated

FEATURES:
• Padded laptop pocket (15”)
• Skate carry
• Sunshade pocket

COLOURS:

GREEN - BLACK
12401-120

BLUE - SPRING BUD
12401-123

63

Max Schumann on an almost endless trail during his run at the Megavalanche/ Alpe D’Huez in France. P: David Schultheiß

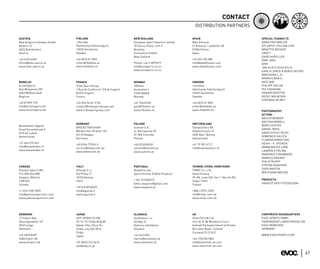

CONTACT
DISTRIBUTION PARTNERS

AUSTRIA FINLAND NEW ZEALAND SPAIN SPECIAL THANKS TO
Bike & Sports Handels GmbH i like bike European Sport Imports Limited Bike Difusion ANNA POSTWEILER
Reitern 12 Hammarby Fabriksväg 43 18 Taurus Place, Unit 9 C/ Arkatxa, 1 pabellón 38 ATLANTIC-CYCLING.COM
4822 Bad Goisern 12033 Stockholm Bromley 01006 Vitoria BRIGITTE NOCKER
Austria Sweden Christchurch 8062 Spain CRAFT
New Zealand DAVID KAPELLER
+43 6135 6409 +46 (0) 8 22 1860 +34 945 158 288 DIRK JANZ
office@bike-sports.at order@ilikebike.se Phone: +64 3 3899019 info@bikedifusion.com GIRO
www.bike-sports.at www.ilikebike.se info@esimports.co.nz www.bikedifusion.com JAN GLIETZ (SUICYCLE)
www.esimports.co.nz KARLA LEMUS & BORIS CASTRO
(BREAKING L.A.)
MARKUS BARTL
BENELUX FRANCE NORWAY SWEDEN NICE ONE
ActionSports Tribe Sport Group 7Blåner i like bike PHILIPP TAYLOR
Rue Mitoyenne 295 1 Rue de Condorcet / ZA de Cogolin Auneveien 4 Hammarby Fabriksväg 43 PIA THADHANI
4840 Welkenraedt 83310 Cogolin 7340 Oppdal 12033 Stockholm RAINER GERSTER
Beglium France Norway Sweden ROCKY MOUNTAIN
STEFANIE DE MEY
+32 87 899 770 +33 (0)4 94 54 19 50 +47 72423100 +46 (0) 8 22 1860
info@actionsports.be contact@tribesportgroup.com post@7blaner.no order@ilikebike.se
www.actionsports.be www.tribesportgroup.com www.7blaner.no www.ilikebike.se PHOTOGRAPHY
ACTION:
BASCHI BENDER
BASTIAN MORELL
GERMANY POLAND SWITZERLAND
Boneshaker (Agent) BORIS CASTRO
BIKEACTION GmbH Summit S.A. Salesbusters AG
Graaf Gerardstraat 9 DANIEL ROOS
Weiskircher Strasse 102 ul. Racławicka 20 Falkenstrasse 19
6915 XC Lobith DAVID SCHULTHEISS
63110 Rodgau 41-506 Chorzów 2502 Biel / Bienne
Netherlands DOMENICO GALIZIA
Germany Poland Switzerland
FLORIAN KONIETZKO
+31 646 075 643 HOSHI – K. YOSHIDA
+49 6106-77256-0 +48 323490430 +41 79 781 67 17
info@boneshaker.nl (WWW.WHYEX.COM)
service@bikeaction.de summit@summit.pl info@salesbusters.ch
www.boneshaker.nl LANDON STIRLING
www.bikeaction.de www.summit.pl
MANFRED STROMBERG
MARKUS GREBER
PHILIP RUOPP
STEFAN HUNZIKER
CANADA ITALY PORTUGAL TAIWAN, CHINA, HONG KONG
SVEN MARTIN
Passion Sports INC. 4Guimp S.r.l. Nexplore Lda TIMAC Co., Ltd.
WOLFGANG WATZKE
914 18th Ave NW Via Pillea 17 Sports Events & Bike Products Gene Chuang
Calgary, Alberta 16153 Genova 3F, #6, Lane 360, Sec 1, Nei-Hu Rd.
+ 351 917400997 PRODUCTS:
T2M 0V5 ITALY Taipei 11493
bikes.nexplore@gmail.com HARICOT VERT FOTODESIGN
Canada Taiwan
+39 010 8935035 www.nexplore.pt
+1-403-338-2005 info@4guimp.it +886 2 8751 2289
info@passionsportsinc.com www.4guimp.it info@timac.com.tw
www.passionsportsinc.com www.timac.com.tw

DENMARK JAPAN SLOVAKIA UK CORPORATE HEADQUARTERS
JT Import Aps USP JAPAN CO.INC. Slovkolex s.r.o. Silverfish UK Ltd EVOC SPORTS GMBH
Vassingerødvej 147 35-14, FC Chiba Bldg 8F OS Maj, CI Unit 3C & 3B Woodacre Court TEGERNSEER LANDSTRASSE 37A
3540 Lynge Sakae-Cho, Chuo-Ku Dubnica nad Vahom Saltash Parkway Industrial Estate, 81541 MÜNCHEN
Denmark Chiba-city 260-0016 Slovakia Burraton Road - Saltash GERMANY
Chiba Cornwall PL12 6LF
+45 4818 8487 Japan +42 4421556 WWW.EVOCSPORTS.COM
le@jtimport.dk martin@slovkolex.sk +44 1752 843 882
www.jtimport.dk +81 (0)43 216 36 01 www.slovkolex.sk info@silverfish-uk.com
sys@uspj.co.jp www.silverfish-uk.com

67

Evoc 2012

Recommended

Recommended

More Related Content

Recently uploaded

Recently uploaded (20)

Featured

Featured (20)

Evoc 2012
