Event Driven Architecture (Integration Tech Event 2019)

Event Driven Architecture
Jeppe Cramon - @jeppec
Cloud Create ApS

What 15 years of implementation
distributed systems has taught
me
Jeppe Cramon - @jeppec
Cloud Create ApS

@jeppec
What patterns have
stuck with me?

@jeppec
Data
Storage
Data Storage
Data
Storage
Portal 1 Portal 2
Data
Storage
Application
Process Service layer
Activity/Task Service layer
Data/Entity Service layer

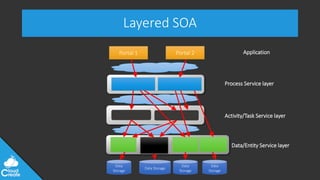

Layered SOA

@jeppec
Ensuring
consistency
is much harder

@jeppec
Sales system
Sale
Delivery
system Deliveries
Customer/CR
M system Customer
SAP Bookkeeping
Complete
Purchase
Transaction
Coordinator
Transactional
Resource
Prepare
Phase
Commit
Phase
2 Phase Commit

@jeppec
What’s wrong with distributed transactions?
• Transactions lock resources while active
• Services are autonomous
• Can’t be expected to finish within a certain time interval
• Locking keeps other transactions from completing their job
• Locking doesn’t scale
• X Phase Commit is fragile by design

@jeppec

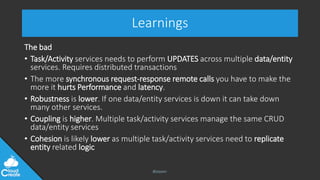

Learnings
The bad
• Task/Activity services needs to perform UPDATES across multiple data/entity
services. Requires distributed transactions
• The more synchronous request-response remote calls you have to make the
more it hurts Performance and latency.
• Robustness is lower. If one data/entity services is down it can take down
many other services.
• Coupling is higher. Multiple task/activity services manage the same CRUD
data/entity services
• Cohesion is likely lower as multiple task/activity services need to replicate
entity related logic

@jeppec
Conclusion
Friends don’t let friends use layered SOA

@jeppec
But we surely don’t have this
problem today!

@jeppec

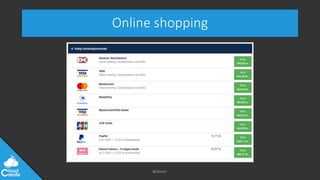

Let’s take a concrete example
From online shopping

@jeppec

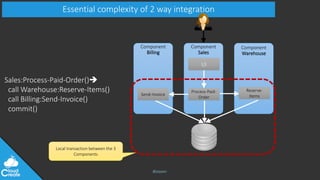

Essential complexity of 2 way integration
Component
Warehouse
Component
Sales
Component
Billing
UI
Send-Invoice
Process-Paid-
Order
Sales:Process-Paid-Order()
call Warehouse:Reserve-Items()
call Billing:Send-Invoice()
commit()
Reserve-
Items
Local transaction between the 3
Components

@jeppec
Let’s (micro)service’ify this

@jeppec
Accidental complexity from distributed service integration
Component
Warehouse
Component
Sales
Billing System
UI
Send-Invoice
Process-Paid-
Order
Reserve-
Items
Local transaction between 2
Components

@jeppec
What’s the challenge with using
RPC/REST/SOAP/…
between
distributed components?

@jeppec

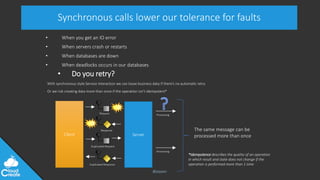

Synchronous calls lower our tolerance for faults
• When you get an IO error
• When servers crash or restarts
• When databases are down
• When deadlocks occurs in our databases
• Do you retry?
With synchronous style Service interaction we can loose business data if there’s no automatic retry
Or we risk creating data more than once if the operation isn’t idempotent*
Client Server
Duplicated Response
Duplicated Request
Processing
Response
Request Processing
The same message can be
processed more than once
*Idempotence describes the quality of an operation
in which result and state does not change if the
operation is performed more than 1 time

@jeppec

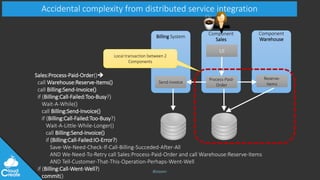

Sales:Process-Paid-Order()
call Warehouse:Reserve-Items()
if (Billing:Call-Failed:Too-Busy?)
Wait-A-While()
if (Billing:Call-Failed:Too-Busy?)
Wait-A-Little-While-Longer()
if (Billing:Call-Failed:IO-Error?)
Save-We-Need-Check-If-Call-Billing-Succeded-After-All
AND We-Need-To-Retry call Sales:Process-Paid-Order and call Warehouse:Reserve-Items
AND Tell-Customer-That-This-Operation-Perhaps-Went-Well
if (Billing:Call-Went-Well?)
commit()
Accidental complexity from distributed service integration
Component
Warehouse
Component
Sales
Billing System
UI
Send-Invoice
Process-Paid-
Order
Reserve-
Items
Local transaction between 2
Components

@jeppec

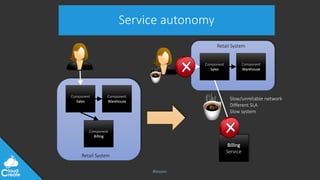

Service autonomy
Component
Sales
Component
Warehouse
Component
Billing
Retail System
Billing
Service
Component
Sales
Component
Warehouse
Retail System
Slow/unreliable network
Different SLA
Slow system

@jeppec
Services != Decoupling

@jeppec
Availability goes down
(without additional instances of each service)
Combined availability: 97%

@jeppec
But surely RPC is the only way
to do this?

@jeppec
Using Business Events to drive Business Processes
Sales Service
Shipping
Billing
Sales
Customers
MessageChannel
Online Ordering System
Web Shop
(Composite UI)
Billing Service
Warehouse Service
<<External>>
Order Paid
MarkOrderAsPai
d
The sales
fulfillment
processing can
now begin…
Cmd Handler
Order Paid
Apply

@jeppec

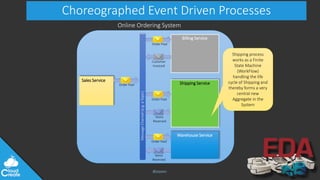

Choreographed Event Driven Processes
Sales Service
Order Paid
Billing Service
Shipping Service
Warehouse Service
Online Ordering System
MessageChannel(e.g.aTopic)
Order Paid
Customer
Invoiced
Order Paid
Items
Reserved
Order Paid
Shipping process
works as a Finite
State Machine
(WorkFlow)
handling the life
cycle of Shipping and
thereby forms a very
central new
Aggregate in the
System
Items
Reserved

@jeppec

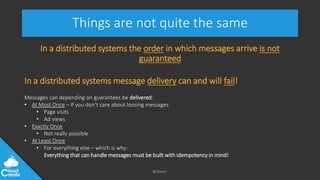

Things are not quite the same
In a distributed systems the order in which messages arrive is not
guaranteed
In a distributed systems message delivery can and will fail!
Messages can depending on guarantees be delivered:
• At Most Once – If you don’t care about loosing messages
• Page visits
• Ad views
• Exactly Once
• Not really possible
• At Least Once
• For everything else – which is why:
Everything that can handle messages must be built with idempotency in mind!

@jeppec

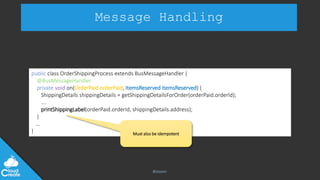

Message Handling
public class OrderShippingProcess extends BusMessageHandler {
@BusMessageHandler
private void on(OrderPaid orderPaid, ItemsReserved itemsReserved) {
ShippingDetails shippingDetails = getShippingDetailsForOrder(orderPaid.orderId);
….
printShippingLabel(orderPaid.orderId, shippingDetails.address);
}
…
} Must also be idempotent

@jeppec

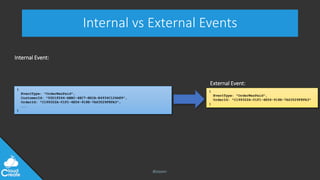

Internal vs External Events
{
EventType: ”OrderWasPaid",
CustomerId: "50D1F244-ABBC-4EC7-BDCA-E4934C124A89",
OrderId: "C199322A-01F1-4E56-918E-7A63529F8FA3",
…..
}
Internal Event:
{
EventType: "OrderWasPaid",
OrderId: "C199322A-01F1-4E56-918E-7A63529F8FA3"
}
External Event:

@jeppec
How does shipping know
where to ship items to?

@jeppec
Result is often fragmented domain logic
Focus on Nouns (Entities)
and retrofit Verbs later
36

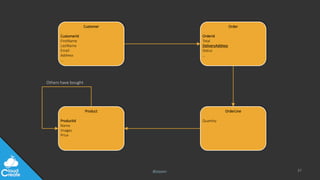

@jeppec 37
Customer
CustomerId
FirstName
LastName
Email
Address
…
Order
OrderId
Total
DeliveryAddress
Status
…
OrderLine
Quantity
Product
ProductId
Name
Images
Price
Others have bought

@jeppec
If we primarily model around nouns/entities we can
easily violate the SRP
Where a change to requirements
is likely to require changes
to multiple entity classes
38

@jeppec
instead of focusing on Nouns!
40

@jeppec
When discussing use cases with Business Experts
41

@jeppec
and what fields that are separate
42

@jeppec
But don’t name the piles before you know what they are
This avoids cognitive bias!
44

@jeppec
Give the piles made up names, such as colors
45

@jeppec

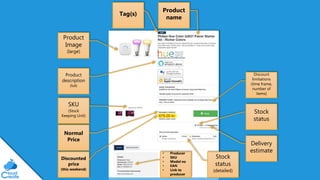

Product
(large)
SKU
(Stock
Keeping Unit)
Tag(s)
Product
name
Delivery
estimate• Producer
• SKU
• Model no
• EAN
• Link to
producer
Discount
limitations
(time frame,
number of
items)
Product
description
(full)
Stock
status
Discounted
price
(this weekend)
Normal
Price
Stock
status
(detailed)

@jeppec
When linking data
Focus on identity instead of entity

@jeppec

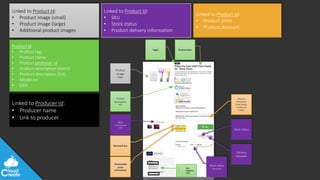

Linked to Product Id:
• Product image (small)
• Product image (large)
• Additional product images
Product
(large)
Product Id:
• Product tag
• Product name
• Product producer-id
• Product description (short)
• Product description (full)
• Model no
• EAN
Tag(s) Product name
• SKU
• Model no
• EAN
Product
description
(full)
• Product price
• Product discount
Discount
limitations
(time frame,
number of
items)
Discounted
price
(this weekend)
Normal Price
• SKU
• Stock status
• Product delivery information
SKU
(Stock Keeping
Unit)
Delivery
estimate
Stock status
Stock status
(detailed)
Linked to Producer Id:
• Producer name
• Link to producer

@jeppec

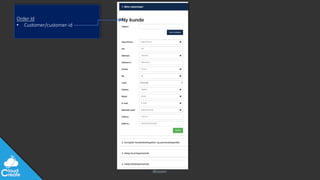

Order Id
• Customer/customer-id

@jeppec

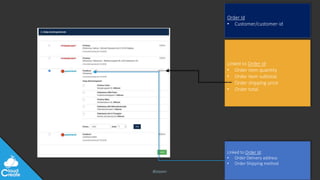

Order Id
• Customer/customer-id
Linked to Order Id:
• Order Delivery address
• Order Shipping method
Linked to Order Id:
• Order item quantity
• Order item subtotal
• Order shipping price
• Order total

@jeppec 53
Order
OrderId
Total
DeliveryAddress
Status
…
Decomposing the domain
Order
OrderId
Total
Status
…
ShippingDetails
OrderId
DeliveryAddress

@jeppec
Composite page example
Page Context:
{id: ISBN-10 0-321-83457-7 }
Images
Books
Reviews
Pricing
Inventory
OthersAlsoBought
Pricing
Reviews
Books
Images
Books

@jeppec

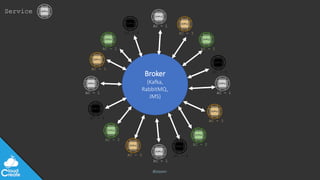

Service
AC - 1
AC - 2AC - 2
AC - 3
AC - 3AC - 4
Broker
Broker
(Kafka,
RabbitMQ,
JMS)
AC - 1AC - 1
AC - 1
AC - 2
AC - 2
AC - 3
AC - 3
AC - 4
AC - 4
AC - 4

@jeppec
Service
AC - 1
AC - 1AC - 1
AC - 1
AC - 2
AC - 2
AC - 2
AC - 2
AC - 3
AC - 3
AC - 3
AC - 3
AC - 4
AC - 4
AC - 4
AC - 4
QBus

@jeppec

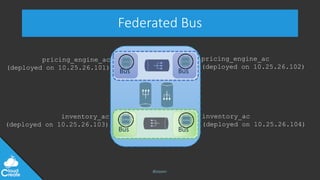

pricing_engine_ac
(deployed on 10.25.26.102)
pricing_engine_ac
(deployed on 10.25.26.101)
Bus Bus
Bus Bus
inventory_ac
(deployed on 10.25.26.104)
inventory_ac
(deployed on 10.25.26.103)
Federated Bus

@jeppec

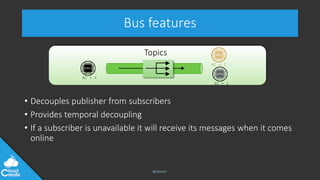

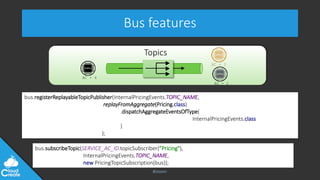

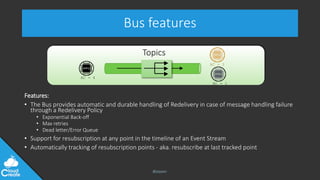

Topics
Bus features
• Decouples publisher from subscribers
• Provides temporal decoupling
• If a subscriber is unavailable it will receive its messages when it comes
online
AC - 4
AC - 1
AC - 3

@jeppec

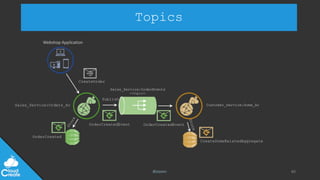

Topics
60
CreateOrder
Sales_Service:Orders_Ac
Webshop Application
Customer_Service:Some_Ac
OrderCreated
OrderCreatedEvent
Publish
CreateSomeRelatedAggregate
Sales_Service:OrderEvents
<<Topic>>
OrderCreatedEvent

@jeppec
Topics
Bus features
But how do we handle:
• Coding errors in Subscribers?
• New Subscribers that didn’t exist when the events were originally
published?
AC - 4
AC - 1
AC - 3

@jeppec

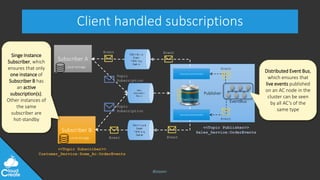

Client handled subscriptions
• Highly resilient pattern for an Event Driven Architecture that’s backed by
Event-Sourced AC’s
• In this model the publisher of the Events is responsible for the durability of
all its Events, typically to an EventStore/EventLog.
• Each client (subscriber) maintains durable information of the last event it has
received from each publisher.
• When ever the client starts up it makes a subscription to the publisher
where it states from which point in time it wants events published/streamed
to it.
• This effectively means that publisher can remain simple and the client
(subscriber) can remain simple and we don’t need additional sophisticated
broker infrastructure such as Kafka+ZooKeeper.

@jeppec
Client handled subscriptions
Publisher
Subscriber A
Local storage
EventStore
Subscriber B
Local storage
Topic
Subscription
Topic
Subscription
TopicSubscriptionHandler
TopicSubscriptionHandler
EventEvent
Event Event
EventBus
Event
Event
Distributed Event Bus,
which ensures that
live events published
on an AC node in the
cluster can be seen
by all AC’s of the
same type
Singe Instance
Subscriber, which
ensures that only
one instance of
Subscriber B has
an active
subscription(s).
Other instances of
the same
subscriber are
hot-standby
<<Topic Subscriber>>
Customer_Service:Some_Ac:OrderEvents
<<Topic Publisher>>
Sales_Service:OrderEvents

@jeppec
Event Sourcing
Entities/Aggregates track their own Domain Events
and derive state from them
Time
07:39
Time
07:40
Time
07:41
Time
07:45
Time
07:46
Time
07:50

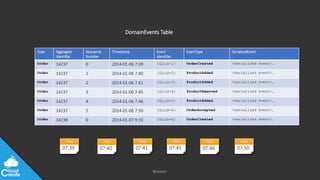

@jeppec
Time
07:39
Time
07:40
Time
07:41
Time
07:45
Time
07:46
Time
07:50
Type Aggregate
Identifier
Sequence
Number
Timestamp Event
Identifier
EventType SerializedEvent
Order 14237 0 2014-01-06 7:39 {Guid-1} OrderCreated <serialized event>…
Order 14237 1 2014-01-06 7:40 {Guid-2} ProductAdded <serialized event>…
Order 14237 3 2014-01-06 7:45 {Guid-4} ProductRemoved <serialized event>…
Order 14237 5 2014-01-06 7:50 {Guid-6} OrderAccepted <serialized event>…
Order 14238 0 2014-01-07 9:10 {Guid-X} OrderCreated <serialized event>…
DomainEvents Table

@jeppec

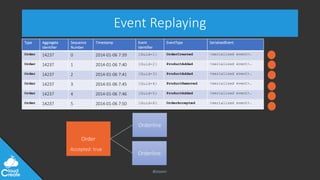

Event Replaying
Type Aggregate
Identifier
Sequence
Number
Timestamp Event
Identifier
EventType SerializedEvent
Order 14237 0 2014-01-06 7:39 {Guid-1} OrderCreated <serialized event>…
Order 14237 3 2014-01-06 7:45 {Guid-4} ProductRemoved <serialized event>…
Order 14237 5 2014-01-06 7:50 {Guid-6} OrderAccepted <serialized event>…
Order
Accepted: true
Orderline
Orderline

@jeppec
Topics
Bus features
AC - 4
AC - 1
AC - 3
bus.registerReplayableTopicPublisher(InternalPricingEvents.TOPIC_NAME,
replayFromAggregate(Pricing.class)
.dispatchAggregateEventsOfType(
InternalPricingEvents.class
)
);
bus.subscribeTopic(SERVICE_AC_ID.topicSubscriber(”Pricing"),
InternalPricingEvents.TOPIC_NAME,
new PricingTopicSubscription(bus));

@jeppec

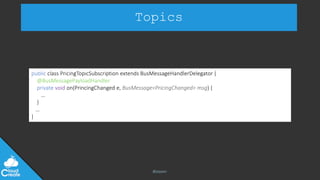

Topics
public class PricingTopicSubscription extends BusMessageHandlerDelegator {
@BusMessagePayloadHandler
private void on(PrincingChanged e, BusMessage<PricingChanged> msg) {
…
}
…
}

@jeppec
Topics
Bus features
Features:
• The Bus provides automatic and durable handling of Redelivery in case of message handling failure
through a Redelivery Policy
• Exponential Back-off
• Max retries
• Dead letter/Error Queue
• Support for resubscription at any point in the timeline of an Event Stream
• Automatically tracking of resubscription points - aka. resubscribe at last tracked point
AC - 4
AC - 1
AC - 3

@jeppec
Can’t we just use Kafka?

@jeppec

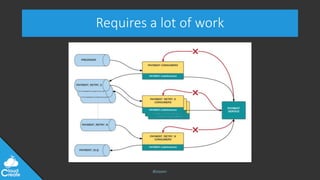

Requires a lot of work

@jeppec

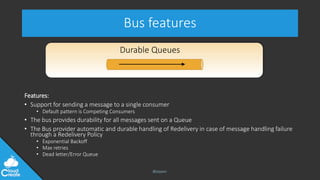

Bus features
Features:
• Support for sending a message to a single consumer
• Default pattern is Competing Consumers
• The bus provides durability for all messages sent on a Queue
• The Bus provider automatic and durable handling of Redelivery in case of message handling failure
through a Redelivery Policy
• Exponential Backoff
• Max retries
• Dead letter/Error Queue
Durable Queues

@jeppec

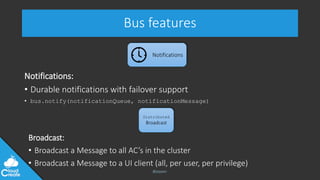

Bus features
Notifications:
• Durable notifications with failover support
• bus.notify(notificationQueue, notificationMessage)
Notifications
Distributed
Broadcast
Broadcast:
• Broadcast a Message to all AC’s in the cluster
• Broadcast a Message to a UI client (all, per user, per privilege)

@jeppec

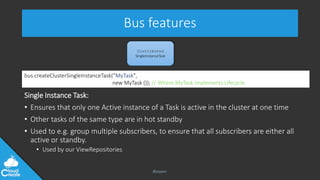

Bus features
Single Instance Task:
• Ensures that only one Active instance of a Task is active in the cluster at one time
• Other tasks of the same type are in hot standby
• Used to e.g. group multiple subscribers, to ensure that all subscribers are either all
active or standby.
• Used by our ViewRepositories
Distributed
SingleInstanceTask
bus.createClusterSingleInstanceTask(”MyTask",
new MyTask ()); // Where MyTask implements Lifecycle

@jeppec

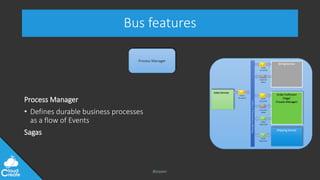

Bus features
Process Manager
• Defines durable business processes
as a flow of Events
Sagas
Process Manager
Sales Service
Order
Accepted
Billing Service
Order Fulfilment
(Saga/
Process-Manager)
Shipping Service
MessageChannel(e.g.aTopic)
Order
Accepted
Order
Accepted
Customer
Billed
Customer
Billed
Order
Approved
Order
Approved

@jeppec

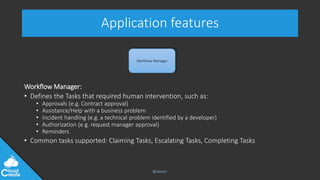

Application features
Workflow Manager:
• Defines the Tasks that required human intervention, such as:
• Approvals (e.g. Contract approval)
• Assistance/Help with a business problem
• Incident handling (e.g. a technical problem identified by a developer)
• Authorization (e.g. request manager approval)
• Reminders
• Common tasks supported: Claiming Tasks, Escalating Tasks, Completing Tasks
Workflow Manager

@jeppec

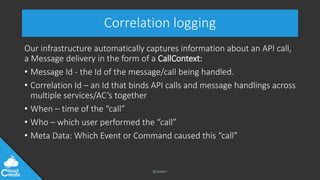

Correlation logging
Our infrastructure automatically captures information about an API call,
a Message delivery in the form of a CallContext:
• Message Id - the Id of the message/call being handled.
• Correlation Id – an Id that binds API calls and message handlings across
multiple services/AC’s together
• When – time of the “call”
• Who – which user performed the “call”
• Meta Data: Which Event or Command caused this “call”

@jeppec
Correlation logging
Source: https://docs.particular.net/serviceinsight/#flow-diagram

Thanks :)
Blog: https://cramonblog.wordpress.com/
Homepage: http://cloudcreate.dk/
Twitter: @jeppec

Event Driven Architecture (Integration Tech Event 2019)

More Related Content

What's hot

Similar to Event Driven Architecture (Integration Tech Event 2019)

Recently uploaded

Event Driven Architecture (Integration Tech Event 2019)

Editor's Notes
