1. Enterprise Cyber-Physical Edge
Virtualization Engine (EVE) Project
Oleg Sadov, Petr Fedchenkov – ITMO University
Roman Shaposhnik, Dr. Dmitri Chiriaev – ZEDEDA

2. Evolution in a Connected World Requires an Open Edge
2

3. › Bare metal device onboarding and management at scale
› Application/runtime deployment, update, and management at scale
› On devices in remote locations
› Don't introduce security issues
› Run different applications/runtimes
Key Requirements
ZERO TRUST
ZERO TOUCH ANY
APP | HARDWARE | NETWORK
APP
?
EDGE CONTAINERS
3

4. Sensors, Equipment, PLCs…
The Enterprise Cyber-Physical Edge Stack
Reduce outages
Improve
predictability
Increase
efficiencies
Customer Business Outcomes
Cloud/DC
Edge Software
Edge Hardware
Machines & Assets
Open source edge runtime
for ubiquity
Infra Services Layer: Virtualize & Abstract Edge
EVE-OS: EdgeVirtualization Engine
Data Services Layer: Abstract & Distribute IoT Data
IoT Edge
Greengrass
Fledge

5. Project EVE Architecture
Hardware Layer
EVE-EVC API - config, status, metrics, logs
EVErouter:
DHCP
DNS
ACLs
LISP
VPN
EVEagent:
config,
status,
metrics
Downloader
EVEmanager:
instance
orchestrator
Verifier
sha, sigs
HW
info,
metrics
Domain
mgr
dom0
Crypto
device
identity
TEE/TPM
Crypto
instance
identity
Device
onboarding
Mesh
network
TLS 1.2/1.3 OCSP stapling
Baseos
manager
Grub gpt
priority
boot
Network
interface
manager
Device
connectivity
Instance
connectivity
log
manager
Eth, RS 485, BTLE etc
NAT
I/O virtualizatiion
and
assignment
switch
mesh
cloud
Instance B
Instance C
Instance D
Driver domain(s)
Instance A
EdgeVirtualization Engine
Eth, wlan,
wwan
Hardware
watchdog
Linux
watchdog
Remote instance
consoles

6. Project EVE Architecture
Hardware Layer
EVE-EVC API - config, status, metrics, logs
EVErouter:
DHCP
DNS
ACLs
LISP
VPN
EVEagent:
config,
status,
metrics
Downloader
EVEmanager:
instance
orchestrator
Verifier
sha, sigs
HW
info,
metrics
Domain
mgr
dom0
Crypto
device
identity
TEE/TPM
Crypto
instance
identity
Device
onboarding
Mesh
network
TLS 1.2/1.3 OCSP stapling
Baseos
manager
Grub gpt
priority
boot
Network
interface
manager
Device
connectivity
Instance
connectivity
log
manager
Eth, RS 485, BTLE etc
NAT
I/O virtualizatiion
and
assignment
switch
mesh
cloud
Instance B
Instance C
Instance D
Driver domain(s)
Instance A
EdgeVirtualization Engine
Eth, wlan,
wwan
Hardware
watchdog
Linux
watchdog
Remote instance
consoles
Device Identity
Onboarding
Security
Foundation
Self
update
Device
connect-
ivity
Device
APIs
Edge
Container
runtime
Edge
Container
connect-
ivity
Deployed
Edge
Containers

7. EdgeVirtualization Controller
Project EVE Architecture
Hardware Layer
EVE-EVC API - config, status, metrics, logs
EVErouter:
DHCP
DNS
ACLs
LISP
VPN
EVEagent:
config,
status,
metrics
Downloader
EVEmanager:
instance
orchestrator
Verifier
sha, sigs
HW
info,
metrics
Domain
mgr
dom0
Crypto
device
identity
TEE/TPM
Crypto
instance
identity
Device
onboarding
Mesh
network
TLS 1.2/1.3 OCSP stapling
Baseos
manager
Grub gpt
priority
boot
Network
interface
manager
Device
connectivity
Instance
connectivity
log
manager
Eth, RS 485, BTLE etc
NAT
I/O virtualizatiion
and
assignment
switch
mesh
cloud
Instance B
Instance C
Instance D
Driver domain(s)
Instance A
EdgeVirtualization Engine
Eth, wlan,
wwan
Hardware
watchdog
Linux
watchdog
Remote instance
consoles
Device Identity
Onboarding
Security
Foundation
Self
update
Device
connect-
ivity
Device
APIs
Edge
Container
runtime
Edge
Container
connect-
ivity
Deployed
Edge
Containers
EVC sample:Adam Commercial EVC:

8. Deployment Models
8
• Extract data for local analysis / cloud
and connect to new sensors
• No interference with existing setup
• Secure apps with private networks
IoT Data
Analytics
IoT Edge
Router
Security
Appliance
• Added security for current/legacy
IoT
• Deploy a network proxy application
(e.g., MQTT)
• Add app to update firmware of
legacy hardware
• Deploy and manage security apps
• Add SPAN port collector to network
• Gain visibility and monitor traffic with
network security apps (e.g. Nozomi)
Legacy
Hardware
IT, ERP,
MES
IoT Edge Compute
EVE
Node
Node
Storage
Service
WAN/Internet
Node
IoT Edge Compute
Network
Probe
IoT Edge Compute
IDS
WAN/Internet
SPAN
PORT
Node
Node
Node
EVC EVC EVC
EVE EVE

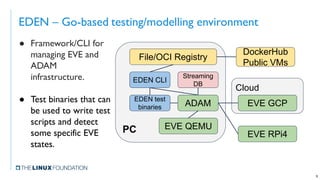

9. EDEN – Go-based testing/modelling environment
9
PC
File/OCI Registry
Streaming
DB
ADAM
EDEN test
binaries
EDEN CLI
EVE QEMU
EVE RPi4
Cloud
EVE GCP
● Framework/CLI for
managing EVE and
ADAM
infrastructure.
● Test binaries that can
be used to write test
scripts and detect
some specific EVE
states.
DockerHub
Public VMs

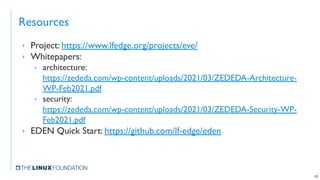

10. Resources
› Project: https://www.lfedge.org/projects/eve/
› Whitepapers:
› architecture:
https://zededa.com/wp-content/uploads/2021/03/ZEDEDA-Architecture-
WP-Feb2021.pdf
› security:
https://zededa.com/wp-content/uploads/2021/03/ZEDEDA-Security-WP-
Feb2021.pdf
› EDEN Quick Start: https://github.com/lf-edge/eden
10
