Challenge the future
Delft
University of
Technology
Course IN4303, 2016-2017
Compiler Construction
Guido Wachsmuth, Eelco ...

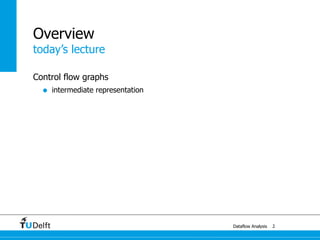

today’s lecture
Dataflow Analysis
Overview
Control flow graphs
• intermediate representation
2

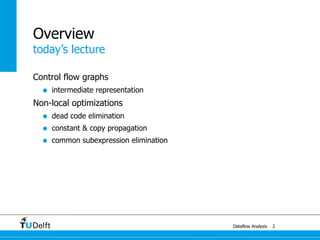

today’s lecture
Dataflow Analysis
Overview
Control flow graphs
• intermediate representation
Non-local optimizations
• dea...

today’s lecture
Dataflow Analysis
Overview
Control flow graphs
• intermediate representation
Non-local optimizations
• dea...

today’s lecture
Dataflow Analysis
Overview
Control flow graphs
• intermediate representation
Non-local optimizations
• dea...

Term Rewriting
Optimizations
I
3

optimization
Dataflow Analysis
Optimizing Compilers
Fully optimizing compiler
• Opt(P) produces smallest program with same...

optimization
Dataflow Analysis
Local vs Non-Local Optimizations
Local optimizations
• peephole optimization
• constant fol...

optimization
Dataflow Analysis
Program Optimizations
Register allocation
• keep non-overlapping temporaries in same regist...

example
Dataflow Analysis
Dead Code Elimination
7
delete computation whose result will never be used
a ← 0
b ← a + 1
c ← c...

example
Dataflow Analysis
Dead Code Elimination
7
a ← 0
b ← a + 1
c ← c + b
return c
delete computation whose result will ...

example
Dataflow Analysis
Constant Propagation
8
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
return c
substitute reference to cons...

example
Dataflow Analysis
Constant Propagation
8
a ← 0
b ← 0 + 1
c ← c + b
a ← 2 * b
return c
a ← 0
b ← a + 1
c ← c + b
a ...

example
Dataflow Analysis
Constant Propagation + Folding
9
a ← 1
b ← a + 1
c ← c + b
a ← 2 * b
return c

example
Dataflow Analysis
Constant Propagation + Folding
9
a ← 0
b ← 2
c ← c + 2
a ← 4
return c
a ← 1
b ← a + 1
c ← c + b
...

example
Dataflow Analysis
Copy Propagation
10
a ← e
b ← a + 1
c ← c + b
a ← 2 * b
return c

example
Dataflow Analysis
Copy Propagation
10
a ← e
b ← e + 1
c ← c + b
a ← 2 * b
return c
a ← e
b ← a + 1
c ← c + b
a ← 2...

example
Dataflow Analysis
Common Subexpression Elimination
11
c ← a + b
d ← 1
e ← a + b
if expression is computed more tha...

example
Dataflow Analysis
Common Subexpression Elimination
11
c ← a + b
d ← 1
e ← a + b
x ← a + b
c ← x
d ← 1
e ← x
if exp...

optimization
Dataflow Analysis
Intraprocedural Global Optimization
Terminology
• Intraprocedural: within a single procedur...

Dataflow Analysis
Control-flow Graphs
II
13

quadruples
Dataflow Analysis
Intermediate Language
Store
a ← b ⊕ c
a ← b
Memory access
a ← M[b]
M[a] ← b
Functions
f(a1, …...

example
Dataflow Analysis
Control-Flow Graphs
15
a ← 0
L1: b ← a + 1
c ← c + b
a ← 2 * b
if a < N
goto L1
else
goto L2
L2:...

example
Dataflow Analysis
Control-Flow Graphs
15
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
a ← 0
L1: b ← a + 1...

terminology
Dataflow Analysis
Control-Flow Graphs
16
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c

terminology
Dataflow Analysis
Control-Flow Graphs
16
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
node

terminology
Dataflow Analysis
Control-Flow Graphs
16
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
node
in-edge

terminology
Dataflow Analysis
Control-Flow Graphs
16
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
node
in-edge
in...

terminology
Dataflow Analysis
Control-Flow Graphs
16
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
node
predecesso...

terminology
Dataflow Analysis
Control-Flow Graphs
16
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
node
predecesso...

terminology
Dataflow Analysis
Control-Flow Graphs
16
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
node
predecesso...

Dataflow Analysis
Liveness Analysis
III
17

definition
Dataflow Analysis
Liveness Analysis
Motivation: register allocation
• intermediate code with unbounded number o...

example
Dataflow Analysis
Register Allocation
19
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c

example
Dataflow Analysis
Register Allocation
19
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
{a, b} ! r
{c} ! q

example
Dataflow Analysis
Register Allocation
19
r ← 0
r ← r + 1
q ← q + r
r ← 2 * r
if r < N
return q
a ← 0
b ← a + 1
c ←...

a ← 0
return c
if a < N
b ← a + 1
a ← 2 * b
c ← c + b
example
Dataflow Analysis
Liveness Analysis
20

a ← 0
return c
if a < N
b ← a + 1
a ← 2 * b
c ← c + b
example
Dataflow Analysis
Liveness Analysis
20

a ← 0
return c
if a < N
b ← a + 1
a ← 2 * b
c ← c + b
example
Dataflow Analysis
Liveness Analysis
20

a ← 0
return c
if a < N
b ← a + 1
a ← 2 * b
c ← c + b
example
Dataflow Analysis
Liveness Analysis
20

a ← 0
return c
if a < N
b ← a + 1
a ← 2 * b
c ← c + b
example
Dataflow Analysis
Liveness Analysis
20

a ← 0
return c
if a < N
b ← a + 1
a ← 2 * b
c ← c + b
example
Dataflow Analysis
Liveness Analysis
20

a ← 0
return c
if a < N
b ← a + 1
a ← 2 * b
c ← c + b
example
Dataflow Analysis
Liveness Analysis
20

a ← 0
return c
if a < N
b ← a + 1
a ← 2 * b
c ← c + b
example
Dataflow Analysis
Liveness Analysis
20

a ← 0
return c
if a < N
b ← a + 1
a ← 2 * b
c ← c + b
example
Dataflow Analysis
Liveness Analysis
20

a ← 0
return c
if a < N
b ← a + 1
a ← 2 * b
c ← c + b
example
Dataflow Analysis
Liveness Analysis
20

a ← 0
return c
if a < N
b ← a + 1
a ← 2 * b
c ← c + b
example
Dataflow Analysis
Liveness Analysis
20

definitions
Dataflow Analysis
Liveness Analysis
Def and use
• an assignment to a variable defines a variable
• an occurren...

terminology
Dataflow Analysis
Liveness Analysis
22
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c

terminology
Dataflow Analysis
Liveness Analysis
22
definition a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c

terminology
Dataflow Analysis
Liveness Analysis
22
usage
definition a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c

terminology
Dataflow Analysis
Liveness Analysis
22
usage
definition
definition
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < ...

terminology
Dataflow Analysis
Liveness Analysis
22
usage
definition
usage
definition
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
i...

terminology
Dataflow Analysis
Liveness Analysis
22
usage
definition
usage
definition
live-in
a ← 0
b ← a + 1
c ← c + b
a ←...

terminology
Dataflow Analysis
Liveness Analysis
22
usage
definition
usage
definition
live-in
live-out
a ← 0
b ← a + 1
c ← ...

terminology
Dataflow Analysis
Liveness Analysis
22
usage
definition
usage
definition
live-in
live-in
live-out
a ← 0
b ← a ...

terminology
Dataflow Analysis
Liveness Analysis
22
usage
definition
usage
definition
live-in
live-out
live-in
live-out
a ←...

terminology
Dataflow Analysis
Liveness Analysis
22
usage
definition
usage
definition
live-in
live-out
live-out
live-in
liv...

formalization
Dataflow Analysis
Liveness Analysis
in[n] = use[n] ∪ (out[n] - def[n])
out[n] = ∪s∈succ[n] in[s]
1. If a var...

algorithm
Dataflow Analysis
Liveness Analysis
for each n
in[n] ← {} ; out[n] ← {}
repeat
for each n
in'[n] = in[n] ; out'[...

example
Dataflow Analysis
Liveness Analysis
25
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
1
2
3
4
5...

example
Dataflow Analysis
Liveness Analysis
25
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
1
2
3
4
5...

example
Dataflow Analysis
Liveness Analysis
25
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
1
2
3
4
5...

example
Dataflow Analysis
Liveness Analysis
25
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
1
2
3
4
5...

example
Dataflow Analysis
Liveness Analysis
25
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
1
2
3
4
5...

example
Dataflow Analysis
Liveness Analysis
25
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
1
2
3
4
5...

example
Dataflow Analysis
Liveness Analysis
25
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
1
2
3
4
5...

example
Dataflow Analysis
Liveness Analysis
25
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
1
2
3
4
5...

example
Dataflow Analysis
Liveness Analysis
25
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
1
2
3
4
5...

optimization
Dataflow Analysis
Liveness Analysis
26
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
6
5
...

optimization
Dataflow Analysis
Liveness Analysis
26
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
6
5
...

optimization
Dataflow Analysis
Liveness Analysis
26
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
6
5
...

optimization
Dataflow Analysis
Liveness Analysis
26
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
6
5
...

optimization
Dataflow Analysis
Liveness Analysis
26
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c
1
2
3
4
5
6
6
5
...

generalisation
Dataflow Analysis
Liveness Analysis
27
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c

generalisation
Dataflow Analysis
Liveness Analysis
27
kill a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c

generalisation
Dataflow Analysis
Liveness Analysis
27
gen
kill a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c

generalisation
Dataflow Analysis
Liveness Analysis
27
gen
kill
kill
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
return c

generalisation
Dataflow Analysis
Liveness Analysis
27
gen
kill
gen
kill
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
retur...

generalisation
Dataflow Analysis
Liveness Analysis
27
gen
kill
gen
kill
in
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < N
re...

generalisation
Dataflow Analysis
Liveness Analysis
27
gen
kill
gen
kill
in
out
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if a < ...

generalisation
Dataflow Analysis
Liveness Analysis
27
gen
kill
gen
kill
in
out
out
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
if ...

generalisation
Dataflow Analysis
Liveness Analysis
27
gen
kill
gen
kill
in
out
out
in
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
...

generalisation
Dataflow Analysis
Liveness Analysis
27
gen
kill
gen
kill
in
out
out
in
out
a ← 0
b ← a + 1
c ← c + b
a ← 2 ...

gen & kill
Dataflow Analysis
Liveness Analysis
28
a ← b ⊕ c
a ← b
a ← M[b]
M[a] ← b
f(a1, …, an)
a ← f(a1, …, an)
goto L
i...

gen & kill
Dataflow Analysis
Liveness Analysis
28
a ← b ⊕ c
a ← b
a ← M[b]
M[a] ← b
f(a1, …, an)
a ← f(a1, …, an)
goto L
i...

generalisation
Dataflow Analysis
Liveness Analysis
in[n] = gen[n] ∪ (out[n] - kill[n])
out[n] = ∪s∈succ[n] in[s]
29

Dataflow Analysis
More Analyses
IV
30

definition
Dataflow Analysis
Reaching Definitions
Unambiguous definition of a
• a statement of the form (d : a ← b ⊕ c) or...

example
Dataflow Analysis
Reaching Definitions
32
a ← 5
c ← 1
if c > a
c ← c + c
goto 3
a ← c - a
1
2
3
4
5
6

gen & kill
Dataflow Analysis
Reaching Definitions
33
d: a ← b ⊕ c
d: a ← b
d: a ← M[b]
M[a] ← b
f(a1, …, an)
d: a ← f(a1, ...

gen & kill
Dataflow Analysis
Reaching Definitions
33
d: a ← b ⊕ c
d: a ← b
d: a ← M[b]
M[a] ← b
f(a1, …, an)
d: a ← f(a1, ...

formalisation
Dataflow Analysis
Reaching Definitions
in[n] = ∪p∈pred[n] out[p]
out[n] = gen[n] ∪ (in[n] - kill[n])
34

definition
Dataflow Analysis
Available Expressions
An expression (b ⊕ c) is available at node n if
• on every path from th...

example
Dataflow Analysis
Available Expressions
36
c ← a + b
d ← 1
e ← a + b
1
2
3

gen & kill
Dataflow Analysis
Available Expressions
37
d: a ← b ⊕ c
d: a ← b
d: a ← M[b]
M[a] ← b
f(a1, …, an)
d: a ← f(a1,...

gen & kill
Dataflow Analysis
Available Expressions
37
d: a ← b ⊕ c
d: a ← b
d: a ← M[b]
M[a] ← b
f(a1, …, an)
d: a ← f(a1,...

formalisation
Dataflow Analysis
Available Expressions
in[n] = ∩p∈pred[n] out[p]
out[n] = gen[n] ∪ (in[n] - kill[n])
38

definition
Dataflow Analysis
Reaching Expressions
An expression (s : a ← b ⊕ c) reaches node n if
• there is a path from s...

Dataflow Analysis
Optimizations
V
40

example
Dataflow Analysis
Dead Code Elimination
41
a ← 0
b ← a + 1
c ← c + b
return c
a ← 0
b ← a + 1
c ← c + b
a ← 2 * b
...

example
Dataflow Analysis
Common Subexpression Elimination
42
c ← a + b
d ← 1
e ← a + b
x ← a + b
c ← x
d ← 1
e ← x
consid...

example
Dataflow Analysis
Constant Propagation
43
a ← 0
b ← 0 + 1
c ← c + b
a ← 2 * b
return c
a ← 0
b ← a + 1
c ← c + b
a...

example
Dataflow Analysis
Copy Propagation
44
a ← e
b ← e + 1
c ← c + b
a ← 2 * b
return c
a ← e
b ← a + 1
c ← c + b
a ← 2...

Term Rewriting
Summary
V
45

Dataflow Analysis
Summary
Liveness analysis
• intermediate language
• control-flow graphs
• definition & algorithm
More da...

learn more
Dataflow Analysis
Literature
Andrew W. Appel, Jens Palsberg: Modern Compiler Implementation in
Java, 2nd editio...

Dataflow Analysis
Copyrights & Credits
48

Dataflow Analysis 49

copyrights
Dataflow Analysis
Pictures
Slide 1:
ink swirl by Graham Richardson, some rights reserved
Slide 25:
Seattle's Be...

Share Slideshare

LinkedIn
Facebook
Twitter

Embed

Size (px)

Show related Slideshows at end

WordPress Shortcode

Link

Share
Email

Control Flow Analysis by Edgar Barbosa 10187 views
Code optimization by veena venugopal 17938 views
Basic Blocks and Flow Graphs by Jenny Galino 17251 views

View on Slideshare

1 of 110 Ad

View on Slideshare

1 of 110 Ad
