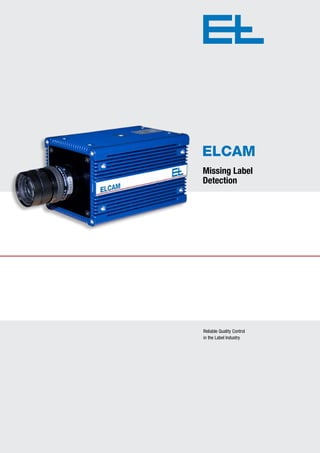

2. ELCAM | Missing Label Detection
Missing Label Detection
ELCAM - the ideal system to avoid custo-
mer complaints
Erhardt+Leimer, for years a world-leading
manufacturer of web guiding equipment and
inspection technology has further developed
ELCAM, a vision camera based missing label
detection system. ELCAM from
Erhardt+Leimer stands for significantly bet-
ter print and production quality thanks to in-
novative new smart camera technology.
The new ELCAM Missing Label Detection
system is a special solution for the narrow
web label industry. The system is easy to in-
stall, easy to use and robust in operation.
Thanks to this new development, label prin-
ters are able to avoid waste and to increase
the quality of the label production process.
Due to the very quick job setup times, the
productivity will increase significantly. The
system consists of the smart vision camera
ELCAM in combination with LED light sour-
ces, a small controller to handle stop signals
for the production process if needed, and a
touch screen panel with a self-explaining in-
tuitive graphical user interface.
Function The especially developed detection algorithm few parts and intuitive handling together
ELCAM is replacing complex time-consuming of ELCAM is extremely robust, fast and relia- with the latest monitoring technology offers
setup procedures of conventionally used ult- ble and handles all kinds of labels up to web maximum possibilities to improve production
rasonic or optical sensor arrays by a quick speeds of 300 m/min. quality and therefore reduce costs and
semi-automatic self-learning process. After In summary, this new Erhardt+Leimer waste. The economic system has a short
a teaching phase of only 5 seconds, the ca- ELCAM Missing Label Detection system defi- amortisation time – ELCAM is the new tool
mera reliably detects missing labels. These nes a new standard in the label industry. for more efficiency and effectiveness in the
events are sent to the process controller via Easy installation of the system with just a label printing industry!
a digital interface to stop the web exactly at
the splice table. Thanks to the Missing Label
Detection system it is not necessary anymo-
re to adjust the conventional sensors manu-
ally every time a new job is set up.
2 | Erhardt+Leimer – Smart Vision for Automation
3. ELCAM Missing Label GUI
The ELCAM graphical user interface has
been designed for easy and intuitive operati-
on in order to support operators during their
daily work. High image resolution in combi-
nation with high-precision detection algo-
rithms and a clearly structured touch screen
panel are the key features of the ELCAM
Missing Label System.
The live image supplies direct feedback to
the operator in order to keep him informed
about the current status of the system. An
automatic exposure control constantly
makes sure that the image is always well il-
luminated. Together with the teaching func-
tion it makes life easier for operators during
order change.
ELCAM digital I/O interface Technical data
The ELCAM camera directly supplies a digi-
tal signal in case a missing label is detected. ELCAM
If a signal delay is required in order to stop Output image resolution, (H×V) 752 × 480 pixels
the label production process in a pre-defined Frame rate 62 fps
position, E+L offer an additional small cont- Video format 10-bit, single tap
roller board as an option for this purpose.
Pixel size (H×V) 6 × 6 μm
Shutter global, 10 μs –1000 ms (default 15 ms)
Auto functions • Auto exposure
• Automatic analog gain control
• Automatic black level
Lens C-mount (CS-mount on request)
Power input 10–26 VDC, 12 W (typical)
Digital I/O 4×opto in, 4×opto out, 2×TTL in, 2× TTL out,
RS-232 interface
Monitor
Power supply 24 V DC
Rated frequency 50 to 60 Hz
Resolution 800 x 600 pixels
Connection DVI
Size 12"
Erhardt+Leimer | 3
