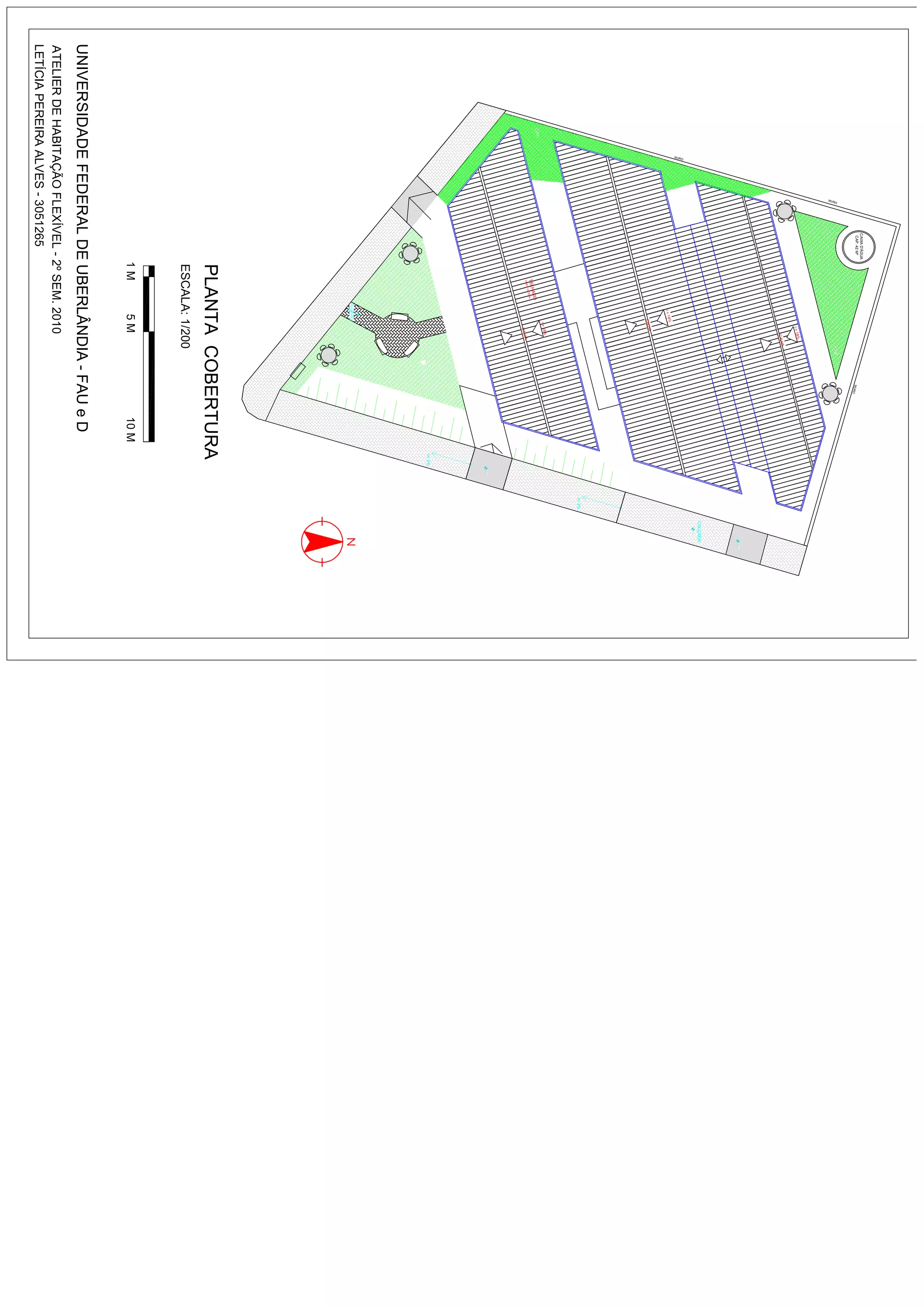

This document contains a site plan for a flexible housing atelier with scales of 1/200, 1/5m, 1/10m. It includes a 3% slope for the sidewalk and water tank with a capacity of 42 cubic meters. It also shows a wall at elevations of +3.30, +1.60 and 0.20 meters with a 4.50 meter high roof made of vegetable fiber, gutters with 18% slopes and was designed by Letícia Pereira Alves at the Federal University of Uberlândia in the second semester of 2010.

1. PLANTACOBERTURA
ESCALA:1/200
1M5M10M
I=3%
CALÇADA
I=3%
CAIXAD'ÁGUA
CAP.42M³MURO
MURO
MURO
+3.30
+1.60
PEDESTRES
+3.30
0.20
4.50
TELHADO
FIBRAVEGETAL
CALHA
CALHA
CALHA
I=18%
I=18%
I=18%
ATELIERDEHABITAÇÃOFLEXÍVEL-2ºSEM.2010
UNIVERSIDADEFEDERALDEUBERLÂNDIA-FAUeD
LETÍCIAPEREIRAALVES-3051265
