EcoStruxure Power Advisor
How to improve Power Reliability
Presented by:
Eric PAITRAULT

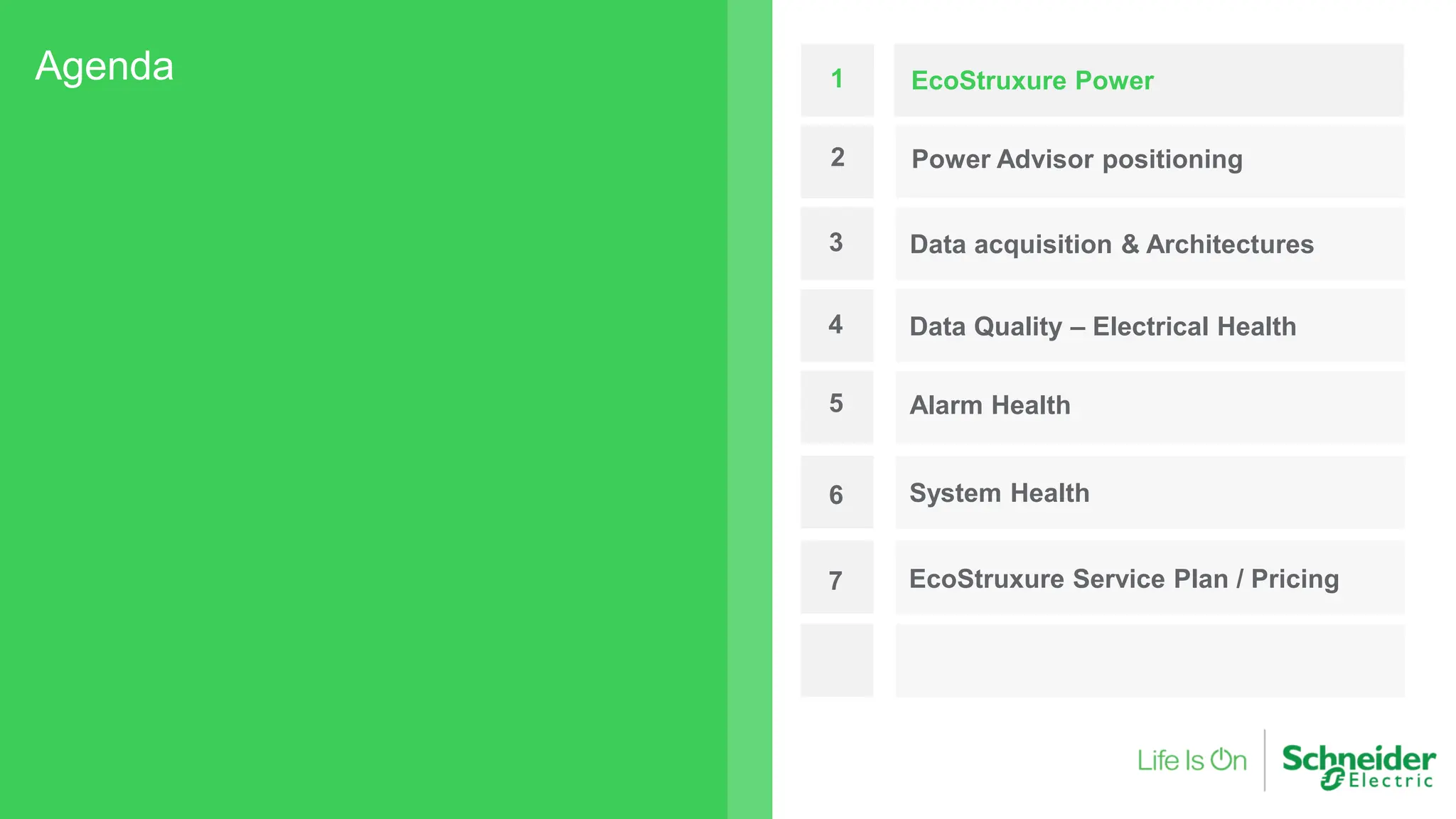

Agenda 1 EcoStruxure Power
2 Power Advisor positioning
3 Data acquisition & Architectures
4 Data Quality – Electrical Health
5 Alarm Health
6 System Health
7 EcoStruxure Service Plan / Pricing

EcoStruxure Power
Page 3
Property of Schneider Electric |

More
DIGITIZED
10X
more connected devices
than people by 2025
Source: United Nations, IHS
More
DECARBONIZED
82%
of untapped energy efficiency
potential in buildings
(and more than 50% in industry)
Source: World Energy Outlook 2012
More
DECENTRALIZED
70%
of new capacity additions
will be renewable forms
by 2040
Source: BNEF
More ELECTRIC
2X
faster growth of electricity
demand compared to
energy demand by 2040
Source: IEA WEO 2014

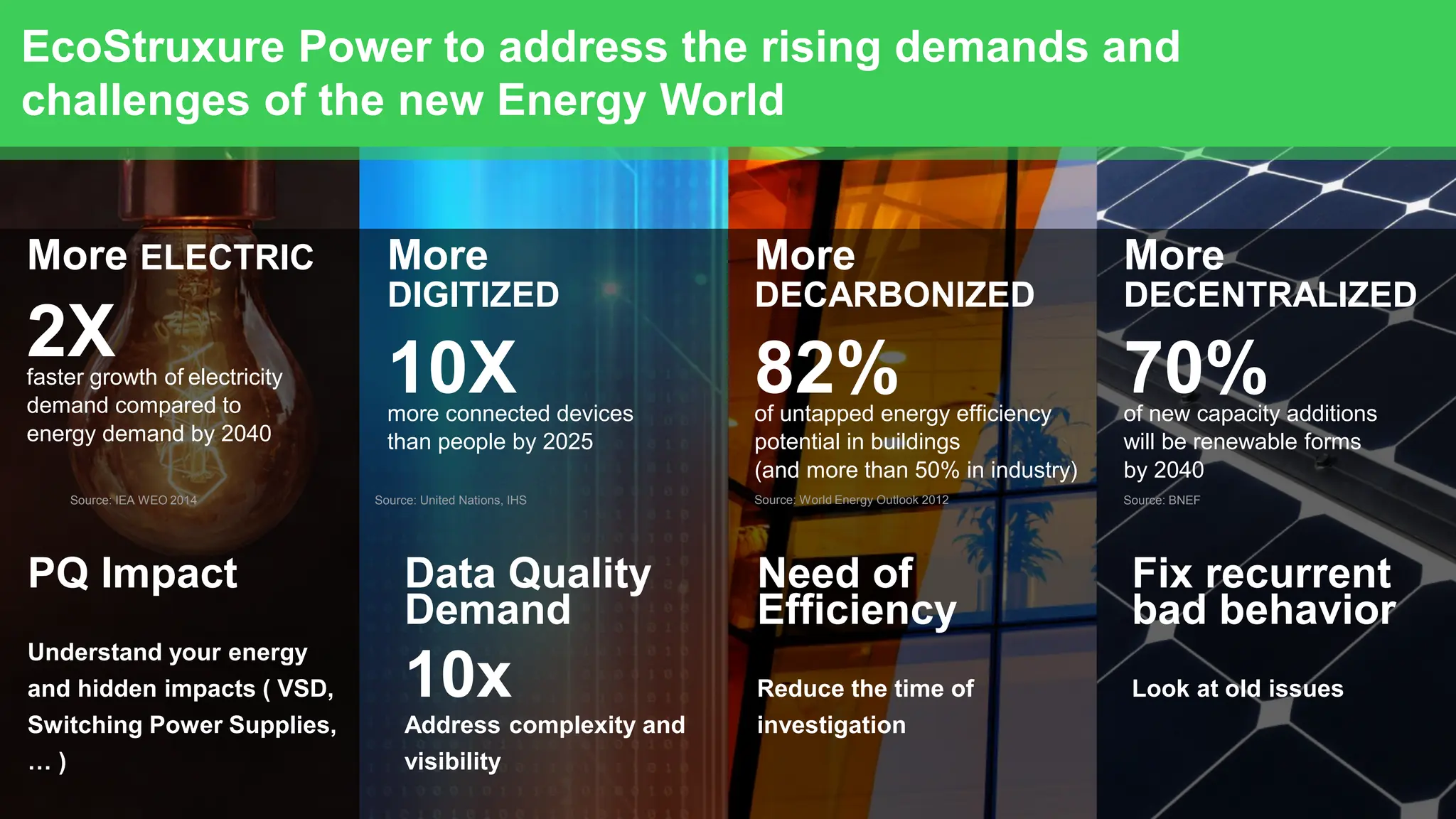

EcoStruxure Power to address the rising demands and
challenges of the new Energy World
PQ Impact
Understand your energy
and hidden impacts ( VSD,
Switching Power Supplies,
… )
Data Quality
Demand
10x
Address complexity and
visibility
Need of
Efficiency
Reduce the time of
investigation
Fix recurrent
bad behavior
Look at old issues

Confidential Property of Schneider Electric | Page 5
Confidential Property of Schneider Electric |
Connected
Products
Edge
Control
Apps,
Analytics &
Services
End-to-end
Cybersecurity
Cloud
and/or
On
Premise
Acti9,
PowerTag
Masterpact
MTZ
Smart Panels
(IEC)

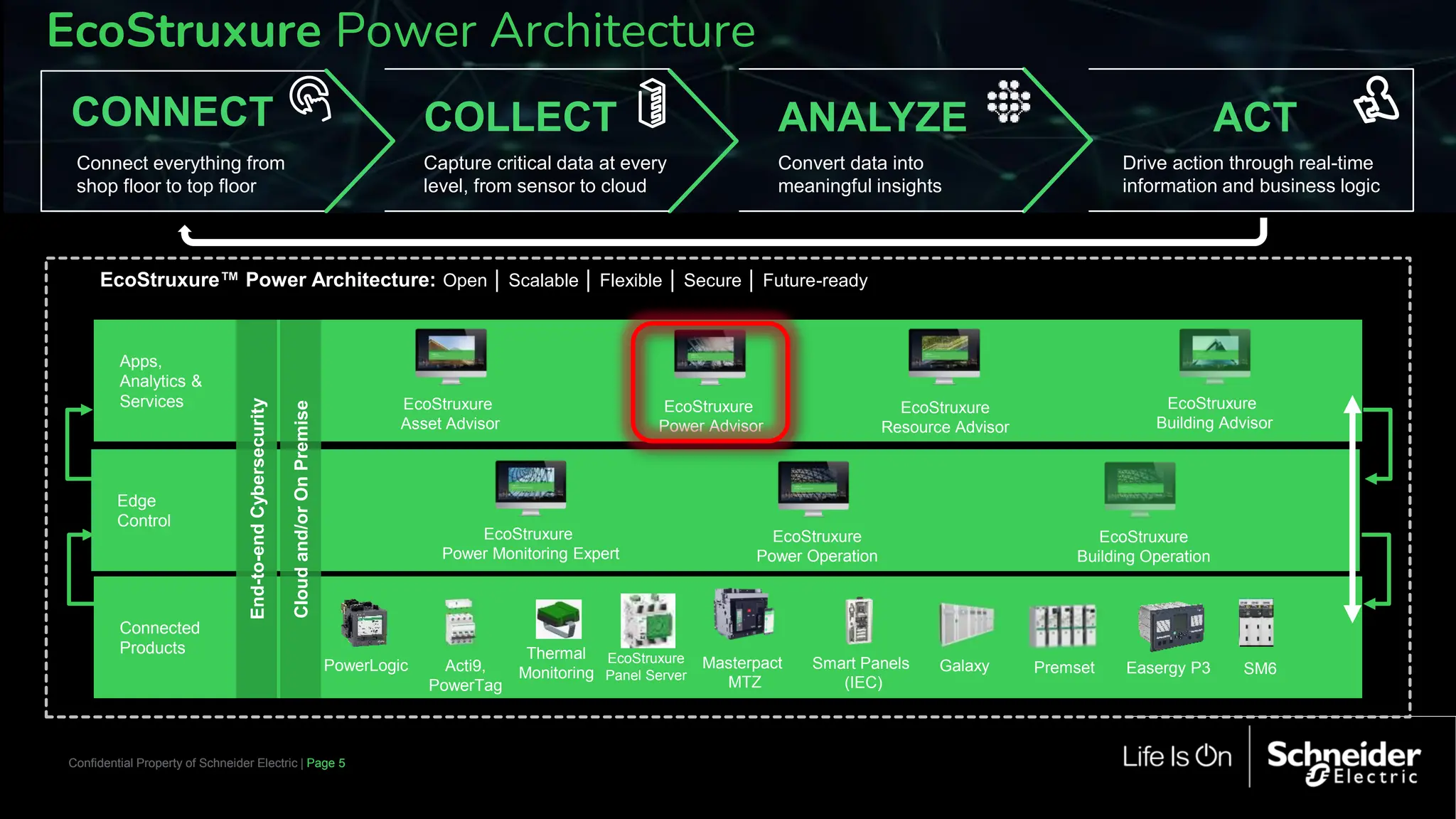

EcoStruxure™ Power Architecture: Open │ Scalable │ Flexible │ Secure │ Future-ready
EcoStruxure
Power Monitoring Expert
EcoStruxure
Power Operation
EcoStruxure
Building Advisor
EcoStruxure
Power Advisor
EcoStruxure
Asset Advisor
EcoStruxure
Resource Advisor
SM6
Premset Easergy P3
Galaxy
PowerLogic
CONNECT
Connect everything from
shop floor to top floor
COLLECT
Capture critical data at every
level, from sensor to cloud
ANALYZE
Convert data into
meaningful insights
ACT
Drive action through real-time
information and business logic
EcoStruxure
Building Operation
EcoStruxure Power Architecture
Thermal
Monitoring
EcoStruxure
Panel Server

EcoStruxure Power Advisor positioning & Value proposition
Page 6

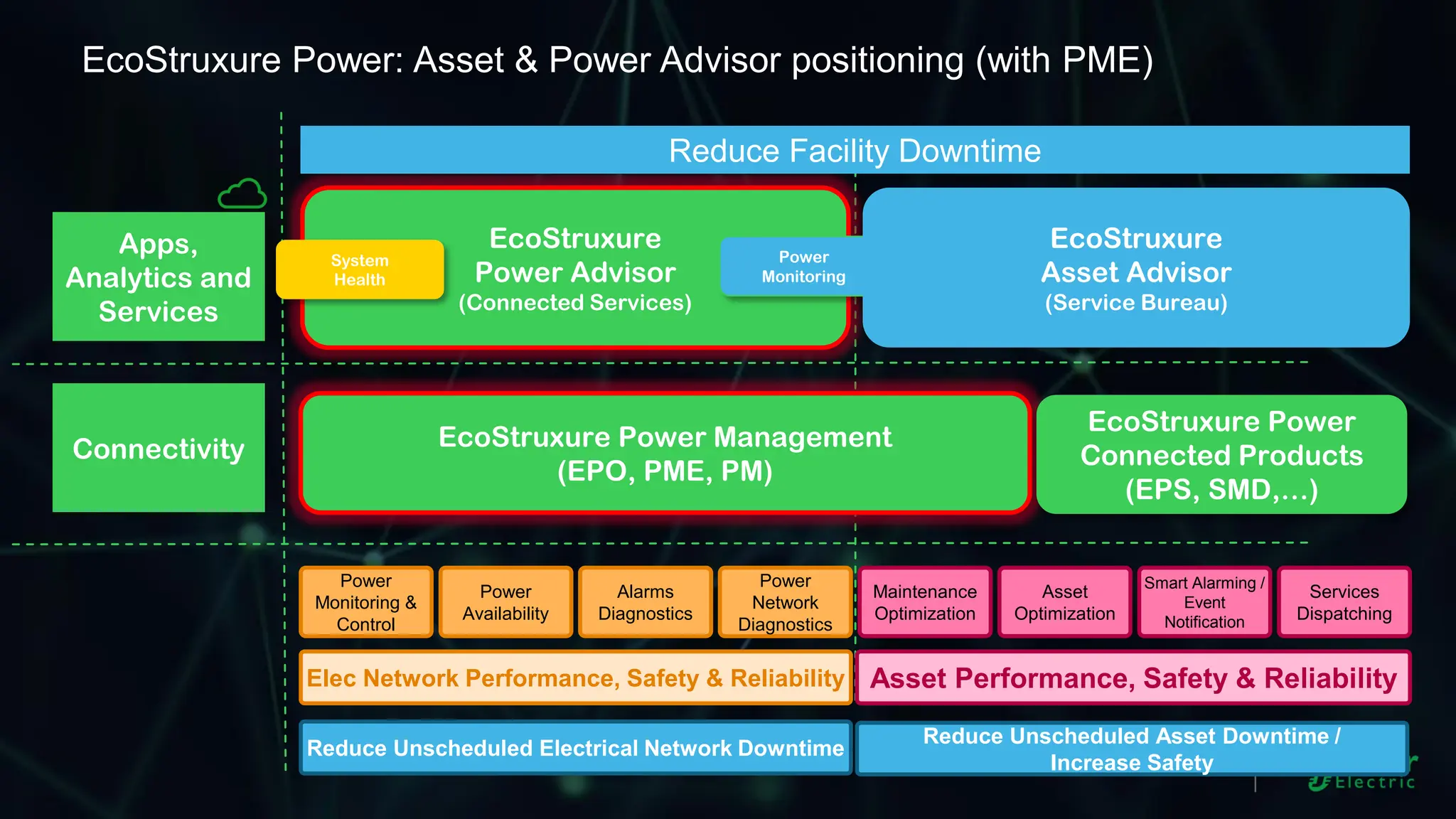

EcoStruxure Power: Asset & Power Advisor positioning (with PME)
Maintenance
Optimization
Asset
Optimization
Power
Monitoring &
Control
Power
Availability
Alarms
Diagnostics
Elec Network Performance, Safety & Reliability Asset Performance, Safety & Reliability
EcoStruxure Power Management
(EPO, PME, PM)
EcoStruxure
Power Advisor
(Connected Services)
Reduce Facility Downtime
Reduce Unscheduled Electrical Network Downtime
Smart Alarming /
Event
Notification
Power
Network
Diagnostics
Services
Dispatching
Apps,
Analytics and
Services
Connectivity
Reduce Unscheduled Asset Downtime /
Increase Safety
EcoStruxure Power
Connected Products
(EPS, SMD,…)
Power
Monitoring
EcoStruxure
Asset Advisor
(Service Bureau)
System
Health

Run an efficient and compliant facility
PME and all PS devices are a Certified Energy Data
Management System in accordance with ISO 50001, ISO
50002 and ISO 50006
• Collect and analyze energy performance data of your facility
• Provide appropriate data for your energy audit
• Enable you to implement action plans to improve energy
performance based on review of energy audit
Make informed decisions to maintain power reliability and a
safe installation
Run power events analysis thanks to default/rich data
integration for connected devices (e.g., Masterpact MTZ
circuit breaker, ION9000, PM8000, AccuSine), events time-
sequence, location, and power quality waveform analysis.
Track your facility’s power quality performance and
compliance against standards

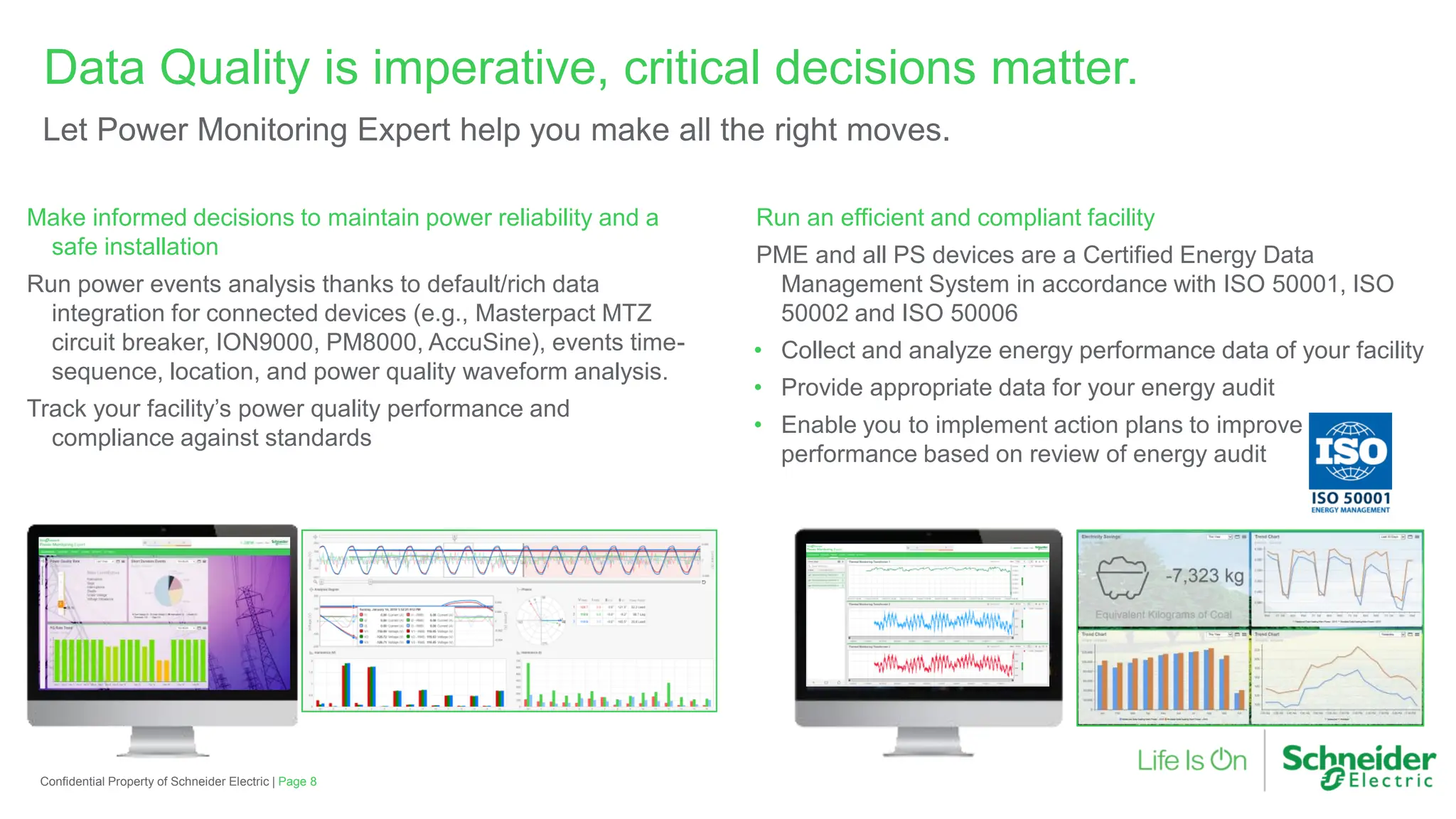

Data Quality is imperative, critical decisions matter.
Let Power Monitoring Expert help you make all the right moves.

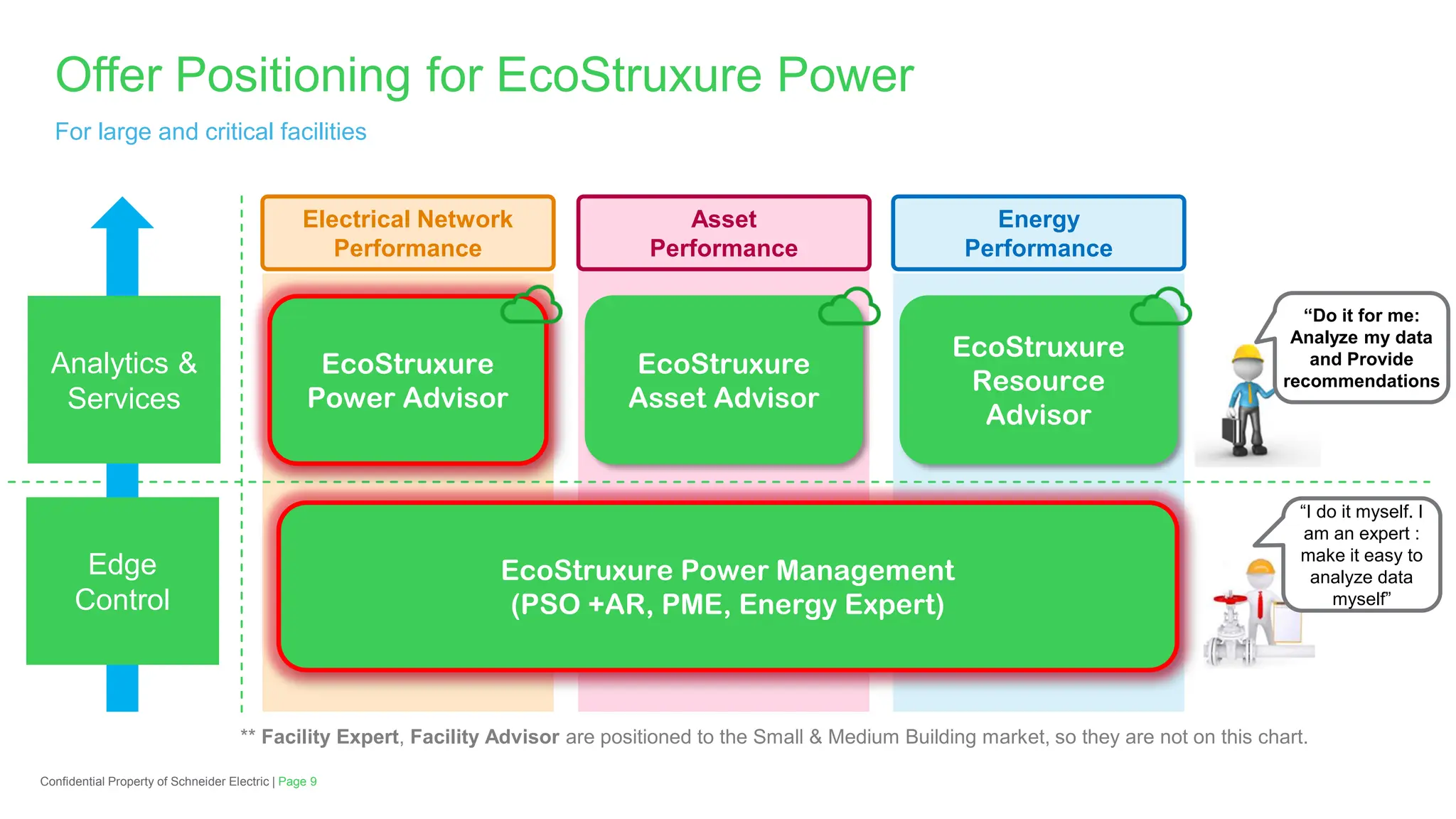

Offer Positioning for EcoStruxure Power
For large and critical facilities
EcoStruxure
Asset Advisor
Electrical Network
Performance
Asset
Performance
EcoStruxure Power Management
(PSO +AR, PME, Energy Expert)
EcoStruxure
Power Advisor
Energy
Performance
EcoStruxure
Resource
Advisor
“Do it for me:
Analyze my data
and Provide
recommendations
“I do it myself. I
am an expert :
make it easy to
analyze data
myself”
Edge
Control
Analytics &
Services
** Facility Expert, Facility Advisor are positioned to the Small & Medium Building market, so they are not on this chart.

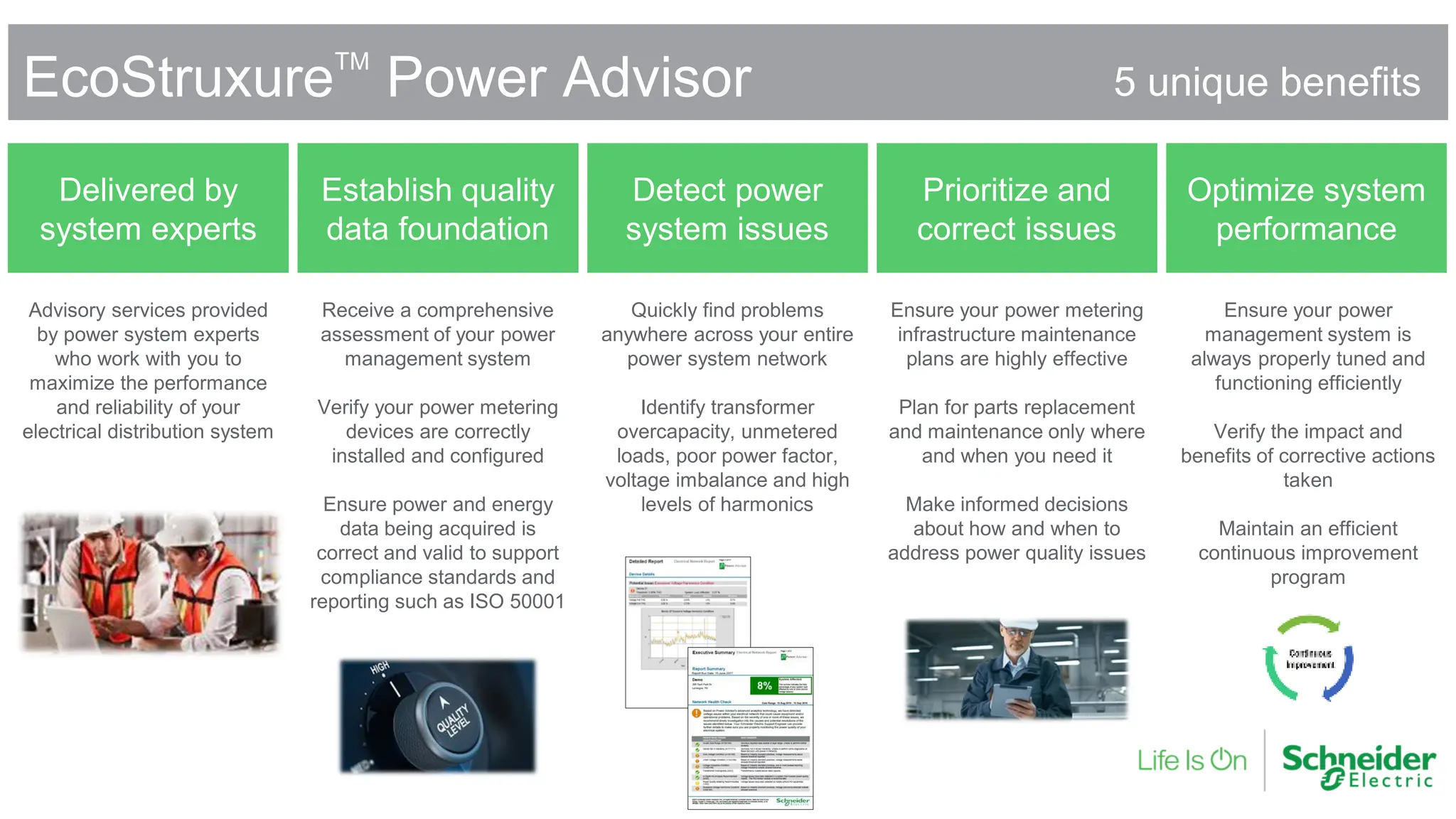

EcoStruxureTM
Power Advisor
Advisory services provided
by power system experts
who work with you to
maximize the performance
and reliability of your
electrical distribution system
Delivered by
system experts
Establish quality
data foundation
Detect power
system issues
Prioritize and
correct issues
Optimize system
performance
5 unique benefits
Receive a comprehensive
assessment of your power
management system
Verify your power metering
devices are correctly
installed and configured
Ensure power and energy
data being acquired is
correct and valid to support
compliance standards and
reporting such as ISO 50001
Quickly find problems
anywhere across your entire
power system network
Identify transformer
overcapacity, unmetered
loads, poor power factor,
voltage imbalance and high
levels of harmonics
Ensure your power metering
infrastructure maintenance
plans are highly effective
Plan for parts replacement
and maintenance only where
and when you need it
Make informed decisions
about how and when to
address power quality issues
Ensure your power
management system is
always properly tuned and
functioning efficiently
Verify the impact and
benefits of corrective actions
taken
Maintain an efficient
continuous improvement
program

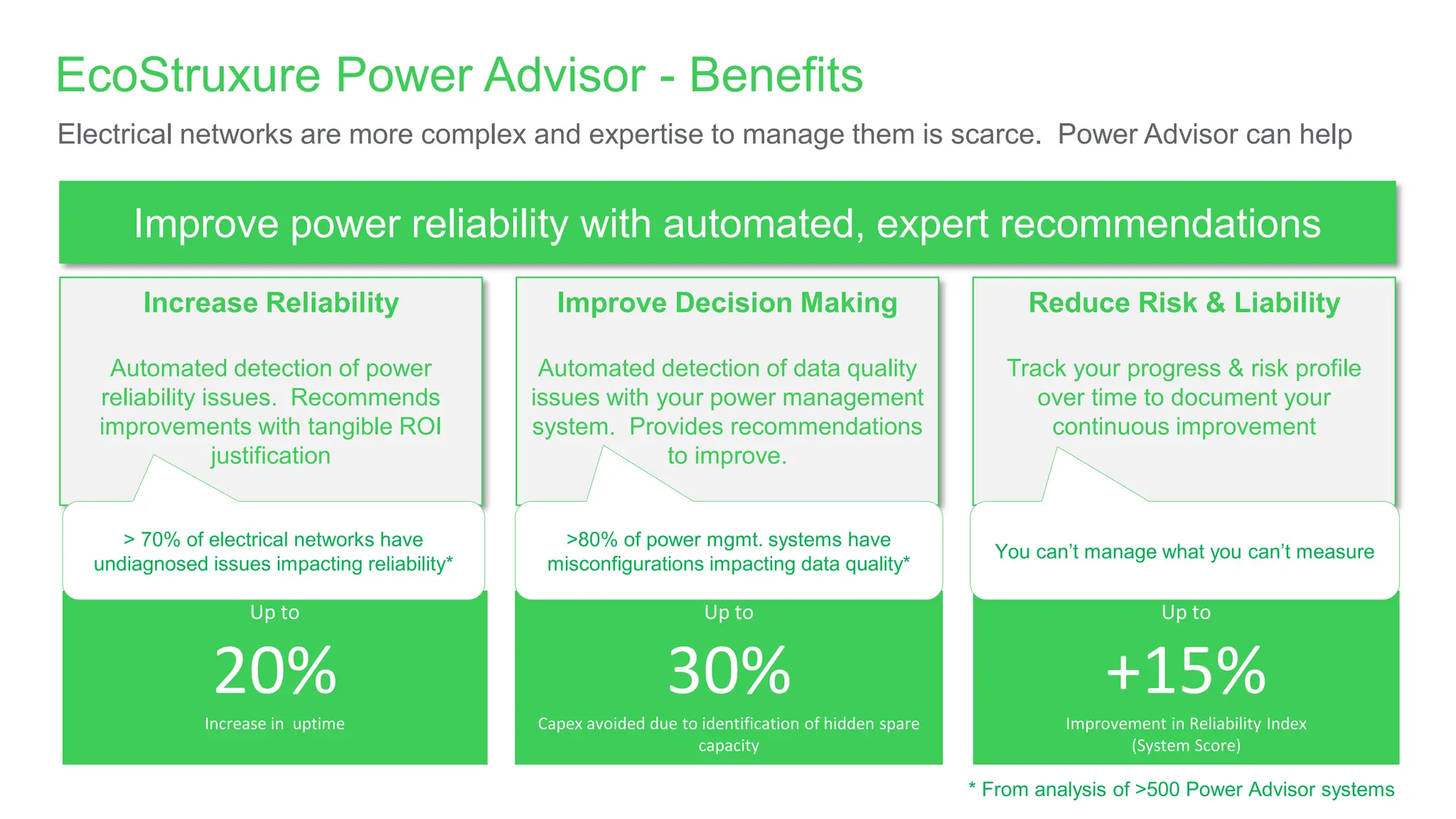

EcoStruxure Power Advisor - Benefits
Electrical networks are more complex and expertise to manage them is scarce. Power Advisor can help
Up to
20%
Increase in uptime
Up to
+15%
Improvement in Reliability Index
(System Score)
Up to
30%
Capex avoided due to identification of hidden spare
capacity
Improve Decision Making
Automated detection of data quality
issues with your power management
system. Provides recommendations
to improve.
Increase Reliability
Automated detection of power
reliability issues. Recommends
improvements with tangible ROI
justification
Reduce Risk & Liability
Track your progress & risk profile
over time to document your
continuous improvement
Improve power reliability with automated, expert recommendations
> 70% of electrical networks have
undiagnosed issues impacting reliability*
>80% of power mgmt. systems have
misconfigurations impacting data quality*
You can’t manage what you can’t measure
* From analysis of >500 Power Advisor systems

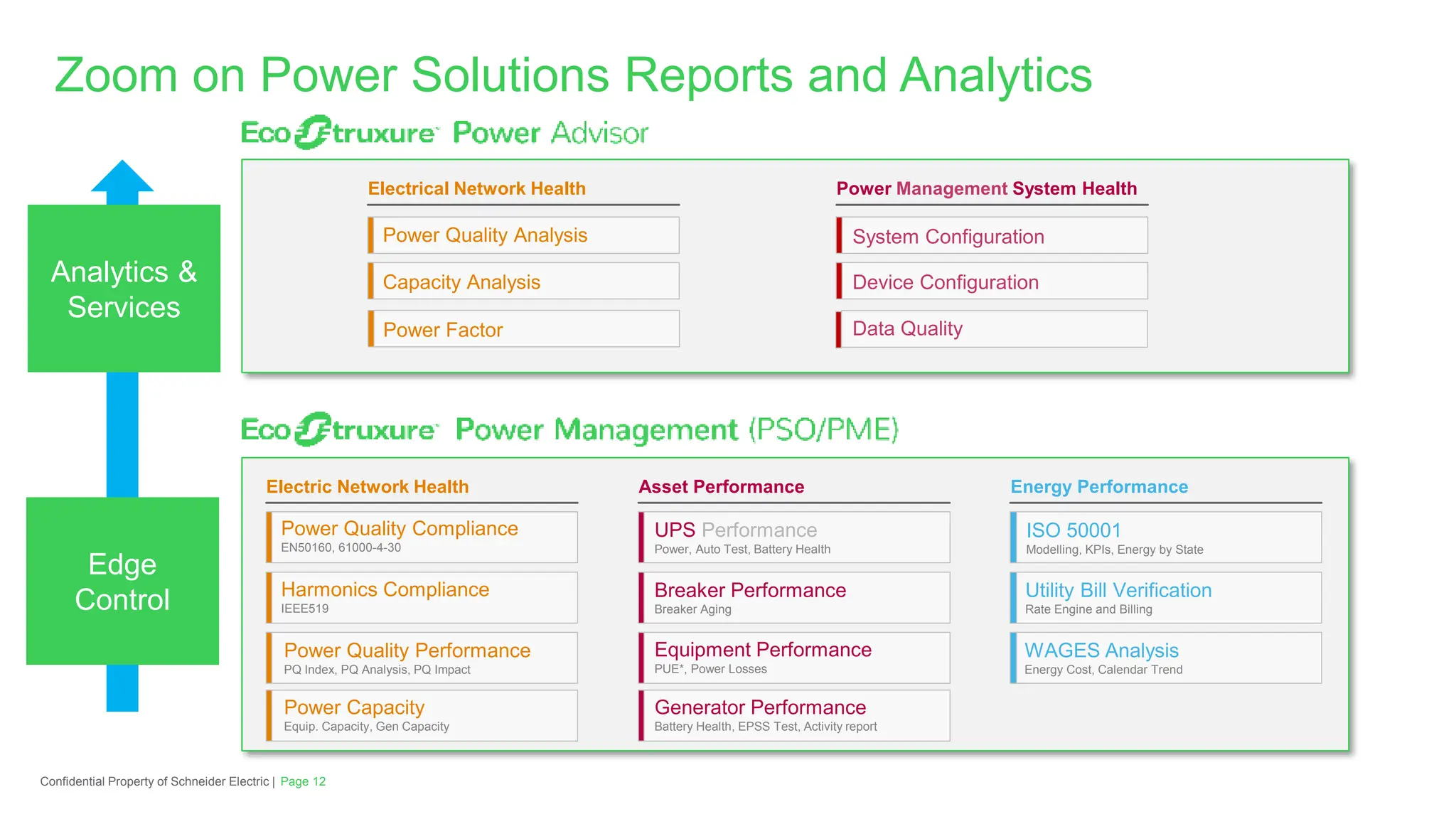

Zoom on Power Solutions Reports and Analytics
ISO 50001
Modelling, KPIs, Energy by State
Utility Bill Verification
Rate Engine and Billing
WAGES Analysis
Energy Cost, Calendar Trend
Breaker Performance
Breaker Aging
Equipment Performance
PUE*, Power Losses
Generator Performance
Battery Health, EPSS Test, Activity report
Power Quality Performance
PQ Index, PQ Analysis, PQ Impact
UPS Performance
Power, Auto Test, Battery Health
Power Capacity
Equip. Capacity, Gen Capacity
Power Quality Compliance
EN50160, 61000-4-30
Harmonics Compliance
IEEE519
Electric Network Health Asset Performance Energy Performance
Power Quality Analysis
Electrical Network Health
Capacity Analysis
Power Factor
System Configuration
Device Configuration
Data Quality
Power Management System Health
Edge
Control
Analytics &
Services

Local Digital Power Services Delivery Team
(Direct or EcoXpert)
Page 13

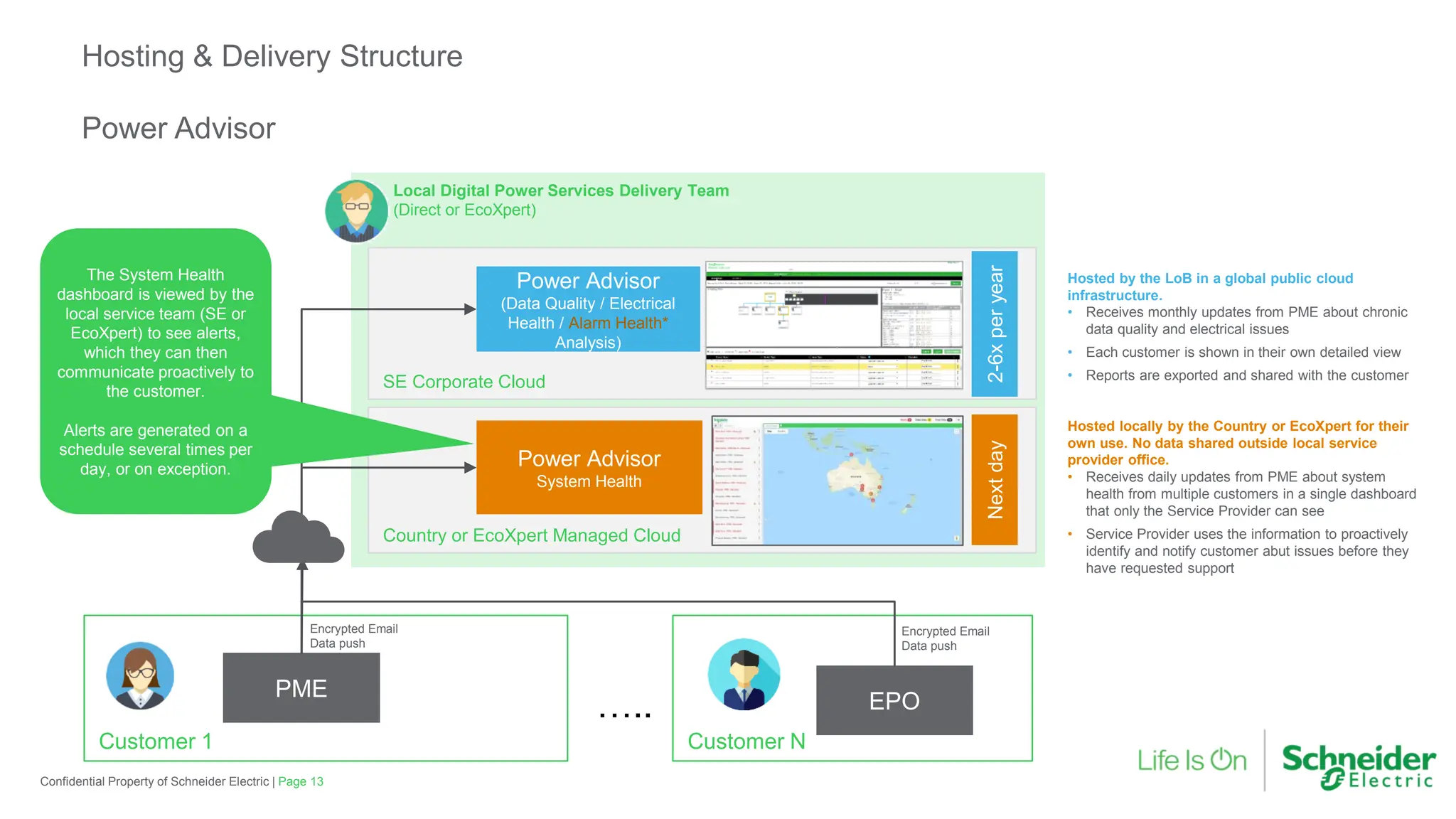

Hosting & Delivery Structure
Power Advisor
Customer 1
PME
Country or EcoXpert Managed Cloud
SE Corporate Cloud
Power Advisor
System Health
Encrypted Email
Data push
Hosted locally by the Country or EcoXpert for their
own use. No data shared outside local service
provider office.
• Receives daily updates from PME about system
health from multiple customers in a single dashboard
that only the Service Provider can see
• Service Provider uses the information to proactively
identify and notify customer abut issues before they
have requested support
Hosted by the LoB in a global public cloud
infrastructure.
• Receives monthly updates from PME about chronic
data quality and electrical issues
• Each customer is shown in their own detailed view
• Reports are exported and shared with the customer
Customer N
EPO
…..
Power Advisor
(Data Quality / Electrical
Health / Alarm Health*
Analysis)
2-6x
per
year
Next
day
The System Health
dashboard is viewed by the
local service team (SE or
EcoXpert) to see alerts,
which they can then
communicate proactively to
the customer.
Alerts are generated on a
schedule several times per
day, or on exception.
Encrypted Email
Data push

Confidential Property of Schneider Electric

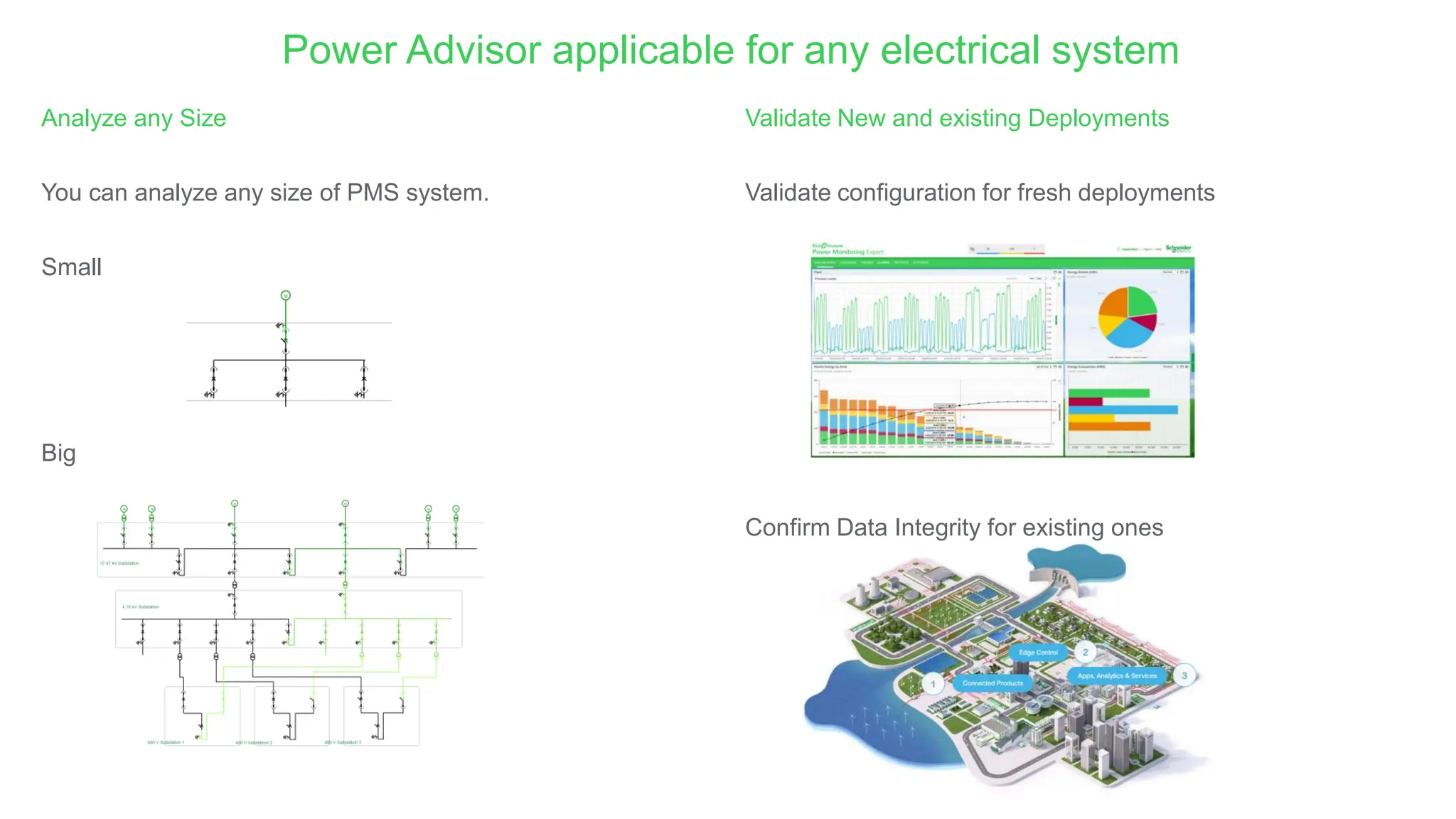

Power Advisor applicable for any electrical system
Analyze any Size
You can analyze any size of PMS system.
Small
Big
Validate New and existing Deployments
Validate configuration for fresh deployments
Confirm Data Integrity for existing ones

Data acquisition - Architectures
Page 15

Services
Applications

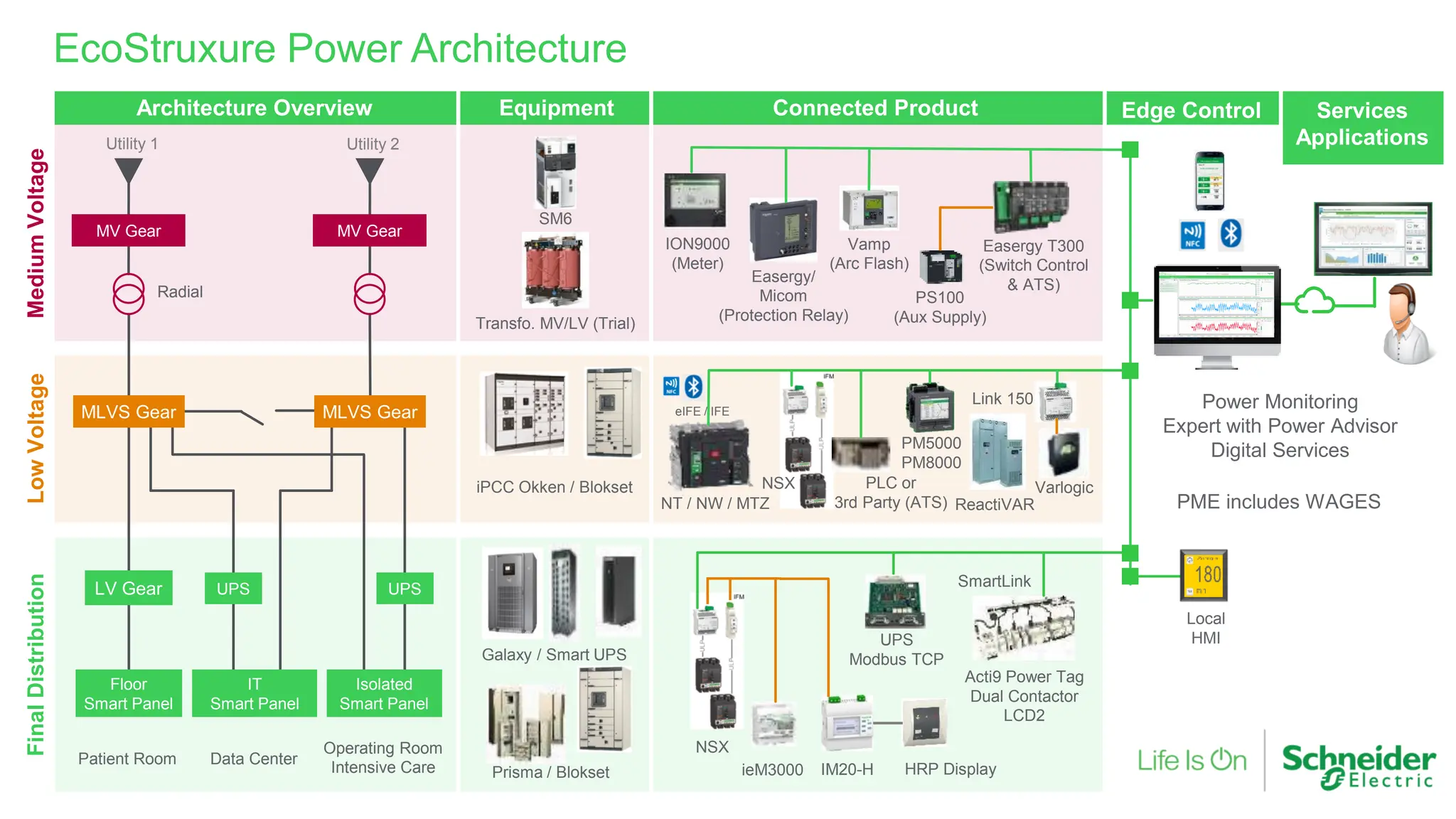

EcoStruxure Power Architecture
Medium
Voltage
Low
Voltage
Final
Distribution
SM6
Prisma / Blokset
Galaxy / Smart UPS
Equipment
iPCC Okken / Blokset
Transfo. MV/LV (Trial)
Architecture Overview
Patient Room
LV Gear
Operating Room
Intensive Care
Data Center
UPS
Utility 1
Radial
Utility 2
MLVS Gear
MV Gear
MLVS Gear
MV Gear
UPS
Isolated
Smart Panel
IT
Smart Panel
Floor
Smart Panel
Edge Control
Power Monitoring
Expert with Power Advisor
Digital Services
Connected Product
ION9000
(Meter)
IM20-H
SmartLink
ieM3000
Acti9 Power Tag
Dual Contactor
LCD2
UPS
Modbus TCP
NSX
Vamp
(Arc Flash)
HRP Display
eIFE / IFE
PLC or
3rd Party (ATS)
NSX
NT / NW / MTZ
PM5000
PM8000
ReactiVAR
Varlogic
Link 150
Easergy/
Micom
(Protection Relay)
PS100
(Aux Supply)
Easergy T300
(Switch Control
& ATS)
Local
HMI
PME includes WAGES

Confidential Property of Schneider Electric

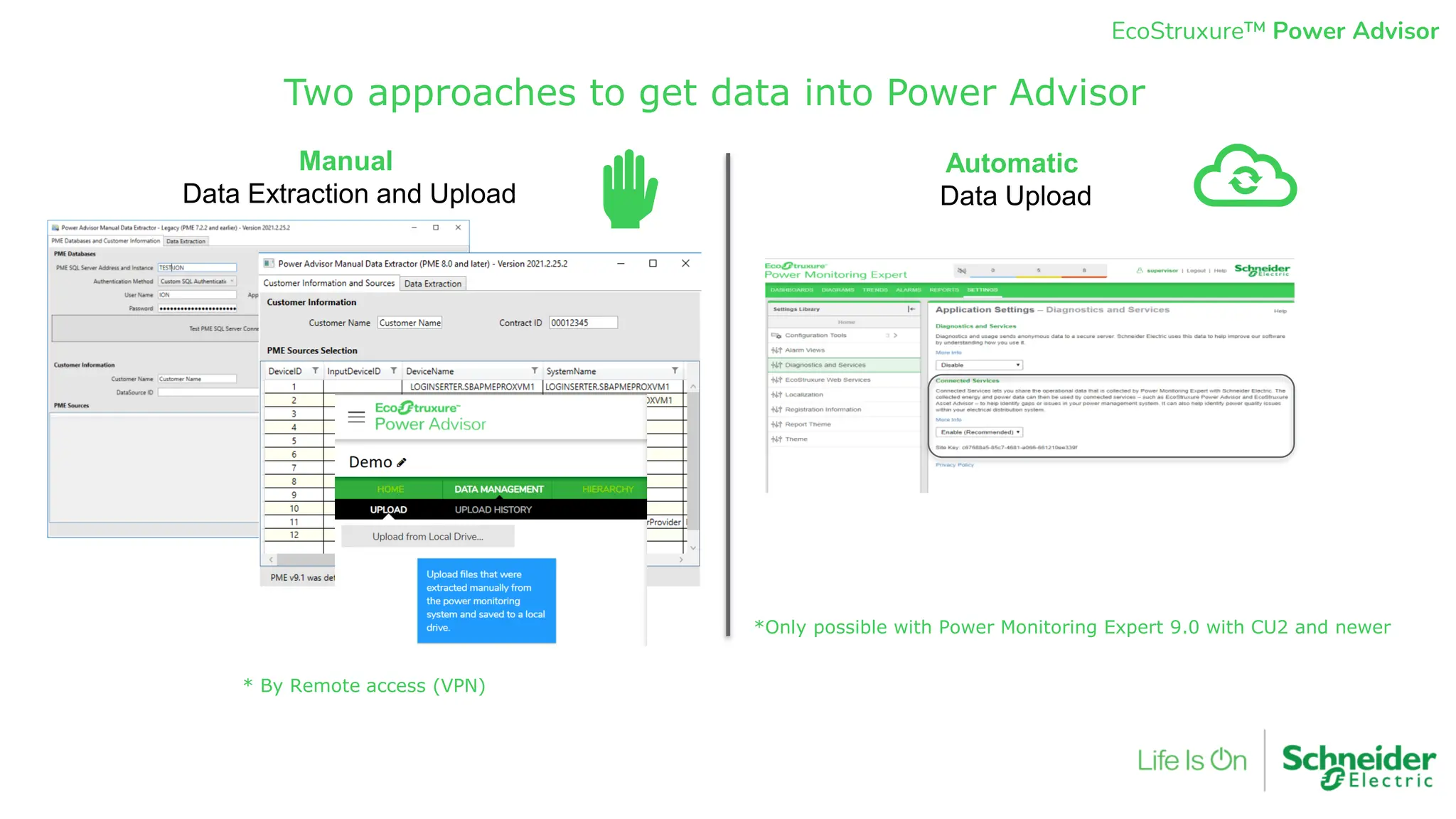

Automatic: PME 9.0 CU2 and
newer
Remote: prior to scheduled visit,
connect to customer PME/EPO/
Energy Expert for remote extraction
Can be silent background task.
On-site: FSR runs extraction and
connects to cloud as 1st task of on-
site maintenance activity
Data Extraction

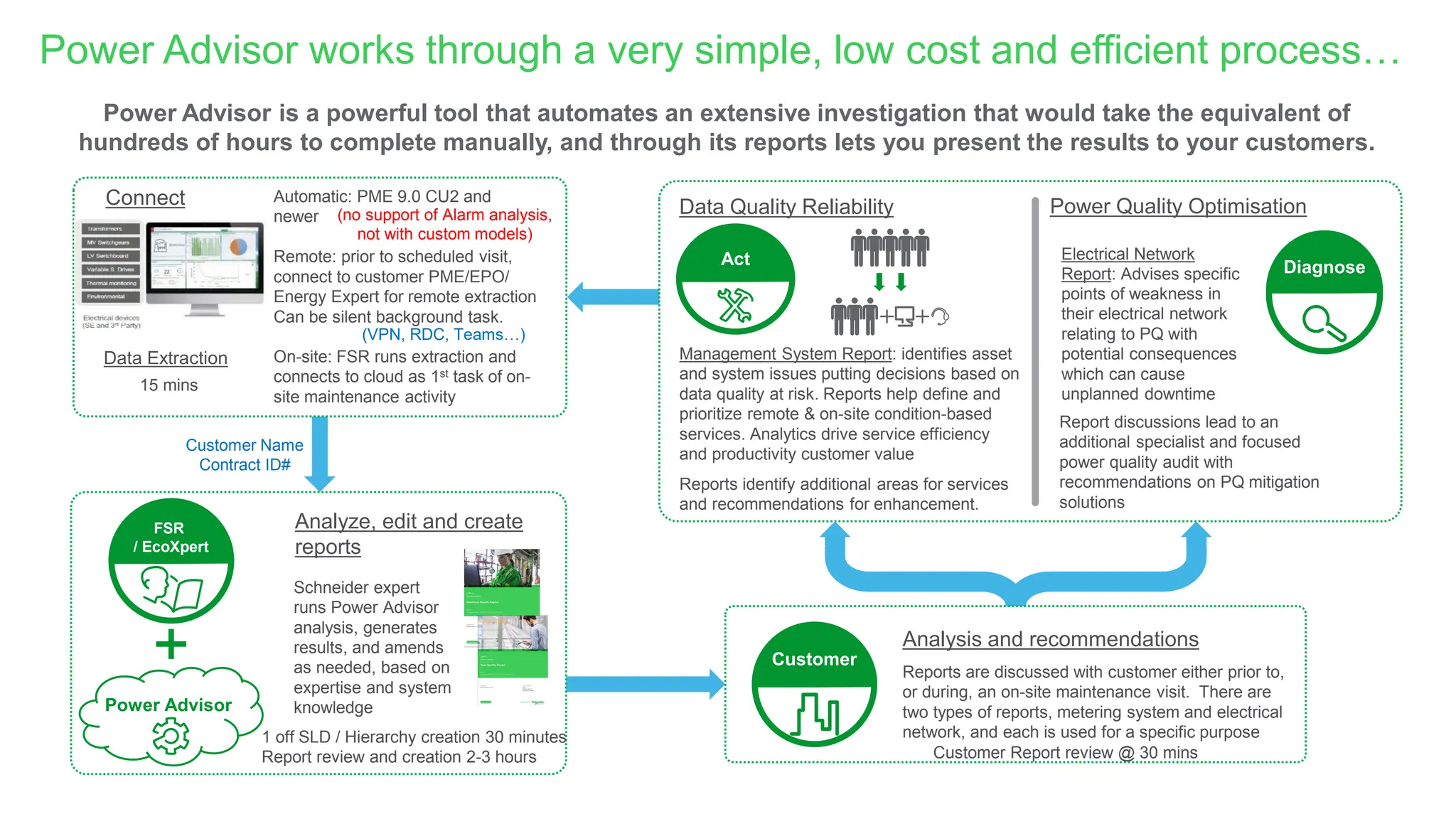

Act
Schneider expert
runs Power Advisor
analysis, generates
results, and amends
as needed, based on
expertise and system
knowledge
Power Advisor is a powerful tool that automates an extensive investigation that would take the equivalent of
hundreds of hours to complete manually, and through its reports lets you present the results to your customers.
Diagnose
Management System Report: identifies asset
and system issues putting decisions based on
data quality at risk. Reports help define and
prioritize remote & on-site condition-based
services. Analytics drive service efficiency
and productivity customer value
Reports identify additional areas for services
and recommendations for enhancement.
Report discussions lead to an
additional specialist and focused
power quality audit with
recommendations on PQ mitigation
solutions
Electrical Network
Report: Advises specific
points of weakness in
their electrical network
relating to PQ with
potential consequences
which can cause
unplanned downtime
Analysis and recommendations
Reports are discussed with customer either prior to,
or during, an on-site maintenance visit. There are
two types of reports, metering system and electrical
network, and each is used for a specific purpose
Customer
FSR
/ EcoXpert
Power Advisor
Analyze, edit and create
reports
15 mins
1 off SLD / Hierarchy creation 30 minutes
Report review and creation 2-3 hours Customer Report review @ 30 mins
Power Quality Optimisation
Data Quality Reliability
Connect
Power Advisor works through a very simple, low cost and efficient process…
(no support of Alarm analysis,
not with custom models)
(VPN, RDC, Teams…)
Customer Name
Contract ID#

Two approaches to get data into Power Advisor
Manual
Data Extraction and Upload
Automatic
Data Upload
*Only possible with Power Monitoring Expert 9.0 with CU2 and newer

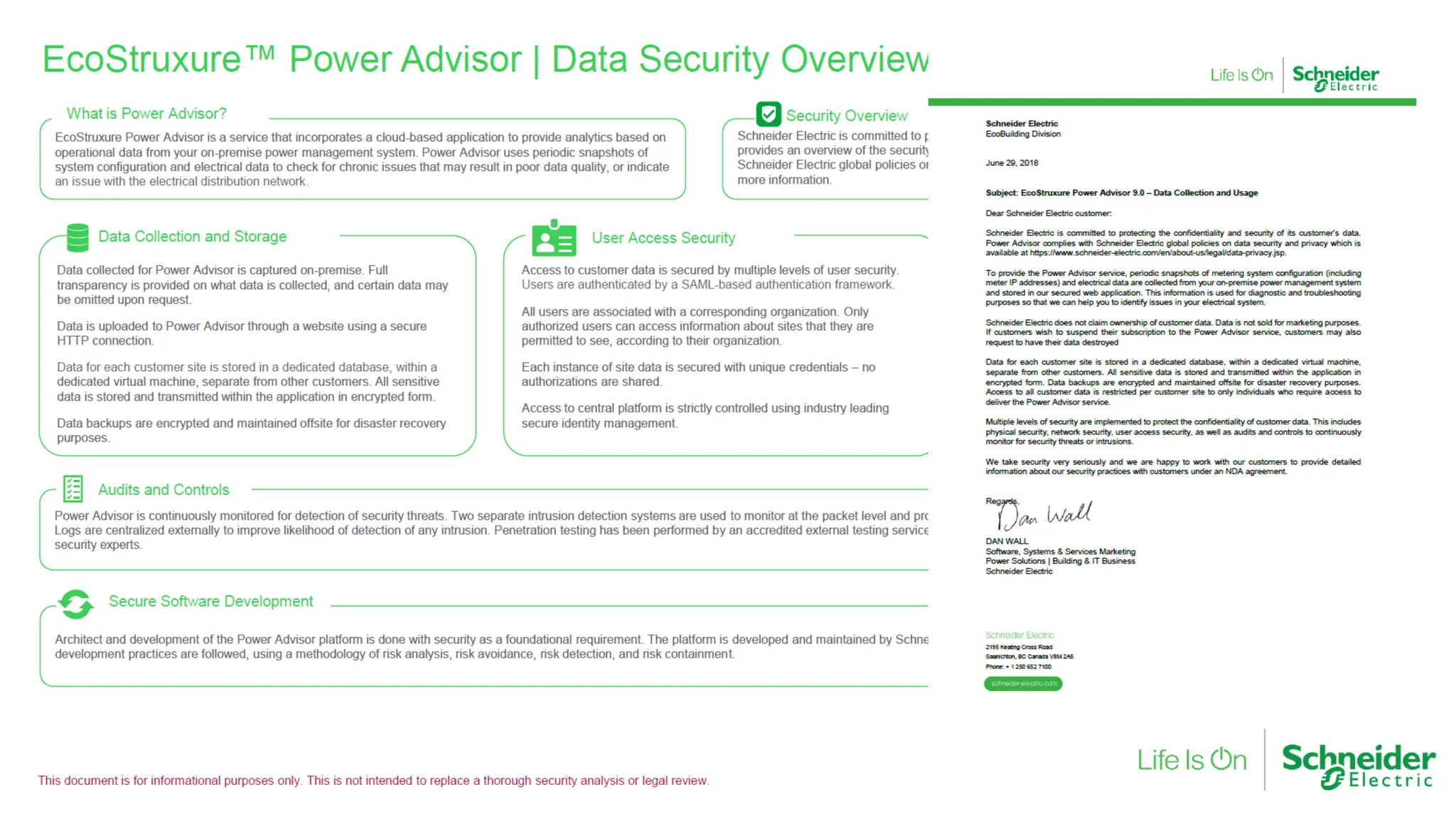

EcoStruxure™ Power Advisor
* By Remote access (VPN)

Edge Control Version
Compatibility
PME Cloud
Connector
PA Manual Data
Extractor
PA Data Quality &
Electrical Health
PA Alarm Health PA System Health
ION-E 6 ● ●
SPM 7.x ● ●
PME 8.x ● ● ● 8.2
PME 9.x PME2020 / 2021 ● (PME 9 CU2>) ● ● ● ●
PSE / PSO / PO + AR ● ● ● ● ● (does not require
Advanced Reports
module)
PSO 2020 Not supported ● R2 ● R2 ● ●
PO 2021 Not supported ● ● ● ●

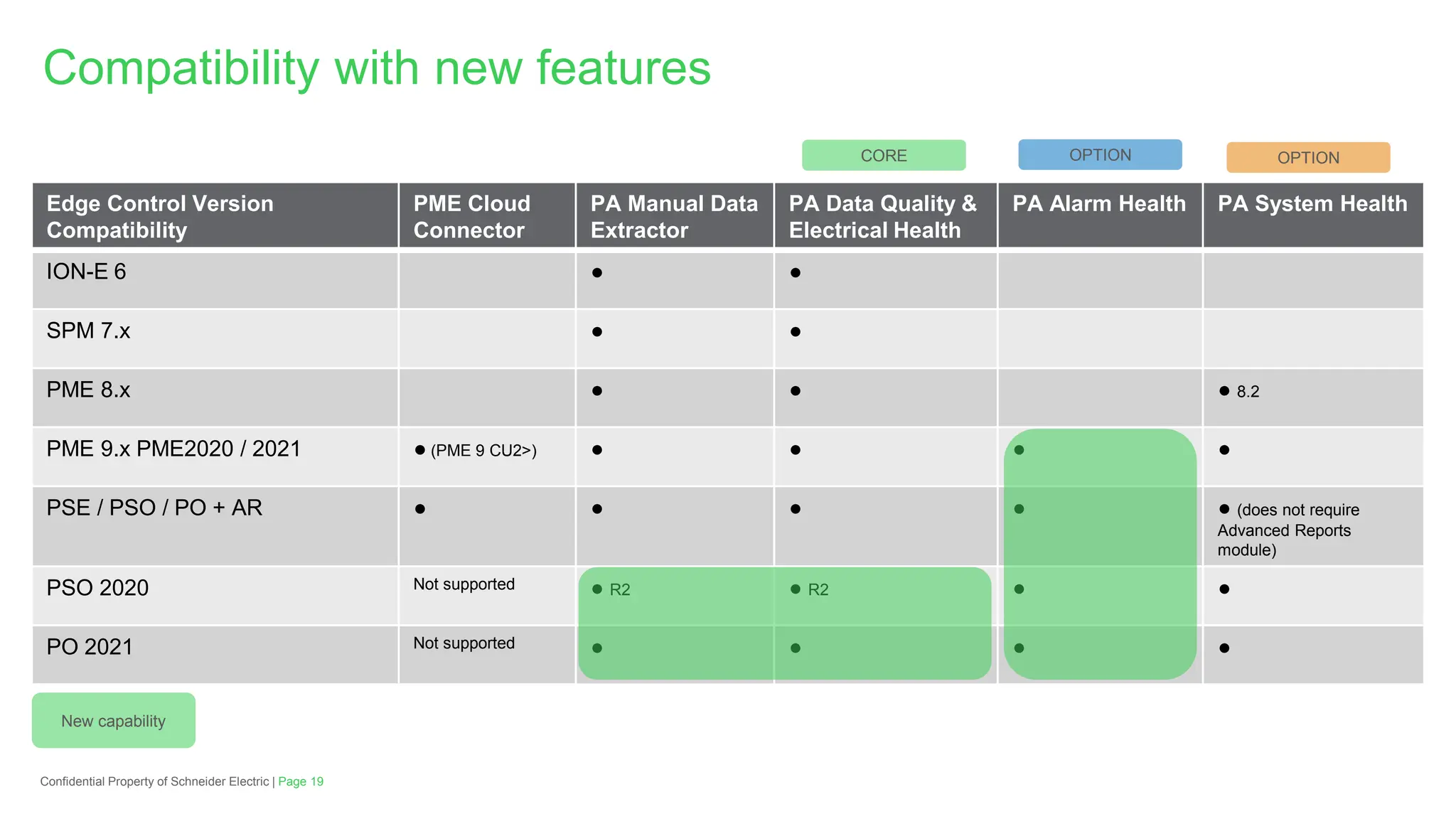

Compatibility with new features
New capability
OPTION
OPTION
CORE

Power Advisor - Data Quality – Electrical Health
Page 21

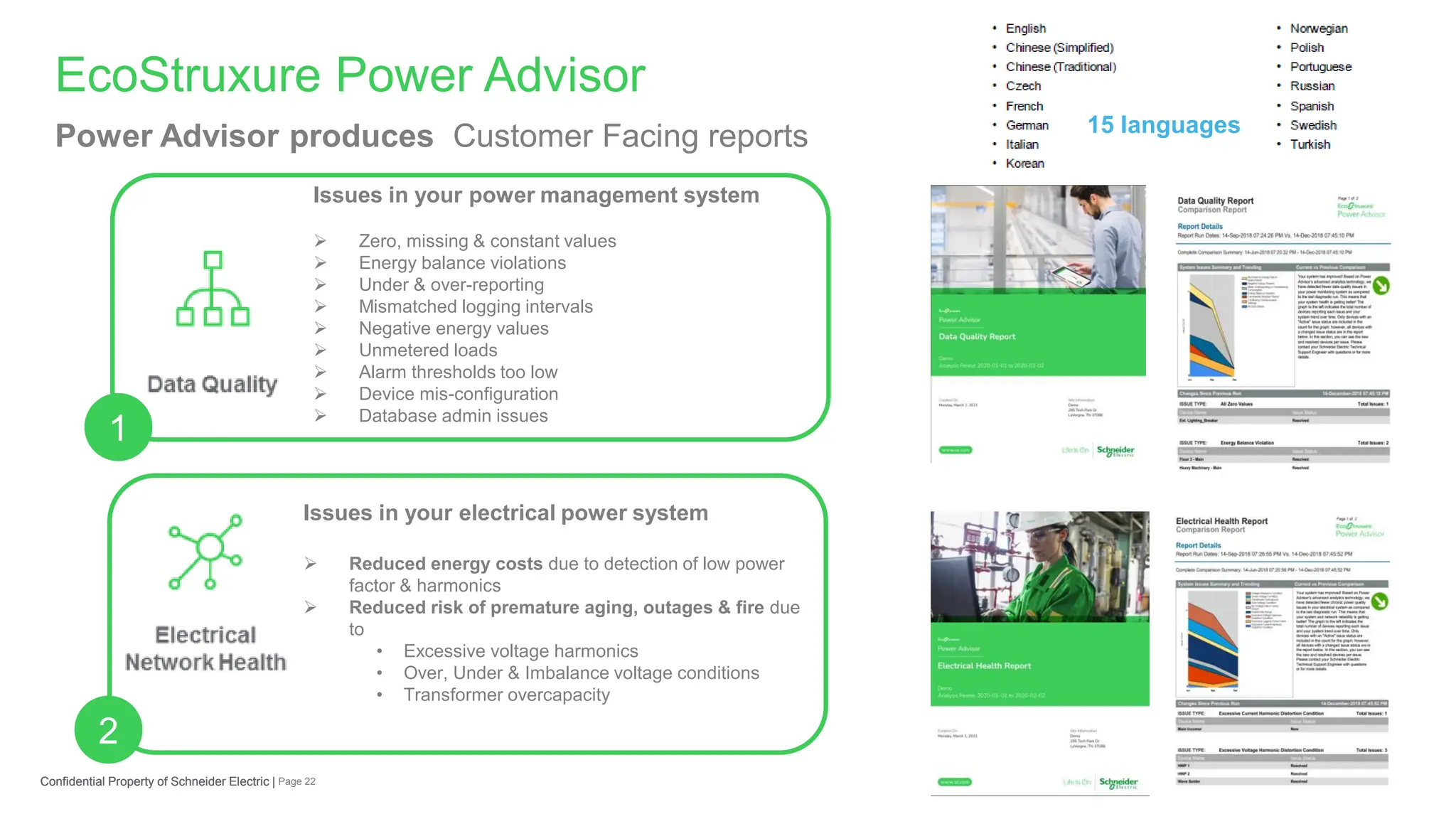

Power Advisor produces Customer Facing reports
Issues in your power management system
➢ Zero, missing & constant values
➢ Energy balance violations
➢ Under & over-reporting
➢ Mismatched logging intervals
➢ Negative energy values
➢ Unmetered loads
➢ Alarm thresholds too low
➢ Device mis-configuration
➢ Database admin issues
Issues in your electrical power system
➢ Reduced energy costs due to detection of low power
factor & harmonics
➢ Reduced risk of premature aging, outages & fire due
to
• Excessive voltage harmonics
• Over, Under & Imbalance voltage conditions
• Transformer overcapacity
2
1
15 languages

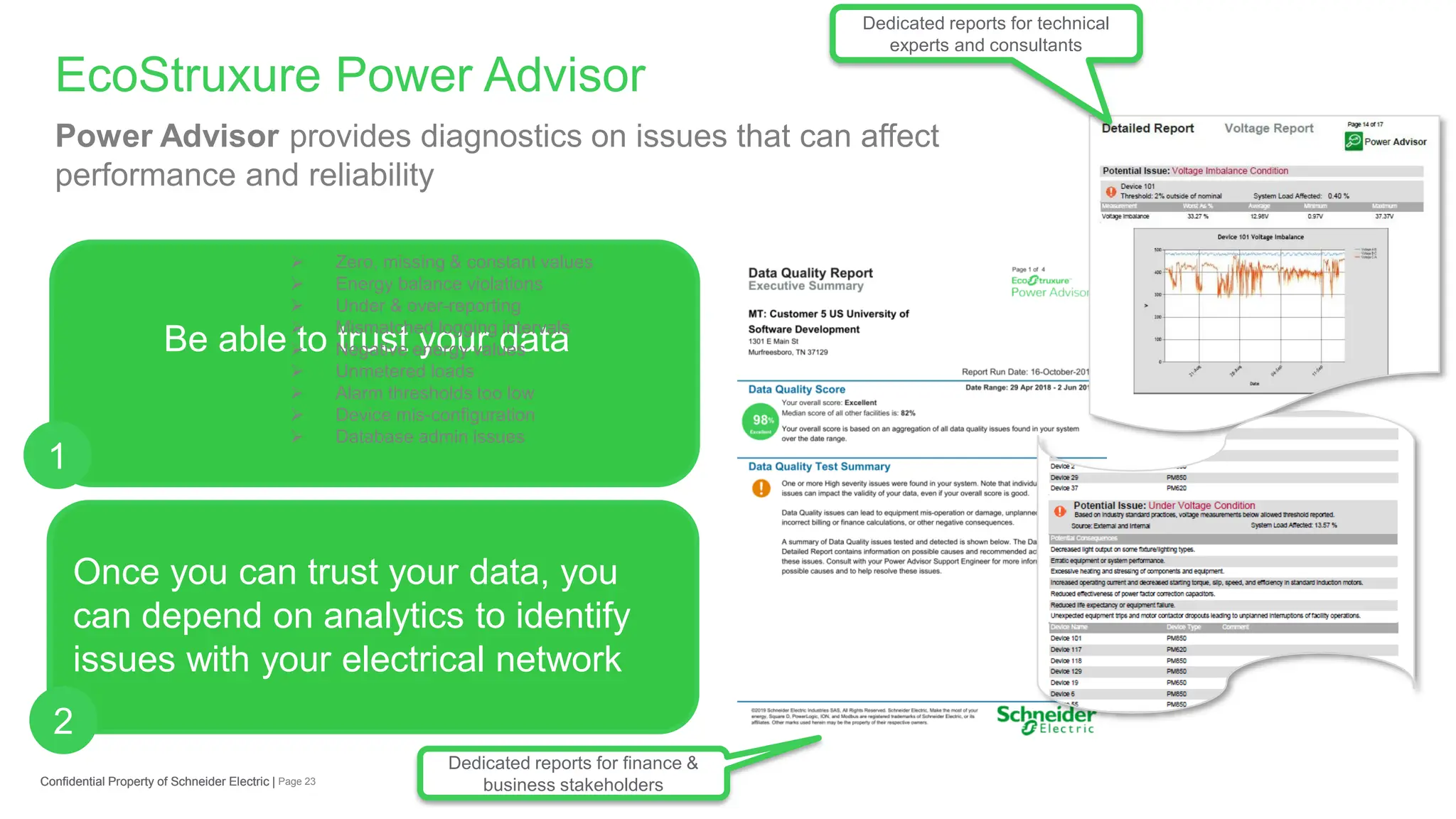

Power Advisor provides diagnostics on issues that can affect
performance and reliability
➢ Reduced energy costs due to detection of low
power factor & harmonics
➢ Reduced risk of premature aging, outages &
fire due to
• Excessive voltage harmonics
• Over, Under & Imbalance voltage
conditions
• Transformer overcapacity
Once you can trust your data, you
can depend on analytics to identify
issues with your electrical network
Be able to trust your data
2
1
Dedicated reports for finance &
business stakeholders
Dedicated reports for technical
experts and consultants
➢ Zero, missing & constant values
➢ Energy balance violations
➢ Under & over-reporting
➢ Mismatched logging intervals
➢ Negative energy values
➢ Unmetered loads
➢ Alarm thresholds too low
➢ Device mis-configuration
➢ Database admin issues

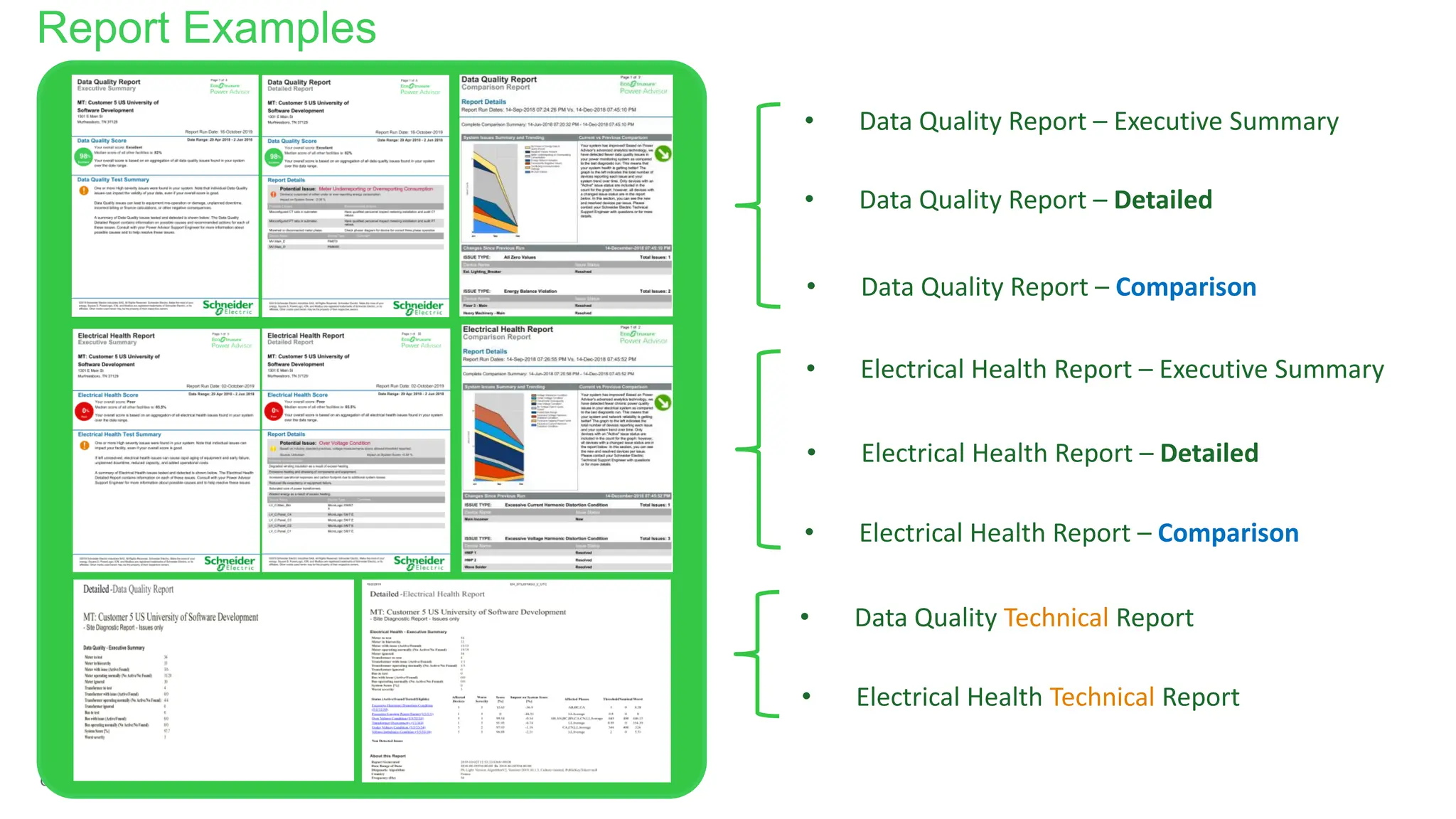

Report Examples
• Data Quality Report – Executive Summary
• Data Quality Report – Detailed
• Data Quality Report – Comparison
• Electrical Health Report – Executive Summary
• Electrical Health Report – Comparison
• Electrical Health Report – Detailed
• Data Quality Technical Report
• Electrical Health Technical Report

Power Advisor Alarm Health – Q2 2021
Page 25

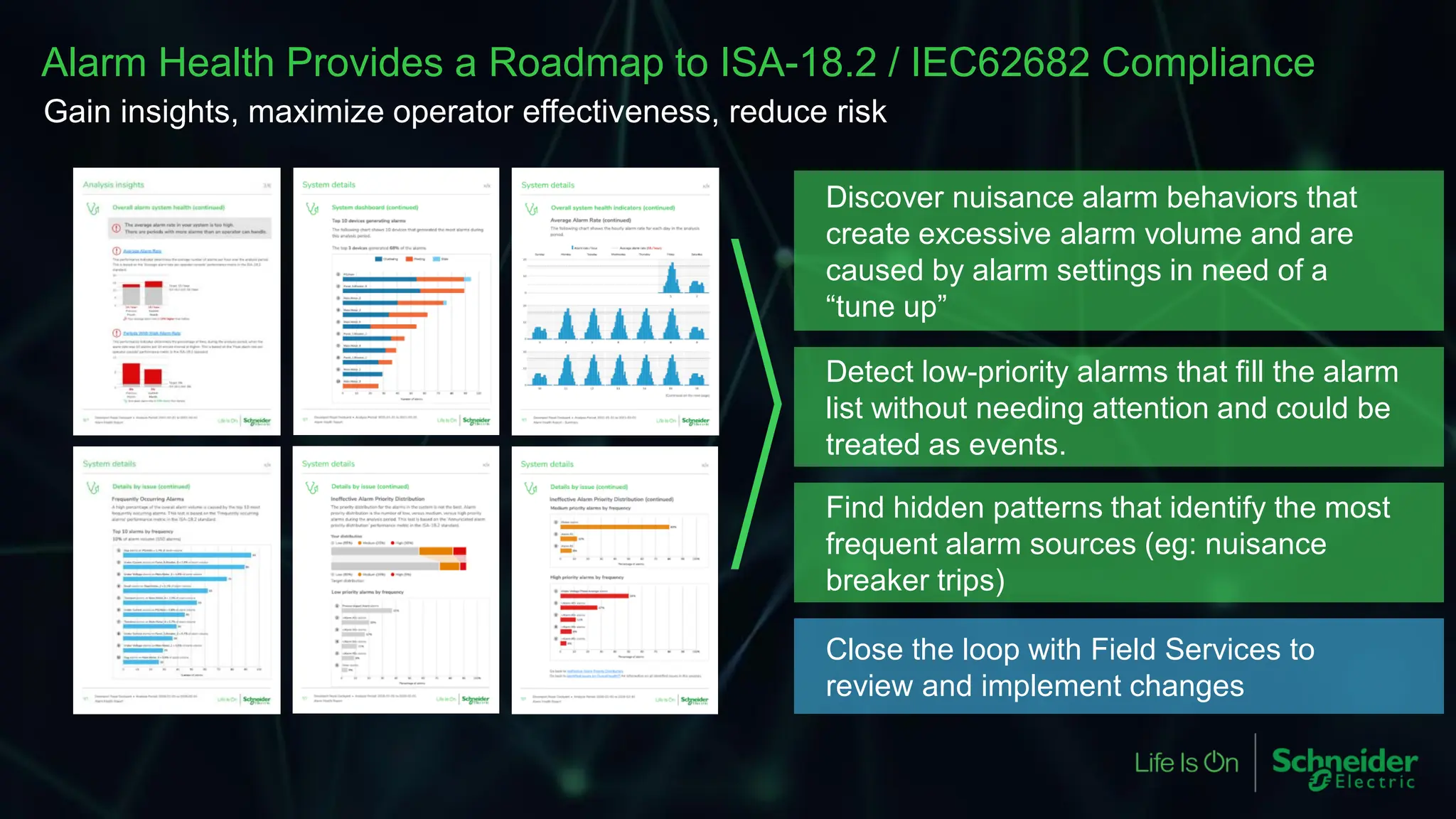

Alarm Health Provides a Roadmap to ISA-18.2 / IEC62682 Compliance
Gain insights, maximize operator effectiveness, reduce risk
Find hidden patterns that identify the most
frequent alarm sources (eg: nuisance
breaker trips)
Detect low-priority alarms that fill the alarm
list without needing attention and could be
treated as events.
Discover nuisance alarm behaviors that
create excessive alarm volume and are
caused by alarm settings in need of a
“tune up”
Close the loop with Field Services to
review and implement changes

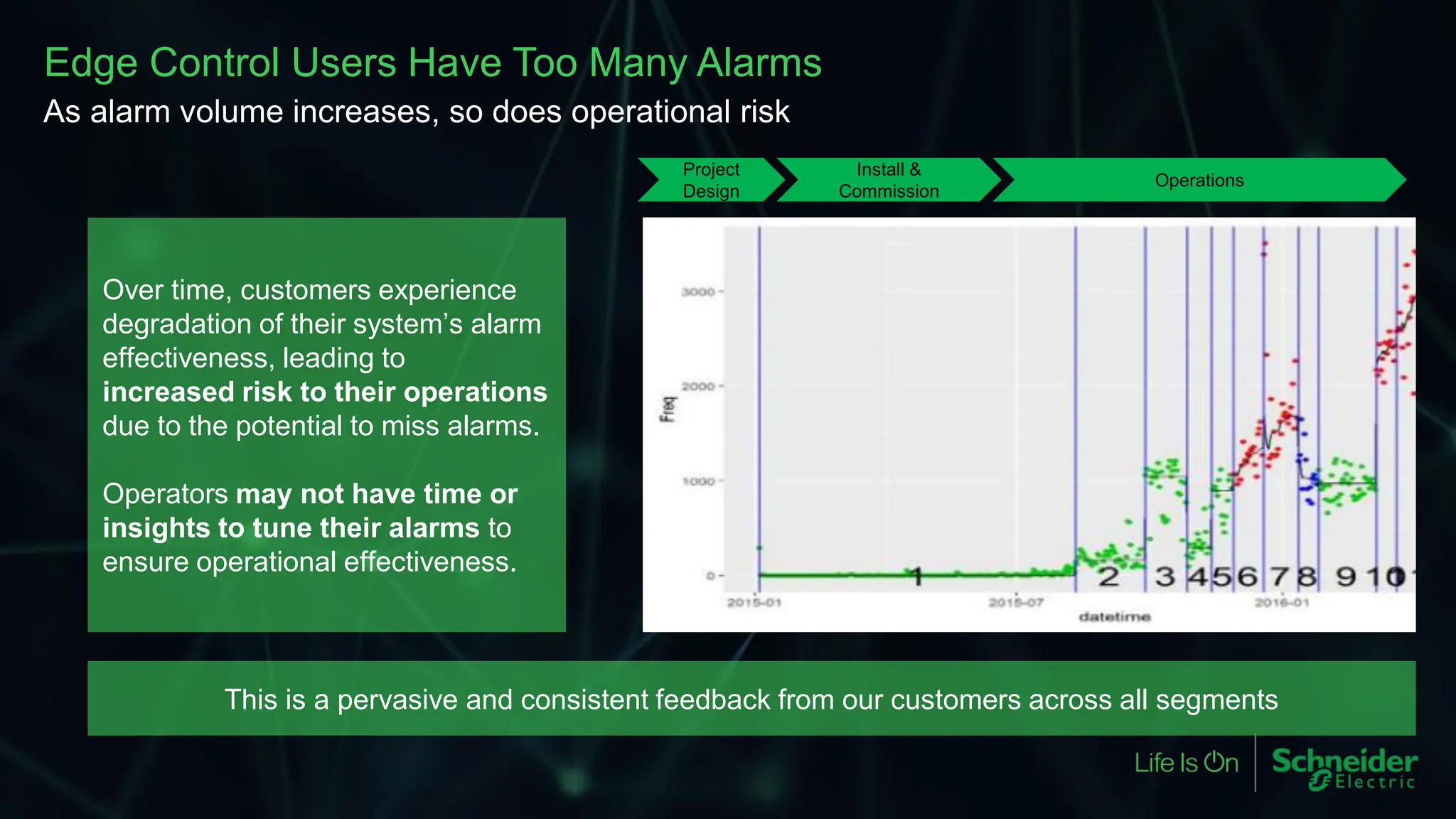

Edge Control Users Have Too Many Alarms
As alarm volume increases, so does operational risk
Project
Design
Install &
Commission
Operations
Over time, customers experience
degradation of their system’s alarm
effectiveness, leading to
increased risk to their operations
due to the potential to miss alarms.
Operators may not have time or
insights to tune their alarms to
ensure operational effectiveness.
This is a pervasive and consistent feedback from our customers across all segments

PA Alarm Health will analyze
PME and PSO / PO alarm
history to pinpoint the top alarms
that generate nuisances and
floods

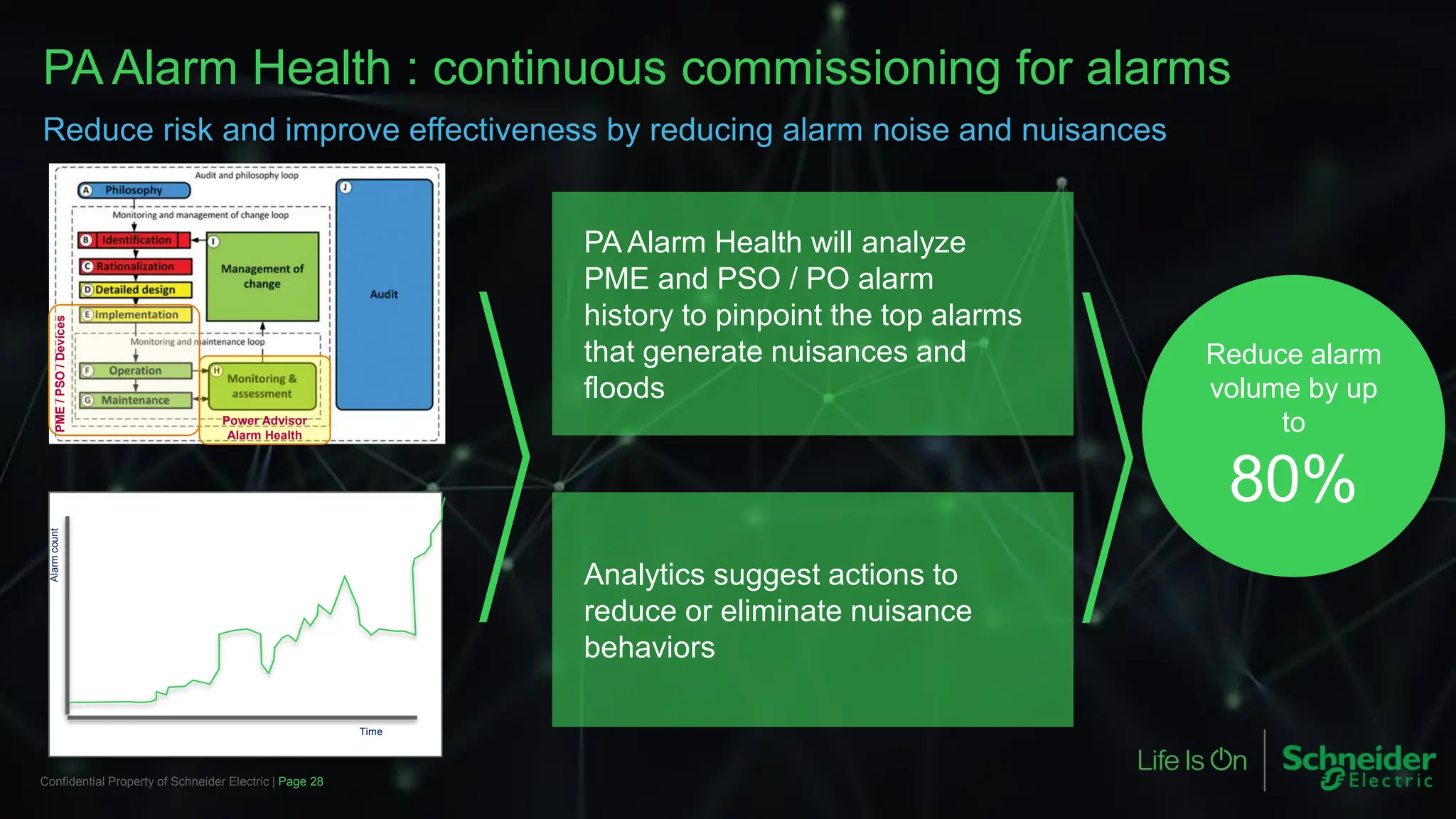

PA Alarm Health : continuous commissioning for alarms
Reduce risk and improve effectiveness by reducing alarm noise and nuisances
Analytics suggest actions to
reduce or eliminate nuisance
behaviors
Power Advisor
Alarm Health
Alarm
count
Time
PME
/
PSO
/
Devices
Reduce alarm
volume by up
to
80%

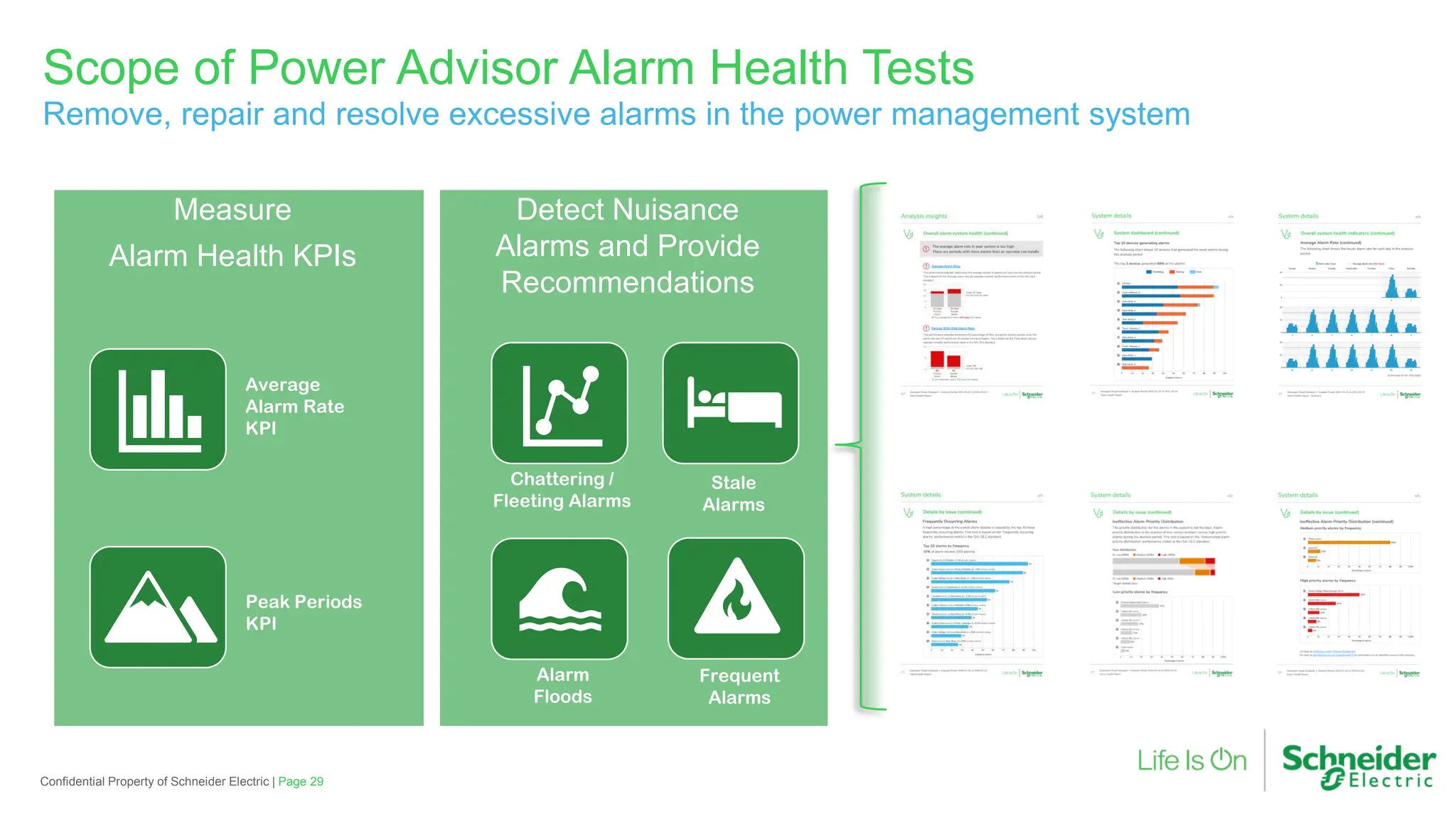

Scope of Power Advisor Alarm Health Tests
Remove, repair and resolve excessive alarms in the power management system
Measure
Alarm Health KPIs
Detect Nuisance
Alarms and Provide
Recommendations
Average
Alarm Rate
KPI
Stale
Alarms
Alarm
Floods
Frequent
Alarms
Peak Periods
KPI
Chattering /
Fleeting Alarms

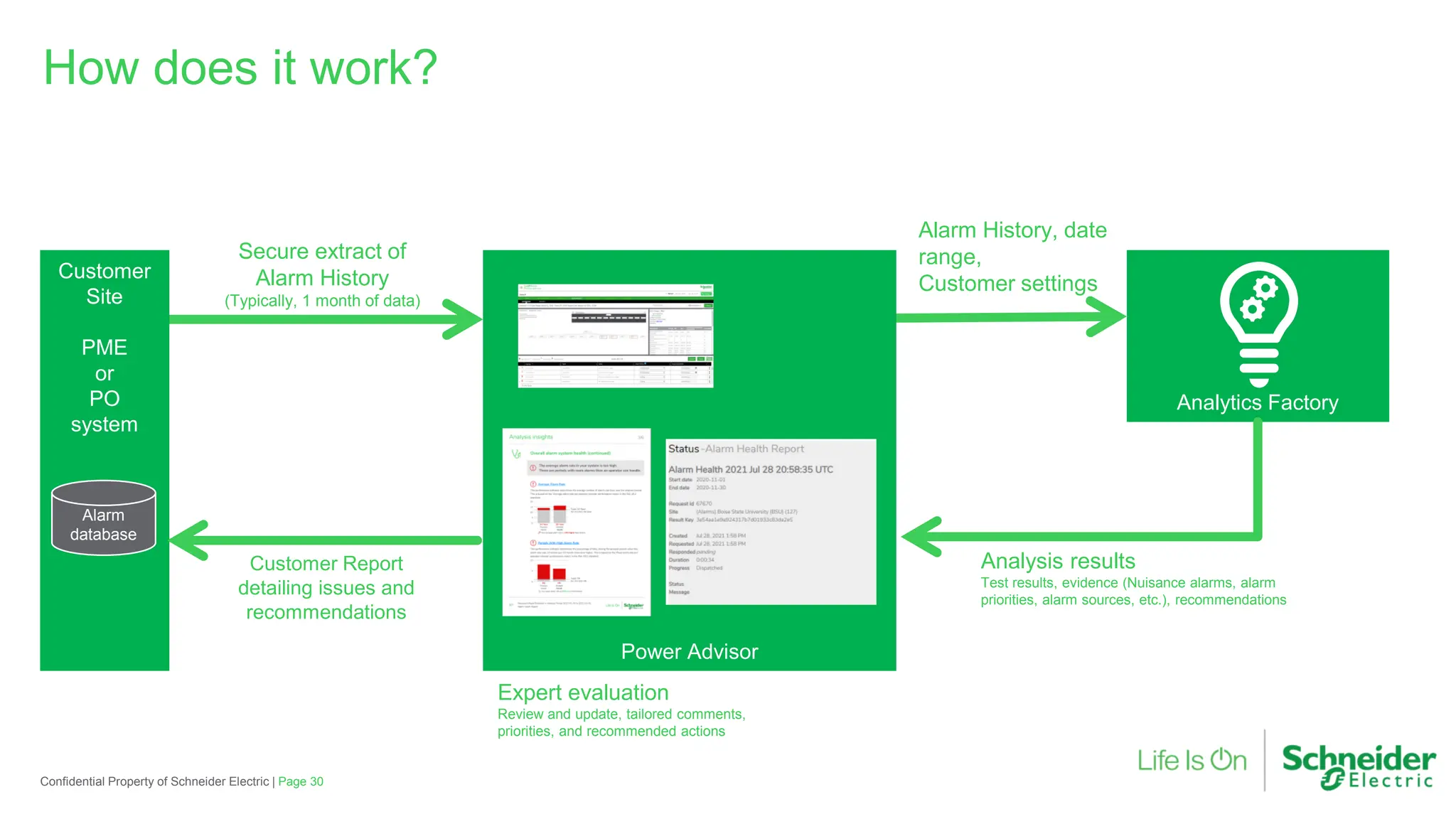

How does it work?
Analytics Factory
Secure extract of
Alarm History
(Typically, 1 month of data)
Power Advisor
Customer
Site
PME
or
PO
system
Alarm History, date
range,
Customer settings
Analysis results
Test results, evidence (Nuisance alarms, alarm
priorities, alarm sources, etc.), recommendations
Customer Report
detailing issues and
recommendations
Alarm
database
Expert evaluation
Review and update, tailored comments,
priorities, and recommended actions

Power Advisor System Health
Page 31

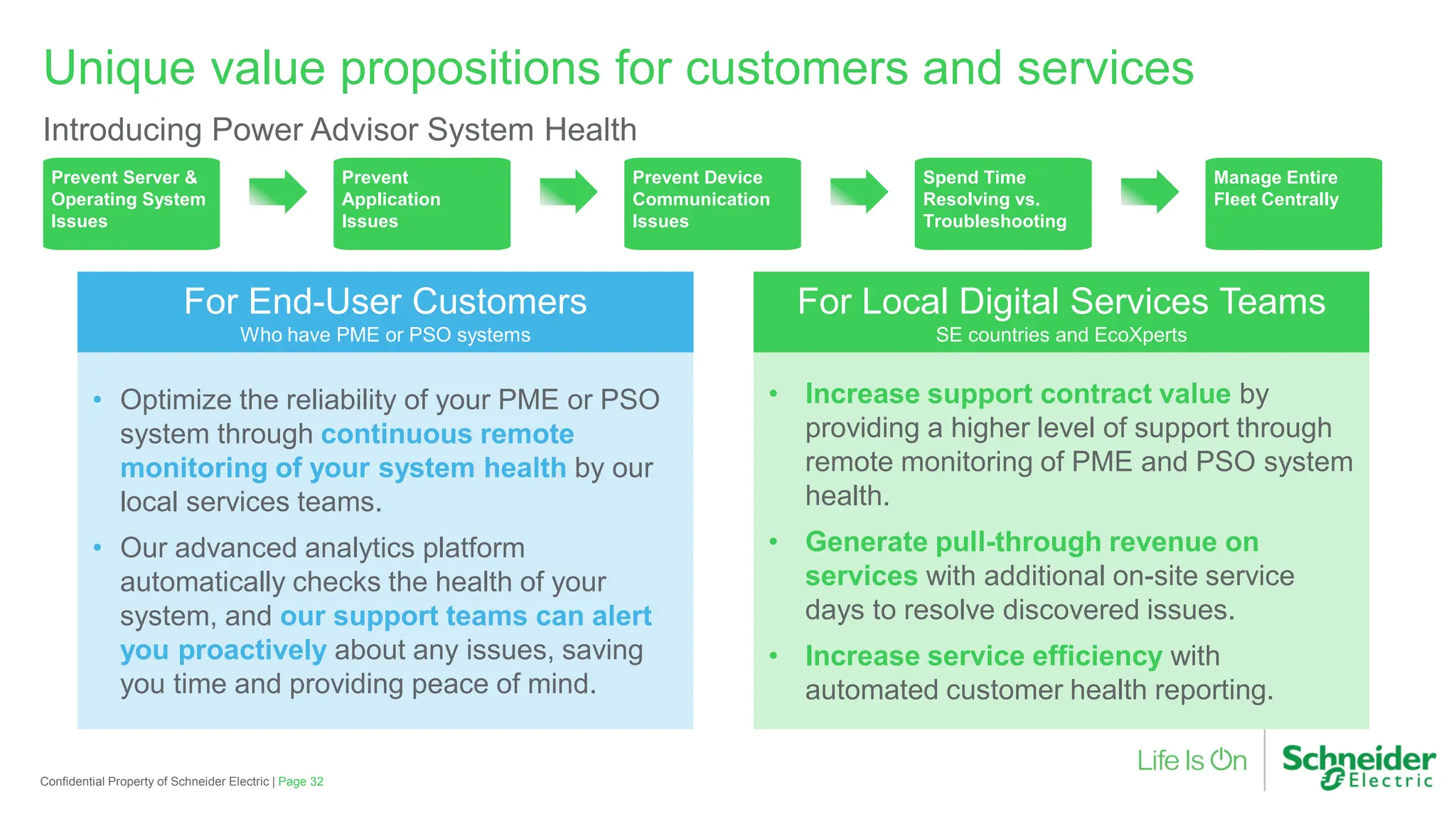

Unique value propositions for customers and services
Introducing Power Advisor System Health
• Optimize the reliability of your PME or PSO
system through continuous remote
monitoring of your system health by our
local services teams.
• Our advanced analytics platform
automatically checks the health of your
system, and our support teams can alert
you proactively about any issues, saving
you time and providing peace of mind.
• Increase support contract value by
providing a higher level of support through
remote monitoring of PME and PSO system
health.
• Generate pull-through revenue on
services with additional on-site service
days to resolve discovered issues.
• Increase service efficiency with
automated customer health reporting.
For End-User Customers
Who have PME or PSO systems
For Local Digital Services Teams
SE countries and EcoXperts
Prevent Server &
Operating System
Issues
Prevent
Application
Issues
Prevent Device
Communication
Issues
Spend Time
Resolving vs.
Troubleshooting
Manage Entire
Fleet Centrally

Local PTSOL Digital Services Delivery Team
(Direct or EcoXpert)
Page 33

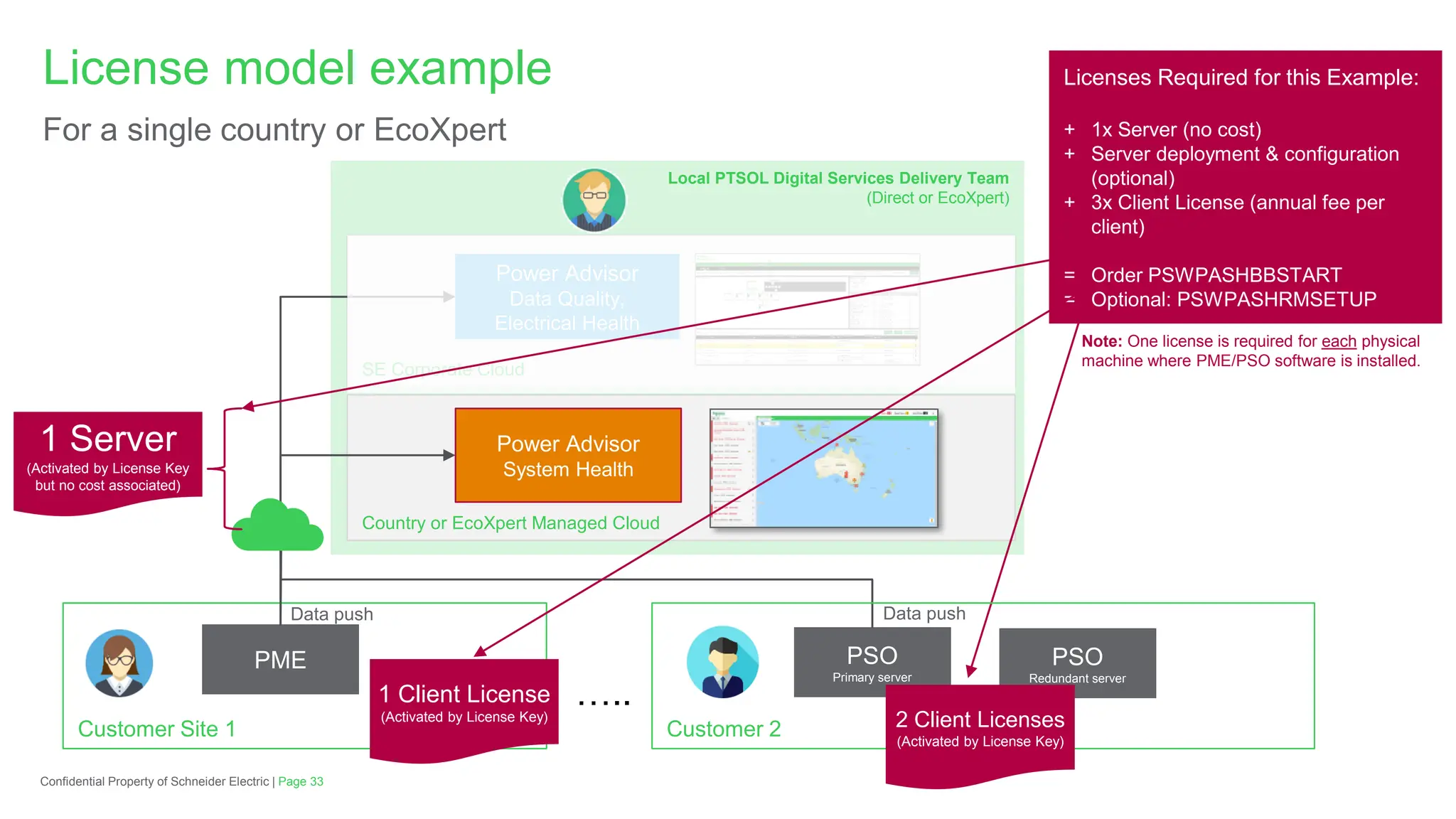

License model example
For a single country or EcoXpert
Customer Site 1
PME
Country or EcoXpert Managed Cloud
SE Corporate Cloud
Power Advisor
System Health
Data push
PSO
Primary server
…..
Data push
Power Advisor
Data Quality,
Electrical Health
1 Server
(Activated by License Key
but no cost associated)
1 Client License
(Activated by License Key)
Licenses Required for this Example:
+ 1x Server (no cost)
+ Server deployment & configuration
(optional)
+ 3x Client License (annual fee per
client)
= Order PSWPASHBBSTART
= Optional: PSWPASHRMSETUP
PSO
Redundant server
Note: One license is required for each physical
machine where PME/PSO software is installed.
Customer 2 2 Client Licenses
(Activated by License Key)

Dashboard
At-a-glance customer site statuses
Diagnostic Alerts
Identifies system health issues
Detailed Reports
Troubleshoots system configuration
Page 34

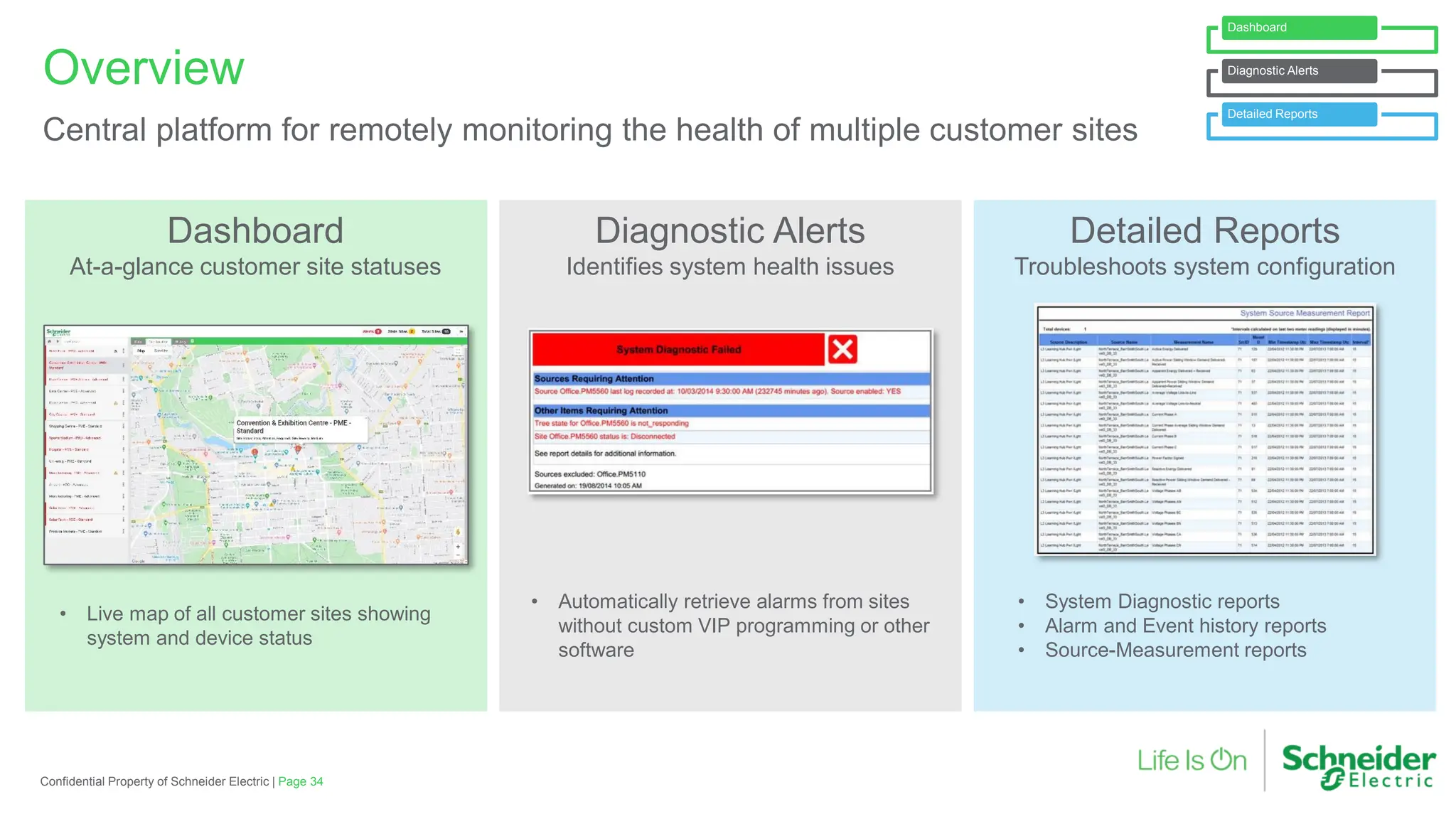

Overview
Central platform for remotely monitoring the health of multiple customer sites
• System Diagnostic reports
• Alarm and Event history reports
• Source-Measurement reports
• Live map of all customer sites showing
system and device status
• Automatically retrieve alarms from sites
without custom VIP programming or other
software
Dashboard
Diagnostic Alerts
Detailed Reports

Server / Operating System Issues
PME / PSO System Issues
Page 35

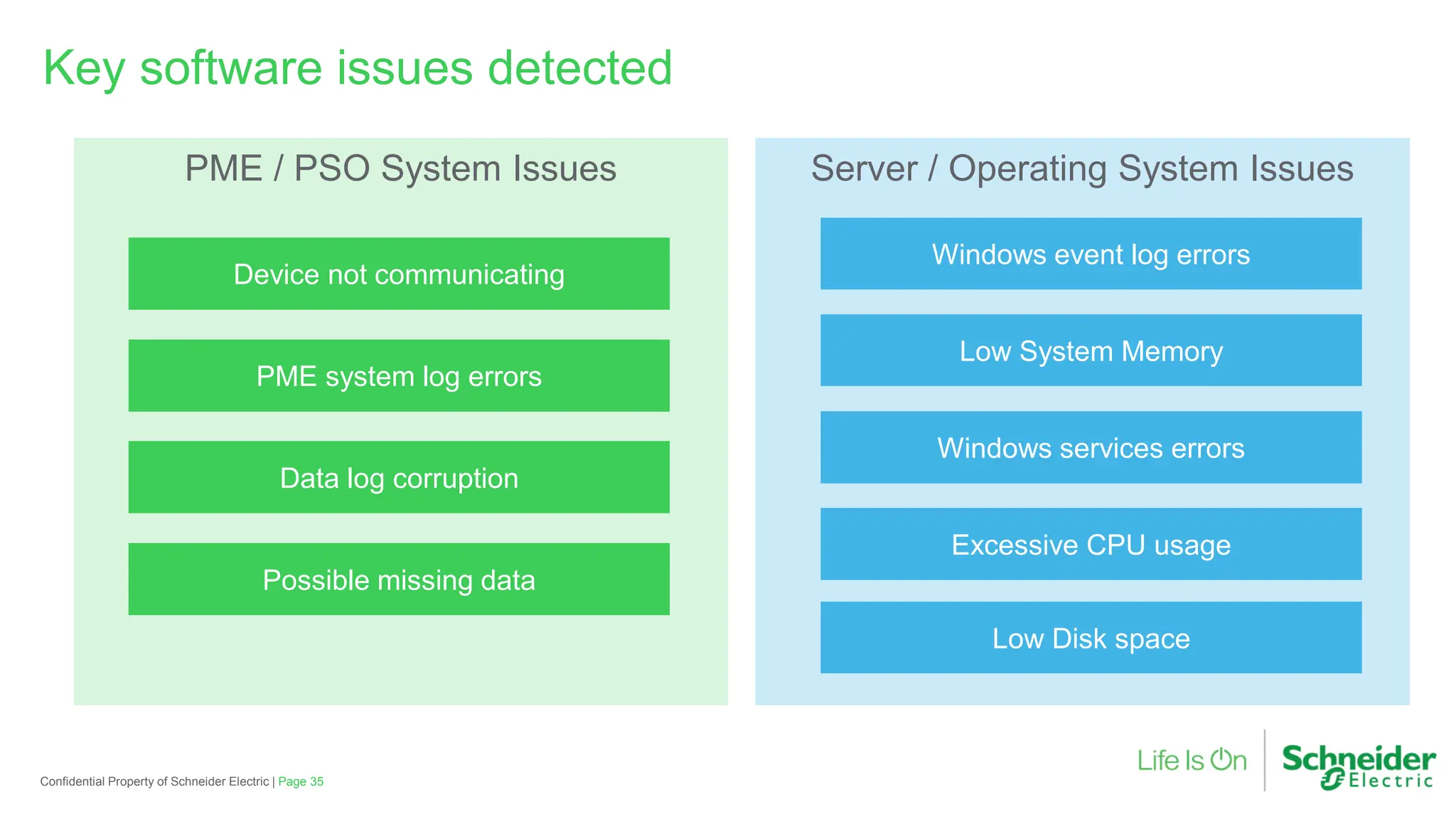

Key software issues detected
Low Disk space
Device not communicating
Data log corruption
Windows services errors
Low System Memory
Windows event log errors
Possible missing data
PME system log errors
Excessive CPU usage

Power Advisor – EcoStruxure Services Plan
Page 36

No digital service plan Ultra
Prime
Page 37

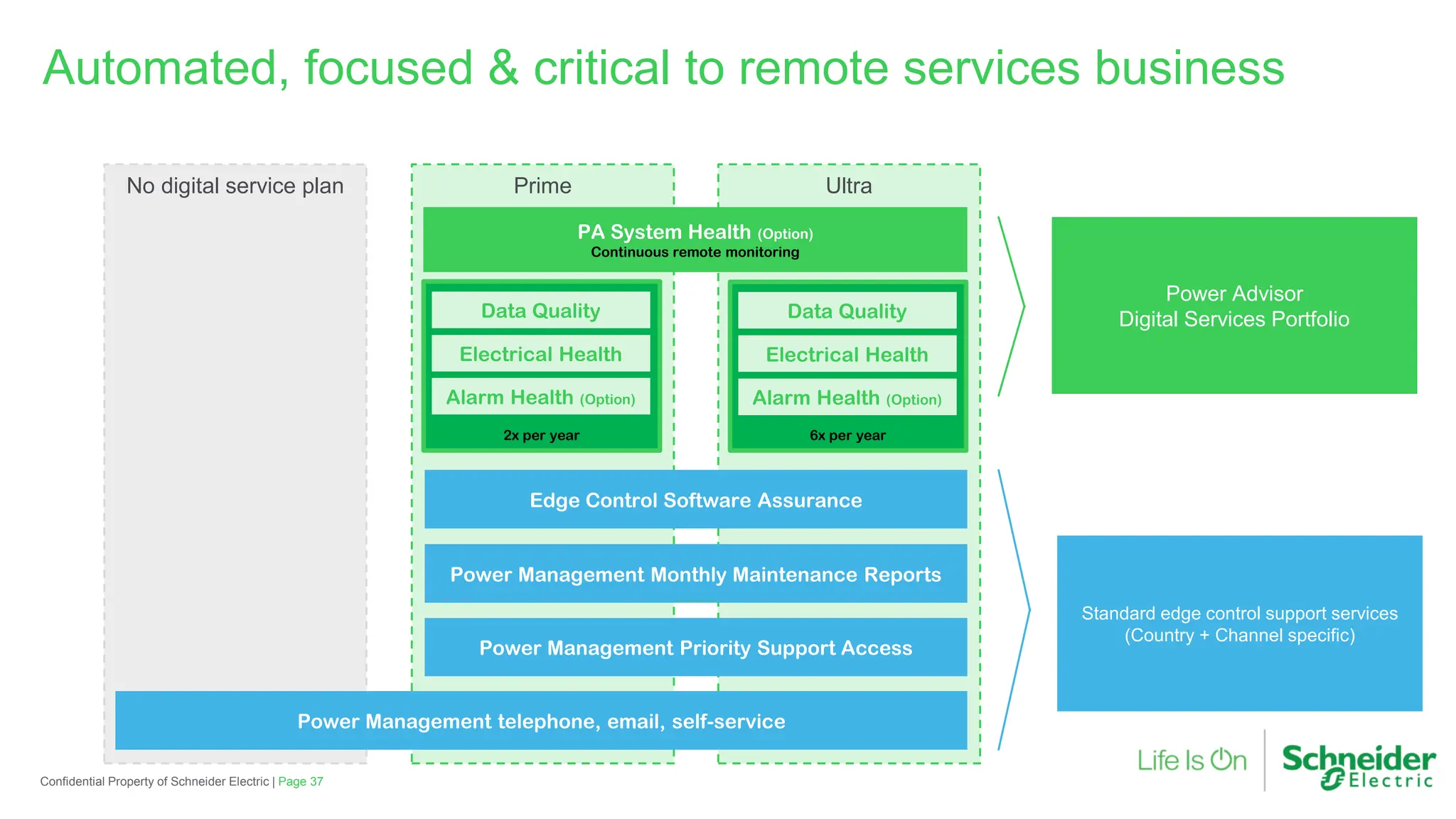

Automated, focused & critical to remote services business
Power Management telephone, email, self-service
Power Management Monthly Maintenance Reports
Edge Control Software Assurance
PA System Health (Option)
Continuous remote monitoring
Power Advisor
Digital Services Portfolio
Power Management Priority Support Access
Standard edge control support services
(Country + Channel specific)
2x per year
Electrical Health
Data Quality
6x per year
Electrical Health
Data Quality
Alarm Health (Option) Alarm Health (Option)

DQ
0.5X €
EH
0.5X €
AH
0.5X €
“core” PA
- Priced by devices (credits)
- DQ & EH weighted the same

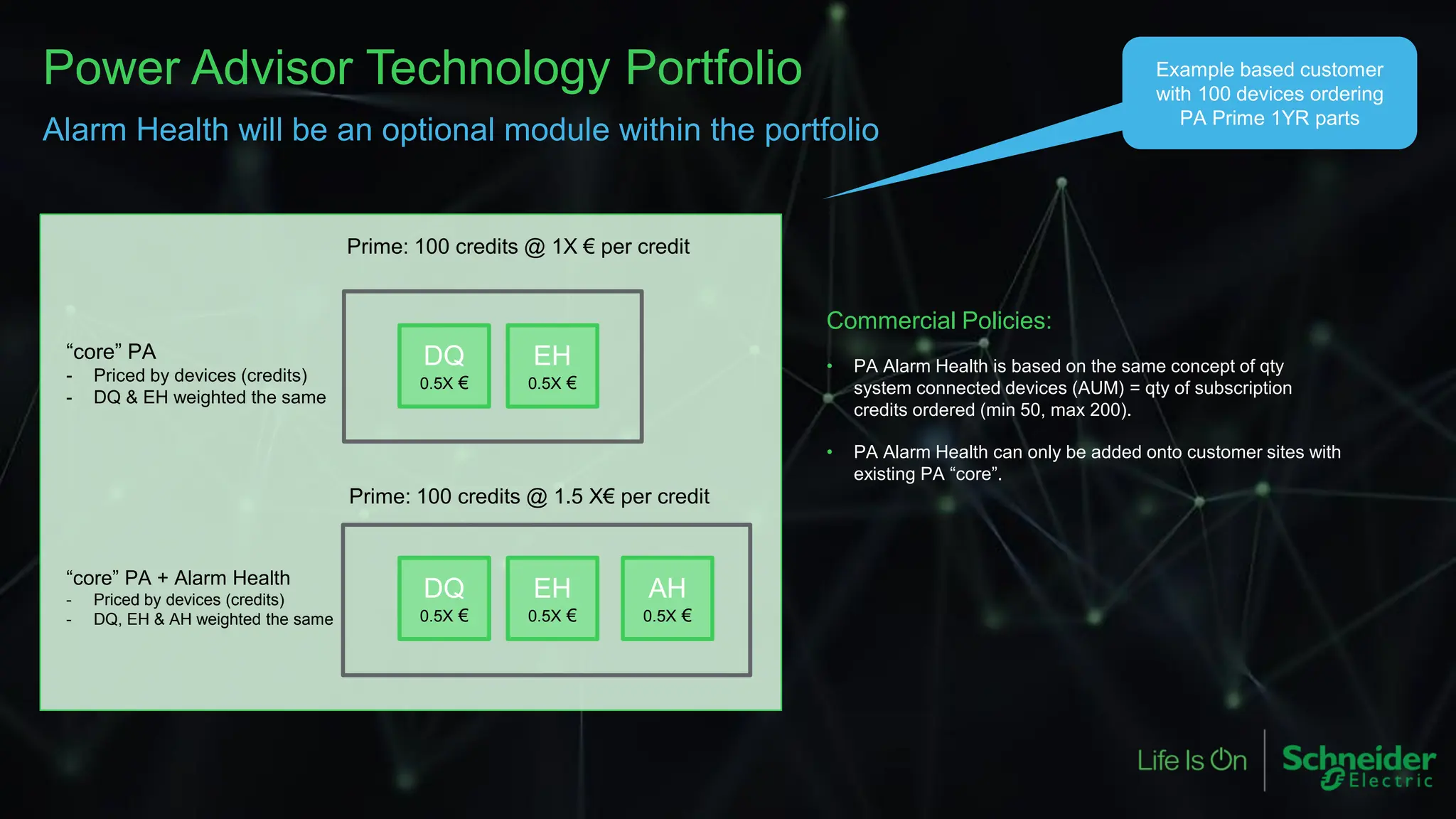

Prime: 100 credits @ 1X € per credit
Prime: 100 credits @ 1.5 X€ per credit
Power Advisor Technology Portfolio
Alarm Health will be an optional module within the portfolio
DQ
0.5X €
EH
0.5X €
“core” PA + Alarm Health
- Priced by devices (credits)
- DQ, EH & AH weighted the same
Commercial Policies:
• PA Alarm Health is based on the same concept of qty
system connected devices (AUM) = qty of subscription
credits ordered (min 50, max 200).
• PA Alarm Health can only be added onto customer sites with
existing PA “core”.
Example based customer
with 100 devices ordering
PA Prime 1YR parts

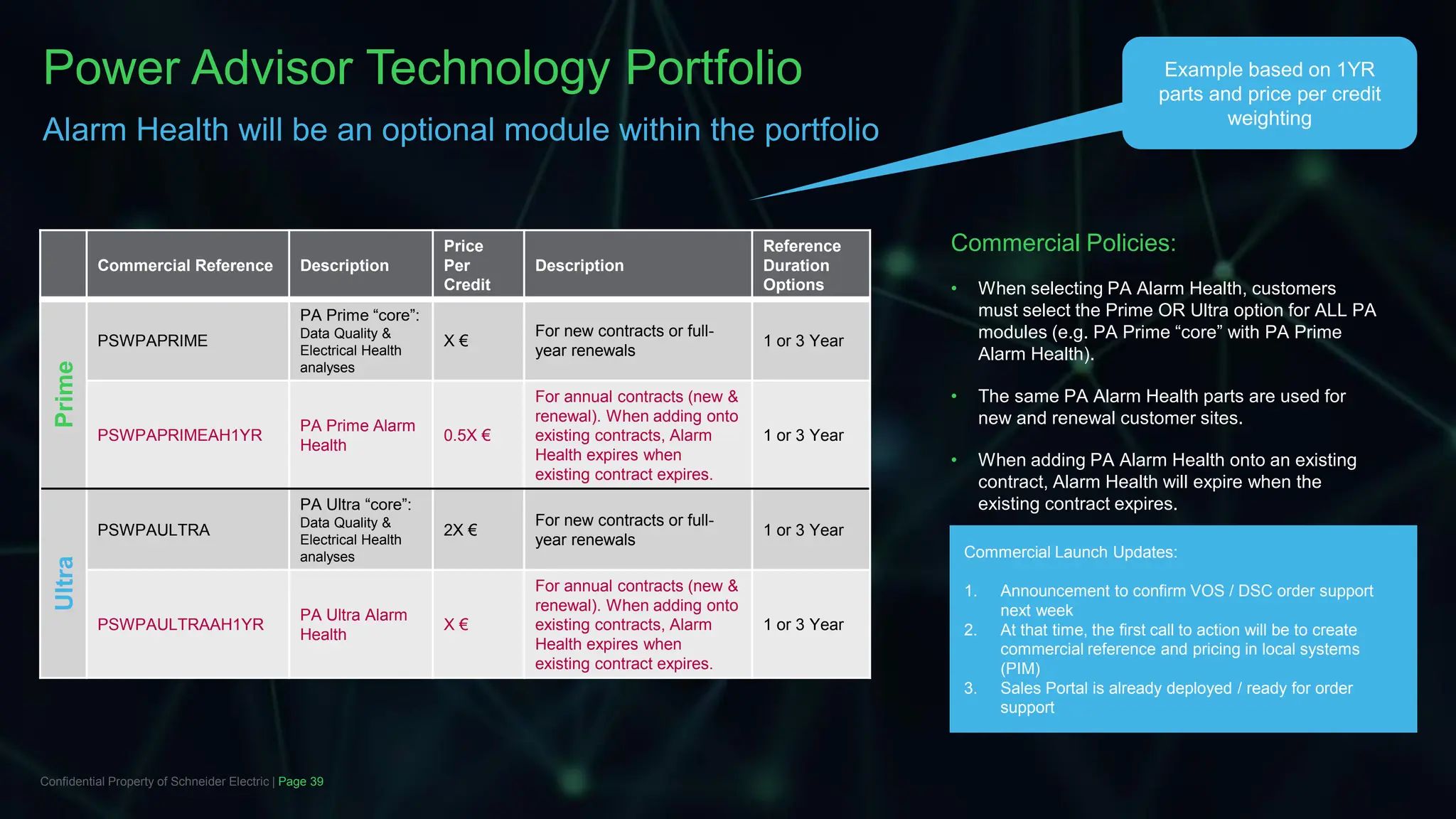

Commercial Policies:
• When selecting PA Alarm Health, customers
must select the Prime OR Ultra option for ALL PA
modules (e.g. PA Prime “core” with PA Prime
Alarm Health).
• The same PA Alarm Health parts are used for
new and renewal customer sites.
• When adding PA Alarm Health onto an existing
contract, Alarm Health will expire when the
existing contract expires.
• PA Alarm Health is integrated into the Sales
Portal Bill of Materials Designer and Service Plan
Activation workflows
• PA Alarm Health is available for ordering through
Victoria Order Services (VOS) and Digital Supply
Chain (DSC or SEDI) for migrated countries.
Page 39
Alarm Health will be an optional module within the portfolio
Commercial Reference Description
Price
Per
Credit
Description
Reference
Duration
Options
Prime
PSWPAPRIME
PA Prime “core”:
Data Quality &
Electrical Health
analyses
X €
For new contracts or full-
year renewals
1 or 3 Year
PSWPAPRIMEAH1YR
PA Prime Alarm
Health
0.5X €
For annual contracts (new &
renewal). When adding onto
existing contracts, Alarm
Health expires when
1 or 3 Year
Ultra
PSWPAULTRA
PA Ultra “core”:
Data Quality &
Electrical Health
analyses
2X €
For new contracts or full-
year renewals
1 or 3 Year
PSWPAULTRAAH1YR
PA Ultra Alarm
Health
X €
For annual contracts (new &
renewal). When adding onto
existing contracts, Alarm
Health expires when
1 or 3 Year
Example based on 1YR
parts and price per credit
weighting
Commercial Launch Updates:
1. Announcement to confirm VOS / DSC order support
next week
2. At that time, the first call to action will be to create
commercial reference and pricing in local systems
(PIM)
3. Sales Portal is already deployed / ready for order
support

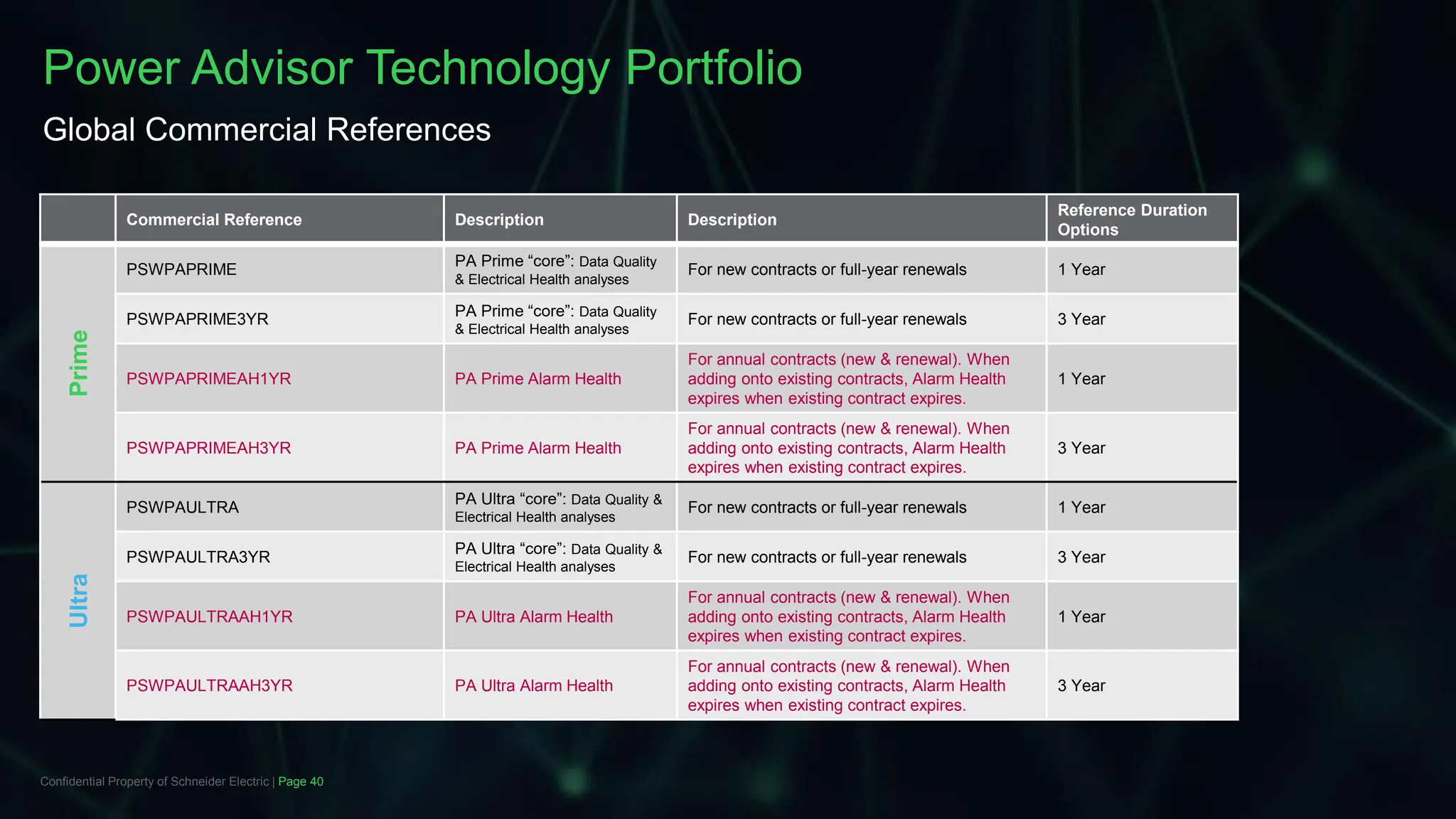

Global Commercial References
Commercial Reference Description Description
Reference Duration
Options
Prime
PSWPAPRIME
PA Prime “core”: Data Quality
& Electrical Health analyses
For new contracts or full-year renewals 1 Year
PSWPAPRIME3YR
PA Prime “core”: Data Quality
& Electrical Health analyses
PSWPAPRIMEAH1YR PA Prime Alarm Health
For annual contracts (new & renewal). When
adding onto existing contracts, Alarm Health
expires when existing contract expires.
1 Year
PSWPAPRIMEAH3YR PA Prime Alarm Health
3 Year
Ultra
PSWPAULTRA
PA Ultra “core”: Data Quality &
Electrical Health analyses
PSWPAULTRA3YR
PA Ultra “core”: Data Quality &
Electrical Health analyses
PSWPAULTRAAH1YR PA Ultra Alarm Health
1 Year
PSWPAULTRAAH3YR PA Ultra Alarm Health
3 Year

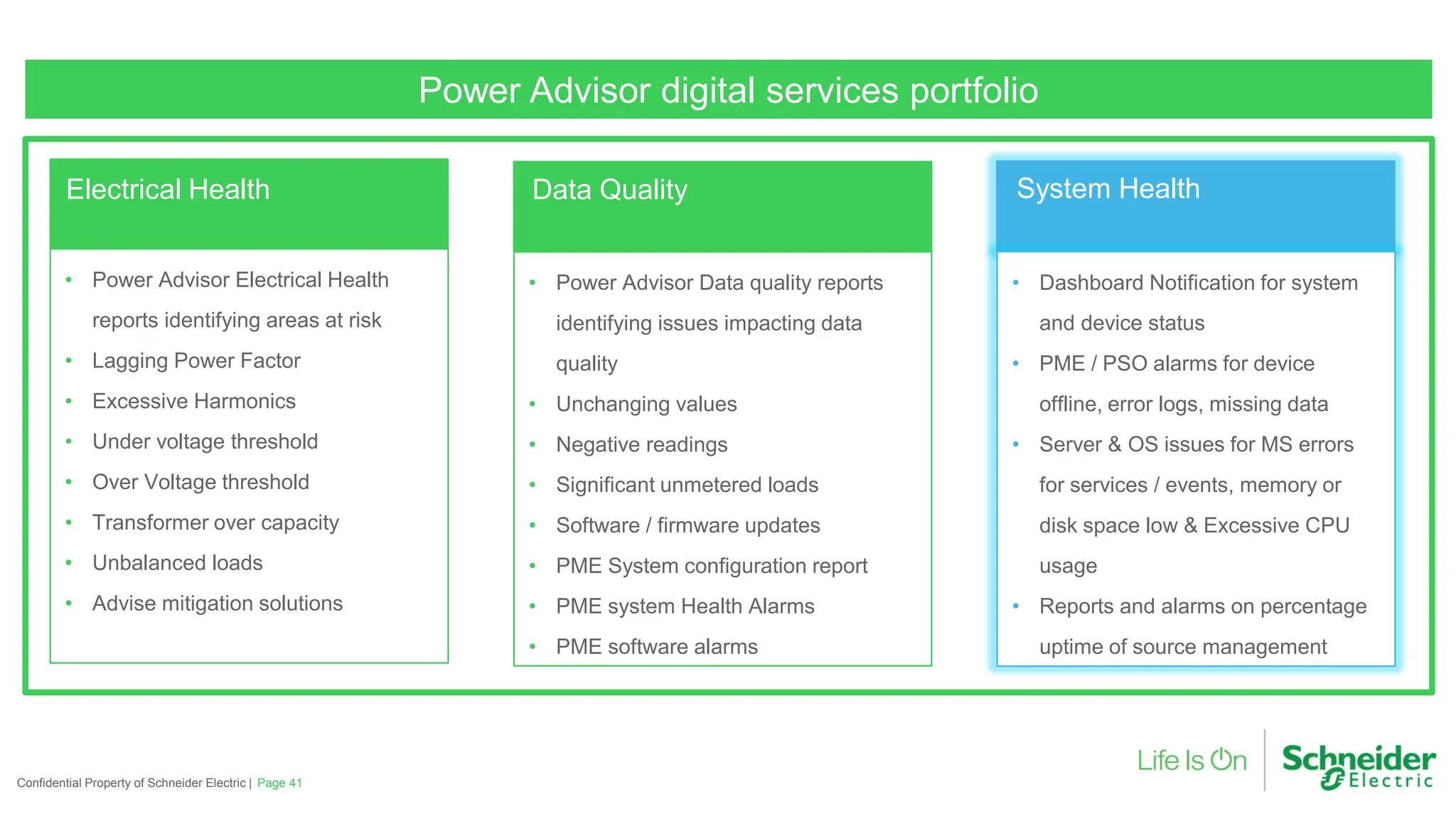

Electrical Health
• Power Advisor Data quality reports
identifying issues impacting data
quality
• Unchanging values
• Negative readings
• Significant unmetered loads
• Software / firmware updates
• PME System configuration report
• PME system Health Alarms
• PME software alarms
• Power Advisor Electrical Health
reports identifying areas at risk
• Lagging Power Factor
• Excessive Harmonics
• Under voltage threshold
• Over Voltage threshold
• Transformer over capacity
• Unbalanced loads
• Advise mitigation solutions
System Health
• Dashboard Notification for system
and device status
• PME / PSO alarms for device
offline, error logs, missing data
• Server & OS issues for MS errors
for services / events, memory or
disk space low & Excessive CPU
usage
• Reports and alarms on percentage
uptime of source management
Data Quality
Power Advisor digital services portfolio

• Unlike PME or PSO Event Notification
Module which sends critical alarms
directly to the customer for action,
PA System Health looks at diagnostics
of the system and is monitored by a
team of experts who can proactively
resolve the issue
• PA System Health detects software,
server and comms issues and can
replace monthly maintenance reports
provided by some countries at a lower
cost same or next day
• PA data quality analysis detects meter
installation and wiring issues as well
as symptoms of comms issues up to 6
times a year
Page 42

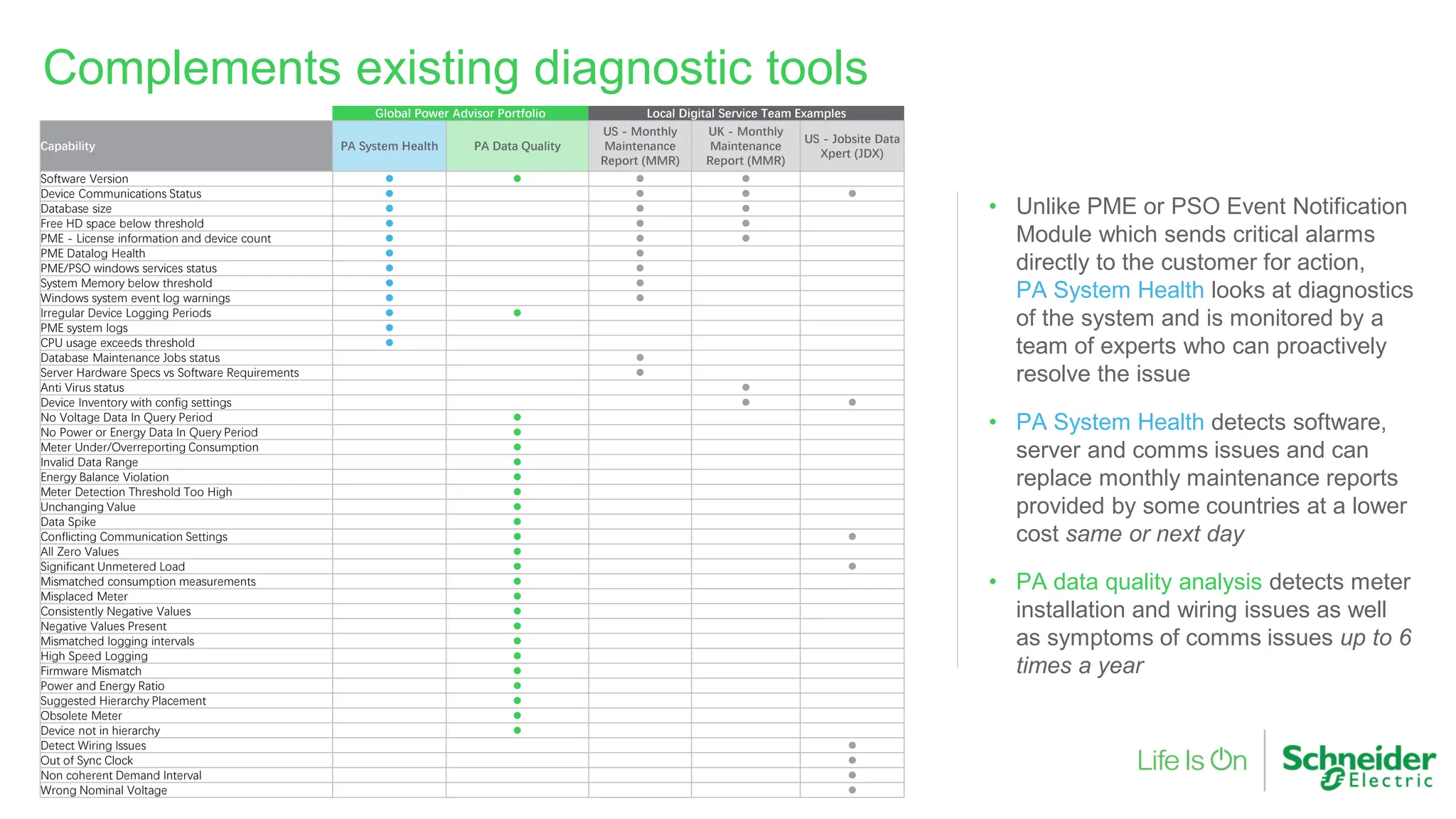

Complements existing diagnostic tools
Global Power Advisor Portfolio Local Digital Service Team Examples
Capability PA System Health PA Data Quality
US - Monthly
Maintenance
Report (MMR)
UK - Monthly
Maintenance
Report (MMR)
US - Jobsite Data
Xpert (JDX)
Software Version l l l l
Device Communications Status l l l l
Database size l l l
Free HD space below threshold l l l
PME - License information and device count l l l
PME Datalog Health l l
PME/PSO windows services status l l
System Memory below threshold l l
Windows system event log warnings l l
Irregular Device Logging Periods l l
PME system logs l
CPU usage exceeds threshold l
Database Maintenance Jobs status l
Server Hardware Specs vs Software Requirements l
Anti Virus status l
Device Inventory with config settings l l
No Voltage Data In Query Period l
No Power or Energy Data In Query Period l
Meter Under/Overreporting Consumption l
Invalid Data Range l
Energy Balance Violation l
Meter Detection Threshold Too High l
Unchanging Value l
Data Spike l
Conflicting Communication Settings l l
All Zero Values l
Significant Unmetered Load l l
Mismatched consumption measurements l
Misplaced Meter l
Consistently Negative Values l
Negative Values Present l
Mismatched logging intervals l
High Speed Logging l
Firmware Mismatch l
Power and Energy Ratio l
Suggested Hierarchy Placement l
Obsolete Meter l
Device not in hierarchy l
Detect Wiring Issues l
Out of Sync Clock l
Non coherent Demand Interval l
Wrong Nominal Voltage l

Resources

Relevant Commercial & Technical Resources
Customer Success
Playbook
Watch now
eBrochure
Download
Service Level
Agreements
Download
Edge Control Battlecards
(PME & PO)
Download
Hosted on the PA
Exchange Extranet
Specification
Packages
Download
Cybersecurity
Overview
Download
Download
Standard Scope
of Work Packages

Commercial Training
Technical
EcoStruxure Service Plan for Power Management
• New: Exchange Extranet page
• New: Internal Overview Presentation
• New: External Overview Presentation
• New: Service Level Agreements for Prime & Ultra
• New: Other high-level sales enablement assets
EcoStruxure Power Advisor technology
• Updated: Exchange Extranet pages
• New: Power Advisor “What’s New” Releases
Presentation
• New: Power Advisor Competitive Analysis
Presentation
• New: Power Advisor Alarm Health technology
Presentation
• New: Microsoft Success Story feat. Power Advisor
• Updated: Power Advisor Cybersecurity Overview
Presentation
• Updated: Power Advisor Technical Specifications
• Updated: Power Advisor and Power Advisor
System Health technology eBrochures
• Updated: Customer Success Playbook
• Updated: Power Advisor Customer Success
Showcase
• New: Power Advisor Manual Data Extractors &
Manual Extraction Guide (v. Feb 2021)
• New: March 2021 Technical Release Notes
• New: Sample Customer Reports (EN, CN, FR,
ES) on Exchange and PME Demo
• Updated: Power Advisor User Guide
• Updated: Power Advisor embedded Online Help
• Updated: Power Advisor My Learning Link
training modules
• Updated: Driving Customer Success with Power
Advisor Report Guidelines
• Updated: Power Advisor Diagnostic Issues Tests
Page 45

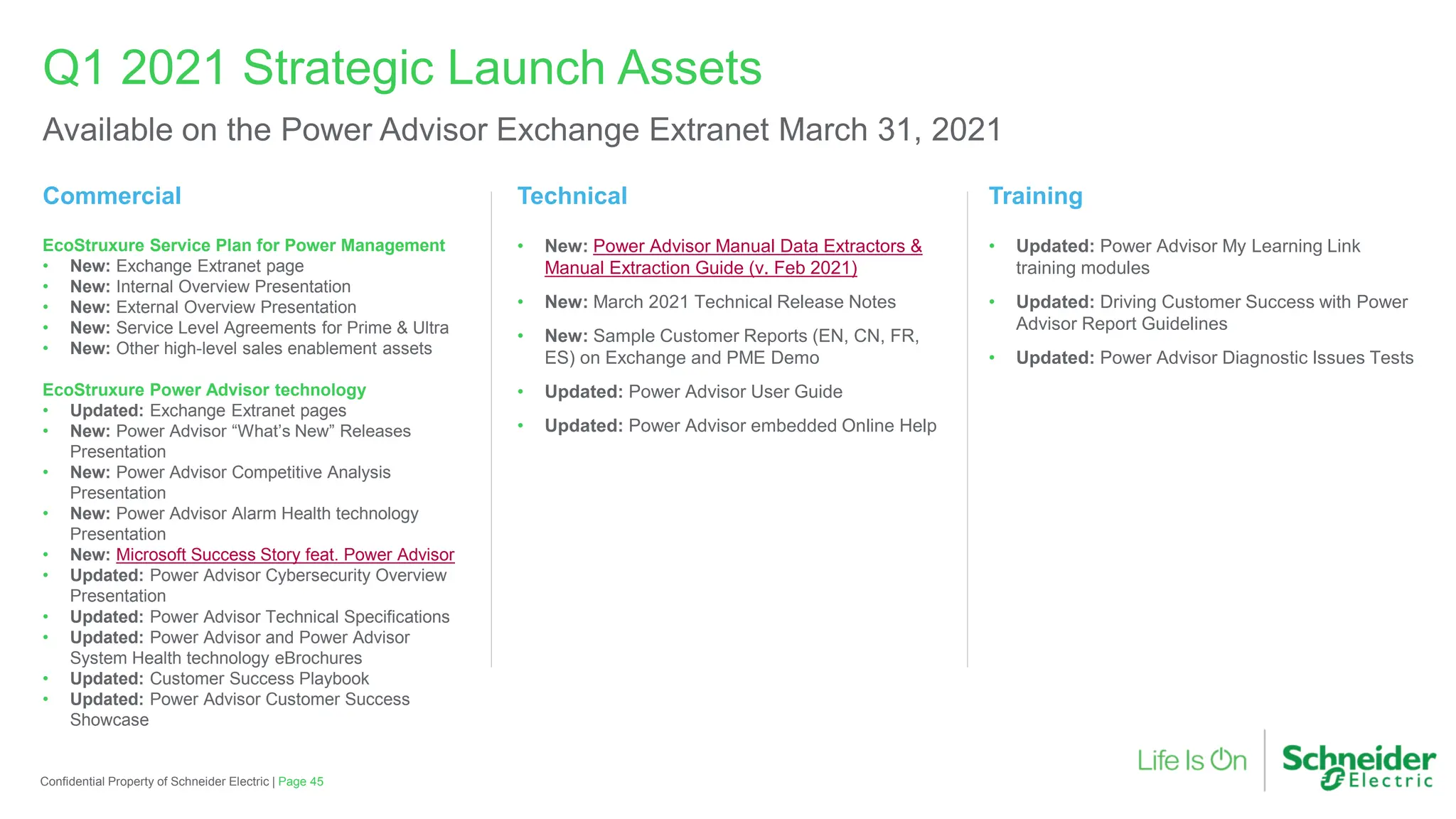

Q1 2021 Strategic Launch Assets
Available on the Power Advisor Exchange Extranet March 31, 2021

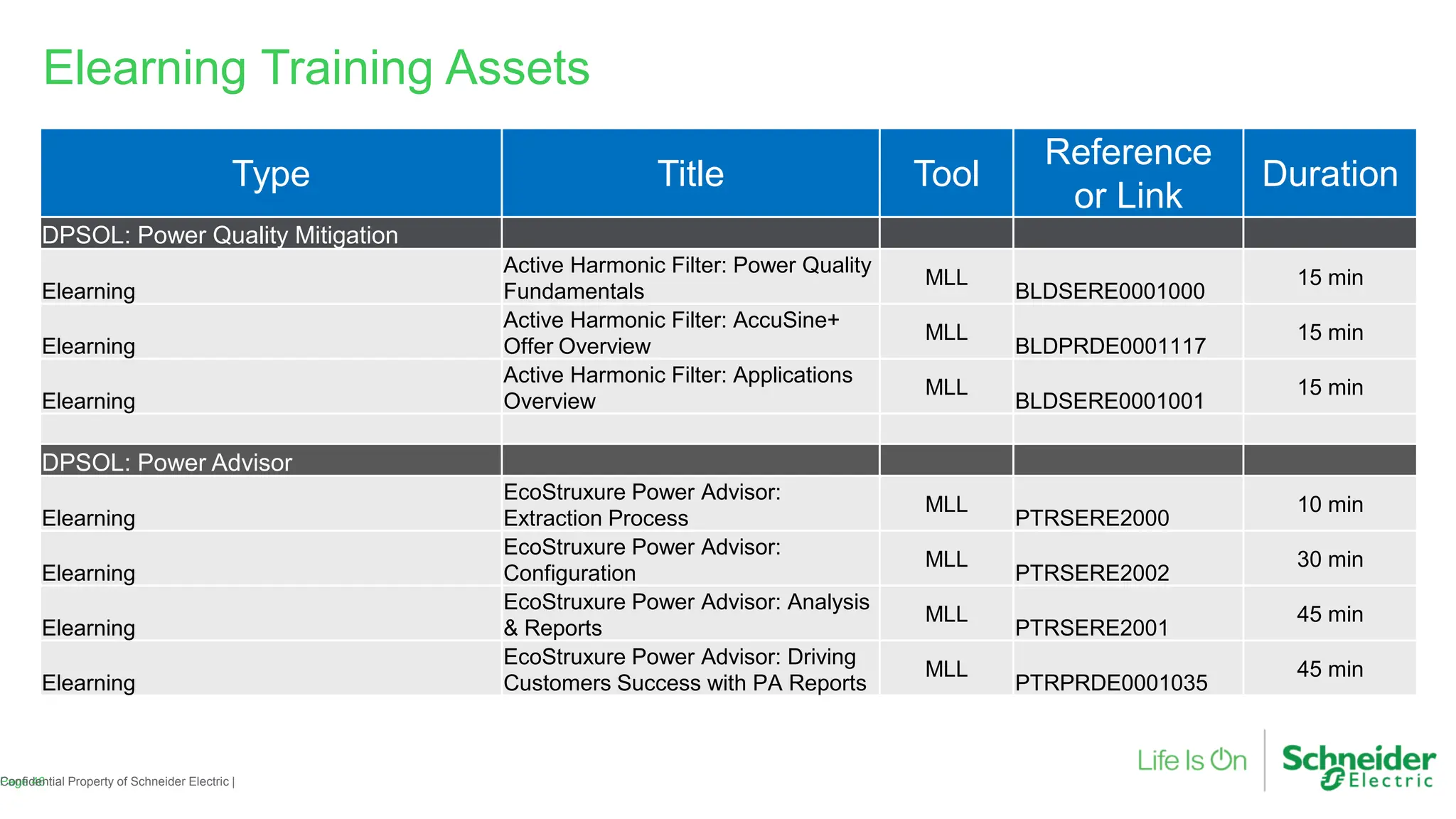

Elearning Training Assets
Page 46
Type Title Tool
Reference
or Link
Duration
DPSOL: Power Quality Mitigation
Elearning
Active Harmonic Filter: Power Quality
Fundamentals
MLL
BLDSERE0001000
15 min
Elearning
Active Harmonic Filter: AccuSine+
Offer Overview
MLL
BLDPRDE0001117
15 min
Elearning
Active Harmonic Filter: Applications
Overview
MLL
BLDSERE0001001
15 min
DPSOL: Power Advisor
Elearning
EcoStruxure Power Advisor:
Extraction Process
MLL
PTRSERE2000
10 min
Elearning
EcoStruxure Power Advisor:
Configuration
MLL
PTRSERE2002
30 min
Elearning
EcoStruxure Power Advisor: Analysis
& Reports
MLL
PTRSERE2001
45 min
Elearning
EcoStruxure Power Advisor: Driving
Customers Success with PA Reports
MLL
PTRPRDE0001035
45 min

POWER ADVISOR CONTENT
Exchange Extranet
Sales & Technical Documentation
• Power Advisor technology
• Power Advisor System Health
• Sales Portal
Exchange Community
Announcements, Knowledge Base & FAQ
My Learning Link
Technical Training Modules
In Only Three Places!

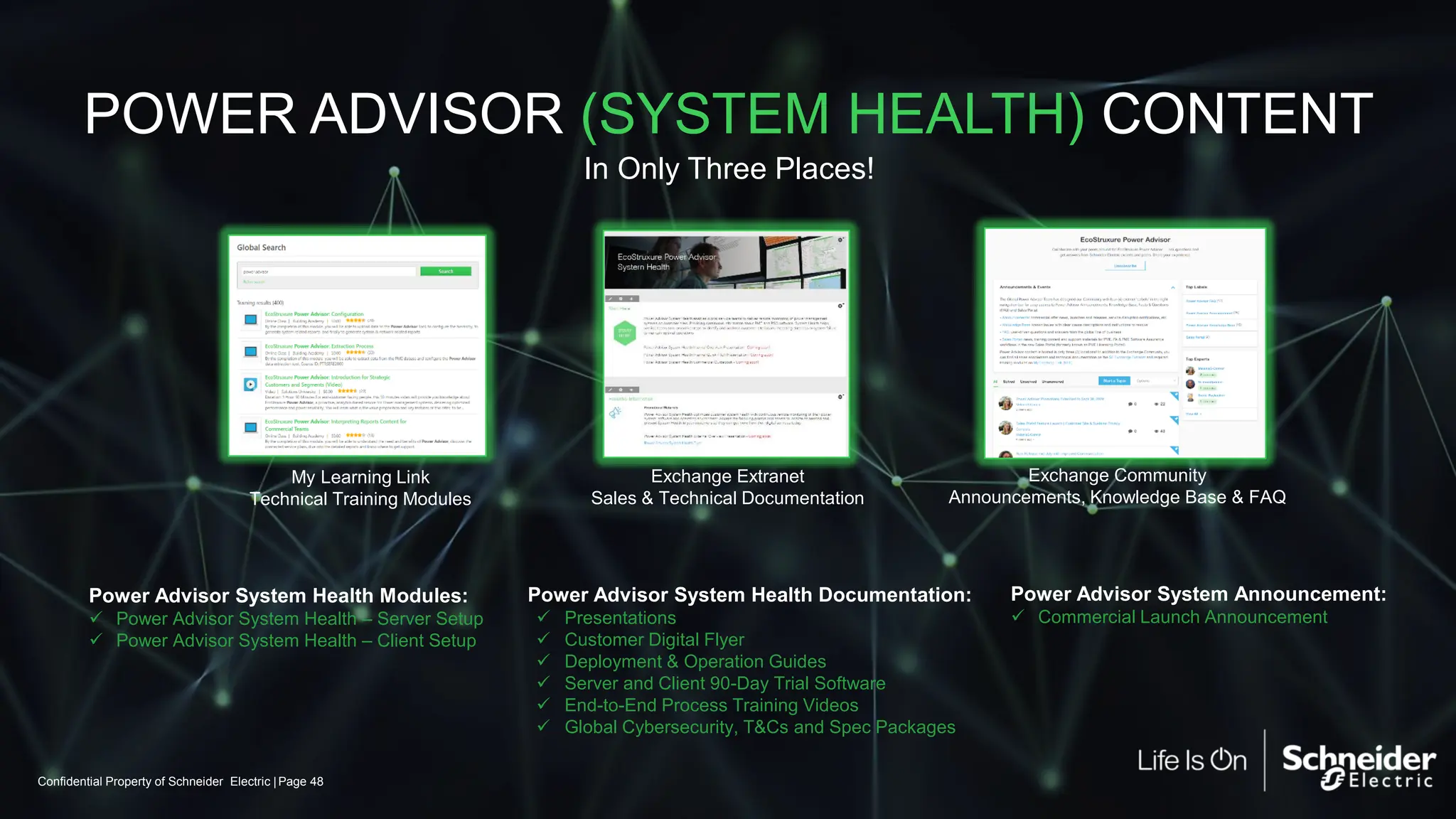

POWER ADVISOR (SYSTEM HEALTH) CONTENT
Exchange Extranet
Sales & Technical Documentation
Exchange Community
Announcements, Knowledge Base & FAQ
My Learning Link
Technical Training Modules
Power Advisor System Health Modules:
✓ Power Advisor System Health – Server Setup
✓ Power Advisor System Health – Client Setup
In Only Three Places!
Power Advisor System Health Documentation:
✓ Presentations
✓ Customer Digital Flyer
✓ Deployment & Operation Guides
✓ Server and Client 90-Day Trial Software
✓ End-to-End Process Training Videos
✓ Global Cybersecurity, T&Cs and Spec Packages
Power Advisor System Announcement:
✓ Commercial Launch Announcement

EcoStruxure Power Advisor - Technical Training.pdf

More Related Content

Similar to EcoStruxure Power Advisor - Technical Training.pdf

Recently uploaded

EcoStruxure Power Advisor - Technical Training.pdf
