This document provides information about lock tool group 1, which contains components for opening various brands of double bit lever locks. The group includes 1 variable key, 6 long pins, 5 spacers, and additional parts. Tension tools that can be used include the universal tool 1A, as well as specialized tools for brands like CR, Mottura, Auno, and Cifial. Charts also show typical pinning configurations for different lock models.

1. Double bit lever locks tool group 1
List of group
 Group 1
 Group 2
 Group 3
 Group 4
 Group 5
 Group 6
 Group 7
 Goroup 8
 Group 9
 Group 10
GROUP 1
ATRA DIERRE………………………………………….…………………………………………..………..
* Antonioli …………………………………………………………………………………………………………………………..…………….
*Auno………………………………………………………………………………………………………………………………………….….
*Beta abloy………………………………………………………………………………………………………………………….……………
*CR non vario / remember the 80 degrees of manipulation /……………………………………………….………….

2. *CR Vario / remember 80 degrees of manipulation /…………………………………………………….…………….
*Mottura NUCLEO……………………………………………………………………………………………………………………….
*Mottura EASY GO models…………….EXPERIENCED USERS…………………………………………………………..….
*S.A.B. big map lock………………………………………………………………………………………….…………………………
*Securemme big map locks……………………………………………………………………………………………..………..
*Tesio big map locks……………………………………………………………………………………….……
* Metem / Russia /………………………………………………………………………………………………………………………
**** other locks with same internal dimension after test them in laboratory for particulars
*** optional: wih tension tool code 1A can open:
CR small lock / mounted as secondary lock /……………………………………………………………………….……

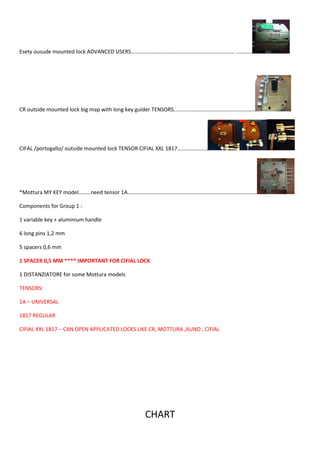

3. Esety ousude mounted lock ADVANCED USERS…………………………………….…………………………… …………
CR outside mounted lock big map with long key guider TENSORS……………………………………………………
CIFAL /portogallo/ outside mounted lock TENSOR CIFIAL XXL 1817………..………..
*Mottura MY KEY model………need tensor 1A………………………………………………………………..…………………
Components for Group 1 :
1 variable key + aluminium handle
6 long pins 1,2 mm
5 spacers 0,6 mm
1 SPACER 0,5 MM **** IMPORTANT FOR CIFIAL LOCK
1 DISTANZIATORE for some Mottura models
TENSORS:
1A – UNIVERSAL
1817 REGULAR
CIFIAL XXL 1817 – CAN OPEN APPLICATED LOCKS LIKE CR, MOTTURA ,AUNO , CIFIAL

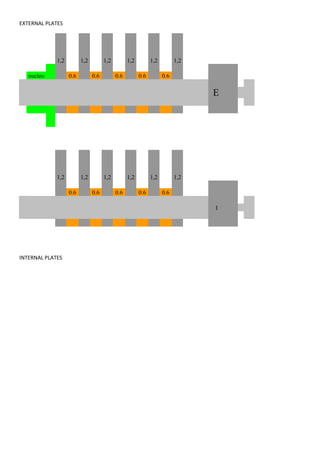

CHART

4. EXTERNAL PLATES
1,2 1,2 1,2 1,2 1,2 1,2
nucleo 0.6 0.6 0.6 0.6 0.6
E
1,2 1,2 1,2 1,2 1,2 1,2
0.6 0.6 0.6 0.6 0.6
I
INTERNAL PLATES

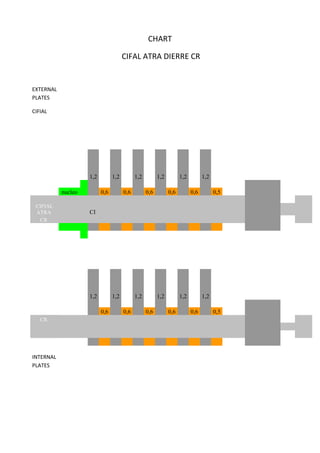

5. CHART
CIFAL ATRA DIERRE CR
EXTERNAL
PLATES
CIFIAL
1,2 1,2 1,2 1,2 1,2 1,2
nucleo 0,6 0,6 0,6 0,6 0,6 0,5
CIFIAL
ATRA CI
CR
1,2 1,2 1,2 1,2 1,2 1,2
0,6 0,6 0,6 0,6 0,6 0,5
CR
INTERNAL
PLATES
