Building a Dev/QA/Ops Friendly Docker Pipeline presentation from San Francsico Infrastructure as Code Meetup

1. 1
Dev/QA/Ops Friendly Docker Pipeline
Chris Mague / Shokunin
12/13/2016

2. 2

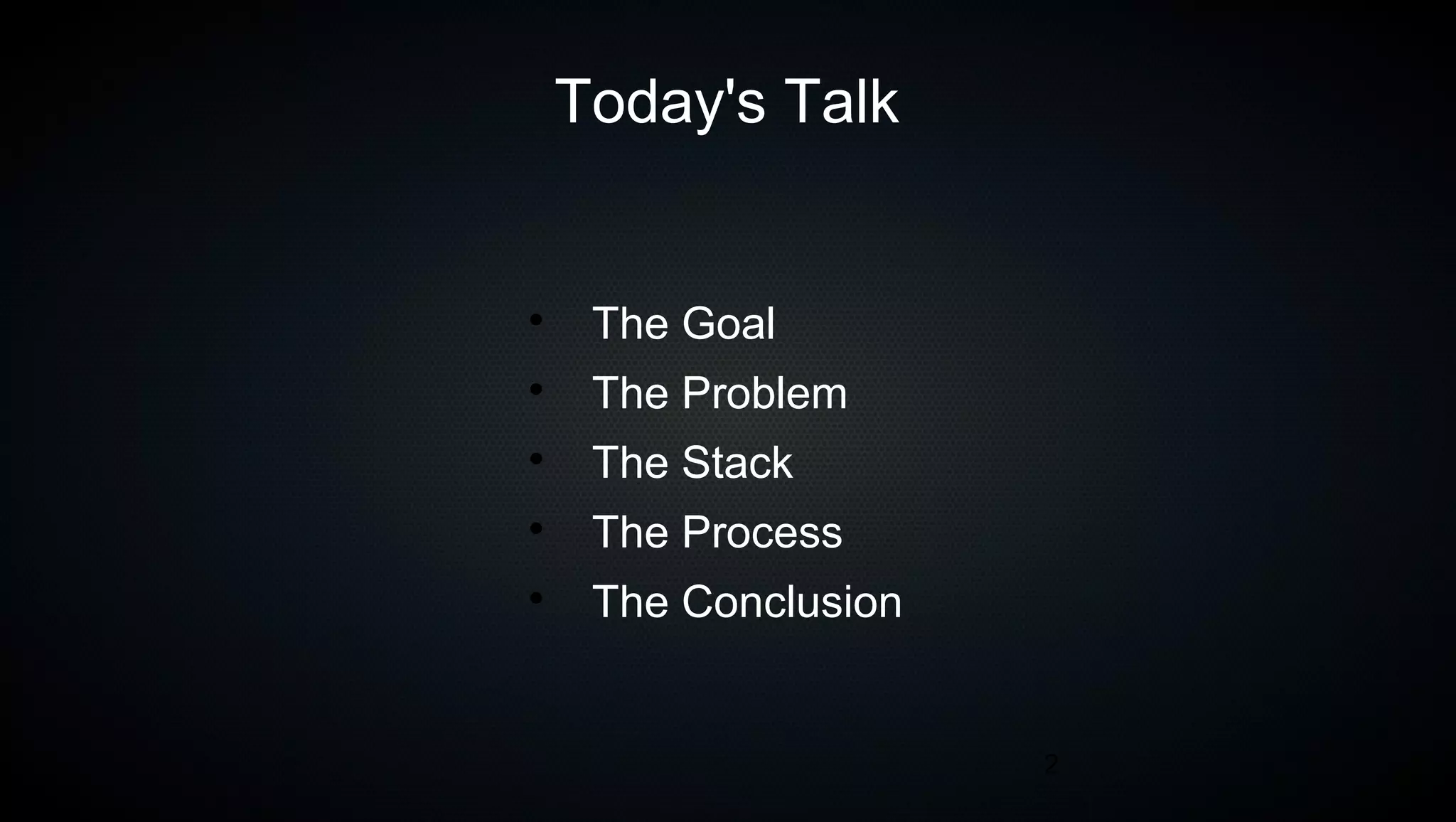

Today's Talk

The Goal

The Problem

The Stack

The Process

The Conclusion

3. 3
Quote
“a problem well put is half solved.”
― John Dewey

4. 4
The Goal
“We want to release more frequently”

5. 5
The Goal – Restated as Solvable
Build a continuous delivery pipeline for the Trulia Mobile API that
is usable for all stakeholders.

6. 6
The Problem(s) – Dev Version
- my code works on the shared dev host, but not on prod
- no real visibility into what is happening in prod
- troubleshooting is difficult
- the Ops team is not helpful

7. 7
The Problem(s) – QA Version
- code tested in QA doesn’t work in prod
- inability to test multiple builds at the same time
- no shared language to bridge the Dev/Ops teams
- the Ops team is not helpful

8. 8
The Problem(s) – Ops Version
- Dev/Stage environments are inconsistent
- Prod environment is un-reproducable
- Files are copied around in prod
- Incoming requests are difficult to parse

9. 9
The Problems – Stated as Solvable
- Need to build a common language (culture)
- Need to build a reproducable platform in all environments (tech)
- Need to provide automation and visibility tools (tech/culture)

10. 10
The Stack

11. 11
Docker
- Build a reproducable/immutable(ish) platform
- Control Application dependencies
- Automated build capabilities
- Low overhead compared to virtualization
- Stateless application

12. 12
Step 1 / Base Image
- Packer instead of Dockerfiles
- Puppet to build container
- Build on Jenkins
- Vagrant option available
- Tagged with latest
- Pushed to our Docker registry

13. 13
Step 2 / Develop Locally
- create separate run
directories per environment
- modules per environment
- consul_shared

14. 14
Local Terraform
- Sets up the docker container
- Sources variable
- calls the shared keys
- uses the run_locatoin

15. 15
Run Location
- list of containers
- mobileapi-base only is not
cached

16. 16
Run Location
- Run supervisor
- expose port 80 as 8080
- link to dependencies
- set env vars
- mount volumes

17. 17
Configuration
- done in consul
- consul template to json
- creates
/etc/trulia/<APPNAME>.json
- separated by environment

18. 18
Running

19. 19
Step 3 / Kickoff

20. 20
An aside on Jenkins
- Configure with Puppet
- Install SCM Sync Plugin
- Vanilla as possible
- Configure with Puppet

21. 21
${BUILD_NUMBER}
Jenkins provides several environment variables and the build
number of the software packaging now becomes our shared
key

22. 22
Communication
QA to Dev - “tcd-mobileapi(container) build 12 failed to pass
smoke tests can you please look at class foo”
QA to Ops - “tcd-mobileapi(container) build 12 went is having
trouble connecting to the user database”
Ops to Dev - “after we rolled out tcd-mobileapi(container) build
12 we noticed the app_v1_userlookup(KPI) time doubled”

23. 23
Pipeline - Package Software
- Spin up a build container
- Mount the current directory
- Pull in dependencies
- Build a .deb with FPM
- Push to aptly

24. 24

25. 25
Pipeline – Build Deployable Container
- Take base container
- Install packaged software
- Tag with build number
- Upload to registry

26. 26
Docker tags
Be SUPER careful with latest
When in doubt do not use

27. 27
Pipeline – Run in QATCD
- Spin up container in our QATCD Nomad cluster
- Run terraform to update
all of the configurations in consul
- Set up credentials using Vault
- container is now available
http://tcd-mobileapi-10.qatcd.example.com

28. 28
Pipeline – Deploy Test
- health checks are crucial
- needed for monitoring
- needed for LB
- needed for consul
- get hit like 20 times/second
- engineer came up with the
idea of deploy tests
- only hit occasionally
- more detailed

29. 29
Pipeline – Smoke test
- Calls another Jenkins server
- Managed by the QA team
- Detailed application level test

30. 30
Pipeline - Repointer
- allows for static hostnames
for applications or external
testers
- does some checking

31. 31
Pipeline – Next Steps
1) Preprod environment
- Push configuration LIVE
- Run a single container with the newer version
- Other tests run
- Build number is put in a Jenkins form and push button
2) Release to Production
- Put a build number in a Jenkins form
- Only allowed if the build is on preprod
- Containers are rolled out with sleep and concurrency set

32. 32

33. 33
Pipeline
Dev, QA and Ops teams keep an eye on KPIs and various
dashboards
QED

34. 34
Internals

35. 35
Nomad
- Job scheduler
- Not limited to Docker
- Integrates with Consul
- Easy setup
- Sane configuration

36. 36
Nomad Config

37. 37
Traefik
- HAProxy restart issue
- Performant
- Easily templatable
configuration
- Nice quick front end

38. 38

39. 39
Vault / Consul Template
- Easily generate config files from key/value store
- Feature flags are easily implimented
- Store and filter Database credentials

40. 40
Logging
- Big challenge
- All Apache/Nginx logs include APPNAME/BUILD_NUMBER
information and are in JSON format
- Application logs are in JSON format and often include unique
IDs
- Stacktraces are fingerprinted
- Logstash picks up from the Nomad alloc dirs

41. 41

42. 42

43. 43

44. 44
Stats / KPIs
- Data is pulled from the logs and sent to statsd→influxdb with a
Grafana front end
- Host and container level stats are picked up via cAdvisor

45. 45

46. 46

47. 47
Troubleshooting
- Devs have exec access to all containers through Vault
SSH
- This is audited
- After completion of any activities the container is
terminated

48. 48
No silver bullets...
- Unit tests are slow
- Initial learning curve
- Docker on anything other than Linux is painful
- Apps need to be modified
- Less control for devs compared to old method

49. 49
Improvements
- Better troubleshooting tools
- Shared docker host for apps with heavy upstream dependencies
- More local services to make development easier
- Better training/support for desktop Docker issues
- More code libraries to handle common app issues

50. 50
Thanks
Kevin - AppDynamics Sonal Joshi – Trulia Sr.
Automation Engineer
Vincent Lam – Trulia Sr.
Application Developer
