Digestive system

Digestive system
Presented by
Ms.P.Pavithra.,M.Pharm
Assistant Professor,
Dept. of Pharmacology,
SVCP

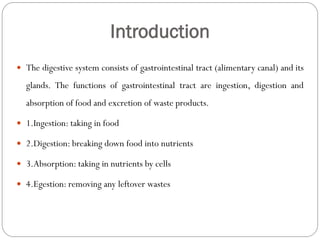

Introduction
 The digestive system consists of gastrointestinal tract (alimentary canal) and its
glands. The functions of gastrointestinal tract are ingestion, digestion and
absorption of food and excretion of waste products.
 1.Ingestion: taking in food
 2.Digestion: breaking down food into nutrients
 3.Absorption: taking in nutrients by cells
 4.Egestion: removing any leftover wastes

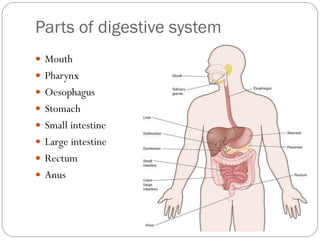

Parts of digestive system
 Mouth
 Pharynx
 Oesophagus
 Stomach
 Small intestine
 Large intestine

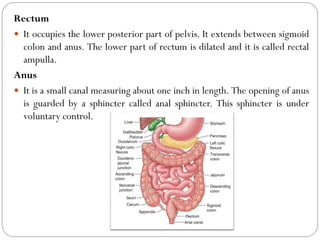

 Rectum
 Anus

Mouth(Buccal cavity)
 It is the upper expanded portion which forms the beginning of alimentary canal.
It can be divided into two parts:
i.) Vestibule, an outer part. It lies between lips and inner lining of cheeks
externally and gums and teeth internally.
ii.) Cavity of mouth an inner part. It is bounded by teeth and mastoid bone at the
sides, palate above and tongue below.

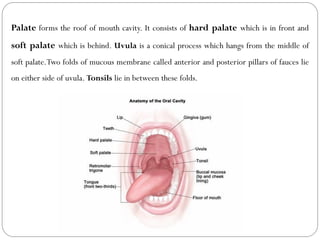

Palate forms the roof of mouth cavity. It consists of hard palate which is in front and
soft palate which is behind. Uvula is a conical process which hangs from the middle of
soft palate.Two folds of mucous membrane called anterior and posterior pillars of fauces lie
on either side of uvula. Tonsils lie in between these folds.

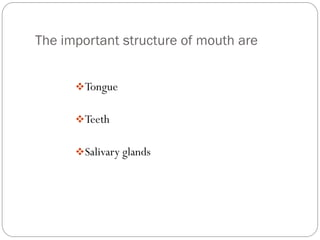

The important structure of mouth are
Tongue
Teeth
Salivary glands

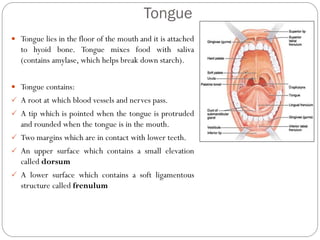

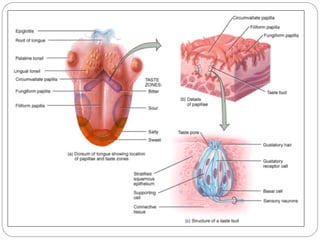

Tongue
 Tongue lies in the floor of the mouth and it is attached
to hyoid bone. Tongue mixes food with saliva
(contains amylase, which helps break down starch).
 Tongue contains:
 A root at which blood vessels and nerves pass.
 A tip which is pointed when the tongue is protruded
and rounded when the tongue is in the mouth.
 Two margins which are in contact with lower teeth.
 An upper surface which contains a small elevation
called dorsum
 A lower surface which contains a soft ligamentous
structure called frenulum

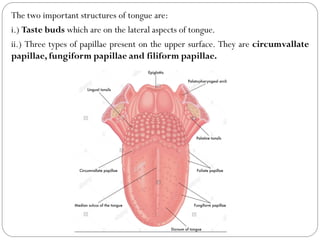

The two important structures of tongue are:
i.) Taste buds which are on the lateral aspects of tongue.
ii.) Three types of papillae present on the upper surface. They are circumvallate
papillae, fungiform papillae and filiform papillae.

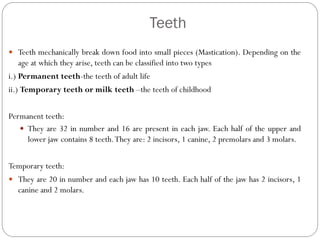

Teeth
 Teeth mechanically break down food into small pieces (Mastication). Depending on the
age at which they arise, teeth can be classified into two types
i.) Permanent teeth-the teeth of adult life
ii.) Temporary teeth or milk teeth –the teeth of childhood

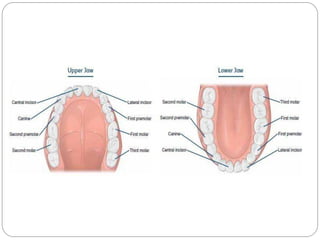

Permanent teeth:
 They are 32 in number and 16 are present in each jaw. Each half of the upper and
lower jaw contains 8 teeth.They are: 2 incisors, 1 canine, 2 premolars and 3 molars.
Temporary teeth:
 They are 20 in number and each jaw has 10 teeth. Each half of the jaw has 2 incisors, 1
canine and 2 molars.

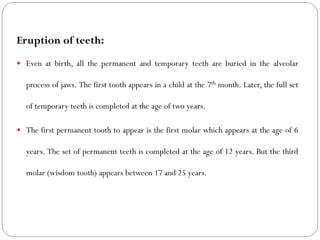

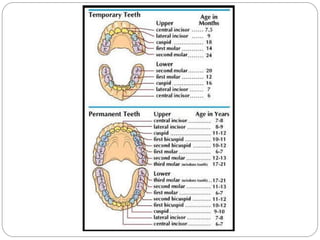

Eruption of teeth:
 Even at birth, all the permanent and temporary teeth are buried in the alveolar
process of jaws. The first tooth appears in a child at the 7th month. Later, the full set
of temporary teeth is completed at the age of two years.
 The first permanent tooth to appear is the first molar which appears at the age of 6
years. The set of permanent teeth is completed at the age of 12 years. But the third
molar (wisdom tooth) appears between 17 and 25 years.

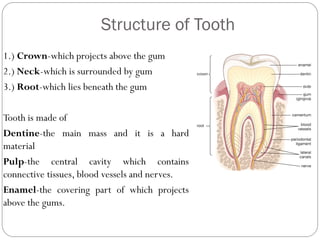

Structure of Tooth
1.) Crown-which projects above the gum
2.) Neck-which is surrounded by gum
3.) Root-which lies beneath the gum
Tooth is made of
Dentine-the main mass and it is a hard
material
Pulp-the central cavity which contains
connective tissues, blood vessels and nerves.
Enamel-the covering part of which projects
above the gums.

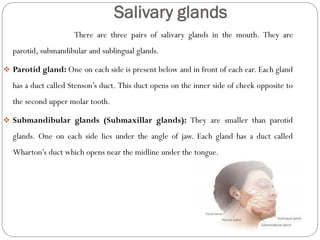

Salivary glands
There are three pairs of salivary glands in the mouth. They are
parotid, submandibular and sublingual glands.
 Parotid gland: One on each side is present below and in front of each ear. Each gland
has a duct called Stenson’s duct. This duct opens on the inner side of cheek opposite to
the second upper molar tooth.
 Submandibular glands (Submaxillar glands): They are smaller than parotid
glands. One on each side lies under the angle of jaw. Each gland has a duct called
Wharton’s duct which opens near the midline under the tongue.

 Sublingual glands:
They are the smallest salivary glands which lie under the tongue. They pour the
secretions directly into the mouth through several small openings.

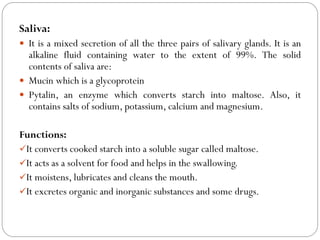

Saliva:
 It is a mixed secretion of all the three pairs of salivary glands. It is an
alkaline fluid containing water to the extent of 99%. The solid
contents of saliva are:
 Mucin which is a glycoprotein
 Pytalin, an enzyme which converts starch into maltose. Also, it
contains salts of sodium, potassium, calcium and magnesium.
Functions:
It converts cooked starch into a soluble sugar called maltose.
It acts as a solvent for food and helps in the swallowing.
It moistens, lubricates and cleans the mouth.
It excretes organic and inorganic substances and some drugs.

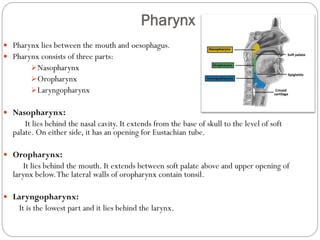

Pharynx
 Pharynx lies between the mouth and oesophagus.
 Pharynx consists of three parts:
Nasopharynx
Oropharynx
Laryngopharynx
 Nasopharynx:
It lies behind the nasal cavity. It extends from the base of skull to the level of soft
palate. On either side, it has an opening for Eustachian tube.
 Oropharynx:
It lies behind the mouth. It extends between soft palate above and upper opening of
larynx below.The lateral walls of oropharynx contain tonsil.
 Laryngopharynx:
It is the lowest part and it lies behind the larynx.

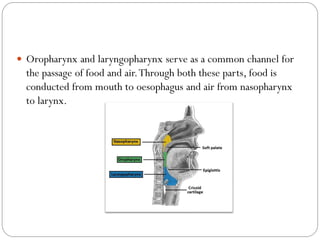

 Oropharynx and laryngopharynx serve as a common channel for
the passage of food and air.Through both these parts, food is
conducted from mouth to oesophagus and air from nasopharynx
to larynx.

Oesophagus
 It is a muscular tube which extends between pharynx above and cardiac orifice of stomach
below. It lies between trachea in front and vertebral column at the back. From the thorax,
it enters the abdomen through the oesophageal opening of diaphragm.
 The oesophagus contains sphincters at its upper and lower ends.These sphincters relax
during swallowing.

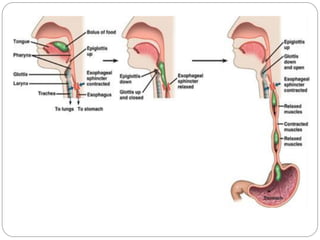

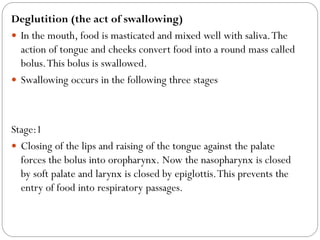

Deglutition (the act of swallowing)
 In the mouth, food is masticated and mixed well with saliva.The
action of tongue and cheeks convert food into a round mass called
bolus.This bolus is swallowed.
 Swallowing occurs in the following three stages
Stage:1
 Closing of the lips and raising of the tongue against the palate
forces the bolus into oropharynx. Now the nasopharynx is closed
by soft palate and larynx is closed by epiglottis.This prevents the
entry of food into respiratory passages.

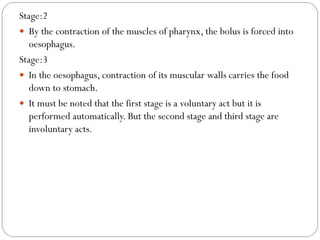

Stage:2
 By the contraction of the muscles of pharynx, the bolus is forced into
oesophagus.
Stage:3
 In the oesophagus, contraction of its muscular walls carries the food
down to stomach.
 It must be noted that the first stage is a voluntary act but it is
performed automatically. But the second stage and third stage are
involuntary acts.

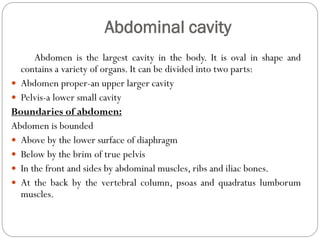

Abdominal cavity
Abdomen is the largest cavity in the body. It is oval in shape and
contains a variety of organs. It can be divided into two parts:
 Abdomen proper-an upper larger cavity
 Pelvis-a lower small cavity
Boundaries of abdomen:
Abdomen is bounded
 Above by the lower surface of diaphragm
 Below by the brim of true pelvis
 In the front and sides by abdominal muscles, ribs and iliac bones.
 At the back by the vertebral column, psoas and quadratus lumborum
muscles.

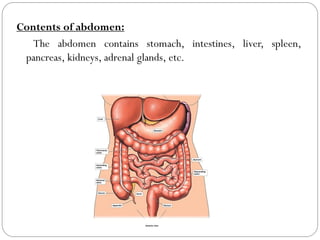

Contents of abdomen:
The abdomen contains stomach, intestines, liver, spleen,
pancreas, kidneys, adrenal glands, etc.

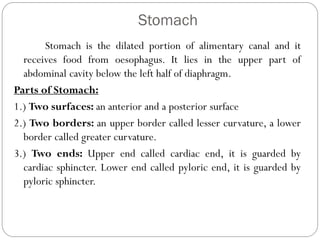

Stomach
Stomach is the dilated portion of alimentary canal and it
receives food from oesophagus. It lies in the upper part of
abdominal cavity below the left half of diaphragm.
Parts of Stomach:
1.) Two surfaces: an anterior and a posterior surface
2.) Two borders: an upper border called lesser curvature, a lower
border called greater curvature.
3.) Two ends: Upper end called cardiac end, it is guarded by
cardiac sphincter. Lower end called pyloric end, it is guarded by
pyloric sphincter.

4.) Fundus:
A dome shaped upper part lying to the left of cardiac end.
5.) Body: The main part of stomach
6.) Pyloric antrum: The lower part

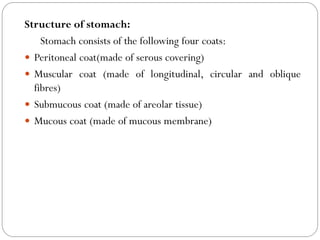

Structure of stomach:
Stomach consists of the following four coats:
 Peritoneal coat(made of serous covering)
 Muscular coat (made of longitudinal, circular and oblique
fibres)
 Submucous coat (made of areolar tissue)
 Mucous coat (made of mucous membrane)

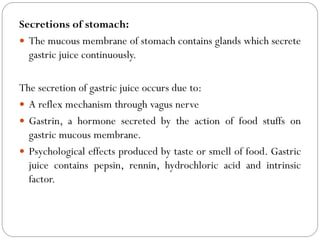

Secretions of stomach:
 The mucous membrane of stomach contains glands which secrete
gastric juice continuously.

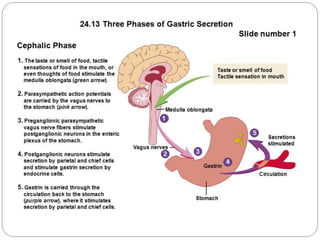

The secretion of gastric juice occurs due to:
 A reflex mechanism through vagus nerve
 Gastrin, a hormone secreted by the action of food stuffs on
gastric mucous membrane.
 Psychological effects produced by taste or smell of food. Gastric
juice contains pepsin, rennin, hydrochloric acid and intrinsic
factor.

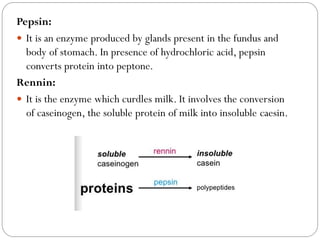

Pepsin:
 It is an enzyme produced by glands present in the fundus and
body of stomach. In presence of hydrochloric acid, pepsin
converts protein into peptone.
Rennin:
 It is the enzyme which curdles milk. It involves the conversion
of caseinogen, the soluble protein of milk into insoluble caesin.

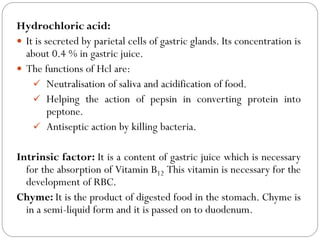

Hydrochloric acid:
 It is secreted by parietal cells of gastric glands. Its concentration is
about 0.4 % in gastric juice.
 The functions of Hcl are:
 Neutralisation of saliva and acidification of food.
 Helping the action of pepsin in converting protein into
peptone.
 Antiseptic action by killing bacteria.
Intrinsic factor: It is a content of gastric juice which is necessary
for the absorption of Vitamin B12 This vitamin is necessary for the
development of RBC.
Chyme: It is the product of digested food in the stomach. Chyme is
in a semi-liquid form and it is passed on to duodenum.

Small intestine
 Small intestine is the part of alimentary canal which extends from
the pyloric end of stomach to caecum (the first part of large
intestine)
Parts:
Small intestine consist of three parts
 Duodenum
 Jejunum
 Ileum

Duodenum:
 It is a C-shaped fixed part which is attached to posterior abdominal wall by
peritoneum. The head of pancreas lies in the concavity of duodenum. Also

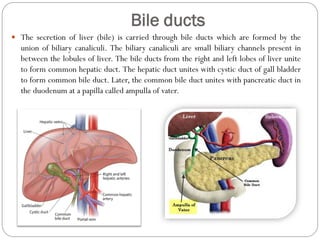

the bile duct and pancreatic duct open together at the concave surface. A
small eminence at this opening is called ampula of vater.

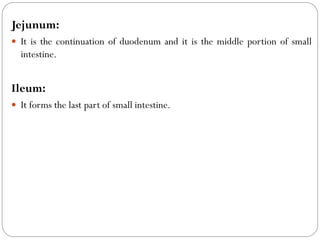

Jejunum:
 It is the continuation of duodenum and it is the middle portion of small
intestine.
Ileum:
 It forms the last part of small intestine.

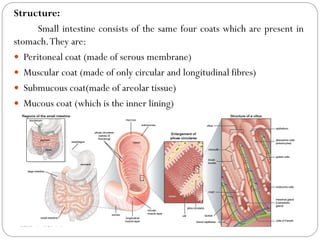

Structure:
Small intestine consists of the same four coats which are present in
stomach.They are:
 Peritoneal coat (made of serous membrane)
 Muscular coat (made of only circular and longitudinal fibres)
 Submucous coat(made of areolar tissue)
 Mucous coat (which is the inner lining)

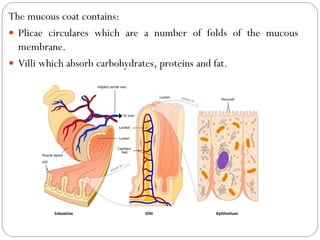

The mucous coat contains:
 Plicae circulares which are a number of folds of the mucous
membrane.
 Villi which absorb carbohydrates, proteins and fat.

Digestion in small intestine:
 The acidic chyme from the stomach enters into the duodenum.
There it mixes with
1.)The alkaline intestinal juice called succus entericus.
2.)Alkaline secretions from liver and pancreas.
In the small intestine, digestion is carried out by the
following enzymes of intestinal juice.
1.) Enterokinase (Enteropeptidase) which converts trypsinogen into
trypsin.
2.) Erepsin which converts polypeptides into amino acids.
3.) Sucrase, maltase and lactase which convert the corresponding
disaccharides into monosaccharides.

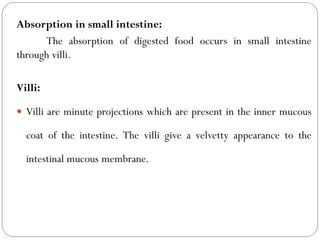

Absorption in small intestine:
The absorption of digested food occurs in small intestine
through villi.

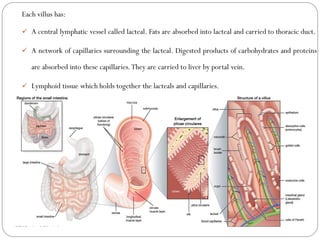

Villi:
 Villi are minute projections which are present in the inner mucous
coat of the intestine. The villi give a velvetty appearance to the
intestinal mucous membrane.

Each villus has:
 A central lymphatic vessel called lacteal. Fats are absorbed into lacteal and carried to thoracic duct.
 A network of capillaries surrounding the lacteal. Digested products of carbohydrates and proteins
are absorbed into these capillaries.They are carried to liver by portal vein.
 Lymphoid tissue which holds together the lacteals and capillaries.

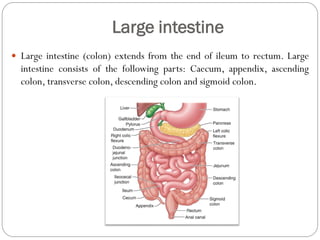

Large intestine
 Large intestine (colon) extends from the end of ileum to rectum. Large
intestine consists of the following parts: Caecum, appendix, ascending
colon, transverse colon, descending colon and sigmoid colon.

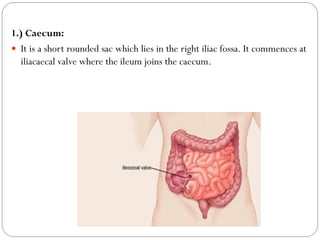

1.) Caecum:
 It is a short rounded sac which lies in the right iliac fossa. It commences at
iliacaecal valve where the ileum joins the caecum.

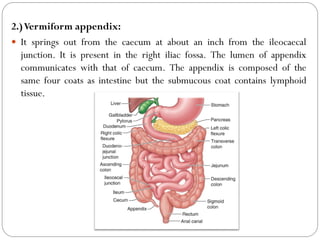

2.)Vermiform appendix:
 It springs out from the caecum at about an inch from the ileocaecal
junction. It is present in the right iliac fossa. The lumen of appendix
communicates with that of caecum. The appendix is composed of the
same four coats as intestine but the submucous coat contains lymphoid
tissue.

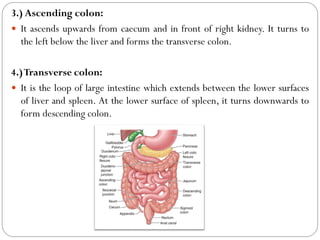

3.) Ascending colon:
 It ascends upwards from caecum and in front of right kidney. It turns to
the left below the liver and forms the transverse colon.
4.)Transverse colon:
 It is the loop of large intestine which extends between the lower surfaces
of liver and spleen. At the lower surface of spleen, it turns downwards to
form descending colon.

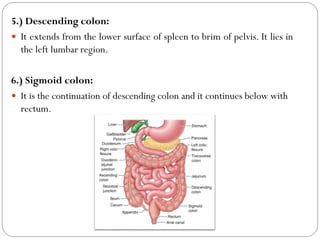

5.) Descending colon:
 It extends from the lower surface of spleen to brim of pelvis. It lies in
the left lumbar region.
6.) Sigmoid colon:
 It is the continuation of descending colon and it continues below with
rectum.

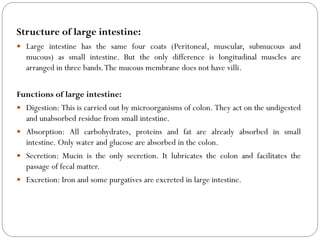

Structure of large intestine:
 Large intestine has the same four coats (Peritoneal, muscular, submucous and
mucous) as small intestine. But the only difference is longitudinal muscles are
arranged in three bands.The mucous membrane does not have villi.
Functions of large intestine:
 Digestion: This is carried out by microorganisms of colon. They act on the undigested
and unabsorbed residue from small intestine.
 Absorption: All carbohydrates, proteins and fat are already absorbed in small
intestine. Only water and glucose are absorbed in the colon.
 Secretion: Mucin is the only secretion. It lubricates the colon and facilitates the
passage of fecal matter.
 Excretion: Iron and some purgatives are excreted in large intestine.

Rectum
 It occupies the lower posterior part of pelvis. It extends between sigmoid
colon and anus. The lower part of rectum is dilated and it is called rectal
ampulla.
Anus
 It is a small canal measuring about one inch in length. The opening of anus
is guarded by a sphincter called anal sphincter. This sphincter is under
voluntary control.

Defecation
 It is defined as evacuation of the fecal matter of the rectum.
Defecation is a reflex mechanism. But this reflex is under voluntary
control. The reflex for defecation occurs when a sufficient quantity of
feces accumulates in the rectum. This produces stretching of rectal
walls and also increases pressure in the rectum. When the pressure
exceeds 40 mm Hg the nerve endings of rectum are stimulated.
 The impulses reach the spinal cord. From the spinal cord, impulses
for defecation are carried to the rectum through motor nerves.

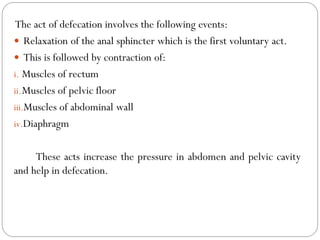

The act of defecation involves the following events:
 Relaxation of the anal sphincter which is the first voluntary act.
 This is followed by contraction of:
i. Muscles of rectum
ii.Muscles of pelvic floor
iii.Muscles of abdominal wall
iv.Diaphragm
These acts increase the pressure in abdomen and pelvic cavity
and help in defecation.

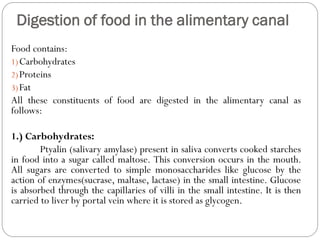

Digestion of food in the alimentary canal
Food contains:
1)Carbohydrates
2)Proteins
3)Fat
All these constituents of food are digested in the alimentary canal as
follows:
1.) Carbohydrates:
Ptyalin (salivary amylase) present in saliva converts cooked starches
in food into a sugar called maltose. This conversion occurs in the mouth.
All sugars are converted to simple monosaccharides like glucose by the
action of enzymes(sucrase, maltase, lactase) in the small intestine. Glucose
is absorbed through the capillaries of villi in the small intestine. It is then
carried to liver by portal vein where it is stored as glycogen.

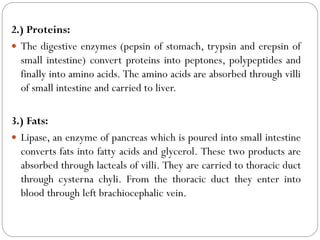

2.) Proteins:
 The digestive enzymes (pepsin of stomach, trypsin and erepsin of
small intestine) convert proteins into peptones, polypeptides and
finally into amino acids. The amino acids are absorbed through villi
of small intestine and carried to liver.
3.) Fats:
 Lipase, an enzyme of pancreas which is poured into small intestine
converts fats into fatty acids and glycerol. These two products are
absorbed through lacteals of villi. They are carried to thoracic duct
through cysterna chyli. From the thoracic duct they enter into
blood through left brachiocephalic vein.

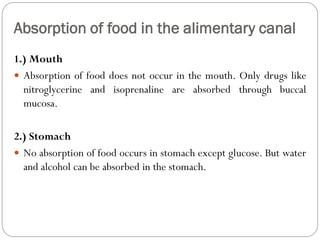

Absorption of food in the alimentary canal
1.) Mouth
 Absorption of food does not occur in the mouth. Only drugs like
nitroglycerine and isoprenaline are absorbed through buccal
mucosa.
2.) Stomach
 No absorption of food occurs in stomach except glucose. But water
and alcohol can be absorbed in the stomach.

3.) Small intestine:
 Products of carbohydrates digestion like glucose and other simple
sugars are absorbed through capillaries of villi.
 Products of protein digestion like amino acids are also absorbed
through capillaries of villi.
 Products of fat metabolism like fatty acids and glycerol are also
absorbed through lacteals of villi.
4.) Large intestine:
 Water, glucose and certain salts are absorbed through the mucous
membrane of large intestine.

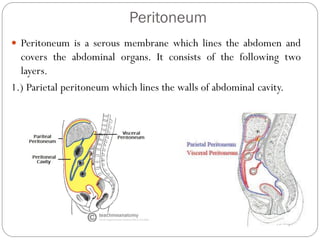

Peritoneum
 Peritoneum is a serous membrane which lines the abdomen and
covers the abdominal organs. It consists of the following two
layers.
1.) Parietal peritoneum which lines the walls of abdominal cavity.

2.) Visceral peritoneum which covers the abdominal organs. The
space between these two layers is called as peritoneal space.
Organs completely covered by peritoneum are stomach, liver and
intestines.
 Organs partly covered by peritoneum are kidneys.

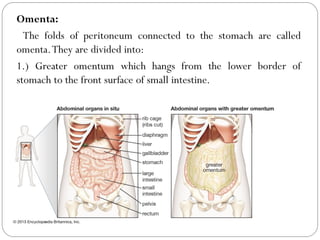

Omenta:
The folds of peritoneum connected to the stomach are called
omenta.They are divided into:
1.) Greater omentum which hangs from the lower border of
stomach to the front surface of small intestine.

2.) Lesser omentum which extends from the lower border of liver
to the lesser curvature of stomach.

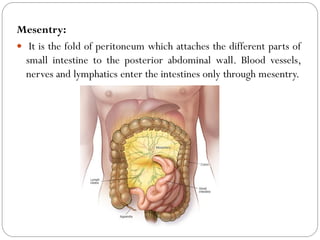

Mesentry:
 It is the fold of peritoneum which attaches the different parts of
small intestine to the posterior abdominal wall. Blood vessels,
nerves and lymphatics enter the intestines only through mesentry.

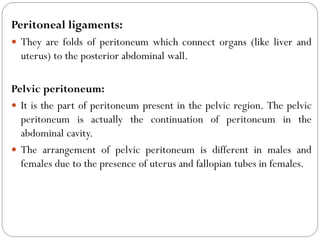

Peritoneal ligaments:
 They are folds of peritoneum which connect organs (like liver and
uterus) to the posterior abdominal wall.
Pelvic peritoneum:
 It is the part of peritoneum present in the pelvic region. The pelvic
peritoneum is actually the continuation of peritoneum in the
abdominal cavity.
 The arrangement of pelvic peritoneum is different in males and
females due to the presence of uterus and fallopian tubes in females.

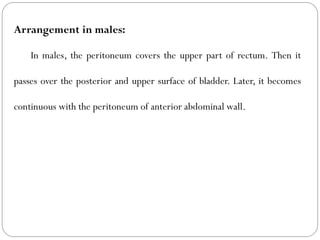

Arrangement in males:
In males, the peritoneum covers the upper part of rectum. Then it
passes over the posterior and upper surface of bladder. Later, it becomes
continuous with the peritoneum of anterior abdominal wall.

Arrangement in females:
In females, the peritoneum covers the rectum as in males. But, it covers the anterior and
posterior surfaces of uterus before reaching the bladder. The sac of peritoneum between
the rectum and uterus is called the pouch of douglas. In the females, the peritoneum
covers the fallopian tubes also. The fallopian tubes open directly into the peritoneal cavity.
The mucous membrane of fallopian tubes is continuous with peritoneum.

Functions of Peritoneum:
 It forms a complete or partial covering for abdominal organs.
 It forms a smooth lining which enables the abdominal organs to move over each other
without friction.
 The ligaments and mesentries of peritoneum hold the abdominal organs in position.
 Omentum and mesentry serve as store house for fat.
 The fat of peritoneum prevents infections being carried to abdominal organs.
 The peritoneum contains some fluid which absorbs shock and prevents it from getting
transmitted to abdominal organs.
 The peritoneum itself can absorb large quantities of fluids.

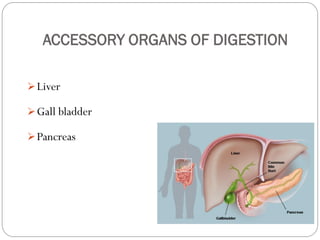

ACCESSORY ORGANS OF DIGESTION
Liver
Gall bladder
Pancreas

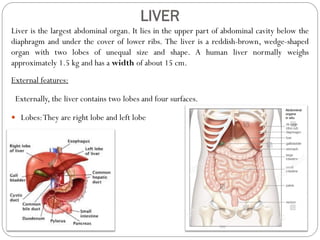

Liver is the largest abdominal organ. It lies in the upper part of abdominal cavity below the
diaphragm and under the cover of lower ribs. The liver is a reddish-brown, wedge-shaped
organ with two lobes of unequal size and shape. A human liver normally weighs
approximately 1.5 kg and has a width of about 15 cm.
External features:
Externally, the liver contains two lobes and four surfaces.
 Lobes:They are right lobe and left lobe
LIVER

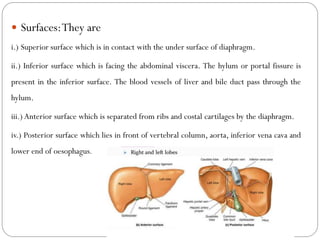

 Surfaces:They are
i.) Superior surface which is in contact with the under surface of diaphragm.
ii.) Inferior surface which is facing the abdominal viscera. The hylum or portal fissure is
present in the inferior surface. The blood vessels of liver and bile duct pass through the
hylum.
iii.) Anterior surface which is separated from ribs and costal cartilages by the diaphragm.
iv.) Posterior surface which lies in front of vertebral column, aorta, inferior vena cava and
lower end of oesophagus.

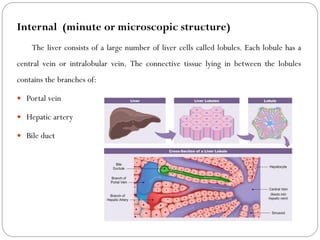

Internal (minute or microscopic structure)
The liver consists of a large number of liver cells called lobules. Each lobule has a
central vein or intralobular vein. The connective tissue lying in between the lobules
contains the branches of:
 Portal vein
 Hepatic artery
 Bile duct

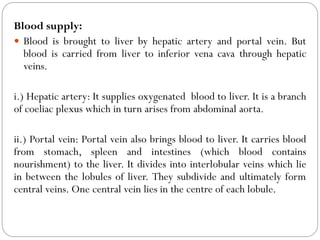

Blood supply:
 Blood is brought to liver by hepatic artery and portal vein. But
blood is carried from liver to inferior vena cava through hepatic
veins.
i.) Hepatic artery: It supplies oxygenated blood to liver. It is a branch
of coeliac plexus which in turn arises from abdominal aorta.
ii.) Portal vein: Portal vein also brings blood to liver. It carries blood
from stomach, spleen and intestines (which blood contains
nourishment) to the liver. It divides into interlobular veins which lie
in between the lobules of liver. They subdivide and ultimately form
central veins. One central vein lies in the centre of each lobule.

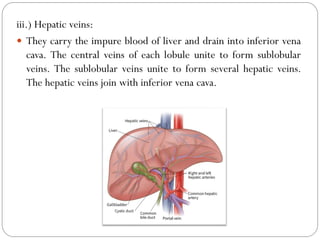

iii.) Hepatic veins:
 They carry the impure blood of liver and drain into inferior vena
cava. The central veins of each lobule unite to form sublobular
veins. The sublobular veins unite to form several hepatic veins.
The hepatic veins join with inferior vena cava.

Bile ducts
 The secretion of liver (bile) is carried through bile ducts which are formed by the
union of biliary canaliculi. The biliary canaliculi are small biliary channels present in
between the lobules of liver. The bile ducts from the right and left lobes of liver unite
to form common hepatic duct. The hepatic duct unites with cystic duct of gall bladder
to form common bile duct. Later, the common bile duct unites with pancreatic duct in
the duodenum at a papilla called ampulla of vater.

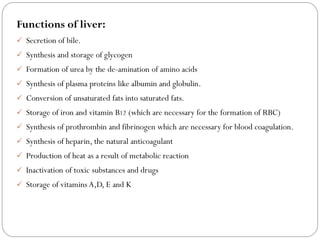

Functions of liver:
 Secretion of bile.
 Synthesis and storage of glycogen
 Formation of urea by the de-amination of amino acids
 Synthesis of plasma proteins like albumin and globulin.
 Conversion of unsaturated fats into saturated fats.
 Storage of iron and vitamin B12 (which are necessary for the formation of RBC)
 Synthesis of prothrombin and fibrinogen which are necessary for blood coagulation.
 Synthesis of heparin, the natural anticoagulant
 Production of heat as a result of metabolic reaction
 Inactivation of toxic substances and drugs
 Storage of vitamins A,D, E and K

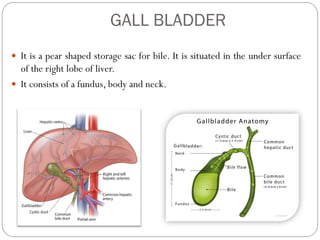

GALL BLADDER
 It is a pear shaped storage sac for bile. It is situated in the under surface
of the right lobe of liver.
 It consists of a fundus, body and neck.

Coats of gall bladder:
Gall bladder consists of three coats:
i.) Outer serous or peritoneal coat (which is continuous with the peritoneum
covering the liver)
ii.) Middle muscular coat (made of unstriped muscles)
iii.) Inner mucous coat (which is continuous with the lining of bile ducts)

 Duct of gall bladder: The duct through which gall bladder opens is called cystic duct.
It arises at the neck of gall bladder. The cystic duct unites with common hepatic duct
and forms common bile duct. The common bile duct joins with pancreatic duct and
opens into the duodenum. A sphincter present in the bile duct at this termination in the
duodenum is called sphincter of oddi (hepatopancreatic sphincter or
Glisson's sphincter)

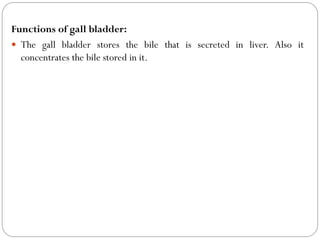

Functions of gall bladder:
 The gall bladder stores the bile that is secreted in liver. Also it
concentrates the bile stored in it.

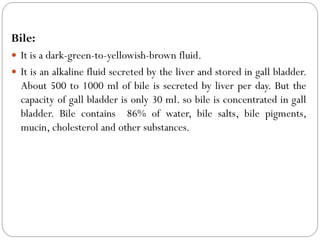

Bile:
 It is a dark-green-to-yellowish-brown fluid.
 It is an alkaline fluid secreted by the liver and stored in gall bladder.
About 500 to 1000 ml of bile is secreted by liver per day. But the
capacity of gall bladder is only 30 ml. so bile is concentrated in gall
bladder. Bile contains 86% of water, bile salts, bile pigments,
mucin, cholesterol and other substances.

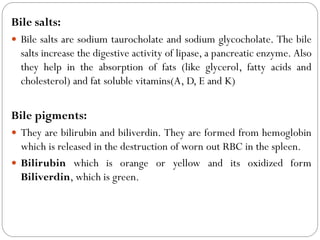

Bile salts:
 Bile salts are sodium taurocholate and sodium glycocholate. The bile
salts increase the digestive activity of lipase, a pancreatic enzyme. Also
they help in the absorption of fats (like glycerol, fatty acids and
cholesterol) and fat soluble vitamins(A, D, E and K)
Bile pigments:
 They are bilirubin and biliverdin. They are formed from hemoglobin
which is released in the destruction of worn out RBC in the spleen.
 Bilirubin which is orange or yellow and its oxidized form
Biliverdin, which is green.

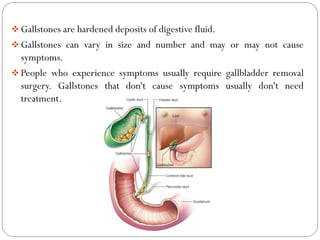

 Gallstones are hardened deposits of digestive fluid.
 Gallstones can vary in size and number and may or may not cause
symptoms.
 People who experience symptoms usually require gallbladder removal
surgery. Gallstones that don't cause symptoms usually don't need
treatment.

PANCREAS
 It is a long, slender gland which lies transversely across the posterior
abdominal wall. It lies behind the stomach at the level of 1st and 2nd lumbar
vertebrae.
Parts:
Pancreas consists of a head, body and tail.
 Head lies in the C-shaped curve of duodenum
 Body lies in front of the bodies of lumbar vertebrae.
 Tail lies in contact with the hylum of spleen.

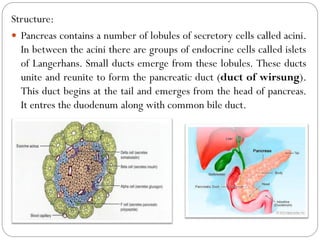

Structure:
 Pancreas contains a number of lobules of secretory cells called acini.
In between the acini there are groups of endocrine cells called islets
of Langerhans. Small ducts emerge from these lobules. These ducts
unite and reunite to form the pancreatic duct (duct of wirsung).
This duct begins at the tail and emerges from the head of pancreas.
It entres the duodenum along with common bile duct.

Secretions:
 The secretions of pancreas can be classified into---Exocrine secretion
and Endocrine secretion
 Exocrine secretion:
 It is pancreatic juice which is digestive in function. It is conveyed to
duodenum through pancreatic duct. Pancreatic juice contains the
following digestive enzymes:
i.) Lipase, which converts fats into fatty acids and glycerol
ii.)Amylase which converts starch into maltose
iii.)Trypsin which converts peptones into amino acids.

 Endocrine secretion:
It is secreted by the islets of Langerhans and directly poured
into circulation. This secretion contains three different hormones
which are secreted by the three different cells of islets of Langerhans.
These hormones are
 Glucagon-secreted by alpha cells
 Insulin-secreted by beta cells
 Somatostatin-secreted by delta cells

Digestive system

More Related Content

What's hot

Similar to Digestive system

Recently uploaded

Digestive system
