DevOops - Lessons Learned from an OpenStack Network Architect
- 1. DEVOOPS: LESSONS LEARNED FROM ACLOUD NETWORK ARCHITECT James Denton Principal Architect @jimmdenton Jonathan Almaleh OpenStack Network Architect @ckent99999
- 2.
- 3.

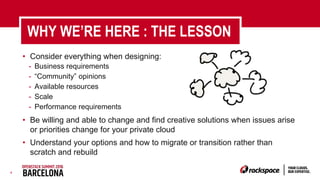

- 4. 4 WHY WE’RE HERE: THE LESSON • Consider everything when designing: - Business requirements - “Community” opinions - Available resources - Scale - Performance requirements • Be willing and able to change and find creative solutions when issues arise or priorities change for your private cloud • Understand your options and how to migrate or transition rather than scratch and rebuild
- 5. 5 NOT WHY WE’REHERE • To knock or discourage any technology • To advocate one method or solution over another • To say that one is better than the other (but we all know Superman > Batman)
- 6. 6 Open vSwitch vsLinuxBridge BATTLE OF THE SWITCHES
- 7. 7 WHY NEUTRON • ChoseNeutron over Nova-Network - Eventual nova-network deprecation. How eventual, no one was sure. • Gained tenant-managed networking • First glimpse of overlay networking • Obvious community direction
- 8. 8 THE ISSUES • OpenvSwitch 1.x - Packet loss / corruption - Slow (Microflows vs Megaflows) - Kernel panics • Neutron agents immature - Oops, sorry about the bridging loops Bugs: 1228313 - Multiple tap interfaces on controller have overlapping tags 1324703 - Default NORMAL flows on OVS bridges at boot has potential to cause network storm
- 9. 9 Live migration fromOVS to LinuxBridge THE FIX - Upgrade from Grizzly to Havana - Migrate from OVS plugin to ML2 plugin - Hack the database - Converted OVS to ML2 schema - Converted GRE networks to VLAN - Delete the bridges and interfaces - Restart the agent - … - Profit!
- 10. 10 THE FUTURE • LinuxBridgebecame the standard driver for Rackspace Private Cloud starting with the Icehouse release • Open vSwitch, and Neutron itself, continue to mature and focus on stability, speed, and functionality • Some features depend on the use of OVS, such as TAPaaS, OVN, DVR, and more • Open vSwitch and LinuxBridge are both supported mechanism drivers and switching technologies for RPC

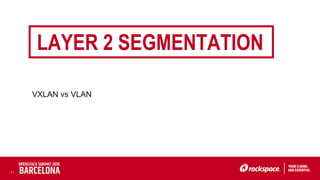

- 11. 11 VXLAN vs VLAN LAYER2 SEGMENTATION

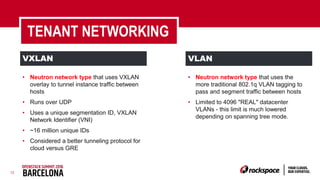

- 12. 12 TENANT NETWORKING • Neutronnetwork type that uses VXLAN overlay to tunnel instance traffic between hosts • Runs over UDP • Uses a unique segmentation ID, VXLAN Network Identifier (VNI) • ~16 million unique IDs • Considered a better tunneling protocol for cloud versus GRE • Neutron network type that uses the more traditional 802.1q VLAN tagging to pass and segment traffic between hosts • Limited to 4096 "REAL" datacenter VLANs - this limit is much lowered depending on spanning tree mode. VXLAN VLAN

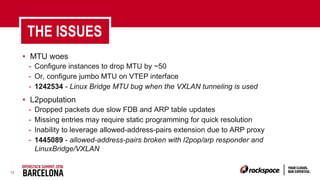

- 13. 13 THE ISSUES • MTUwoes - Configure instances to drop MTU by ~50 - Or, configure jumbo MTU on VTEP interface - 1242534 - Linux Bridge MTU bug when the VXLAN tunneling is used • L2population - Dropped packets due slow FDB and ARP table updates - Missing entries may require static programming for quick resolution - Inability to leverage allowed-address-pairs extension due to ARP proxy - 1445089 - allowed-address-pairs broken with l2pop/arp responder and LinuxBridge/VXLAN

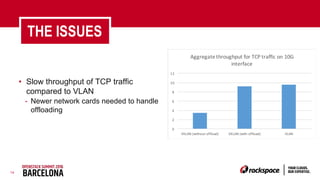

- 14. 14 THE ISSUES • Slowthroughput of TCP traffic compared to VLAN - Newer network cards needed to handle offloading 0 2 4 6 8 10 12 VXLAN (without offload) VXLAN (with offload) VLAN Aggregatethroughput for TCP traffic on 10G interface
- 15. 15 THE ISSUES • FDBbug resulted in duplicate flooding entries - 1531013 - Duplicate entries in FDB table - 1568969 - FDB table grows out of control 00:00:00:00:00:00 dev vxlan-15 dst 172.29.243.133 self permanent 00:00:00:00:00:00 dev vxlan-15 dst 172.29.243.133 self permanent … 00:00:00:00:00:00 dev vxlan-15 dst 172.29.243.133 self permanent 28870 entries

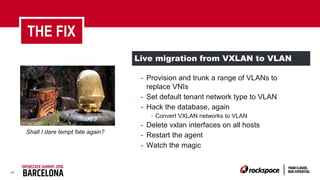

- 16. 16 Live migration fromVXLAN to VLAN THE FIX - Provision and trunk a range of VLANs to replace VNIs - Set default tenant network type to VLAN - Hack the database, again - Convert VXLAN networks to VLAN - Delete vxlan interfaces on all hosts - Restart the agent - Watch the magic Shall I dare tempt fate again?

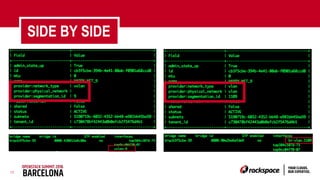

- 17.

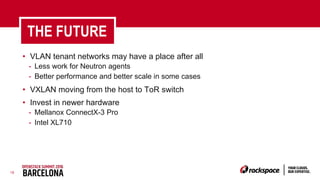

- 18. 18 THE FUTURE • VLANtenant networks may have a place after all - Less work for Neutron agents - Better performance and better scale in some cases • VXLAN moving from the host to ToR switch • Invest in newer hardware - Mellanox ConnectX-3 Pro - Intel XL710
- 19. 19 L3 Agent, orNot. TO ROUTE OR TO BRIDGE
- 20. 20 I HAVE THEPOWER!!

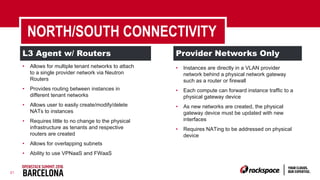

- 21. 21 NORTH/SOUTH CONNECTIVITY • Allowsfor multiple tenant networks to attach to a single provider network via Neutron Routers • Provides routing between instances in different tenant networks • Allows user to easily create/modify/delete NATs to instances • Requires little to no change to the physical infrastructure as tenants and respective routers are created • Allows for overlapping subnets • Ability to use VPNaaS and FWaaS • Instances are directly in a VLAN provider network behind a physical network gateway such as a router or firewall • Each compute can forward instance traffic to a physical gateway device • As new networks are created, the physical gateway device must be updated with new interfaces • Requires NATing to be addressed on physical device L3 Agent w/ Routers Provider Networks Only

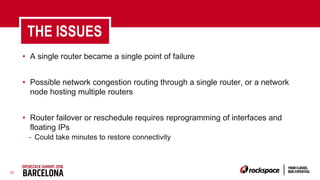

- 22. 22 THE ISSUES • Asingle router became a single point of failure • Possible network congestion routing through a single router, or a network node hosting multiple routers • Router failover or reschedule requires reprogramming of interfaces and floating IPs - Could take minutes to restore connectivity

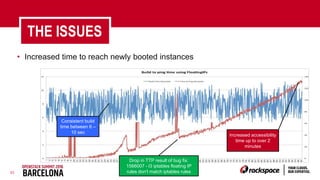

- 23. 23 THE ISSUES • Increasedtime to reach newly booted instances Consistent build time between 6 – 10 sec Increased accessibility time up to over 2 minutes Drop in TTP result of bug fix: 1566007 - l3 iptables floating IP rules don't match iptables rules

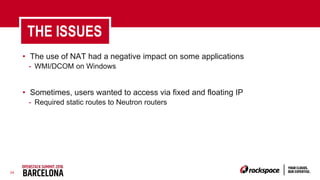

- 24. 24 THE ISSUES • Theuse of NAT had a negative impact on some applications - WMI/DCOM on Windows • Sometimes, users wanted to access via fixed and floating IP - Required static routes to Neutron routers
- 25. 25 So long, L3… THEFIX - Detach the routers from Neutron Networks - Create and address new interfaces on physical network device - Address upstream routing - Delete routers and restart DHCP agents - Reboot instance or renew DHCP leases

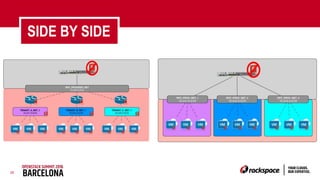

- 26.

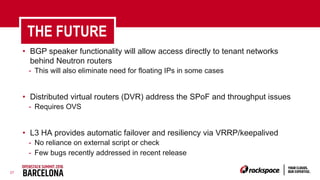

- 27. 27 THE FUTURE • BGPspeaker functionality will allow access directly to tenant networks behind Neutron routers - This will also eliminate need for floating IPs in some cases • Distributed virtual routers (DVR) address the SPoF and throughput issues - Requires OVS • L3 HA provides automatic failover and resiliency via VRRP/keepalived - No reliance on external script or check - Few bugs recently addressed in recent release

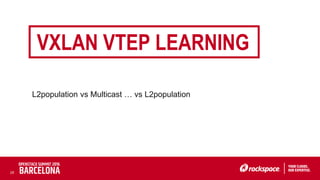

- 28. 28 L2population vs Multicast… vs L2population VXLAN VTEP LEARNING
- 29.
- 30. 30 VTEP LEARNING • VTEPlearning process that relies on static programming of forwarding table and ARP table on all hosts • Implemented and managed by a Neutron agent • Developed by Neutron community • Requires consistent programming across all hosts for proper operation • Does not require physical switch or router changes • VTEP learning process that uses multicast to distribute forwarding information to hosts in the multicast group • Not managed by Neutron agent • Leverages vxlan or OVS kernel module for operation • Requires IGMP configuration on switches and routers L2population Multicast
- 31. 31 MULTICAST comp comp comp dhcp comp comp Multicast GroupAddress 239.1.1.1 Network Node router VTEP VTEP VTEP VTEP VTEP VTEP

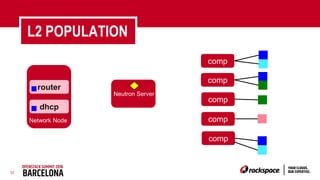

- 32.

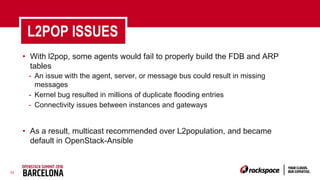

- 33. 33 L2POP ISSUES • Withl2pop, some agents would fail to properly build the FDB and ARP tables - An issue with the agent, server, or message bus could result in missing messages - Kernel bug resulted in millions of duplicate flooding entries - Connectivity issues between instances and gateways • As a result, multicast recommended over L2population, and became default in OpenStack-Ansible
- 34. 34 MULTICAST ISSUES • Physicalinfrastructure had not been configured to support multicast - Requires IGMP snooping and IGMP querier if multicast router not present • Without a reboot, forwarding database and ARP table failed to properly populate or contained stale data • As a result, all traffic between instances, DHCP servers, and routers failed on VXLAN networks

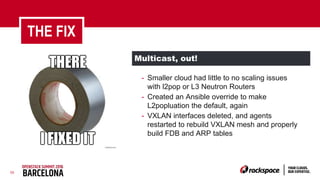

- 35. 35 Multicast, out! THE FIX -Smaller cloud had little to no scaling issues with l2pop or L3 Neutron Routers - Created an Ansible override to make L2popluation the default, again - VXLAN interfaces deleted, and agents restarted to rebuild VXLAN mesh and properly build FDB and ARP tables
- 36. 36 THE FUTURE • L2populationcan continue to be used for smaller scale clouds - Lower number of hosts and networks • Multicast may work better for larger scale clouds - Will require proper configuration of physical switches/routers • BGP/eVPN for robust propagation between ToR switches - Move VXLAN off the hosts!

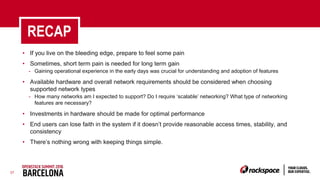

- 37. 37 RECAP • If youlive on the bleeding edge, prepare to feel some pain • Sometimes, short term pain is needed for long term gain - Gaining operational experience in the early days was crucial for understanding and adoption of features • Available hardware and overall network requirements should be considered when choosing supported network types - How many networks am I expected to support? Do I require ‘scalable’ networking? What type of networking features are necessary? • Investments in hardware should be made for optimal performance • End users can lose faith in the system if it doesn’t provide reasonable access times, stability, and consistency • There’s nothing wrong with keeping things simple.
- 38.
- 39. 39 Copyright © 2016Rackspace | Rackspace® Fanatical Support® and other Rackspace marks are either registered service marks or service marks of Rackspce US, Inc. in the United States and other countries. Features, benefits and pricing presented depend on system configuration and are subject to change without notice. Rackspace disclaims any representation, warranty or other legal commitment regarding its services except for those expressly stated in a Rackspace services agreement. All other trademarks, service marks, images, products and brands remain the sole property of their respective holders and do not imply endorsement or sponsorship. ONE FANATICAL PLACE | SAN ANTONIO, TX 78218 US SALES: 1-800-961-2888 | US SUPPORT: 1-800-961-4454 | WWW.RACKSPACE.COM
Editor's Notes
- #2 How to get from A->B without a repave. Figuring out how it works, how to engineer and implement solution, and have it be stable (or more stable than before)
- #4 We’ve seen a lot of clouds come and go, and along with it, configurations that worked and others that didn’t work so well. Every now and then, some of those decisions come back to haunt you. Other, require low maintenance with the trade-off of lack of functionality. Why do we bring up the old stuff? Believe it or not, it’s still out there. Waiting…
- #5 Open vSwitch -or- LinuxBridge VXLAN -or- VLAN Neutron routers (L3 Model) -or- Flat networking (L2 Model) VXLAN L2 Population -or- VXLAN Multicast
- #7 I don’t there’s any question that Neutron has outpaced Nova-Network in adoption and features over the last 5-6 releases
- #8 In 2013, with the move from Folsom to Grizzly, we adopted Neutron (then Quantum) over Nova-Network and with it, Open vSwitch. The writing was on the wall. With Quantum/Neutron, we got tenant-managed networking for private networks and used provider networks on the front-side. We did not yet support L3-agent. We lost floating IP functionality vs nova-networking, but the gains were better than losses. The community documentation all referenced OVS. LinuxBridge unstable or not marketed well/at-all.
- #9 Everything was new, or cutting edge, and stability was questionable. Environments were delicate, network-wise, and required more supervision that previous deployments.
- #12 Briefly describe that tenant network segmentation can be perfomed
- #13 VLANs are limiting (there’s only 4,096 max), but in reality much less due to Spanning Tree instance limitations on physical switches (PVST/MVST) VXLAN offers more scale (more networks) and leverages a single interface or bond. Allows for extensive on-demand network creations No switch management needed after initial setup (in some cases)
- #14 The reality is, many private clouds we come across don’t come near the scale that VXLAN was designed to solve and VLANs are perfectly viable option. VXLAN over head mixed with a standard MTU of 1500 caused SSH login failures. TCP 22 connections would pass, however a full SSH login attempt would fail. We solved this by lowering the MTU inside the instance via DHCP option. Alternatively, you could raise the MTU across all interfaces, but to do so may require buy-in from the network team and planning. Instances would boot, but the FDB and ARP table would fail to be updated in time (or at all), causing the DHCP to fail and the instance to never get its address. Or, the instance may not be able to communicate with gateway or vice-versa. Allowed Address pairs failures due to agent failing to program shared IP addresses and ProxyARP preventing ARP Broadcast Manual addition of the ARP entry would solve. https://bugs.launchpad.net/neutron/+bug/1445089
- #16 Neutron bug with FDB resulted in 1000s of duplicate “flooding” entries. https://bugs.launchpad.net/neutron/+bug/1531013
- #17 This one was much simpler than the original maintenance that inspired it. After all, there was no ML2 migration needed. Just simply modify the network segments table, delete the vxlan interfaces, restart the agents, and go! The VMs were none the wiser.
- #18 This one was much simpler than the original maintenance that inspired it. After all, there was no ML2 migration needed. Just simply modify the network segments table, delete the vxlan interfaces, restart the agents, and go! The VMs were none the wiser.
- #19 We learned that as the cloud scales out with additional nodes and more and more networks, the updates tend to have a major effect on the Neutron agents on the network nodes. During a event, such as agent restart of host down/up, it may take tens of minutes, or more, to recreate all of the FDB/ARP entries.
- #21 When first developed, it was the only way you could have access to tenant networks
- #22 When first developed, it was the only way you could have access to tenant networks
- #23 Single-router limitation addressed by DVR
- #25 NAT had negative impact on some Windows applications Static routes meant to be addressed with BGP speaker
- #27 You lose flexibility, but gain stability and move failover to the hardware layer.
- #30 One important thing to know about VXLAN is that both physical hosts involved in a connection between virtual machines need to be programmed with information on how to reach the other side. There are two methods of programming available in Neutron today.
- #31 We chose the l2population driver in Icehouse to manage FDB/ARP tables across hosts for VXLAN functionality L2population was preferred over multicast, since there was no need to configure the physical switching infrastructure for multicast.
- #34 Issues… As a result, a change to multicast was done
- #37 Better performance and better scale when talking about # of nodes, VMs, and networks.
