Detecto's USA-made Enterprise® APS series retail scales are designed for point-of-sale systems, featuring multiple connectivity options, various platform sizes, and capacities, as well as a bright LCD display. The document highlights various product series, including price computing scales, digital and hanging scales, and portion control scales, each tailored for different applications and offering features like battery operation, legal-for-trade certifications, and easy cleaning. Additionally, the document emphasizes the versatility and durability of Detecto's scales across multiple industries, including food service, retail, and industrial use.

1. Bulletin No. D290

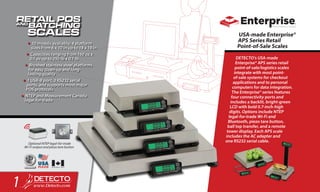

2. DETECTO’s USA-made
Enterprise® APS series retail
point-of-sale/logistics scales
integrate with most point-
of-sale systems for checkout
applications and to personal
computers for data integration.
The Enterprise® series features
four connectivity ports and
includes a backlit, bright-green
LCD with bold 0.7-inch-high
digits. Options include NTEP
legal-for-trade Wi-Fi and
Bluetooth, piezo tare button,
ball top transfer, and a remote
tower display. Each APS scale
includes the AC adapter and
one RS232 serial cable.
USA-made Enterprise®
APS Series Retail
Point-of-Sale Scales• 10 models available: 4 platform
sizes from 6 x 10 in up to 18 x 18 in
• Capacities ranging from 160 oz x
0.1 oz up to 250 lb x 0.1 lb
• Brushed stainless steel platforms
for easy clean-up and long-
lasting quality
• 1 USB-B port, 3 RS232 serial
ports, and supports most major
POS protocols
• NTEP and Measurement Canada
legal-for-trade
MEASUREMENT CANADA
Optional NTEP legal-for-trade
Wi-Fi output and piezo tare button
1

3. DETECTO’s DL series
networkable price computing
scales with integral label printers
include a 12.8 in W x 8.9 in D
stainless steel platform and
inventory reporting capabilities
by PLU. The DL series feature
multiple connectivity ports
(USB, Ethernet, RS232 serial,
and cash drawer), alphanumeric
display (upper and lower case
characters), and 4 LED display
windows and 1 dot matrix text
screen. Universal label printing
compatibilities include
50 label types available via
included PC software.
DL Series Networkable
Price Computing
Scales with Integral
Label Printers
• 4 models to choose from
• 30 lb x 0.01 lb or 60
lb x 0.02 lb capacities
available
• 5,990 PLU’s (highest in the
industry out of the box)
• Includes PC software
CD with drag-and drop
graphics setup
• Available with or without
tower pole display
SLICED TURKEY
10/17/15 10/17/15 7.99 0.68
SELL BY PACKED ON S/LB. NET WT. LB.
DETECTO DL Series Scales
5.43
TOTAL PRICE ($)
TURKEY BREAST
NET WT. PRICE/lb
SELL BY
PACKED ON
10-18-15
7.099.990.71
$
CHICKEN SALAD
INGREDIENTS;
Breast of Chicken, pickle
mustard, cheddar cheese, celery, and black pepper.
Plu 11
PACKED ON
PRICE PER LB.
SELL BY NET WT./LBS.
10/17/15 0.52
8.99
DETECTO DL Series Scales
4.67TOTAL PRICE ($)
2

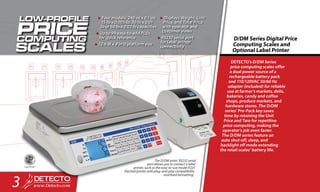

4. DETECTO’s D/DM Series
price computing scales offer
a dual power source of a
rechargeable battery pack
and 110/120VAC 50/60 Hz
adapter (included) for reliable
use at farmer’s markets, delis,
bakeries, candy and coffee
shops, produce markets, and
hardware stores. The D/DM
series’ Pre-Pack key saves
time by retaining the Unit
Price and Tare for repetitive
price computing, making the
operator’s job even faster.
The D/DM series feature an
auto shut-off, sleep, and
backlight off mode extending
the retail scales’ battery life.
D/DM Series Digital Price
Computing Scales and
Optional Label Printer
• Four models: 240 oz x 0.1 oz,
15 lb x 0.005 lb, 30 lb x 0.01
lb or 60 lb x 0.02 lb capacities
• Up to 99 easy-to-add PLUs
for quick reference
• 12.6 W x 9 in D platform size
• Displays Weight, Unit
Price, and Total Price
with operator and
customer views
• RS232 serial port
for label printer
connectivity
The D/DM series’ RS232 serial
port allows you to connect a label
printer, such as the easy-to-use model P225
thermal printer with plug-and-play compatibility
and fixed formatting.
3

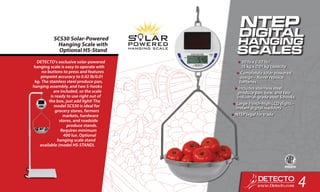

5. DETECTO’s exclusive solar-powered
hanging scale is easy to operate with
no buttons to press and features
pinpoint accuracy to 0.02 lb/0.01
kg. The stainless steel produce pan,
hanging assembly, and two S-hooks
are included, so the scale
is ready to use right out of
the box, just add light! The
model SCS30 is ideal for
grocery stores, farmers
markets, hardware
stores, and roadside
produce stands.
Requires minimum
400 lux. Optional
hanging scale stand
available (model HS-STAND).
SCS30 Solar-Powered
Hanging Scale with
Optional HS-Stand
• 30 lb x 0.02 lb /
15 kg x 0.01 kg capacity
• Completely solar-powered
design – Never replace
batteries
• Includes stainless steel
produce pan, bow, and two
industrial-grade steel S hooks
• Large 1-inch-high LCD digits –
Instant digital readouts
• NTEP legal for trade
4

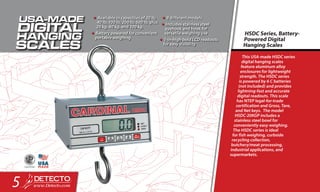

6. This USA-made HSDC series
digital hanging scales
feature aluminum alloy
enclosures for lightweight
strength. The HSDC series
is powered by 6 C batteries
(not included) and provides
lightning-fast and accurate
digital readouts. This scale
has NTEP legal-for-trade
certification and Gross, Tare,
and Net keys. The model
HSDC-20KGP includes a
stainless steel bowl for
conveniently easy weighing.
The HSDC series is ideal
for fish weighing, curbside
recycling collection,
butchery/meat processing,
industrial applications, and
supermarkets.
HSDC Series, Battery-
Powered Digital
Hanging Scales
• Available in capacities of 20 lb,
40 lb, 100 lb, 200 lb, 500 lb, plus
20 kg, 40 kg, and 100 kg.
• Battery powered for convenient
portable weighing
• 9 different models
• Includes stainless steel
eyehook and hook for
versatile weighing use
• 1-in-high bold LCD readouts
for easy visibility
5

7. MCS Series Economical
Produce Weighing
Hanging Dial Scales
These economical MCS series
hanging dial scales feature an
8 inch (20 cm) diameter dial
and bright-red pointer that
is easy to read and protected
by a plastic lens. Multiple
models are available and
feature your choice of single
or double dial with stainless
steel bowl, galvanized
scoop, or a heavy-duty
plated 4-inch S-hook to
suspend commodities
while weighing.
The MCS-60M model
incorporates an adjustable
pointer which may be set
anywhere on the dial in
order to factor net and
gross weight.
• Available in capacities of
20 lb or 40 lb
• Models with galvanized
scoops or stainless
steel bowls
• No power required
• Available with double dial
• Plastic housing eliminates
dents and scratches,
enhancing long-term
use and accuracy
6

8. DETECTO’s PS4 portion scale
features a smooth, molded
stainless steel enclosure and a
lift-off stainless steel commodity
tray for easy cleaning. This scale
is simple to operate and features
a sealed membrane keypad, 0.8
inch-high 5-digit LCD display,
NSF certification, and is accurate
to 0.1 oz. DETECTO also offers an
optional stainless steel ice cream
cone holder available as single
or double (model ICH1 or ICH2).
DETECTO’s cone holder tray is
removable, so the scale may be
used for weighing cups and other
portioning needs.
PS-4 Compact Portion
Control Scales and
Optional Ice Cream
Cone Holder
• 4 lb x 0.1 oz, 2,000 g x 1 g capacity
• 5.9 x 4.75 in stainless
steel platform
• Powered by one 9VDC battery
(not included) or AC adapter
(included)
• Multiple units: pounds/ounces
and grams
• Small footprint conserves
counter space
7

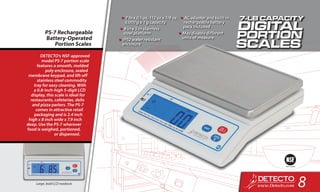

9. DETECTO’s NSF-approved
model PS-7 portion scale
features a smooth, molded
poly enclosure, sealed
membrane keypad, and lift-off
stainless steel commodity
tray for easy cleaning. With
a 0.8-inch-high 5-digit LCD
display, this scale is ideal for
restaurants, cafeterias, delis
and pizza parlors. The PS-7
comes in attractive retail
packaging and is 2.4 inch
high x 8 inch wide x 7.9 inch
deep. Use the PS-7 wherever
food is weighed, portioned,
or dispensed.
PS-7 Rechargeable
Battery-Operated
Portion Scales
• 7 lb x 0.1 oz, 112 oz x 1/8 oz,
3,000 g x 1 g capacity
• 8 in x 5 in stainless
steel platform
• IP52 water resistant
enclosure
• AC adapter and built-in
rechargeable battery
pack included
• May disable different
units of measure
Large, bold LCD readouts
8

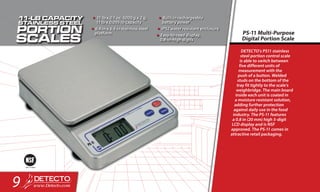

10. DETECTO’s PS11 stainless
steel portion control scale
is able to switch between
five different units of
measurement with the
push of a button. Welded
studs on the bottom of the
tray fit tightly to the scale’s
weighbridge. The main board
inside each unit is coated in
a moisture resistant solution,
adding further protection
against daily use in the food
industry. The PS-11 features
a 0.8 in (20 mm) high 5-digit
LCD display and is NSF
approved. The PS-11 comes in
attractive retail packaging.
PS-11 Multi-Purpose
Digital Portion Scale
• 11 lb x 0.1 oz, 5000 g x 2 g,
11 lb x 0.005 lb capacity
• 6.9 in x 6.5 in stainless steel
platform
• Built-in rechargeable
battery power
• IP52 water resistant enclosure
• Easy-to-read display,
0.8-in-high digits
9

11. DETECTO’s Mariner® WPS12
washdown portion control scale
is submersible underwater
for easy clean-up after messy
weighing applications. This
NSF-certified stainless steel
scale offers a dual power source
of rechargeable battery power
or 120V AC adapter (included)
with a watertight AC plug on
the side. The 1.2-inch-high LCD
with large 1 inch-high bold
digits make readouts quick
and easy to view. The Mariner®
saves time and helps reduce
the risk of bacteria harboring in
the nooks and crannies of the
scale by providing complete
submersion when washing
for sanitary environments.
12-lb Capacity Mariner®
WPS12 Washdown,
Easy-to Clean Digital Scales
• 12 lb x 0.1 oz, 192 oz
x 1/8 oz , 5,500 g x 1 g
capacities
• Built-in rechargeable
battery power with
watertight AC plug
• High/low
checkweighing with
audible over/
under alert
• 1.2-in-high backlit
blue LCD
• Stainless steel scale
and 7.5 in W x 9.75 in D
stainless steel platform
10

12. The stainless steel AP series
portion control scales
are ideal for a variety of
applications, including food
service, industrial, chemical,
food, drug, and hardware
retail establishments.
DETECTO’s AP series features
a 0.5-inch-high bright-red
LED display, accuracy to
0.05 ounce, and AC power
adapter (included). NTEP
and Measurement Canada
legal-for-trade certification
enables commercial weighing
(excluding model AP-20).
USA-Made, NTEP Legal-
for-Trade AP Series
Portion Control Scales
• 4 kg, 6 lb, 8 lb, 10 lb, and 20 lb
capacities
• Stainless steel scale and 6.75 in
x 5.25 in stainless steel platform
• Gross, Tare, and Net buttons
• AC adapter is included
• USA-made quality
MEASUREMENT CANADA
Model AP-4KD
features stainless steel tray
11

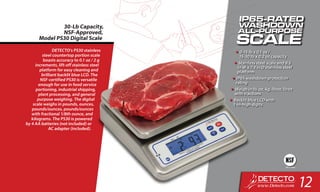

13. DETECTO’s PS30 stainless
steel countertop portion scale
boasts accuracy to 0.1 oz / 2 g
increments, lift-off stainless steel
platform for easy cleaning and
brilliant backlit blue LCD. The
NSF-certified PS30 is versatile
enough for use in food service
portioning, industrial shipping,
plant processing, and general
purpose weighing. The digital
scale weighs in pounds, ounces,
pounds/ounces, pounds/ounces
with fractional 1/8th ounce, and
kilograms. The PS30 is powered
by 4 AA batteries (not included) or
AC adapter (included).
30-Lb Capacity,
NSF-Approved,
Model PS30 Digital Scale
• 0-15 lb x 0.1 oz /
15-30 lb x 0.2 oz capacity
• Stainless steel scale and 9.5
in W x 7.3 in D stainless steel
platform
• IP65 washdown protection
rating
• Weigh in lb, oz, kg, lb:oz, lb:oz
with fractions
• Backlit blue LCD with
1-in-high digits
12

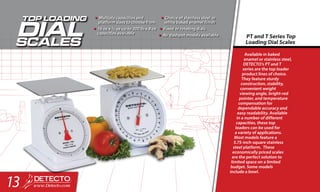

14. Available in baked
enamel or stainless steel,
DETECTO’s PT and T
series are the top loader
product lines of choice.
They feature sturdy
construction, stability,
convenient weight
viewing angle, bright-red
pointer, and temperature
compensation for
dependable accuracy and
easy readability. Available
in a number of different
capacities, these top
loaders can be used for
a variety of applications.
Most models feature a
5.75-inch-square stainless
steel platform. These
economically priced scales
are the perfect solution to
limited space on a limited
budget. Some models
include a bowl.
PT and T Series Top
Loading Dial Scales
• Multiple capacities and
platform sizes to choose from
• 16 oz x ¼ oz up to 200 lb x 8 oz
capacities available
• Choice of stainless steel or
white baked enamel finish
• Fixed or rotating dials
• Air dashpot models available
13

15. The DETECTO RP30
series allows you to view
the exact amount of
ingredients as they’re
being applied to the
food product you’re
building directly on
the scale, reducing
ingredient inventory
costs based on weight.
With a busy bakery, pizza
kitchen, or sandwich
shop completing
several finished goods
per hour, product
savings adds up
fast. The rotating
platform further
reduces production
time and allows for an
even distribution of
ingredients, creating
big savings and a fast
payback on investment.
RP30 Series Digital
Ingredient Scales with
Patented 360-Degree
Rotating Platforms • 30 lb x 0.1 oz / 15 kg x 5 g
capacity
• 13-in-diameter round platter or
17 x 13 in rectangular platter
• Displays individual
ingredient weights and
total product weight
• Built-in rechargeable battery
power and AC adapter included
• Patented 360° rotating platform
14

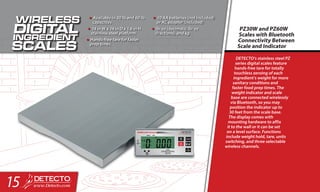

16. DETECTO’s stainless steel PZ
series digital scales feature
hands-free tare for totally
touchless zeroing of each
ingredient’s weight for more
sanitary conditions and
faster food prep times. The
weight indicator and scale
base are connected wirelessly
via Bluetooth, so you may
position the indicator up to
30 feet from the scale base.
The display comes with
mounting hardware to affix
it to the wall or it can be set
on a level surface. Functions
include weight hold, tare, units
switching, and three selectable
wireless channels.
PZ30W and PZ60W
Scales with Bluetooth
Connectivity Between
Scale and Indicator
• Available in 30 lb and 60 lb
capacities
• 14 in W x 14 in D x 1.6 in H
stainless steel platform
• Hands-free tare for faster
prep times
• 10 AA batteries (not included)
or AC adapter (included)
• lb: oz (decimals), lb: oz
(fractions), and kg
15

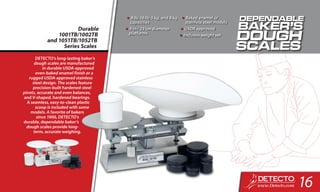

17. Durable
1001TB/1002TB
and 1051TB/1052TB
Series Scales
• 8 lb, 16 lb, 5 kg, and 8 kg
capacities
• 9 in / 23 cm diameter
platforms
• Baked enamel or
stainless steel models
• USDA approved
• Includes weight set
DETECTO’s long-lasting baker’s
dough scales are manufactured
in durable USDA-approved
oven-baked enamel finish or a
rugged USDA-approved stainless
steel design. The scales feature
precision-built hardened-steel
pivots, accurate and even balances,
and V-shaped, hardened bearings.
A seamless, easy-to-clean plastic
scoop is included with some
models. A favorite of bakers
since 1900, DETECTO’s
durable, dependable baker’s
dough scales provide long-
term, accurate weighing.
16

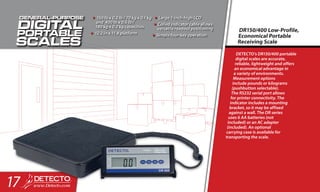

18. DETECTO’s DR150/400 portable
digital scales are accurate,
reliable, lightweight and offers
an economical advantage in
a variety of environments.
Measurement options
include pounds or kilograms
(pushbutton selectable).
The RS232 serial port allows
for printer connectivity. The
indicator includes a mounting
bracket, so it may be affixed
against a wall. The DR series
uses 6 AA batteries (not
included) or an AC adapter
(included). An optional
carrying case is available for
transporting the scale.
DR150/400 Low-Profile,
Economical Portable
Receiving Scale
• 150 lb x 0.2 lb / 70 kg x 0.1 kg
and 400 lb x 0.5 lb /
180 kg x 0.2 kg capacities
• 12.2 in x 11.8 platform
• Large 1-inch-high LCD
• Coiled indicator cable allows
versatile readout positioning
• Simple four-key operation
17

19. DETECTO’s USA-made EB-190
series bench scale indicators are
impact resistant and protected
from sharp objects. Stainless
steel construction of the scale
platform and column ensures
easy clean-up and long-lasting
quality. Other scale features
include a 1-inch-high LCD,
built-in RS232 communications
port, optional Wi-Fi Ethernet,
and versatile power options
(including rechargeable battery
power). The bright, vivid 190
STORM display changes color
automatically as the
pre-assigned target weights
are reached.
Durable, Legal-for-Trade
EB-190 Bench Scales
Featuring ColorZone
Checkweighing
• Capacitive touch keys sense
human contact
• ColorZONE checkweighing for
Over/Under verification
• Rugged IP69K-rated plastic
weight display
• Durable stainless steel base
and column
• NTEP and Measurement
Canada legal-for-trade
certification
18

20. Portable and attractive, these
USA-made digital portable scales
with 5-inch diameter rubolene
wheels let the weighing come
to you. With a platform size
of 19 x 28 inch and capacities
of 500 or 1,000 lbs, there is
very little these scales aren’t
capable of weighing. Models are
constructed entirely of heavy-
duty welded, fabricated steel
with electrostatic paint coating,
and they are equipped with
either a 190, 204, 205, or 210
digital weight indicator having
push button tare, pounds/
kilograms conversion, and RS232
serial output. NTEP legal-for-
trade certified.
5852F/8852F Series
Digital Receiving Scales
• 500 lb x 0.2 lb / 220 kg x 0.1 kg
and 1,000 lb x 0.5 lb / 440 kg x
0.2 kg capacities
• 19 in x 28 in platform
• Wheels for mobility
• Serial output for label printer
connectivity
• USA-made quality construction
The 5852F/8852F
series feature an
RS232 serial port,
so they may be
connected to
printers such
as DETECTO’s
P225 thermal
label printer.
MEASUREMENT CANADA
19

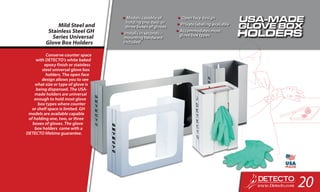

21. Conserve counter space
with DETECTO’s white baked
epoxy finish or stainless
steel universal glove box
holders. The open face
design allows you to see
what size or type of glove is
being dispensed. The USA-
made holders are universal
enough to hold most glove
box types where counter
or shelf space is limited. GH
models are available capable
of holding one, two, or three
boxes of gloves. The glove
box holders come with a
DETECTO lifetime guarantee.
Mild Steel and
Stainless Steel GH
Series Universal
Glove Box Holders
• Models capable of
holding one, two, or
three boxes of gloves
• Installs in seconds –
mounting hardware
included
• Open face design
• Private labeling available
• Accommodates most
glove box types
20

22. Named for their rugged toughness
that a person can actually stand
on, DETECTO’s step-on cans are
perfect for commercial foodservice
waste disposal. The step-on-cans
are equipped with a heavy-duty
foot pedal and linkage design and
feature a bag securing mechanism.
The USA-made trash cans are
available in either stainless steel
or a baked epoxy finish (available
in white or red) and they are flame
retardant. Five different can sizes are
available to meet your specific sizing
requirements.
Ruggedly-Built, Flame-
Retardant P and C Series
Step-On-Cans for Food Waste
• Available in 3 finishes:
baked epoxy painted red
or white and stainless steel
• Available in 16qt, 24qt,
32qt, 48qt and 100qt
capacities
• American-made, durable
construction
• Heavy-duty foot pedal
and self-closing lid
• Long-lasting trash can
quality for food waste
21

23. DETECTO’s Dump Commander®
solves the problem of
transferring waste from your
facility to the outside trash
bin. Dump Commander® is
narrow and mobile enough to
wheel anywhere you need it
and offers mechanical lifting
power to dump commercial
trashcan-sized containers
into a larger bin. The Dump
Commander® will quickly lift up
to 150-pound trash cans with
the push of a single button. The
rechargeable battery-operated
system can be operated by
a single person. The Dump
Commander® prevents injury
due to heavy lifting, potentially
offering huge savings on
worker’s compensation
insurance premiums.
Uniquely-Innovative
Dump Commander®
Portable Trash Can
Dumping System
• Creates a safe work
environment and reduces
worker’s compensation claims
• Interfaces with off-the-shelf
commercial trash can dollies
• No more spilled trash due to
bag breakage
• Hand-held controller with rocker
switch and 8-ft cord
• Reduces labor time from
two employees to one for
dumping trash
22

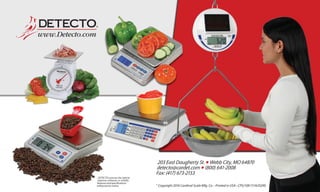

24. 203 East Daugherty St. l Webb City, MO 64870
detecto@cardet.com l (800) 641-2008
Fax: (417) 673-2153
©
Copyright 2016 Cardinal Scale Mfg. Co. • Printed in USA • CPS/10K/1116/D290
DETECTO reserves the right to
improve, enhance, or modify
features and specifications
without prior notice.www.CentralCarolinaScale.com
