DesignCon 2019 112-Gbps Electrical Interfaces: An OIF Update on CEI-112G

The document discusses the Optical Internetworking Forum (OIF) and its initiatives related to the development of 112-gbps electrical interfaces. It outlines the organization's goals of supporting interoperability among network operators and addressing challenges such as proprietary solutions and the lack of standards. Additionally, it details technical specifications and projects underway, including various reach applications and the implications of chiplet technology on electrical signaling.

Embed presentation

Downloaded 264 times
112-Gbps Electrical Interfaces: An OIF Update on CEI-112G Brian Holden, Kandou Bus Cathy Liu, Broadcom Steve Sekel, Keysight Nathan Tracy, TE Connectivity
SPEAKERS Nathan Tracy OIF President/Board Member, TE Connectivity Technologist ntracy@te.com Cathy Liu OIF Board Member, Broadcom Inc. SerDes Architect cathyliu@broadcom.com Steve Sekel OIF PLL Interop WG chair, Keysight Technologies 400G Solutions Specialist steve.sekel@keysight.com Brian Holden OIF Member, Kandou Bus, VP of Standards brian@kandou.com 2

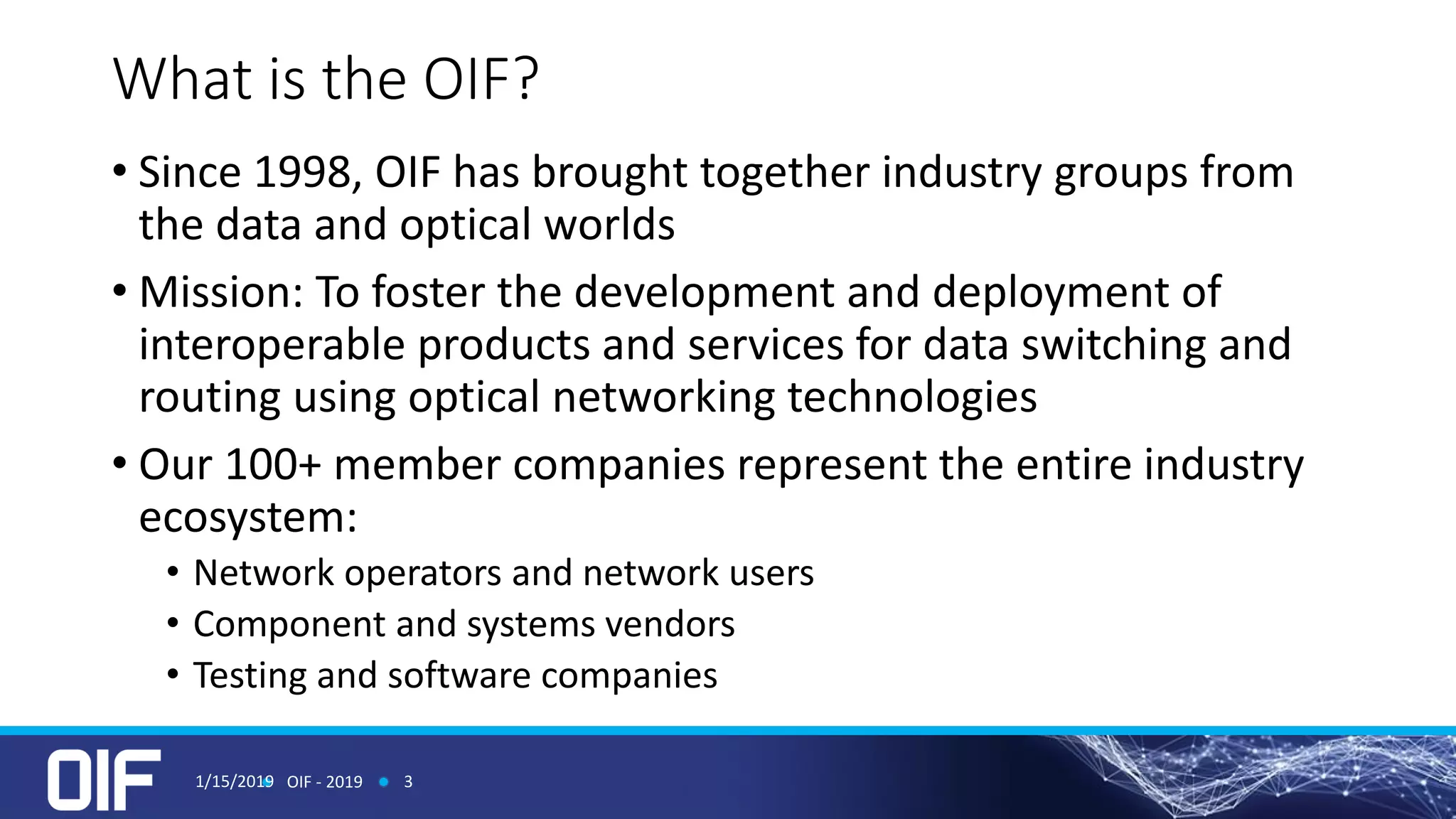

What is the OIF? • Since 1998, OIF has brought together industry groups from the data and optical worlds • Mission: To foster the development and deployment of interoperable products and services for data switching and routing using optical networking technologies • Our 100+ member companies represent the entire industry ecosystem: • Network operators and network users • Component and systems vendors • Testing and software companies 1/15/2019 OIF - 2019 3

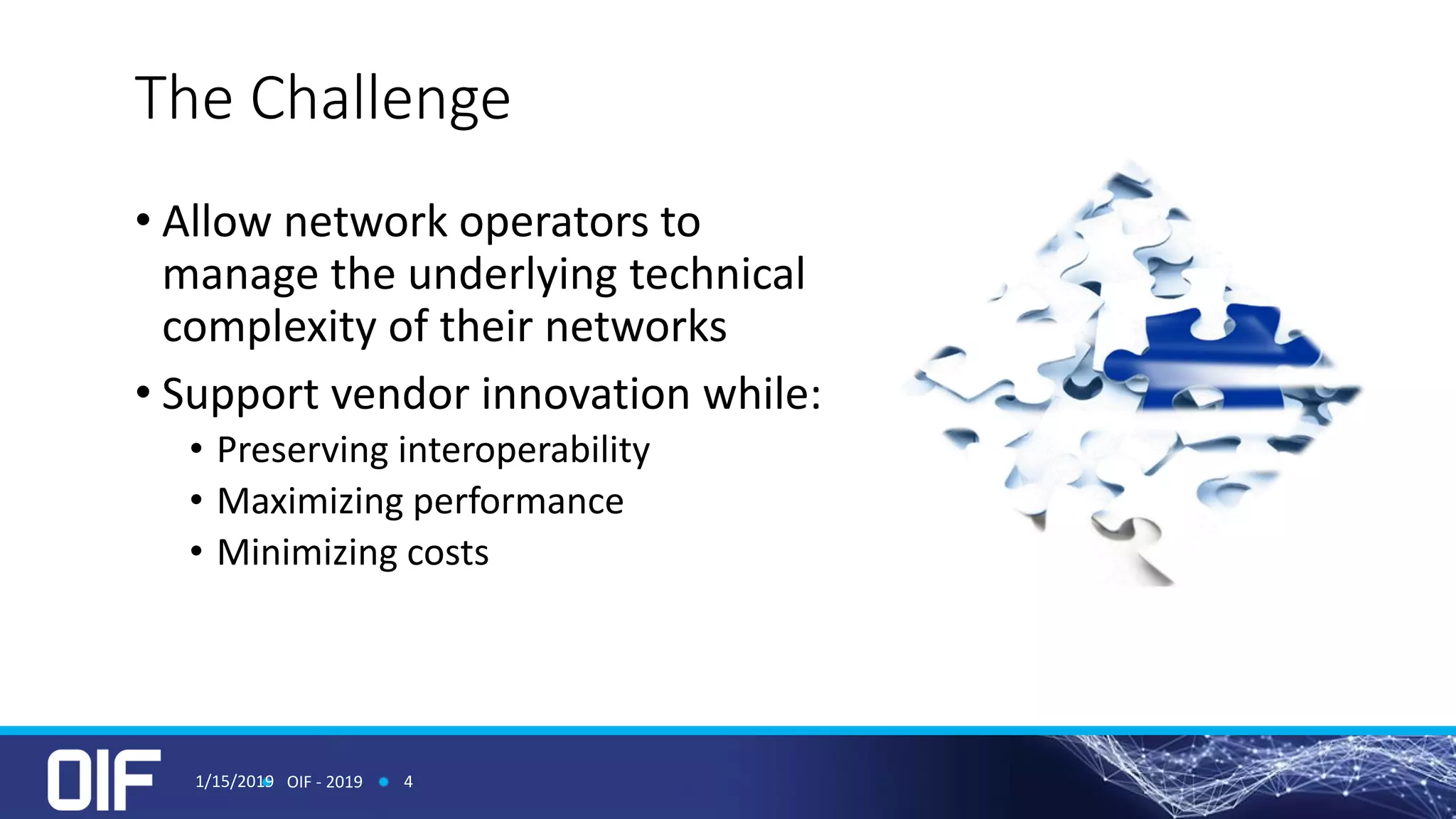

The Challenge • Allow network operators to manage the underlying technical complexity of their networks • Support vendor innovation while: • Preserving interoperability • Maximizing performance • Minimizing costs 1/15/2019 OIF - 2019 4

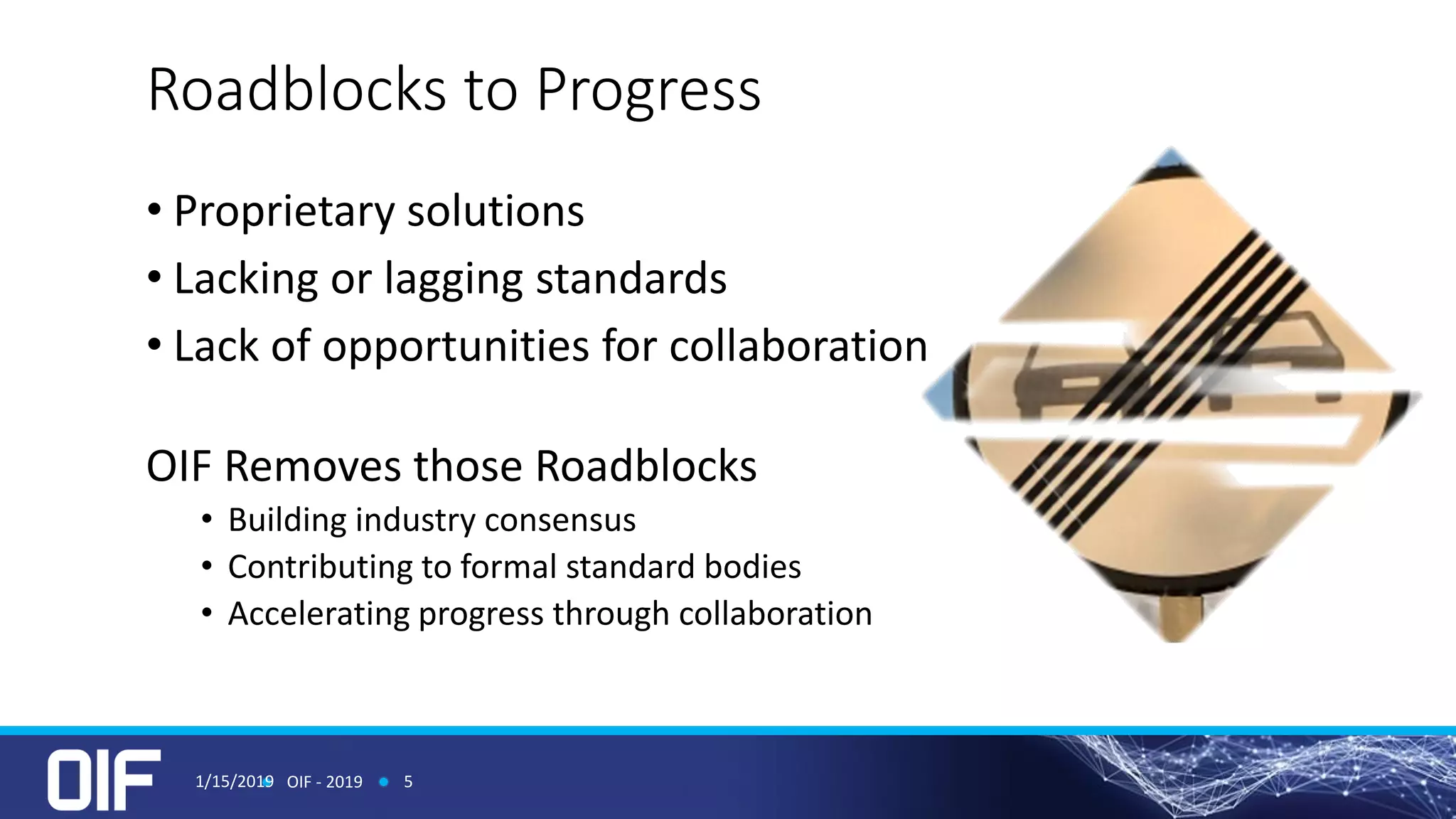

Roadblocks to Progress • Proprietary solutions • Lacking or lagging standards • Lack of opportunities for collaboration OIF Removes those Roadblocks • Building industry consensus • Contributing to formal standard bodies • Accelerating progress through collaboration 1/15/2019 OIF - 2019 5

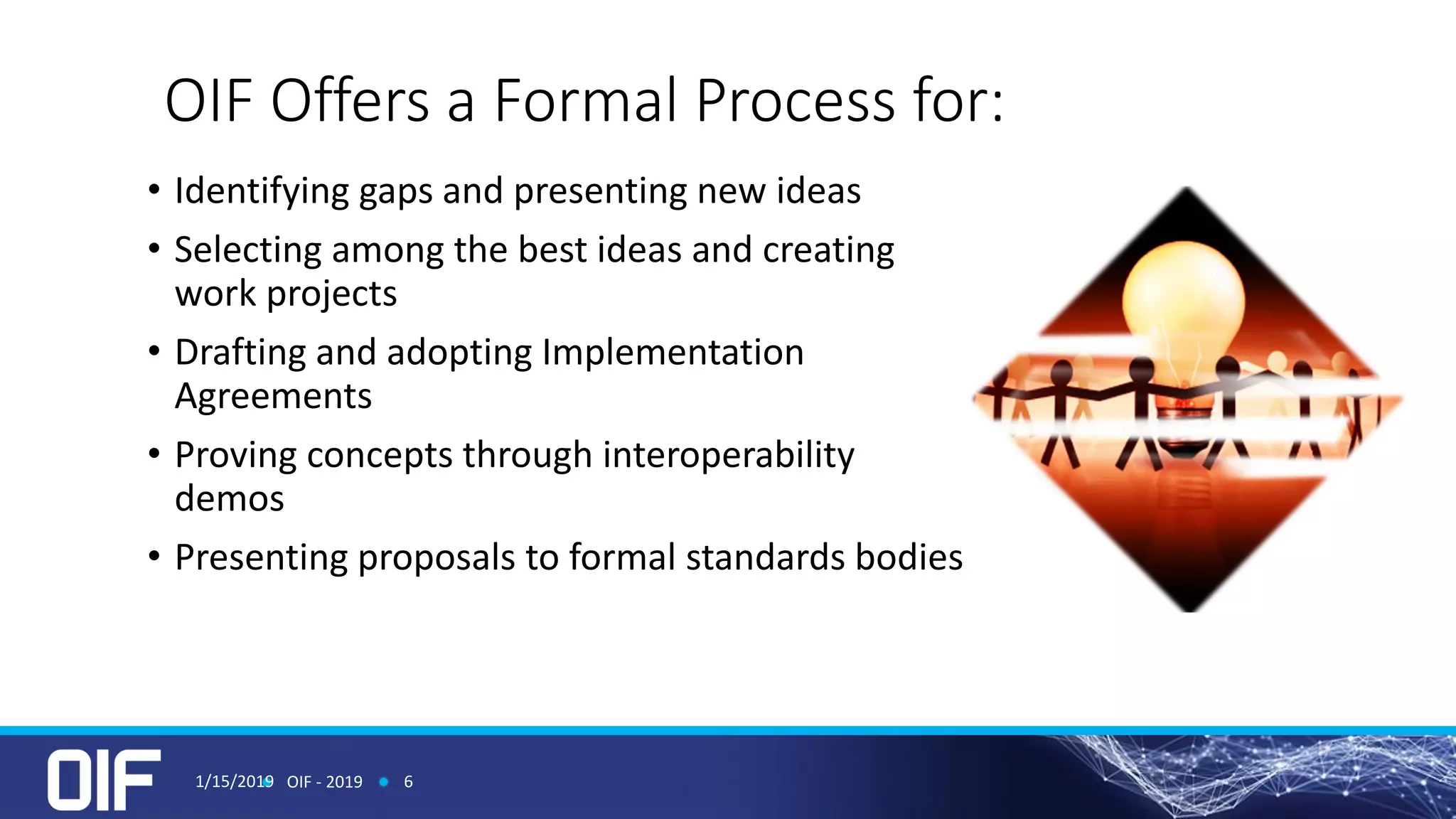

OIF Offers a Formal Process for: • Identifying gaps and presenting new ideas • Selecting among the best ideas and creating work projects • Drafting and adopting Implementation Agreements • Proving concepts through interoperability demos • Presenting proposals to formal standards bodies 1/15/2019 OIF - 2019 6

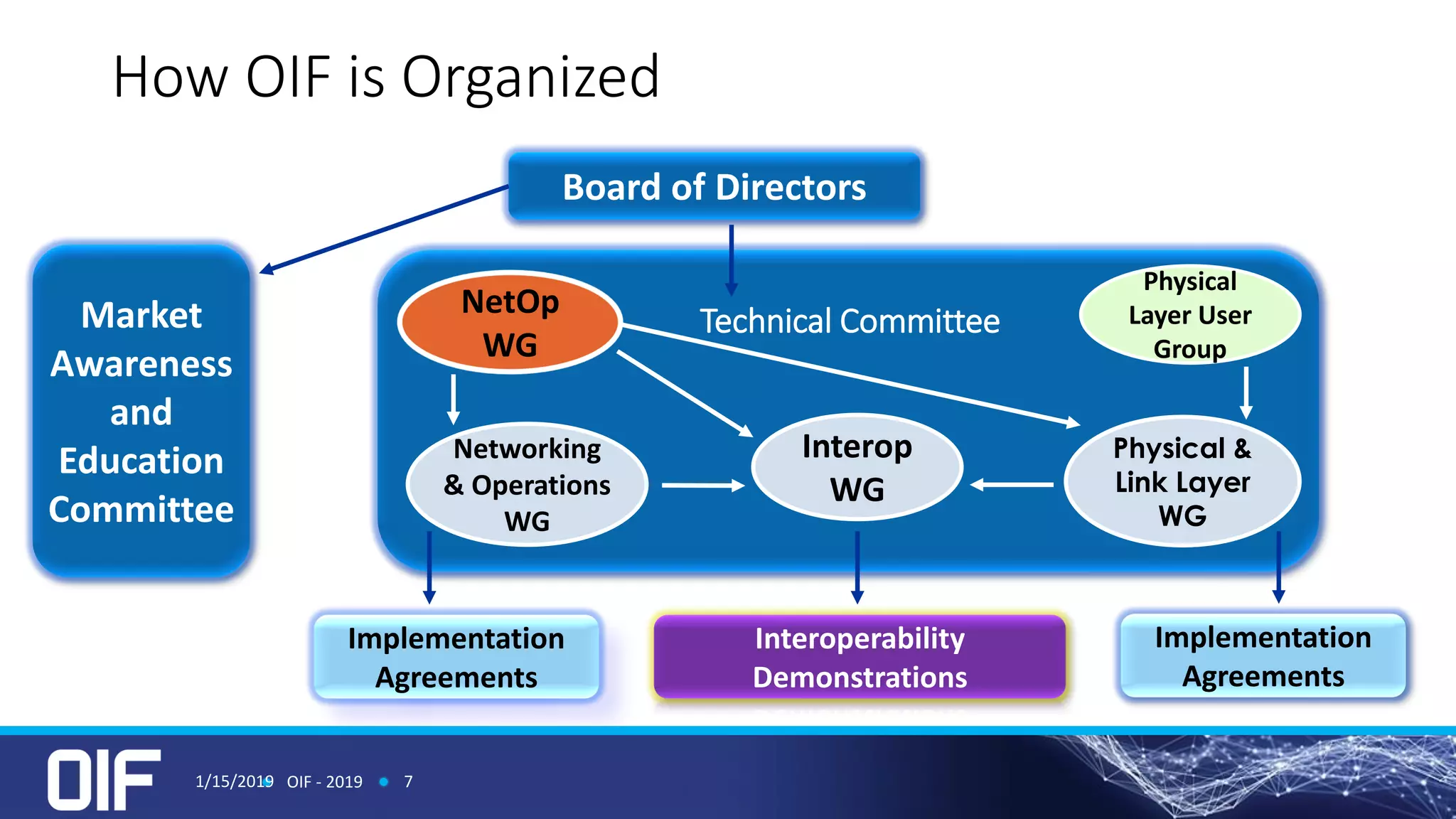

How OIF is Organized Market Awareness and Education Committee Technical Committee Board of Directors Networking & Operations WG Interop WG Physical & Link Layer WG NetOp WG Physical Layer User Group Interoperability Demonstrations Implementation Agreements Implementation Agreements 1/15/2019 OIF - 2019 7
Electrical Implementation Agreements 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 SxI-5 CEI-1.0 CEI-2.0 CEI-3.0 6G 11G 25G & 28G 56G CEI-3.1 CEI-4.0 112G  CEI IA is a clause-based format supporting publication of new clauses over time:  CEI-1.0: included CEI-6G-SR, CEI-6G-LR, and CEI-11G-SR clauses.  CEI-2.0: added CEI-11G-LR clause  CEI-3.0: added work from CEI-25G-LR, CEI-28G-SR  CEI-3.1: added work from CEI-28G-MR and CEI-28G-VSR  CEI-11G and -28G specifications have been used as a basis for specifications developed in IEEE 802.3, ANSI/INCITS T11, and IBTA.  CEI 56G projects have recently completed in 2017: http://www.oiforum.com/wp-content/uploads/OIF-CEI-04.0.pdf  LR: backplane  MR: chip to chip  VSR: chip to module  XSR: chip to optics engine (separate chips)  USR: chip to optics engine (2.5D or 3D package)  CEI 112G project is in process 1/15/2019 OIF - 2019 8

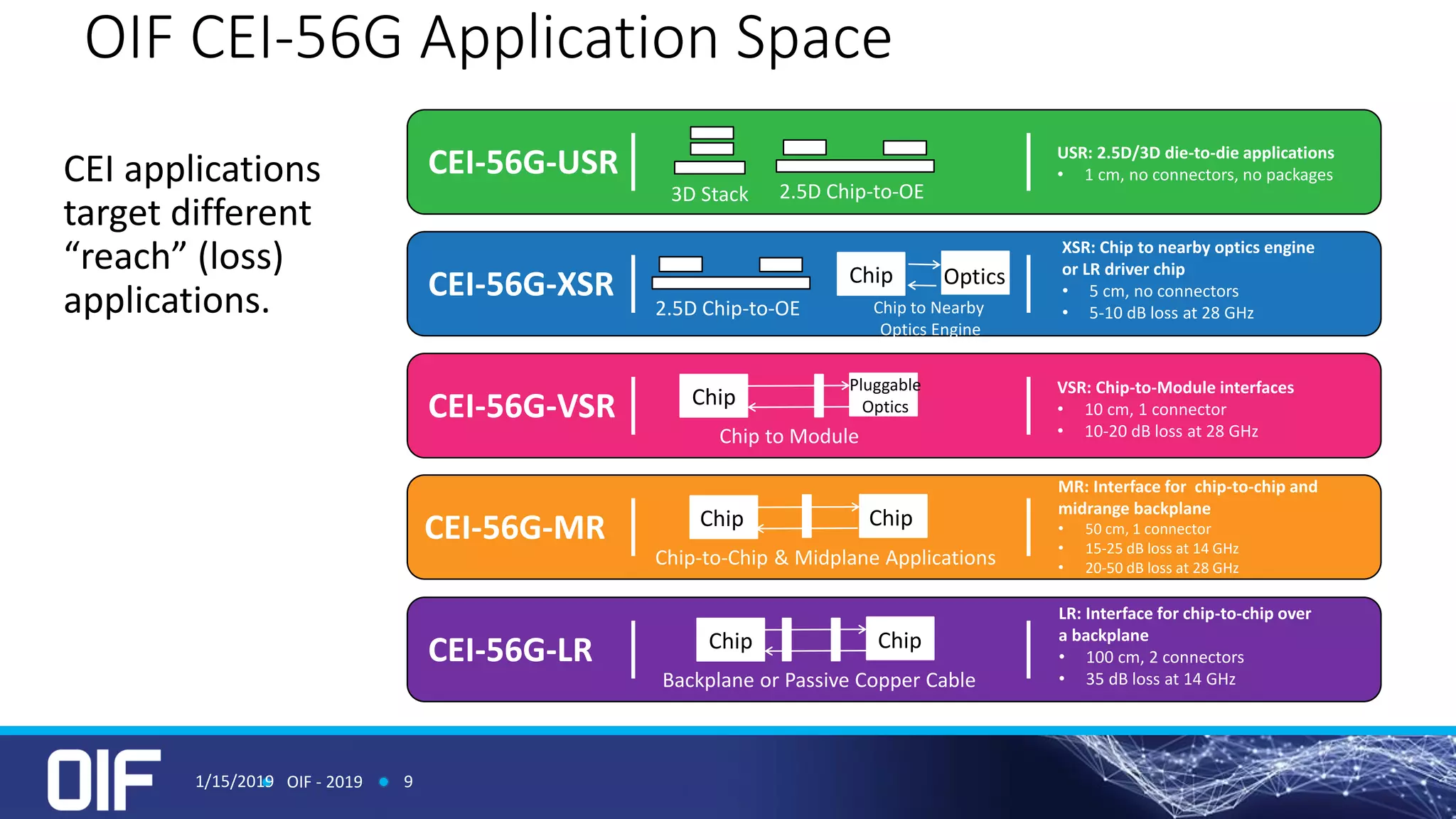

OIF CEI-56G Application Space CEI applications target different “reach” (loss) applications. CEI-56G-LR Chip Chip Backplane or Passive Copper Cable LR: Interface for chip-to-chip over a backplane • 100 cm, 2 connectors • 35 dB loss at 14 GHz CEI-56G-MR Chip Chip Chip-to-Chip & Midplane Applications MR: Interface for chip-to-chip and midrange backplane • 50 cm, 1 connector • 15-25 dB loss at 14 GHz • 20-50 dB loss at 28 GHz CEI-56G-VSR Chip Pluggable Optics Chip to Module VSR: Chip-to-Module interfaces • 10 cm, 1 connector • 10-20 dB loss at 28 GHz CEI-56G-XSR Chip Optics Chip to Nearby Optics Engine XSR: Chip to nearby optics engine or LR driver chip • 5 cm, no connectors • 5-10 dB loss at 28 GHz CEI-56G-USR 3D Stack USR: 2.5D/3D die-to-die applications • 1 cm, no connectors, no packages 2.5D Chip-to-OE 2.5D Chip-to-OE 1/15/2019 OIF - 2019 9

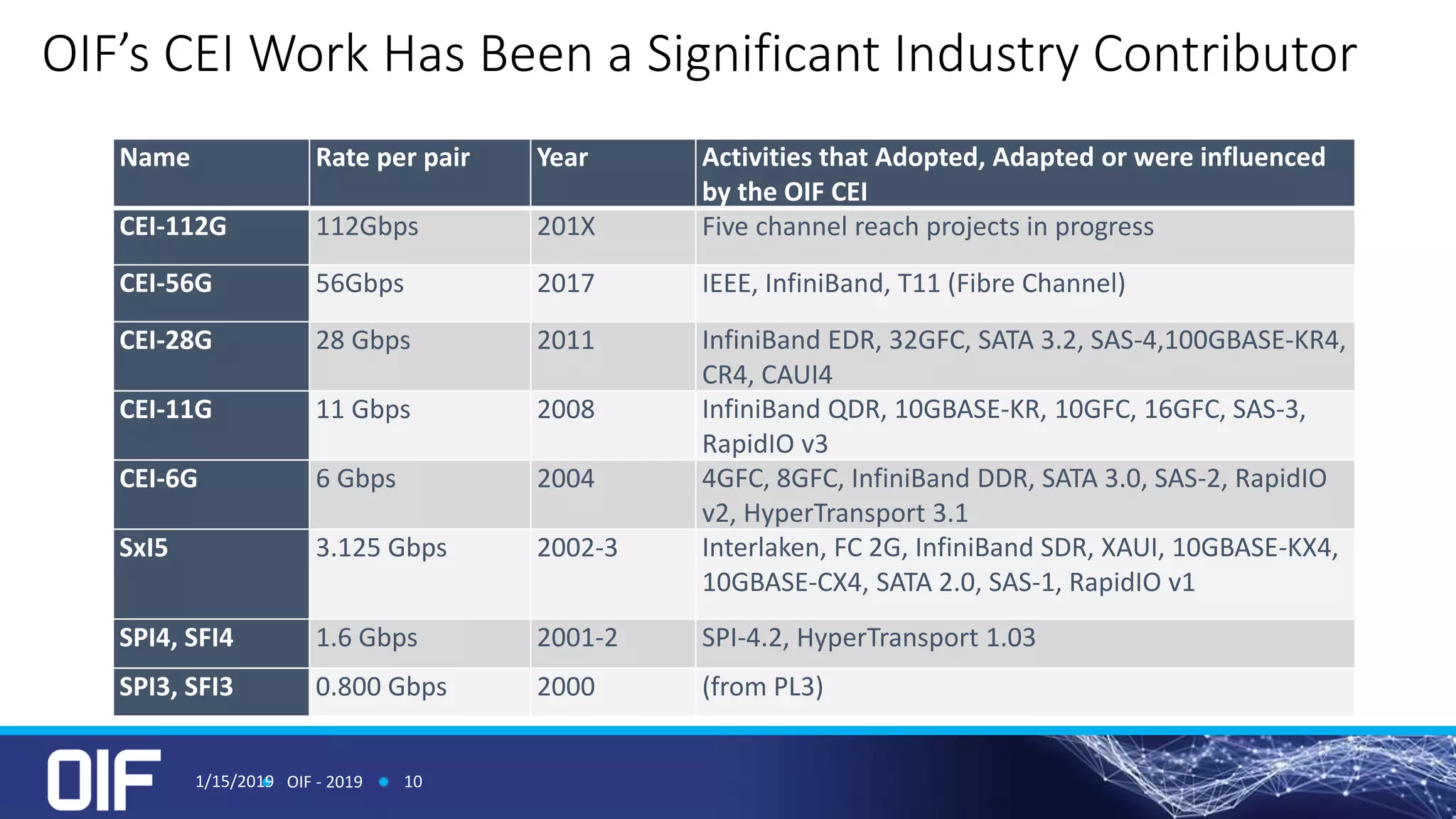

Name Rate per pair Year Activities that Adopted, Adapted or were influenced by the OIF CEI CEI-112G 112Gbps 201X Five channel reach projects in progress CEI-56G 56Gbps 2017 IEEE, InfiniBand, T11 (Fibre Channel) CEI-28G 28 Gbps 2011 InfiniBand EDR, 32GFC, SATA 3.2, SAS-4,100GBASE-KR4, CR4, CAUI4 CEI-11G 11 Gbps 2008 InfiniBand QDR, 10GBASE-KR, 10GFC, 16GFC, SAS-3, RapidIO v3 CEI-6G 6 Gbps 2004 4GFC, 8GFC, InfiniBand DDR, SATA 3.0, SAS-2, RapidIO v2, HyperTransport 3.1 SxI5 3.125 Gbps 2002-3 Interlaken, FC 2G, InfiniBand SDR, XAUI, 10GBASE-KX4, 10GBASE-CX4, SATA 2.0, SAS-1, RapidIO v1 SPI4, SFI4 1.6 Gbps 2001-2 SPI-4.2, HyperTransport 1.03 SPI3, SFI3 0.800 Gbps 2000 (from PL3) OIF’s CEI Work Has Been a Significant Industry Contributor 1/15/2019 OIF - 2019 10
11 | CEI-112G MCM and XSR Brian Holden Kandou Bus KANDOU BUS
12 | CEI-112G MCM and XSR Application Spaces ❖ CEI-112G-MCM: ❖ 2.5 cm bump-to-bump ❖ CNRZ-5 modulation ❖ DC coupled path ❖ Silicon to silicon ❖ Clock Forwarded ❖ Fat-pipe (i.e. between logic chips) ❖ System FEC typically not present ❖ CEI-112G-XSR: ❖ 5 cm bump to bump ❖ PAM-4 modulation ❖ On-die AC coupling if needed ❖ Silicon to analog supported ❖ Thin-pipe (optics-friendly) ❖ Possible to make backwards compatible ❖ Typically relies on system FEC 12 3D Stack 2.5D Chip-to-Chiplet Chip Optics 2.5D Chip-to-OE Chip to Nearby Optics Engine Chip Optics

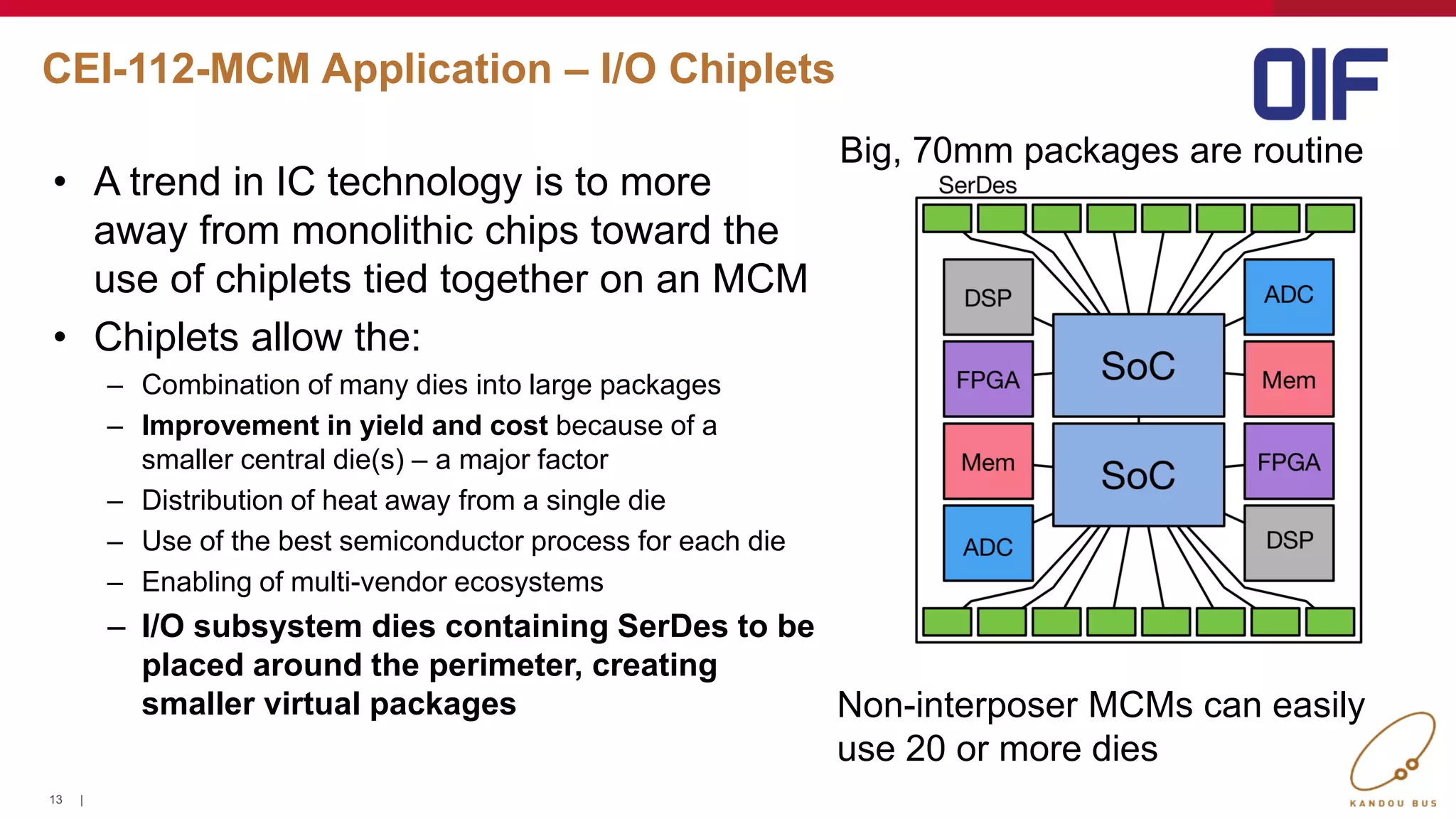

13 | CEI-112-MCM Application – I/O Chiplets Big, 70mm packages are routine Non-interposer MCMs can easily use 20 or more dies • A trend in IC technology is to more away from monolithic chips toward the use of chiplets tied together on an MCM • Chiplets allow the: – Combination of many dies into large packages – Improvement in yield and cost because of a smaller central die(s) – a major factor – Distribution of heat away from a single die – Use of the best semiconductor process for each die – Enabling of multi-vendor ecosystems – I/O subsystem dies containing SerDes to be placed around the perimeter, creating smaller virtual packages 13

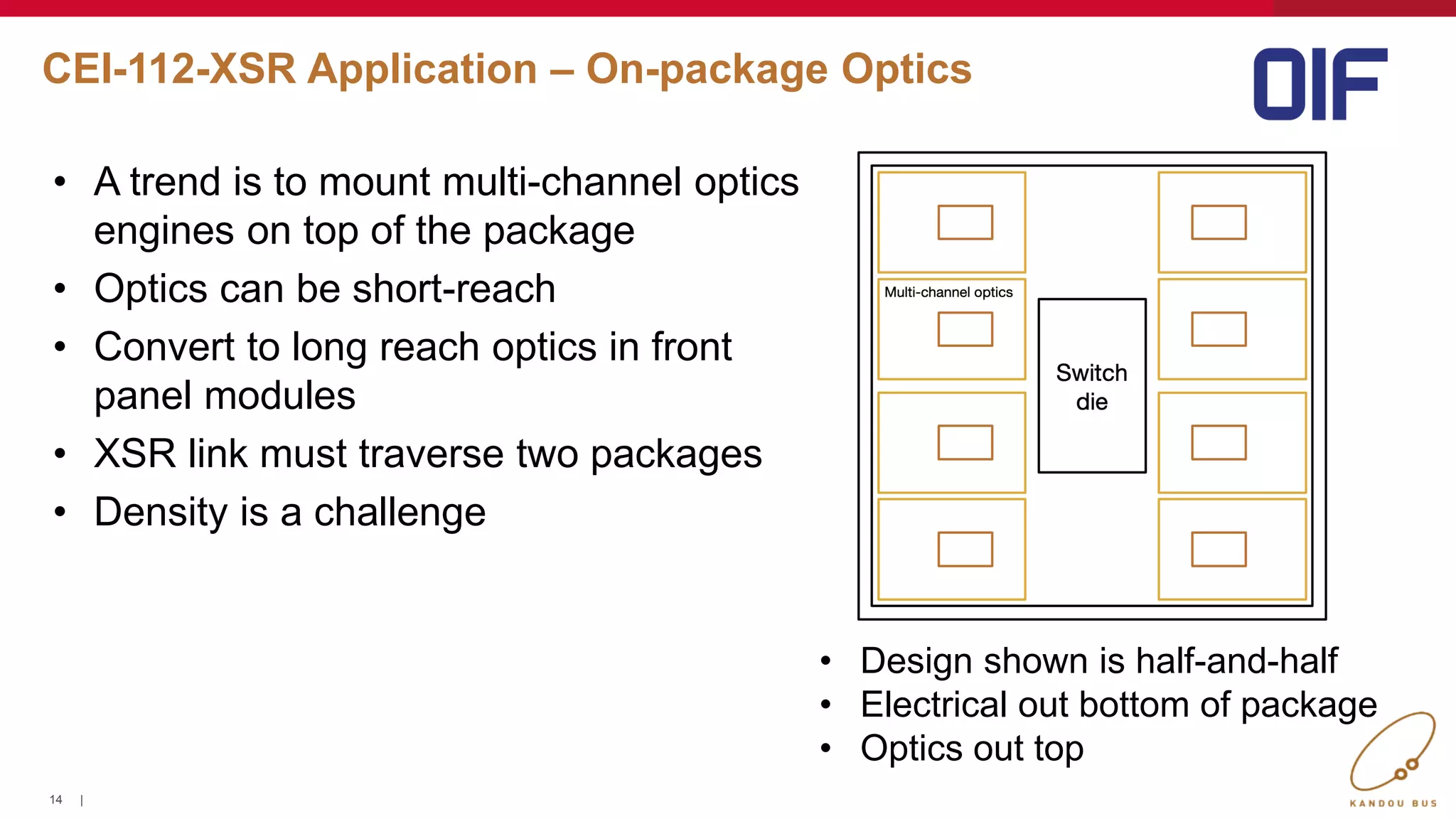

14 | CEI-112-XSR Application – On-package Optics • Design shown is half-and-half • Electrical out bottom of package • Optics out top • A trend is to mount multi-channel optics engines on top of the package • Optics can be short-reach • Convert to long reach optics in front panel modules • XSR link must traverse two packages • Density is a challenge 14
15 | CEI-112-XSR Application - Optical Engines • Another emerging trend is to put multi- channel optical engines in small packages around the perimeter of the package • These optical links can have simple, short-reach optics • Longer-reach optics can be on the front panel Shown is a half-and-half design with electrical out the bottom and optical out of the top Study of the impact of chiplets KANDOU BUS

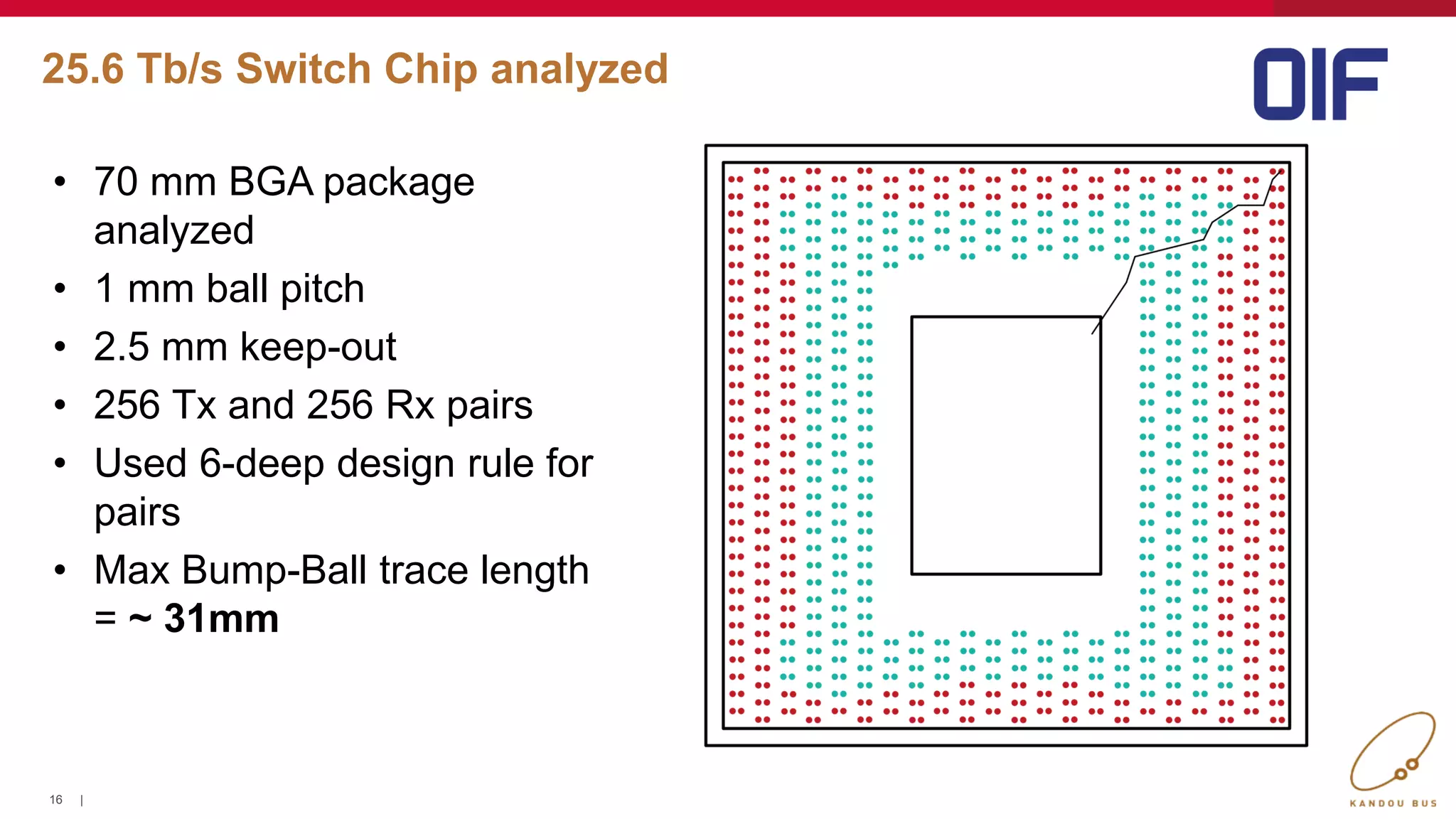

16 | 25.6 Tb/s Switch Chip analyzed • 70 mm BGA package analyzed • 1 mm ball pitch • 2.5 mm keep-out • 256 Tx and 256 Rx pairs • Used 6-deep design rule for pairs • Max Bump-Ball trace length = ~ 31mm 16

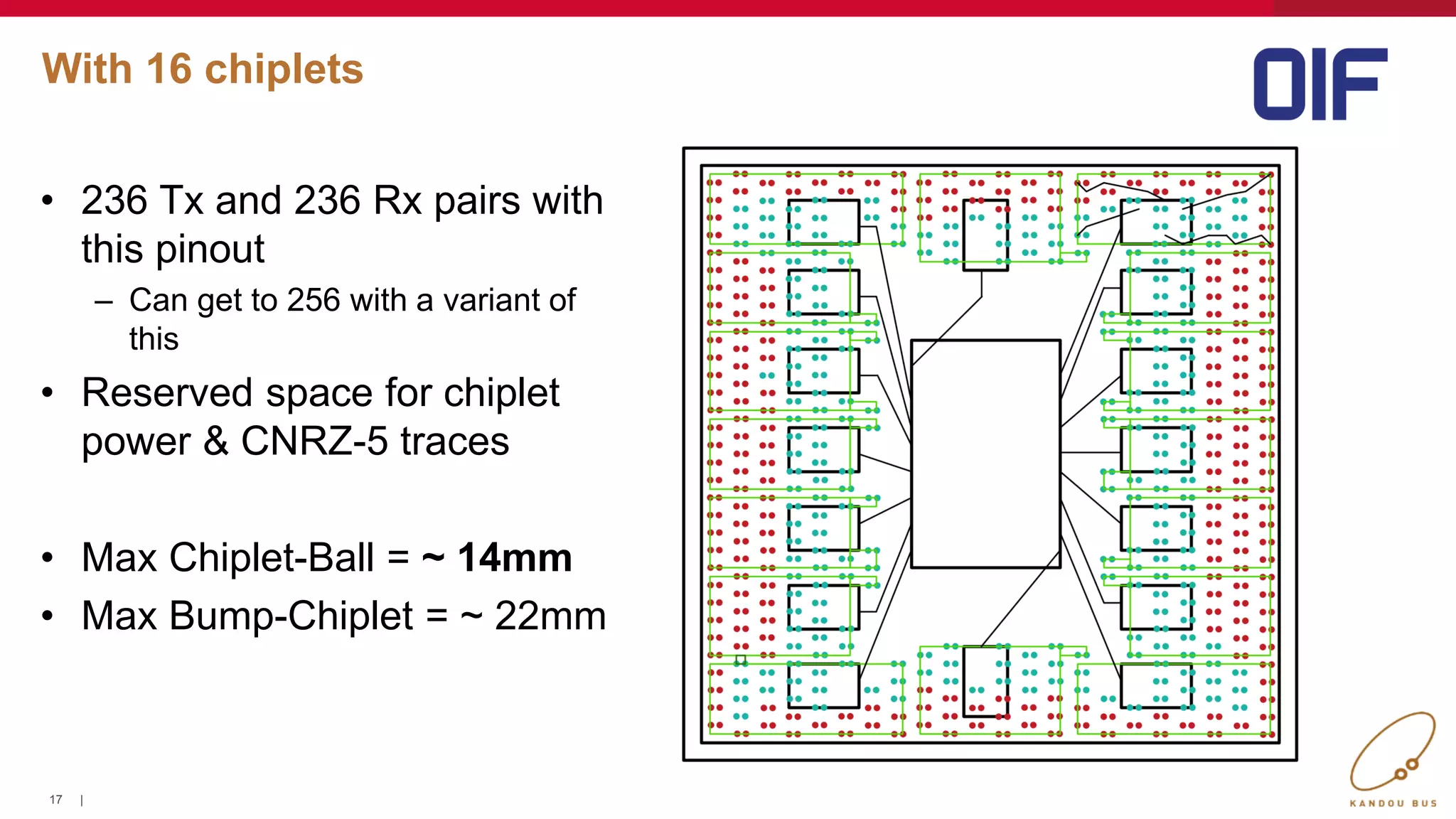

17 | With 16 chiplets • 236 Tx and 236 Rx pairs with this pinout – Can get to 256 with a variant of this • Reserved space for chiplet power & CNRZ-5 traces • Max Chiplet-Ball = ~ 14mm • Max Bump-Chiplet = ~ 22mm 17

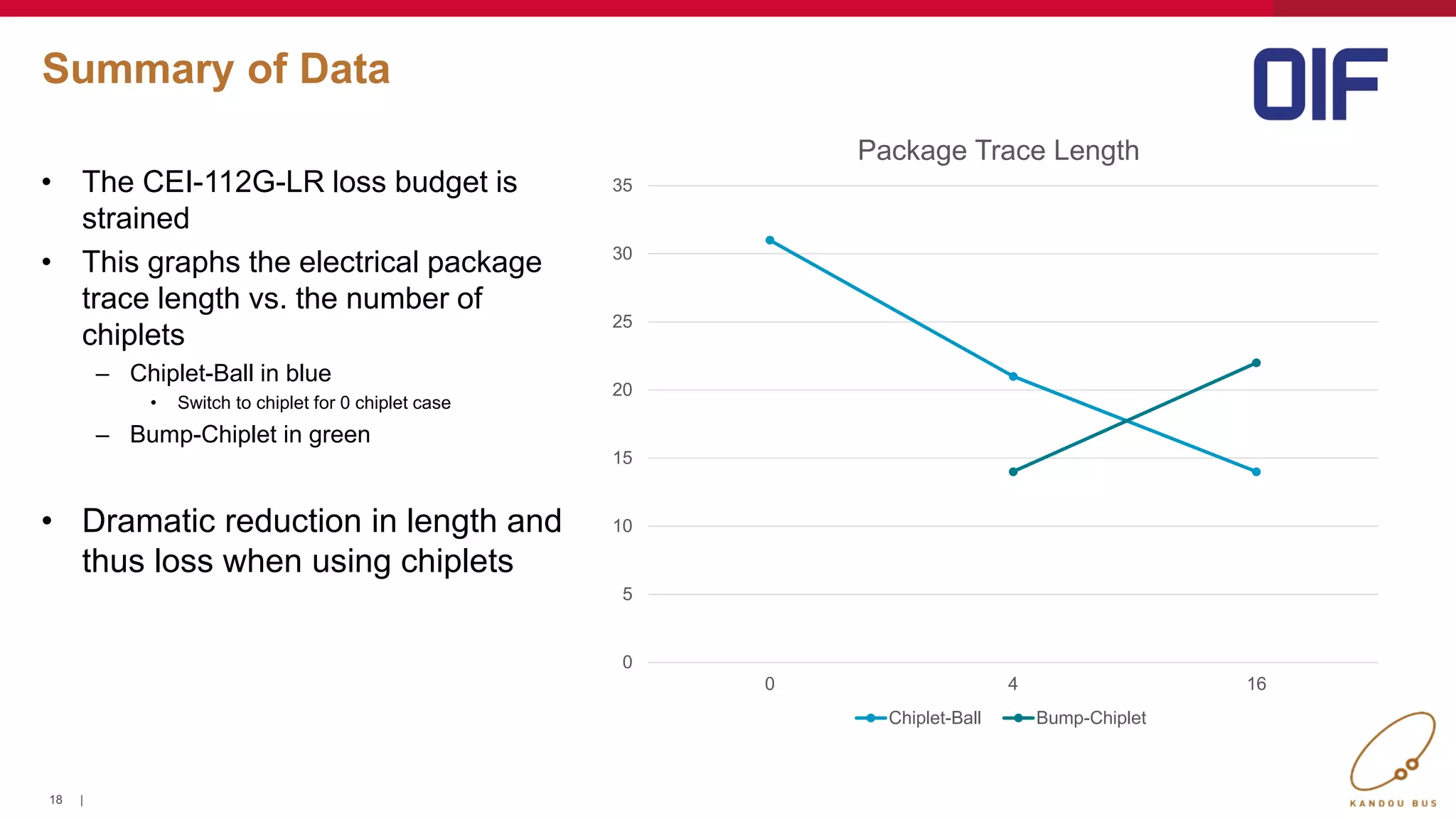

18 | Summary of Data • The CEI-112G-LR loss budget is strained • This graphs the electrical package trace length vs. the number of chiplets – Chiplet-Ball in blue • Switch to chiplet for 0 chiplet case – Bump-Chiplet in green • Dramatic reduction in length and thus loss when using chiplets 18 0 5 10 15 20 25 30 35 0 4 16 Package Trace Length Chiplet-Ball Bump-Chiplet
19 | CEI-112-XSR Application - Optical Engines • Another emerging trend is to put multi- channel optical engines in small packages around the perimeter of the package • These optical links can have simple, short-reach optics • Longer-reach optics can be on the front panel Shown is a half-and-half design with electrical out the bottom and optical out of the top Opinions of Kandou Bus about CEI-112G-MCM KANDOU BUS

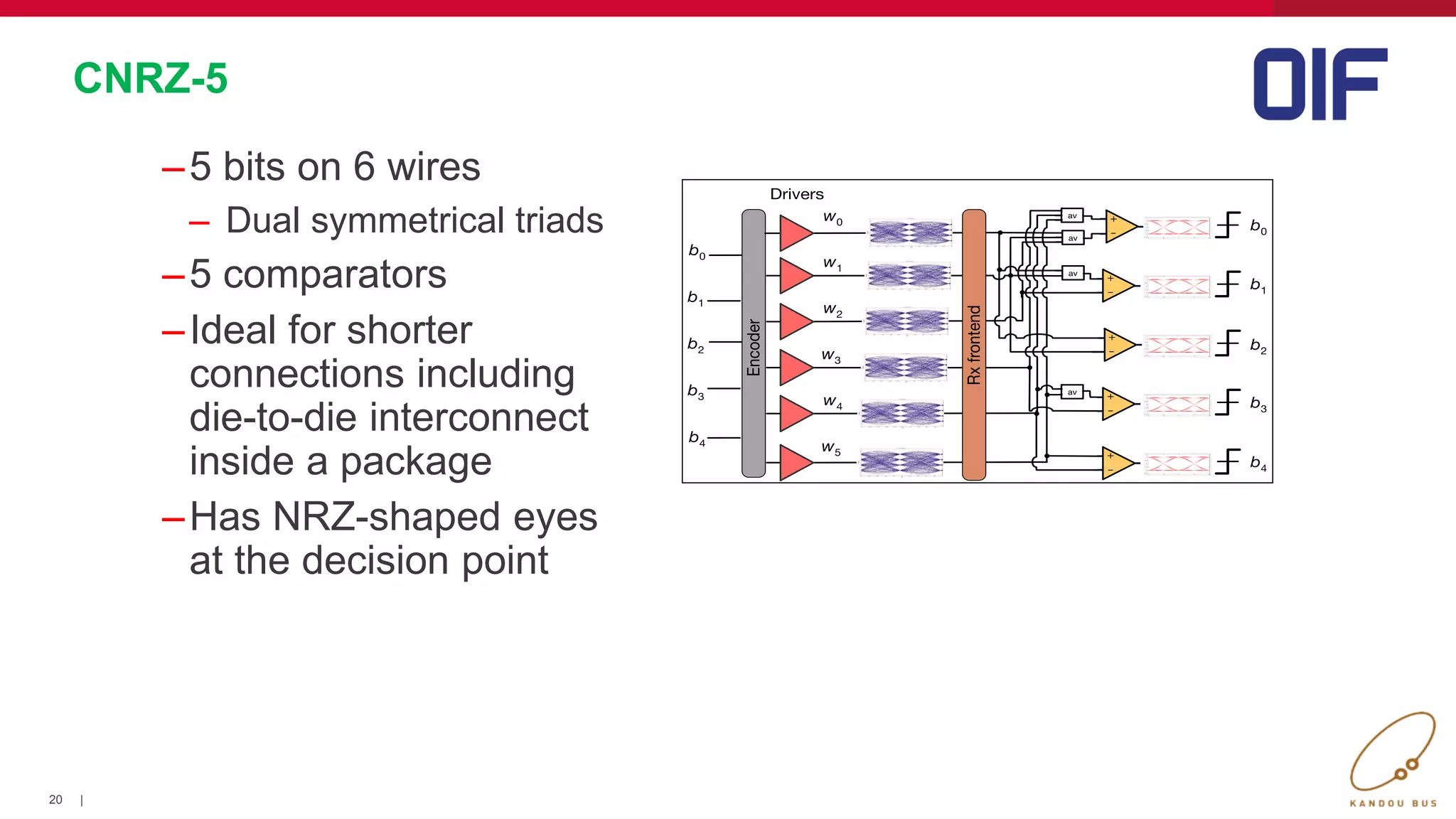

20 | CNRZ-5 –5 bits on 6 wires – Dual symmetrical triads –5 comparators –Ideal for shorter connections including die-to-die interconnect inside a package –Has NRZ-shaped eyes at the decision point

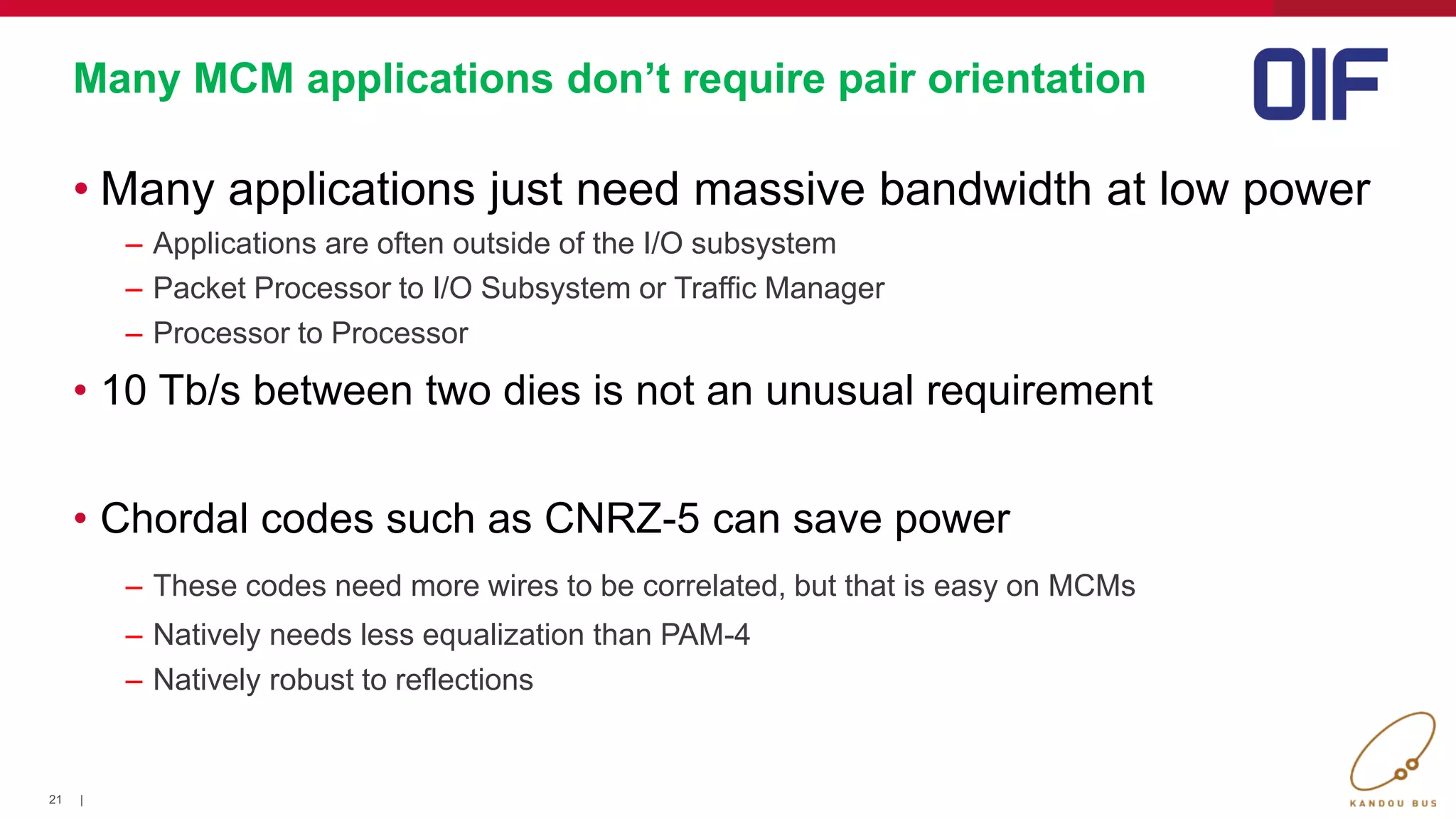

21 | Many MCM applications don’t require pair orientation • Many applications just need massive bandwidth at low power – Applications are often outside of the I/O subsystem – Packet Processor to I/O Subsystem or Traffic Manager – Processor to Processor • 10 Tb/s between two dies is not an unusual requirement • Chordal codes such as CNRZ-5 can save power – These codes need more wires to be correlated, but that is easy on MCMs – Natively needs less equalization than PAM-4 – Natively robust to reflections
22 | Reinventing the Bus
Click to edit Master title style Click to edit Master subtitle style CEI-112G: Status Update on VSR, MR and LR Channels Nathan Tracy, OIF President and TE Connectivity Technologist

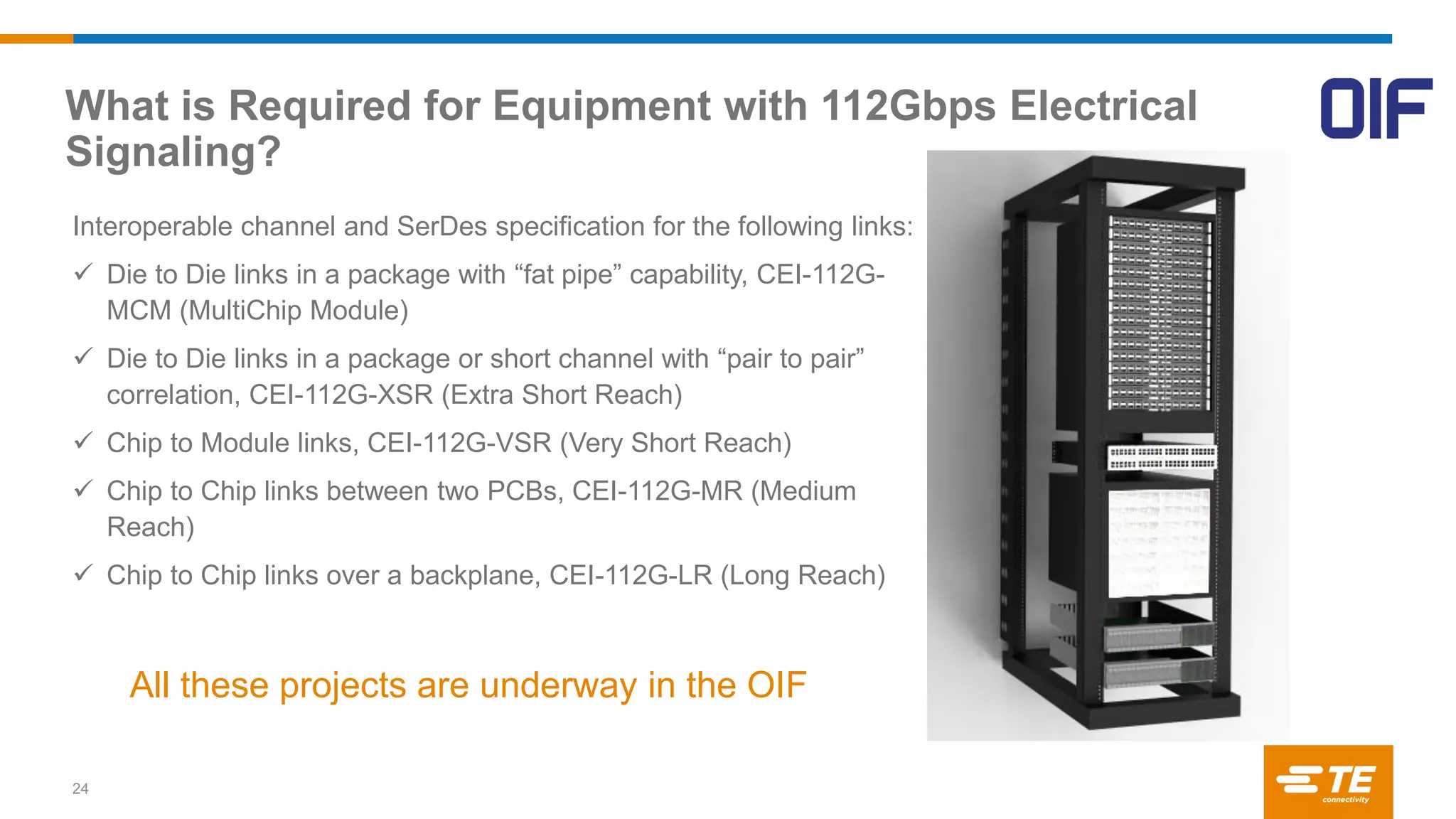

What is Required for Equipment with 112Gbps Electrical Signaling? 24 Interoperable channel and SerDes specification for the following links: ✓ Die to Die links in a package with “fat pipe” capability, CEI-112G- MCM (MultiChip Module) ✓ Die to Die links in a package or short channel with “pair to pair” correlation, CEI-112G-XSR (Extra Short Reach) ✓ Chip to Module links, CEI-112G-VSR (Very Short Reach) ✓ Chip to Chip links between two PCBs, CEI-112G-MR (Medium Reach) ✓ Chip to Chip links over a backplane, CEI-112G-LR (Long Reach) All these projects are underway in the OIF

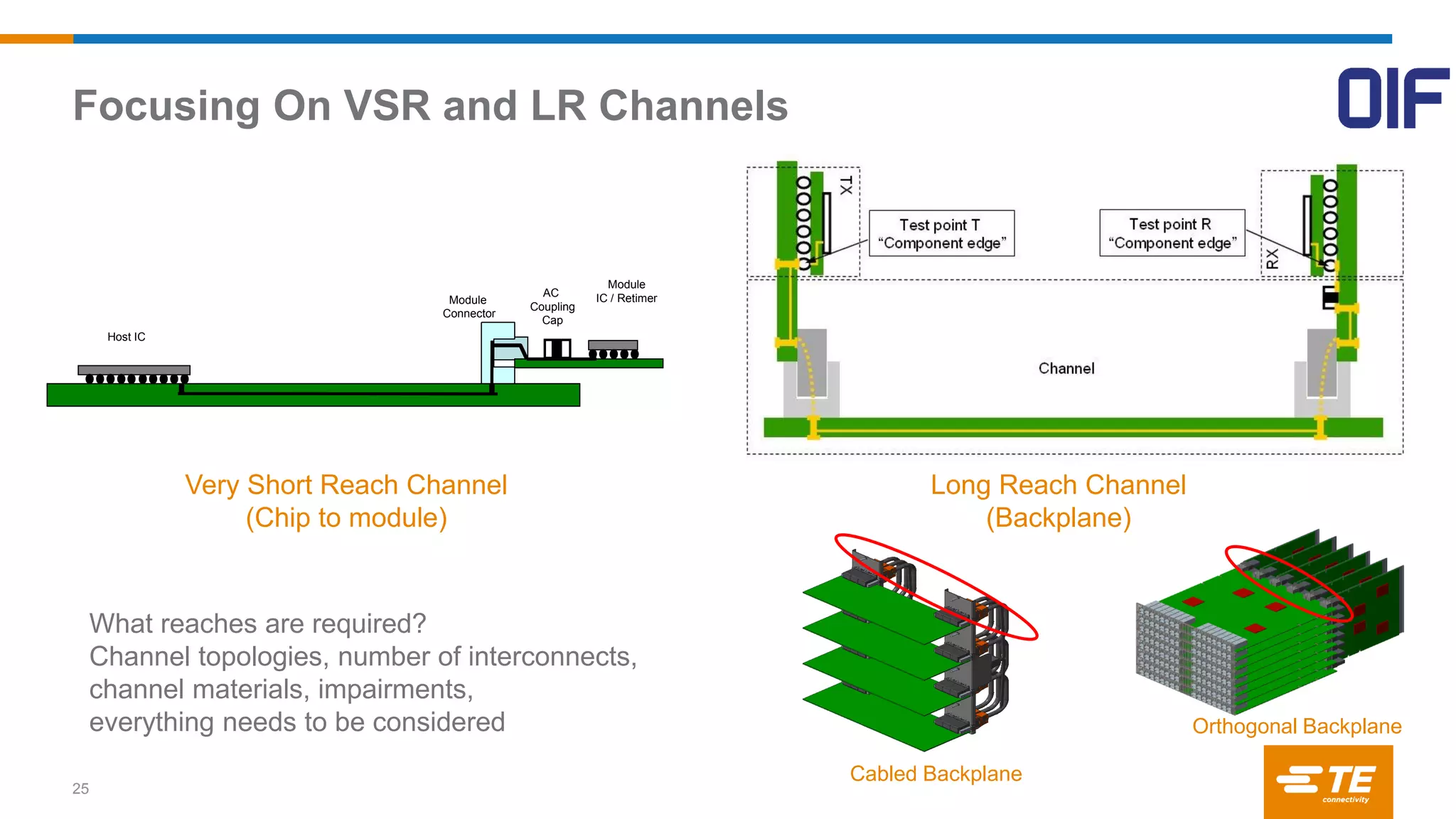

Focusing On VSR and LR Channels 25 Host IC Module Connector AC Coupling Cap Module IC / Retimer Very Short Reach Channel (Chip to module) Long Reach Channel (Backplane) Cabled Backplane Orthogonal Backplane What reaches are required? Channel topologies, number of interconnects, channel materials, impairments, everything needs to be considered

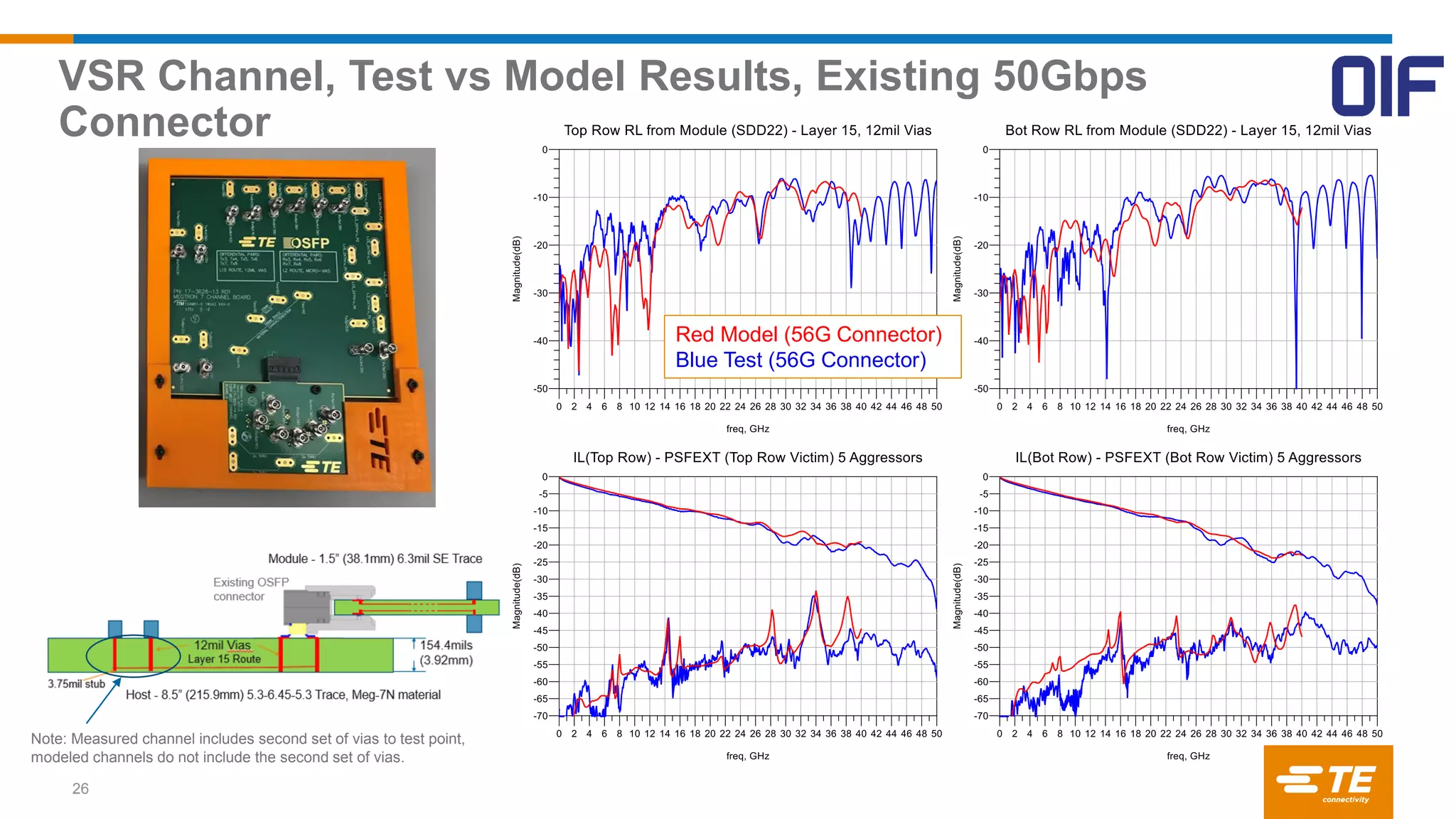

VSR Channel, Test vs Model Results, Existing 50Gbps Connector Red Model (56G Connector) Blue Test (56G Connector) 26 Note: Measured channel includes second set of vias to test point, modeled channels do not include the second set of vias.

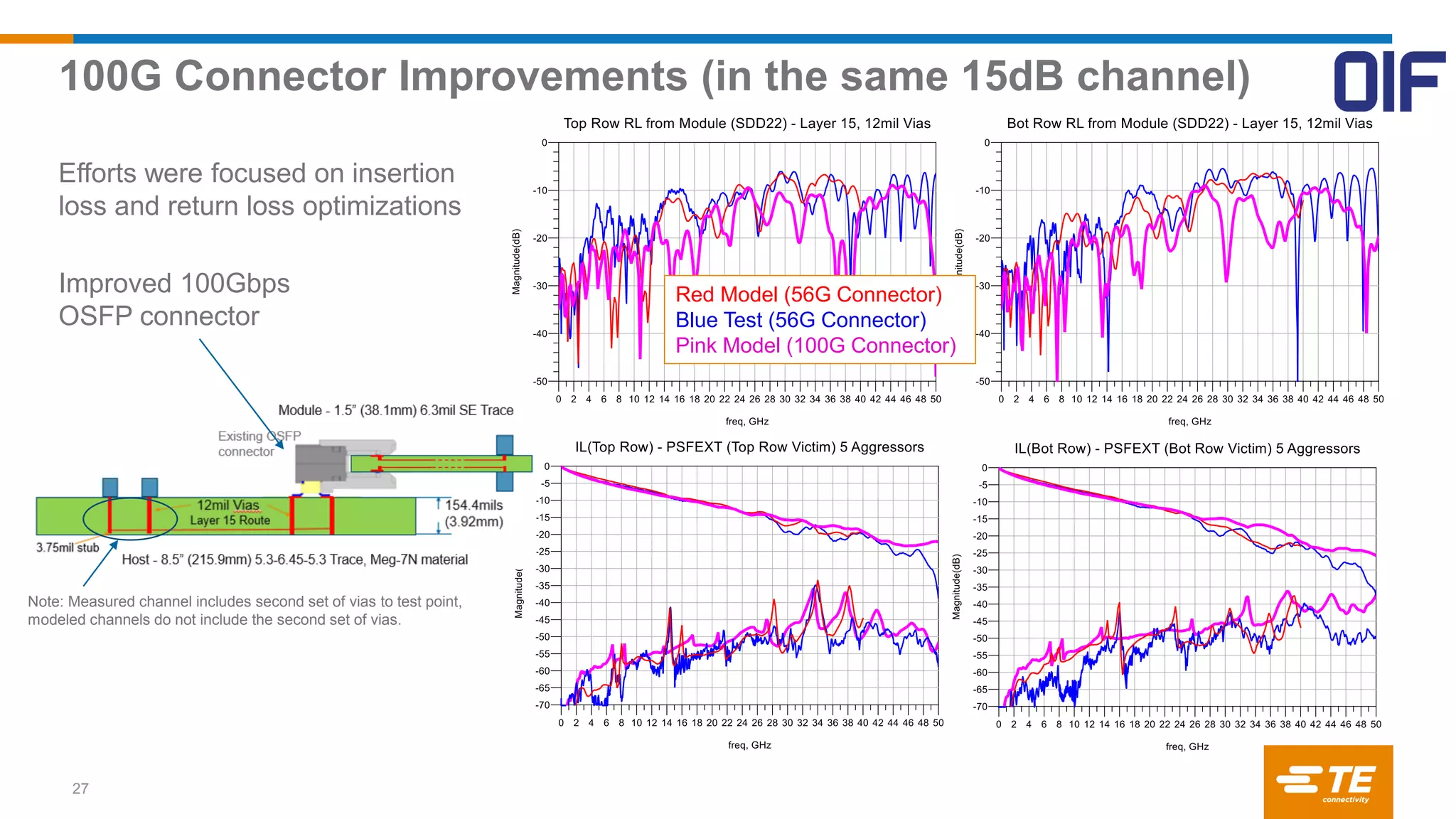

100G Connector Improvements (in the same 15dB channel) Improved 100Gbps OSFP connector Efforts were focused on insertion loss and return loss optimizations Red Model (56G Connector) Blue Test (56G Connector) Pink Model (100G Connector) 27 Note: Measured channel includes second set of vias to test point, modeled channels do not include the second set of vias.
Top Row Victim Bot Row Victim Improved Connector in a 12dB Channel – Layer 15 Route-out 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 G Tx1+ Tx1- G Tx3+ Tx3- G Tx5+ Tx5- G Tx7+ Tx7- G SB SB SB SB G Rx8- Rx8+ G Rx6- Rx6+ G Rx4- Rx4+ G Rx2- Rx2+ G G Tx2+ Tx2- G Tx4+ Tx4- G Tx6+ Tx6- G Tx8+ Tx8- G SB SB SB SB G Rx7- Rxy+ G Rx5- Rx5+ G Rx3- Rx3+ G Rx1- Rx1+ G 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 G Tx1+ Tx1- G Tx3+ Tx3- G Tx5+ Tx5- G Tx7+ Tx7- G SB SB SB SB G Rx8- Rx8+ G Rx6- Rx6+ G Rx4- Rx4+ G Rx2- Rx2+ G G Tx2+ Tx2- G Tx4+ Tx4- G Tx6+ Tx6- G Tx8+ Tx8- G SB SB SB SB G Rx7- Rxy+ G Rx5- Rx5+ G Rx3- Rx3+ G Rx1- Rx1+ G 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Blue – Bot Row Red – Top Row Victim FEXT Aggressor NEXT Aggressor Victim FEXT Aggressor NEXT Aggressor 28

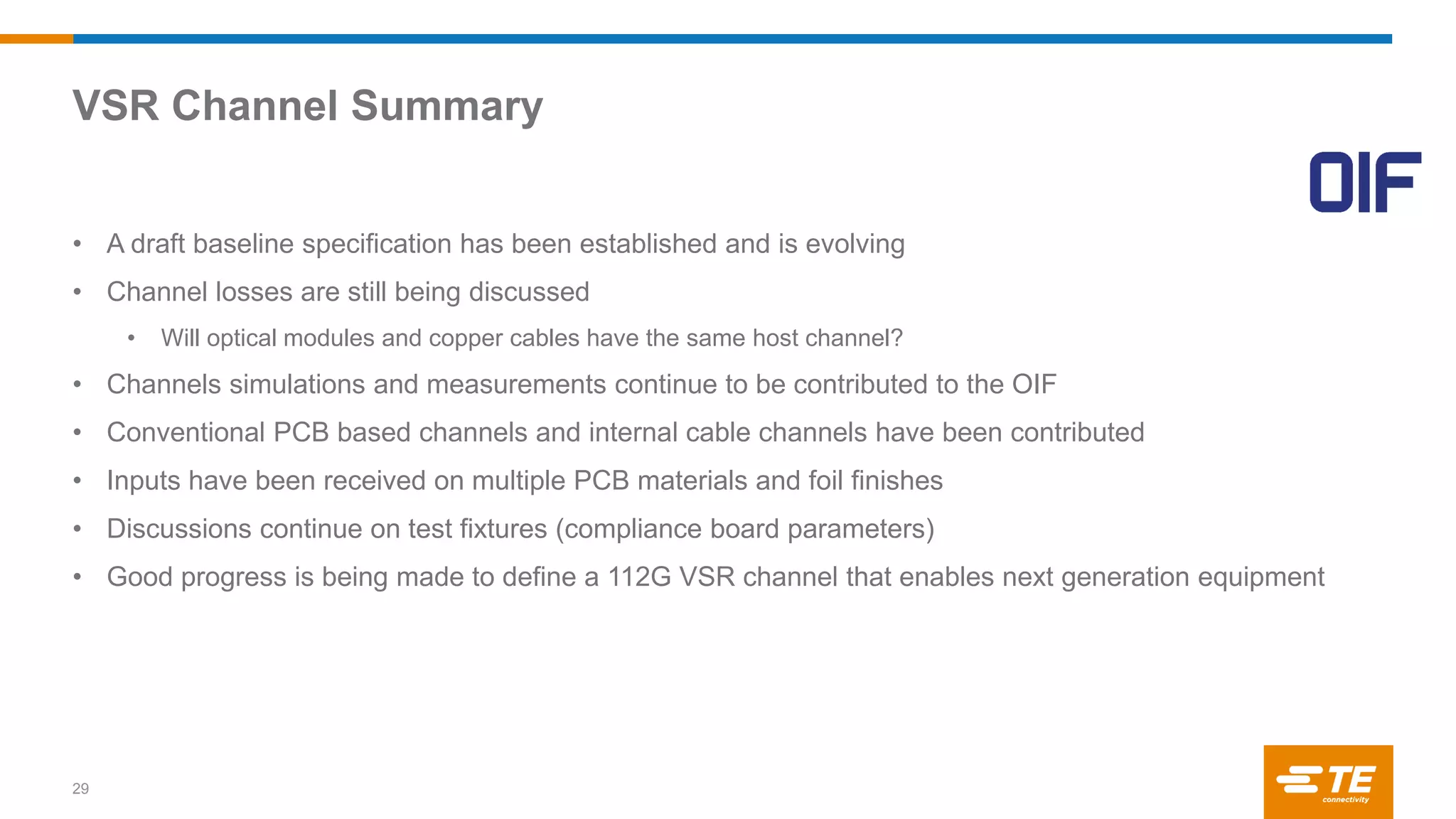

VSR Channel Summary 29 • A draft baseline specification has been established and is evolving • Channel losses are still being discussed • Will optical modules and copper cables have the same host channel? • Channels simulations and measurements continue to be contributed to the OIF • Conventional PCB based channels and internal cable channels have been contributed • Inputs have been received on multiple PCB materials and foil finishes • Discussions continue on test fixtures (compliance board parameters) • Good progress is being made to define a 112G VSR channel that enables next generation equipment

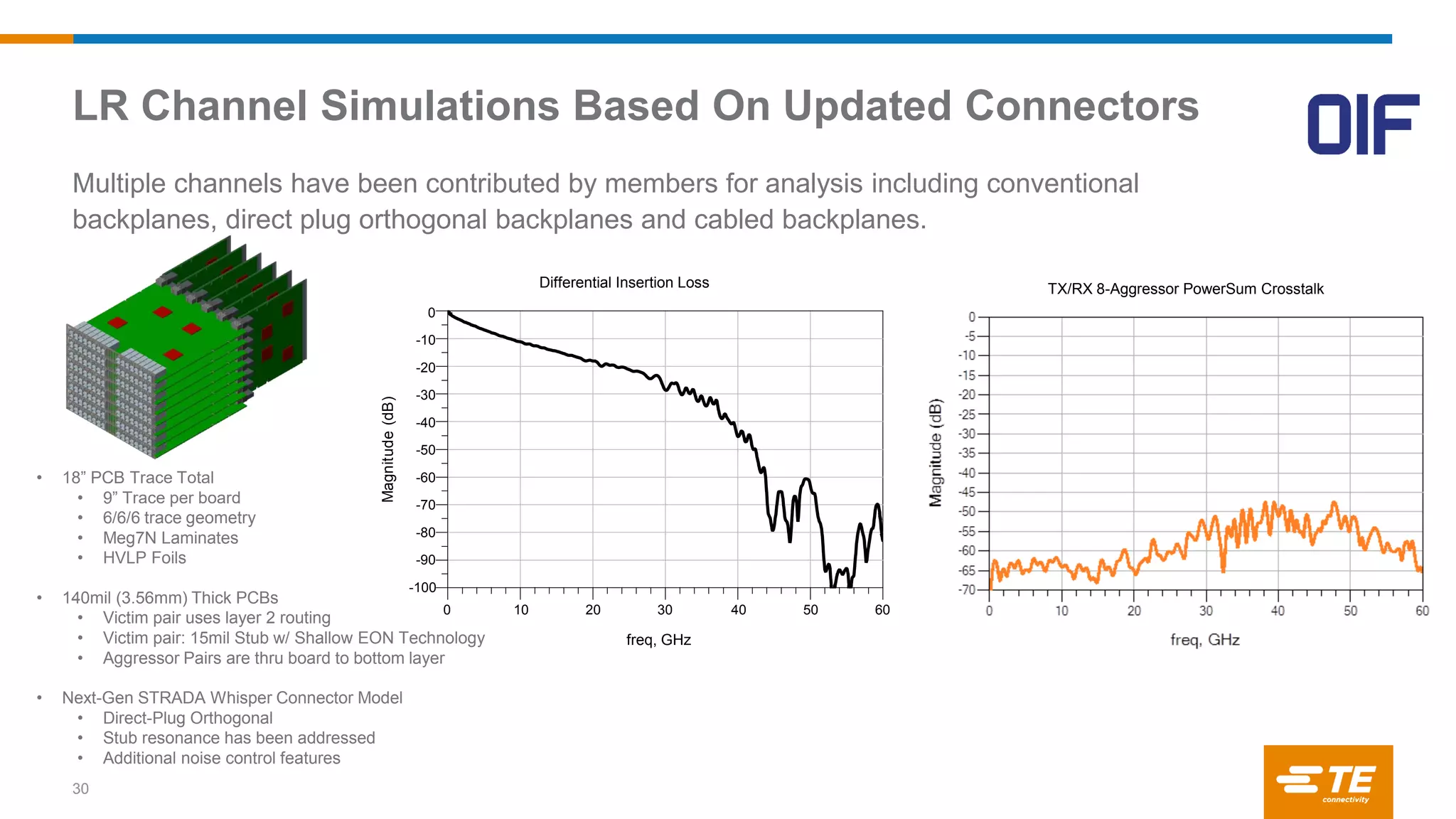

LR Channel Simulations Based On Updated Connectors 30 Multiple channels have been contributed by members for analysis including conventional backplanes, direct plug orthogonal backplanes and cabled backplanes. 10 20 30 40 500 60 -90 -80 -70 -60 -50 -40 -30 -20 -10 -100 0 freq, GHz Magnitude(dB) Differential Insertion Loss TX/RX 8-Aggressor PowerSum Crosstalk • 18” PCB Trace Total • 9” Trace per board • 6/6/6 trace geometry • Meg7N Laminates • HVLP Foils • 140mil (3.56mm) Thick PCBs • Victim pair uses layer 2 routing • Victim pair: 15mil Stub w/ Shallow EON Technology • Aggressor Pairs are thru board to bottom layer • Next-Gen STRADA Whisper Connector Model • Direct-Plug Orthogonal • Stub resonance has been addressed • Additional noise control features

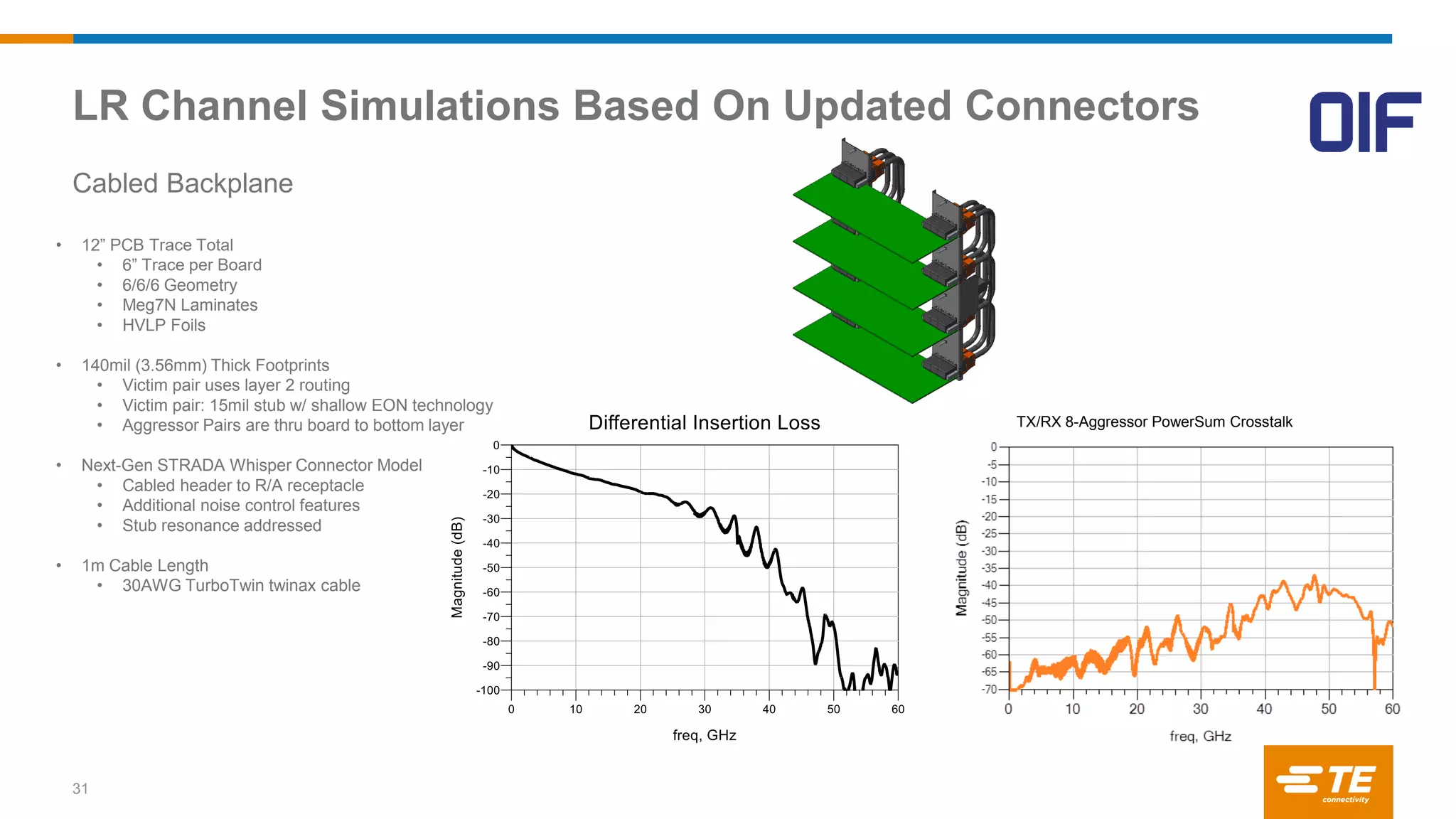

LR Channel Simulations Based On Updated Connectors 31 Cabled Backplane TX/RX 8-Aggressor PowerSum Crosstalk • 12” PCB Trace Total • 6” Trace per Board • 6/6/6 Geometry • Meg7N Laminates • HVLP Foils • 140mil (3.56mm) Thick Footprints • Victim pair uses layer 2 routing • Victim pair: 15mil stub w/ shallow EON technology • Aggressor Pairs are thru board to bottom layer • Next-Gen STRADA Whisper Connector Model • Cabled header to R/A receptacle • Additional noise control features • Stub resonance addressed • 1m Cable Length • 30AWG TurboTwin twinax cable

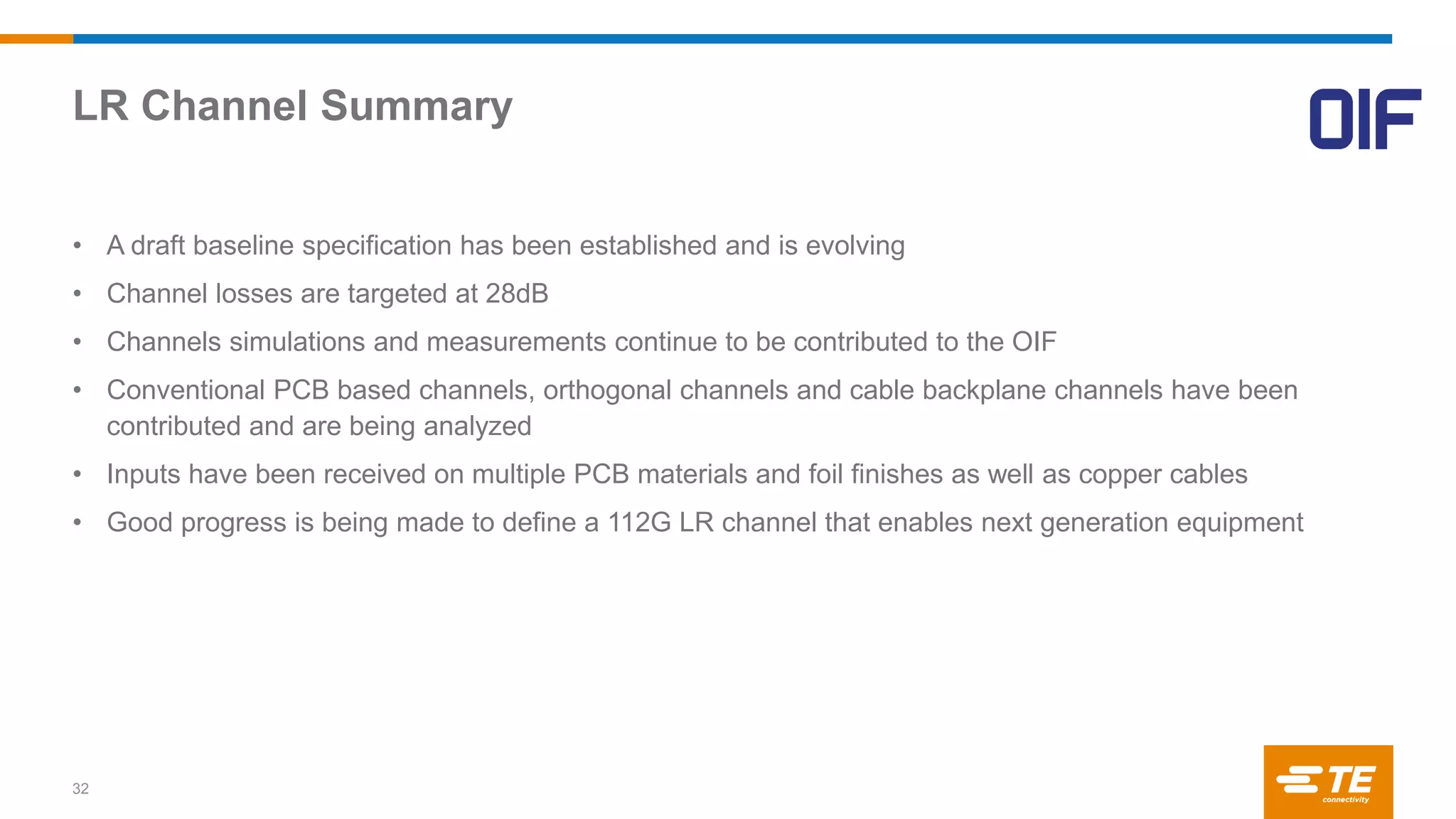

LR Channel Summary 32 • A draft baseline specification has been established and is evolving • Channel losses are targeted at 28dB • Channels simulations and measurements continue to be contributed to the OIF • Conventional PCB based channels, orthogonal channels and cable backplane channels have been contributed and are being analyzed • Inputs have been received on multiple PCB materials and foil finishes as well as copper cables • Good progress is being made to define a 112G LR channel that enables next generation equipment

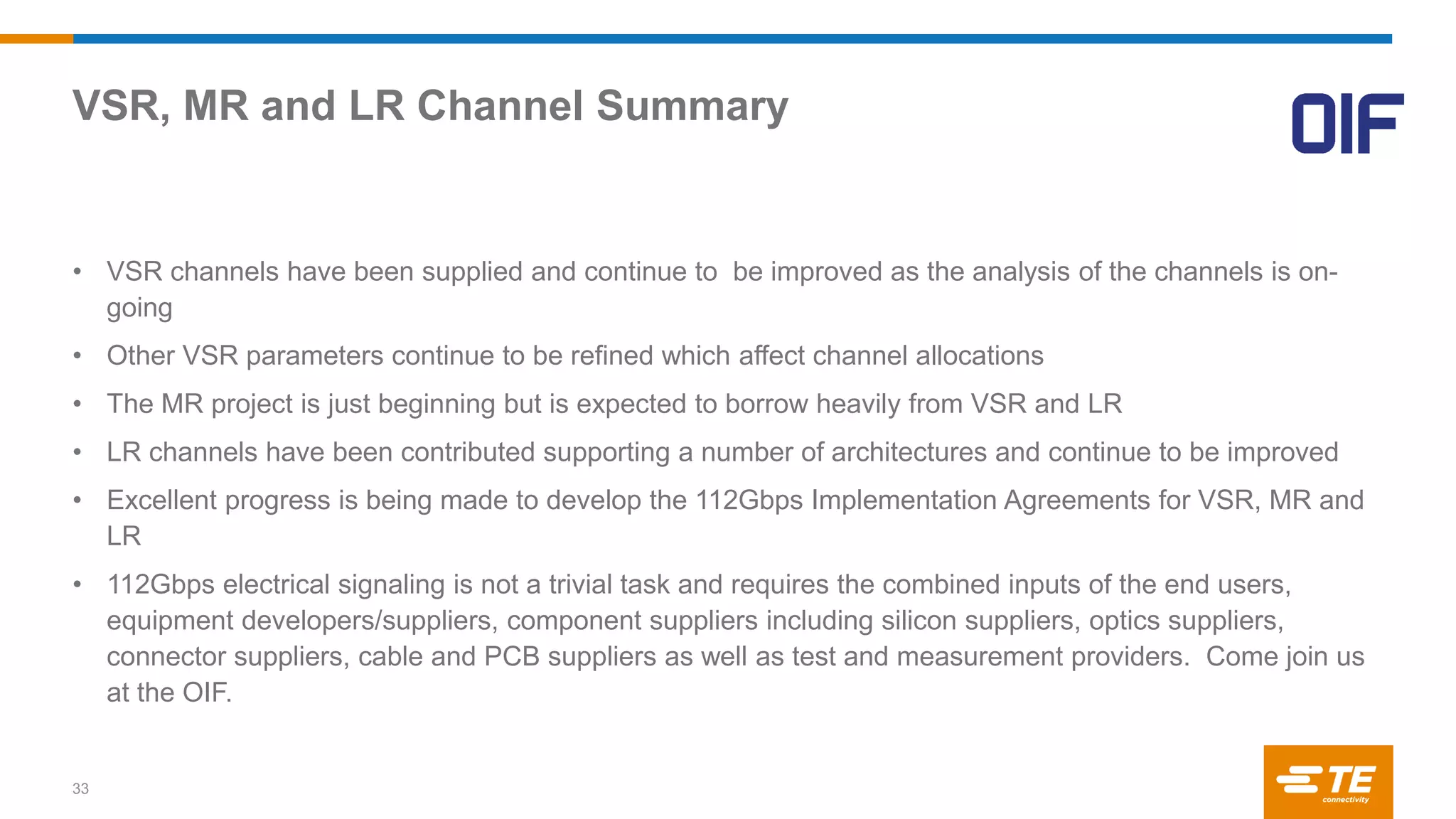

VSR, MR and LR Channel Summary 33 • VSR channels have been supplied and continue to be improved as the analysis of the channels is on- going • Other VSR parameters continue to be refined which affect channel allocations • The MR project is just beginning but is expected to borrow heavily from VSR and LR • LR channels have been contributed supporting a number of architectures and continue to be improved • Excellent progress is being made to develop the 112Gbps Implementation Agreements for VSR, MR and LR • 112Gbps electrical signaling is not a trivial task and requires the combined inputs of the end users, equipment developers/suppliers, component suppliers including silicon suppliers, optics suppliers, connector suppliers, cable and PCB suppliers as well as test and measurement providers. Come join us at the OIF.
EVERY CONNECTION COUNTS © 2018 TE Connectivity Corporation. TE Connectivity, TE, TE connectivity (logo) and EVERY CONNECTION COUNTS are trademarks.
35 | PLL CEI-112G Equalization Cathy Liu OIF Board Member Broadcom Inc.
36 | • PAM4 modulation scheme becomes dominant in OIF CEI-112 Gbps interface IA • One SerDes core might not be able to cover multiple applications from XSR to LR • For short reach applications, simpler and lower power equalizations are desired 112G Tx and Rx Reference Equalization CEI-112G-LR Chip Chip Backplane or Passive Copper Cable CEI-112G-MR Chip Chip Chip-to-Chip & Midplane Applications CEI-112G-VSR Chip Pluggable Optics Chip to Module CEI-112G-XSR Chip Optics Chip to Nearby Optics Engine CEI-112G-MCM 3D Stack CNRZ-5: up to 25mm package substrate No equalization/FEC Minimize power (pJ/bit)2.5D Chip-to-Chiplet 2.5D Chip-to-OE PAM4: up to 50mm package substrate 6-10 dB at 14GHz Lite FEC, Rx CTLE PAM4: 12-16 dB at 14GHz FEC to relax BER to 1e-6 Multi-tap Tx FIR and Rx CTLE + multi-tap FFE or DFE PAM4: 20dB at 14GHz FEC to relax BER to 1e-5 Multi-tap Tx FIR and Rx CTLE + multi-tap FFE or DFE PAM4: 28-30dB at 14GHz FEC to relax BER to 1e-4 Multi-tap Tx FIR and Rx CTLE + multi-tap FFE or DFE

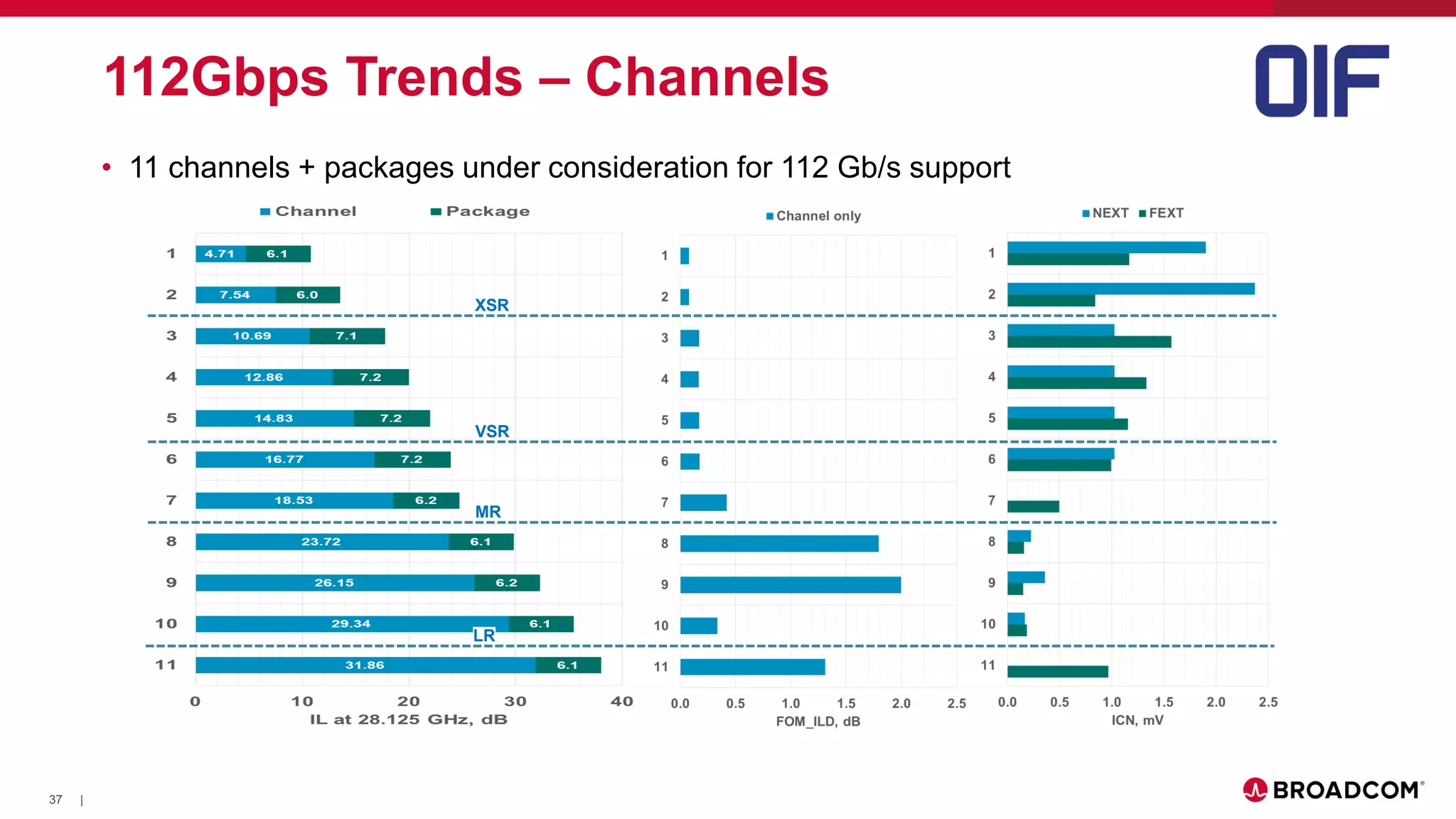

37 | • 11 channels + packages under consideration for 112 Gb/s support 112Gbps Trends – Channels XSR VSR MR LR
38 | • 28~30dB IL target at 28GHz is not “long reach” anymore for traditional backplane or Cu cable – Rule of Thumb of 0.1dB/inch/GHz channel loss ->28dB IL for a 10” PCB trace – 3~5dB IL for a 30mm package • Emerging technologies to shorten the “long reach” – Chiplets – Fly over cables – Retimer/Repeater How long is long for 112Gbps? Flyover cables Chiplets

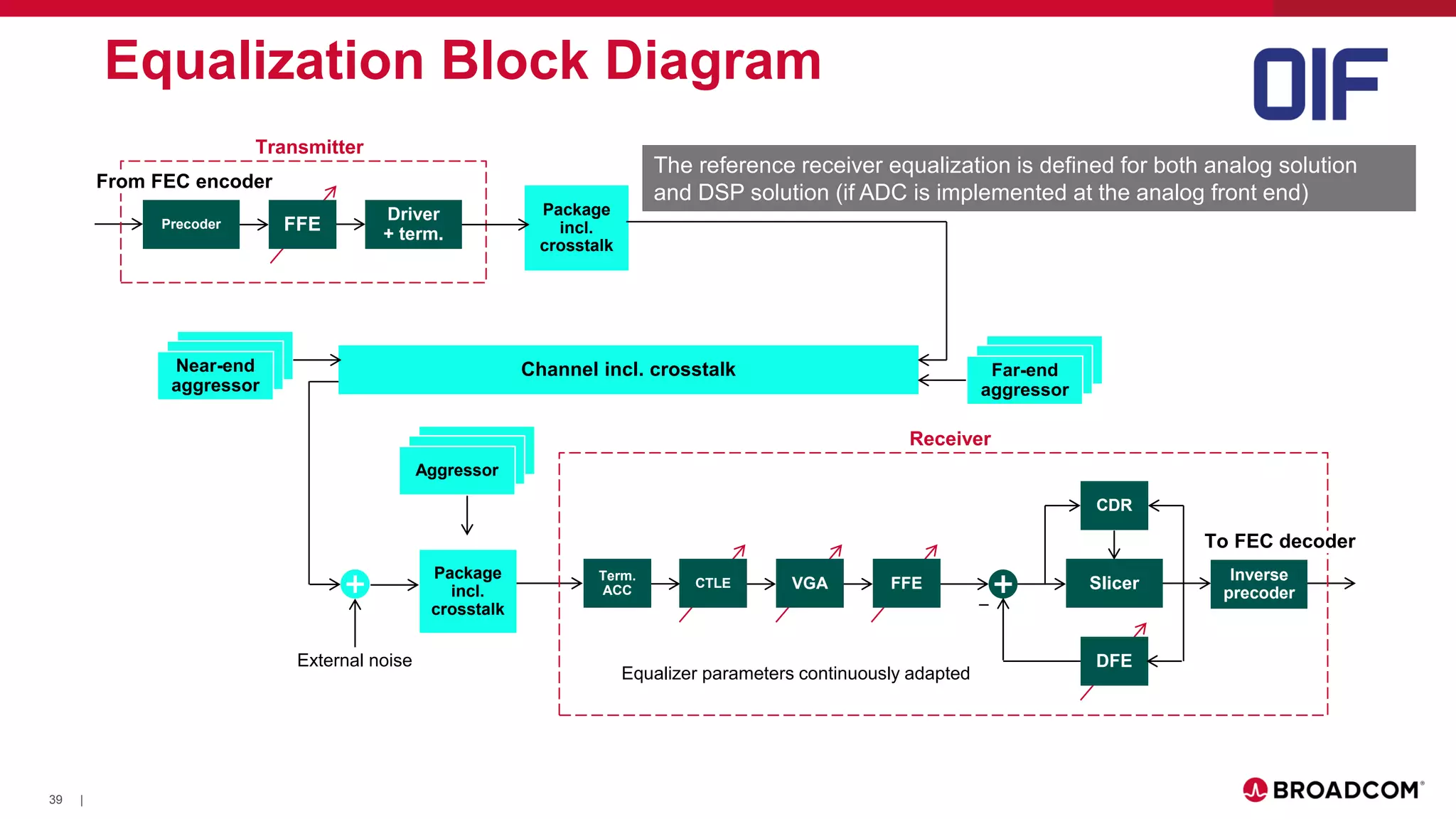

39 | Equalization Block Diagram Precoder FFE Driver + term. DFE Slicer CDR Inverse precoder CTLE VGA FFE Term. ACC To FEC decoder From FEC encoder Package incl. crosstalk Equalizer parameters continuously adapted Package incl. crosstalk Channel incl. crosstalk Far-end aggressor Near-end aggressor External noise Aggressor Transmitter Receiver The reference receiver equalization is defined for both analog solution and DSP solution (if ADC is implemented at the analog front end)
40 | SNR Required for Target BER – CEI-112G For probability of error propagation a = 0.75 Test case SNR req’d, dB Burst only 21.16 Burst + precode 18.85 Burst + CI(2)+ precode 18.60 4:1 bit mux. 22.34 4:1+precode 19.00 4:1+CI(2) 20.23 4:1+CI(2)+precode 18.89 1e−15 equivalent (OIF CEI-112G-LR) CEI SNR target

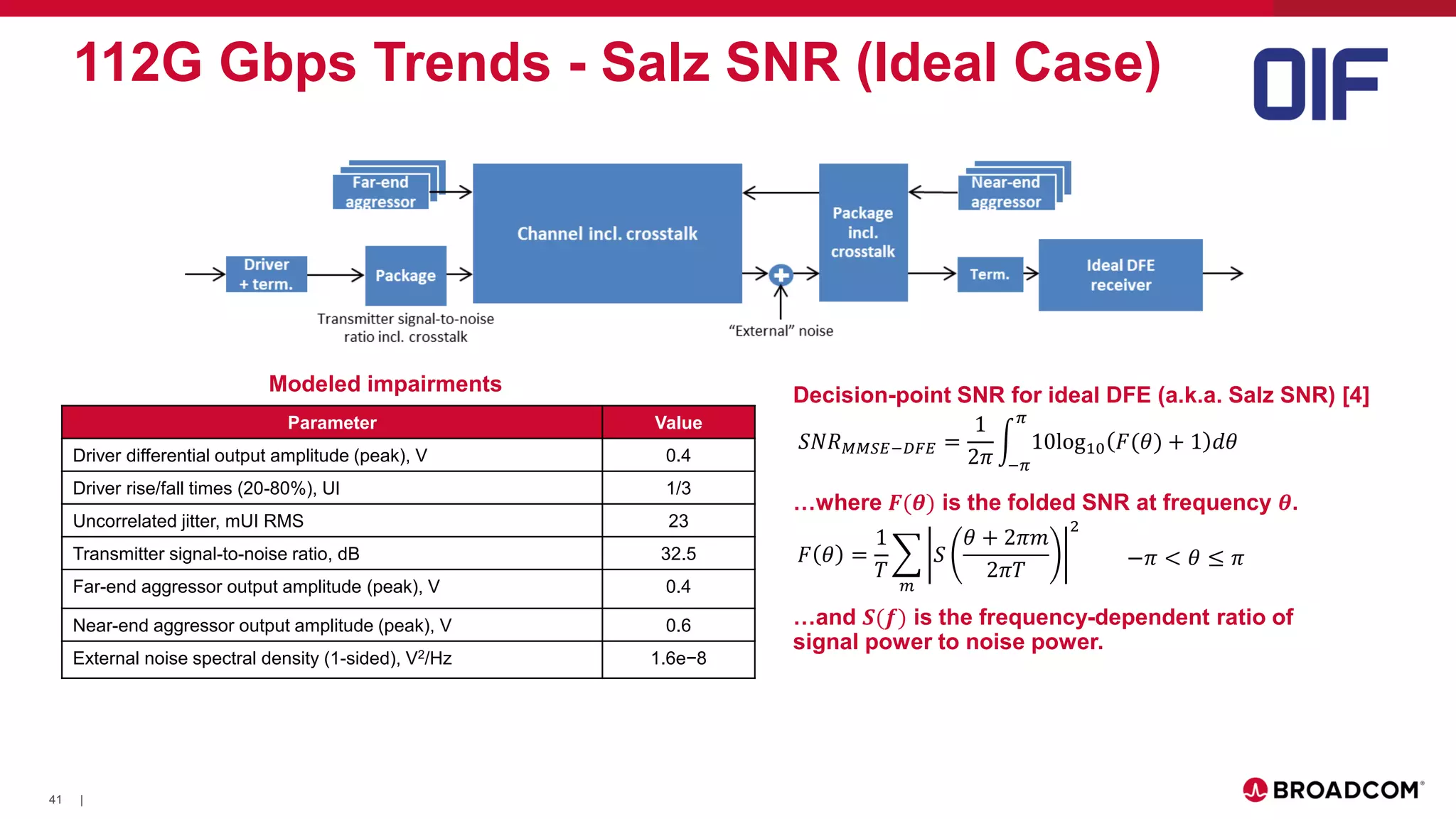

41 | 112G Gbps Trends - Salz SNR (Ideal Case) Decision-point SNR for ideal DFE (a.k.a. Salz SNR) [4] 𝑆𝑁𝑅 𝑀𝑀𝑆𝐸−𝐷𝐹𝐸 = 1 2𝜋 න −𝜋 𝜋 10log10 𝐹(𝜃) + 1 𝑑𝜃 𝐹 𝜃 = 1 𝑇 ෍ 𝑚 𝑆 𝜃 + 2𝜋𝑚 2𝜋𝑇 2 −𝜋 < 𝜃 ≤ 𝜋 …where 𝑭(𝜽) is the folded SNR at frequency 𝜽. …and 𝑺(𝒇) is the frequency-dependent ratio of signal power to noise power. Parameter Value Driver differential output amplitude (peak), V 0.4 Driver rise/fall times (20-80%), UI 1/3 Uncorrelated jitter, mUI RMS 23 Transmitter signal-to-noise ratio, dB 32.5 Far-end aggressor output amplitude (peak), V 0.4 Near-end aggressor output amplitude (peak), V 0.6 External noise spectral density (1-sided), V2/Hz 1.6e−8 Modeled impairments

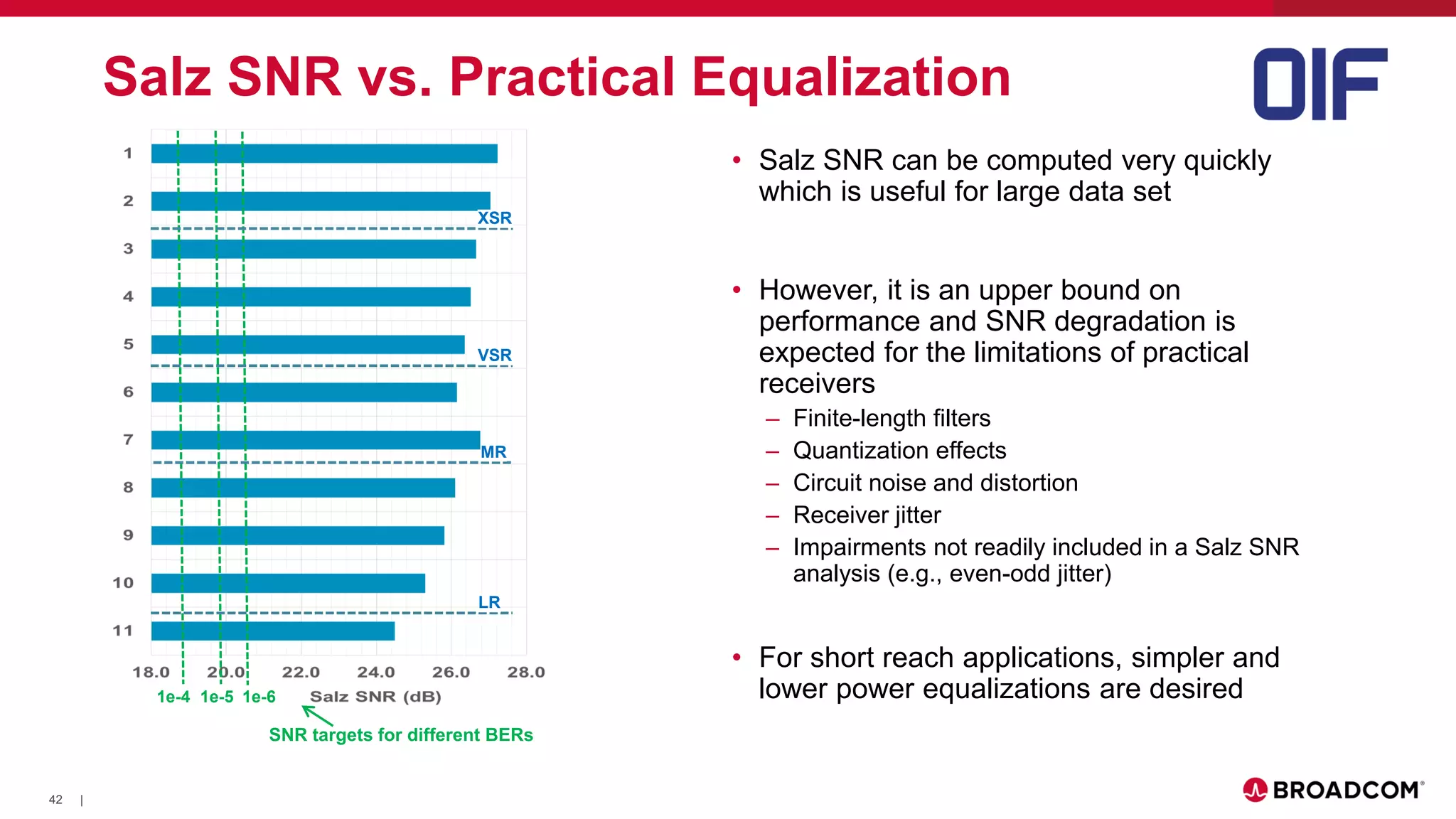

42 | • Salz SNR can be computed very quickly which is useful for large data set • However, it is an upper bound on performance and SNR degradation is expected for the limitations of practical receivers – Finite-length filters – Quantization effects – Circuit noise and distortion – Receiver jitter – Impairments not readily included in a Salz SNR analysis (e.g., even-odd jitter) • For short reach applications, simpler and lower power equalizations are desired Salz SNR vs. Practical Equalization SNR targets for different BERs 1e-4 1e-5 1e-6 XSR VSR MR LR

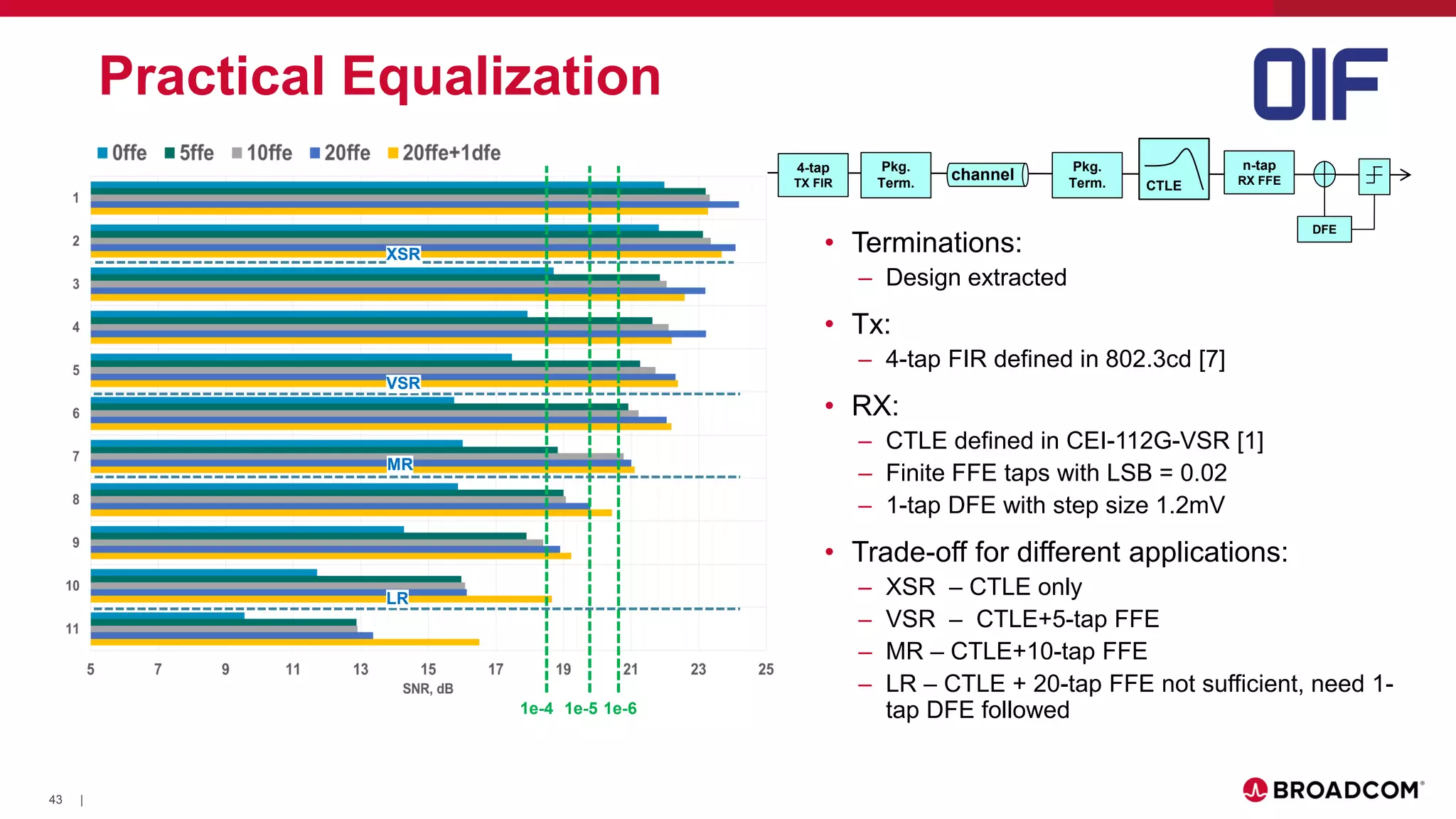

43 | Practical Equalization • Terminations: – Design extracted • Tx: – 4-tap FIR defined in 802.3cd [7] • RX: – CTLE defined in CEI-112G-VSR [1] – Finite FFE taps with LSB = 0.02 – 1-tap DFE with step size 1.2mV • Trade-off for different applications: – XSR – CTLE only – VSR – CTLE+5-tap FFE – MR – CTLE+10-tap FFE – LR – CTLE + 20-tap FFE not sufficient, need 1- tap DFE followed1e-4 1e-5 1e-6 VSR MR LR XSR 4-tap TX FIR Pkg. Term. Pkg. Term. n-tap RX FFEchannel CTLE DFE

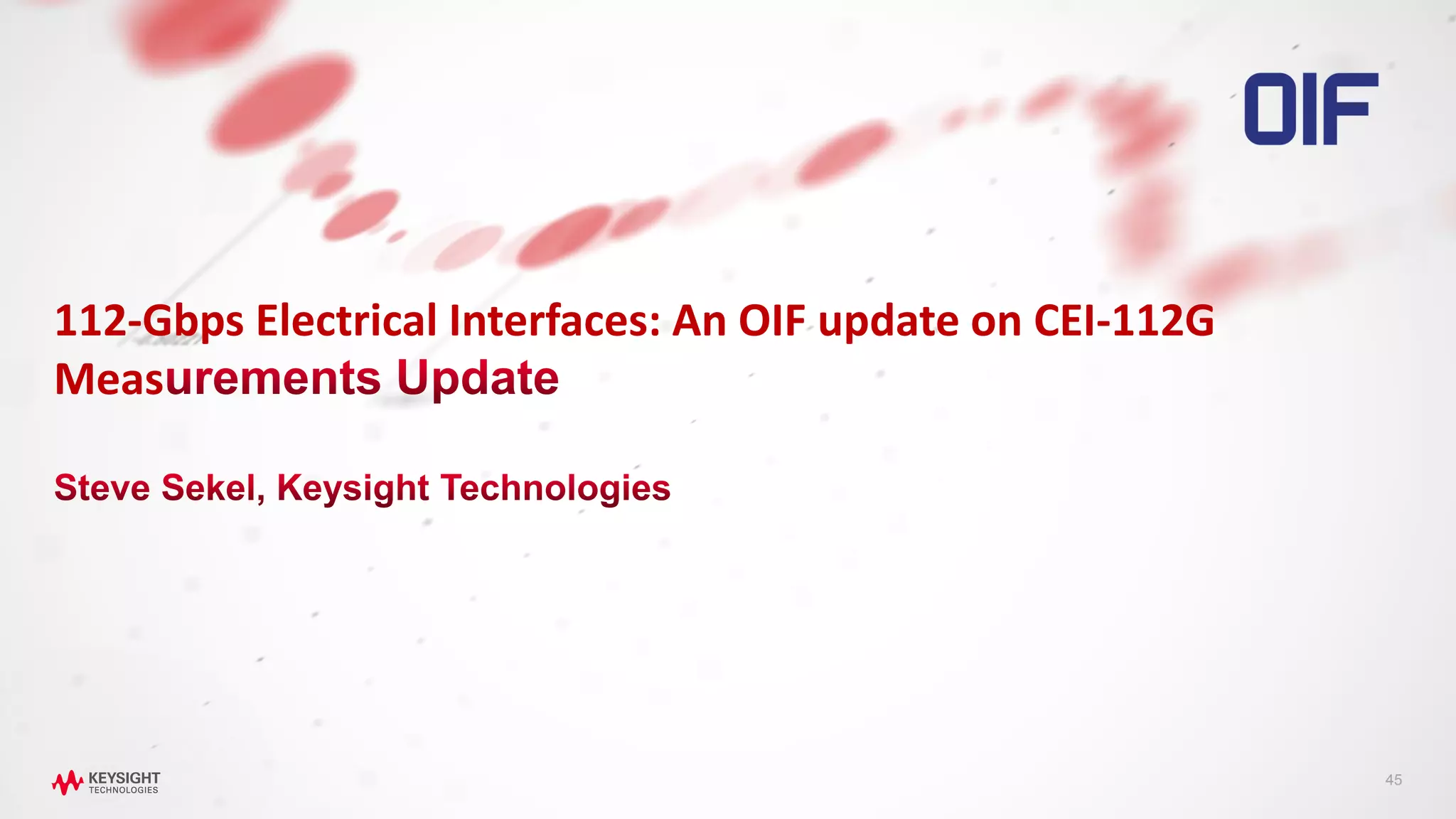

45 112-Gbps Electrical Interfaces: An OIF update on CEI-112G Meas

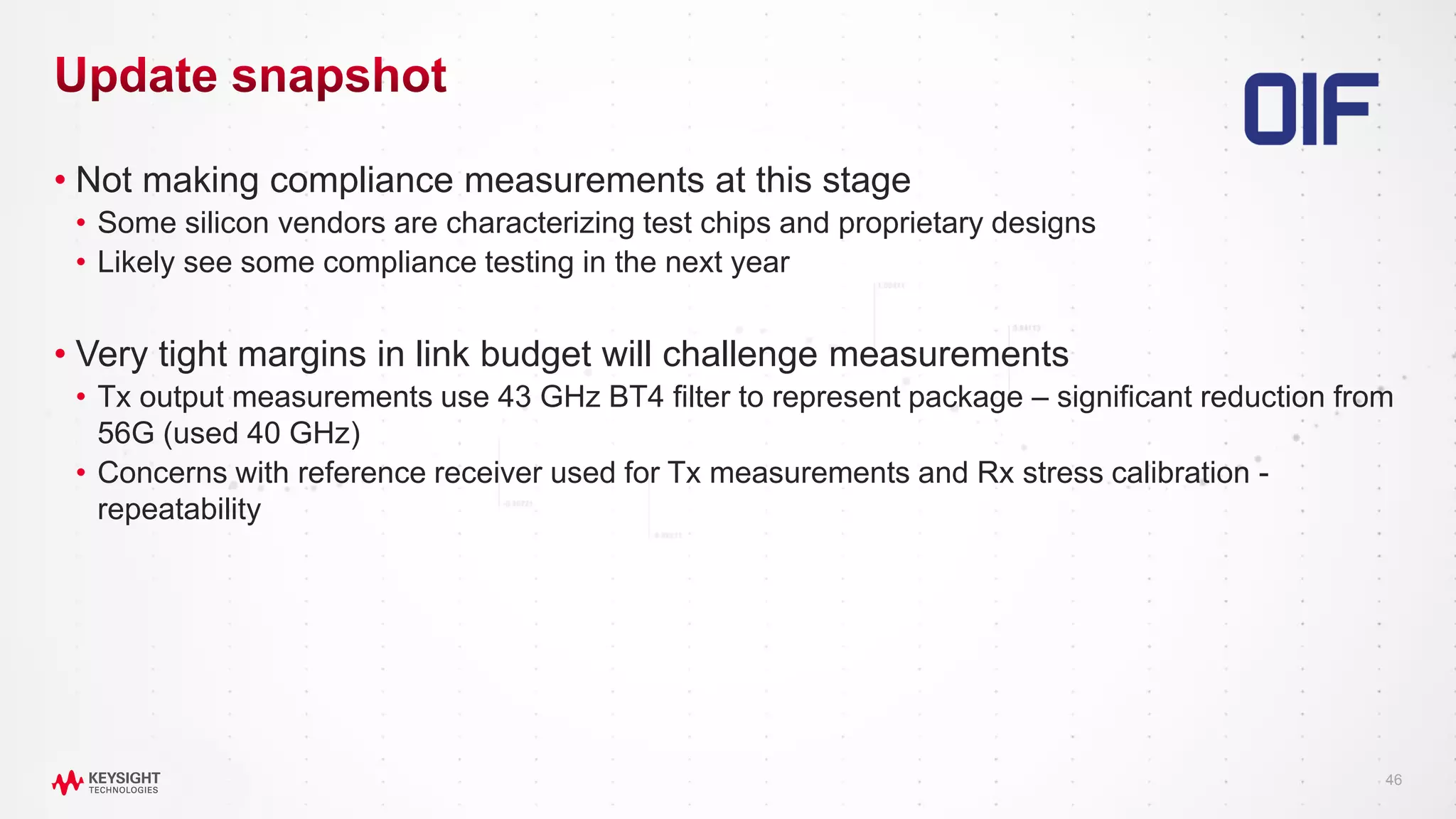

46 • Not making compliance measurements at this stage • Some silicon vendors are characterizing test chips and proprietary designs • Likely see some compliance testing in the next year • Very tight margins in link budget will challenge measurements • Tx output measurements use 43 GHz BT4 filter to represent package – significant reduction from 56G (used 40 GHz) • Concerns with reference receiver used for Tx measurements and Rx stress calibration - repeatability

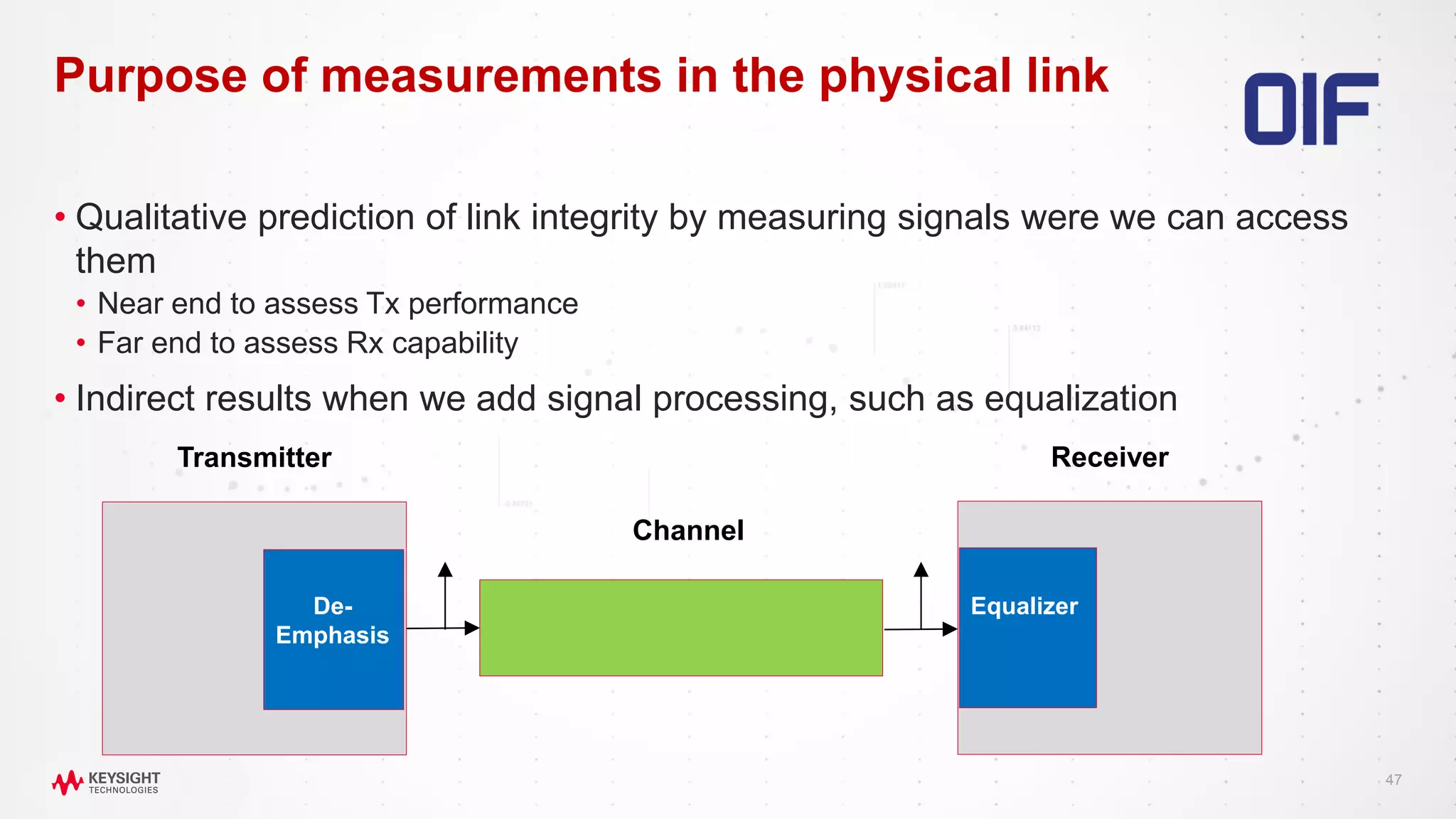

47 • Qualitative prediction of link integrity by measuring signals were we can access them • Near end to assess Tx performance • Far end to assess Rx capability • Indirect results when we add signal processing, such as equalization Purpose of measurements in the physical link Transmitter Receiver Channel De- Emphasis Equalizer

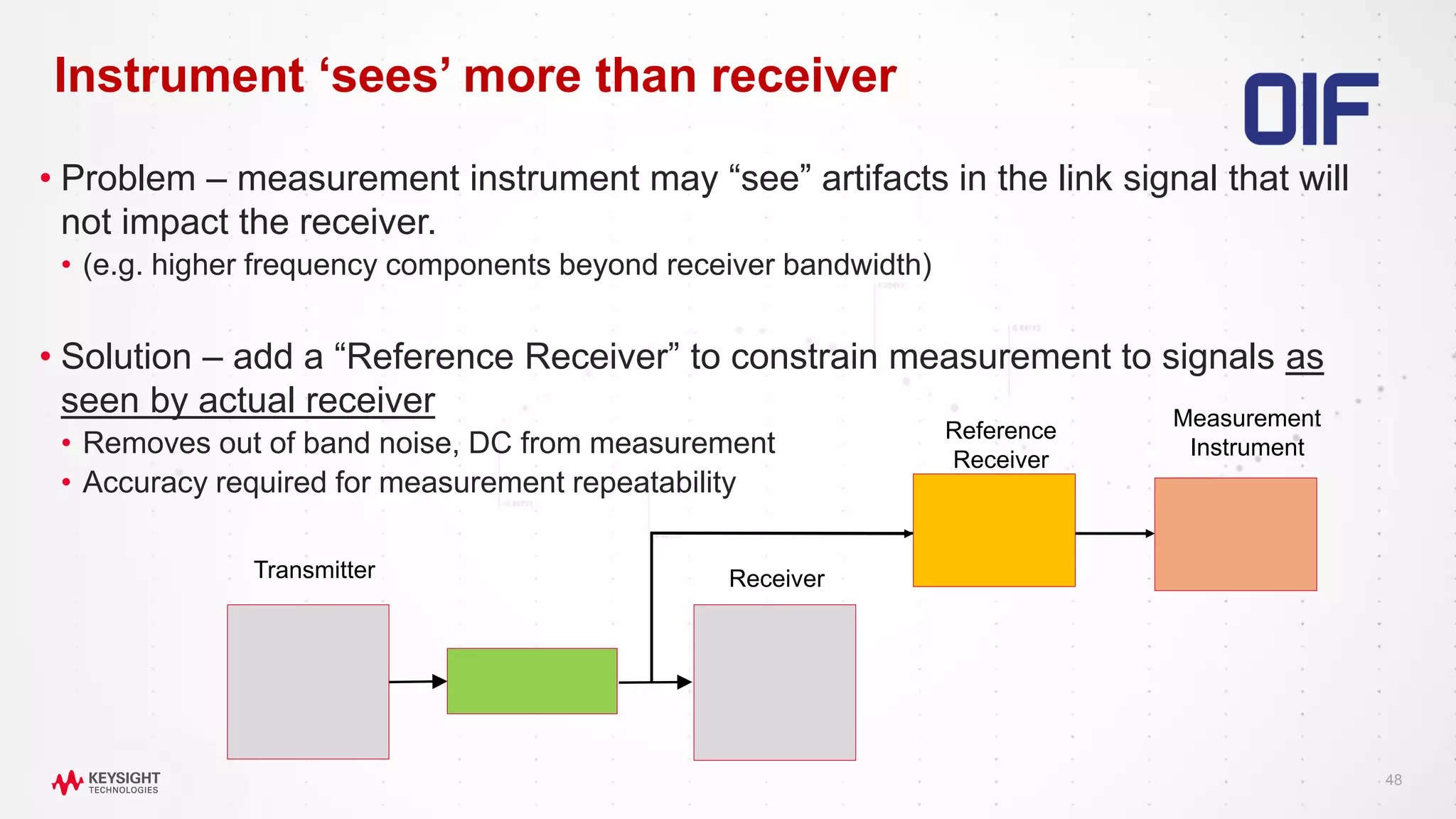

48 • Problem – measurement instrument may “see” artifacts in the link signal that will not impact the receiver. • (e.g. higher frequency components beyond receiver bandwidth) • Solution – add a “Reference Receiver” to constrain measurement to signals as seen by actual receiver • Removes out of band noise, DC from measurement • Accuracy required for measurement repeatability Instrument ‘sees’ more than receiver Transmitter Receiver Measurement Instrument Reference Receiver

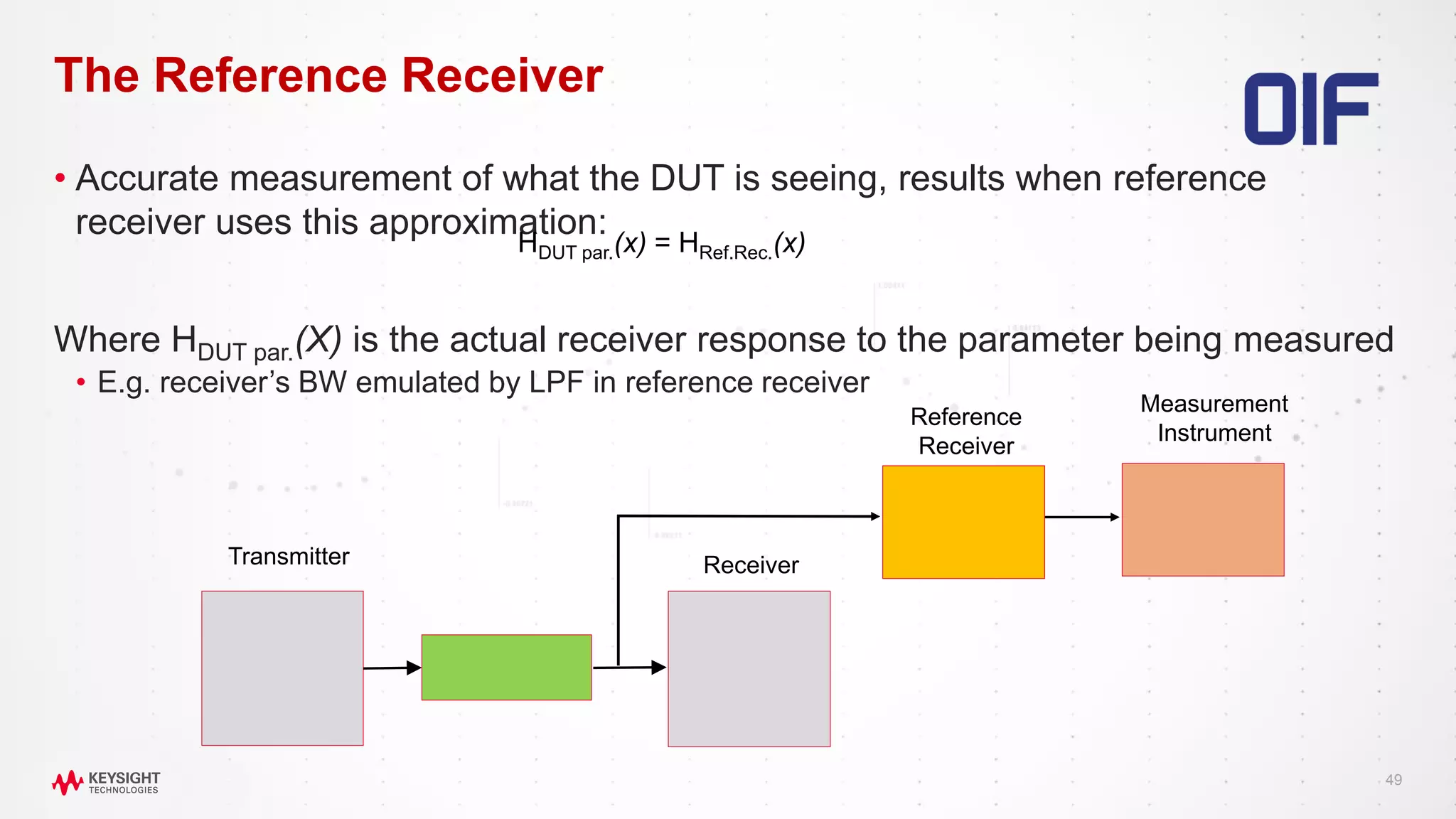

49 • Accurate measurement of what the DUT is seeing, results when reference receiver uses this approximation: Where HDUT par.(X) is the actual receiver response to the parameter being measured • E.g. receiver’s BW emulated by LPF in reference receiver The Reference Receiver HDUT par.(x) = HRef.Rec.(x) Transmitter Receiver Reference Receiver Measurement Instrument

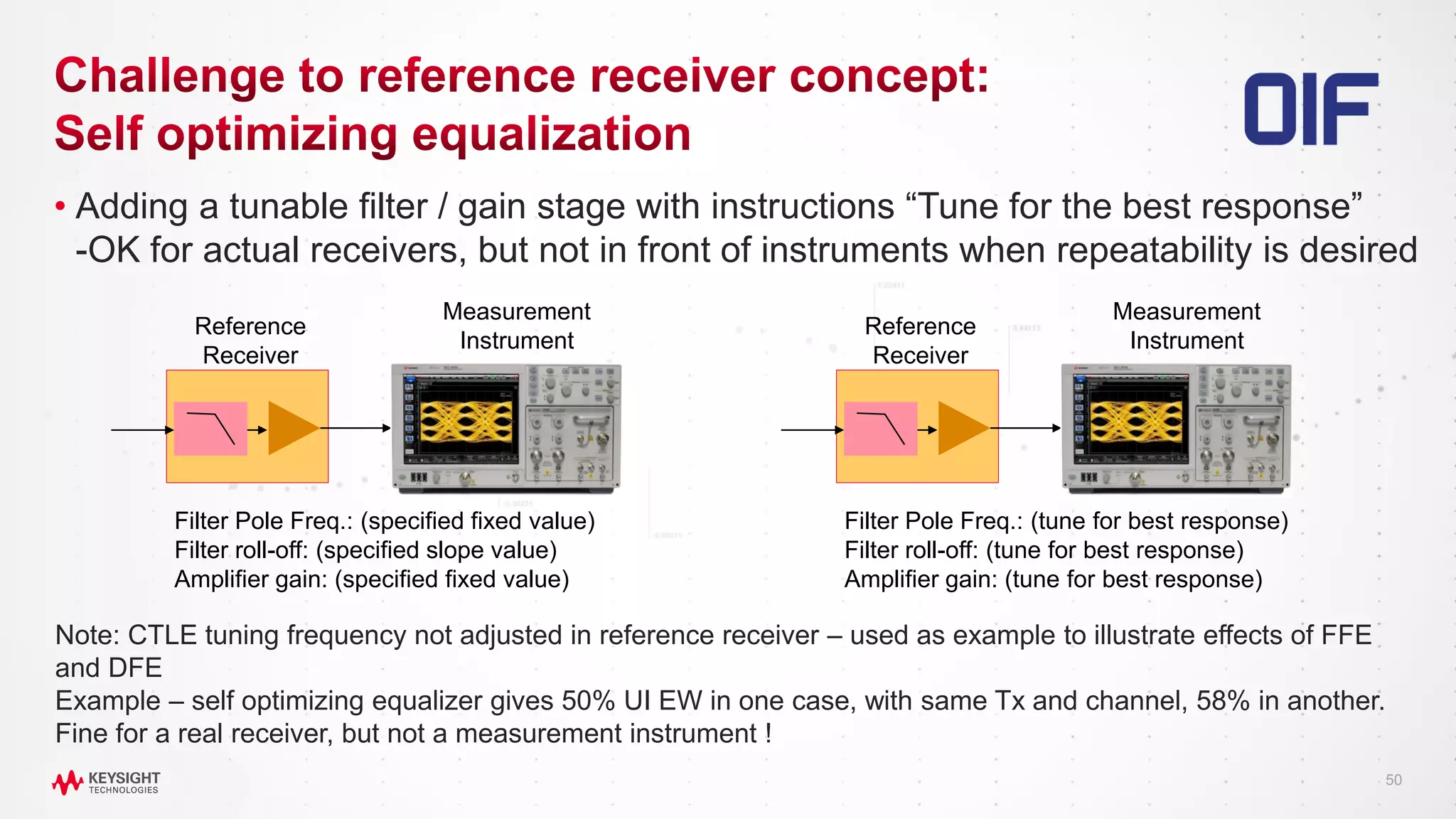

50 • Adding a tunable filter / gain stage with instructions “Tune for the best response” -OK for actual receivers, but not in front of instruments when repeatability is desired Reference Receiver Measurement Instrument Filter Pole Freq.: (specified fixed value) Filter roll-off: (specified slope value) Amplifier gain: (specified fixed value) Reference Receiver Measurement Instrument Filter Pole Freq.: (tune for best response) Filter roll-off: (tune for best response) Amplifier gain: (tune for best response) Note: CTLE tuning frequency not adjusted in reference receiver – used as example to illustrate effects of FFE and DFE Example – self optimizing equalizer gives 50% UI EW in one case, with same Tx and channel, 58% in another. Fine for a real receiver, but not a measurement instrument !

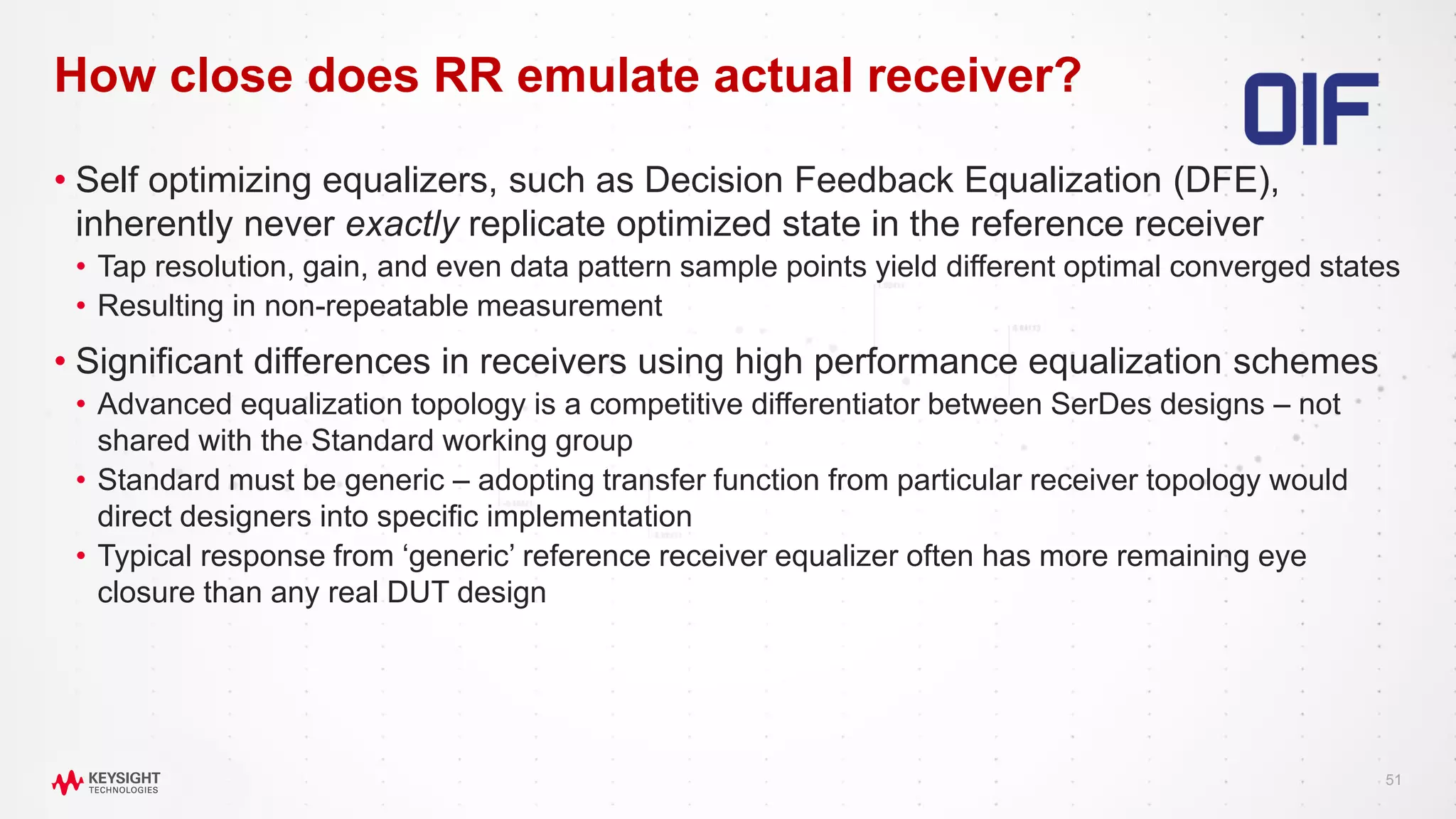

51 • Self optimizing equalizers, such as Decision Feedback Equalization (DFE), inherently never exactly replicate optimized state in the reference receiver • Tap resolution, gain, and even data pattern sample points yield different optimal converged states • Resulting in non-repeatable measurement • Significant differences in receivers using high performance equalization schemes • Advanced equalization topology is a competitive differentiator between SerDes designs – not shared with the Standard working group • Standard must be generic – adopting transfer function from particular receiver topology would direct designers into specific implementation • Typical response from ‘generic’ reference receiver equalizer often has more remaining eye closure than any real DUT design How close does RR emulate actual receiver?

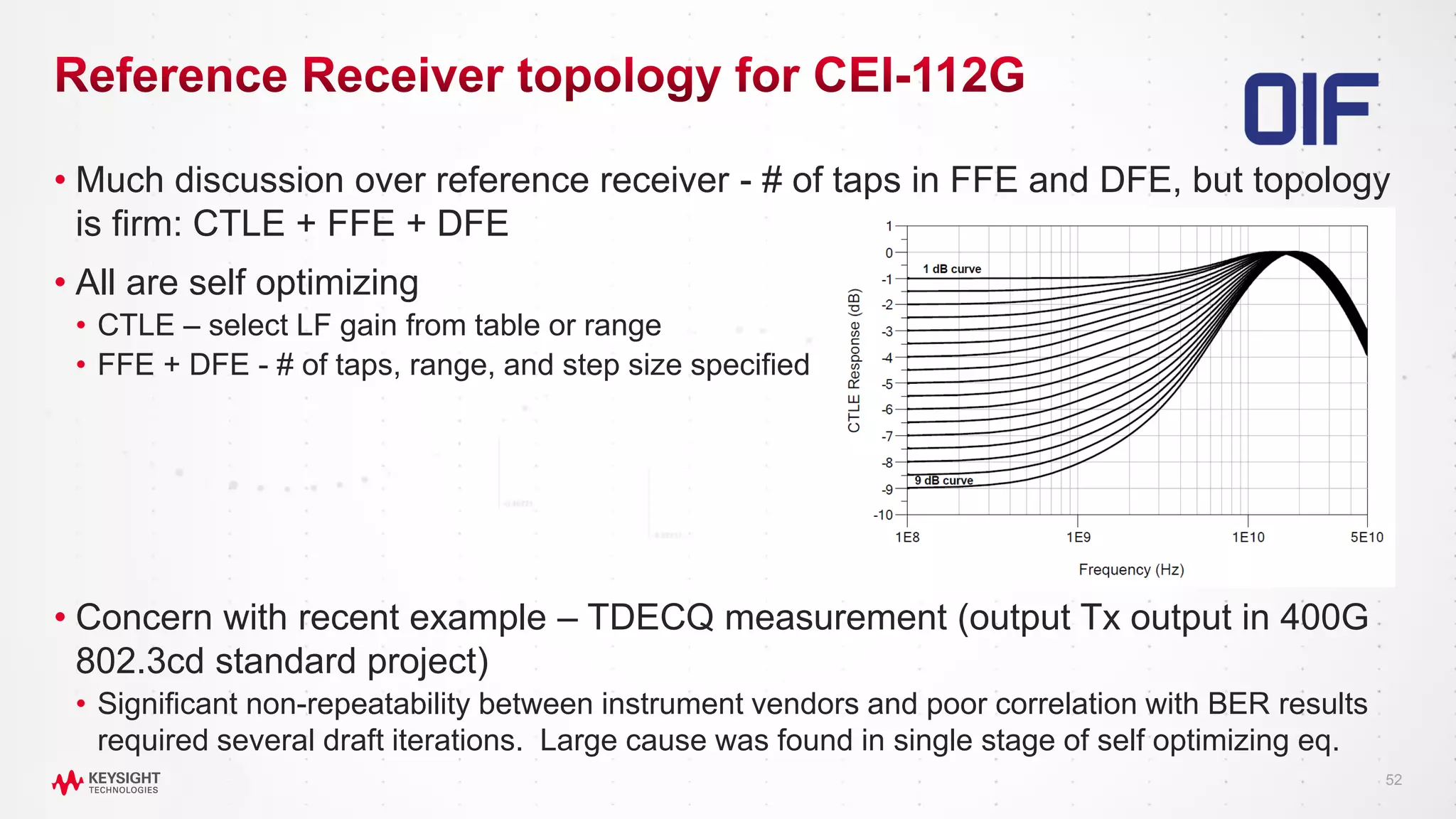

52 • Much discussion over reference receiver - # of taps in FFE and DFE, but topology is firm: CTLE + FFE + DFE • All are self optimizing • CTLE – select LF gain from table or range • FFE + DFE - # of taps, range, and step size specified • Concern with recent example – TDECQ measurement (output Tx output in 400G 802.3cd standard project) • Significant non-repeatability between instrument vendors and poor correlation with BER results required several draft iterations. Large cause was found in single stage of self optimizing eq.

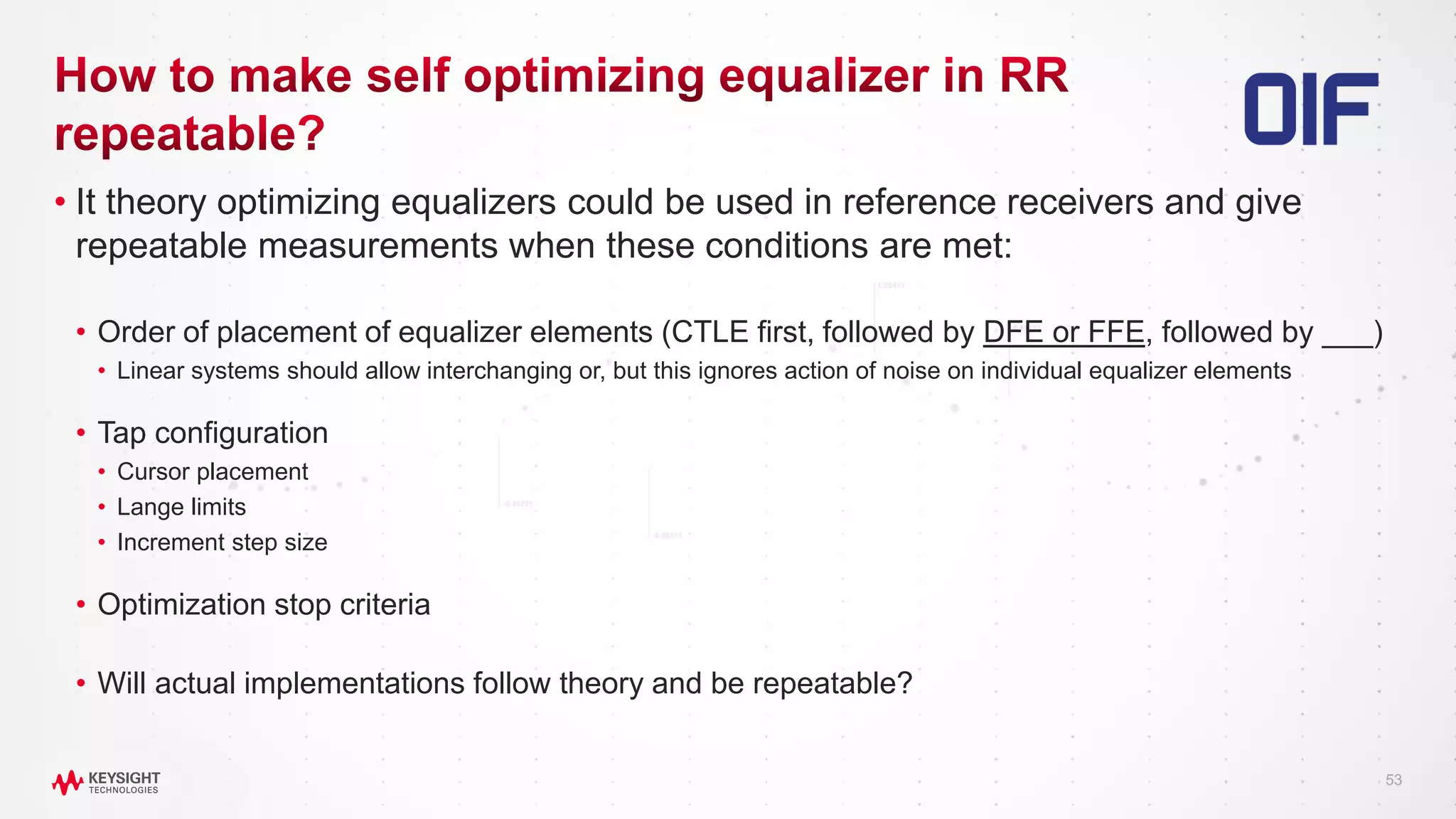

53 • It theory optimizing equalizers could be used in reference receivers and give repeatable measurements when these conditions are met: • Order of placement of equalizer elements (CTLE first, followed by DFE or FFE, followed by ___) • Linear systems should allow interchanging or, but this ignores action of noise on individual equalizer elements • Tap configuration • Cursor placement • Lange limits • Increment step size • Optimization stop criteria • Will actual implementations follow theory and be repeatable?

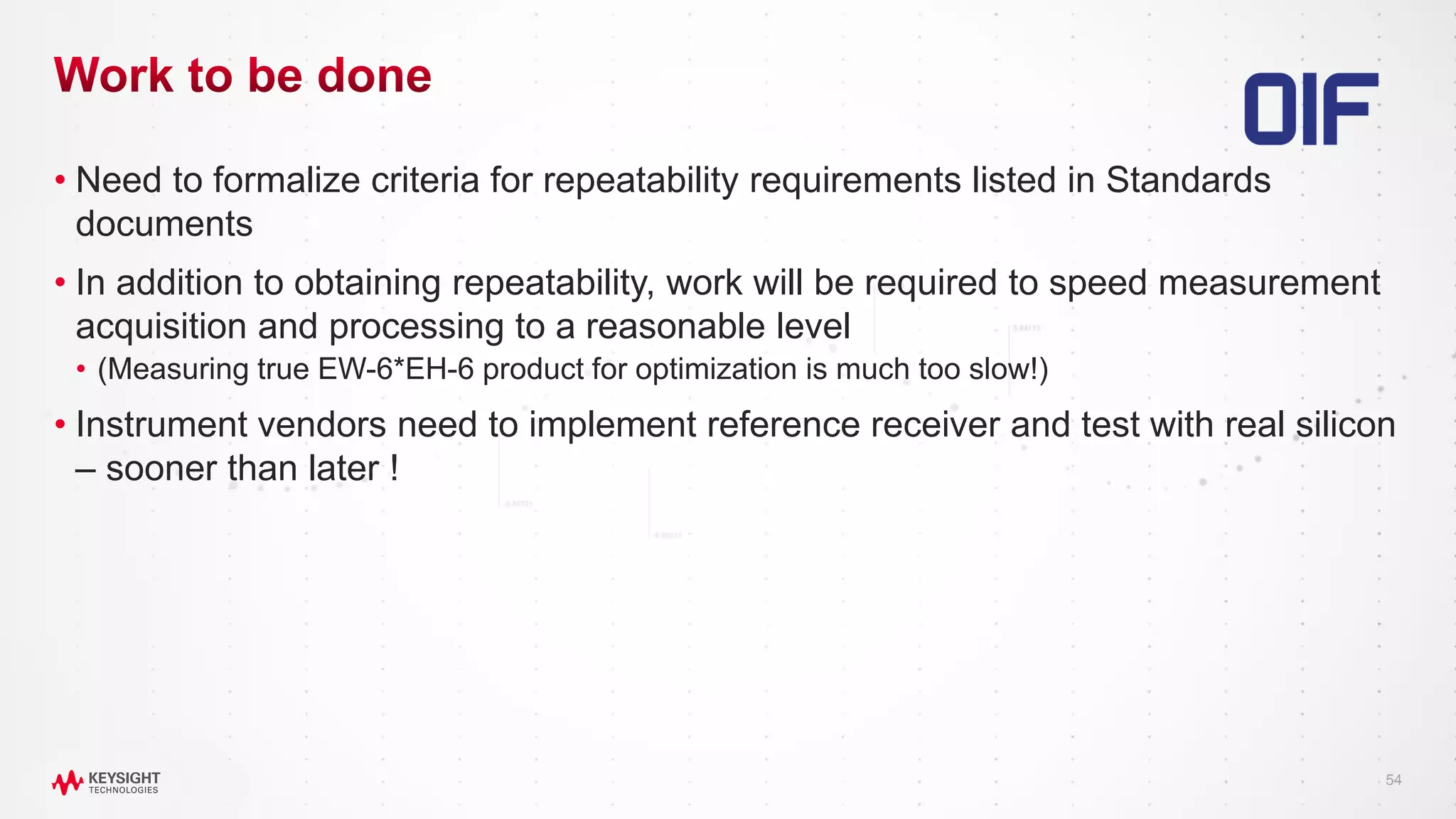

54 • Need to formalize criteria for repeatability requirements listed in Standards documents • In addition to obtaining repeatability, work will be required to speed measurement acquisition and processing to a reasonable level • (Measuring true EW-6*EH-6 product for optimization is much too slow!) • Instrument vendors need to implement reference receiver and test with real silicon – sooner than later !

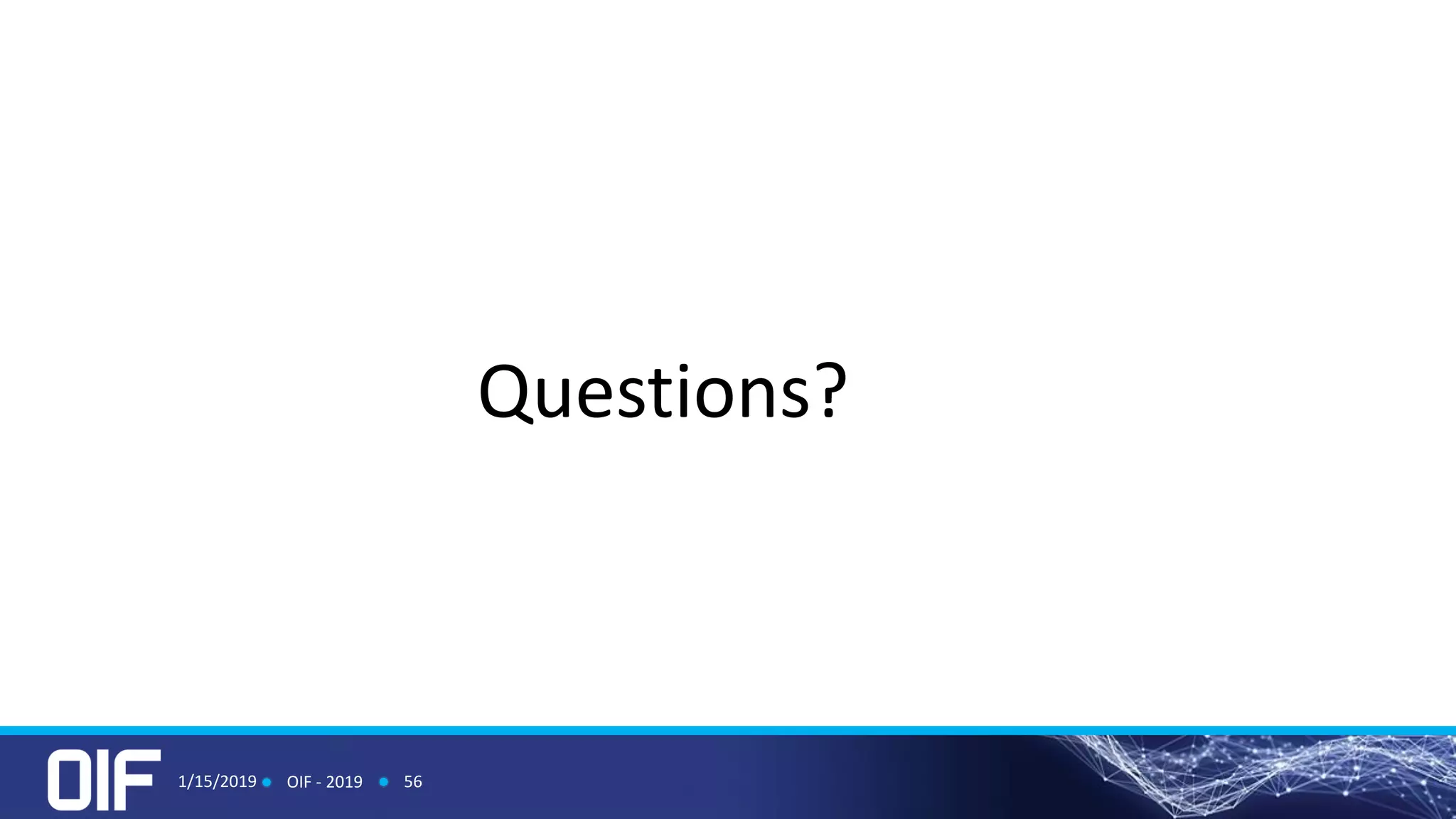

Questions? 1/15/2019 OIF - 2019 56
