Database as a Service (DBaaS) delivers database functionality as an on-demand cloud service, masking complexity. It offers flexible, scalable, secure databases with self-service provisioning and consolidated resources. DBaaS provides advantages over traditional databases like lower costs, faster provisioning, and increased efficiency through standardization and automation. DBaaS can be implemented through virtualization or using Oracle's Grid Infrastructure and multitenant database features which provide high availability, scalability, and performance isolation through resource management. DBaaS offers a standardized platform that can be engineered once and used for multiple applications in a pay-as-you-grow model.

1. BASEL BERN BRUGG DÜSSELDORF FRANKFURT A.M. FREIBURG I.BR. GENEVA
HAMBURG COPENHAGEN LAUSANNE MUNICH STUTTGART VIENNA ZURICH
Database as a Service
Emiliano Fusaglia
Principal Consultant LS-IMS
The next generation of database infrastructure
#SDF16

2. Agenda
1. Introduction
What is Database as a Service
DBaaS vs Traditional Database Architecture
2. DBaaS
Option 1 - Virtualization
Option 2 - Grid Infrastructure & Multitenant Database
3. Conclusion
DBaaS Takeaway
#SDF16

3. Introduction
#SDF16

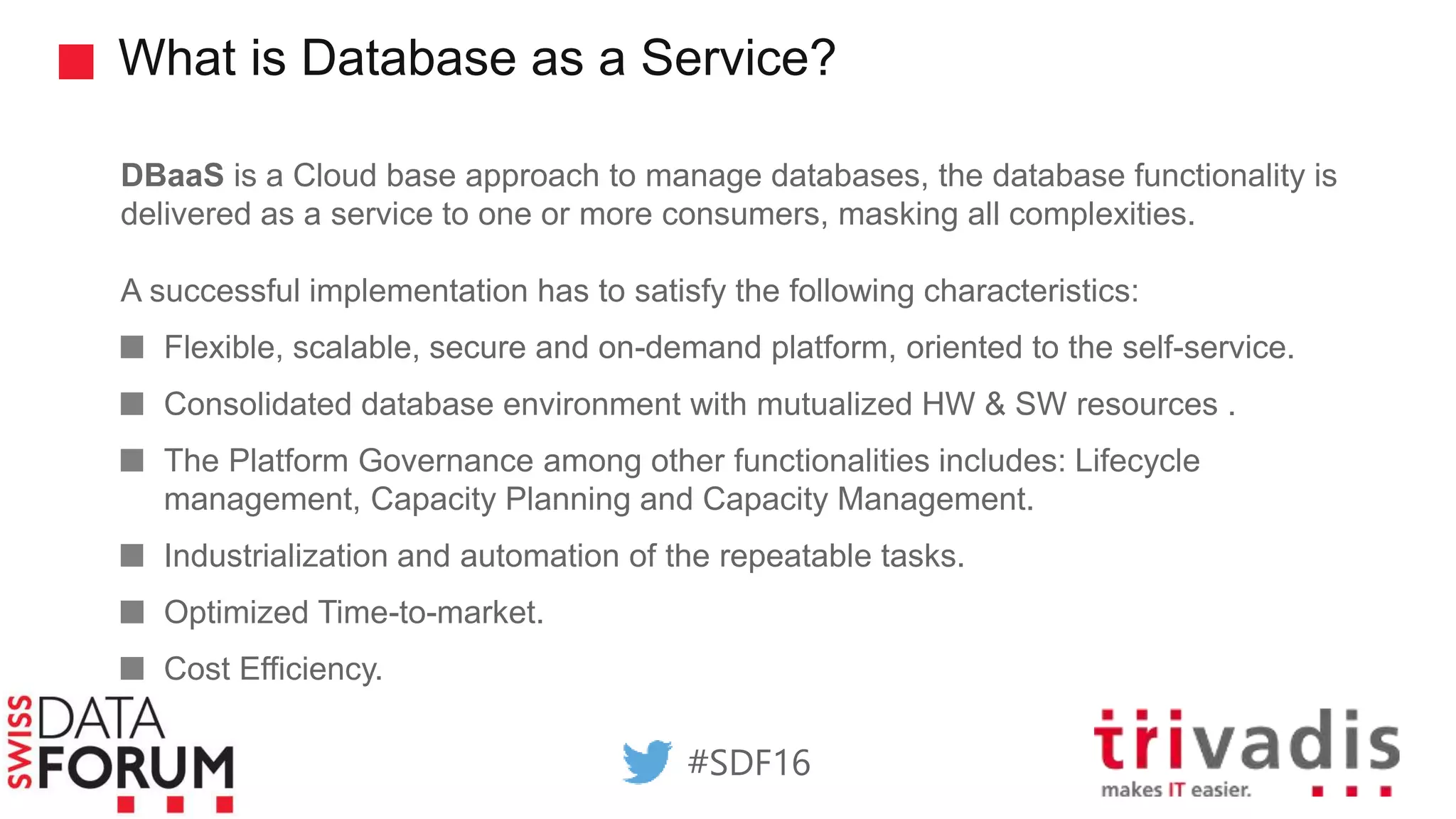

4. What is Database as a Service?
DBaaS is a Cloud base approach to manage databases, the database functionality is
delivered as a service to one or more consumers, masking all complexities.
A successful implementation has to satisfy the following characteristics:
Flexible, scalable, secure and on-demand platform, oriented to the self-service.
Consolidated database environment with mutualized HW & SW resources .
The Platform Governance among other functionalities includes: Lifecycle
management, Capacity Planning and Capacity Management.
Industrialization and automation of the repeatable tasks.
Optimized Time-to-market.
Cost Efficiency.
#SDF16

5. DBaaS vs Traditional Database Architecture
Major differences between the two solutions.
#SDF16

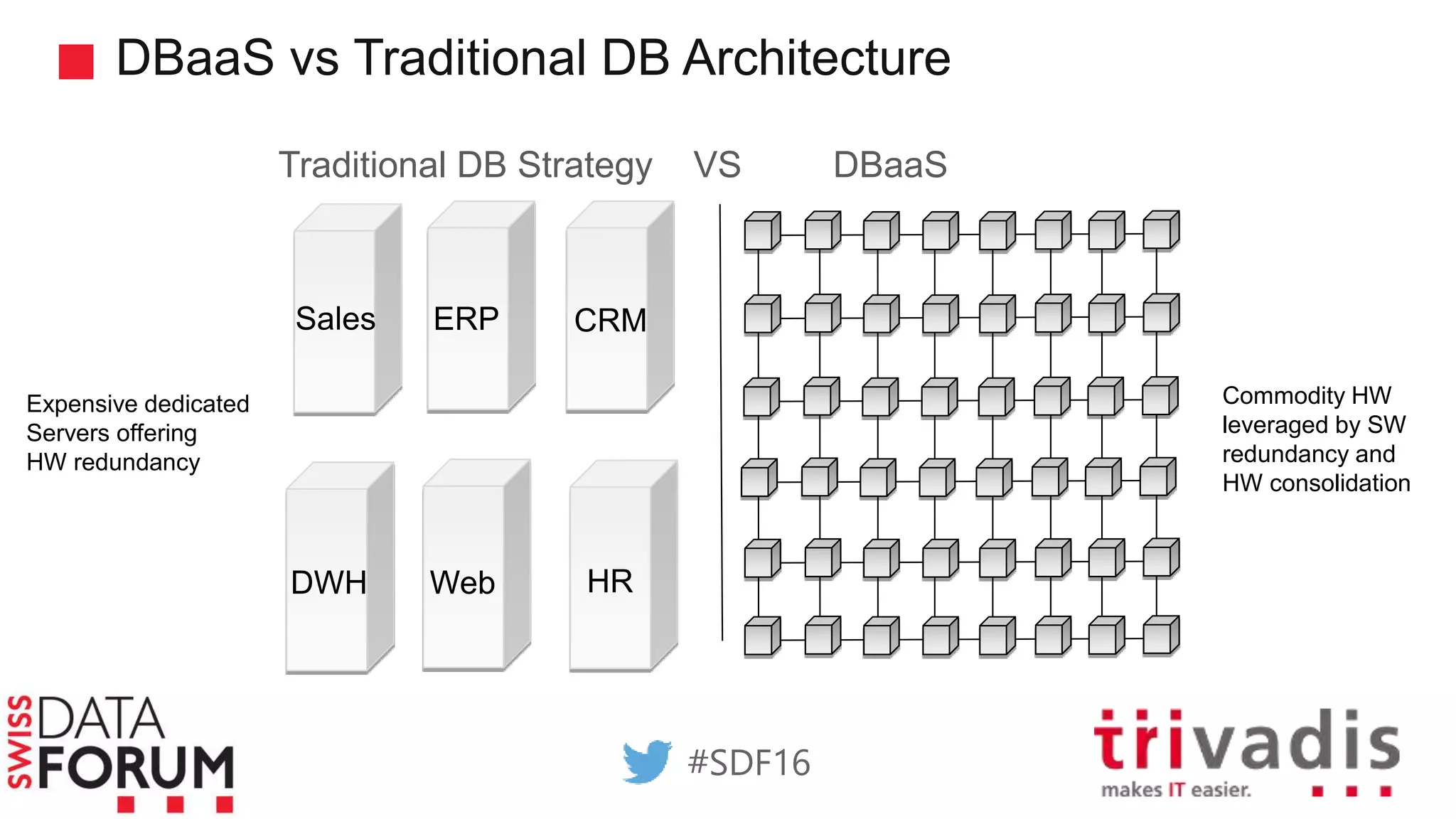

6. Traditional DB Strategy VS DBaaS
DBaaS vs Traditional DB Architecture
Sales ERP CRM
HRDWH Web
Commodity HW
leveraged by SW
redundancy and
HW consolidation
Expensive dedicated
Servers offering
HW redundancy
#SDF16

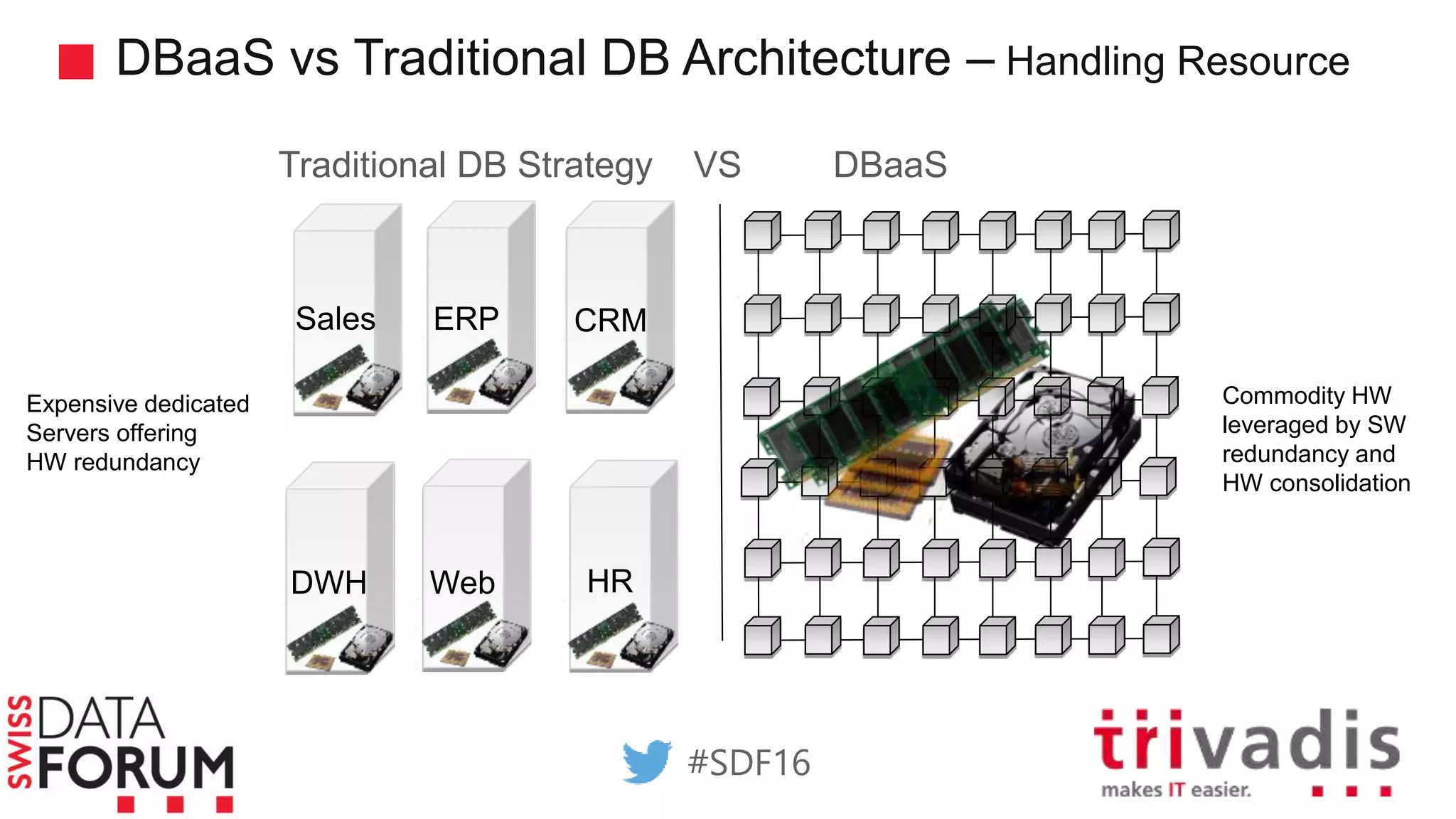

7. Traditional DB Strategy VS DBaaS
DBaaS vs Traditional DB Architecture – Handling Resource
Sales ERP CRM
HRDWH Web
Expensive dedicated
Servers offering
HW redundancy
Commodity HW
leveraged by SW
redundancy and
HW consolidation
#SDF16

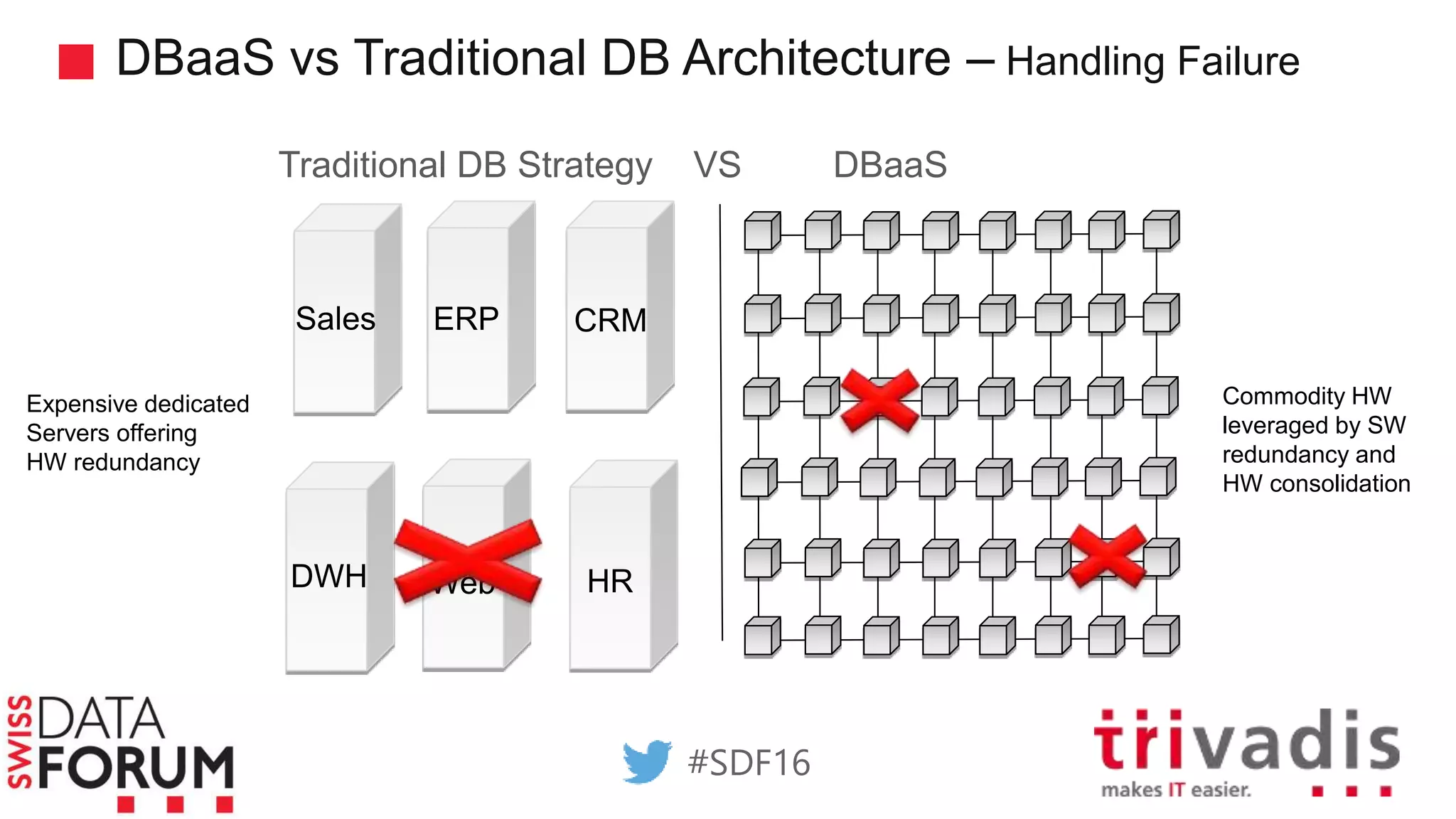

8. DBaaS vs Traditional DB Architecture – Handling Failure
Sales ERP CRM
HRDWH Web
Traditional DB Strategy VS DBaaS
Expensive dedicated
Servers offering
HW redundancy
Commodity HW
leveraged by SW
redundancy and
HW consolidation
#SDF16

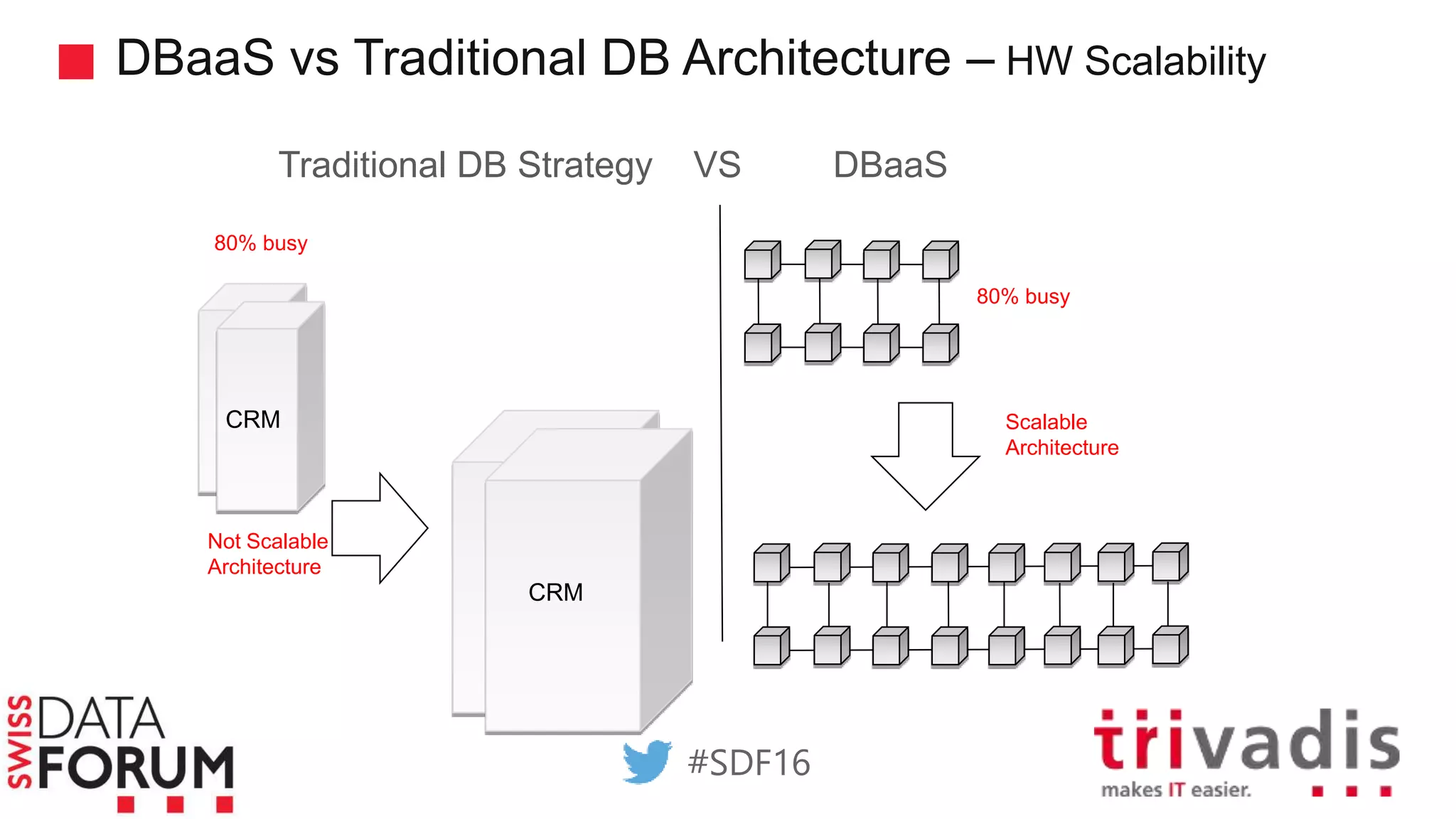

9. CRM
WWW
CRM
Not Scalable
Architecture
Scalable
Architecture
80% busy
80% busy
DBaaS vs Traditional DB Architecture – HW Scalability
Traditional DB Strategy VS DBaaS
#SDF16

10. DBaaS
#SDF16

11. DBaaS Option 1
Virtualization
#SDF16

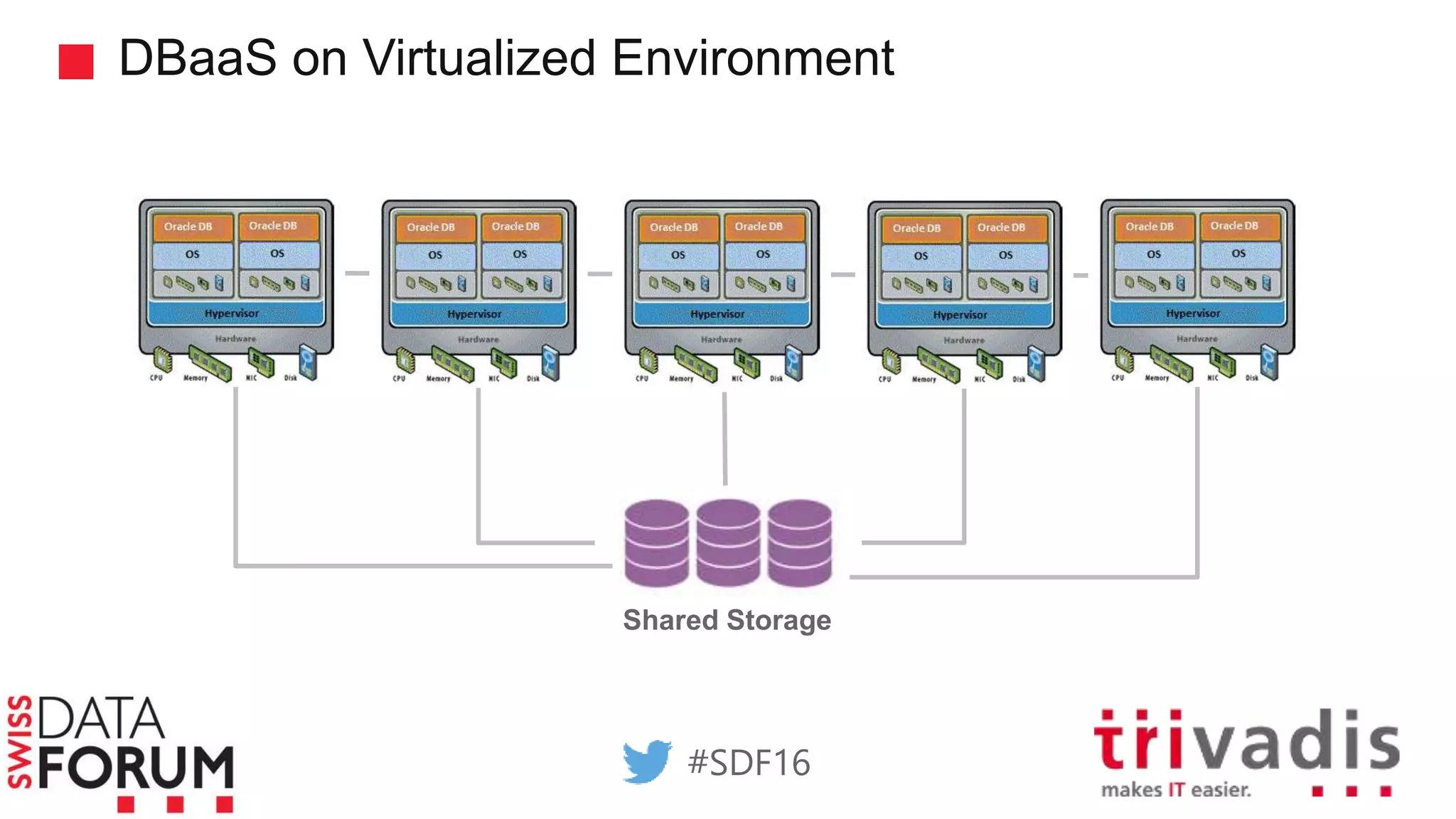

12. DBaaS on Virtualized Environment
Shared Storage
#SDF16

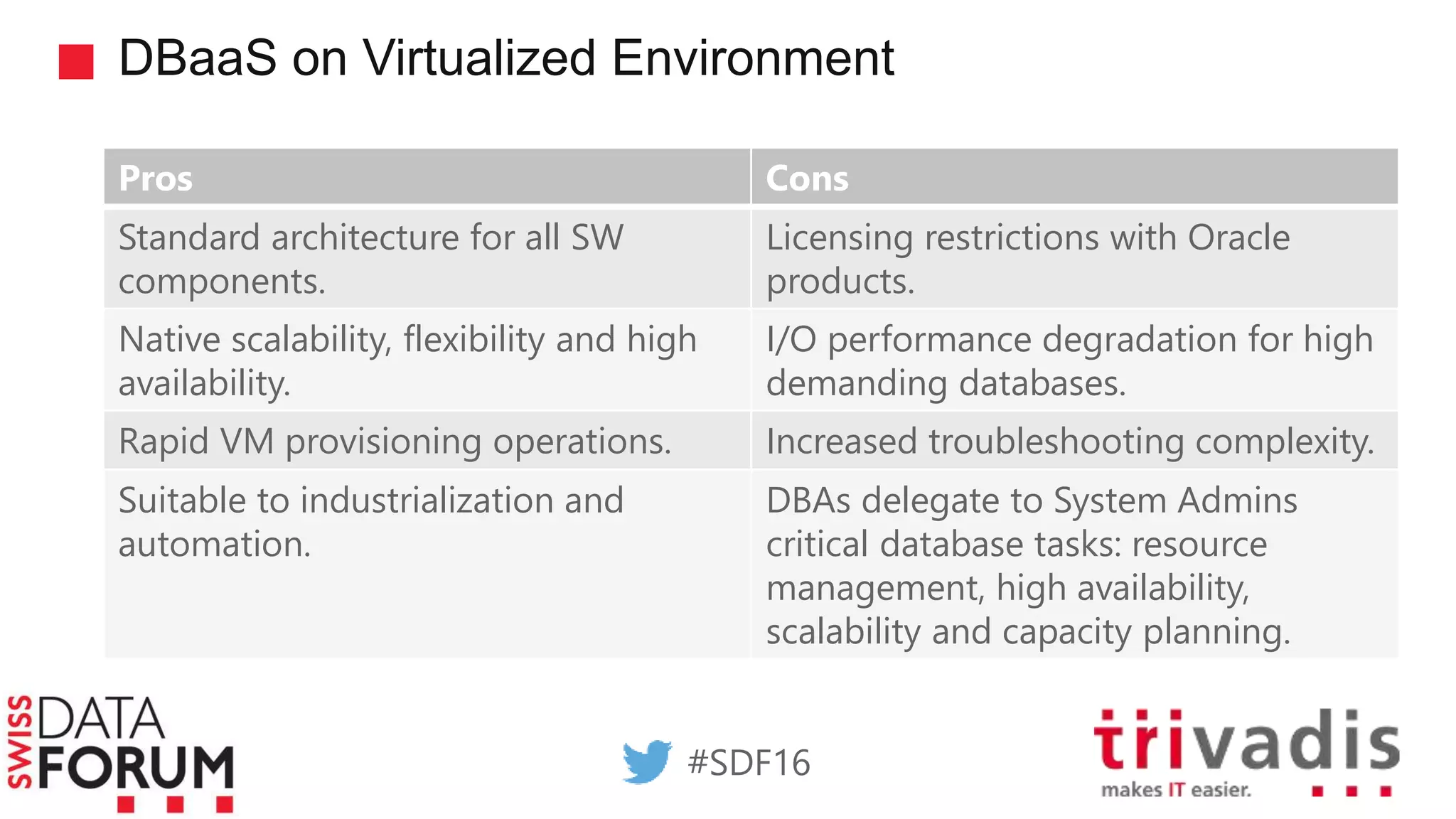

13. DBaaS on Virtualized Environment
Pros Cons
Standard architecture for all SW
components.
Licensing restrictions with Oracle
products.
Native scalability, flexibility and high
availability.
I/O performance degradation for high
demanding databases.
Rapid VM provisioning operations. Increased troubleshooting complexity.
Suitable to industrialization and
automation.
DBAs delegate to System Admins
critical database tasks: resource
management, high availability,
scalability and capacity planning.
#SDF16

14. DBaaS Option 2
Grid Infrastructure &
Multitenant Database
#SDF16

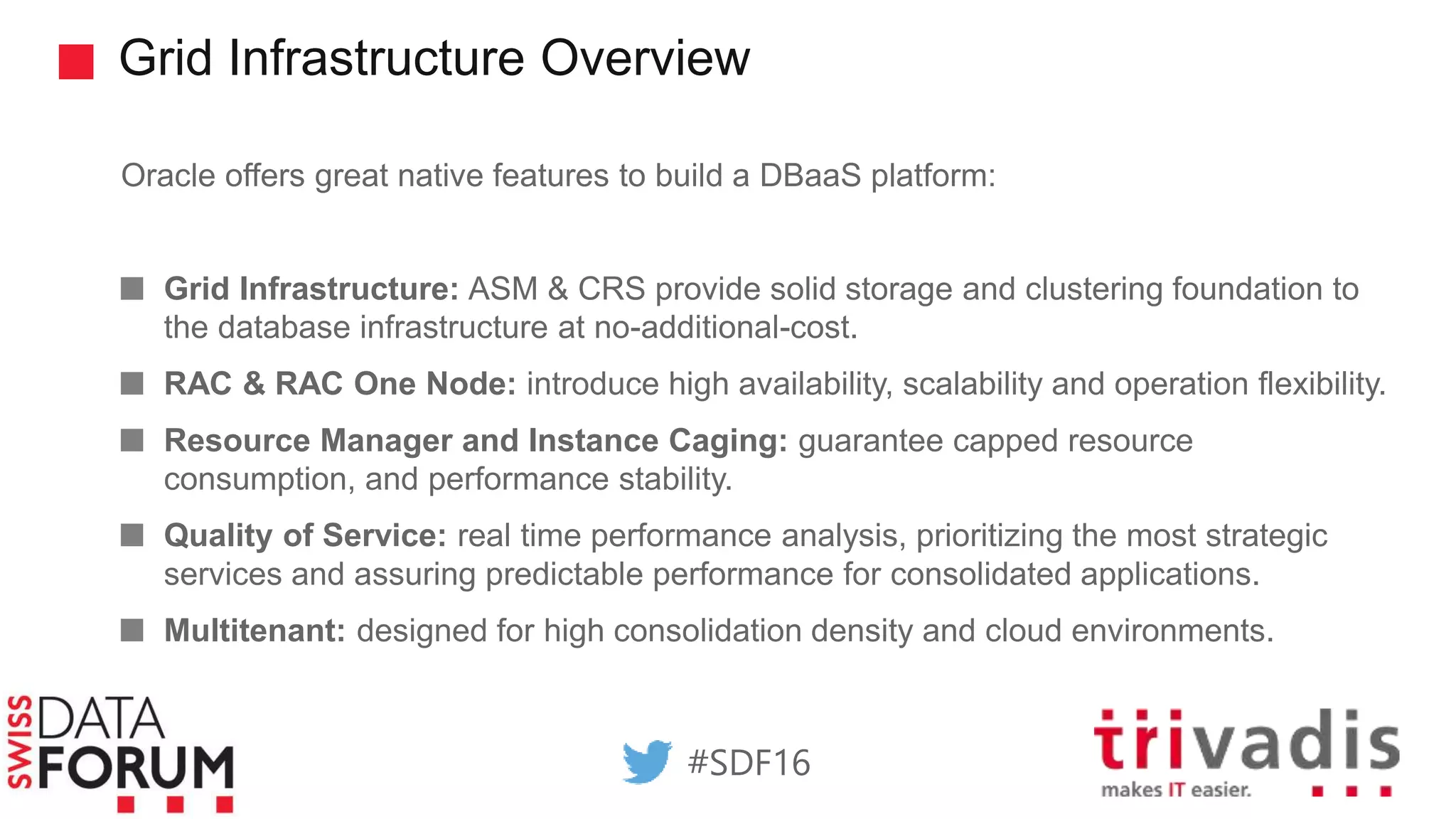

15. Grid Infrastructure Overview
Oracle offers great native features to build a DBaaS platform:
Grid Infrastructure: ASM & CRS provide solid storage and clustering foundation to
the database infrastructure at no-additional-cost.
RAC & RAC One Node: introduce high availability, scalability and operation flexibility.
Resource Manager and Instance Caging: guarantee capped resource
consumption, and performance stability.
Quality of Service: real time performance analysis, prioritizing the most strategic
services and assuring predictable performance for consolidated applications.
Multitenant: designed for high consolidation density and cloud environments.
#SDF16

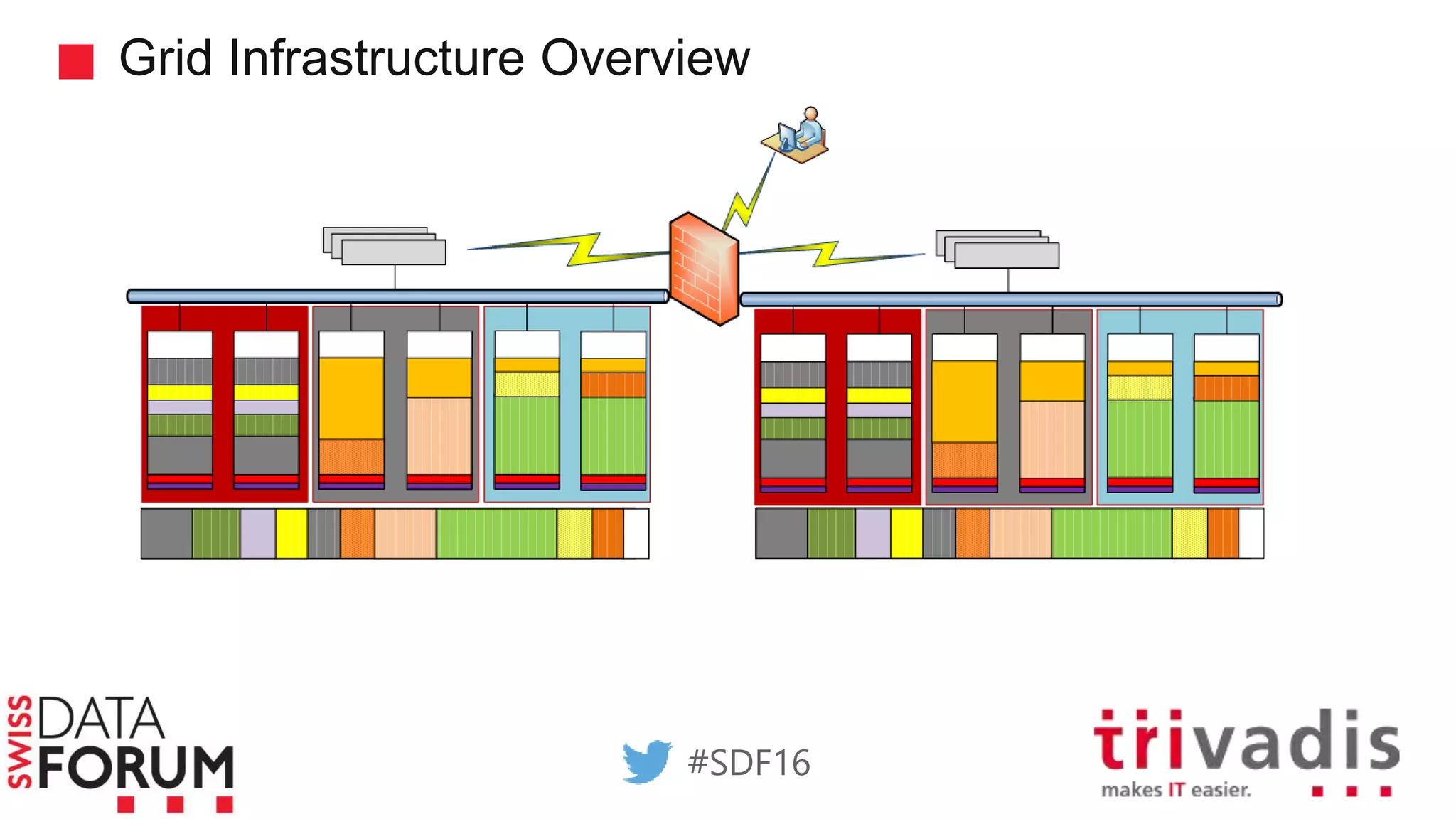

16. Grid Infrastructure Overview
#SDF16

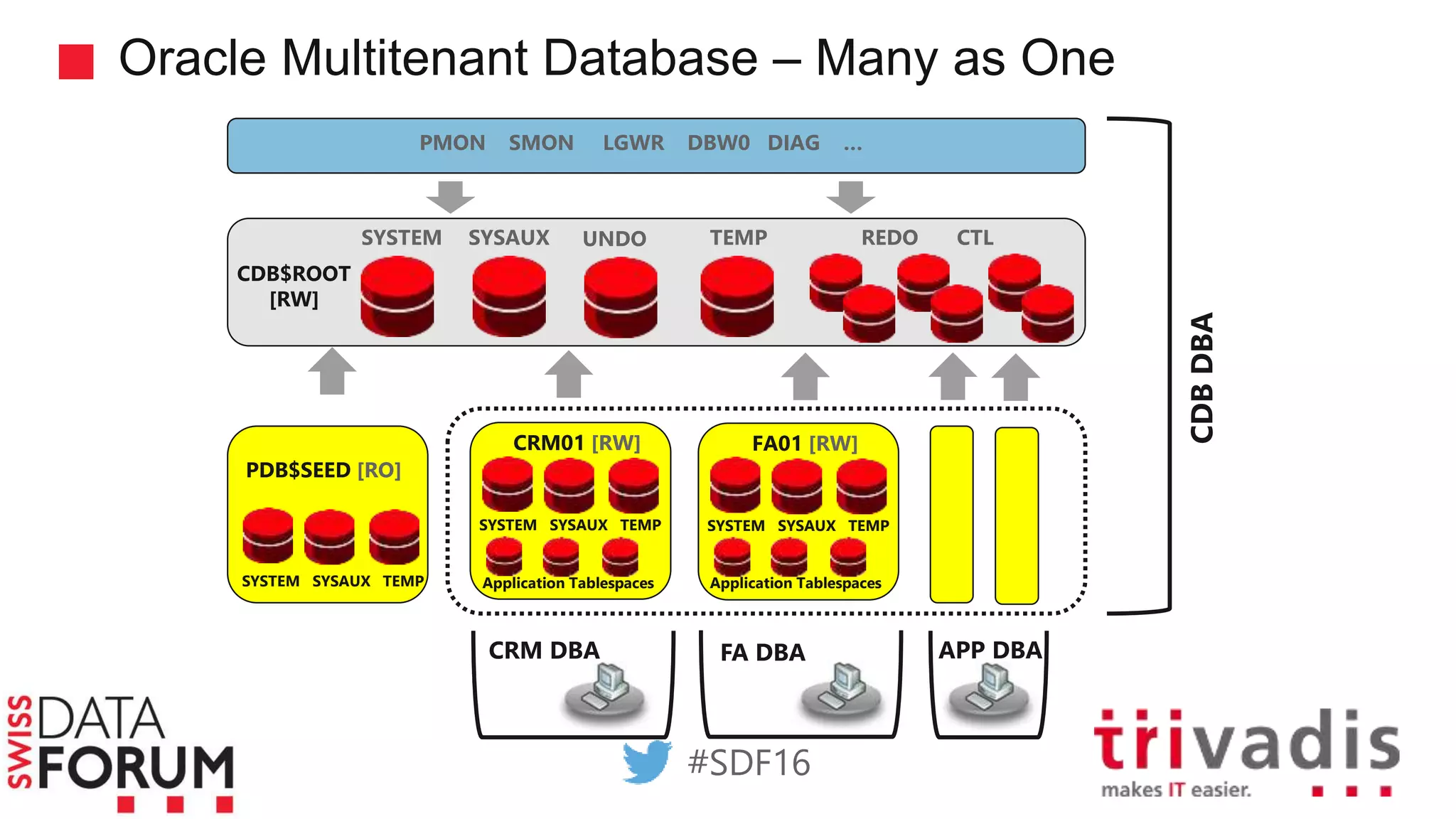

17. Oracle Multitenant Database – Many as One
11
PMON SMON LGWR DBW0 DIAG …
SYSTEM SYSAUX REDO CTLUNDO
CDB$ROOT
[RW]
TEMP
SYSTEM SYSAUX TEMP
PDB$SEED [RO]
CRM01 [RW]
SYSTEM SYSAUX TEMP
FA01 [RW]
SYSTEM SYSAUX TEMP
CRM DBA
CDBDBA
FA DBA APP DBA
Application Tablespaces Application Tablespaces
Source: Trivadis Course
Oracle 12c New Features
#SDF16

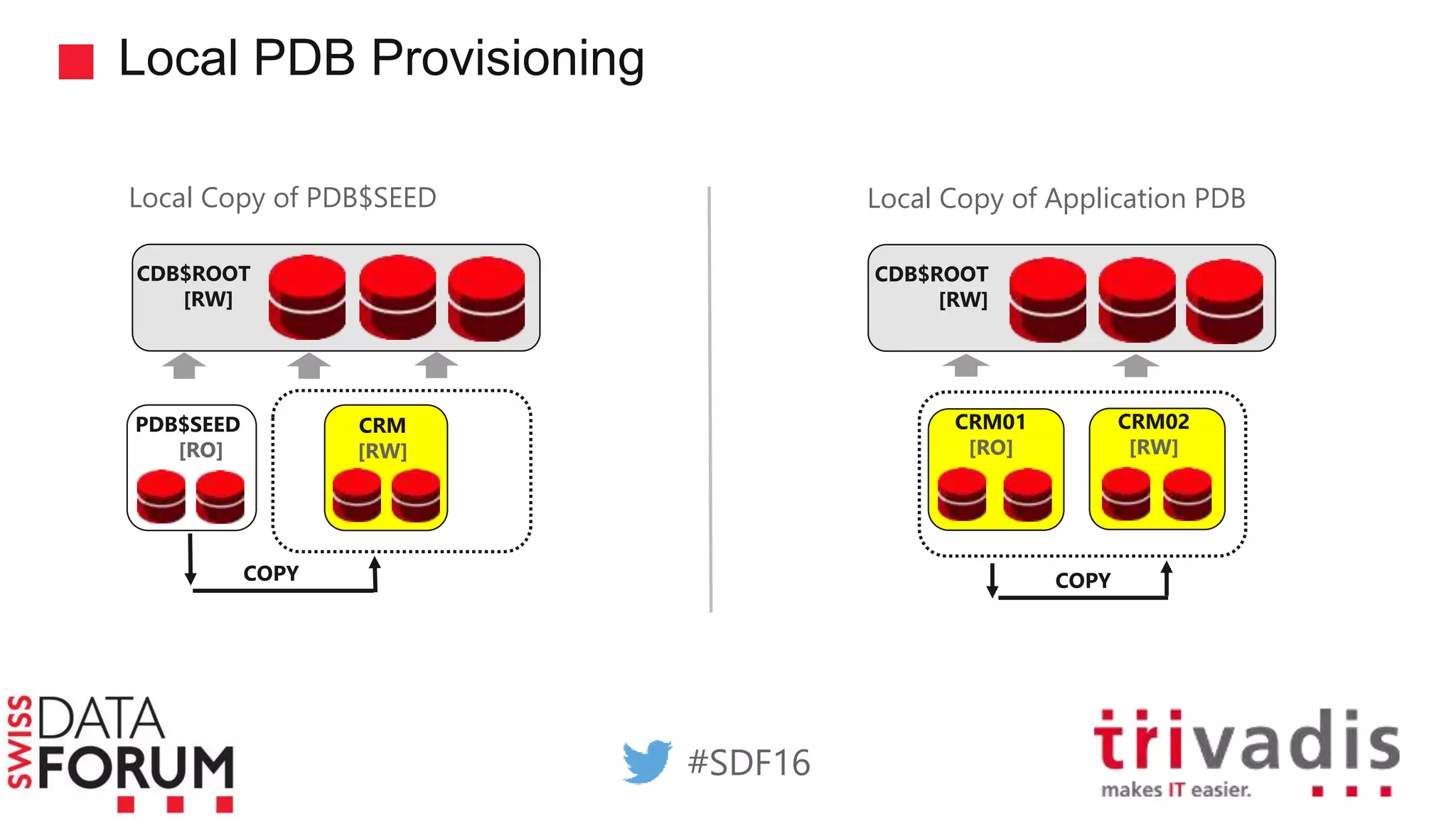

18. Local PDB Provisioning
11
Source: Trivadis Course
Oracle 12c New Features
CDB$ROOT
[RW]
PDB$SEED
[RO]
CRM
[RW]
COPY
Local Copy of PDB$SEED
CDB$ROOT
[RW]
CRM01
[RO]
COPY
CRM02
[RW]
Local Copy of Application PDB
#SDF16

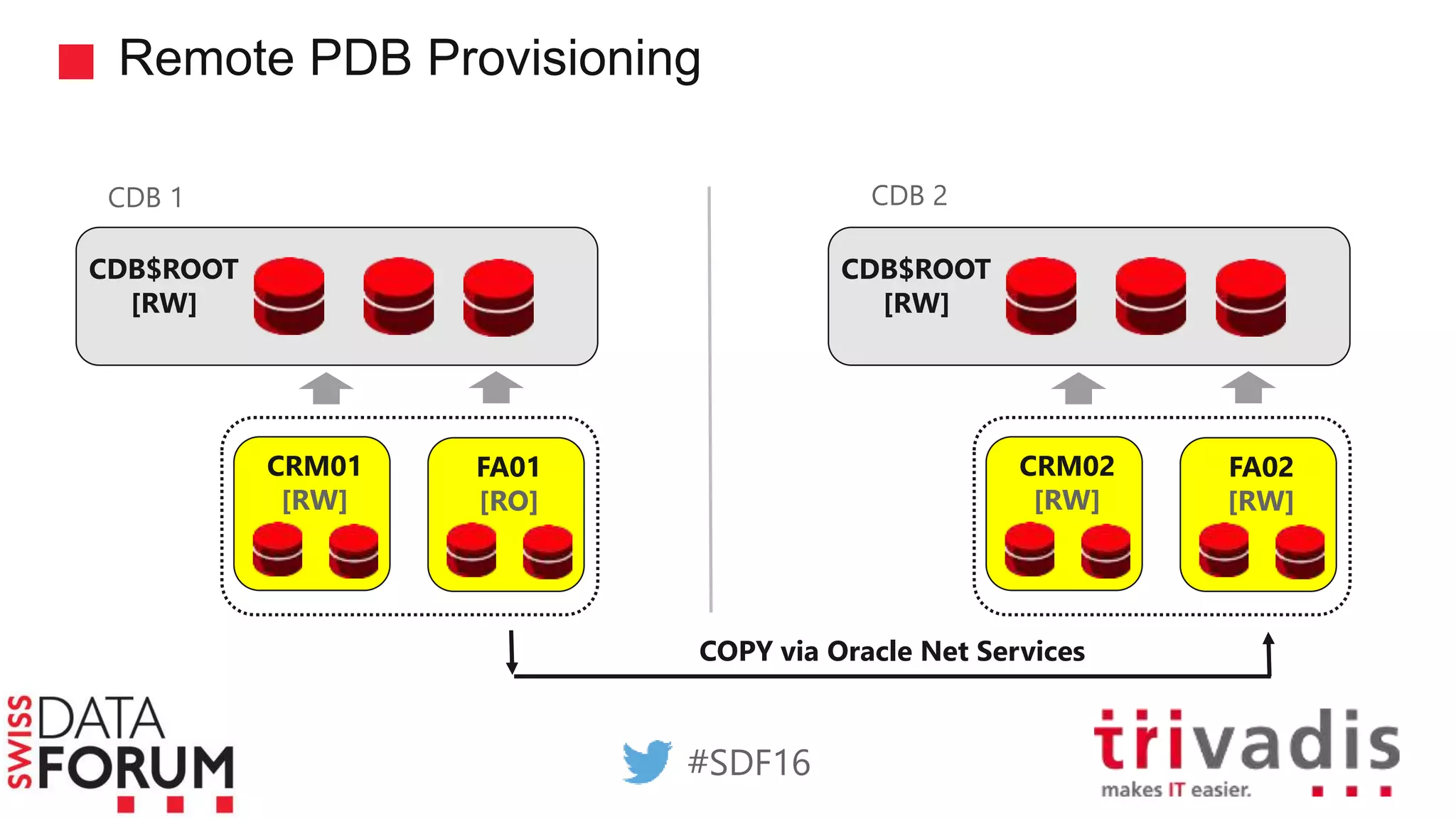

19. Remote PDB Provisioning
11
Source: Trivadis Course
Oracle 12c New Features
CDB$ROOT
[RW]
CRM02
[RW]
FA02
[RW]
CDB$ROOT
[RW]
CRM01
[RW]
FA01
[RO]
COPY via Oracle Net Services
CDB 1 CDB 2
#SDF16

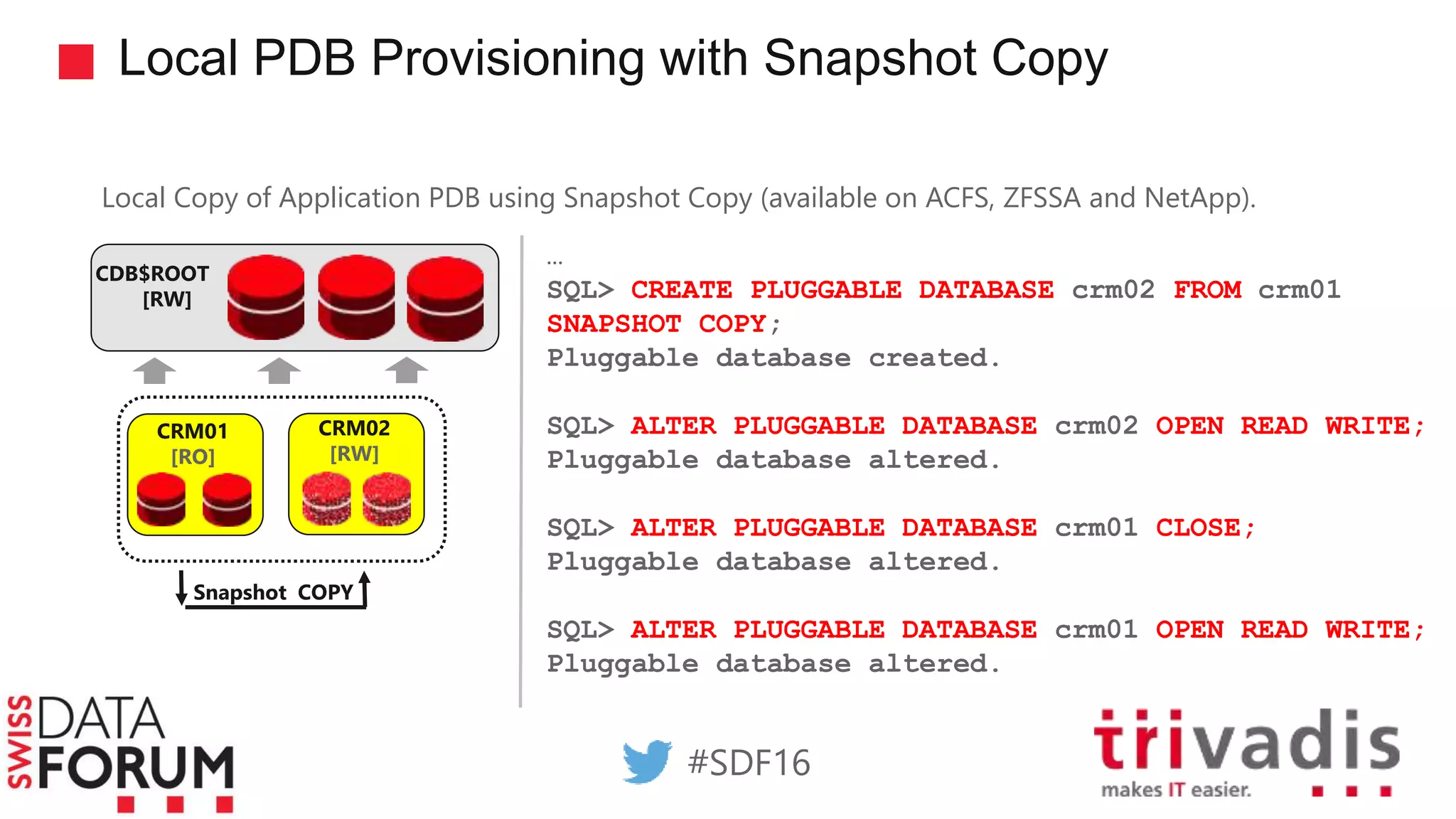

20. Local PDB Provisioning with Snapshot Copy
11
Source: Trivadis Course
Oracle 12c New Features
Source: Trivadis Course
Oracle 12c New Features
CDB$ROOT
[RW]
Local Copy of Application PDB using Snapshot Copy (available on ACFS, ZFSSA and NetApp).
…
SQL> CREATE PLUGGABLE DATABASE crm02 FROM crm01
SNAPSHOT COPY;
Pluggable database created.
SQL> ALTER PLUGGABLE DATABASE crm02 OPEN READ WRITE;
Pluggable database altered.
SQL> ALTER PLUGGABLE DATABASE crm01 CLOSE;
Pluggable database altered.
SQL> ALTER PLUGGABLE DATABASE crm01 OPEN READ WRITE;
Pluggable database altered.
CRM01
[RO]
CRM02
[RW]
Snapshot COPY
#SDF16

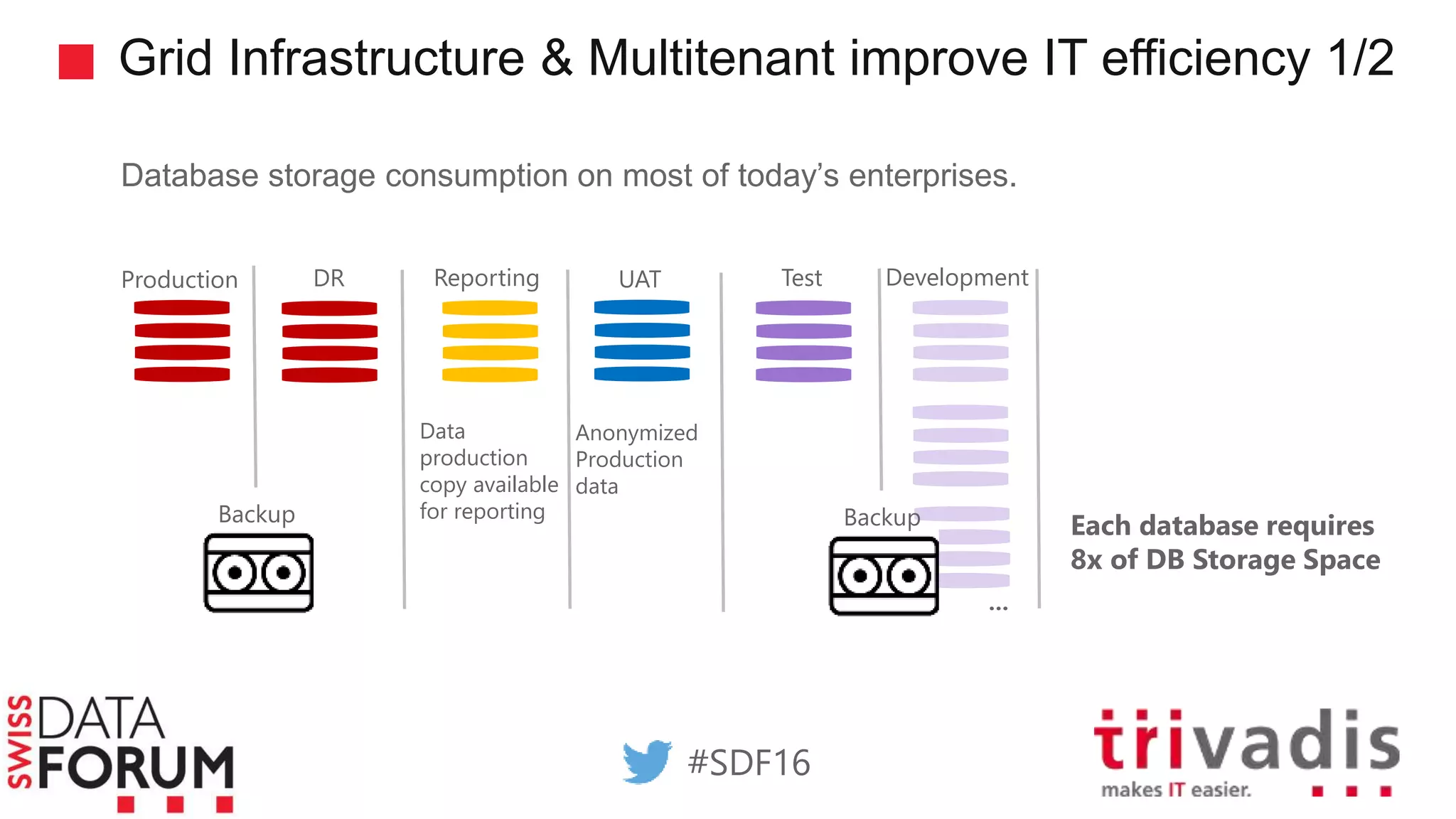

21. Grid Infrastructure & Multitenant improve IT efficiency 1/2
Database storage consumption on most of today’s enterprises.
Production DR
Backup
Reporting UAT Test Development
Data
production
copy available
for reporting
…
Backup Each database requires
8x of DB Storage Space
Anonymized
Production
data
#SDF16

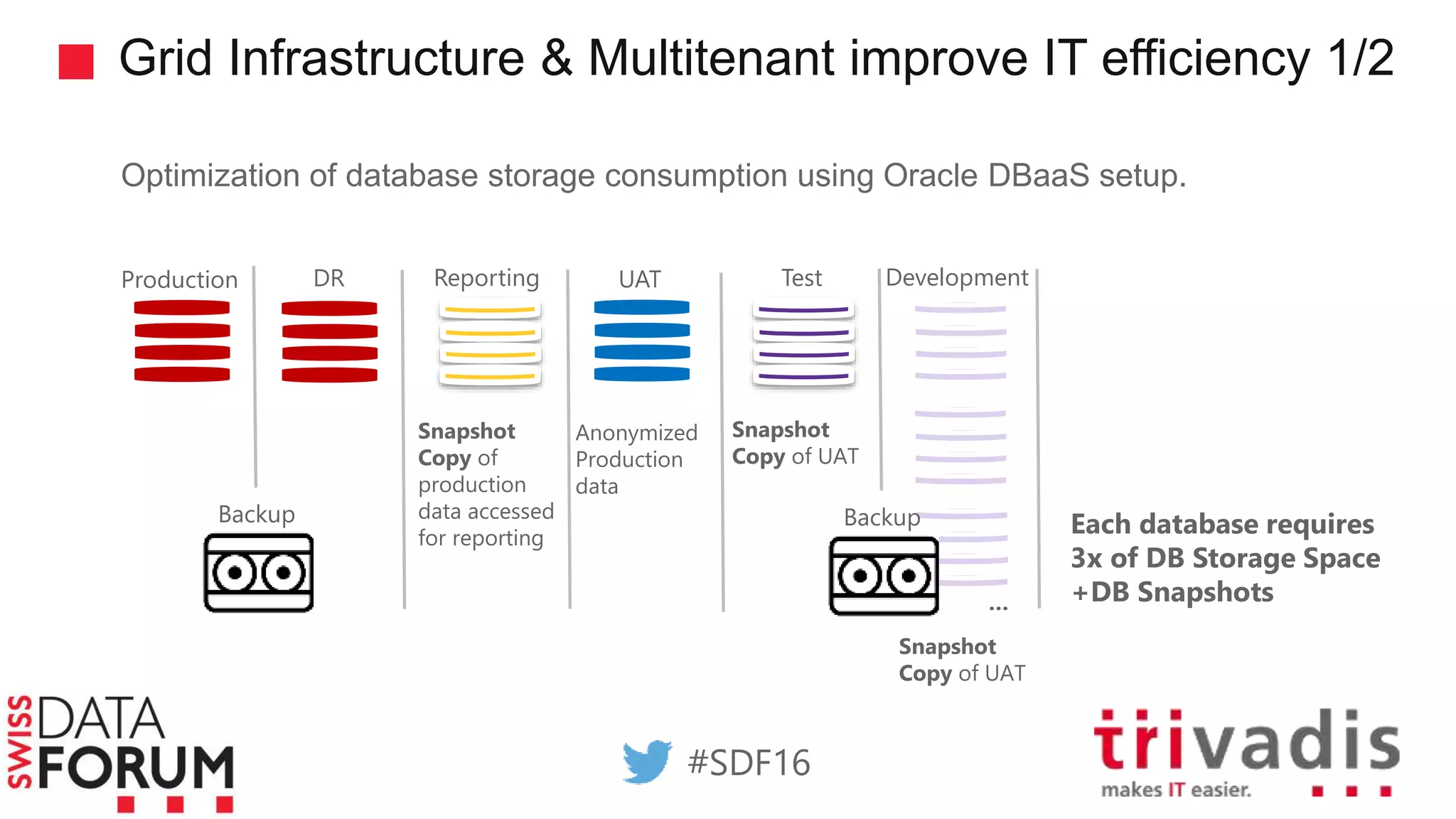

22. Grid Infrastructure & Multitenant improve IT efficiency 1/2
Optimization of database storage consumption using Oracle DBaaS setup.
Production DR
Backup
Reporting UAT Test Development
Snapshot
Copy of
production
data accessed
for reporting
…
Backup
Snapshot
Copy of UAT
Snapshot
Copy of UAT
Each database requires
3x of DB Storage Space
+DB Snapshots
Anonymized
Production
data
#SDF16

23. Conclusion
#SDF16

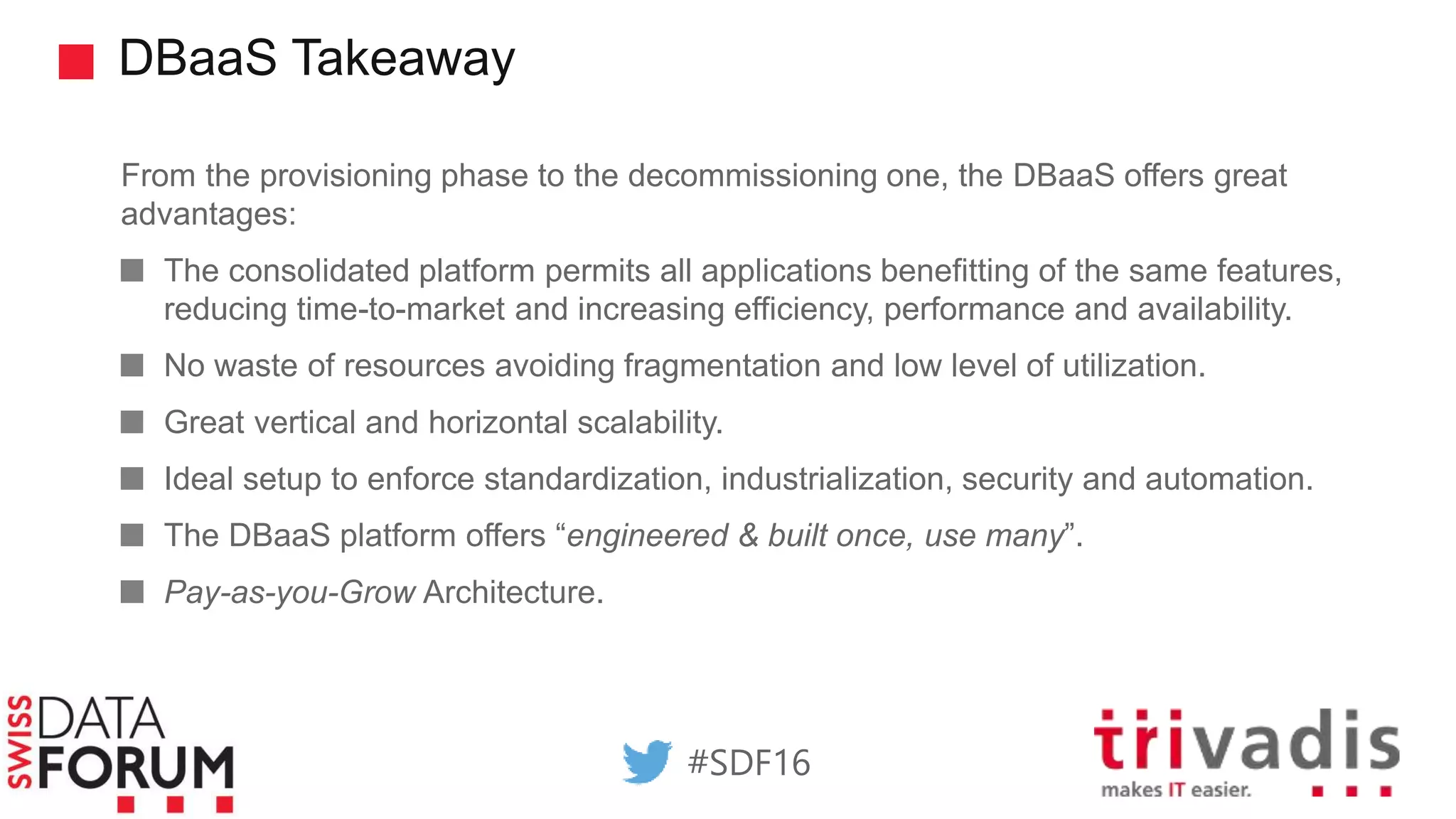

24. DBaaS Takeaway
From the provisioning phase to the decommissioning one, the DBaaS offers great
advantages:
The consolidated platform permits all applications benefitting of the same features,
reducing time-to-market and increasing efficiency, performance and availability.
No waste of resources avoiding fragmentation and low level of utilization.
Great vertical and horizontal scalability.
Ideal setup to enforce standardization, industrialization, security and automation.
The DBaaS platform offers “engineered & built once, use many”.
Pay-as-you-Grow Architecture.
#SDF16

25. Emiliano Fusaglia
Principal Consultant
#SDF16
