Data-Ed Webinar: Data Warehouse Strategies

Peter Aiken, Ph.D. & Steven MacLauchlan

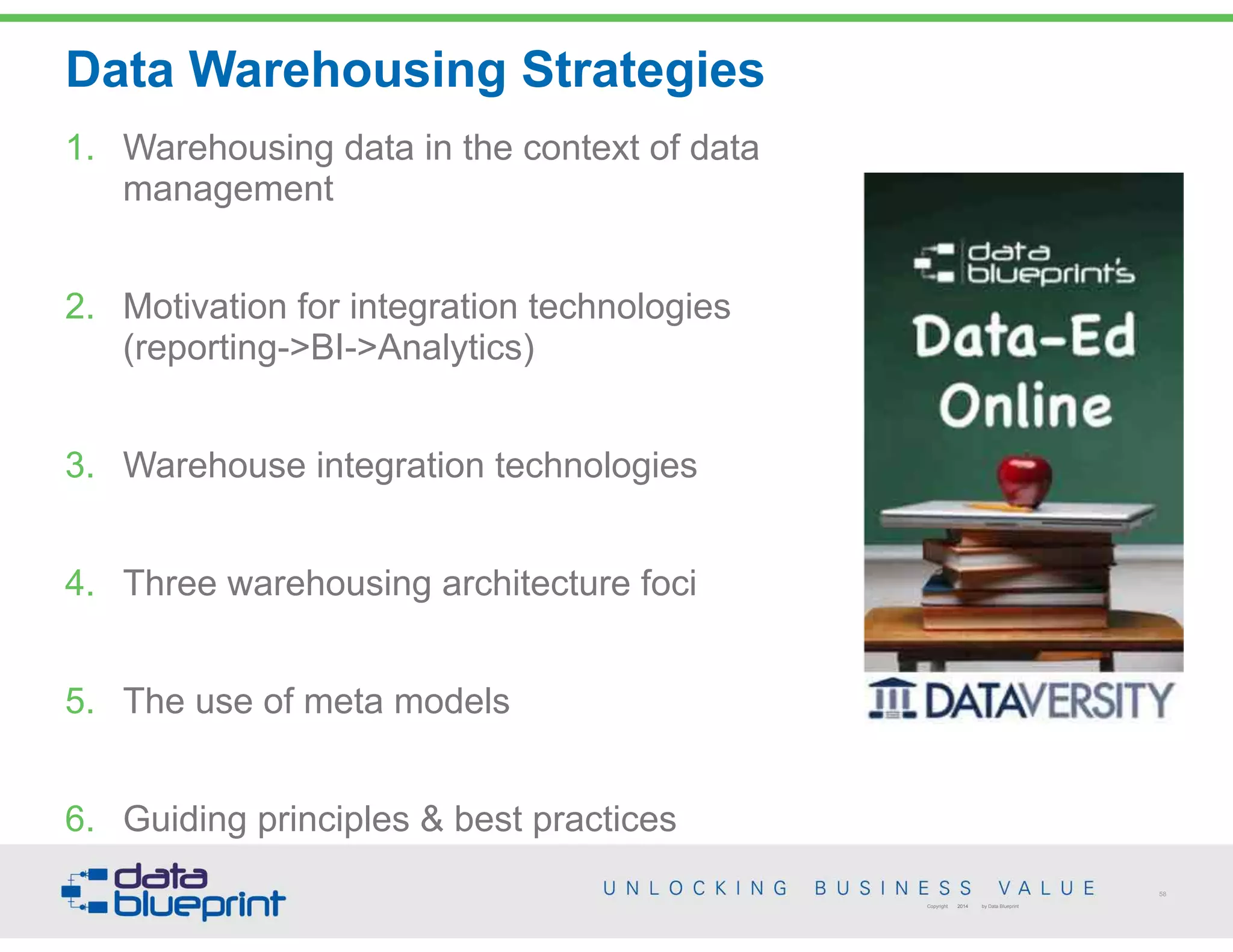

Data Warehousing Strategies

2
Copyright 2014 by Data Blueprint

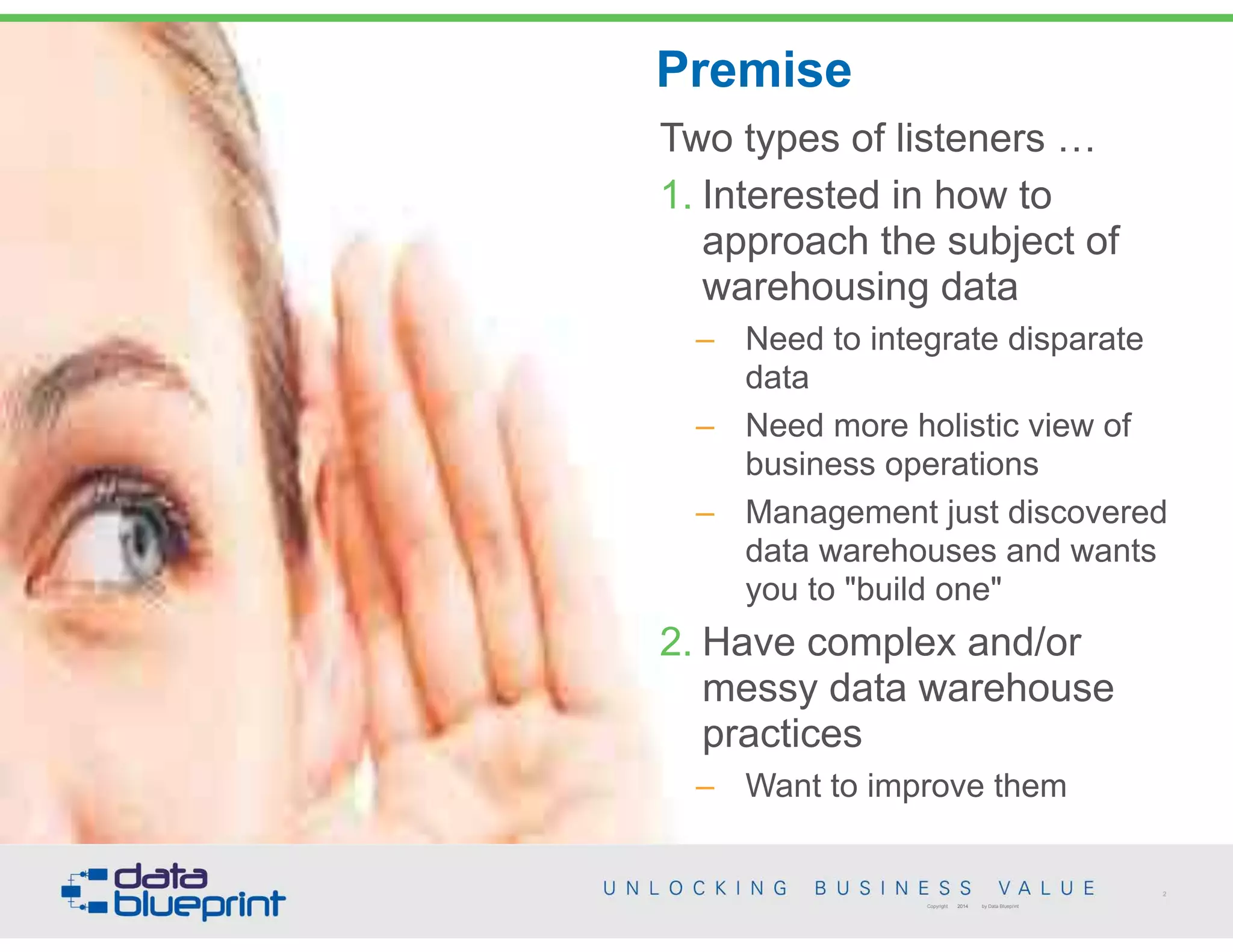

Premise
Two types of listeners …
1. Interested in how to
approach the subject of
warehousing data
– Need to integrate disparate
data
– Need more holistic view of
business operations
– Management just discovered
data warehouses and wants
you to "build one"
2. Have complex and/or
messy data warehouse
practices
– Want to improve them

3

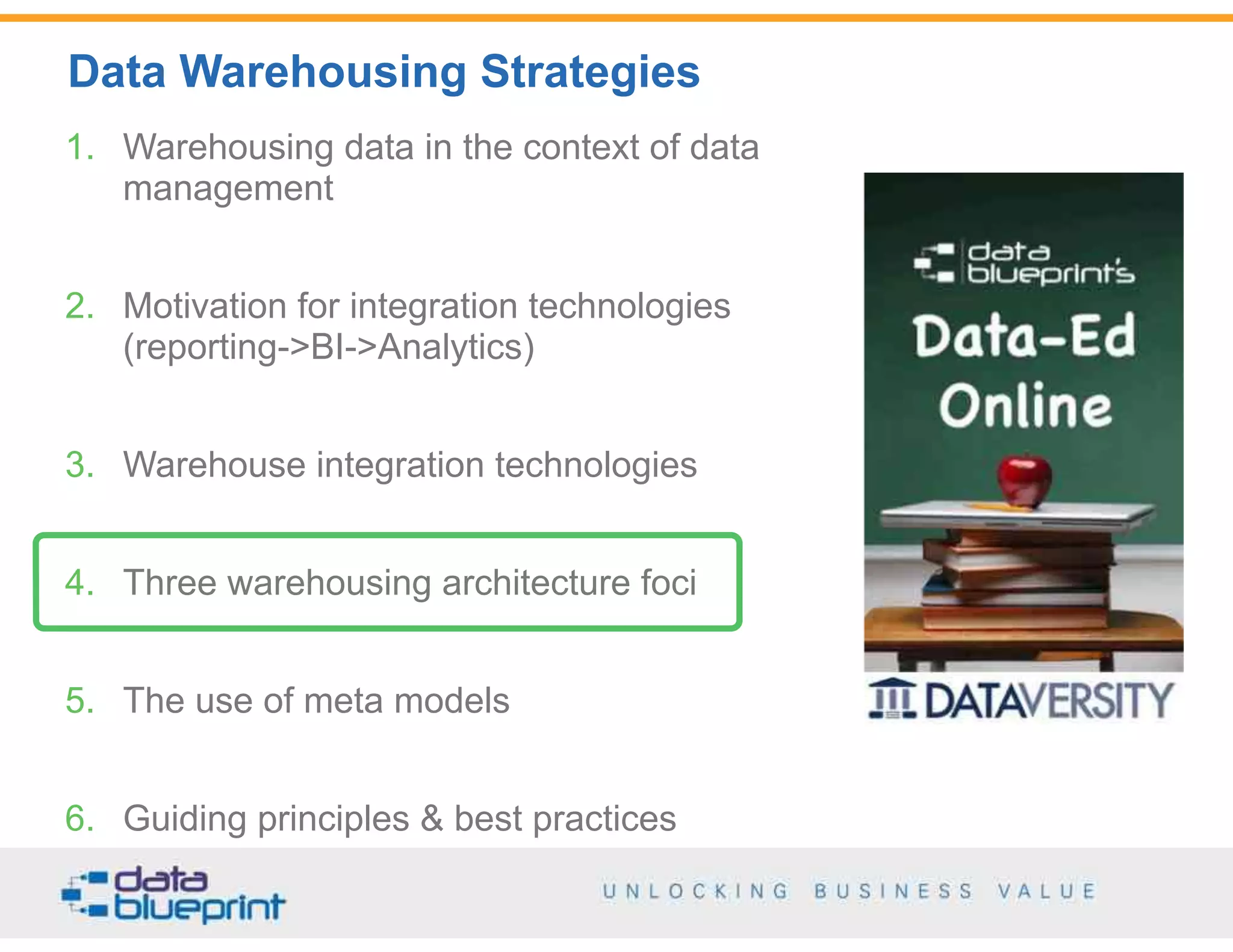

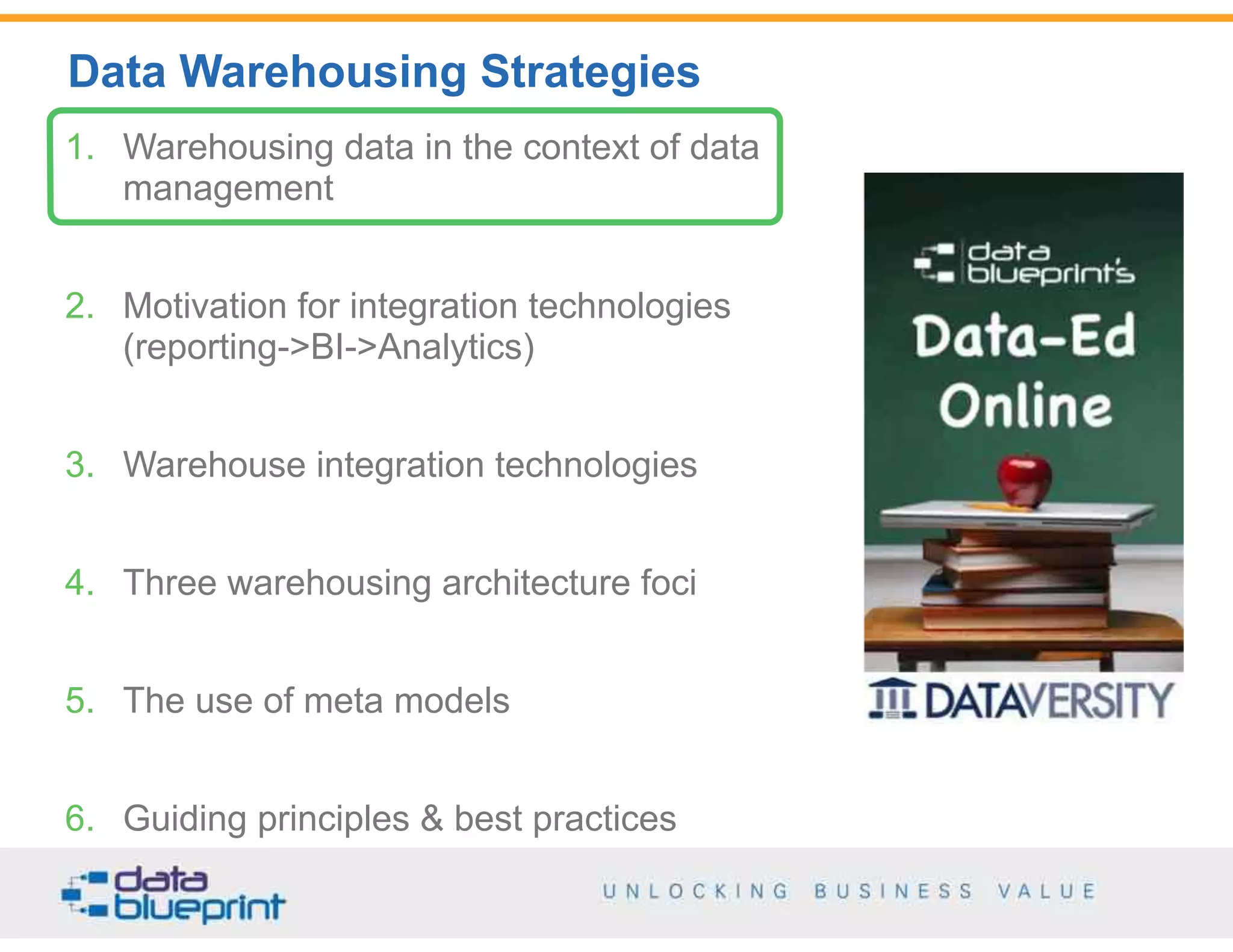

1. Warehousing data in the context of data
management
2. Motivation for integration technologies  
(reporting->BI->Analytics)
3. Warehouse integration technologies
4. Three warehousing architecture foci
5. The use of meta models
6. Guiding principles & best practices

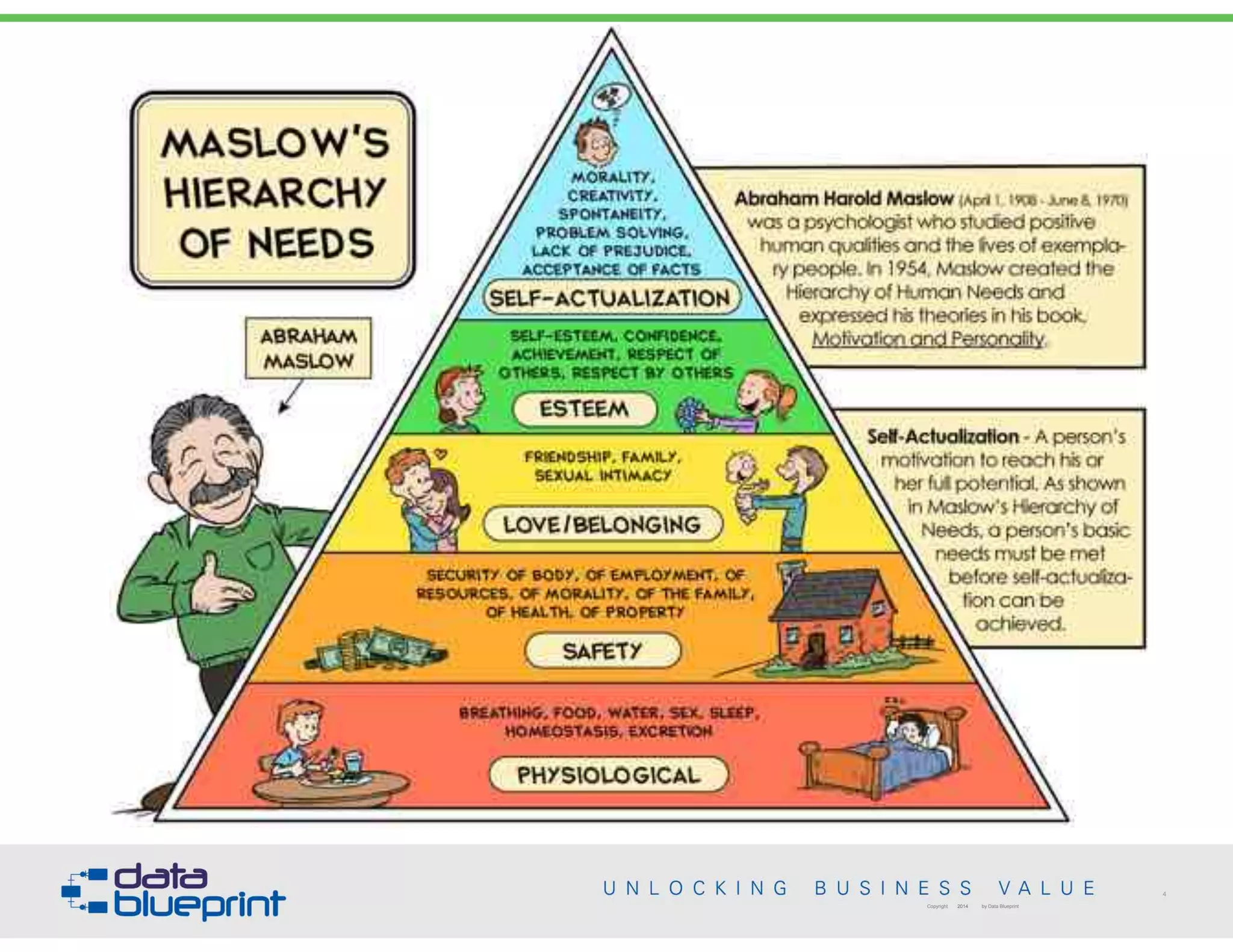

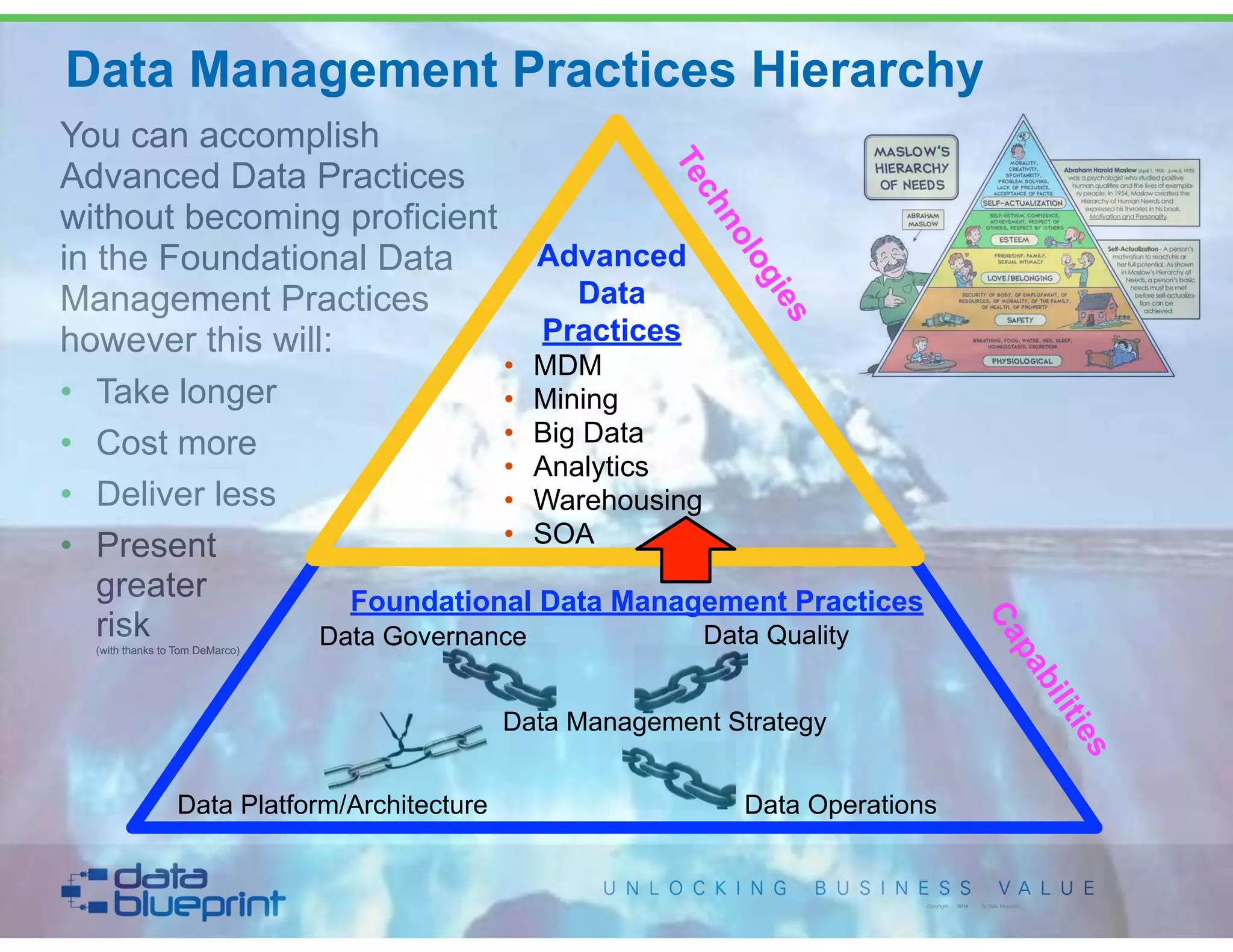

Maslow's Hierarchiy of Needs
4

You can accomplish
Advanced Data Practices
without becoming proficient
in the Foundational Data
Management Practices
however this will:
• Take longer
• Cost more
• Deliver less
• Present  
greater 
risk 
(with thanks to Tom DeMarco)
Data Management Practices Hierarchy
Advanced  
Data  
Practices
• MDM
• Mining
• Big Data
• Analytics
• Warehousing
• SOA
Foundational Data Management Practices
5
Data Platform/Architecture
Data Governance Data Quality
Data Operations
Data Management Strategy
Technologies
Capabilities

UsesReuses
What is data management?
6
Sources
Data Governance
 
Data
Engineering
 
Data  
Delivery
 
Data 
Storage
Specialized Team Skills
Understanding the current
and future data needs of an
enterprise and making that
data effective and efficient in
supporting  
business activities  
Aiken, P, Allen, M. D., Parker, B., Mattia, A.,  
"Measuring Data Management's Maturity:  
A Community's Self-Assessment"  
IEEE Computer (research feature April 2007)
Data management practices connect
data sources and uses in an
organized and efficient manner
• Storage
• Engineering
• Delivery
• Governance
When executed,  
engineering, storage, and  
delivery implement governance
Note: does not well-depict data reuse

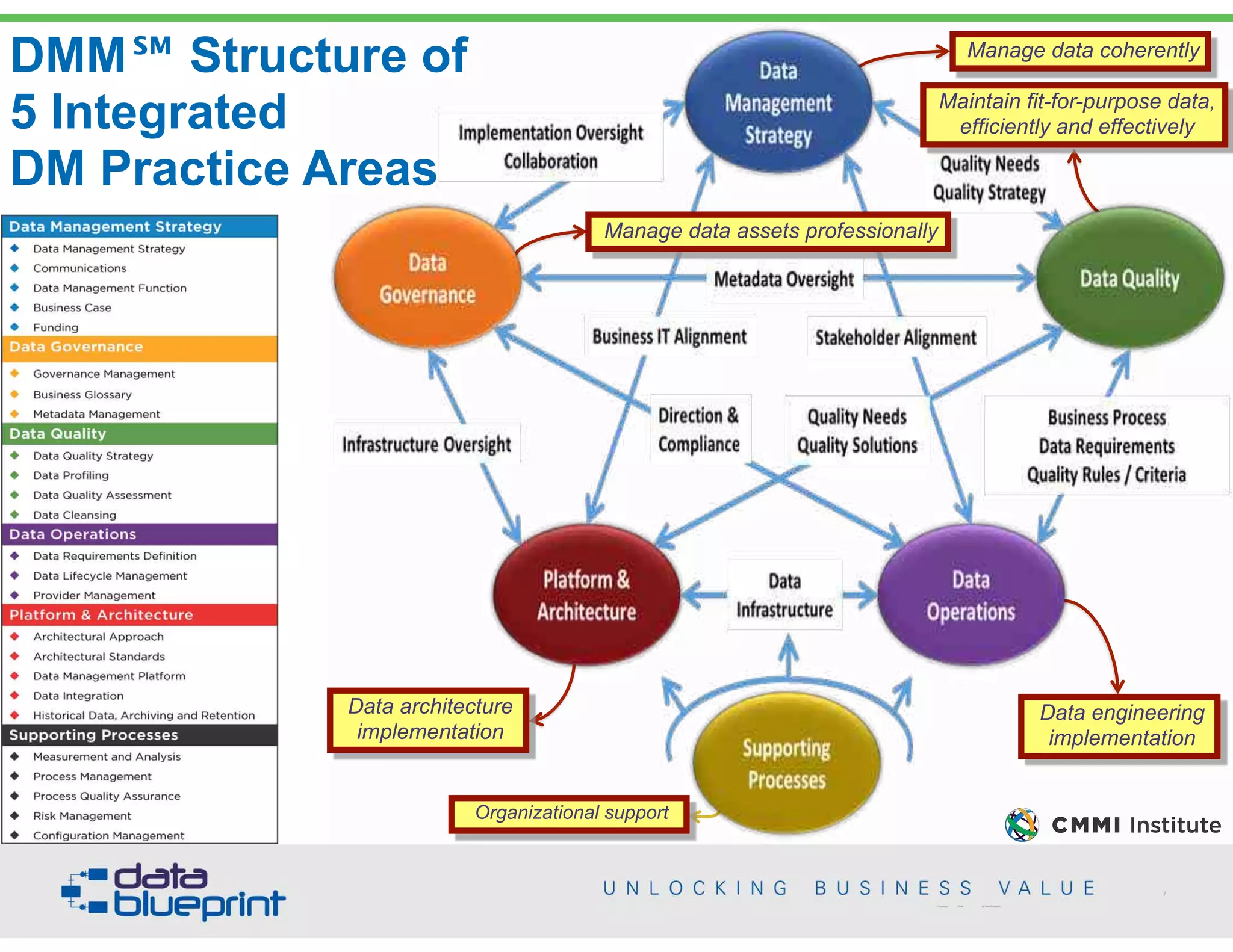

Maintain fit-for-purpose data,
efficiently and effectively
DMM℠ Structure of  
5 Integrated  
DM Practice Areas
7
Manage data coherently
Manage data assets professionally
Data architecture
implementation
Data engineering
implementation
Organizational support

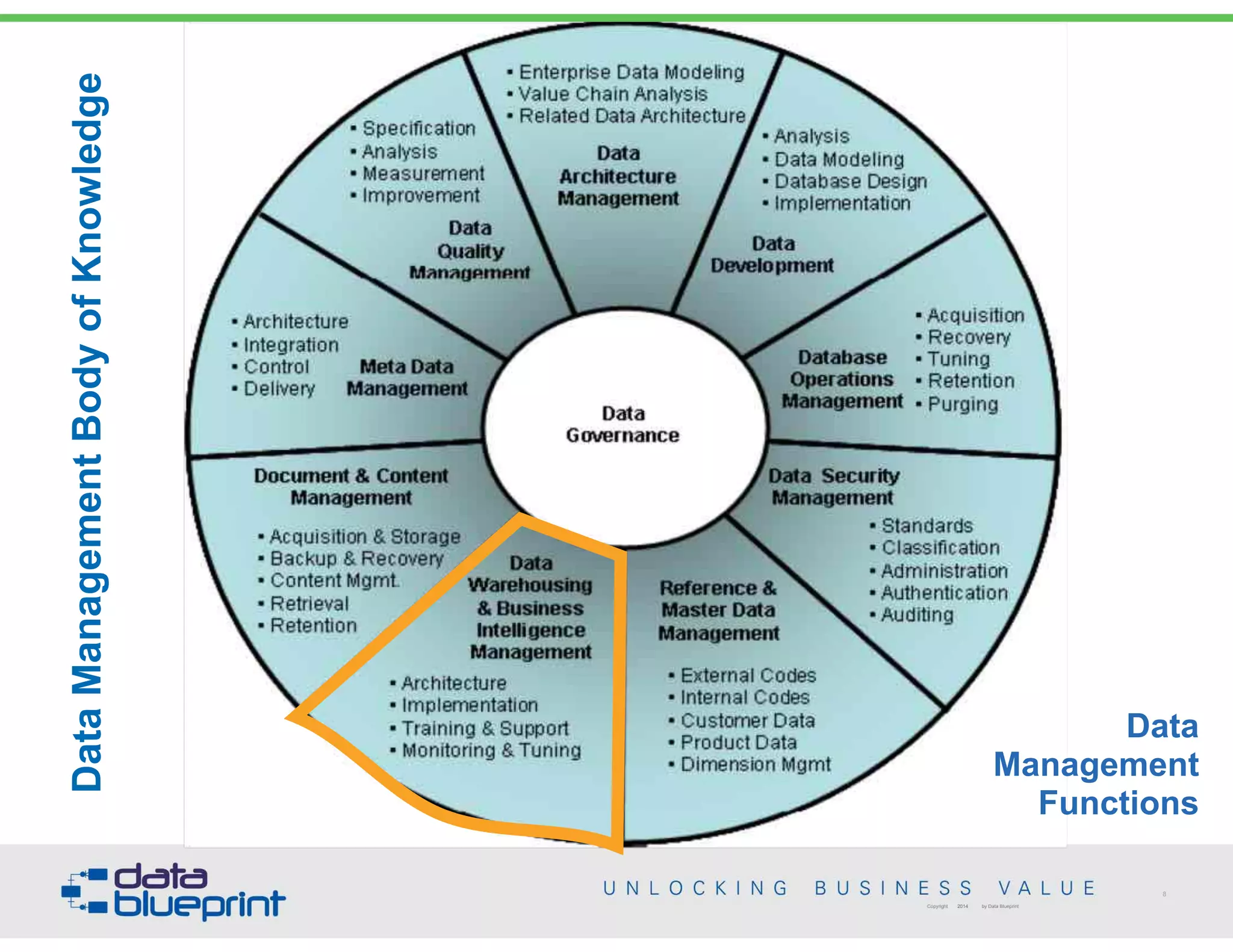

DataManagementBodyofKnowledge
8
Data
Management
Functions

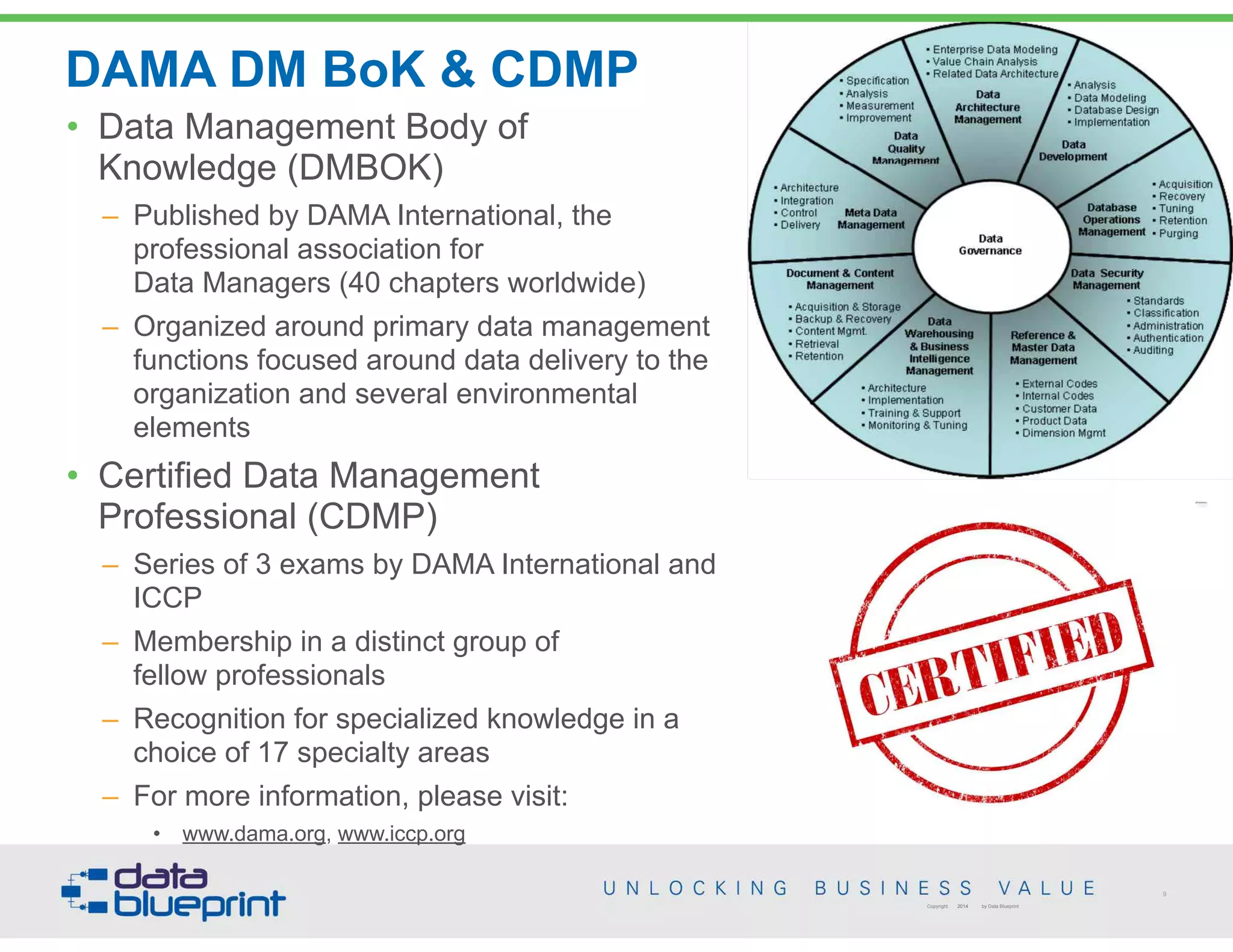

DAMA DM BoK & CDMP
9
• Data Management Body of
Knowledge (DMBOK)
– Published by DAMA International, the
professional association for  
Data Managers (40 chapters worldwide)
– Organized around primary data management
functions focused around data delivery to the
organization and several environmental
elements
• Certified Data Management
Professional (CDMP)
– Series of 3 exams by DAMA International and
ICCP
– Membership in a distinct group of  
fellow professionals
– Recognition for specialized knowledge in a  
choice of 17 specialty areas
– For more information, please visit:
• www.dama.org, www.iccp.org

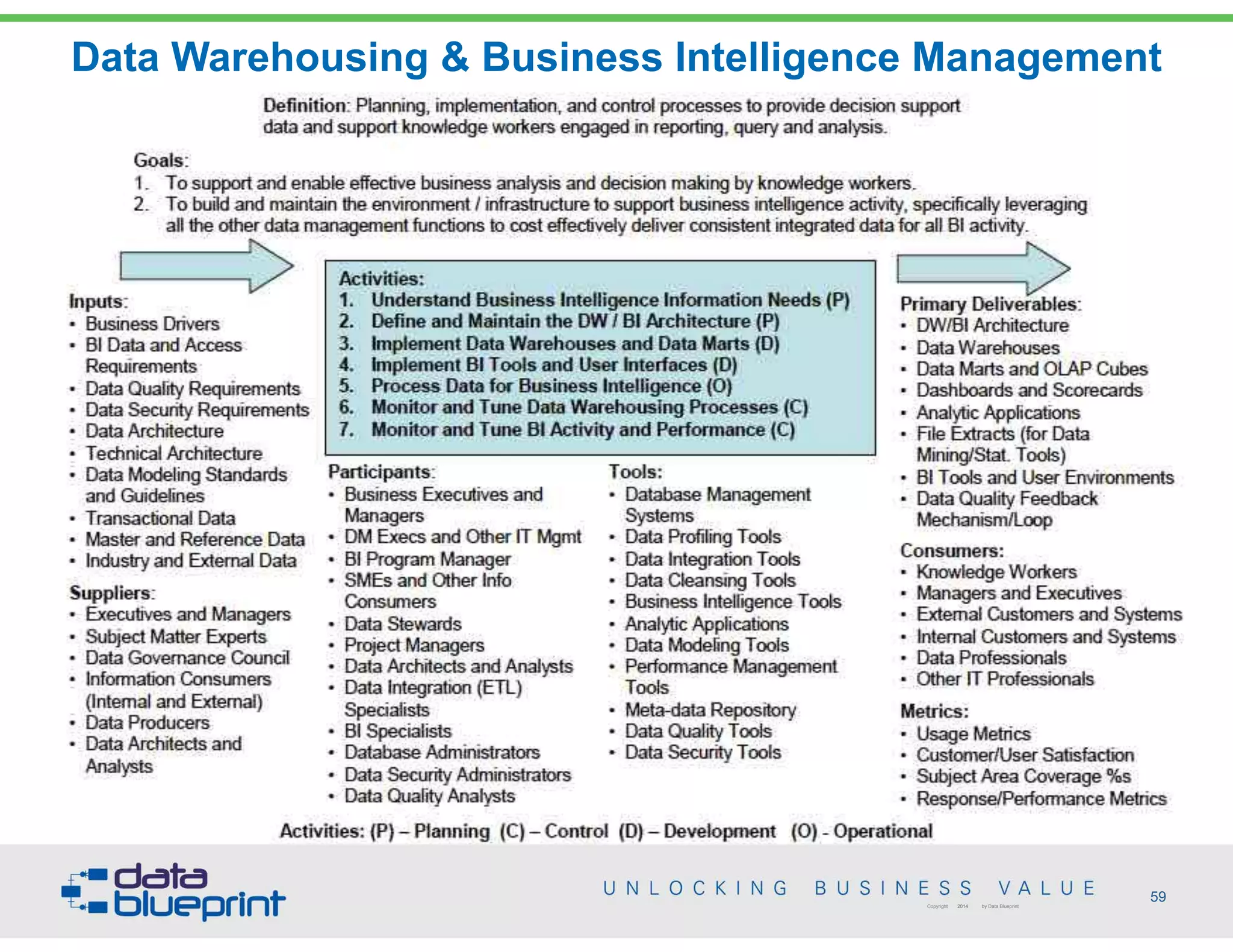

Data Warehousing & Business Intelligence Management
10Copyright 2014 by Data Blueprint

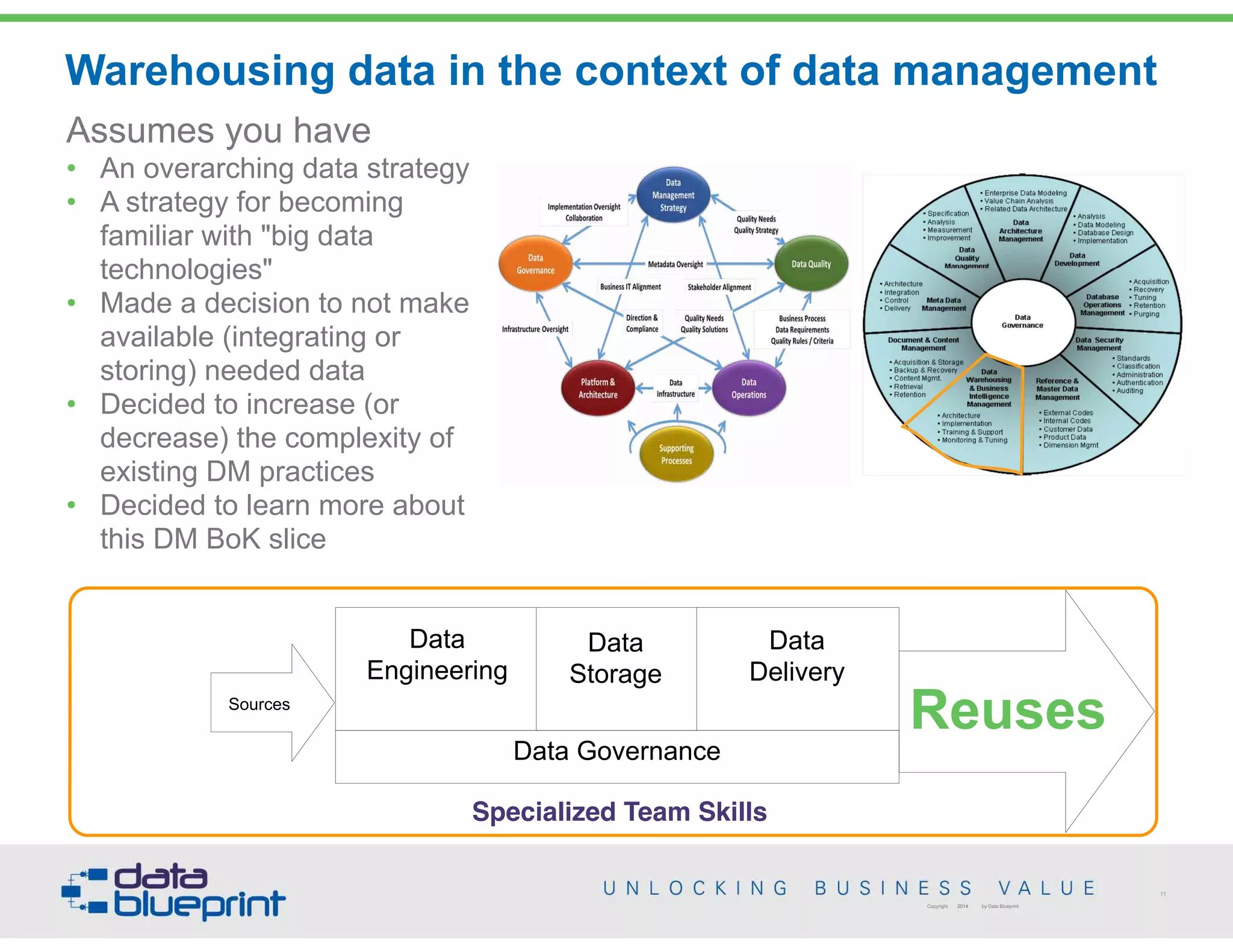

Warehousing data in the context of data management
11
Assumes you have
• An overarching data strategy
• A strategy for becoming
familiar with "big data
technologies"
• Made a decision to not make
available (integrating or
storing) needed data
• Decided to increase (or
decrease) the complexity of
existing DM practices
• Decided to learn more about
this DM BoK slice
UsesReusesSources
Data Governance
 
Data
Engineering
 
Data  
Delivery
 
Data 
Storage
Specialized Team Skills

12
management

Payroll Application 
(3rd GL)Payroll Data
(database)
R& D Applications 
(researcher supported, no documentation)
R & D
Data
(raw) Mfg. Data
(home grown
database)
Mfg. Applications 
(contractor supported)
 
Finance
Data
(indexed)
Finance Application 
(3rd GL, batch  
system, no source)
Marketing Application 
(4rd GL, query facilities,  
no reporting, very large)
 
Marketing Data
(external database)
Personnel App. 
(20 years old, 
un-normalized data)
 
Personnel Data 
(database)

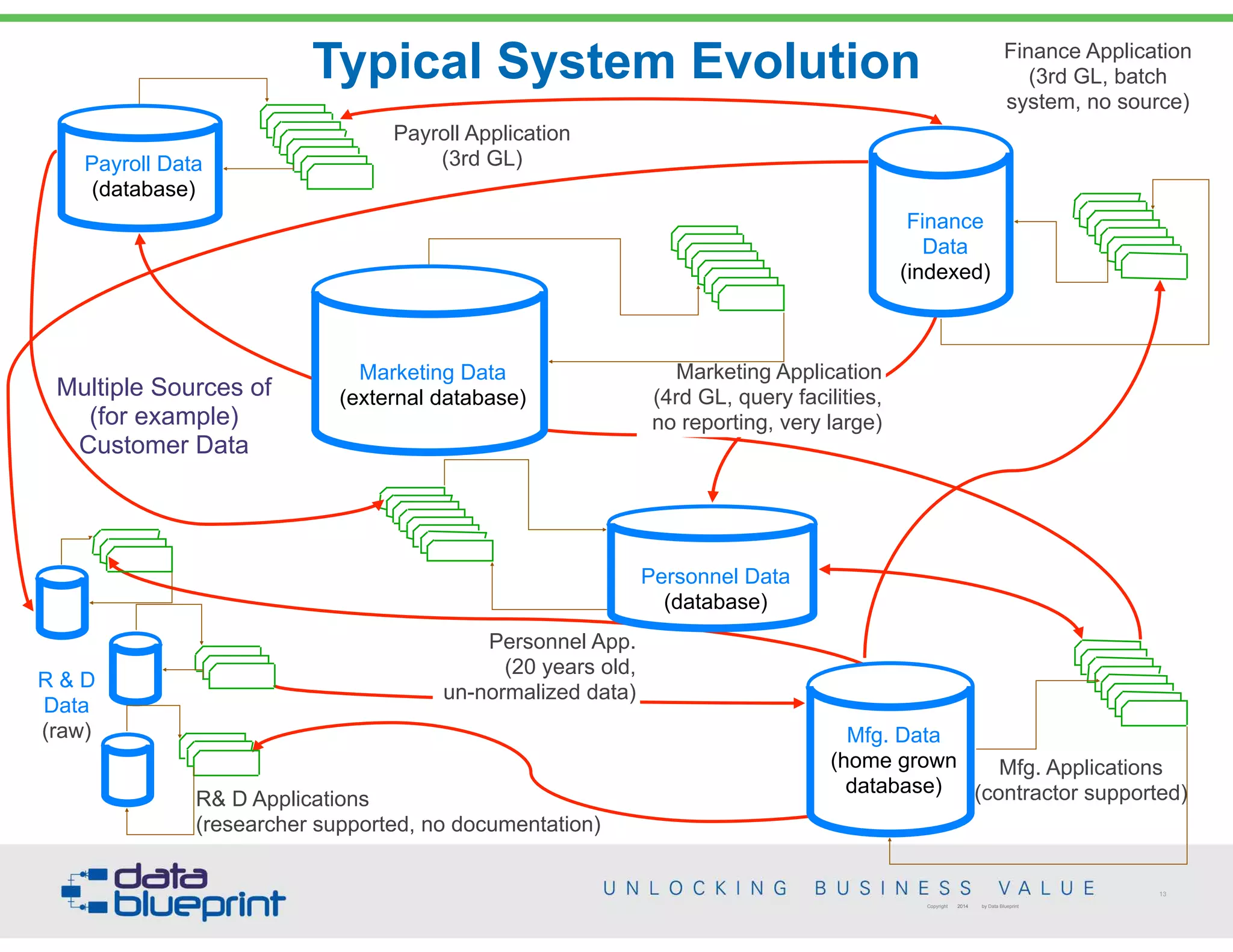

Typical System Evolution
13
Multiple Sources of
(for example)
Customer Data

Payroll Data
(database)
R & D
Data
(raw)
Mfg. Data
(home grown
database)
 
Finance
Data
(indexed)
 
Marketing Data
(external database)
 
Personnel Data 
(database)

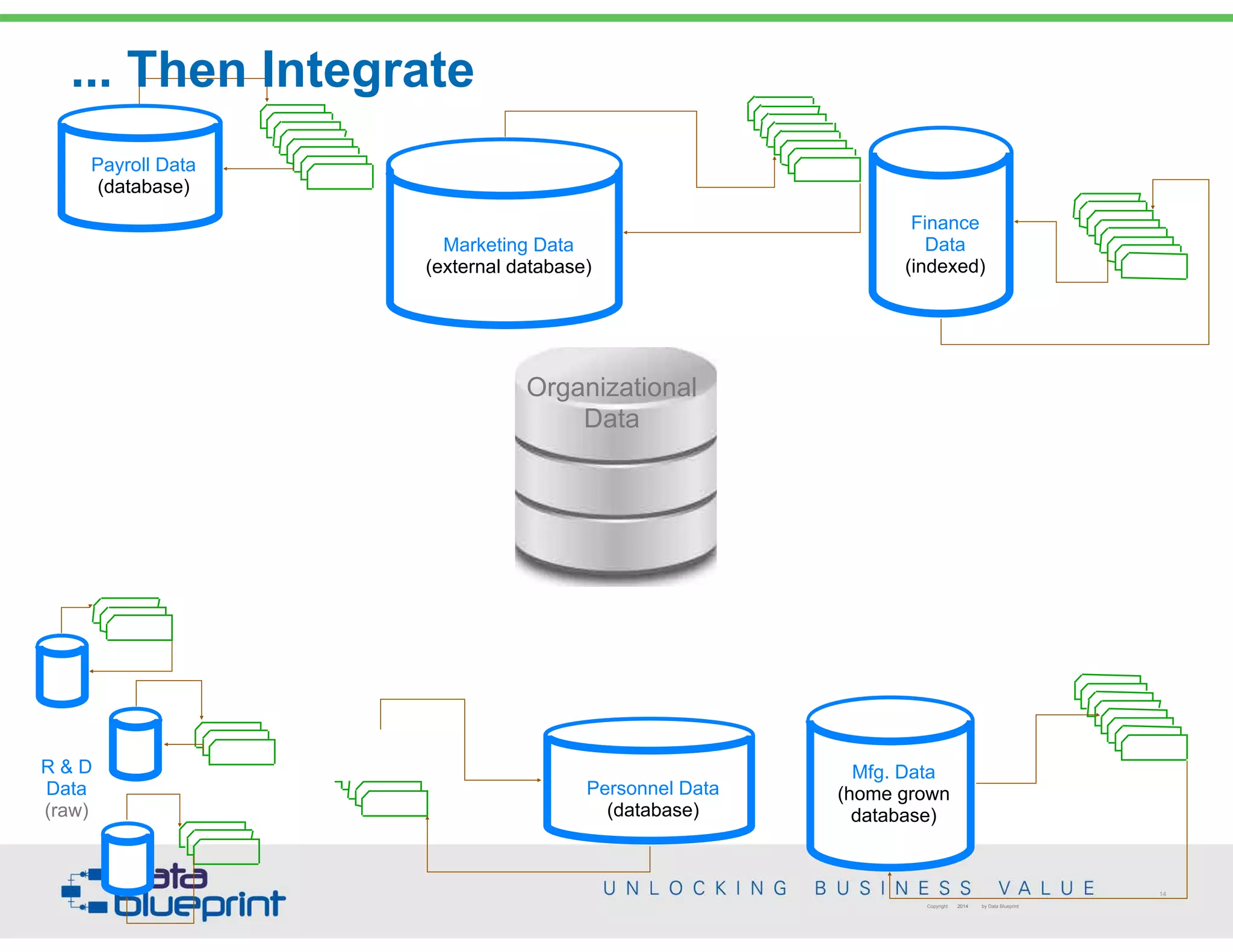

... Then Integrate
14
Organizational 
Data

Payroll Data
(database)
R & D
Data
(raw)
Mfg. Data
(home grown
database)
 
Finance
Data
(indexed)
 
Marketing Data
(external database)
 
Personnel Data 
(database)

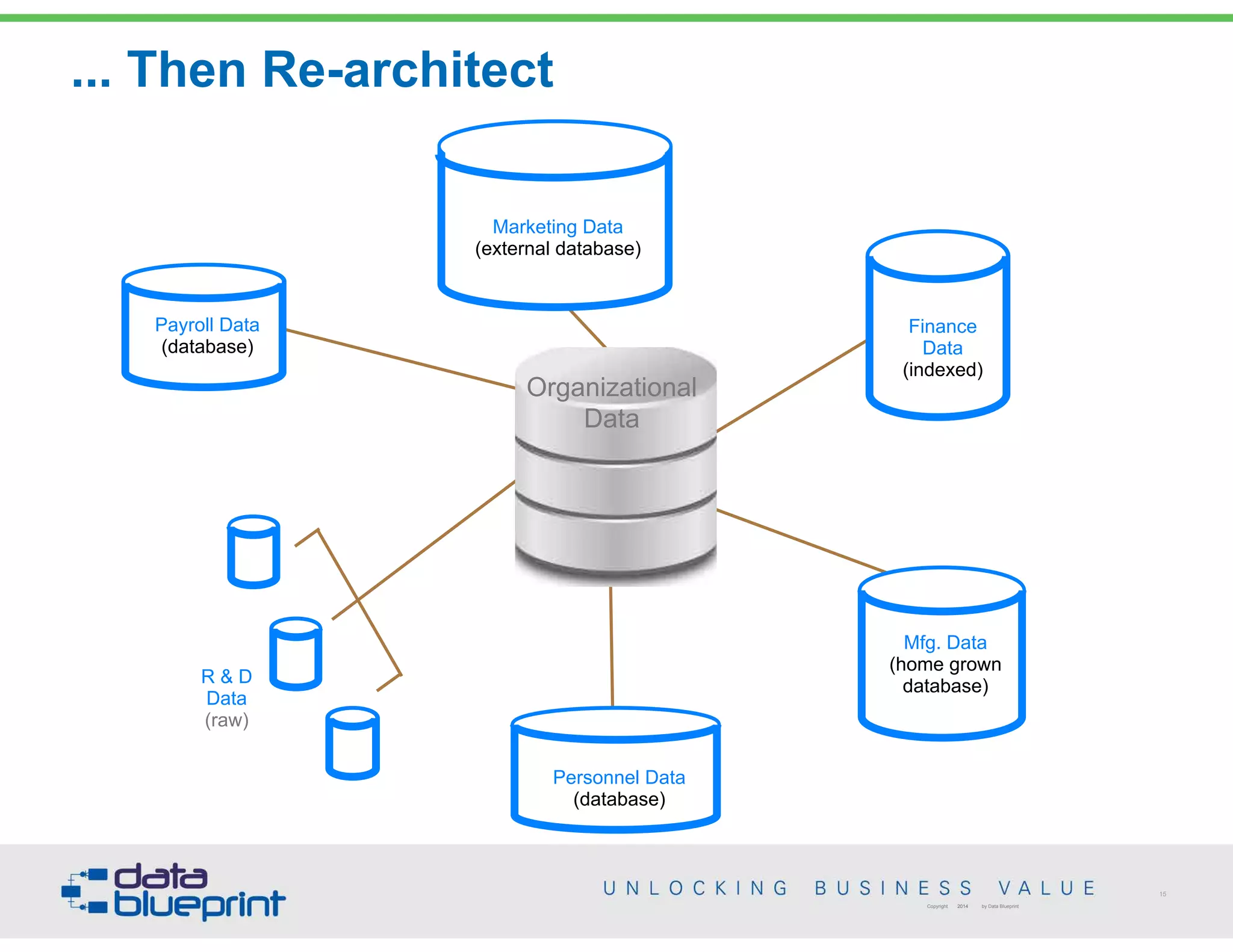

... Then Re-architect
15
Organizational 
Data

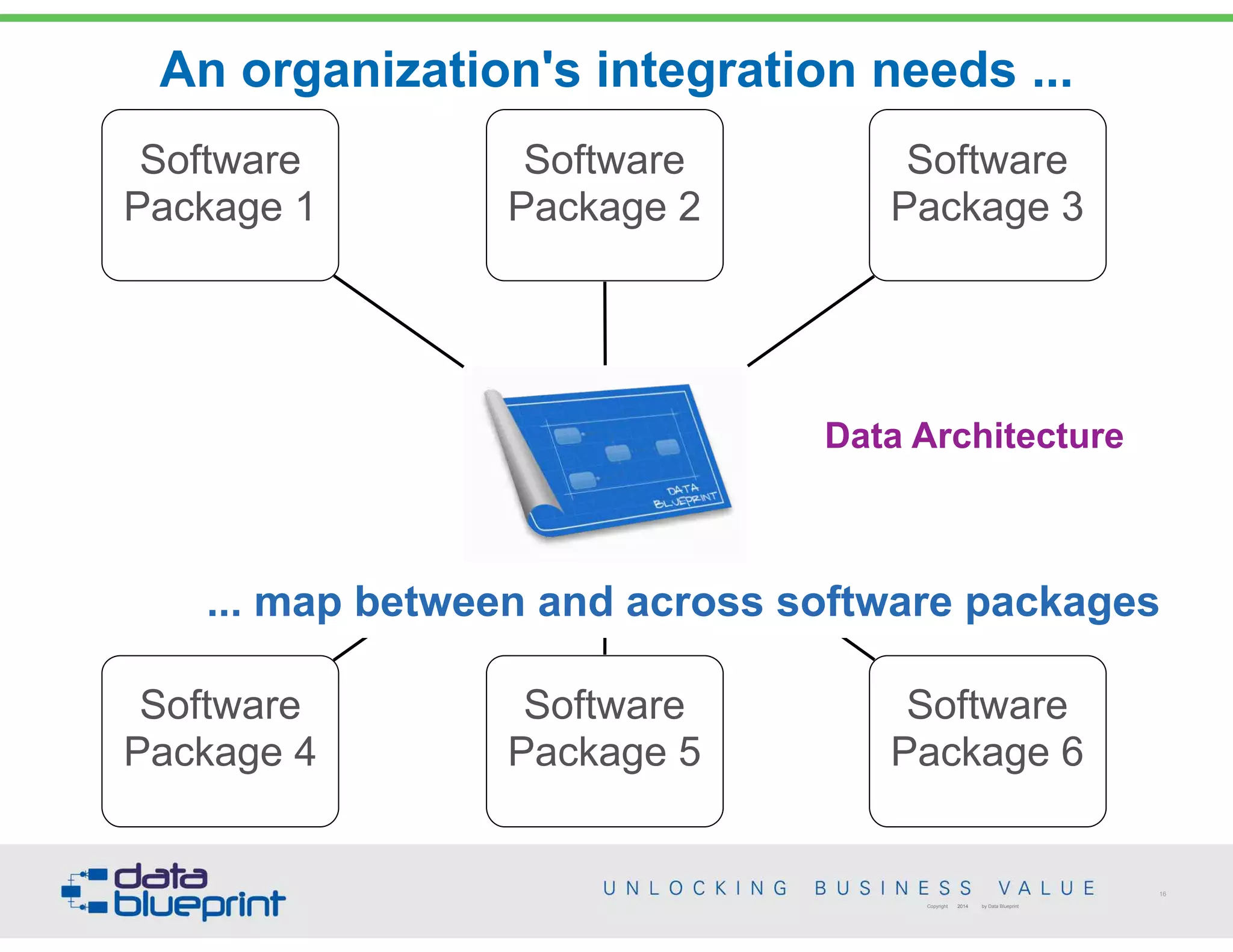

An organization's integration needs ...
16
 
Software
Package 1
 
Software
Package 2
 
Software
Package 3
 
Software
Package 4
 
Software
Package 5
 
Software
Package 6
Data Architecture
... map between and across software packages

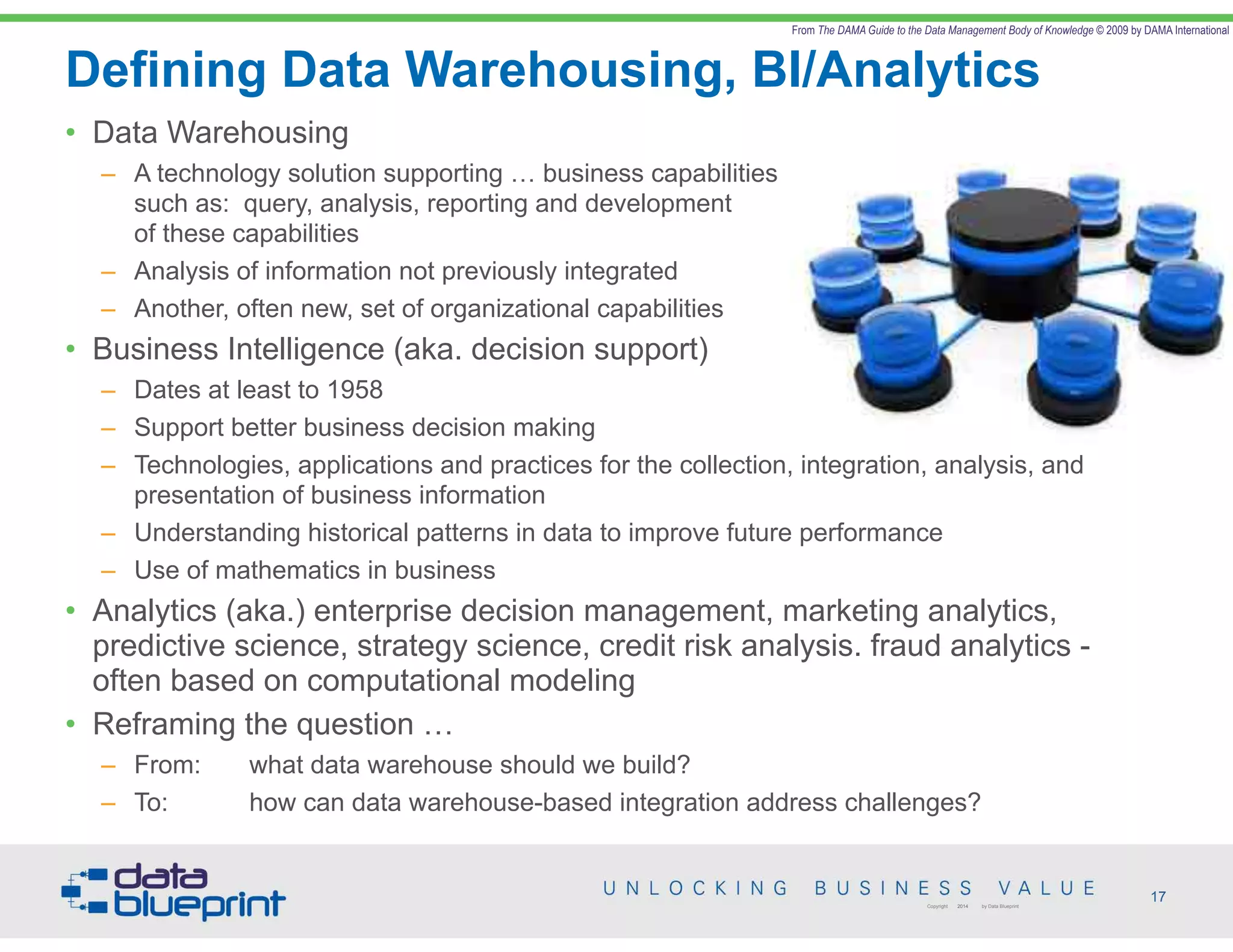

Defining Data Warehousing, BI/Analytics
• Data Warehousing
– A technology solution supporting … business capabilities  
such as: query, analysis, reporting and development  
of these capabilities
– Analysis of information not previously integrated
– Another, often new, set of organizational capabilities
• Business Intelligence (aka. decision support)
– Dates at least to 1958
– Support better business decision making
– Technologies, applications and practices for the collection, integration, analysis, and
presentation of business information
– Understanding historical patterns in data to improve future performance
– Use of mathematics in business
• Analytics (aka.) enterprise decision management, marketing analytics,
predictive science, strategy science, credit risk analysis. fraud analytics -
often based on computational modeling
• Reframing the question …
– From: what data warehouse should we build?
– To: how can data warehouse-based integration address challenges?
From The DAMA Guide to the Data Management Body of Knowledge © 2009 by DAMA International

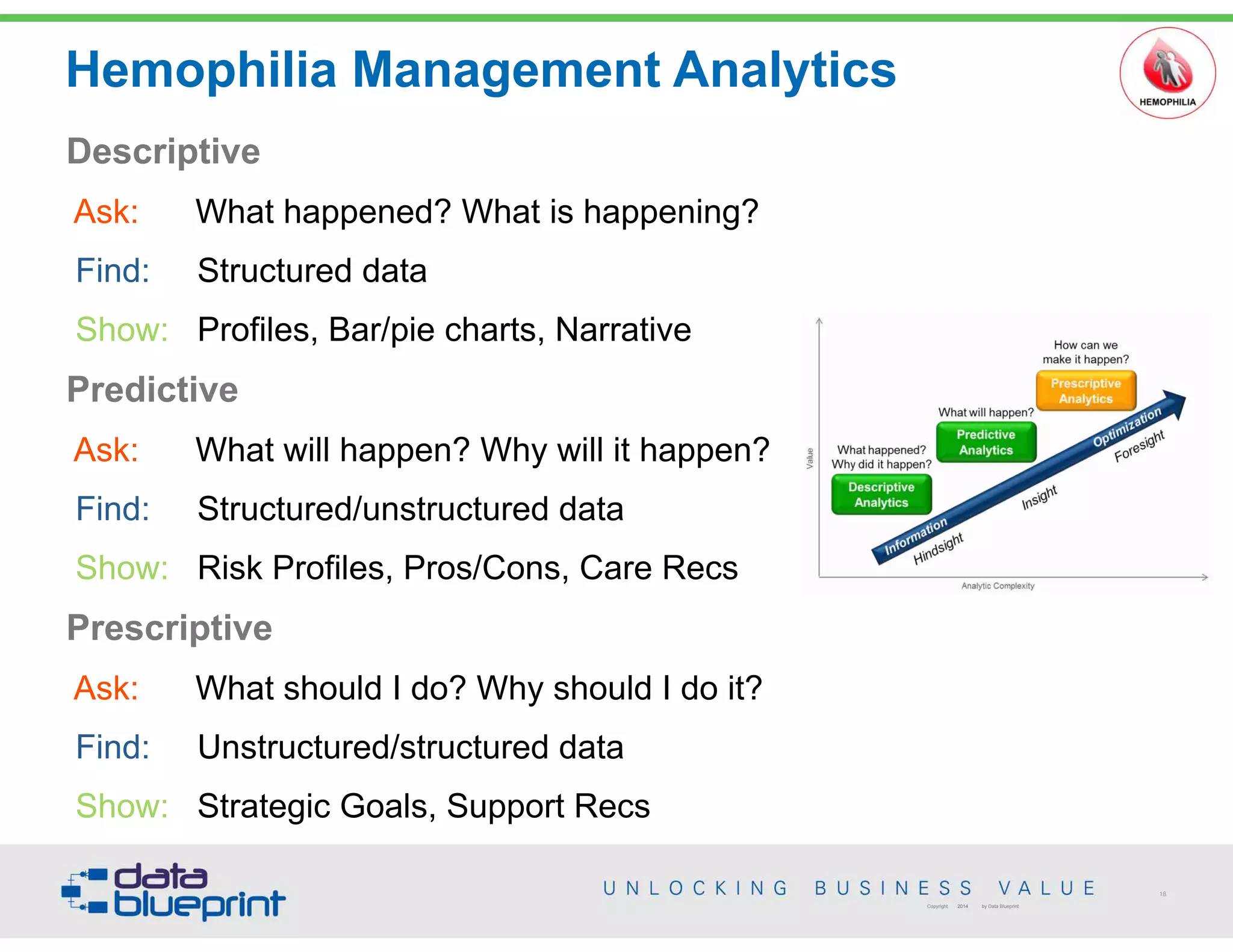

Descriptive
Ask: What happened? What is happening?
Find: Structured data
Show: Profiles, Bar/pie charts, Narrative
Predictive
Ask: What will happen? Why will it happen?
Find: Structured/unstructured data
Show: Risk Profiles, Pros/Cons, Care Recs
Prescriptive
Ask: What should I do? Why should I do it?
Find: Unstructured/structured data
Show: Strategic Goals, Support Recs
Hemophilia Management Analytics
18

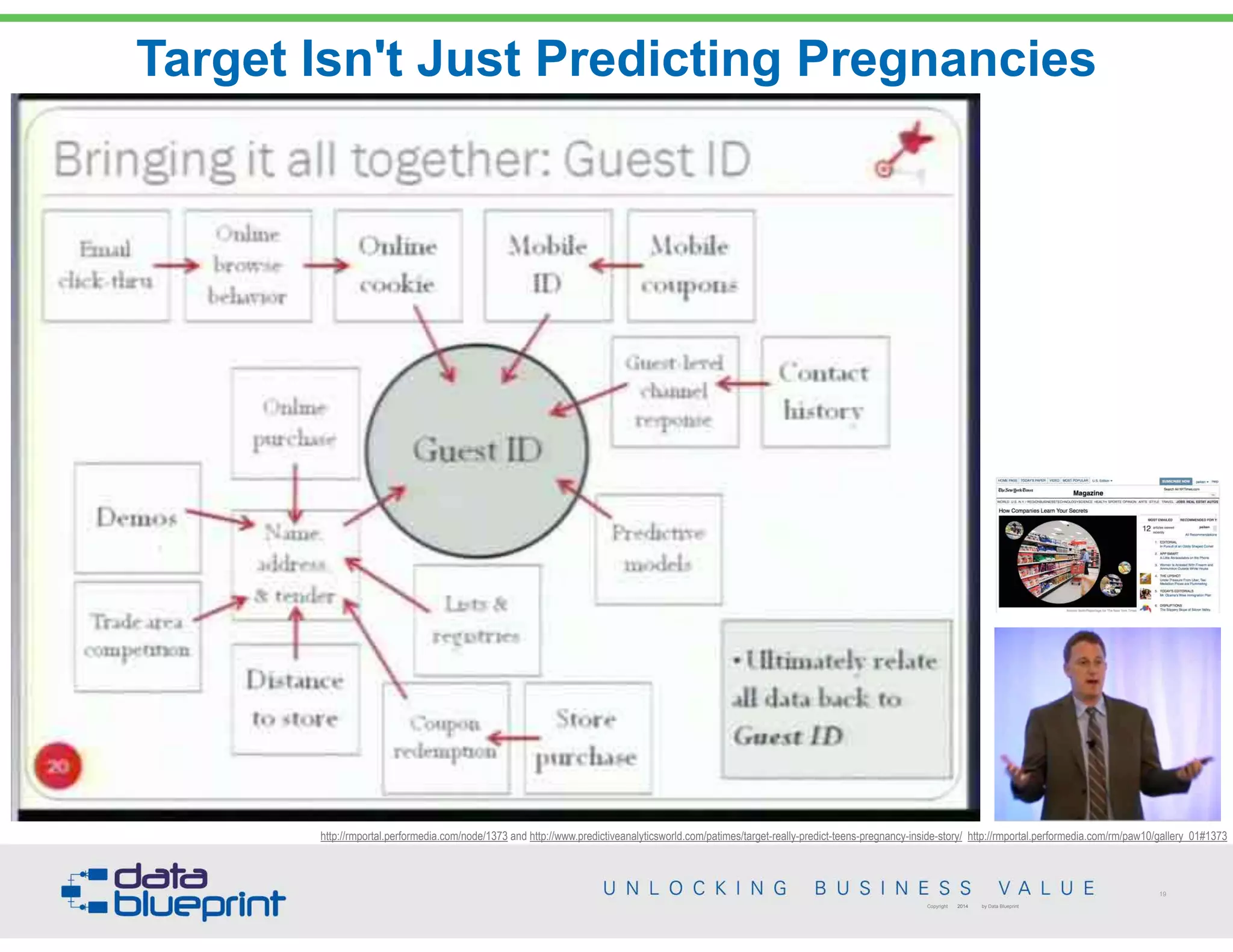

Target Isn't Just Predicting Pregnancies
19
http://rmportal.performedia.com/node/1373 and http://www.predictiveanalyticsworld.com/patimes/target-really-predict-teens-pregnancy-inside-story/ http://rmportal.performedia.com/rm/paw10/gallery_01#1373

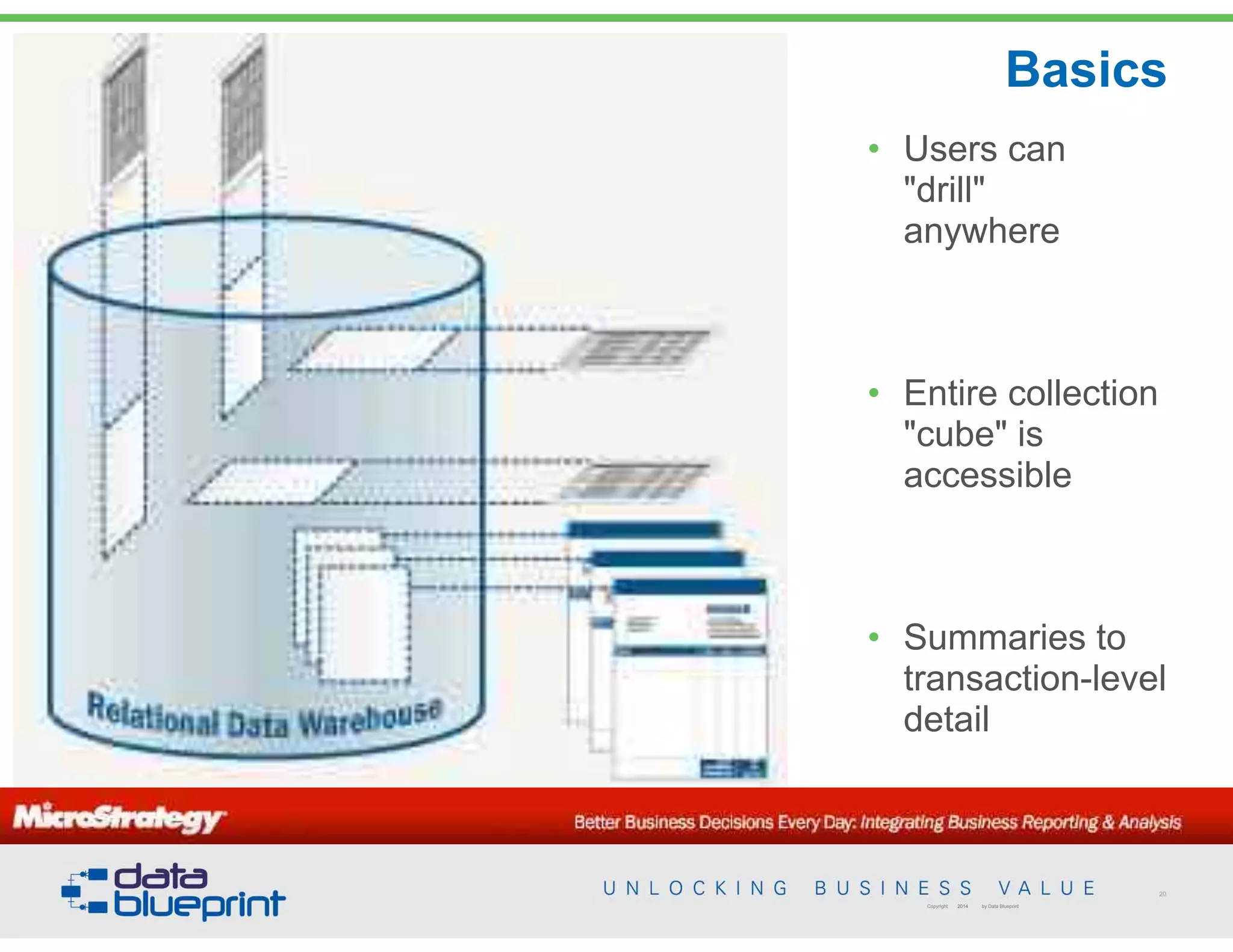

Basics
20
• Users can  
"drill"  
anywhere
• Entire collection
"cube" is
accessible
• Summaries to
transaction-level
detail

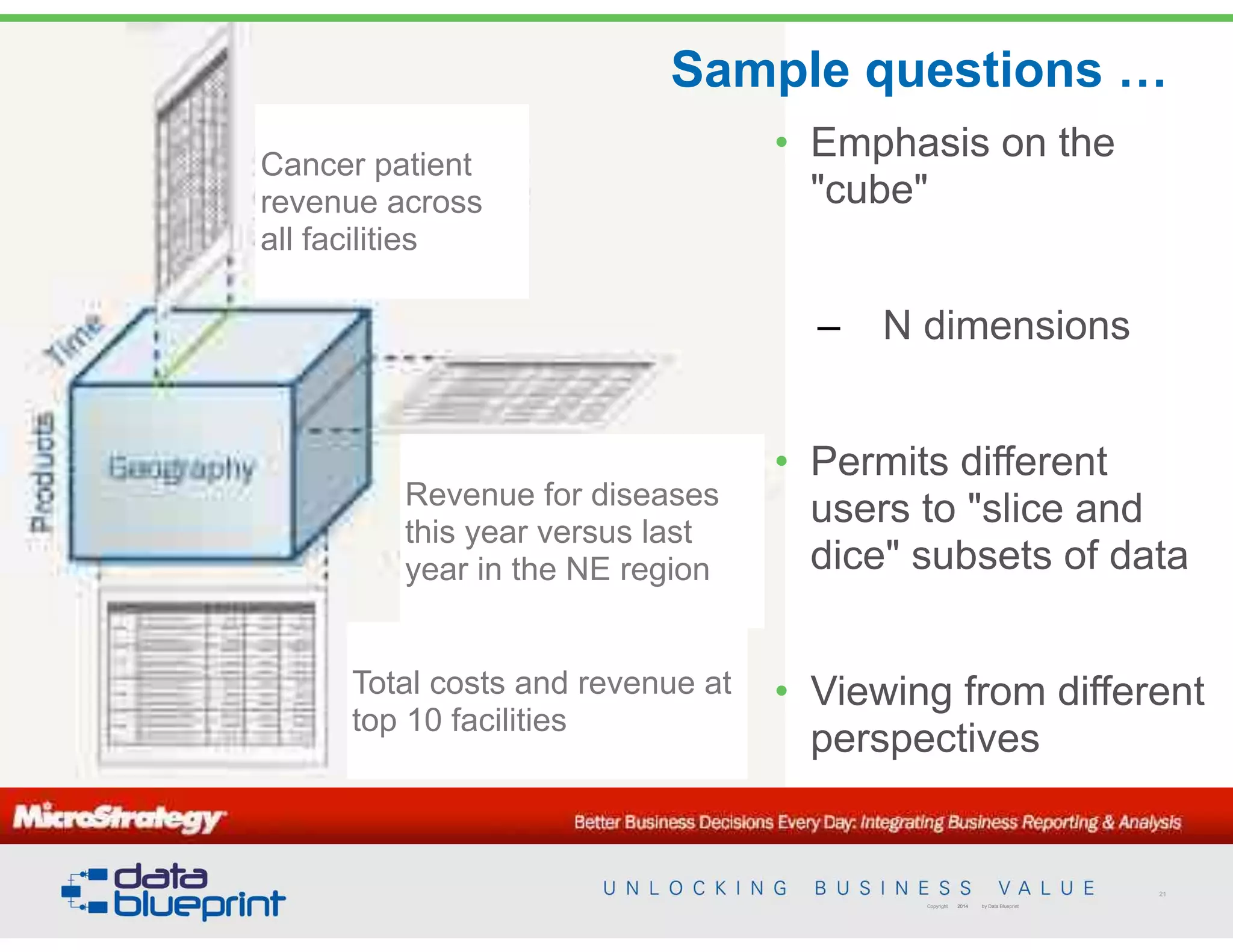

Sample questions …
21
 
Cancer patient
revenue across
all facilities 
 
Revenue for diseases
this year versus last
year in the NE region 
 
Total costs and revenue at
top 10 facilities 
• Emphasis on the
"cube"
– N dimensions
• Permits different
users to "slice and
dice" subsets of data
• Viewing from different
perspectives

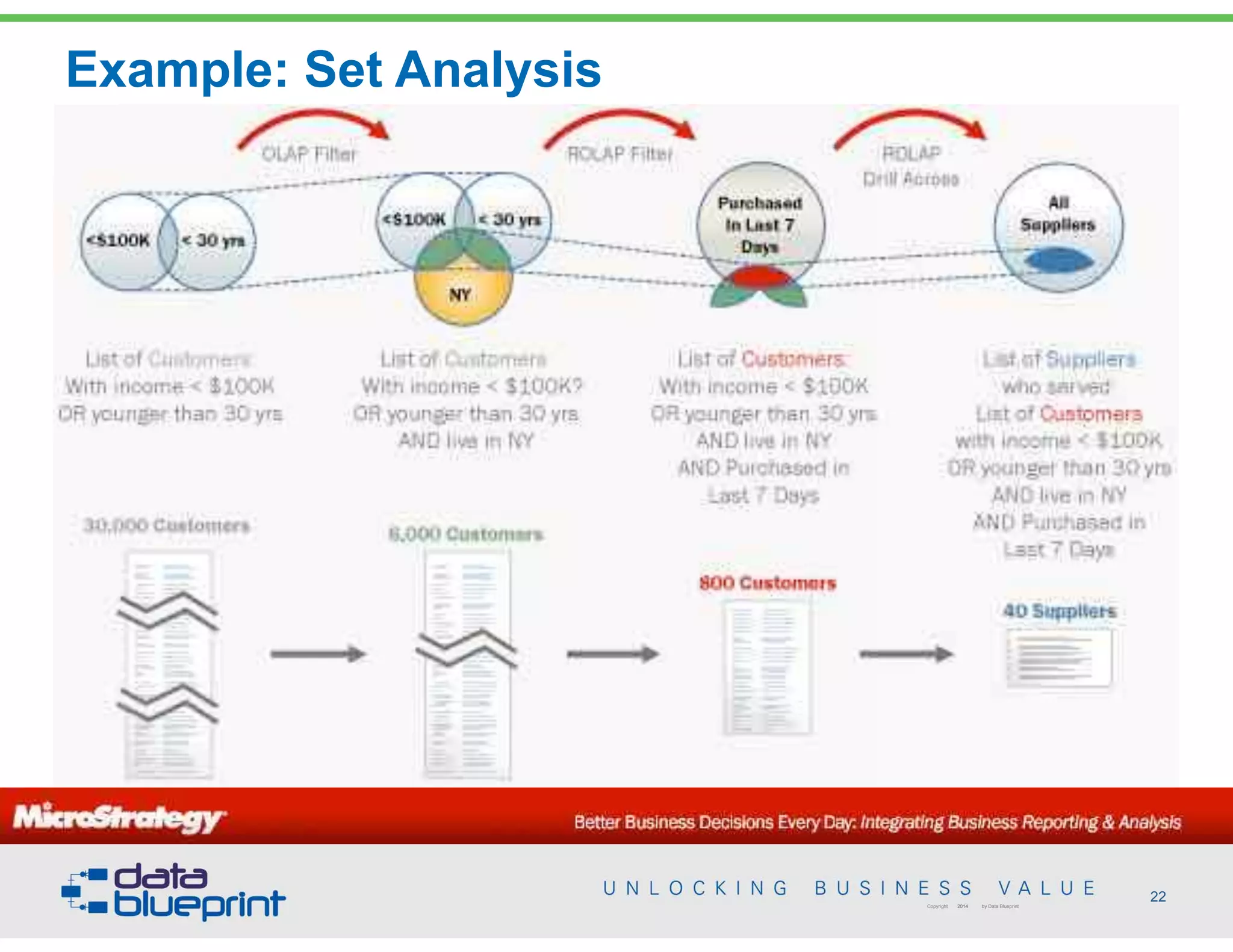

Example: Set Analysis

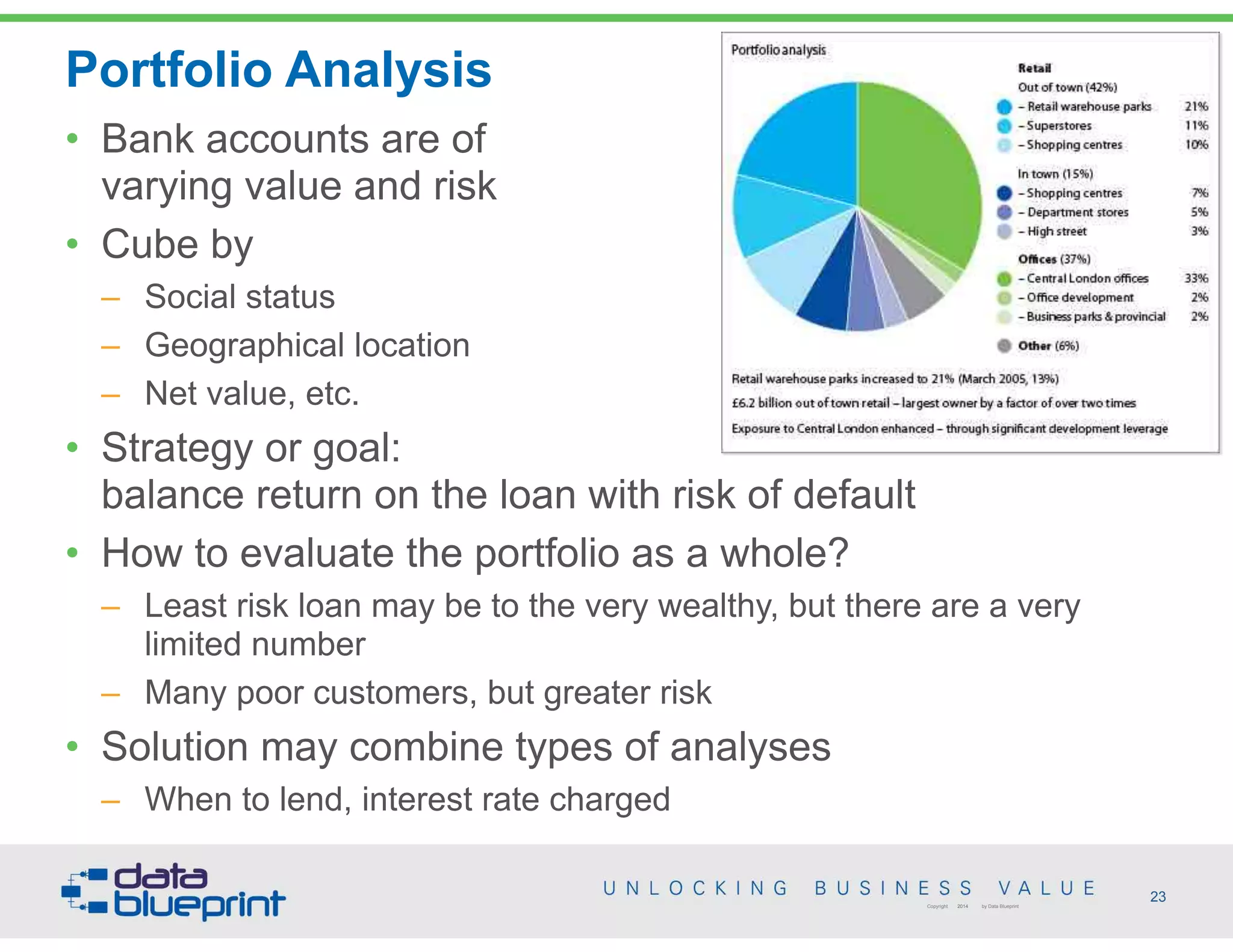

Portfolio Analysis
• Bank accounts are of  
varying value and risk
• Cube by
– Social status
– Geographical location
– Net value, etc.
• Strategy or goal:  
balance return on the loan with risk of default
• How to evaluate the portfolio as a whole?
– Least risk loan may be to the very wealthy, but there are a very
limited number
– Many poor customers, but greater risk
• Solution may combine types of analyses
– When to lend, interest rate charged

15 years ago, CarMax started as a way to make the car buying experience simple, fair, and fun. Today CarMax is a FORTUNE 500 retailer and one of FORTUNE’s “100 Best Companies to
Work For.” And we are hiring talented individuals who are interested in: 
--solving original, wide-ranging, and open-ended business problems 
--not only discovering new insights, but successfully implementing them 
--making a significant mark on a growing company 
--developing the fundamental skills for a rewarding business career 
 
If that sounds like you, the Strategy Analyst position is the unique opportunity you’ve been looking for. The strategy team at CarMax currently consists of over 40 analysts, many of whom
are recent college graduates from top schools with a variety of academic backgrounds (computer science, economics, English, engineering, journalism, math, political science). These
analysts lead advances and decisions in several key business areas:-Inventory and pricing—what is the optimal selection of inventory, how do we acquire it, what should we pay for it, what
should we price it for? 
-Expansion planning—which markets should we enter and how do we store those markets? Will each $10-30 million store investment generate a sufficient economic return? 
-Credit strategy—how can our bank (CarMax Auto Finance) approve more customers for loans and convert more approvals to sales? 
-Marketing and consumer insight—how do we reach our customers, increase traffic to our stores, and best use the internet to drive sales and build our brand 
-Industry and competitive research—what middle- and long-term risks are we exposed to, and how best do we prepare to respond?  
-Production—how do we increase vehicle reconditioning quality while reducing cost and production time? 
-Sales process and workforce—what is the best way to serve customers in our stores, and how do we manage, motivate and compensate our sales team? 
 
Even early in your career at CarMax, you will have the responsibility to own an area of the business and will be expected to improve it. For example, one undergraduate recruit used data
analysis to reformulate our retail pricing strategy, pitched and sold his idea to the senior executive team, and implemented a new system nationwide in his first 6 months with the company.
That is the kind of impact you can make at CarMax. And as you do this, you will work closely with the senior executives and analytical managers to develop the fundamental and advanced
skills that underpin a successful career in business. In fact, most of our managers in the strategy group started at CarMax as analysts, and our VP of Strategy and Analysis started his
career here through our undergraduate recruiting program. While an MBA is not required to advance or contribute at CarMax, analysts who have chosen to pursue a business degree have
enjoyed superior acceptance rates at their first choice schools, including Harvard, Chicago, UVa, Columbia, and Duke.
Your opportunities to develop, contribute, and lead as an analyst at CarMax are as great as the company’s opportunity to grow. While CarMax is already the largest used car retailer in the
country (with over $8 billion in sales and over 90 superstores across the country), we have only 2% of the 1 to 6-year-old used car market, which, at $280 billion annually, is bigger than the
home improvement or consumer electronics industries. CarMax is already growing at 15% a year, and over the next 10 years plans to have 250-300 stores and achieve $25+ billion in
annual sales. As an analyst, you can be an integral part of that growth, all while enjoying a casual and friendly environment, a diverse group of talented associates, a healthy work-life
balance, and excellent compensation and benefits.  
 
An ideal candidate will have
--Demonstrated top caliber analytic and problem solving skills --History of achievement demonstrated by top 15% GPA, with a quantitative major(s), and/or other recognition such as
scholarships, awards, honor societies
-- Passion for business and desire to develop into a strong business leader
 
We encourage you to apply. For more information, please visit us at the career fair, on our website (www.carmax.com/collegerecruiting), or email us at college_recruiting@carmax.com
- datablueprint.com
CarMax Example Job Posting
24
own an area of the business and will be expected to improve it
--solving original, wide-ranging, and open-ended business problems 
--not only discovering new insights, but successfully implementing them 
--making a significant mark on a growing company 
--developing the fundamental skills for a rewarding business career

Polling Question #1
• Do you have/have
you started data
warehousing, marts
and/or other
warehousing forms
of integration?
a. Last year (2014)
b. This year (2015)
c. Next Year (2016)
d. Nope

26
management

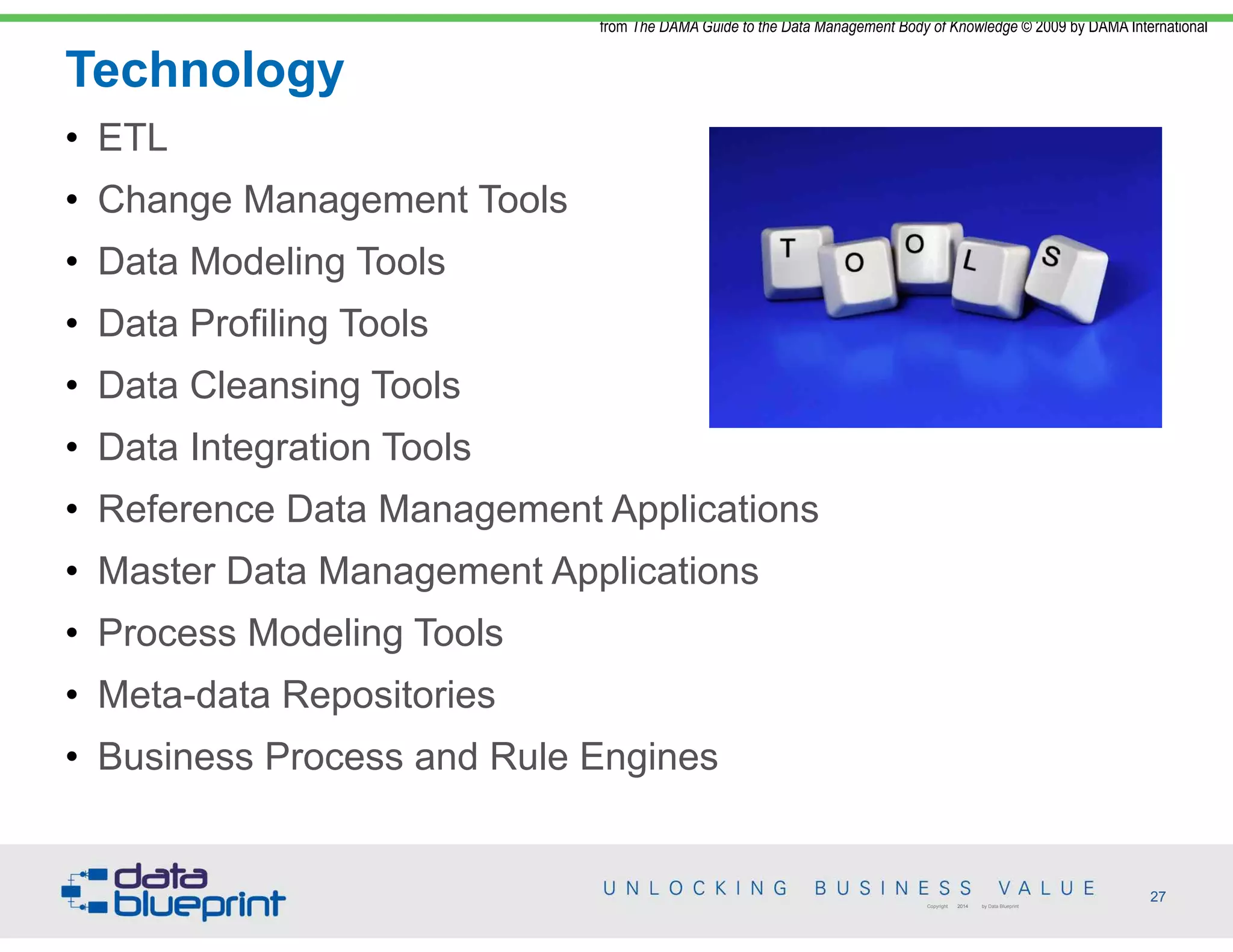

Technology
from The DAMA Guide to the Data Management Body of Knowledge © 2009 by DAMA International
• ETL
• Change Management Tools
• Data Modeling Tools
• Data Profiling Tools
• Data Cleansing Tools
• Data Integration Tools
• Reference Data Management Applications
• Master Data Management Applications
• Process Modeling Tools
• Meta-data Repositories
• Business Process and Rule Engines

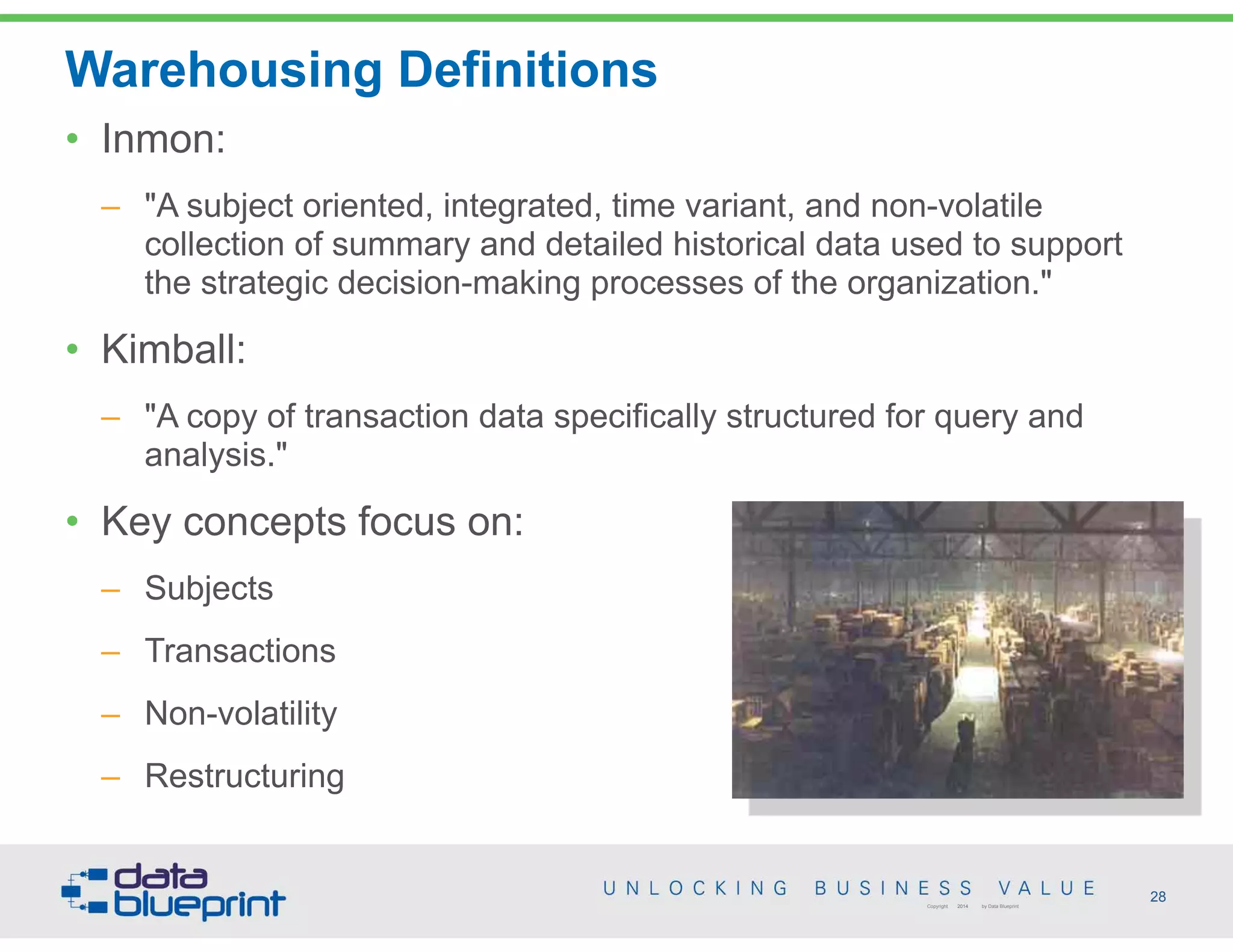

Warehousing Definitions
• Inmon:
– "A subject oriented, integrated, time variant, and non-volatile
collection of summary and detailed historical data used to support
the strategic decision-making processes of the organization."
• Kimball:
– "A copy of transaction data specifically structured for query and
analysis."
• Key concepts focus on:
– Subjects
– Transactions
– Non-volatility
– Restructuring

Courtesy of: http://www.infosys.com/industries/healthcare/industryofferings/Pages/healthcare - data-warehousing.aspx

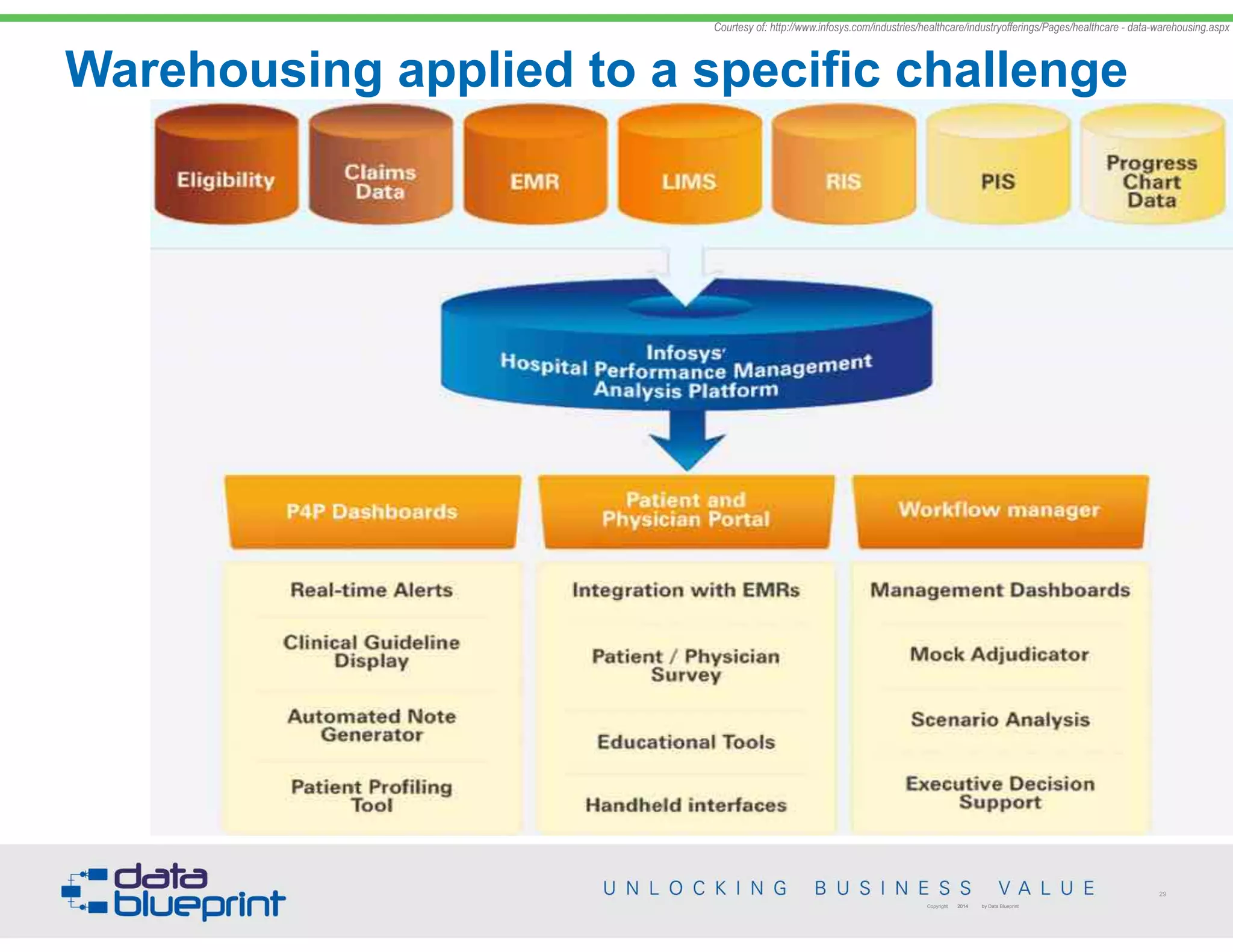

Warehousing applied to a specific challenge
29

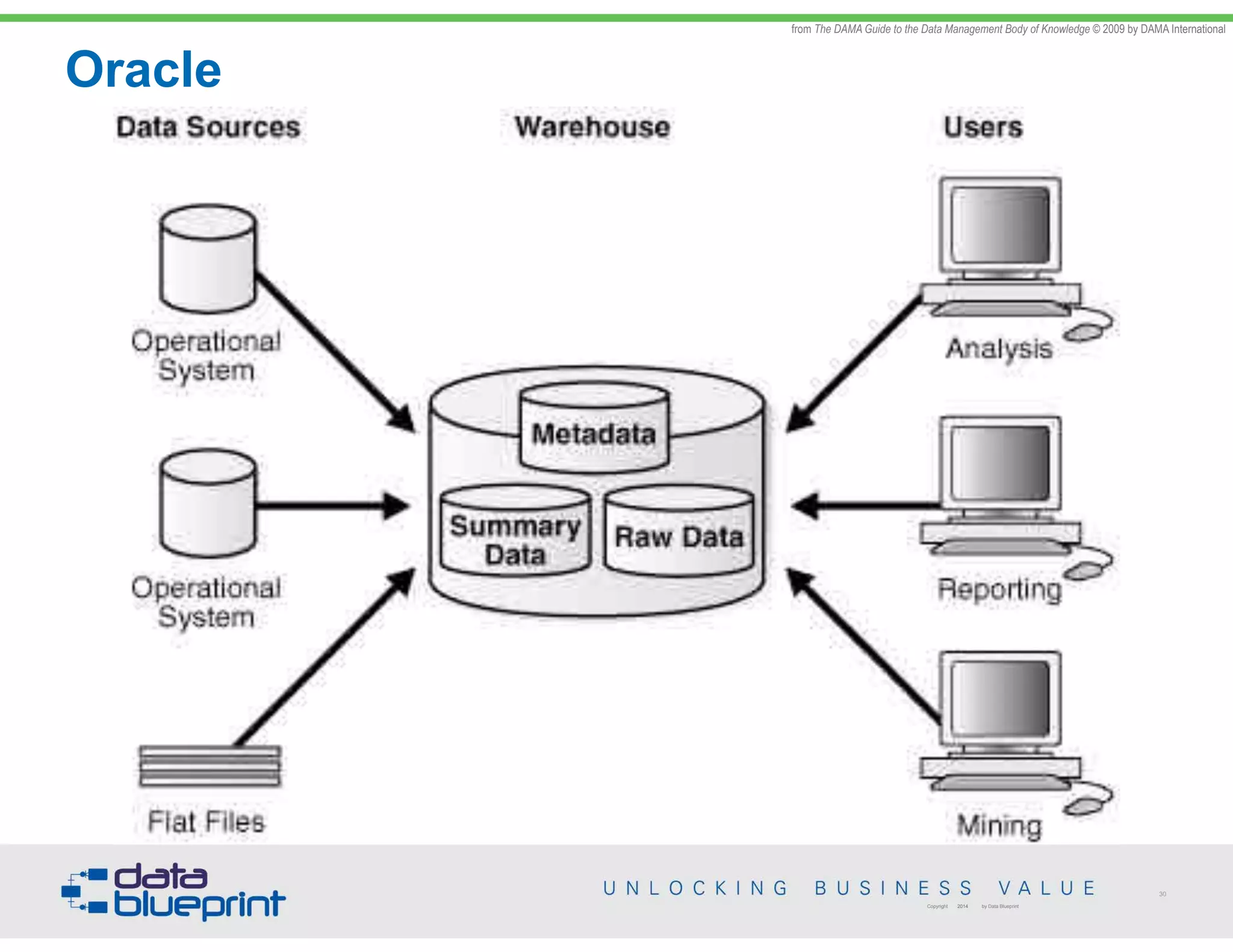

Oracle
30

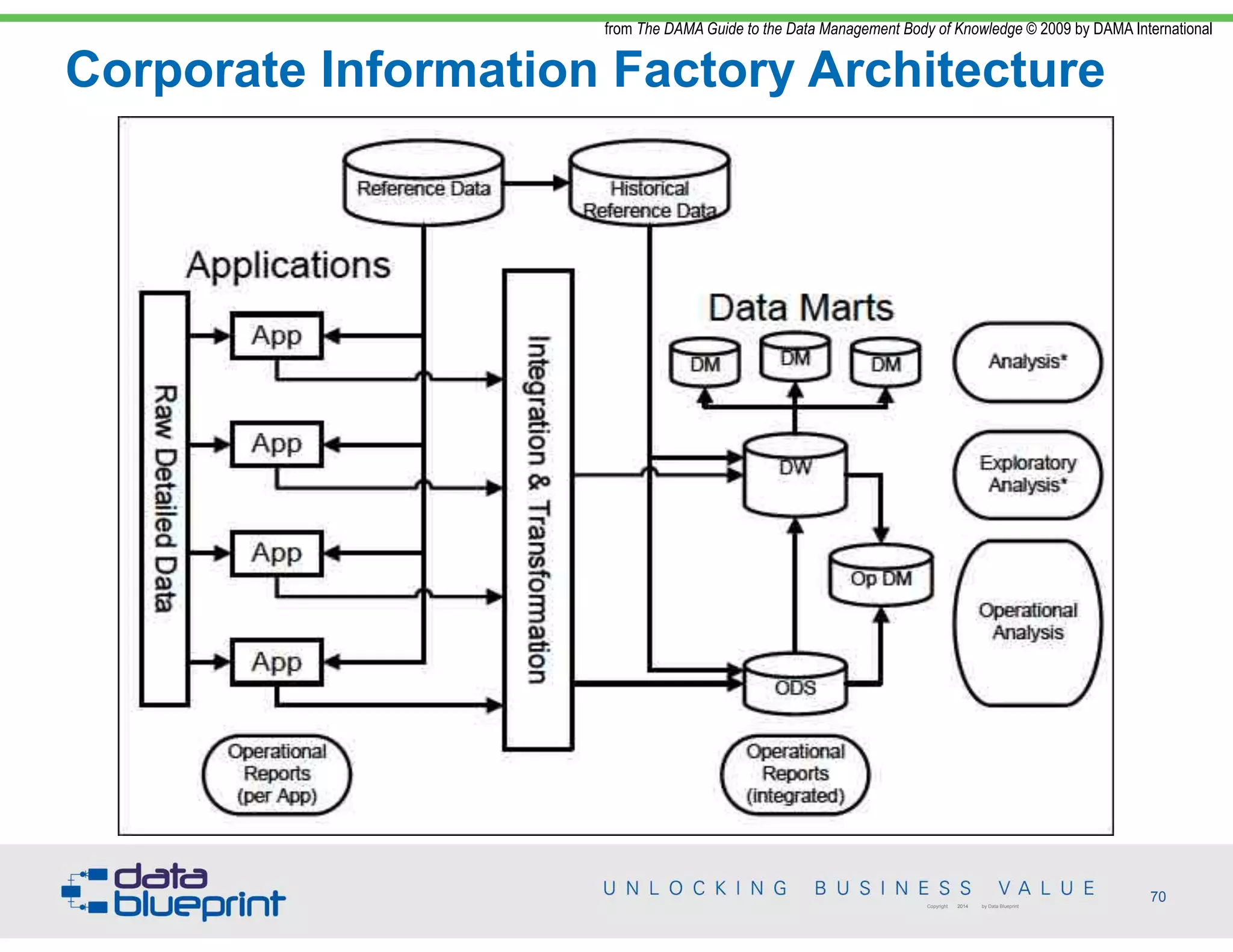

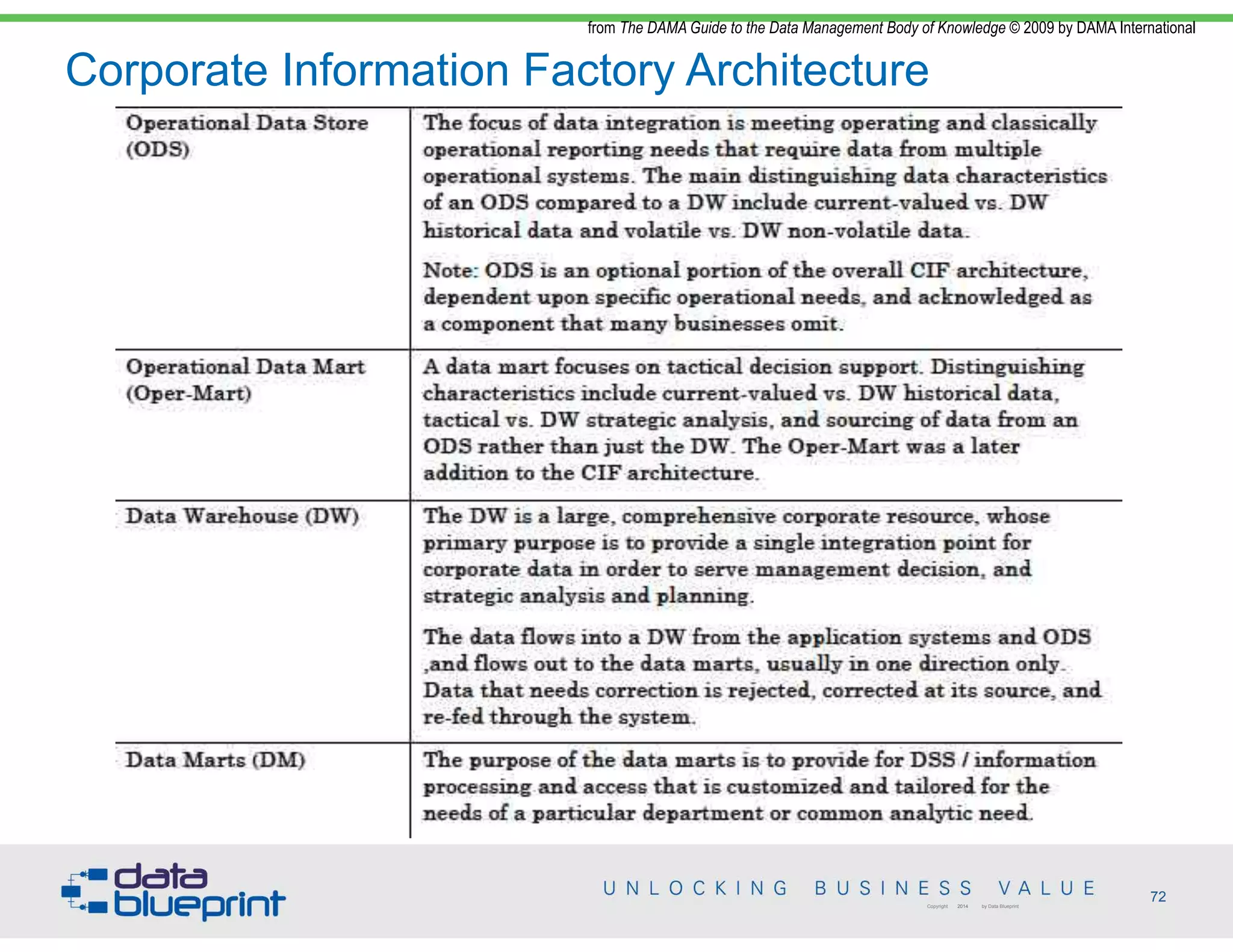

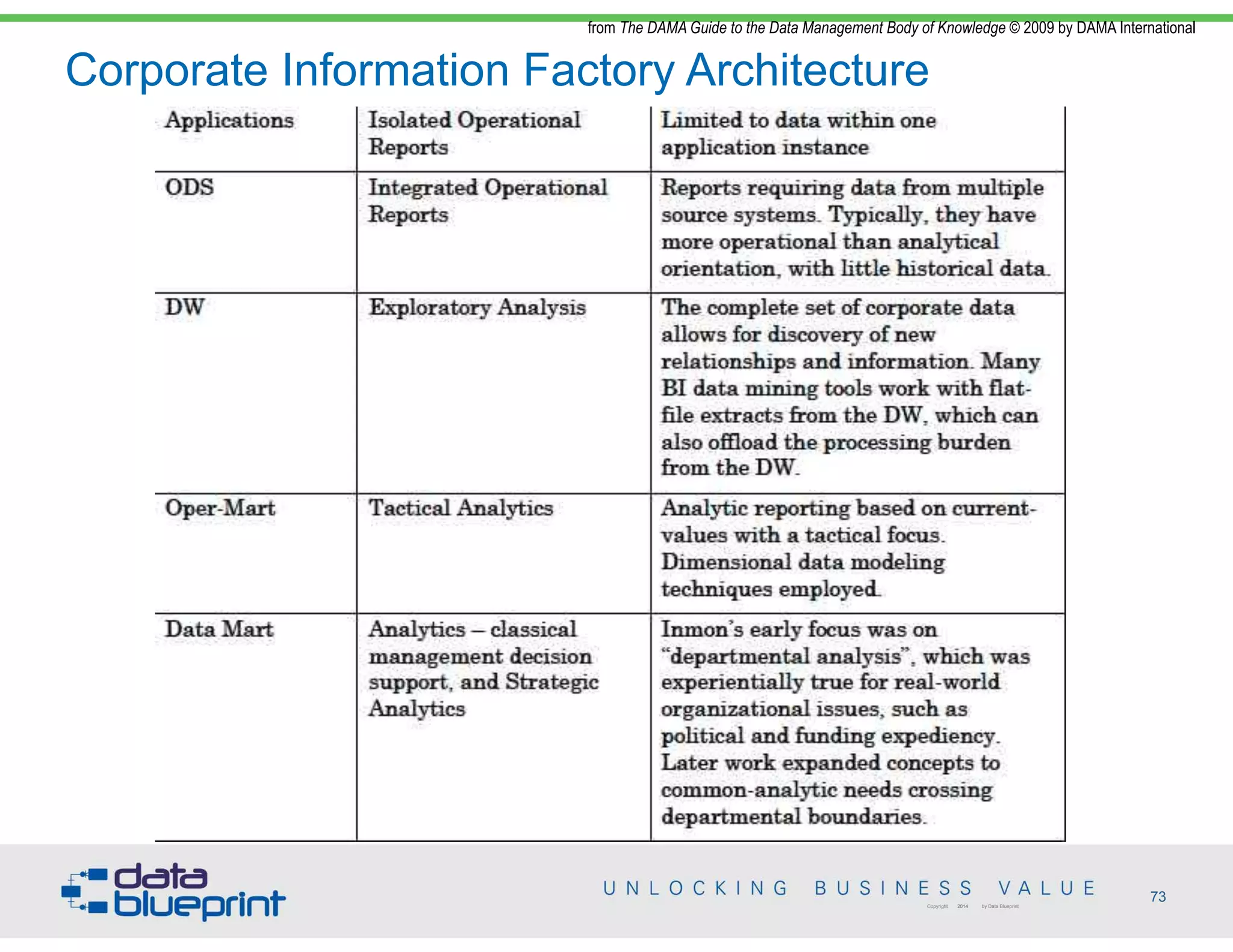

Corporate Information Factory Architecture

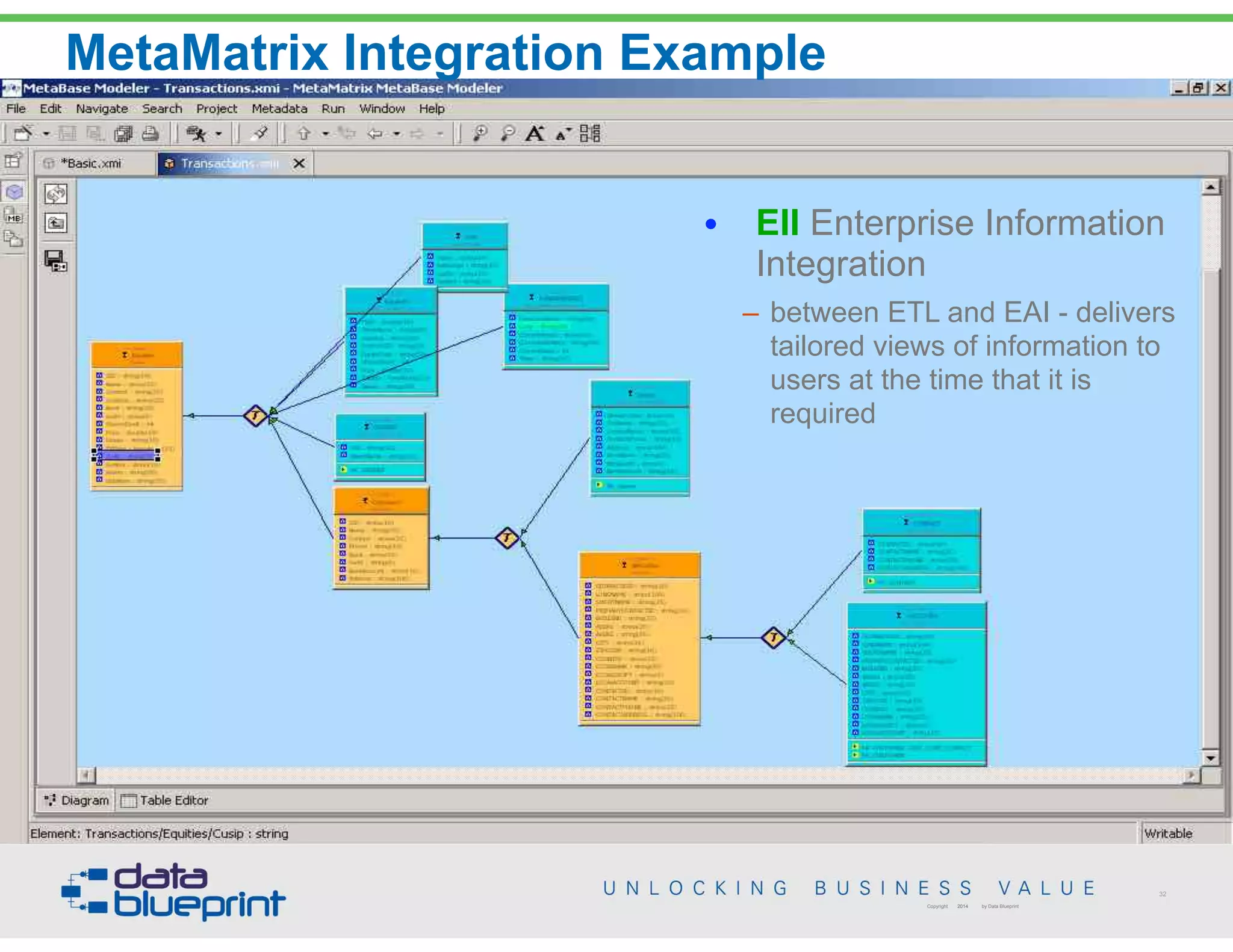

MetaMatrix Integration Example
32
• EII Enterprise Information
Integration
– between ETL and EAI - delivers
tailored views of information to
users at the time that it is
required

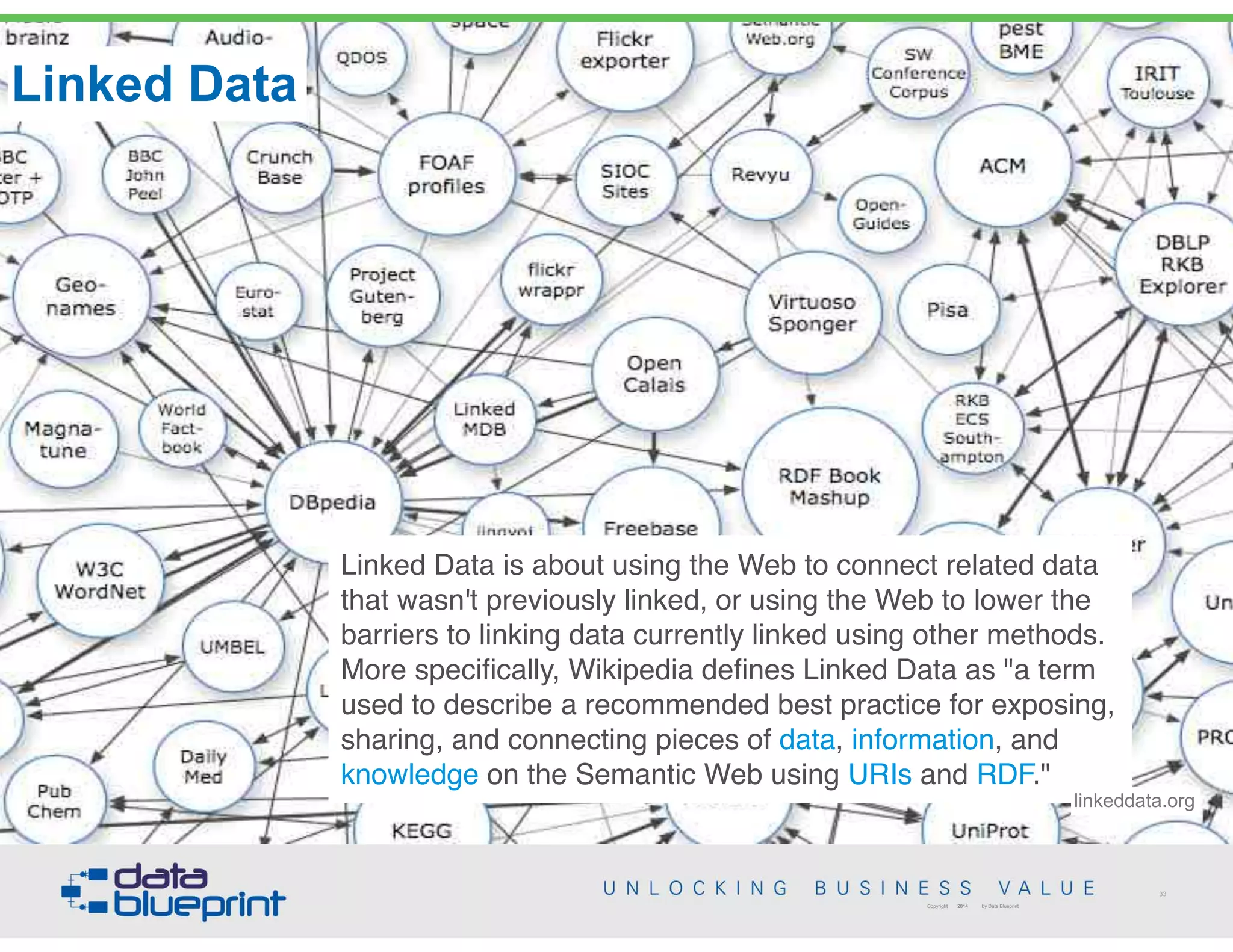

Linked Data
33
Linked Data is about using the Web to connect related data
that wasn't previously linked, or using the Web to lower the
barriers to linking data currently linked using other methods.
More speciﬁcally, Wikipedia deﬁnes Linked Data as "a term
used to describe a recommended best practice for exposing,
sharing, and connecting pieces of data, information, and
knowledge on the Semantic Web using URIs and RDF."
linkeddata.org

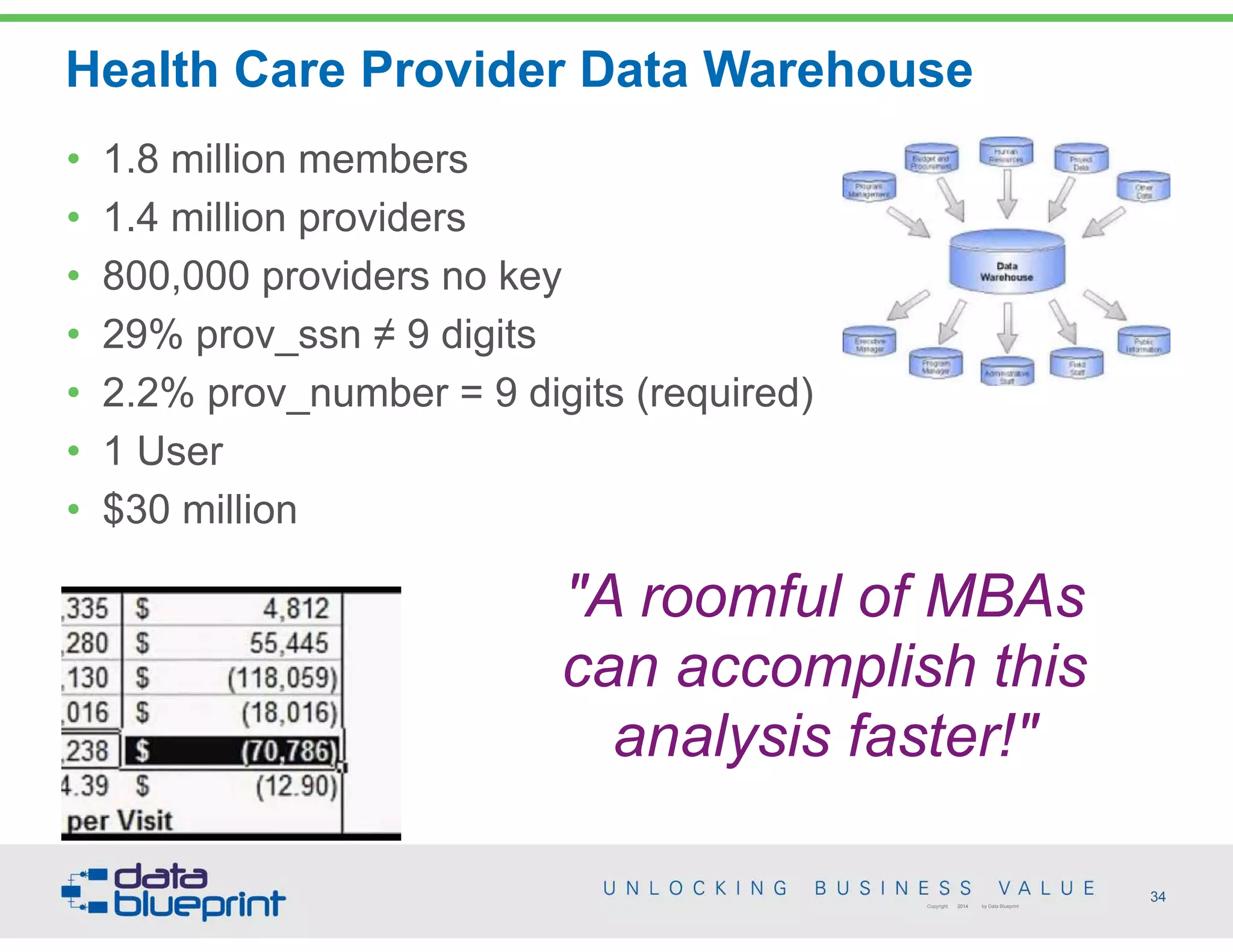

Health Care Provider Data Warehouse
"A roomful of MBAs
can accomplish this
analysis faster!"
• 1.8 million members
• 1.4 million providers
• 800,000 providers no key
• 29% prov_ssn ≠ 9 digits
• 2.2% prov_number = 9 digits (required)
• 1 User
• $30 million

Indiana Jones: Raiders Of The Lost Ark

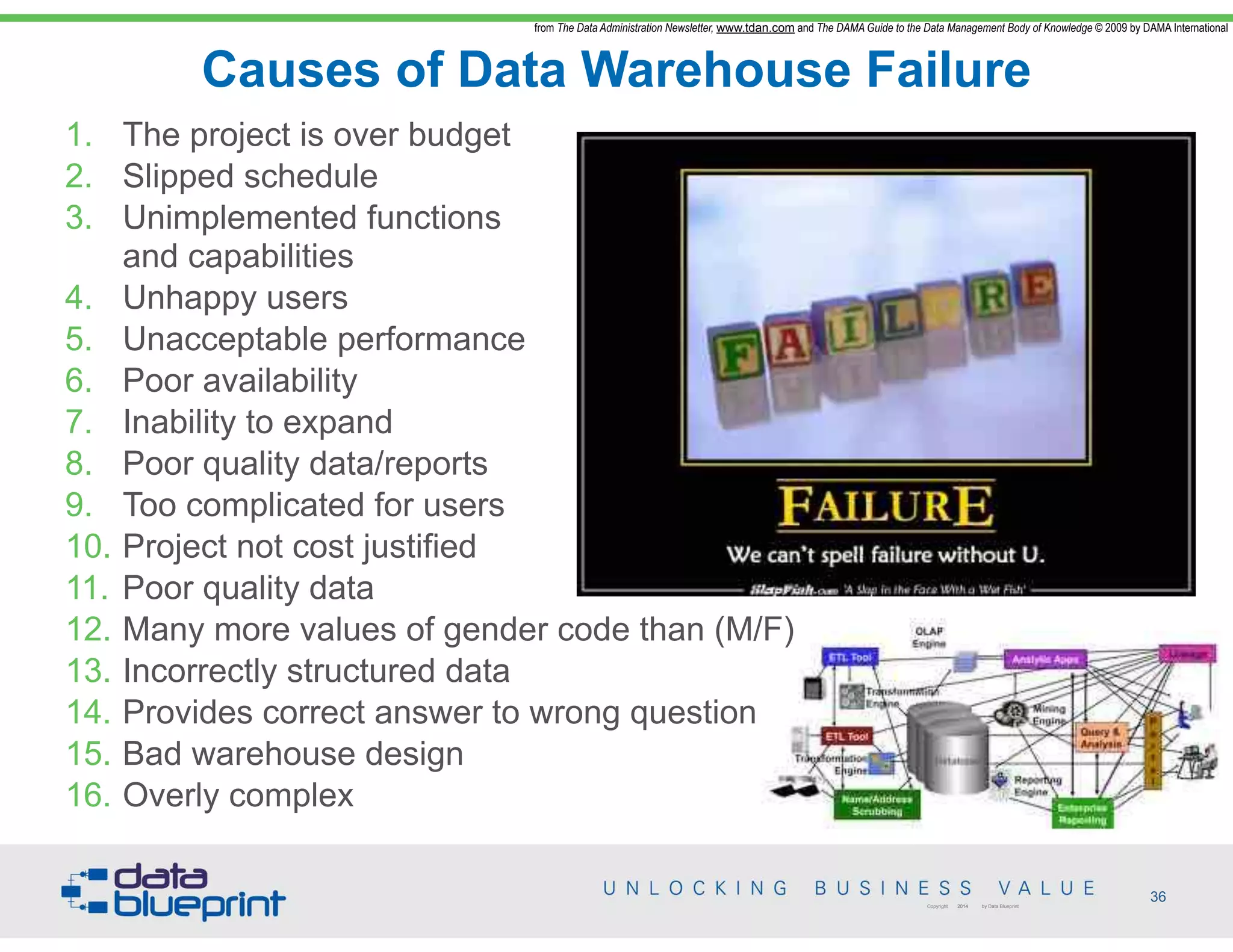

Causes of Data Warehouse Failure
1. The project is over budget
2. Slipped schedule
3. Unimplemented functions  
and capabilities
4. Unhappy users
5. Unacceptable performance
6. Poor availability
7. Inability to expand
8. Poor quality data/reports
9. Too complicated for users
10. Project not cost justified
11. Poor quality data
12. Many more values of gender code than (M/F)
13. Incorrectly structured data
14. Provides correct answer to wrong question
15. Bad warehouse design
16. Overly complex
from The Data Administration Newsletter, www.tdan.com and The DAMA Guide to the Data Management Body of Knowledge © 2009 by DAMA International

Reframing the question
37
• From: How shall we build this data
warehouse?
– (Worse) … What should go into this warehouse?
• To: How can warehousing capabilities  
solve this specific business challenge?
– (Better still) … How can warehousing capabilities  
solve this class of business challenges?
• Other examples
– Are you ready for a data warehouse?
✓ Foundational practices
– Will you get it right the first time?
✓ Is the business environment constantly evolving?
✓ Do you have an agreed upon enterprise-wide vocabulary?
– Is your data warehouse intended to be the enterprise
audit-able system of record?
✓ Extract, transform and load requirements
✓ Data transformation requirements
– How fast do you need results?
✓ Performance of inserts vs reads
✓ Project deliverables

38
management

Inmon Implementation/3NF
39
OPERATIONAL SYSTEM
OPERATIONAL SYSTEM
FLAT FILES
SUM MARY
DATA
RAW DATA
M ETADATA
PURCHASING
SALES
INVENTORY
ANALYSIS
REPORTING
MINING

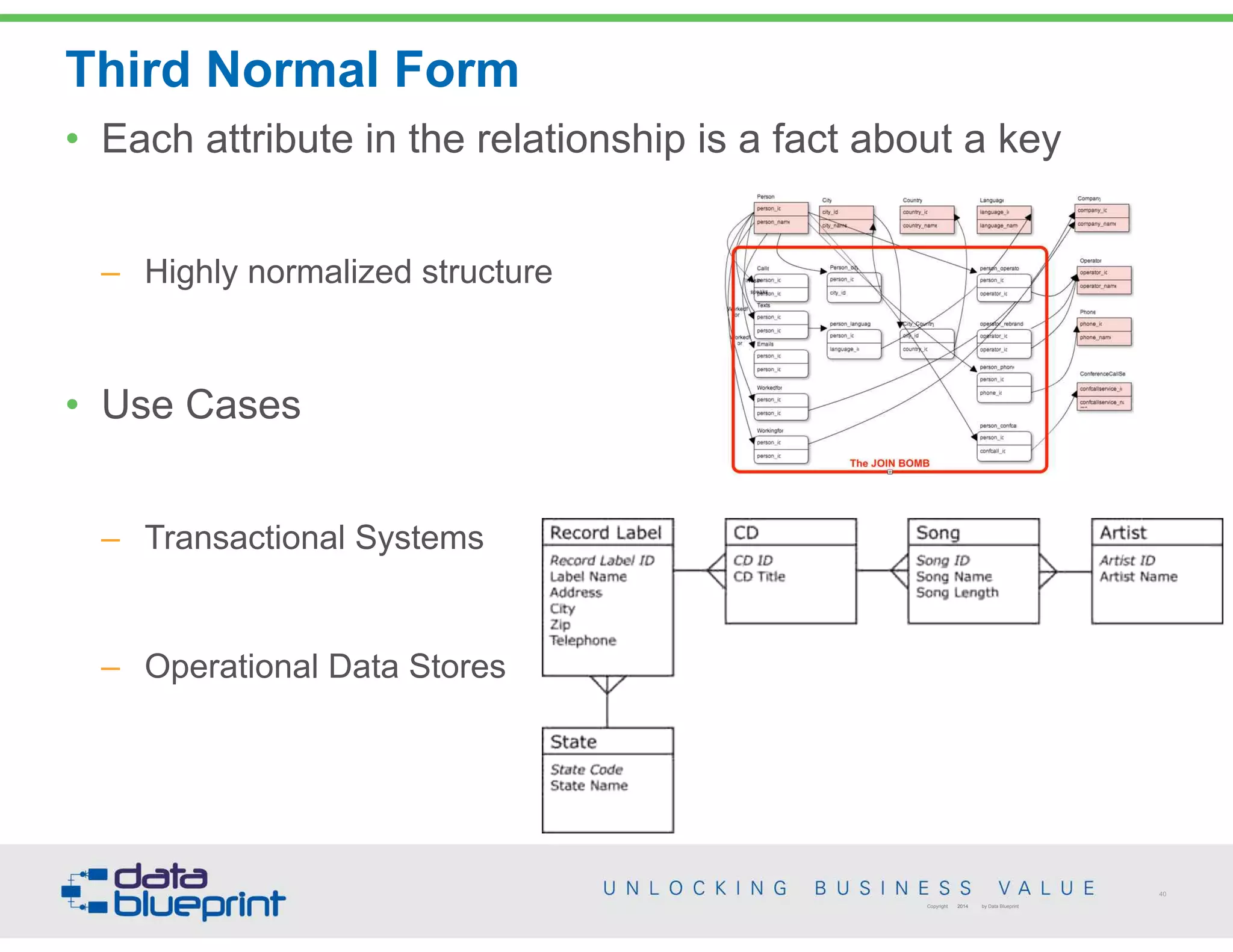

Third Normal Form
40
• Each attribute in the relationship is a fact about a key
– Highly normalized structure
• Use Cases
– Transactional Systems
– Operational Data Stores

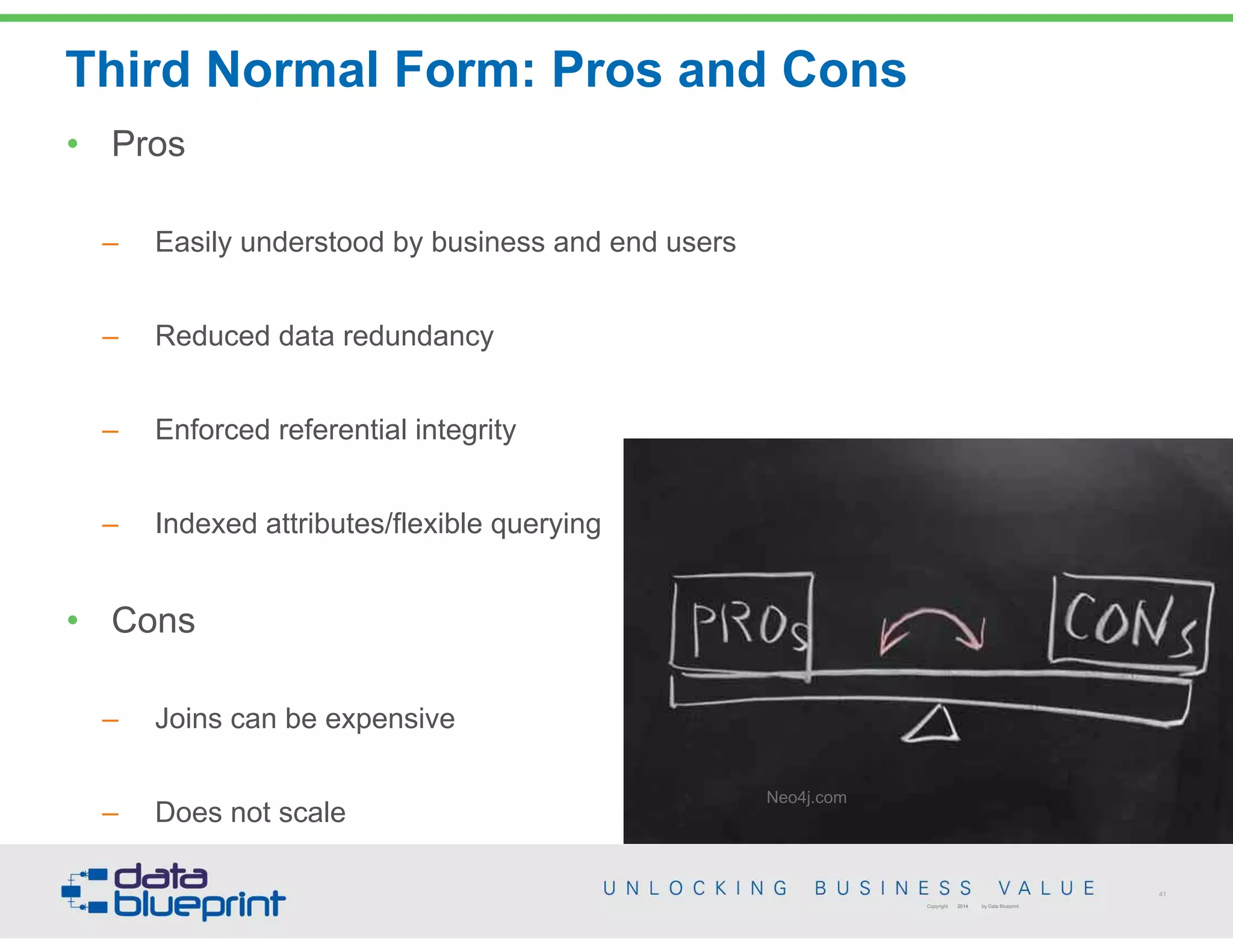

Third Normal Form: Pros and Cons
41
Neo4j.com
• Pros
– Easily understood by business and end users
– Reduced data redundancy
– Enforced referential integrity
– Indexed attributes/flexible querying
• Cons
– Joins can be expensive
– Does not scale

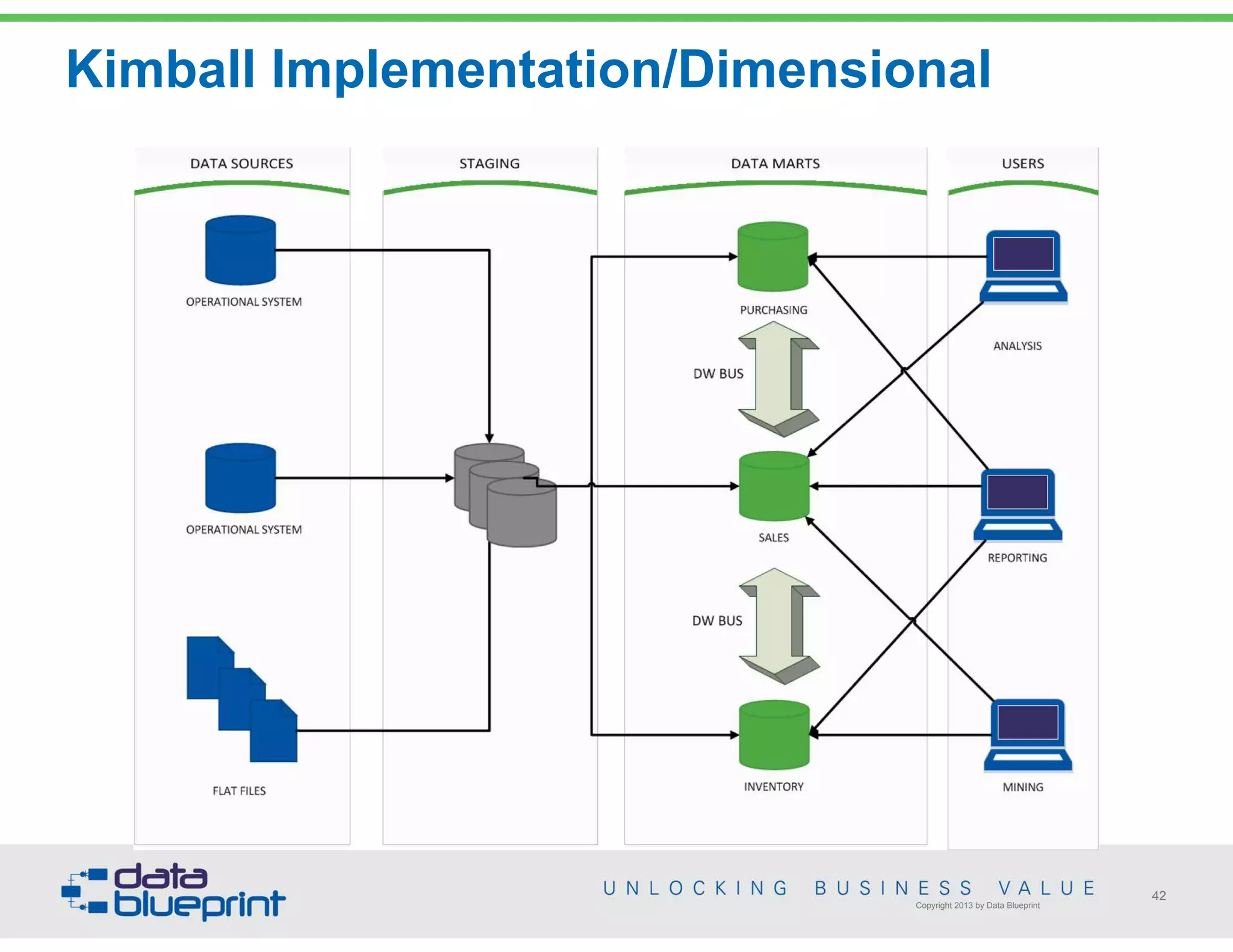

Kimball Implementation/Dimensional
42

• Comprised of “fact tables” that contain quantitative data, and any
number of adjoining “dimension” tables
• Optimized for business reporting
• Use Cases
– OLAP (Online Analytic Processing)
– BI

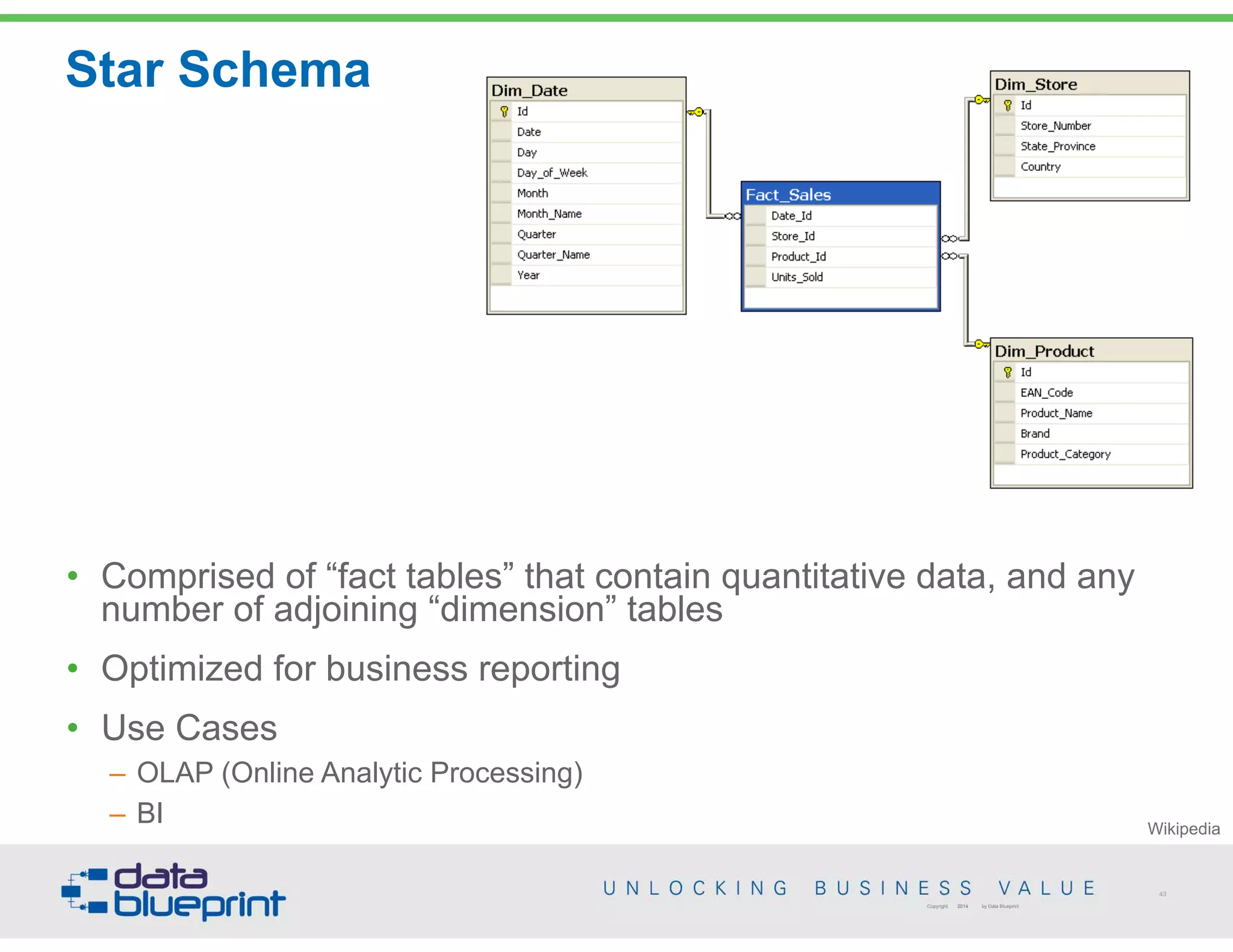

Star Schema
43
Wikipedia

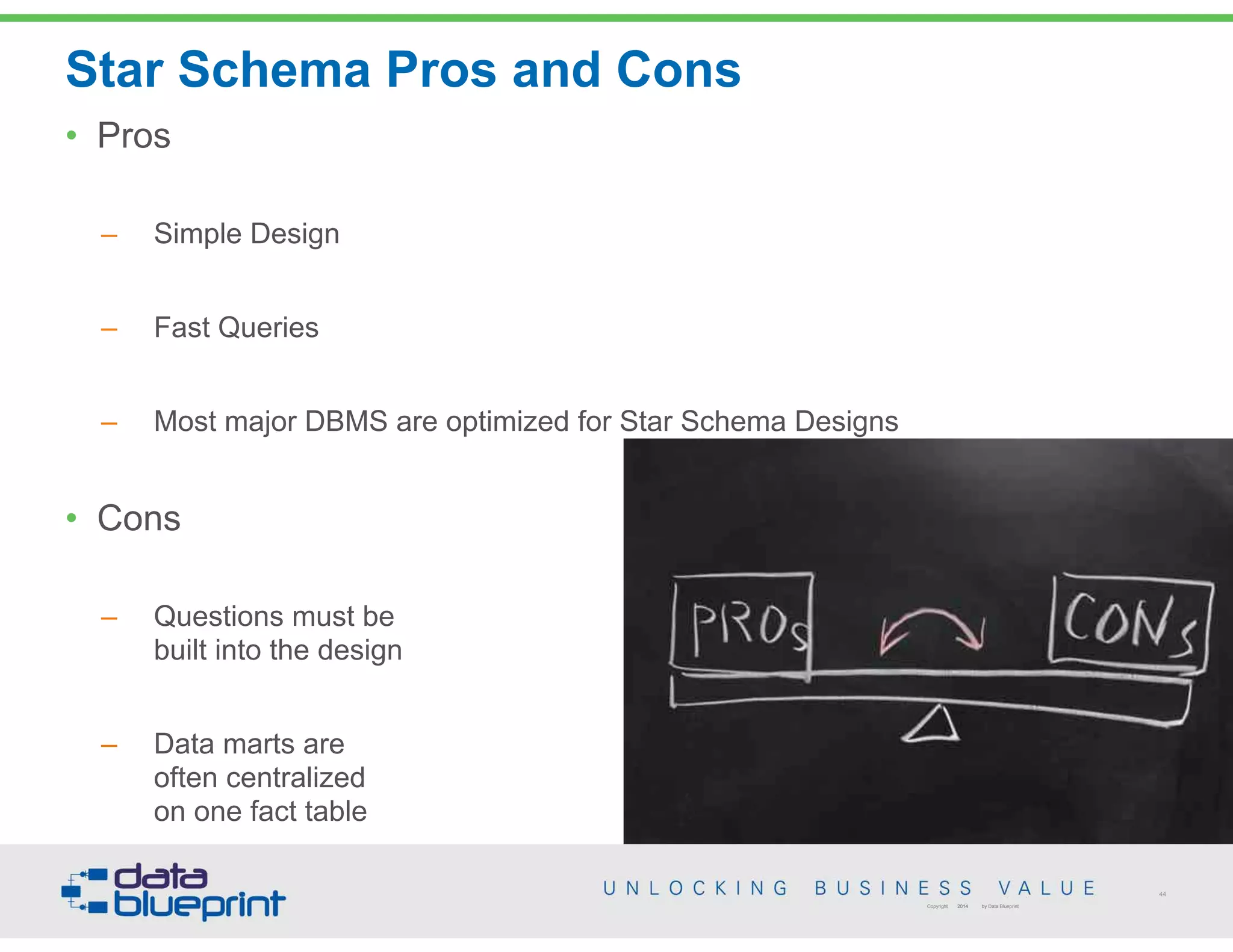

Star Schema Pros and Cons
44
• Pros
– Simple Design
– Fast Queries
– Most major DBMS are optimized for Star Schema Designs
• Cons
– Questions must be  
built into the design
– Data marts are  
often centralized  
on one fact table

Data Vault Implementation
45

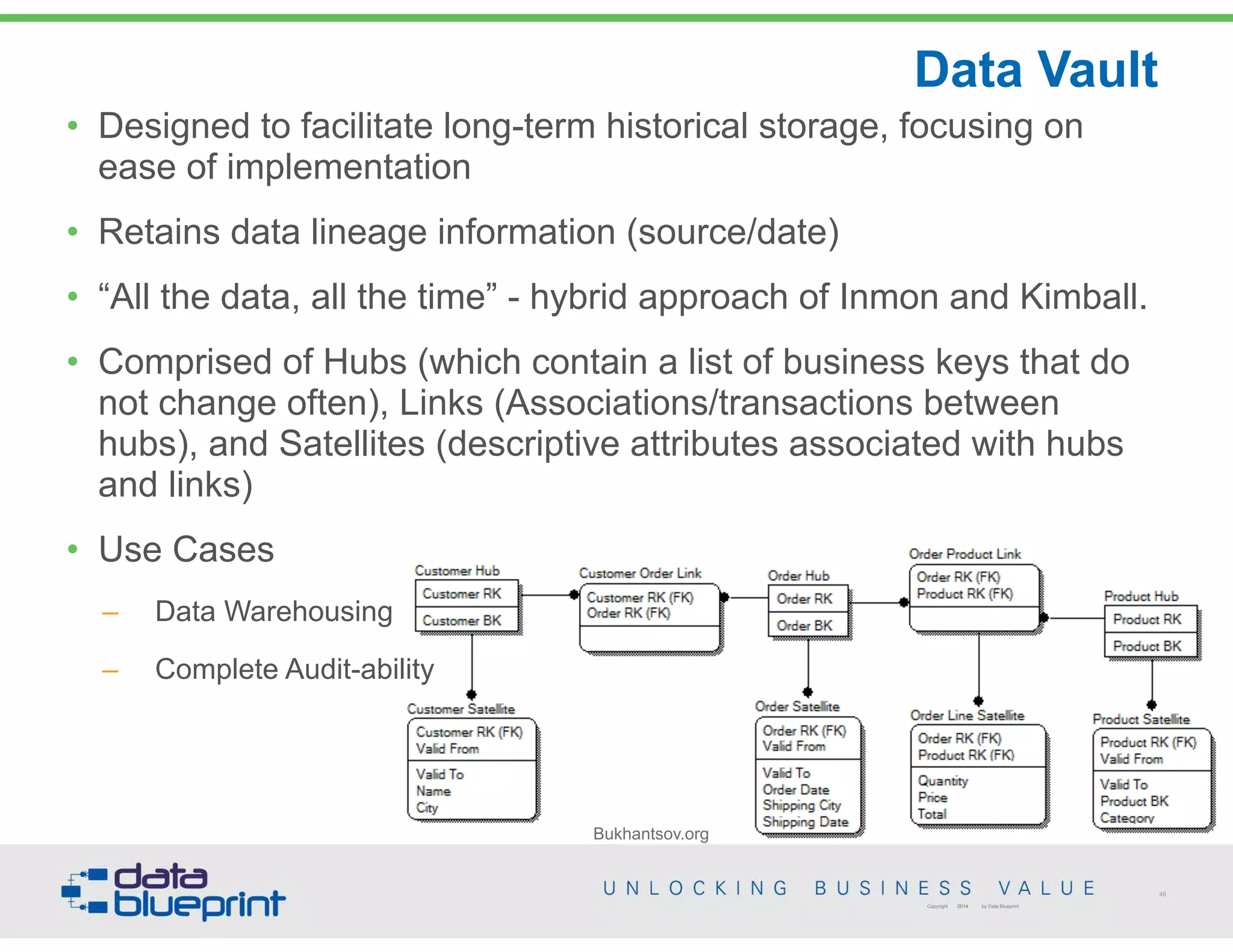

Data Vault
46
Bukhantsov.org
• Designed to facilitate long-term historical storage, focusing on
ease of implementation
• Retains data lineage information (source/date)
• “All the data, all the time” - hybrid approach of Inmon and Kimball.
• Comprised of Hubs (which contain a list of business keys that do
not change often), Links (Associations/transactions between
hubs), and Satellites (descriptive attributes associated with hubs
and links)
• Use Cases
– Data Warehousing
– Complete Audit-ability

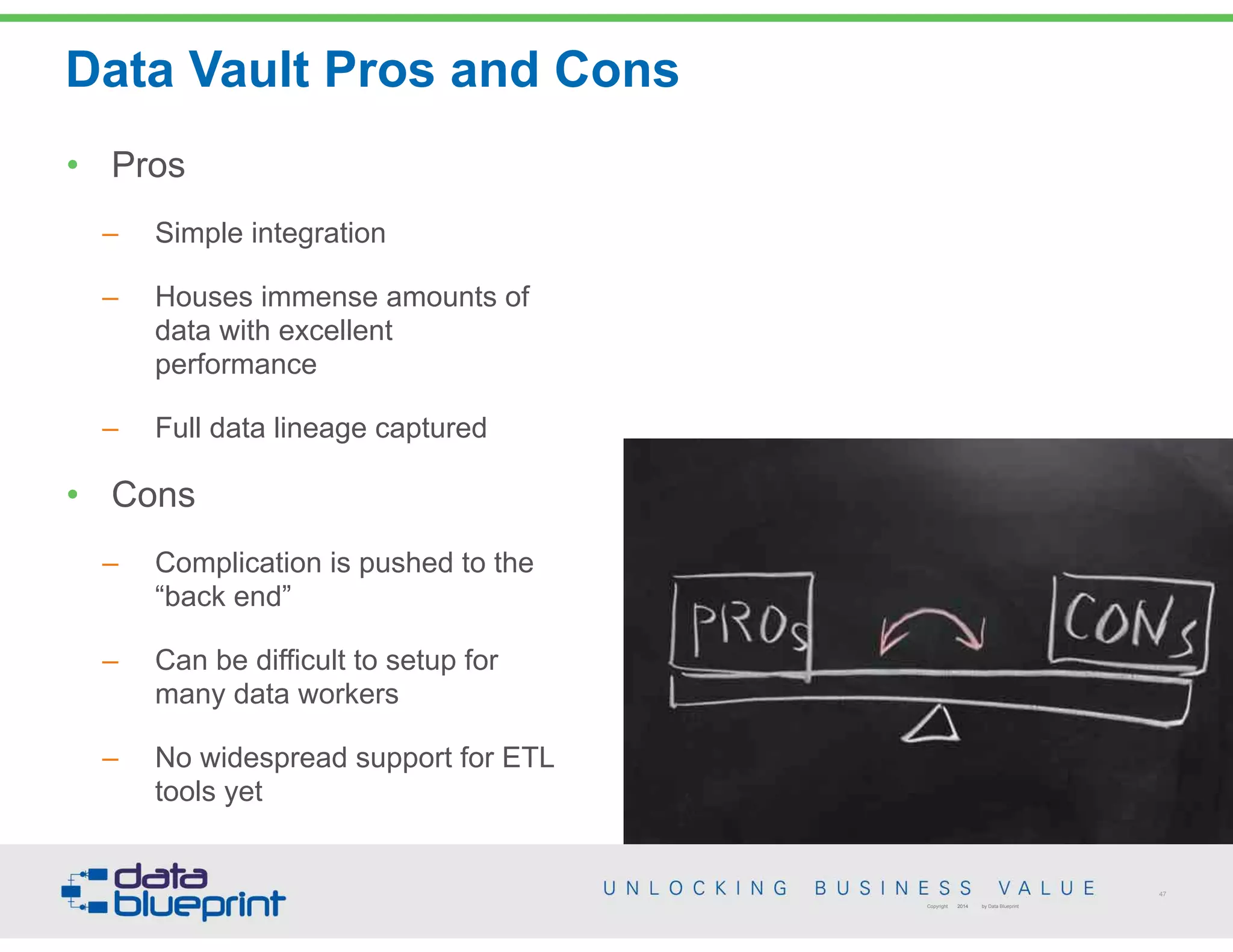

Data Vault Pros and Cons
47
• Pros
– Simple integration
– Houses immense amounts of
data with excellent
performance
– Full data lineage captured
• Cons
– Complication is pushed to the
“back end”
– Can be difficult to setup for
many data workers
– No widespread support for ETL
tools yet

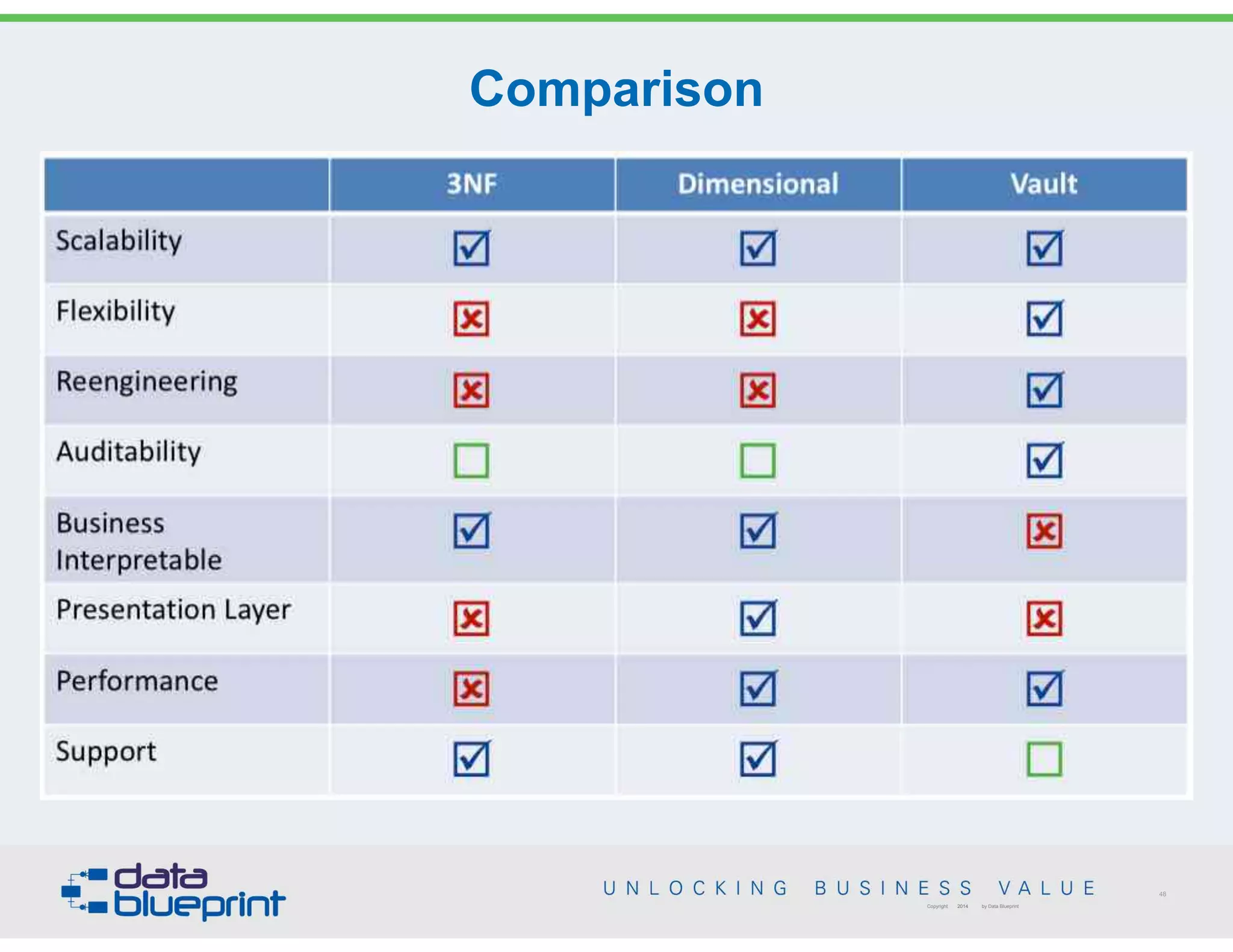

Comparison
48

Polling Question #2
• Do you have?
a. A single enterprise data warehouse
b. Coordinated data marts
c. Both
d. Uncoordinated efforts
e. None

50
management

Source:http://dmreview.com/article_sub.cfm?articleID=1000941 used with permission
Meta Data Models

Metadata Data Model
SCREEN
ELEMENT
screen element id #
data item id #
screen element descr.
INTERFACE
ELEMENT
interface element id #
data item id #
interface element descr.
INPUT
ELEMENT
input element id #
data item id #
input element descr.
OUTPUT
ELEMENT
output element id #
data item id #
output element descr.
MODEL
VIEW
model view element id #
data item id #
model view element des.
DEPENDENCY
dependency elem id #
data item id #
process id #
dependency description
CODE
code id #
data item id #
stored data item #
code location
INFORMATION
information id #
data item id #
information descr.
information request
PROCESS
process id #
data item id #
process description
USER TYPE
user type id #
data item id #
information id #
user type description
LOCATION
location id #
information id #
printout element id #
process id #
stored data items id #
user type id #
location description
PRINTOUT
ELEMENT
printout element id #
data item id #
printout element descr.
STORED DATA ITEM
stored data item id #
data item id #
location id #
stored data description
DATA ITEM
data item id #
data item description
52

Warehouse
Process
Warehouse
Opera.on
Transforma.on
XML
Record-‐
Oriented
Mul.
Dimensional
Rela.onal
Business
Informa.on
So@ware
Deployment
ObjectModel
(Core, Behavioral, Rela.onships, Instance)
Warehouse
Management
Resources
Analysis
Object-‐
Oriented
(ObjectModel)
Foundation
OLAP
Data
Mining
Informa.on
Visualiza.on
Business
Nomenclature
Data
Types
Expressions
Keys
Index
Type
Mapping
Overview of CWM Metamodel
http://www.omg.org/technology/documents/modeling_spec_catalog.htm

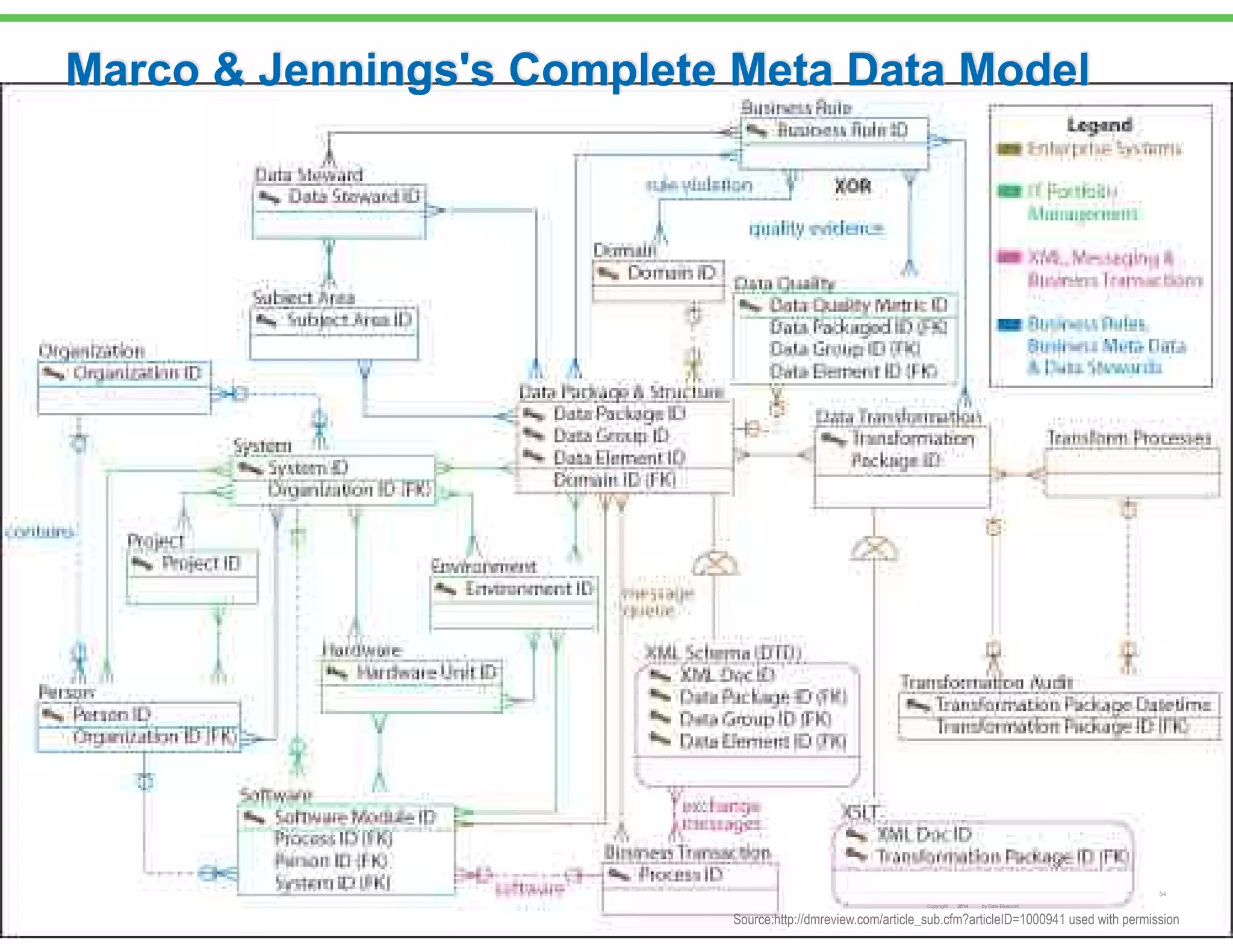

Marco & Jennings's Complete Meta Data Model
Source:http://dmreview.com/article_sub.cfm?articleID=1000941 used with permission
54

55
management

Guiding Principles
1. Obtain executive commitment and support
2. Secure business SMEs
3. Let the business drive the priorities
4. Demonstrate data quality is essential
5. Provide incremental value
6. Transparency and self service
7. One size does not fit all: Secure the right tools  
and products for each of your segments
8. Think and architect globally, act and build locally
9. Collaborate with and integrate all other data initiatives, especially those for
data governance, data quality and metadata
10.Start with the end in mind
11.Summarize and optimize last, not first

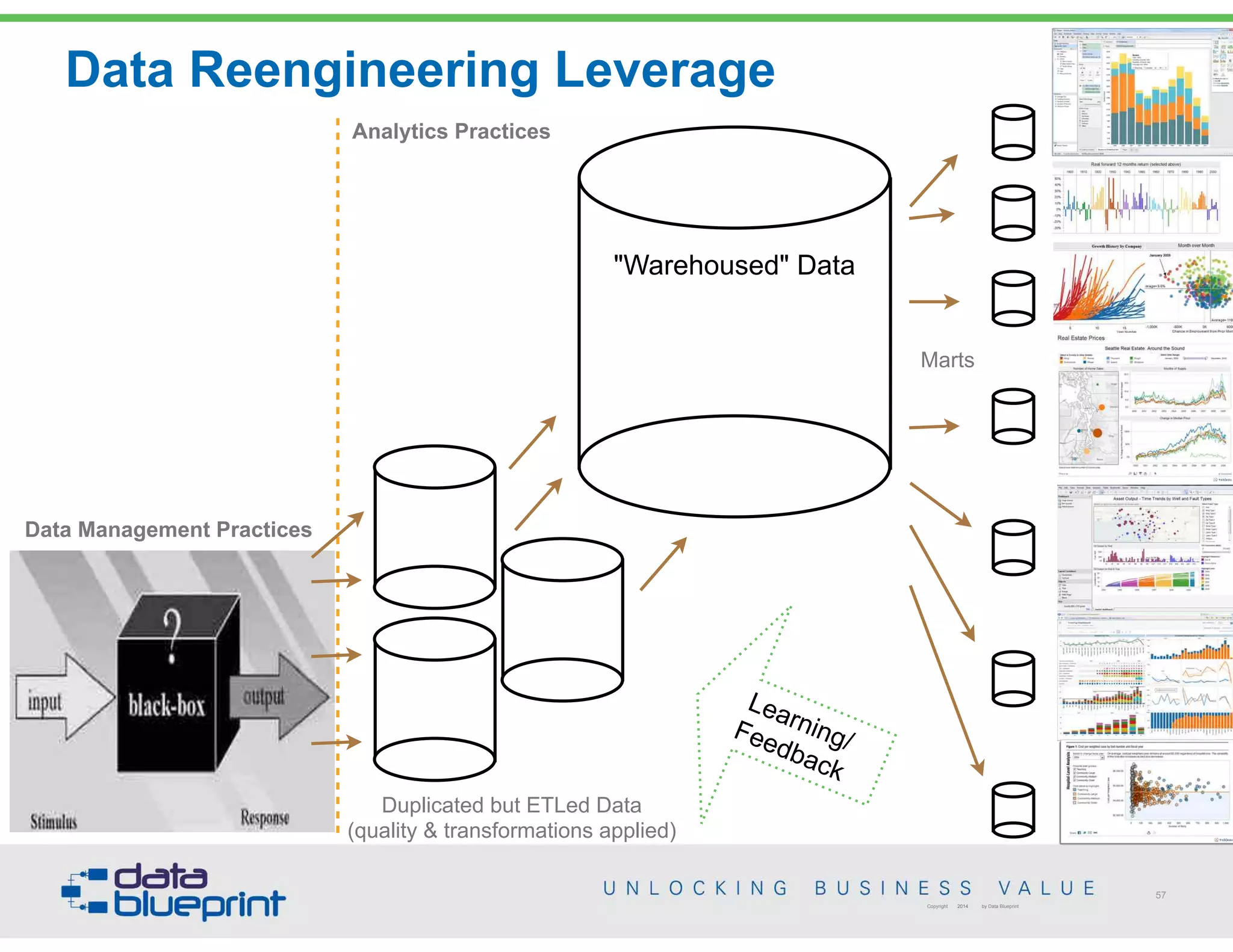

Data Reengineering Leverage
57
Data Management Practices
Duplicated but ETLed Data 
(quality & transformations applied)
 
 
"Warehoused" Data
 
 
Learning/ 
Feedback
Marts
Analytics Practices

58
management

Data Warehousing & Business Intelligence Management

Questions?
60
It’s your turn!
Use the chat feature or Twitter (#dataed) to submit
your questions to Peter and Steven now.

• www.datablueprint.com/webinar-schedule
• www.Dataversity.net
Brought to you by:
Upcoming Events
January Webinar:
Developing a Data-centric Strategy & Roadmap
January 12, 2016 @ 2:00 PM – 3:30 PM ET
(11:00 AM-12:30 PM PT)
February Webinar:
The Importance of Master Data Management
February 9, 2016 @ 2:00 PM – 3:30 PM ET
(11:00 AM-12:30 PM PT)
Sign up here:

Appendix
62

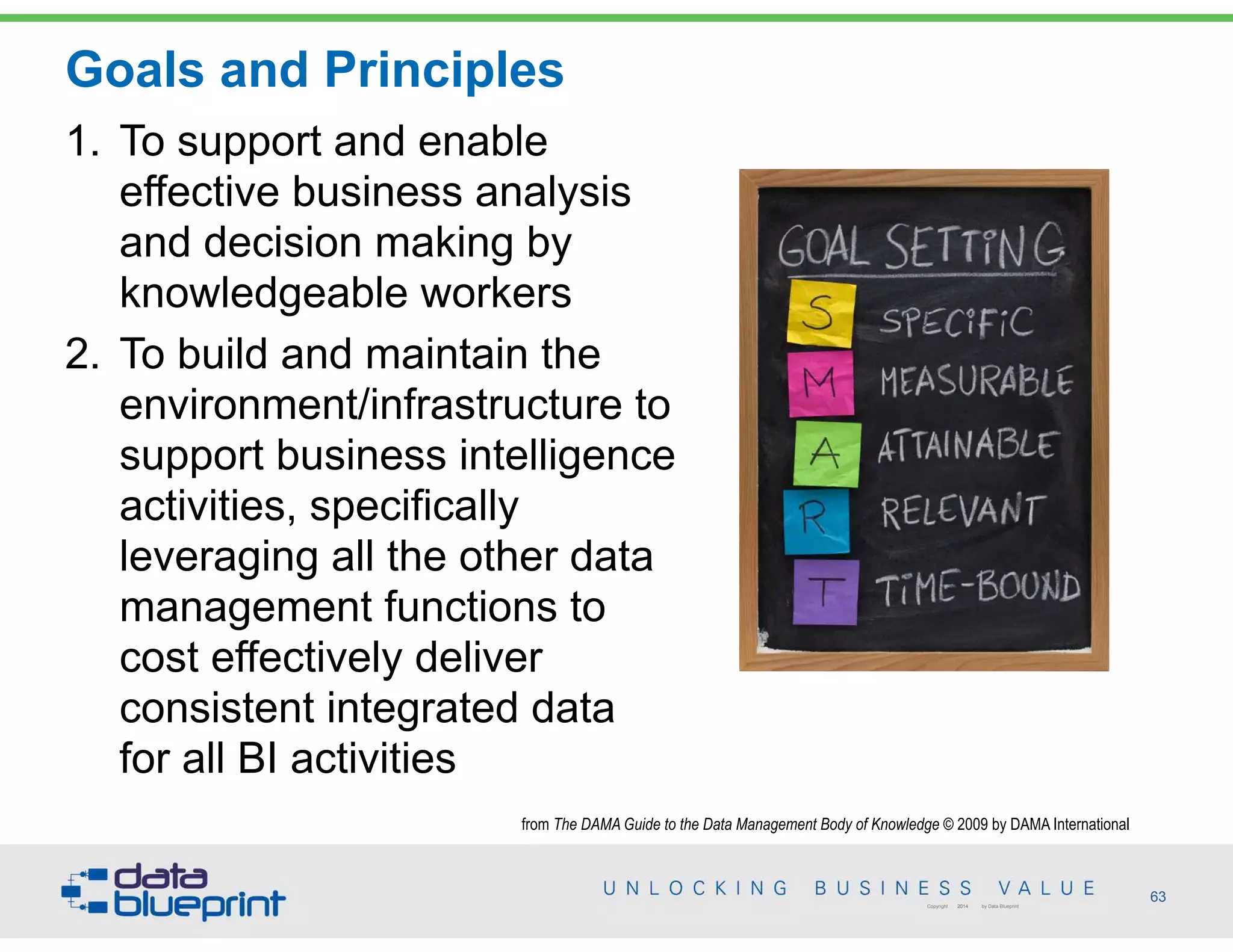

Goals and Principles
1. To support and enable
effective business analysis
and decision making by
knowledgeable workers
2. To build and maintain the
environment/infrastructure to
support business intelligence
activities, specifically
leveraging all the other data
management functions to
cost effectively deliver
consistent integrated data
for all BI activities

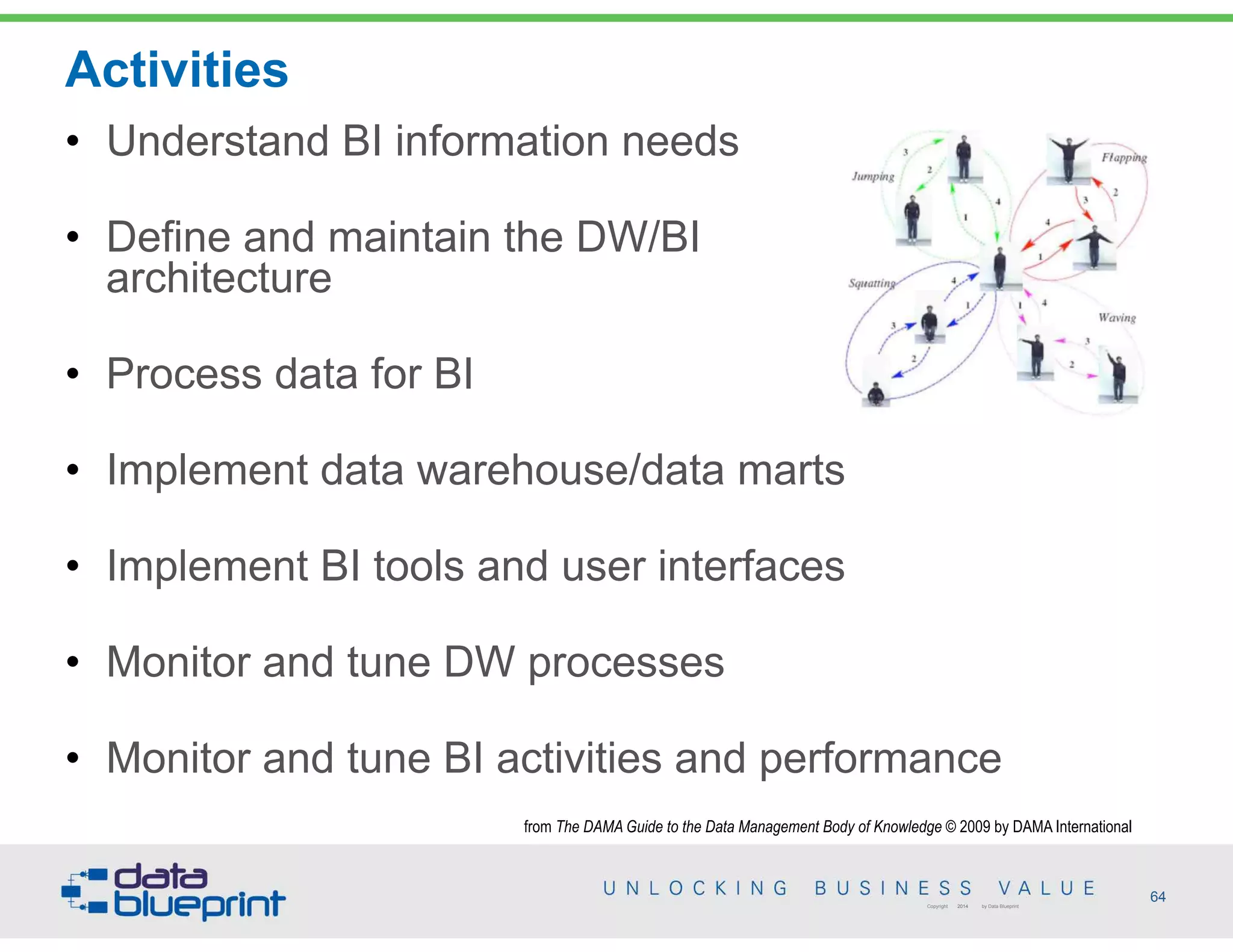

Activities
• Understand BI information needs
• Define and maintain the DW/BI  
architecture
• Process data for BI
• Implement data warehouse/data marts
• Implement BI tools and user interfaces
• Monitor and tune DW processes
• Monitor and tune BI activities and performance

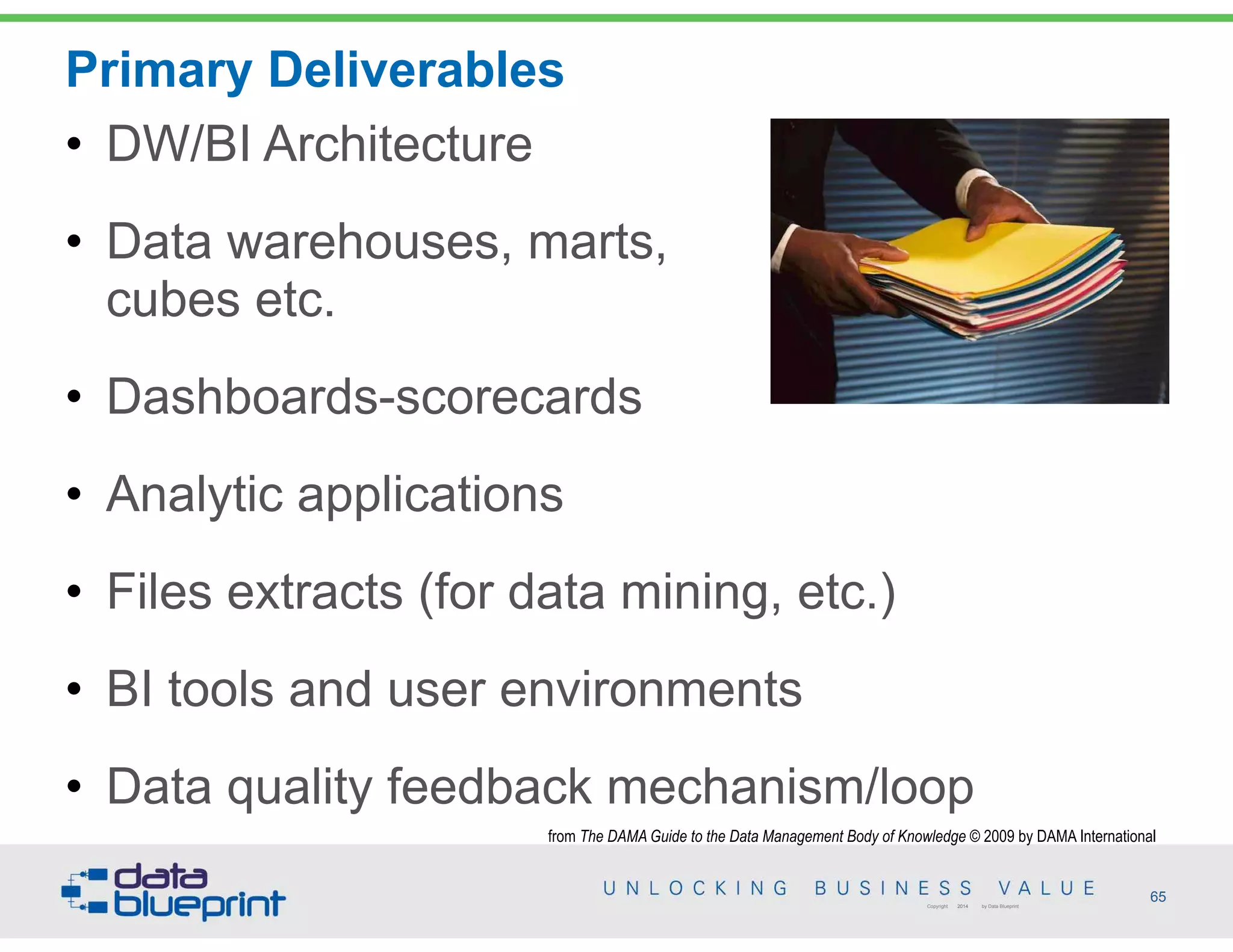

Primary Deliverables
• DW/BI Architecture
• Data warehouses, marts,  
cubes etc.
• Dashboards-scorecards
• Analytic applications
• Files extracts (for data mining, etc.)
• BI tools and user environments
• Data quality feedback mechanism/loop

Roles and Responsibilities
Suppliers:
• Executives/managers
• Subject Matter Experts
• Data governance council
• Information consumers
• Data producers
• Data architects/analysts
Participants:
• Executives/managers
• Data Stewards
• Subject Matter Experts
• Data Architects
• Data Analysts
• Application Architects
• Data Governance Council
• Data Providers
• Other BI Professionals
Consumers:
• Application Users
• BI and Reporting
Users
• Application
Developers and
Architects
• Data integration
Developers and
Architects
• BI Vendors and
Architects
• Vendors, Customers
and Partners

6 Best Practices for Data Warehousing
1.Do some initial architecture
envisioning.
2.Model the details just in time (JIT).
3.Prove the architecture early.
4.Focus on usage.
5.Organize your work by requirements.
6.Active stakeholder participation.
http://www.agiledata.org/essays/dataWarehousingBestPractices.html

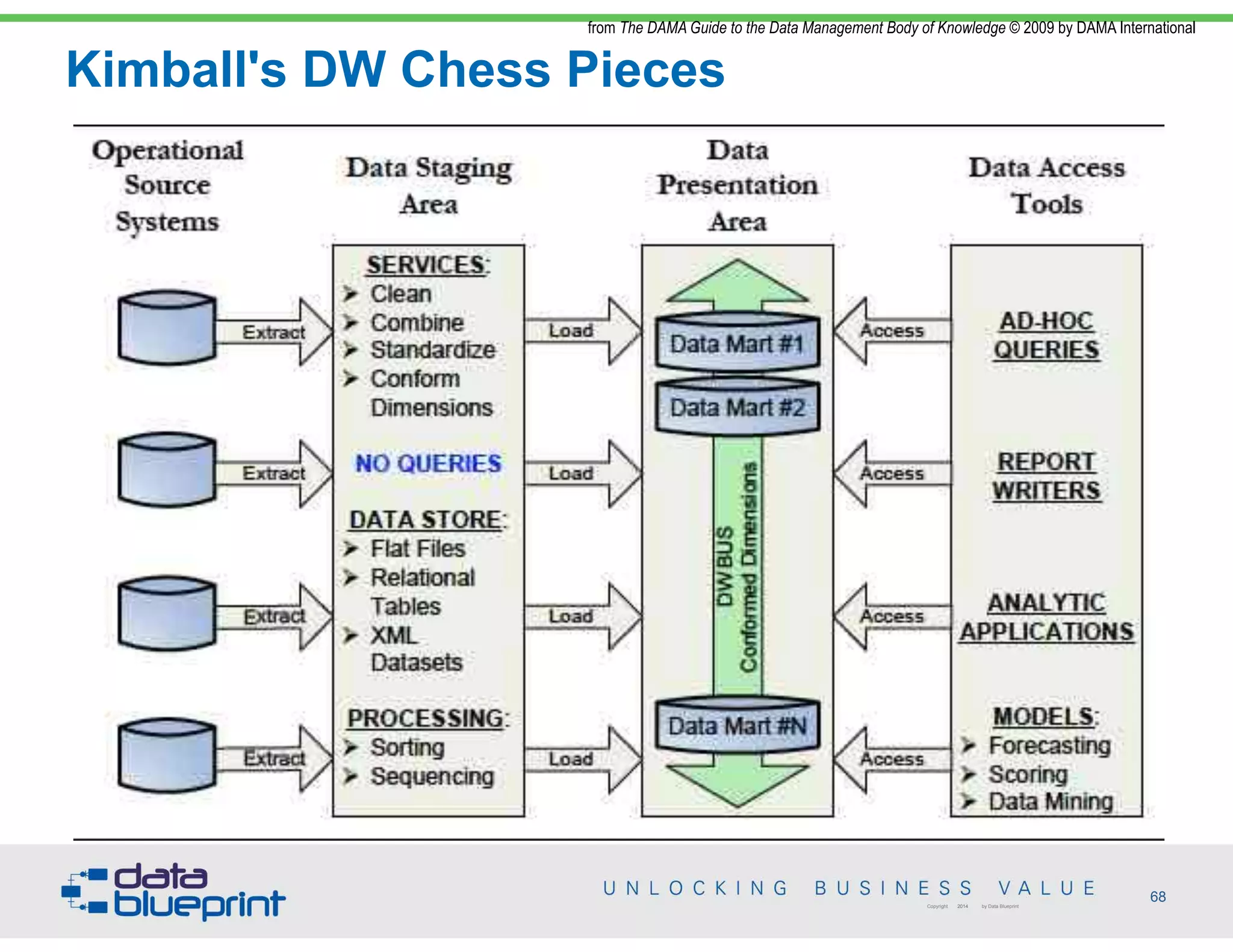

Kimball's DW Chess Pieces

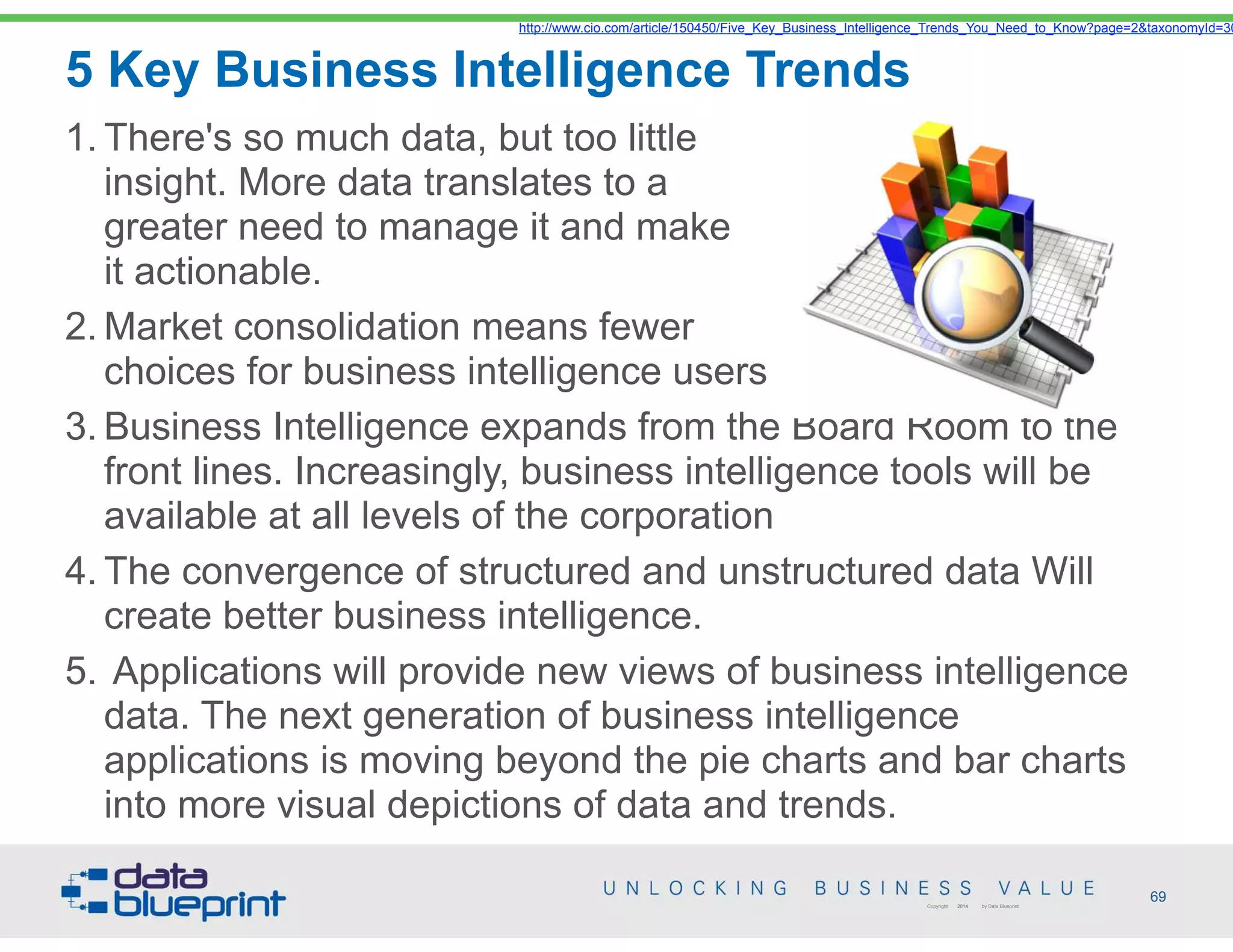

5 Key Business Intelligence Trends
1. There's so much data, but too little  
insight. More data translates to a  
greater need to manage it and make  
it actionable.
2. Market consolidation means fewer  
choices for business intelligence users.
3. Business Intelligence expands from the Board Room to the
front lines. Increasingly, business intelligence tools will be
available at all levels of the corporation
4. The convergence of structured and unstructured data Will
create better business intelligence.
5. Applications will provide new views of business intelligence
data. The next generation of business intelligence
applications is moving beyond the pie charts and bar charts
into more visual depictions of data and trends.
http://www.cio.com/article/150450/Five_Key_Business_Intelligence_Trends_You_Need_to_Know?page=2&taxonomyId=30

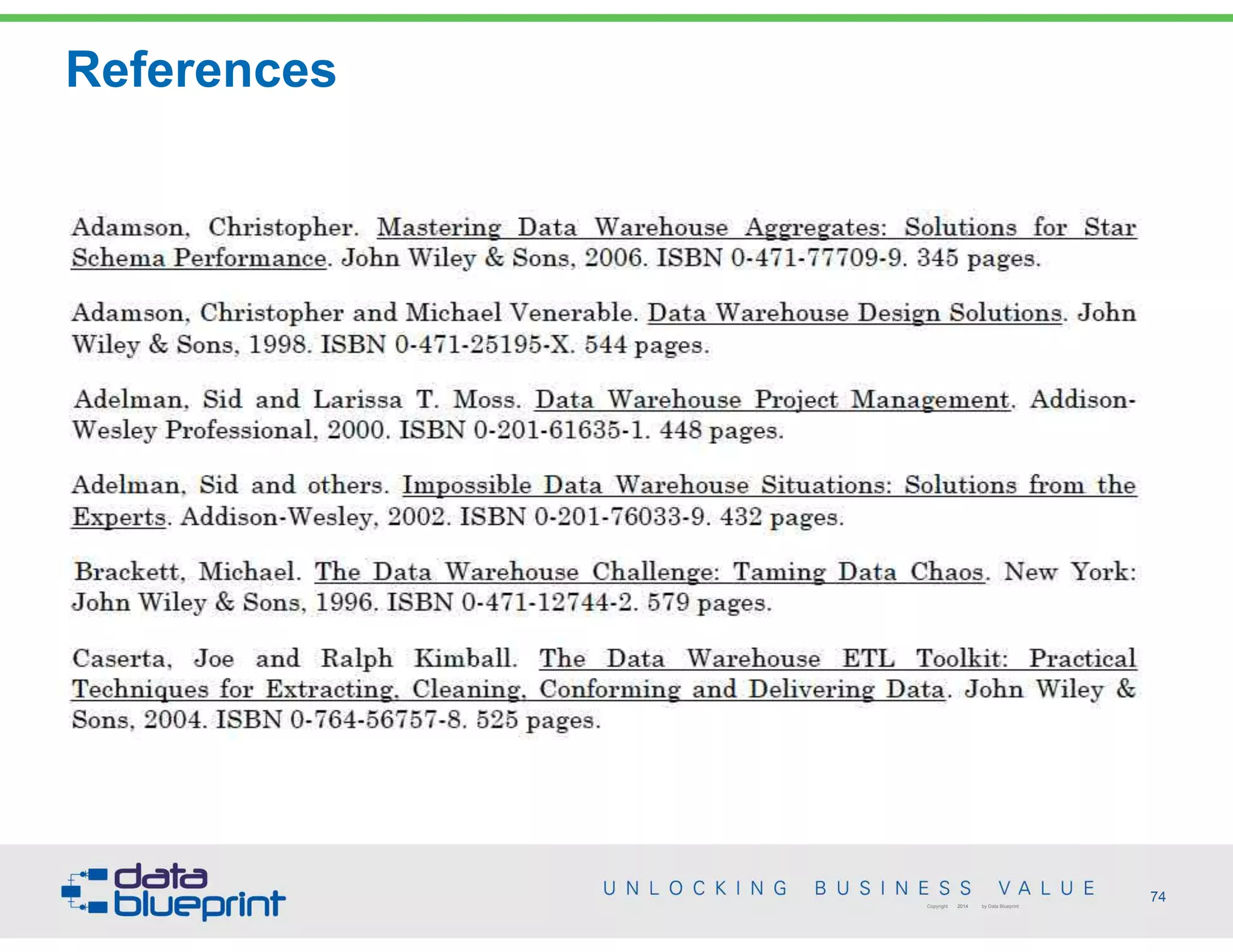

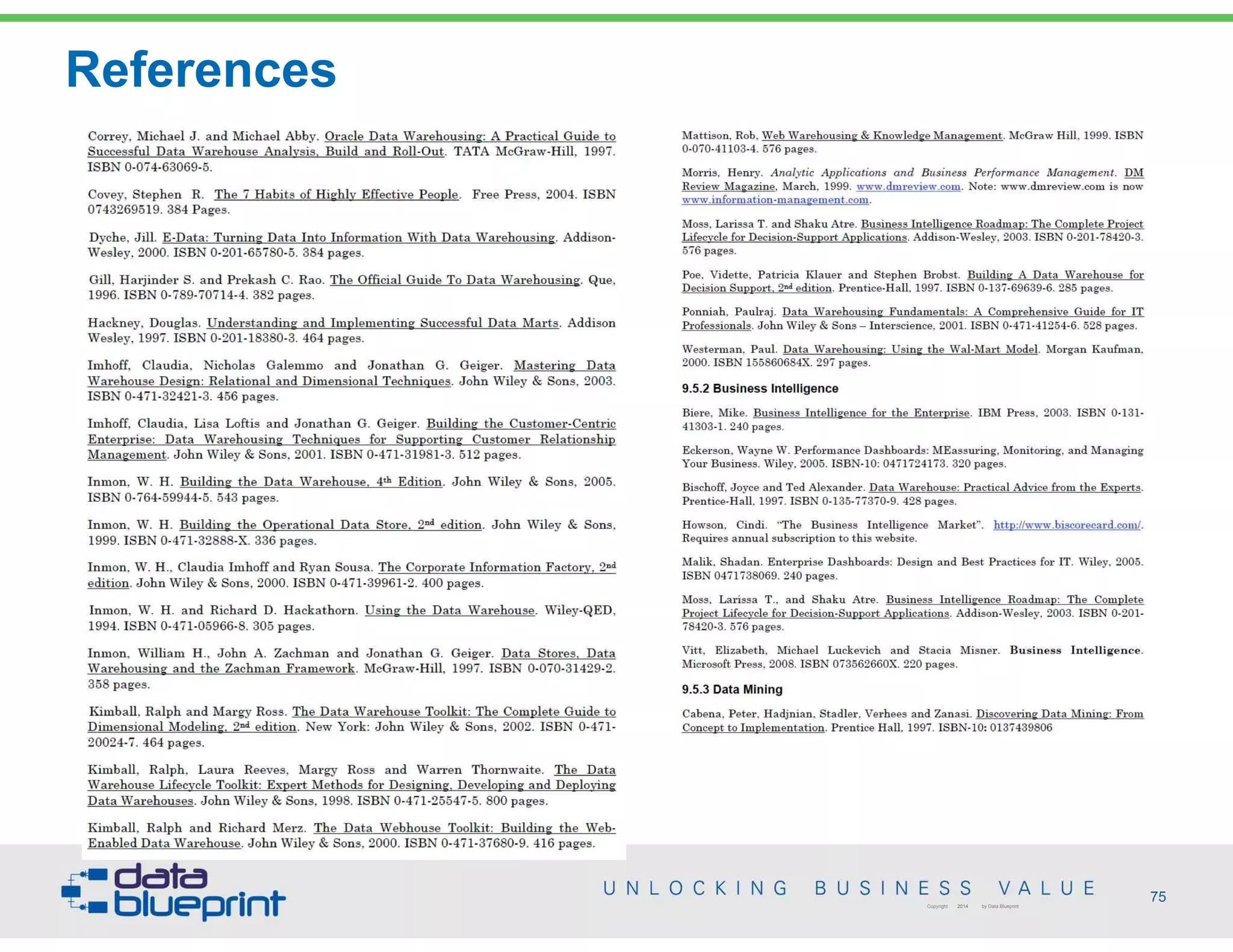

References

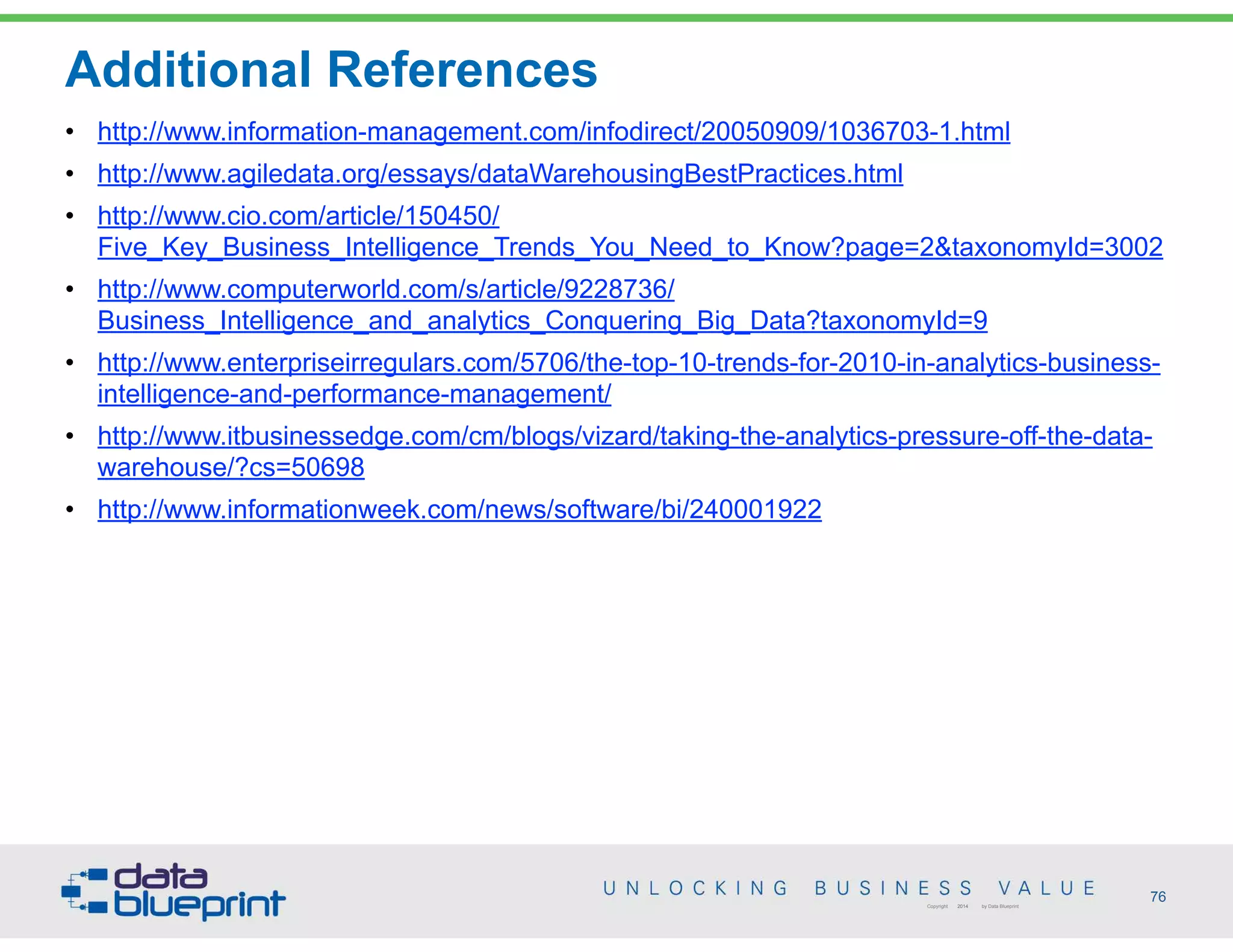

Additional References
• http://www.information-management.com/infodirect/20050909/1036703-1.html
• http://www.agiledata.org/essays/dataWarehousingBestPractices.html
• http://www.cio.com/article/150450/
Five_Key_Business_Intelligence_Trends_You_Need_to_Know?page=2&taxonomyId=3002
• http://www.computerworld.com/s/article/9228736/
Business_Intelligence_and_analytics_Conquering_Big_Data?taxonomyId=9
• http://www.enterpriseirregulars.com/5706/the-top-10-trends-for-2010-in-analytics-business-
intelligence-and-performance-management/
• http://www.itbusinessedge.com/cm/blogs/vizard/taking-the-analytics-pressure-off-the-data-
warehouse/?cs=50698
• http://www.informationweek.com/news/software/bi/240001922

Data-Ed Webinar: Data Warehouse Strategies

More Related Content

What's hot

Viewers also liked

Similar to Data-Ed Webinar: Data Warehouse Strategies

More from DATAVERSITY

Recently uploaded

Data-Ed Webinar: Data Warehouse Strategies
