The GE320ACTM Drive System is designed for 320-ton rear dump haul trucks. It delivers improved performance, reliability, and lower operating costs compared to previous systems. The key components include a new transmission with larger gears and bearings, an improved ventilation system for increased reliability, and higher rated control components. Testing of the system over 3 million operating hours has proven its ability to improve productivity in demanding mining conditions.

1. GE Transportation Systems
A WORLD OF EXPERIENCE IN MINING SOLUTIONS™
GE320AC™
DRIVE SYSTEM
For 320-Ton Truck Applications
GDY106 AC
Motorized Wheel
The GE320AC™ Drive System for 320-ton rear dump haul trucks delivers the performance and economics required
by today's mining industry. The result is a wheel system with worldwide experience for this truck size.
The improved GE320AC system offers:
• New transmission featuring larger and more capable gears and bearings.
• Increased reliability and simplified maintenance with a new ventilation system design.
• Improved performance, including broader tractive effort, higher stall torque, and continuous and short-time
retarding to near zero mph.
• Lower operating and life cycle costs, with better horsepower utilization, reduced maintenance and improved
tire life.
• Higher rated control components.
The component designs in the
improved GE320AC System are
the result of more than 3 million
operating hours in demanding
haulage conditions. The system can
help mines make major inroads in
improving their productivity.

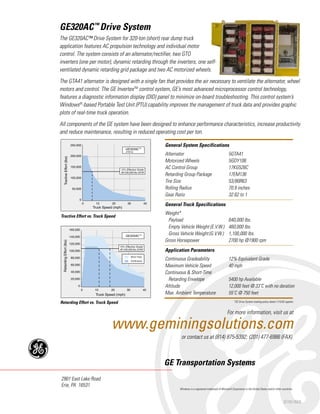

2. GE320AC™
Drive System
The GE320AC™ Drive System for 320-ton (short) rear dump truck
application features AC propulsion technology and individual motor
control. The system consists of an alternator/rectifier, two GTO
inverters (one per motor), dynamic retarding through the inverters, one self-
ventilated dynamic retarding grid package and two AC motorized wheels.
The GTA41 alternator is designed with a single fan that provides the air necessary to ventilate the alternator, wheel
motors and control. The GE InvertexTM
control system, GE’s most advanced microprocessor control technology,
features a diagnostic information display (DID) panel to minimize on-board troubleshooting. This control system’s
Windows®
-based Portable Test Unit (PTU) capability improves the management of truck data and provides graphic
plots of real-time truck operation.
All components of the GE system have been designed to enhance performance characteristics, increase productivity
and reduce maintenance, resulting in reduced operating cost per ton.
GE Transportation Systems
2901 East Lake Road
Erie, PA 16531
General System Specifications
Alternator 5GTA41
Motorized Wheels 5GDY106
AC Control Group 17KG526C
Retarding Group Package 17EM136
Tire Size 53/80R63
Rolling Radius 70.9 inches
Gear Ratio 32.62 to 1
General Truck Specifications
Weight*
Payload 640,000 lbs.
Empty Vehicle Weight (E.V.W.) 460,000 lbs.
Gross Vehicle Weight(G.V.W.) 1,100,000 lbs.
Gross Horsepower 2700 hp @1900 rpm
Application Parameters
Continuous Gradeability 12% Equivalent Grade
Maximum Vehicle Speed 40 mph
Continuous & Short-Time
Retarding Envelope 5400 hp Available
Altitude 12,000 feet @ 33˚C with no deration
Max. Ambient Temperature 55˚C @ 750 feet
07/02-WEB
Tractive Effort vs. Truck Speed
Retarding Effort vs. Truck Speed
For more information, visit us at
www.geminingsolutions.com
or contact us at (814) 875-5392; (201) 477-6986 (FAX).
*GE Drive System loading policy dated 1/15/02 applies
