1. 1
Module - 2 (Data Preprocessing)
Data Preprocessing-Need of data
preprocessing, Data Cleaning- Missing
values, Noisy data, Data Integration and
Transformation, Data Reduction-Data cube
aggregation, Attribute subset selection,
Dimensionality reduction, Numerosity
reduction, Discretization and concept
hierarchy generation.

2. 2

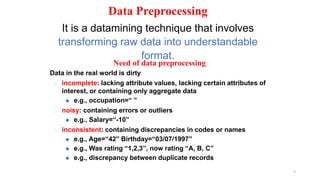

Data Preprocessing
It is a datamining technique that involves
transforming raw data into understandable
format.
Need of data preprocessing
Data in the real world is dirty
� incomplete: lacking attribute values, lacking certain attributes of
interest, or containing only aggregate data
⚫ e.g., occupation=“ ”
� noisy: containing errors or outliers
⚫ e.g., Salary=“-10”
� inconsistent: containing discrepancies in codes or names
⚫ e.g., Age=“42” Birthday=“03/07/1997”
⚫ e.g., Was rating “1,2,3”, now rating “A, B, C”
⚫ e.g., discrepancy between duplicate records

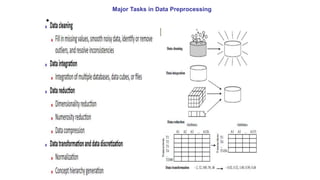

3. Major Tasks in Data Preprocessing
•

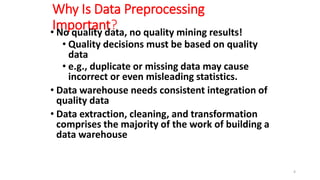

4. Why Is Data Preprocessing
Important?
• No quality data, no quality mining results!
• Quality decisions must be based on quality
data
• e.g., duplicate or missing data may cause
incorrect or even misleading statistics.
• Data warehouse needs consistent integration of
quality data
• Data extraction, cleaning, and transformation
comprises the majority of the work of building a
data warehouse
4

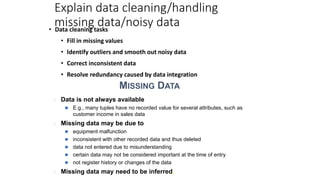

5. Explain data cleaning/handling
missing data/noisy data
• Data cleaning tasks
• Fill in missing values
• Identify outliers and smooth out noisy data
• Correct inconsistent data
• Resolve redundancy caused by data integration
MISSING DATA
� Data is not always available
⚫ E.g., many tuples have no recorded value for several attributes, such as
customer income in sales data
� Missing data may be due to
⚫ equipment malfunction
⚫ inconsistent with other recorded data and thus deleted
⚫ data not entered due to misunderstanding
⚫ certain data may not be considered important at the time of entry
⚫ not register history or changes of the data
� Missing data may need to be inferred.

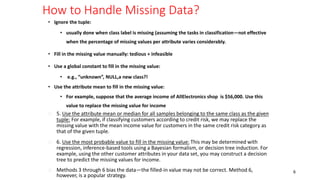

6. How to Handle Missing Data?
• Ignore the tuple:
• usually done when class label is missing (assuming the tasks in classification—not effective
when the percentage of missing values per attribute varies considerably.
• Fill in the missing value manually: tedious + infeasible
• Use a global constant to fill in the missing value:
• e.g., “unknown”, NULL,a new class?!
• Use the attribute mean to fill in the missing value:
• For example, suppose that the average income of AllElectronics shop is $56,000. Use this
value to replace the missing value for income
6
� 5. Use the attribute mean or median for all samples belonging to the same class as the given
tuple: For example, if classifying customers according to credit risk, we may replace the
missing value with the mean income value for customers in the same credit risk category as
that of the given tuple.
� 6. Use the most probable value to fill in the missing value: This may be determined with
regression, inference-based tools using a Bayesian formalism, or decision tree induction. For
example, using the other customer attributes in your data set, you may construct a decision
tree to predict the missing values for income.
� Methods 3 through 6 bias the data—the filled-in value may not be correct. Method 6,
however, is a popular strategy.

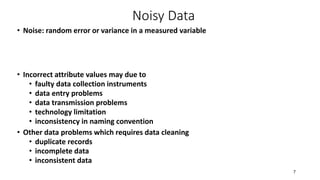

7. Noisy Data
• Noise: random error or variance in a measured variable
• Incorrect attribute values may due to
• faulty data collection instruments
• data entry problems
• data transmission problems
• technology limitation
• inconsistency in naming convention
• Other data problems which requires data cleaning
• duplicate records
• incomplete data
• inconsistent data
7

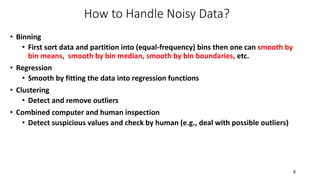

8. How to Handle Noisy Data?
• Binning
• First sort data and partition into (equal-frequency) bins then one can smooth by
bin means, smooth by bin median, smooth by bin boundaries, etc.
• Regression
• Smooth by fitting the data into regression functions
• Clustering
• Detect and remove outliers
• Combined computer and human inspection
• Detect suspicious values and check by human (e.g., deal with possible outliers)
8

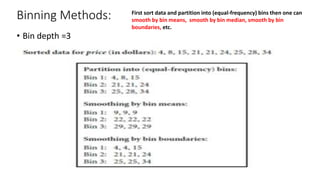

9. Binning Methods:
• Bin depth =3
First sort data and partition into (equal-frequency) bins then one can
smooth by bin means, smooth by bin median, smooth by bin
boundaries, etc.

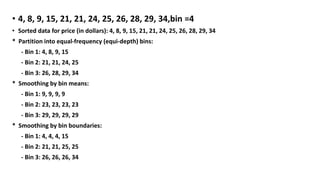

10. • 4, 8, 9, 15, 21, 21, 24, 25, 26, 28, 29, 34,bin =4
• Sorted data for price (in dollars): 4, 8, 9, 15, 21, 21, 24, 25, 26, 28, 29, 34
* Partition into equal-frequency (equi-depth) bins:
- Bin 1: 4, 8, 9, 15
- Bin 2: 21, 21, 24, 25
- Bin 3: 26, 28, 29, 34
* Smoothing by bin means:
- Bin 1: 9, 9, 9, 9
- Bin 2: 23, 23, 23, 23
- Bin 3: 29, 29, 29, 29
* Smoothing by bin boundaries:
- Bin 1: 4, 4, 4, 15
- Bin 2: 21, 21, 25, 25
- Bin 3: 26, 26, 26, 34

11. • 8,16,9,15,21,21,24,30,26,27,30,34 bin depth=4

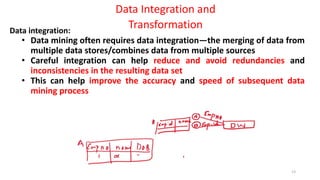

13. 13
Data Integration and
Transformation
Data integration:
• Data mining often requires data integration—the merging of data from
multiple data stores/combines data from multiple sources
• Careful integration can help reduce and avoid redundancies and
inconsistencies in the resulting data set
• This can help improve the accuracy and speed of subsequent data
mining process

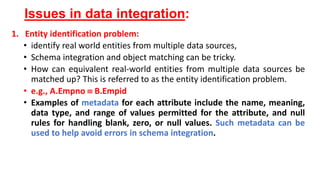

14. Issues in data integration:
1. Entity identification problem:
• identify real world entities from multiple data sources,
• Schema integration and object matching can be tricky.
• How can equivalent real-world entities from multiple data sources be
matched up? This is referred to as the entity identification problem.
• e.g., A.Empno  B.Empid
• Examples of metadata for each attribute include the name, meaning,
data type, and range of values permitted for the attribute, and null
rules for handling blank, zero, or null values. Such metadata can be
used to help avoid errors in schema integration.

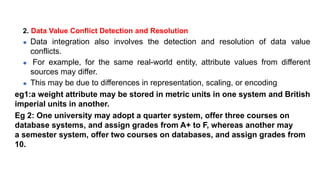

15. 2. Data Value Conflict Detection and Resolution
⚫ Data integration also involves the detection and resolution of data value
conflicts.
⚫ For example, for the same real-world entity, attribute values from different
sources may differ.
⚫ This may be due to differences in representation, scaling, or encoding
eg1:a weight attribute may be stored in metric units in one system and British
imperial units in another.
Eg 2: One university may adopt a quarter system, offer three courses on
database systems, and assign grades from A+ to F, whereas another may
a semester system, offer two courses on databases, and assign grades from
10.

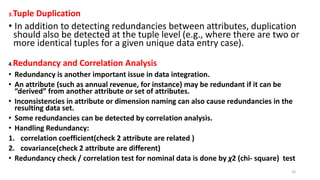

16. 3.Tuple Duplication
• In addition to detecting redundancies between attributes, duplication
should also be detected at the tuple level (e.g., where there are two or
more identical tuples for a given unique data entry case).
4.Redundancy and Correlation Analysis
• Redundancy is another important issue in data integration.
• An attribute (such as annual revenue, for instance) may be redundant if it can be
“derived” from another attribute or set of attributes.
• Inconsistencies in attribute or dimension naming can also cause redundancies in the
resulting data set.
• Some redundancies can be detected by correlation analysis.
• Handling Redundancy:
1. correlation coefficient(check 2 attribute are related )
2. covariance(check 2 attribute are different)

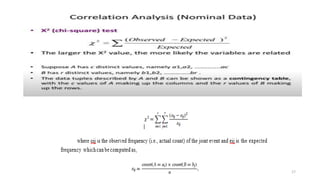

• Redundancy check / correlation test for nominal data is done by χ2 (chi- square) test
16

17. 17

18. 18

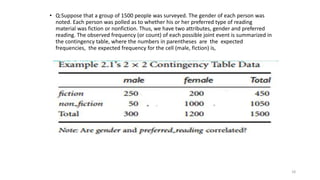

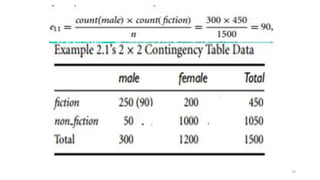

• Q:Suppose that a group of 1500 people was surveyed. The gender of each person was
noted. Each person was polled as to whether his or her preferred type of reading
material was fiction or nonfiction. Thus, we have two attributes, gender and preferred
reading. The observed frequency (or count) of each possible joint event is summarized in
the contingency table, where the numbers in parentheses are the expected
frequencies, the expected frequency for the cell (male, fiction) is,

19. 19

20. 20
For this 2 × 2 table, the degrees of freedom are : (r-1)(c-1)=(2 – 1)/(2 – 1)=1. For 1 degree of freedom, the χ2 value
needed to reject the hypothesis at the 0.001 significance level is 10.827.
Since our computed value is above this, we can reject the hypothesis that gender and preferred reading are independent
and conclude that the two attributes are (strongly) correlated for the given group of people.

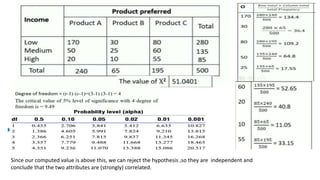

22. Since our computed value is above this, we can reject the hypothesis ,so they are independent and
conclude that the two attributes are (strongly) correlated.

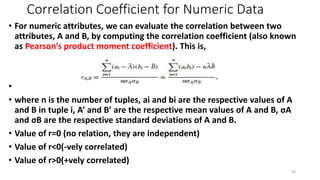

23. Correlation Coefficient for Numeric Data
• For numeric attributes, we can evaluate the correlation between two
attributes, A and B, by computing the correlation coefficient (also known
as Pearson’s product moment coefficient). This is,
•
• where n is the number of tuples, ai and bi are the respective values of A
and B in tuple i, A’ and B’ are the respective mean values of A and B, σA
and σB are the respective standard deviations of A and B.
• Value of r=0 (no relation, they are independent)
• Value of r<0(-vely correlated)
• Value of r>0(+vely correlated)
23

24. Covariance of Numeric Data
• How much two attribute change together
24

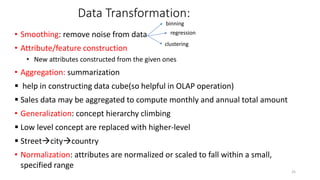

25. Data Transformation:
• Smoothing: remove noise from data
• Attribute/feature construction
• New attributes constructed from the given ones
• Aggregation: summarization
 help in constructing data cube(so helpful in OLAP operation)
 Sales data may be aggregated to compute monthly and annual total amount
• Generalization: concept hierarchy climbing
 Low level concept are replaced with higher-level
 Streetcitycountry
• Normalization: attributes are normalized or scaled to fall within a small,
specified range
25
binning
regression
clustering

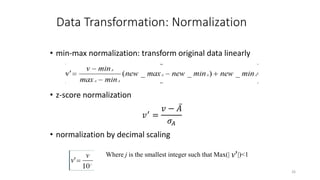

26. Data Transformation: Normalization
• min-max normalization: transform original data linearly
• z-score normalization
𝑣′
=
𝑣 − 𝐴
𝜎𝐴
• normalization by decimal scaling
26
Where j is the smallest integer such that Max(| |)<1
'
v

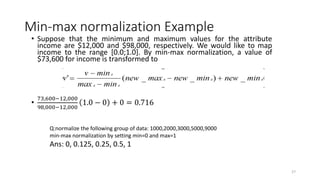

27. Min-max normalization Example
• Suppose that the minimum and maximum values for the attribute
income are $12,000 and $98,000, respectively. We would like to map
income to the range [0.0;1.0]. By min-max normalization, a value of
$73,600 for income is transformed to
•
73,600−12,000
98,000−12,000
1.0 − 0 + 0 = 0.716
27
Q:normalize the following group of data: 1000,2000,3000,5000,9000
min-max normalization by setting min=0 and max=1
Ans: 0, 0.125, 0.25, 0.5, 1

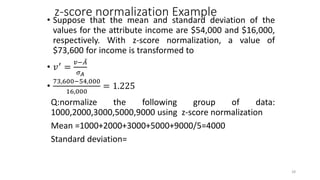

28. z-score normalization Example
• Suppose that the mean and standard deviation of the
values for the attribute income are $54,000 and $16,000,
respectively. With z-score normalization, a value of
$73,600 for income is transformed to
• 𝑣′
=
𝑣−𝐴
𝜎𝐴
•
73,600−54,000
16,000
= 1.225

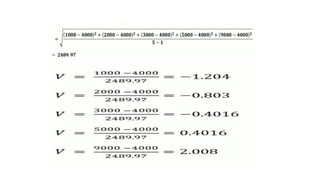

Q:normalize the following group of data:
1000,2000,3000,5000,9000 using z-score normalization
Mean =1000+2000+3000+5000+9000/5=4000
Standard deviation=
28

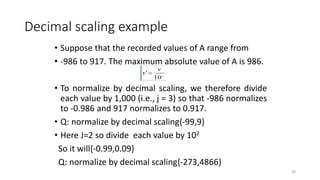

30. Decimal scaling example
• Suppose that the recorded values of A range from
• -986 to 917. The maximum absolute value of A is 986.
• To normalize by decimal scaling, we therefore divide
each value by 1,000 (i.e., j = 3) so that -986 normalizes
to -0.986 and 917 normalizes to 0.917.
• Q: normalize by decimal scaling{-99,9}
• Here J=2 so divide each value by 102
So it will{-0.99,0.09}
Q: normalize by decimal scaling{-273,4866}
30

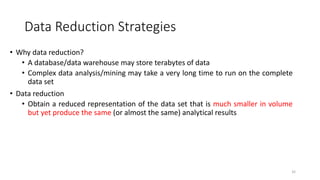

32. Data Reduction Strategies
• Why data reduction?
• A database/data warehouse may store terabytes of data
• Complex data analysis/mining may take a very long time to run on the complete
data set
• Data reduction
• Obtain a reduced representation of the data set that is much smaller in volume
but yet produce the same (or almost the same) analytical results
32

33. Data Reduction Strategies
1. Data cube aggregation It is a process in which information is gathered and
expressed in a summary form.
• Data cube Stores multi-dimensional
aggregated information.
2. Attribute subset selection
• irrelevant, weakly relevant, or redundant attributes or dimensions may be detected and removed.
3. Data Compression-Data encoding or transformations are applied so as to obtain a reduced or
compressed representation of original data
1.Lossless – with out any loss of information
2.Lossy – approximation of original data
4. Dimensionality reduction - e.g., remove unimportant attributes
5. Numerosity reduction - e.g., fit data into models
6. Discretization and concept hierarchy generation

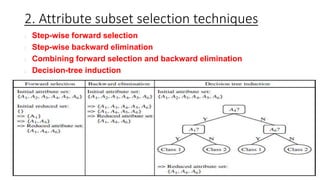

34. 2. Attribute subset selection techniques
� Step-wise forward selection
� Step-wise backward elimination
� Combining forward selection and backward elimination
� Decision-tree induction

35. Combining forward selection and backward
elimination(bi-directional selection and elimination)

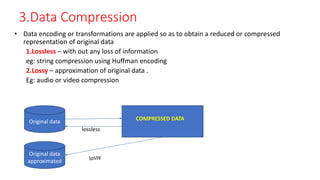

36. 3.Data Compression
• Data encoding or transformations are applied so as to obtain a reduced or compressed
representation of original data
1.Lossless – with out any loss of information
eg: string compression using Huffman encoding
2.Lossy – approximation of original data .
Eg: audio or video compression
Original data
Original data
approximated
COMPRESSED DATA
lossless

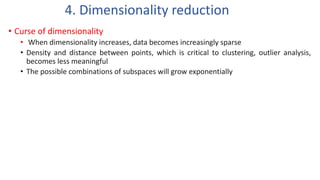

37. • Curse of dimensionality
• When dimensionality increases, data becomes increasingly sparse
• Density and distance between points, which is critical to clustering, outlier analysis,
becomes less meaningful
• The possible combinations of subspaces will grow exponentially
4. Dimensionality reduction

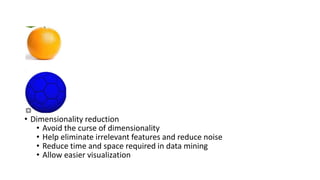

38. • Dimensionality reduction
• Avoid the curse of dimensionality
• Help eliminate irrelevant features and reduce noise
• Reduce time and space required in data mining
• Allow easier visualization

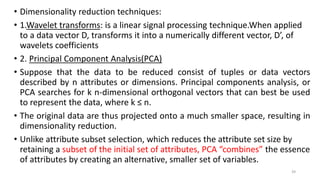

39. • Dimensionality reduction techniques:
• 1.Wavelet transforms: is a linear signal processing technique.When applied
to a data vector D, transforms it into a numerically different vector, D’, of
wavelets coefficients

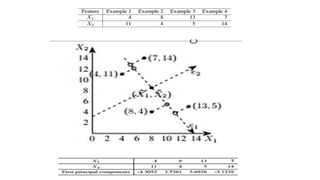

• 2. Principal Component Analysis(PCA)
• Suppose that the data to be reduced consist of tuples or data vectors
described by n attributes or dimensions. Principal components analysis, or
PCA searches for k n-dimensional orthogonal vectors that can best be used
to represent the data, where k ≤ n.
• The original data are thus projected onto a much smaller space, resulting in
dimensionality reduction.
• Unlike attribute subset selection, which reduces the attribute set size by
retaining a subset of the initial set of attributes, PCA “combines” the essence
of attributes by creating an alternative, smaller set of variables.
39

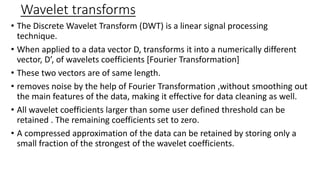

41. Wavelet transforms
• The Discrete Wavelet Transform (DWT) is a linear signal processing
technique.
• When applied to a data vector D, transforms it into a numerically different
vector, D’, of wavelets coefficients [Fourier Transformation]
• These two vectors are of same length.
• removes noise by the help of Fourier Transformation ,without smoothing out
the main features of the data, making it effective for data cleaning as well.
• All wavelet coefficients larger than some user defined threshold can be
retained . The remaining coefficients set to zero.
• A compressed approximation of the data can be retained by storing only a
small fraction of the strongest of the wavelet coefficients.

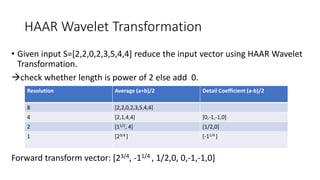

42. HAAR Wavelet Transformation
• Given input S=[2,2,0,2,3,5,4,4] reduce the input vector using HAAR Wavelet
Transformation.
check whether length is power of 2 else add 0.
Forward transform vector: [23/4, -11/4 , 1/2,0, 0,-1,-1,0]
Resolution Average (a+b)/2 Detail Coefficient (a-b)/2
8 [2,2,0,2,3,5,4,4]
4 [2,1,4,4] [0,-1,-1,0]
2 [11/2, 4] [1/2,0]
1 [23/4 ] [-11/4 ]

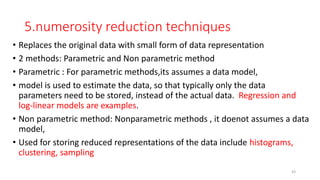

43. 5.numerosity reduction techniques
• Replaces the original data with small form of data representation
• 2 methods: Parametric and Non parametric method
• Parametric : For parametric methods,its assumes a data model,
• model is used to estimate the data, so that typically only the data
parameters need to be stored, instead of the actual data. Regression and
log-linear models are examples.
• Non parametric method: Nonparametric methods , it doenot assumes a data
model,
• Used for storing reduced representations of the data include histograms,
clustering, sampling
43

44. Regression and Log-Linear Models
• In linear regression, the data are modeled to fit a straight line
• Y = α+βx, y (called a response variable) and x is predictor variable
• α and β (called regression coefficients) These coefficients can be solved for by the method of least
squares.
• Multiple linear regression is an extension of (simple) linear regression,
• which allows a response variable, y, to be modelled as a linear function of two or more predictor variables.
• Log-linear models is a technique used in statistics to examine the relationship between more than two
categorical variables.
• This allows a higher-dimensional data space to be constructed from lower-dimensional spaces.
• Log-linear models are therefore also useful for dimensionality reduction (since the lower dimensional
points together typically occupy less space than the original data points) and data smoothing (since
aggregate estimates in the lower-dimensional space are less subject to sampling variations than the
estimates in the higher-dimensional space).
• . 44

45. Histograms:
• The following data are a list of prices of commonly sold items at
AllElectronics (rounded to the nearest dollar).
• The numbers have been sorted: 1, 1, 5, 5, 5, 5, 5, 8, 8, 10, 10, 10, 10, 12,
14, 14, 14, 15, 15, 15, 15, 15, 15, 18, 18, 18, 18, 18, 18, 18, 18, 20, 20, 20,
20, 20, 20, 20, 21, 21, 21, 21, 25, 25, 25, 25, 25, 28, 28, 30, 30, 30.
45
Histograms use binning to approximate data distributions and are a popular form of data reduction.
A histogram for an attribute, A, partitions the data distribution of A into disjoint subsets, or buckets.
If each bucket represents only a single attribute-value/frequency pair, the buckets are called singleton buckets

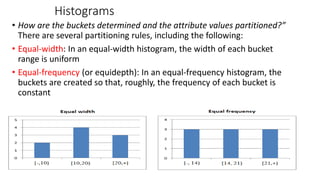

46. Histograms
• How are the buckets determined and the attribute values partitioned?”
There are several partitioning rules, including the following:
• Equal-width: In an equal-width histogram, the width of each bucket
range is uniform
• Equal-frequency (or equidepth): In an equal-frequency histogram, the
buckets are created so that, roughly, the frequency of each bucket is
constant
46

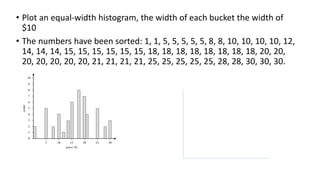

47. • Plot an equal-width histogram, the width of each bucket the width of
$10
• The numbers have been sorted: 1, 1, 5, 5, 5, 5, 5, 8, 8, 10, 10, 10, 10, 12,
14, 14, 14, 15, 15, 15, 15, 15, 15, 18, 18, 18, 18, 18, 18, 18, 18, 20, 20,
20, 20, 20, 20, 20, 21, 21, 21, 21, 25, 25, 25, 25, 25, 28, 28, 30, 30, 30.

50. • V-optimal: If we consider all of the possible histograms for a given number
of buckets, the V-optimal histogram is the one with least variance.
Histogram is a weighted sum of the all original values that each bucket
represents, where bucket weight is equal to the number of values in the
bucket.
• MaxDiff: In a MaxDiff histogram , we consider the difference between each
pair of adjacent values. A bucket boundary is established between pair for
pairs having k-1 largest differences, where k is user specified
• V-optimal and MaxDiff are most accurate and practical histograms.

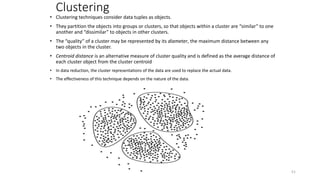

51. Clustering
• Clustering techniques consider data tuples as objects.
• They partition the objects into groups or clusters, so that objects within a cluster are “similar” to one
another and “dissimilar” to objects in other clusters.
• The “quality” of a cluster may be represented by its diameter, the maximum distance between any
two objects in the cluster.
• Centroid distance is an alternative measure of cluster quality and is defined as the average distance of
each cluster object from the cluster centroid
• In data reduction, the cluster representations of the data are used to replace the actual data.
• The effectiveness of this technique depends on the nature of the data.
51

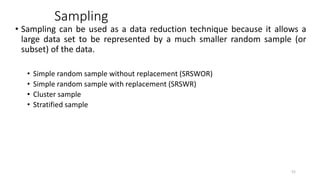

52. Sampling
• Sampling can be used as a data reduction technique because it allows a
large data set to be represented by a much smaller random sample (or
subset) of the data.
• Simple random sample without replacement (SRSWOR)
• Simple random sample with replacement (SRSWR)
• Cluster sample
• Stratified sample
52

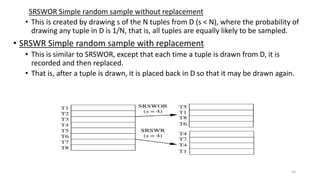

53. SRSWOR Simple random sample without replacement
• This is created by drawing s of the N tuples from D (s < N), where the probability of
drawing any tuple in D is 1/N, that is, all tuples are equally likely to be sampled.
• SRSWR Simple random sample with replacement
• This is similar to SRSWOR, except that each time a tuple is drawn from D, it is
recorded and then replaced.
• That is, after a tuple is drawn, it is placed back in D so that it may be drawn again.
53

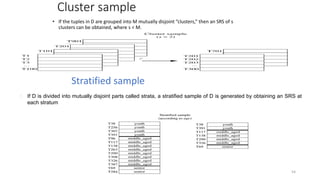

54. Cluster sample
• If the tuples in D are grouped into M mutually disjoint “clusters,” then an SRS of s
clusters can be obtained, where s < M.
54
Stratified sample
� If D is divided into mutually disjoint parts called strata, a stratified sample of D is generated by obtaining an SRS at
each stratum

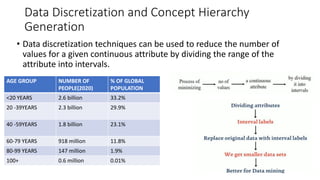

55. Data Discretization and Concept Hierarchy
Generation
• Data discretization techniques can be used to reduce the number of
values for a given continuous attribute by dividing the range of the
attribute into intervals.
AGE GROUP NUMBER OF
PEOPLE(2020)
% OF GLOBAL
POPULATION
<20 YEARS 2.6 billion 33.2%
20 -39YEARS 2.3 billion 29.9%
40 -59YEARS 1.8 billion 23.1%
60-79 YEARS 918 million 11.8%
80-99 YEARS 147 million 1.9%
100+ 0.6 million 0.01%

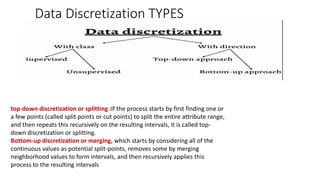

56. Data Discretization TYPES
top-down discretization or splitting :If the process starts by first finding one or
a few points (called split points or cut points) to split the entire attribute range,
and then repeats this recursively on the resulting intervals, it is called top-
down discretization or splitting.
Bottom-up discretization or merging, which starts by considering all of the
continuous values as potential split-points, removes some by merging
neighborhood values to form intervals, and then recursively applies this
process to the resulting intervals

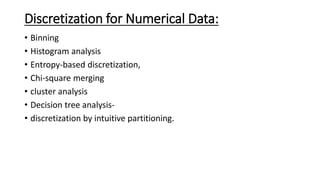

57. Discretization for Numerical Data:
• Binning
• Histogram analysis
• Entropy-based discretization,
• Chi-square merging
• cluster analysis
• Decision tree analysis-
• discretization by intuitive partitioning.

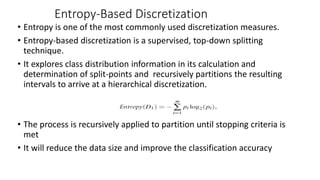

58. • Entropy is one of the most commonly used discretization measures.
• Entropy-based discretization is a supervised, top-down splitting
technique.
• It explores class distribution information in its calculation and
determination of split-points and recursively partitions the resulting
intervals to arrive at a hierarchical discretization.
• The process is recursively applied to partition until stopping criteria is
met
• It will reduce the data size and improve the classification accuracy
Entropy-Based Discretization

59. Chi-square merging

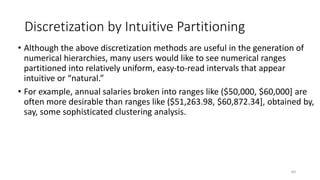

60. Discretization by Intuitive Partitioning
• Although the above discretization methods are useful in the generation of
numerical hierarchies, many users would like to see numerical ranges
partitioned into relatively uniform, easy-to-read intervals that appear
intuitive or “natural.”
• For example, annual salaries broken into ranges like ($50,000, $60,000] are
often more desirable than ranges like ($51,263.98, $60,872.34], obtained by,
say, some sophisticated clustering analysis.
60
