The document discusses the CSS box model, which treats HTML elements as boxes that can be manipulated. The box model consists of the content, padding, border, and margin. Content is the text or images, padding is the transparent space around the content within the border, border is the visible line around the padding, and margin is the transparent space outside the border. Common uses of the box model include adding borders, controlling spacing, and precisely defining values for each side of an element.

1. 11/12/2015
CSS
Box Model
Reed Crouch

2. 11/12/2015
WHAT IS THE CSS BOX MODEL?
 HTML elements can be considered as
boxes. In CSS, the term "box model" is
used when referring to layout. You can think
of it as a box that wraps around HTML
content elements (text, graphics, etc.),
consisting of the box elements: padding,
borders, and margins.

3. Border
Padding
11/12/2015

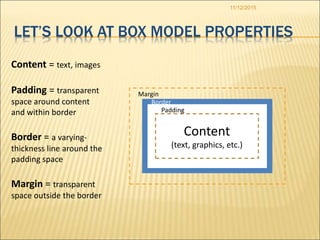

LET’S LOOK AT BOX MODEL PROPERTIES
Content
(text, graphics, etc.)
Margin
Content = text, images
Padding = transparent
space around content
and within border
Border = a varying-
thickness line around the
padding space
Margin = transparent
space outside the border

4. 11/12/2015

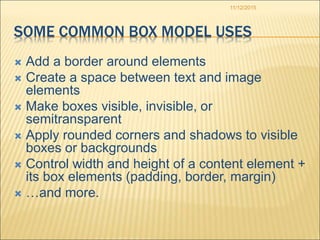

SOME COMMON BOX MODEL USES
 Add a border around elements
 Create a space between text and image
elements
 Make boxes visible, invisible, or
semitransparent
 Apply rounded corners and shadows to visible
boxes or backgrounds
 Control width and height of a content element +
its box elements (padding, border, margin)
 …and more.

5. Border
3 px all 4 sides
11/12/2015
SHOW ME DETAILS!
All box model properties can
be precisely defined with
values for top, right, bottom,
and left sides and are
contained within the HTML
<div> tag.
With the CSS box model, you
can apply the same spacing
value to all sides, or different
spacing to each side.
Padding space:
5 px all 4 sides
CSS Class
.motoImg {
padding: 5px;
border: 3px;
margin: 5px 35px 15px 5px;
}
Margin space
Note different
spacing on each of
4 sides. Varying
values can apply
to any of the box
model elements.
<img class=“motoImg” src=“motoimg1.png”/>
Example:
padding: 3px; (All 4 sides the same)
border: 3px; (All 4 sides the same)
margin: 5px 35px 15px 5px; (Different)
35 px
15 px
5 px
5 px

6. PAGE
BACKGROUND
BANNER AREA
11/12/2015

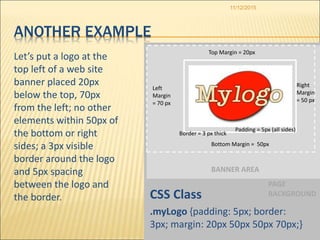

ANOTHER EXAMPLE
Let’s put a logo at the
top left of a web site
banner placed 20px
below the top, 70px
from the left; no other
elements within 50px of
the bottom or right
sides; a 3px visible
border around the logo
and 5px spacing
between the logo and
the border. CSS Class
.myLogo {padding: 5px; border:
3px; margin: 20px 50px 50px 70px;}
Padding = 5px (all sides)
Border = 3 px thick
Left
Margin
= 70 px
Bottom Margin = 50px
Top Margin = 20px
Right
Margin
= 50 px

7. 11/12/2015
BOX MODEL PROPERTIES AND VALUES
Properties and Values Syntax
“padding: 5px”
is the same as
“padding 5px 5px 5px 5px”
is the same as
padding-top: 5px;
padding-right: 5px;
padding-bottom: 5px;
padding-left: 5px;
Choose the method that works best.
5px
5px
5px5px Content
Padding

8. 11/12/2015
Thank You!
