cross section detail design

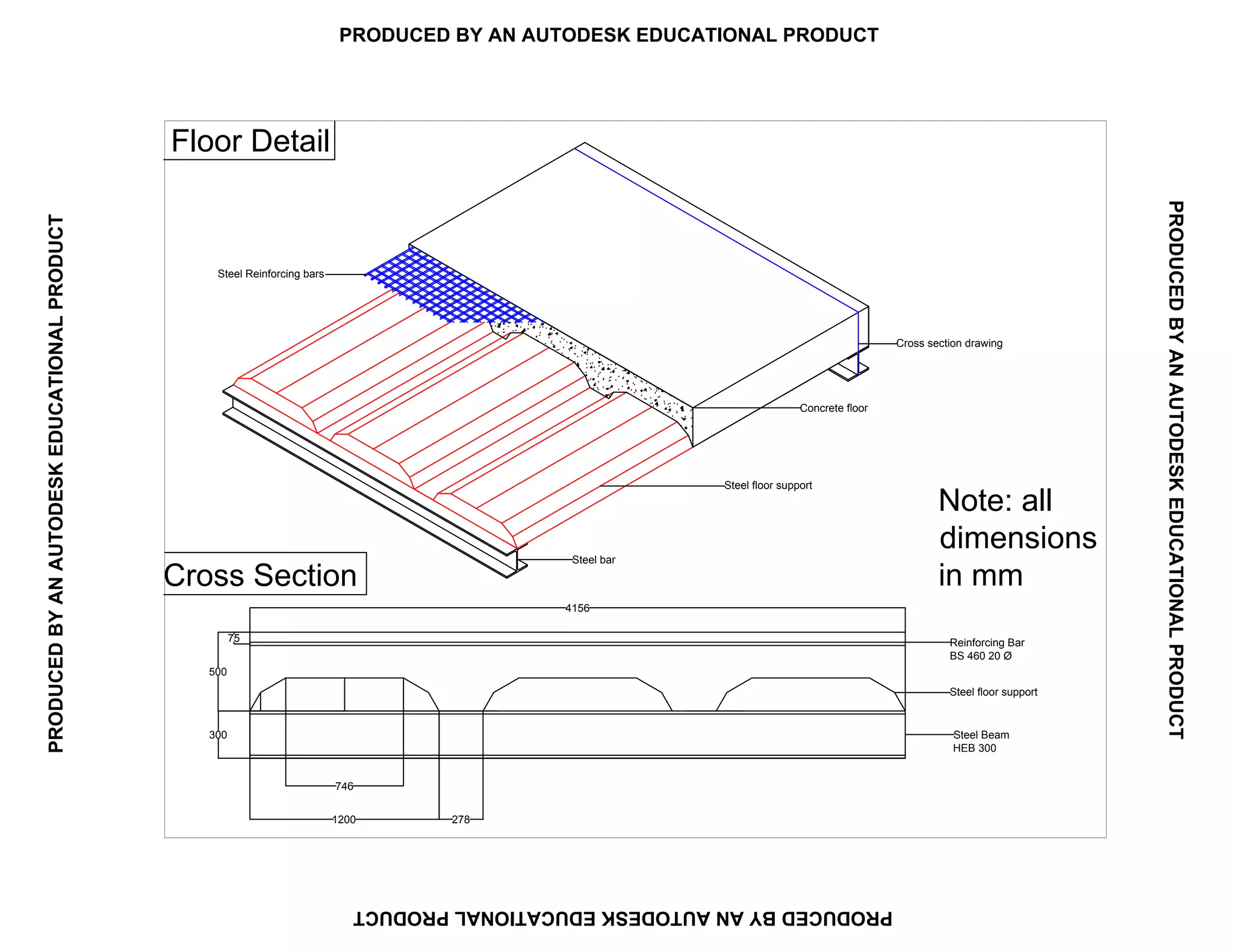

- 1. Steel Beam HEB 300 Reinforcing Bar Steel floor support 300 500 75 4156 1200 746 278 Steel bar Steel floor support Concrete floor Cross section drawing Steel Reinforcing bars Cross Section Floor Detail Note: all dimensions in mm PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT PRODUCEDBYANAUTODESKEDUCATIONALPRODUCT PRODUCED BY AN AUTODESK EDUCATIONAL PRODUCT
