The AEE - Institute for Sustainable Technologies was founded in 1988 in Austria as a non-university research institute focused on renewable energy and resource efficiency. It conducts research, development, consulting and training. It has 65 employees including master's students, PhD students, and staff. The institute has several research departments focused on areas like thermal energy technologies, industrial processes, building and retrofitting, and monitoring labs. The document discusses a pressure loss model for T-pieces that the institute developed using experimental data in order to make it openly available so it can be used for hydraulic analysis and applications like solar collectors. The model is published under an open license so it can be used and adapted by others.

1. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at
AEE - Institute for Sustainable Technologies (AEE INTEC)
8200 Gleisdorf, Feldgasse 19, AUSTRIA
AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at 24.10.2016
AEE INTEC
@ DataPioneers CreateCamp
T-piece pressure loss model à OpenData!
Philip Ohnewein

2. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at
1988
2017
AEE - Institute for Sustainable Technologies

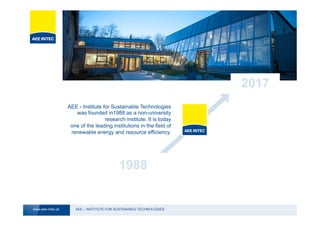

was founded in1988 as a non-university
research institute. It is today
one of the leading institutions in the field of
renewable energy and resource efficiency.

3. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at
Research
Development
Consulting
Training

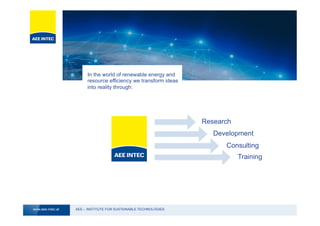

In the world of renewable energy and
resource efficiency we transform ideas
into reality through:

4. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at
Masterstudents PhD Students
Staff Members
65
8-10 3
Our
Employees

5. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at

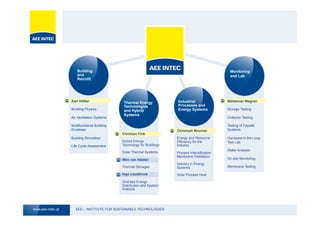

Christian Fink
Hybrid Energy
Technology for Buildings
––––––
Solar Thermal Systems
Wim van Helden
Thermal Storages
Ingo Leusbrock
Grid-tied Energy
Distribution and System
Analysis
Christoph Brunner
Energy and Resource
Efficiency for the
Industry
––––––
Process Intensification
Membrane Distillation
––––––
Industry in Energy
Systems
––––––
Solar Process Heat
Karl Höfler
Building Physics
––––––
Air Ventilation Systems
––––––
Multifunctional Building
Envelope Systems
––––––
Building Simulation
––––––
Life Cycle Assessment
Waldemar Wagner
Storage Testing
––––––
Collector Testing
––––––
Testing of Façade
Systems
––––––
Hardware in the Loop
Test Lab
––––––
Water Analysis
––––––
On-site Monitoring
––––––
Membrane Testing
Building
and
Retrofit
Industrial
Processes and
Energy Systems
Monitoring
and Lab
Thermal Energy
Technologies
and Hybrid
Systems

6. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at Title | 24.10.2016

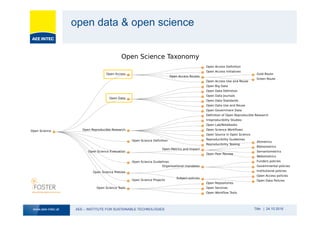

open data & open science

7. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at Title | 24.10.2016

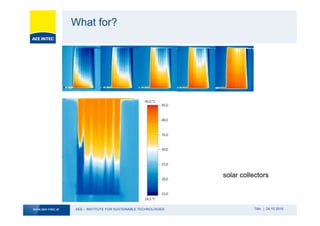

What for?
solar collectors

8. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at Title | 24.10.2016
What for?

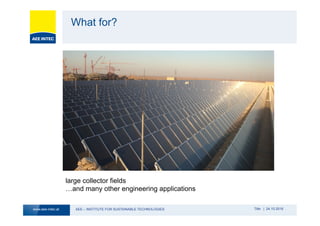

large collector fields
…and many other engineering applications

9. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at Title | 24.10.2016

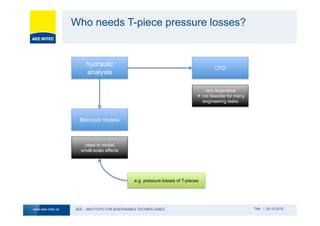

Who needs T-piece pressure losses?
hydraulic
analysis
CFD
very expensive
à not feasible for many
engineering tasks
Bernoulli models
need to model
small-scale effects
e.g. pressure losses of T-pieces

10. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at Title | 24.10.2016

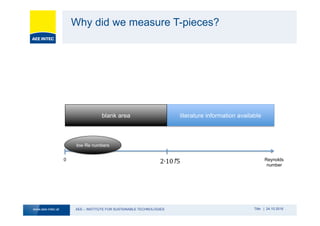

Why did we measure T-pieces?
Reynolds
number
2∙​10↑5 0
literature information availableblank area
low Re numbers

11. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at Title | 24.10.2016

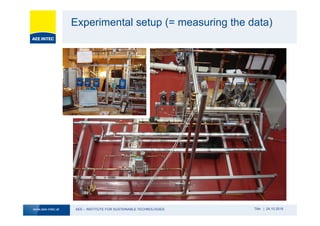

Experimental setup (= measuring the data)

12. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at Title | 24.10.2016

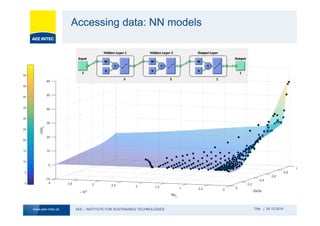

Accessing data: NN models

13. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at Title | 24.10.2016

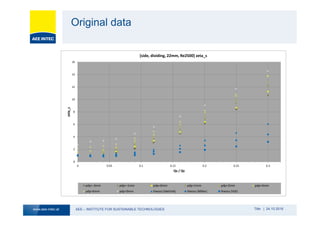

Original data
0
2
4
6
8
10
12
14
16
0 0.05 0.1 0.15 0.2 0.25 0.3
zeta_s
Qs
/
Qc
[side,
dividing,
22mm,
Re2500]
zeta_s
pdp=-­‐3mm pdp=-­‐1mm pdp=0mm pdp=1mm pdp=2mm pdp=4mm
pdp=6mm pdp=9mm theory
(Idelchik) theory
(Miller) theory
(VDI)

14. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at Title | 24.10.2016

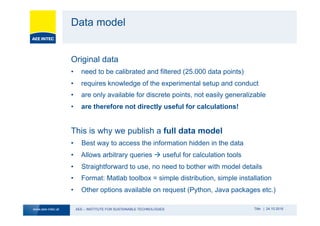

Data model
Original data
• need to be calibrated and filtered (25.000 data points)
• requires knowledge of the experimental setup and conduct
• are only available for discrete points, not easily generalizable
• are therefore not directly useful for calculations!
This is why we publish a full data model
• Best way to access the information hidden in the data
• Allows arbitrary queries à useful for calculation tools
• Straightforward to use, no need to bother with model details
• Format: Matlab toolbox = simple distribution, simple installation
• Other options available on request (Python, Java packages etc.)

15. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at Title | 24.10.2016
Licensing
Data model is published under CC BY-SA 4.0
• shared content can be used by everybody
• shared content can be adapted
• commercial use possible
• SA: ShareAlike: redistribute contribs under same license
• BY: Credit must be given to the authors
• figshare repository provides doi
doi: 10.6084/m9.figshare.4596850

16. AEE – INSTITUTE FOR SUSTAINABLE TECHNOLOGIESwww.aee-intec.at Title | 24.10.2016

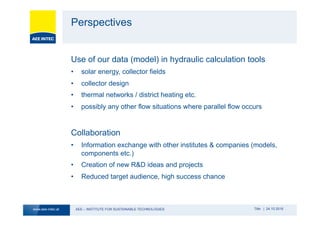

Perspectives
