Creación aplicación Web base struts2

Creación aplicación base Struts2 Clase 11- 12

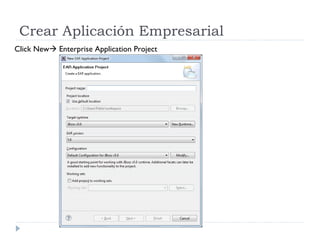

Crear Aplicación Empresarial Click New  Enterprise Application Project

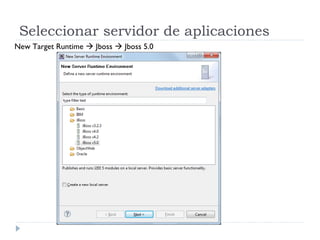

Seleccionar servidor de aplicaciones New Target Runtime  Jboss  Jboss 5.0

Seleccionar servidor de aplicaciones Buscar carpeta base del JBOSS instalado

Seleccionar servidor de aplicaciones

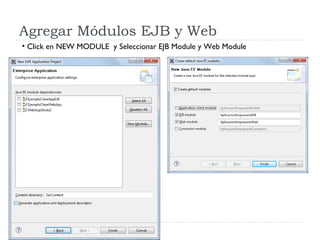

Agregar Módulos EJB y Web Click en NEW MODULE y Seleccionar EJB Module y Web Module

Instalación de aplicación Web del Profe 1.-Copiar del proyecto Web Enviado las carpetas SRC y WebContent a la carpeta Base del proytecto creado que se ubicará en : C:\Users\<Usuario>\workspace\AplicacionEmpresarialWeb y reemplazar Todo

Instalación de aplicación Web del Profe 2.- Actualizar el proyecto creado para que aparezcan los archivos copiados

Agregar las librerías Struts2 para la ejecución 1.- Click derecho sobre la aplicación Web 2.- Propiedades  Java Build Path  Libraries  Add JARs

Agregar las librerías Struts2 para la ejecución 3.- Seleccionar JAR de la carpeta LIB ubicada en WebContent  WEB-INF del proyecto creado

Ejecutar la aplicación creada 1.- Click derecho sobre aplicación Web  RUN AS  Run on Server

Crear una aplicación Struts2 Base 1.- Crear Formuario JSP : 1.1 Crear carpeta ingreso donde se coloquen los JSP a crear

Crear Formulario JSP 1.-Click derecho sobre carpeta ingreso  JSP File 2.- Crear index.jsp , formulario.jsp, resultado.jsp

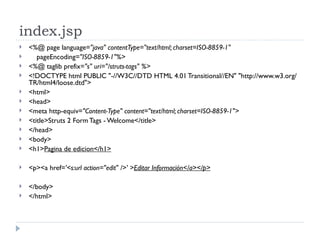

index.jsp <%@ page language= "java" contentType="text/html; charset=ISO-8859-1" pageEncoding= "ISO-8859-1"%> <%@ taglib prefix= "s" uri="/struts-tags" %> <!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"> <html> <head> <meta http-equiv= "Content-Type" content="text/html; charset=ISO-8859-1"> <title>Struts 2 Form Tags - Welcome</title> </head> <body> <h1> Pagina de edicion</h1> <p><a href= '<s:url action="edit" />' > Editar Información</a></p> </body> </html>

Formulario.jsp <%@ page language= "java" contentType="text/html; charset=ISO-8859-1" pageEncoding= "ISO-8859-1"%> <%@ taglib prefix= "s" uri="/struts-tags" %> <!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"> <html> <head> <s:head /> <meta http-equiv= "Content-Type" content="text/html; charset=ISO-8859-1"> <title> Editar Persona</title> </head> <body> <h1> Actualizar</h1> <s:form action= "save" method="post"> <s:textfield key= "personBean.firstName" /> <s:textfield key= "personBean.lastName" /> <s:select key= "personBean.sport" list="sports" /> <s:radio key= "personBean.gender" list="genders" /> <s:select key= "personBean.residency" list="states" listKey="stateAbbr" listValue="stateName" /> <s:checkbox key= "personBean.over21" /> <s:checkboxlist key= "personBean.carModels" list="carModelsAvailable" /> <s:submit key= "submit" /> </s:form> </body> </html>

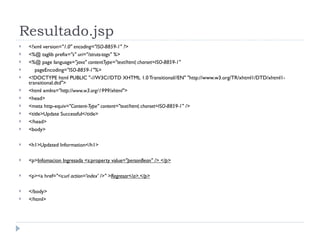

Resultado.jsp <?xml version= "1.0" encoding="ISO-8859-1" ?> <%@ taglib prefix= "s" uri="/struts-tags" %> <%@ page language= "java" contentType="text/html; charset=ISO-8859-1" pageEncoding= "ISO-8859-1"%> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html xmlns= "http://www.w3.org/1999/xhtml"> <head> <meta http-equiv= "Content-Type" content="text/html; charset=ISO-8859-1" /> <title>Update Successful</title> </head> <body> <h1>Updated Information</h1> <p> Infomacion Ingresada <s:property value= "personBean" /> </p> <p><a href= "<s:url action='index' />" > Regresar</a>.</p> </body> </html>

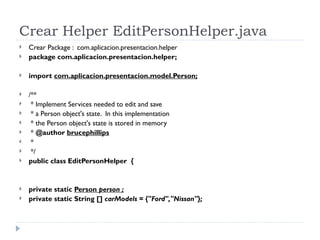

Crear Helper EditPersonHelper.java Crear Package : com.aplicacion.presentacion.helper package com.aplicacion.presentacion.helper; import com.aplicacion.presentacion.model.Person; /** * Implement Services needed to edit and save * a Person object's state. In this implementation * the Person object's state is stored in memory * @author brucephillips * */ public class EditPersonHelper { private static Person person ; private static String [] carModels = {"Ford","Nissan"};

EditPersonHelper.java static { person = new Person(); person.setFirstName("Bruce"); person.setLastName("Phillips"); person.setSport("basketball"); person.setGender("not sure"); person.setResidency("KS"); person.setOver21( true); person.setCarModels( carModels); } public Person getPerson() {

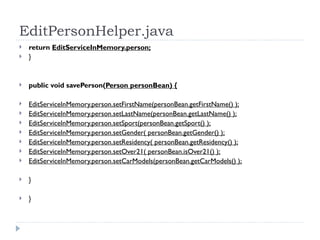

EditPersonHelper.java return EditServiceInMemory.person; } public void savePerson( Person personBean) { EditServiceInMemory.person.setFirstName(personBean.getFirstName() ); EditServiceInMemory.person.setLastName(personBean.getLastName() ); EditServiceInMemory.person.setSport(personBean.getSport() ); EditServiceInMemory.person.setGender( personBean.getGender() ); EditServiceInMemory.person.setResidency( personBean.getResidency() ); EditServiceInMemory.person.setOver21( personBean.isOver21() ); EditServiceInMemory.person.setCarModels(personBean.getCarModels() ); } }

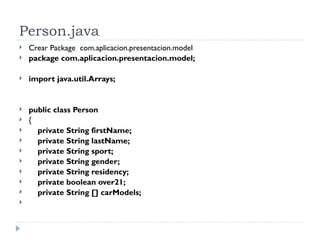

Person.java Crear Package com.aplicacion.presentacion.model package com.aplicacion.presentacion.model; import java.util.Arrays; public class Person { private String firstName; private String lastName; private String sport; private String gender; private String residency; private boolean over21; private String [] carModels;

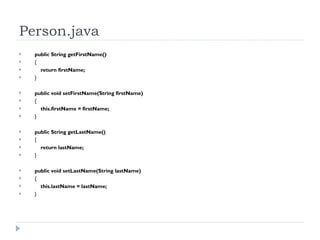

Person.java public String getFirstName() { return firstName; } public void setFirstName(String firstName) { this.firstName = firstName; } public String getLastName() { return lastName; } public void setLastName(String lastName) { this.lastName = lastName; }

Person.java public void setSport(String sport) { this.sport = sport; } public void setGender(String gender) { this.gender = gender; } public String getGender() { return gender; } public String getSport() { return sport; } public void setResidency(String residency) { this.residency = residency; } public String getResidency() { return residency; } public void setOver21(boolean over21) { this.over21 = over21; }

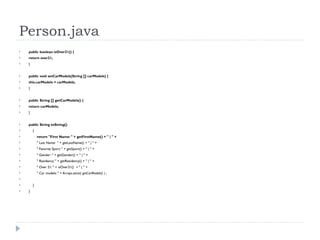

Person.java public boolean isOver21() { return over21; } public void setCarModels(String [] carModels) { this.carModels = carModels; } public String [] getCarModels() { return carModels; } public String toString() { return "First Name: " + getFirstName() + " | " + " Last Name: " + getLastName() + " | " + " Favorite Sport: " + getSport() + " | " + " Gender: " + getGender() + " | " + " Residency: " + getResidency() + " | " + " Over 21: " + isOver21() + " | " + " Car models: " + Arrays. asList( getCarModels() ) ; } }

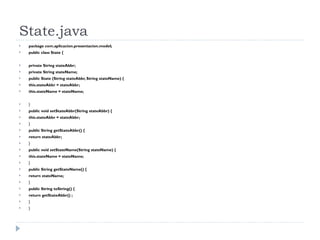

State.java package com.aplicacion.presentacion.model; public class State { private String stateAbbr; private String stateName; public State (String stateAbbr, String stateName) { this.stateAbbr = stateAbbr; this.stateName = stateName; } public void setStateAbbr(String stateAbbr) { this.stateAbbr = stateAbbr; } public String getStateAbbr() { return stateAbbr; } public void setStateName(String stateName) { this.stateName = stateName; } public String getStateName() { return stateName; } public String toString() { return getStateAbbr() ; } }

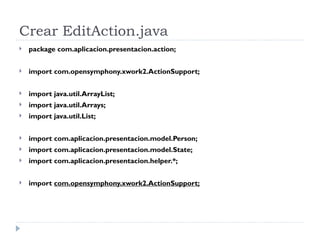

Crear EditAction.java package com.aplicacion.presentacion.action; import com.opensymphony.xwork2.ActionSupport; import java.util.ArrayList; import java.util.Arrays; import java.util.List; import com.aplicacion.presentacion.model.Person; import com.aplicacion.presentacion.model.State; import com.aplicacion.presentacion.helper.*; import com.opensymphony.xwork2.ActionSupport;

public class EditAction extends ActionSupport { private static final long serialVersionUID = 1L; private EditPersonHelper editService = new EditPersonHelper(); private Person personBean; private String [] sports = {"football", "baseball", "basketball" }; private String [] genders = {"male", "female", "not sure" }; private List<State> states ; private String [] carModelsAvailable = {"Ford","Chrysler","Toyota","Nissan"}; public String execute() throws Exception { editService.savePerson( getPersonBean() ); return SUCCESS; }

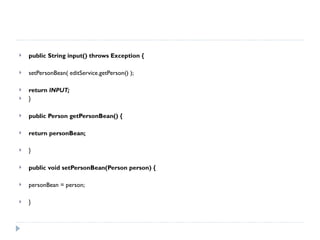

public String input() throws Exception { setPersonBean( editService.getPerson() ); return INPUT; } public Person getPersonBean() { return personBean; } public void setPersonBean(Person person) { personBean = person; }

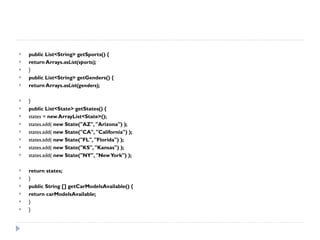

public List<String> getSports() { return Arrays. asList(sports); } public List<String> getGenders() { return Arrays. asList(genders); } public List<State> getStates() { states = new ArrayList<State>(); states.add( new State("AZ", "Arizona") ); states.add( new State("CA", "California") ); states.add( new State("FL", "Florida") ); states.add( new State("KS", "Kansas") ); states.add( new State("NY", "New York") ); return states; } public String [] getCarModelsAvailable() { return carModelsAvailable; } }

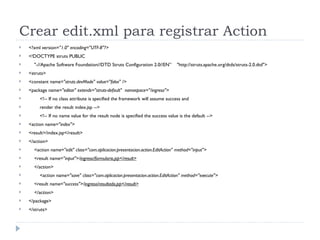

Crear edit.xml para registrar Action <?xml version= "1.0" encoding="UTF-8"?> <!DOCTYPE struts PUBLIC "-//Apache Software Foundation//DTD Struts Configuration 2.0//EN” "http://struts.apache.org/dtds/struts-2.0.dtd"> <struts> <constant name= "struts.devMode" value="false" /> <package name= "editar" extends="struts-default" namespace="/ingreso">   <action name= "index"> <result>/index.jsp</result> </action> <action name= "edit" class="com.aplicacion.presentacion.action.EditAction" method="input"> <result name= "input">/ ingreso/formulario.jsp</result> </action> <action name= "save" class="com.aplicacion.presentacion.action.EditAction" method="execute"> <result name= "success">/ ingreso/resultado.jsp</result> </action> </package> </struts>

Registrarlo en Struts.xml <include file= "edit.xml"/>

Creación aplicación Web base struts2
