The document discusses principles and tools of continuous delivery on AWS, emphasizing the importance of automation, reliability, and building quality into the product. Key tools mentioned include AWS CodePipeline for orchestration, AWS CodeBuild for creating deployable artifacts, and AWS CodeDeploy for deployment. It covers concepts such as feedback loops, continuous integration, and approaches for minimizing downtime during deployments.

1. SUMMIT
SANTA CLARA

2. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
Continuous Delivery on AWS
with Zero Downtime
Casey Lee
AWS Container Hero
DEV10

3. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
Casey Lee
AWS Container Hero
Director of Engineering

4. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
Agenda
● Principles of Continuous Delivery
● Tools of Continuous Delivery
● Demo

5. SUMMIT © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Principles of
Continuous Delivery

6. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
https://www.slideshare.net/AmazonWebServices/devops-at-amazon-a-look-at-our-tools-and-processes-50364582
ReleaseTestBuild
Plan Monitor
Delivery Pipeline
Feedback Loop
Software Development Lifecycle
CustomersDevelopers

7. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
Continuous
Every change triggers the feedback process
“If it hurts, do it more often!”
- Martin Fowler

8. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
Automation
Releasing software should be repeatable and reliable
“Deployments ought to be a boring,
push-button experience”
- Jez Humble

9. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

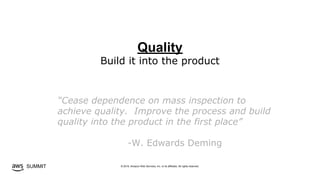

Quality
Build it into the product
“Cease dependence on mass inspection to
achieve quality. Improve the process and build
quality into the product in the first place”
-W. Edwards Deming

10. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
● Continuous - Every change triggers the feedback process
● Automation - Releasing software should be repeatable and reliable
● Quality- Build it into the product
Principles of Continuous Delivery

11. SUMMIT © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Tools of
Continuous Delivery

12. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
Overview
● CodePipeline - orchestrate all the automation
● CodeBuild - create deployable artifact from source
● CodeDeploy - deploy and release artifact

13. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
CodePipeline
● Revision - a change made to the
source for the pipeline
● Stage - group of actions run for a
single revision at a time
● Action - task to be performed for a
stage

14. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

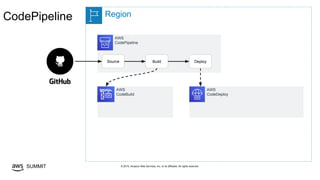

RegionCodePipeline
AWS
CodePipeline
Source Build Deploy
AWS
CodeBuild
AWS
CodeDeploy

15. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

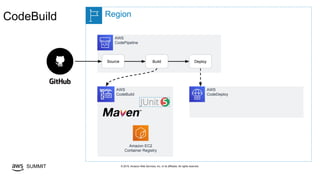

RegionCodeBuild
AWS
CodePipeline
Source Build Deploy
AWS
CodeBuild
AWS
CodeDeploy
Amazon EC2
Container Registry

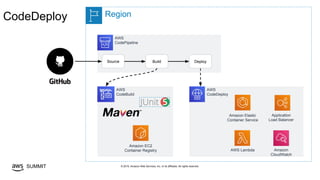

16. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
RegionCodeDeploy
AWS
CodePipeline
Source Build Deploy
AWS
CodeBuild
AWS
CodeDeploy
Amazon EC2
Container Registry
Amazon Elastic
Container Service
Application
Load Balancer
Amazon
CloudWatch
AWS Lambda

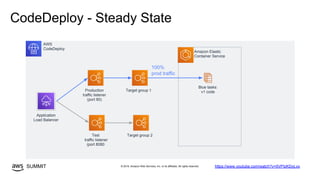

17. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
CodeDeploy - Steady State
AWS
CodeDeploy
Target group 1
Amazon Elastic
Container Service
Blue tasks:
v1 codeProduction
traffic listener
(port 80)
Application
Load Balancer
Target group 2Test
traffic listener
(port 8080
100%
prod traffic
https://www.youtube.com/watch?v=5VPIzKDyLvo

18. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

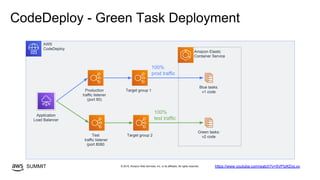

CodeDeploy - Green Task Deployment
AWS
CodeDeploy
Target group 1
Amazon Elastic
Container Service
Blue tasks:
v1 codeProduction
traffic listener
(port 80)
Application
Load Balancer
Target group 2Test
traffic listener
(port 8080
100%
prod traffic
https://www.youtube.com/watch?v=5VPIzKDyLvo
Green tasks:
v2 code
100%
test traffic

19. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

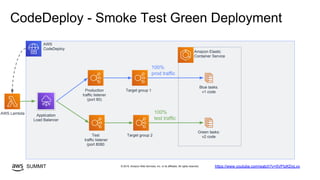

CodeDeploy - Smoke Test Green Deployment
AWS
CodeDeploy
Target group 1
Amazon Elastic
Container Service
Blue tasks:
v1 codeProduction
traffic listener
(port 80)
Application
Load Balancer
Target group 2Test
traffic listener
(port 8080
100%
prod traffic
https://www.youtube.com/watch?v=5VPIzKDyLvo
Green tasks:
v2 code
100%
test traffic
AWS Lambda

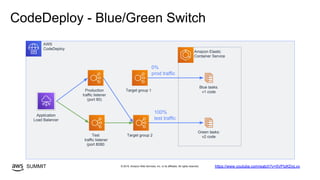

20. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
CodeDeploy - Blue/Green Switch
AWS
CodeDeploy
Target group 1
Amazon Elastic
Container Service
Blue tasks:
v1 codeProduction
traffic listener
(port 80)
Application
Load Balancer
Target group 2Test
traffic listener
(port 8080
0%
prod traffic
https://www.youtube.com/watch?v=5VPIzKDyLvo
Green tasks:
v2 code
100%
test traffic

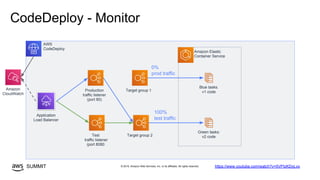

21. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
CodeDeploy - Monitor
AWS
CodeDeploy
Target group 1
Amazon Elastic
Container Service
Production
traffic listener
(port 80)
Blue tasks:
v1 code
Application
Load Balancer
Target group 2Test
traffic listener
(port 8080
0%
prod traffic
https://www.youtube.com/watch?v=5VPIzKDyLvo
Green tasks:
v2 code
100%
test traffic
Amazon
CloudWatch

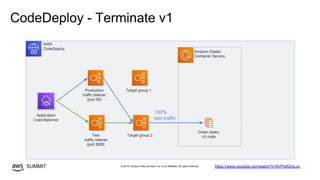

22. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
CodeDeploy - Terminate v1
AWS
CodeDeploy
Target group 1
Amazon Elastic
Container Service
Production
traffic listener
(port 80)
Application
Load Balancer
Target group 2Test
traffic listener
(port 8080
https://www.youtube.com/watch?v=5VPIzKDyLvo
Green tasks:
v2 code
100%
test traffic

23. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

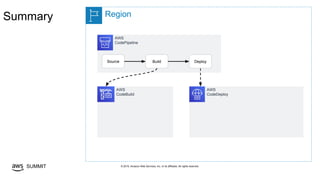

RegionSummary
AWS
CodePipeline
Source Build Deploy
AWS
CodeBuild
AWS
CodeDeploy

24. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

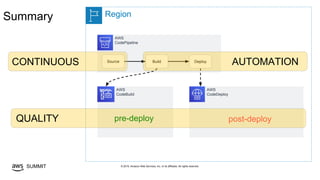

RegionSummary
AWS
CodePipeline
Source Build Deploy
AWS
CodeBuild
AWS
CodeDeploy
pre-deploy post-deployQUALITY
AUTOMATIONCONTINUOUS

25. SUMMIT © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Demo

26. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

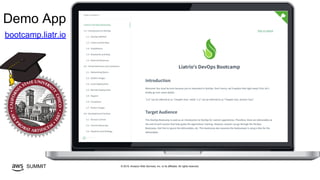

Demo App
bootcamp.liatr.io

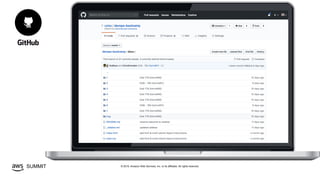

27. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

28. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

29. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

30. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
Architecture
bootcamp.liatr.io Availability zone 2Availability zone 1
AWS Region
VPC
Private subnet
ECS Service Auto Scaling
Private subnet
ECS
Container
Amazon EC2
Container
Registry
Application
Load Balancer
ECS
Container
AWS Fargate
Amazon Elastic
Container Service

31. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

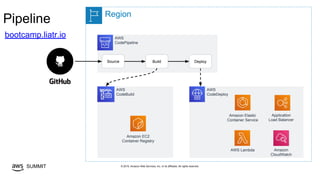

Pipeline
bootcamp.liatr.io
Region
AWS
CodePipeline
Amazon EC2
Container Registry
Amazon Elastic
Container Service
Source Build Deploy
AWS
CodeBuild
AWS
CodeDeploy
Application
Load Balancer
Amazon
CloudWatch
AWS Lambda

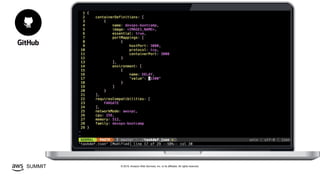

32. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

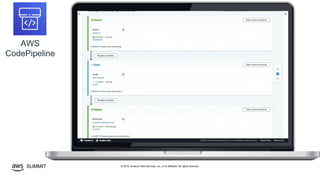

33. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodePipeline

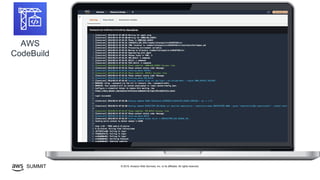

34. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeBuild

35. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeBuild

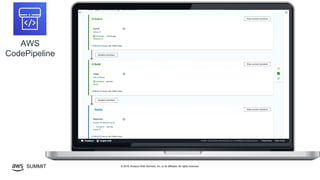

36. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodePipeline

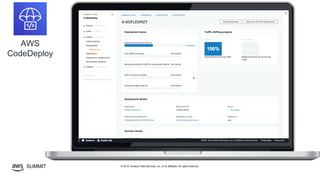

37. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeDeploy

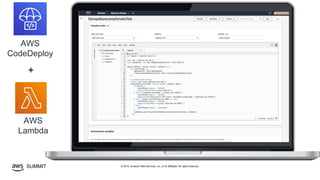

38. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeDeploy
AWS
Lambda
+

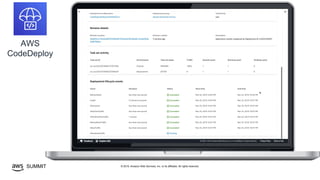

39. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeDeploy
FAIL Clip
2.2 code deploy traffic shift to wait

40. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeDeploy
+
Amazon
CloudWatch

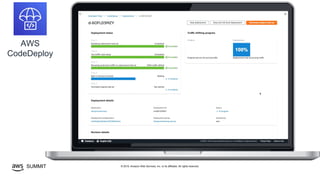

41. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeDeploy

42. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeDeploy
+
Amazon
CloudWatch

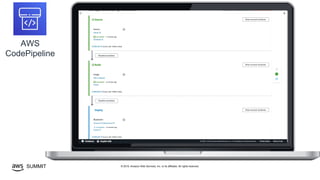

43. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodePipeline

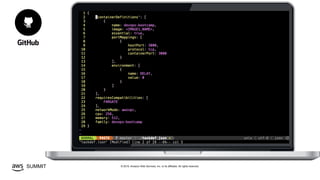

44. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT

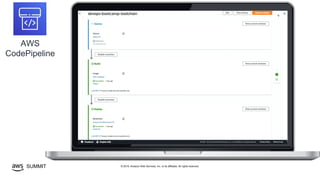

45. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodePipeline

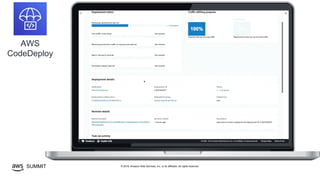

46. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeDeploy

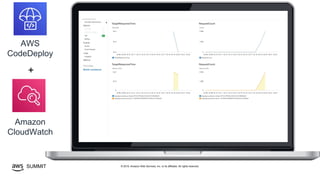

47. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeDeploy
+
Amazon
CloudWatch

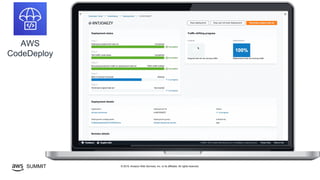

48. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeDeploy

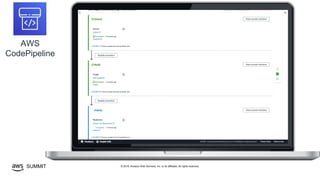

49. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodePipeline

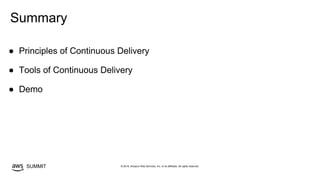

50. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
Summary
● Principles of Continuous Delivery
● Tools of Continuous Delivery
● Demo

51. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
Thank you!
SUMMIT © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Casey Lee
nektos

52. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMITSUMMIT © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Please complete the
session survey.
!

53. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
CodePipeline Action
Category
Valid Action Providers
Source Amazon S3
CodeCommit
GitHub
Amazon ECR
Build CodeBuild
CloudBees
Jenkins
TeamCity
Test CodeBuild
AWS Device Farm
BlazeMeter
GhostInspector
Jenkins
Action
Category
Valid Action Providers
Deploy Amazon S3
AWS CloudFormation
CodeDeploy
Amazon ECS
Elastic Beanstalk
AWS OpsWorks
AWS Service Catalog
Amazon Alexa
XebiaLabs
Approval Manual
Invoke AWS Lambda

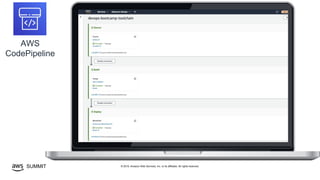

54. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodePipeline

55. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodePipeline

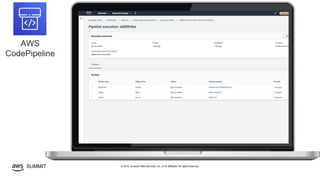

56. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodePipeline

57. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeDeploy

58. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
AWS
CodeDeploy

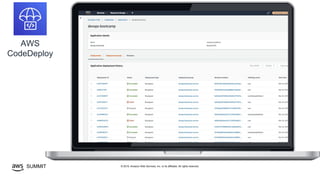

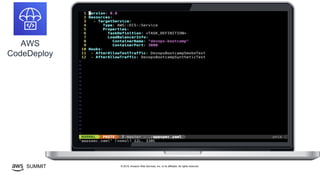

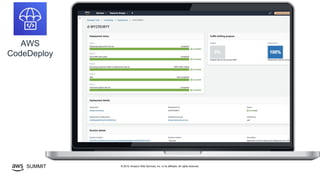

59. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.SUMMIT
