1. Concurrency Patterns
In Kotlin
Huynh Quang Thao
Trusting Social
Google Developer Expert

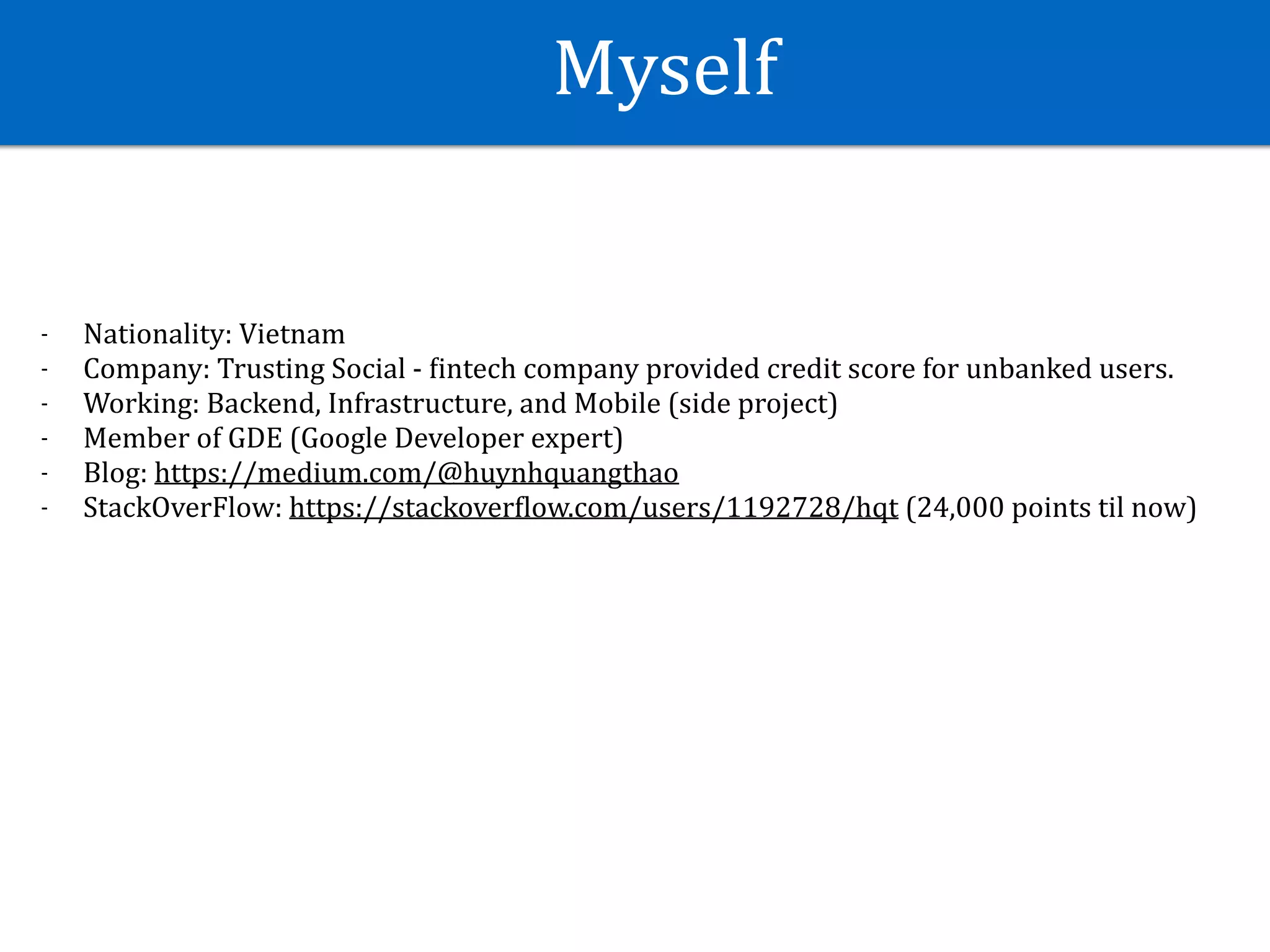

2. Myself
- Nationality: Vietnam
- Company: Trusting Social - Eintech company provided credit score for unbanked users.
- Working: Backend, Infrastructure, and Mobile (side project)
- Member of GDE (Google Developer expert)
- Blog: https://medium.com/@huynhquangthao
- StackOverFlow: https://stackoverElow.com/users/1192728/hqt (24,000 points til now)

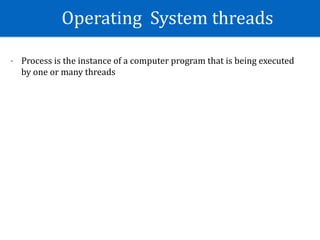

3. Operating System threads
- Process is the instance of a computer program that is being executed
by one or many threads

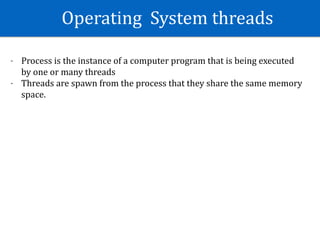

4. Operating System threads
- Process is the instance of a computer program that is being executed
by one or many threads
- Threads are spawn from the process that they share the same memory
space.

5. Operating System threads
- Process is the instance of a computer program that is being executed
by one or many threads
- Threads are spawn from the process that they share the same memory
space.
Context Switching

6. Coroutines
- Coroutines are very similar to threads. (100_000 coroutines easily)

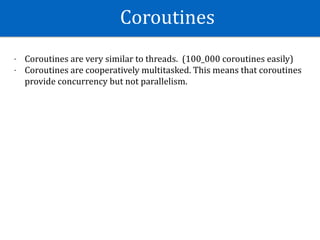

7. Coroutines
- Coroutines are very similar to threads. (100_000 coroutines easily)
- Coroutines are cooperatively multitasked. This means that coroutines
provide concurrency but not parallelism.

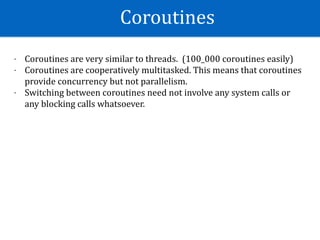

8. Coroutines
- Coroutines are very similar to threads. (100_000 coroutines easily)
- Coroutines are cooperatively multitasked. This means that coroutines
provide concurrency but not parallelism.
- Switching between coroutines need not involve any system calls or
any blocking calls whatsoever.

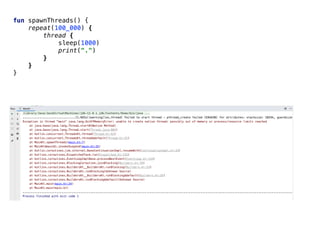

9. fun spawnThreads() {
repeat(100_000) {
thread {
sleep(1000)
print(".")
}
}
}

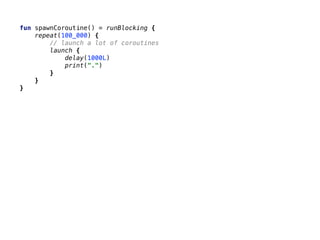

10. fun spawnCoroutine() = runBlocking {
repeat(100_000) {
// launch a lot of coroutines
launch {
delay(1000L)
print(".")
}
}
}

11. Concurrency not parallelism
Scenario: We have 2 very important tasks in one day:
1.Get a passport
2.Get a presentation done

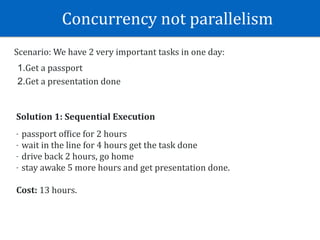

12. Concurrency not parallelism
Scenario: We have 2 very important tasks in one day:
1.Get a passport
2.Get a presentation done
Solution 1: Sequential Execution
- passport ofEice for 2 hours
- wait in the line for 4 hours get the task done
- drive back 2 hours, go home
- stay awake 5 more hours and get presentation done.
Cost: 13 hours.

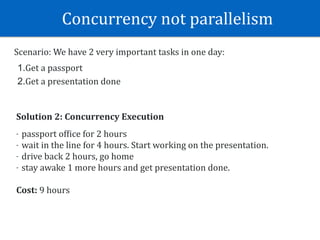

13. Concurrency not parallelism
Scenario: We have 2 very important tasks in one day:
1.Get a passport
2.Get a presentation done
Solution 2: Concurrency Execution
- passport ofEice for 2 hours
- wait in the line for 4 hours. Start working on the presentation.
- drive back 2 hours, go home
- stay awake 1 more hours and get presentation done.
Cost: 9 hours

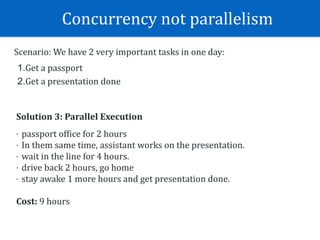

14. Concurrency not parallelism
Scenario: We have 2 very important tasks in one day:
1.Get a passport
2.Get a presentation done
Solution 3: Parallel Execution
- passport ofEice for 2 hours
- In them same time, assistant works on the presentation.
- wait in the line for 4 hours.
- drive back 2 hours, go home
- stay awake 1 more hours and get presentation done.
Cost: 9 hours

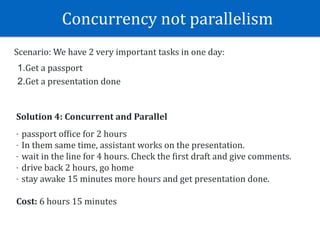

15. Concurrency not parallelism
Scenario: We have 2 very important tasks in one day:
1.Get a passport
2.Get a presentation done
Solution 4: Concurrent and Parallel
- passport ofEice for 2 hours
- In them same time, assistant works on the presentation.
- wait in the line for 4 hours. Check the Eirst draft and give comments.
- drive back 2 hours, go home
- stay awake 15 minutes more hours and get presentation done.
Cost: 6 hours 15 minutes

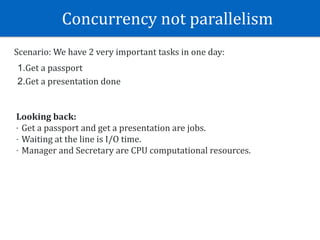

16. Concurrency not parallelism
Scenario: We have 2 very important tasks in one day:
1.Get a passport
2.Get a presentation done
Looking back:
- Get a passport and get a presentation are jobs.
- Waiting at the line is I/O time.
- Manager and Secretary are CPU computational resources.

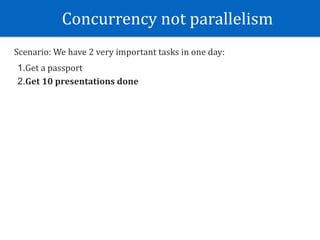

17. Concurrency not parallelism
Scenario: We have 2 very important tasks in one day:
1.Get a passport
2.Get 10 presentations done

18. Concurrency not parallelism
Scenario: We have 2 very important tasks in one day:
1.Get a passport
2.Get 10 presentations done
Solution:
- Get a passport on one coroutine.
- Each presentation work is on one coroutine.
- Communication between coroutines using channel.

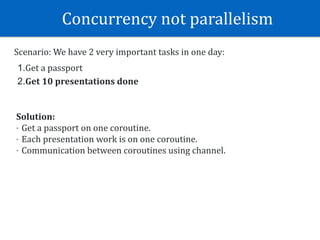

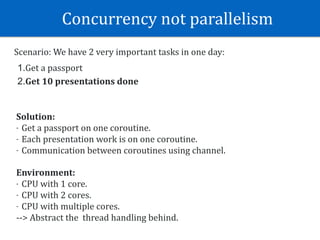

19. Concurrency not parallelism
Scenario: We have 2 very important tasks in one day:
1.Get a passport
2.Get 10 presentations done
Solution:
- Get a passport on one coroutine.
- Each presentation work is on one coroutine.
- Communication between coroutines using channel.
Environment:
- CPU with 1 core.
- CPU with 2 cores.
- CPU with multiple cores.
--> Abstract the thread handling behind.

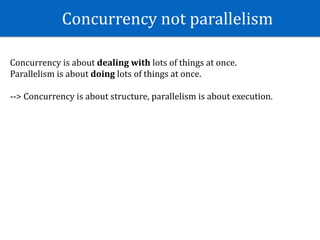

20. Concurrency not parallelism
Concurrency is about dealing with lots of things at once.
Parallelism is about doing lots of things at once.
--> Concurrency is about structure, parallelism is about execution.

21. Concurrency not parallelism
Concurrency is about dealing with lots of things at once.
Parallelism is about doing lots of things at once.
--> Concurrency is about structure, parallelism is about execution.
Concurrency provides a way to structure a solution to solve a problem
that may (but not necessarily) be parallelizable.

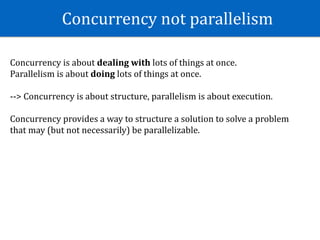

22. Concurrency not parallelism
Concurrency is about dealing with lots of things at once.
Parallelism is about doing lots of things at once.
--> Concurrency is about structure, parallelism is about execution.
Concurrency provides a way to structure a solution to solve a problem
that may (but not necessarily) be parallelizable.
Coroutine/channel open a lot of chance to solve concurrency
problems.

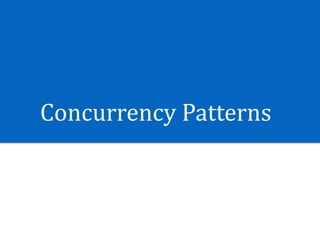

23. Concurrency Patterns

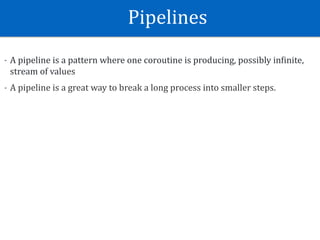

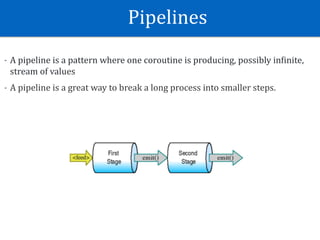

24. Pipelines
- A pipeline is a pattern where one coroutine is producing, possibly inEinite,
stream of values
- A pipeline is a great way to break a long process into smaller steps.

25. Pipelines
- A pipeline is a pattern where one coroutine is producing, possibly inEinite,
stream of values
- A pipeline is a great way to break a long process into smaller steps.

26. Pipelines
- A pipeline is a pattern where one coroutine is producing, possibly inEinite,
stream of values
- A pipeline is a great way to break a long process into smaller steps.

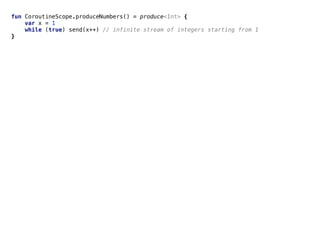

27. Pipelinesfun CoroutineScope.produceNumbers() = produce<Int> {
var x = 1
while (true) send(x++) // infinite stream of integers starting from 1
}

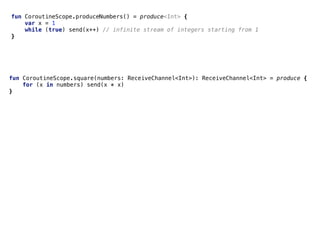

28. Pipelinesfun CoroutineScope.produceNumbers() = produce<Int> {
var x = 1
while (true) send(x++) // infinite stream of integers starting from 1
}
fun CoroutineScope.square(numbers: ReceiveChannel<Int>): ReceiveChannel<Int> = produce {
for (x in numbers) send(x * x)
}

29. Pipelinesfun CoroutineScope.produceNumbers() = produce<Int> {
var x = 1
while (true) send(x++) // infinite stream of integers starting from 1
}
fun CoroutineScope.square(numbers: ReceiveChannel<Int>): ReceiveChannel<Int> = produce {
for (x in numbers) send(x * x)
}
fun pipeline() = runBlocking {
val numbers = produceNumbers() // produces integers from 1 and on
val squares = square(numbers) // squares integers
for (i in 1..5) println(squares.receive()) // print first five
println("Done!") // we are done
coroutineContext.cancelChildren() // cancel children coroutines
}

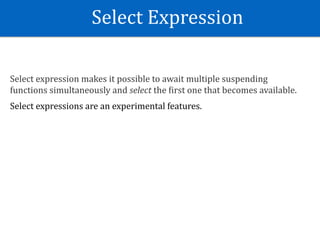

30. Select Expression
Select expression makes it possible to await multiple suspending
functions simultaneously and select the Eirst one that becomes available.
Select expressions are an experimental features.

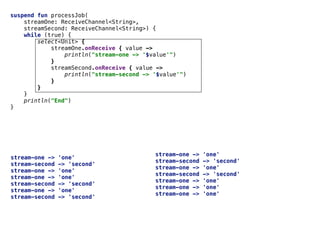

31. Select Expressionsuspend fun processJob(
streamOne: ReceiveChannel<String>,
streamSecond: ReceiveChannel<String>) {
while (true) {
select<Unit> {
streamOne.onReceive { value ->
println("stream-one -> '$value'")
}
streamSecond.onReceive { value ->
println("stream-second -> '$value'")
}
}
}
println("End")
}
stream-one -> 'one'
stream-second -> 'second'
stream-one -> 'one'
stream-one -> 'one'
stream-second -> 'second'
stream-one -> 'one'
stream-second -> 'second'
stream-one -> 'one'
stream-second -> 'second'
stream-one -> 'one'
stream-second -> 'second'
stream-one -> 'one'
stream-one -> 'one'
stream-one -> 'one'

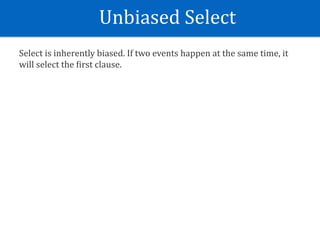

32. Unbiased Select
Select is inherently biased. If two events happen at the same time, it
will select the Eirst clause.

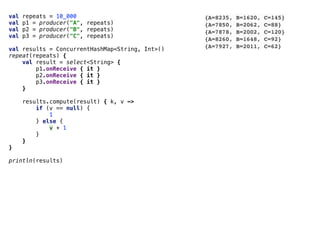

33. val repeats = 10_000
val p1 = producer("A", repeats)
val p2 = producer("B", repeats)
val p3 = producer("C", repeats)
val results = ConcurrentHashMap<String, Int>()
repeat(repeats) {
val result = select<String> {
p1.onReceive { it }
p2.onReceive { it }
p3.onReceive { it }
}
results.compute(result) { k, v ->
if (v == null) {
1
} else {
v + 1
}
}
}
println(results)
{A=8235, B=1620, C=145}
{A=7850, B=2062, C=88}
{A=7878, B=2002, C=120}
{A=8260, B=1648, C=92}
{A=7927, B=2011, C=62}

34. val repeats = 10_000
val p1 = producer("A", repeats)
val p2 = producer("B", repeats)
val p3 = producer("C", repeats)
val results = ConcurrentHashMap<String, Int>()
repeat(repeats) {
val result = selectUnbiased<String> {
p1.onReceive { it }
p2.onReceive { it }
p3.onReceive { it }
}
results.compute(result) { k, v ->
if (v == null) {
1
} else {
v + 1
}
}
}
println(results)
{A=3336, B=3327, C=3337}
{A=3330, B=3332, C=3338}
{A=3334, B=3333, C=3333}
{A=3334, B=3336, C=3330}
{A=3332, B=3335, C=3333}

35. Selecting on close
val p1 = produce {
repeat(10) {
send("A")
}
}
val p2 = produce {
repeat(5) {
send("B")
}
}
runBlocking {
repeat(15) {
val result = selectUnbiased<String> {
p1.onReceive {
it
}
p2.onReceive {
it
}
}
println(result)
}
}

36. Selecting on close
val p1 = produce {
repeat(10) {
send("A")
}
}
val p2 = produce {
repeat(5) {
send("B")
}
}
runBlocking {
repeat(15) {
val result = selectUnbiased<String> {
p1.onReceiveOrNull {
it
}
p2.onReceiveOrNull {
it
}
}
println(result)
}
}

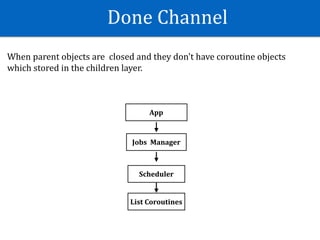

37. Done Channel
When parent objects are closed and they don't have coroutine objects
which stored in the children layer.
App
Scheduler
Jobs Manager
List Coroutines

38. Done Channel
When parent objects are closed and they don't have coroutine objects
which stored in the children layer.
App
Scheduler
Jobs Manager
List Coroutines
Close ()
Close ()
Close ()
app.Close ()
Solution 1
Add the close
function to
every object

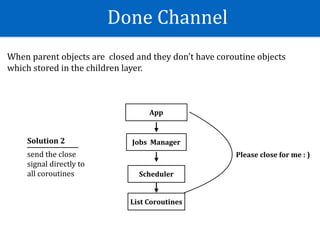

39. Done Channel
When parent objects are closed and they don't have coroutine objects
which stored in the children layer.
App
Scheduler
Jobs Manager
List Coroutines
Solution 2
send the close
signal directly to
all coroutines
Please close for me : )

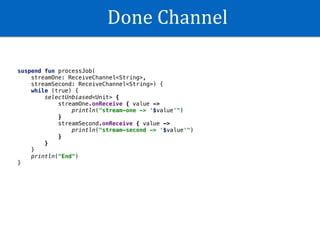

40. Done Channel
suspend fun processJob(
streamOne: ReceiveChannel<String>,
streamSecond: ReceiveChannel<String>) {
while (true) {
selectUnbiased<Unit> {
streamOne.onReceive { value ->
println("stream-one -> '$value'")
}
streamSecond.onReceive { value ->
println("stream-second -> '$value'")
}
}
}
println("End")
}

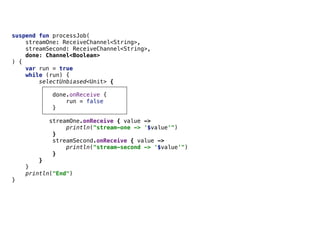

41. suspend fun processJob(
streamOne: ReceiveChannel<String>,
streamSecond: ReceiveChannel<String>,
done: Channel<Boolean>
) {
var run = true
while (run) {
selectUnbiased<Unit> {
done.onReceive {
run = false
}
streamOne.onReceive { value ->
println("stream-one -> '$value'")
}
streamSecond.onReceive { value ->
println("stream-second -> '$value'")
}
}
}
println("End")
}

42. val done = Channel<Boolean>()
val streamOne = streamOne()
val streamSecond = streamSecond()
val job = launch {
processJob(streamOne, streamSecond, done)
}
delay(2000)
println("Stop the job")
done.send(true)
streamOne.cancel()
streamSecond.cancel()

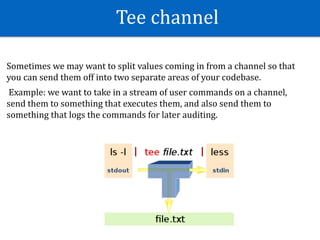

43. Tee channel
Sometimes we may want to split values coming in from a channel so that
you can send them off into two separate areas of your codebase.
Example: we want to take in a stream of user commands on a channel,
send them to something that executes them, and also send them to
something that logs the commands for later auditing.

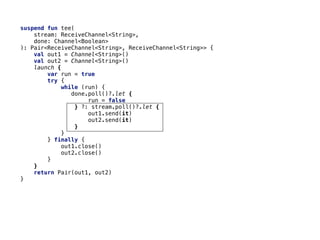

44. suspend fun tee(
stream: ReceiveChannel<String>,
done: Channel<Boolean>
): Pair<ReceiveChannel<String>, ReceiveChannel<String>> {
val out1 = Channel<String>()
val out2 = Channel<String>()
launch {
var run = true
try {
while (run) {
done.poll()?.let {
run = false
} ?: stream.poll()?.let {
out1.send(it)
out2.send(it)
}
}
} finally {
out1.close()
out2.close()
}
}
return Pair(out1, out2)
}

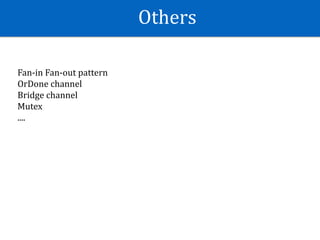

45. Others
Fan-in Fan-out pattern
OrDone channel
Bridge channel
Mutex
....

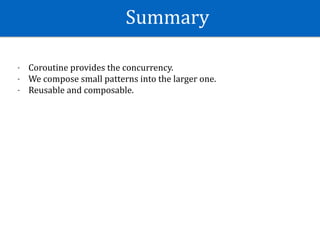

46. Summary
- Coroutine provides the concurrency.
- We compose small patterns into the larger one.
- Reusable and composable.

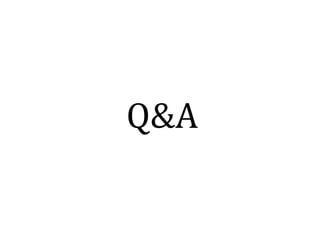

47. Q&A
