1. Scalable JavaScript applications
with Project Nashorn

2. Speakers
Leonardo Zanivan
Software Architect, Trier Sistemas
github.com/panga
@leonardopanga
Michel Graciano
Software Architect, Betha Sistemas
github.com/mgraciano
@mgraciano

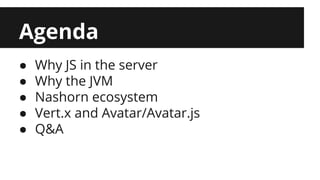

3. Agenda
● Why JS in the server
● Why the JVM
● Nashorn ecosystem
● Vert.x and Avatar/Avatar.js
● Q&A

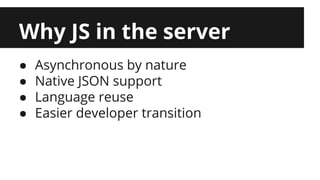

4. Why JS in the server
● Asynchronous by nature
● Native JSON support
● Language reuse
● Easier developer transition

5. Why the JVM
● Multilanguage
● APM Tools
● Access to the Java ecosystem
○ Domain models already implemented
○ Java EE
○ Core and third parties Java libraries

6. Nashorn
● JDK 8 Compact 1 Profile with extension
● Restrictions (browsers API, DOM)
● No native CommonJS implementation
● ECMA 5.1 + Rhino compatibility

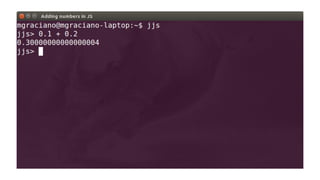

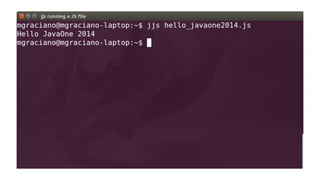

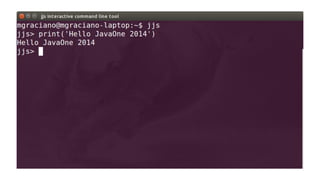

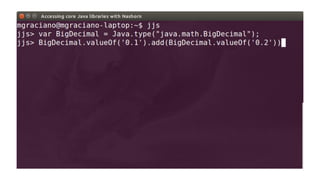

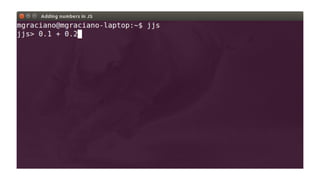

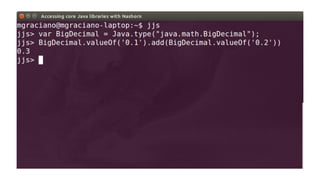

● jjs interactive command line tool

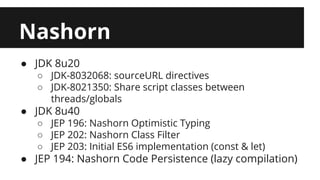

14. Nashorn
● JDK 8u20
○ JDK-8032068: sourceURL directives
○ JDK-8021350: Share script classes between
threads/globals
● JDK 8u40
○ JEP 196: Nashorn Optimistic Typing
○ JEP 202: Nashorn Class Filter
○ JEP 203: Initial ES6 implementation (const & let)
● JEP 194: Nashorn Code Persistence (lazy compilation)

15. But how to scale it?

16. But how to scale it?
Architectures and Technologies

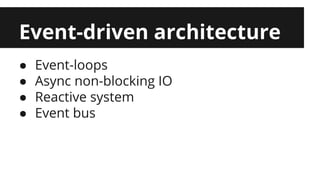

17. Event-driven architecture
● Event-loops
● Async non-blocking IO
● Reactive system
● Event bus

18. Event-driven architecture

19. Microservice architecture
● Focused on specific business
● Well defined & distributed
● Loosely coupled
● Testable
● Scalable

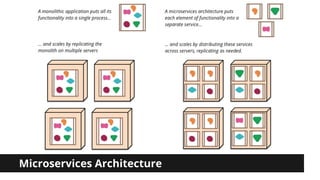

20. Microservices Architecture

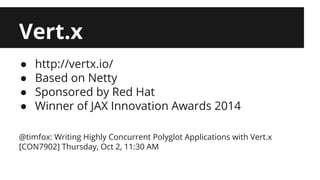

21. Vert.x
● http://vertx.io/
● Based on Netty
● Sponsored by Red Hat
● Winner of JAX Innovation Awards 2014
@timfox: Writing Highly Concurrent Polyglot Applications with Vert.x
[CON7902] Thursday, Oct 2, 11:30 AM

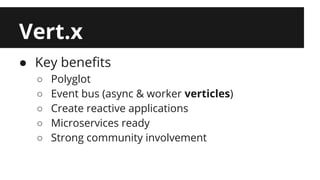

22. Vert.x
● Key benefits
○ Polyglot
○ Event bus (async & worker verticles)
○ Create reactive applications
○ Microservices ready
○ Strong community involvement

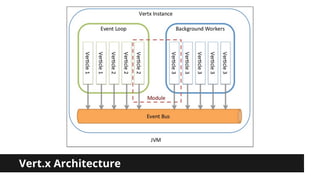

23. Vert.x Architecture

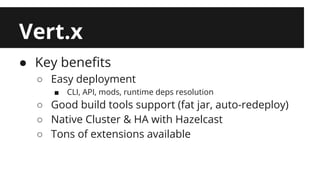

24. Vert.x
● Key benefits
○ Easy deployment
■ CLI, API, mods, runtime deps resolution
○ Good build tools support (fat jar, auto-redeploy)
○ Native Cluster & HA with Hazelcast
○ Tons of extensions available

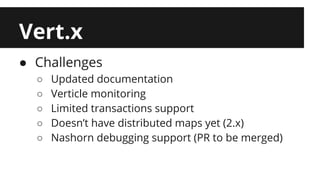

25. Vert.x
● Challenges
○ Updated documentation
○ Verticle monitoring
○ Limited transactions support
○ Doesn’t have distributed maps yet (2.x)
○ Nashorn debugging support (PR to be merged)

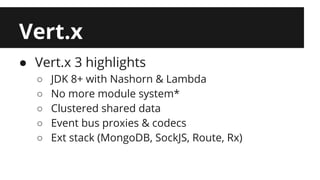

26. Vert.x
● Vert.x 3 highlights
○ JDK 8+ with Nashorn & Lambda
○ No more module system*
○ Clustered shared data
○ Event bus proxies & codecs
○ Ext stack (MongoDB, SockJS, Route, Rx)

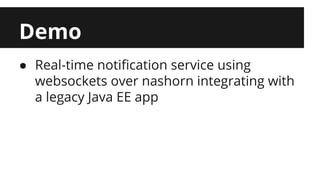

27. Demo
● Real-time notification service using
websockets over nashorn integrating with
a legacy Java EE app

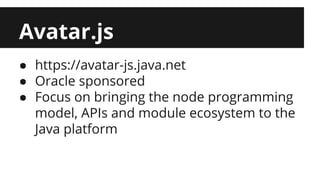

28. Avatar.js
● https://avatar-js.java.net
● Oracle sponsored
● Focus on bringing the node programming
model, APIs and module ecosystem to the
Java platform

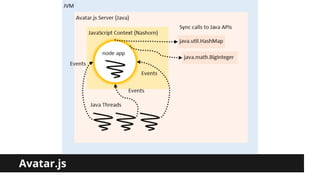

29. Avatar.js

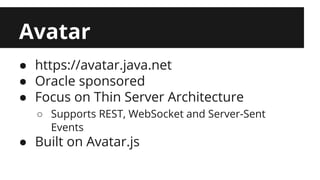

30. Avatar
● https://avatar.java.net
● Oracle sponsored
● Focus on Thin Server Architecture
○ Supports REST, WebSocket and Server-Sent
Events
● Built on Avatar.js

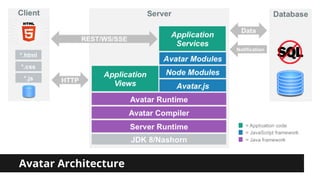

31. Avatar Architecture

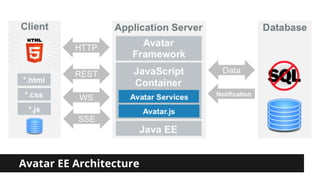

32. Avatar EE Architecture

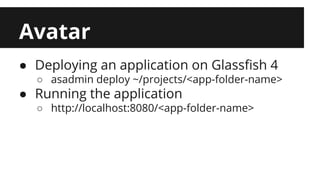

35. Avatar
● Deploying an application on Glassfish 4
○ asadmin deploy ~/projects/<app-folder-name>
● Running the application
○ http://localhost:8080/<app-folder-name>

36. Avatar/Avatar.js
● Key benefits
○ Avatar Services use an Actor-like concurrency
model
○ NPM modules support
○ Strong Java EE integration
○ Debugging

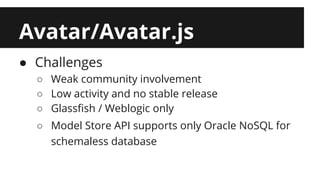

37. Avatar/Avatar.js
● Challenges
○ Weak community involvement
○ Low activity and no stable release
○ Glassfish / Weblogic only
○ Model Store API supports only Oracle NoSQL for
schemaless database

38. Benchmark
● Some simple and naive scenarios
○ Posting and querying from database
○ Returning a simple JSON response
○ String concatenation

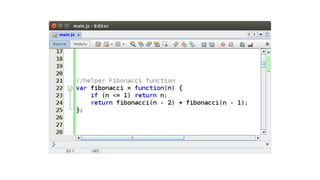

○ Fibonacci calculation

39. Benchmark
● Node.js 0.10.29 (2014-06-16)
● Avatar.js 0.10.28-SNAPSHOT (2014-07-20)
● Vert.X 2.1.1 (2014-06-18)
● Avatar 1.0-ea-SNAPSHOT (2014-07-26)
● JDK 8u5

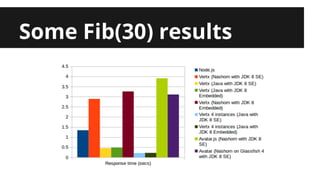

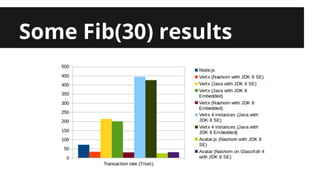

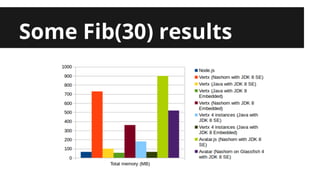

40. Some Fib(30) results

41. Some Fib(30) results

42. Some Fib(30) results

43. Q&A

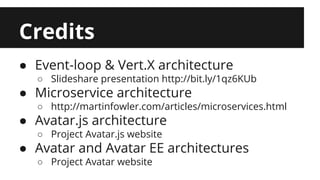

44. Credits
● Event-loop & Vert.X architecture
○ Slideshare presentation http://bit.ly/1qz6KUb
● Microservice architecture
○ http://martinfowler.com/articles/microservices.html
● Avatar.js architecture
○ Project Avatar.js website
● Avatar and Avatar EE architectures
○ Project Avatar website

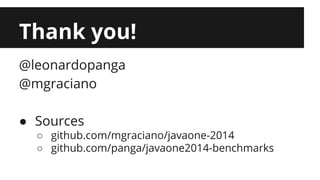

45. Thank you!
@leonardopanga
@mgraciano
● Sources
○ github.com/mgraciano/javaone-2014
○ github.com/panga/javaone2014-benchmarks
