Compressor design
- 1. Jet Propulsion andCompressor Design NASA's X-43A Keith Larson IC Engines and Propulsions Systems Spring 2005 Professor Dr. Chiang Shih

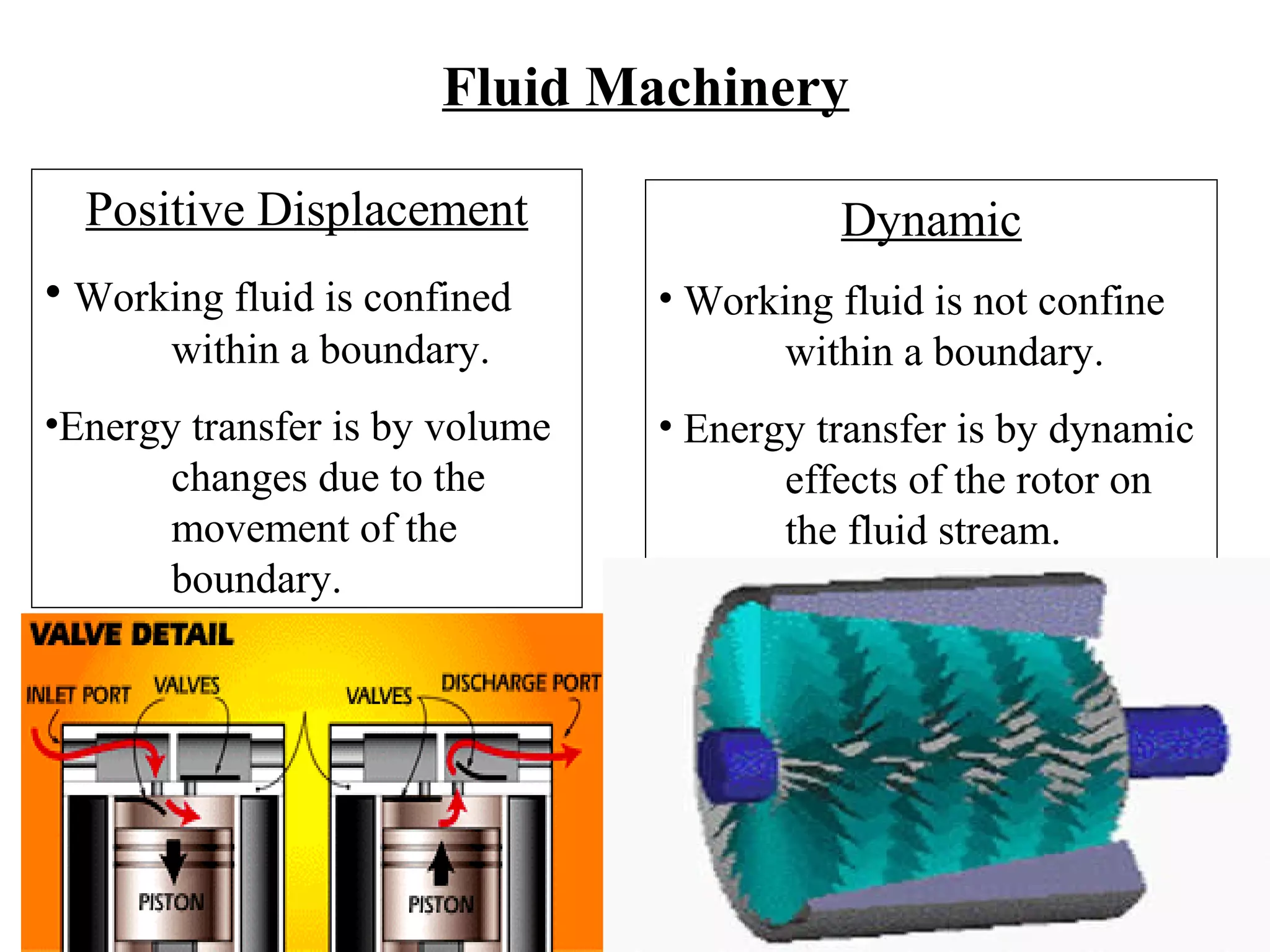

- 2. Fluid Machinery Positive Displacement •Working fluid is confined within a boundary. •Energy transfer is by volume changes due to the movement of the boundary. Dynamic • Working fluid is not confine within a boundary. • Energy transfer is by dynamic effects of the rotor on the fluid stream.
- 3. Dynamic Machine A.K.A. Turbomachines *Radial-Flow - Also called Centrifugal. - Radial flow path. - Large change in radius from inlet to outlet. * Axial-Flow - Flow path nearly parallel to the axis of rotation. - Radius of the flow path does not very significantly. * Mixed-Flow - Flow path radius changes only moderately.

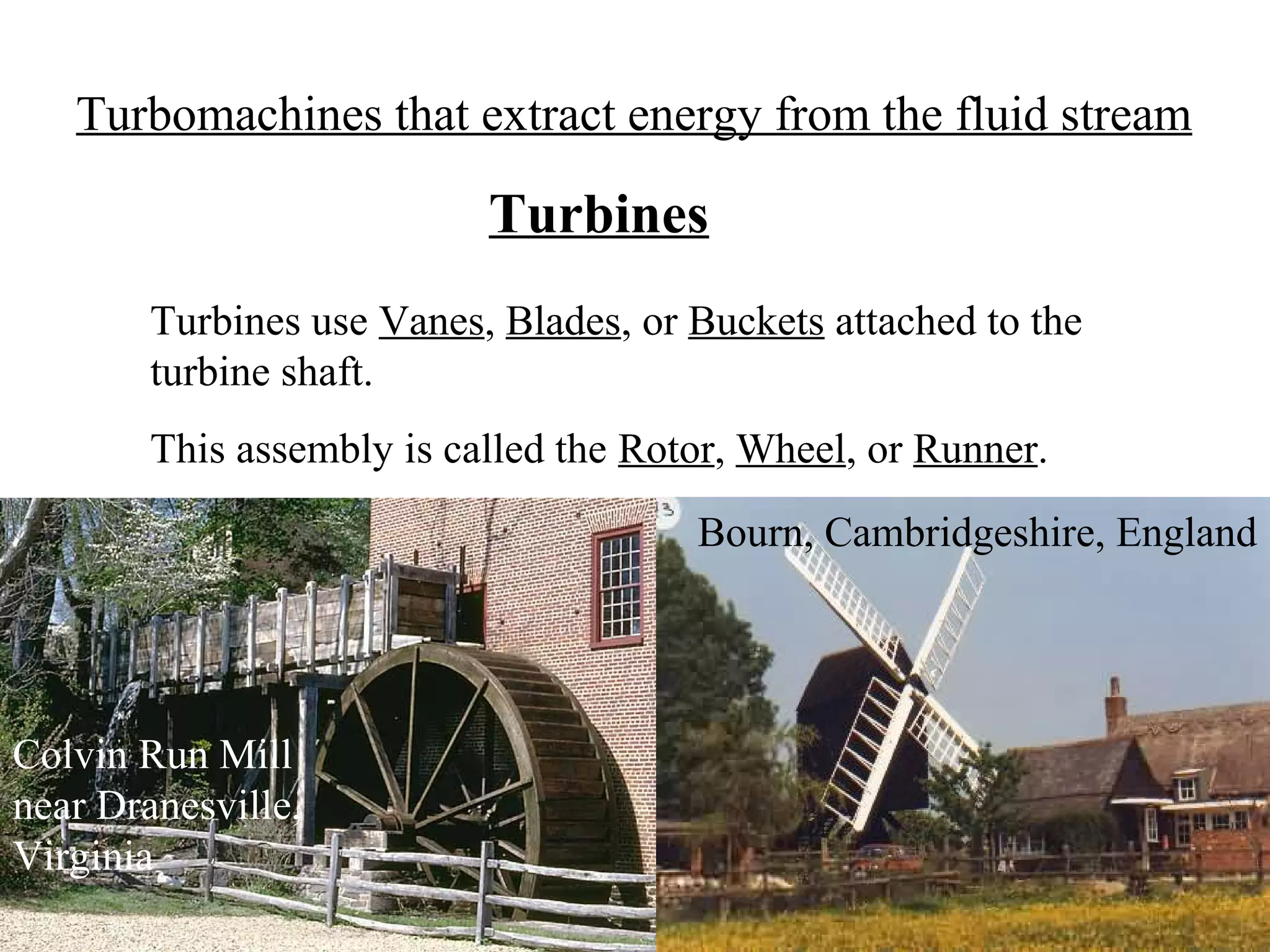

- 4. Turbomachines that extractenergy from the fluid stream Turbines Turbines use Vanes, Blades, or Buckets attached to the turbine shaft. This assembly is called the Rotor, Wheel, or Runner. Bourn, Cambridgeshire, England Colvin Run Mill near Dranesville, Virginia

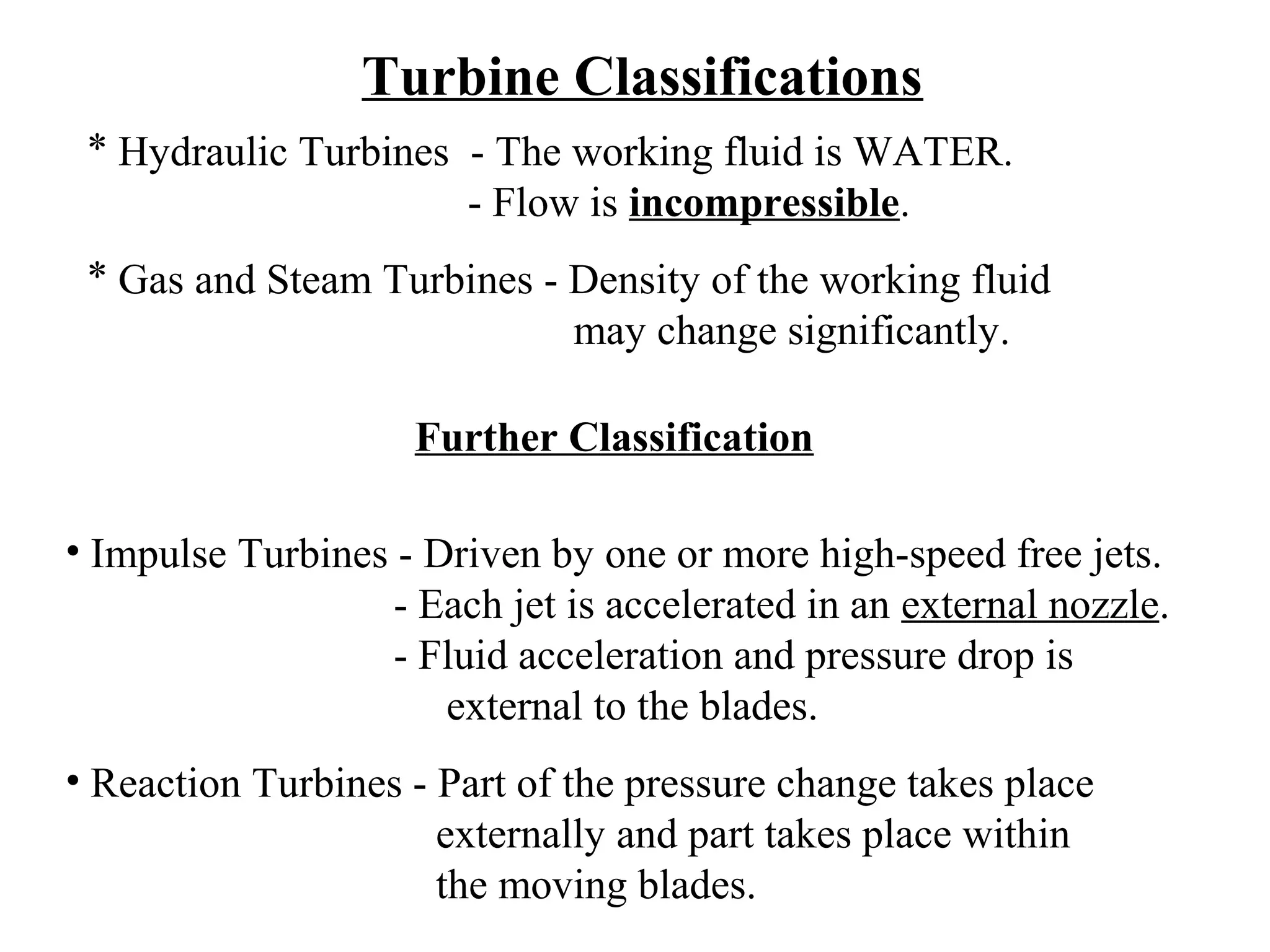

- 5. Turbine Classifications * HydraulicTurbines - The working fluid is WATER. - Flow is incompressible. * Gas and Steam Turbines - Density of the working fluid may change significantly. Further Classification • Impulse Turbines - Driven by one or more high-speed free jets. - Each jet is accelerated in an external nozzle. - Fluid acceleration and pressure drop is external to the blades. • Reaction Turbines - Part of the pressure change takes place externally and part takes place within the moving blades.

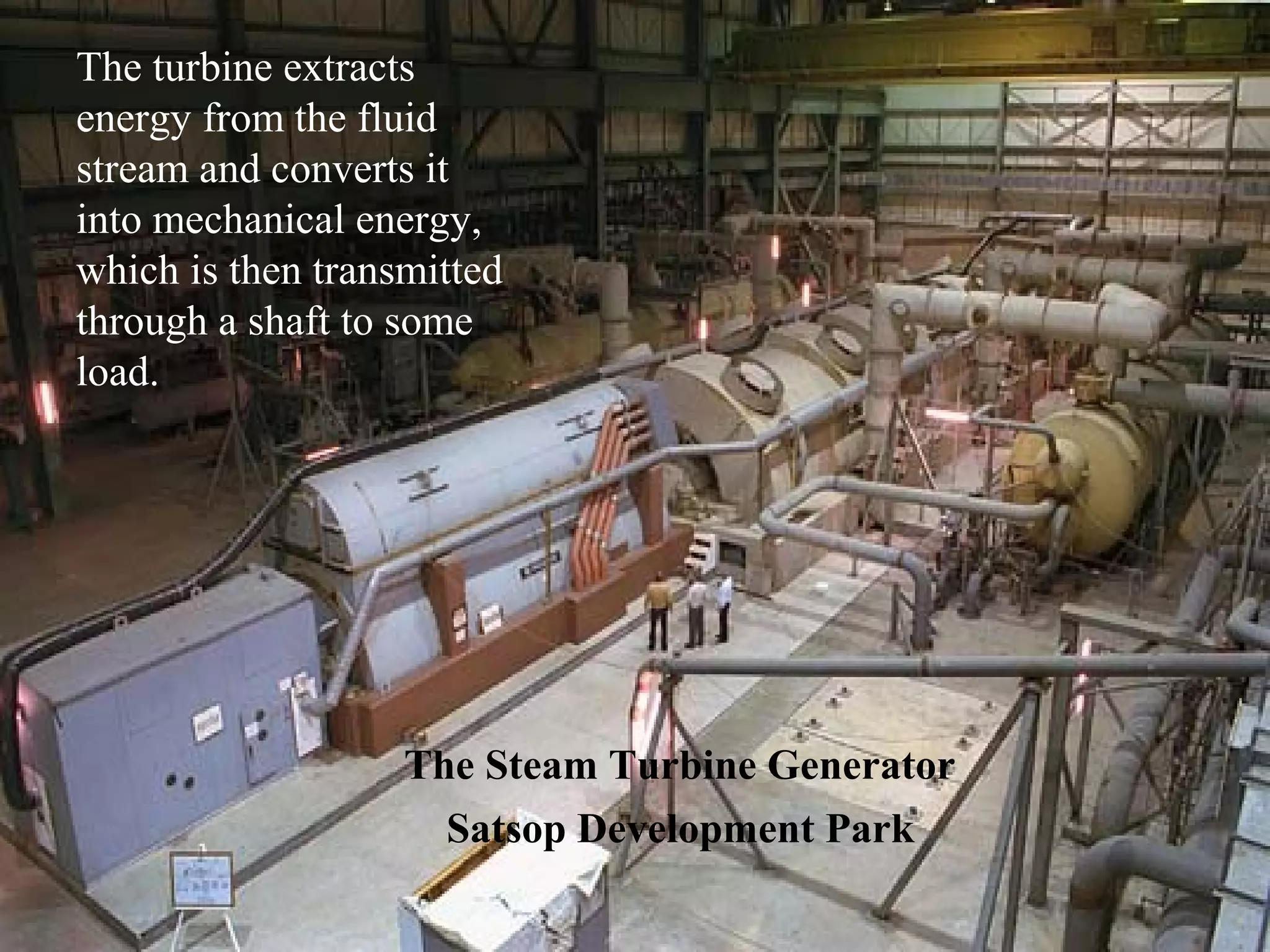

- 6. The turbine extracts energyfrom the fluid stream and converts it into mechanical energy, which is then transmitted through a shaft to some load. The Steam Turbine Generator Satsop Development Park

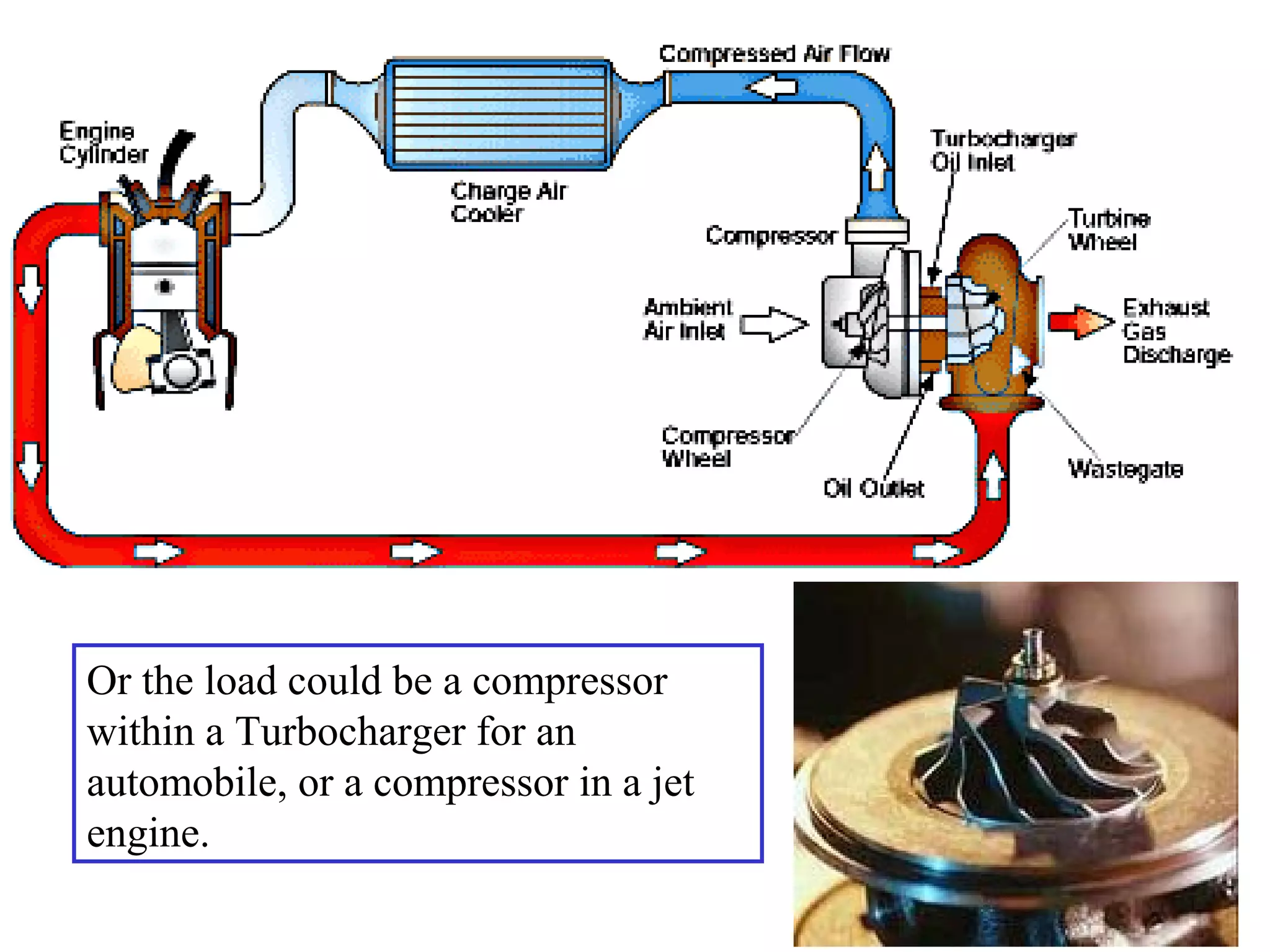

- 7. Or the loadcould be a compressor within a Turbocharger for an automobile, or a compressor in a jet engine.

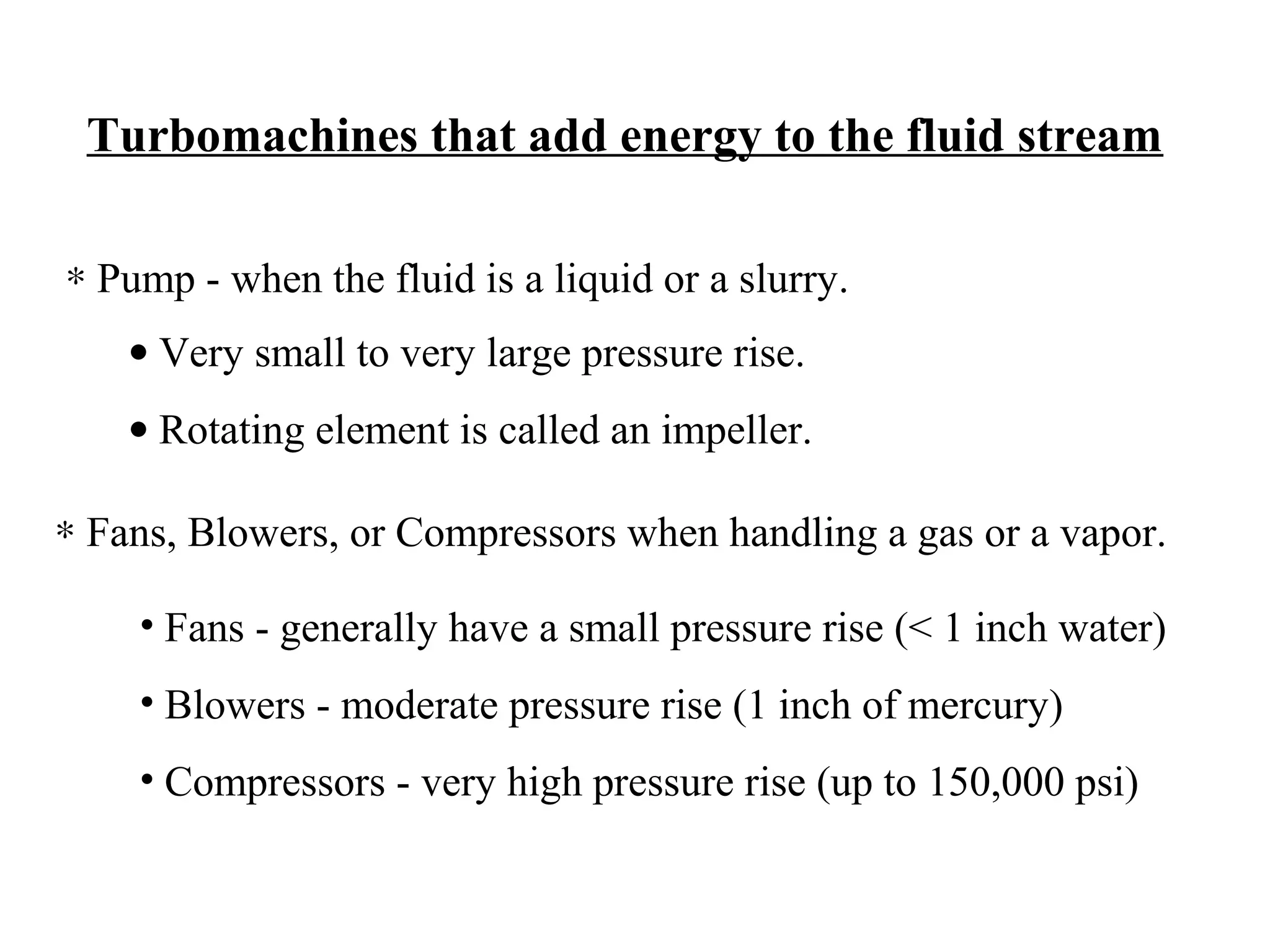

- 8. Turbomachines that addenergy to the fluid stream ∗ Pump - when the fluid is a liquid or a slurry. • Very small to very large pressure rise. • Rotating element is called an impeller. ∗ Fans, Blowers, or Compressors when handling a gas or a vapor. • Fans - generally have a small pressure rise (< 1 inch water) • Blowers - moderate pressure rise (1 inch of mercury) • Compressors - very high pressure rise (up to 150,000 psi)
- 9. Jet Propulsion Principle(Thrust) Pa T T Po Pa T: Thrust Po Pa: Ambient Pressure ue Steady-Flow T T=Ai(po-pa) Po Pa Pa Ai Po: Internal Pressure ue: Exit Velocity . T=mua Po ua ua: Mass-average Exhaust Velocity

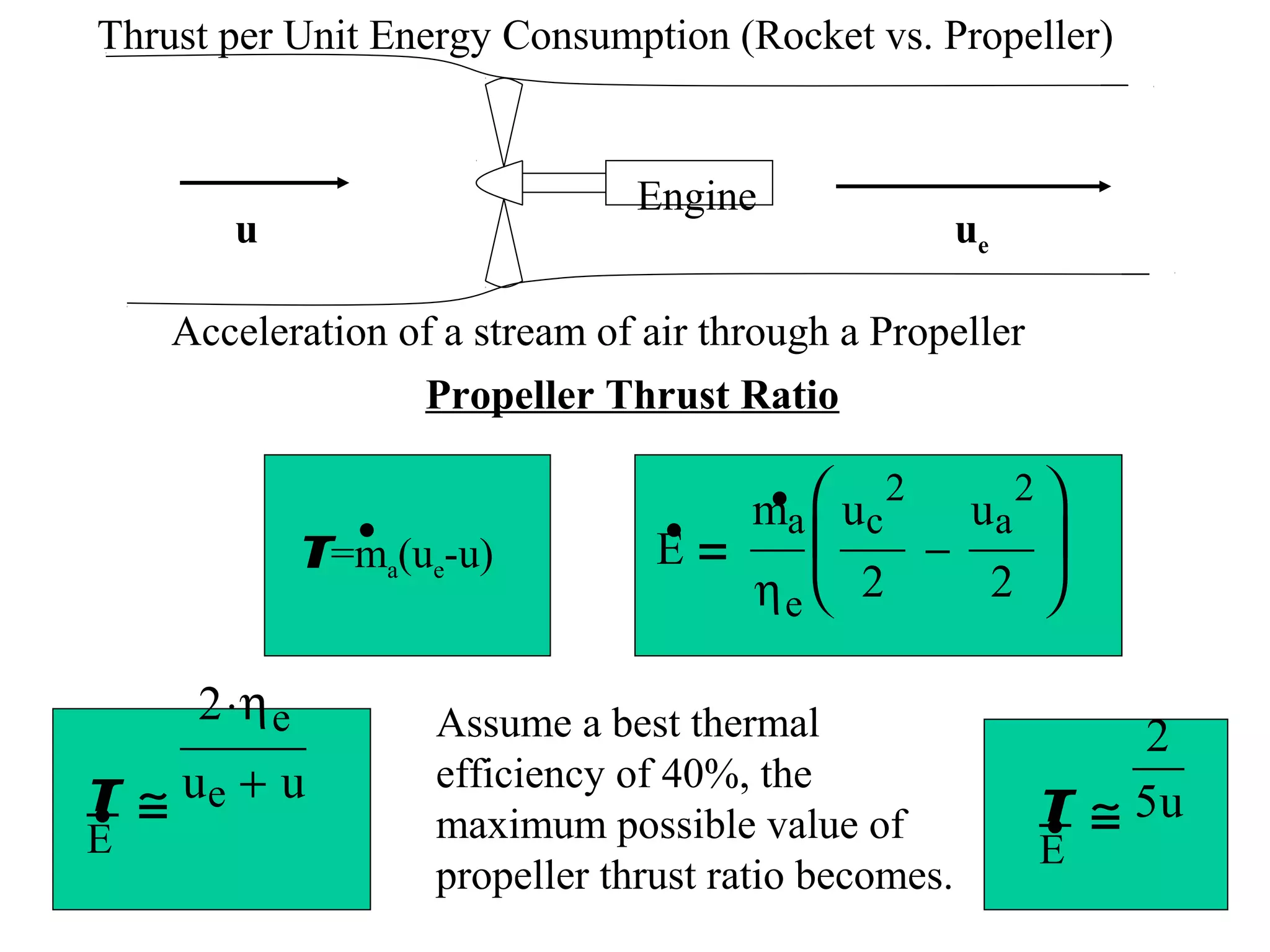

- 10. Thrust per UnitEnergy Consumption (Rocket vs. Propeller) Engine u ue Acceleration of a stream of air through a Propeller Propeller Thrust Ratio . T=ma(ue-u) . 2 ⋅η e T ≅ ue + u E . . E 2 2 ma uc ua − 2 ηe 2 Assume a best thermal efficiency of 40%, the maximum possible value of propeller thrust ratio becomes. 2 T ≅ 5u . E

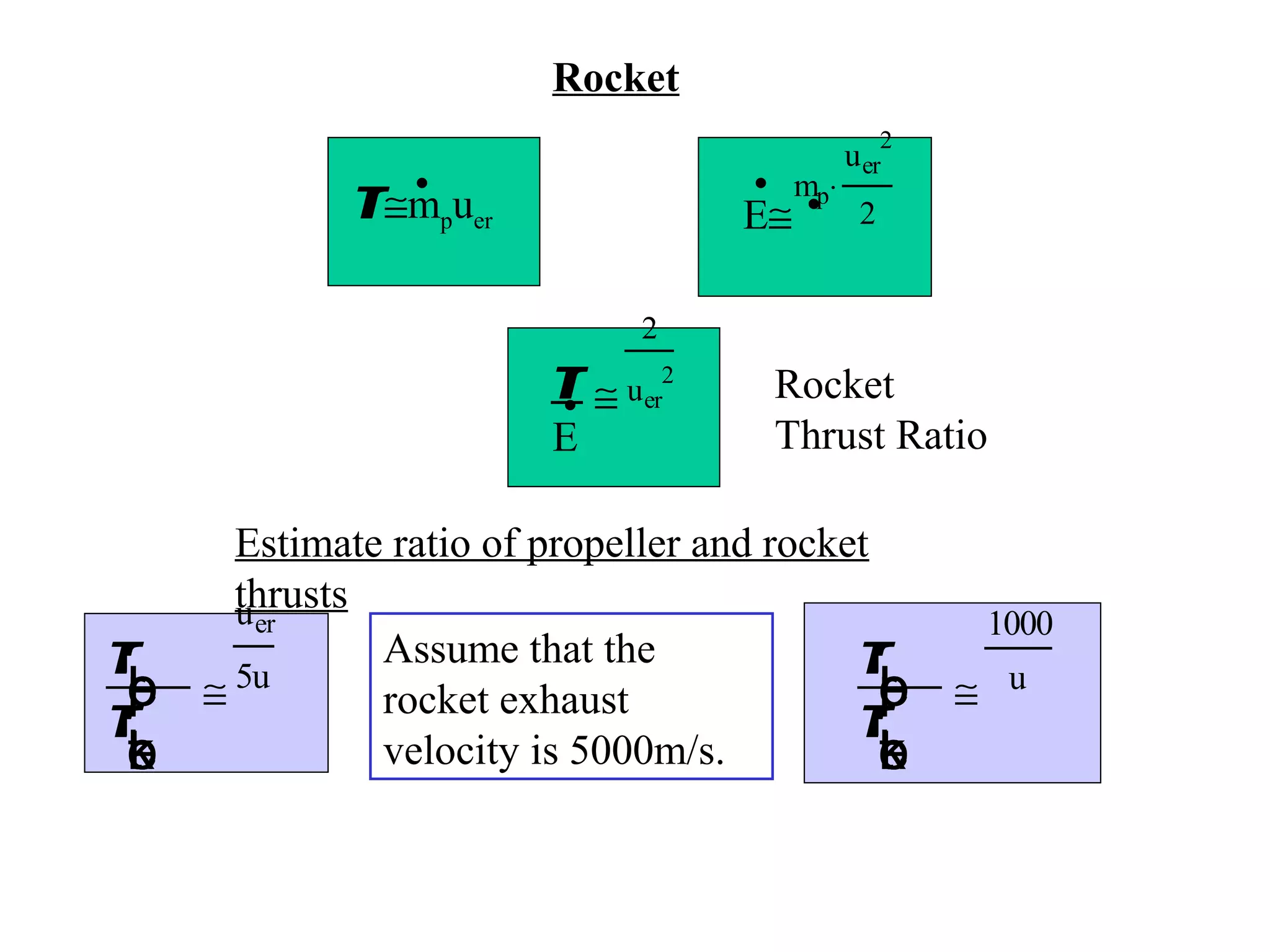

- 11. Rocket 2 • T≅mpuer • mp⋅ E≅ • uer 2 2 T ≅ uer2 • E T p o r l e T o r e k c t Rocket Thrust Ratio Estimate ratio of propeller and rocket thrusts u er Assume that the T 5u ≅ p o r l e rocket exhaust T velocity is 5000m/s. o r e k c t 1000 ≅ u

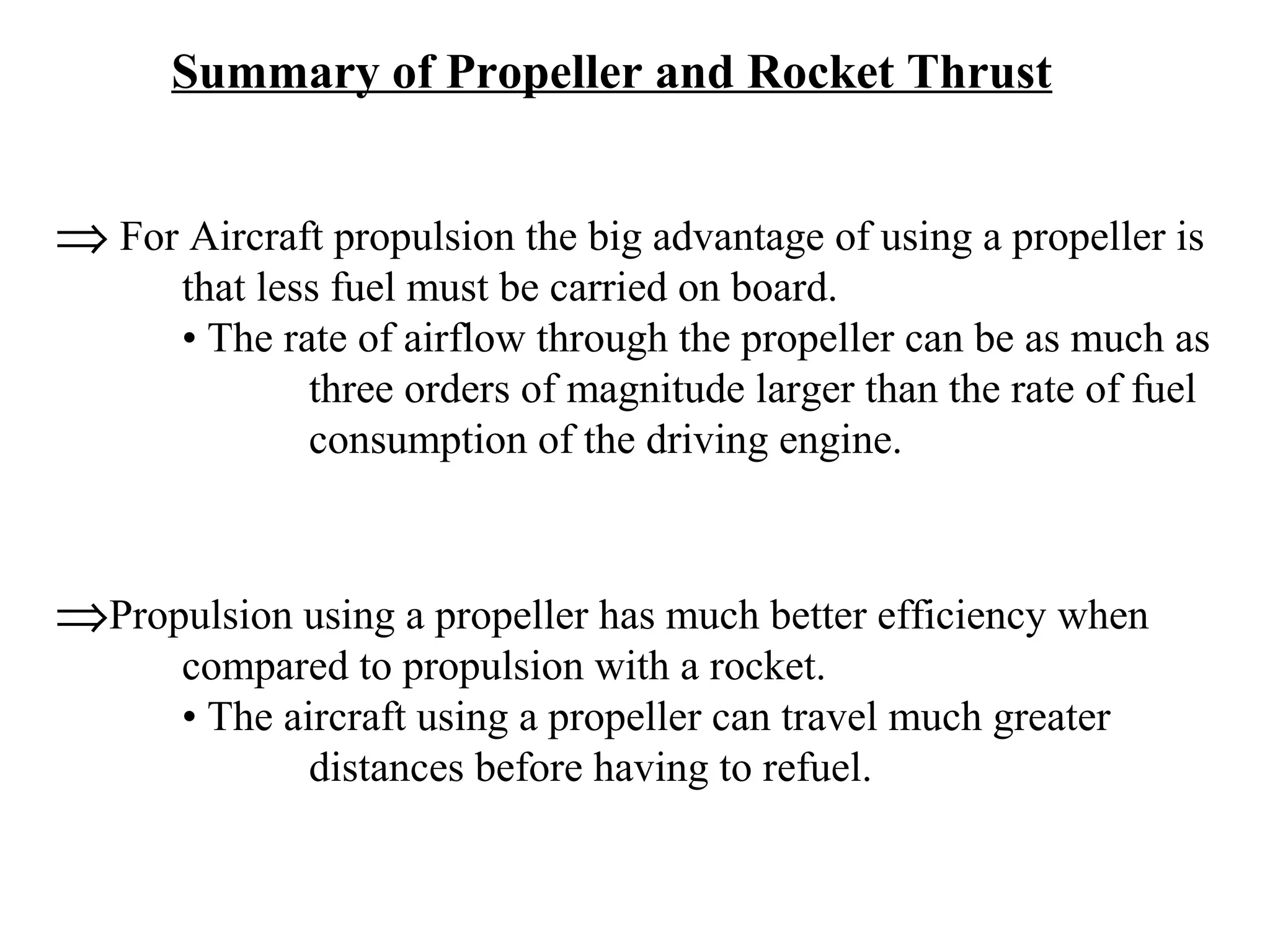

- 12. Summary of Propellerand Rocket Thrust ⇒ For Aircraft propulsion the big advantage of using a propeller is that less fuel must be carried on board. • The rate of airflow through the propeller can be as much as three orders of magnitude larger than the rate of fuel consumption of the driving engine. ⇒Propulsion using a propeller has much better efficiency when compared to propulsion with a rocket. • The aircraft using a propeller can travel much greater distances before having to refuel.

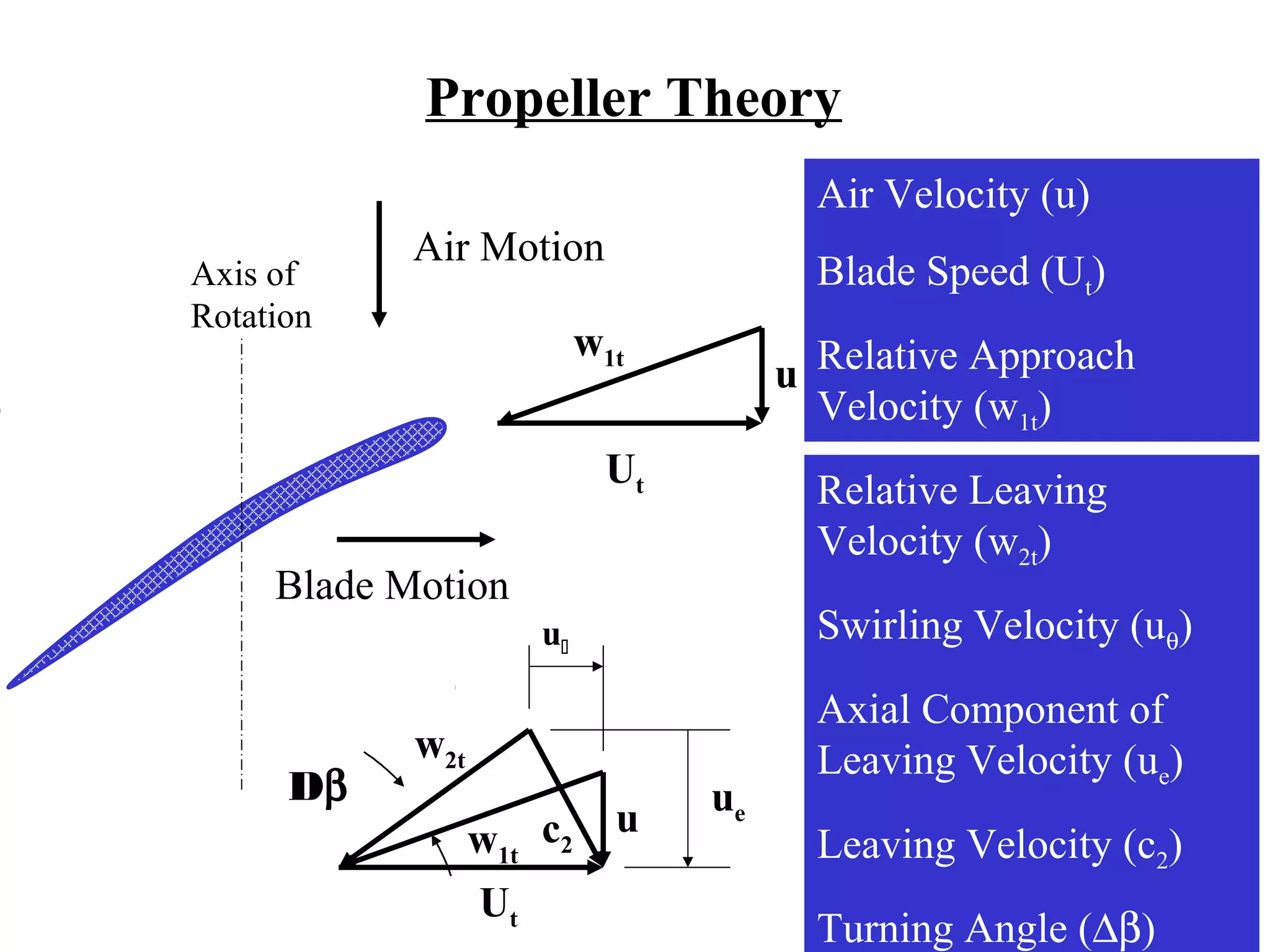

- 13. Propeller Theory Air Velocity(u) Axis of Rotation Air Motion Blade Speed (Ut) w1t u Relative Approach Velocity (w1t) Ut Relative Leaving Velocity (w2t) Blade Motion Swirling Velocity (uθ) u Dβ w2t w1t c2 Ut u ue Axial Component of Leaving Velocity (ue) Leaving Velocity (c2) Turning Angle (∆β)

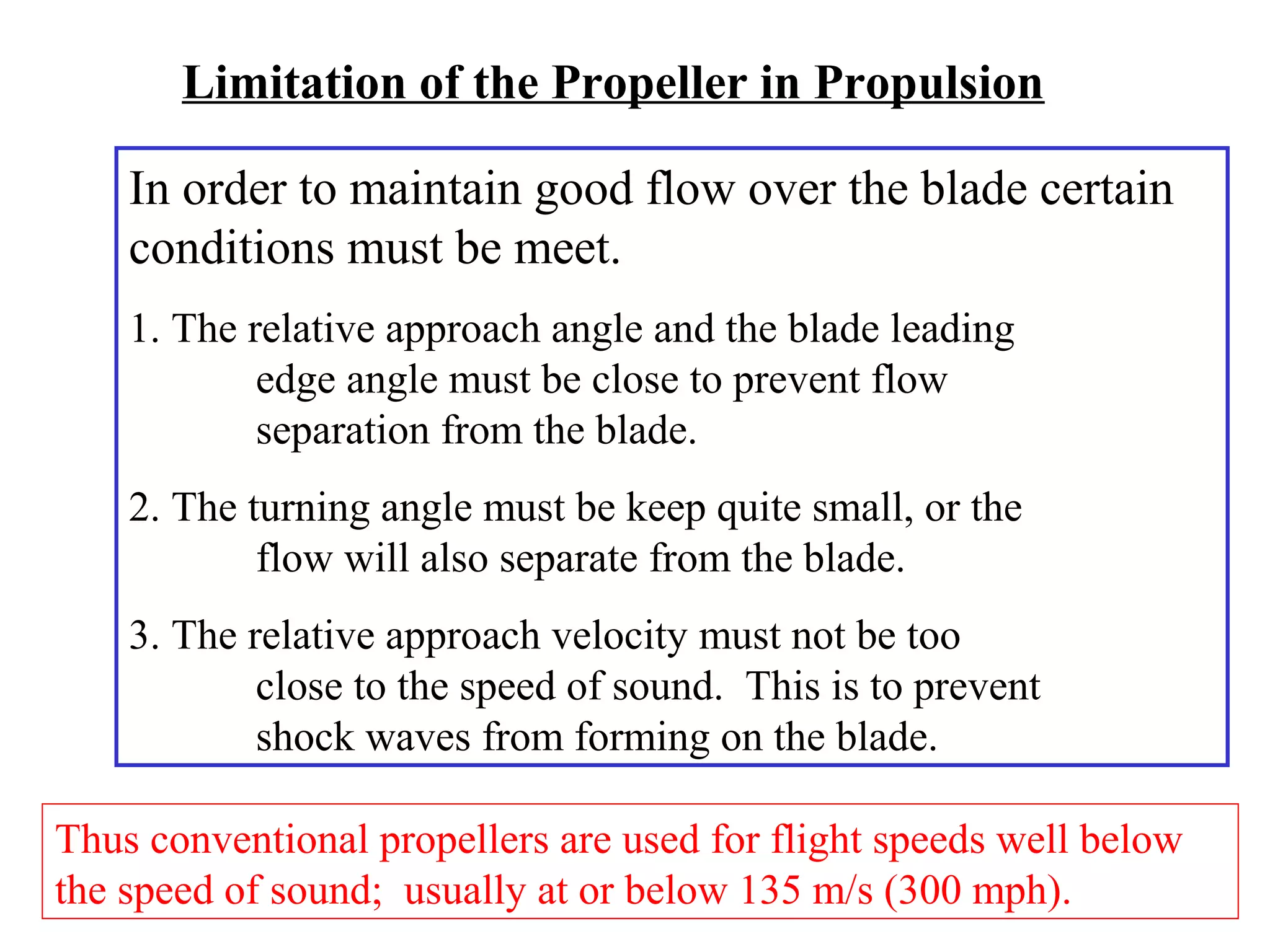

- 14. Limitation of thePropeller in Propulsion In order to maintain good flow over the blade certain conditions must be meet. 1. The relative approach angle and the blade leading edge angle must be close to prevent flow separation from the blade. 2. The turning angle must be keep quite small, or the flow will also separate from the blade. 3. The relative approach velocity must not be too close to the speed of sound. This is to prevent shock waves from forming on the blade. Thus conventional propellers are used for flight speeds well below the speed of sound; usually at or below 135 m/s (300 mph).

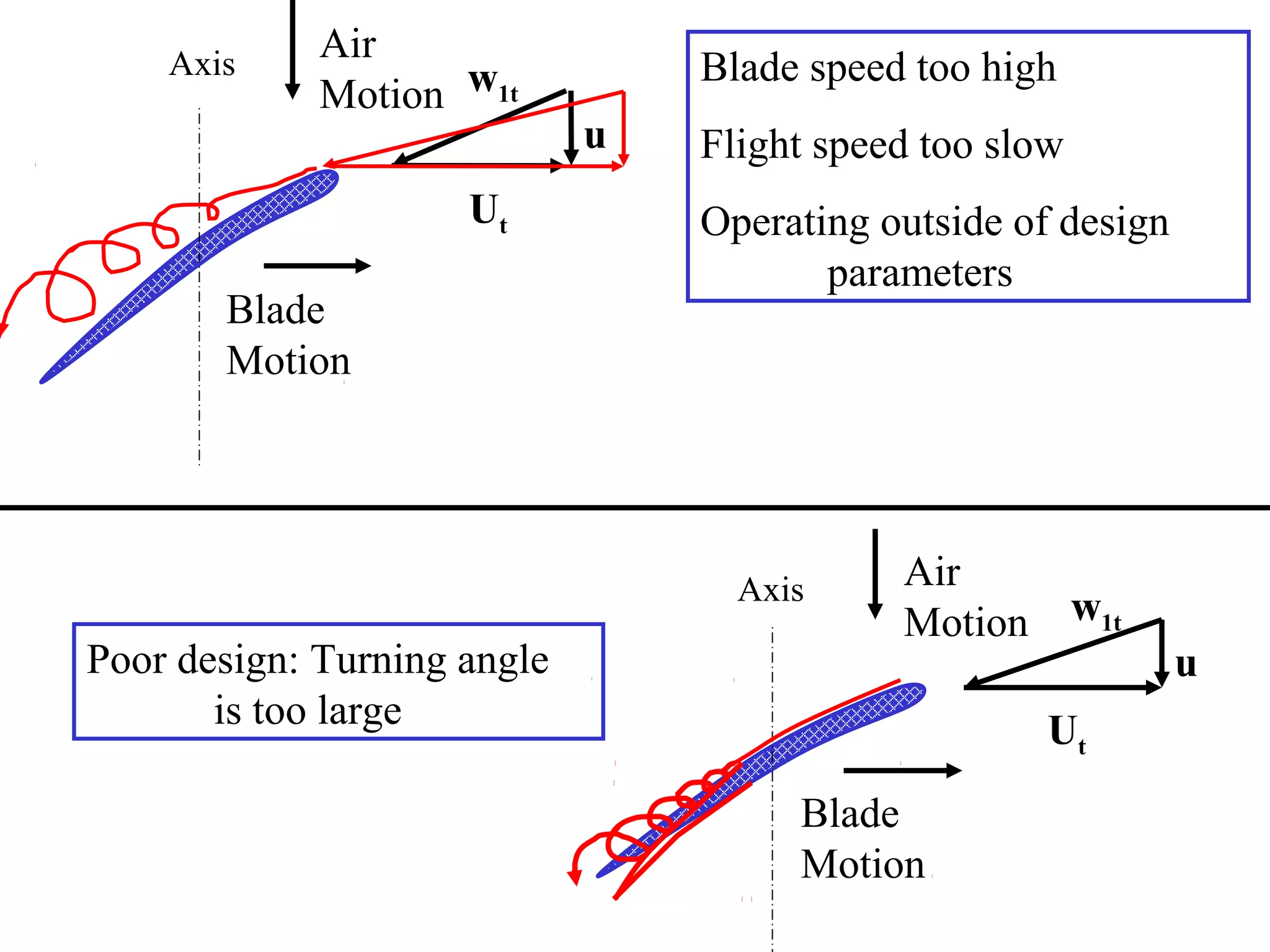

- 15. Axis Air Motion w1t Ut Blade Motion Blade speedtoo high u Flight speed too slow Operating outside of design parameters Axis Poor design: Turning angle is too large Air Motion w1t u Ut Blade Motion

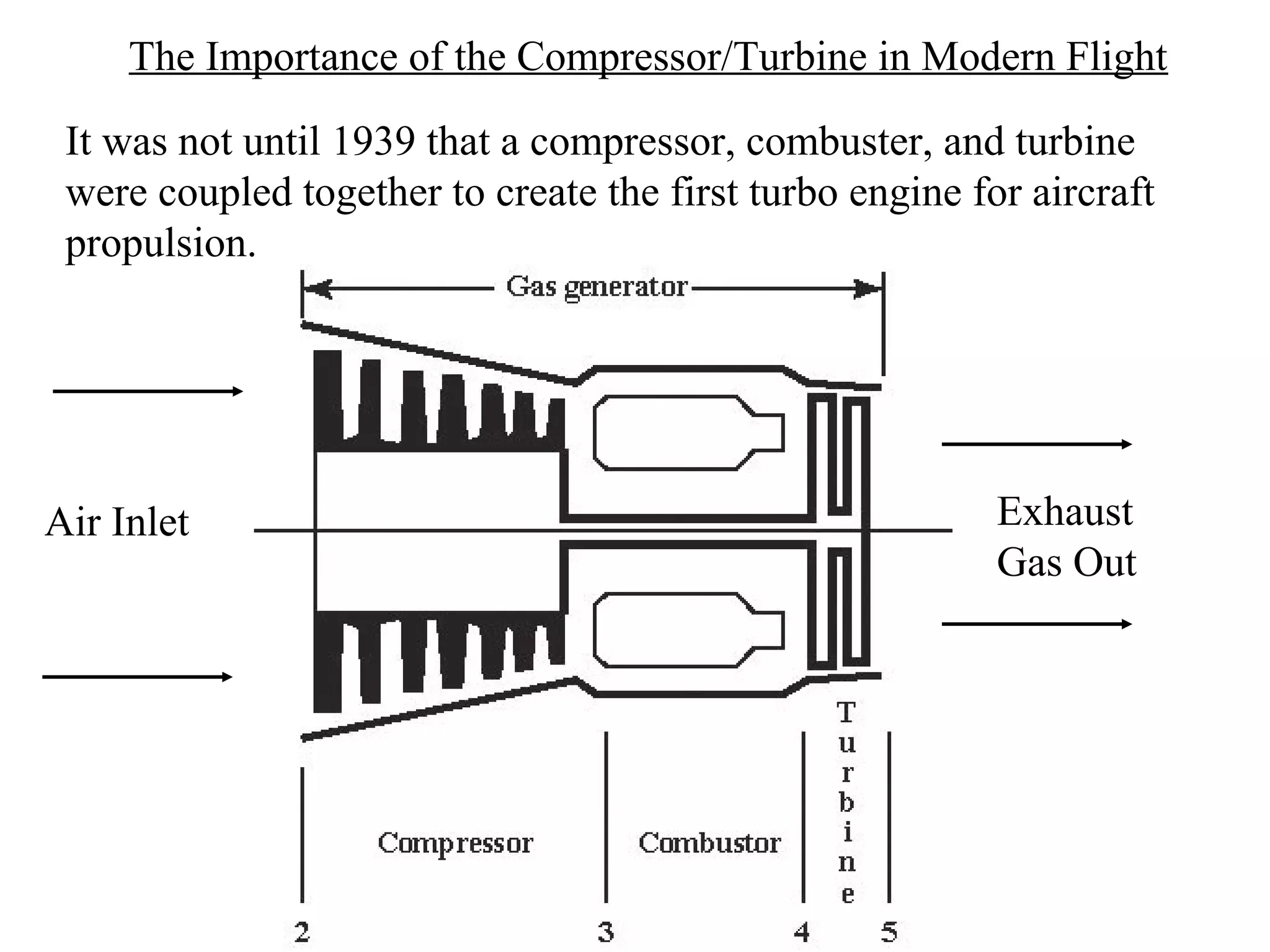

- 16. The Importance ofthe Compressor/Turbine in Modern Flight It was not until 1939 that a compressor, combuster, and turbine were coupled together to create the first turbo engine for aircraft propulsion. Air Inlet Exhaust Gas Out

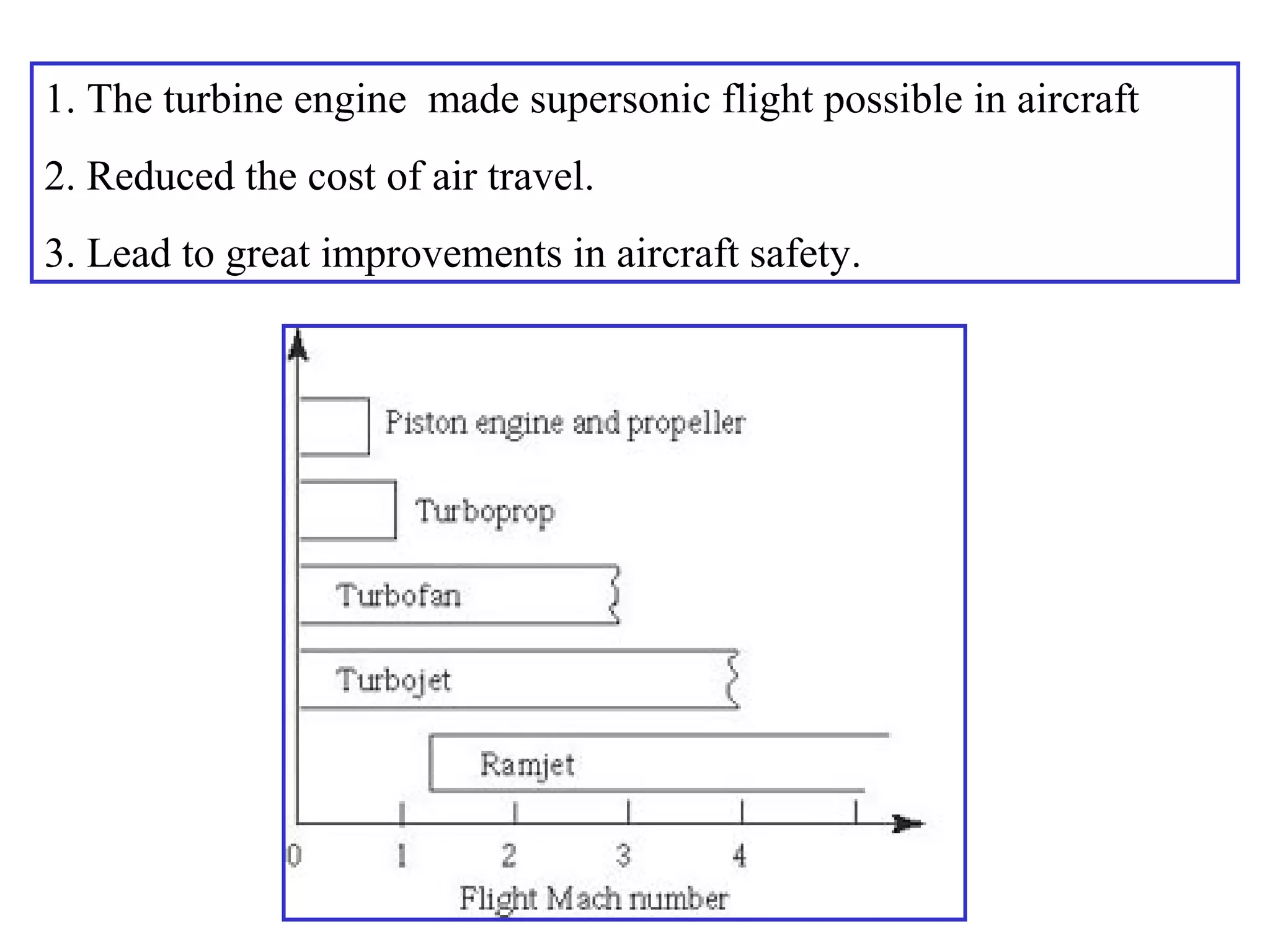

- 17. 1. The turbineengine made supersonic flight possible in aircraft 2. Reduced the cost of air travel. 3. Lead to great improvements in aircraft safety.
- 18.

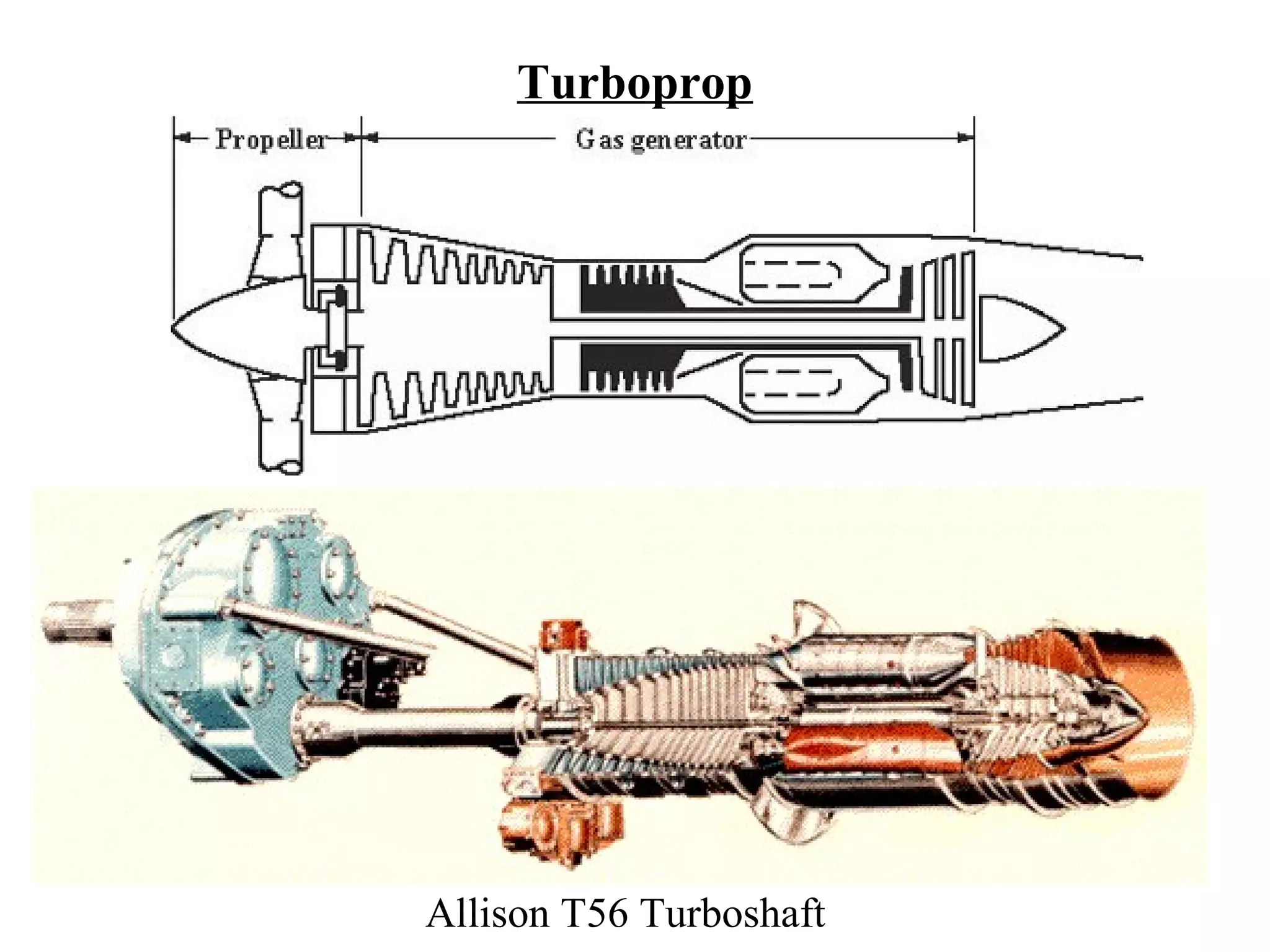

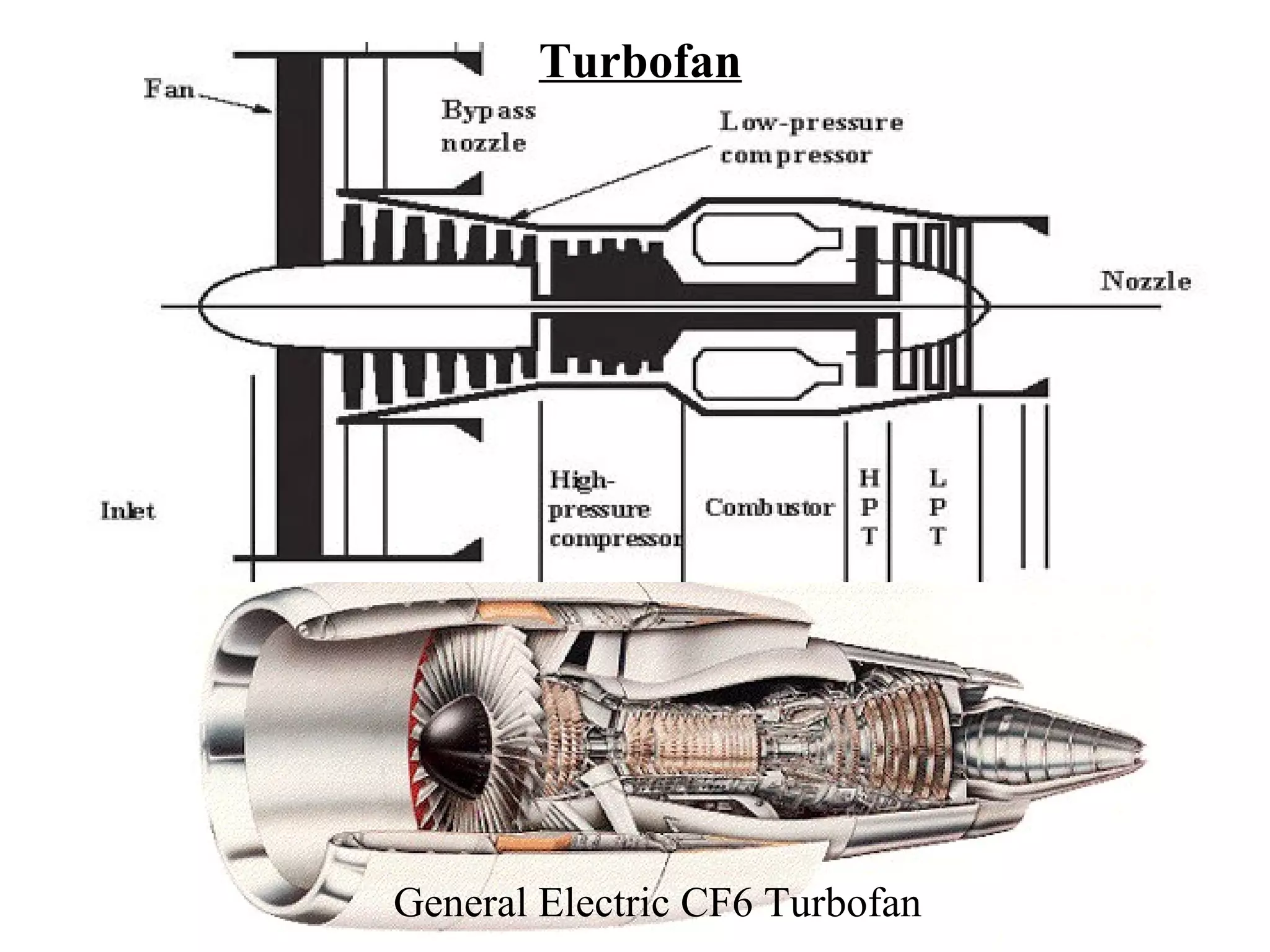

- 19. Turbofan General Electric CF6Turbofan

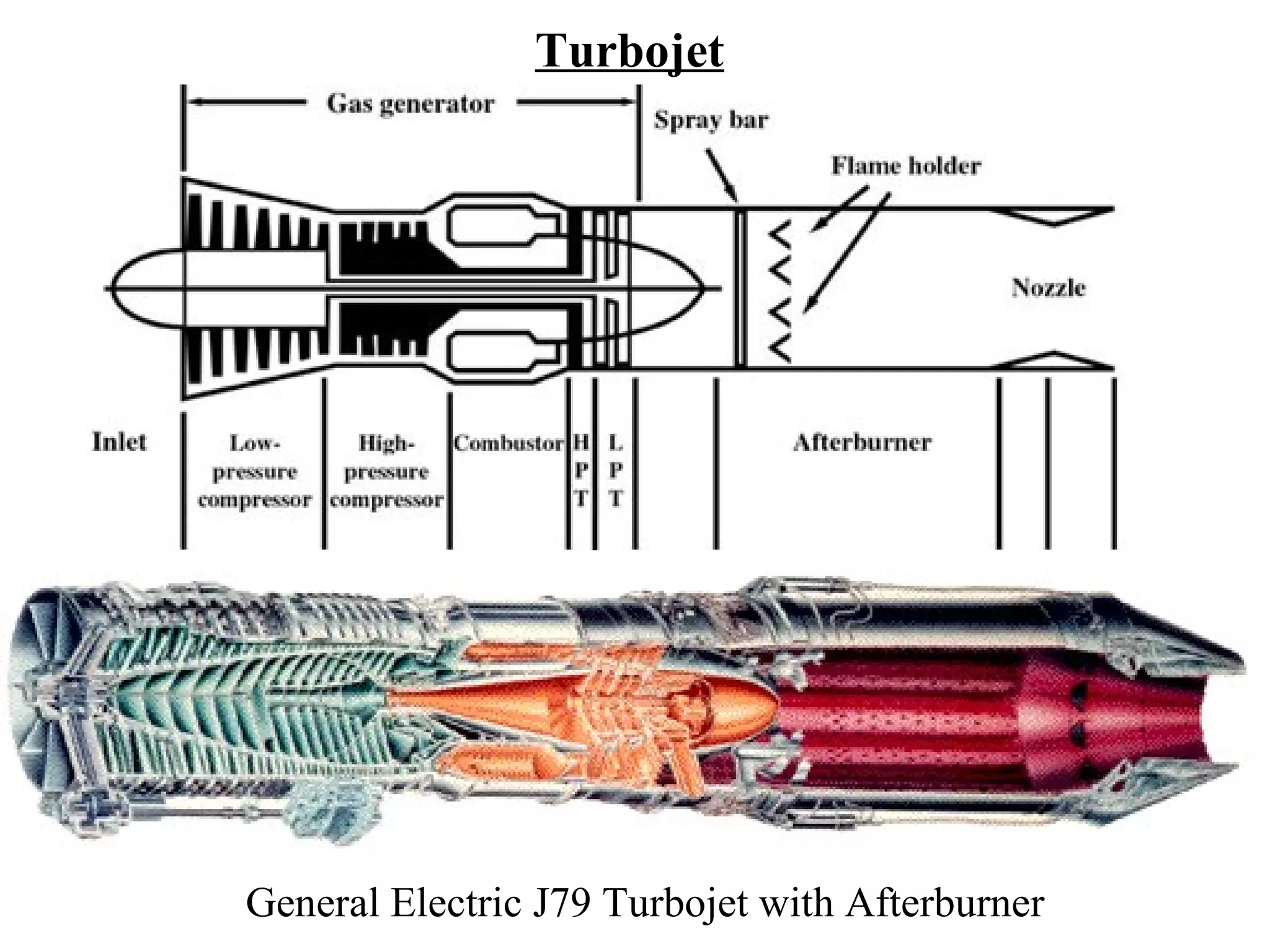

- 20. Turbojet General Electric J79Turbojet with Afterburner

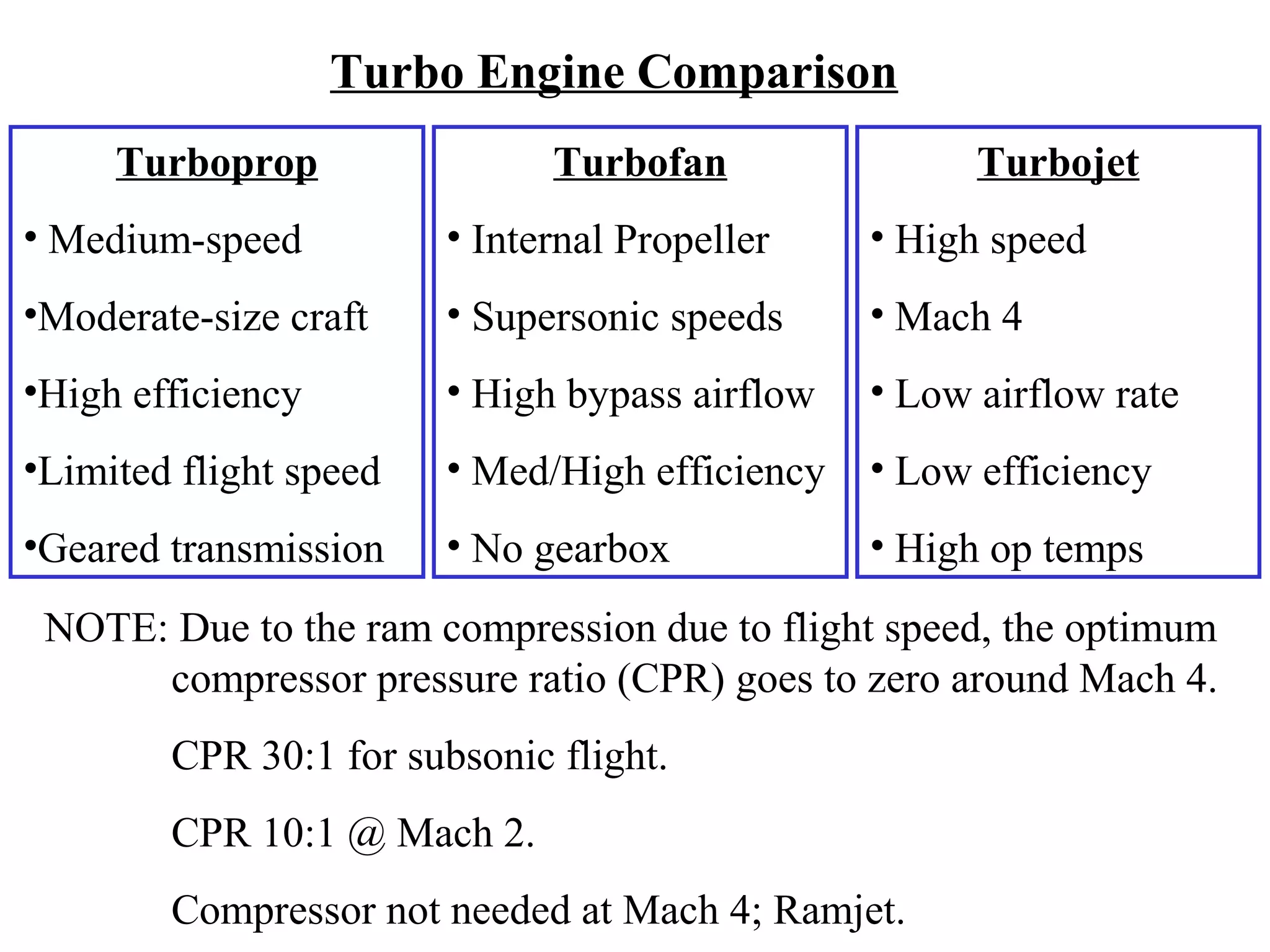

- 21. Turbo Engine Comparison Turboprop Turbofan Turbojet •Medium-speed • Internal Propeller • High speed •Moderate-size craft • Supersonic speeds • Mach 4 •High efficiency • High bypass airflow • Low airflow rate •Limited flight speed • Med/High efficiency • Low efficiency •Geared transmission • No gearbox • High op temps NOTE: Due to the ram compression due to flight speed, the optimum compressor pressure ratio (CPR) goes to zero around Mach 4. CPR 30:1 for subsonic flight. CPR 10:1 @ Mach 2. Compressor not needed at Mach 4; Ramjet.

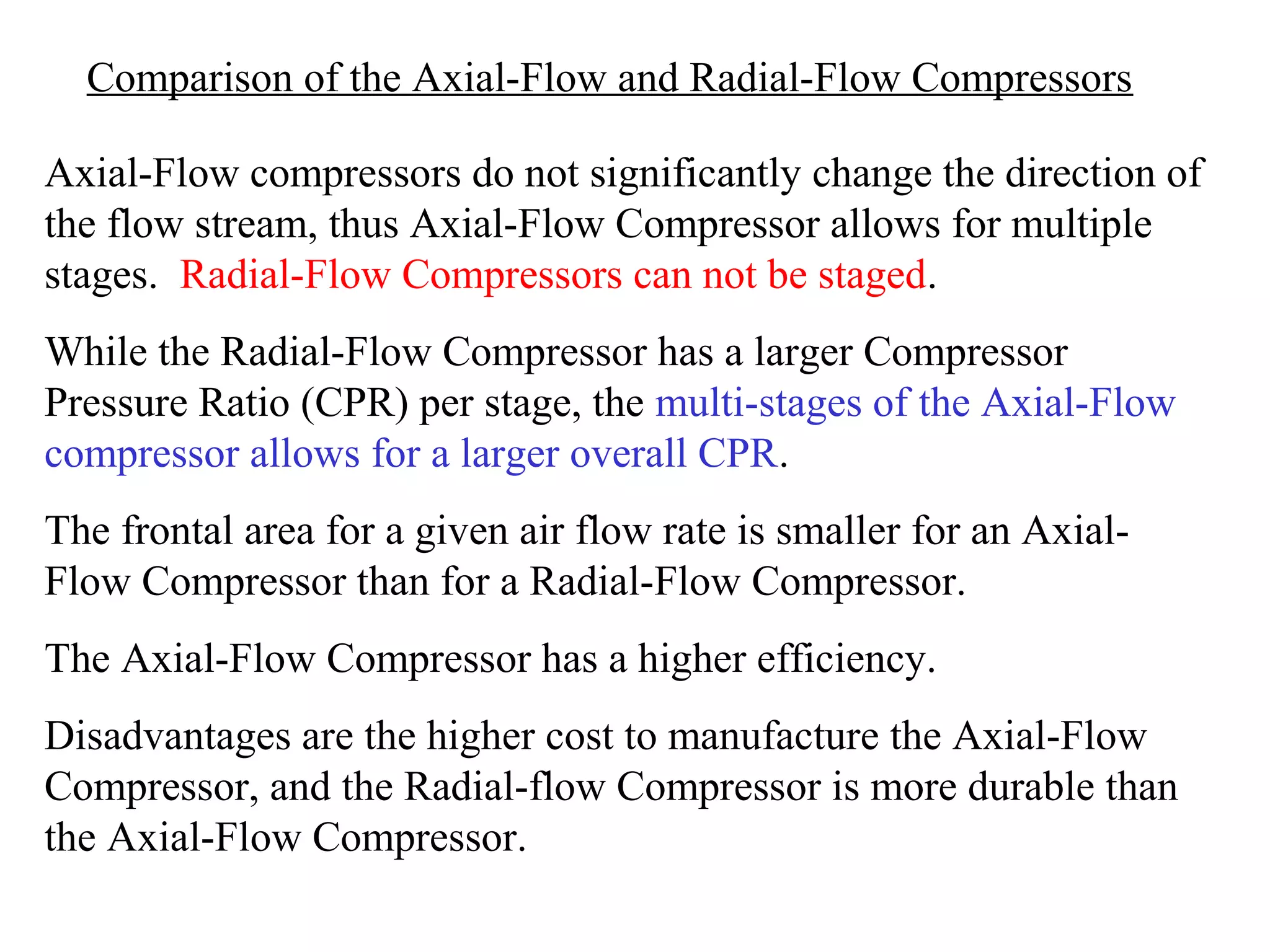

- 22. Comparison of theAxial-Flow and Radial-Flow Compressors Axial-Flow compressors do not significantly change the direction of the flow stream, thus Axial-Flow Compressor allows for multiple stages. Radial-Flow Compressors can not be staged. While the Radial-Flow Compressor has a larger Compressor Pressure Ratio (CPR) per stage, the multi-stages of the Axial-Flow compressor allows for a larger overall CPR. The frontal area for a given air flow rate is smaller for an AxialFlow Compressor than for a Radial-Flow Compressor. The Axial-Flow Compressor has a higher efficiency. Disadvantages are the higher cost to manufacture the Axial-Flow Compressor, and the Radial-flow Compressor is more durable than the Axial-Flow Compressor.

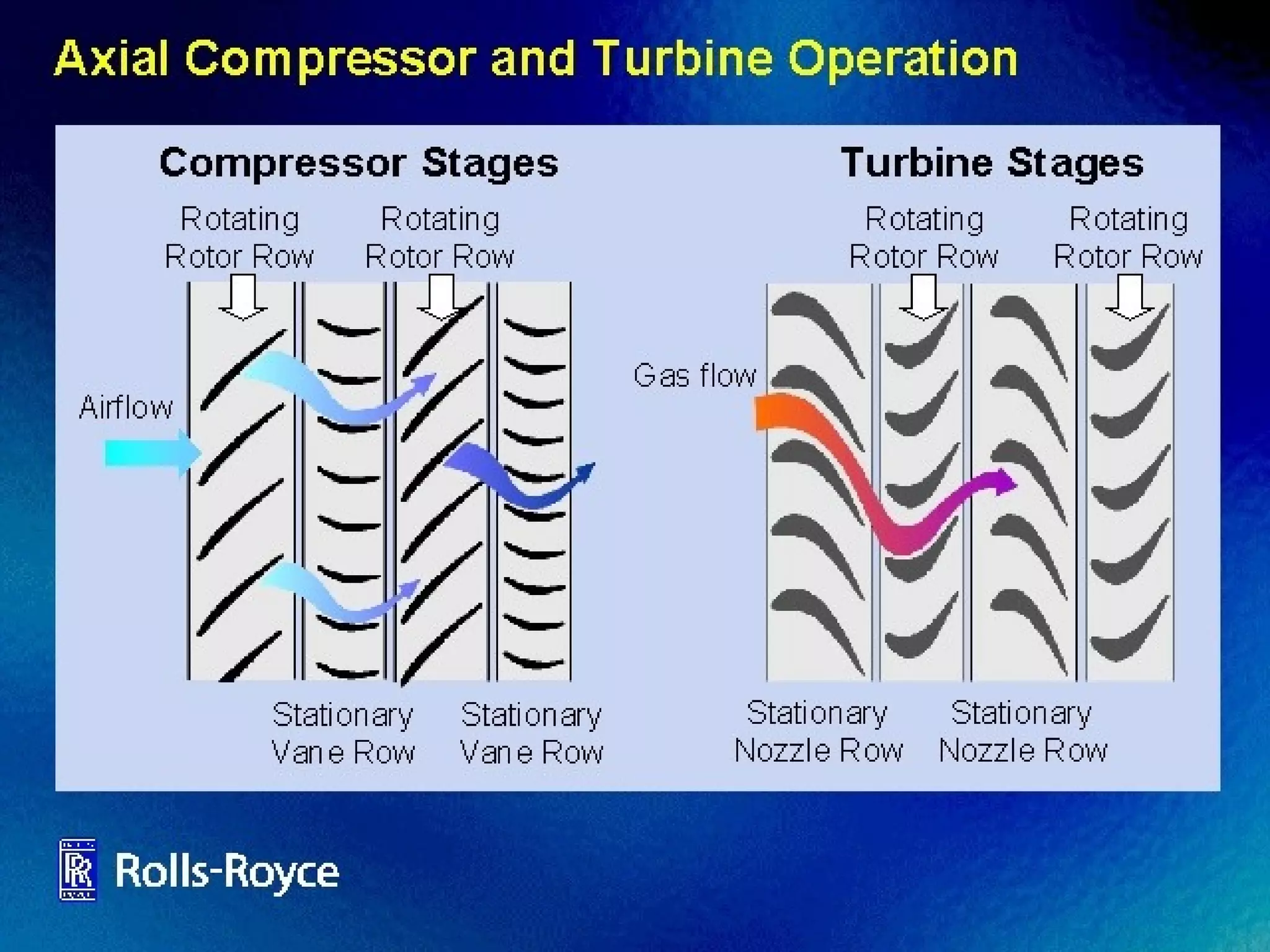

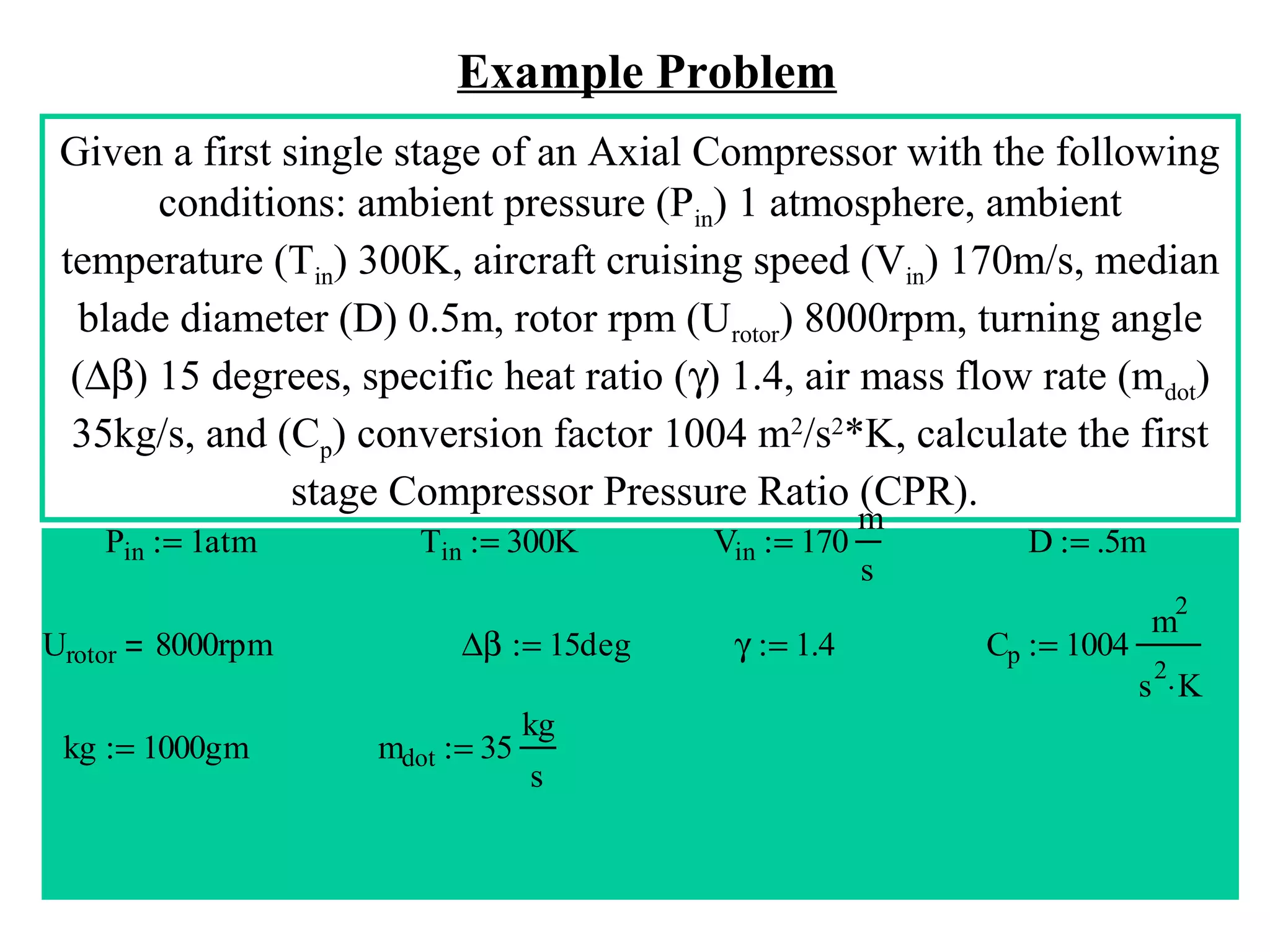

- 24. Example Problem Given afirst single stage of an Axial Compressor with the following conditions: ambient pressure (Pin) 1 atmosphere, ambient temperature (Tin) 300K, aircraft cruising speed (Vin) 170m/s, median blade diameter (D) 0.5m, rotor rpm (Urotor) 8000rpm, turning angle (∆β) 15 degrees, specific heat ratio (γ) 1.4, air mass flow rate (mdot) 35kg/s, and (Cp) conversion factor 1004 m2/s2*K, calculate the first stage Compressor Pressure Ratio (CPR). Pin := 1atm Tin := 300K Vin := 170 m s D := .5m 2 Urotor 8000rpm kg := 1000gm ∆β := 15deg mdot := 35 kg s γ := 1.4 Cp := 1004 m 2 s ⋅K

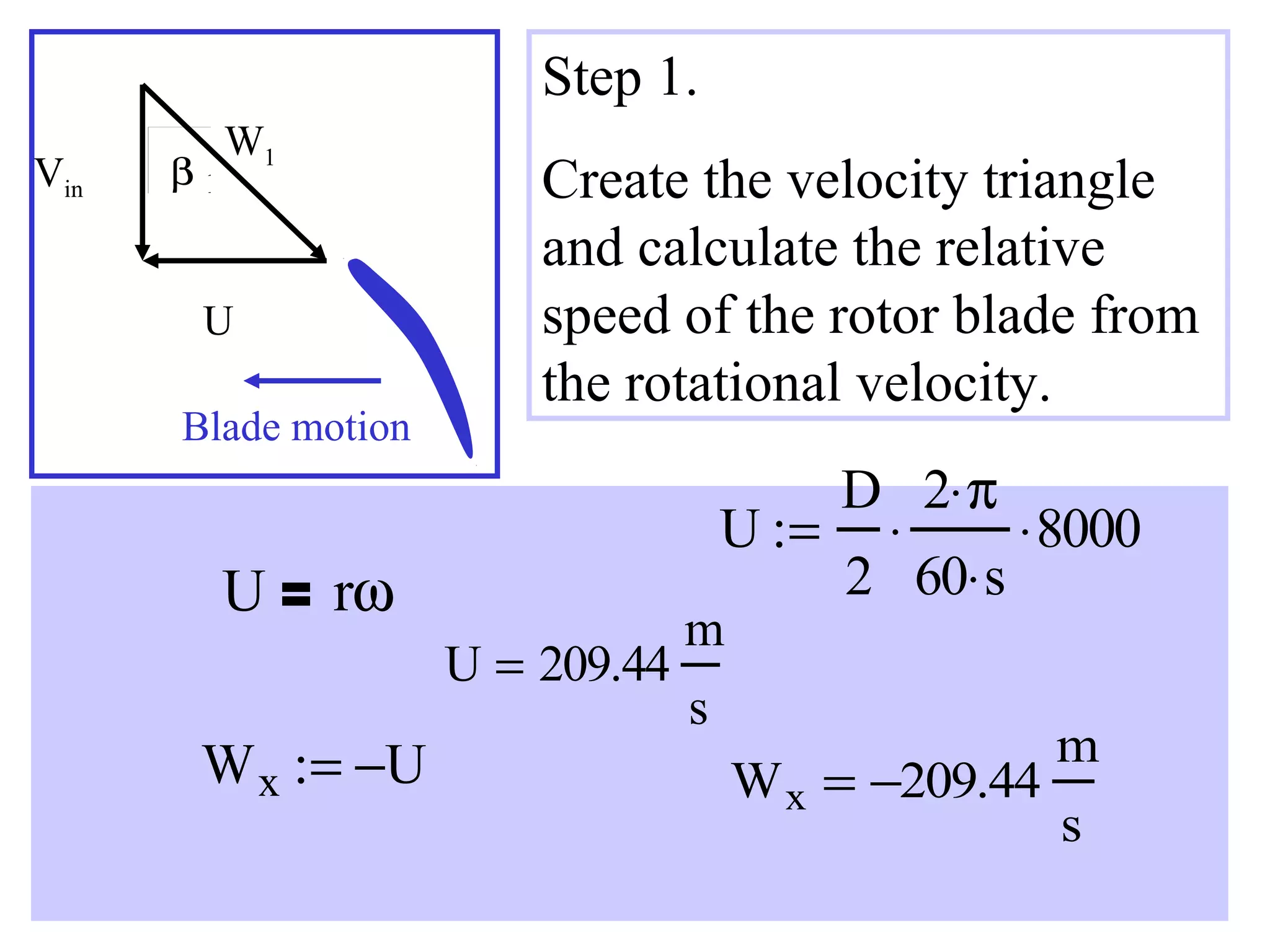

- 25. Step 1. Vin β1 W1 U Blade motion U Createthe velocity triangle and calculate the relative speed of the rotor blade from the rotational velocity. D 2⋅ π U := ⋅ ⋅ 8000 2 60⋅ s rω U = 209.44 W x := −U m s W x = −209.44 m s

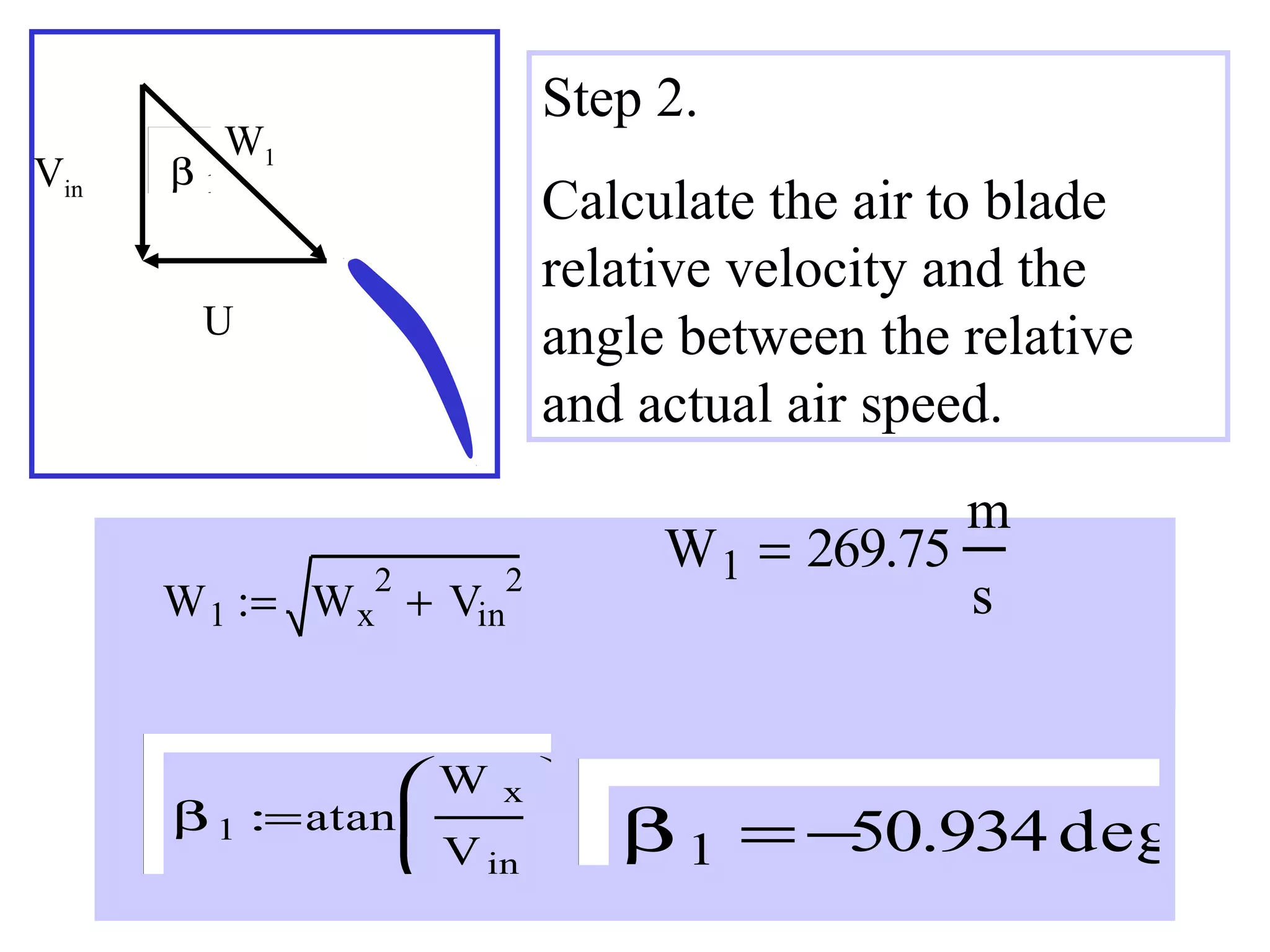

- 26. Vin β1 Step 2. W1 Calculate theair to blade relative velocity and the angle between the relative and actual air speed. U W 1 := 2 Wx + Vin 2 W x β 1 := atan V in W 1 = 269.75 m s β1 =− 50.934 deg

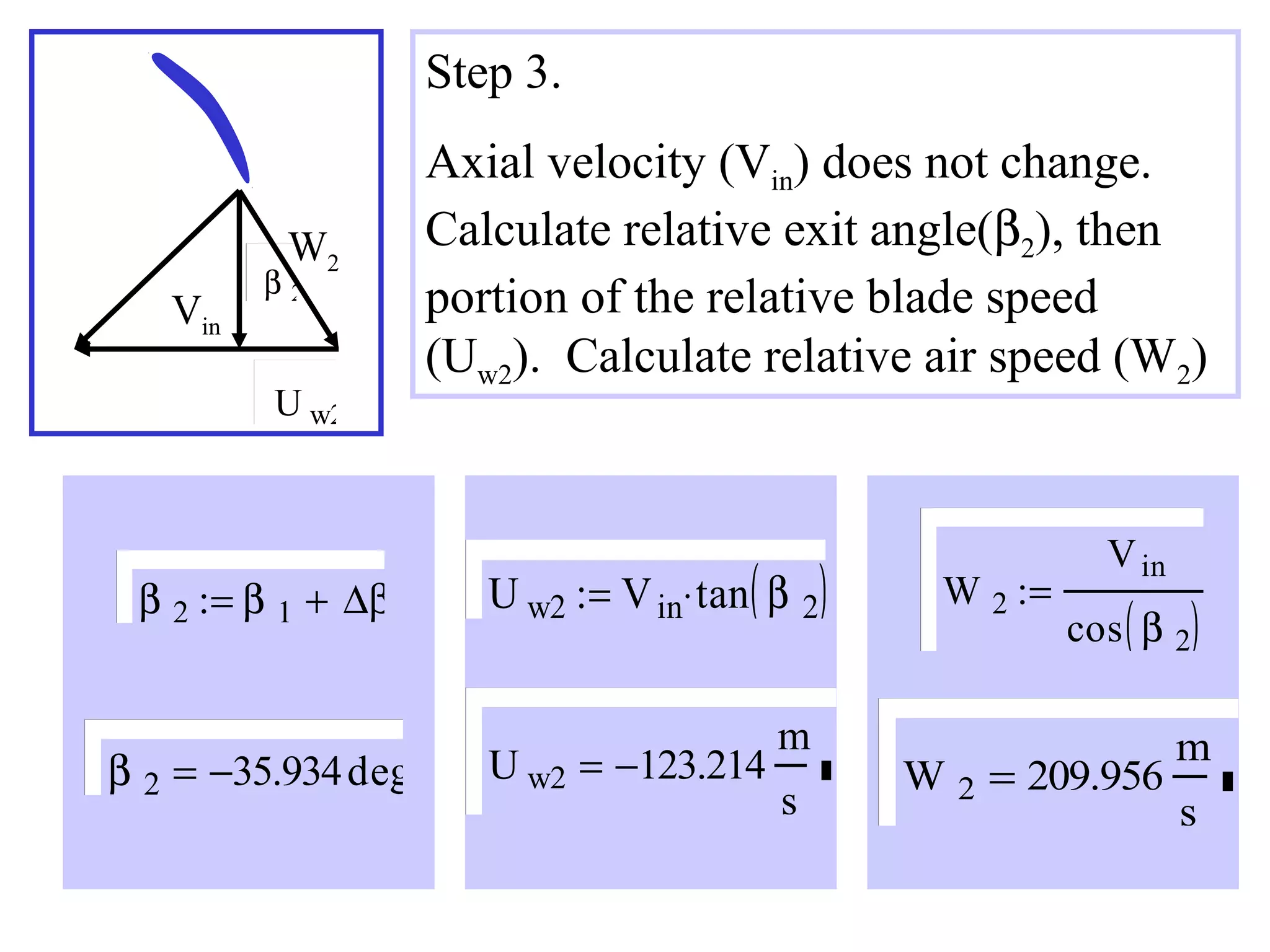

- 27. Step 3. W2 Vin β2 U w2 β2 := β 1 + ∆β β 2 = −35.934 deg Axial velocity (Vin) does not change. Calculate relative exit angle(β2), then portion of the relative blade speed (Uw2). Calculate relative air speed (W2) ( 2) U w2 := V in⋅ tan β U w2 = −123.214 m s W 2 := W 2 V in ( ) cos β 2 = 209.956 m s

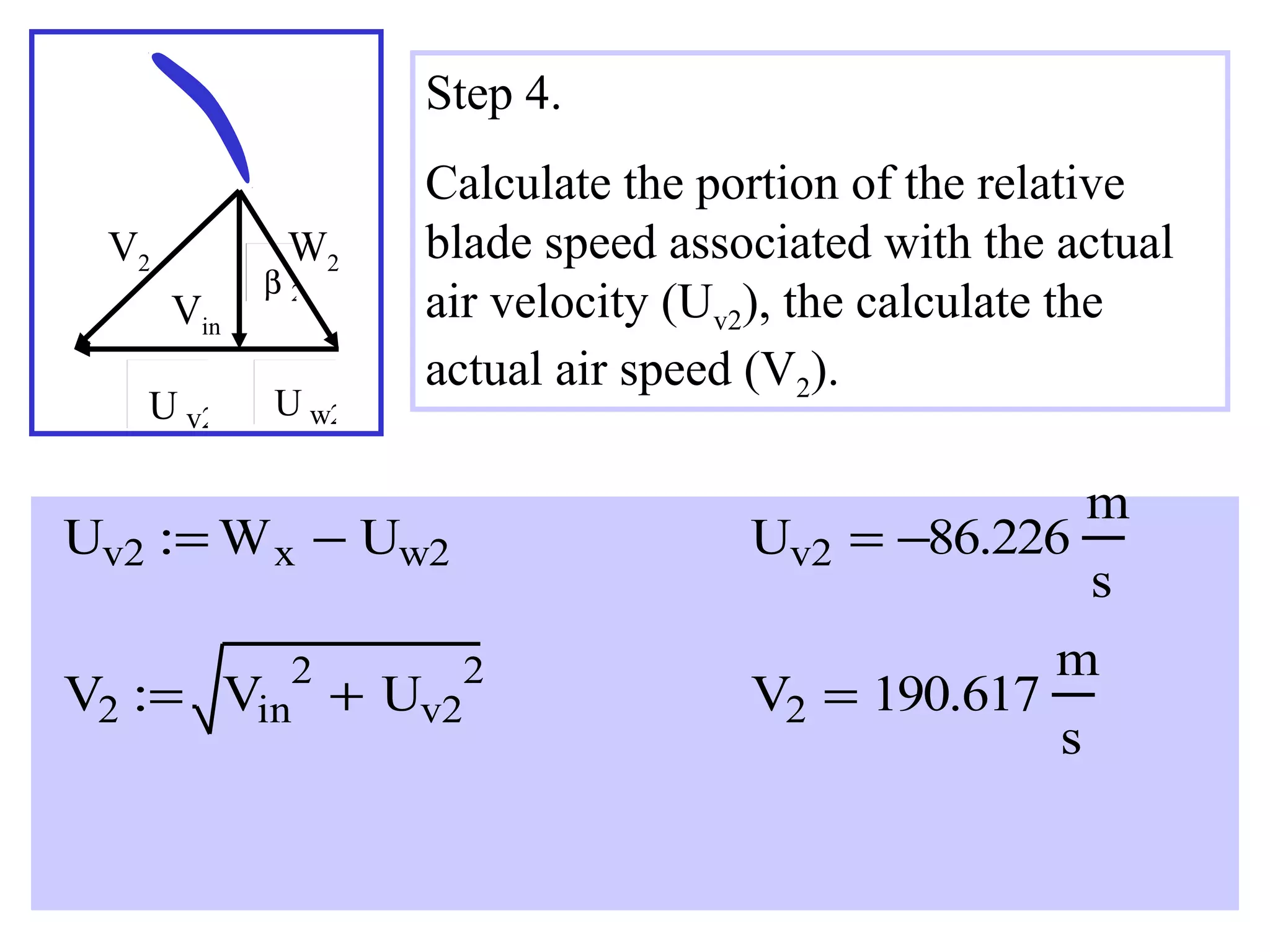

- 28. Step 4. V2 W2 Vin U v2 β2 Uw2 Calculate the portion of the relative blade speed associated with the actual air velocity (Uv2), the calculate the actual air speed (V2). Uv2 := W x − Uw2 V2 := 2 Vin + Uv2 Uv2 = −86.226 2 V2 = 190.617 m s m s

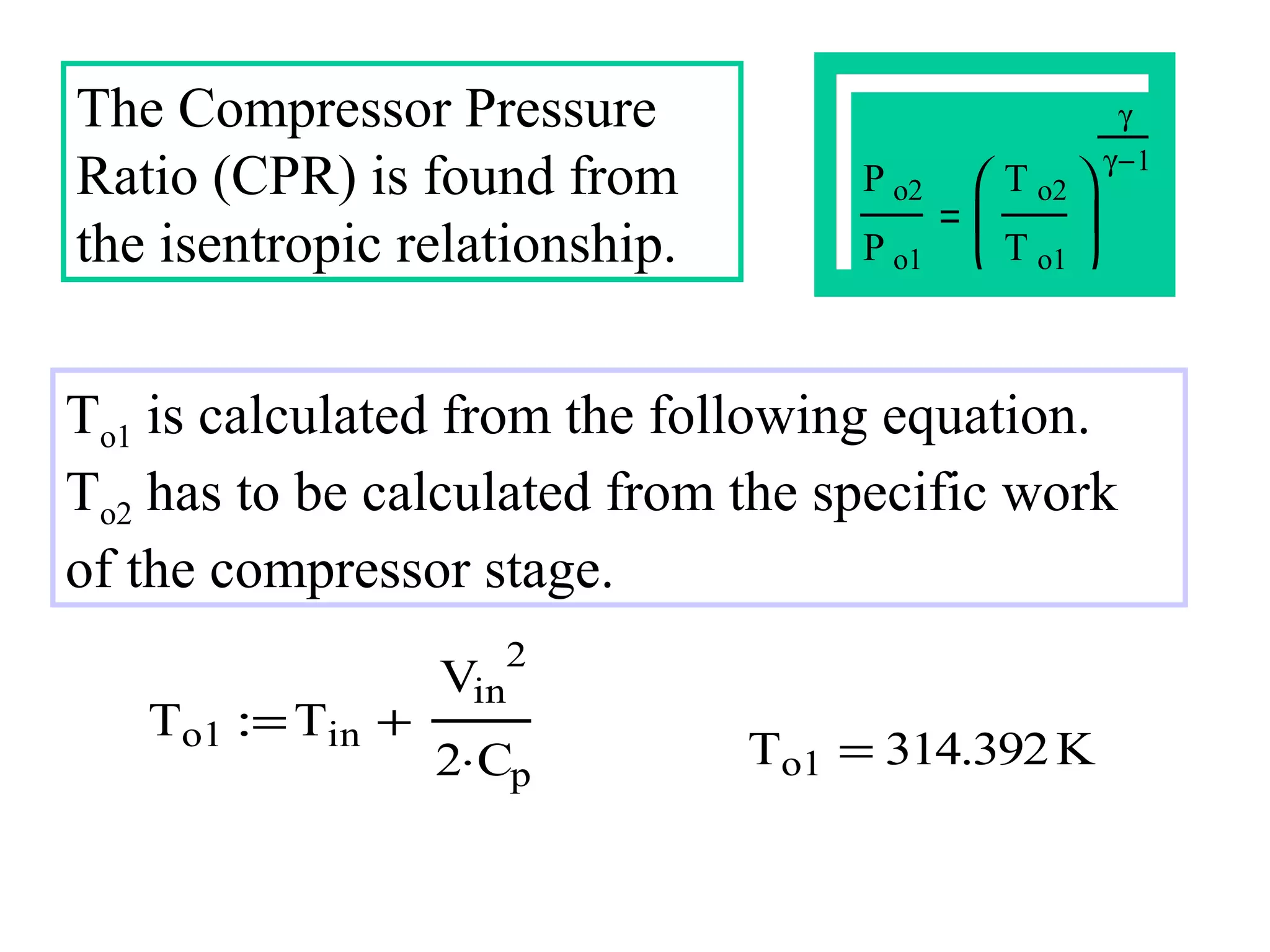

- 29. The Compressor Pressure Ratio(CPR) is found from the isentropic relationship. γ P o2 P o1 T o2 γ −1 T o1 To1 is calculated from the following equation. To2 has to be calculated from the specific work of the compressor stage. To1 := Tin + Vin 2 2⋅Cp To1 = 314.392 K

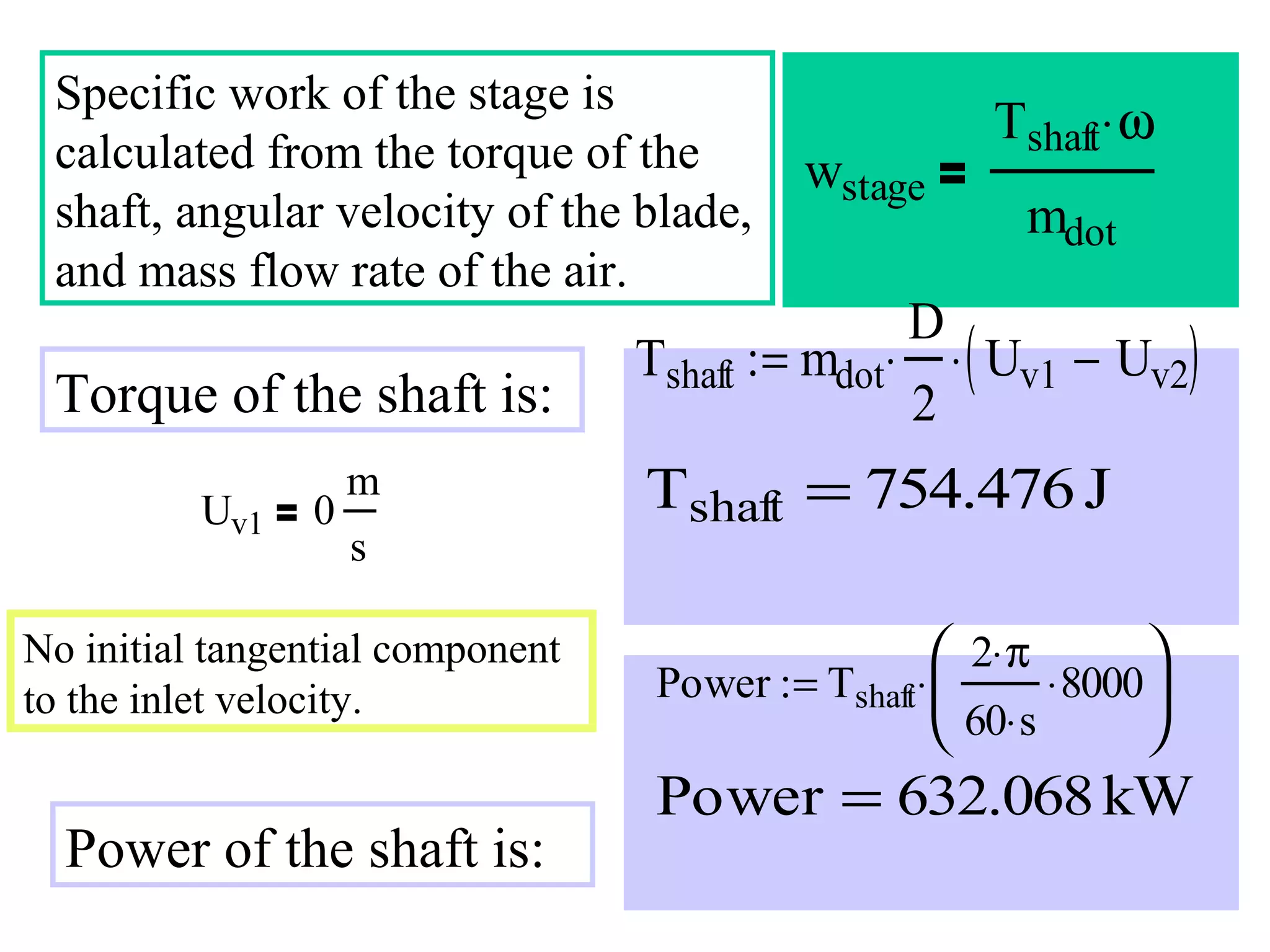

- 30. Specific work ofthe stage is calculated from the torque of the shaft, angular velocity of the blade, and mass flow rate of the air. Torque of the shaft is: Uv1 0 m s No initial tangential component to the inlet velocity. Power of the shaft is: wstage Tshaft := mdot⋅ D 2 Tshaft⋅ ω mdot ⋅ ( Uv1 − Uv2) Tshaft = 754.476 J 2⋅ π ⋅ 8000 Power := Tshaft⋅ 60⋅ s Power = 632.068 kW

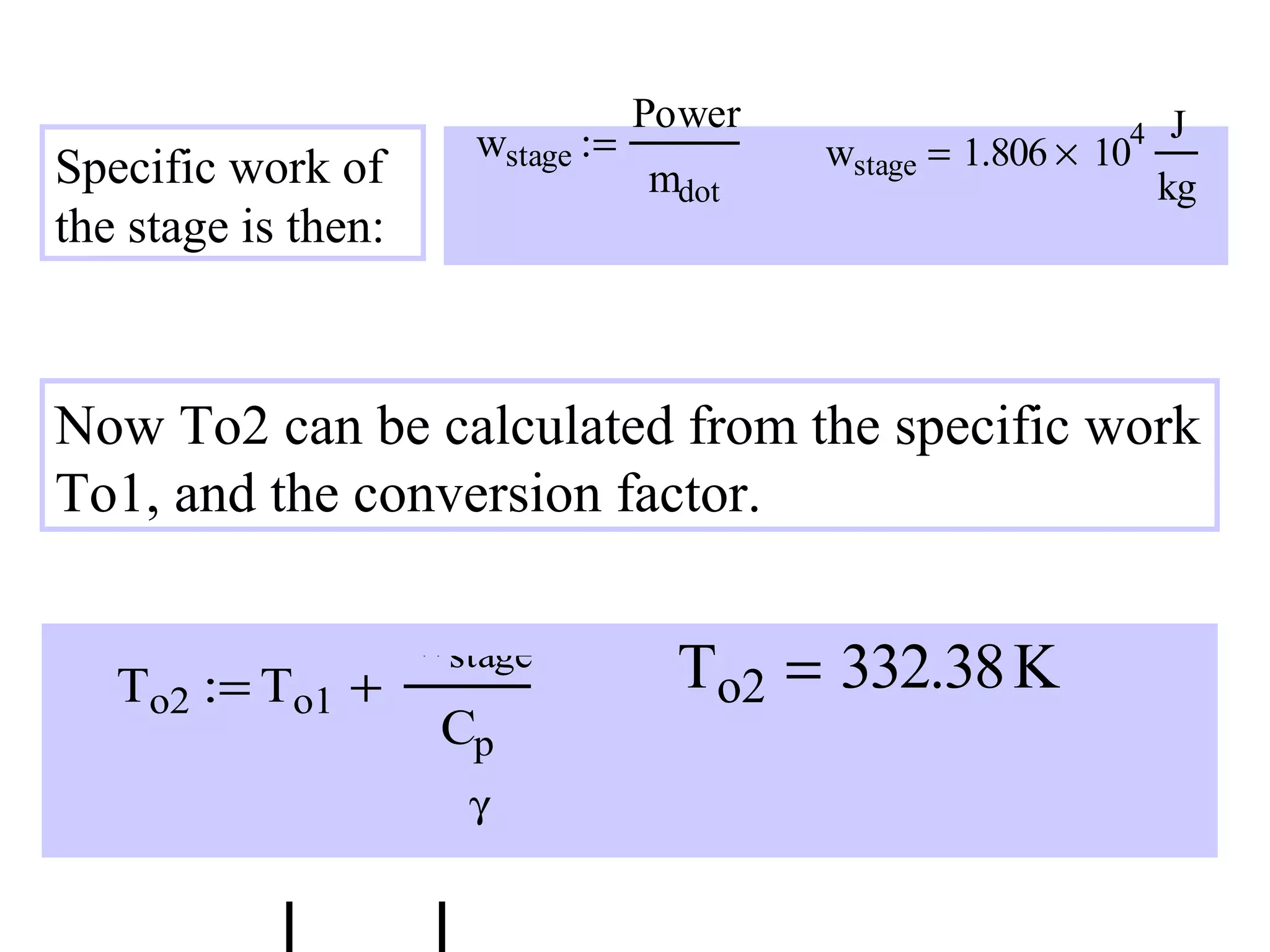

- 31. wstage := Specific workof the stage is then: Power mdot 4 wstage = 1.806 × 10 J kg Now To2 can be calculated from the specific work To1, and the conversion factor. To2 := To1 + CPR := wstage To2 Cp γ γ −1 To2 = 332.38 K
- 32. Finally, the CompressorPressure Ratio can be calculated!!! wstage To2 := To1 + Cp γ γ −1 C P R To2 CPR := To1 The answer is: = 1 . 2 5

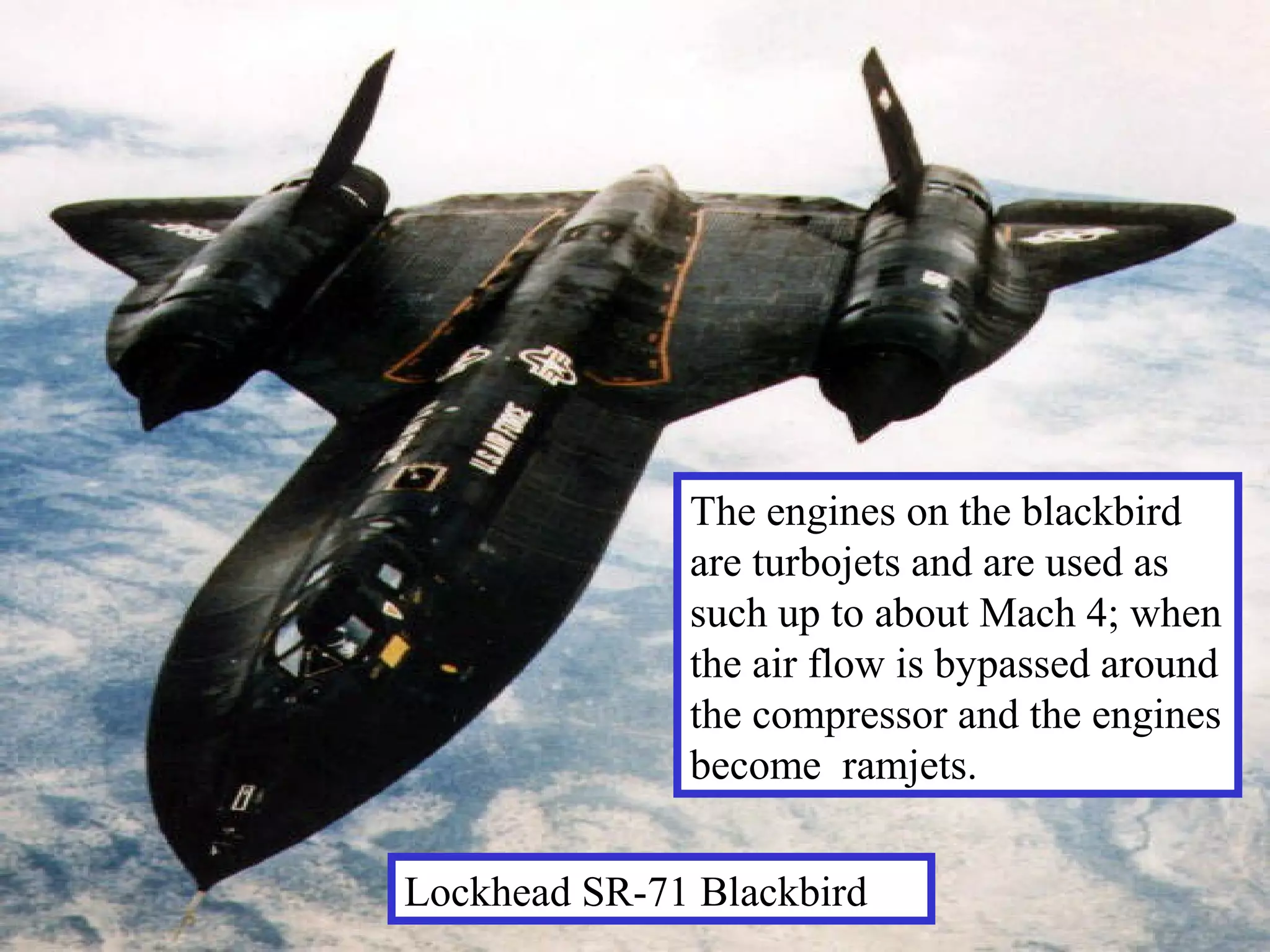

- 33. The engines onthe blackbird are turbojets and are used as such up to about Mach 4; when the air flow is bypassed around the compressor and the engines become ramjets. Lockhead SR-71 Blackbird
