1. Web Automation using Groovy, WebDriver,
JQuery and Page Object Model
By: Gaurav Bansal

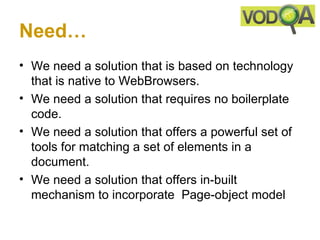

2. Need…
• We need a solution that is based on technology
that is native to WebBrowsers.
• We need a solution that requires no boilerplate
code.
• We need a solution that offers a powerful set of
tools for matching a set of elements in a
document.
• We need a solution that offers in-built
mechanism to incorporate Page-object model

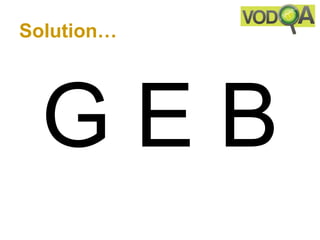

3. Solution…
GEB

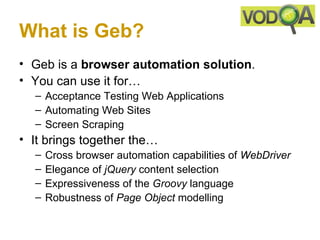

4. What is Geb?
• Geb is a browser automation solution.
• You can use it for…
– Acceptance Testing Web Applications
– Automating Web Sites
– Screen Scraping
• It brings together the…
– Cross browser automation capabilities of WebDriver
– Elegance of jQuery content selection
– Expressiveness of the Groovy language
– Robustness of Page Object modelling

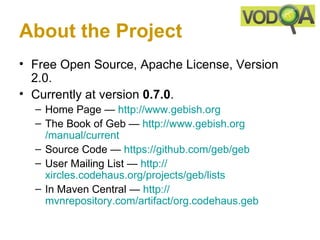

5. About the Project
• Free Open Source, Apache License, Version
2.0.
• Currently at version 0.7.0.
– Home Page — http://www.gebish.org
– The Book of Geb — http://www.gebish.org
/manual/current
– Source Code — https://github.com/geb/geb
– User Mailing List — http://
xircles.codehaus.org/projects/geb/lists
– In Maven Central — http://
mvnrepository.com/artifact/org.codehaus.geb

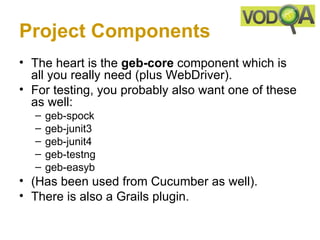

6. Project Components
• The heart is the geb-core component which is
all you really need (plus WebDriver).
• For testing, you probably also want one of these
as well:
– geb-spock
– geb-junit3
– geb-junit4
– geb-testng
– geb-easyb
• (Has been used from Cucumber as well).
• There is also a Grails plugin.

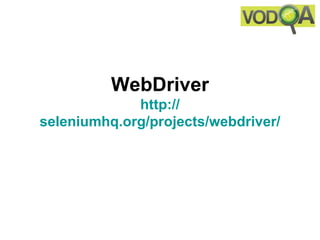

7. WebDriver
http://
seleniumhq.org/projects/webdriver/

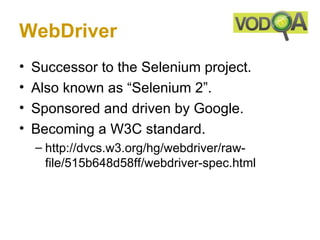

8. WebDriver
• Successor to the Selenium project.
• Also known as “Selenium 2”.
• Sponsored and driven by Google.
• Becoming a W3C standard.
– http://dvcs.w3.org/hg/webdriver/raw-
file/515b648d58ff/webdriver-spec.html

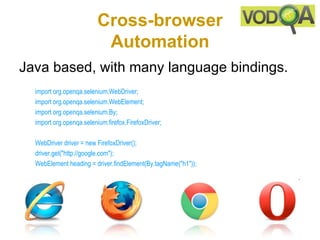

9. Cross-browser
Automation
Java based, with many language bindings.
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.By;
import org.openqa.selenium.firefox.FirefoxDriver;
WebDriver driver = new FirefoxDriver();
driver.get("http://google.com");
WebElement heading = driver.findElement(By.tagName("h1"));

10. Mobile Browsers
• Rapidly improving.
– iPad
– iPhone
– Android
– Blackberry
• Can use real devices or emulators in most
cases.
• A headless webkit based driver
(PhantomJS) is in progress.

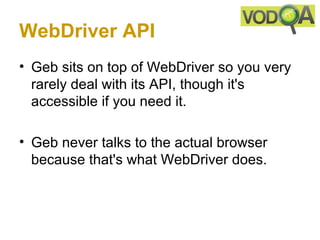

11. WebDriver API
• Geb sits on top of WebDriver so you very
rarely deal with its API, though it's
accessible if you need it.
• Geb never talks to the actual browser
because that's what WebDriver does.

12. Driver dependency
• You need to pull in a specific driver
implementation for each browser you want
to work with.
– <dependency>
– <groupId>org.seleniumhq.selenium</groupId>
– <artifactId>selenium-firefox-driver</artifactId>
– <version>2.24.1</version>
– </dependency>

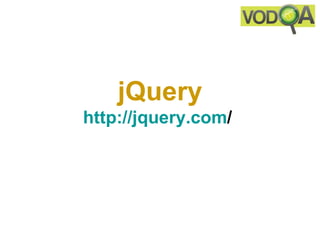

13. jQuery
http://jquery.com/

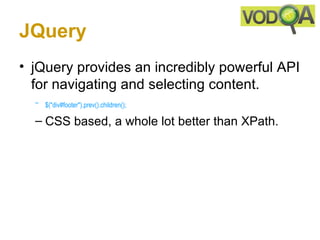

14. JQuery
• jQuery provides an incredibly powerful API
for navigating and selecting content.
– $("div#footer").prev().children();
– CSS based, a whole lot better than XPath.

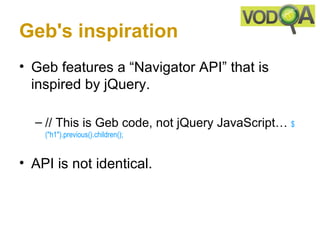

15. Geb's inspiration
• Geb features a “Navigator API” that is
inspired by jQuery.
– // This is Geb code, not jQuery JavaScript… $
("h1").previous().children();
• API is not identical.

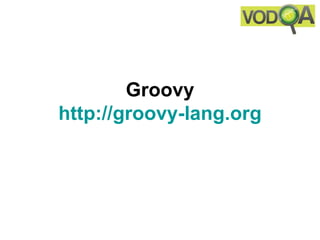

16. Groovy
http://groovy-lang.org

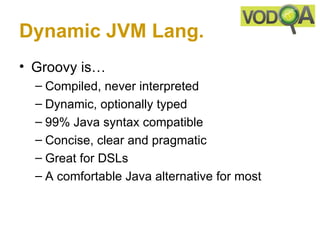

17. Dynamic JVM Lang.
• Groovy is…
– Compiled, never interpreted
– Dynamic, optionally typed
– 99% Java syntax compatible
– Concise, clear and pragmatic
– Great for DSLs
– A comfortable Java alternative for most

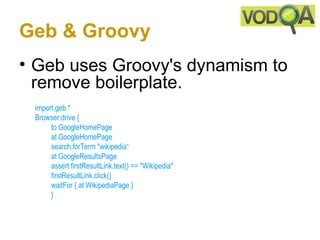

18. Geb & Groovy
• Geb uses Groovy's dynamism to
remove boilerplate.
import geb.*
Browser.drive {
to GoogleHomePage
at GoogleHomePage
search.forTerm "wikipedia“
at GoogleResultsPage
assert firstResultLink.text() == "Wikipedia"
firstResultLink.click()
waitFor { at WikipediaPage }
}

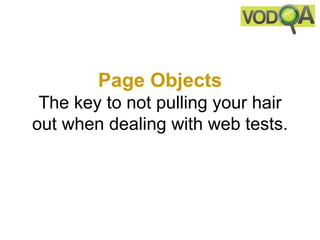

19. Page Objects
The key to not pulling your hair
out when dealing with web tests.

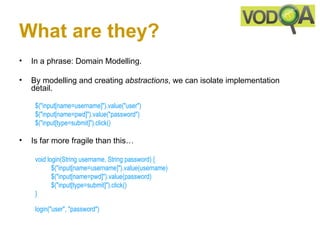

20. What are they?
• In a phrase: Domain Modelling.
• By modelling and creating abstractions, we can isolate implementation
detail.
$("input[name=username]").value("user")
$("input[name=pwd]").value("password")
$("input[type=submit]").click()
• Is far more fragile than this…
void login(String username, String password) {
$("input[name=username]").value(username)
$("input[name=pwd]").value(password)
$("input[type=submit]").click()
}
login("user", "password")

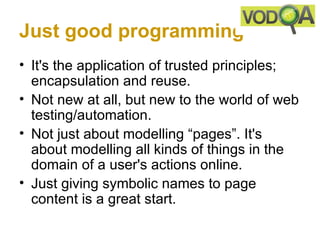

21. Just good programming
• It's the application of trusted principles;
encapsulation and reuse.
• Not new at all, but new to the world of web
testing/automation.
• Not just about modelling “pages”. It's
about modelling all kinds of things in the
domain of a user's actions online.
• Just giving symbolic names to page
content is a great start.

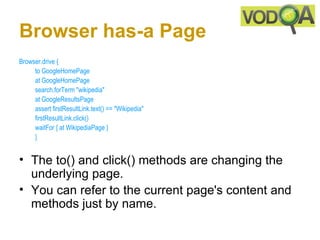

22. Browser has-a Page
Browser.drive {
to GoogleHomePage
at GoogleHomePage
search.forTerm "wikipedia"
at GoogleResultsPage
assert firstResultLink.text() == "Wikipedia"
firstResultLink.click()
waitFor { at WikipediaPage }
}
• The to() and click() methods are changing the
underlying page.
• You can refer to the current page's content and
methods just by name.

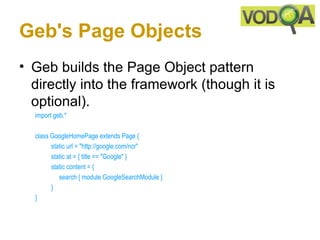

23. Geb's Page Objects
• Geb builds the Page Object pattern
directly into the framework (though it is
optional).
import geb.*
class GoogleHomePage extends Page {
static url = "http://google.com/ncr"
static at = { title == "Google" }
static content = {
search { module GoogleSearchModule }
}
}

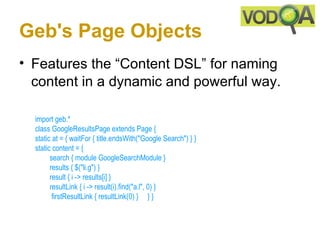

24. Geb's Page Objects
• Features the “Content DSL” for naming
content in a dynamic and powerful way.
import geb.*
class GoogleResultsPage extends Page {
static at = { waitFor { title.endsWith("Google Search") } }
static content = {
search { module GoogleSearchModule }
results { $("li.g") }
result { i -> results[i] }
resultLink { i -> result(i).find("a.l", 0) }
firstResultLink { resultLink(0) } } }

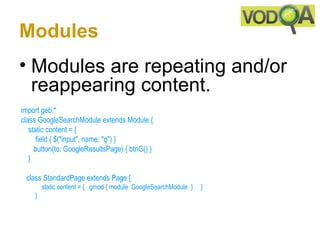

25. Modules
• Modules are repeating and/or
reappearing content.
import geb.*
class GoogleSearchModule extends Module {
static content = {
field { $("input", name: "q") }
button(to: GoogleResultsPage) { btnG() }
}
class StandardPage extends Page {
static content = { gmod { module GoogleSearchModule } }
}

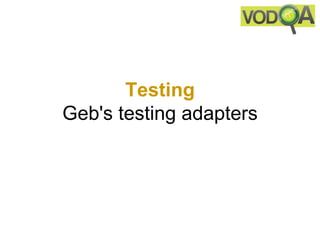

26. Testing
Geb's testing adapters

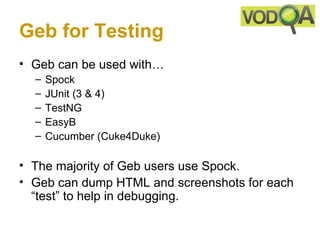

27. Geb for Testing
• Geb can be used with…
– Spock
– JUnit (3 & 4)
– TestNG
– EasyB
– Cucumber (Cuke4Duke)
• The majority of Geb users use Spock.
• Geb can dump HTML and screenshots for each
“test” to help in debugging.

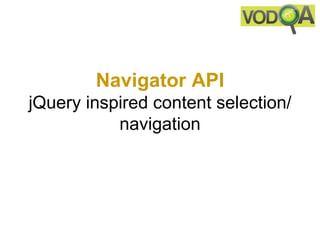

28. Navigator API
jQuery inspired content selection/
navigation

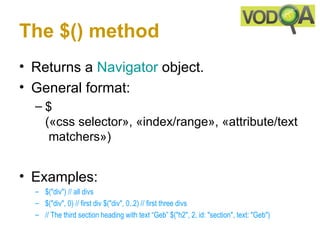

29. The $() method
• Returns a Navigator object.
• General format:
–$
(«css selector», «index/range», «attribute/text
matchers»)
• Examples:
– $("div") // all divs
– $("div", 0) // first div $("div", 0..2) // first three divs
– // The third section heading with text “Geb” $("h2", 2, id: "section", text: "Geb")

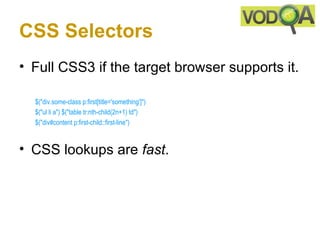

30. CSS Selectors
• Full CSS3 if the target browser supports it.
$("div.some-class p:first[title='something']")
$("ul li a") $("table tr:nth-child(2n+1) td")
$("div#content p:first-child::first-line")
• CSS lookups are fast.

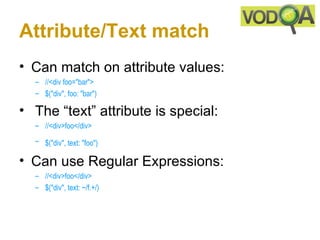

31. Attribute/Text match
• Can match on attribute values:
– //<div foo="bar">
– $("div", foo: "bar")
• The “text” attribute is special:
– //<div>foo</div>
– $("div", text: "foo")
• Can use Regular Expressions:
– //<div>foo</div>
– $("div", text: ~/f.+/)

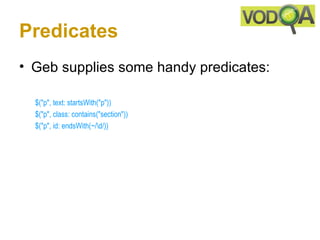

32. Predicates
• Geb supplies some handy predicates:
$("p", text: startsWith("p"))
$("p", class: contains("section"))
$("p", id: endsWith(~/d/))

33. Relative Content
• $() returns a Navigator that allows you to find
relative content.
$("p").previous()
$("p").prevAll()
$("p").next()
$("p").nextAll()
$("p").parent()
$("p").siblings()
$("div").children()
• Most of these methods take selectors, indexes
and attribute text/matchers too.
$("p").nextAll(".listing")

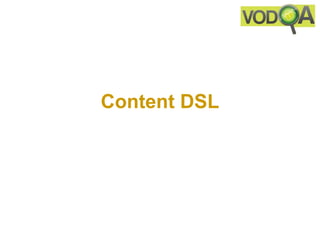

34. Content DSL

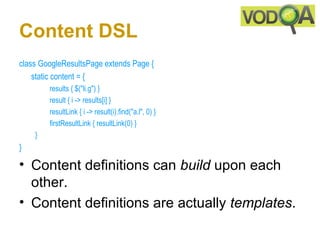

35. Content DSL
class GoogleResultsPage extends Page {
static content = {
results { $("li.g") }
result { i -> results[i] }
resultLink { i -> result(i).find("a.l", 0) }
firstResultLink { resultLink(0) }
}
}
• Content definitions can build upon each
other.
• Content definitions are actually templates.

36. Optional Content
class OptionalPage extends Page {
static content = {
errorMsg(required: false) { $("p.errorMsg") }
}
}
• By default, Geb will error if the content you
select doesn't exist.
• The “required” option disables this check.

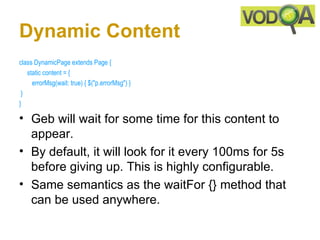

37. Dynamic Content
class DynamicPage extends Page {
static content = {
errorMsg(wait: true) { $("p.errorMsg") }
}
}
• Geb will wait for some time for this content to
appear.
• By default, it will look for it every 100ms for 5s
before giving up. This is highly configurable.
• Same semantics as the waitFor {} method that
can be used anywhere.

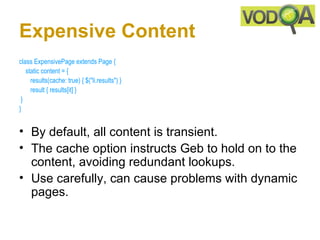

38. Expensive Content
class ExpensivePage extends Page {
static content = {
results(cache: true) { $("li.results") }
result { results[it] }
}
}
• By default, all content is transient.
• The cache option instructs Geb to hold on to the
content, avoiding redundant lookups.
• Use carefully, can cause problems with dynamic
pages.

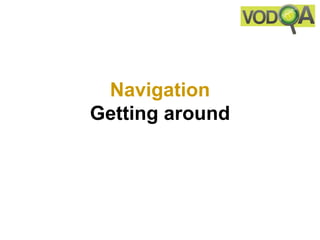

39. Navigation
Getting around

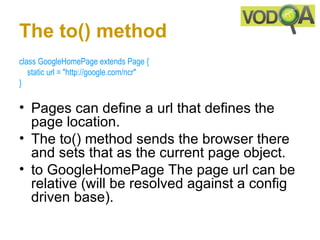

40. The to() method
class GoogleHomePage extends Page {
static url = "http://google.com/ncr"
}
• Pages can define a url that defines the
page location.
• The to() method sends the browser there
and sets that as the current page object.
• to GoogleHomePage The page url can be
relative (will be resolved against a config
driven base).

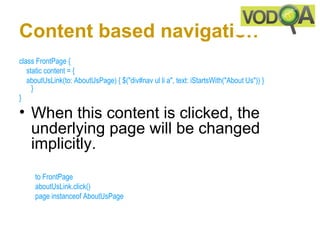

41. Content based navigation
class FrontPage {
static content = {
aboutUsLink(to: AboutUsPage) { $("div#nav ul li a", text: iStartsWith("About Us")) }
}
}
• When this content is clicked, the
underlying page will be changed
implicitly.
to FrontPage
aboutUsLink.click()
page instanceof AboutUsPage

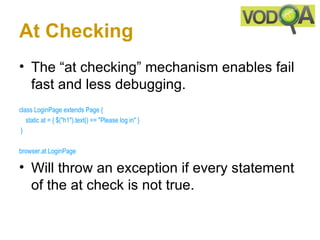

42. At Checking
• The “at checking” mechanism enables fail
fast and less debugging.
class LoginPage extends Page {
static at = { $("h1").text() == "Please log in" }
}
browser.at LoginPage
• Will throw an exception if every statement
of the at check is not true.

43. Driver Management
• Geb caches the WebDriver instance (per
thread) and shares it across test cases.
• Manages clearing cookies and is
configurable.
• This can be disabled and tuned.

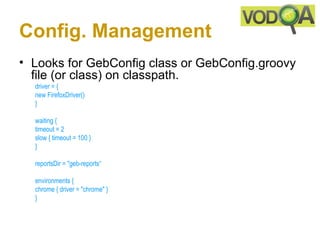

44. Config. Management
• Looks for GebConfig class or GebConfig.groovy
file (or class) on classpath.
driver = {
new FirefoxDriver()
}
waiting {
timeout = 2
slow { timeout = 100 }
}
reportsDir = "geb-reports“
environments {
chrome { driver = "chrome" }
}

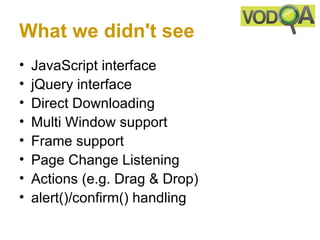

45. What we didn't see
• JavaScript interface
• jQuery interface
• Direct Downloading
• Multi Window support
• Frame support
• Page Change Listening
• Actions (e.g. Drag & Drop)
• alert()/confirm() handling

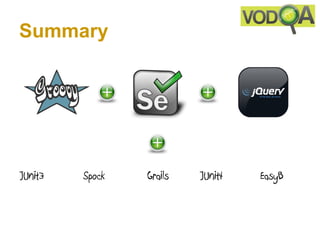

46. Summary
JUnit3 Spock Grails JUnit4 EasyB

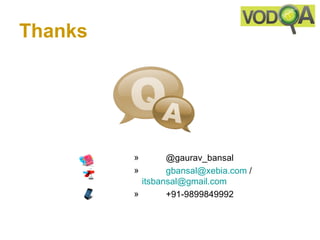

47. Thanks
» @gaurav_bansal
» gbansal@xebia.com /
itsbansal@gmail.com
» +91-9899849992
