1. Compliance as Code
DevOps Melbourne
March 28, 2017

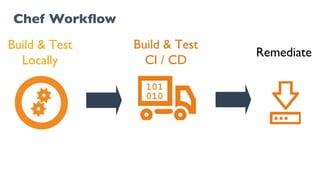

4. Chef Workflow

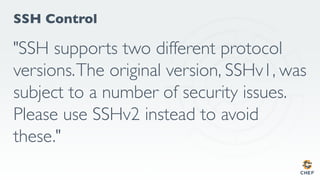

7. SSH Control
"SSH supports two different protocol
versions.The original version, SSHv1, was
subject to a number of security issues.
Please use SSHv2 instead to avoid
these."

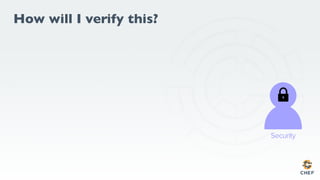

8. How will I verify this?

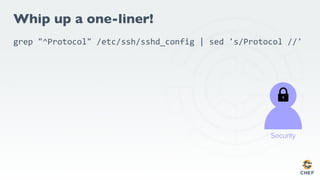

9. Whip up a one-liner!
grep "^Protocol" /etc/ssh/sshd_config | sed 's/Protocol //'

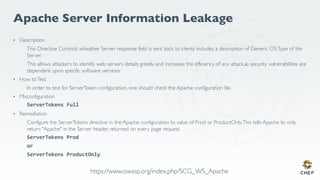

10. Apache Server Information Leakage
• Description
This Directive Controls wheather Server response field is sent back to clients includes a description of Generic OSType of the
Server.
This allows attackers to identify web servers details greatly and increases the efficiency of any attack,as security vulnerabilities are
dependent upon specific software versions.
• How toTest
In order to test for ServerToken configuration, one should check the Apache configuration file.
• Misconfiguration
ServerTokens Full
• Remediation
Configure the ServerTokens directive in the Apache configuration to value of Prod or ProductOnly.This tells Apache to only
return "Apache" in the Server header, returned on every page request.
ServerTokens Prod
or
ServerTokens ProductOnly
https://www.owasp.org/index.php/SCG_WS_Apache

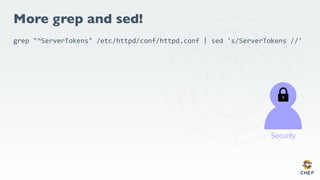

11. More grep and sed!
grep "^ServerTokens" /etc/httpd/conf/httpd.conf | sed 's/ServerTokens //'

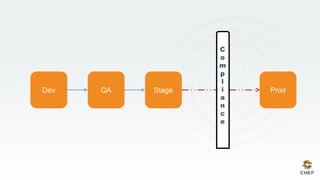

17. C
o
m
p
l
i
a
n
c
e

19. Two-thirds of organizations did
not adequately test the security
of all in-scope systems

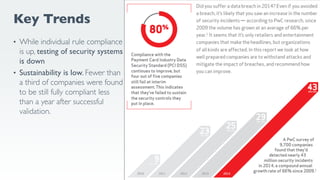

20. Key Trends
• While individual rule compliance
is up, testing of security systems
is down
• Sustainability is low. Fewer than
a third of companies were found
to be still fully compliant less
than a year after successful
validation.

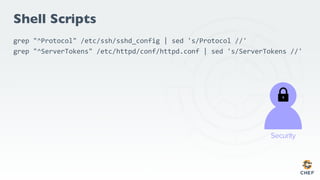

22. Shell Scripts
grep "^Protocol" /etc/ssh/sshd_config | sed 's/Protocol //'
grep "^ServerTokens" /etc/httpd/conf/httpd.conf | sed 's/ServerTokens //'

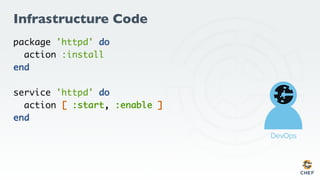

23. Infrastructure Code
package 'httpd' do
action :install
end
service 'httpd' do
action [ :start, :enable ]
end

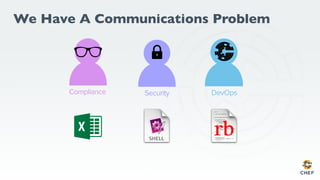

24. We Have A Communications Problem

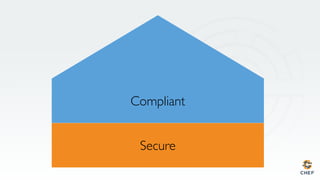

26. Security != Compliance

27. Secure
Compliant

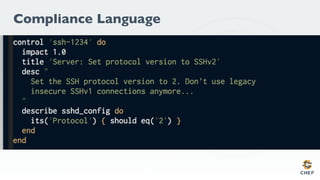

34. Compliance Language

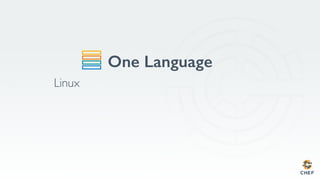

35. One Language
Linux

36. One Language
Linux,Windows

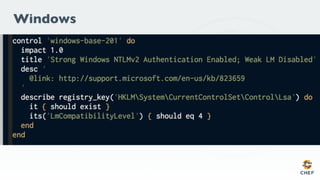

37. Windows

38. One Language
Linux,Windows, BSD, Solaris,AIX, ...

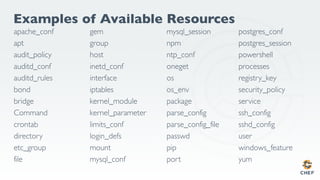

39. Examples of Available Resources
apache_conf
apt
audit_policy
auditd_conf
auditd_rules
bond
bridge
Command
crontab
directory
etc_group
file
gem
group
host
inetd_conf
interface
iptables
kernel_module
kernel_parameter
limits_conf
login_defs
mount
mysql_conf
mysql_session
npm
ntp_conf
oneget
os
os_env
package
parse_config
parse_config_file
passwd
pip
port
postgres_conf
postgres_session
powershell
processes
registry_key
security_policy
service
ssh_config
sshd_config
user
windows_feature
yum

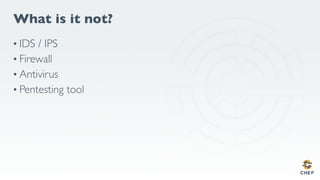

40. What is it not?
• IDS / IPS
• Firewall
• Antivirus
• Pentesting tool

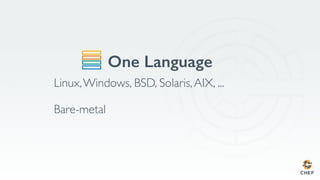

41. One Language
Linux,Windows, BSD, Solaris,AIX, ...
Bare-metal

42. One Language
Linux,Windows, BSD, Solaris,AIX, ...
Bare-metal,VMs

43. One Language
Linux,Windows, BSD, Solaris,AIX, ...
Bare-metal,VMs, Containers

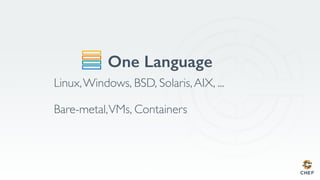

44. One Language
Linux,Windows, BSD, Solaris,AIX, ...
Bare-metal,VMs, Containers
Nodes

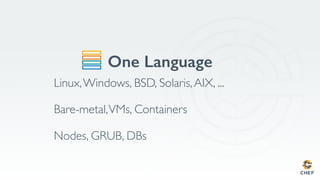

45. One Language
Linux,Windows, BSD, Solaris,AIX, ...
Bare-metal,VMs, Containers
Nodes, GRUB, DBs

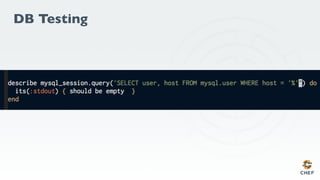

46. DB Testing

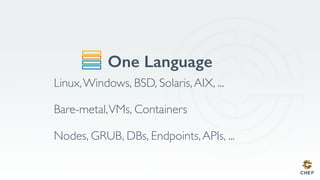

47. One Language
Linux,Windows, BSD, Solaris,AIX, ...
Bare-metal,VMs, Containers
Nodes, GRUB, DBs, Endpoints,APIs, ...

48. Cloud Testing

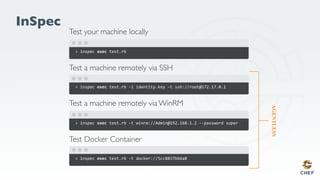

49. InSpec
> inspec exec test.rb
Test a machine remotely via SSH
> inspec exec test.rb -i identity.key -t ssh://root@172.17.0.1
Test your machine locally
> inspec exec test.rb -t winrm://Admin@192.168.1.2 --password super
Test Docker Container
> inspec exec test.rb -t docker://5cc8837bb6a8
Test a machine remotely via WinRM
AGENTLESS

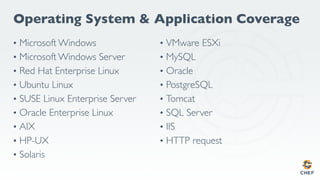

50. Operating System & Application Coverage
• Microsoft Windows
• Microsoft Windows Server
• Red Hat Enterprise Linux
• Ubuntu Linux
• SUSE Linux Enterprise Server
• Oracle Enterprise Linux
• AIX
• HP-UX
• Solaris
• VMware ESXi
• MySQL
• Oracle
• PostgreSQL
• Tomcat
• SQL Server
• IIS
• HTTP request

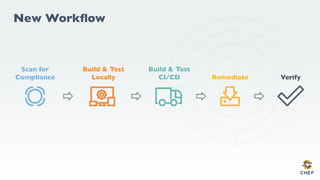

51. Scan for
Compliance
Build & Test
Locally
Build & Test
CI/CD Remediate Verify
New Workflow

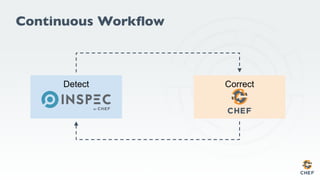

52. Detect Correct
Continuous Workflow

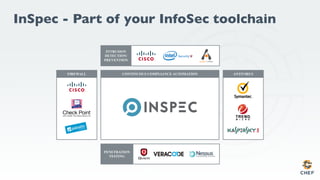

53. CONTINUOUS COMPLIANCE AUTOMATION
InSpec - Part of your InfoSec toolchain
FIREWALL ANTIVIRUS
INTRUSION
DETECTION/
PREVENTION
PENETRATION
TESTING

54. Open Source Community
•InSpec
•https://inspec.io
•Chef Audit cookbook
•https://github.com/chef-cookbooks/audit
•Kitchen-InSpec
•https://github.com/chef/kitchen-inspec
•Supermarket.chef.io

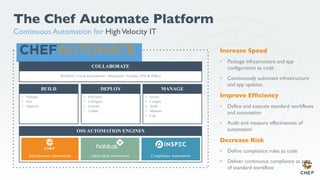

56. The Chef Automate Platform
Continuous Automation for HighVelocity IT
Workflow • Local development • Integration • Tooling (APIs & SDKs)
COLLABORATE
▪ Package
▪ Test
▪ Approve
BUILD
▪ Provision
▪ Configure
▪ Execute
▪ Update
DEPLOY
▪ Secure
▪ Comply
▪ Audit
▪ Measure
▪ Log
MANAGE
Infrastructure Automation Compliance AutomationApplication Automation
OSS AUTOMATION ENGINES
Increase Speed
▪ Package infrastructure and app
configuration as code
▪ Continuously automate infrastructure
and app updates
Improve Efficiency
▪ Define and execute standard workflows
and automation
▪ Audit and measure effectiveness of
automation
Decrease Risk
▪ Define compliance rules as code
▪ Deliver continuous compliance as part
of standard workflow
