CNC Milling Program SolidWorks Milling Product Design
- 1. 100.00 100.00 25.00 25.00 1 4 . 0 0 R7.00 R22.50 2 X 5.00THRU R10.00 4 5 ° 25.00 5 0 . 0 0 25.00 A A 10.00 1.00 SECTION A-A SCALE 1 : 1 Minhaz JOB NO. : 01 A A B B C C D D E E F F 4 4 3 3 2 2 1 1 DRAWN CHK'D APPV'D MFG Q.A UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS SURFACE FINISH: TOLERANCES: LINEAR: ANGULAR: FINISH: DEBURR AND BREAK SHARP EDGES NAME SIGNATURE DATE MATERIAL: DO NOT SCALE DRAWING REVISION TITLE: DWG NO. SCALE:1:2 SHEET 1 OF 1 A4 WEIGHT: Figure 01

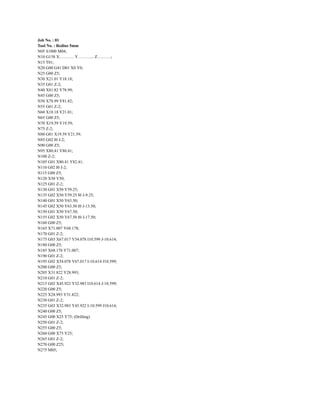

- 2. Job No. :01 Tool No. : Redius 5mm N05 S1000 M04; N10 G158 X……..… Y………... Z……….; N15 T01; N20 G00 G41 D01 X0 Y0; N25 G00 Z5; N30 X21.01 Y18.18; N35 G01 Z-2; N40 X81.82 Y78.99; N45 G00 Z5; N50 X78.99 Y81.82; N55 G01 Z-2; N60 X18.18 Y21.01; N65 G00 Z5; N70 X19.59 Y19.59; N75 Z-2; N80 G01 X19.59 Y21.59; N85 G02 I0 J-2; N90 G00 Z5; N95 X80.41 Y80.41; N100 Z-2; N105 G01 X80.41 Y82.41; N110 G02 I0 J-2; N115 G00 Z5; N120 X50 Y50; N125 G01 Z-2; N130 G01 X50 Y59.25; N135 G02 X50 Y59.25 I0 J-9.25; N140 G01 X50 Y63.50; N145 G02 X50 Y63.50 I0 J-13.50; N150 G01 X50 Y67.50; N155 G02 X50 Y67.50 I0 J-17.50; N160 G00 Z5; N165 X71.007 Y68.178; N170 G01 Z-2; N175 G03 X67.017 Y54.078 I10.599 J-10.614; N180 G00 Z5; N185 X68.178 Y71.007; N190 G01 Z-2; N195 G02 X54.078 Y67.017 I-10.614 J10.599; N200 G00 Z5; N205 X31.822 Y28.993; N210 G01 Z-2; N215 G02 X45.922 Y32.983 I10.614 J-10.599; N220 G00 Z5; N225 X28.993 Y31.822; N230 G01 Z-2; N235 G03 X32.983 Y45.922 I-10.599 J10.614; N240 G00 Z5; N245 G00 X25 Y75; (Drilling) N250 G01 Z-2; N255 G00 Z5; N260 G00 X75 Y25; N265 G01 Z-2; N270 G00 Z25; N275 M05;

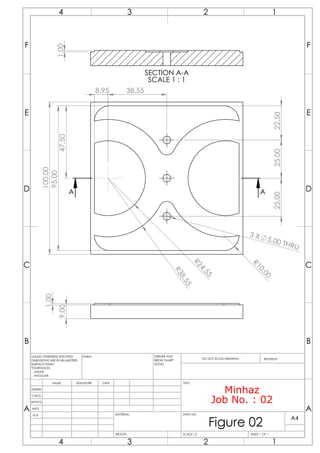

- 3. 100.00 95.00 3 X 5.00THRU R 2 4 . 5 5 R 3 8 . 5 5 R 1 0 . 0 0 22.50 8.95 38.55 25.00 25.00 47.50 A A 9.00 1.00 1.00 SECTION A-A SCALE 1 : 1 Minhaz Job No. : 02 A A B B C C D D E E F F 4 4 3 3 2 2 1 1 DRAWN CHK'D APPV'D MFG Q.A UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS SURFACE FINISH: TOLERANCES: LINEAR: ANGULAR: FINISH: DEBURR AND BREAK SHARP EDGES NAME SIGNATURE DATE MATERIAL: DO NOT SCALE DRAWING REVISION TITLE: DWG NO. SCALE:1:2 SHEET 1 OF 1 A4 WEIGHT: Figure 02

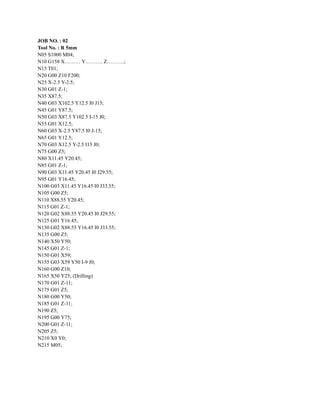

- 4. JOB NO. :02 Tool No. : R 5mm N05 S1000 M04; N10 G158 X……… Y………. Z……….; N15 T01; N20 G00 Z10 F200; N25 X-2.5 Y-2.5; N30 G01 Z-1; N35 X87.5; N40 G03 X102.5 Y12.5 I0 J15; N45 G01 Y87.5; N50 G03 X87.5 Y102.5 I-15 J0; N55 G01 X12.5; N60 G03 X-2.5 Y87.5 I0 J-15; N65 G01 Y12.5; N70 G03 X12.5 Y-2.5 I15 J0; N75 G00 Z5; N80 X11.45 Y20.45; N85 G01 Z-1; N90 G03 X11.45 Y20.45 I0 J29.55; N95 G01 Y16.45; N100 G03 X11.45 Y16.45 I0 J33.55; N105 G00 Z5; N110 X88.55 Y20.45; N115 G01 Z-1; N120 G02 X88.55 Y20.45 I0 J29.55; N125 G01 Y16.45; N130 G02 X88.55 Y16.45 I0 J33.55; N135 G00 Z5; N140 X50 Y50; N145 G01 Z-1; N150 G01 X59; N155 G03 X59 Y50 I-9 J0; N160 G00 Z10; N165 X50 Y25; (Drilling) N170 G01 Z-11; N175 G01 Z5; N180 G00 Y50; N185 G01 Z-11; N190 Z5; N195 G00 Y75; N200 G01 Z-11; N205 Z5; N210 X0 Y0; N215 M05;

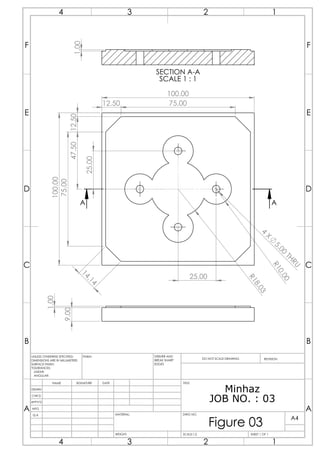

- 5. 100.00 100.00 75.00 1 4 . 1 4 12.50 75.00 12.50 4 X 5 . 0 0 T H R U R 1 0 . 0 0 R 1 8 . 0 3 47.50 25.00 25.00 A A 9.00 1.00 1.00 SECTION A-A SCALE1 : 1 Minhaz JOB NO. : 03 A A B B C C D D E E F F 4 4 3 3 2 2 1 1 DRAWN CHK'D APPV'D MFG Q.A UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS SURFACE FINISH: TOLERANCES: LINEAR: ANGULAR: FINISH: DEBURR AND BREAK SHARP EDGES NAME SIGNATURE DATE MATERIAL: DO NOT SCALE DRAWING REVISION TITLE: DWG NO. SCALE:1:2 SHEET 1 OF 1 A4 WEIGHT: Figure 03
- 6. JOB NO. :03 Tool No. : R 5mm N05 S1000 M04; N10 G158 X………… Y…………. Z………..; N15 T01 N20 G00 Z10 F200; N25 X-2.5 Y-2.5; N30 G01 Z-1; N35 X102.5; N40 Y102.5; N45 X-2.5; N50 Y-2.5; N55 X12.5; N60 X-2.5 Y12.5; N65 Y87.5; N70 X12.5 Y102.5; N75 X87.5; N80 X102.5 Y87.5; N85 Y12.5; N90 X87.5 Y-2.5; N95 G00 Z10; N100 X50 Y50; N105 G01 Z-1; N110 X36.97; N115 G03 X36.97 Y50 I13.03 J0; N120 G01 X46.97; N125 G03 X46.97 Y50 I3.03 J0; N130 G01 X50 Y75; N135 G01 Y80; N140 G03 X50 Y80 I0 J-5; N145 G01 Y20; N150 G03 X50 Y20 I0 J5; N155 G01 Y50; N160 X80; N165 G03 X80 Y50 I-5 J0; N170 G01 X20; N175 G03 X20 Y50 I5 J0; N180 G00 Z10; N185 X50 Y25; N190 G01 Z-11; N195 Z10; N200 G00 Y75; N205 G01 Z-11; N210 Z10; N215 G00 X75 Y50; N220 G01 Z-11; N225 Z10; N230 G00 X25; N235 G01 Z-11; N240 Z10; N245 G00 X0 Y0; N250 M05;
