Infrastructure-as-a-Service (IaaS).
What is CloudStack?

Workshop environment
L0: KVM hypervisor
in Schuberg Philis Cloud
L1: mct-devopsX KVM hypervisor
L2: XenServer
hypervisors
systemvm
L3: uservm
L2: XenServer
hypervisors
systemvm
L3: uservm
CloudStack Mgt server
Services in box:
VPN
NFS / WEB
SSH
OpenVPN to 85.222.237.33 on dedicated
port, like 90XX.
SSH to 192.168.22.1 over vpn
Management network: 192.168.22.0/24
Public network : 192.168.23.0/24
192.168.22.1
All L3 VMs reachable via public network
All L2 VMs reachable via mgt network
Other VMs if needed

Setup and connect OpenVPN (details will be provided)
Accessing your box
ssh devops@cloud (pass: dev0psdays)
sudo su -
Host cloud
hostname 192.168.22.1
ForwardX11 yes
ForwardAgent yes
StrictHostKeyChecking no
UserKnownHostsFile=/dev/null
vim ~/.ssh/config sudo mkdir -p /etc/resolver/
sudo vim /etc/resolver/cloud.lan
nameserver 192.168.22.1

Get a copy of the slides to copy/paste the commands

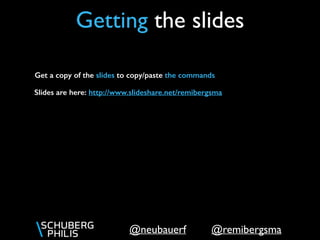

Getting the slides
Slides are here: http://www.slideshare.net/remibergsma/cloudstack-handson-workshop-
devopsdays-amsterdam

[root@mct-devops1 ~]# cd /data/shared/deploy
[root@mct-devops1 deploy]# ./kvm_local_deploy.py -c devops_ams
processing option -c arg devops_ams
Welcome to KVM local Deploy for MCT
Note: We're connected to mct-devops1.localdomain
Note: You want to deploy a VM with cloud 'devops_ams'..
Note: deploying role cloudstack-mgt-dev
Note: Need a VM with name cs
Note: VM name cs1 is available.
Note: Running pre_boot script: virt-customize -d cs1 --firstboot /data/shared/deploy//firstboot/centos7-cloudstack-dev.sh
[ 0.0] Examining the guest ...
[ 58.0] Setting a random seed
[ 58.0] Installing firstboot script: [1] /data/shared/deploy//firstboot/centos7-cloudstack-dev.sh
[ 58.0] Finishing off
Note: Running postboot script: /data/shared/deploy//postboot/post_cs_centos7.sh cs1
Note: Waiting for the VM to boot...
Note: Ping result for cs1
PING cs1.cloud.lan (192.168.22.61) 56(84) bytes of data.
64 bytes from cs1.cloud.lan (192.168.22.61): icmp_seq=1 ttl=64 time=0.245 ms
--- cs1.cloud.lan ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.245/0.245/0.245/0.000 ms
Note: deploying role xenserver62_4GB
Note: Need a VM with name xen
Note: VM name xen1 is available.
WARNING: No firstboot script defined.
WARNING: No postboot script defined.
Note: deploying role xenserver62_4GB
Note: Need a VM with name xen
Note: VM name xen1 is already in use.
Note: VM name xen2 is available.
WARNING: No firstboot script defined.
WARNING: No postboot script defined.
Deploy your cloud

[root@mct-devops1 deploy]# virsh list
Id Name State
----------------------------------------------------
3 cs1 running
4 xen1 running
5 xen2 running

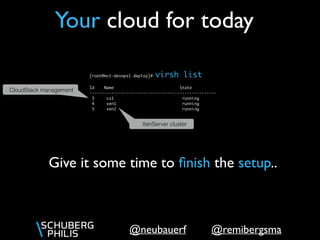

Your cloud for today
XenServer cluster
CloudStack management
Give it some time to ﬁnish the setup..

[root@mct-devops1 deploy]# ssh root@xen2
[root@xen2 ~]# xe pool-join master-address=xen1
master-username=root master-password=password
[root@xen2 ~]# xe host-list
uuid ( RO) : da233ac0-61a2-47e9-8e6a-8ffa19ebc443
name-label ( RW): xen2
name-description ( RW): Default install of XenServer
uuid ( RO) : 1651accd-e05e-4a00-be7d-84263513d72e
name-label ( RW): xen1
name-description ( RW): Default install of XenServer

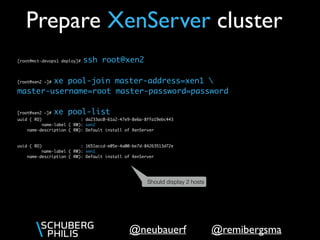

Prepare XenServer cluster
Should display 2 hosts
In reality, you’d also turn on poolHA

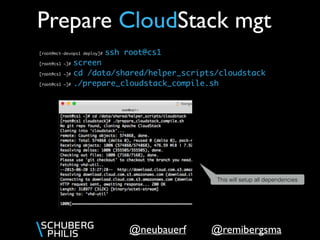

[root@mct-devops1 deploy]# ssh root@cs1
[root@cs1 ~]# screen
[root@cs1 ~]# cd /data/shared/helper_scripts/cloudstack
[root@cs1 ~]# ./prepare_cloudstack_compile.sh
Prepare CloudStack mgt
This will setup all dependencies

[root@cs1 ~]# cd /data/git/$HOSTNAME/cloudstack
[root@cs1 ~]# git checkout 4.4
[root@cs1 ~]# cd /data/shared/helper_scripts/cloudstack
[root@cs1 ~]# ./build_run.sh
Compile CloudStack mgt
Compile in progress…
The UI should be up after a few minutes, available from your laptop: http://cs1.cloud.lan:8080/client/ or
http://192.168.22.61:8080/client/

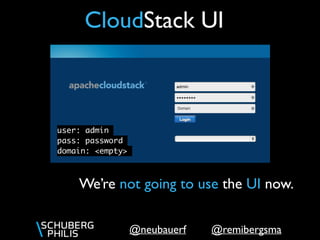

CloudStack UI
user: admin
pass: password
domain: <empty>
We’re not going to use the UI now.

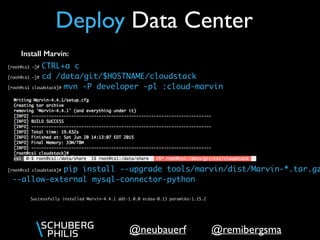

Deploy Data Center
[root@cs1 ~]# CTRL+a c
[root@cs1 ~]# cd /data/git/$HOSTNAME/cloudstack
[root@cs1 cloudstack]# mvn -P developer -pl :cloud-marvin
[root@cs1 cloudstack]# pip install --upgrade tools/marvin/dist/Marvin-*.tar.gz
--allow-external mysql-connector-python
Install Marvin:
Successfully installed Marvin-4.4.1 ddt-1.0.0 ecdsa-0.13 paramiko-1.15.2

Deploy Data Center

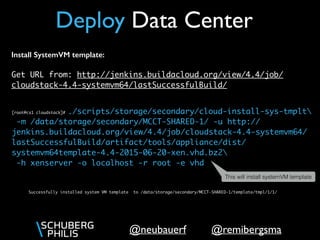

[root@cs1 cloudstack]# ./scripts/storage/secondary/cloud-install-sys-tmplt
-m /data/storage/secondary/MCCT-SHARED-1/ -u http://
jenkins.buildacloud.org/view/4.4/job/cloudstack-4.4-systemvm64/
lastSuccessfulBuild/artifact/tools/appliance/dist/
systemvm64template-4.4-2015-06-23-xen.vhd.bz2
-h xenserver -o localhost -r root -e vhd
Install SystemVM template:
Get URL from: http://jenkins.buildacloud.org/view/4.4/job/
cloudstack-4.4-systemvm64/lastSuccessfulBuild/
Successfully installed system VM template to /data/storage/secondary/MCCT-SHARED-1/template/tmpl/1/1/
This will install systemVM template

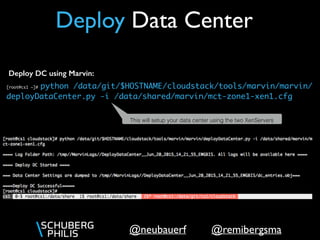

Deploy Data Center
[root@cs1 ~]# python /data/git/$HOSTNAME/cloudstack/tools/marvin/marvin/
deployDataCenter.py -i /data/shared/marvin/mct-zone1-xen1.cfg
Deploy DC using Marvin:
This will setup your data center using the two XenServers

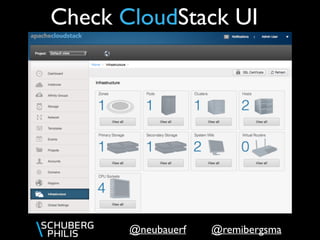

Check CloudStack UI

Check CloudStack UI

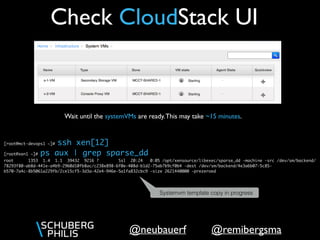

Wait until the systemVMs are ready.This may take ~15 minutes.
[root@mct-devops1 ~]# ssh xen[12]
[root@xen1 ~]# ps aux | grep sparse_dd
root 1353 1.4 1.1 39432 9216 ? Ssl 20:24 0:05 /opt/xensource/libexec/sparse_dd -machine -src /dev/sm/backend/
78293f80-ab8d-441e-a4b9-2960d10fb8ac/c238e898-6f0e-408d-b1d2-75ab7b9cf0b4 -dest /dev/sm/backend/4e3a6b07-5c85-
b570-7a4c-8b5061a229fb/2ce15cf5-3d3a-42e4-946e-5a1fa832cbc9 -size 2621440000 -prezeroed
Systemvm template copy in progress

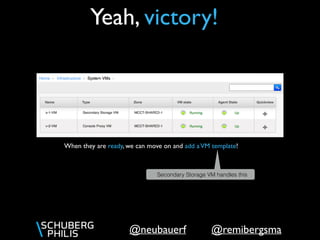

Yeah, victory!
When they are ready, we can move on and add aVM template!
Secondary Storage VM handles this

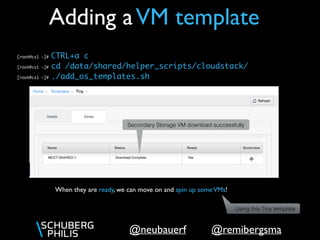

Adding aVM template
When they are ready, we can move on and spin up someVMs!
[root@cs1 ~]# cd /data/shared/helper_scripts/cloudstack/
[root@cs1 ~]# ./add_os_templates.sh
Secondary Storage VM download successfully
Using this Tiny template

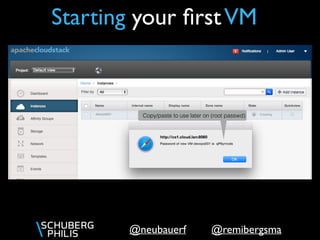

Starting your ﬁrstVM

Copy/paste to use later on (root passwd)

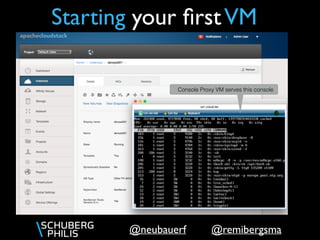

Console Proxy VM serves this console

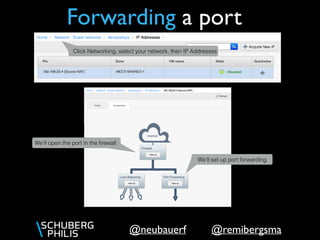

Forwarding a port
We’ll set up port forwarding
Click Networking, select your network, then IP Addresses
We’ll open the port in the ﬁrewall

Forwarding a port
Fill-in this form to forward SSH
Result looks like this
Fill-in this form to open ﬁrewall for SSH
Result looks like this

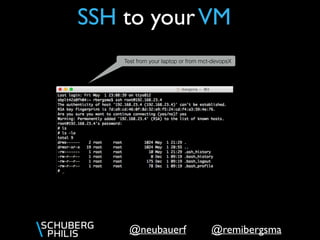

SSH to yourVM
Test from your laptop or from mct-devopsX

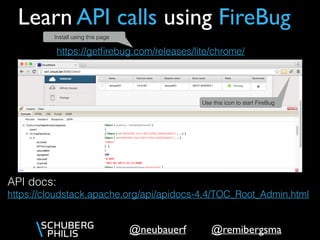

Using the API

Learn API calls using FireBug
API docs: 
https://cloudstack.apache.org/api/apidocs-4.4/TOC_Root_Admin.html
https://getﬁrebug.com/releases/lite/chrome/
Use this icon to start FireBug
Install using this page

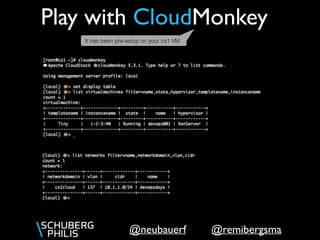

Play with CloudMonkey
It has been pre-setup on your cs1 VM

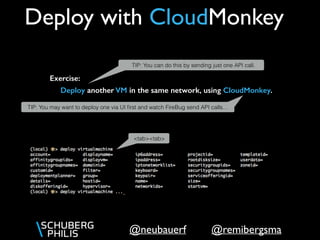

Deploy with CloudMonkey
Deploy another VM in the same network, using CloudMonkey.
Exercise:
TIP: You may want to deploy one via UI ﬁrst and watch FireBug send API calls…
TIP: You can do this by sending just one API call.
<tab><tab>

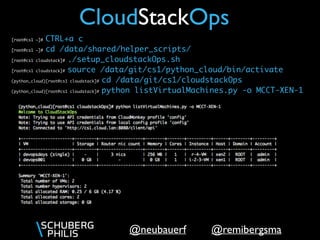

CloudStackOps:
Operating
CloudStack
made easy.
https://github.com/schubergphilis/cloudstackOps

CloudStackOps
[root@cs1 ~]# cd /data/shared/helper_scripts/
[root@cs1 cloudstack]# ./setup_cloudstackOps.sh
[root@cs1 cloudstack]# source /data/git/cs1/python_cloud/bin/activate
(python_cloud)[root@cs1 cloudstack]# cd /data/git/cs1/cloudstackOps
(python_cloud)[root@cs1 cloudstack]# python listVirtualMachines.py -o MCCT-XEN-1

More exercises
Setup multiple tenants
Create a new network from the API
Explore VPC
Add another cluster to CloudStack
Create HA service offering and apply it to Tiny VM
What happens when a hypervisor crashes?
…… Have fun!
