1. Cloud Computing Tutorial

2. i
CLOUD COMPUTINGTUTORIAL
Simply Easy Learning by tutorialspoint.com
tutorialspoint.com

3. TUTORIALS POINT
Simply Easy Learning
ABOUT THE TUTORIAL
Cloud Computing Tutorial
Cloud Computing provides us a means by which we can access the applications as utilities, over the
internet. It allows us to create, configure, and customize the business applications online.
This tutorial will take you through a step-by-step approach while learning Cloud Computing concepts.
Audience
This reference has been prepared for the beginners to help them to understand the basic-to-advanced
concepts related to Cloud Computing. This tutorial will give you enough understanding on Cloud
Computing concepts from where you can take yourself to a higher level of expertise.
Prerequisites
Before proceeding with this tutorial, you should have basic knowledge of Computers, Internet, Database
and Networking concepts. Such basic knowledge will help you in understanding the Cloud Computing
concepts and move fast on the learning track.
Copyright & Disclaimer Notice
All the content and graphics on this tutorial are the property of tutorialspoint.com. Any content from
tutorialspoint.com or this tutorial may not be redistributed or reproduced in any way, shape, or form
without the written permission of tutorialspoint.com. Failure to do so is a violation of copyright laws.
This tutorial may contain inaccuracies or errors and tutorialspoint provides no guarantee regarding the
accuracy of the site or its contents including this tutorial. If you discover that the tutorialspoint.com site
or this tutorial content contains some errors, please contact us at webmaster@tutorialspoint.com

4. TUTORIALS POINT
Simply Easy Learning

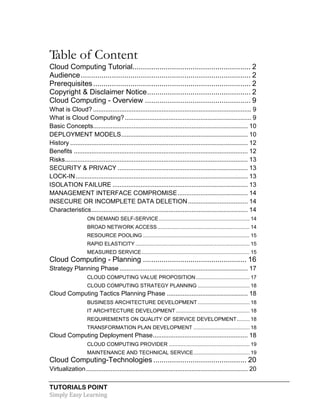

Table of Content
Cloud Computing Tutorial......................................................... 2
Audience.................................................................................. 2
Prerequisites............................................................................ 2
Copyright & Disclaimer Notice.................................................. 2

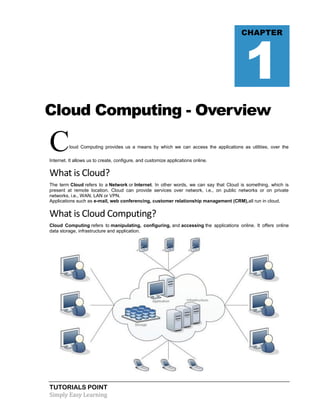

Cloud Computing - Overview ................................................... 9
What is Cloud? .......................................................................................... 9
What is Cloud Computing?........................................................................ 9

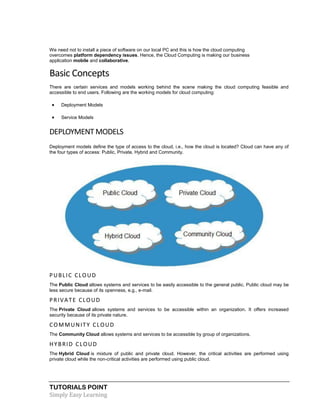

Basic Concepts........................................................................................ 10
DEPLOYMENT MODELS........................................................................ 10

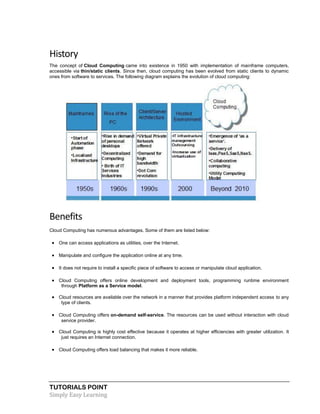

History ..................................................................................................... 12
Benefits ................................................................................................... 12

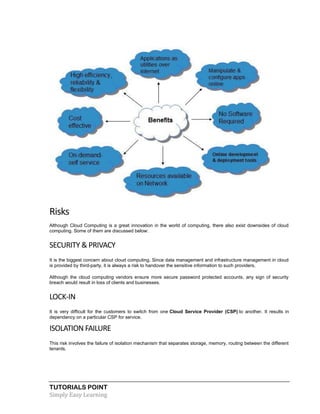

Risks........................................................................................................ 13

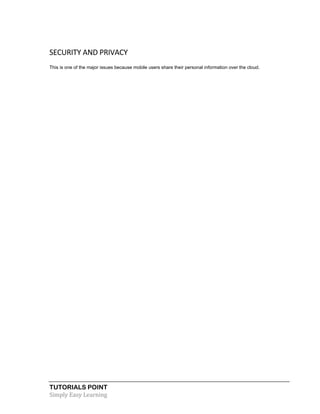

SECURITY & PRIVACY .......................................................................... 13
LOCK-IN.................................................................................................. 13
ISOLATION FAILURE ............................................................................. 13

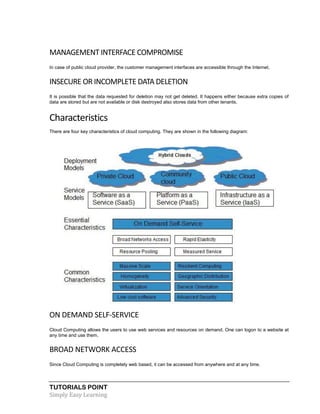

MANAGEMENT INTERFACE COMPROMISE........................................ 14
INSECURE OR INCOMPLETE DATA DELETION.................................. 14
Characteristics......................................................................................... 14
ON DEMAND SELF-SERVICE............................................................... 14
BROAD NETWORK ACCESS................................................................ 14

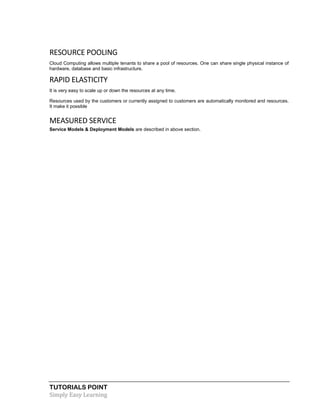

RESOURCE POOLING .......................................................................... 15
RAPID ELASTICITY ............................................................................... 15
MEASURED SERVICE........................................................................... 15

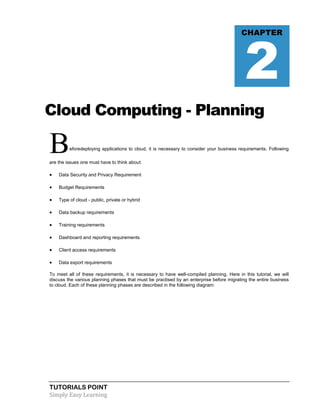

Cloud Computing - Planning .................................................. 16

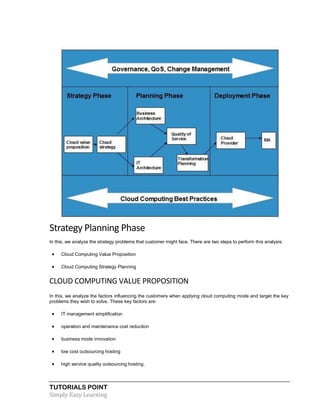

Strategy Planning Phase ......................................................................... 17
CLOUD COMPUTING VALUE PROPOSITION ..................................... 17
CLOUD COMPUTING STRATEGY PLANNING .................................... 18

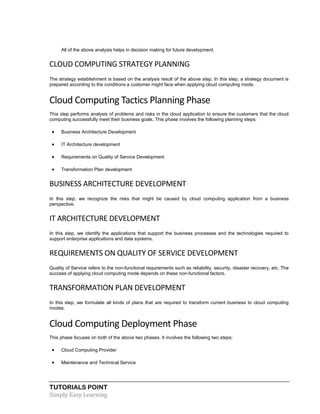

Cloud Computing Tactics Planning Phase .............................................. 18
BUSINESS ARCHITECTURE DEVELOPMENT .................................... 18
IT ARCHITECTURE DEVELOPMENT ................................................... 18
REQUIREMENTS ON QUALITY OF SERVICE DEVELOPMENT......... 18
TRANSFORMATION PLAN DEVELOPMENT ....................................... 18
Cloud Computing Deployment Phase...................................................... 18

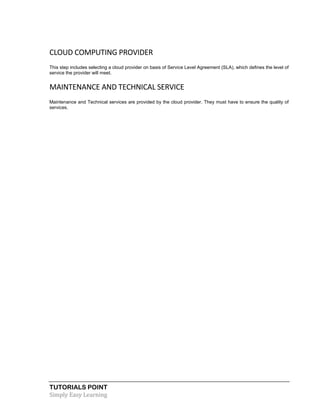

CLOUD COMPUTING PROVIDER ........................................................ 19
MAINTENANCE AND TECHNICAL SERVICE....................................... 19

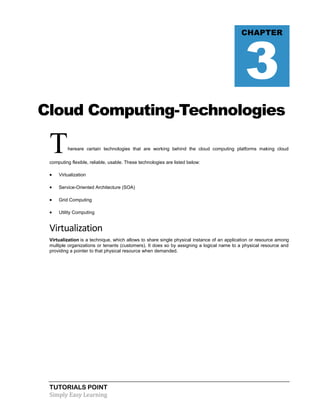

Cloud Computing-Technologies ............................................. 20
Virtualization............................................................................................ 20

5. TUTORIALS POINT
Simply Easy Learning

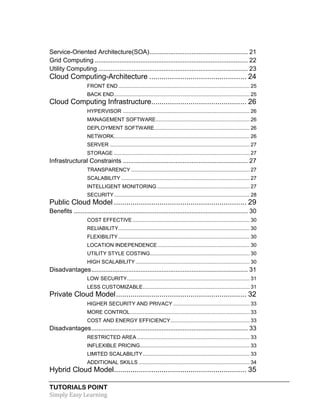

Service-Oriented Architecture(SOA)........................................................ 21

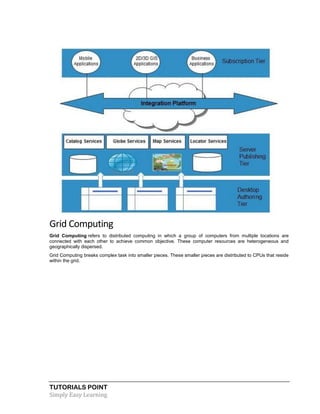

Grid Computing ....................................................................................... 22

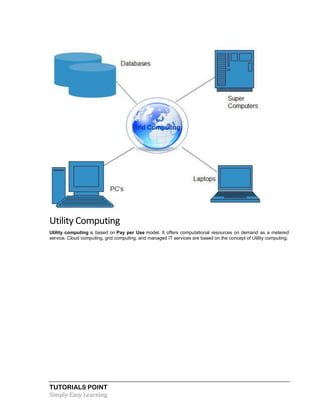

Utility Computing ..................................................................................... 23

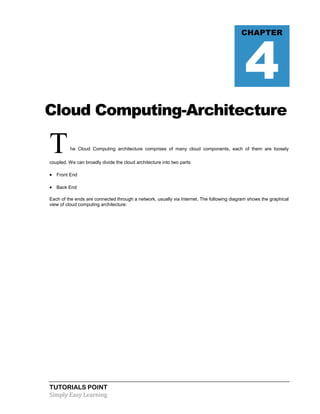

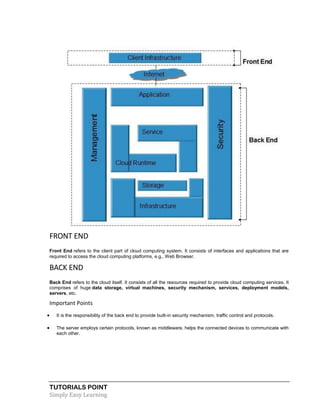

Cloud Computing-Architecture ............................................... 24
FRONT END ........................................................................................... 25
BACK END.............................................................................................. 25

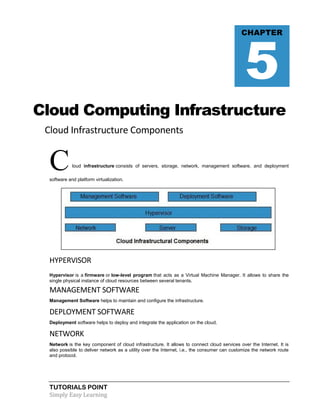

Cloud Computing Infrastructure.............................................. 26
HYPERVISOR ........................................................................................ 26
MANAGEMENT SOFTWARE................................................................. 26
DEPLOYMENT SOFTWARE.................................................................. 26
NETWORK.............................................................................................. 26

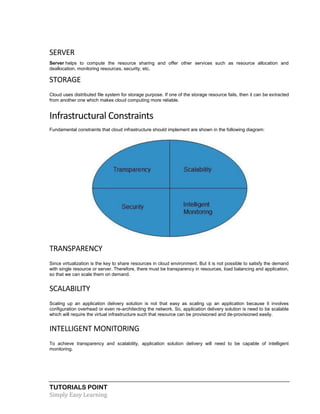

SERVER ................................................................................................. 27
STORAGE .............................................................................................. 27
Infrastructural Constraints ....................................................................... 27
TRANSPARENCY .................................................................................. 27
SCALABILITY ......................................................................................... 27
INTELLIGENT MONITORING ................................................................ 27

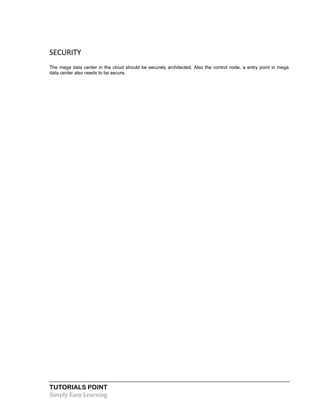

SECURITY.............................................................................................. 28

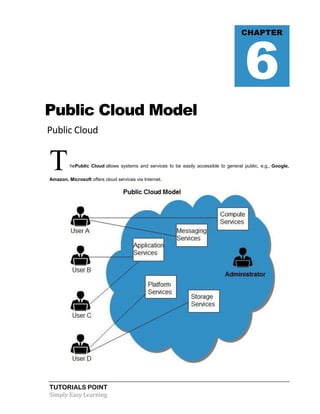

Public Cloud Model ................................................................ 29
Benefits ................................................................................................... 30
COST EFFECTIVE ................................................................................. 30
RELIABILITY........................................................................................... 30
FLEXIBILITY........................................................................................... 30
LOCATION INDEPENDENCE................................................................ 30
UTILITY STYLE COSTING..................................................................... 30
HIGH SCALABILITY ............................................................................... 30

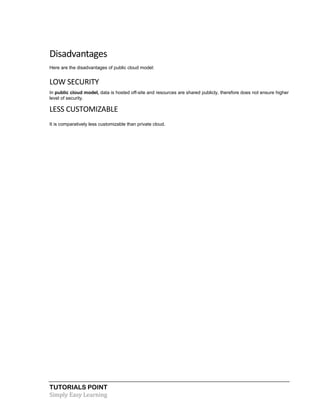

Disadvantages......................................................................................... 31
LOW SECURITY..................................................................................... 31
LESS CUSTOMIZABLE.......................................................................... 31

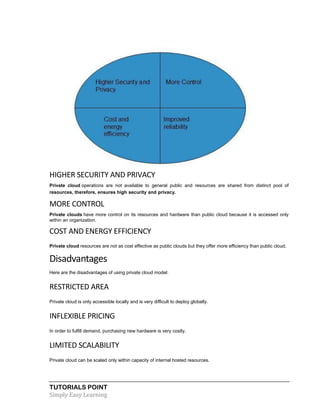

Private Cloud Model............................................................... 32
HIGHER SECURITY AND PRIVACY ..................................................... 33
MORE CONTROL................................................................................... 33
COST AND ENERGY EFFICIENCY....................................................... 33
Disadvantages......................................................................................... 33
RESTRICTED AREA .............................................................................. 33
INFLEXIBLE PRICING............................................................................ 33
LIMITED SCALABILITY.......................................................................... 33

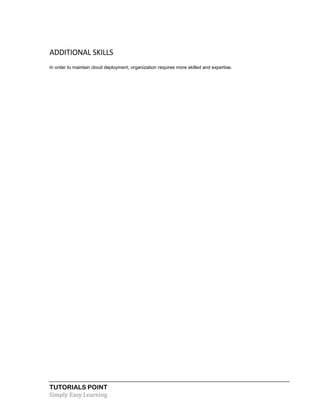

ADDITIONAL SKILLS ............................................................................. 34

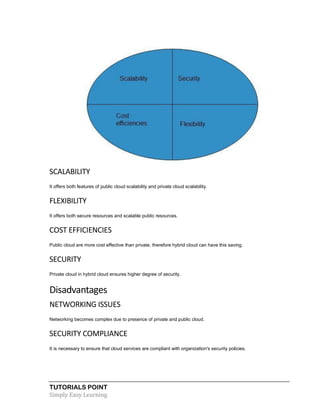

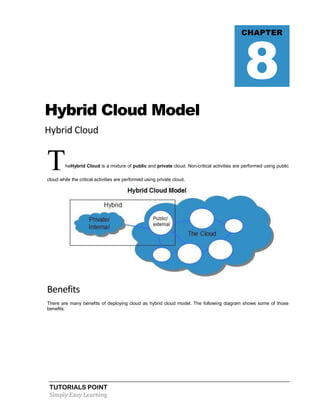

Hybrid Cloud Model................................................................ 35

6. TUTORIALS POINT
Simply Easy Learning
Benefits ................................................................................................... 35
SCALABILITY ......................................................................................... 36
FLEXIBILITY........................................................................................... 36
COST EFFICIENCIES ............................................................................ 36
SECURITY.............................................................................................. 36
Disadvantages......................................................................................... 36
NETWORKING ISSUES......................................................................... 36
SECURITY COMPLIANCE..................................................................... 36

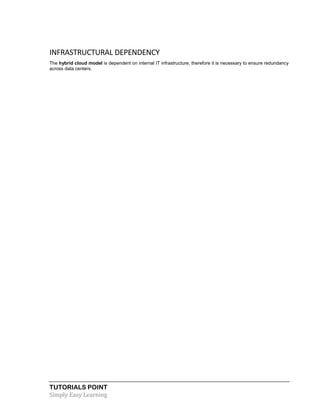

INFRASTRUCTURAL DEPENDENCY................................................... 37

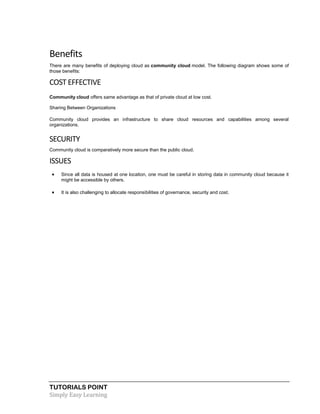

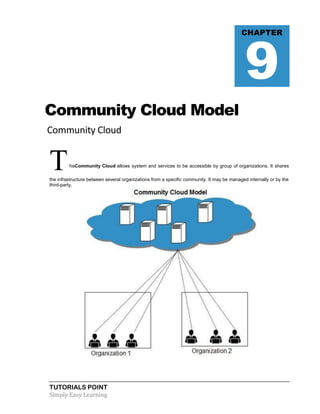

Community Cloud Model........................................................ 38
Benefits ................................................................................................... 39
COST EFFECTIVE.................................................................................. 39
SECURITY .............................................................................................. 39
ISSUES ................................................................................................... 39

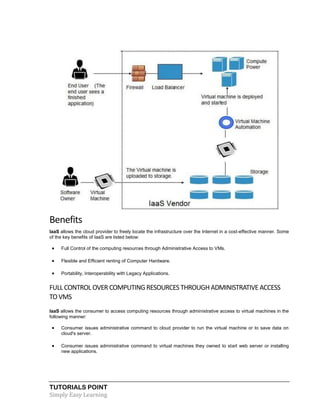

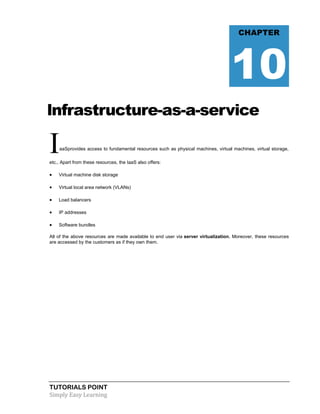

lnfrastructure-as-a-service...................................................... 40
Benefits ................................................................................................... 41
FULL CONTROL OVER COMPUTING RESOURCES THROUGH
ADMINISTRATIVE ACCESS TO VMS .................................................... 41
FLEXIBLE AND EFFICIENT RENTING OF COMPUTER HARDWARE . 42
PORTABILITY, INTEROPERABILITY WITH LEGACY APPLICATIONS 42
Issues...................................................................................................... 42
COMPATIBILITY WITH LEGACY SECURITY VULNERABILITIES....... 42

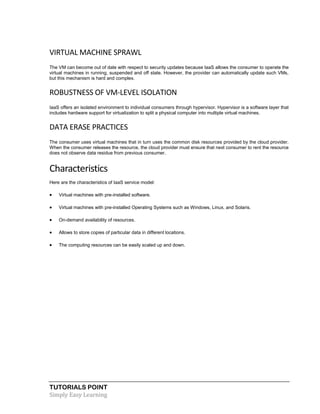

VIRTUAL MACHINE SPRAWL............................................................... 43
ROBUSTNESS OF VM-LEVEL ISOLATION.......................................... 43
DATA ERASE PRACTICES ................................................................... 43
Characteristics......................................................................................... 43

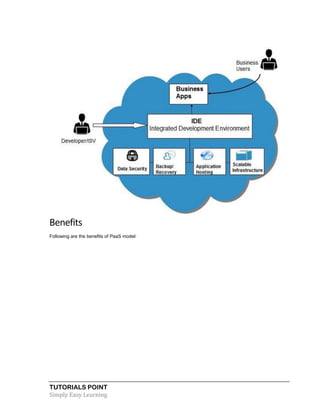

Platform-as-a-Service ............................................................ 44
Benefits ................................................................................................... 45

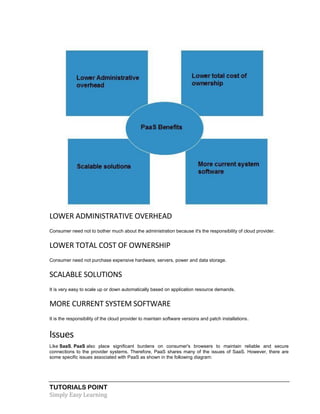

LOWER ADMINISTRATIVE OVERHEAD .............................................. 46
LOWER TOTAL COST OF OWNERSHIP.............................................. 46
SCALABLE SOLUTIONS ....................................................................... 46
MORE CURRENT SYSTEM SOFTWARE ............................................. 46
Issues...................................................................................................... 46

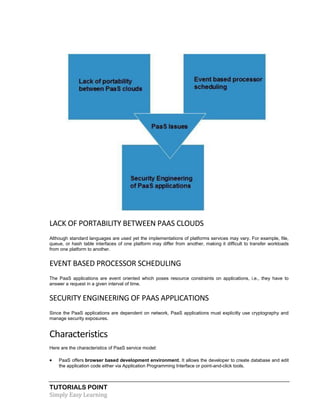

LACK OF PORTABILITY BETWEEN PAAS CLOUDS .......................... 47
EVENT BASED PROCESSOR SCHEDULING...................................... 47
SECURITY ENGINEERING OF PAAS APPLICATIONS ....................... 47
Characteristics......................................................................................... 47

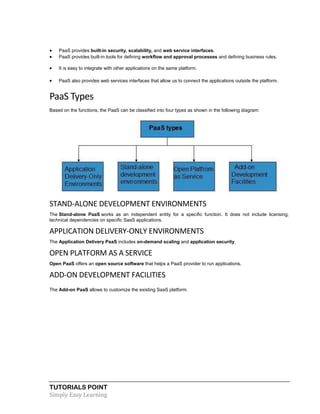

PaaS Types............................................................................................. 48
STAND-ALONE DEVELOPMENT ENVIRONMENTS............................ 48

7. TUTORIALS POINT
Simply Easy Learning

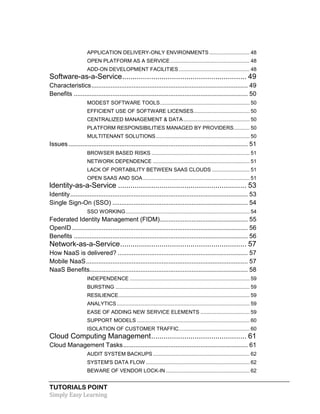

APPLICATION DELIVERY-ONLY ENVIRONMENTS............................ 48
OPEN PLATFORM AS A SERVICE....................................................... 48
ADD-ON DEVELOPMENT FACILITIES ................................................. 48

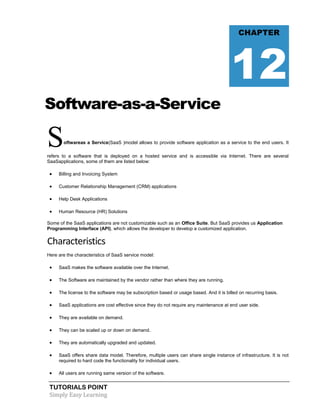

Software-as-a-Service............................................................ 49
Characteristics......................................................................................... 49
Benefits ................................................................................................... 50
MODEST SOFTWARE TOOLS.............................................................. 50
EFFICIENT USE OF SOFTWARE LICENSES....................................... 50
CENTRALIZED MANAGEMENT & DATA.............................................. 50
PLATFORM RESPONSIBILITIES MANAGED BY PROVIDERS........... 50
MULTITENANT SOLUTIONS................................................................. 50

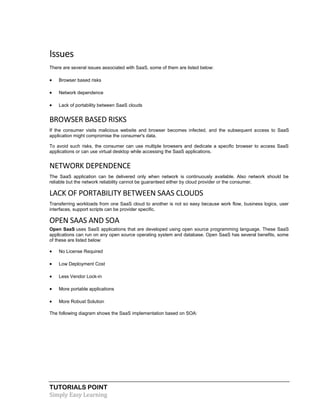

Issues...................................................................................................... 51
BROWSER BASED RISKS .................................................................... 51
NETWORK DEPENDENCE ................................................................... 51
LACK OF PORTABILITY BETWEEN SAAS CLOUDS .......................... 51
OPEN SAAS AND SOA.......................................................................... 51

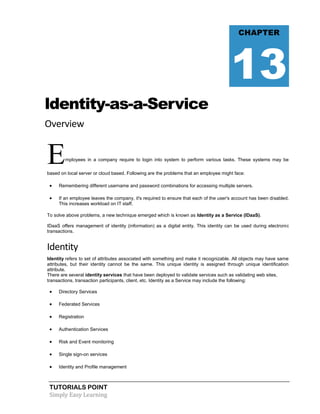

ldentity-as-a-Service .............................................................. 53
Identity..................................................................................................... 53

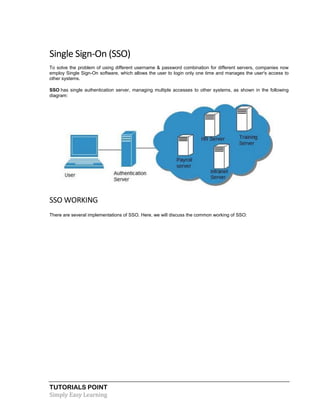

Single Sign-On (SSO) ............................................................................. 54

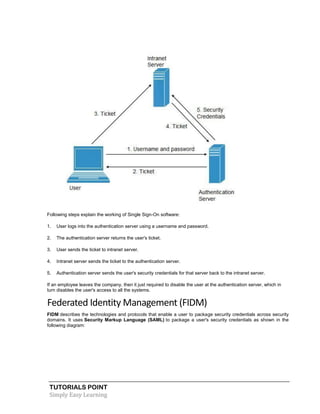

SSO WORKING...................................................................................... 54
Federated Identity Management (FIDM).................................................. 55
OpenID .................................................................................................... 56
Benefits ................................................................................................... 56

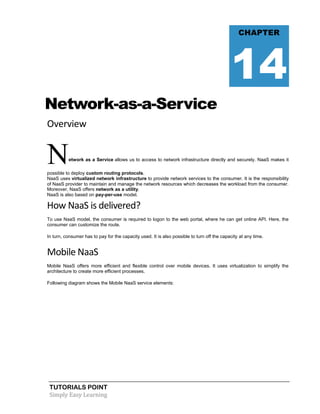

Network-as-a-Service............................................................. 57
How NaaS is delivered? .......................................................................... 57
Mobile NaaS............................................................................................ 57
NaaS Benefits.......................................................................................... 58
INDEPENDENCE ................................................................................... 59
BURSTING ............................................................................................. 59
RESILIENCE........................................................................................... 59
ANALYTICS ............................................................................................ 59
EASE OF ADDING NEW SERVICE ELEMENTS .................................. 59
SUPPORT MODELS .............................................................................. 60
ISOLATION OF CUSTOMER TRAFFIC................................................. 60
Cloud Computing Management.............................................. 61
Cloud Management Tasks....................................................................... 61
AUDIT SYSTEM BACKUPS ................................................................... 62
SYSTEM'S DATA FLOW ........................................................................ 62
BEWARE OF VENDOR LOCK-IN .......................................................... 62

8. TUTORIALS POINT
Simply Easy Learning
KNOWING PROVIDER'S SECURITY PROCEDURES.......................... 62
MONITOR CAPACITY PLANNING AND SCALING CAPABILITIES ..... 62
MONITOR AUDIT-LOG USE.................................................................. 62
SOLUTION TESTING AND VALIDATION.............................................. 62
Cloud Computing Data Storage.............................................. 63
Storage Devices ...................................................................................... 63
BLOCK STORAGE DEVICES ................................................................ 63
FILE STORAGE DEVICES..................................................................... 63
Cloud Storage Classes............................................................................ 63
UNMANAGED CLOUD STORAGE ........................................................ 63
MANAGED CLOUD STORAGE ............................................................. 64
Creating Cloud Storage System .............................................................. 64
Virtual Storage Containers ...................................................................... 64
Challenges............................................................................................... 65
Cloud Computing Virtualization .............................................. 66
Virtualization Concept.............................................................................. 66
HYPERVISOR ........................................................................................ 66
Types of Hardware Virtualization............................................................. 68
FULL VIRTUALIZATION......................................................................... 68
EMULATION VIRTUALIZATION ............................................................ 69
PARAVIRTUALIZATION......................................................................... 70
Cloud Computing Security...................................................... 72
Security Planning..................................................................................... 72
Understanding Security of Cloud............................................................. 72
SECURITY BOUNDARIES..................................................................... 72
UNDERSTANDING DATA SECURITY................................................... 73
ISOLATED ACCESS TO DATA.............................................................. 74
WORKING OF BROKERED CLOUD STORAGE ACCESS SYSTEM... 74
Encryption................................................................................................ 75
Cloud Computing Operations................................................. 76
Managing Cloud Operations.................................................................... 76
Cloud Computing Applications ............................................... 78
Business Applications.............................................................................. 78
Data Storage and Backup ....................................................................... 78
Management Applications ....................................................................... 79
Social Applications .................................................................................. 79
Entertainment Applications...................................................................... 79
Art Applications........................................................................................ 79
Cloud Computing Providers ................................................... 80

9. TUTORIALS POINT
Simply Easy Learning
Cloud Computing Challenges................................................. 82
SECURITY & PRIVACY.......................................................................... 82
PORTABILITY......................................................................................... 82
INTEROPERABILITY.............................................................................. 83
COMPUTING PERFORMANCE............................................................. 83
RELIABILITY AND AVAILABILITY ......................................................... 83
Mobile Cloud Computing........................................................ 84
Architecture ............................................................................................. 84
Issues...................................................................................................... 85
EMERGENCY EFFICIENT TRANSMISSION......................................... 85
ARCHITECTURAL ISSUES ................................................................... 85
LIVE VM MIGRATION ............................................................................ 85
MOBILE COMMUNICATION CONGESTION......................................... 85
SECURITY AND PRIVACY .................................................................... 86

10. TUTORIALS POINT
Simply Easy Learning
Cloud Computing - Overview
Cloud Computing provides us a means by which we can access the applications as utilities, over the
Internet. It allows us to create, configure, and customize applications online.
What is Cloud?
The term Cloud refers to a Network or Internet. In other words, we can say that Cloud is something, which is
present at remote location. Cloud can provide services over network, i.e., on public networks or on private
networks, i.e., WAN, LAN or VPN.
Applications such as e-mail, web conferencing, customer relationship management (CRM),all run in cloud.
What is Cloud Computing?
Cloud Computing refers to manipulating, configuring, and accessing the applications online. It offers online
data storage, infrastructure and application.
CHAPTER
1

11. TUTORIALS POINT
Simply Easy Learning
We need not to install a piece of software on our local PC and this is how the cloud computing
overcomes platform dependency issues. Hence, the Cloud Computing is making our business
application mobile and collaborative.
Basic Concepts
There are certain services and models working behind the scene making the cloud computing feasible and
accessible to end users. Following are the working models for cloud computing:
 Deployment Models
 Service Models
DEPLOYMENT MODELS
Deployment models define the type of access to the cloud, i.e., how the cloud is located? Cloud can have any of
the four types of access: Public, Private, Hybrid and Community.
PUBLIC CLOUD
The Public Cloud allows systems and services to be easily accessible to the general public. Public cloud may be
less secure because of its openness, e.g., e-mail.
PRIVATE CLOUD
The Private Cloud allows systems and services to be accessible within an organization. It offers increased
security because of its private nature.
COMMUNITY CLOUD
The Community Cloud allows systems and services to be accessible by group of organizations.
HYBRID CLOUD
The Hybrid Cloud is mixture of public and private cloud. However, the critical activities are performed using
private cloud while the non-critical activities are performed using public cloud.

12. TUTORIALS POINT
Simply Easy Learning
SERVICE MODELS
Service Models are the reference models on which the Cloud Computing is based. These can be categorized into
three basic service models as listed below:
1. Infrastructure as a Service (IaaS)
2. Platform as a Service (PaaS)
3. Software as a Service (SaaS)
There are many other service models all of which can take the form like XaaS, i.e., Anything as a Service. This
can be Network as a Service, Business as a Service, Identity as a Service, Database as a
Service or Strategy as a Service.
The Infrastructure as a Service (IaaS) is the most basic level of service. Each of the service models make use of
the underlying service model, i.e., each inherits the security and management mechanism from the underlying
model, as shown in the following diagram:
INFRASTRUCTURE AS A SERVICE (IAAS)
IaaS provides access to fundamental resources such as physical machines, virtual machines, virtual storage, etc.
PLATFORM AS A SERVICE (PAAS)
PaaS provides the runtime environment for applications, development & deployment tools, etc.
SOFTWARE AS A SERVICE (SAAS)
SaaS model allows to use software applications as a service to end users.

13. TUTORIALS POINT
Simply Easy Learning
History
The concept of Cloud Computing came into existence in 1950 with implementation of mainframe computers,
accessible via thin/static clients. Since then, cloud computing has been evolved from static clients to dynamic
ones from software to services. The following diagram explains the evolution of cloud computing:
Benefits
Cloud Computing has numerous advantages. Some of them are listed below:
 One can access applications as utilities, over the Internet.
 Manipulate and configure the application online at any time.
 It does not require to install a specific piece of software to access or manipulate cloud application.
 Cloud Computing offers online development and deployment tools, programming runtime environment
through Platform as a Service model.
 Cloud resources are available over the network in a manner that provides platform independent access to any
type of clients.
 Cloud Computing offers on-demand self-service. The resources can be used without interaction with cloud
service provider.
 Cloud Computing is highly cost effective because it operates at higher efficiencies with greater utilization. It
just requires an Internet connection.
 Cloud Computing offers load balancing that makes it more reliable.

14. TUTORIALS POINT
Simply Easy Learning
Risks
Although Cloud Computing is a great innovation in the world of computing, there also exist downsides of cloud
computing. Some of them are discussed below:
SECURITY & PRIVACY
It is the biggest concern about cloud computing. Since data management and infrastructure management in cloud
is provided by third-party, it is always a risk to handover the sensitive information to such providers.
Although the cloud computing vendors ensure more secure password protected accounts, any sign of security
breach would result in loss of clients and businesses.
LOCK-IN
It is very difficult for the customers to switch from one Cloud Service Provider (CSP) to another. It results in
dependency on a particular CSP for service.
ISOLATION FAILURE
This risk involves the failure of isolation mechanism that separates storage, memory, routing between the different
tenants.

15. TUTORIALS POINT
Simply Easy Learning
MANAGEMENT INTERFACE COMPROMISE
In case of public cloud provider, the customer management interfaces are accessible through the Internet.
INSECURE OR INCOMPLETE DATA DELETION
It is possible that the data requested for deletion may not get deleted. It happens either because extra copies of
data are stored but are not available or disk destroyed also stores data from other tenants.
Characteristics
There are four key characteristics of cloud computing. They are shown in the following diagram:
ON DEMAND SELF-SERVICE
Cloud Computing allows the users to use web services and resources on demand. One can logon to a website at
any time and use them.
BROAD NETWORK ACCESS
Since Cloud Computing is completely web based, it can be accessed from anywhere and at any time.

16. TUTORIALS POINT
Simply Easy Learning
RESOURCE POOLING
Cloud Computing allows multiple tenants to share a pool of resources. One can share single physical instance of
hardware, database and basic infrastructure.
RAPID ELASTICITY
It is very easy to scale up or down the resources at any time.
Resources used by the customers or currently assigned to customers are automatically monitored and resources.
It make it possible
MEASURED SERVICE
Service Models & Deployment Models are described in above section.

17. TUTORIALS POINT
Simply Easy Learning
Cloud Computing - Planning
Beforedeploying applications to cloud, it is necessary to consider your business requirements. Following
are the issues one must have to think about:
 Data Security and Privacy Requirement
 Budget Requirements
 Type of cloud - public, private or hybrid
 Data backup requirements
 Training requirements
 Dashboard and reporting requirements
 Client access requirements
 Data export requirements
To meet all of these requirements, it is necessary to have well-compiled planning. Here in this tutorial, we will
discuss the various planning phases that must be practised by an enterprise before migrating the entire business
to cloud. Each of these planning phases are described in the following diagram:
CHAPTER
2

18. TUTORIALS POINT
Simply Easy Learning
Strategy Planning Phase
In this, we analyze the strategy problems that customer might face. There are two steps to perform this analysis:
 Cloud Computing Value Proposition
 Cloud Computing Strategy Planning
CLOUD COMPUTING VALUE PROPOSITION
In this, we analyze the factors influencing the customers when applying cloud computing mode and target the key
problems they wish to solve. These key factors are:
 IT management simplification
 operation and maintenance cost reduction
 business mode innovation
 low cost outsourcing hosting
 high service quality outsourcing hosting.

19. TUTORIALS POINT
Simply Easy Learning
All of the above analysis helps in decision making for future development.
CLOUD COMPUTING STRATEGY PLANNING
The strategy establishment is based on the analysis result of the above step. In this step, a strategy document is
prepared according to the conditions a customer might face when applying cloud computing mode.
Cloud Computing Tactics Planning Phase
This step performs analysis of problems and risks in the cloud application to ensure the customers that the cloud
computing successfully meet their business goals. This phase involves the following planning steps:
 Business Architecture Development
 IT Architecture development
 Requirements on Quality of Service Development
 Transformation Plan development
BUSINESS ARCHITECTURE DEVELOPMENT
In this step, we recognize the risks that might be caused by cloud computing application from a business
perspective.
IT ARCHITECTURE DEVELOPMENT
In this step, we identify the applications that support the business processes and the technologies required to
support enterprise applications and data systems.
REQUIREMENTS ON QUALITY OF SERVICE DEVELOPMENT
Quality of Service refers to the non-functional requirements such as reliability, security, disaster recovery, etc. The
success of applying cloud computing mode depends on these non-functional factors.
TRANSFORMATION PLAN DEVELOPMENT
In this step, we formulate all kinds of plans that are required to transform current business to cloud computing
modes.
Cloud Computing Deployment Phase
This phase focuses on both of the above two phases. It involves the following two steps:
 Cloud Computing Provider
 Maintenance and Technical Service

20. TUTORIALS POINT
Simply Easy Learning
CLOUD COMPUTING PROVIDER
This step includes selecting a cloud provider on basis of Service Level Agreement (SLA), which defines the level of
service the provider will meet.
MAINTENANCE AND TECHNICAL SERVICE
Maintenance and Technical services are provided by the cloud provider. They must have to ensure the quality of
services.

21. TUTORIALS POINT
Simply Easy Learning
Cloud Computing-Technologies
Thereare certain technologies that are working behind the cloud computing platforms making cloud
computing flexible, reliable, usable. These technologies are listed below:
 Virtualization
 Service-Oriented Architecture (SOA)
 Grid Computing
 Utility Computing
Virtualization
Virtualization is a technique, which allows to share single physical instance of an application or resource among
multiple organizations or tenants (customers). It does so by assigning a logical name to a physical resource and
providing a pointer to that physical resource when demanded.
CHAPTER
3

22. TUTORIALS POINT
Simply Easy Learning
The Multitenant architecture offers virtual isolation among the multiple tenants and therefore the organizations
can use and customize the application as though they each have its own instance running.
Service-Oriented Architecture(SOA)
Service-Oriented Architecture helps to use applications as a service for other applications regardless the type of
vendor, product or technology. Therefore, it is possible to exchange of data between applications of different
vendors without additional programming or making changes to services.
cloud_computing-service_oriented_architecture

23. TUTORIALS POINT
Simply Easy Learning
Grid Computing
Grid Computing refers to distributed computing in which a group of computers from multiple locations are
connected with each other to achieve common objective. These computer resources are heterogeneous and
geographically dispersed.
Grid Computing breaks complex task into smaller pieces. These smaller pieces are distributed to CPUs that reside
within the grid.

24. TUTORIALS POINT
Simply Easy Learning
Utility Computing
Utility computing is based on Pay per Use model. It offers computational resources on demand as a metered
service. Cloud computing, grid computing, and managed IT services are based on the concept of Utility computing.

25. TUTORIALS POINT
Simply Easy Learning
Cloud Computing-Architecture
The Cloud Computing architecture comprises of many cloud components, each of them are loosely
coupled. We can broadly divide the cloud architecture into two parts:
 Front End
 Back End
Each of the ends are connected through a network, usually via Internet. The following diagram shows the graphical
view of cloud computing architecture:
CHAPTER
4

26. TUTORIALS POINT
Simply Easy Learning
FRONT END
Front End refers to the client part of cloud computing system. It consists of interfaces and applications that are
required to access the cloud computing platforms, e.g., Web Browser.
BACK END
Back End refers to the cloud itself. It consists of all the resources required to provide cloud computing services. It
comprises of huge data storage, virtual machines, security mechanism, services, deployment models,
servers, etc.
Important Points
 It is the responsibility of the back end to provide built-in security mechanism, traffic control and protocols.
 The server employs certain protocols, known as middleware, helps the connected devices to communicate with
each other.

27. TUTORIALS POINT
Simply Easy Learning
Cloud Computing Infrastructure
Cloud Infrastructure Components
Cloud infrastructure consists of servers, storage, network, management software, and deployment
software and platform virtualization.
HYPERVISOR
Hypervisor is a firmware or low-level program that acts as a Virtual Machine Manager. It allows to share the
single physical instance of cloud resources between several tenants.
MANAGEMENT SOFTWARE
Management Software helps to maintain and configure the infrastructure.
DEPLOYMENT SOFTWARE
Deployment software helps to deploy and integrate the application on the cloud.
NETWORK
Network is the key component of cloud infrastructure. It allows to connect cloud services over the Internet. It is
also possible to deliver network as a utility over the Internet, i.e., the consumer can customize the network route
and protocol.
CHAPTER
5

28. TUTORIALS POINT
Simply Easy Learning
SERVER
Server helps to compute the resource sharing and offer other services such as resource allocation and
deallocation, monitoring resources, security, etc.
STORAGE
Cloud uses distributed file system for storage purpose. If one of the storage resource fails, then it can be extracted
from another one which makes cloud computing more reliable.
Infrastructural Constraints
Fundamental constraints that cloud infrastructure should implement are shown in the following diagram:
TRANSPARENCY
Since virtualization is the key to share resources in cloud environment. But it is not possible to satisfy the demand
with single resource or server. Therefore, there must be transparency in resources, load balancing and application,
so that we can scale them on demand.
SCALABILITY
Scaling up an application delivery solution is not that easy as scaling up an application because it involves
configuration overhead or even re-architecting the network. So, application delivery solution is need to be scalable
which will require the virtual infrastructure such that resource can be provisioned and de-provisioned easily.
INTELLIGENT MONITORING
To achieve transparency and scalability, application solution delivery will need to be capable of intelligent
monitoring.

29. TUTORIALS POINT
Simply Easy Learning
SECURITY
The mega data center in the cloud should be securely architected. Also the control node, a entry point in mega
data center also needs to be secure.

30. TUTORIALS POINT
Simply Easy Learning
Public Cloud Model
Public Cloud
ThePublic Cloud allows systems and services to be easily accessible to general public, e.g., Google,
Amazon, Microsoft offers cloud services via Internet.
CHAPTER
6

31. TUTORIALS POINT
Simply Easy Learning
Benefits
There are many benefits of deploying cloud as public cloud model. The following diagram shows some of those
benefits:
COST EFFECTIVE
Since public cloud share same resources with large number of consumer, it has low cost.
RELIABILITY
Since public cloud employs large number of resources from different locations, if any of the resource fail, public
cloud can employ another one.
FLEXIBILITY
It is also very easy to integrate public cloud with private cloud, hence gives consumers a flexible approach.
LOCATION INDEPENDENCE
Since, public cloud services are delivered through Internet, therefore ensures location independence.
UTILITY STYLE COSTING
Public cloud is also based on pay-per-use model and resources are accessible whenever consumer needs it.
HIGH SCALABILITY
Cloud resources are made available on demand from a pool of resources, i.e., they can be scaled up or down
according the requirement.

32. TUTORIALS POINT
Simply Easy Learning
Disadvantages
Here are the disadvantages of public cloud model:
LOW SECURITY
In public cloud model, data is hosted off-site and resources are shared publicly, therefore does not ensure higher
level of security.
LESS CUSTOMIZABLE
It is comparatively less customizable than private cloud.

33. TUTORIALS POINT
Simply Easy Learning
Private Cloud Model
Private Cloud
ThePrivate Cloud allows systems and services to be accessible with in an organization. The Private Cloud
is operated only within a single organization. However, It may be managed internally or by third-party.
Benefits
There are many benefits of deploying cloud as private cloud model. The following diagram shows some of those
benefits:
CHAPTER
7

34. TUTORIALS POINT
Simply Easy Learning
HIGHER SECURITY AND PRIVACY
Private cloud operations are not available to general public and resources are shared from distinct pool of
resources, therefore, ensures high security and privacy.
MORE CONTROL
Private clouds have more control on its resources and hardware than public cloud because it is accessed only
within an organization.
COST AND ENERGY EFFICIENCY
Private cloud resources are not as cost effective as public clouds but they offer more efficiency than public cloud.
Disadvantages
Here are the disadvantages of using private cloud model:
RESTRICTED AREA
Private cloud is only accessible locally and is very difficult to deploy globally.
INFLEXIBLE PRICING
In order to fulfill demand, purchasing new hardware is very costly.
LIMITED SCALABILITY
Private cloud can be scaled only within capacity of internal hosted resources.

35. TUTORIALS POINT
Simply Easy Learning
ADDITIONAL SKILLS
In order to maintain cloud deployment, organization requires more skilled and expertise.

36. TUTORIALS POINT
Simply Easy Learning
Hybrid Cloud Model
Hybrid Cloud
TheHybrid Cloud is a mixture of public and private cloud. Non-critical activities are performed using public
cloud while the critical activities are performed using private cloud.
Benefits
There are many benefits of deploying cloud as hybrid cloud model. The following diagram shows some of those
benefits:
CHAPTER
8

37. TUTORIALS POINT
Simply Easy Learning
SCALABILITY
It offers both features of public cloud scalability and private cloud scalability.
FLEXIBILITY
It offers both secure resources and scalable public resources.
COST EFFICIENCIES
Public cloud are more cost effective than private, therefore hybrid cloud can have this saving.
SECURITY
Private cloud in hybrid cloud ensures higher degree of security.
Disadvantages
NETWORKING ISSUES
Networking becomes complex due to presence of private and public cloud.
SECURITY COMPLIANCE
It is necessary to ensure that cloud services are compliant with organization's security policies.

38. TUTORIALS POINT
Simply Easy Learning
INFRASTRUCTURAL DEPENDENCY
The hybrid cloud model is dependent on internal IT infrastructure, therefore it is necessary to ensure redundancy
across data centers.

39. TUTORIALS POINT
Simply Easy Learning
Community Cloud Model
Community Cloud
TheCommunity Cloud allows system and services to be accessible by group of organizations. It shares
the infrastructure between several organizations from a specific community. It may be managed internally or by the
third-party.
CHAPTER
9

40. TUTORIALS POINT
Simply Easy Learning
Benefits
There are many benefits of deploying cloud as community cloud model. The following diagram shows some of
those benefits:
COST EFFECTIVE
Community cloud offers same advantage as that of private cloud at low cost.
Sharing Between Organizations
Community cloud provides an infrastructure to share cloud resources and capabilities among several
organizations.
SECURITY
Community cloud is comparatively more secure than the public cloud.
ISSUES
 Since all data is housed at one location, one must be careful in storing data in community cloud because it
might be accessible by others.
 It is also challenging to allocate responsibilities of governance, security and cost.

41. TUTORIALS POINT
Simply Easy Learning
lnfrastructure-as-a-service
IaaSprovides access to fundamental resources such as physical machines, virtual machines, virtual storage,
etc., Apart from these resources, the IaaS also offers:
 Virtual machine disk storage
 Virtual local area network (VLANs)
 Load balancers
 IP addresses
 Software bundles
All of the above resources are made available to end user via server virtualization. Moreover, these resources
are accessed by the customers as if they own them.
CHAPTER
10

42. TUTORIALS POINT
Simply Easy Learning
Benefits
IaaS allows the cloud provider to freely locate the infrastructure over the Internet in a cost-effective manner. Some
of the key benefits of IaaS are listed below:
 Full Control of the computing resources through Administrative Access to VMs.
 Flexible and Efficient renting of Computer Hardware.
 Portability, Interoperability with Legacy Applications.
FULL CONTROL OVER COMPUTINGRESOURCES THROUGHADMINISTRATIVE ACCESS
TO VMS
IaaS allows the consumer to access computing resources through administrative access to virtual machines in the
following manner:
 Consumer issues administrative command to cloud provider to run the virtual machine or to save data on
cloud's server.
 Consumer issues administrative command to virtual machines they owned to start web server or installing
new applications.

43. TUTORIALS POINT
Simply Easy Learning
FLEXIBLEAND EFFICIENT RENTING OF COMPUTERHARDWARE
IaaS resources such as virtual machines, storages, bandwidth, IP addresses, monitoring services, firewalls, etc.,
all are made available to the consumers on rent. The consumer has to pay based the length of time a consumer
retains a resource. Also with administrative access to virtual machines, the consumer can also run any software,
even a custom operating system.
PORTABILITY, INTEROPERABILITY WITH LEGACY APPLICATIONS
It is possible to maintain legacy between applications and workloads between IaaS clouds. For example, network
applications such as web server, e-mail server that normally runs on consumer-owned server hardware can also
be run from VMs in IaaS cloud.
Issues
IaaS shares issues with PaaS and SaaS, such as Network dependence and browser based risks. It also have
some specific issues associated with it. These issues are mentioned in the following diagram:
COMPATIBILITY WITH LEGACY SECURITY VULNERABILITIES
Because IaaS offers the consumer to run legacy software in provider's infrastructure, therefore it exposes
consumers to all of the security vulnerabilities of such legacy software.

44. TUTORIALS POINT
Simply Easy Learning
VIRTUAL MACHINE SPRAWL
The VM can become out of date with respect to security updates because IaaS allows the consumer to operate the
virtual machines in running, suspended and off state. However, the provider can automatically update such VMs,
but this mechanism is hard and complex.
ROBUSTNESS OF VM-LEVEL ISOLATION
IaaS offers an isolated environment to individual consumers through hypervisor. Hypervisor is a software layer that
includes hardware support for virtualization to split a physical computer into multiple virtual machines.
DATA ERASE PRACTICES
The consumer uses virtual machines that in turn uses the common disk resources provided by the cloud provider.
When the consumer releases the resource, the cloud provider must ensure that next consumer to rent the resource
does not observe data residue from previous consumer.
Characteristics
Here are the characteristics of IaaS service model:
 Virtual machines with pre-installed software.
 Virtual machines with pre-installed Operating Systems such as Windows, Linux, and Solaris.
 On-demand availability of resources.
 Allows to store copies of particular data in different locations.
 The computing resources can be easily scaled up and down.

45. TUTORIALS POINT
Simply Easy Learning
Platform-as-a-Service
PaaSoffers the runtime environment for applications. It also offers development & deployment tools, required
to develop applications. PaaS has a feature of point-and-click tools that enables non-developers to create web
applications.
Google's App Engine, Force.com are examples of PaaS offering vendors. Developer may log on to these
websites and use the built-in API to create web-based applications.
But the disadvantage of using PaaS is that the developer lock-in with a particular vendor. For example, an
application written in Python against Google's API using Google's App Engine is likely to work only in that
environment. Therefore, the vendor lock-in is the biggest problem in PaaS.
The following diagram shows how PaaS offers an API and development tools to the developers and how it helps the
end user to access business applications.
CHAPTER
11

46. TUTORIALS POINT
Simply Easy Learning
Benefits
Following are the benefits of PaaS model:

47. TUTORIALS POINT
Simply Easy Learning
LOWER ADMINISTRATIVE OVERHEAD
Consumer need not to bother much about the administration because it's the responsibility of cloud provider.
LOWER TOTAL COST OF OWNERSHIP
Consumer need not purchase expensive hardware, servers, power and data storage.
SCALABLE SOLUTIONS
It is very easy to scale up or down automatically based on application resource demands.
MORE CURRENT SYSTEM SOFTWARE
It is the responsibility of the cloud provider to maintain software versions and patch installations.
Issues
Like SaaS, PaaS also place significant burdens on consumer's browsers to maintain reliable and secure
connections to the provider systems. Therefore, PaaS shares many of the issues of SaaS. However, there are
some specific issues associated with PaaS as shown in the following diagram:

48. TUTORIALS POINT
Simply Easy Learning
LACK OF PORTABILITY BETWEEN PAAS CLOUDS
Although standard languages are used yet the implementations of platforms services may vary. For example, file,
queue, or hash table interfaces of one platform may differ from another, making it difficult to transfer workloads
from one platform to another.
EVENT BASED PROCESSOR SCHEDULING
The PaaS applications are event oriented which poses resource constraints on applications, i.e., they have to
answer a request in a given interval of time.
SECURITY ENGINEERING OF PAAS APPLICATIONS
Since the PaaS applications are dependent on network, PaaS applications must explicitly use cryptography and
manage security exposures.
Characteristics
Here are the characteristics of PaaS service model:
 PaaS offers browser based development environment. It allows the developer to create database and edit
the application code either via Application Programming Interface or point-and-click tools.

49. TUTORIALS POINT
Simply Easy Learning
 PaaS provides built-in security, scalability, and web service interfaces.
 PaaS provides built-in tools for defining workflow and approval processes and defining business rules.
 It is easy to integrate with other applications on the same platform.
 PaaS also provides web services interfaces that allow us to connect the applications outside the platform.
PaaS Types
Based on the functions, the PaaS can be classified into four types as shown in the following diagram:
STAND-ALONE DEVELOPMENT ENVIRONMENTS
The Stand-alone PaaS works as an independent entity for a specific function. It does not include licensing,
technical dependencies on specific SaaS applications.
APPLICATION DELIVERY-ONLY ENVIRONMENTS
The Application Delivery PaaS includes on-demand scaling and application security.
OPEN PLATFORM AS A SERVICE
Open PaaS offers an open source software that helps a PaaS provider to run applications.
ADD-ON DEVELOPMENT FACILITIES
The Add-on PaaS allows to customize the existing SaaS platform.

50. TUTORIALS POINT
Simply Easy Learning
Software-as-a-Service
Softwareas a Service(SaaS )model allows to provide software application as a service to the end users. It
refers to a software that is deployed on a hosted service and is accessible via Internet. There are several
SaaSapplications, some of them are listed below:
 Billing and Invoicing System
 Customer Relationship Management (CRM) applications
 Help Desk Applications
 Human Resource (HR) Solutions
Some of the SaaS applications are not customizable such as an Office Suite. But SaaS provides us Application
Programming Interface (API), which allows the developer to develop a customized application.
Characteristics
Here are the characteristics of SaaS service model:
 SaaS makes the software available over the Internet.
 The Software are maintained by the vendor rather than where they are running.
 The license to the software may be subscription based or usage based. And it is billed on recurring basis.
 SaaS applications are cost effective since they do not require any maintenance at end user side.
 They are available on demand.
 They can be scaled up or down on demand.
 They are automatically upgraded and updated.
 SaaS offers share data model. Therefore, multiple users can share single instance of infrastructure. It is not
required to hard code the functionality for individual users.
 All users are running same version of the software.
CHAPTER
12

51. TUTORIALS POINT
Simply Easy Learning
Benefits
Using SaaS has proved to be beneficial in terms of scalability, efficiency, performance and much more. Some of the
benefits are listed below:
 Modest Software Tools
 Efficient use of Software Licenses
 Centralized Management & Data
 Platform responsibilities managed by provider
 Multitenant solutions
MODEST SOFTWARE TOOLS
The SaaS application deployment requires a little or no client side software installation which results in the
following benefits:
 No requirement for complex software packages at client side
 Little or no risk of configuration at client side
 Low distribution cost
EFFICIENT USE OF SOFTWARE LICENSES
The client can have single license for multiple computers running at different locations which reduces the licensing
cost. Also, there is no requirement for license servers because the software runs in the provider's infrastructure.
CENTRALIZED MANAGEMENT & DATA
The data stored by the cloud provider is centralized. However, the cloud providers may store data in a
decentralized manner for sake of redundancy and reliability.
PLATFORM RESPONSIBILITIES MANAGED BY PROVIDERS
All platform responsibilities such as backups, system maintenance, security, hardware refresh, power
management, etc., are performed by the cloud provider. The consumer need not to bother about them.
MULTITENANT SOLUTIONS
Multitenancy allows multiple users to share single instance of resources in virtual isolation. Consumers can
customize their application without affecting the core functionality.

52. TUTORIALS POINT
Simply Easy Learning
Issues
There are several issues associated with SaaS, some of them are listed below:
 Browser based risks
 Network dependence
 Lack of portability between SaaS clouds
BROWSER BASED RISKS
If the consumer visits malicious website and browser becomes infected, and the subsequent access to SaaS
application might compromise the consumer's data.
To avoid such risks, the consumer can use multiple browsers and dedicate a specific browser to access SaaS
applications or can use virtual desktop while accessing the SaaS applications.
NETWORK DEPENDENCE
The SaaS application can be delivered only when network is continuously available. Also network should be
reliable but the network reliability cannot be guaranteed either by cloud provider or the consumer.
LACK OF PORTABILITY BETWEEN SAAS CLOUDS
Transferring workloads from one SaaS cloud to another is not so easy because work flow, business logics, user
interfaces, support scripts can be provider specific.
OPEN SAAS AND SOA
Open SaaS uses SaaS applications that are developed using open source programming language. These SaaS
applications can run on any open source operating system and database. Open SaaS has several benefits, some
of these are listed below:
 No License Required
 Low Deployment Cost
 Less Vendor Lock-in
 More portable applications
 More Robust Solution
The following diagram shows the SaaS implementation based on SOA:

53. TUTORIALS POINT
Simply Easy Learning

54. TUTORIALS POINT
Simply Easy Learning
ldentity-as-a-Service
Overview
Employees in a company require to login into system to perform various tasks. These systems may be
based on local server or cloud based. Following are the problems that an employee might face:
 Remembering different username and password combinations for accessing multiple servers.
 If an employee leaves the company, it's required to ensure that each of the user's account has been disabled.
This increases workload on IT staff.
To solve above problems, a new technique emerged which is known as Identity as a Service (IDaaS).
IDaaS offers management of identity (information) as a digital entity. This identity can be used during electronic
transactions.
Identity
Identity refers to set of attributes associated with something and make it recognizable. All objects may have same
attributes, but their identity cannot be the same. This unique identity is assigned through unique identification
attribute.
There are several identity services that have been deployed to validate services such as validating web sites,
transactions, transaction participants, client, etc. Identity as a Service may include the following:
 Directory Services
 Federated Services
 Registration
 Authentication Services
 Risk and Event monitoring
 Single sign-on services
 Identity and Profile management
CHAPTER
13

55. TUTORIALS POINT
Simply Easy Learning
Single Sign-On (SSO)
To solve the problem of using different username & password combination for different servers, companies now
employ Single Sign-On software, which allows the user to login only one time and manages the user's access to
other systems.
SSO has single authentication server, managing multiple accesses to other systems, as shown in the following
diagram:
SSO WORKING
There are several implementations of SSO. Here, we will discuss the common working of SSO:

56. TUTORIALS POINT
Simply Easy Learning
Following steps explain the working of Single Sign-On software:
1. User logs into the authentication server using a username and password.
2. The authentication server returns the user's ticket.
3. User sends the ticket to intranet server.
4. Intranet server sends the ticket to the authentication server.
5. Authentication server sends the user's security credentials for that server back to the intranet server.
If an employee leaves the company, then it just required to disable the user at the authentication server, which in
turn disables the user's access to all the systems.
Federated Identity Management (FIDM)
FIDM describes the technologies and protocols that enable a user to package security credentials across security
domains. It uses Security Markup Language (SAML) to package a user's security credentials as shown in the
following diagram:

57. TUTORIALS POINT
Simply Easy Learning
OpenID
It offers users to login into multiple websites with single account. Google, Yahoo!, Flickr, MySpace,
WordPress.com are some of the companies that support OpenID.
Benefits
 Increased site conversation rates.
 Access to greater user profile content.
 Fewer problems with lost passwords.
 Ease of content integration into social networking sites.

58. TUTORIALS POINT
Simply Easy Learning
Network-as-a-Service
Overview
Network as a Service allows us to access to network infrastructure directly and securely. NaaS makes it
possible to deploy custom routing protocols.
NaaS uses virtualized network infrastructure to provide network services to the consumer. It is the responsibility
of NaaS provider to maintain and manage the network resources which decreases the workload from the consumer.
Moreover, NaaS offers network as a utility.
NaaS is also based on pay-per-use model.
How NaaS is delivered?
To use NaaS model, the consumer is required to logon to the web portal, where he can get online API. Here, the
consumer can customize the route.
In turn, consumer has to pay for the capacity used. It is also possible to turn off the capacity at any time.
Mobile NaaS
Mobile NaaS offers more efficient and flexible control over mobile devices. It uses virtualization to simplify the
architecture to create more efficient processes.
Following diagram shows the Mobile NaaS service elements:
CHAPTER
14

59. TUTORIALS POINT
Simply Easy Learning
NaaS Benefits
NaaS offers a number of benefits, some of them are discussed below:

60. TUTORIALS POINT
Simply Easy Learning
INDEPENDENCE
Each consumer is independent and can segregate the network.
BURSTING
Customers have to pay for high-capacity network only when needed.
RESILIENCE
There exists reliability treatments that can be applied for critical applications.
ANALYTICS
There exists data protection solution for highly sensitive applications.
EASE OF ADDING NEW SERVICE ELEMENTS
It is very easy to integrate new service elements to the network.

61. TUTORIALS POINT
Simply Easy Learning
SUPPORT MODELS
There exists more open support models, which help to reduce the operation cost.
ISOLATION OF CUSTOMER TRAFFIC
The customer traffic is logically isolated.

62. TUTORIALS POINT
Simply Easy Learning
Cloud Computing Management
Overview
It is the responsibility of cloud provider to manage resources and their performance. Management may include
several aspects of cloud computing such as load balancing, performance, storage and backups, capacity,
deployment , etc. Management is required to access full functionality of resources in the cloud.
Cloud Management Tasks
Cloud Management involves a number of tasks to be performed by the cloud provider to ensure efficient use of
cloud resources. Here, we will discuss some of these tasks:
CHAPTER
15

63. TUTORIALS POINT
Simply Easy Learning
AUDIT SYSTEM BACKUPS
It is required to timely audit the backups to ensure you can successfully restore randomly selected files of different
users. Backups can be performed in following ways:
 Backing up files by the company, from on-site computers to the disks that reside within the cloud.
 Backing up files by the cloud provider.
It is necessary to know if cloud provider has encrypted the data, who has access to that data and if the backup is
taken at different locations, you must know where.
SYSTEM'S DATA FLOW
The managers should develop a diagram describing a detailed process flow. This process flow will describe the
movement of company's data throughout the cloud solution.
BEWARE OF VENDOR LOCK-IN
The managers must know the procedure to exit from services of a particular cloud provider. There must exist
procedures, enabling the managers to export company's data to a file and importing it to another provider.
KNOWING PROVIDER'S SECURITY PROCEDURES
The managers should know the security plans of the provider for different services:
 Multitenant use
 E-commerce processing
 Employee screening
 Encryption policy
MONITOR CAPACITY PLANNING AND SCALING CAPABILITIES
The managers should know the capacity planning in order to ensure whether the cloud provider will meet the future
capacity requirement for his business or not.
It is also required to manage scaling capabilities in order to ensure services can be scaled up or down as per the
user need.
MONITOR AUDIT-LOG USE
In order to identify the errors in the system, managers must audit the logs on a regular basis.
SOLUTION TESTING AND VALIDATION
It is necessary to test the solutions provided by the provider in order to validate that it gives the correct result and is
error-free. This is necessary for a system to be robust and reliable.

64. TUTORIALS POINT
Simply Easy Learning
Cloud Computing Data Storage
Cloud Storage is a service that allows to save data on offsite storage system managed by third-party and is
made accessible by a web services API.
Storage Devices
Storage devices can be broadly classified into two categories:
 Block Storage Devices
 File Storage Devices
BLOCK STORAGE DEVICES
Block Storage Devices offer raw storage to the clients. This raw storage can be partitioned to create volumes.
FILE STORAGE DEVICES
File Storage Devices offers storage to clients in form of files, maintaining its own file system. This storage is in the
form of Network Attached Storage (NAS).
Cloud Storage Classes
Cloud Storage can be broadly classified into two categories:
 Unmanaged Cloud Storage
 Managed Cloud Storage
UNMANAGED CLOUD STORAGE
Unmanaged Cloud Storage means that the storage is preconfigured for the consumer. The
consumer cannot format nor the consumer can install own file system or change drive properties.
CHAPTER
16

65. TUTORIALS POINT
Simply Easy Learning
MANAGED CLOUD STORAGE
Managed Cloud Storage offers online storage space on demand. Managed cloud storage system presents what
appears to the user to be a raw disk that the user can partition and format.
Creating Cloud Storage System
The cloud storage system stores multiple copies of data on multiple servers and in multiple locations. If one system
fails, then it only requires to change the pointer to stored object's location.
To aggregate storage assets into cloud storage systems, the cloud provider can use storage virtualization
software, StorageGRID. It creates a virtualization layer that fetches storage from different storage devices into a
single management system. It can also manage data from CIFS and NFS file system over the Internet. The
following diagram shows how SystemGRID virtualizes the storage into storage clouds:
Virtual Storage Containers
Virtual storage containers offer high performance cloud storage systems. Logical Unit Number (LNU)of device,
files and other objects are created in virtual storage containers. Following diagram shows a virtual storage
container, defining a cloud storage domain:

66. TUTORIALS POINT
Simply Easy Learning
Challenges
Storing the data in cloud is not that simple task. Apart from its flexibility and convenience, it also has several
challenges faced by the consumers. The consumers require ability to:
 Provision additional storage on demand.
 Know and restrict the physical location of the stored data.
 Verify how data was erased?
 Have access to a documented process for surely disposing of data storage hardware.
 Administrator access control over data.

67. TUTORIALS POINT
Simply Easy Learning
Cloud Computing Virtualization
Virtualization
Virtualization is a technique, which allows to share single physical instance of an application or resource
among multiple organizations or tenants (customers). It does so by assigning a logical nameto a physical resource
and providing a pointer to that physical resource when demanded.
Virtualization Concept
Creating a virtual machine over existing operating system and hardware is referred as Hardware Virtualization.
Virtual Machines provide an environment that is logically separated from the underlying hardware.
The machine on which the virtual machine is created is known as host machine and virtual machineis referred as
a guest machine. This virtual machine is managed by a software or firmware, which is known as hypervisor.
HYPERVISOR
Hypervisor is a firmware or low-level program that acts as a Virtual Machine Manager. There are two types of
hypervisor:
Type 1 hypervisor runs on bare system. LynxSecure, RTS Hypervisor, Oracle VM, Sun xVM Server,
VirtualLogic VLX are examples of Type 1 hypervisor. The following diagram shows the Type 1 hypervisor.
CHAPTER
17

68. TUTORIALS POINT
Simply Easy Learning
The type1 hypervisor does not have any host operating system because they are installed on a bare system.
Type 2 hypervisor is a software interface that emulates the devices with which a system normally
interacts. Containers, KVM, Microsoft Hyper V, VMWare Fusion, Virtual Server 2005 R2, Windows Virtual
PC and VMWare workstation 6.0 are examples of Type 2 hypervisor. The following diagram shows the Type 2
hypervisor.

69. TUTORIALS POINT
Simply Easy Learning
Types of Hardware Virtualization
Here are the three types of hardware virtualization:
1. Full Virtualization
2. Emulation Virtualization
3. Paravirtualization
FULL VIRTUALIZATION
In Full Virtualization, the underlying hardware is completely simulated. Guest software does not require any
modification to run.

70. TUTORIALS POINT
Simply Easy Learning
EMULATION VIRTUALIZATION
In Emulation, the virtual machine simulates the hardware and hence become independent of the it. In this, the
guest operating system does not require modification.

71. TUTORIALS POINT
Simply Easy Learning
PARAVIRTUALIZATION
In Paravirtualization, the hardware is not simulated. The guest software run their own isolated domains.

72. TUTORIALS POINT
Simply Easy Learning
VMware vSphere is highly developed infrastructure that offers a management infrastructure framework for
virtualization. It virtualizes the system, storage and networking hardware.

73. TUTORIALS POINT
Simply Easy Learning
Cloud Computing Security
Security in cloud computing is a major concern. Data in cloud should be stored in encrypted form. To restrict
client from direct accessing the shared data, proxy and brokerage services should be employed.
Security Planning
Before deploying a particular resource to cloud, one should need to analyze several attributes about the resource
such as:
 Select which resources he is going to move to cloud and analyze its sensitivity to risk.
 Consider cloud service models such as IaaS, PaaS, and SaaS. These models require consumer to be
responsible for security at different levels of service.
 Consider which cloud type such as public, private, community or hybrid.
 Understand the cloud service provider's system that how data is transferred, where it is stored and how to
move data into and out of cloud.
Mainly the risk in cloud deployment depends upon the service models and cloud types.
Understanding Security of Cloud
SECURITY BOUNDARIES
A particular service model defines the boundary between the responsibilities of service provider and
consumer. Cloud Security Alliance (CSA) stack model defines the boundaries between each service model and
shows how different functional units relate to each other. The following diagram shows theCSA stack model:
CHAPTER
18

74. TUTORIALS POINT
Simply Easy Learning
KEY POINTS TO CSA MODEL:
 IaaS is the most basic level of service with PaaS and SaaS next two above levels of service.
 Moving upwards each of the service inherits capabilities and security concerns of the model beneath.
 IaaS provides the infrastructure, PaaS provides platform development environment and SaaS provides
operating environment.
 IaaS has the least level of integrated functionalities and integrated security while SaaS has the most.
 This model describes the security boundaries at which cloud service provider's responsibility ends and the
consumer's responsibilities begin.
 Any security mechanism below the security boundary must be built into the system and above should me
maintained by the consumer.
Although each service model has security mechanism but security needs also depends upon where these services
are located, in private, public, hybrid or community cloud.
UNDERSTANDING DATA SECURITY
Since all the data is transferred using Internet, data security is of major concern in cloud. Here are key
mechanisms for protecting data mechanisms listed below:
 Access Control

75. TUTORIALS POINT
Simply Easy Learning
 Auditing
 Authentication
 Authorization
All of the service models should incorporate security mechanism operating in all above-mentioned areas.
ISOLATED ACCESS TO DATA
Since data stored in cloud can be accessed from anywhere, therefore to protect the data, we must have a
mechanism to isolate data from direct client access.
Brokered Cloud Storage Access is one of the approaches for isolating storage in cloud. In this approach, two
services are created:
 A broker with full access to storage but no access to client.
 A proxy with no access to storage but access to both client and broker.
WORKING OF BROKERED CLOUD STORAGE ACCESS SYSTEM
When the client issue request to access data:
 The client data request goes to proxy's external service interface.
 The proxy forwards the request to the broker.
 The broker requests the data from cloud storage system.
 The cloud storage system returns the data to the broker.
 The broker returns the data to proxy.
 Finally the proxy sends the data to the client.
All of the above steps are shown in the following diagram:

76. TUTORIALS POINT
Simply Easy Learning
Encryption
Encryption helps to protect data from being compromised. It protects data that is being transferred as well as data
stored in the cloud. Although encryption helps to protect data from any unauthorized access, it does not prevent
from data loss.

77. TUTORIALS POINT
Simply Easy Learning
Cloud Computing Operations
Overview
Cloud Computing operation refers to delivering superior cloud service. Today, cloud computing operations
have become very popular and widely employed by many of the organizations just because it allows to perform all
business operations over the Internet.
These operations can be performed using a web application or mobile based applications. There are a number of
operations that are performed in cloud, some of them are shown in the following diagram:
Managing Cloud Operations
There are several ways to manage day-to-day cloud operations, as shown in the following diagram:
CHAPTER
19

78. TUTORIALS POINT
Simply Easy Learning
 Always employ right tools and resources to perform any function in the cloud.
 Things should be done at right time and at right cost.
 Selecting an appropriate resource is mandatory for operation management.
 The process should be standardized and automated to avoid repetitive tasks.
 Using efficient process will eliminate the waste and redundancy.
 One should maintain the quality of service to avoid re-work later.

79. TUTORIALS POINT
Simply Easy Learning
Cloud Computing Applications
Cloud Computing has its applications in almost all the fields such as business, entertainment, data
storage, social networking, management, entertainment, education, art and global positioning system, etc.
Some of the widely famous cloud computing applications are discussed here in this tutorial:
Business Applications
Cloud computing has made businesses more collaborative and easy by incorporating various apps such
as MailChimp, Chatter, Google Apps for business, and Quickbooks.
SN Application Description
1
MailChimp
It offers an e-mail publishing platform. It is widely employed by the businesses to design and send their e-mail
campaigns.
2
Chatter
Chatter app helps the employee to share important information about organization in real time. One can get the
instant feed regarding any issue.
3
Google Apps for Business
Google offers creating text documents, spreadsheets, presentations, etc., on Google Docswhich allows the
business users to share them in collaborating manner.
4
Quickbooks
It offers online accounting solutions for a business. It helps in monitoring cash flow, creating VAT
returns and creating business reports.
Data Storage and Backup
Box.com, Mozy, Joukuu are the applications offering data storage and backup services in cloud.
SN Application Description
1
Box.com
Box.com offers drag and drop service for files. It just required to drop the files into Box and access from
anywhere.
2
Mozy
Mozy offers online backup service for files during a data loss.
3 Joukuu
CHAPTER
20

80. TUTORIALS POINT
Simply Easy Learning
Joukuu is a web-based interface. It allows to display a single list of contents for files stored inGoogle Docs,
Box.net and Dropbox.
Management Applications
There are apps available for management task such as time tracking, organizing notes. Applications performing
such tasks are discussed below:
SN Application Description
1
Toggl
It helps in tracking time period assigned to a particular project.
2
Evernote
Evernote is an application that organizes the sticky notes and even can read the text from images which helps the
user to locate the notes easily.
3
Outright
It is an accounting app. It helps to track income, expenses, profits and losses in real time.
Social Applications
There are several social networking services providing websites such as Facebook, Twitter, etc.
SN Application Description
1
Facebook
Facebook offers social networking service. One can share photos, videos, files, status and much more.
2
Twitter
Twitter helps to interact directly with the public. One can follow any celebrity, organization and any person, who is
on twitter and can have latest updates regarding the same.
Entertainment Applications
SN Application Description
1
Audiobox.fm
It offers streaming service, i.e., music can be stored online and can be played from cloud using service's own
media player.
Art Applications
SN Application Description
1
Moo
It offers art services such as designing and printing business cards, postcards and minicards.

81. TUTORIALS POINT
Simply Easy Learning
Cloud Computing Providers
Various Cloud Computing platforms are available today. The following table contains the popular Cloud
Computing platforms:
SN Platform's Description
1
Salesforce.com
This is a Force.com development platform. This provide a simple user interface and lets users log in, build an app
and push it in the cloud.
2
Appistry
The Appistry'sCloudQ platform is efficient in delivering a runtime application platform. This platform is very useful
to create scalable and service oriented applications.
3
AppScale
The AppScale is an open source platform for Google App Engine applications.
4
AT&T
The AT&T allows access to virtual servers and manages the virtualization infrastructure. This virtualization
infrastructure includes network, server and storage.
5
Engine Yard
The Engine Yard is a Rails Application cloud computing platform.
6
Enomaly
Enomaly provides the Infrastructure-as-a-Service platform.
7
FlexiScale
The FlexiScale offers a cloud computing platform that allows flexible, scalable and automated cloud infrastructure.
8
GCloud3
The GCloud3 offers private cloud solution in its gPlatform.
9
Gizmox
The Gizmox Visual WebGUI platform is best suited for developing new web apps and modernize the legacy apps
based on ASP.net, DHTML, etc.
10
GoGrid
The GoGrid platform allows the users to deploy web and database cloud services.
11
Google
The Google's App Engine lets the users build, run and maintain their applications on Google's infrastructure.
12 LongJump
CHAPTER
21

82. TUTORIALS POINT
Simply Easy Learning
The LongJump offers a Business Application Platform, a platform-as-a-Service (PaaS).
13
Microsoft
The Microsoft's Windows Azure is a cloud computing platform offering an environment to create cloud apps and
services.
14
OrangeScape
OrangeScape offers a Platform-as-a-Service (Paas) for non-programmers. Building an app is as easy as
spreadsheet.
15
RackSpace
The RackSpace provide servers-on-demand via a cloud-driven platform of virtualized servers.
16
Amazon EC2
The Amazon EC2 (Elastic Compute Cloud) lets the users configure and control computing resources while running
them on Amazon's environment.

83. TUTORIALS POINT
Simply Easy Learning
Cloud Computing Challenges
Cloud Computing, an emergence technology, has placed many challenges in different aspects. Some of
these are shown in the following diagram:
SECURITY & PRIVACY
Security and Privacy of information is the biggest challenge to cloud computing. Security and privacy issues can be
overcome by employing encryption, security hardware and security applications.
PORTABILITY
This is another challenge to cloud computing that applications should easily be migrated from one cloud provider to
another. There should not be vendor lock-in. However, it is not yet made possible because each of the cloud
provider uses different standard languages for their platforms.
CHAPTER
22

84. TUTORIALS POINT
Simply Easy Learning
INTEROPERABILITY
Application on one platform should be able to incorporate services from other platform. It is made possible via web
services. But writing such web services is very complex.
COMPUTING PERFORMANCE
To deliver data intensive applications on cloud requires high network bandwidth, which results in high cost. If done
at low bandwidth, then it does not meet the required computing performance of cloud application.
RELIABILITY AND AVAILABILITY
It is necessary for cloud systems to be reliable and robust because most of the businesses are now becoming
dependent on services provided by third-party.

85. TUTORIALS POINT
Simply Easy Learning
Mobile Cloud Computing
CloudComputing offers such smartphones that have rich Internet media experience and require less
processing, less power. In term of Mobile Cloud Computing, processing is done in cloud, data is stored in cloud.
And the mobile devices serve as a media for display.
Today smartphones are employed with rich cloud services by integrating applications that consume web services.
These web services are deployed in cloud.
There are several Smartphone operating systems available such as Google's Android, Apple's iOS, RIM
BlackBerry, Symbian, and Windows Mobile Phone. Each of these platforms support third-party applications that
are deployed in cloud.
Architecture
MCC includes four types of cloud resources:
 Distant mobile cloud
 Distant immobile cloud
 Proximate mobile computing entities
 Proximate immobile computing entities
 Hybrid
The following diagram shows the framework for mobile cloud computing architecture:
CHAPTER
23

86. TUTORIALS POINT
Simply Easy Learning
Issues
Despite of having significant development in field of mobile computing, there still exists many issues:
EMERGENCY EFFICIENT TRANSMISSION
There should be a frequent transmission of information between cloud and the mobile devices.
ARCHITECTURAL ISSUES
Mobile cloud computing is required to make architectural neutral because of heterogeneous environment.
LIVE VM MIGRATION
It is challenging to migrate an application, which is resource-intensive to cloud and to execute it via Virtual
Machine.
MOBILE COMMUNICATION CONGESTION
Due to continuous increase demand for mobile cloud services, the workload to enable smooth communication
between cloud and mobile devices has been increased.

87. TUTORIALS POINT
Simply Easy Learning
SECURITY AND PRIVACY
This is one of the major issues because mobile users share their personal information over the cloud.
