Clones & Macro-Co-Changes
The document discusses analyzing clones and macro co-changes (MCC) in codebases to determine if cloned files tend to change consistently with other cloned files they are related to. The analysis found that cloned files were more likely to co-change with other cloned files they have relations with, rather than other cloned files. When analyzing bug fixes, files that had MCC with their clones were more likely to be modified than files only changing with other cloned files. This suggests clones may need consistent changes, though future work is needed to better define consistent changes.
Clones & Macro-Co-Changes
- 1. Angela Lozano*, FehmiJaafar, Kim Mens, Yann-Gael Gueheneuc *Software Languages Lab (SOFT) Vrije Universiteit Brussel-VUB Belgium Clones & Macro-Co-Changes Friday 31 January 14

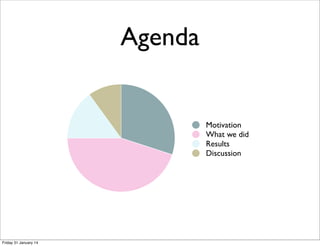

- 2. Motivation What wedid Results Discussion Agenda Friday 31 January 14

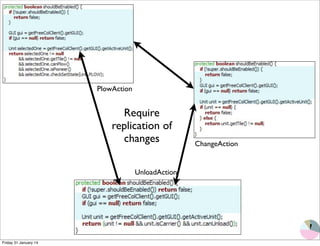

- 3. PlowAction Require replicationof changes ChangeAction UnloadAction Friday 31 January 14

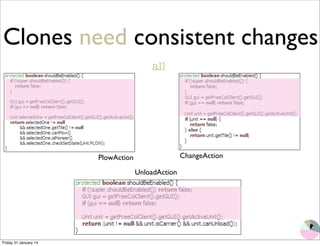

- 4. Clones need consistentchanges all PlowAction ChangeAction UnloadAction Friday 31 January 14

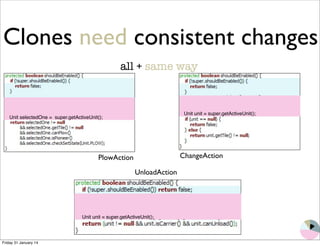

- 5. Clones need consistentchanges all + same way PlowAction ChangeAction UnloadAction Unit selectedOne = super.getActiveUnit(); Unit unit = super.getActiveUnit(); Unit unit = super.getActiveUnit(); Friday 31 January 14

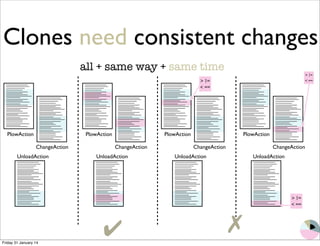

- 6. Clones need consistentchanges PlowAction ChangeAction UnloadAction PlowAction ChangeAction UnloadAction PlowAction ChangeAction UnloadAction PlowAction ChangeAction UnloadAction all + same way + same time ✗ > != < == > != < == > != < == ✔︎ Friday 31 January 14

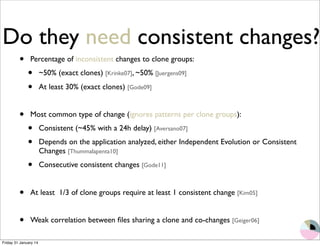

- 7. Do they needconsistent changes? • Percentage of inconsistent changes to clone groups: • ~50% (exact clones) [Krinke07], ~50% [Juergens09] • At least 30% (exact clones) [Gode09] • Most common type of change (ignores patterns per clone groups): • Consistent (~45% with a 24h delay) [Aversano07] • Depends on the application analyzed, either Independent Evolution or Consistent Changes [Thummalapenta10] • Consecutive consistent changes [Gode11] • At least 1/3 of clone groups require at least 1 consistent change [Kim05] • Weak correlation between files sharing a clone and co-changes [Geiger06] Friday 31 January 14

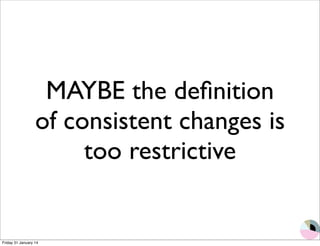

- 8. MAYBE the definition of consistent changes is too restrictive Friday 31 January 14
- 9. Clones need consistentchanges all + same way + sam✗e time PlowAction ChangeAction UnloadAction PlowAction ChangeAction UnloadAction > != < == > != < == > != < == Friday 31 January 14

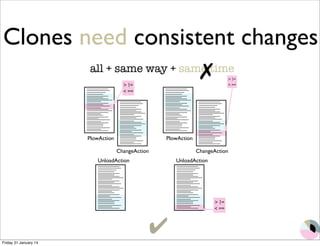

- 10. Clones need consistentchanges all + same way + sam✗e time PlowAction ChangeAction UnloadAction PlowAction ChangeAction UnloadAction > != < == > != < == > != < == ✔︎ Friday 31 January 14

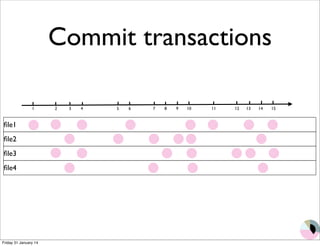

- 11. Commit transactions file1 file2 file3 file4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Friday 31 January 14

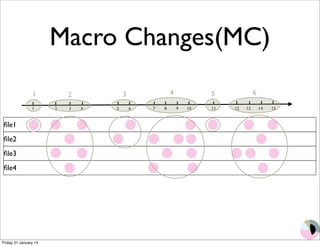

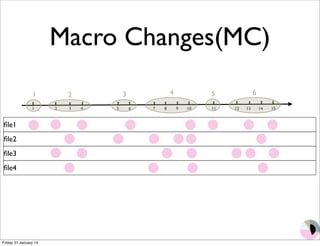

- 12. file1 file2 file3 file4 Macro Changes(MC) 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Friday 31 January 14
- 13. file1 file2 file3 file4 Macro Changes(MC) 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Friday 31 January 14

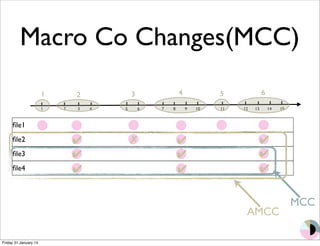

- 14. Macro Co Changes(MCC) file1 file2 file3 file4 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Friday 31 January 14
- 15. Macro Co Changes(MCC) file1 file2 file3 file4 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ MCC Friday 31 January 14
- 16. Macro Co Changes(MCC) file1 file2 file3 file4 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ ✔︎ MCC ✔︎✗ ✔︎✔︎ AMCC Friday 31 January 14

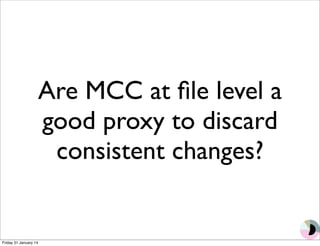

- 17. Are MCC atfile level a good proxy to discard consistent changes? Friday 31 January 14
- 18. Research question •Null hypothesis • Cloned files tend to co-change equally with: • cloned files with which they have cloning relations • and with other cloned files • Alternative hypothesis • Cloned files tend to co-change more with: • cloned files with which they have cloning relations • than with other cloned files. Friday 31 January 14

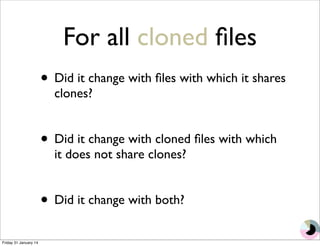

- 19. For all clonedfiles • Did it change with files with which it shares clones? • Did it change with cloned files with which it does not share clones? • Did it change with both? Friday 31 January 14

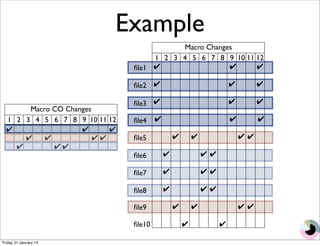

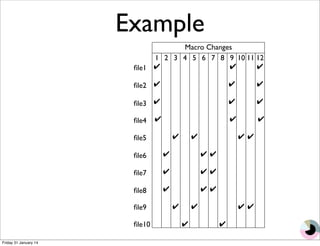

- 20. Example file2 file3 file4 file5 file6 file7 file8 file9 file10 1 ✔ ✔ ✔ ✔ 2 ✔ ✔ ✔ 3 ✔ ✔ 4 ✔ 9 ✔ ✔ ✔ ✔ 6 ✔ ✔ ✔ 5 ✔ ✔ 8 ✔ 7 ✔ ✔ ✔ 10 ✔ ✔ 11 ✔ ✔ 12 ✔ ✔ ✔ ✔ Macro Changes file1 Friday 31 January 14

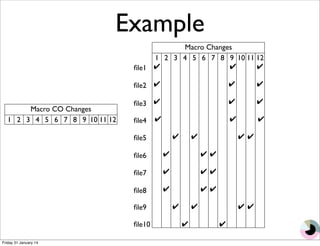

- 21. Example file2 file3 file4 file5 file6 file7 file8 file9 file10 1 ✔ ✔ ✔ ✔ 2 ✔ ✔ ✔ 3 ✔ ✔ 4 ✔ 9 ✔ ✔ ✔ ✔ 6 ✔ ✔ ✔ 5 ✔ ✔ 8 ✔ 7 ✔ ✔ ✔ 10 ✔ ✔ 11 ✔ ✔ 12 ✔ ✔ ✔ ✔ Macro Changes Macro CO Changes 1 2 3 4 5 6 7 8 9 10 11 12 file1 Friday 31 January 14

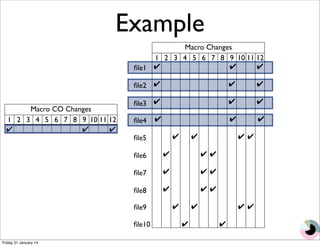

- 22. Example file2 file3 file4 file5 file6 file7 file8 file9 file10 1 ✔ ✔ ✔ ✔ 2 ✔ ✔ ✔ 3 ✔ ✔ 4 ✔ 9 ✔ ✔ ✔ ✔ 6 ✔ ✔ ✔ 5 ✔ ✔ 8 ✔ 7 ✔ ✔ ✔ 10 ✔ ✔ 11 ✔ ✔ 12 ✔ ✔ ✔ ✔ Macro Changes Macro CO Changes 1 2 3 4 5 6 7 8 9 10 11 12 ✔ ✔ ✔ file1 Friday 31 January 14
- 23. Example file2 file3 file4 file5 file6 file7 file8 file9 file10 1 ✔ ✔ ✔ ✔ 2 ✔ ✔ ✔ 3 ✔ ✔ 4 ✔ 9 ✔ ✔ ✔ ✔ 6 ✔ ✔ ✔ 5 ✔ ✔ 8 ✔ 7 ✔ ✔ ✔ 10 ✔ ✔ 11 ✔ ✔ 12 ✔ ✔ ✔ ✔ Macro Changes Macro CO Changes 1 2 3 4 5 6 7 8 9 10 11 12 ✔ ✔ ✔ ✔ ✔ ✔ ✔ file1 Friday 31 January 14
- 24. Example file2 file3 file4 file5 file6 file7 file8 file9 file10 1 ✔ ✔ ✔ ✔ 2 ✔ ✔ ✔ 3 ✔ ✔ 4 ✔ 9 ✔ ✔ ✔ ✔ 6 ✔ ✔ ✔ 5 ✔ ✔ 8 ✔ 7 ✔ ✔ ✔ 10 ✔ ✔ 11 ✔ ✔ 12 ✔ ✔ ✔ ✔ Macro Changes Macro CO Changes 1 2 3 4 5 6 7 8 9 10 11 12 ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ file1 Friday 31 January 14

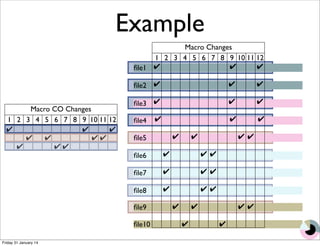

- 25. Example file2 file3 file4 file5 file6 file7 file8 file9 file10 1 ✔ ✔ ✔ ✔ 2 ✔ ✔ ✔ 3 ✔ ✔ 4 ✔ 9 ✔ ✔ ✔ ✔ 6 ✔ ✔ ✔ 5 ✔ ✔ 8 ✔ 7 ✔ ✔ ✔ 10 ✔ ✔ 11 ✔ ✔ 12 ✔ ✔ ✔ ✔ Macro Changes Macro CO Changes 1 2 3 4 5 6 7 8 9 10 11 12 ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ file1 Friday 31 January 14

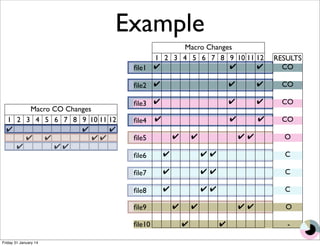

- 26. Example file2 file3 file4 file5 file6 file7 file8 file9 file10 1 ✔ ✔ ✔ ✔ 2 ✔ ✔ ✔ 3 ✔ ✔ 4 ✔ 9 ✔ ✔ ✔ ✔ 6 ✔ ✔ ✔ 5 ✔ ✔ 8 ✔ 7 ✔ ✔ ✔ 10 ✔ ✔ 11 ✔ ✔ 12 ✔ ✔ ✔ ✔ Macro Changes Macro CO Changes 1 2 3 4 5 6 7 8 9 10 11 12 ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ RESULTS CO CO CO CO O C C C O - file1 Friday 31 January 14

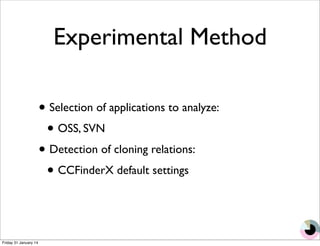

- 27. Experimental Method •Selection of applications to analyze: • OSS, SVN • Detection of cloning relations: • CCFinderX default settings Friday 31 January 14

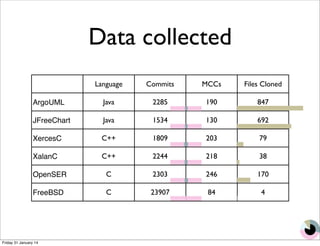

- 28. Data collected LanguageCommits MCCs Files Cloned ArgoUML Java 2285 190 847 JFreeChart Java 1534 130 692 XercesC C++ 1809 203 79 XalanC C++ 2244 218 38 OpenSER C 2303 246 170 FreeBSD C 23907 84 4 Friday 31 January 14

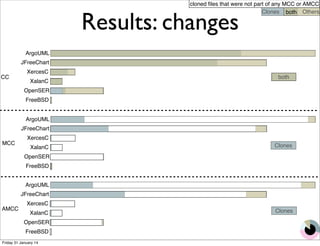

- 29. cloned files thatwere not part of any MCC or AMCC Results: changes Clones both Others ArgoUML JFreeChart XercesC XalanC OpenSER FreeBSD CC ArgoUML JFreeChart XercesC XalanC OpenSER FreeBSD MCC ArgoUML JFreeChart XercesC XalanC OpenSER FreeBSD AMCC both Clones Clones Friday 31 January 14

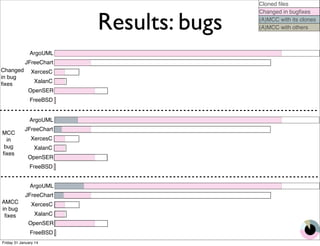

- 30. Results: bugs AMCC in bug fixes ArgoUML JFreeChart XercesC XalanC OpenSER FreeBSD Changed in bug fixes ArgoUML JFreeChart XercesC XalanC OpenSER FreeBSD MCC in bug fixes ArgoUML JFreeChart XercesC XalanC OpenSER FreeBSD Cloned files Changed in bugfixes (A)MCC with its clones (A)MCC with others Friday 31 January 14

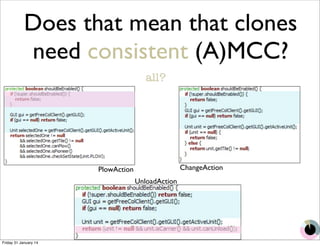

- 31. Does that meanthat clones need consistent (A)MCC? all? PlowAction ChangeAction UnloadAction Friday 31 January 14

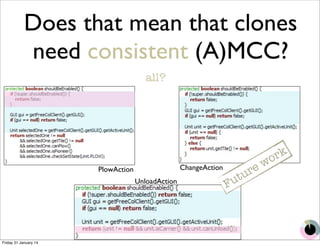

- 32. Does that meanthat clones need consistent (A)MCC? all? PlowAction ChangeAction UnloadAction Future work Friday 31 January 14

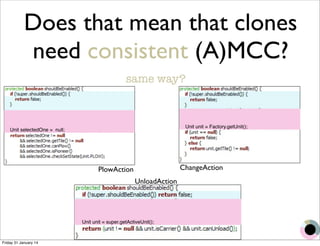

- 33. Does that meanthat clones need consistent (A)MCC? same way? PlowAction ChangeAction UnloadAction Unit selectedOne = null; Unit unit = Factory.getUnit(); Unit unit = super.getActiveUnit(); Friday 31 January 14

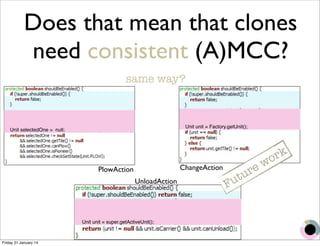

- 34. Does that meanthat clones need consistent (A)MCC? PlowAction ChangeAction UnloadAction Unit selectedOne = null; Unit unit = Factory.getUnit(); Unit unit = super.getActiveUnit(); Future work same way? Friday 31 January 14

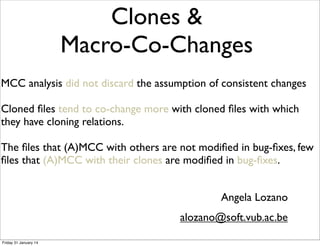

- 35. Macro-Co-Changes MCC analysisdid not discard the assumption of consistent changes Cloned files tend to co-change more with cloned files with which they have cloning relations. The files that (A)MCC with others are not modified in bug-fixes, few files that (A)MCC with their clones are modified in bug-fixes. Angela Lozano Clones & alozano@soft.vub.ac.be Friday 31 January 14
