Classes allow users to bundle data and functions together. A class defines data members and member functions. Data members store data within each object, while member functions implement behaviors. Classes support access specifiers like public and private to control access to members. Objects are instances of classes that allocate memory for data members. Member functions can access object data members and are called on objects using dot notation. Friend functions allow non-member functions to access private members of classes.

1. CLASSES AND OBJECTS

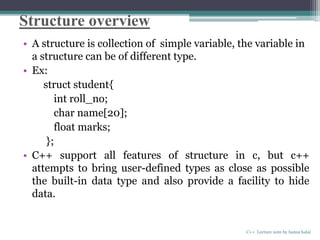

2. Structure overview
• A structure is collection of simple variable, the variable in
a structure can be of different type.
• Ex:
struct student{
int roll_no;
char name[20];
float marks;
};
• C++ support all features of structure in c, but c++
attempts to bring user-defined types as close as possible
the built-in data type and also provide a facility to hide
data.
C++ Lecture note by hansa halai

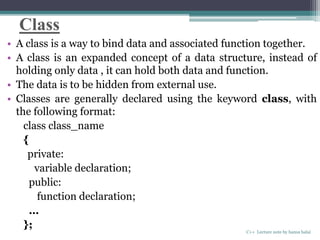

3. Class
• A class is a way to bind data and associated function together.
• A class is an expanded concept of a data structure, instead of
holding only data , it can hold both data and function.
• The data is to be hidden from external use.
• Classes are generally declared using the keyword class, with
the following format:
class class_name
{
private:
variable declaration;
public:
function declaration;
…
};
C++ Lecture note by hansa halai

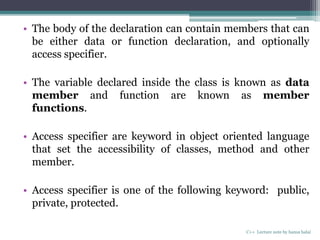

4. • The body of the declaration can contain members that can
be either data or function declaration, and optionally
access specifier.
• The variable declared inside the class is known as data
member and function are known as member
functions.
• Access specifier are keyword in object oriented language
that set the accessibility of classes, method and other
member.
• Access specifier is one of the following keyword: public,
private, protected.
C++ Lecture note by hansa halai

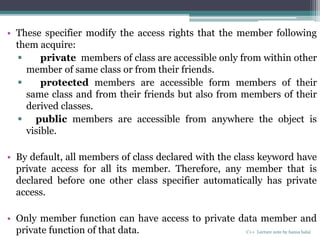

5. • These specifier modify the access rights that the member following
them acquire:
 private members of class are accessible only from within other
member of same class or from their friends.
 protected members are accessible form members of their
same class and from their friends but also from members of their
derived classes.
 public members are accessible from anywhere the object is
visible.
• By default, all members of class declared with the class keyword have
private access for all its member. Therefore, any member that is
declared before one other class specifier automatically has private
access.
• Only member function can have access to private data member and
private function of that data. C++ Lecture note by hansa halai

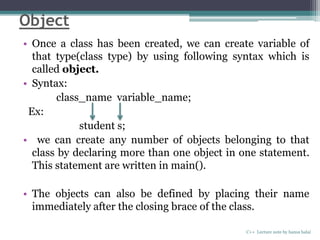

6. Object
• Once a class has been created, we can create variable of
that type(class type) by using following syntax which is
called object.
• Syntax:
class_name variable_name;
Ex:
student s;
• we can create any number of objects belonging to that
class by declaring more than one object in one statement.
This statement are written in main().
• The objects can also be defined by placing their name
immediately after the closing brace of the class.
C++ Lecture note by hansa halai

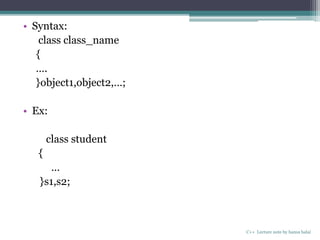

7. • Syntax:
class class_name
{
….
}object1,object2,…;
• Ex:
class student
{
…
}s1,s2;
C++ Lecture note by hansa halai

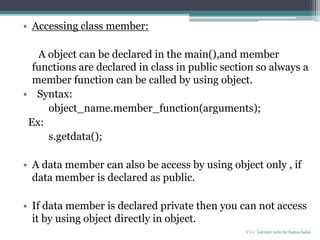

8. • Accessing class member:
A object can be declared in the main(),and member
functions are declared in class in public section so always a
member function can be called by using object.
• Syntax:
object_name.member_function(arguments);
Ex:
s.getdata();
• A data member can also be access by using object only , if
data member is declared as public.
• If data member is declared private then you can not access
it by using object directly in object.
C++ Lecture note by hansa halai

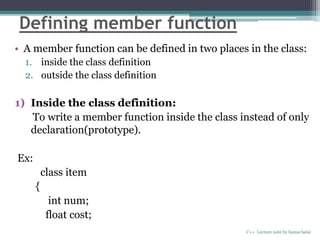

9. Defining member function
• A member function can be defined in two places in the class:
1. inside the class definition
2. outside the class definition
1) Inside the class definition:
To write a member function inside the class instead of only
declaration(prototype).
Ex:
class item
{
int num;
float cost;
C++ Lecture note by hansa halai

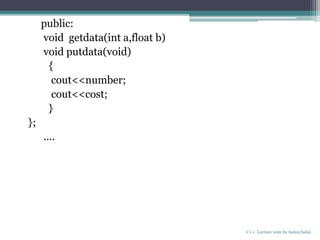

10. public:
void getdata(int a,float b)
void putdata(void)
{
cout<<number;
cout<<cost;
}
};
….
C++ Lecture note by hansa halai

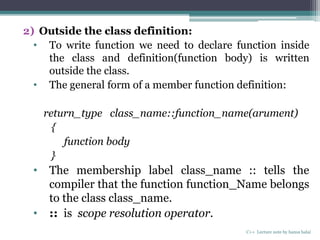

11. 2) Outside the class definition:
• To write function we need to declare function inside
the class and definition(function body) is written
outside the class.
• The general form of a member function definition:
return_type class_name::function_name(arument)
{
function body
}
• The membership label class_name :: tells the
compiler that the function function_Name belongs
to the class class_name.
• :: is scope resolution operator.
C++ Lecture note by hansa halai

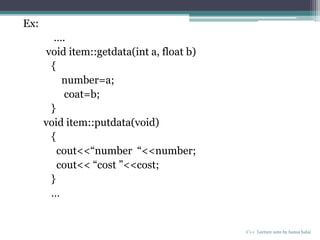

12. Ex:
….
void item::getdata(int a, float b)
{
number=a;
coat=b;
}
void item::putdata(void)
{
cout<<“number “<<number;
cout<< “cost ”<<cost;
}
…
C++ Lecture note by hansa halai

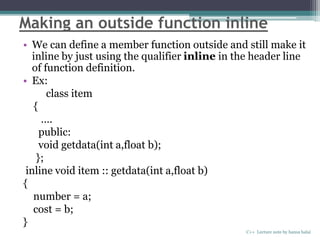

13. Making an outside function inline
• We can define a member function outside and still make it
inline by just using the qualifier inline in the header line
of function definition.
• Ex:
class item
{
….
public:
void getdata(int a,float b);
};
inline void item :: getdata(int a,float b)
{
number = a;
cost = b;
}
C++ Lecture note by hansa halai

14. Nesting Member Function
• A member function can be called by using its name inside another
member function the same class is called nesting member
function.
• Ex:
#include<iostream>
using namespace std;
class number
{
private:
int a,b,s1,s2;
public:
int getdata(int m,int n);
int sum();
int sub();
C++ Lecture note by hansa halai

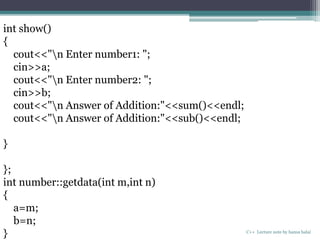

15. C++ Lecture note by hansa halai
int show()
{
cout<<"n Enter number1: ";
cin>>a;
cout<<"n Enter number2: ";
cin>>b;
cout<<"n Answer of Addition:"<<sum()<<endl;
cout<<"n Answer of Addition:"<<sub()<<endl;
}
};
int number::getdata(int m,int n)
{
a=m;
b=n;
}

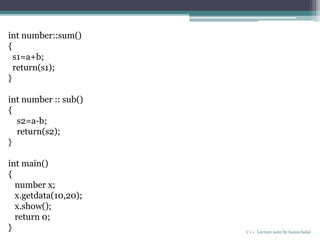

16. C++ Lecture note by hansa halai
int number::sum()
{
s1=a+b;
return(s1);
}
int number :: sub()
{
s2=a-b;
return(s2);
}
int main()
{
number x;
x.getdata(10,20);
x.show();
return 0;
}

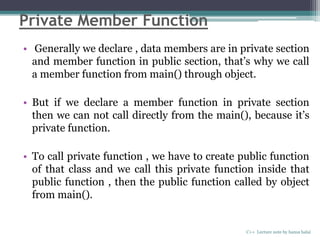

17. Private Member Function
• Generally we declare , data members are in private section
and member function in public section, that’s why we call
a member function from main() through object.
• But if we declare a member function in private section
then we can not call directly from the main(), because it’s
private function.
• To call private function , we have to create public function
of that class and we call this private function inside that
public function , then the public function called by object
from main().
C++ Lecture note by hansa halai

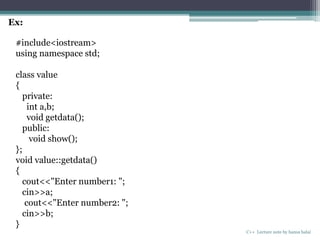

18. C++ Lecture note by hansa halai
Ex:
#include<iostream>
using namespace std;
class value
{
private:
int a,b;
void getdata();
public:
void show();
};
void value::getdata()
{
cout<<"Enter number1: ";
cin>>a;
cout<<"Enter number2: ";
cin>>b;
}

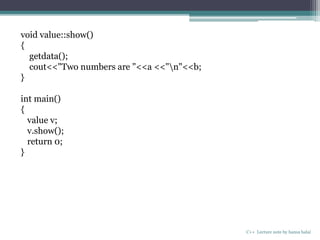

19. C++ Lecture note by hansa halai
void value::show()
{
getdata();
cout<<"Two numbers are "<<a <<"n"<<b;
}
int main()
{
value v;
v.show();
return 0;
}

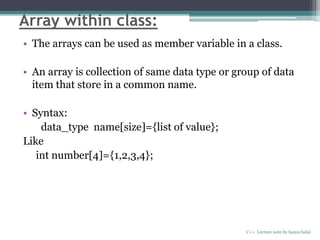

20. Array within class:
• The arrays can be used as member variable in a class.
• An array is collection of same data type or group of data
item that store in a common name.
• Syntax:
data_type name[size]={list of value};
Like
int number[4]={1,2,3,4};
C++ Lecture note by hansa halai

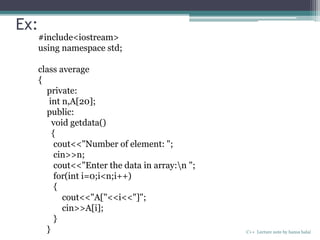

21. Ex:
C++ Lecture note by hansa halai
#include<iostream>
using namespace std;
class average
{
private:
int n,A[20];
public:
void getdata()
{
cout<<"Number of element: ";
cin>>n;
cout<<"Enter the data in array:n ";
for(int i=0;i<n;i++)
{
cout<<"A["<<i<<"]";
cin>>A[i];
}
}

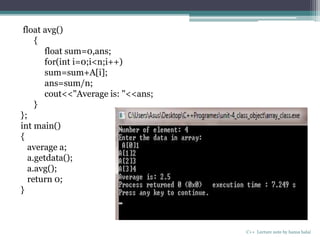

22. C++ Lecture note by hansa halai
float avg()
{
float sum=0,ans;
for(int i=0;i<n;i++)
sum=sum+A[i];
ans=sum/n;
cout<<"Average is: "<<ans;
}
};
int main()
{
average a;
a.getdata();
a.avg();
return 0;
}

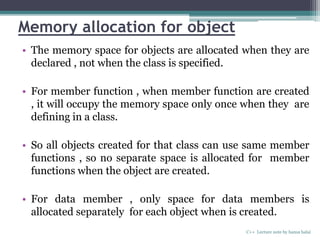

23. Memory allocation for object
• The memory space for objects are allocated when they are
declared , not when the class is specified.
• For member function , when member function are created
, it will occupy the memory space only once when they are
defining in a class.
• So all objects created for that class can use same member
functions , so no separate space is allocated for member
functions when the object are created.
• For data member , only space for data members is
allocated separately for each object when is created.
C++ Lecture note by hansa halai

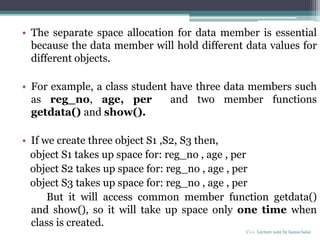

24. • The separate space allocation for data member is essential
because the data member will hold different data values for
different objects.
• For example, a class student have three data members such
as reg_no, age, per and two member functions
getdata() and show().
• If we create three object S1 ,S2, S3 then,
object S1 takes up space for: reg_no , age , per
object S2 takes up space for: reg_no , age , per
object S3 takes up space for: reg_no , age , per
But it will access common member function getdata()
and show(), so it will take up space only one time when
class is created.
C++ Lecture note by hansa halai

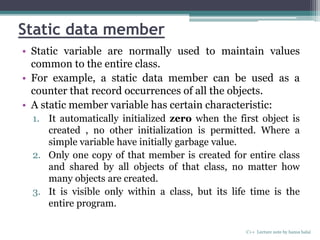

25. Static data member
• Static variable are normally used to maintain values
common to the entire class.
• For example, a static data member can be used as a
counter that record occurrences of all the objects.
• A static member variable has certain characteristic:
1. It automatically initialized zero when the first object is
created , no other initialization is permitted. Where a
simple variable have initially garbage value.
2. Only one copy of that member is created for entire class
and shared by all objects of that class, no matter how
many objects are created.
3. It is visible only within a class, but its life time is the
entire program.
C++ Lecture note by hansa halai

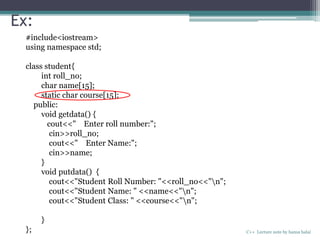

26. Ex:
C++ Lecture note by hansa halai
#include<iostream>
using namespace std;
class student{
int roll_no;
char name[15];
static char course[15];
public:
void getdata() {
cout<<" Enter roll number:";
cin>>roll_no;
cout<<" Enter Name:";
cin>>name;
}
void putdata() {
cout<<"Student Roll Number: "<<roll_no<<"n";
cout<<"Student Name: " <<name<<"n";
cout<<"Student Class: " <<course<<"n";
}
};

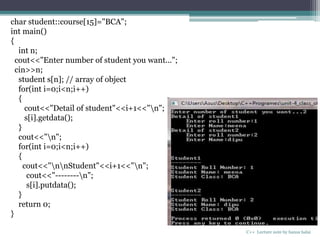

27. C++ Lecture note by hansa halai
char student::course[15]="BCA";
int main()
{
int n;
cout<<"Enter number of student you want...";
cin>>n;
student s[n]; // array of object
for(int i=0;i<n;i++)
{
cout<<"Detail of student"<<i+1<<"n";
s[i].getdata();
}
cout<<"n";
for(int i=0;i<n;i++)
{
cout<<"nnStudent"<<i+1<<"n";
cout<<"--------n";
s[i].putdata();
}
return 0;
}

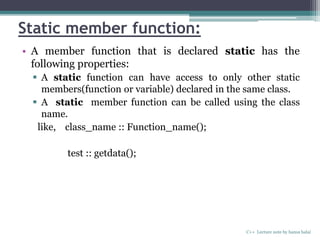

28. Static member function:
• A member function that is declared static has the
following properties:
 A static function can have access to only other static
members(function or variable) declared in the same class.
 A static member function can be called using the class
name.
like, class_name :: Function_name();
test :: getdata();
C++ Lecture note by hansa halai

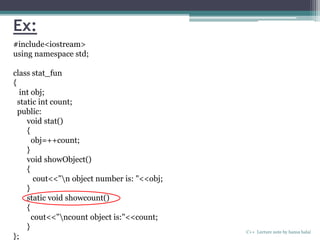

29. Ex:
C++ Lecture note by hansa halai
#include<iostream>
using namespace std;
class stat_fun
{
int obj;
static int count;
public:
void stat()
{
obj=++count;
}
void showObject()
{
cout<<"n object number is: "<<obj;
}
static void showcount()
{
cout<<"ncount object is:"<<count;
}
};

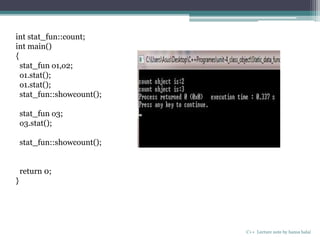

30. C++ Lecture note by hansa halai
int stat_fun::count;
int main()
{
stat_fun o1,o2;
o1.stat();
o1.stat();
stat_fun::showcount();
stat_fun o3;
o3.stat();
stat_fun::showcount();
return 0;
}

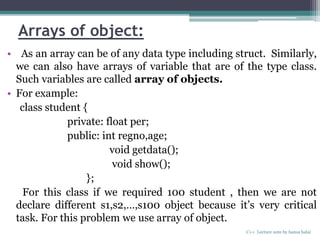

31. Arrays of object:
• As an array can be of any data type including struct. Similarly,
we can also have arrays of variable that are of the type class.
Such variables are called array of objects.
• For example:
class student {
private: float per;
public: int regno,age;
void getdata();
void show();
};
For this class if we required 100 student , then we are not
declare different s1,s2,…,s100 object because it’s very critical
task. For this problem we use array of object.
C++ Lecture note by hansa halai

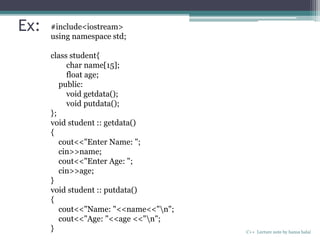

32. Ex:
C++ Lecture note by hansa halai
#include<iostream>
using namespace std;
class student{
char name[15];
float age;
public:
void getdata();
void putdata();
};
void student :: getdata()
{
cout<<"Enter Name: ";
cin>>name;
cout<<"Enter Age: ";
cin>>age;
}
void student :: putdata()
{
cout<<"Name: "<<name<<"n";
cout<<"Age: "<<age <<"n";
}

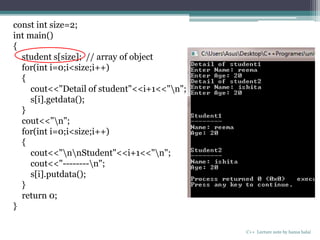

33. C++ Lecture note by hansa halai
const int size=2;
int main()
{
student s[size]; // array of object
for(int i=0;i<size;i++)
{
cout<<"Detail of student"<<i+1<<"n";
s[i].getdata();
}
cout<<"n";
for(int i=0;i<size;i++)
{
cout<<"nnStudent"<<i+1<<"n";
cout<<"--------n";
s[i].putdata();
}
return 0;
}

34. Object as function argument:
• Like any other data type, an object may be used as a
function argument. This can be done in two way:
1. A copy of the entire object is passed to the function,
which is called call by value.
2. Only the address of the object is transferred to the
function, which is called call/pass by reference.
C++ Lecture note by hansa halai

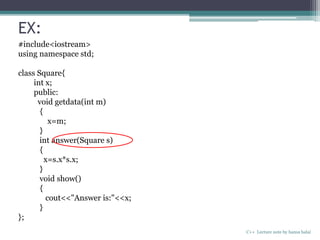

35. EX:
C++ Lecture note by hansa halai
#include<iostream>
using namespace std;
class Square{
int x;
public:
void getdata(int m)
{
x=m;
}
int answer(Square s)
{
x=s.x*s.x;
}
void show()
{
cout<<"Answer is:"<<x;
}
};

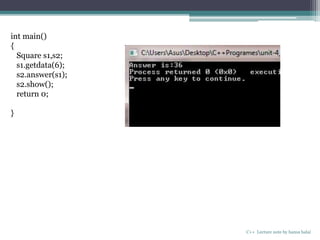

36. C++ Lecture note by hansa halai
int main()
{
Square s1,s2;
s1.getdata(6);
s2.answer(s1);
s2.show();
return 0;
}

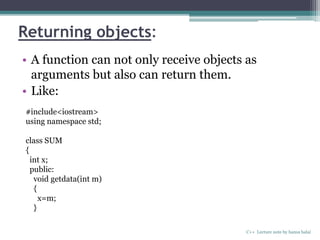

37. Returning objects:
• A function can not only receive objects as
arguments but also can return them.
• Like:
C++ Lecture note by hansa halai
#include<iostream>
using namespace std;
class SUM
{
int x;
public:
void getdata(int m)
{
x=m;
}

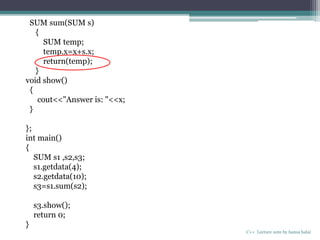

38. C++ Lecture note by hansa halai
SUM sum(SUM s)
{
SUM temp;
temp.x=x+s.x;
return(temp);
}
void show()
{
cout<<"Answer is: "<<x;
}
};
int main()
{
SUM s1 ,s2,s3;
s1.getdata(4);
s2.getdata(10);
s3=s1.sum(s2);
s3.show();
return 0;
}

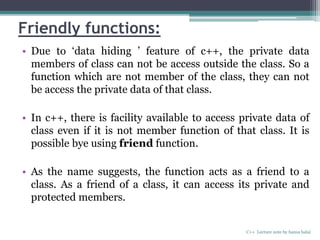

39. Friendly functions:
• Due to ‘data hiding ’ feature of c++, the private data
members of class can not be access outside the class. So a
function which are not member of the class, they can not
be access the private data of that class.
• In c++, there is facility available to access private data of
class even if it is not member function of that class. It is
possible bye using friend function.
• As the name suggests, the function acts as a friend to a
class. As a friend of a class, it can access its private and
protected members.
C++ Lecture note by hansa halai

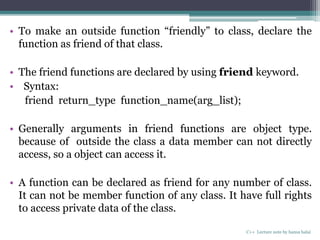

40. • To make an outside function “friendly” to class, declare the
function as friend of that class.
• The friend functions are declared by using friend keyword.
• Syntax:
friend return_type function_name(arg_list);
• Generally arguments in friend functions are object type.
because of outside the class a data member can not directly
access, so a object can access it.
• A function can be declared as friend for any number of class.
It can not be member function of any class. It have full rights
to access private data of the class.
C++ Lecture note by hansa halai

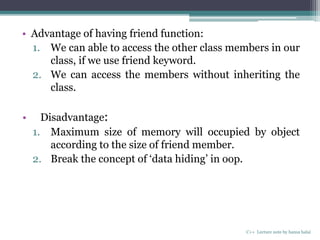

41. • Advantage of having friend function:
1. We can able to access the other class members in our
class, if we use friend keyword.
2. We can access the members without inheriting the
class.
• Disadvantage:
1. Maximum size of memory will occupied by object
according to the size of friend member.
2. Break the concept of ‘data hiding’ in oop.
C++ Lecture note by hansa halai

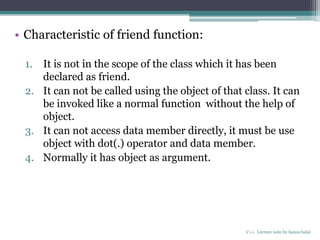

42. • Characteristic of friend function:
1. It is not in the scope of the class which it has been
declared as friend.
2. It can not be called using the object of that class. It can
be invoked like a normal function without the help of
object.
3. It can not access data member directly, it must be use
object with dot(.) operator and data member.
4. Normally it has object as argument.
C++ Lecture note by hansa halai

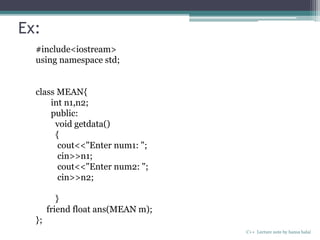

43. Ex:
C++ Lecture note by hansa halai
#include<iostream>
using namespace std;
class MEAN{
int n1,n2;
public:
void getdata()
{
cout<<"Enter num1: ";
cin>>n1;
cout<<"Enter num2: ";
cin>>n2;
}
friend float ans(MEAN m);
};

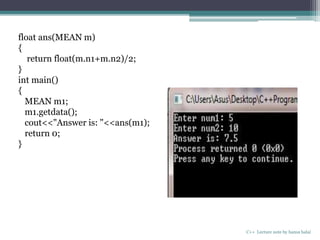

44. C++ Lecture note by hansa halai
float ans(MEAN m)
{
return float(m.n1+m.n2)/2;
}
int main()
{
MEAN m1;
m1.getdata();
cout<<"Answer is: "<<ans(m1);
return 0;
}

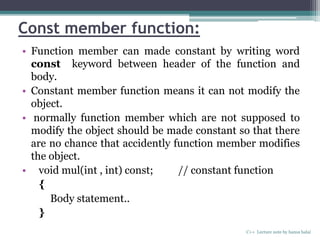

45. Const member function:
• Function member can made constant by writing word
const keyword between header of the function and
body.
• Constant member function means it can not modify the
object.
• normally function member which are not supposed to
modify the object should be made constant so that there
are no chance that accidently function member modifies
the object.
• void mul(int , int) const; // constant function
{
Body statement..
}
C++ Lecture note by hansa halai

46. Pointer to member:
• Just like pointer to normal variable and function , we can
have pointer to class member function and member
variable.
• Syntax for declare pointer data member:
data_type class_name::*pointer_name;
• Ex
int A ::* p;
• You can initialize p like this also:
• syntax:
data_type class_name::*pointer_name=&class_name::data_member
• Ex:
int A::*p=&A::m;
C++ Lecture note by hansa halai

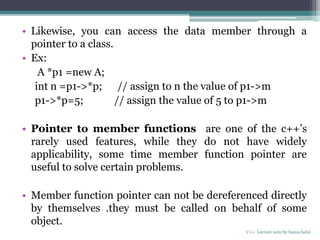

47. • Likewise, you can access the data member through a
pointer to a class.
• Ex:
A *p1 =new A;
int n =p1->*p; // assign to n the value of p1->m
p1->*p=5; // assign the value of 5 to p1->m
• Pointer to member functions are one of the c++’s
rarely used features, while they do not have widely
applicability, some time member function pointer are
useful to solve certain problems.
• Member function pointer can not be dereferenced directly
by themselves .they must be called on behalf of some
object.
C++ Lecture note by hansa halai

48. • To declare a pointer to member function you give the
prototype of function it can point to,as before but the name
of this function is replaced by a construction that scopes the
pointer – you give it the name of the class whose member
function it can point to.
• Syntax:
return_type (class_name::*pointer_name)(argument_list)
• You dereference a member function pointer by using .* or
->*, supplying a reference or pointer to an object on the left,
as appropriate , and the function pointer on the right.
• Note that member function does not have the same data type
as nonmember function that has the same number and type
of argument and the same return type.
C++ Lecture note by hansa halai

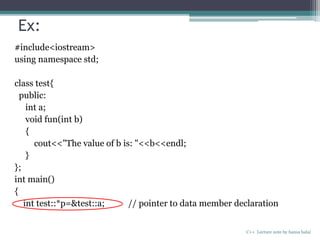

49. Ex:
#include<iostream>
using namespace std;
class test{
public:
int a;
void fun(int b)
{
cout<<"The value of b is: "<<b<<endl;
}
};
int main()
{
int test::*p=&test::a; // pointer to data member declaration
C++ Lecture note by hansa halai

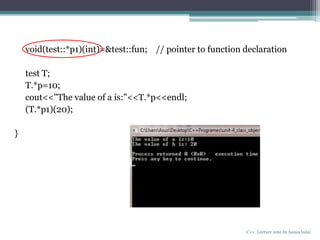

50. void(test::*p1)(int)=&test::fun; // pointer to function declaration
test T;
T.*p=10;
cout<<"The value of a is:"<<T.*p<<endl;
(T.*p1)(20);
}
C++ Lecture note by hansa halai
