The Cisco Catalyst 2960X Series 24 ports LAN Base stackable switch has 24 Ethernet ports, 2 10G SFP+ uplink ports, 512MB RAM, and 128MB flash memory. It supports up to 8 switches in a stack and provides 95.2Mpps of switching bandwidth. The 1U rack-mountable switch has 24 10/100/1000 ports, 2 10G SFP+ ports, and provides basic Layer 2 switching functionality.

1. WS-C2960X-24TD-L Datasheet
Copyright © 2022 Hi-Network.com | HAILIAN TECHNOLOGY CO., LIMITED | All Rights Reserved.
Overview
Cisco Catalyst 2960X Series 24 ports LAN Base stackable switch is comprised of 24 Ethernet 10/100/1000 ports and 2 * 10G SFP+ uplink interfaces.
Quick Specification:
Product Code WS-C2960X-24TD-L
Enclosure Type Rack-mountable – 1U
Feature Set LAN Base
Uplink Interfaces 2 x 10G SFP+
Ports 24 x 10/100/1000 Ethernet Gigabit ports
Available PoE Power None
Maximum stacking number 8
Stack bandwidth 80G
Forwarding Bandwidth 95.2Mpps
Switching Bandwidth 216Gbps
RAM 512MB
Flash Memory 128MB
Dimensions 44.5 cm x 27.9 cm x 4.5 cm
Package Weight 9.19 Kg

2. WS-C2960X-24TD-L Datasheet
Copyright © 2022 Hi-Network.com | HAILIAN TECHNOLOGY CO., LIMITED | All Rights Reserved.

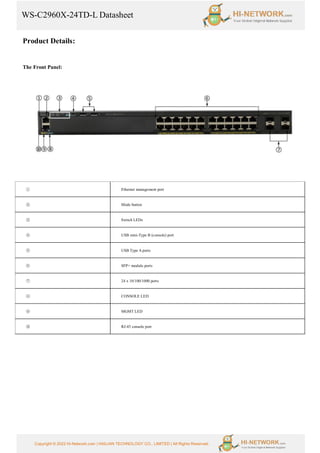

Product Details:
The Front Panel:
① Ethernet management port
② Mode button
③ Switch LEDs
④ USB mini-Type B (console) port
⑤ USB Type A ports
⑥ SFP+ module ports
⑦ 24 x 10/100/1000 ports
⑧ CONSOLE LED
⑨ MGMT LED
⑩ RJ-45 console port

3. WS-C2960X-24TD-L Datasheet
Copyright © 2022 Hi-Network.com | HAILIAN TECHNOLOGY CO., LIMITED | All Rights Reserved.

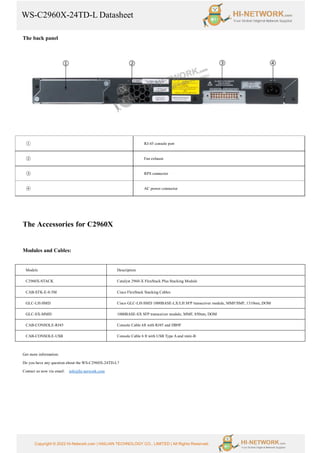

The back panel
① RJ-45 console port
② Fan exhaust
③ RPS connector
④ AC power connector
The Accessories for C2960X
Modules and Cables:
Models Description
C2960X-STACK Catalyst 2960-X FlexStack Plus Stacking Module
CAB-STK-E-0.5M Cisco FlexStack Stacking Cables
GLC-LH-SMD Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
Get more information:
Do you have any question about the WS-C2960X-24TD-L?
Contact us now via email: info@hi-network.com

4. WS-C2960X-24TD-L Datasheet
Copyright © 2022 Hi-Network.com | HAILIAN TECHNOLOGY CO., LIMITED | All Rights Reserved.

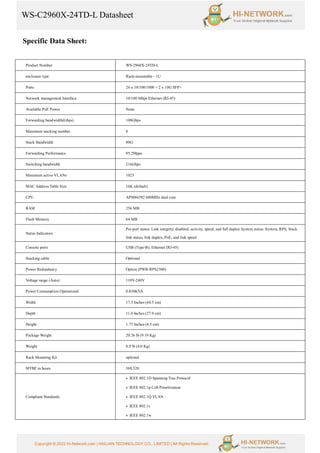

Specific Data Sheet:
Product Number WS-2960X-24TD-L
enclosure type Rack-mountable - 1U
Ports 24 x 10/100/1000 + 2 x 10G SFP+
Network management Interface 10/100 Mbps Ethernet (RJ-45)
Available PoE Power None
Forwarding bandwidth(Gbps) 108Gbps
Maximum stacking number 8
Stack Bandwidth 80G
Forwarding Performance 95.2Mpps
Switching bandwidth 216Gbps
Maximum active VLANs 1023
MAC Address Table Size 16K (default)
CPU APM86392 600MHz dual core
RAM 256 MB
Flash Memory 64 MB
Status Indicators
Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack
link status, link duplex, PoE, and link speed
Console ports USB (Type-B), Ethernet (RJ-45)
Stacking cable Optional
Power Redundancy Option (PWR-RPS2300)
Voltage range (Auto) 110V-240V
Power Consumption Operational 0.034KVA
Width 17.5 Inches (44.5 cm)
Depth 11.0 Inches (27.9 cm)
Height 1.75 Inches (4.5 cm)
Package Weight 20.26 lb (9.19 Kg)
Weight 8.9 lb (4.0 Kg)
Rack Mounting Kit optional
MTBF in hours 569,520
Compliant Standards
● IEEE 802.1D Spanning Tree Protocol
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w

5. WS-C2960X-24TD-L Datasheet
Copyright © 2022 Hi-Network.com | HAILIAN TECHNOLOGY CO., LIMITED | All Rights Reserved.

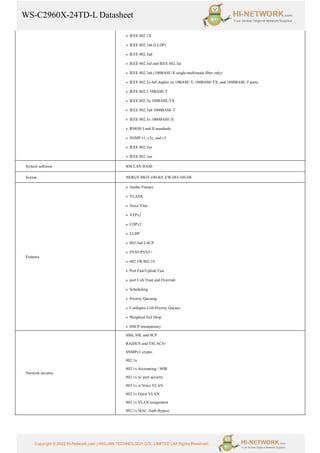

● IEEE 802.1X
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3af and IEEE 802.3at
● IEEE 802.3ah (100BASE-X single/multimode fiber only)
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
● IEEE 802.3az
● IEEE 802.1ax
System software IOS LAN BASE
license NERGY-MGT-100-K9, EW-DO-100-DE
Features
● Jumbo Frames
● VLANS
● Voice Vlan
● VTPv2
● CDPv2
● LLDP
● 802.3ad LACP
● PVST/PVST+
● 802.1W/802.1S
● Port Fast/Uplink Fast
● port CoS Trust and Override
● Scheduling
● Priority Queuing
● Configure CoS Priority Queues
● Weighted Tail Drop
● DSCP transparency
Network security
SSH, SSL and SCP
RADIUS and TACACS+
SNMPv3 crypto
802.1x
802.1x Accounting / MIB
802.1x w/ port security
802.1x w/Voice VLAN
802.1x Guest VLAN
802.1x VLAN assignment
802.1x MAC-Auth Bypass

6. WS-C2960X-24TD-L Datasheet
Copyright © 2022 Hi-Network.com | HAILIAN TECHNOLOGY CO., LIMITED | All Rights Reserved.

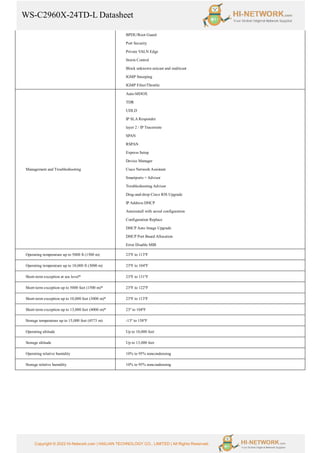

BPDU/Root Guard
Port Security
Private VALN Edge
Storm Control
Block unknown unicast and multicast
IGMP Snooping
IGMP Filter/Throttle
Management and Troubleshooting
Auto-MDOX
TDR
UDLD
IP SLA Responder
layer 2 / IP Traceroute
SPAN
RSPAN
Express Setup
Device Manager
Cisco Network Assistant
Smartports + Advisor
Troubleshooting Advisor
Drag-and-drop Cisco IOS Upgrade
IP Address DHCP
Autoinstall with saved configuration
Configuration Replace
DHCP Auto Image Upgrade
DHCP Port Based Allocation
Error Disable MIB
Operating temperature up to 5000 ft (1500 m) 23ºF to 113ºF
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF
Short-term exception at sea level* 23ºF to 131ºF
Short-term exception up to 5000 feet (1500 m)* 23ºF to 122ºF
Short-term exception up to 10,000 feet (3000 m)* 23ºF to 113ºF
Short-term exception up to 13,000 feet (4000 m)* 23º to 104ºF
Storage temperature up to 15,000 feet (4573 m) -13º to 158ºF
Operating altitude Up to 10,000 feet
Storage altitude Up to 13,000 feet
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing

7. WS-C2960X-24TD-L Datasheet
Copyright © 2022 Hi-Network.com | HAILIAN TECHNOLOGY CO., LIMITED | All Rights Reserved.

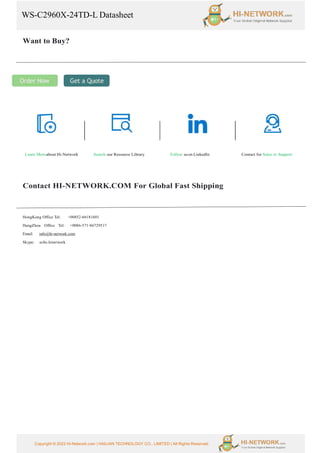

Want to Buy?
