AccelOps uses the Cisco UCS XML API to discover Cisco UCS devices and collect hardware statistics such as the status of processors, memory, chassis, power supplies, fans, and other components. The document provides instructions on defining Cisco UCS credentials in AccelOps, testing the connectivity, discovering devices, and monitoring performance data. It also provides examples of event messages generated from Cisco UCS for different hardware components including power supply status, processor status, chassis status, memory status, and fan status.

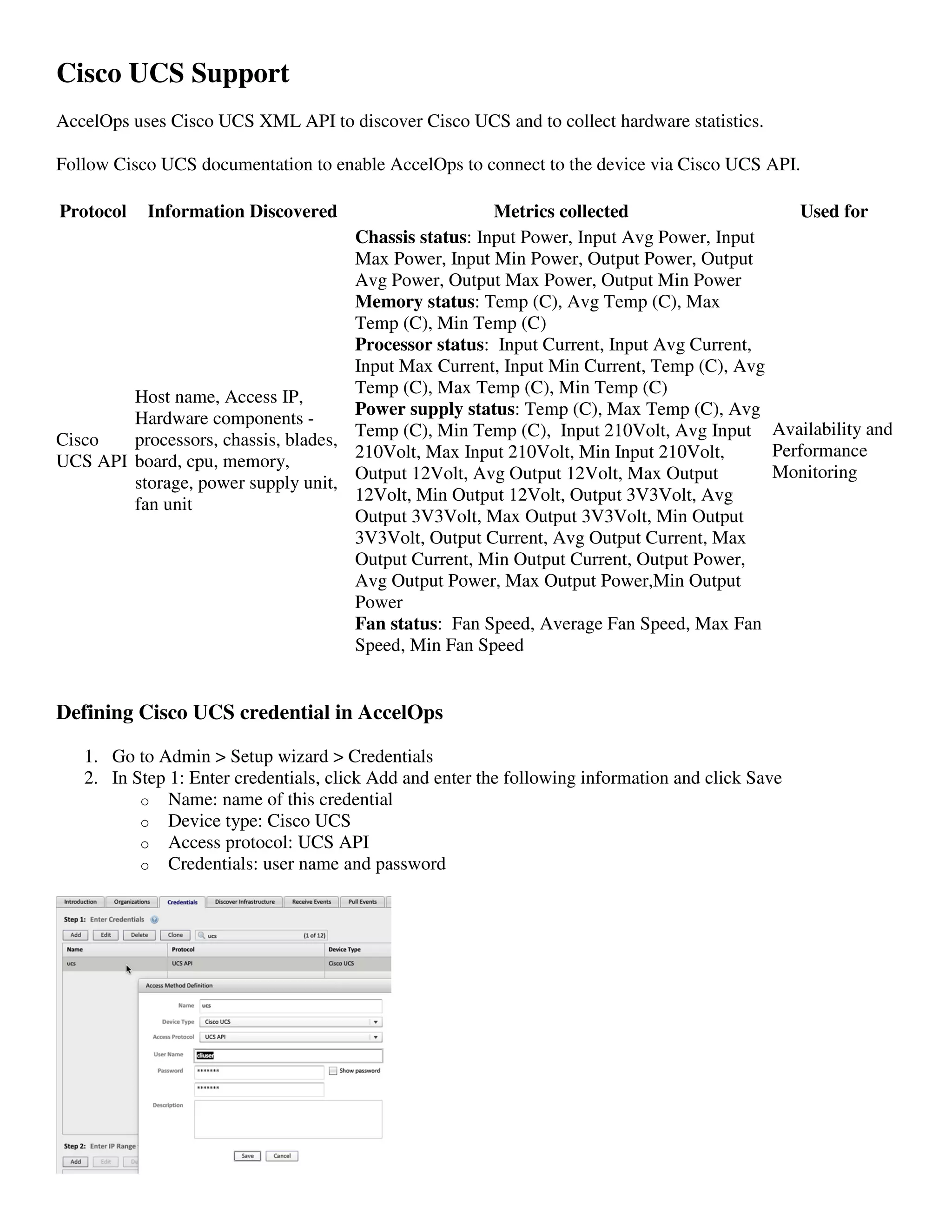

1. Cisco UCS Support
AccelOps uses Cisco UCS XML API to discover Cisco UCS and to collect hardware statistics.
Follow Cisco UCS documentation to enable AccelOps to connect to the device via Cisco UCS API.
Protocol Information Discovered Metrics collected Used for
Chassis status: Input Power, Input Avg Power, Input
Max Power, Input Min Power, Output Power, Output
Avg Power, Output Max Power, Output Min Power
Memory status: Temp (C), Avg Temp (C), Max
Temp (C), Min Temp (C)
Processor status: Input Current, Input Avg Current,
Input Max Current, Input Min Current, Temp (C), Avg
Temp (C), Max Temp (C), Min Temp (C)
Host name, Access IP,
Power supply status: Temp (C), Max Temp (C), Avg
Hardware components -
Availability and
Cisco processors, chassis, blades, Temp (C), Min Temp (C), Input 210Volt, Avg Input
210Volt, Max Input 210Volt, Min Input 210Volt, Performance
UCS API board, cpu, memory,
Output 12Volt, Avg Output 12Volt, Max Output Monitoring
storage, power supply unit,
12Volt, Min Output 12Volt, Output 3V3Volt, Avg
fan unit
Output 3V3Volt, Max Output 3V3Volt, Min Output
3V3Volt, Output Current, Avg Output Current, Max
Output Current, Min Output Current, Output Power,
Avg Output Power, Max Output Power,Min Output
Power
Fan status: Fan Speed, Average Fan Speed, Max Fan
Speed, Min Fan Speed
Defining Cisco UCS credential in AccelOps
1. Go to Admin > Setup wizard > Credentials
2. In Step 1: Enter credentials, click Add and enter the following information and click Save
o Name: name of this credential
o Device type: Cisco UCS
o Access protocol: UCS API
o Credentials: user name and password

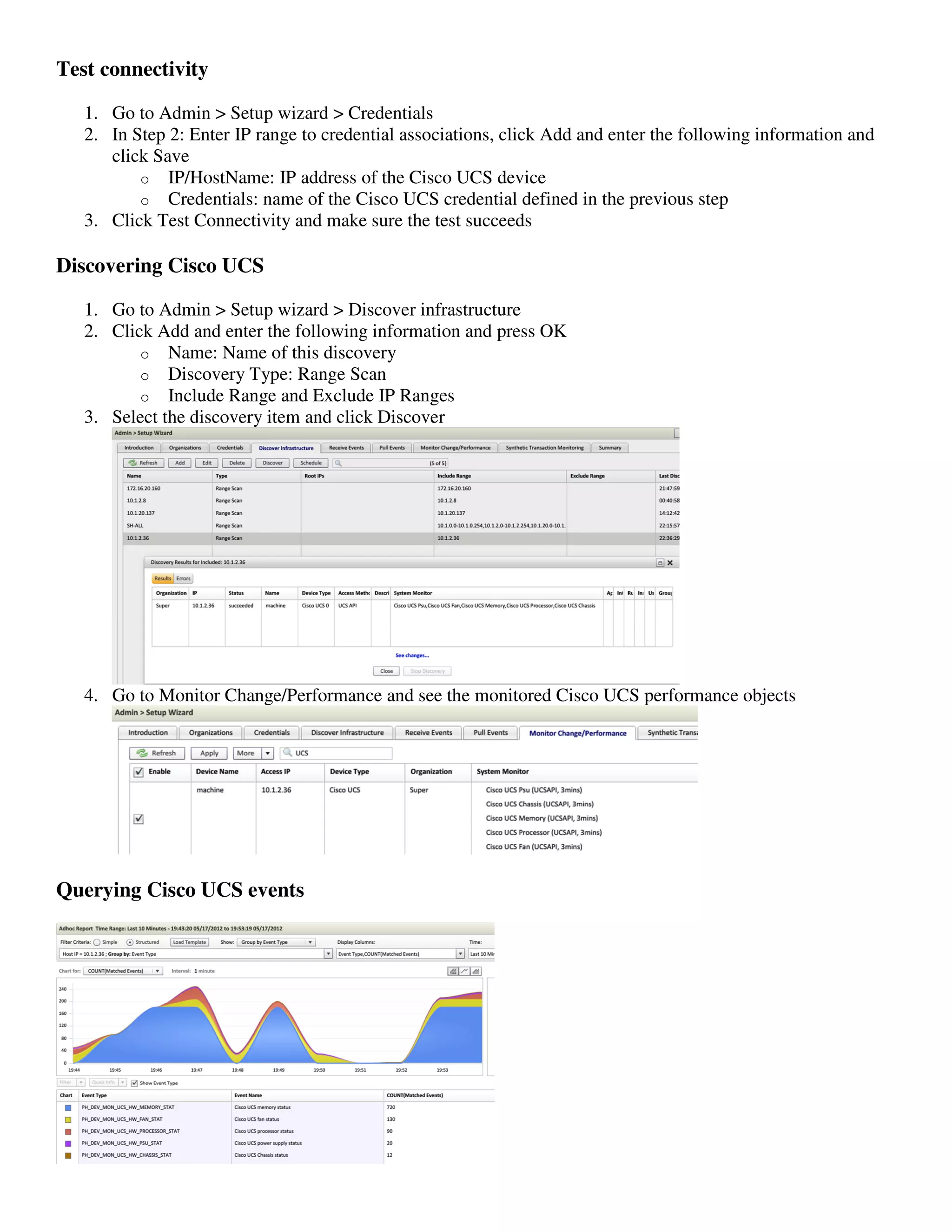

2. Test connectivity
1. Go to Admin > Setup wizard > Credentials
2. In Step 2: Enter IP range to credential associations, click Add and enter the following information and
click Save
o IP/HostName: IP address of the Cisco UCS device
o Credentials: name of the Cisco UCS credential defined in the previous step
3. Click Test Connectivity and make sure the test succeeds
Discovering Cisco UCS
1. Go to Admin > Setup wizard > Discover infrastructure
2. Click Add and enter the following information and press OK
o Name: Name of this discovery
o Discovery Type: Range Scan
o Include Range and Exclude IP Ranges
3. Select the discovery item and click Discover
4. Go to Monitor Change/Performance and see the monitored Cisco UCS performance objects
Querying Cisco UCS events

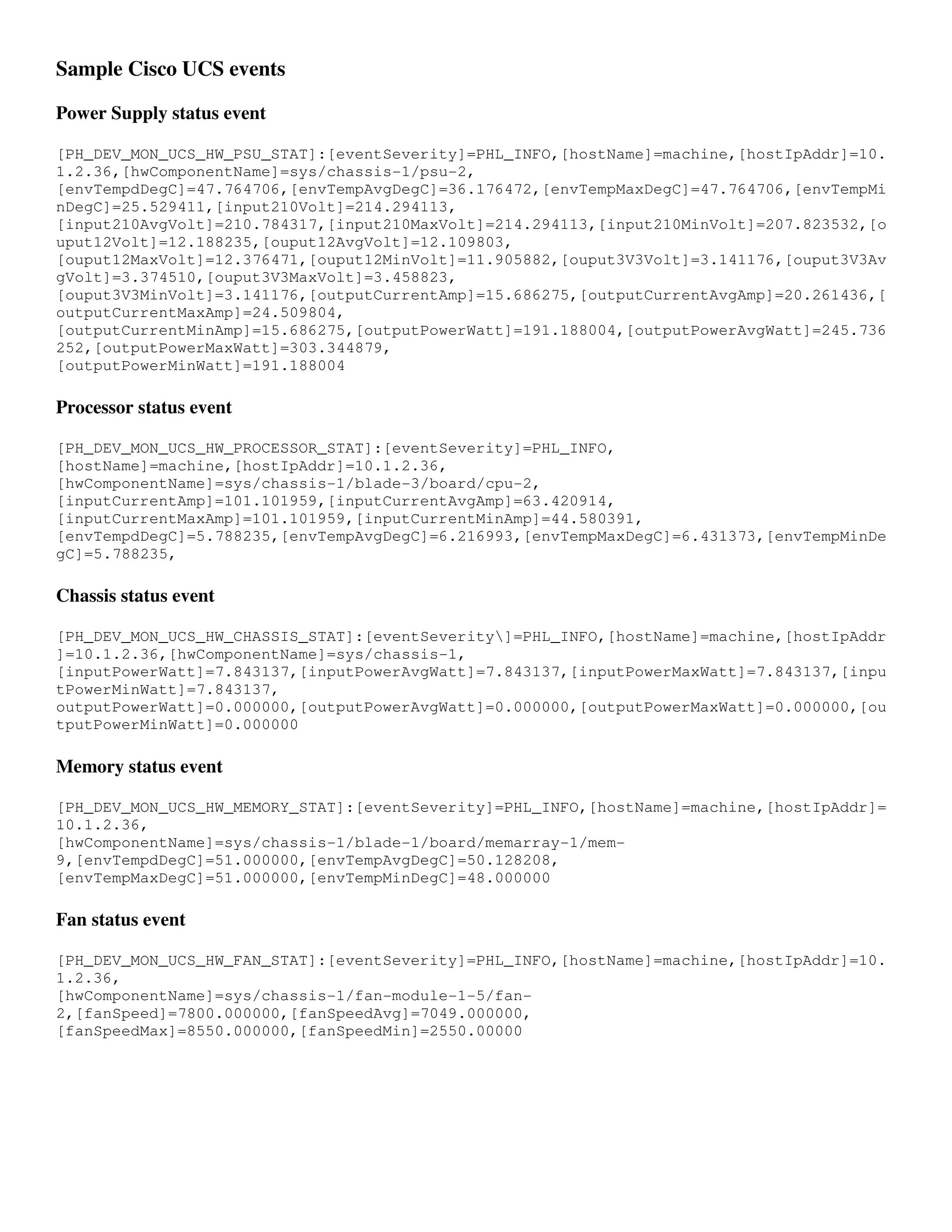

3. Sample Cisco UCS events
Power Supply status event
[PH_DEV_MON_UCS_HW_PSU_STAT]:[eventSeverity]=PHL_INFO,[hostName]=machine,[hostIpAddr]=10.
1.2.36,[hwComponentName]=sys/chassis-1/psu-2,
[envTempdDegC]=47.764706,[envTempAvgDegC]=36.176472,[envTempMaxDegC]=47.764706,[envTempMi
nDegC]=25.529411,[input210Volt]=214.294113,
[input210AvgVolt]=210.784317,[input210MaxVolt]=214.294113,[input210MinVolt]=207.823532,[o
uput12Volt]=12.188235,[ouput12AvgVolt]=12.109803,
[ouput12MaxVolt]=12.376471,[ouput12MinVolt]=11.905882,[ouput3V3Volt]=3.141176,[ouput3V3Av
gVolt]=3.374510,[ouput3V3MaxVolt]=3.458823,
[ouput3V3MinVolt]=3.141176,[outputCurrentAmp]=15.686275,[outputCurrentAvgAmp]=20.261436,[
outputCurrentMaxAmp]=24.509804,
[outputCurrentMinAmp]=15.686275,[outputPowerWatt]=191.188004,[outputPowerAvgWatt]=245.736
252,[outputPowerMaxWatt]=303.344879,
[outputPowerMinWatt]=191.188004
Processor status event
[PH_DEV_MON_UCS_HW_PROCESSOR_STAT]:[eventSeverity]=PHL_INFO,
[hostName]=machine,[hostIpAddr]=10.1.2.36,
[hwComponentName]=sys/chassis-1/blade-3/board/cpu-2,
[inputCurrentAmp]=101.101959,[inputCurrentAvgAmp]=63.420914,
[inputCurrentMaxAmp]=101.101959,[inputCurrentMinAmp]=44.580391,
[envTempdDegC]=5.788235,[envTempAvgDegC]=6.216993,[envTempMaxDegC]=6.431373,[envTempMinDe
gC]=5.788235,
Chassis status event
[PH_DEV_MON_UCS_HW_CHASSIS_STAT]:[eventSeverity]=PHL_INFO,[hostName]=machine,[hostIpAddr
]=10.1.2.36,[hwComponentName]=sys/chassis-1,
[inputPowerWatt]=7.843137,[inputPowerAvgWatt]=7.843137,[inputPowerMaxWatt]=7.843137,[inpu
tPowerMinWatt]=7.843137,
outputPowerWatt]=0.000000,[outputPowerAvgWatt]=0.000000,[outputPowerMaxWatt]=0.000000,[ou
tputPowerMinWatt]=0.000000
Memory status event
[PH_DEV_MON_UCS_HW_MEMORY_STAT]:[eventSeverity]=PHL_INFO,[hostName]=machine,[hostIpAddr]=
10.1.2.36,
[hwComponentName]=sys/chassis-1/blade-1/board/memarray-1/mem-
9,[envTempdDegC]=51.000000,[envTempAvgDegC]=50.128208,
[envTempMaxDegC]=51.000000,[envTempMinDegC]=48.000000
Fan status event
[PH_DEV_MON_UCS_HW_FAN_STAT]:[eventSeverity]=PHL_INFO,[hostName]=machine,[hostIpAddr]=10.
1.2.36,
[hwComponentName]=sys/chassis-1/fan-module-1-5/fan-
2,[fanSpeed]=7800.000000,[fanSpeedAvg]=7049.000000,
[fanSpeedMax]=8550.000000,[fanSpeedMin]=2550.00000
