This document discusses signals and transmission in data communication networks. It covers topics like analog vs digital signals, sine waves, bandwidth, transmission impairments like attenuation and noise. Specific chapters cover digital/analog transmission, multiplexing, transmission media, circuit switching and high speed digital access. Signals must be transformed into electromagnetic waves to be transmitted. Key signal characteristics discussed include frequency, amplitude, phase, bandwidth, throughput, propagation speed and wavelength.

1. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Physical Layer
PART II

2. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Position of the physical layer

3. Services

4. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

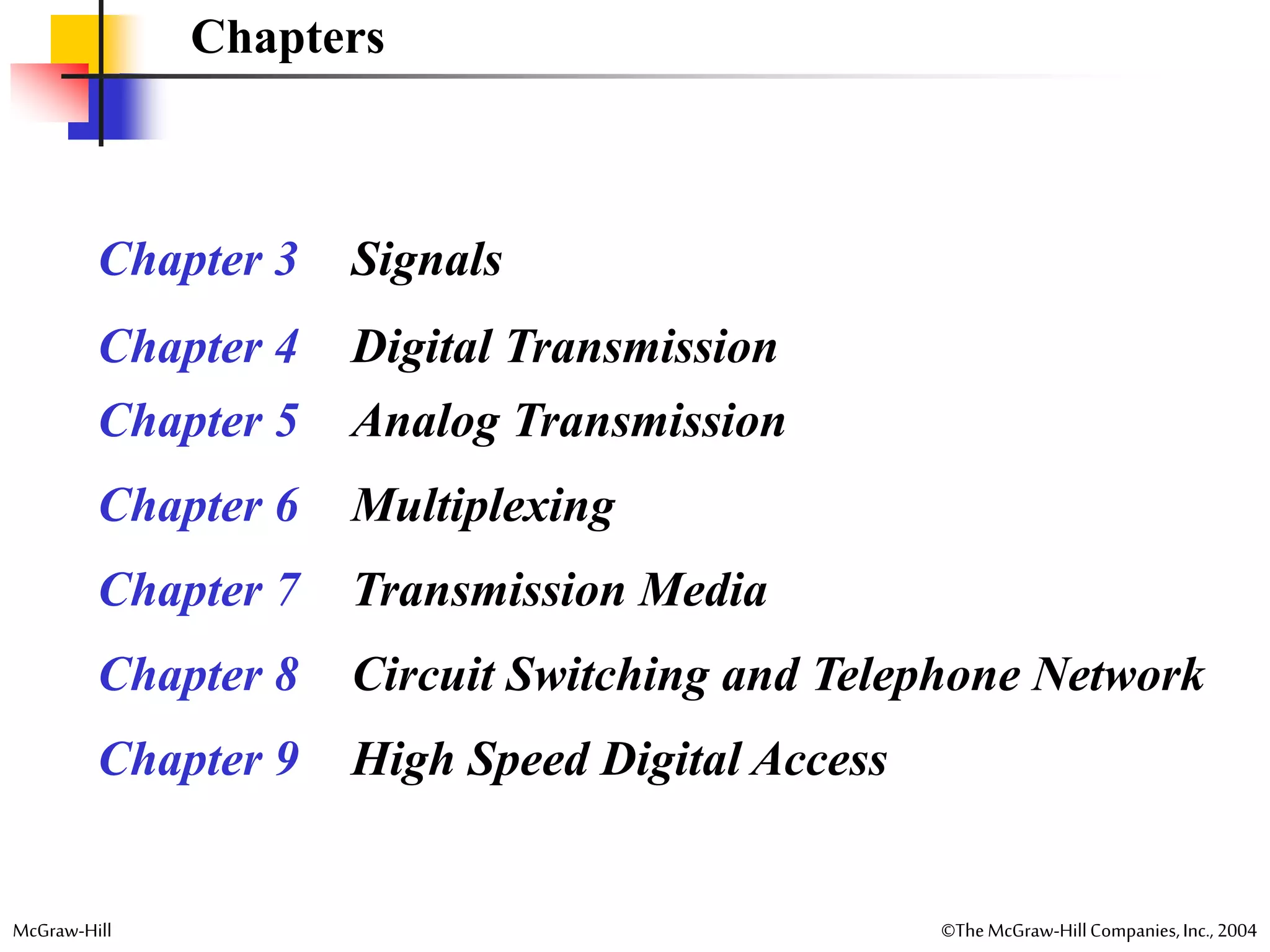

Chapters
Chapter 3 Signals
Chapter 4 Digital Transmission
Chapter 5 Analog Transmission
Chapter 6 Multiplexing
Chapter 7 Transmission Media
Chapter 8 Circuit Switching and Telephone Network
Chapter 9 High Speed Digital Access

5. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Chapter 3
Signals

6. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
To be transmitted, data must be
transformed to electromagnetic
signals.
Note:

7. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
3.1 Analog and Digital
Analog and Digital Data
Analog and Digital Signals
Periodic and Aperiodic Signals

8. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Signals can be analog or digital.
Analog signals can have an infinite
number of values in a range; digital
signals can have only a limited
number of values.
Note:

9. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.1 Comparison of analog and digital signals

10. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

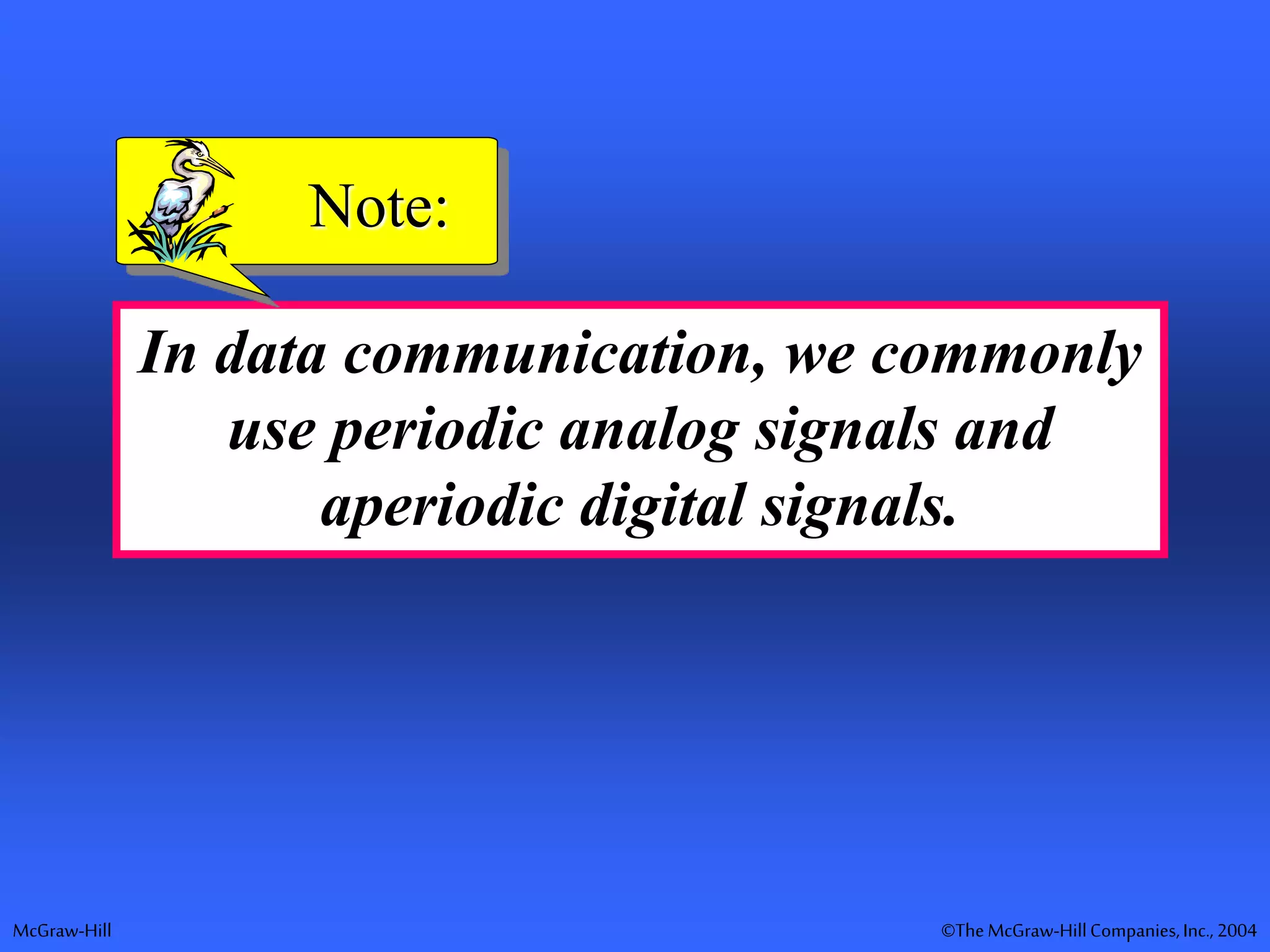

In data communication, we commonly
use periodic analog signals and
aperiodic digital signals.
Note:

11. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

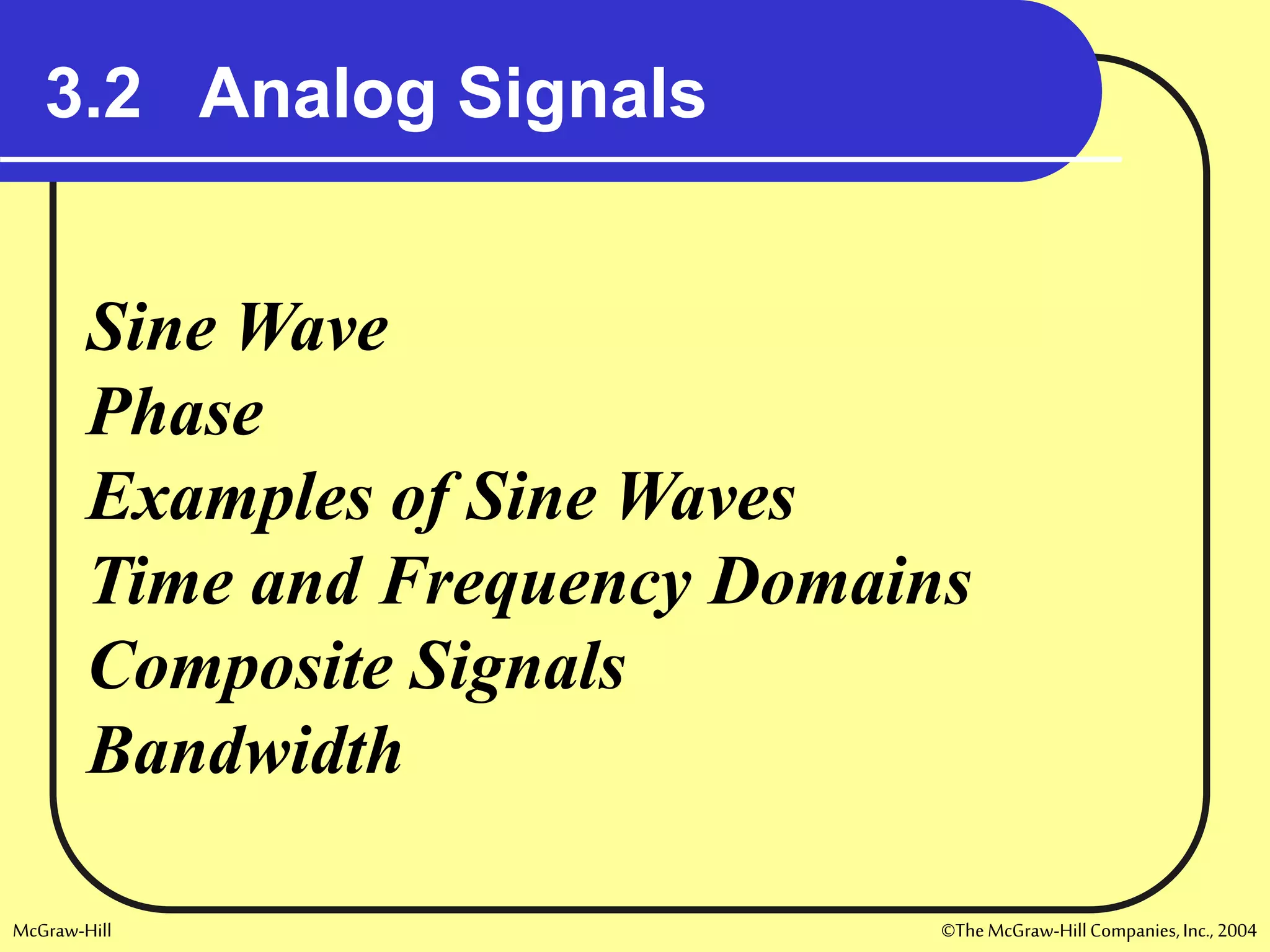

3.2 Analog Signals
Sine Wave
Phase
Examples of Sine Waves
Time and Frequency Domains
Composite Signals
Bandwidth

12. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.2 A sine wave

13. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.3 Amplitude

14. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

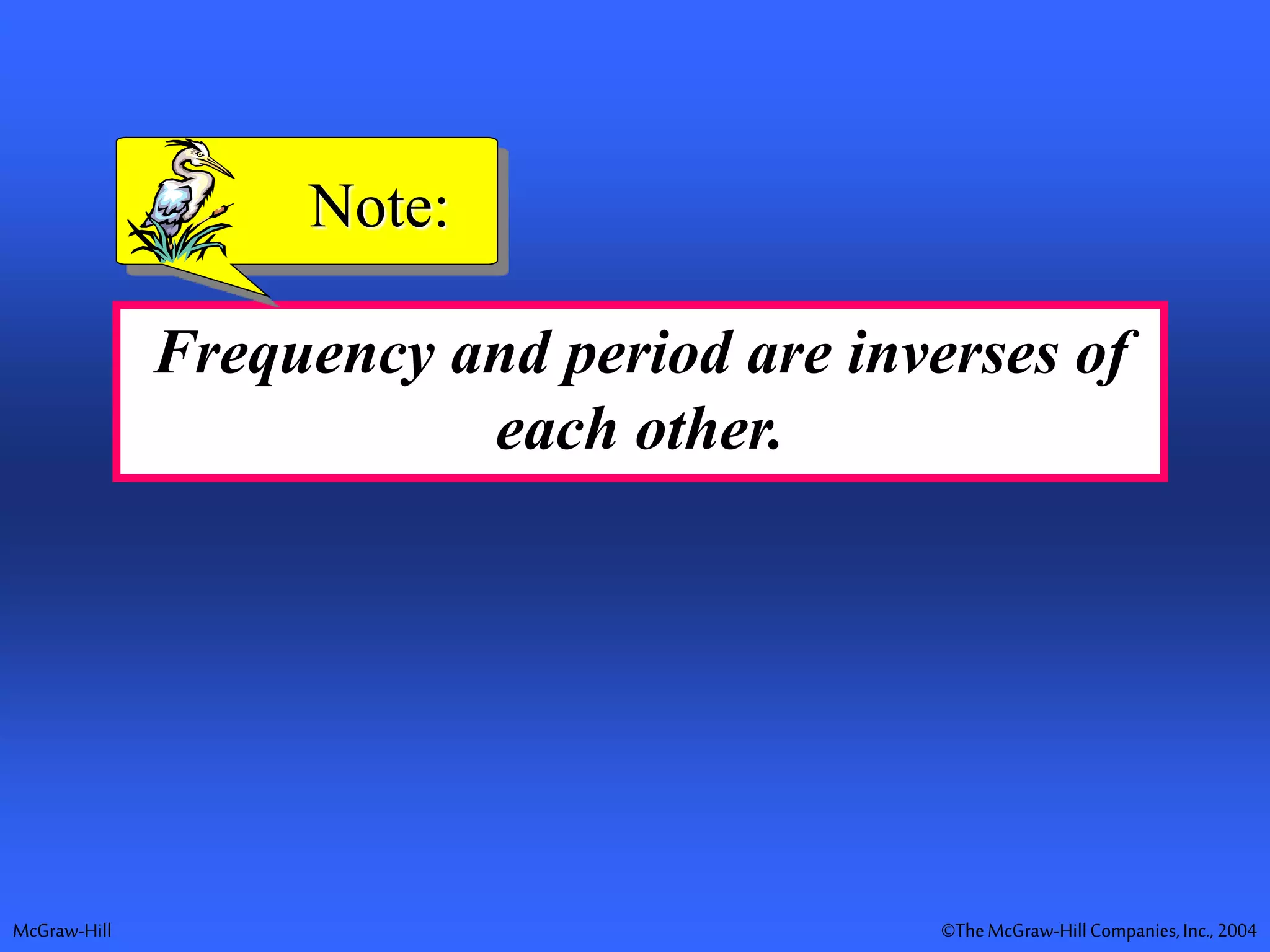

Frequency and period are inverses of
each other.
Note:

15. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

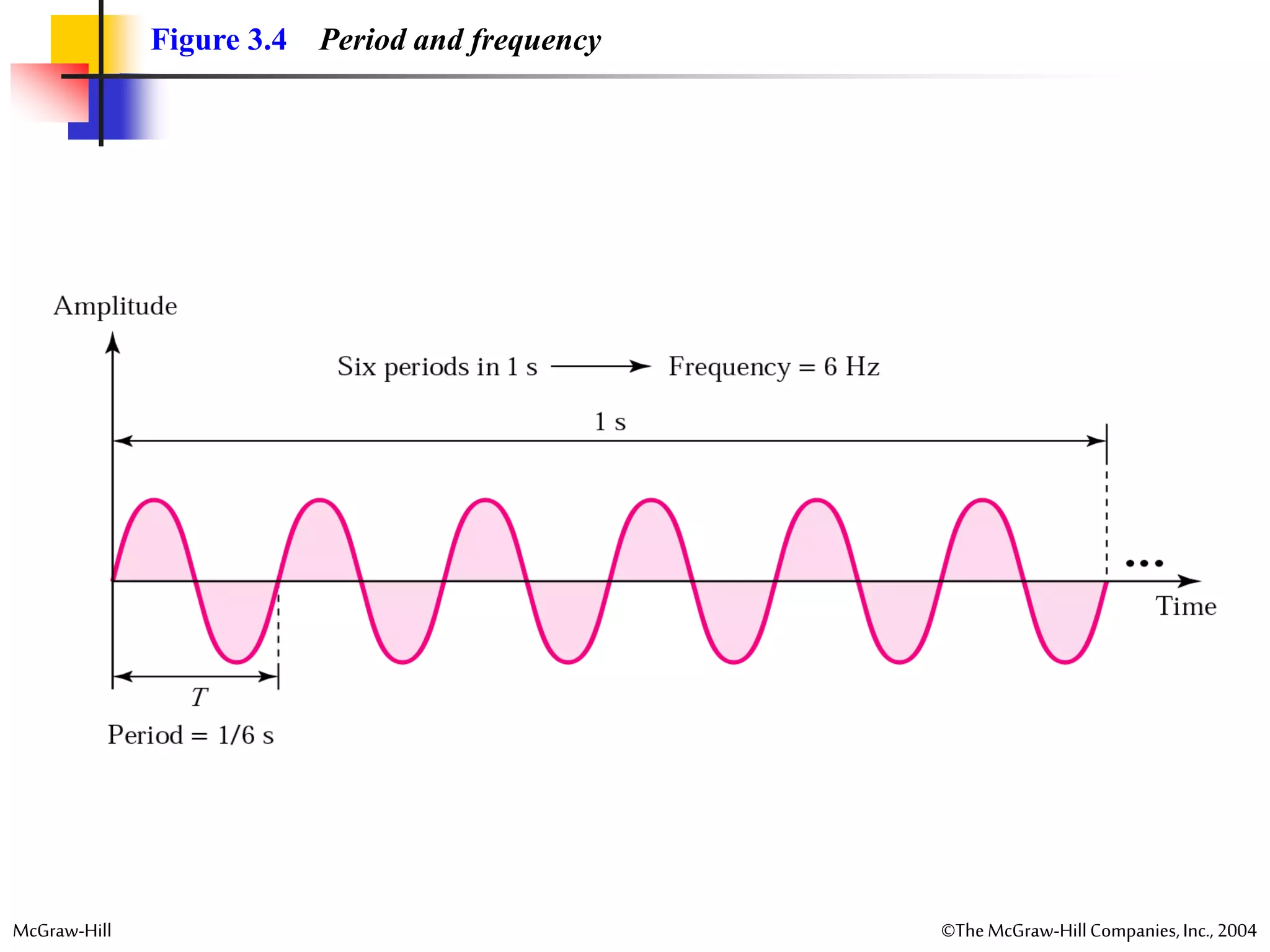

Figure 3.4 Period and frequency

16. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Table 3.1 Units of periods and frequencies
Unit Equivalent Unit Equivalent
Seconds (s) 1 s hertz (Hz) 1 Hz
Milliseconds (ms) 10–3 s kilohertz (KHz) 103 Hz
Microseconds (ms) 10–6 s megahertz (MHz) 106 Hz
Nanoseconds (ns) 10–9 s gigahertz (GHz) 109 Hz
Picoseconds (ps) 10–12 s terahertz (THz) 1012 Hz

17. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Frequency is the rate of change with
respect to time. Change in a short span
of time means high frequency. Change
over a long span of time means low
frequency.
Note:

18. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

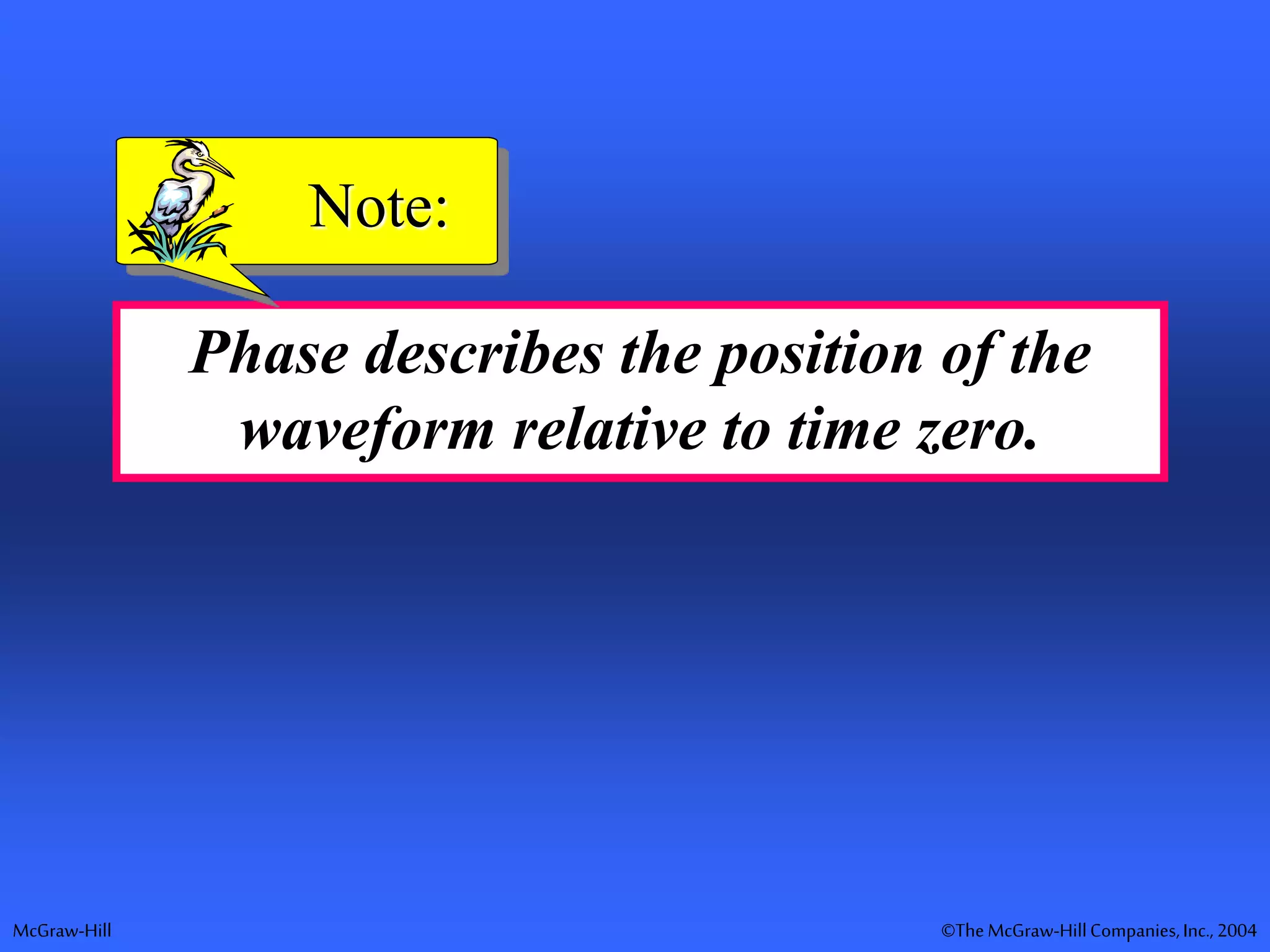

Phase describes the position of the
waveform relative to time zero.
Note:

19. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.5 Relationships between different phases

20. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.6 Sine wave examples

21. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.6 Sine wave examples (continued)

22. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.6 Sine wave examples (continued)

23. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
An analog signal is best represented in
the frequency domain.
Note:

24. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

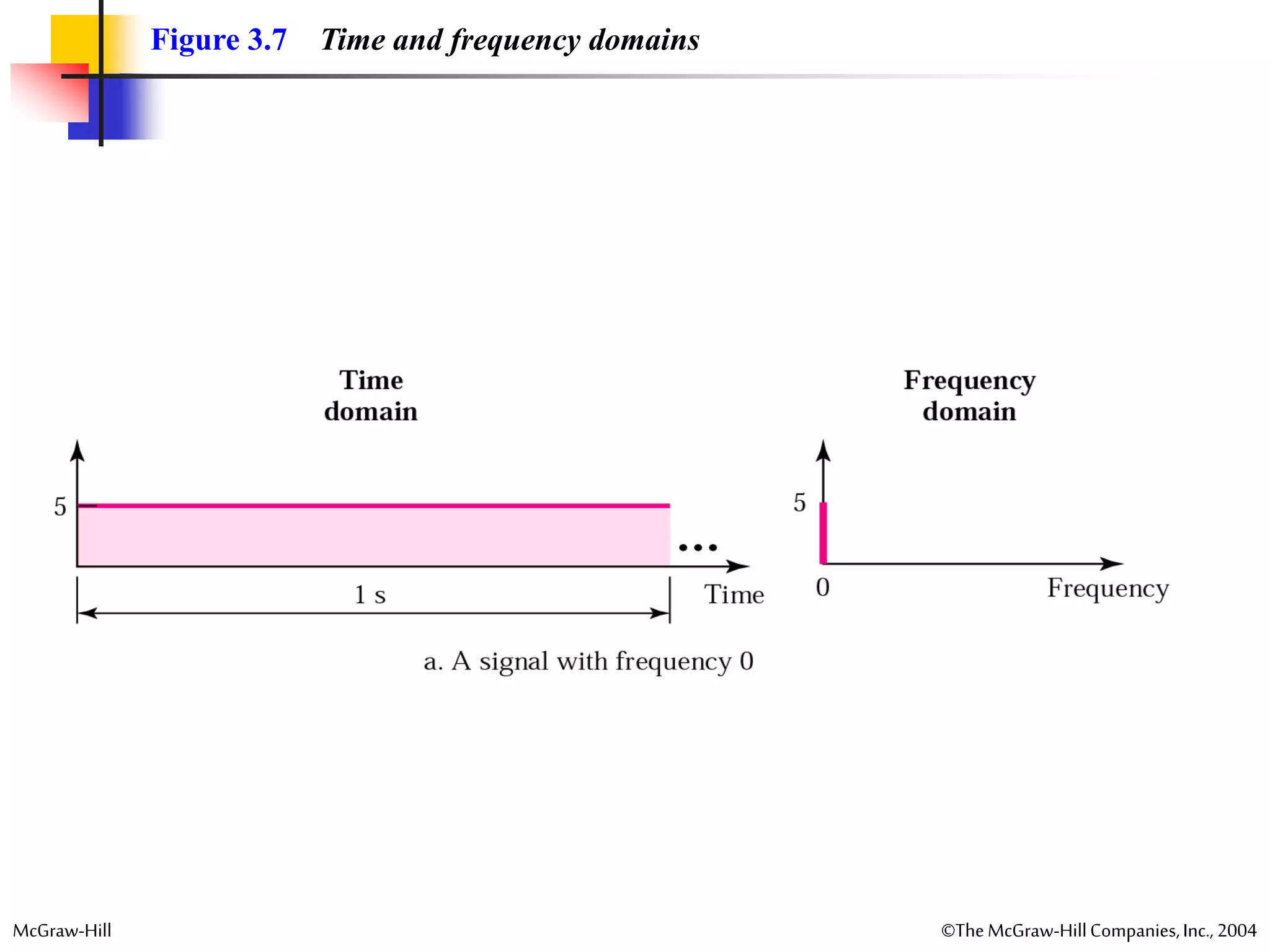

Figure 3.7 Time and frequency domains

25. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.7 Time and frequency domains (continued)

26. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.7 Time and frequency domains (continued)

27. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
A single-frequency sine wave is not
useful in data communications; we
need to change one or more of its
characteristics to make it useful.
Note:

28. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

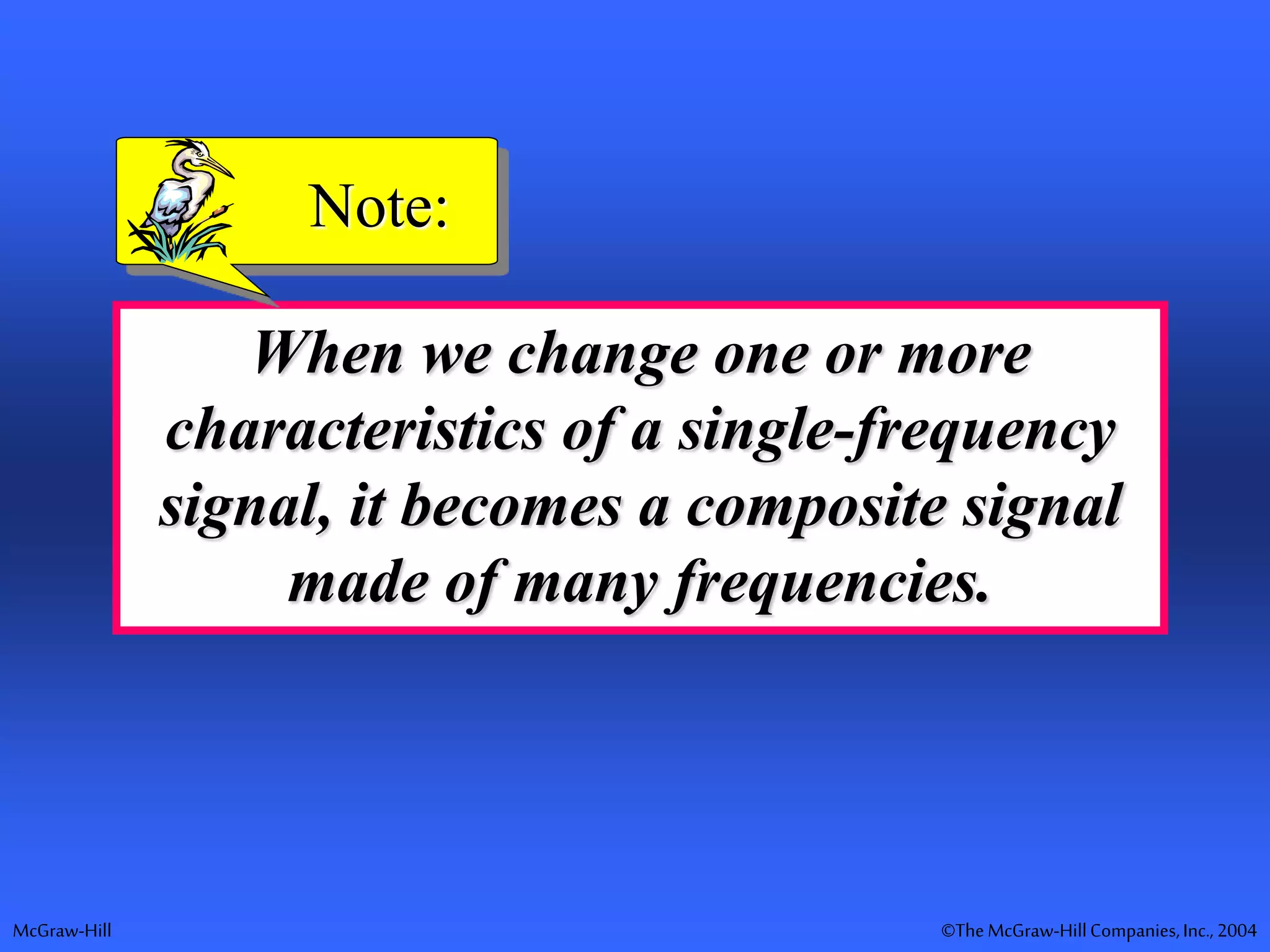

When we change one or more
characteristics of a single-frequency
signal, it becomes a composite signal
made of many frequencies.
Note:

29. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
According to Fourier analysis, any
composite signal can be represented as
a combination of simple sine waves
with different frequencies, phases, and
amplitudes.
Note:

30. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.9 Three harmonics

31. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.10 Adding first three harmonics

32. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

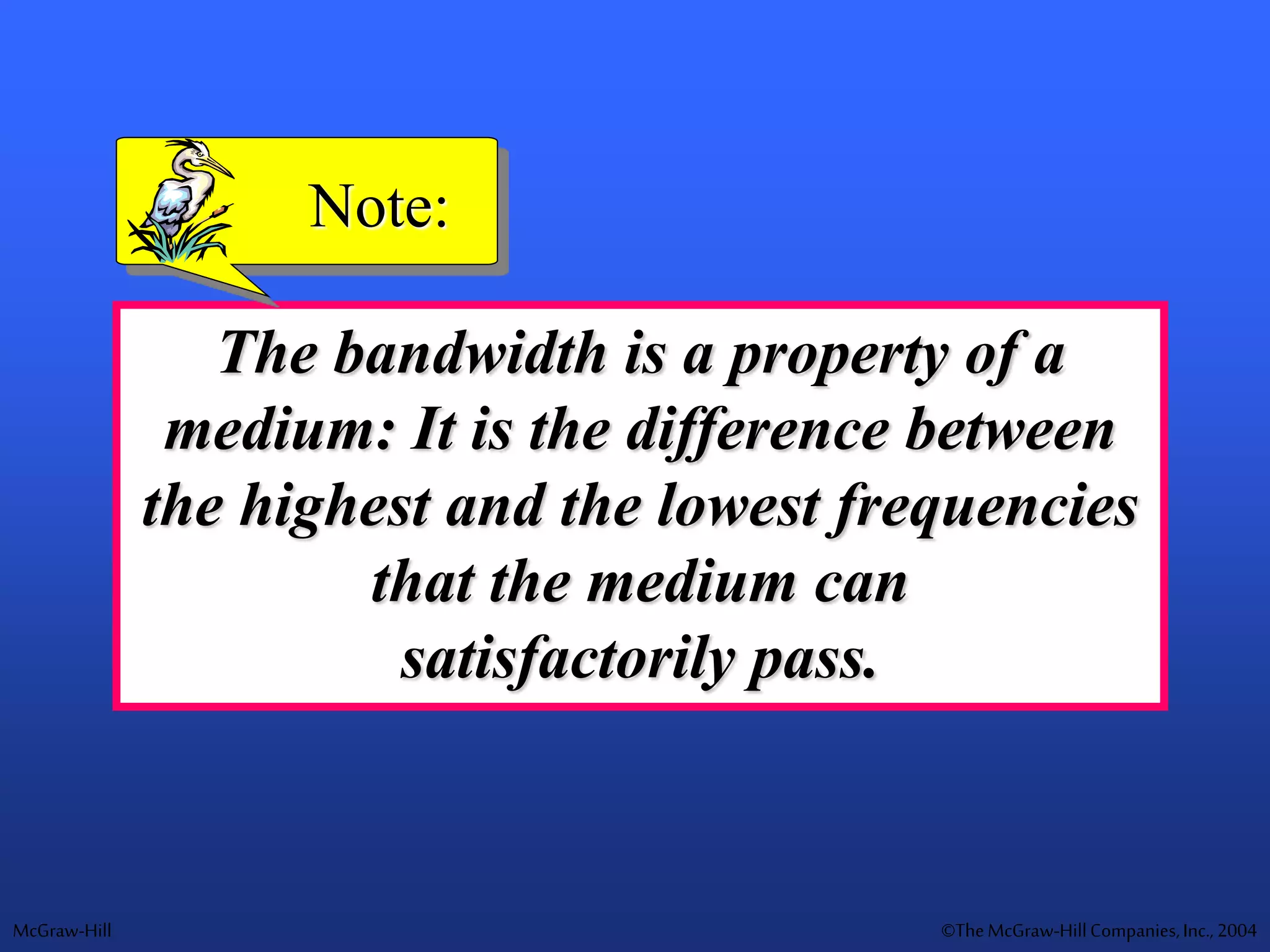

The bandwidth is a property of a
medium: It is the difference between
the highest and the lowest frequencies
that the medium can
satisfactorily pass.
Note:

33. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

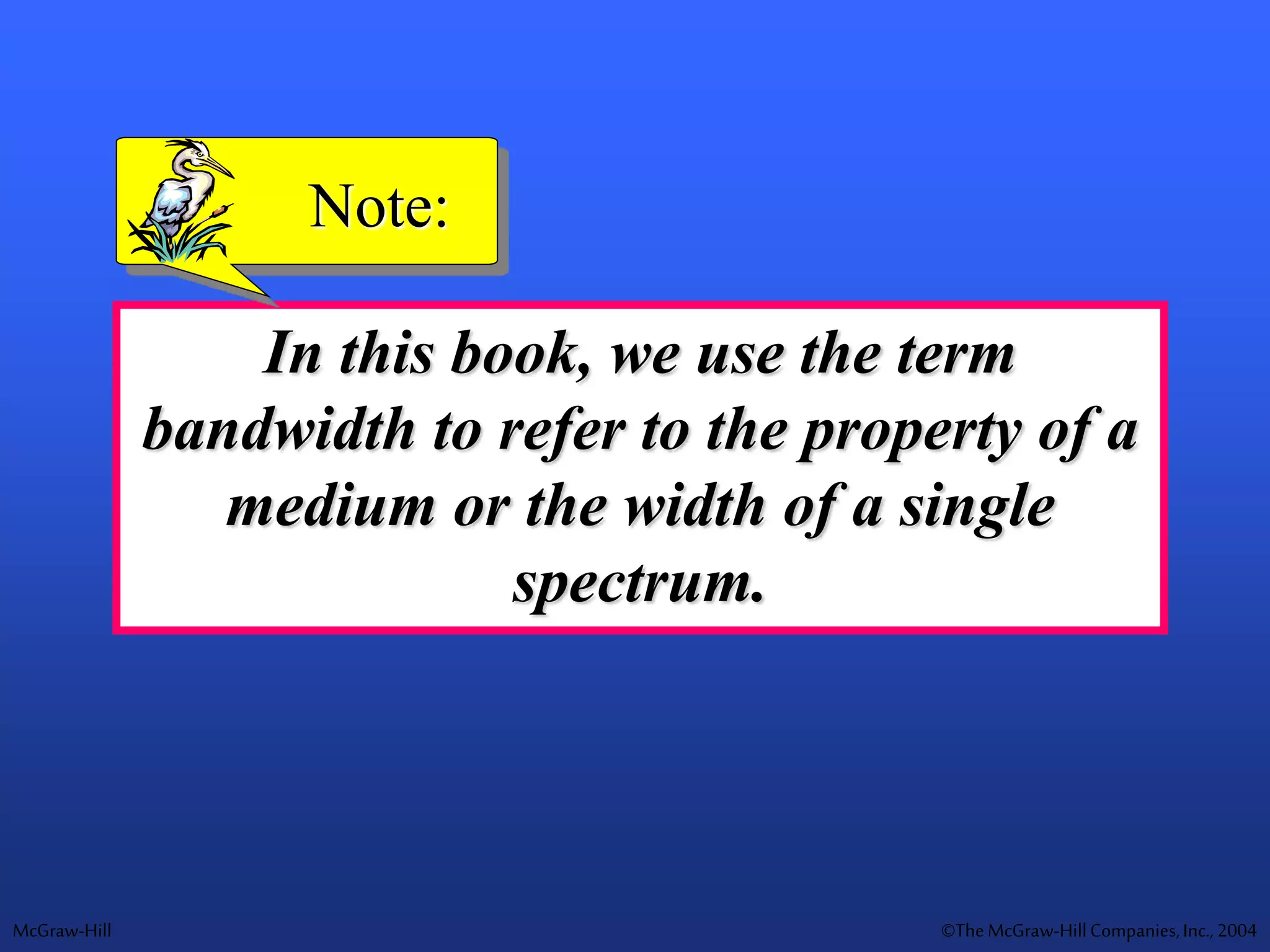

In this book, we use the term
bandwidth to refer to the property of a
medium or the width of a single
spectrum.
Note:

34. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.13 Bandwidth

35. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.17 Bit rate and bit interval

36. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Table 3.12 Bandwidth Requirement
Bit
Rate
Harmonic
1
Harmonics
1, 3
Harmonics
1, 3, 5
Harmonics
1, 3, 5, 7
1 Kbps 500 Hz 2 KHz 4.5 KHz 8 KHz
10 Kbps 5 KHz 20 KHz 45 KHz 80 KHz
100 Kbps 50 KHz 200 KHz 450 KHz 800 KHz

37. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
The bit rate and the bandwidth are
proportional to each other.
Note:

38. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
3.6 Transmission Impairment
Attenuation
Distortion
Noise

39. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.20 Impairment types

40. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

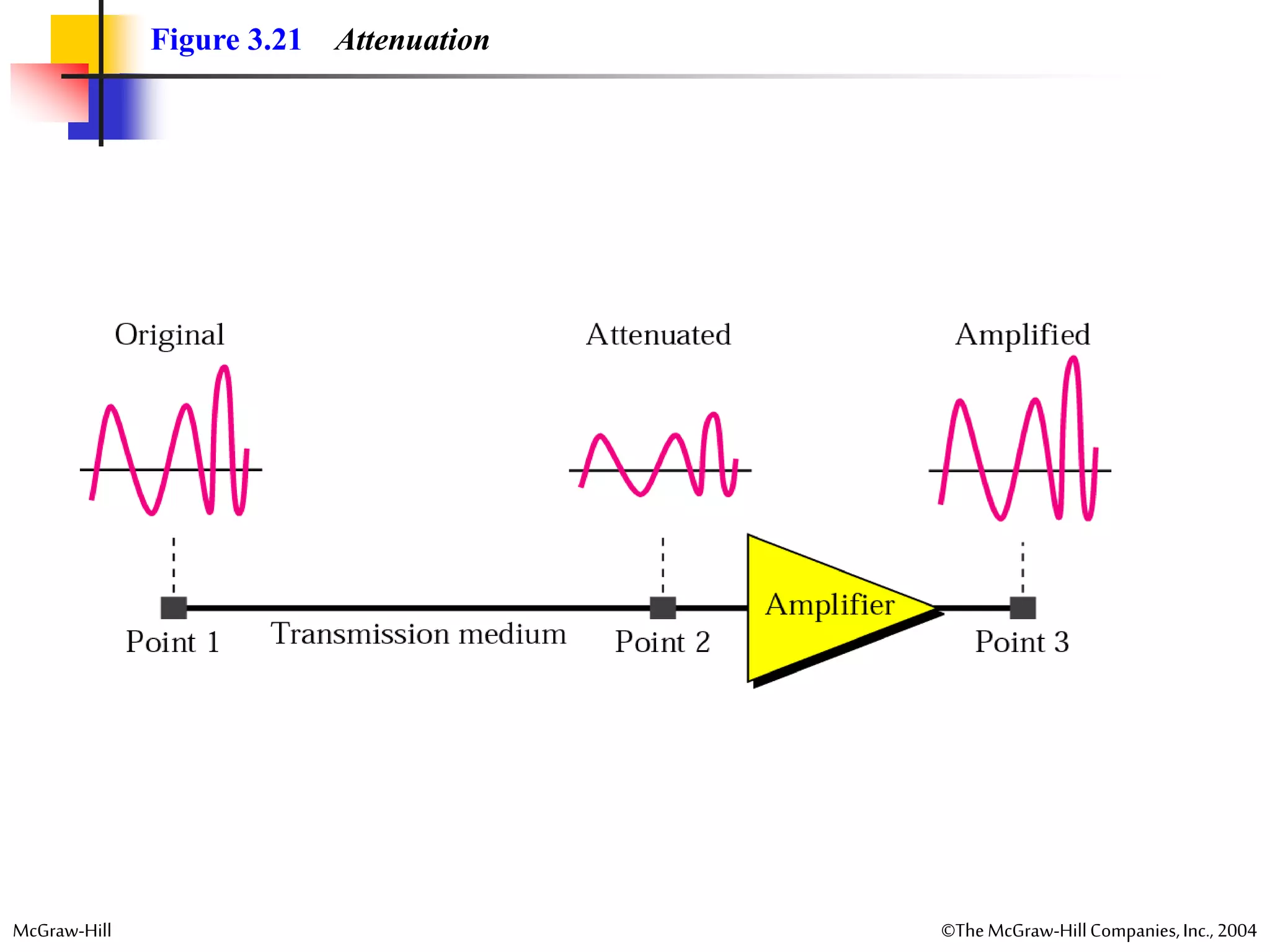

Figure 3.21 Attenuation

41. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

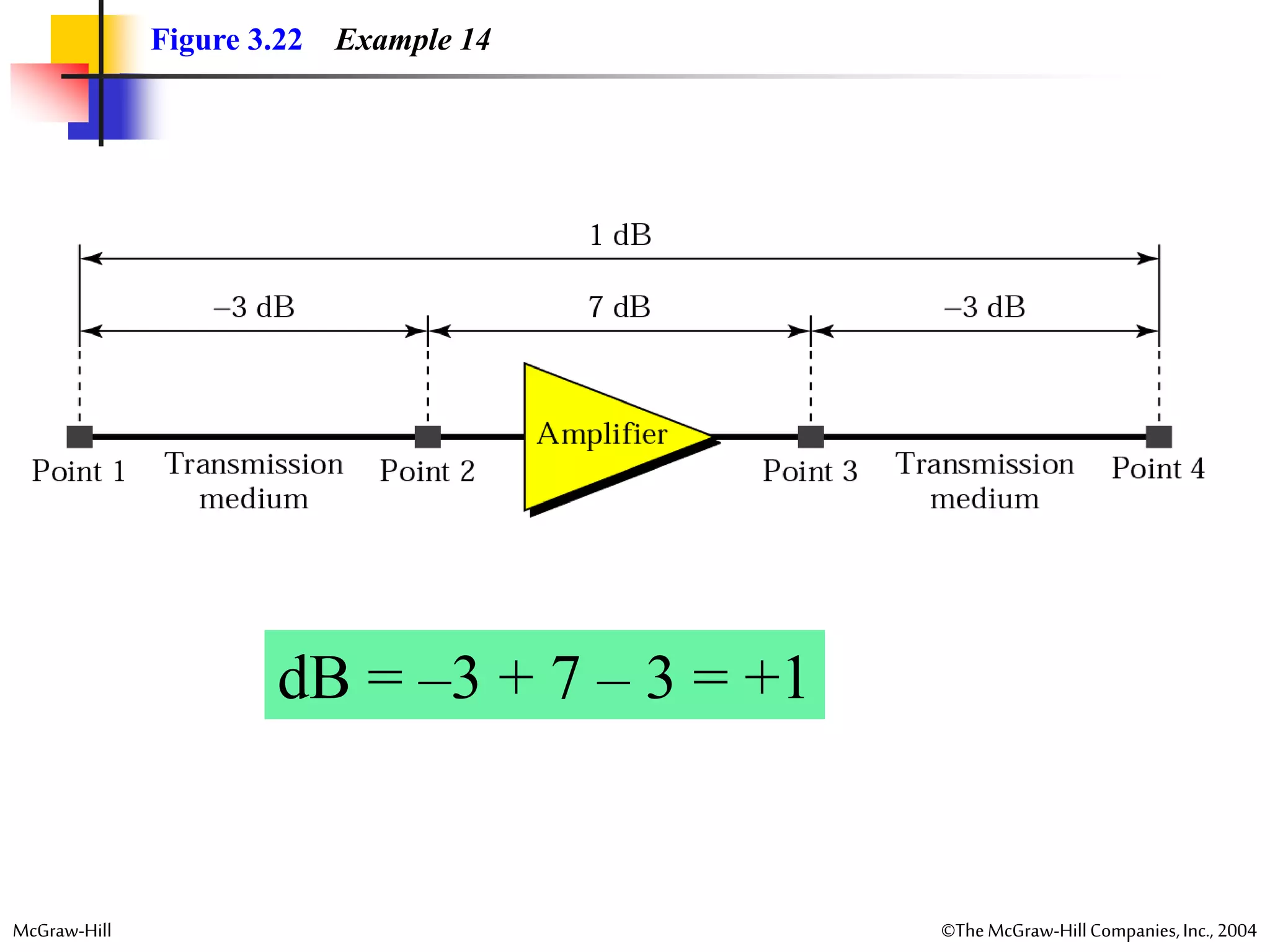

Figure 3.22 Example 14
dB = –3 + 7 – 3 = +1

42. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

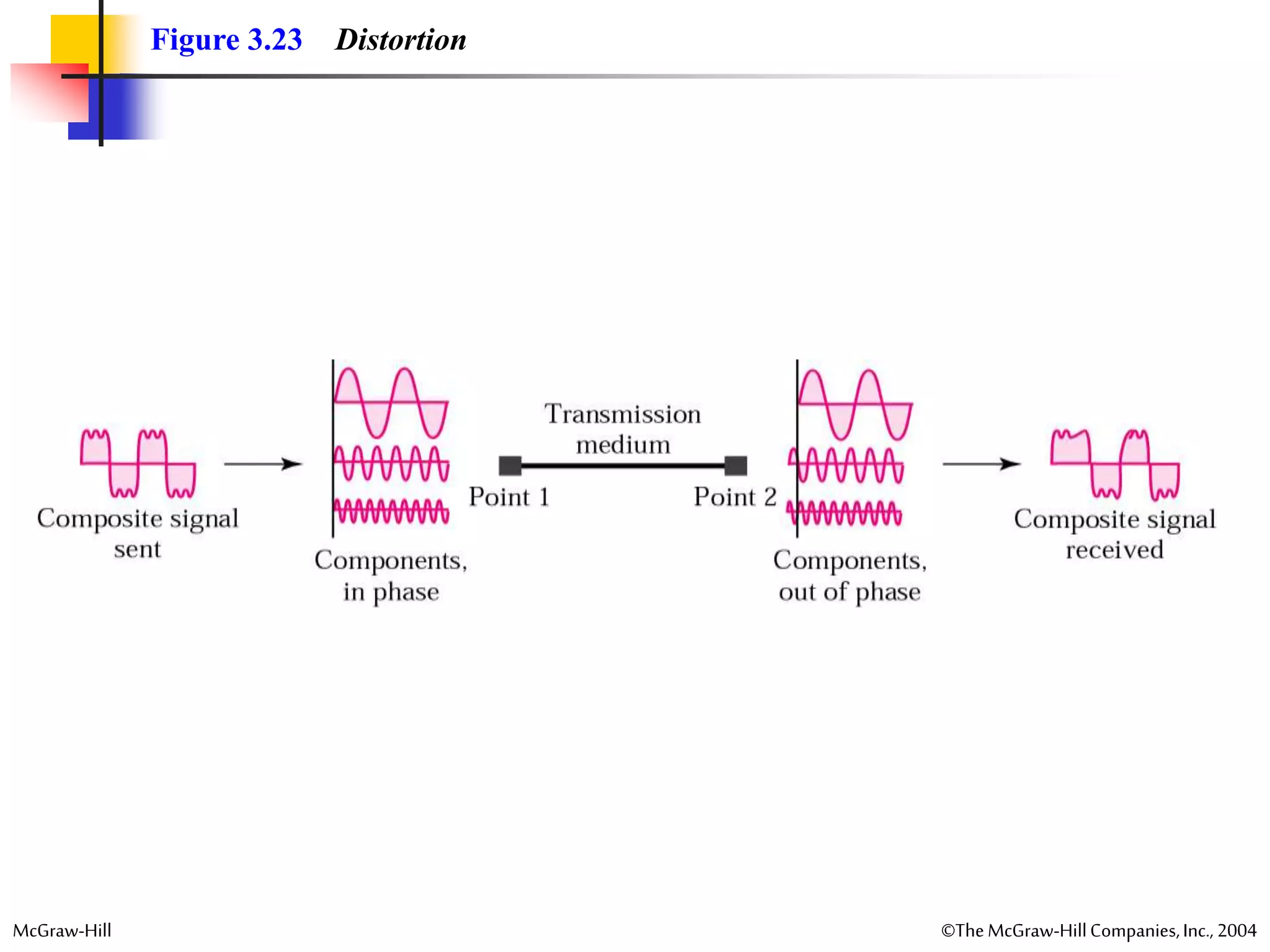

Figure 3.23 Distortion

43. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

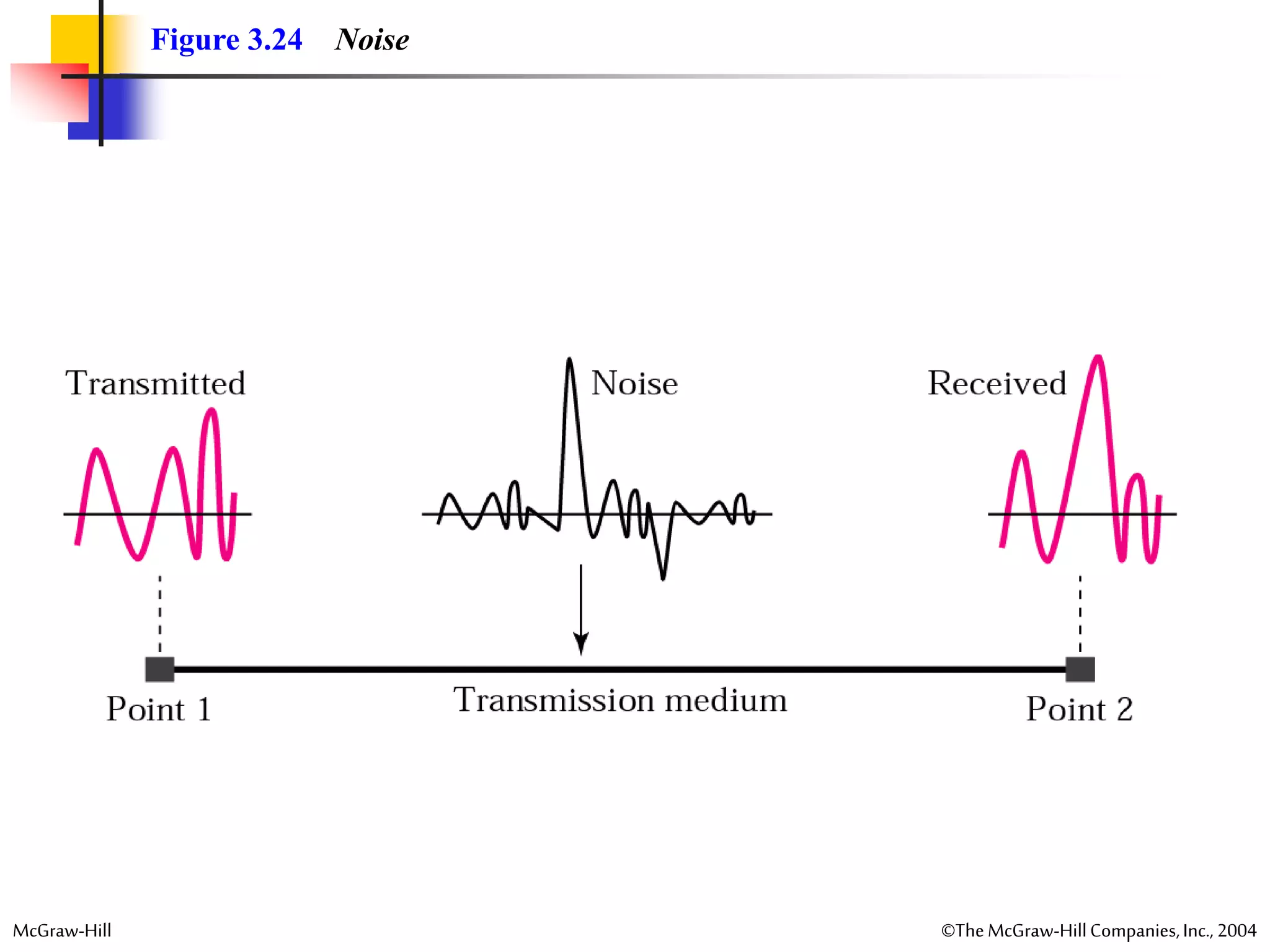

Figure 3.24 Noise

44. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
3.7 More About Signals
Throughput
Propagation Speed
Propagation Time
Wavelength

45. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.25 Throughput

46. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004
Figure 3.26 Propagation time

47. McGraw-Hill ©TheMcGraw-HillCompanies,Inc., 2004

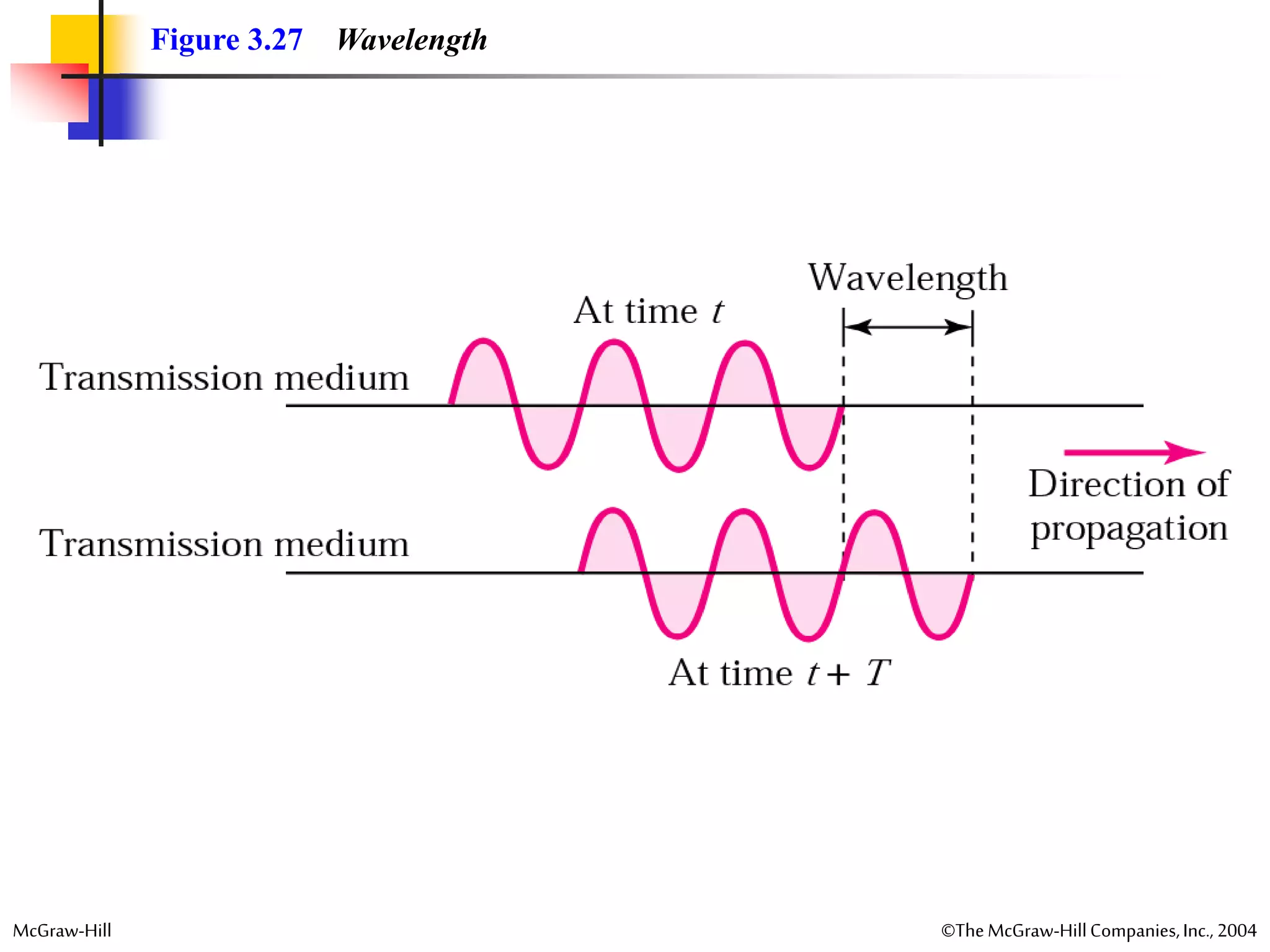

Figure 3.27 Wavelength
