_ch_01_lecture_presentation.ppt
- 1. © 2012 PearsonEducation Inc. Lecture prepared by Mindy Miller-Kittrell North Carolina State University Chapter 1 A Brief History of Microbiology

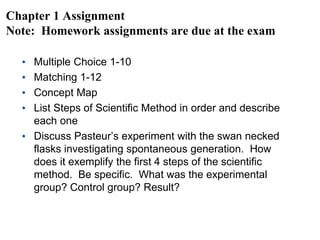

- 2. Chapter 1 Assignment Note:Homework assignments are due at the exam • Multiple Choice 1-10 • Matching 1-12 • Concept Map • List Steps of Scientific Method in order and describe each one • Discuss Pasteur’s experiment with the swan necked flasks investigating spontaneous generation. How does it exemplify the first 4 steps of the scientific method. Be specific. What was the experimental group? Control group? Result?

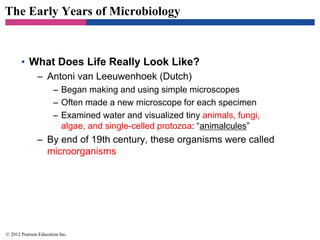

- 3. The Early Yearsof Microbiology • What Does Life Really Look Like? – Antoni van Leeuwenhoek (Dutch) – Began making and using simple microscopes – Often made a new microscope for each specimen – Examined water and visualized tiny animals, fungi, algae, and single-celled protozoa: “animalcules” – By end of 19th century, these organisms were called microorganisms © 2012 Pearson Education Inc.
- 4. Figure 1.1 Antonivan Leeuwenhoek

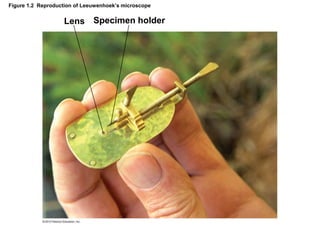

- 5. Figure 1.2 Reproductionof Leeuwenhoek’s microscope Specimen holder Lens
- 6. Figure 1.3 Themicrobial world

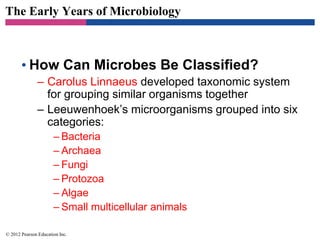

- 7. The Early Yearsof Microbiology • How Can Microbes Be Classified? – Carolus Linnaeus developed taxonomic system for grouping similar organisms together – Leeuwenhoek’s microorganisms grouped into six categories: – Bacteria – Archaea – Fungi – Protozoa – Algae – Small multicellular animals © 2012 Pearson Education Inc.

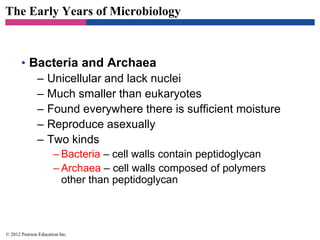

- 8. The Early Yearsof Microbiology • Bacteria and Archaea – Unicellular and lack nuclei – Much smaller than eukaryotes – Found everywhere there is sufficient moisture – Reproduce asexually – Two kinds – Bacteria – cell walls contain peptidoglycan – Archaea – cell walls composed of polymers other than peptidoglycan © 2012 Pearson Education Inc.

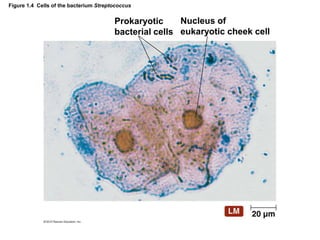

- 9. Figure 1.4 Cellsof the bacterium Streptococcus Nucleus of eukaryotic cheek cell Prokaryotic bacterial cells

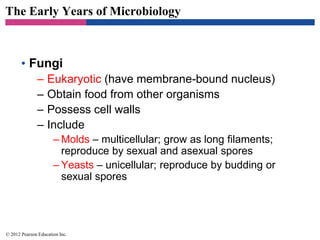

- 10. The Early Yearsof Microbiology • Fungi – Eukaryotic (have membrane-bound nucleus) – Obtain food from other organisms – Possess cell walls – Include – Molds – multicellular; grow as long filaments; reproduce by sexual and asexual spores – Yeasts – unicellular; reproduce by budding or sexual spores © 2012 Pearson Education Inc.
- 11.

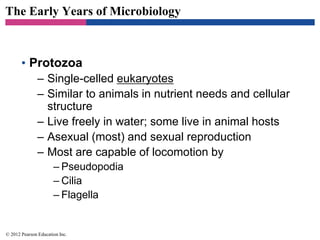

- 12. The Early Yearsof Microbiology • Protozoa – Single-celled eukaryotes – Similar to animals in nutrient needs and cellular structure – Live freely in water; some live in animal hosts – Asexual (most) and sexual reproduction – Most are capable of locomotion by – Pseudopodia – Cilia – Flagella © 2012 Pearson Education Inc.
- 13. Figure 1.6 Locomotivestructures of protozoa-overview

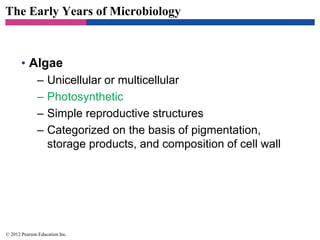

- 14. The Early Yearsof Microbiology • Algae – Unicellular or multicellular – Photosynthetic – Simple reproductive structures – Categorized on the basis of pigmentation, storage products, and composition of cell wall © 2012 Pearson Education Inc.
- 15.
- 16. Figure 1.8 Animmature stage of a parasitic worm in blood Red blood cell
- 17. Figure 1.9 Virusesinfecting a bacterium Virus Bacterium Viruses assembling inside cell

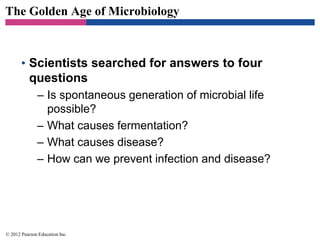

- 18. The Golden Ageof Microbiology • Scientists searched for answers to four questions – Is spontaneous generation of microbial life possible? – What causes fermentation? – What causes disease? – How can we prevent infection and disease? © 2012 Pearson Education Inc.
- 19. The Golden Ageof Microbiology • Some thought living things arose from three processes – Asexual reproduction – Sexual reproduction – Nonliving matter • Aristotle proposed spontaneous generation (384-322 B.C.) – Living things can arise from nonliving matter © 2012 Pearson Education Inc.

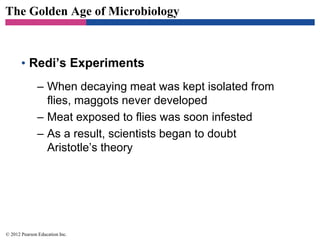

- 20. The Golden Ageof Microbiology • Redi’s Experiments – When decaying meat was kept isolated from flies, maggots never developed – Meat exposed to flies was soon infested – As a result, scientists began to doubt Aristotle’s theory © 2012 Pearson Education Inc.

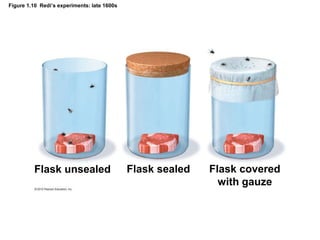

- 21. Figure 1.10 Redi’sexperiments: late 1600s Flask unsealed Flask sealed Flask covered with gauze

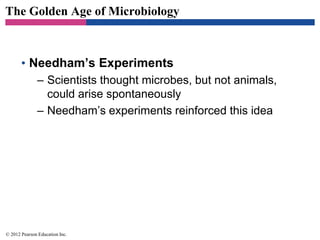

- 22. The Golden Ageof Microbiology • Needham’s Experiments – Scientists thought microbes, but not animals, could arise spontaneously – Needham’s experiments reinforced this idea © 2012 Pearson Education Inc.

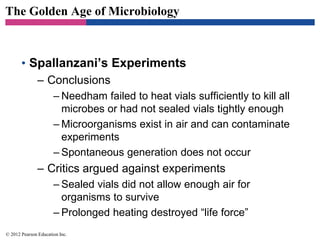

- 23. The Golden Ageof Microbiology • Spallanzani’s Experiments – Conclusions – Needham failed to heat vials sufficiently to kill all microbes or had not sealed vials tightly enough – Microorganisms exist in air and can contaminate experiments – Spontaneous generation does not occur – Critics argued against experiments – Sealed vials did not allow enough air for organisms to survive – Prolonged heating destroyed “life force” © 2012 Pearson Education Inc.
- 24. Figure 1.11 LouisPasteur
- 25.
- 26. The Golden Ageof Microbiology • Pasteur’s Experiments – When the “swan-necked” flasks remained upright, no microbial growth appeared – When the flask was tilted, dust from the bend in the neck seeped back into the flask and made the infusion cloudy with microbes within a day © 2012 Pearson Education Inc.

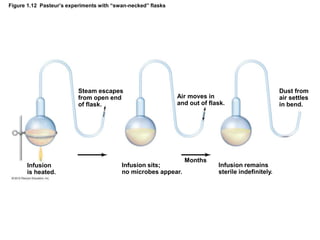

- 27. Figure 1.12 Pasteur’sexperiments with “swan-necked” flasks Steam escapes from open end of flask. Infusion is heated. Infusion sits; no microbes appear. Months Air moves in and out of flask. Infusion remains sterile indefinitely. Dust from air settles in bend.

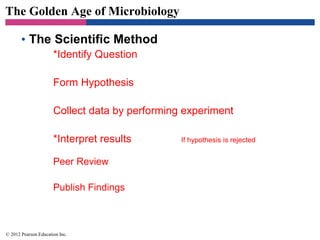

- 28. The Golden Ageof Microbiology • The Scientific Method *Identify Question Form Hypothesis Collect data by performing experiment *Interpret results If hypothesis is rejected Peer Review Publish Findings © 2012 Pearson Education Inc.

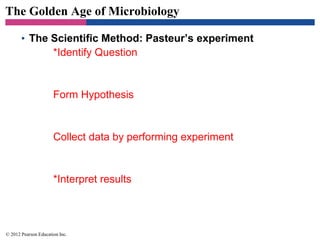

- 29. The Golden Ageof Microbiology • The Scientific Method: Pasteur’s experiment *Identify Question Form Hypothesis Collect data by performing experiment *Interpret results © 2012 Pearson Education Inc.

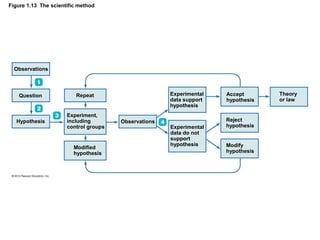

- 30. Figure 1.13 Thescientific method Observations Question Hypothesis Repeat Experiment, including control groups Modified hypothesis Observations Experimental data support hypothesis Experimental data do not support hypothesis Accept hypothesis Reject hypothesis Modify hypothesis Theory or law

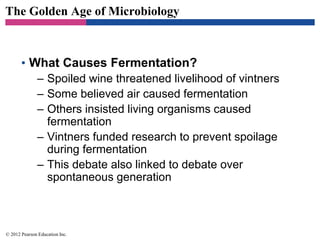

- 31. The Golden Ageof Microbiology • What Causes Fermentation? – Spoiled wine threatened livelihood of vintners – Some believed air caused fermentation – Others insisted living organisms caused fermentation – Vintners funded research to prevent spoilage during fermentation – This debate also linked to debate over spontaneous generation © 2012 Pearson Education Inc.

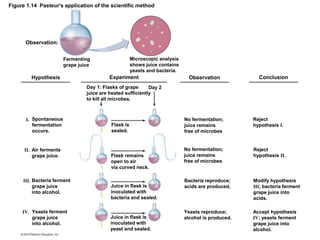

- 32. Figure 1.14 Pasteur'sapplication of the scientific method Observation: Hypothesis Experiment Observation Conclusion Fermenting grape juice Microscopic analysis shows juice contains yeasts and bacteria. Day 1: Flasks of grape juice are heated sufficiently to kill all microbes. Day 2 I. Spontaneous fermentation occurs. II. Air ferments grape juice. III. Bacteria ferment grape juice into alcohol. IV. Yeasts ferment grape juice into alcohol. Juice in flask is inoculated with yeast and sealed. Juice in flask is inoculated with bacteria and sealed. Flask remains open to air via curved neck. Flask is sealed. No fermentation; juice remains free of microbes No fermentation; juice remains free of microbes Bacteria reproduce; acids are produced. Yeasts reproduce; alcohol is produced. Reject hypothesis I. Reject hypothesis II. Modify hypothesis III; bacteria ferment grape juice into acids. Accept hypothesis IV; yeasts ferment grape juice into alcohol.

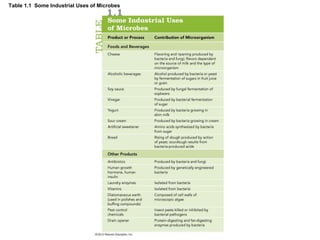

- 33. Table 1.1 SomeIndustrial Uses of Microbes

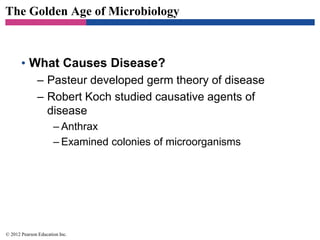

- 34. The Golden Ageof Microbiology • What Causes Disease? – Pasteur developed germ theory of disease – Robert Koch studied causative agents of disease – Anthrax – Examined colonies of microorganisms © 2012 Pearson Education Inc.
- 35.

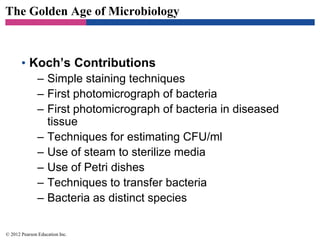

- 36. The Golden Ageof Microbiology • Koch’s Contributions – Simple staining techniques – First photomicrograph of bacteria – First photomicrograph of bacteria in diseased tissue – Techniques for estimating CFU/ml – Use of steam to sterilize media – Use of Petri dishes – Techniques to transfer bacteria – Bacteria as distinct species © 2012 Pearson Education Inc.

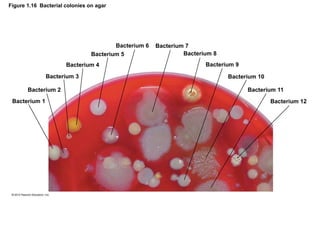

- 37. Figure 1.16 Bacterialcolonies on agar Bacterium 1 Bacterium 2 Bacterium 3 Bacterium 4 Bacterium 5 Bacterium 6 Bacterium 7 Bacterium 8 Bacterium 9 Bacterium 10 Bacterium 11 Bacterium 12

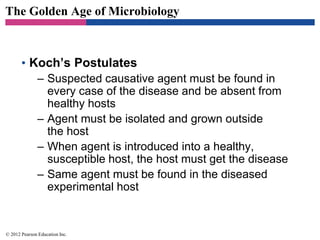

- 38. The Golden Ageof Microbiology • Koch’s Postulates – Suspected causative agent must be found in every case of the disease and be absent from healthy hosts – Agent must be isolated and grown outside the host – When agent is introduced into a healthy, susceptible host, the host must get the disease – Same agent must be found in the diseased experimental host © 2012 Pearson Education Inc.

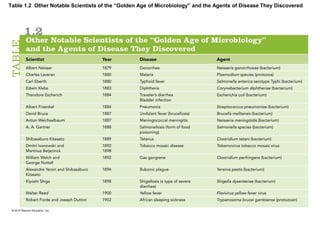

- 39. Table 1.2 OtherNotable Scientists of the “Golden Age of Microbiology” and the Agents of Disease They Discovered

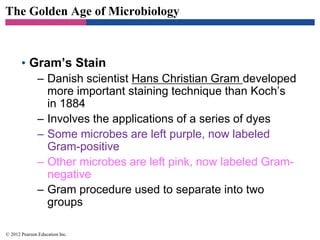

- 40. The Golden Ageof Microbiology • Gram’s Stain – Danish scientist Hans Christian Gram developed more important staining technique than Koch’s in 1884 – Involves the applications of a series of dyes – Some microbes are left purple, now labeled Gram-positive – Other microbes are left pink, now labeled Gram- negative – Gram procedure used to separate into two groups © 2012 Pearson Education Inc.
- 41. Figure 1.17 Resultsof Gram staining Gram-positive Gram-negative

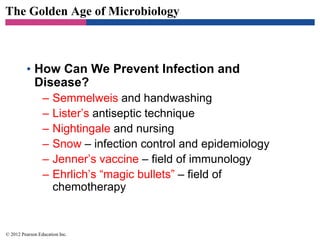

- 42. The Golden Ageof Microbiology • How Can We Prevent Infection and Disease? – Semmelweis and handwashing – Lister’s antiseptic technique – Nightingale and nursing – Snow – infection control and epidemiology – Jenner’s vaccine – field of immunology – Ehrlich’s “magic bullets” – field of chemotherapy © 2012 Pearson Education Inc.

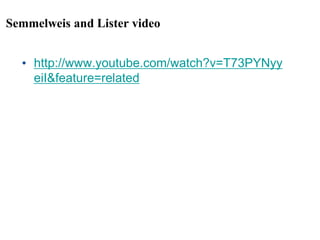

- 43. Semmelweis and Listervideo • http://www.youtube.com/watch?v=T73PYNyy eiI&feature=related
- 44. Figure 1.18 FlorenceNightingale
- 45. Figure 1.19 Somescientific disciplines and applications BIOLOGISTS MODERN DISCIPLINES Pre-1857 The Golden Age of Microbiology (1857–1907) Leeuwenhoek Linnaeus Semmelweiss Snow Bacteriology (bacteria) Protozoology (protozoa) Mycology (fungi) Parasitology (protozoa and animals) Phycology (algae) Taxonomy Infection control Epidemiology Pasteur Pasteurization Industrial microbiology Food and beverage technology Buchner Koch Koch’s postulates Ivanowski Beijerinck Winogradsky Gram Lister Nightingale Jenner von Behring Kitasato Ehrlich Fleming Microbial metabolism Genetics Genetic engineering Etiology Virology Environmental microbiology Ecological microbiology Microbial morphology Antiseptic medical techniques Hospital microbiology Serology Immunology Chemotherapy Pharmaceutical microbiology

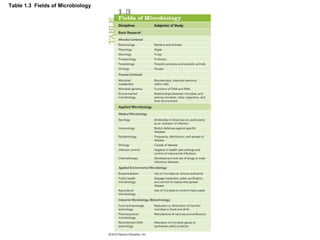

- 46. Table 1.3 Fieldsof Microbiology

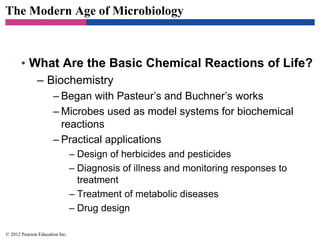

- 47. The Modern Ageof Microbiology • What Are the Basic Chemical Reactions of Life? – Biochemistry – Began with Pasteur’s and Buchner’s works – Microbes used as model systems for biochemical reactions – Practical applications – Design of herbicides and pesticides – Diagnosis of illness and monitoring responses to treatment – Treatment of metabolic diseases – Drug design © 2012 Pearson Education Inc.

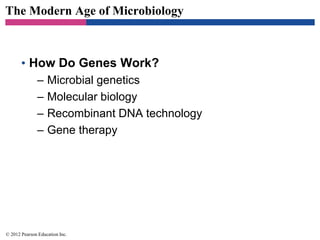

- 48. The Modern Ageof Microbiology • How Do Genes Work? – Microbial genetics – Molecular biology – Recombinant DNA technology – Gene therapy © 2012 Pearson Education Inc.

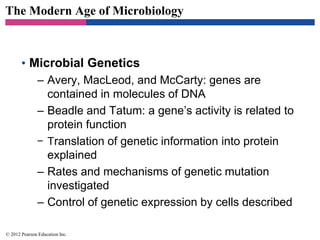

- 49. The Modern Ageof Microbiology • Microbial Genetics – Avery, MacLeod, and McCarty: genes are contained in molecules of DNA – Beadle and Tatum: a gene’s activity is related to protein function – Translation of genetic information into protein explained – Rates and mechanisms of genetic mutation investigated – Control of genetic expression by cells described © 2012 Pearson Education Inc.

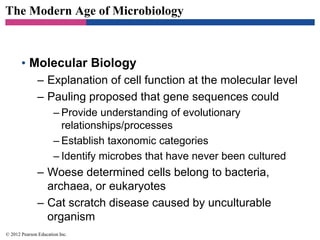

- 50. The Modern Ageof Microbiology • Molecular Biology – Explanation of cell function at the molecular level – Pauling proposed that gene sequences could – Provide understanding of evolutionary relationships/processes – Establish taxonomic categories – Identify microbes that have never been cultured – Woese determined cells belong to bacteria, archaea, or eukaryotes – Cat scratch disease caused by unculturable organism © 2012 Pearson Education Inc.

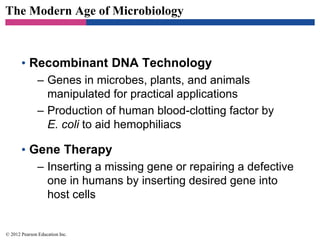

- 51. The Modern Ageof Microbiology • Recombinant DNA Technology – Genes in microbes, plants, and animals manipulated for practical applications – Production of human blood-clotting factor by E. coli to aid hemophiliacs • Gene Therapy – Inserting a missing gene or repairing a defective one in humans by inserting desired gene into host cells © 2012 Pearson Education Inc.
- 52. The Modern Ageof Microbiology • What Roles Do Microorganisms Play in the Environment? – Bioremediation uses living bacteria, fungi, and algae to detoxify polluted environments – Recycling of chemicals such as carbon, nitrogen, and sulfur © 2012 Pearson Education Inc.

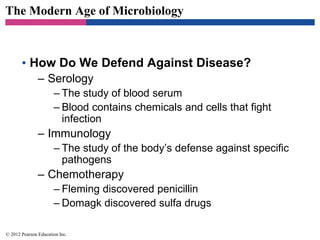

- 53. The Modern Ageof Microbiology • How Do We Defend Against Disease? – Serology – The study of blood serum – Blood contains chemicals and cells that fight infection – Immunology – The study of the body’s defense against specific pathogens – Chemotherapy – Fleming discovered penicillin – Domagk discovered sulfa drugs © 2012 Pearson Education Inc.

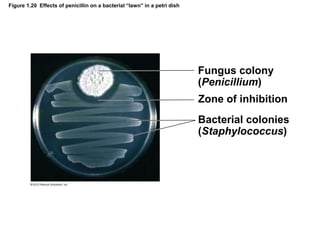

- 54. Figure 1.20 Effectsof penicillin on a bacterial “lawn” in a petri dish Fungus colony (Penicillium) Zone of inhibition Bacterial colonies (Staphylococcus)

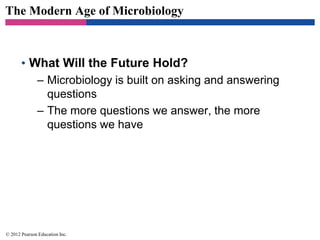

- 55. The Modern Ageof Microbiology • What Will the Future Hold? – Microbiology is built on asking and answering questions – The more questions we answer, the more questions we have © 2012 Pearson Education Inc.
