2. Work at heights is the second cause of work accidents with almost 100,000 falls per year, 100 of which
are fatal and 8,500 causing permanent incapacity.
The electricity sector is especially involved in a significant amount of work carried out
on high structures as varied as high voltage pylons, catenary structures or roofs,
whether they are on industrial buildings or on residential housing.
This guide by CATU covers the 6 most representative situations of work carried out
by electricians and the necessary equipment that is compliant with the applicable
standards. A full kit containing all the equipment required for each situation has been
produced to equip you in full compliance with the latest applicable laws.
What the regulations stipulate for work at heights:
* Decree no. 65-48 of 8 January 1965
Protection must be given against falls from a height of over 3 m.
* European directive of 1989, amended in 1993 and 1996 "Approximation of the laws of member states
relating to personal protective equipment"
"The national provisions relating to safety at work make the use of personal protective equipment compulsory; many requirements oblige employers to make appropriate personal protective equipment available to their staff in the absence or inadequacy of priority public protection measures."
"adoption of harmonized standards"
The CE marking is mandatory for all PPE compliant with the standards in force.
* Decree no. 92-766 of 29 July 1992: Enforcement decree of the 1989 European directive
* Decree no. 2004-924 of 1 September 2004: "decree relating to the use of work equipment made available for temporary work at heights... »
- The priority is the installation of collective protective equipment. When this is not possible, recourse to
an item of personal protective equipment against falls from a height is required, whether this is for the
purposes of retaining, support, saving, or protecting against falls from a height.
- Removal of the minimum height of 3 m: after a risk evaluation, protective equipment is required as
soon as there is a risk of a falling.
- A worker must never remain alone so that he can be assisted in a time compatible with the preservation
of his health.
- The work at height must never be conducted when the weather or environmental conditions of the work
place may compromise safety.
- The use of access and positioning techniques by means of ropes must comply with the following: a working rope, a safety rope fitted with a fall arrestor system, with two separate anchoring points. Workers must
be provided with suitable fall arrestor harnesses connected to both ropes. Safe descent/mounting systems with a self-locking system and a mobile fall prevention system must be provided.
- The work must be programmed and supervised so that assistance can be given immediately to the worker in the event of an emergency.
- The workers must receive suitable and specific training in the operations considered and in the
rescue procedures.

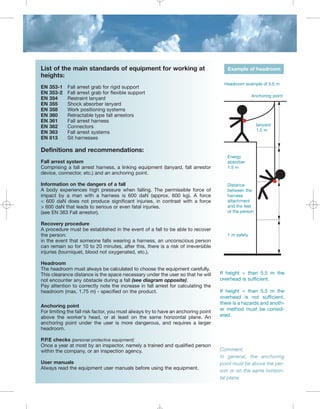

3. List of the main standards of equipment for working at
heights:
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
353-1
353-2
354
355
358
360
361
362
363
813
Fall arrest grab for rigid support
Fall arrest grab for flexible support
Restraint lanyard
Shock absorber lanyard
Work positioning systems
Retractable type fall arrestors
Fall arrest harness
Connectors
Fall arrest systems
Sit harnesses
Example of headroom
Headroom example of 5.5 m
Anchoring point
lanyard
1.5 m
Definitions and recommendations:
Fall arrest system
Comprising a fall arrest harness, a linking equipment (lanyard, fall arrestor
device, connector, etc.) and an anchoring point.
Information on the dangers of a fall
A body experiences high pressure when falling. The permissible force of
impact by a man with a harness is 600 daN (approx. 600 kg). A force
< 600 daN does not produce significant injuries, in contrast with a force
> 600 daN that leads to serious or even fatal injuries.
(see EN 363 Fall arrestor).
Recovery procedure
A procedure must be established in the event of a fall to be able to recover
the person:
in the event that someone falls wearing a harness, an unconscious person
can remain so for 10 to 20 minutes, after this, there is a risk of irreversible
injuries (tourniquet, blood not oxygenated, etc.).
Headroom
The headroom must always be calculated to choose the equipment carefully.
This clearance distance is the space necessary under the user so that he will
not encounter any obstacle during a fall (see diagram opposite).
Pay attention to correctly note the increase in fall arrest for calculating the
headroom (max. 1.75 m) - specified on the product.
Anchoring point
For limiting the fall risk factor, you must always try to have an anchoring point
above the worker's head, or at least on the same horizontal plane. An
anchoring point under the user is more dangerous, and requires a larger
headroom.
P.P.E checks (personal protective equipment)
Once a year at most by an inspector, namely a trained and qualified person
within the company, or an inspection agency.
User manuals
Always read the equipment user manuals before using the equipment.
Energy
absorber
1.5 m
Distance
between the
harness
attachment
and the feet
of the person
1 m safety
If height > than 5.5 m the
overhead is sufficient.
If height < than 5.5 m the
overhead is not sufficient,
there is a hazards and another method must be considered.
Comment:
In general, the anchoring
point must be above the person or on the same horizontal plane.

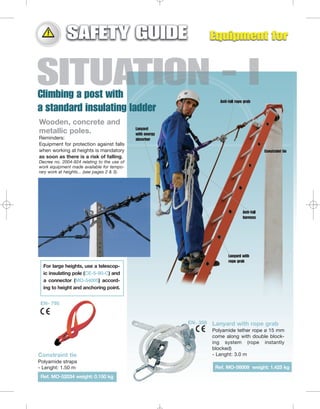

4. Anti-fall rope grab
Wooden, concrete and
metallic poles.
Reminders:
Equipment for protection against falls
when working at heights is mandatory
as soon as there is a risk of falling.
Lanyard
with energy
absorber
Constraint tie
Decree no. 2004-924 relating to the use of
work equipment made available for temporary work at heights... (see pages 2 & 3).
Anti-fall
harness
Lanyard with
rope grab
For large heights, use a telescopic insulating pole (CE-5-90-C) and
a connector (MO-54005) according to height and anchoring point.
EN- 795
EN- 358
Constraint tie
Polyamide straps
- Lenght: 1.50 m
Ref. MO-52034 weight: 0.150 kg
Lanyard with rope grab
Polyamide tether rope ø 15 mm
come along with double blocking system (rope instantly
blocked)
- Lenght: 3.0 m
Ref. MO-56009 weight: 1.425 kg

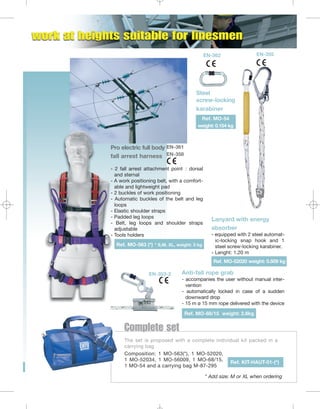

5. EN-362
EN-355
Steel
screw-locking
karabiner
Ref. MO-54
weight: 0.154 kg
Pro electric full body EN-361
fall arrest harness EN-358
- 2 fall arrest attachment point : dorsal
and sternal
- A work positioning belt, with a comfortable and lightweight pad
- 2 buckles of work positioning
- Automatic buckles of the belt and leg
loops
- Elastic shoulder straps
- Padded leg loops
- Belt, leg loops and shoulder straps
adjustable
- Tools holders
Ref. MO-563 (*) * S,M, XL, weight: 3 kg
Lanyard with energy
absorber
- equipped with 2 steel automatic-locking snap hook and 1
steel screw-locking karabiner.
- Lenght: 1.20 m
Ref. MO-52020 weight: 0.509 kg
EN-353-2
Anti-fall rope grab
- accompanies the user without manual intervention
- automatically locked in case of a sudden
downward drop
- 15 m ø 15 mm rope delivered with the device
Ref. MO-68/15 weight: 2.6kg
Complete set
The set is proposed with a complete individual kit packed in a
carrying bag
Composition: 1 MO-563(*), 1 MO-52020,
1 MO-52034, 1 MO-56009, 1 MO-68/15,
Ref. KIT-HAUT-01-(*)
1 MO-54 and a carrying bag M-87-295
* Add size: M or XL when ordering

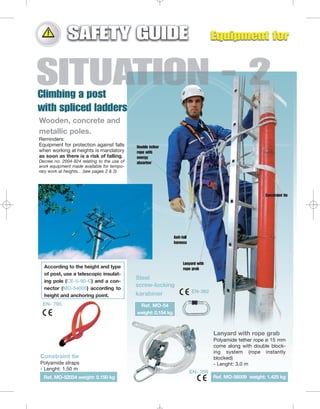

6. Wooden, concrete and
metallic poles.
Reminders:
Equipment for protection against falls
when working at heights is mandatory
as soon as there is a risk of falling.
Decree no. 2004-924 relating to the use of
work equipment made available for temporary work at heights... (see pages 2 & 3)
Double tether
rope with
energy
absorber
Constraint tie
Anti-fall
harness
According to the height and type
of post, use a telescopic insulating pole (CE-5-90-C) and a connector (MO-54005) according to
height and anchoring point.
EN- 795
Lanyard with
rope grab
Steel
screw-locking
karabiner
EN-362
Ref. MO-54
weight: 0.154 kg
Lanyard with rope grab
Polyamide tether rope ø 15 mm
come along with double blocking system (rope instantly
blocked)
- Lenght: 3.0 m
Constraint tie
Polyamide straps
- Lenght: 1.50 m
Ref. MO-52034 weight: 0.150 kg
EN- 358
Ref. MO-56009 weight: 1.425 kg

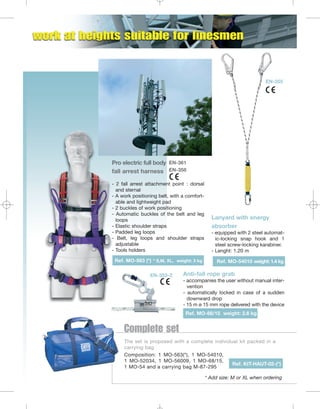

7. EN-355
Pro electric full body EN-361
fall arrest harness EN-358
- 2 fall arrest attachment point : dorsal
and sternal
- A work positioning belt, with a comfortable and lightweight pad
- 2 buckles of work positioning
- Automatic buckles of the belt and leg
loops
- Elastic shoulder straps
- Padded leg loops
- Belt, leg loops and shoulder straps
adjustable
- Tools holders
Ref. MO-563 (*) * S,M, XL, weight: 3 kg
EN-353-2
Lanyard with energy
absorber
- equipped with 2 steel automatic-locking snap hook and 1
steel screw-locking karabiner.
- Lenght: 1.20 m
Ref. MO-54010 weight: 1.4 kg
Anti-fall rope grab
- accompanies the user without manual intervention
- automatically locked in case of a sudden
downward drop
- 15 m ø 15 mm rope delivered with the device
Ref. MO-68/15 weight: 2.6 kg
Complete set
The set is proposed with a complete individual kit packed in a
carrying bag
Composition: 1 MO-563(*), 1 MO-54010,
1 MO-52034, 1 MO-56009, 1 MO-68/15,
Ref. KIT-HAUT-02-(*)
1 MO-54 and a carrying bag M-87-295
* Add size: M or XL when ordering

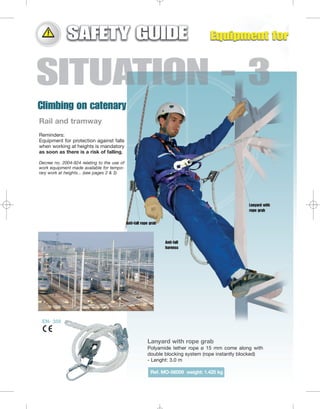

8. Rail and tramway
Reminders:
Equipment for protection against falls
when working at heights is mandatory
as soon as there is a risk of falling.
Decree no. 2004-924 relating to the use of
work equipment made available for temporary work at heights... (see pages 2 & 3)
Lanyard with
rope grab
Anti-fall rope grab
Anti-fall
harness
EN- 358
Lanyard with rope grab
Polyamide tether rope ø 15 mm come along with
double blocking system (rope instantly blocked)
- Lenght: 3.0 m
Ref. MO-56009 weight: 1.425 kg

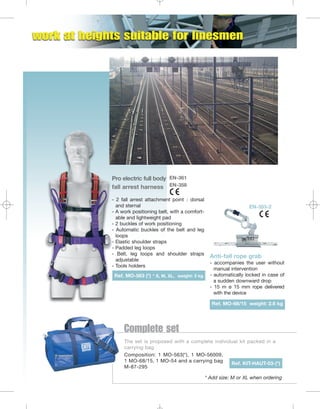

9. Pro electric full body EN-361
fall arrest harness EN-358
- 2 fall arrest attachment point : dorsal
and sternal
- A work positioning belt, with a comfortable and lightweight pad
- 2 buckles of work positioning
- Automatic buckles of the belt and leg
loops
- Elastic shoulder straps
- Padded leg loops
- Belt, leg loops and shoulder straps
adjustable
- Tools holders
Ref. MO-563 (*) * S, M, XL, weight: 3 kg
EN-353-2
Anti-fall rope grab
- accompanies the user without
manual intervention
- automatically locked in case of
a sudden downward drop
- 15 m ø 15 mm rope delivered
with the device
Ref. MO-68/15 weight: 2.6 kg
Complete set
The set is proposed with a complete individual kit packed in a
carrying bag
Composition: 1 MO-563(*), 1 MO-56009,
1 MO-68/15, 1 MO-54 and a carrying bag
Ref. KIT-HAUT-03-(*)
M-87-295
* Add size: M or XL when ordering

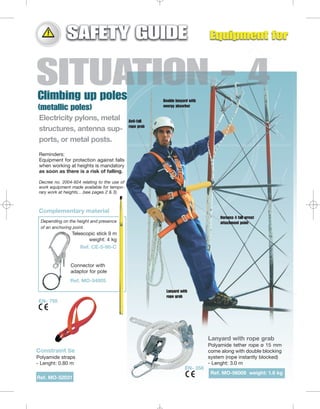

10. Double lanyard with
energy absorber
Electricity pylons, metal
structures, antenna supports, or metal posts.
Anti-fall
rope grab
Reminders:
Equipment for protection against falls
when working at heights is mandatory
as soon as there is a risk of falling.
Decree no. 2004-924 relating to the use of
work equipment made available for temporary work at heights... (see pages 2 & 3)
Complementary material
Harness 4 fall arrest
attachment point
Depending on the height and presence
of an anchoring point.
Telescopic stick 9 m
weight: 4 kg
Ref. CE-5-90-C
Connector with
adaptor for pole
Ref. MO-54005
Lanyard with
rope grab
EN- 795
Lanyard with rope grab
Polyamide tether rope ø 15 mm
come along with double blocking
system (rope instantly blocked)
- Lenght: 3.0 m
Constraint tie
Polyamide straps
- Lenght: 0.80 m
EN- 358
Ref. MO-56009 weight: 1.6 kg
Ref. MO-52031

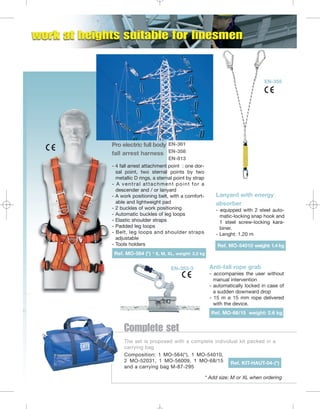

11. EN-355
Pro electric full body EN-361
fall arrest harness EN-358
EN-813
- 4 fall arrest attachment point : one dorsal point, two sternal points by two
metallic D rings, a sternal point by strap
- A ventral attachment point for a
descender and / or lanyard
- A work positioning belt, with a comfortable and lightweight pad
- 2 buckles of work positioning
- Automatic buckles of leg loops
- Elastic shoulder straps
- Padded leg loops
- Belt, leg loops and shoulder straps
adjustable
- Tools holders
Lanyard with energy
absorber
- equipped with 2 steel automatic-locking snap hook and
1 steel screw-locking karabiner.
- Lenght: 1.20 m
Ref. MO-54010 weight: 1.4 kg
Ref. MO-564 (*) * S, M, XL, weight: 3.2 kg
EN-353-3
Anti-fall rope grab
- accompanies the user without
manual intervention
- automatically locked in case of
a sudden downward drop
- 15 m ø 15 mm rope delivered
with the device.
Ref. MO-68/15 weight: 2.6 kg
Complete set
The set is proposed with a complete individual kit packed in a
carrying bag
Composition: 1 MO-564(*), 1 MO-54010,
2 MO-52031, 1 MO-56009, 1 MO-68/15 Ref. KIT-HAUT-04-(*)
and a carrying bag M-87-295
* Add size: M or XL when ordering

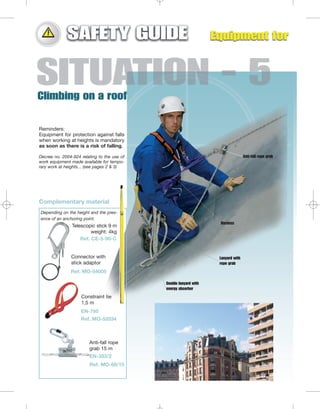

12. Reminders:
Equipment for protection against falls
when working at heights is mandatory
as soon as there is a risk of falling.
Decree no. 2004-924 relating to the use of
work equipment made available for temporary work at heights... (see pages 2 & 3)
Anti-fall rope grab
Complementary material
Depending on the height and the presence of an anchoring point.
Harness
Telescopic stick 9 m
weight: 4kg
Ref. CE-5-90-C
Connector with
stick adaptor
Lanyard with
rope grab
Ref. MO-54005
Double lanyard with
energy absorber
Constraint tie
1,5 m
EN-795
Ref. MO-52034
Anti-fall rope
grab 15 m
EN-353/2
Ref. MO-68/15

13. EN-355
EN-361
EN-358
Full body fall arrest
harness
- 2 fall arrest attachment point: dorsal
and sternal
- A work positioning belt, with a comfortable and lightweight pad
- 2 buckles of work positioning
- Belt, leg loops and shoulder straps
adjustable
- Unique size
- Tools holders
Ref. MO-71, weight: 2.6 kg
EN- 358
Lanyard with energy
absorber
- equipped with 2 steel automatic-locking snap hook and
1 steel screw-locking karabiner.
- Lenght: 1.20 m
Ref. MO-54010 weight: 1.4 kg
Lanyard with rope grab
Polyamide tether rope ø 15 mm
come along with double blocking
system (rope instantly blocked)
- Lenght: 3.0 m
Ref. MO-56009 weight: 1.6 kg
Complete set
The set is proposed with a complete individual kit packed in a
carrying bag
Composition: 1 MO-71, 1 MO-54010,
Ref. KIT-HAUT-05
1 MO-56009 and a carrying bag M-87-295

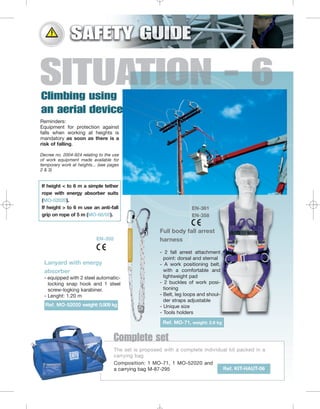

14. Reminders:
Equipment for protection against
falls when working at heights is
mandatory as soon as there is a
risk of falling.
Decree no. 2004-924 relating to the use
of work equipment made available for
temporary work at heights... (see pages
2 & 3)
If height < to 6 m a simple tether
rope with energy absorber suits
(MO-52020).
If height > to 6 m use an anti-fall
grip on rope of 5 m (MO-68/05).
EN-361
EN-358
Full body fall arrest
harness
EN-355
Lanyard with energy
absorber
- equipped with 2 steel automaticlocking snap hook and 1 steel
screw-logking karabiner.
- Lenght: 1.20 m
Ref. MO-52020 weight: 0.509 kg
- 2 fall arrest attachment
point: dorsal and sternal
- A work positioning belt,
with a comfortable and
lightweight pad
- 2 buckles of work positioning
- Belt, leg loops and shoulder straps adjustable
- Unique size
- Tools holders
Ref. MO-71, weight: 2.6 kg
Complete set
The set is proposed with a complete individual kit packed in a
carrying bag
Composition: 1 MO-71, 1 MO-52020 and
Ref. KIT-HAUT-06
a carrying bag M-87-295

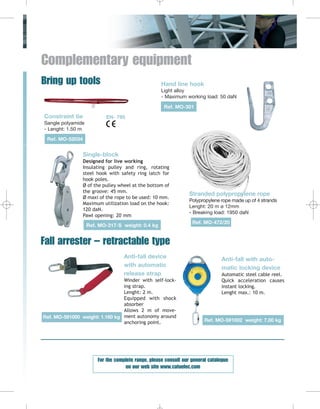

15. Complementary equipment
Bring up tools
Hand line hook
Light alloy
- Maximum working load: 50 daN
Ref. MO-301
Constraint tie
EN- 795
Sangle polyamide
- Lenght: 1.50 m
Ref. MO-52034
Single-block
Designed for live working
Insulating pulley and ring, rotating
steel hook with safety ring latch for
hook poles.
Ø of the pulley wheel at the bottom of
the groove: 45 mm.
Ø maxi of the rope to be used: 10 mm.
Maximum utilization load on the hook:
120 daN.
Pawl opening: 20 mm
Ref. MO-317-S weight: 0.4 kg
Stranded polypropylene rope
Polypropylene rope made up of 4 strands
Lenght: 20 m ø 12mm
- Breaking load: 1950 daN
Ref. MO-472/20
Fall arrester – retractable type
Anti-fall device
with automatic
release strap
Winder with self-locking strap.
Lenght: 2 m.
Equipped with shock
absorber
Allows 2 m of moveRef. MO-591000 weight: 1.160 kg ment autonomy around
anchoring point.
Anti-fall with automatic locking device
Automatic steel cable reel.
Quick acceleration causes
instant locking.
Lenght max.: 10 m.
Ref. MO-591002 weight: 7.00 kg
For the complete range, please consult our general catalogue
on our web site www.catuelec.com

16. 10/20 avenue Jean-Jaurès
Tel: +44B.P.2 1547
(0)191 490
92222 BAGNEUX (France)
Fax: +44 (0)191 477 5371
Phone:Email: northernsales@thorneandderri00
+33 1 42 31 46 ck.co.uk
Fax: +33 1 42 31 46 34
Website: www.cablejoints.co.uk
www.thorneanderrick.co.uk
www.catuelec.com
conception www.comst.fr
Your major supplier in
electrical safety equipment
