This document lists specifications for mini bone fragments, including cortical screws ranging from 1.5mm to 2.7mm in diameter and lengths from 6mm to 30mm. It also lists various bone plates including L-plates, T-plates, DCP plates and reconstruction plates in 2.0mm and 2.7mm thickness with varying hole counts and lengths. Reference codes are provided for each item.

1. MINIFRAGMENTS1.5mm - 2.0mm - 2.7mm

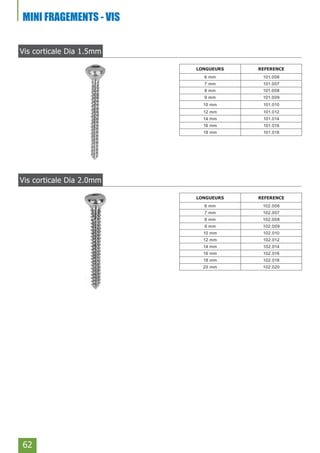

2. 62
MINI FRAGEMENTS - VIS
Vis corticale Dia 1.5mm
LONGUEURS REFERENCE
6 mm 101.006
7 mm 101.007
8 mm 101.008
9 mm 101.009
10 mm 101.010
12 mm 101.012
14 mm 101.014
16 mm 101.016
18 mm 101.018
Vis corticale Dia 2.0mm
LONGUEURS REFERENCE
6 mm 102.006
7 mm 102.007
8 mm 102.008
9 mm 102.009
10 mm 102.010
12 mm 102.012
14 mm 102.014
16 mm 102.016
18 mm 102.018
20 mm 102.020

3. 63
MINI FRAGEMENTS - VIS
Vis corticale Dia 2.7mm
LONGUEURS REFERENCE
6 mm 103.006
8 mm 103.008
10 mm 103.010
12 mm 103.012
14 mm 103.014
16 mm 103.016
18 mm 103.018
20 mm 103.020
22 mm 103.022
24 mm 103.024
26 mm 103.026
28 mm 103.028
30 mm 103.030
Vis corticale Dia 2.7mm, autotaraudeuse
LONGUEURS REFERENCE
6 mm 103.206
8 mm 103.208
10 mm 103.210
12 mm 103.212
14 mm 103.214
16 mm 103.216
18 mm 103.218
20 mm 103.220
22 mm 103.222
24 mm 103.224
26 mm 103.226
28 mm 103.228
30 mm 103.230

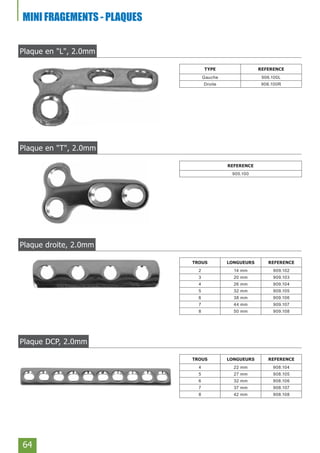

4. 64
Plaque en "L", 2.0mm
TYPE REFERENCE
Gauche 906.100L
Droite 906.100R
Plaque droite, 2.0mm
TROUS LONGUEURS REFERENCE
2 14 mm 909.102
3 20 mm 909.103
4 26 mm 909.104
5 32 mm 909.105
6 38 mm 909.106
7 44 mm 909.107
8 50 mm 909.108
MINI FRAGEMENTS - PLAQUES
Plaque en "T", 2.0mm
REFERENCE
905.100
Plaque DCP, 2.0mm
TROUS LONGUEURS REFERENCE
4 22 mm 908.104
5 27 mm 908.105
6 32 mm 908.106
7 37 mm 908.107
8 42 mm 908.108

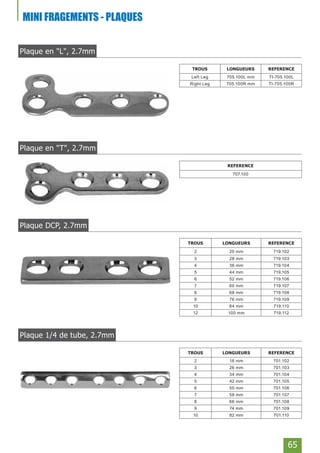

5. 65
Plaque en "T", 2.7mm
REFERENCE
707.100
Plaque 1/4 de tube, 2.7mm
TROUS LONGUEURS REFERENCE
2 18 mm 701.102
3 26 mm 701.103
4 34 mm 701.104
5 42 mm 701.105
6 50 mm 701.106
7 58 mm 701.107
8 66 mm 701.108
9 74 mm 701.109
10 82 mm 701.110
Plaque DCP, 2.7mm
TROUS LONGUEURS REFERENCE
2 20 mm 719.102
3 28 mm 719.103
4 36 mm 719.104
5 44 mm 719.105
6 52 mm 719.106
7 60 mm 719.107
8 68 mm 719.108
9 76 mm 719.109
10 84 mm 719.110
12 100 mm 719.112
MINI FRAGEMENTS - PLAQUES
Plaque en "L", 2.7mm
TROUS LONGUEURS REFERENCE
Left Leg 705.100L mm TI-705.100L
Right Leg 705.100R mm TI-705.100R

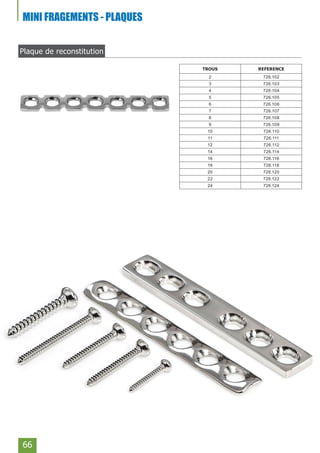

6. 66
Plaque de reconstitution
TROUS REFERENCE
2 726.102
3 726.103
4 726.104
5 726.105
6 726.106
7 726.107
8 726.108
9 726.109
10 726.110
11 726.111
12 726.112
14 726.114
16 726.116
18 726.118
20 726.120
22 726.122
24 726.124
MINI FRAGEMENTS - PLAQUES
